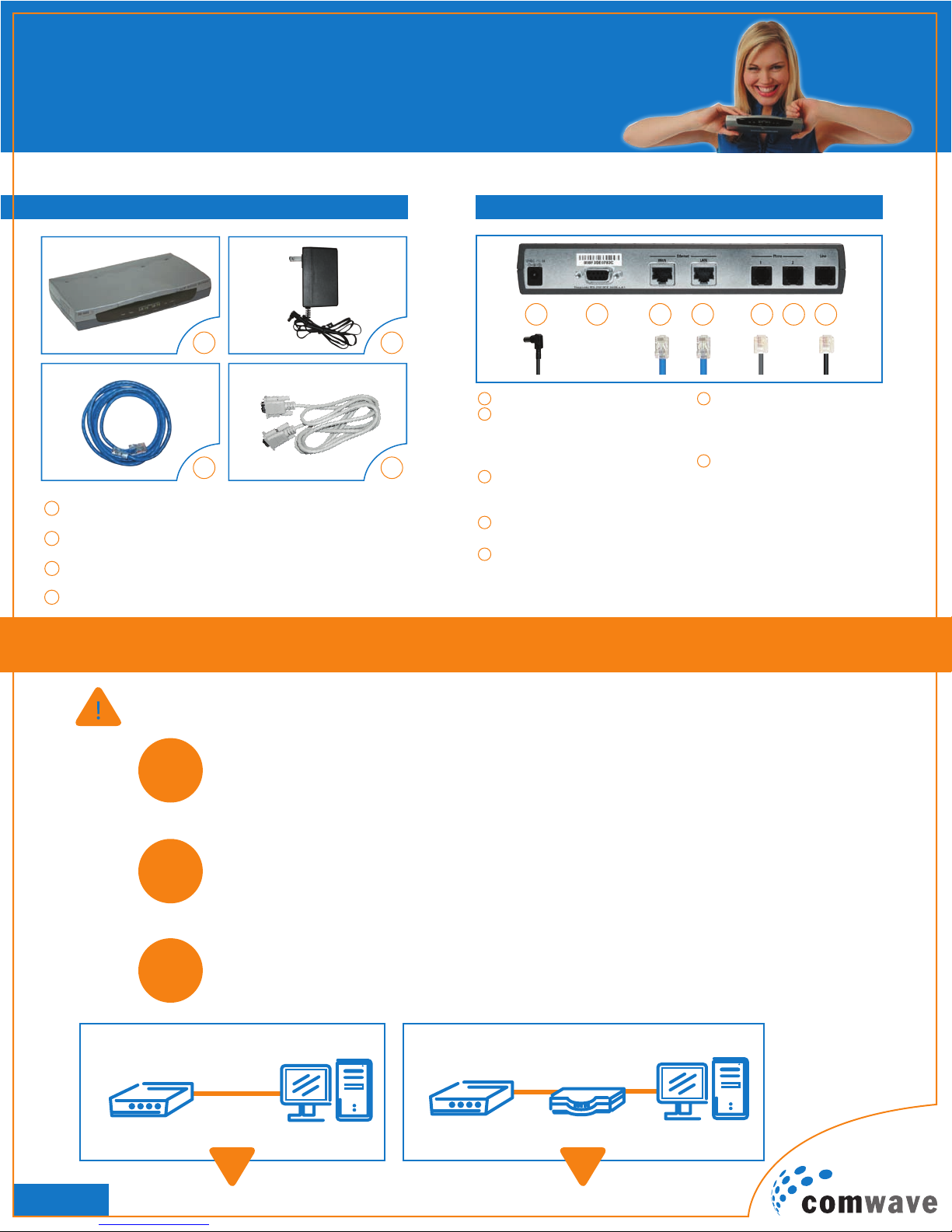

Quick Start Guide
D-Link DG-102S iPhone Device
Please Note: This guide covers the two most common setups. Please visit www.comwave.net/setup
for advanced network congurations.
1
Package Contents iPhone Connections
2
4
3
1 2 3 45 6 7
1 Power Connection
2 Serial Cable
Used only if instructed by
Comwave Technical Support
to assist with troubleshooting.
3 WAN
Used to connect to the High
Speed Internet modem or router.
4 LAN
Used to connect to your PC.
5 Phone 1
This is phone line 1. A telephone
number will be assigned to this port.
Used to connect the telephone.
6 Phone 2
This is phone line 2. Used to
connect a second telephone, if
subscribed to two phone lines.
7 Life Line
NOTE: Dial“#”to activate this port.
Used to:
a) Connect to an existing phone
jack to access the building
intercom functions in apartment
buildings.
b) Connect to a back-up non-VoIP
land line in the event of Internet
loss, if a back-up line is available.
1D-Link DG-102S iPhone Device
2Power Adapter
3Ethernet Cable
4Serial Cable
Please go to www.comwave.net/register and log in with your Customer
ID and the contact telephone number you provided to Comwave upon
ordering the iPhone.
Once you have registered, go to www.comwave.net/myaccount and log
in with your new user name and password. Click on the“Activate iPhone”
link in the left menu and follow the instructions.
Continue below with set-up instructions.
Start Here
Important: You must register your account and activate your iPhone online prior to set-up.
High Speed Modem Your Computer
If your network looks like this... If your network looks like this...
High Speed Modem Your ComputerRouter
Go to page 2 Go to page 6
1
2
3

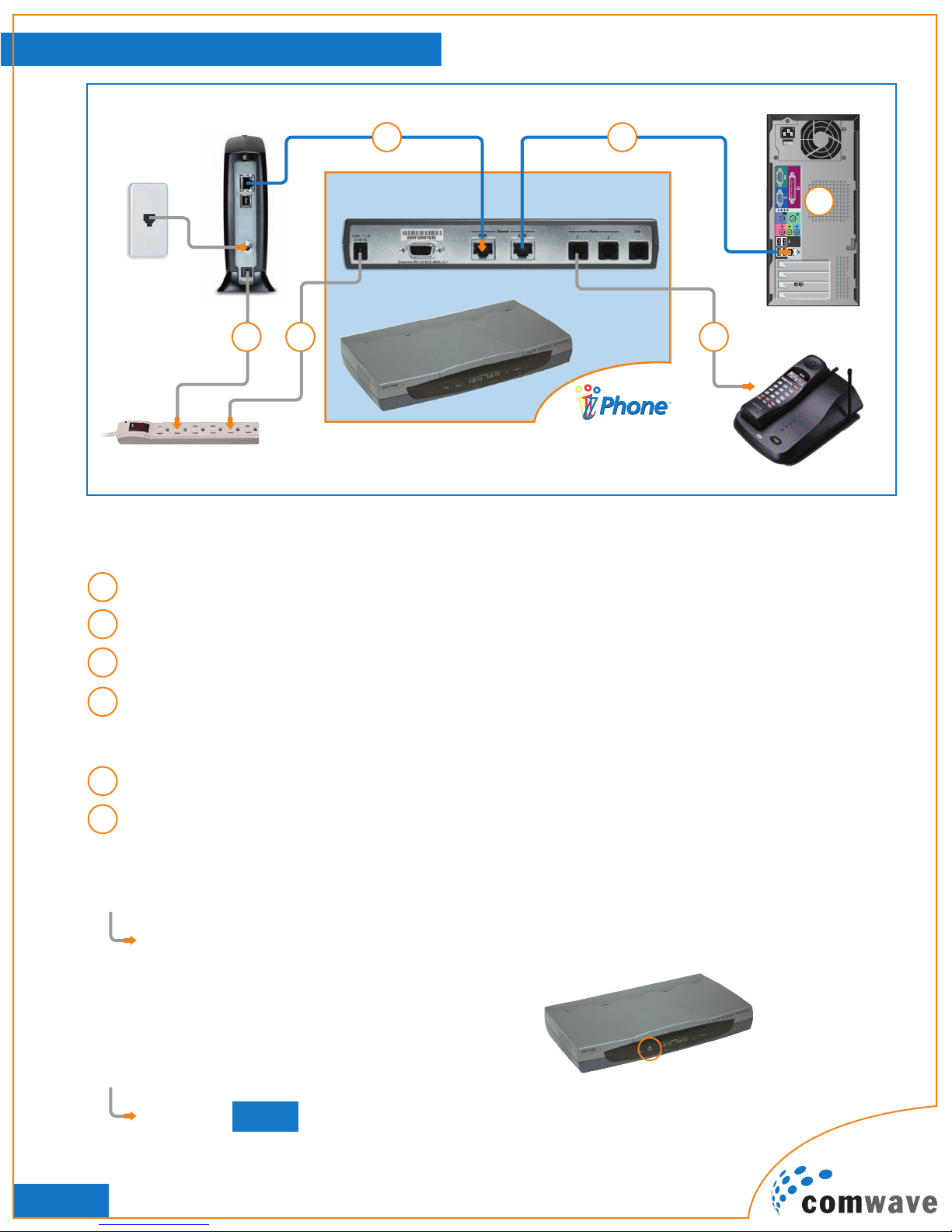

Page 2
To begin installation, turn o your computer and disconnect the power adapter to your high speed modem.
Connect an Ethernet cable from the high speed modem to the WAN port of the iPhone
Connect an Ethernet cable from the LAN port of the iPhone to your computer
Connect your telephone to the Line 1 of the iPhone
Connect the high speed modem to the power outlet
Note: Please wait 2 minutes before continuing to the next step
Connect the iPhone to the power outlet
Start your computer
IF YOU HAVE:
CABLE HIGH SPEED INTERNET
The iPhone Status light will blink until it has successfully connected to the Comwave network.
Once the status light becomes solid green, the iPhone is ready for use.
IF YOU HAVE:
DSL HIGH SPEED INTERNET
Continue to Page 3
Typical Installation (No Existing Router)
high speed
internet modem
PC
telephone
power outlet
existing
cable or phone
line
1
step
2
step
3
step
6
step
4
step
5
step
1
step
2
step
3
step
4
step
5
step
6
step

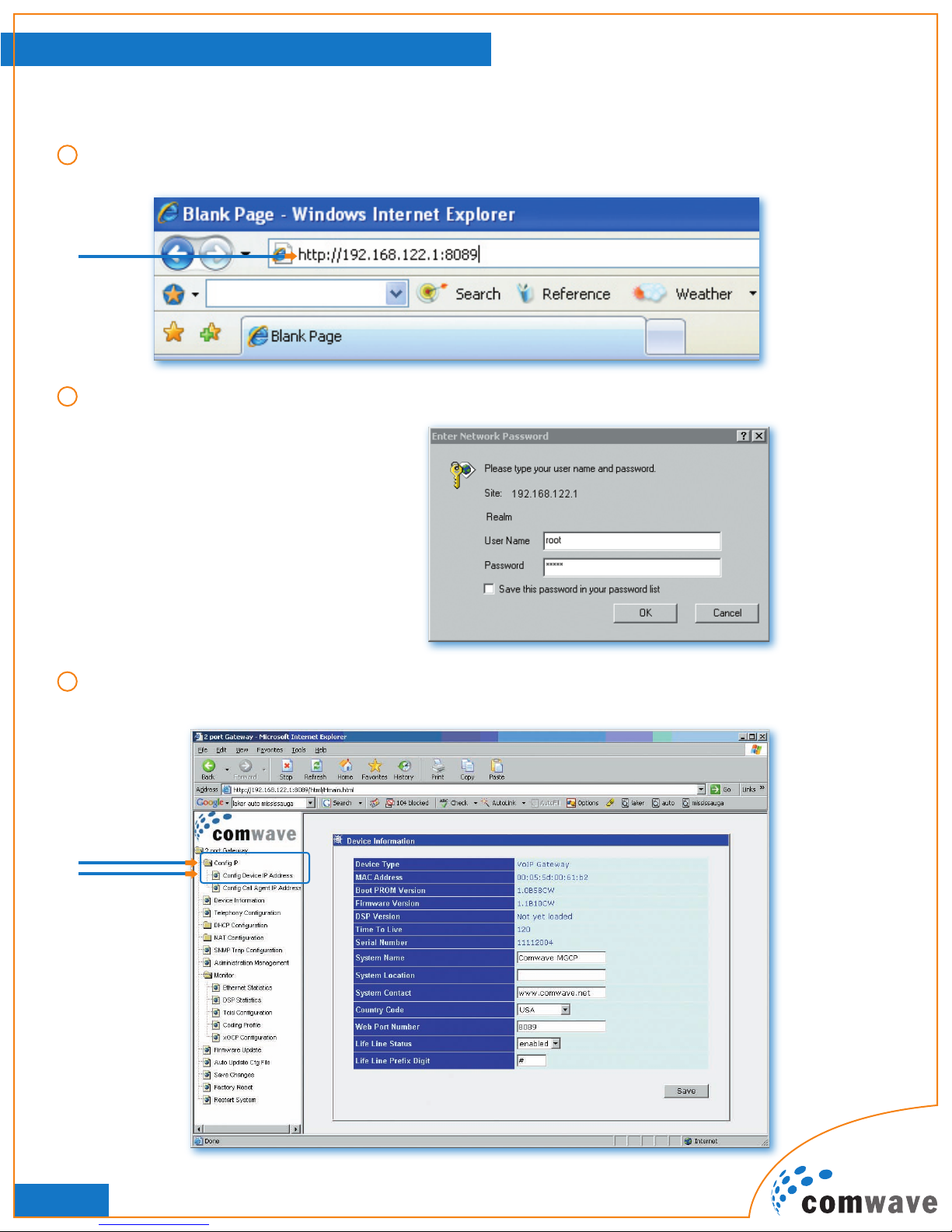

Page 3
NOTE: Some DSL providers issue a user name and password to connect to the internet. Some do not. Please call
your Internet Service Provider before continuing to ask them if you require a user name and password (PPPoE).
Start your computer, open a browser window, type “http://192.168.122.1:8089” into the address
eld and press the Enter key.
When prompted, enter the following user name and password and click “OK”.
USER NAME: root
PASSWORD: admin
In the left toolbar menu, click on “Cong IP” and then select “Cong Device IP Address”.
Installation with a DSL modem (No Router)
1
2
3

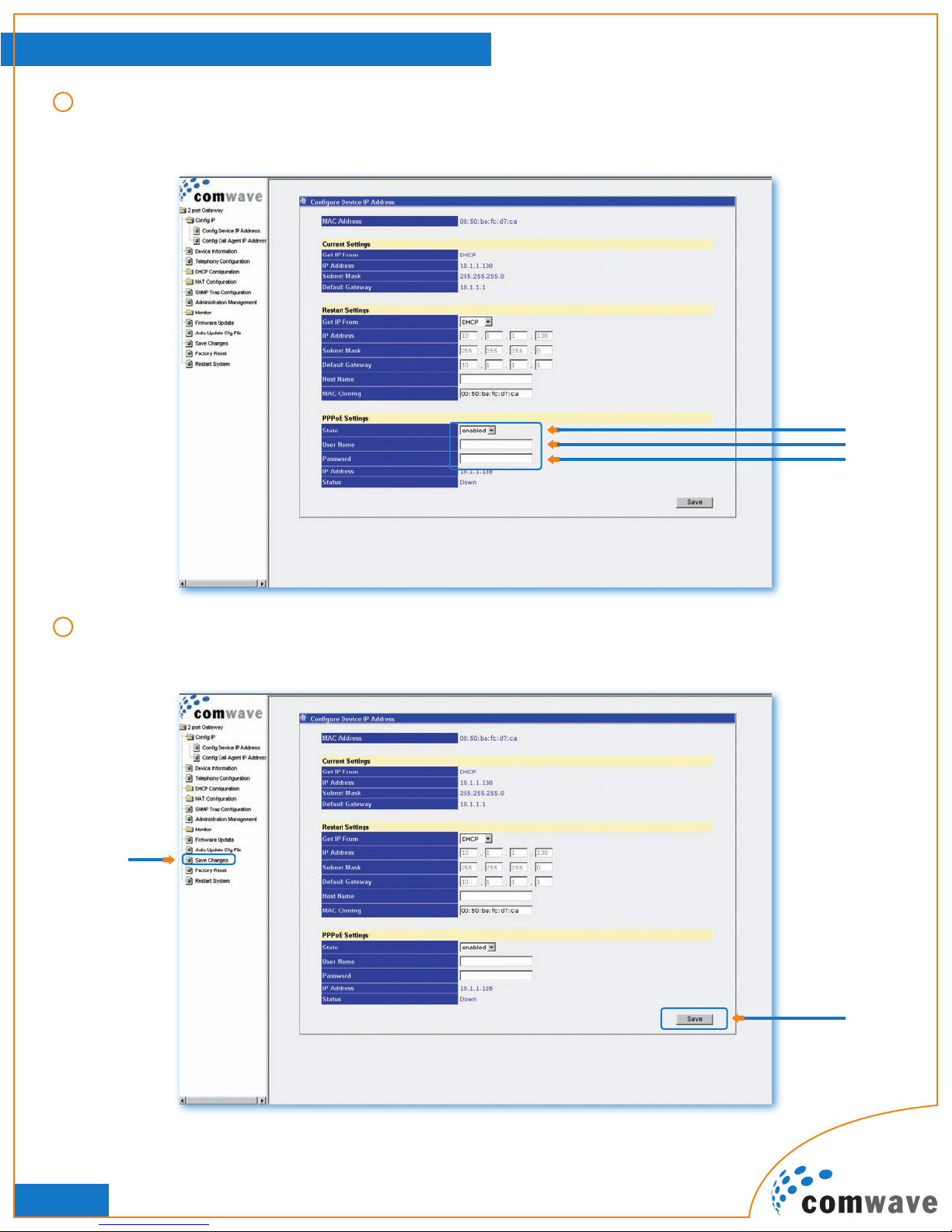

Page 4
In the main window (under the section called “PPPoE Settings”), ensure that the dropdown menu is “enabled” .
Fill in the user name and password provided by your Internet Service Provider. It is important to be very accurate.
The user name and password are case sensitive. Any mistakes will prevent your iPhone from getting a dial tone.
In the bottom right corner of the main window, click the “Save” button.
On the left toolbar menu, select “Save changes”.
Installation with a DSL modem (No Router) - Cont’d
4
5

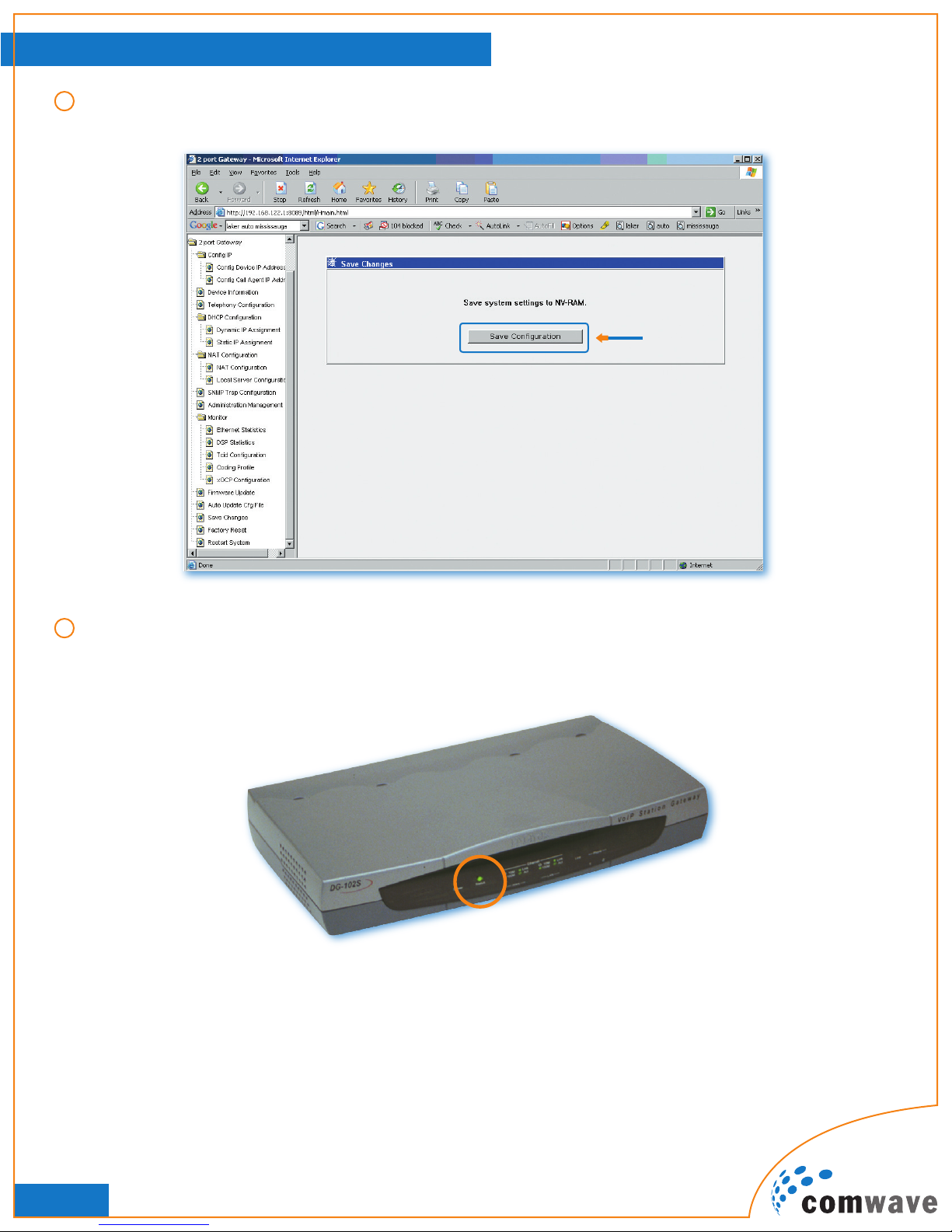

Page 5
In the main window, click on the “Save Conguration” button.
This will restart your iPhone. Please wait approximately 2 minutes for service to begin. The iPhone Status
light will blink until it has successfully connected to the Comwave network. Once the status light becomes
solid green, the iPhone is ready for use.
Installation with a DSL modem (No Router) - Cont’d
6
7

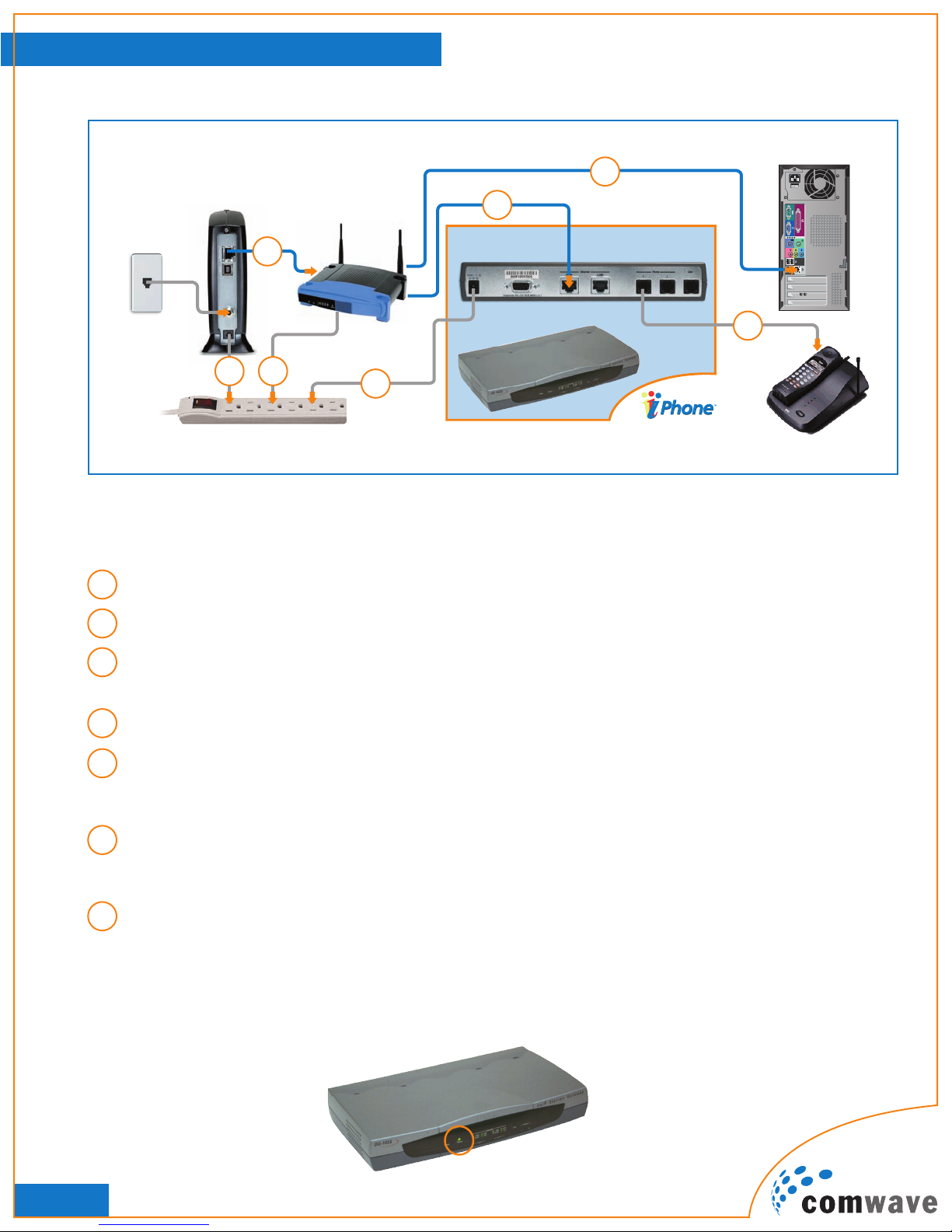

Page 6
To begin installation, turn o your computer and disconnect the power adapters to your high speed modem and router.
Connect an Ethernet cable from the high speed modem to the WAN port of the router.
Connect an Ethernet cable from the LAN port of the router to the WAN port of the iPhone.
Connect the Ethernet cable from the LAN port of the router to the PC. The PC can also be connected
to the available LAN port on the iPhone.
Connect your telephone to the Line 1 of the iPhone.
Connect the high speed modem to the power outlet.
Note: Please wait 2 minutes before continuing to the next step.
Connect the router to the power outlet.
Note: Please wait 2 minutes before continuing to the next step.
Connect the iPhone to the power outlet.
The iPhone Status light will blink until it has successfully connected to the Comwave network.
Once the status light becomes solid green, the iPhone is ready for use.
The iPhone Status light will blink until it has successfully connected to the Comwave network.
Once the status light remains lit, the iPhone is ready for use.
Installation with a Router
power outlet telephone
existing
cable or phone
line
router
PC
1
step
2
step
3
step
4
step
5
step
6
step
7
step
1
step
2
step
3
step
4
step
5
step
6
step
7
step
high speed
internet modem

Notes

Have more questions?
Live and personal Customer Care is available when you need it
with our extended hours.
Our Technical Support team is available:
Monday - Friday 8:30 am - 12 am
Saturday 10 am - 6 pm
Sunday 12 am - 6 pm
