1.EquipmentIntroduction
ThischaptermainlyintroducesfunctionsandstructuresofDVG‐6001G.
1.1Overview
DVG‐6001GisafullfunctionGSMwirelessgatewaybasedonIP.Itisabletoofferstable
networkconfiguration,powerfulfunctioncharacteristics,excellentvoicequalityandprovide
affordableVoIPsolutionsforoperators,enterprise,SOHO,homeusers.
Toensurethatexistinginstructuredcablingandensurethesafetyoftheexistingnetworknormal
operation,itsupportsIEEE802.3afPOE.
1.2Applicationsolutions

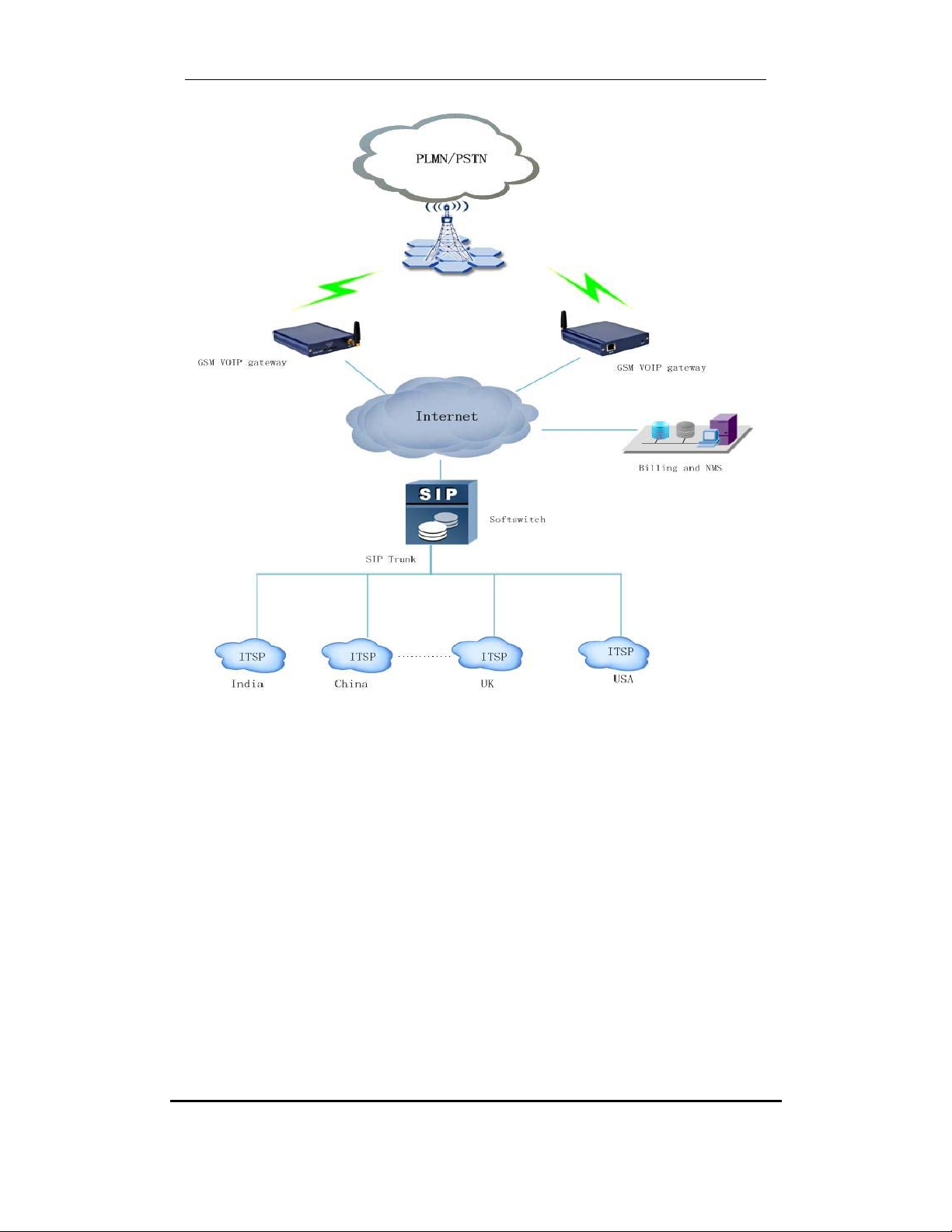

DVG‐6001Gprovideswirelessaccessserviceforcustom.Thefollowingisatypicalscheme
networkdiagram.

DVG-6001G User Manual
4
D-Link Corporation.


Figure1‐2‐1DVG‐6001Gapplicationsolution

DVG-6001G User Manual
5
D-Link Corporation.

1.3Productappearance
Figure1‐3‐1DVG‐6001GViewbeforeandafter
Table1‐3‐1DVG‐6001Ginterfaceintroduction
InterfaceDiscription
WAN
WhenconnectingnormaltheWANindicatorwillflash,whilenotregister,
pleasecheckwhetherthenetworkconnectionisnormalfirstly.WAN
usedasaLANunderbridgemode.WANportintransmitsdataatthe
sametimethepoweristransmittedalso,forthisdeviceprovideDC
powersupply.
RSTLongclickthisbuttonfactorydefaultrecovery
SIMSlotSIMcardslot,pleasepresstheyellowbuttonattheedgeofslot,
ANTExternalrubberliningtheantenna,gainis3dBi

Table1‐3‐2DVG‐6001Gindicatorlight
LEDColorStateDescription
RUNGreen
SlowlyflashSIPaccountdoesnothave
registered
FastlyflashSIPaccounthaveregistered

DVG-6001G User Manual
6
D-Link Corporation.

GSMGreen
DestroySIPaccountdoesnothave
FastlyflashSIPaccounthaveregistered
1.4Functioncharacteristics
1.4.1Protocol
 StandardSIP
 NAT
 PPPoE、HTTP、DHCP、DNS
 ITU‐TG.711a‐Law/μ‐Law、G.723.1、G.729AB;
1.4.2SystemFunction
 PLC、VAD、CNG
 POE
 SupportlocalandremoteSIMcardregister
 Adjustmentportgain
 ManyDTMFmode
 Singletalktimelimit
 Totalcalltimelimit
 Talktimeremainingreset
 Balancealarm
 SIM/UIMcardencryption
 SMSsendingandreceiving
 CustomizedIVR
 Black/Whitelist
 SMS、USSDOpenAPIinterface
 EchoCancellation(withITU‐TG.168/165standard)
 Automaticnegotiatenetwork
 Hotline
 Automaticrestartmodule
 Lgenerationdial
1.4.3IndustrialStandardsSupported
 Stationaryuseenvironment:EN300019:Class3.1
 Storageenvironment:EN300019:Class1.2
 Transportationenvironment:EN300019:Class2.3
 Acousticnoise:EN300753
 CEEMCdirective2004/108/EC
 EN55022:2006+A1:2007

DVG-6001G User Manual
7
D-Link Corporation.

 EN61000‐3‐2:2006,
 EN61000‐3‐3:1995+A1:2001+A2:2005
 EN55024:1998+A1:2001+A2:2003
 Certifications:FCC,CE
1.4.4GeneralHardwareSpecification
 PowerSupply：44‐57V,550mAMAX
 Tem perat ure :0~40（Operation）,‐20~80（storage）
 Humidity:5%～90%RH
 PowerConsumption:6.5‐13W
 Dimensions:120(W)x90(D)x24(H)mm
 Netweight:0.8kg
2.EquipmentInstallation
ThischaptermainlyintroducesDVG‐6001Ghardwareinstallationandconnectionof
equipment.
2.1InstallationNotice
1. DVG‐6001GusedPOEforpowertomakesureequipmentstablepowersupply
2. DVG‐6001GinterfacessupportRJ45 的10/100Mbps
3. DirectlyintotheSIMcard,GSMchannelcanbestartedwork
2.2InstallationProcedure
2.2.1InstallSIMCard
WheninstallingSIMcard,openingblankpanelofSIMslot,procedureshowsasbelow:
 Pushdowntheyellowbutton,theSIMslotwillpopup;
 InsettheSIMcardtotheSIMslot.
2.2.2AntennaInstallation
TakeantennaconnectedinantennainterfaceofDWGwhichsignof"ANT"on



DVG-6001G User Manual
8
D-Link Corporation.


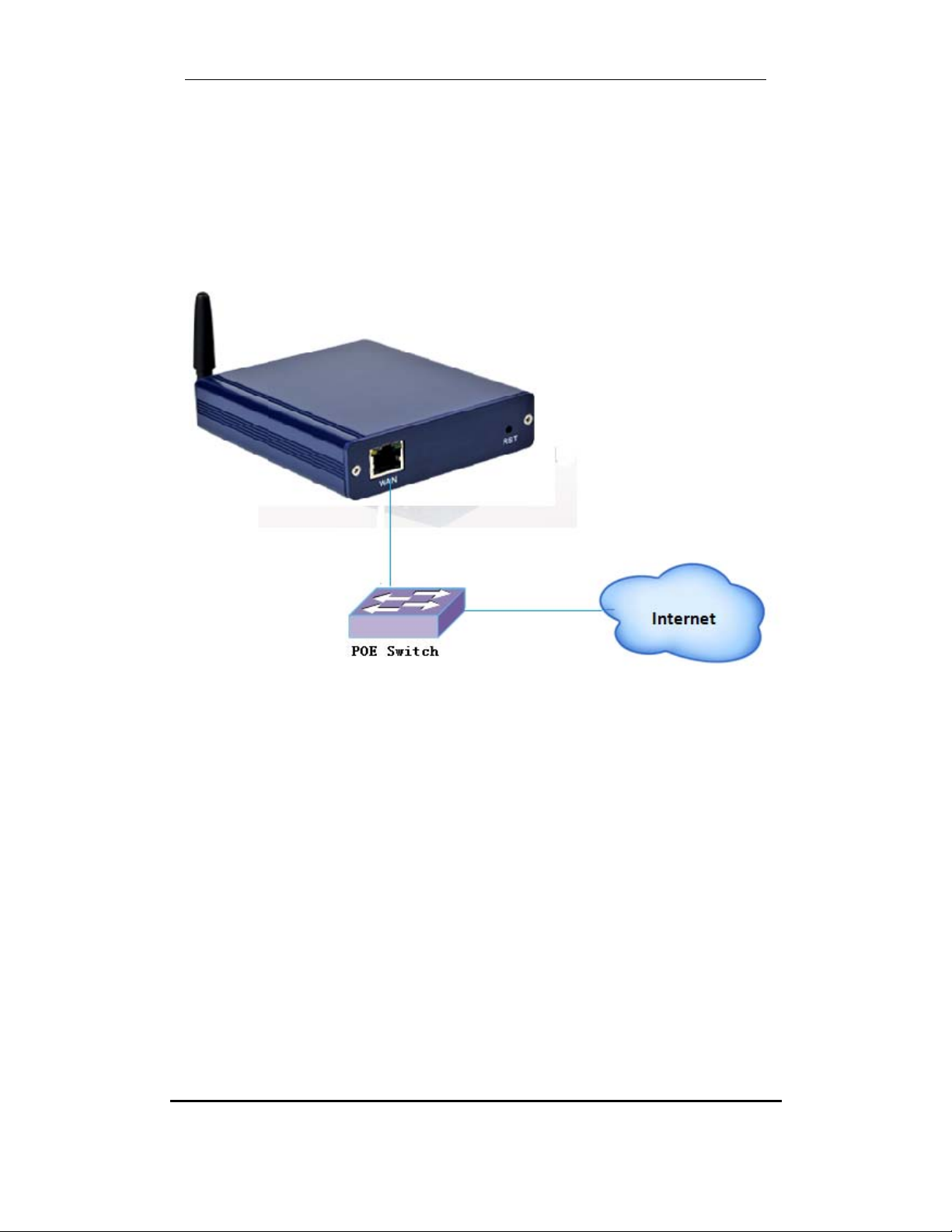

2.2.3CableConnectionofEquipment
DVG‐6001Gworksinbridgemode:




Figure2‐2‐1DVG‐6001Gconnection
3.NetworkConfiguration
InthischapterwewillintroducetheinitialconfigurationofDVG‐6001Ggateway.Allofthe
networkparametersofthegatewaycanbeconfiguredbyIVRguidance.
3.1Preparation
PleaseensurethefollowingstepesaredoneproperlybeforeIVRsetting:
1. Prepareananalogtelephoneormobilephone
2. Makesurethegatewayisconnectedwiththenetwork
3. CompletedtheSIMinstallation
4. Makesurethatthecurrentmobilenetworkisworking

DVG-6001G User Manual
9
D-Link Corporation.

3.2 Attentions
Ineachstep,ifuserhearsanIVRmessageof“settingsuccessful”,whichmeansthatuserhas
finishedthisstepsuccessfully.However,ifuserhearsa“settingfailed”message,please
checkredotheatstepagain.
DVG‐6001GcanworkinbridgemodeusershouldconfigurenetworkparametersofWAN
port.
3.3GeneralFeatureCodesforSystemSetting
Table3‐3‐1Featurecodesforsystemsetting
DialnumbersFeatures
*114#PlaythephoneNO.
*150*a#SetIPaddress(static/DHCP),acanbedigit1or2,*150*1#is
staticIPaddressmode,*150*2#isDHCPmode
*152*a*b*c*d#SetIPaddress(static/DHCP),acanbedigit1or2,*150*1#is
*153*a*b*c*d#Configuresubnetmask.a,b,c,darethefourfieldsofthe
subnetmask
*156*a*b*c*d#Configurethedevicegateway,a,b,c,darethefourfieldsofthe
devicegateway
*158#ReporttheIPaddress
*111#Restart

3.4StaticIPConfiguration
AssumingtheIPaddressofaDVG‐6001Gdeviceis:
IP：172.16.0.100subnetmask：255.255.0.0gateway:172.16.1.1
configuredasfollows:
1. InsertaSIMcardintotheDVG‐6001Ggateway
2. Theconfigurationmode:DialthephonenumberofthisSIMcard.hearamessage,then
enter“*150*1#”,hangupwhenhear“settingsuccessful"message;

DVG-6001G User Manual
10
D-Link Corporation.

3. ConfigureIPaddress:DialthephonenumberofthisSIMcard,hearamessage,enter"*152
*172*16*0*100#"hangupwhenhear“settingsuccessful"message;
4. configuresubnetmask:DialtheSIMcardphonenumber,enter"*153*255*255*0*0#"
hangupwhenhear“settingsuccessful"message;
5. Configuregateway:DialtheSIMcardphonenumber,enter"*156*172*16*0*1#"hangup
whenhear“settingsuccessful"message;
6. Pleasewaitabouttensecondswhenfinishingtheoperations,restartdevice.dialtheSIM
cardphonenumber,enter“*158#”tochecktheStaticIPaddress;
3.53.5DHCPConfiguration
DHCPmodeconfigureasfollows:
1. InsertaSIMcardintoaslot,dialtheSIMcardnumber.Whenhearingahintmessage,then
enter“*150*2#”, ifhearing“settingsuccessful"message,whichmeanstheDHCPis
confiruedsuccessfully;
2. Restartthedevice,waitfor30seconds,andthendialtheSIMcardtelephonenumber,enter
"*158#"toquerytheIPaddress;
Note:IfreportingtheIPaddressis0.0.0.0,whichmeansthatthegatewaycouldnotobtaina
IPaddresssuccessfully.Pleasecheck:
1. Makesurethedevicehavebeenconnectedtothenetwork;
2. MakesuretheDHCPServerisworking.IfthereisnoDHCPServer,pleasesettheIPofdevice
tostaticIP.

DVG-6001G User Manual
11
D-Link Corporation.

4. WEB Configuration
This charpter describes web configuration of DVG-6001G.
4.1 Preparing
DVG-6001G connected to the local area network of PC used logged in with LAN.
4.2 WEB Landing Interface
The default IP of DVG-6001G is 192.168.11.1/ 255.255.255.0. Also can modify equipment
IP by IVR. Before landing please ensure that with equipment connected PC's IP address
and the IP address of the equipment in the same subnet. Enter IP address of DVG-6001G
in browser.

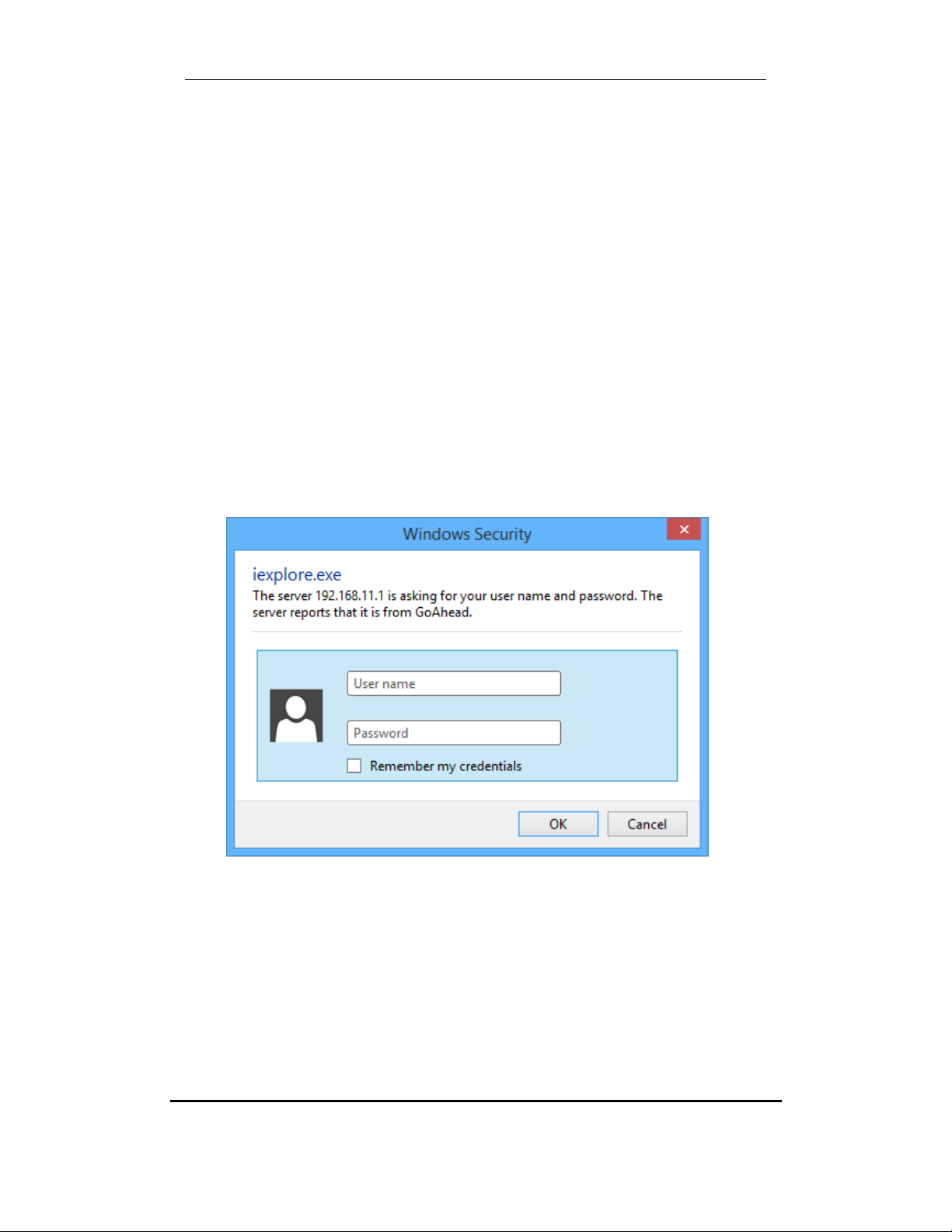

Figure 4-2-1 web landing interface
Enter username and password and then click “OK” in configuration interface. The default
username and password are “admin/admin”. It is strongly recommended, change the default
password to a new password for system security.

DVG-6001G User Manual
12
D-Link Corporation.

4.3 WEB Configuration
DVG-6001G web configuration interface consists of the navigation tree and the detail
configuration interfaces.
Figure 4-3-1 Web introduce
4.4 System
System information interface shows the basic information of system, Mobile information and
SIP information.

DVG-6001G User Manual
13
D-Link Corporation.

Figure 4-4-1 System Information
4.4.1 System Information
Figure 4-4-2 System Information
Table 4-4-1 System Information Describe
MAC Address Display the current MAC of the gateway, for example: 00-01-0C-
03-A4-2F
Network Mode DVG-6001G only support “bridge” mode, please reference network
configure
Network Display IP, subnet mask and the way of obtain IP address
DNS Server Display DNS server IP address
System Up Time Display the time period of the device running
Network Traffic
Statistics
Calculates the netflow, including the total bytes of message
received and sent
Version information Display the version information, include: product model, firm
ware version, hardware version and date compiled.
4.4.2 Mobile Information
Display GSM channel and network status information, detailed shown as below:
Figure 4-4-3 Mobile Information
Table 4-4-2 Mobile Information

DVG-6001G User Manual
14
D-Link Corporation.

Port Numbers of ports of GSM
Type The current type of network. Such as CDMA or GSM
IMSI International Mobile Subscriber Identity, it is the uniquely identifies of
SIM card
Status Indicates the connection status of current GSM module
Remaining Call
Duration(min)
Limite a call duration to the SIM card, when call duration is out of that
duration, the call would be discontinued. This option shows remaining
talk time.
Carrier Display the network carrier of current SIM card.
Signal Quality Displays the signal strength of in each channels of GSM
BER Bit erro rate
ASR（%） Average connection rate
ACD Average call duration
PDD Delay between call sent out and call connected
Call Status Show the status of call, include idle, handle, hangup, call such status
4.4.3 SIP Information
Figure 4-4-4 SIP Information
Table 4-4-3 SIP Information
Port The corresponding GSM port, DVG-6001G has only 1 port
SIP User ID SIP registration account of the Softswitch and SIP server provided
Register Status Show the registration status of VoIP channel, including registered and
unregistered.
Status The status of Off-hook and hang up

DVG-6001G User Manual
15
D-Link Corporation.

4.5 Network Configuration
4.5.1 Local network
Figure 4-5-1 Local network
Table 4-5-1 Local network
Work mode Only Bridge mode
Obtain IP Address Automatically After used, the IP address obtained from DHCP
server
Use the following IP address After used, need to manually add IP address, subnet
mask and default gateway
PPPoE When adopt PPPoE dial-up Internet, need to fill in
account and password offered by ISP
Obtain DNS Server Address
Automatically
DNS server complete the analytical between
domain name and IP address. When enable “Obtain
DNS Server Address Automatically”, which will be
automatically get DNS server address.
Use the Following DNS Server Fill in the IP address of "Primary DNS Server" and

DVG-6001G User Manual
16
D-Link Corporation.

Addresses "Secondary DNS Server"
4.6 Mobile Configuration
4.6.1 Basic Configuration
Figure 4-6-1Basic Configuration
Table 4-6-1 Basic Configuration
Dial Tone Gain It is the dial tone volume of call waiting, dial tone of mobile
module when call out. Usually adopt the default configuration.
Select Band Acording to carrier’s band standards, standards are as below:
PGSM900, DCS1800, PCS1900, EGSM900/DCS1800,
GSM850/PCS1900
Remote API Enable API is provided interface for third party development with DLL
and IAD components. Includes SMS/USSD sending and
receiving. If want to use the client to send text message, please
open API.
API Server Address It is the remote IP address who uses API. This is an option when
selecting "Yes" under 'remote API enable"

DVG-6001G User Manual
17
D-Link Corporation.

API Server Port It is the remote channel No. who uses API. This is an option when
selecting "Yes" under "remote API enable". The user can defined
a not overlap with the other application port of the port number,
the proposal value is 12000
API User ID Remote API user account. This is an option when selecting "Yes"
under "remote API enable".
API User password Remote API user password. This is an option when selecting
"Yes" under "remote API enable".
Auto Reset Module Open the function, in the following case module can be reboot
Counts of No
CARRIER to reset
Continuously n times can't find operators, equipment to restart.
N is 3-255.
Counts of No
DIALTONE to reset
Continuously n times no dialtone, module to restart. N is 3-255.
4.6.2 Mobile Configuration
Figure 4-6-2 Mobile Configuration

DVG-6001G User Manual
18
D-Link Corporation.

Figure 4-6-3 Mobile Configuration
Table 4-6-2 Mobile Configutation
Mobile Number Corresponding port SIM card number
Enable Call Duration
Limitation of single
call
This function is to limit the max call duration of channel. Users can
customize the SIM card on the single call duration; if more than
the duration, call will be take out stitches. If select “Yes”, then need
to set the following two options.
Step Step length value range is 1-120 s, step length multiplied by time
of single call just said a single call duration time allowed.
Time of single call The value of limitation single call, this value range is 1-65535. step
length multiplied by time of single call just said a single call

DVG-6001G User Manual
19
D-Link Corporation.

duration time allowed.
Enable Call Duration
Limitation
This function is to limit the max call duration of channel. The max
call duration is between 1 to 65535 minutes.
Auto Reset Automatic reset talk time remaining, Let remaining call time is
equal to the maximum call duration.
Reset Period User defined daily, weekly or monthly reset SIM card information,
that is, remaining call time is equal to the maximum call duration
and start counting.
Next Reset time The user defined when to begin to reset, then from the date
according to reset period reset.
Minimum Charging
Time
A single call over this time, GSM side of the operators began to
collect fees, unit for seconds.
Alarm Threshold(via
SMS)
Talk time remaining is equal to or lower than the value, the
gateway to the alarm information by SMS messages to the
designated mobile phone number.
Mobile Number
(Receiving Alarm)
Receiving alarm phone number, user will received alarm message
from gateway.
Port Description for
Alarm
Alarm port information description, which will be sent to user
mobile phone with alarm information.
SIM Remain Time This value is multiplied by to step length is a rest call time
Restore Time Restore the rest of the SIM card talk time to the maximum call
duration
CLIR This function is used to GSM side exhale hidden SIM card
number. Adding a “#31#” infront of mobile phone number can
realize the function. This function need operators support.
Echo Suppression
Level
Control echo of call process. The higher the level, the more
powerful the echo suppression.
