Steps in configuration
To check out the peripheral equipments and
understand the feature of this gateway. Please
read this step very carefully before starting the
configuring.
STEP 1
Start Up
Connecting the gateway and computer to start
configuring by WEB GUI.
STEP 2
How to
Setup and
Connect
basically
Setting the ip address for this gateway to make
sure that it could connect with the internet.
Setting the configurations of dialing, including the
Peer-To-Peer, GK mode and how to set these
tables to make calls by this gateway easily.
The other configurations of make call will be
discussed in this step.
Advanced configurations and special functions of
this gateway. Using the WEB GUI to show how to
set this table and explain the meaning of these
tables.
STEP 3
Advanced
To explain the meaning of the command in the
command line interface and example the usage of
the command.
To get more usages or configuration in this step
and study about the command line configuration.
STEP 4
Command
List

D-Link DVG-3004S User Manual
3
1. Start Up
1.1 Introduction
The DVG-3004S provides voice service over IP network with SIP protocol.
By connecting to your existing ADSL or cable modem service, which
allows the use of a single, network for voice and fax services with
consequent saving in network infrastructure and greatly reduced
telephone charges. Ideal solution for providing low cost communications
between headquarters and branch offices in the world, as well as for
SOHO and office telephony applications.
DVG-3004S provides analog lines to connect local PSTN/PTT interface
(FXO), and converts voice/fax signal onto IP network. The management
feature is via RS-232C COM port and TELNET.

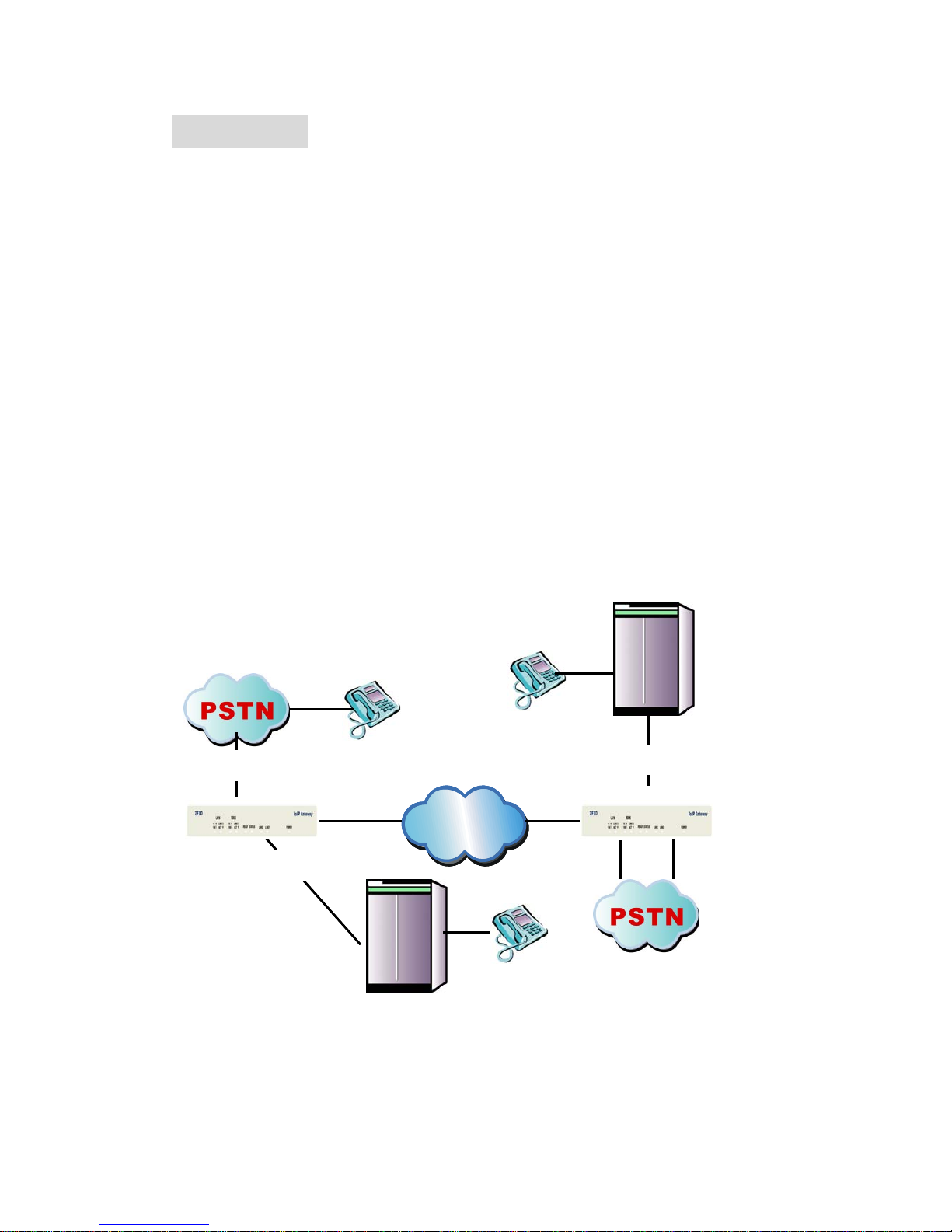

Application Architecture
FXO
IP
Network
PBX
FXS
FXO FXO
PB
X
Extensio
n
Extension por
t
IP
Network
IP
Network FXO
FXO
FXO
FXO
PBXPBX
 FXO ports can connect with PSTN Line or Extension Line of PBX

D-Link DVG-3004S User Manual
4
1.2 Features and specification
Features
- IETF RFC 3261
- Automatically Dial Path Selection (IP or PSTN)
- PSTN Line switch to telephone set when power is failure
- PPPoE support
- Behind NAT router or IP sharing device
- DNS server inquiry
- Provide Peer-to-Peer Mode (Non SIP Proxy needed) selection
- E.164 Dial Plan
- TFTP/FTP software upgrade
- Remote configuration/ reset
- LED indication for system status
- Support Fix IP and DHCP
Audio feature
- Codec -- G.711 a/μlaw, G.723.1 (6.3kbps), G.729, G.729A
- G.168/165-compliant adaptive echo cancellation
- Dynamic Jitter Buffer
- Completed voice band signaling support
- Provide In-band or RFC2833 DTMF generation/detection
- Provide call progress tone
Management Features:
Three easy ways for system configuration
- Console port: RS-232C port
- TELNET
- HTTP Brower (e.g. Internet Explorer)
Certification
- UL, CE, FCC
FXO Features
- 2-wire loop start
- Support auto-attendant (Tone or voice greeting)

D-Link DVG-3004S User Manual
5
- PSTN polarity reversal detection
- Disconnect tone detection
- Asking ping function with the incoming calls from PSTN side
- Record and analyze the Tone from PSTN side
Environmental
- Operation temp:0°C to 40°C
- Humidity: 10% to 90% (Non-condensing)

D-Link DVG-3004S User Manual
6
1.3 Accessories and equipment
 The voice gateway in 4 FXO ports models and only one RJ-45 connector
(WAN).
 The AC adapter.
 The CD of user manual.
 The connection cable in RS-232 interface.

D-Link DVG-3004S User Manual
1.4 Appearance

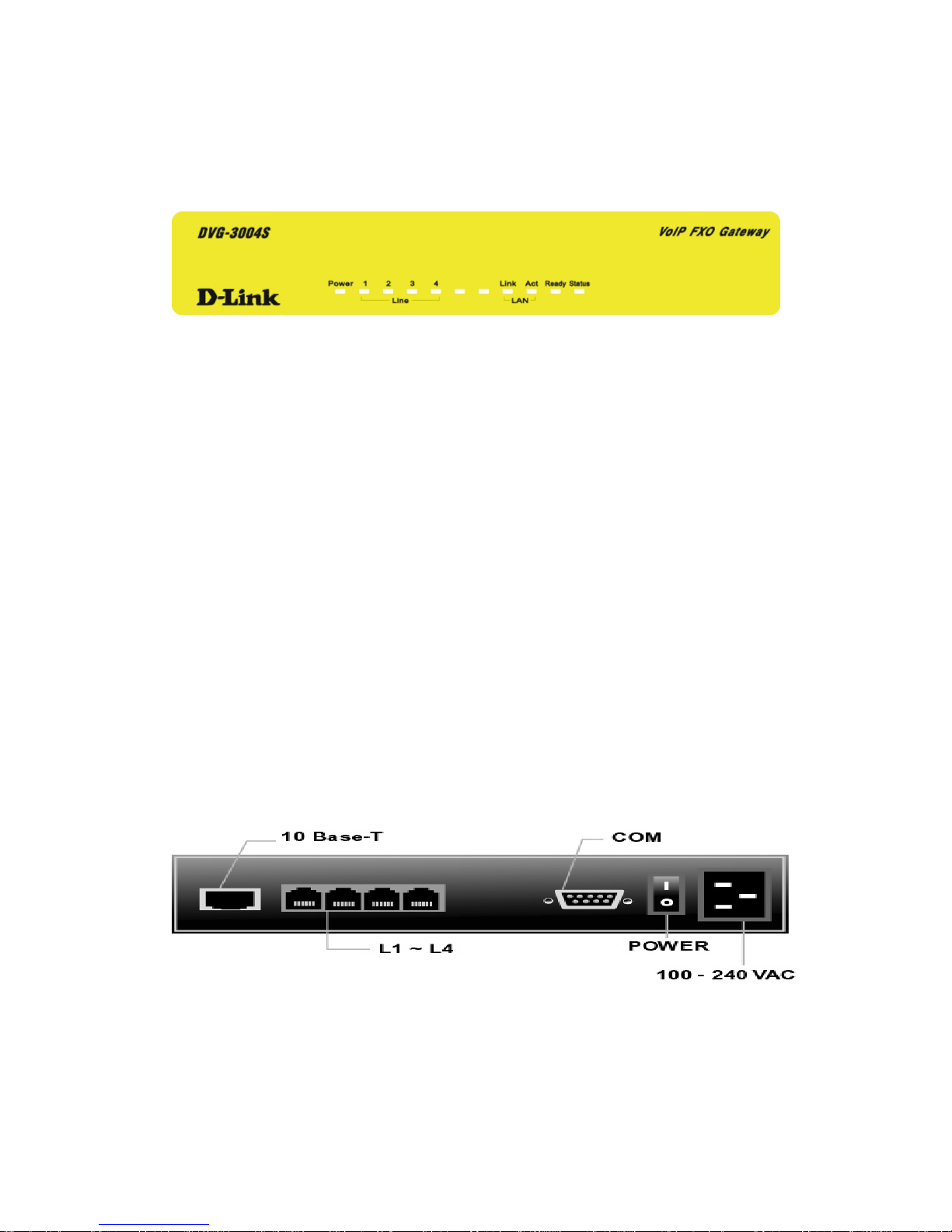

Front panel: The LED lights provide related system messages of the gateway.
Power: Light on means Gateway is power on, and vice versa.
LINE: Light on means the line is in use (off-hook), and vice versa.
Link: Light on means the Gateway was connected with the network connector.
Act: LED should be light on and in flash display when data is transmitting.
Ready:
1. Light on and slow flash means Gateway is in normal mode.
2. Light on and fast flash means Gateway is in downloading mode.
Status:
1. LED light on means Gateway has successfully registered to Proxy when it
is in the Proxy Mode.
2. LED flash means Gateway is not registered to the Proxy when it is in the
Proxy Mode.
3. Or when Gateway is in downloading mode, LED should be flash as well.
4. LED light off means Gateway is in Peer-to-Peer Mode.
Back panel:
1. Ethernet Port
LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET
7

D-Link DVG-3004S User Manual
10/100base-T.
The pin-out is as following:
PIN 1, 2: Transmit
PIN 3, 6: Receive

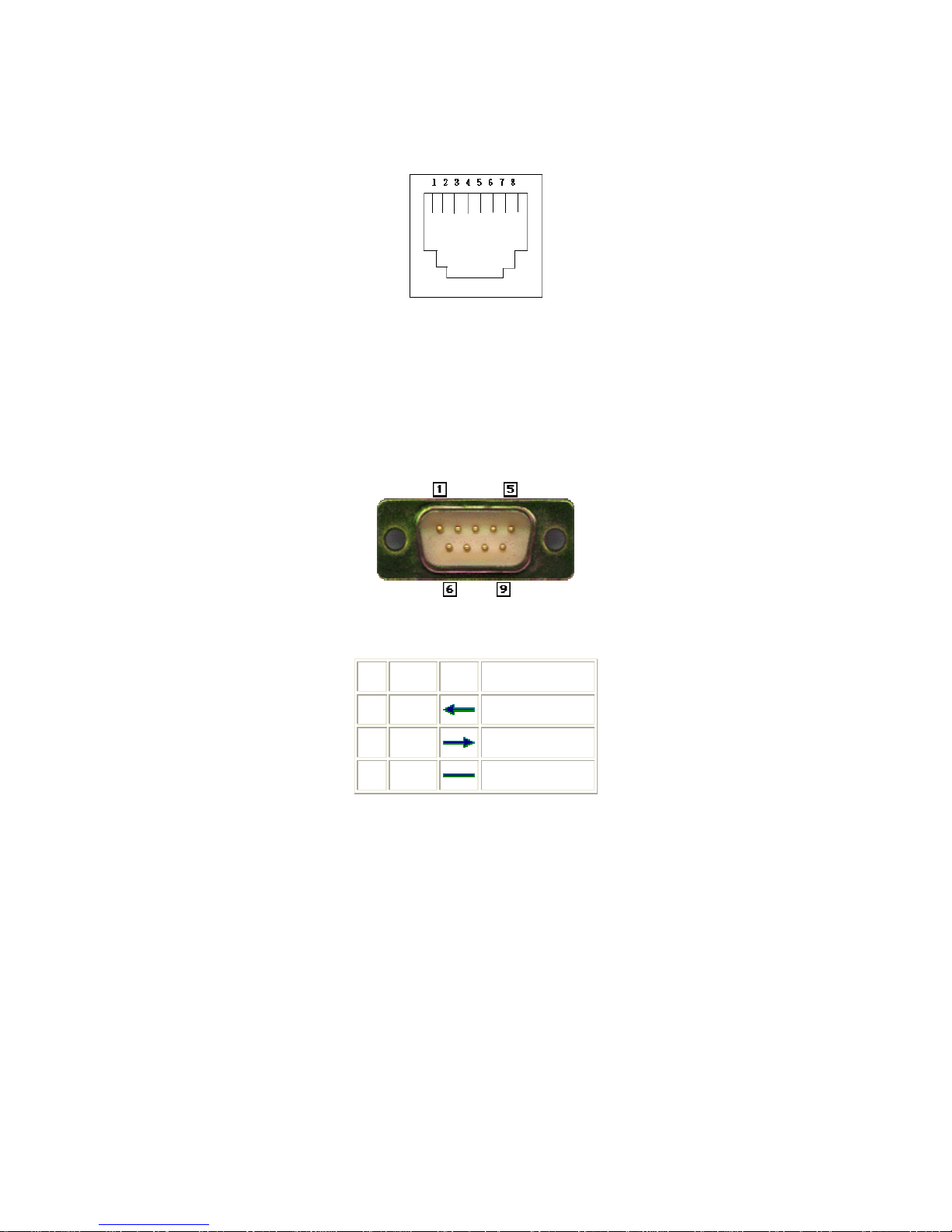

2. COM:
RS232 console port (DB-9pin male connector)
Note: use straightforward cable to connect to your computer.
PINOUTS
Pin Name Dir Description
2 RXD Receive Data
3 TXD Transmit Data
5 GND System Ground
3. LINE:
RJ-11 connector, FXO interface is for connecting the extension line of
PABX or PSTN Line.
4. 12V DC:
Input AC 100V~120V;output DC12V.
8

D-Link DVG-3004S User Manual
9
2. How to Setup and connect basically
2.1 System Requirement
1. One PC (a) Pentium 100 or above, 64 RAM, Windows 98 or above.
(b) Ethernet card or COM port
2. One standard straightforward RS-232 cable (female connector to Gateway
side).
3. PBX extension Lines or PSTN Lines.
4. Software tools (a) Hyper Terminal, TELNET, Web Browser.
(b) Gatekeeper (optional).
2.2 IP Environment Setting
User must prepare a valid IP address, complied with IP Network, for Gateway’s
proper operation.
For testing the validation of chosen IP address, using the same IP
configuration in other PC or Notebook, and then try to connect to Public
Internet (go to well-known website, receive Internet mail, or ping a specific
public IP address). If it works, use the same IP address and network
configuration for Gateway.
Please follow up the step for the configuration of your computer or notebook.
2.2.1 For Windows 2000/NT
Please make sure that the network interface of your computer is working fine
and the cross over line (RJ-45) is connecting with the computer correctly or
you could use a hub to connect with your computer and this gateway. Turn on
your computer and configure the network parameter as follow:
1 Go to the start menu and enter the setting area. Click control panel.
2 Enter the network configuration.

D-Link DVG-3004S User Manual

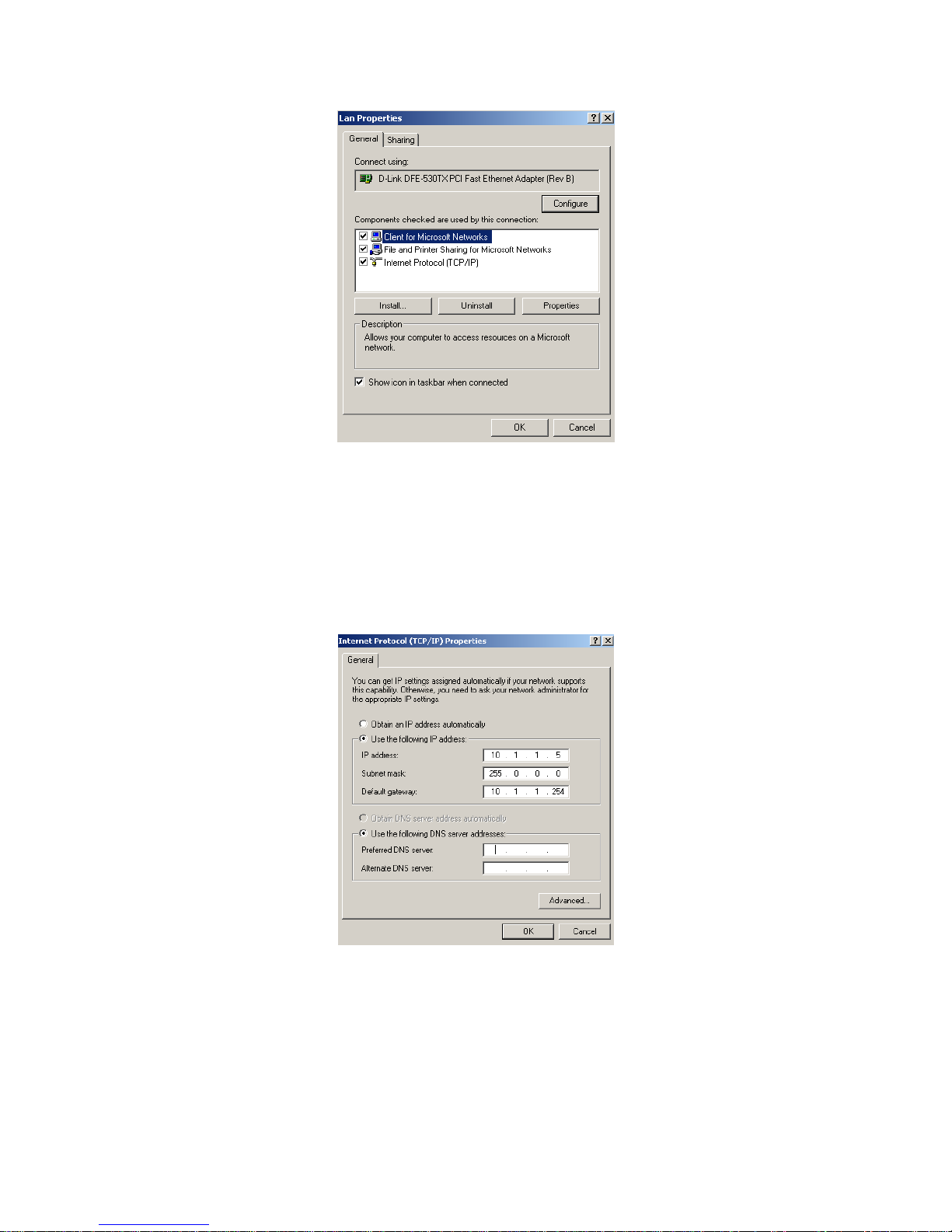

Figure 2.1: Network Configuration
3 Select the Property of the LAN card.
4 Setup the ip address, subnet mask and default gateway as below:
Figure 2.2: Configure the network
5Click OK after you finished the network setup.
10

D-Link DVG-3004S User Manual
The default ip address, netmask and default gateway address of the gateway
is 10.1.1.3, 255.0.0.0, 10.1.1.254.
2.3 Network configurations in your gateway

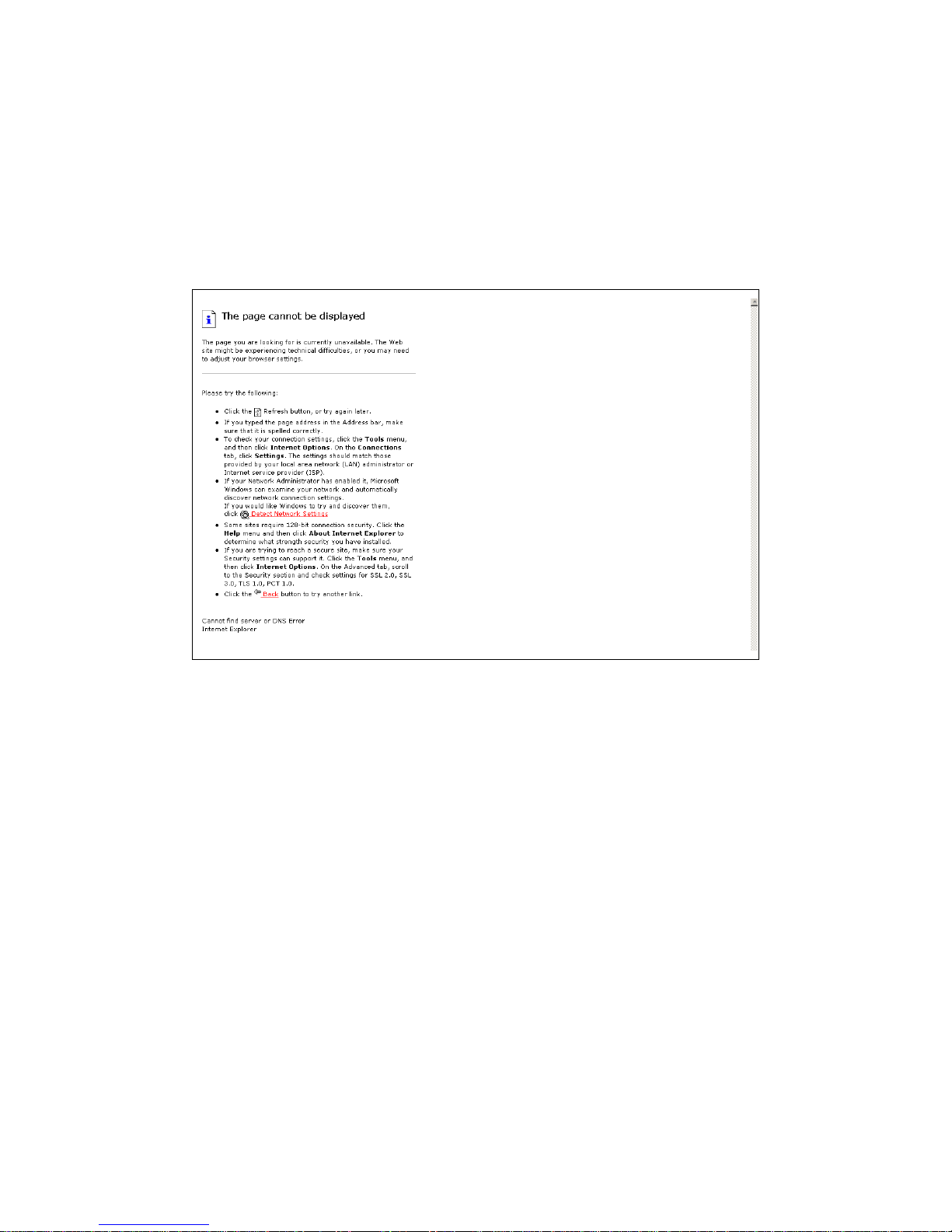

1Key in the ip address of the gateway (http://10.1.1.3) with the browser
Figure 2.3: WEB Browser

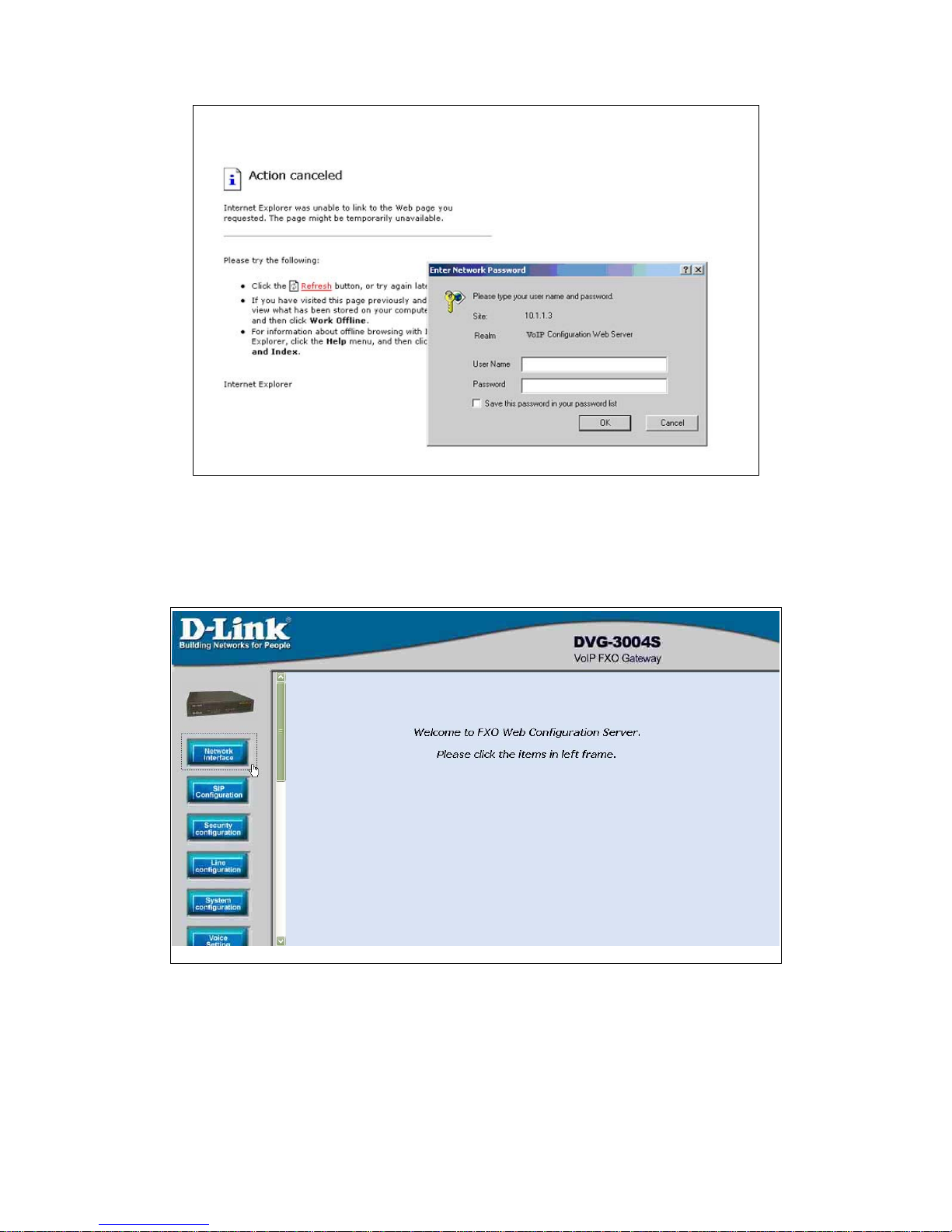

2After key in the ip address, you have to enter the user name and password
to enter the WEB configuration. (Username: root ; No password)
11

D-Link DVG-3004S User Manual
Figure 2.4: Login the username and password
3 You will enter the main page of the configuration after key in the login name
and password correctly:
Figure 2.5: The main WEB configuration
4 Press the Network Interface to configure the networking of your gateway:
12

D-Link DVG-3004S User Manual
Figure 2.6: The Network Interface
2.3.1 Static ip address

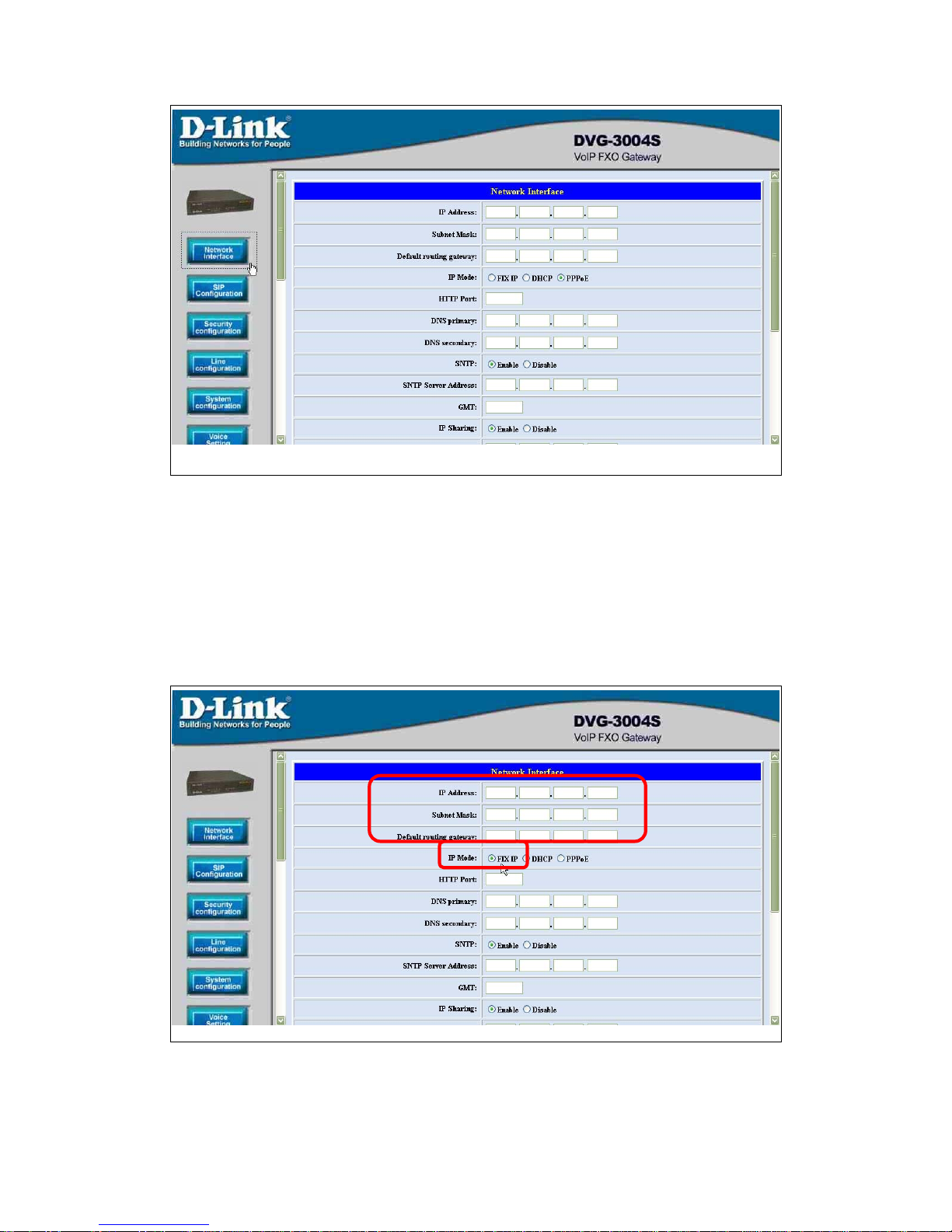

1 Please get the correct ip address, netmask and default gateway address
from your ISP first. Press the OK button if you finished.
Figure 2.7: Configure the static ip address
13

D-Link DVG-3004S User Manual

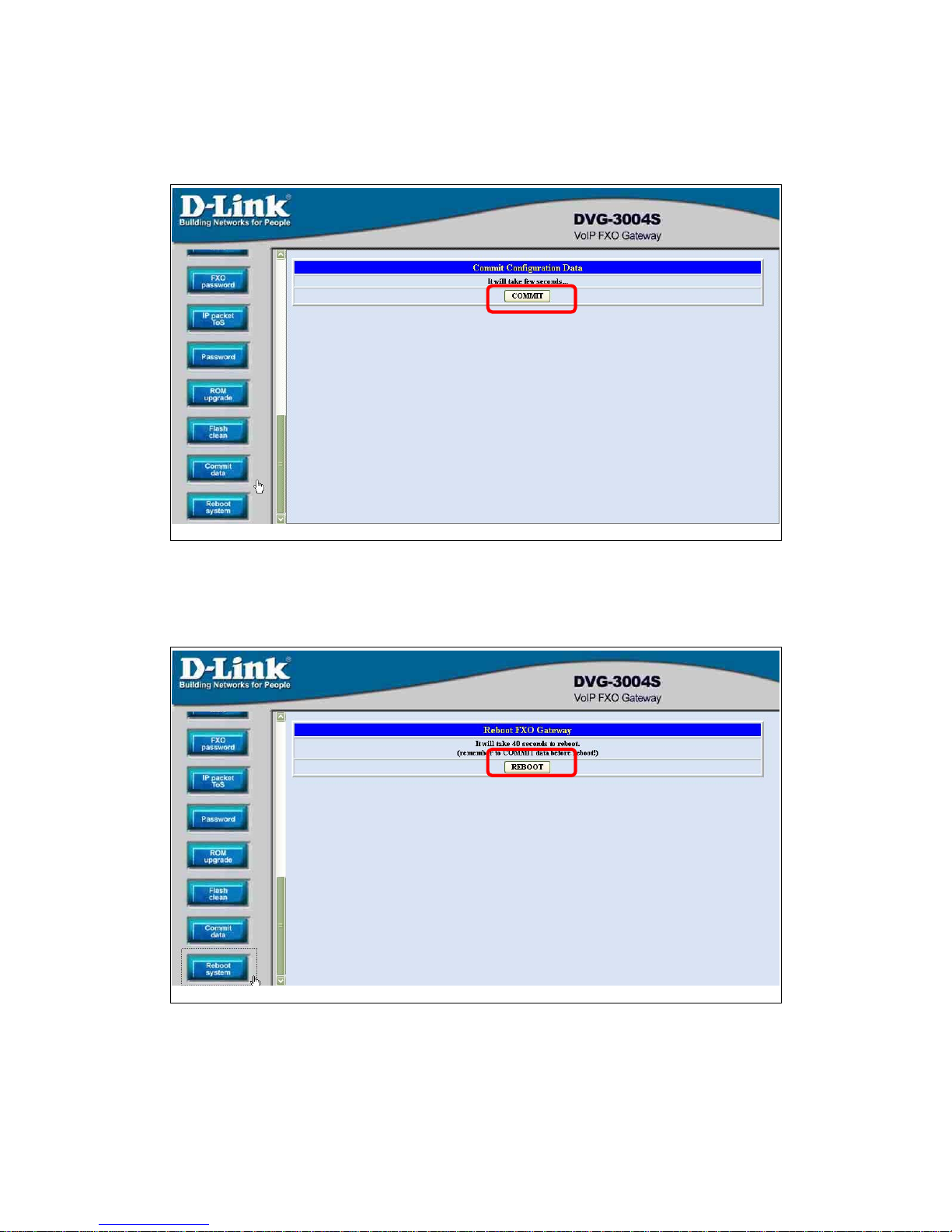

2 Press the commit if you finish the configuration.
14
Figure 2.8: Commit the data
3 Press the reboot if you want the configuration executed.
Figure 2.9: Reboot the system

D-Link DVG-3004S User Manual
2.3.2 DHCP mode
1 Enable the DHCP if you are using the cable modem or DHCP server.
Figure 2.10: Enable the DHCP function
2 Please commit the data and reboot the machine after you enable the DHCP
function.
2.3.3 PPPoE mode

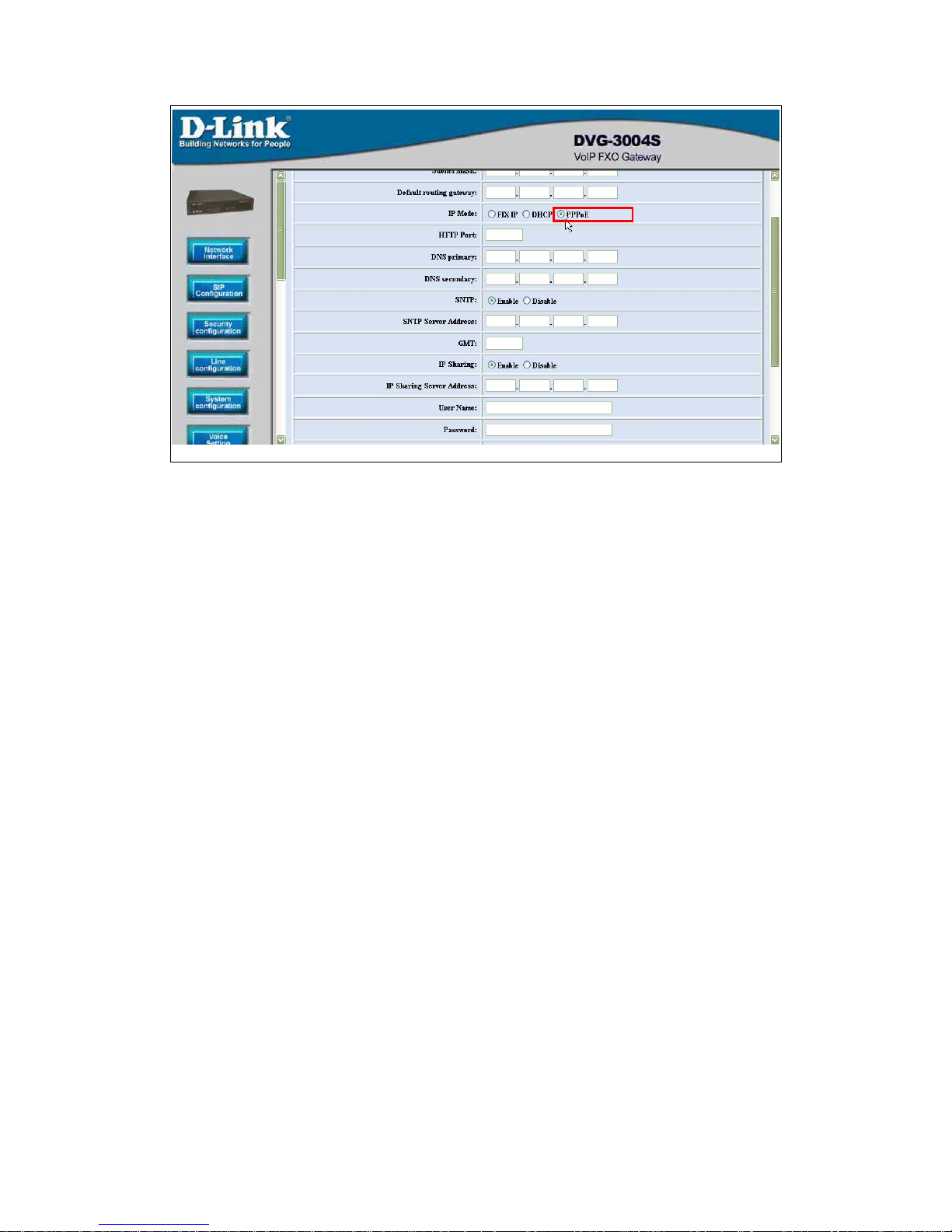

1 Enable the PPPoE and press the info about PPPoE configuration in the
correct table.
15

D-Link DVG-3004S User Manual
Figure 2.11: Switch to PPPoE function
16

D-Link DVG-3004S User Manual

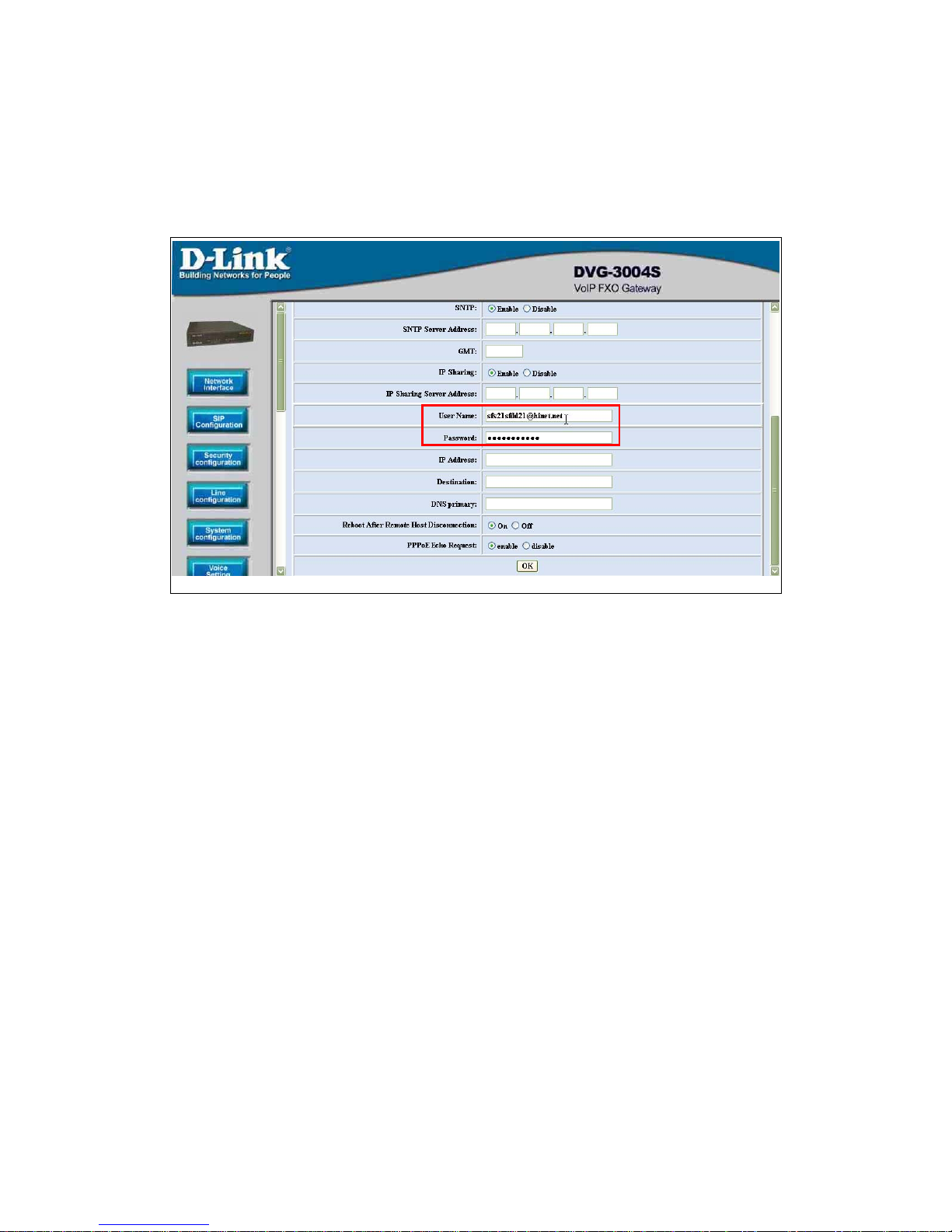

2 Enter the Login account and password. Press the “OK” button if the
configuration is finished. (see figure 2.12)
Figure 2.12: Configure the info about PPPoE
3 Please commit the data and reboot the machine after you finished the
configuration of PPPoE.
2.4 Making a VoIP Call
There are two modes that you could configure the gateway for making VoIP
calls. One is the Peer-to-Peer mode, another is Proxy mode. The
configurations and functions are different. Please make sure about the mode
you want and follow up the step to configure your gateway.
2.4.1 Configure the gateway into the Peer-to-Peer mode
1 Enter the SIP Configuration table and change the mode to Peer-to-Peer.
17

D-Link DVG-3004S User Manual

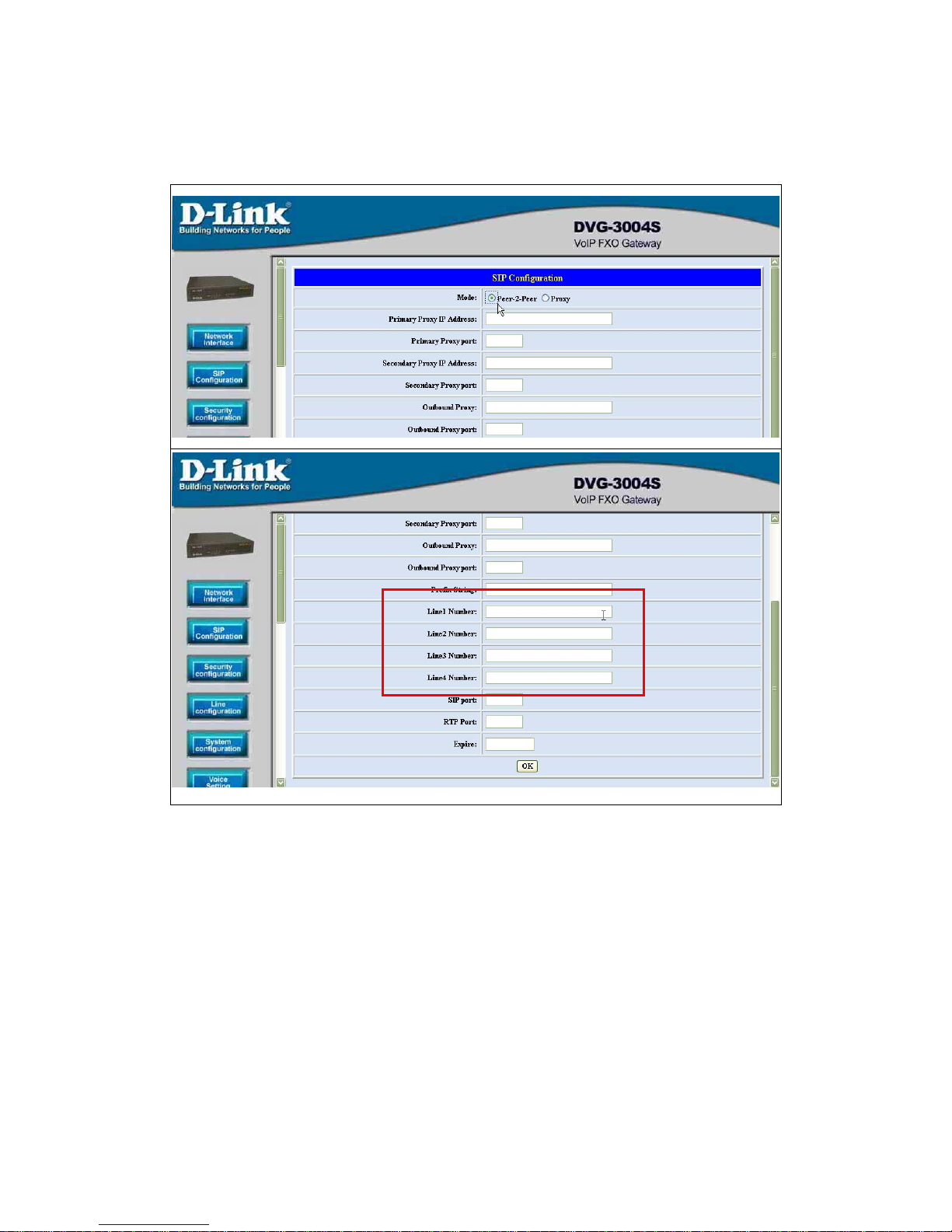

Define the port numbers whatever you like. Press the “OK” button if the
configuration is all finished. (see figure 2.13)
Figure 2.13: Configure the Peer-to-Peer mode
18
