3
PREFACE
This manual describes how to install and use the 19” Media Converter
Chassis System. The system introduced here is capable of housing up to
sixteen media converters, each of which offers one channel media conversion
solution:
100BASE-TX ↔100BASE-FX
10/100BASE-TX ↔100BASE-FX
100BASE-FX ↔100BASE-FX (multi-mode ↔single-mode)
1000BASE-T ↔1000BASE-SX/LX
1000BASE-SX ↔1000BASE-LX (multi-mode ↔single-mode)
In this manual, you will find:
•Introduction on the Chassis System
•Product features
•Illustrative LEDs functions
•Installation instructions
•Specifications
•Ordering Information
The chassis shown in the figures of this manual is fitted with
redundant power supplies. Proprietary media converters and a
second power supply shall be ordered separately!
Attention!

4

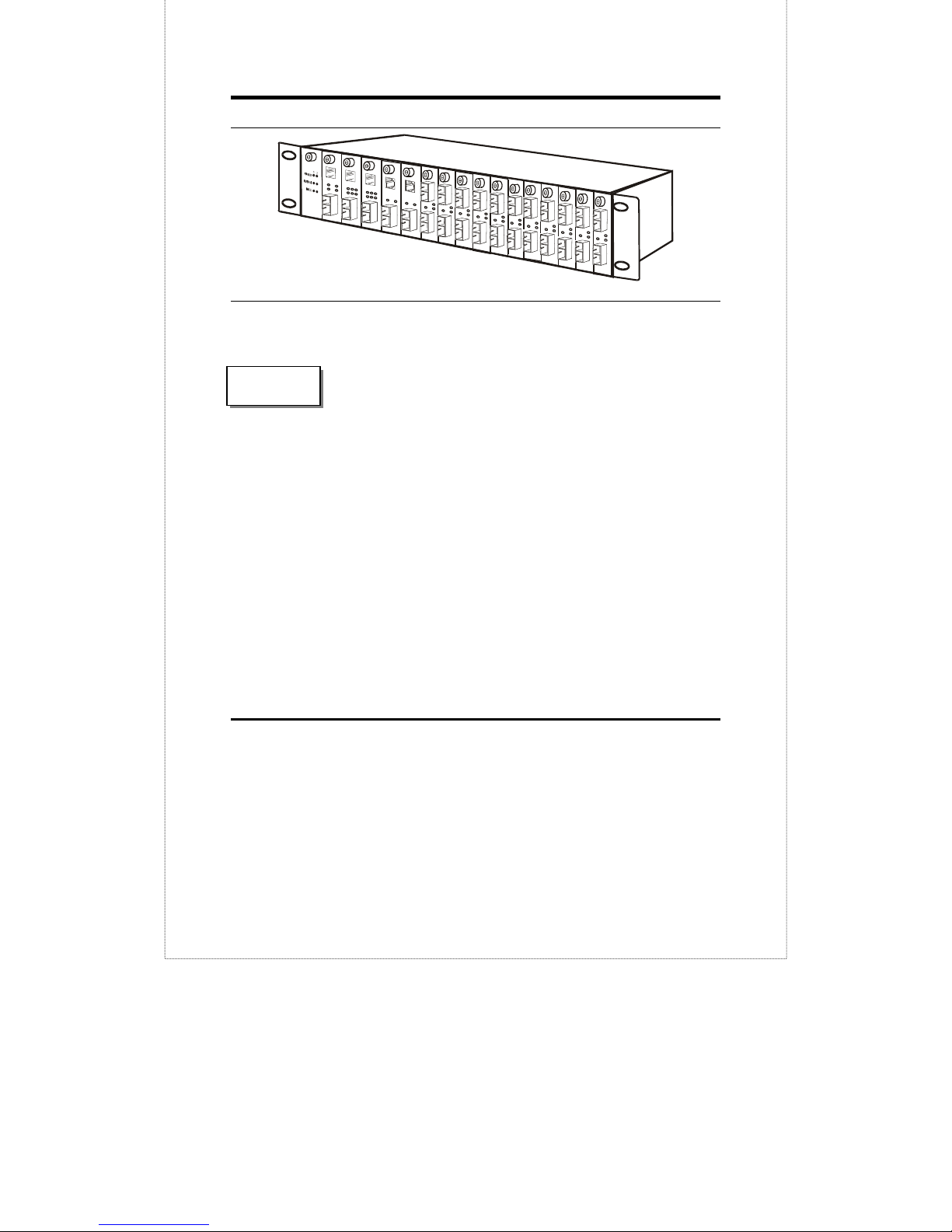

19” Media Converter Chassis System
The chassis equipped with two power supplies and sixteen media
converters
The chassis system ships with only one power supply.
Proprietary media converters and a second power supply are not
included!
Attention!

5
PRODUCT FEATURES
This chapter describes the features of the Media Converter Chassis System.
Product Features
¾Plug-and-Play
¾House up to Sixteen media converters
¾Front panel LEDs for bay and fan power status
¾Standard 19” rackmountable size, 2U
¾Non-stop operation & minimal downtime
¾The following items are designed to be hot swappable to
allow easy and quick replacement:
- Media converters
- Redundant Power supplies
¾Provides cooling fans at the back together with power
supply
¾Power redundancy & power isolation
¾One high quality internal power supply provided, and a
second power supply option for load-sharing purpose.
¾Load sharing mechanism: If one power supply should fail,
the redundant power supply is capable of taking over
immediately
¾The Media Converter’s power isolation ensures each bay is
electrically isolated from each other

6
UNPACKING AND INSTALLATION
This chapter provides unpacking and installation information for the Switch.
To avoid causing any damage to the Switch, we recommend that you read
this chapter carefully before starting installation.
Unpacking
When unpacking the product package, you shall find these items listed
below.
¾19” Media Converter Chassis System
¾One power supply installed on the chassis
¾One AC power cord
¾User’s Manual
¾Accessories: rackmount screws (8 pcs) & rackmount ears
(2 pcs) rubber foot (4 pcs)
If any item is found missing or damaged, please contact your local reseller
for replacement.
Installation
The site where you place the chassis system may greatly affect its
performance. When installing, take the following into your consideration:
As with any electric device, you should place the equipment where it will not
be subjected to extreme temperatures, humidity, or electromagnetic
interference. Specifically, the site you select should meet the following
requirements:
- The ambient temperature should be between 32 and 104

7
degrees Fahrenheit (0 to 40 degrees Celsius).
- The relative humidity should be less than 90 percent,
non-condensing.
- Surrounding electrical devices should not exceed the
electromagnetic field (RFC) standards for IEC 801-3, Level 2
(3V/M) field strength.
- Make sure that the equipment receives adequate ventilation
at the rear. Do not block the fan exhaust holes on the rear of
the chassis.
The power outlet should be within 1.8 meters of the chassis.
Deciding How to Install the System
We strongly suggest that you install the chassis first, as this is
more convenient for you to install media converters into the
chassis with ease. The accessories supplied in the product
package includes: rackmount screws(8 pcs) and rackmount
brackets(2 pcs). This well-built chassis can be installed in the
following ways:

8

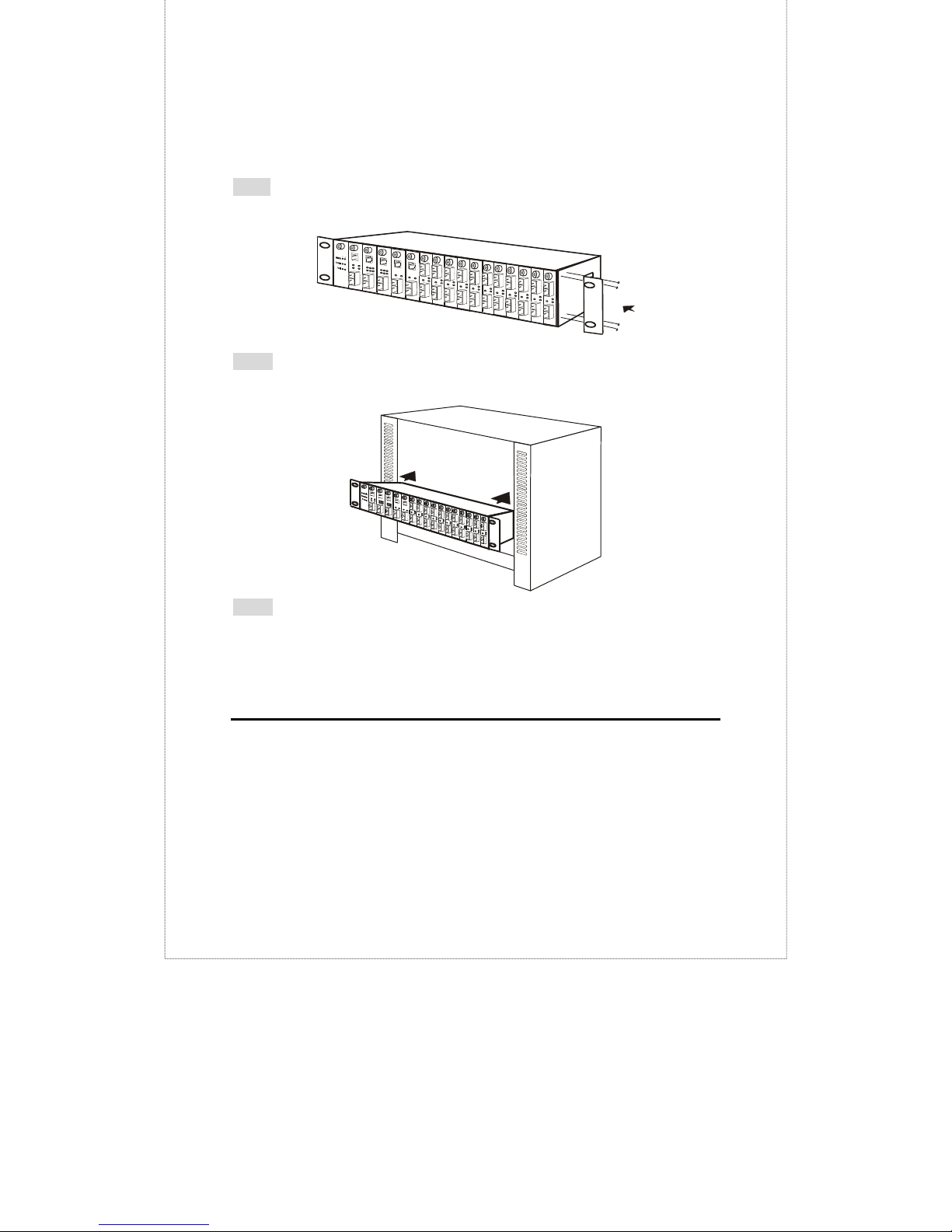

.Mounted to 19-inch standard rack
Use the rackmount brackets and screws to install the chassis into any EIA 19”
standard rack.
Step 1: Attach the brackets to each side of the chassis. Apply four screws to
each side and secure them tightly.
Step 2: Carefully position the chassis into the rack. Align the brackets to the
side holes on the rack and use rack screws to secure the chassis with the
rack.
Step 3: Proceed to the “Connecting to Power” section.

9

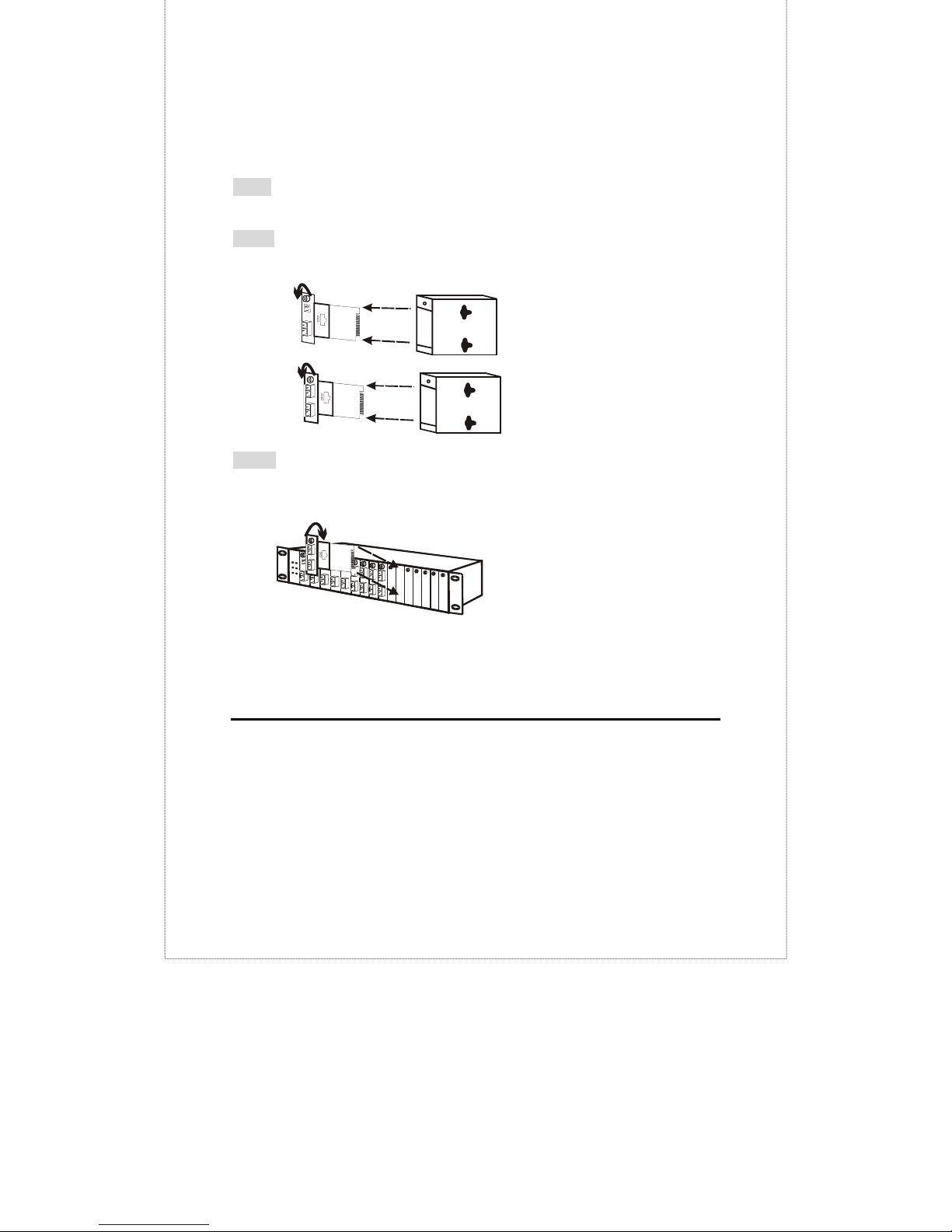

.Installing Media Converter
The chassis is equipped with sixteen media converter carriers, each of which is
fitted into bays of the chassis.
Step 1: To install a media converter module onto the chassis, you have to unscrew
the bay cover from the desired bay first.
Step 2: Unscrew the hand screw counter clockwise by using hand or screwdriver
and pull out the media converter out the carrier as shown below.
Unscrew the hand screw counter clockwise
by using hand or screwdriver and pull the
media converter module out on the carrier
Step 3: Carefully slide in the module and fasten the hand screw clockwise by
using hand or screwdriver until it is fully and firmly fitted into the slot of
the chassis.
Insert the media converter module
into an available slot and fasten the hand
screw clockwise by using hand or screwdriver.

10
.Connecting to Power (Power Supply)
The chassis ships with only one power supply, and a second
power supply option is at your discretion. When the chassis is
equipped with two power supplies, you can have the following
advanced performance.
♦Hot Swappable –
The design of the power system is based on an idea of providing
maximum flexibility and redundancy. In this way, you may remove any of
the two power supplies without turning off the system.
♦Redundancy –
During operation, both power supplies are switched on and share the
current load. In case that one of them should fail, the other will
instantaneously take 100% of the load without any loss. Similarly, if one
power supply is removed from servicing, it can be switched off and
removed while the chassis continues functioning.
♦Protection System –
The power of each converter bay comes from the two shared
power supplies. Each bay is isolated from each other under a
certain protection mechanism, so that it is free from any
problem that might occur to the power supplies or faulty
converter bay. This is the best solution to protect your
investment in media converters.
There is an optional solution for the backup power, -
48 volt DC to DC Power Supply.
The chassis system is equipped with one power supply and
allows one additional power supply for redundancy. For reliable
operation, we suggest that you run the chassis system with two
power supplies are in place.
Attention!

11
Step 1: Connect the supplied AC power cord to the back of the chassis.
Step 2: Attach the plug into a standard AC outlet with a voltage range from
100~240Vac.
Step 3: Turn on the chassis system by flipping the switch beside the receptacle to
ON position. The LED on the front panel of power supply will come on
then.
.Installing and Removing the Power Supply
zTo remove a power supply out the chassis, you have to loose the hand screw
counter clockwise and pull out the power supply from the chassis.
zTo install a power supply to the chassis, you have to fasten the hand screw
clockwise and slide in the power supply to the chassis.

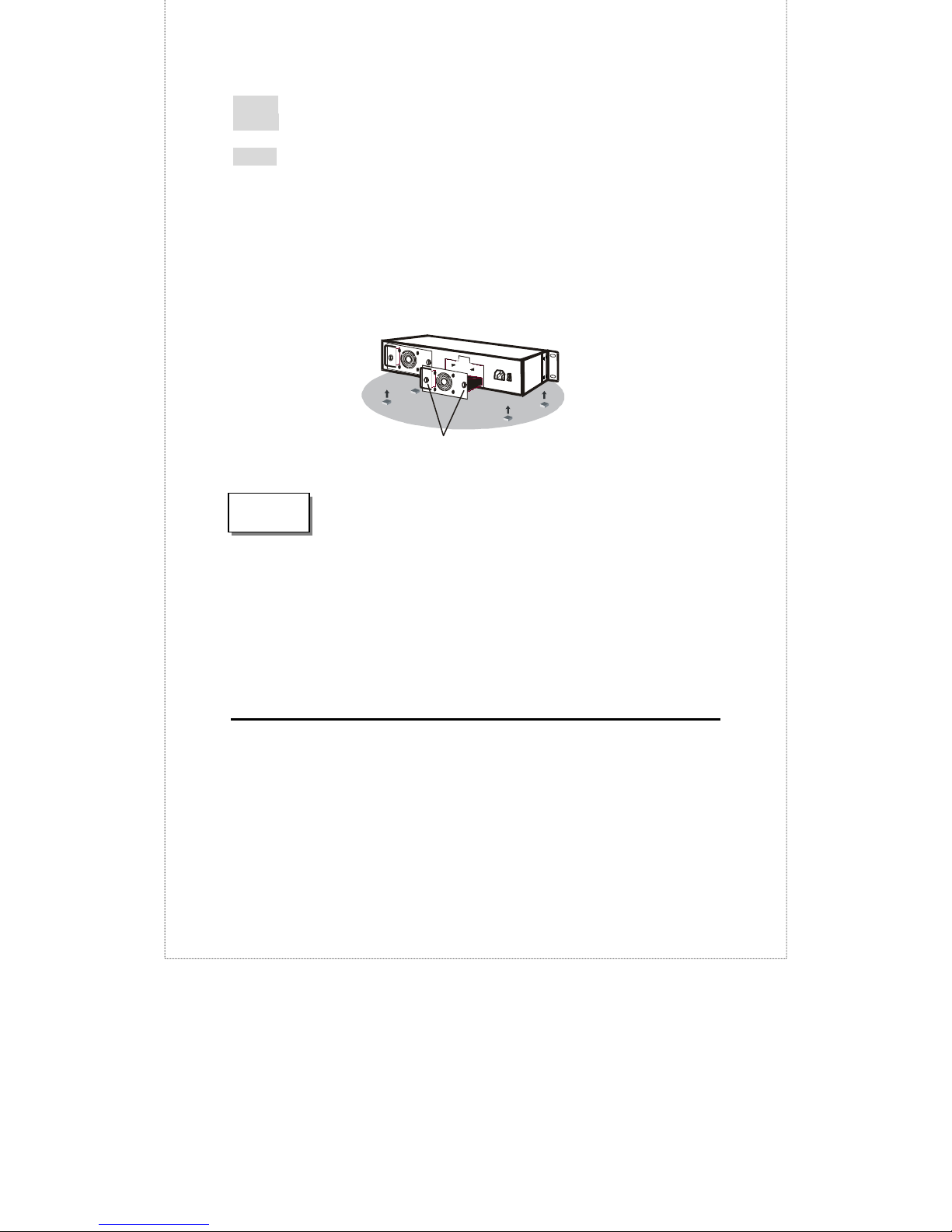

You can slide in and out the power supply from the bay,
fasten orloose the hand screw clockwise or counter
clockwise by using hand or screwdriver.
If the Chassis System needs to work alone, you can
stick up four Rubber foot below the chassis!
Attention!

12
UNDERSTANDING LED INDICATORS
The front panel LEDs provide instant status feedback, and, helps monitor and
troubleshoot when needed.

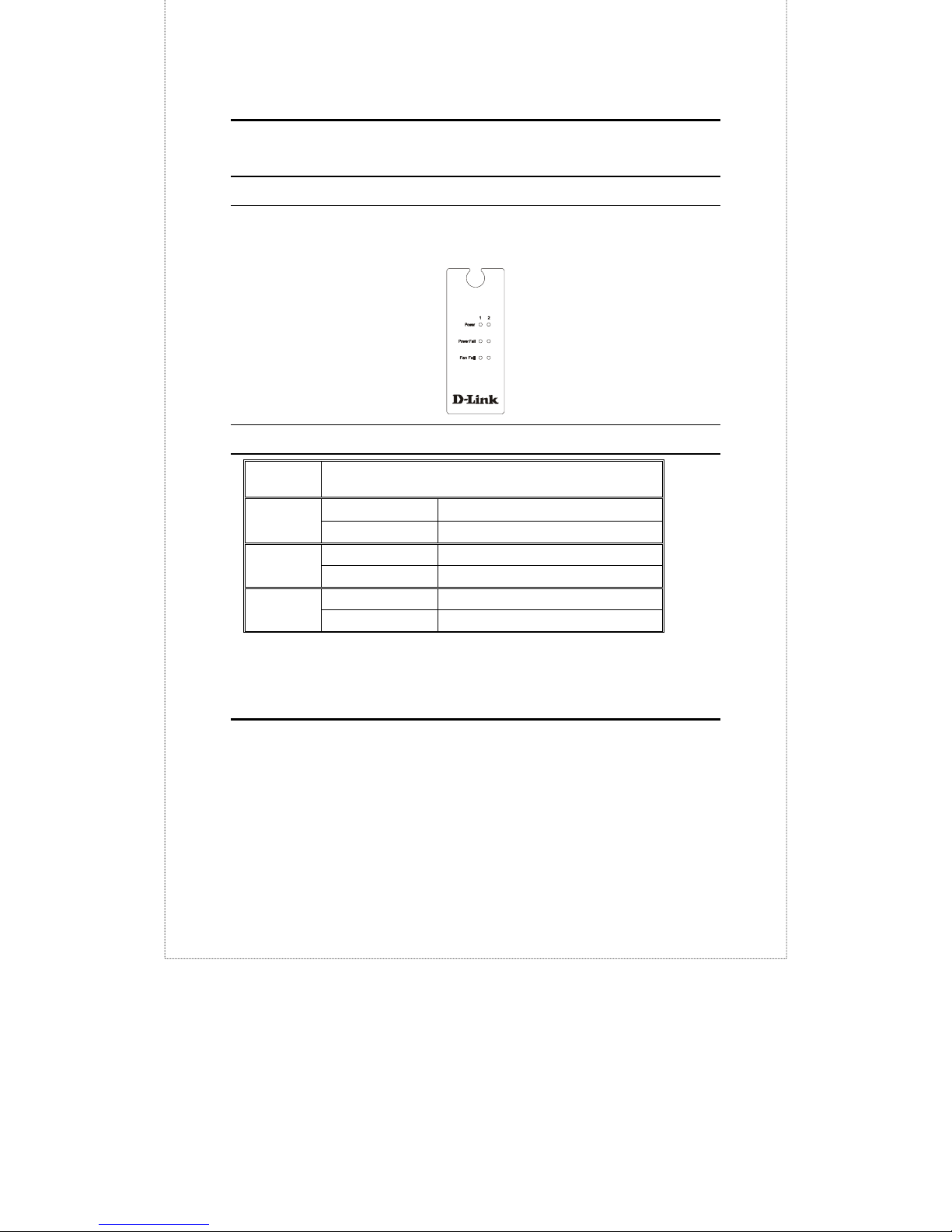

Front Panel
There is an array of LED indicators, which provides you with
instant feedback on the status of the power and the fan.
DMC-1000
Power and Fan LED
1 / 2 Indicates which the power (fan) is working, depends on
where the power supply was installed at the rear.
On (Green) Power supply feed inPower LED
Off No power supply feeding
On (Amber) Faulty power supplyPower Fail
LED Off Power supply works normally
On (Amber) Faulty FanFan Fail LED
Off Fan works normally

13
TECHNICAL SPECIFICATIONS
Chassis System
Capacity Sixteen bays for housing up to sixteen
media converters
Material Steel
Power
One power supply provided, hot-
swappable
*A second power supply for load-sharing is
optional, also hot-swappable
Cooling Two fans mounted together with the
power supply or alone at the rear
LED
Indicators
2 LEDs for fan status
2 LEDs for power feeding in status
2 LEDs for power supply’s power status
Dimensions W415 mm × D 390mm × H89 mm
Standard 19” size, 2 U
Net Weight 7.0kg approx.
(*Only one power supply included)
Emissions FCC Class A, CE Mark Class A, VCCI
Class A

14
Fan
Rated
Voltage 12Vdc
Speed 3200 RPM +/- 250 RPM
Air Delivery 42.5 CFM per min.
Noise Level 36.5dB(A)
Bearing
System Precise ball bearing system
Dimensions 80 × 80 × 25 mm
Power Supply
AC inputs: 100 to 240 VAC, universal power
supply
Power
Consumption
:
150 watts. (max.)
Temperature Operating: 0°~40°C, Storage: -10°~50°C
Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90%
Overload
Protection
All outputs protected from short circuit
condition, automatic recovery
