D-Link DVS-210-1 User manual

2D-Link DVS-210-1 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction .............................................................. 5
Features .................................................................. 5
Hardware Overview ................................................. 6
Front .................................................................. 6
Rear ................................................................... 7
Hardware Installation ............................................... 8
Initial Conguration................................................... 11
Setup Wizard ......................................................... 11
Connect to Your Video Encoder ............................13
Web-based Conguration Utility.............................. 14
Live Video...................................................................16
Setup...........................................................................17
Wizard ................................................................... 17
Internet Connection Setup Wizard.........................17
Motion Detection Setup Wizard ............................. 20
Network Setup ....................................................... 22
Dynamic DNS ........................................................ 24
Image Setup .......................................................... 25
Audio and Video ....................................................26
Motion Detection.................................................... 27
Time and Date .......................................................28
Event Setup ........................................................... 29
Application ....................................................... 30
Add Server....................................................... 31
Add Media........................................................ 32
Add Event ........................................................ 35
Add Recording ................................................. 37
SD Card ................................................................. 38
Advanced ...................................................................39
Digital Input/Output................................................ 39
RS-485 .................................................................. 40
HTTPS................................................................... 41
Access List ............................................................ 42
Maintenance............................................................... 43
Admin .................................................................... 43
Backup and Restore ..............................................44
Firmware Upgrade ................................................. 45
Status..........................................................................46
Device Info............................................................. 46
Logs....................................................................... 47
Help ....................................................................... 48
Using & Conguring the DVS-210-1...................... 49
Router Set-Up and Installation ..............................52
Troubleshooting ........................................................ 55
Table of Contents

3D-Link DVS-210-1 User Manual
Table of Contents
Example DI/DO Schematic........................................56
Networking Basics .................................................... 57
Check your IP address .......................................... 57
Statically Assign an IP address ............................. 58
Technical Specications........................................... 59

4D-Link DVS-210-1 User Manual
Section 1 - Product Overview
System Requirements
Product Overview

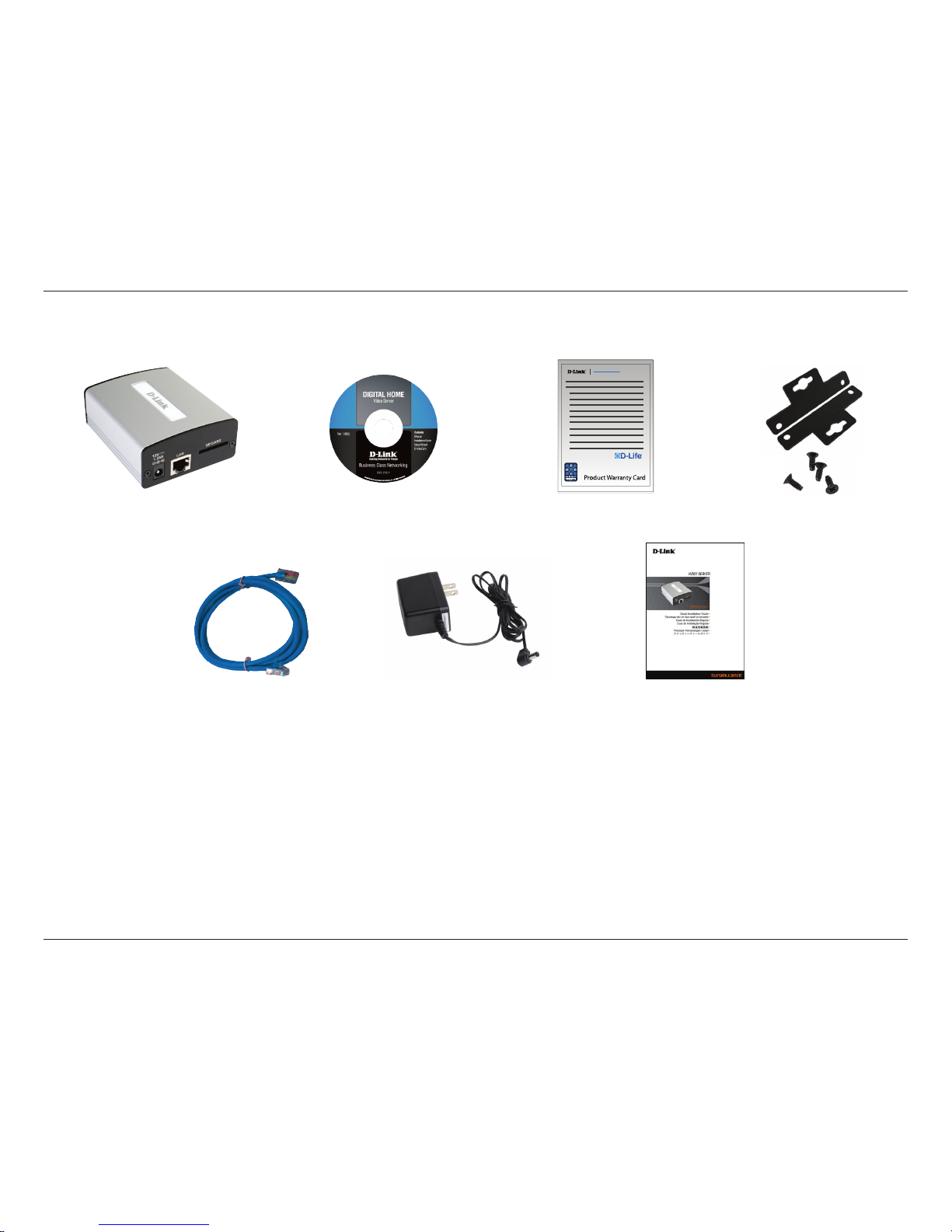

Package Contents
• Pentium 4 - 2.4GHz or higher with 512MB RAM
• Windows Vista / Windows XP with SP2 or higher / Windows 2000 with SP4 or higher
• Microsoft IE 6.0 or higher
CAT5 Ethernet Cable
DVS-210-1 Video Encoder
If any of the above items are missing, please contact your reseller.
Manual and Software on CD Warranty and GPL Licence
12V 1.25A Power Adapter Quick Installation Guide
Note: Using a power supply with a different voltage will
cause damage and void the warranty for this product.
Mounting Bracket
and Screws

5D-Link DVS-210-1 User Manual
Section 1 - Product Overview
Introduction
Congratulations on your purchase of the DVS-210-1 Video Encoder. The DVS-210-1 is a versatile solution that allows
you to make the most of your existing analog surveillance infrastructure. The DVS-210-1 is a standalone system with a
built-in video encoder that converts an analog camera into a full-featured IP-based system. The DVS-210-1 can be remotely accessed
and controlled using a Web browser over an Intranet or the Internet.
Features
Digitally Transform Existing Hardware
The DVS-210-1 Video Encoder makes it possible to integrate a pre-existing analog surveillance infrastructure into a fully-functional IP
surveillance system. The DVS-210-1 is an ideal choice for banks, airports, factories, government buildings, prisons, and trafc surveillance
applications - any location where surveillance equipment is already installed and functioning.
Manage, Record, and View Video with Ease
The hardware encoder supports MPEG-4 / MJPEG video with frame rates of up to 30fps at D1 resolution. E-mail notications help to keep
you up to date whenever a video event occurs. Event recordings can be stored directly to an SD card, or saved to an FTP server.
Simplify Surveillance with Advanced Alarms and Events
Alarm handling features provide alerts in the event of loss of video or loss of network connection. Motion alarms with congurable detection
areas allow for effective surveillance and help to mitigate the need for constant human supervision. A buffer system allows the server to
capture images to the built-in SD card slot before and after an event occurs.

6D-Link DVS-210-1 User Manual
Section 3 - Configuration
Hardware Overview
Front
Power Socket:
Connect the supplied DC adapter here to power the device.
LAN Port:
The 10/100 Ethernet LAN port connects the Video Encoder to networking equipment such as a router or switch.
SD Card Slot:
This slot supports SD cards (standard and SDHC) for removable storage of video and still images.
SD Card Slot
LAN Port
Power Socket

7D-Link DVS-210-1 User Manual
Section 3 - Configuration

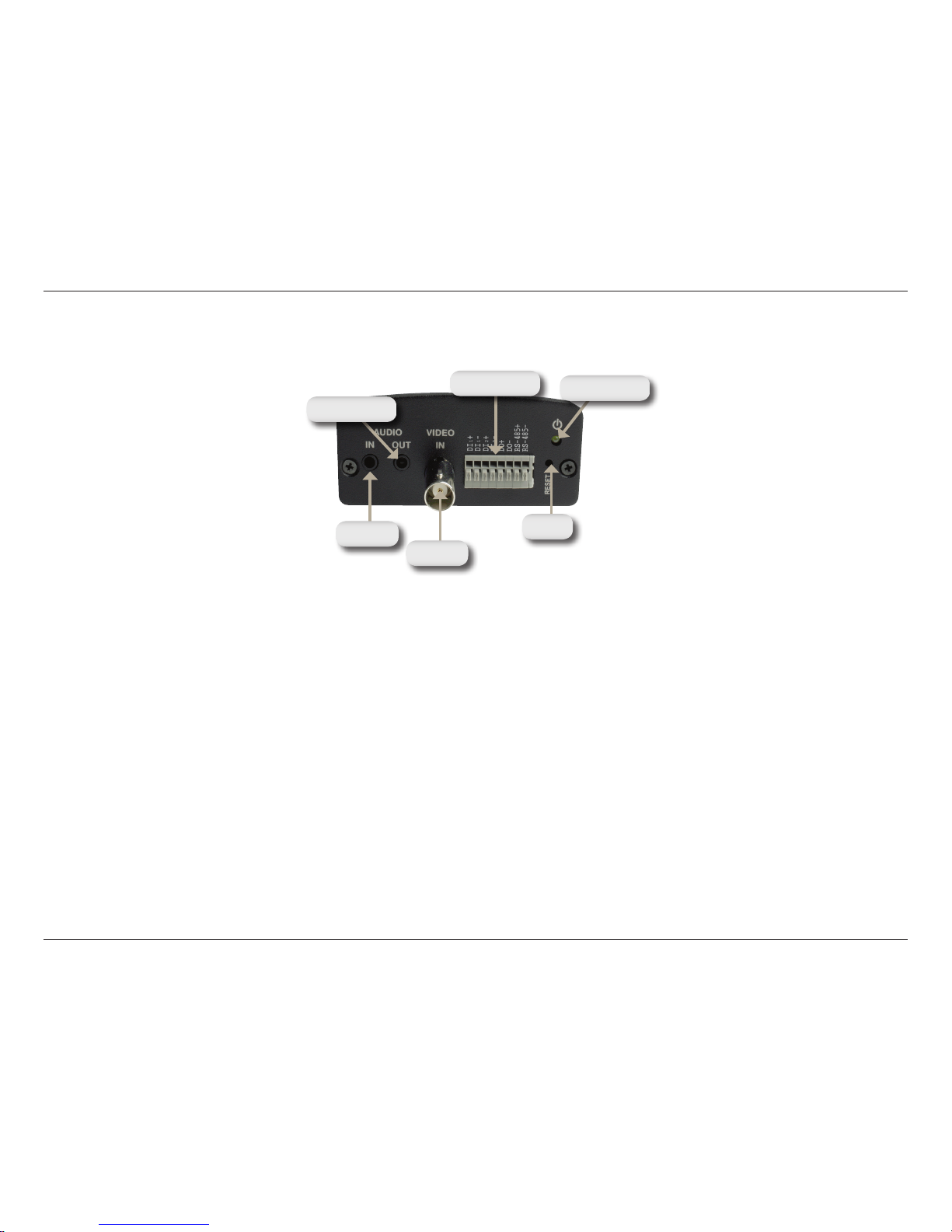

Audio In:
This standard 3.5mm stereo jack accepts a connection from a microphone or any suitable analog audio input source.
Audio Out:
This standard 3.5mm stereo jack accepts a connection from a speaker or any suitable analog audio output device.
Video In:
This standard BNC analog video connector accepts a connection from any suitable analog video device. An adapter may be required
when using some types of video cables.
DI/DO Ports:
This pin block includes two sets of digital input connector pairs, one digital output pair, and one RS-485 pair for PTZ control.
Reset Button:
This button can be used to restore the factory default settings. To reset the device to factory defaults, use an unfolded paperclip to press and
hold the button for at least 15 seconds until the power LED stops blinking. The device will reboot automatically after it has been reset.
Status LED:
When solidly lit, this LED indicates that the the device is initializing. When blinking, this LED indicates that the device has acquired an IP
address.
Audio In
Video In
DI/DO Ports
Audio Out
Reset
Status LED
Rear

8D-Link DVS-210-1 User Manual
Section 3 - Configuration
Hardware Installation
Note: The following installation instructions assume that an analog video camera is installed and providing a signal. If necessary, please
consult your camera manufacturer’s user manual for information on how to set up your analog camera.

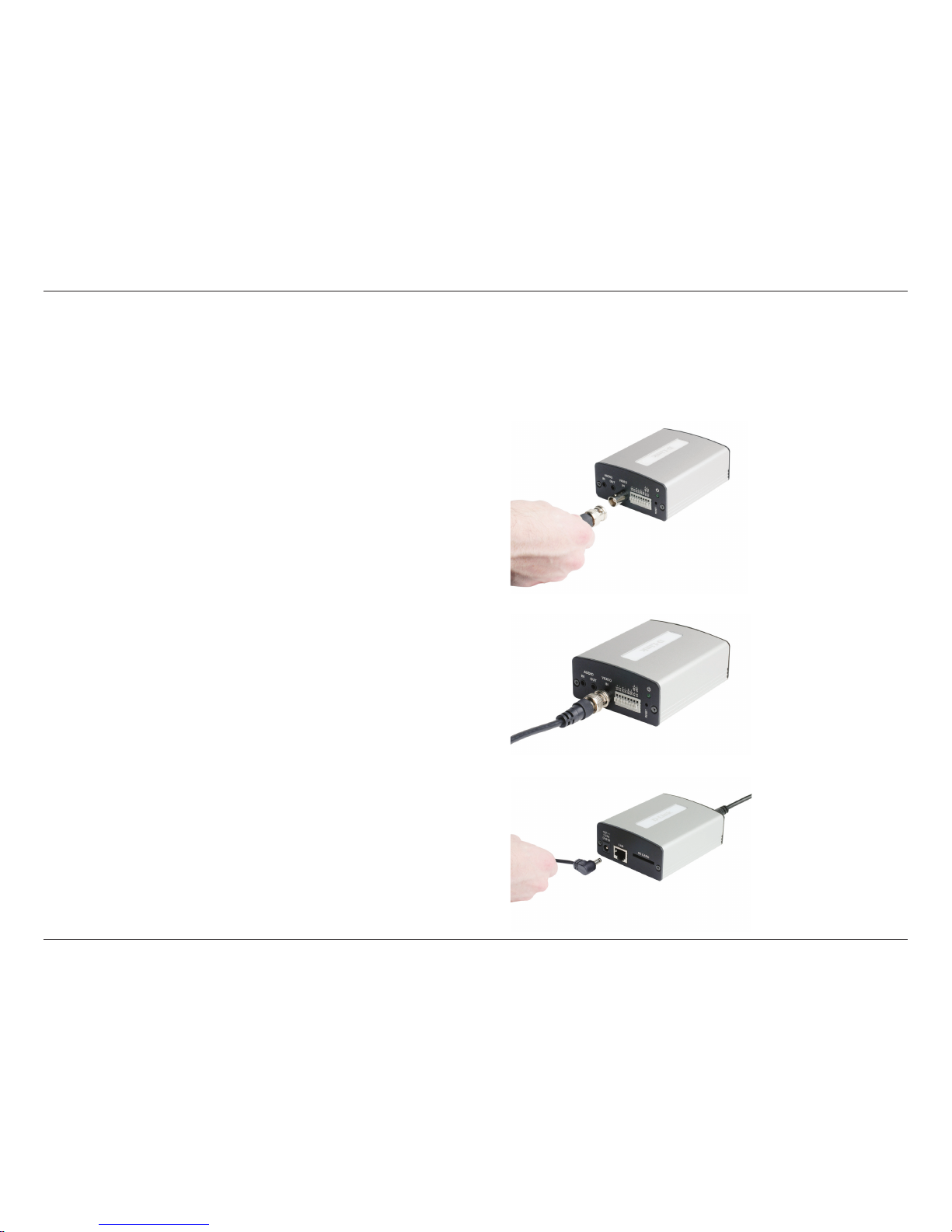

Connect the Video Cable
Connect the video cable from the camera to the VIDEO IN port
of the Video Encoder.
Once the cable has been connected, rotate the BNC connector
clockwise so that the cable locks into place.
Connect the Power Supply
Attach the external power supply to the DC power socket (labeled
12V 1.25A) and plug the two-pronged adapter into an AC power
outlet.
When the DVS-210-1 is receiving power, the green power
LED will be lit.

9D-Link DVS-210-1 User Manual
Section 3 - Configuration

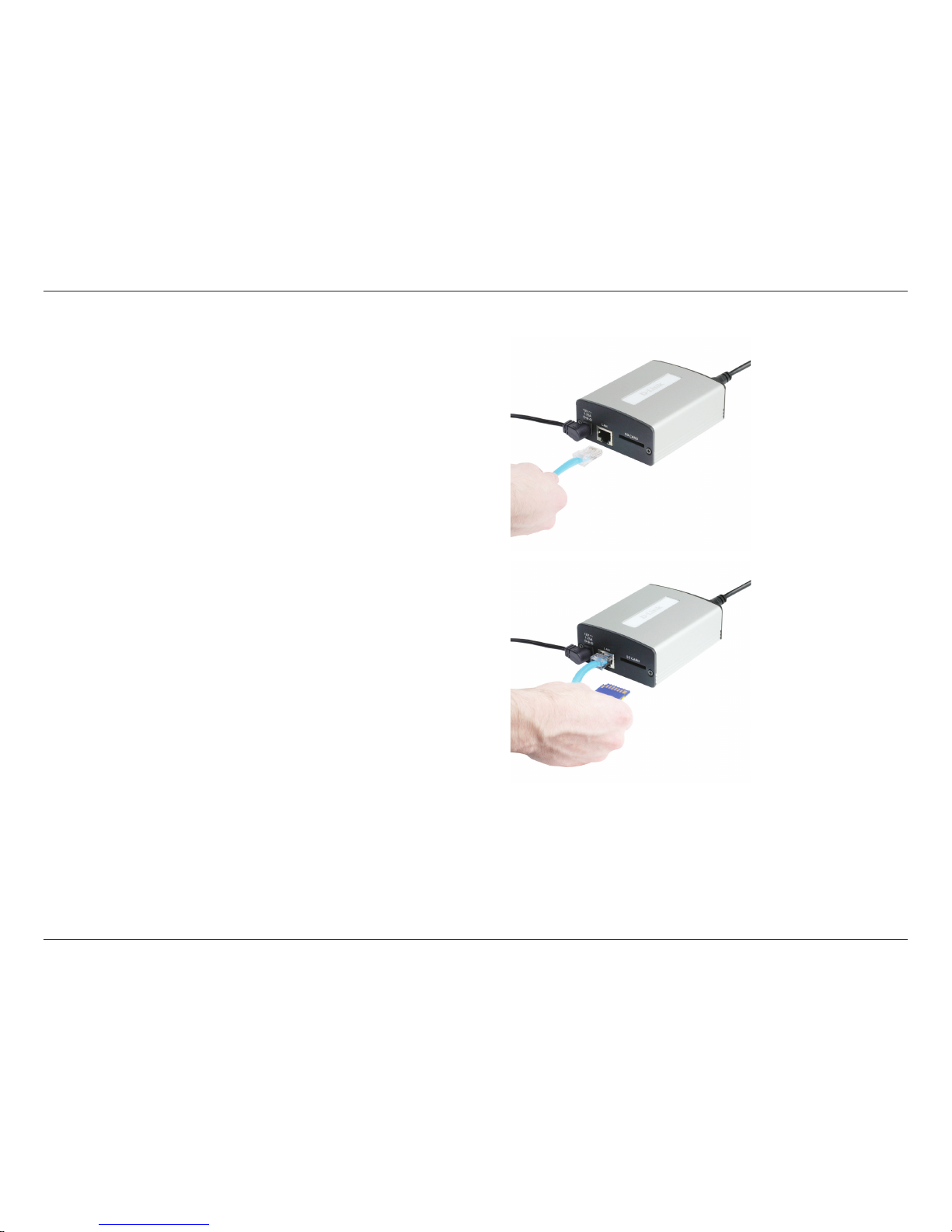

Connect the Ethernet Cable
Connect a CAT5 Ethernet cable to the LAN port of the Video
Encoder. Connect the opposite end of the CAT5 cable to an
active network device such as a hub, switch, or router.
Insert an SD Card (Optional)
Insert an SD card with the gold contacts of the card facing
upwards. Push the card into the slot until you feel it click into
place.
Connect Additional Peripheral Devices (Optional)
If desired, you may also connect audio equipment such as a
microphone or speaker to the AUDIO IN and AUDIO OUT ports
respectively. DI/DO devices and PTZ controls may also be
connected.

10D-Link DVS-210-1 User Manual
Section 3 - Configuration

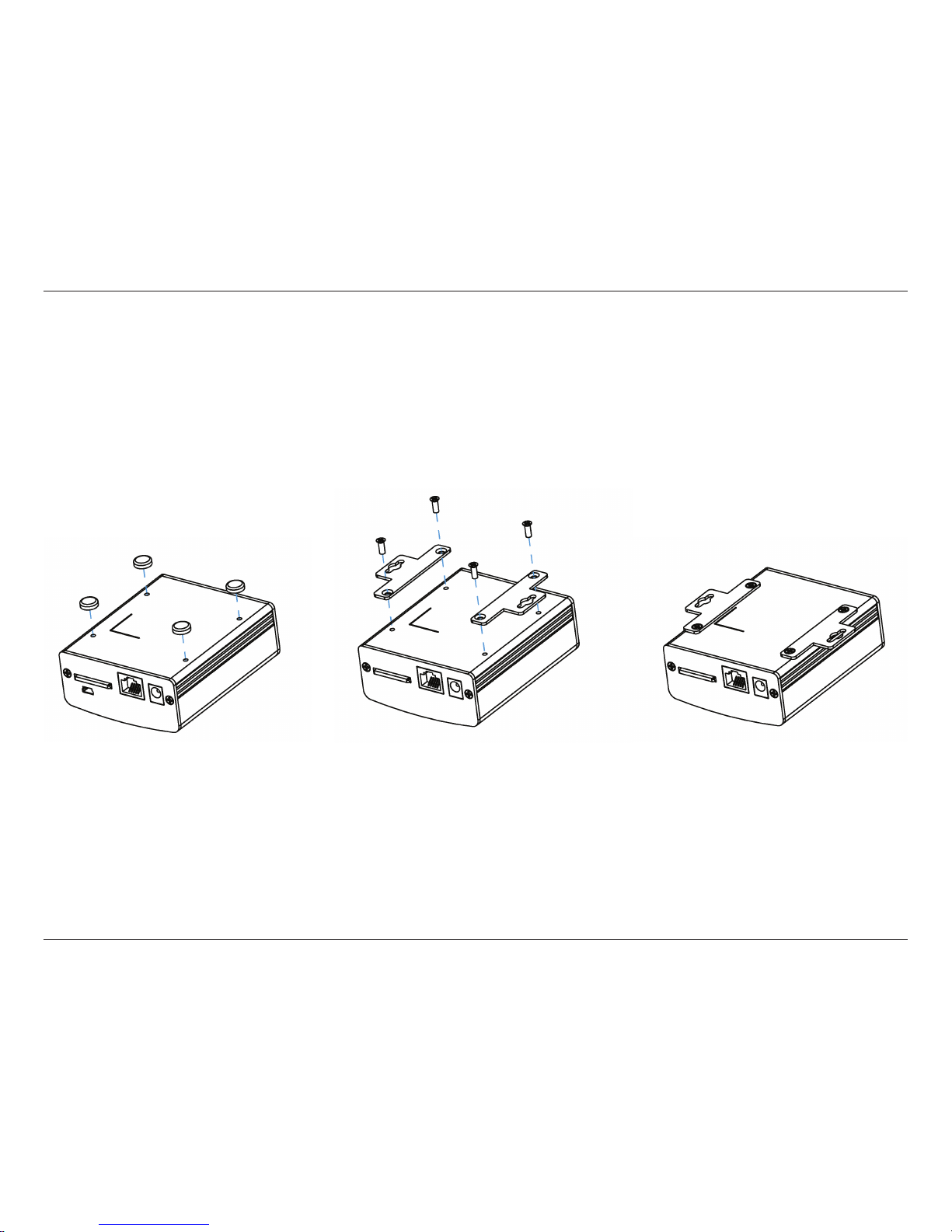

Mounting Bracket Installation (Optional)
Remove the four rubber feet from the bottom of the device, then afx the mounting brackets as shown below. Secure both of the brackets
into place using the supplied screws.
The brackets may now be used to mount the device on a wall or another at surface using bolts or screws.

11D-Link DVS-210-1 User Manual
Section 3 - Configuration
Setup Wizard
Initial Conguration
This section will show you how to congure your new DVS-210-1 Video Encoder using the D-Link Setup Wizard SE.

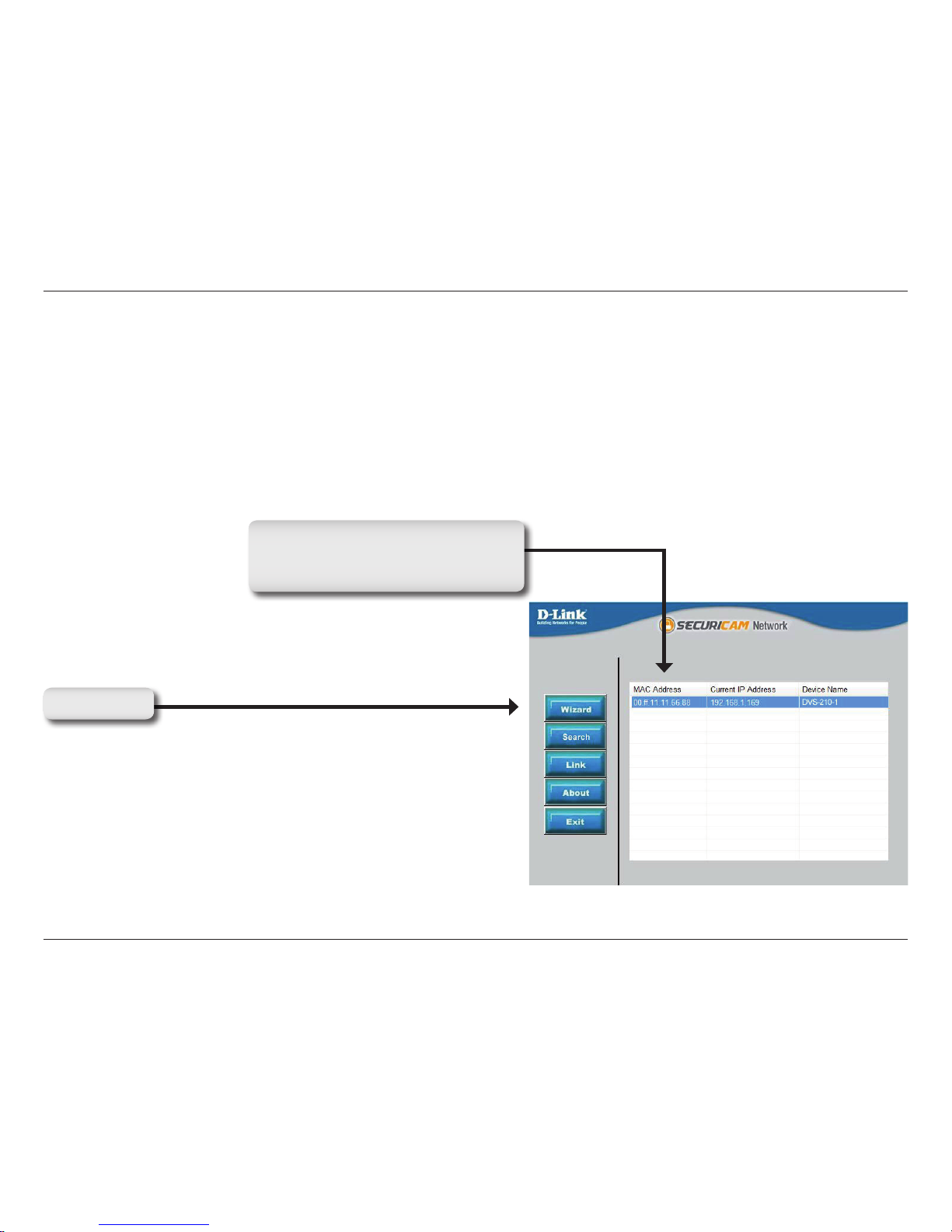

Click Wizard
After loading the Setup Wizard, your Video Encoder’s IP Address will be displayed along with its corresponding MAC Address here.
Your Video Encoder’s IP Address
will be displayed here along with its
corresponding MAC Address.

12D-Link DVS-210-1 User Manual
Section 3 - Configuration

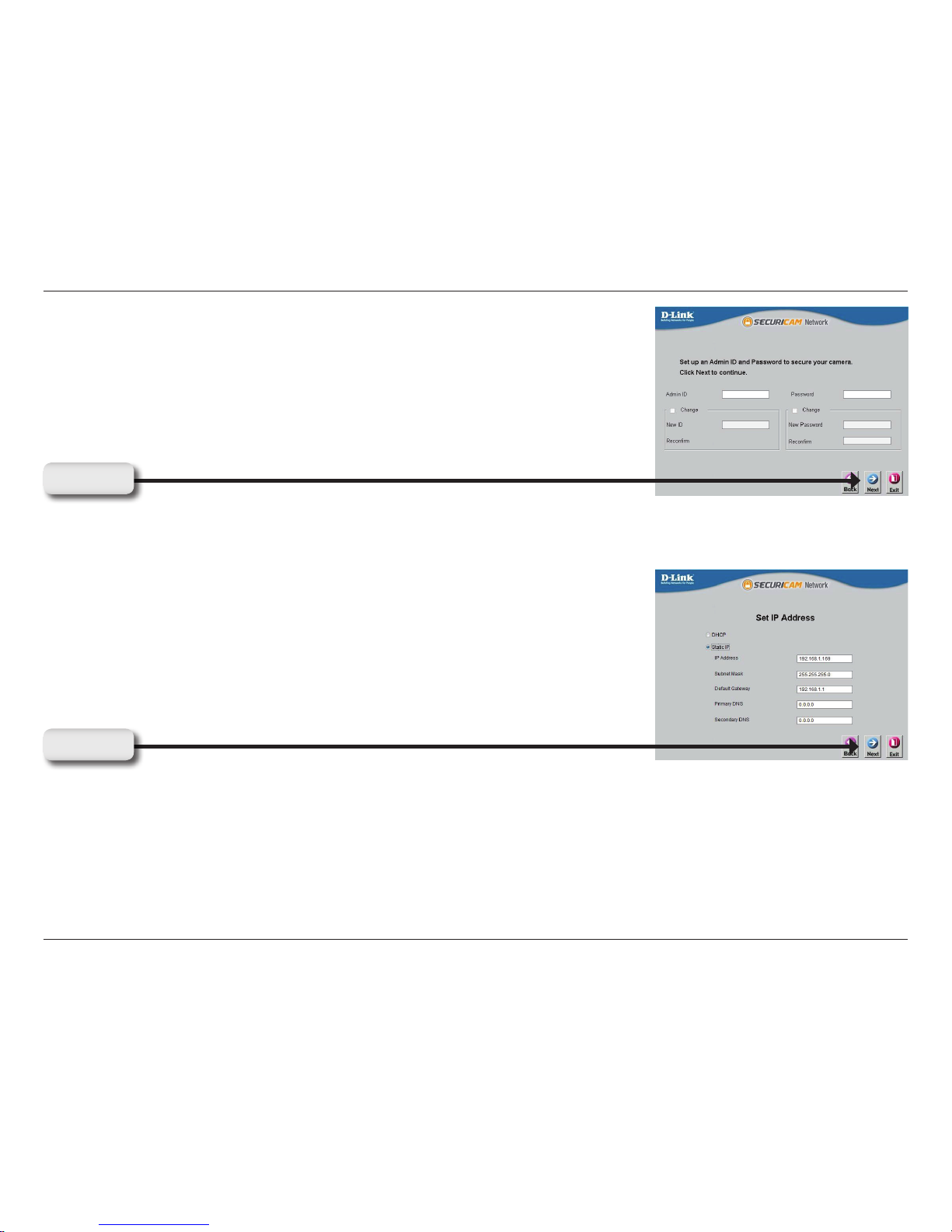

Enter the Admin ID and Password.
Note: The default Admin ID is admin with the password left blank.
Click Next
Click Next
Select DHCP if you want to obtain a new IP address every time the Video Encoder boots up, or
select Static IP to use the same IP address at each boot up.

13D-Link DVS-210-1 User Manual
Section 3 - Configuration
Setup is now complete.
Click Link to launch the web page of your Video Encoder, to view live
video from your Video Encoder.
Click Link

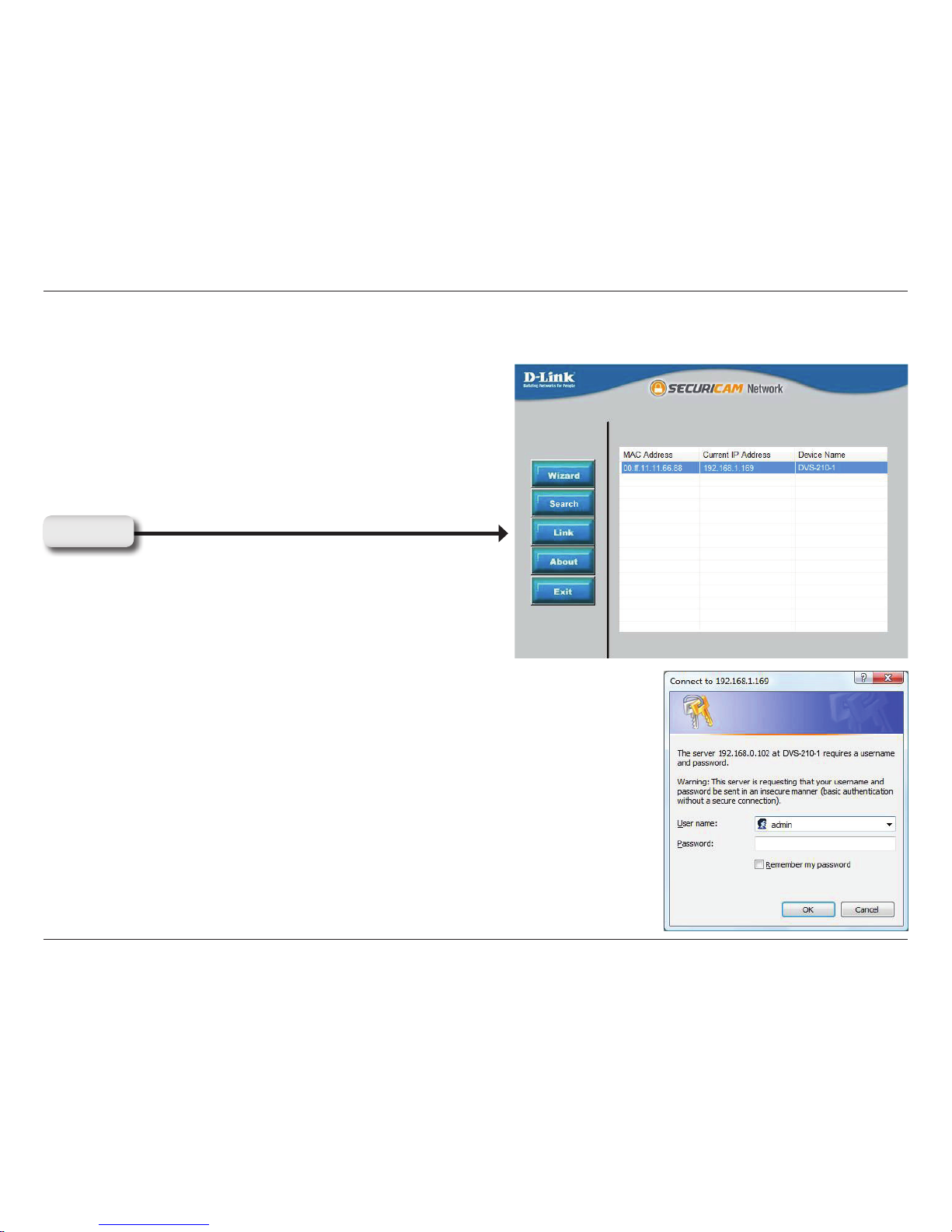

Connect to Your Video Encoder
Enter admin as the default User name and leave the Password blank. Click OK to continue.
The Setup Wizard will automatically open your web browser to the IP address of the DVS-210-1.
In this example it is: http://192.168.1.169. Your DVS-210-1 may have a different IP Address.
You may also use the Internet Explorer web browser to access your Video Encoder’s Home screen
by typing “http://address”in the address box, where address is the IP address that you have
assigned to your Video Encoder in the previous section.
When you connect to the home page of your Video Encoder for the rst time, you will be prompted
to download ActiveX. Please follow the prompts to install the ActiveX controls.

14D-Link DVS-210-1 User Manual
Web-based Conguration Utility
Conguration
This section explains how to congure your new D-Link Video Encoder using the Web-based Conguration Utility.

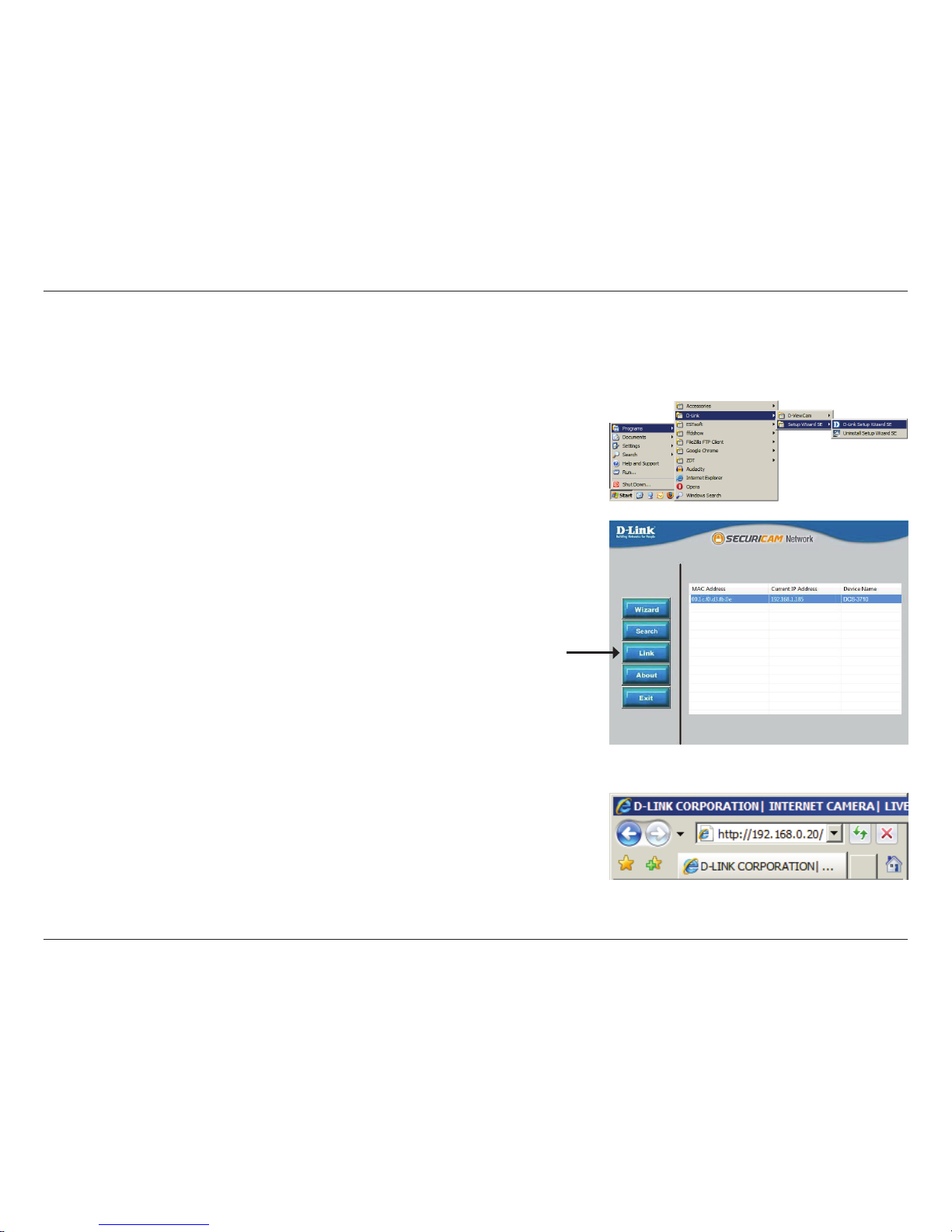

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start
menu.
Start > D-Link > Setup Wizard SE
Select the Video Encoder and click the button labeled "Link" to access the web
conguration.
The Setup Wizard will automatically open your web browser to the IP address of
the Video Encoder.

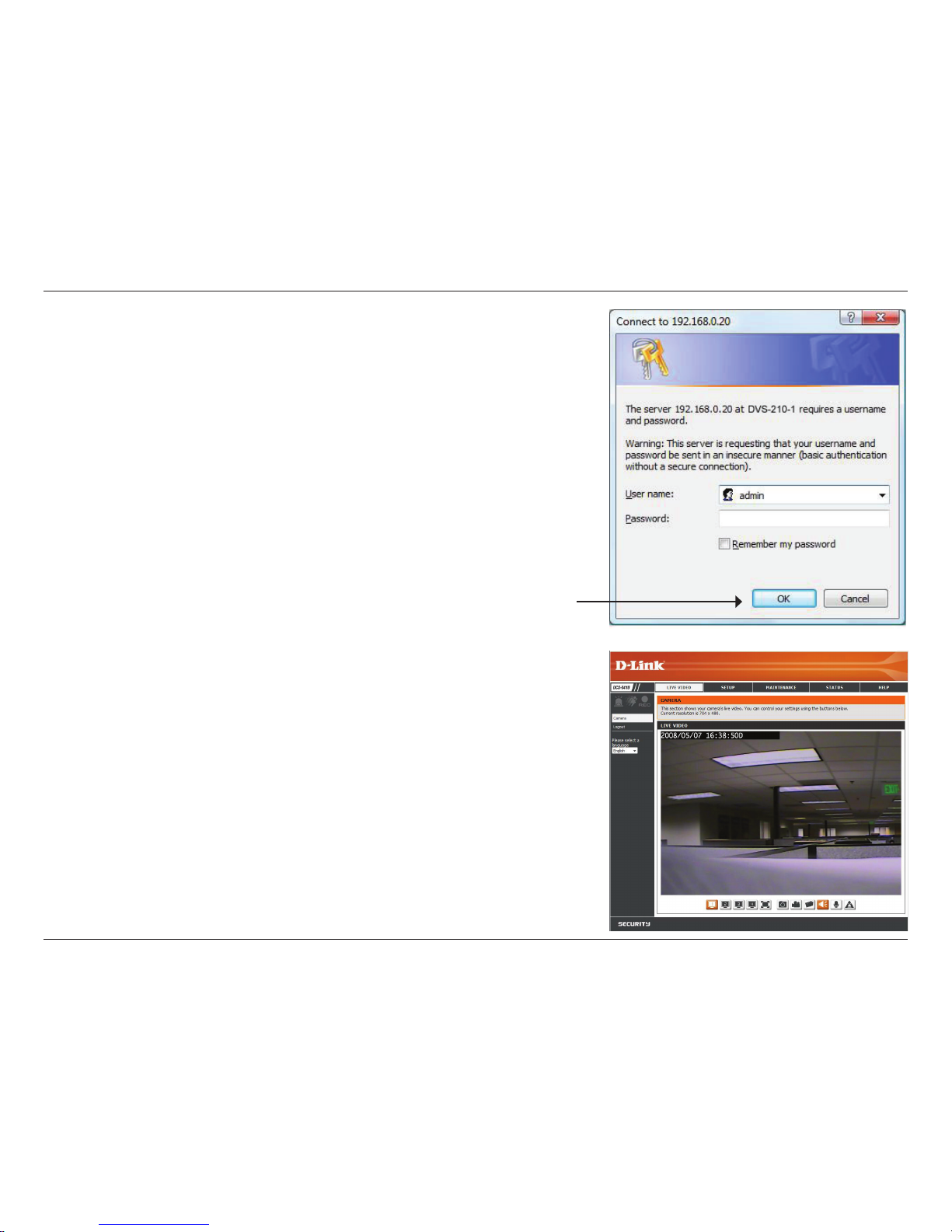

Alternatively, you may manually open a browser and enter the IP address of the
Video Encoder: 192.168.0.20

15D-Link DVS-210-1 User Manual
This section shows your Video Encoder’s live video. You can select your video
prole and view or operate the Video Encoder. For additional information about
web conguration, please refer to the user manual included on the CD-ROM or the
D-Link website.
Enter admin as the default username and leave the password blank. Click OK to
continue.

16D-Link DVS-210-1 User Manual

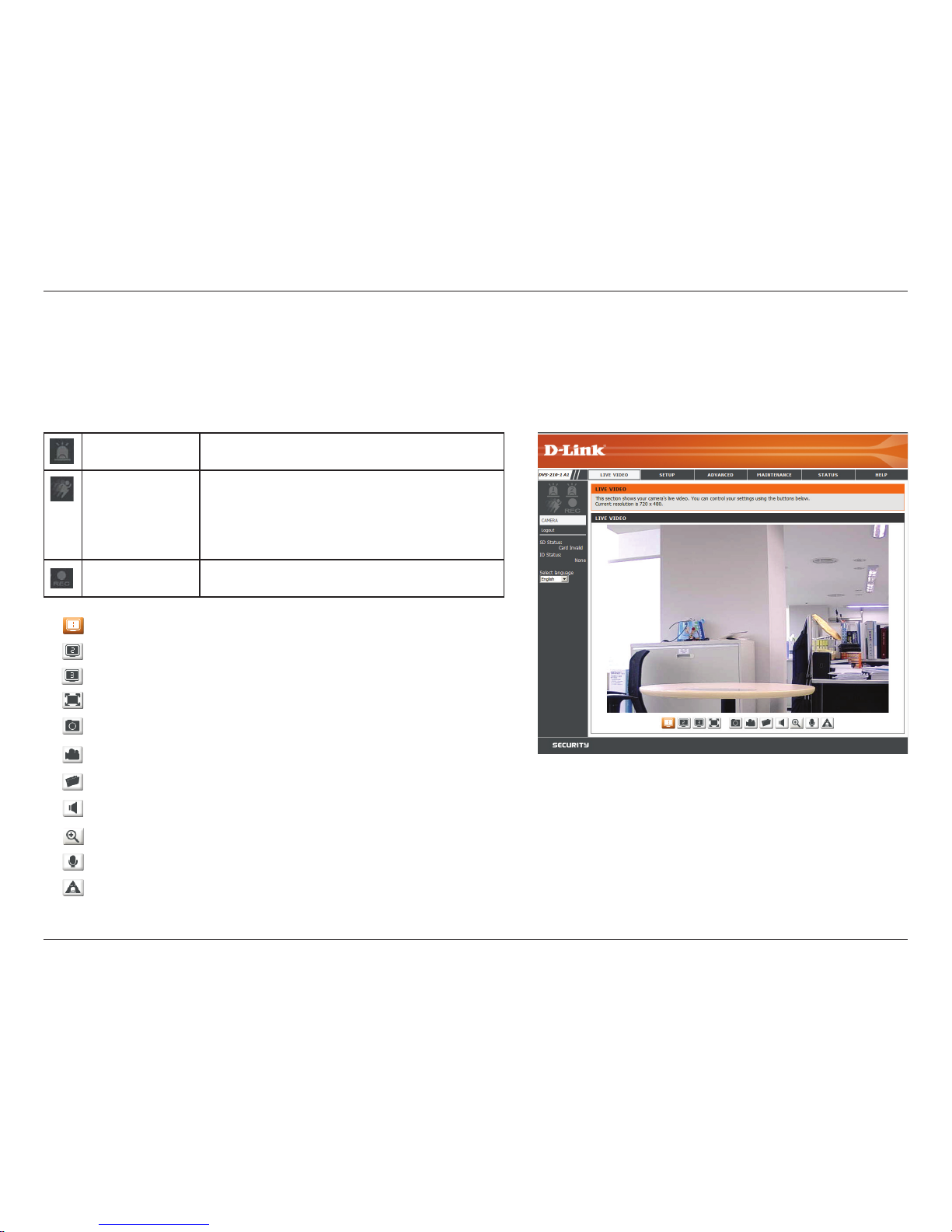

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also
select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Recording a Video Clip
Set a Storage Folder
Listen/Stop Listening
Zoom
Talk/Stop Talking
Start/Stop Digital Output
Digital Input
Indicator
This indicator will change color when a digital
input signal is detected.
Motion Trigger
Indicator
This indicator will change color when a trigger
event occurs.
Note: The video motion feature must be
enabled.
Recording
Indicator
When a recording is in progress, this indicator
will change color.

17D-Link DVS-210-1 User Manual
Setup
Wizard
To congure your Video Encoder, click Internet Connection Setup
Wizard. Alternatively, you may click Manual Internet Connection
Setup to manually congure your Video Encoder and skip to page 22.
To quickly congure your Video Encoder’s motion detection settings,
click Motion Detection Setup Wizard. If you want to enter your settings
without running the wizard, click Manual Motion Detection Setup and
skip to page 27.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure
your new D-Link Video Encoder and connect the camera to the internet.
Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.

18D-Link DVS-210-1 User Manual

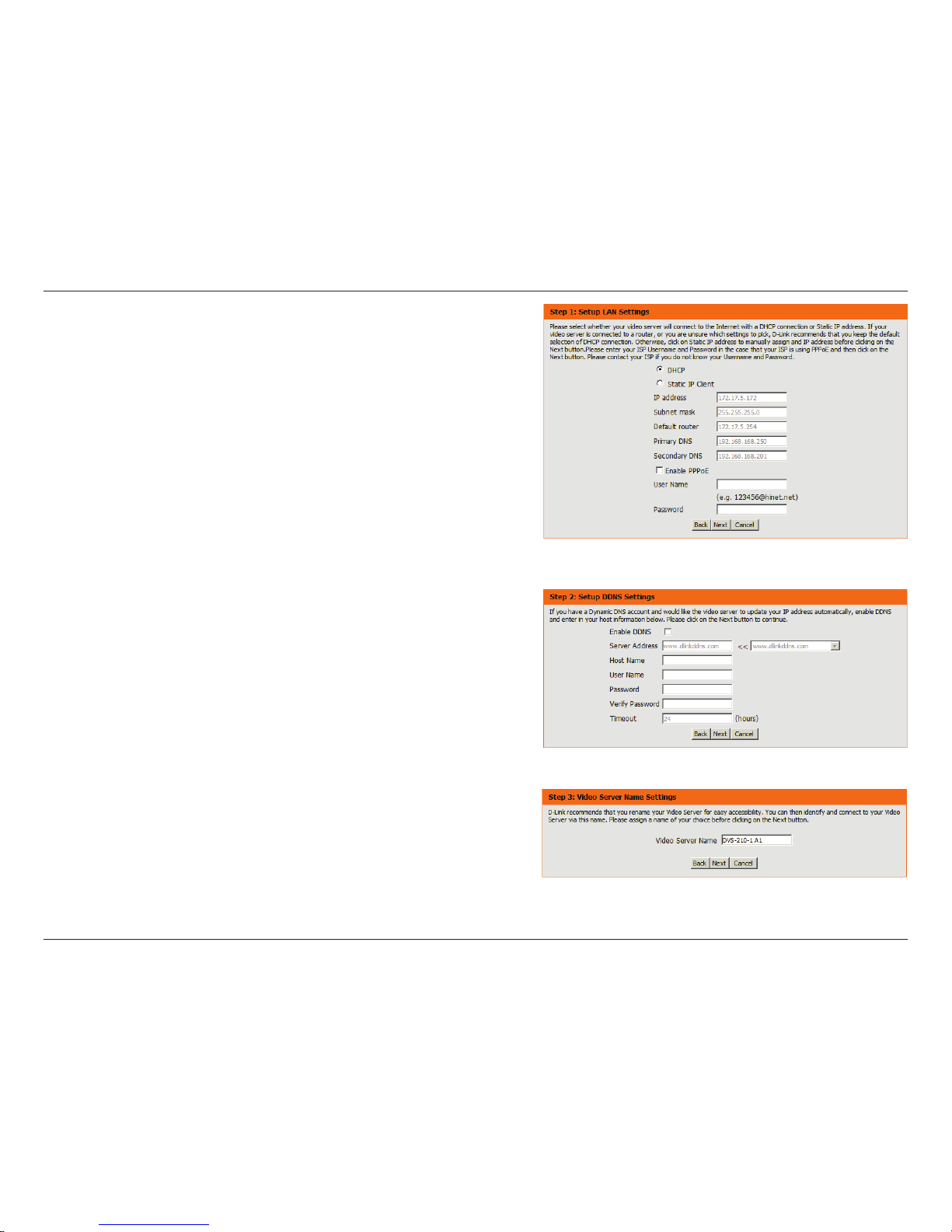

Select Static IP if your Internet Service Provider has provided you with
connection settings, or if you wish to set a static address within your home
network. Enter the correct conguration information and click Next to
continue.
If you are using PPPoE, select Enable PPPoE and enter your user name
and password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the Video Encoder to
update your IP address automatically, Select Enable DDNS and enter your
host information. Click Next to continue.
Enter a name for your Video Encoder and click Next to continue.

19D-Link DVS-210-1 User Manual

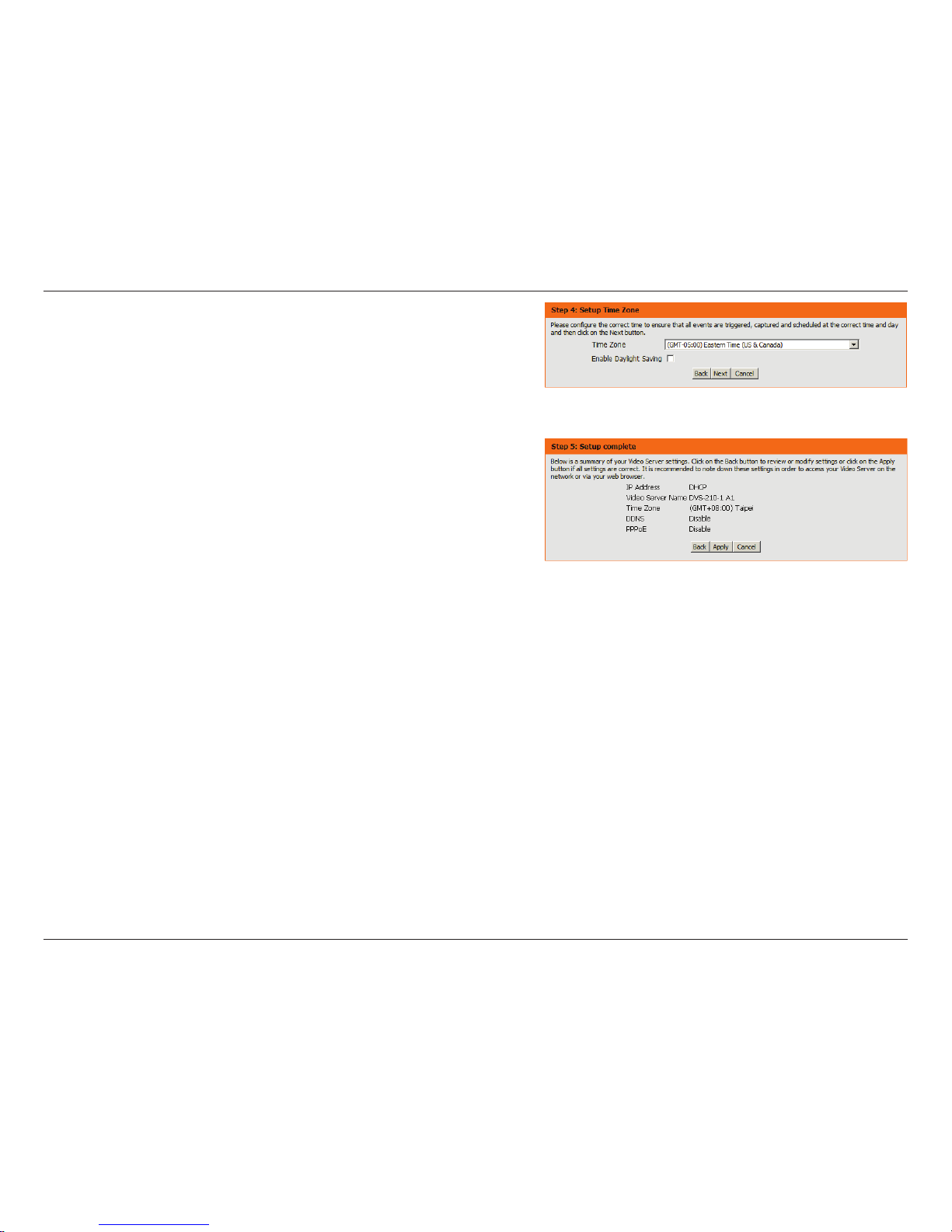

Congure the correct time to ensure that all events will be triggered
as scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your settings,
including the Video Encoder's IP address. Please write down all of this
information as you will need it in order to access your Video Encoder.
Click Apply to save your settings.

20D-Link DVS-210-1 User Manual

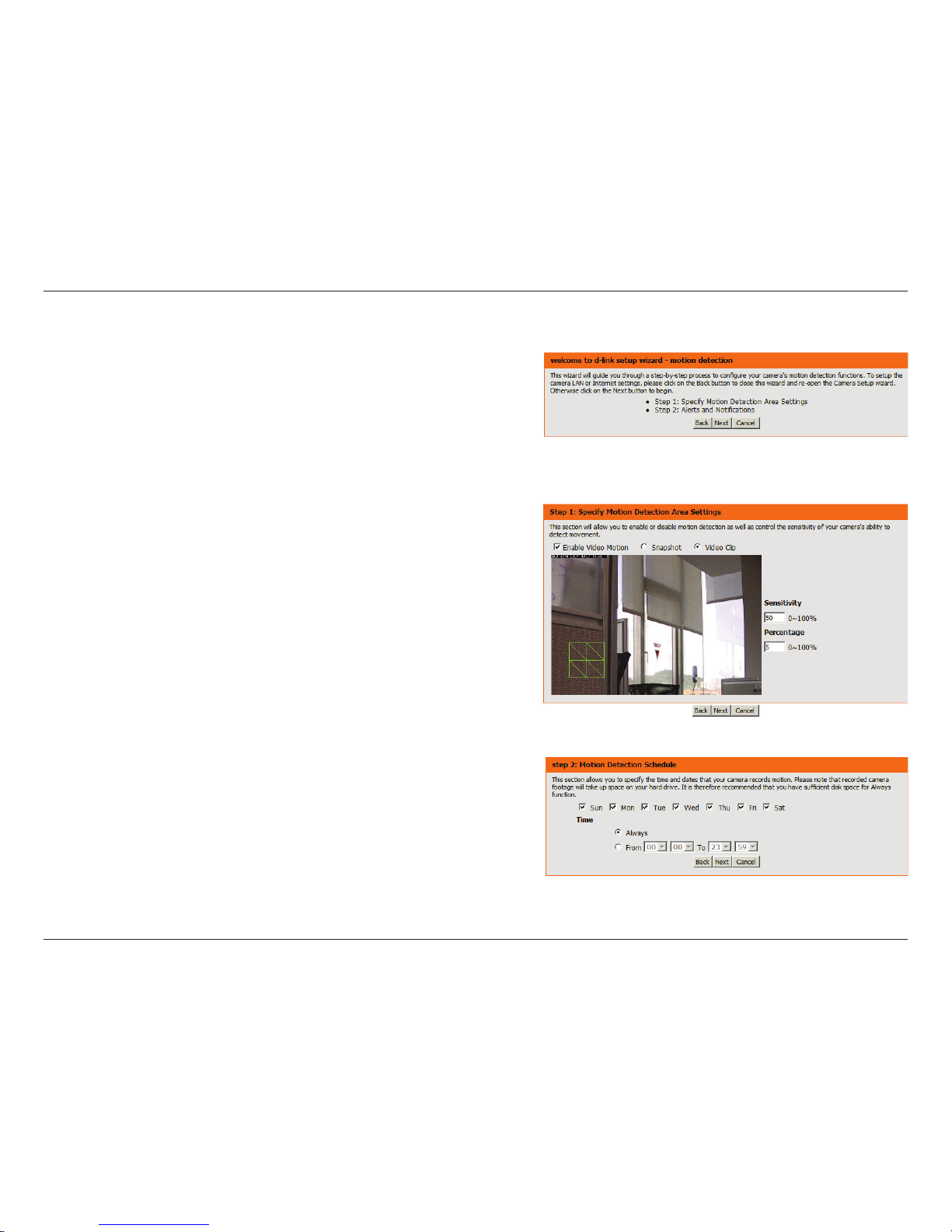

This wizard will guide you through a step-by-step process to congure your
Video Encoder's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the
detection sensitivity, and adjust the Video Encoder’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video
clip when motion is detected.
Please see the Motion Detection section on page 27 for information about
how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized
schedule. Specify the day and hours. You may also choose to always record
motion.
Motion Detection Setup Wizard
