DWL
-
G810
D-Link AirPlus XtremeG
802.11g High-Speed Ethernet-to-Wireless Bridge
Manual

2
Contents
1. Package Contents............................... 3
2. Introduction......................................... 4
3. Wireless Basics................................... 7
4. Getting Started ................................. 10
5. Web Configuration............................. 12
6. Troubleshooting ................................ 18
8. Technical Specifications................... 25
9. Contacting Technical Support .......... 28
10. Warranty and Registration............... 29

3
1. Package Contents
Contents of Package:

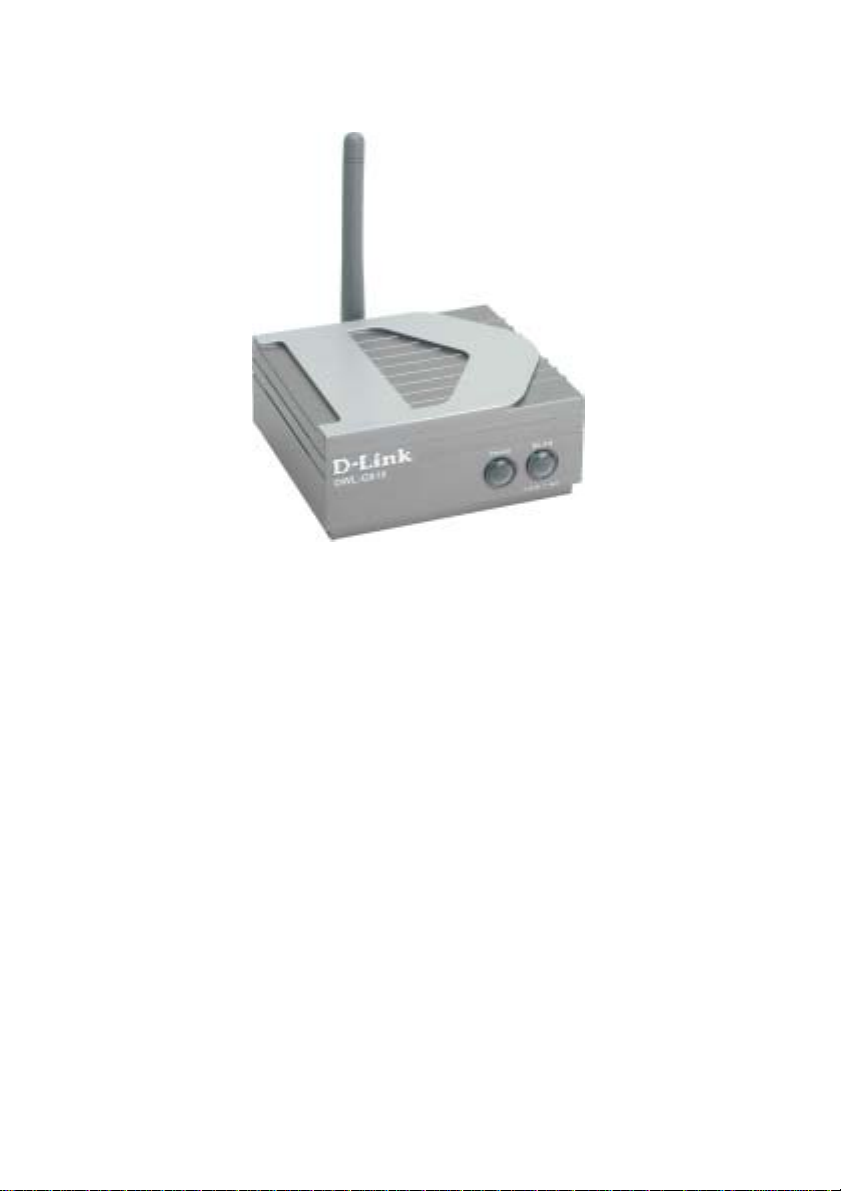

•D-Link AirPlus XtremeG DWL-G810 Ethernet-to-Wireless Bridge
•AC Power Adapter – 5V; 2.5A
•Manual and Warranty on CD
•Ethernet Cable (the DWL-G810 Auto MDI/MDIX Ethernet port
works with straight-through or crossover cable)
•Quick Installation Guide
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:
•A computer with an Ethernet adapter. (We recommend that you use
an Ethernet connection to configure the DWL-G810.)
•A current web-browser (e.g., Internet Explorer 6.0 or Netscape
Navigator 6.0 or later) for configuration
For Use: You will need an Ethernet-enabled device such as a game
console, laptop or desktop computer, network printer or set top box. The
DWL-G810 will transform virtually any Ethernet device into a wireless device,
enabling wireless communication over your network or in an ad-hoc/peer-to-
peer mode.

4
2. Introduction
The D-Link AirPlus XtremeG DWL-G810 Ethernet-to-Wireless Bridge is a
device that can be implemented in a variety of ways to provide wireless
access by converting an Ethernet connection. For devices with a built-in
Ethernet port, the DWL-G810 provides a cost effective way to gain wireless
connectivity, virtually transforming wired devices into wireless units! Connect
any Ethernet-enabled device to 802.11g wireless network and legacy
802.11g wireless network using the DWL-G810.
Typical applications include connecting a printer to a wireless network and
connecting Ethernet-enabled devices such as game consoles or set top
boxes to a Wireless Local Area Network (WLAN). Simply connect the DWL-
G810 to the Ethernet (RJ-45) port of a network device, such as a network
storage device, Internet camera, network printer, network scanner, or other
similar device. Using the DWL-G810 allows the flexibility of placing network
devices in remote locations while maintaining a high-speed connection.
You can use the convenient Setup Wizard for the easy installation of your
DWL-G810. Whether you are using it in Ad-Hoc mode or Infrastructure mode,
you can begin with the Setup Wizard. Please refer to the Quick Installation
Guide that is included with your purchase for instructions on how to use the
Setup Wizard.
This manual provides a quick introduction to wireless technology and its
application as it relates to networking. Please take a moment to read through
this manual if you need to get acquainted with wireless technology.

5
Features and Benefits
•Transforms an Ethernet device into a wireless device
•Up to 54Mbps transfer rates*
•Fully compatible with standard 802.11g/b-compliant devices
•Equipped with one 10/100 Ethernet port, Auto-MDI/MDIX
•Quick and Simple connectivity via Ethernet
•Supports Ad Hoc or Infrastructure modes
•Easy web-based configuration when changing settings
•Encryption to provide a level of security for data transfers
LEDs

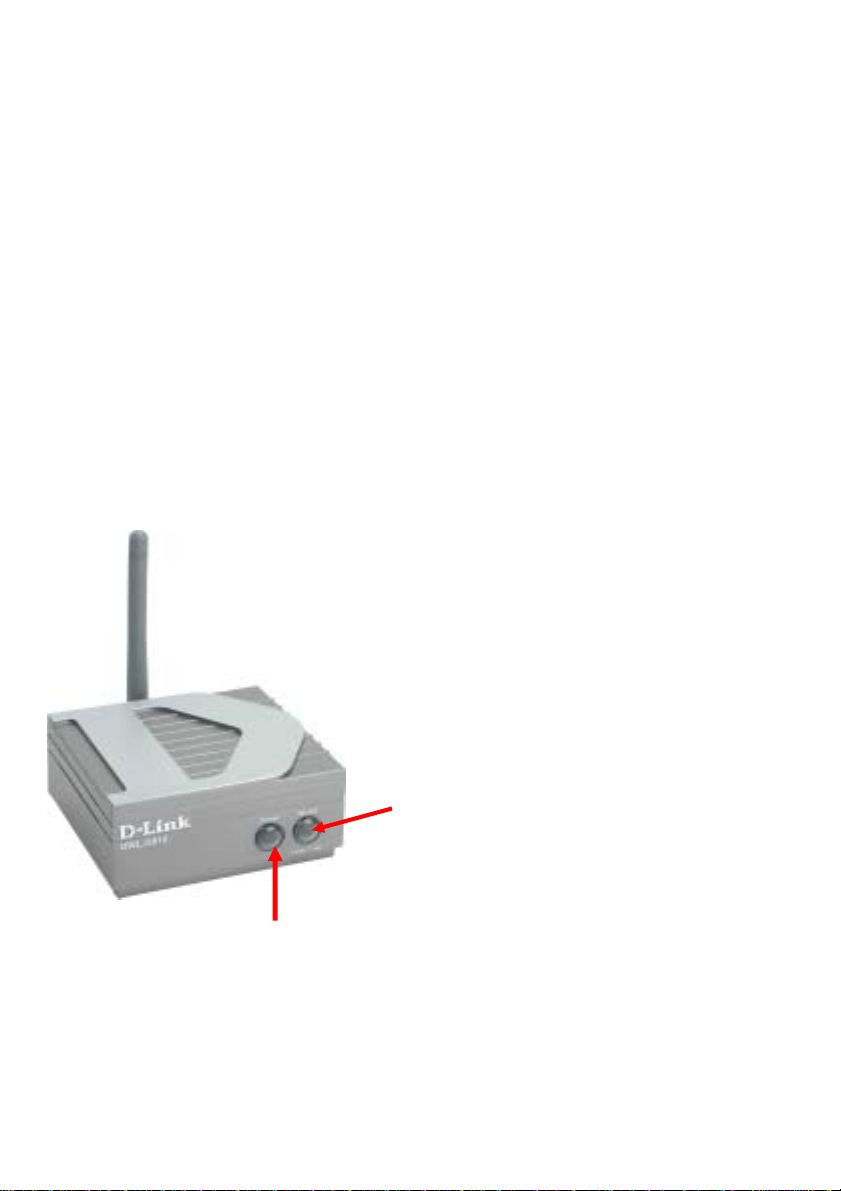

LED stands for Light-Emitting Diode. The DWL-G810 has two LEDs:
Power – a steady Green light indicates a
proper connection to a power source.
Wireless Link/Act – A blinking light
indicates that the DWL-G810 is
receiving/transmitting from/to the wireless
network.

6
Connections

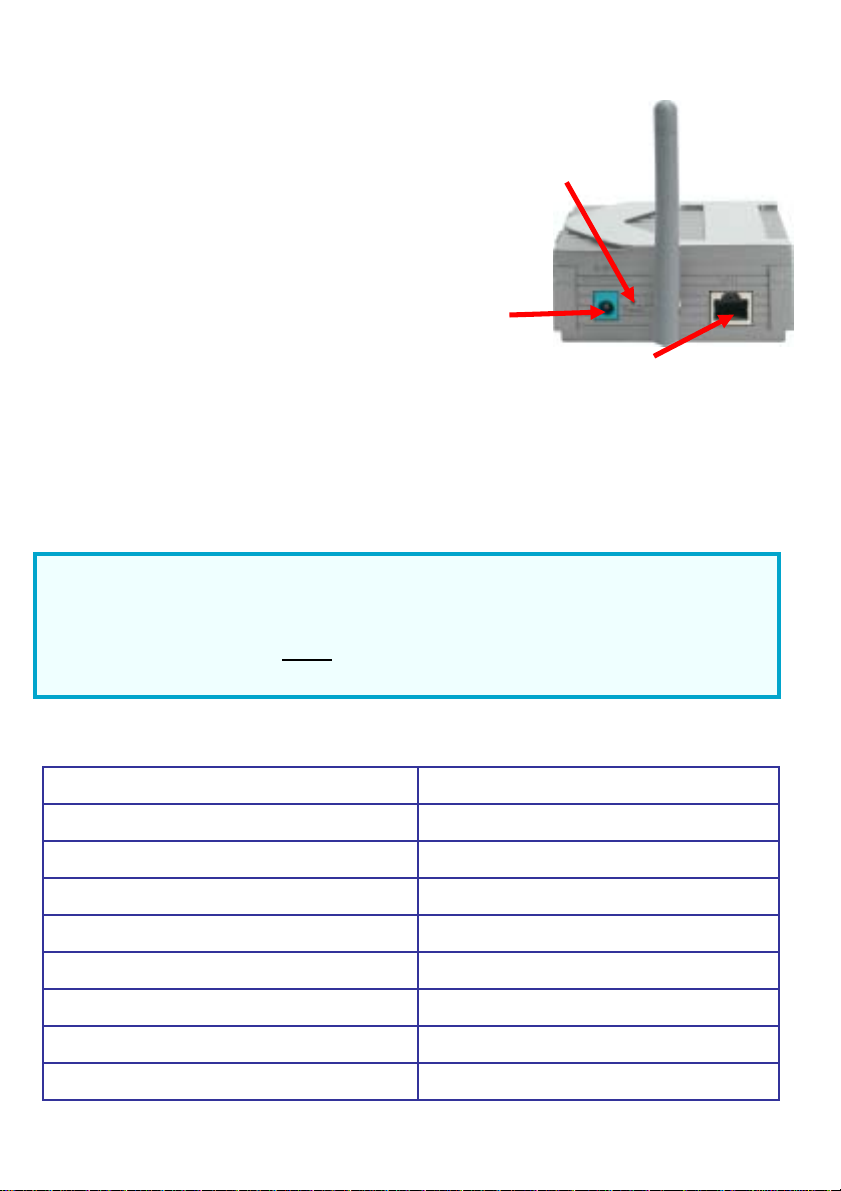

Reset Button – press this button to revert to the factory default settings of
the DWL-G810
Power Receptor – connect one end of the 5V DC Power Adapter (included)
to the power receptor on the DWL-G810 and connect the other end of the
Power Adapter to a power outlet.
Default Settings
Operating Mode Infrastructure
SSID default
Channel 6
Transmission rates Auto
Encryption Disabled
IP Address 192.168.0.30
IP Subnet 255.255.255.0
User Name admin (all lower case)
Password None (leave field blank)
Ethernet Port
Reset Button
Power Receptor
Category 5 is the most reliable grade of twisted-pair cable. It is available as
either Straight-Through cable or Cross-Over cable. Always check your
installation instructions to make sure that you have selected the correct type of
Category 5 cable for your other networking devices. The DWL-G810 will accept
either kind of cable and will automatically sense the cable that you are using.
Ethernet Port
–
this RJ-45 Auto
MDI/MDIX port provides
connection to a network device
using a Cat 5 Ethernet cable.
(The auto MDI/MDIX port
accommodates either Straight-
Through or Cross-Over cable and
is auto-sensing.)

7
3. Wireless Basics
With the DWL-G810 you can provide instant wireless access to the LAN
(Local Area Network) for Ethernet-enabled devices. With an Ethernet (CAT5)
cable simply connect the DWL-G810 to the Ethernet port of a network device
(such as a printer or web camera) to establish a wireless connection with
another device equipped with a wireless network adapter set to Ad-Hoc
mode.
If you are planning a larger wireless network, D-Link offers a wide array of
products for most of your wireless local area network (WLAN) needs. In this
section, we discuss typical WLANs and their components. Much of the
advice given here may be helpful in setting up the DWL-G810. It may also
give you some ideas, if you plan to expand your wireless network.
D-Link wireless products are based on industry standards to provide easy-to-
use and compatible high-speed wireless connectivity within your home,
business or wherever a wireless network is available. D-Link wireless
products will allow you access to the data you want, when and where you
want it. No longer will you be limited to one location or forced to run new
wiring through your home or office. You will be able to enjoy the freedom that
wireless networking brings.
A WLAN is a cellular computer network that transmits and receives data with
radio signals instead of wires. WLANs are used increasingly in both home
and office environments, and public areas such as airports, coffee shops and
universities. Innovative ways to utilize WLAN technology are helping people
to work and communicate more efficiently. Increased mobility with the
absence of cabling and other fixed infrastructure has proven to be beneficial
for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop and desktop systems, support the
same protocols as Ethernet adapter cards. For most users, there is no
noticeable functional difference between a wired Ethernet computer and a
wireless computer equipped with a wireless adapter other than the added
benefit of the ability to roam within a wireless-cell. Under many
circumstances, it may be desirable for mobile network devices to link to a
conventional Ethernet LAN in order to use servers, printers or an Internet
connection supplied through the wired LAN. A Wireless Access Point (AP) is
one device used to provide this link.

8
Wireless Basics
People use WLAN technology for many different purposes.
Mobility - Productivity increases when people have access to data in any
location within the operating range of the WLAN. Management decisions
based on real-time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change
and relocate. Networks that frequently change, both physically and logically,
can benefit from WLANs ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be
fast and easy and can eliminate the need to install cable through walls and
ceilings. Wireless technology allows the network to go where wires cannot
go - even outside the home or office.
Inexpensive Solution – Wireless network devices are as competitively
priced as conventional Ethernet network devices.
Scalability - WLANs can be configured in a variety of ways to meet the
needs of specific applications and installations. Configurations are easily
changed and range from peer-to-peer networks suitable for a small number
of users to full infrastructure networks of thousands of users that allow
roaming over a broad area.
The DWL-G810 is compatible with the D-Link Wireless family of products,
and other 802.11g/b products, including:
DWL-624 High-Speed 802.11g Wireless Router
DWL-624+ Enhanced 802.11g Wireless Router
DWL-2000AP High-Speed 802.11g Access Point
DWL-2000AP+ Enhanced 802.11g Access Point

9
Wireless Basics
The DWL-G810 is also compatible with the following D-Link AirPlus family of
products:
DWL-650+ Enhanced 2.4GHz Wireless Cardbus Adapter for laptop
PCs
DWL-520+ Enhanced 2.4GHz Wireless PCI card for desktop PCs
DWL-900AP+ Wireless Access Point
DI-614+ Wireless Router
Standards - Based Technology
The IEEE standard-based technology assures that this product is
interoperable with existing compatible wireless technology. This means you
will be able to transfer large files quickly or even watch a movie in MPEG
format over your network without noticeable delays. The technology works
by using multiple frequencies in the 2.4GHz range. This D-Link AirPlus
XtremeG product will automatically sense the best possible connection
speed to ensure the greatest speed and range possible with the technology.
Installation Considerations
Designed to go up to 984 feet (300 meters) outdoors and up to 328 feet (100
meters) indoors, the D-Link AirPlus XtremeG DWL-G810 lets you access
your network devices wirelessly from virtually anywhere within its operating
range. Keep in mind, however, that the number, thickness and location of
walls, ceilings or other objects that the wireless signal must pass thru may
limit range. Typical ranges vary depending on the types of materials and any
background RF (radio frequency) noise in your home or business. The key to
maximizing range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the DWL-G810 and your
receiving device (e.g., the DWL-2000AP+) to a minimum - Each wall or
ceiling can reduce your D-Link AirPlus XtremeG Wireless product’s
range from 3-90 feet (1-30 meters.) Position your DWL-G810, Access
Points, Residential Gateways, and computers so that the number of
walls or ceilings is minimized.
2. Be aware of the direct line between the DWL-G810 and the device with
which it communicates, as well as between Access Points, Residential
Gateways (routers), and computers. A wall that is 1.5 feet thick (.5

10
Wireless Basics
meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.
At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
Access Points and Adapters so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials can impede the wireless signal - A solid metal door or
aluminum studs may have a negative effect on range. Try to position the
DWL-G810, the Access Points, and computers with wireless adapters so
that the signal passes through drywall or open doorways and not other
materials.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that may generate extreme RF noise.
Using radio frequency (RF) technology, the DWL-G810 transmits and
receives data over the air, eliminating the need for a wired connection.
4. Getting Started
Setup #1:

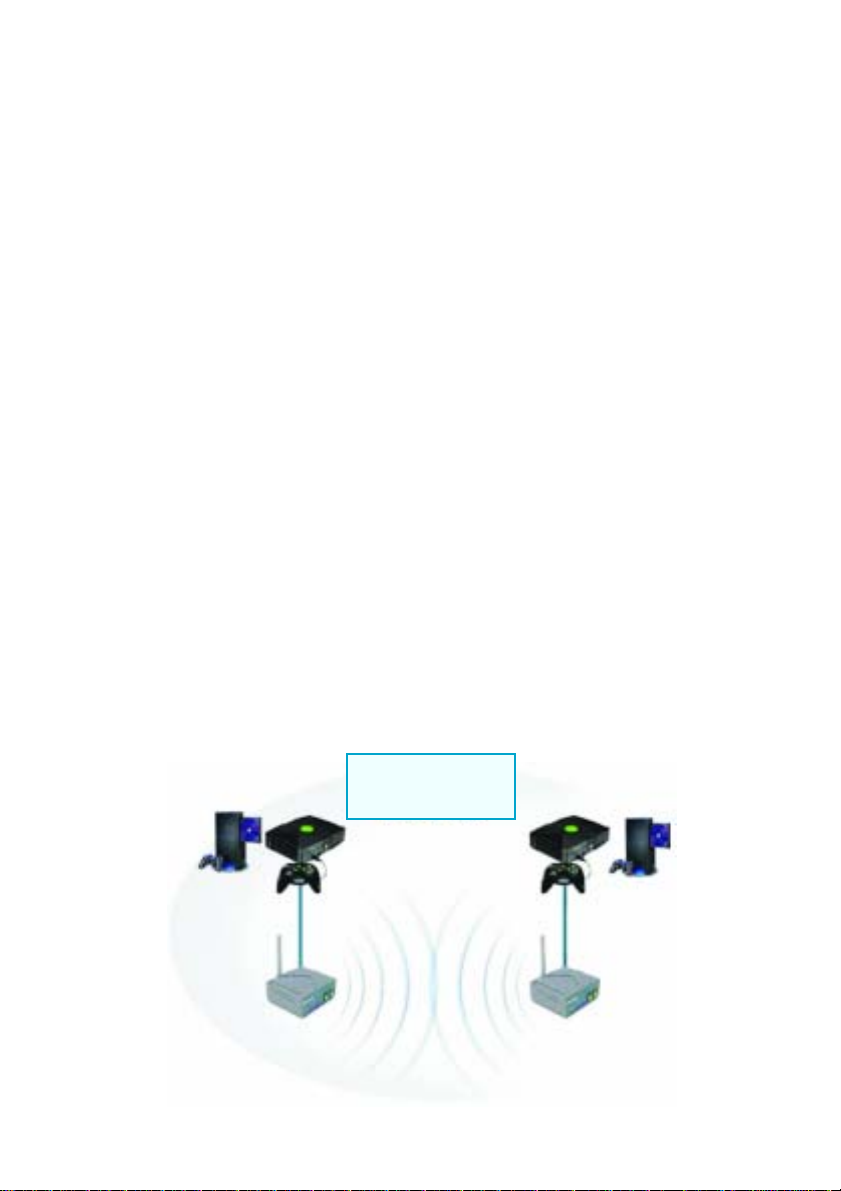

This example illustrates an Ad-Hoc setup. Simply connect the DWL-G810
(refer to the Quick Installation Guide) to your Ethernet-capable network
device (in this case, a gaming console) and you will be able to connect
wirelessly with other gaming consoles also connected to DWL-G810’s.
Setup #1

11
Getting Started

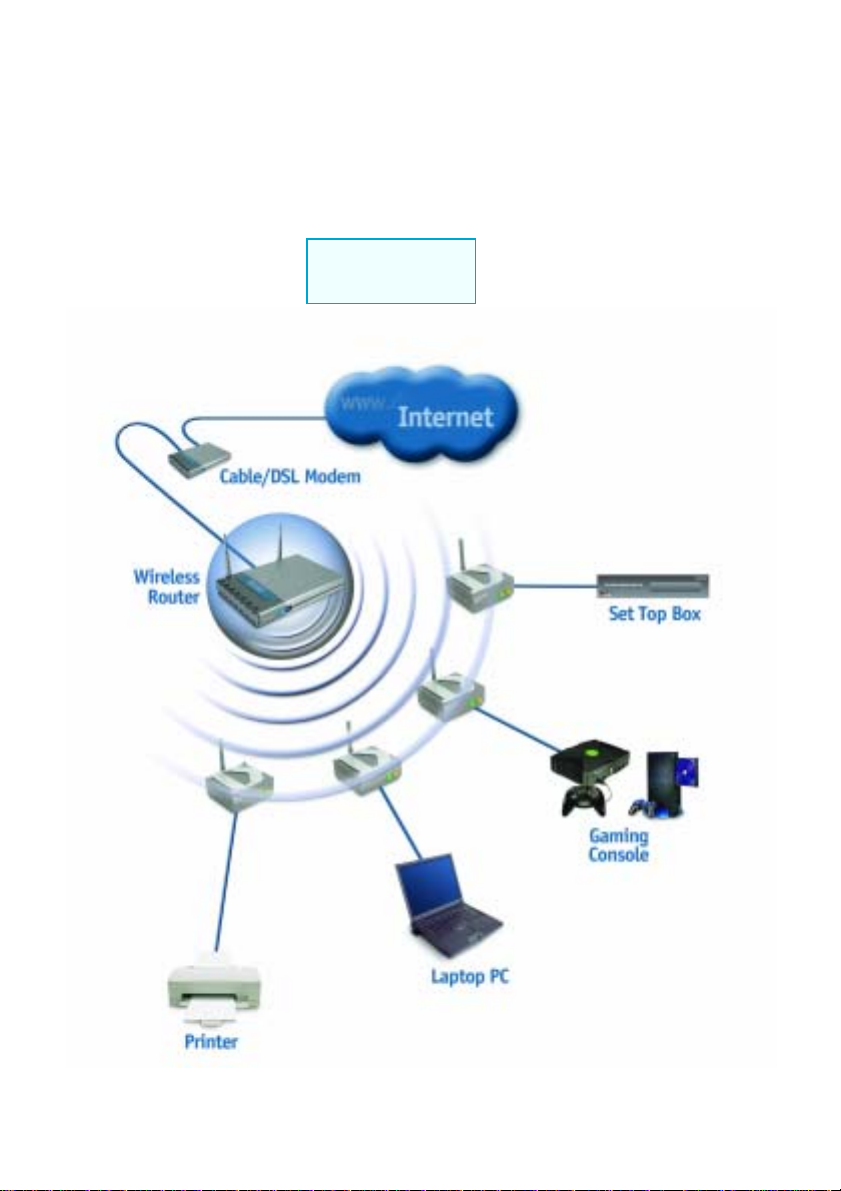

Setup #2
DWL-G810
Setup #2: This example illustrates an Infrastructure setup. To
connect the DWL-G810 to a wireless network with a wireless router
or access point, please refer to the printed Quick Installation Guide
included with the product. Web configuration is required to connect
the DWL-G810 in Setup #2.

12
5. Web Configuration
Before using the Web Configuration for the DWL-G810, please consider the
following:
Factory Default Settings for the DWL-G810
Operating Mode Infrastructure
SSID Default
Channel 6
Transmission rates Auto
Encryption No
Administrator password Blank (no password needed)
IP Address mode Static
IP Address 192.168.0.30
IP Subnet 255.255.255.0
username admin (all lower case)
You will need a JavaScript-enabled web-browser such as the Internet
Explorer 6.0 or later, or the Netscape Navigator 6.0 or later.
The computer that you are using for initial configuration must have
an IP Address within the same range as the IP Address of the DWL-
G810. The DWL-G810 has a default IP Address of 192.168.0.30 with a
subnet mask of 255.255.255.0
You will need to assign a Static IP Address to the computer that you are
using to configure the DWL-G810, within the IP Address Range of the
DWL-G810. For example, you can assign a Static IP address of
192.168.0.2 with a subnet mask of 255.255.255.0 (Please refer to the
Appendix section of the Quick Installation Guide.)

13
Configuration Menu
Whenever you want to configure your network or the DWL-G810, you can
access the Configuration Utility by opening the web-browser and typing in
the IP Address of the DWL-G810. The DWL-G810 default IP Address is
shown below:
(The IP Address shown in the example above is the default setting. Use this IP address when
connecting to a network consisting of other D-Link devices set to their default settings. If you
have changed the IP Address of the DWL-G810 to conform to a network other than one with
D-Link devices, at their default setting, then input that IP Address in the web browser, instead
of the default IP Address shown.)

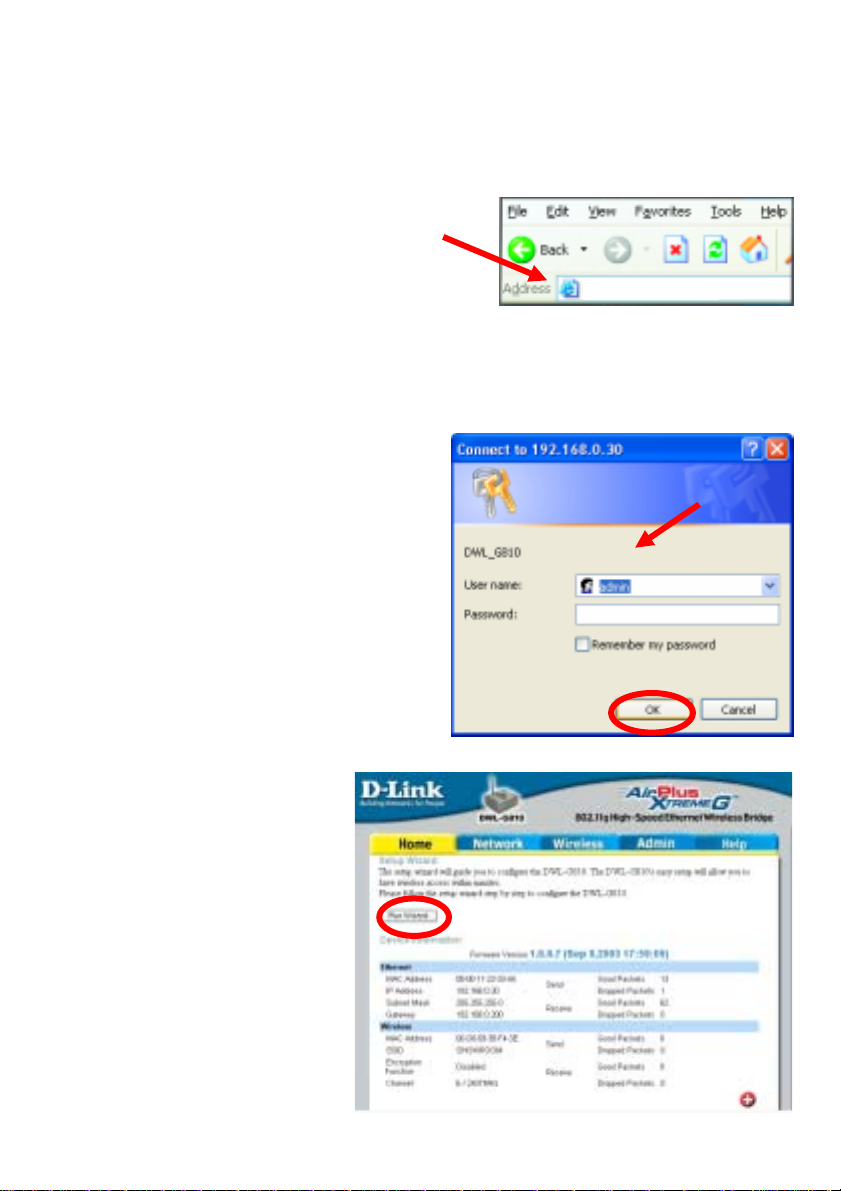

•Open the web browser
•Type in the IP Address
of the Access Point
•Type admin in the
User Name field
•Leave the Password
blank
•Click OK
The Home window will
appear. Please refer to the
Quick Installation Guide,
included with your purchase,
for more information
regarding the Setup Wizard,
accessible here. Once you
have completed the
configuration of the DWL-
G810, the current settings will
be displayed in this window.
Home
http://192.168.0.30

14
Configuration Menu

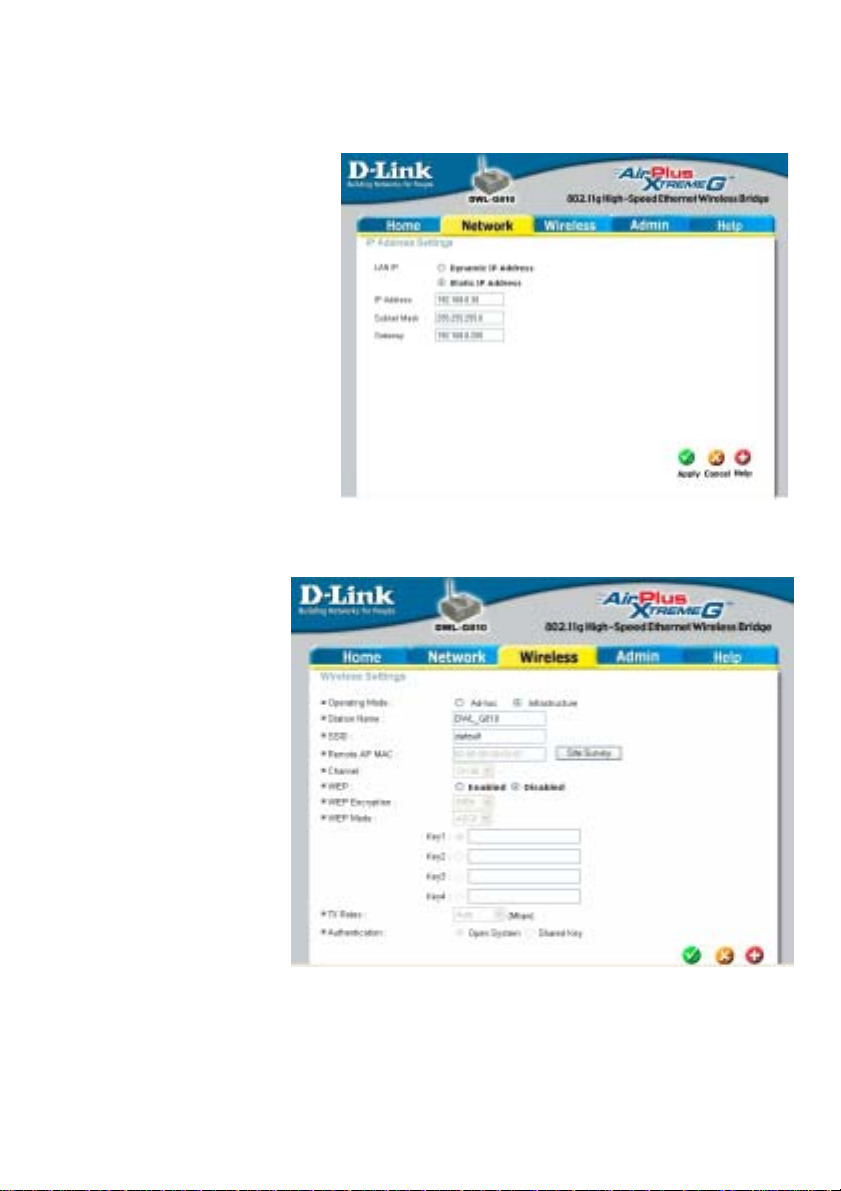

This window displays the
default settings of the
DWL-G810. The default
IP Address is 192.168.30.
If you select Dynamic IP
Address, you will obtain a
dynamic IP Address from
a DHCP server on your
network. The Subnet
Mask is 255.255.255.0.
Input the IP Address of
the Gateway (the router
on your network.)
Click Apply if you have
made any changes.
Network
Wireless
Operating Mode:
Select Ad-hoc or
Infrastructure.
Infrastructure is the
default setting.
Station Name: You
may choose to
rename your DWL-
G810, especially if
you have more than
one Access Point on
your network.
SSID: (Service Set Identifier) default is the default setting. The SSID is
a unique name that identifies a network. All devices on a network must
share the same SSID name in order to communicate on the network. If
you choose to change the SSID from the default setting, input your new
SSID name in this field. The SSID can be up to 32 characters in length.

15
Configuration Menu
Channel: Channel 6 is the default channel. Input a new number if you
want to change the default setting. All devices on the network must be set to
the same channel to communicate on the network.
WEP Encryption: Select Enable Encryption to use WEP (Wired Equivalent
Privacy) on the network. All devices on the network, and the Access Point,
must share the same WEP selection – either Enable or Disable, and they
must share the same WEP key. The WEP key is generated from ASCII or
Hexadecimal entries that are either 64, or 128 bits in length. When enabling
encryption, select the Key Type (ASCII or Hexadecimal) and then input the
appropriate digits or letters. You can create up to 4 keys. Select the key
you wish to use.
Transmission Rate: Select the transmission rate for the network. There are
several options for you to choose: Auto, 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48,
and 54. The default setting is Auto.
Authentication:
Open System – communicates the key across the network
Shared Key – devices must have identical WEP settings to
communicate
Auto – automatically adjusts to the Authentication mode of the
wireless client
Click Apply if you have made any changes or additions.
Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code
for representing English letters as numbers from 0-127

16
Configuration Menu
Admin

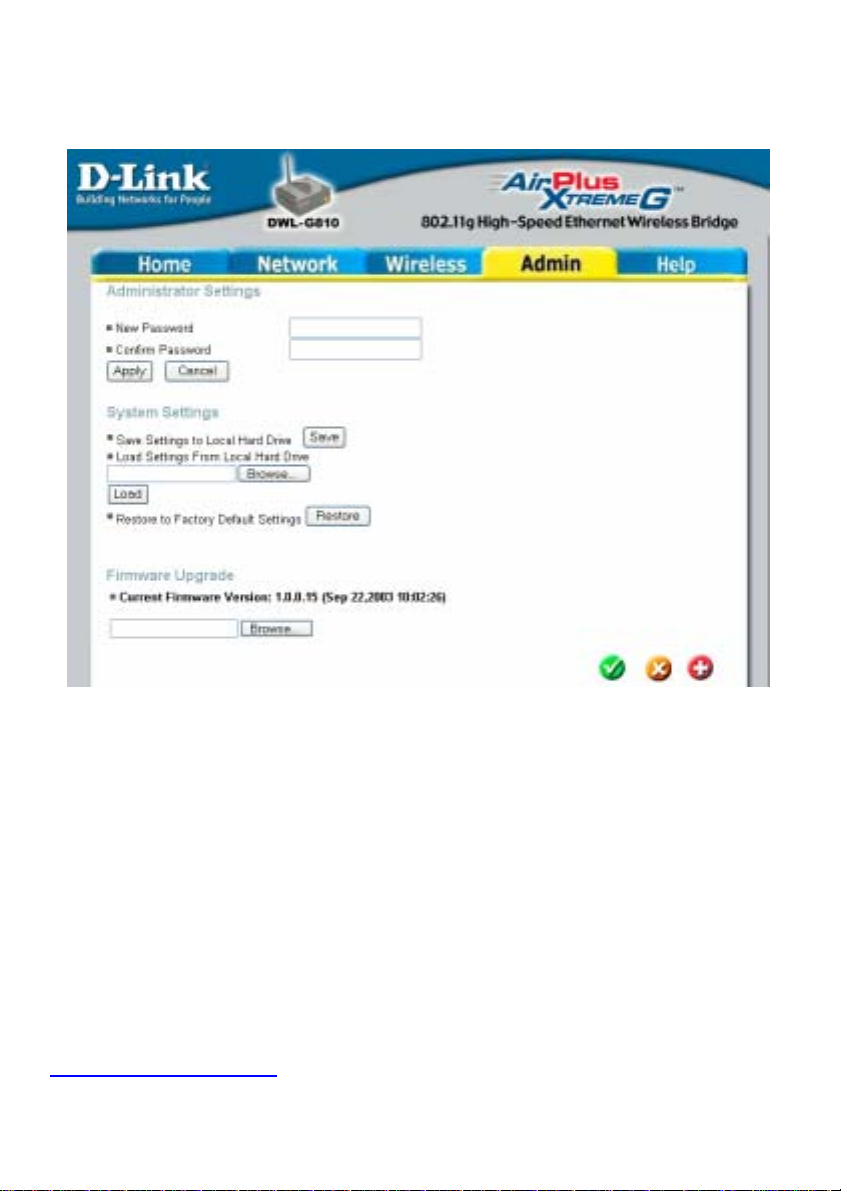

Administrator Settings: Change your password in this window. Re-
enter the new password to confirm. It can be up to 14 characters in length.
Please keep a copy of your password in a safe place.
Click Apply, if you have made any changes.
System Settings: The current system settings can be saved as a file onto
the local hard drive by clicking Save. The saved file can be loaded back
on the DWL-G810 by clicking Browse. When you have selected the
settings file, click Load.
Click Restore to return to Factory Default Settings.
Firmware Upgrade: Upgrade the firmware for the DWL-G810. Find
upgrades to the firmware on the D-Link website at
http://support.dlink.com. After you have downloaded a firmware upgrade
to your local drive, click Browse. Select the firmware and click Apply to
complete the upgrade.

17
Configuration Menu

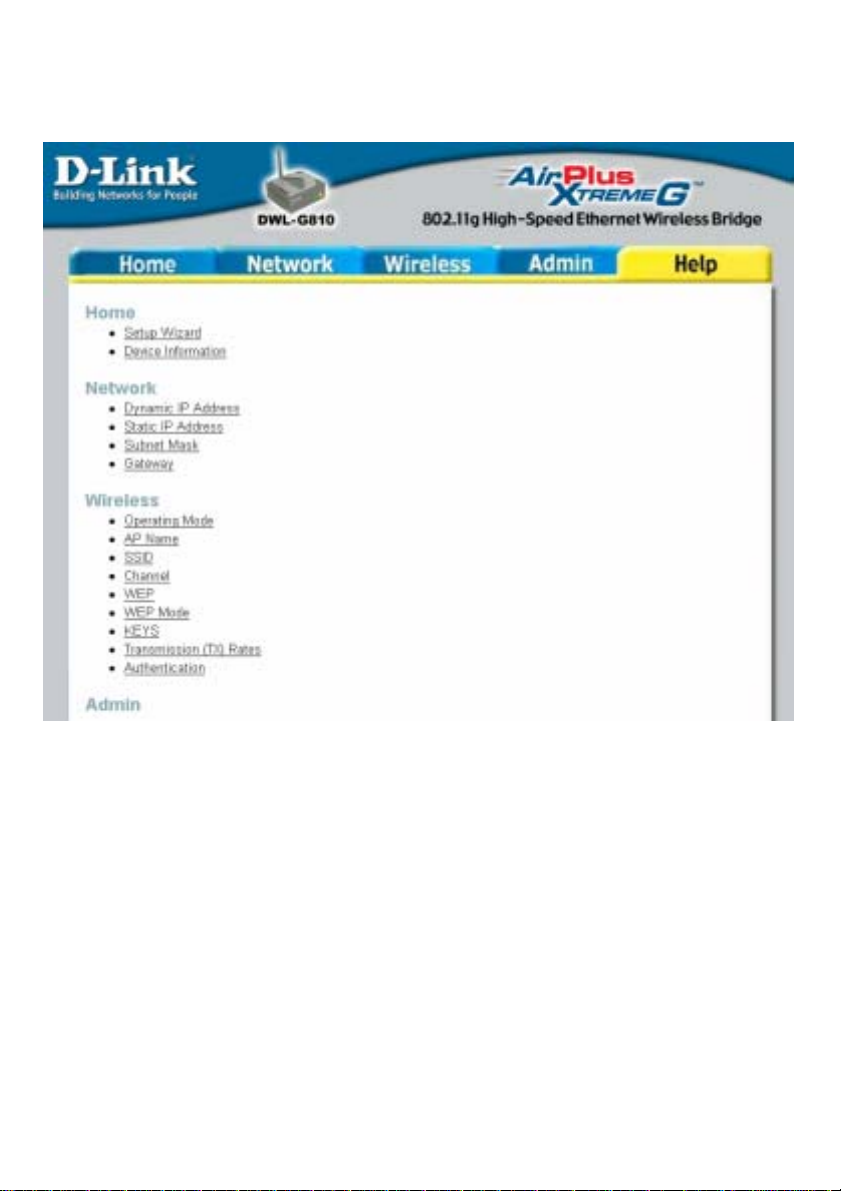

Help
The Help window displays information about each window in the
Configuration menu. When you change the settings in the Configuration
menu, you will need to restart the DWL-G810 for the changes to take effect.

18
6. Troubleshooting
This section provides solutions to situations that can occur during the
installation and operation of the DWL-G810 Ethernet-to-Wireless Bridge.
Read the following descriptions if you are having problems.
1. How do I assign a Static IP Address in Windows XP/2000?
Please note that Residential
Gateways/Broadband Routers
will automatically assign IP
Addresses to the computers on
the network, using DHCP
(Dynamic Host Configuration
Protocol) technology. If you are
using a DHCP-capable
Gateway/Router you will not
need to assign Static IP
Addresses.
If you are not using a DHCP capable Gateway/Router, or you need to
assign a Static IP Address, please follow these instructions:

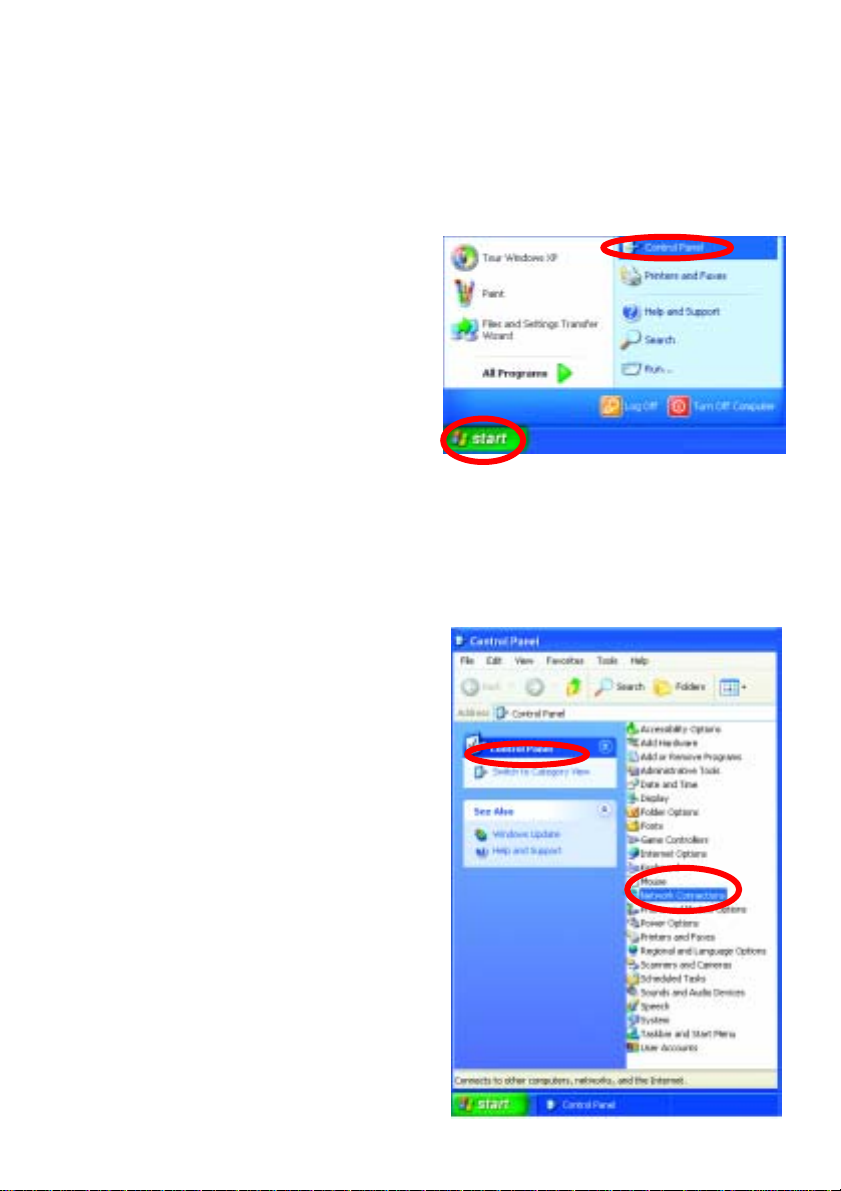

•Go to Start
•Double-click on Control Panel
•Double-click on Network
Connections

19
How do I assign a Static IP Address in Windows XP/2000? (continued)

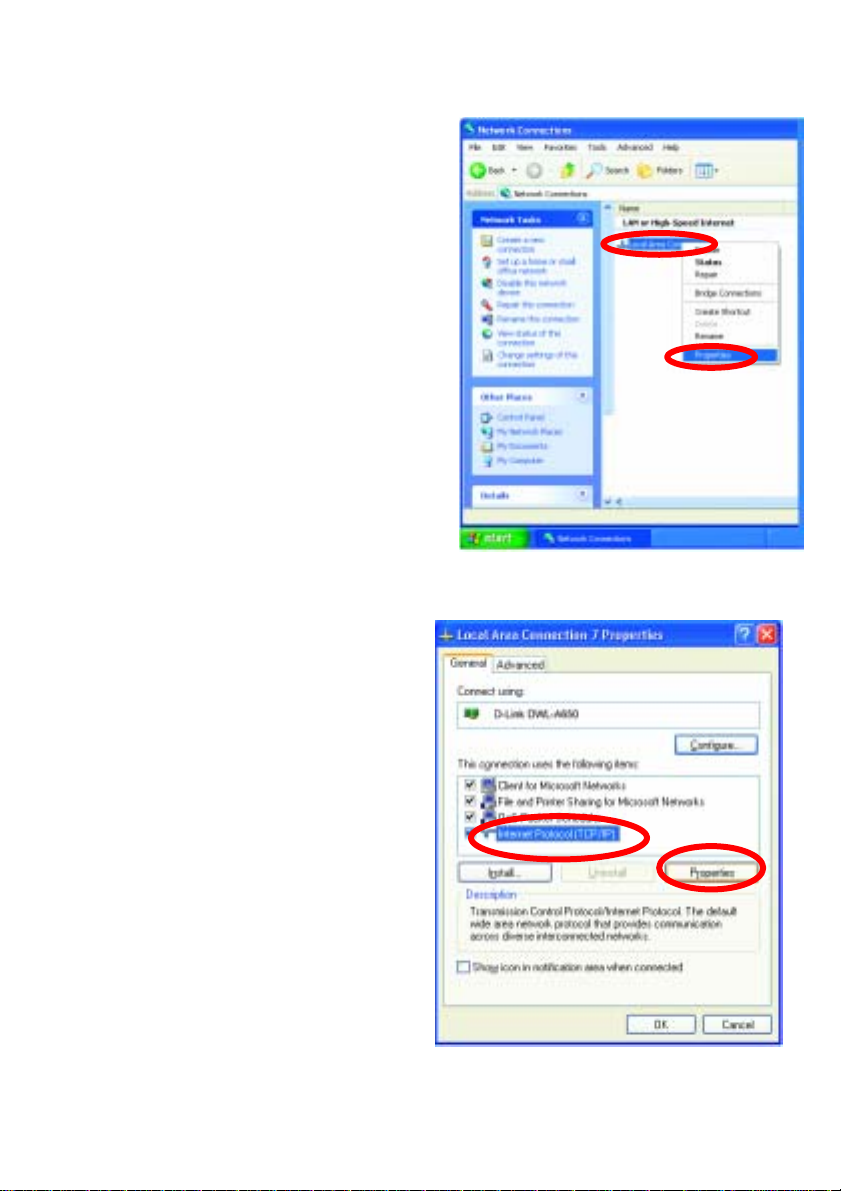

•Right-click on Local Area
Connections
•Double-click Properties
•Click on Internet Protocol
(TCP/IP)
•Click Properties

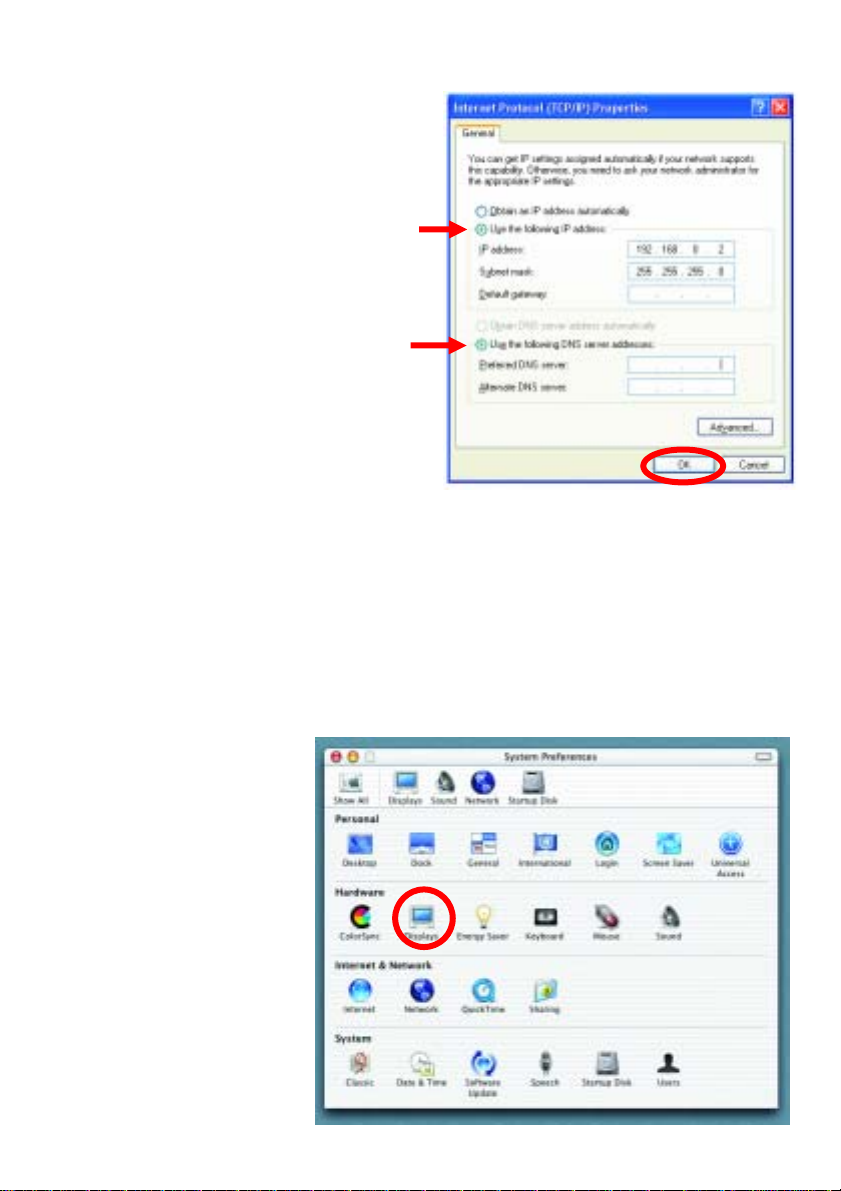

•In the window below, select
Use the following IP address
•Input your IP address and
subnet mask. (The IP
Addresses on your network
must be within the same range.
For example, if one computer
has an IP Address of
192.168.0.2, the other
computers should have IP
addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The
subnet mask must be the same for all the computers on the network.)

20
How do I assign a Static IP Address in Windows XP/2000? (continued)
•IP Address: e.g., 192.168.0.2
•Subnet Mask: 255.255.255.0
•Default Gateway: Enter the
LAN IP address of the wireless
router. (D-Link wireless routers
have a LAN IP address of
192.168.0.1)
•Select Use the following DNS
server address. Enter the LAN
IP address of the Wireless
Router. (D-Link wireless routers
have a LAN IP address of
192.168.0.1)
•Click OK
2. How do I assign a Static IP Address in Macintosh OSX?
•Go to the Apple Menu and select System Preferences.
•Click on Network
You have completed the assignment of a Static IP Address in Windows XP/2000.
