D-Link DHP-W311AV User manual

DHP-W311AV (DHP-308AV & DHP-W310AV)
User Manual
Powerline AV 500 Wireless N Mini Starter Kit
Version 1.0 | 10/31/2012

2D-Link DHP-W311AV User Manual
Table of Contents
Product Overview.............................................................................. 4
Package Contents ........................................................................................... 4
System Requirements.................................................................................... 5
Introduction ...................................................................................................... 5
Hardware Overview........................................................................................ 7
DHP-W310AV ........................................................................................... 7
DHP-308AV .............................................................................................10
Connections .....................................................................................10
LEDs.....................................................................................................11
Hardware Installation .....................................................................12
Wireless Installation Considerations ......................................................13
Powerline Installation Considerations...................................................14
Safety.................................................................................................................15
DHP-W310AV Conguration...........................................................16

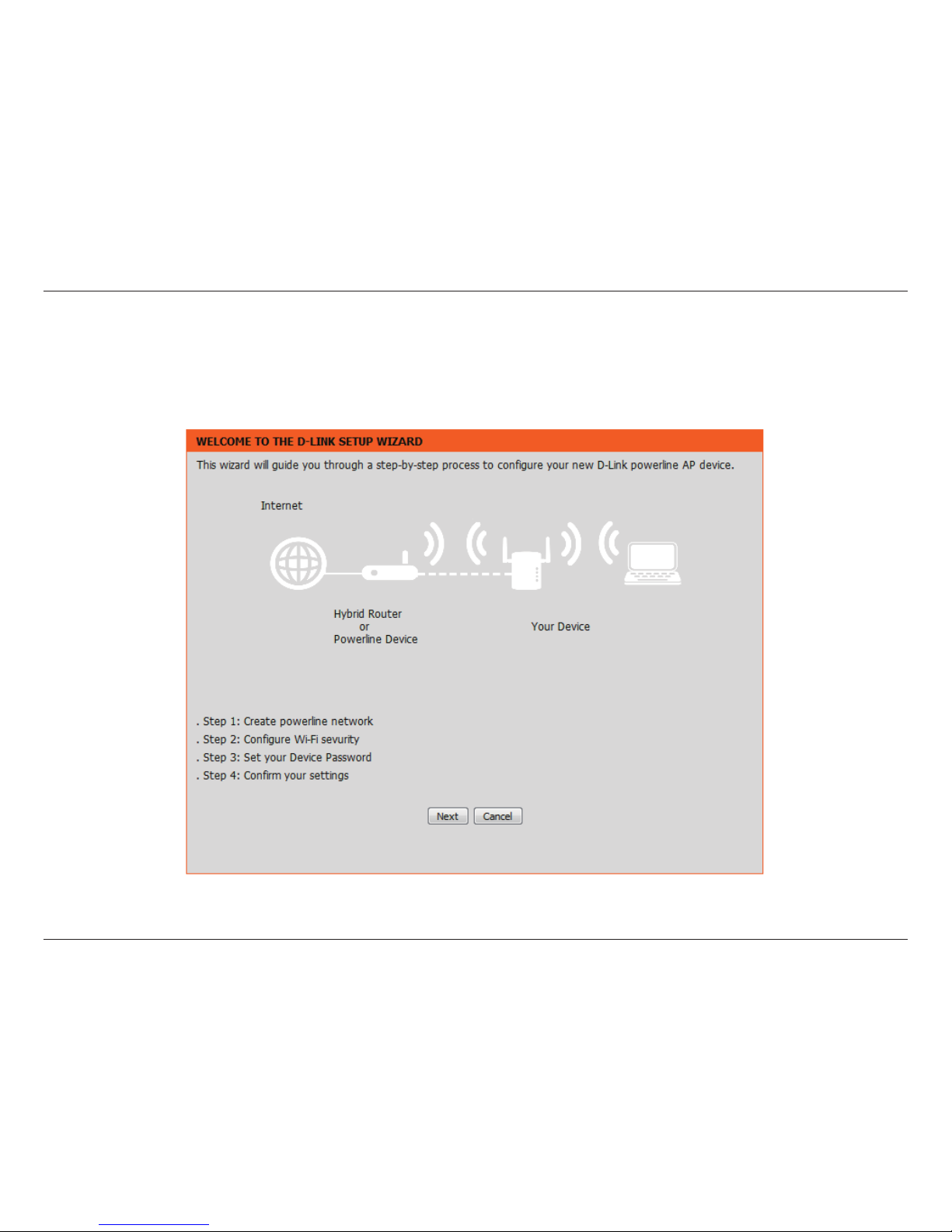

Setup..................................................................................................................16
Hybrid Link Setup ................................................................................17

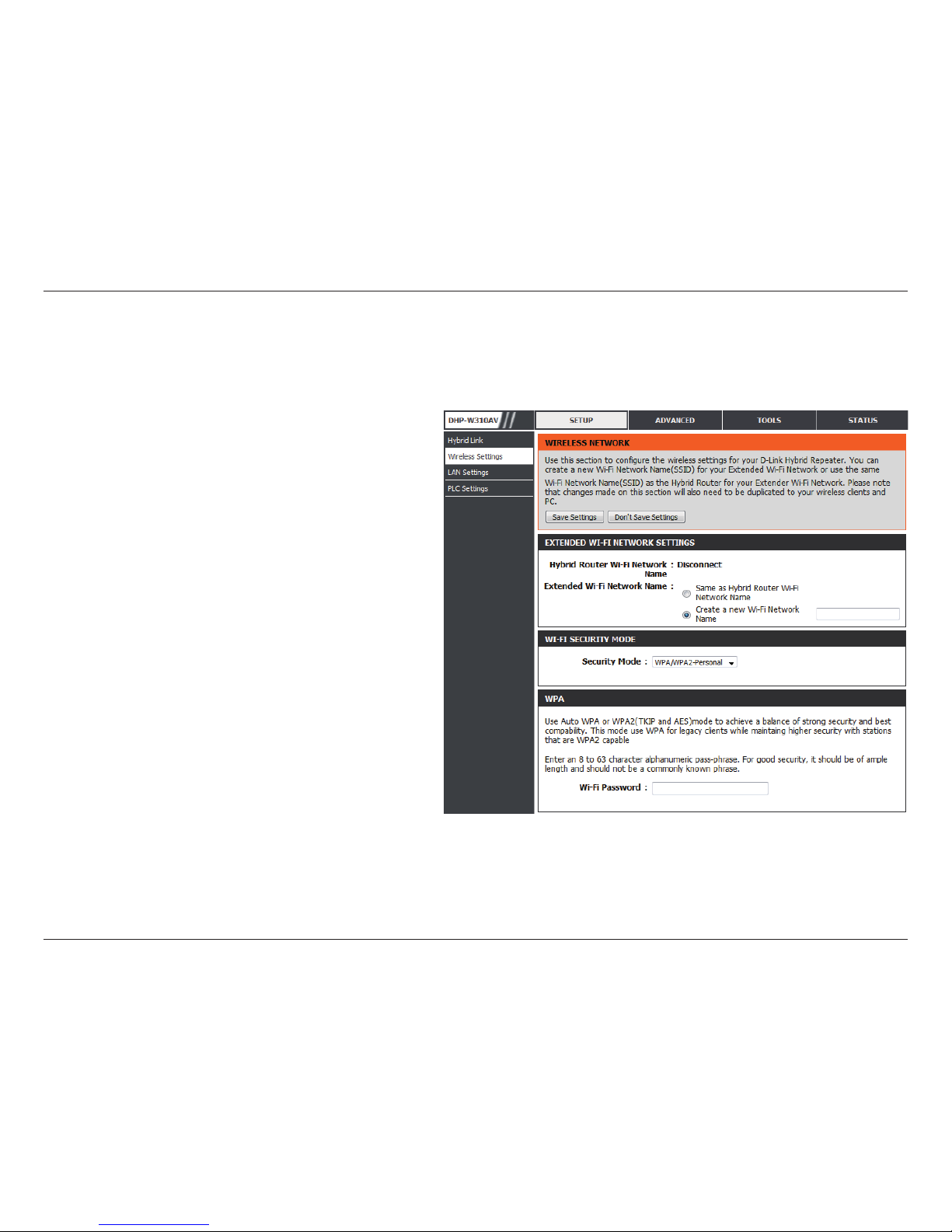

Wireless Settings ..................................................................................18

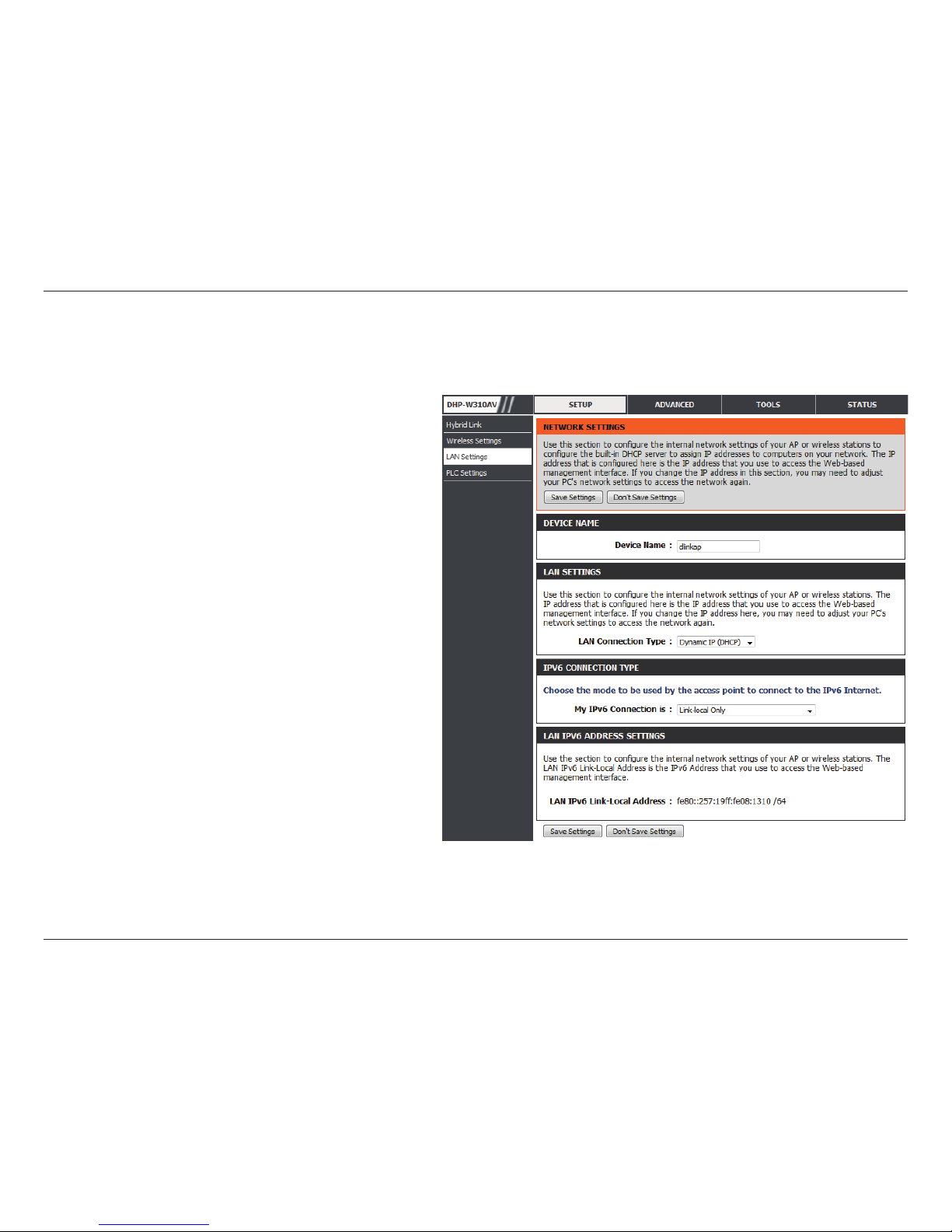

LAN Settings ..........................................................................................19

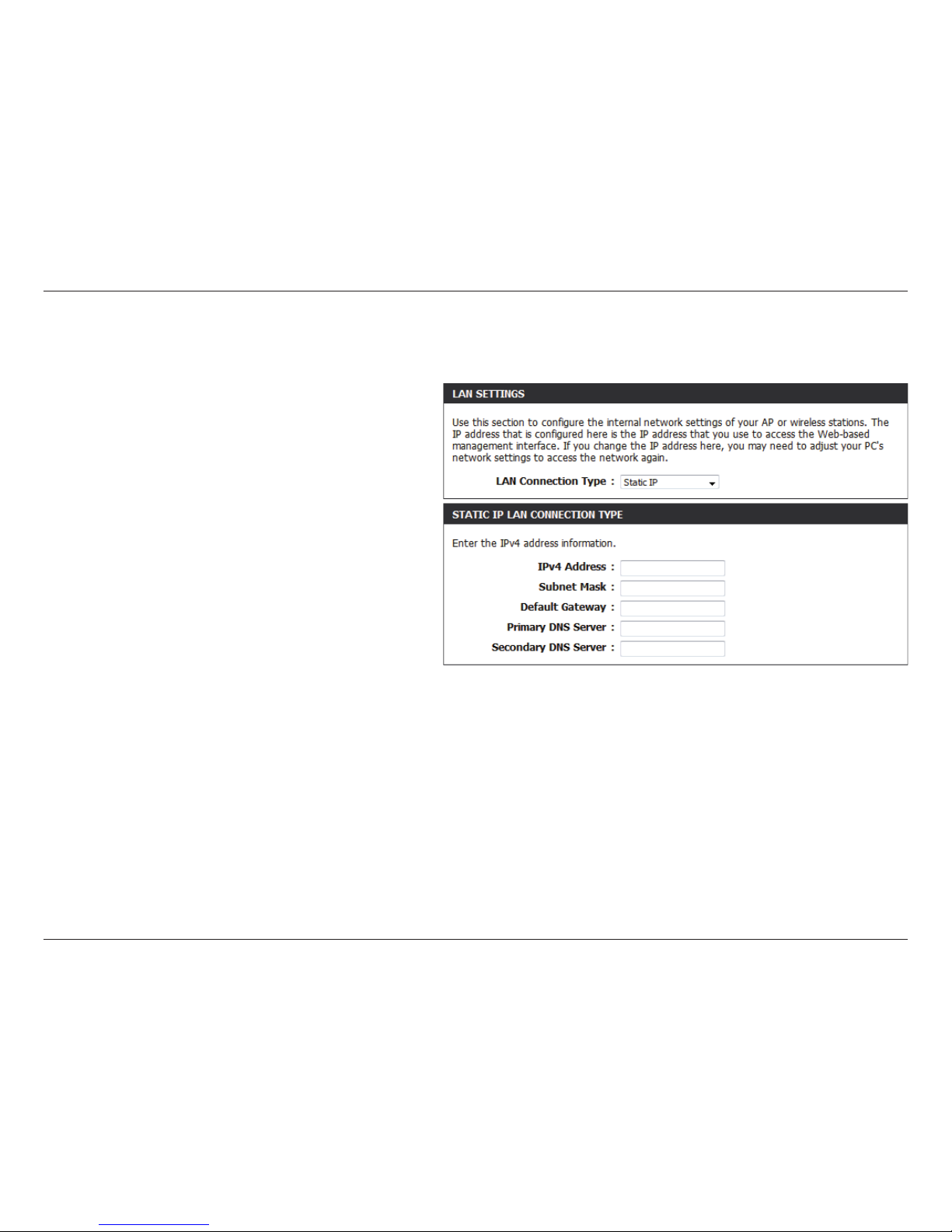

LAN Settings - Static IP .................................................................20
PLC Settings ..........................................................................................21
Advanced .........................................................................................................22
MAC Address Filter...............................................................................22
Advanced Wireless...............................................................................23
User Limit................................................................................................24
Tools...................................................................................................................25
Admin.......................................................................................................25
System......................................................................................................26
Firmware..................................................................................................27
Time ..........................................................................................................28
System Check ........................................................................................29
Status.................................................................................................................30
Device Info..............................................................................................30
Logs...........................................................................................................31
Statistics...................................................................................................32
Wireless....................................................................................................33
IPv6............................................................................................................34
Support.............................................................................................................35
Wireless Security .............................................................................36
What is WEP?...................................................................................................36
What is WPA?...................................................................................................37
Conguring WEP ...........................................................................................38
Conguring WPA/WPA2Personal.............................................................39
Connecting to a Wireless Network .................................................40
Using Windows®7..........................................................................................40
Using Windows Vista®..................................................................................43
Conguring Wireless Security..........................................................45
Using Windows®XP.......................................................................................47
Conguring WPA-PSK.........................................................................48
Troubleshooting ..............................................................................50
Table of Contents

3D-Link DHP-W311AV User Manual
Table of Contents
Wireless Basics ................................................................................52
What is Wireless? ...........................................................................................53
How does wireless work? ..................................................................53
Wireless Local Area Network (WLAN) ...........................................53
Networking Basics...........................................................................56
Check your IP address..................................................................................56
Statically Assign an IP address..................................................................57
Technical Specications (DHP-W310AV) .......................................58
Technical Specications (DHP-308AV)...........................................60

4D-Link DHP-W311AV User Manual
Section 1 - Product Overview
D-Link DHP-W310AV Powerline AV 500 Wireless N Mini Starter Kit
D-Link DHP-308AV Powerline AV 500 Mini Adapter
CAT5 Ethernet Cable (x2)
CD-ROM with Software and User Manual
Wi-Fi Conguration Card
Package Contents
Product Overview
Wi-Fi Conguration Note

5D-Link DHP-W311AV User Manual
Section 1 - Product Overview
Introduction
The DHP-W311AV Powerline AV 500 Wireless N Mini Starter Kit includes a DHP-308AV and a DHP-W310AV that together allow you to connect both
wired and wireless computers, high-denitionTVs, networking devices, and gaming consoles using the most pervasive medium in your home - the
electrical wiring. Share Internet connections and experience smooth le transfers, streaming multimedia, online gaming and more. The Powerline
AV+ Wireless N Mini Extender features easy plug-and-play installation and can be connected to any Ethernet-enabled device.
The Powerline AV 500 Wireless N Mini Starter Kit incorporates the latest AV technology to improve on older AV speeds. This fast transmission speed
provides ample bandwidth suitable for streaming high-quality video HDTV signals while simultaneously providing high-speed Internet access
throughout the home.With Quality of Service (QoS) support, the performance of applications which require real-time communication, such as VoIP
phonecalls and multiplayer online games, will not be compromised even while streaming Internet TV and music.
System Requirements
Network Requirements
• IEEE802.11nor802.11gwirelessclients
• 10/100Ethernetclients
Browser Requirements
• InternetExplorer7.0orhigher
• Firefox3.5orhigher
• Safari4.0orhigher
• Chrome8.0orhigher
CD Installation Wizard Requirements
• Windows®7/Vista®/XP
• AnEthernetportorwirelessinterface
• CD-ROMdrive
• PCwith1.5Ghzprocessor
• 1GBmemory

6D-Link DHP-W311AV User Manual
Section 1 - Product Overview
Data Transmission Over electrical Wiring
The D-Link DHP-W310AV Powerline AV 500Wireless N Mini Starter Kit, compliant with the HomePlug AV standard, uses your home’s existing electrical
wiring1to create a network or extend your existing network. It turns every power outlet into a potential network connection to access digital media
devices, game consoles, print servers, computers, and network storage devices throughout your home. Additionally, Wireless N provides high speed
transfers without the need for unsightly network cables.
Faster Wireless Speeds & Wider Operational Range
TheWireless N technology incorporated into the DHP-W310AV oers increased speed and range beyond standard 802.11g technology. Initial wireless
setupcanbeaccomplishedquickly,thankstoaconvenientsetupwizard.WPAandWPA2encryptionkeepyournetworktracsafeandsecure.
Ideal For Bandwidth-Intensive Applications
The DHP-W310AV is capable of delivering Powerline AV data transfer rates even higher than the old AV standard. This rapid transmission speed makes
it ideal for bandwidth-intensive applications, guaranteeing smooth HD video streaming, clear VoIP calls, and lag-free online gaming experiences.
Inaddition,itprioritizesInternettrac,ensuringthatmultimediaapplicationsdonotexperienceglitcheswhilewebsurnganddownloadsarein
progress. This device provides ample network bandwidth, enabling digital home consumers to tap into existing electrical wiring for high-quality
multimedia streaming.
Convenient Setup and Secure Operation
The DHP-W311AV devices plug directly into a power outlet, and do not require any additional power cables. Extend your home network by connecting
multiple devices in the farthest corners of your home via Ethernet cable orWireless N. For convenient setup, wired or wireless encryption keys can be
quickly congured with the push of a button on top of the device.The adapter implements 128-bit AES data encryption to protect the network from
unauthorizedwiretapping.Withhassle-freeplugandplayinstallation,theDHP-W311AVisanidealsolutiontocreateawall-to-wallhomenetwork.
1Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and conguration, may aect the performance of this product.
Additional D-Link Powerline AV adapters are required to add new devices to the network. A minimum of two D-Link Powerline AV Network Adapters are required to create a network. Connecting this product to a power
strip with a surge protector may adversely aect the performance of this product. For best results, plug the adapter directly into a wall outlet.

7D-Link DHP-W311AV User Manual
Section 1 - Product Overview
Hardware Overview
DHP-W310AV
Connections
1ON/OFF Turns the device ON or OFF.
2RJ-45 10/100BASE-TX Ethernet Port ConnectstoDigitalMediaDevices,PCs,GameConsoles,NetworkStorageDevices
2
1

8D-Link DHP-W311AV User Manual
Section 1 - Product Overview
Hardware Overview

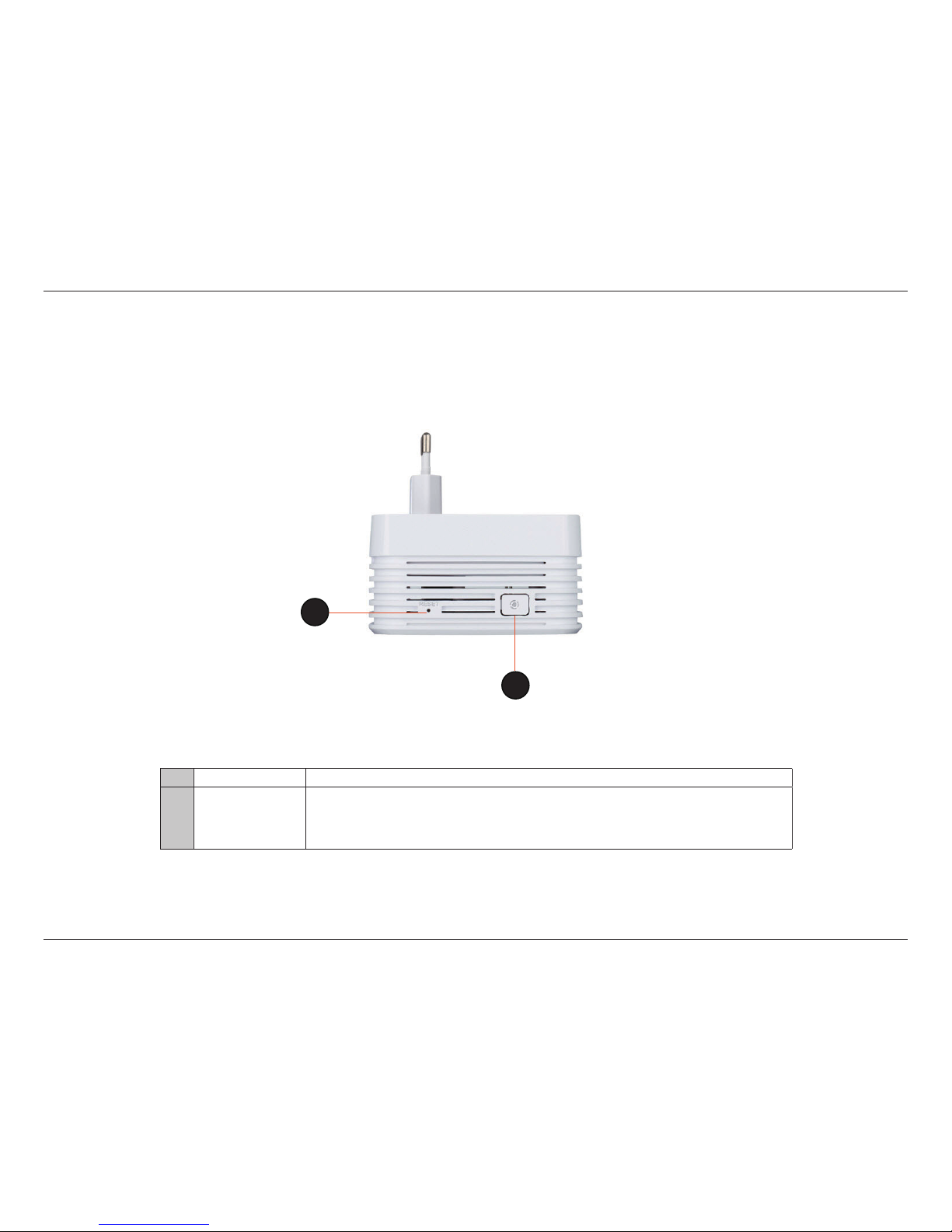

Side
1Reset Button Press and hold the button for 5 seconds to reset to factory default.
2Common Connect
Button
Push this button to create a secure Powerline connection with another adapter. More on this
connection is available at“Powerline Network - Quick Setup”on page 12 and“Hardware Installation
- ForWireless Router”on page 13. It can also be used to connect usingWi-Fi Protected Setup (WPS).
To connect using WPS, press this button, then press the WPS button on your wireless client.
1
2

9D-Link DHP-W311AV User Manual
Section 1 - Product Overview
Hardware Overview

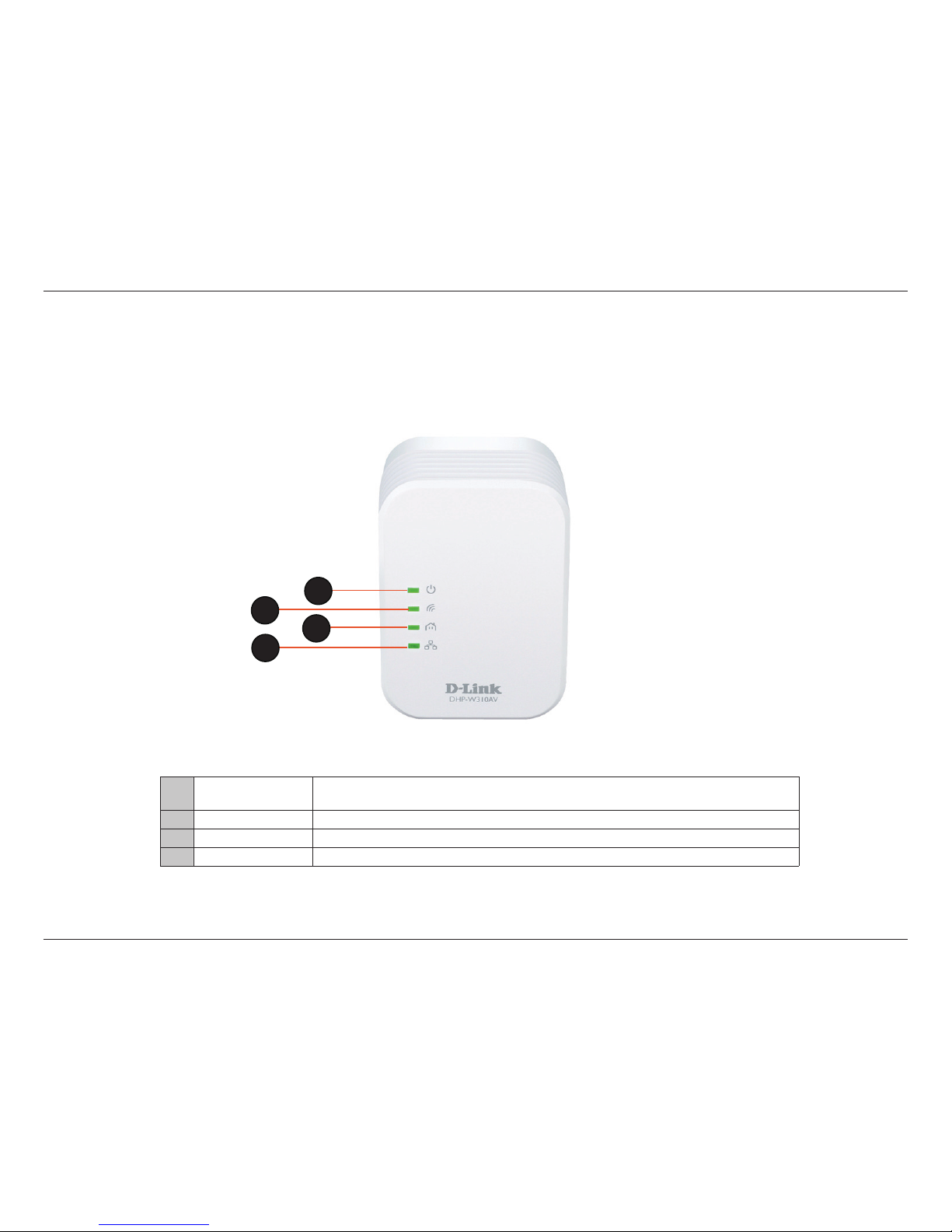

LEDs

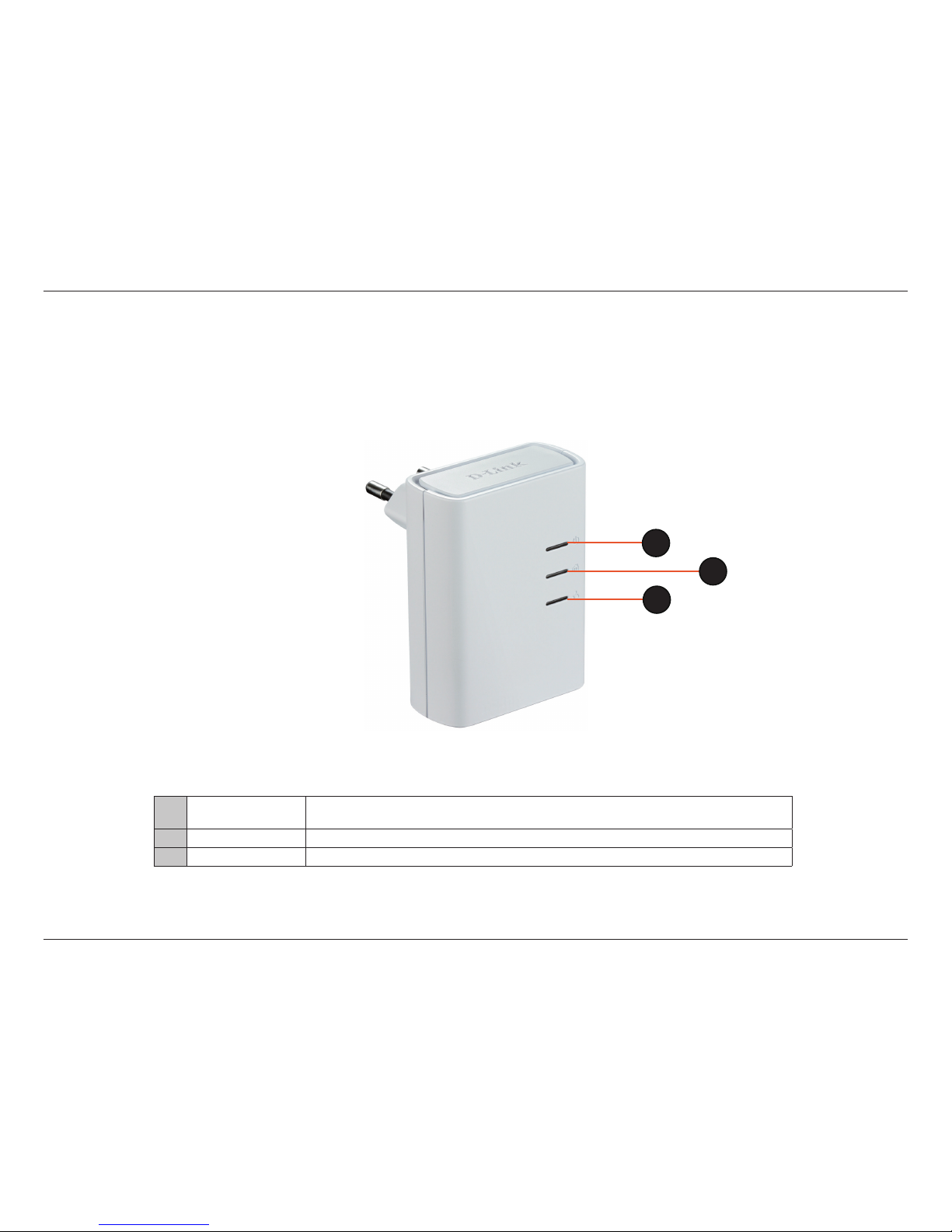

1Power LED A solid light indicates a proper connection to the power supply. A blinking light indicates it is in
sleep mode (after 5 minutes of inactivity) or seeking a Powerline connection.
2Wireless LED A solid light indicates that the wireless segment is ready.
3Powerline LED A solid light indicates that a Powerline connection is established.
4Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
2
2
4
1
3

10D-Link DHP-W311AV User Manual
Section 1 - Product Overview
Hardware Overview

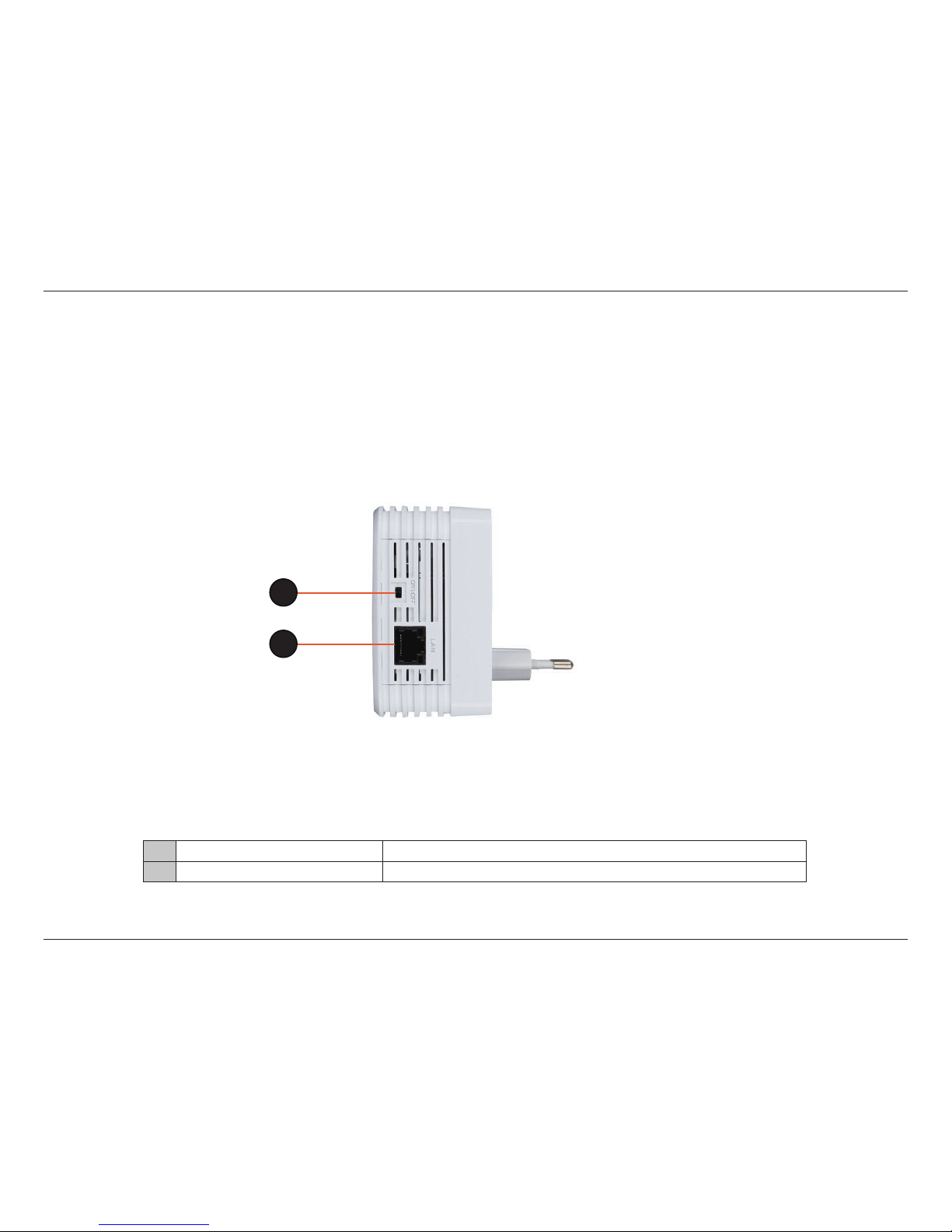

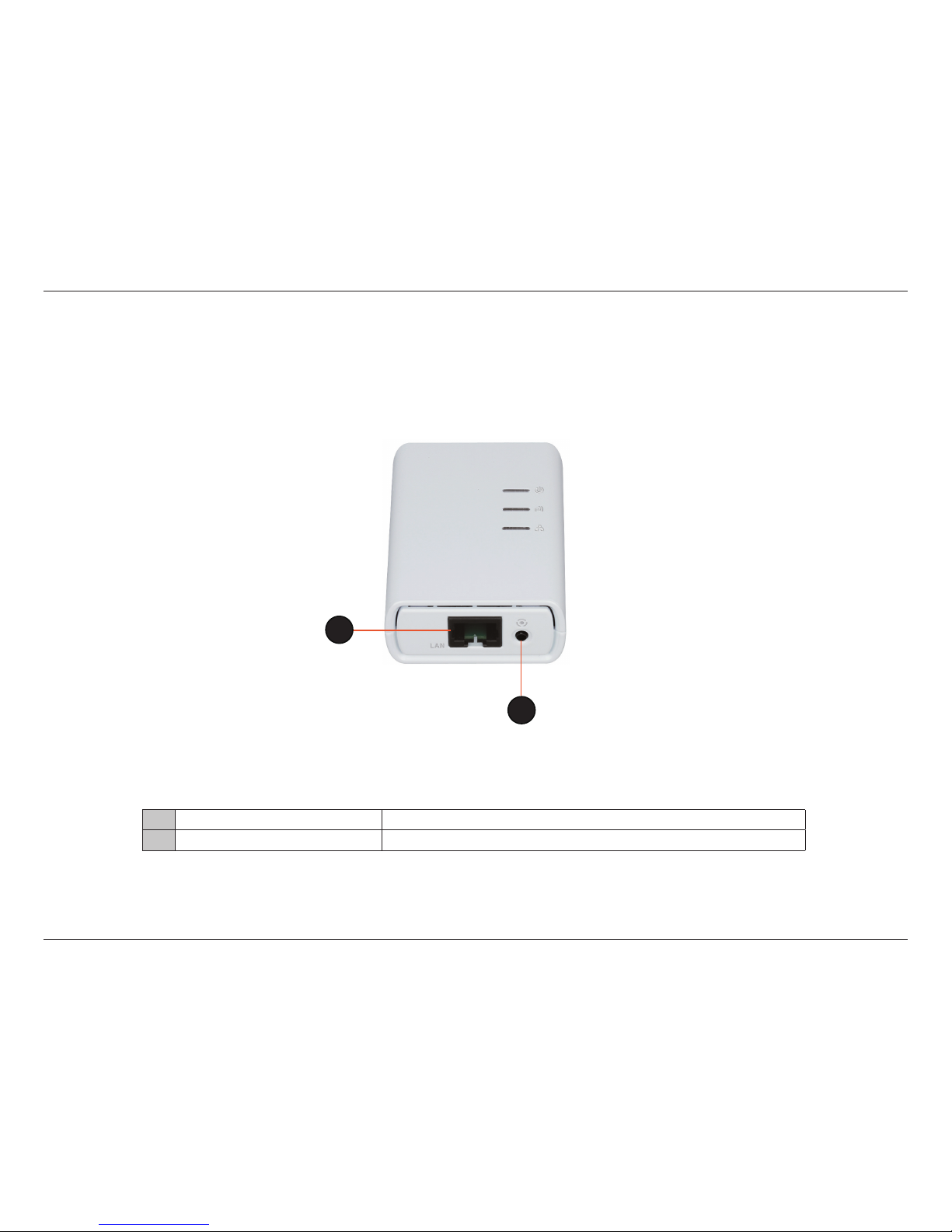

DHP-308AV
Connections
1RJ-45 10/100BASE-TX Ethernet Port ConnectstoDigitalMediaDevices,PCs,GameConsoles,NetworkStorageDevices
2Common Connect Button Use this button to set up a Powerline network.
1
2

11D-Link DHP-W311AV User Manual
Section 1 - Product Overview
1Power LED A solid light indicates a proper connection to the power supply. A blinking light indicates it is in
sleep mode (after 5 minutes of inactivity) or seeking a Powerline connection.
2Powerline LED A solid light indicates that a Powerline connection is established.
3Ethernet LED A solid light indicates a connection to an Ethernet-enabled device.
2
1
3
Hardware Overview
DHP-308AV
LEDs

12D-Link DHP-W311AV User Manual
Section 2 - Installation

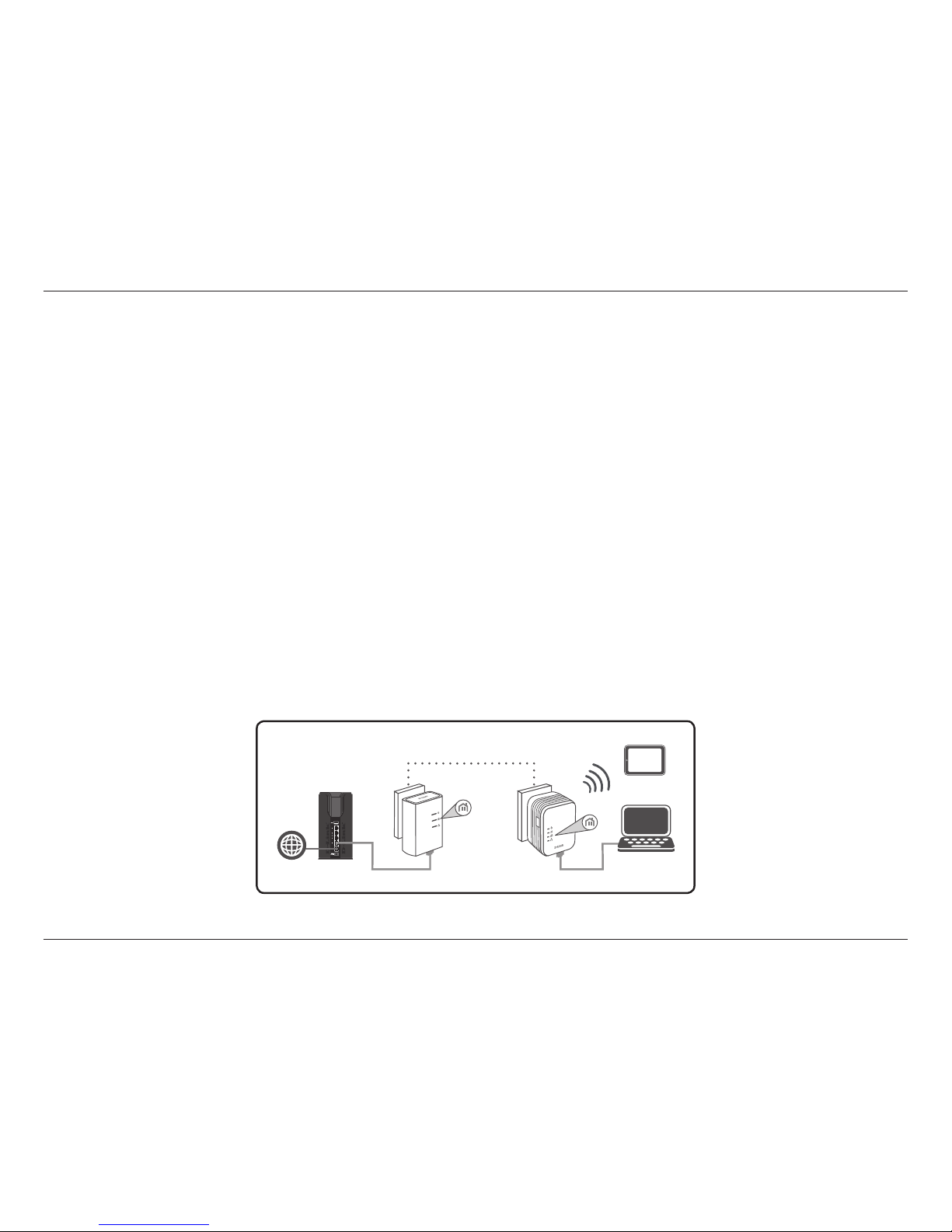

Hardware Installation
Power
Plug the DHP-308AV into a wall outlet near your router. Plug the DHP-W310AV into a wall outlet where you want to extend your network. The Power
LED on both will turn on to indicate they are receiving power. This may take up to 60 seconds.
Connect the Devices
PresstheCommonConnectButtonontheDHP-308AVfor3seconds.Then,presstheCommonConnectButtonontheDHP-W310AVfor3seconds.
ThismustbedonewithintwominutesafterpressingtheCommonConnectButtonontheDHP-308AV.ThePowerlinedeviceswillreboot.
Note: Network connectivity is conrmed when the Powerline LEDs on both Powerline devices are steadily lit. This will indicate that your
network is now secure.
Plug in the Ethernet Cable
You should already own a router connected to a modem. Connect one of the supplied Ethernet cables between your router and the DHP-308AV.
Connect the other Ethernet cable between your DHP-W310AV and your computer. Read the guidelines on the following pages, and continue to
“DHP-W310AV Conguration” on page 16.
Adding More Devices (optional)
IfyouhavemorePowerlinedevicesnoworinthefuture,youmayaddthemtoyournetworkinthesamewayasabove.BesuretopresstheCommon
ConnectButtononthenewdevice,thentheCommonConnectButtonontheexistingnetwork.
ROOM A ROOM B
DHP-W310AVDHP-308AVRouterInternet Notebook
iPad

13D-Link DHP-W311AV User Manual
Section 2 - Installation
Wireless Installation Considerations
The DHP-W310AV lets you access your network using a wireless connection from anywhere within the operating range of your wireless network.
Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the
range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to
maximizingwirelessrangeistofollowthesebasicguidelines:
1. Keep the number of walls and ceilings between the DHP-W310AV and other network devices to a minimum. Each wall or ceiling can reduce your
adapter’srangeby3-90feet(1-30meters.)Positionyourdevicessothatthenumberofwallsorceilingsisminimized.
2.Beawareofthedirectlinebetweennetworkdevices.Awallthatis1.5feetthick(.5meters)ata45-degreeangleappearstobealmost3feet(1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3.Buildingmaterialsmakeadierence.Asolidmetaldoororaluminumstudsmayhaveanegativeeectonrange.Trytopositionthewireless
DHP-W310AV and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5.Ifyouareusing2.4GHzcordlessphonesorwirelessproductssuchasceilingfans,lights,andhomesecuritysystems,yourwirelessconnection
maydegradedramaticallyordropcompletely.Makesureyour2.4GHzphonebaseisasfarawayfromyourwirelessdevicesaspossible.Thebase
transmits a signal even if the phone is not in use.

14D-Link DHP-W311AV User Manual
Section 2 - Installation
Powerline Installation Considerations
PlanthelocationofyourPowerlinedevices:
1. Connect Powerline devices to electrical outlets that are not controlled by a wall switch to avoid accidentally turning o
power to the device.
2. Do not connect the Powerline devices to an extension cord, surge protector, or
power strip as this might prevent it from working correctly, or negatively impact
network performance.
3. Avoid using the Powerline devices in an electrical outlet that is located near an
appliance that uses a lot of power, such as a washer or dryer, or a refrigerator. This
may prevent the adapter from working correctly, or negatively impact network
performance.
4. Verify that your Powerline devices are electrically rated to operate with the power
available in your location.
5. To help prevent against electrical shock, be sure to plug the power cables into properly grounded electrical outlets.

15D-Link DHP-W311AV User Manual
Section 2 - Installation
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service the device.
3. Ensure that the device is plugged into the wall in a vertical position.
4. Use the device in a dry location, and avoid placing it in humid environments.
5. Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it
from the power outlet and use a damp towel.
6. Keep the device out of direct sunlight.
7. Do not cover or block the vents on the device.
8. Make sure that the device has adequate room for ventilation.
9. Avoid placing the device near a heater or radiator.
Safety

16D-Link DHP-W311AV User Manual
Section 3 - Conguration
DHP-W310AV Conguration
Setup
Ifyouwishtochangethedefaultsettingsoroptimizetheperformance
of the DHP-W310AV, you may use the web-based conguration utility.

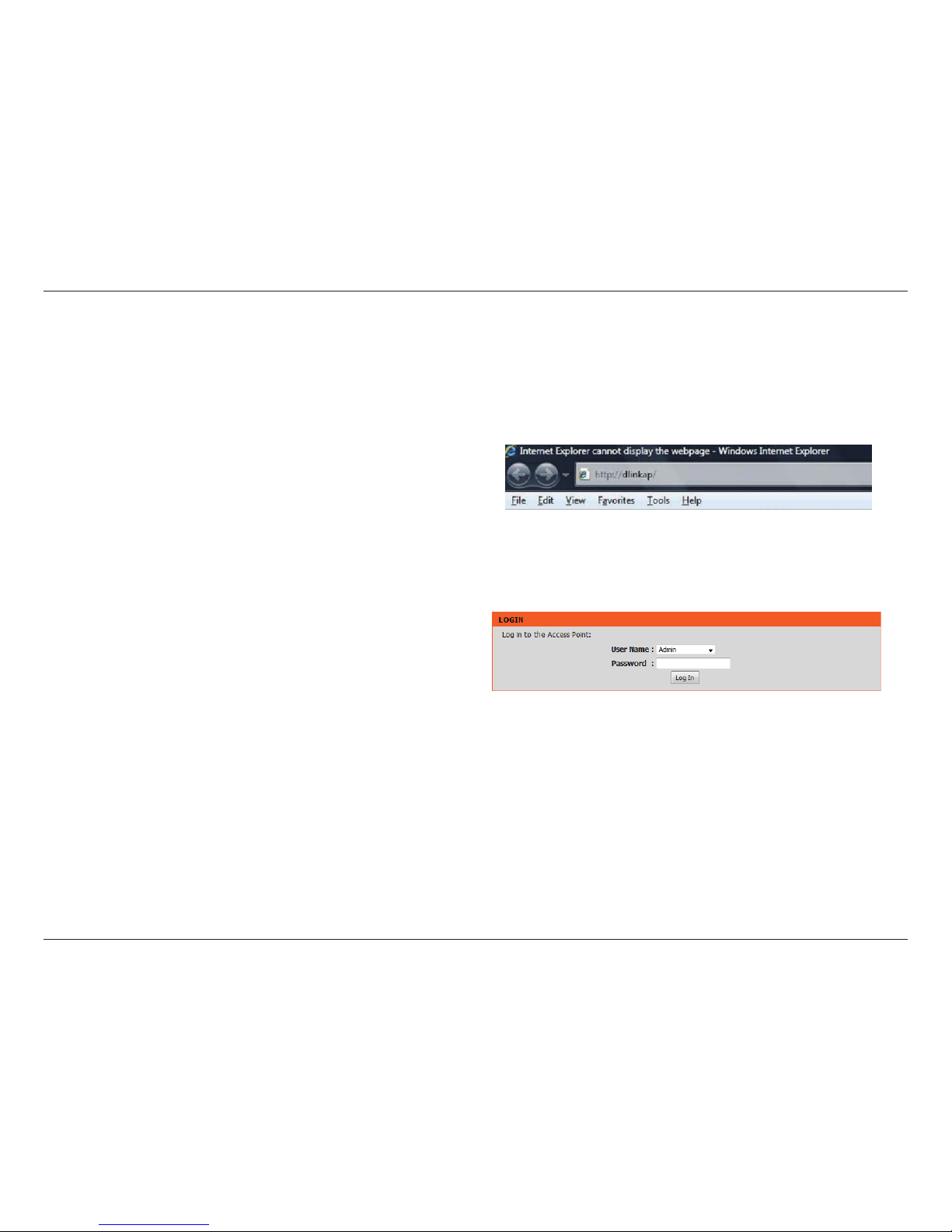

To access the conguration utility, open a web browser such as Internet
Explorer and enter either http://dlinkapWXYZ.local. (this is on the Wi-Fi
Conguration Card) or http://192.168.0.50 in the address eld.
Bydefault, Admin will be the User Name . Leave the password blank.
If you receive a “Page Cannot be Displayed” error, please refer to
“Troubleshooting” on page 50 for assistance.
You will automatically proceed to the Setup heading after logging in.
This section covers conguration of your DHP-W310AV. The DHP-308AV does not require conguration other than the intial Powerline connection.

17D-Link DHP-W311AV User Manual
Section 3 - Conguration
Hybrid Link Setup
Usethewizard’son-screenincstructionstoconvenientlysetupyournetworkifyouhavenotyet.Youcanalsomanuallycongureyournetwork
using Settings. Wi-Fi settings are covered at“Wireless Settings” on page 18 and Powerline settings are at “PLC Settings” on page 21.

18D-Link DHP-W311AV User Manual
Section 3 - Conguration
Wireless Settings
If you are connected to a hybrid Powerline
router that also broadcasts Wi-Fi, you will
see that router’s network name (SSID) here.
When you are browsing for available wireless
networks, this is the name that will appear
in the list. You can choose to extend the
same network that your hybrid router is
broadcasting (listed above) for convenient
whole-home access. As you walk from one
area of coverage to another, your device will
detect the stronger signal and automatically
keep you connected. You may also put the
DHP-W310AV on a dierent network.
WPA/WPA2 is more secure than WEP. WEP
should only be used if you have older devices
that are unable to use WPA. Use of TKIP/AES
security framework provides the optimum
mix of security and compatibility. Please
referto“WirelessSecurity”onpage36formore
information.
Choose a password that is strong. A good
password uses both letters and numbers in unpredictable places. Example bad passwords could be password or 12345678.
Hybrid Router Wi-
Fi Network Name:
Extended Wi-Fi
Network Name:
Wireless Security &
WPA:
Password:
TheDHP-W310AVletsyoucustomizeyourwirelesssettingsforyouraccesspoint.Thisdeviceallowsyoutoextendyourcurrentnetworksoyoucan
roam about the house while staying connected the entire time.

19D-Link DHP-W311AV User Manual
Section 3 - Conguration
LAN Settings
This section will allow you to change the local network settings of the DHP-W310AV and to congure the DHCP settings.
Enter the Device Name of this DHP-W310AV.
You will use this name to connect to it
through a web browser. The default name
is listed on your Wi-Fi Conguration Card.
Use the drop-down menu to select Dynamic
IP (DHCP) to automatically obtain an IP
address on the LAN/private network. For
Static IP setup, see the next page.
Your Internet Service Provider (ISP) may
require this to be set a certain way for
Internet access. Contact your ISP regarding
such requirements.
This shows the current IPv6 address of the
DHP-W310AV on your network.
Click Save Settings to save and activate the
new changes.
Device Name:
LAN Connection
Type:
IPv6 Connection
Type:
LAN IPv6 Address
Settings:
Save Settings:

20D-Link DHP-W311AV User Manual
Section 3 - Conguration
Select Static IP to manually enter the IP address, subnet mask, and default gateway addresses.
LAN Connection
Type:
IP Address:
Subnet Mask:
Default Gateway:
DNS Server:
Save Settings:
Select Static IP from the drop-down menu.
Enter the IP address of the DHP-W310AV.
The default IP address is 192.168.0.50. If you
change the IP address, once you click Apply,
you will need to enter the new IP address in
your browser to return to the conguration
utility. You can also connect with the device
name. (See previous page.)
Enter the Subnet Mask.
EntertheGateway.ThisisusuallytheLANor
internal IP address of your router.
This is the Domain Name Server that looks
up addresses on the Internet, you may have a
specic one you need to connect to.
Click Save Settings to save and activate the
new changes.
LAN Settings - Static IP
