D-Link ShareCenter DNS-343 User manual

4-BAY SATA NETWORK
STORAGE ENCLOSURE
DNS-343
Quick Installation Guide+
Installations-Anleitung+
Guide d’installation+
Guía de instalación+
Guida di Installazione+

4-BAY SATA NETWORK STORAGE ENCLOSURE

Quick Install Guide
DNS-343
4-BAY SATA NETWORK STORAGE ENCLOSURE

4D-Link DNS-343 Quick Install Guide
System Requirements
• 1GHz Processor / 512MB RAM
• 200MB available space
• CD-ROM drive
• Internet Explorer 6.0 or Mozilla Firefox 1.0 and above
• Windows® XP (Service Pack 2) or Vista™
Package Contents
If any of the above items are missing, please contact your reseller.
• D-Link DNS-343 4-Bay Network Storage Enclosure
• CD-ROM with Manual and Software
• Quick Installation Guide
• Power Adapter
• Power Cable Clip
• CAT5 Ethernet Cable
Note: The DNS-343 requires installation of a hard drive before it can be used.
The hard disk must be a 3.5” SATA Hard Drive of any capacity.

5D-Link DNS-343 Quick Install Guide
Hardware Overview
Power Button:
Use this button to switch the device on or off. To switch on the device press the
button once. To switch off the device hold the button down for 5 seconds.
OLED:
This screen displays System Information, HD Status, and Server Status.
Next Button:
Use this button to display the three status screens on the OLED. Press the
button once to alternate between the different status screens

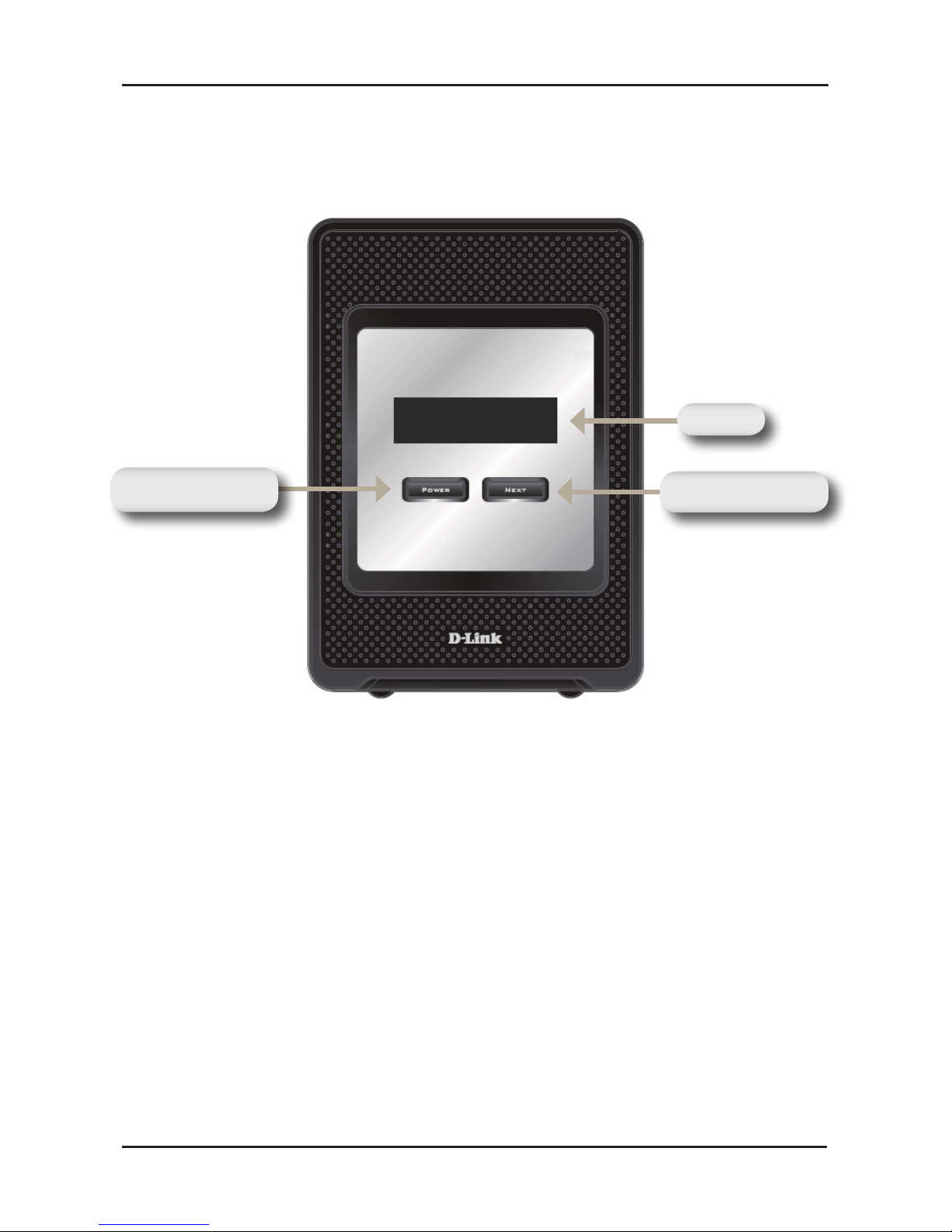

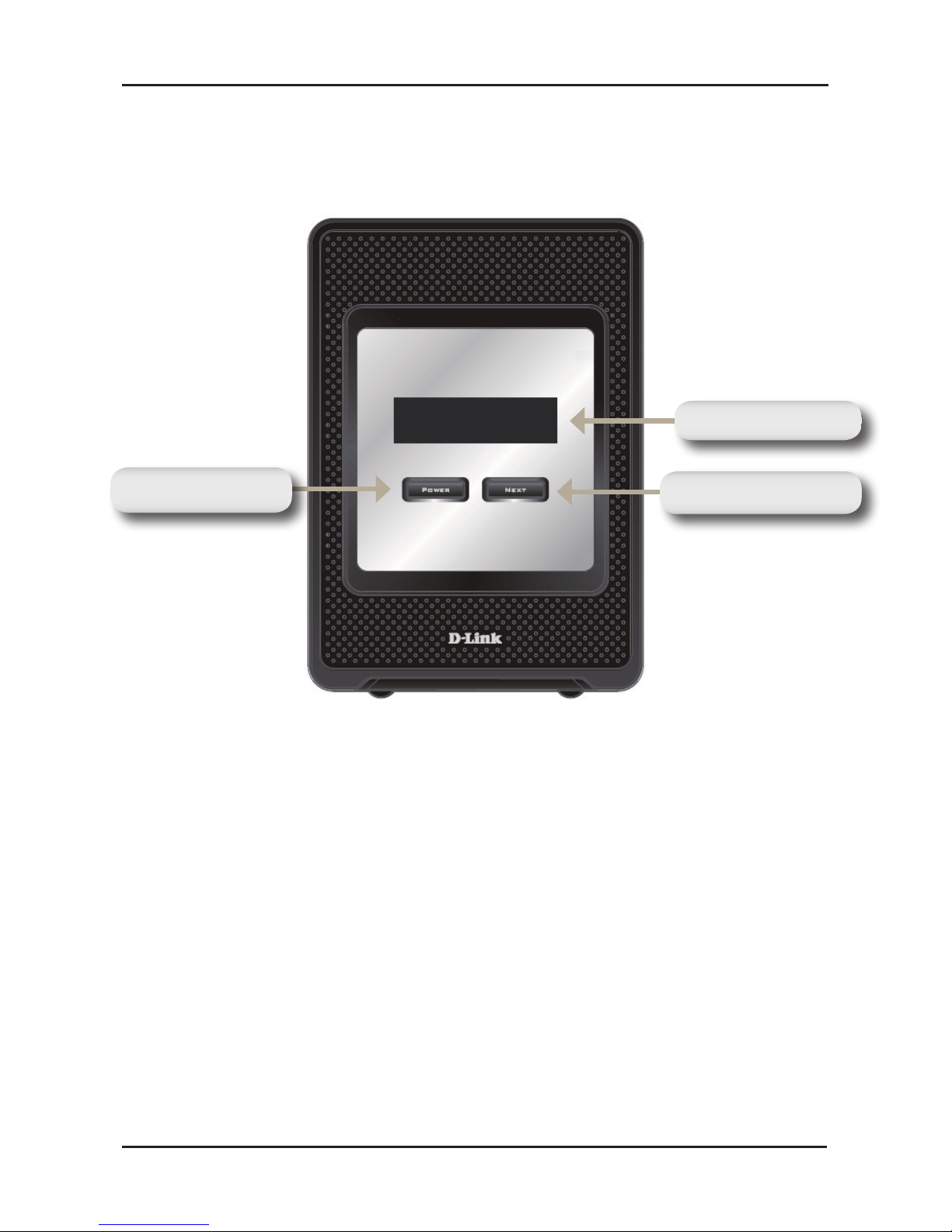

Front View
Power Button Next Button
OLED

6D-Link DNS-343 Quick Install Guide

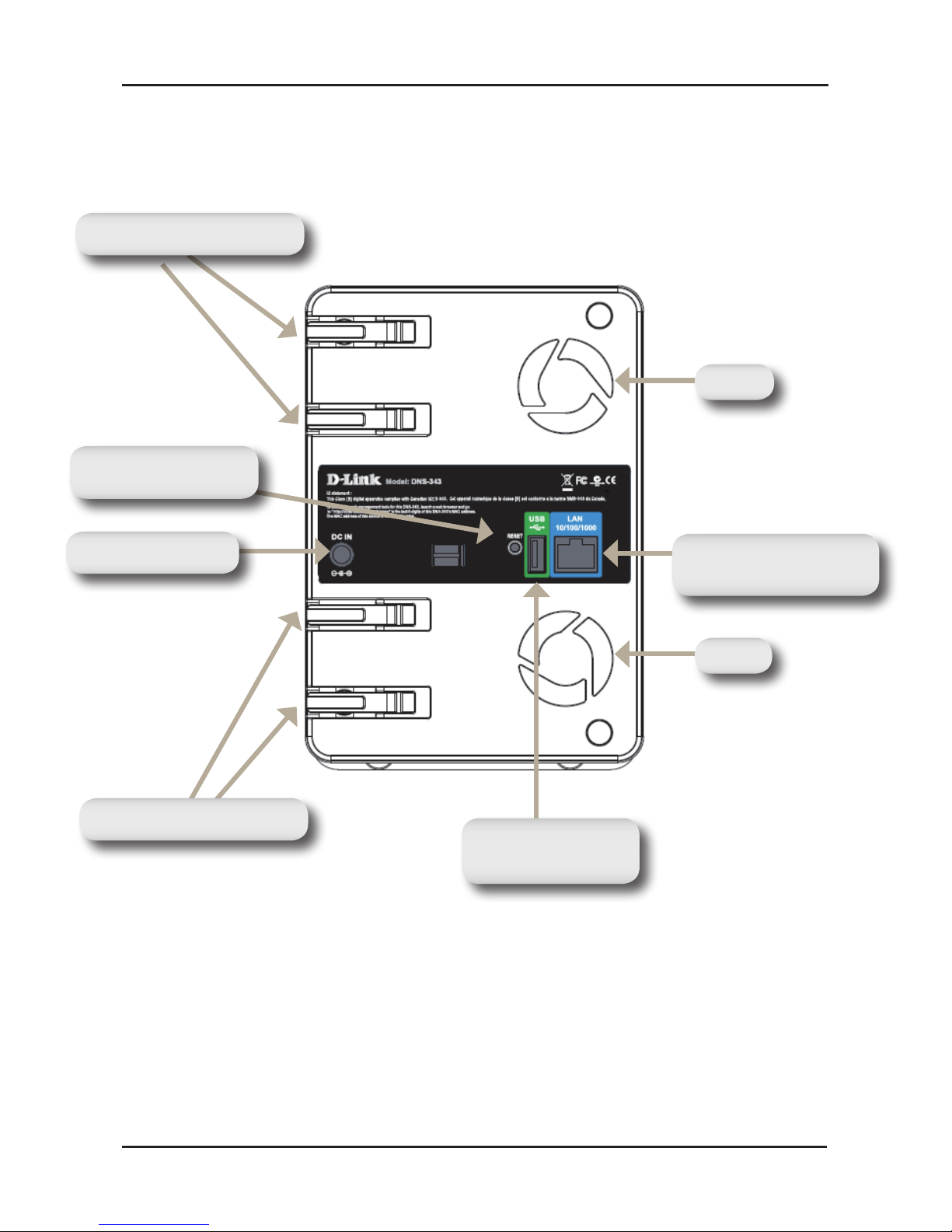

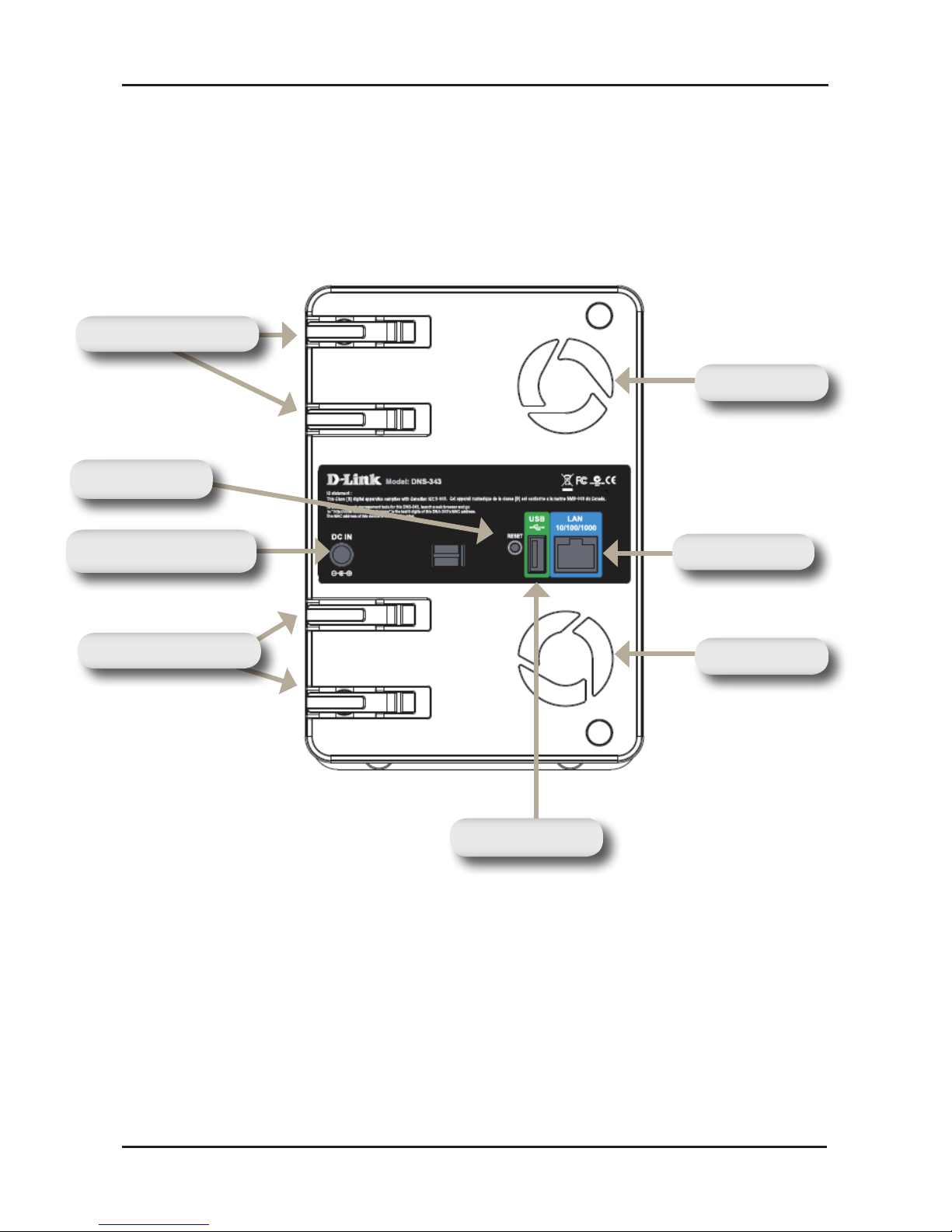

Rear View
Cooling Fan
Reset Button
Drive Eject Levers
USB Connector
Ethernet Port
Power Receptacle
Cooling Fan
Drive Eject Levers

7 D-Link DNS-343 Quick Install Guide
The DNS-343 network storage enclosure features an OLED
that enables the administrator to easily view information about the
DNS-343. The OLED screen displays information about the network connection
status and the number of hard drives installed and the bay ID’s they are
installed in. The OLED has three different screens:
System Information - This screen shows the following information:
• The hostname of the DNS-343
• The rmware version
• The IP address of the DNS-343
• The operating temperature
Hard Drive Status - This screen shows the following information:
• The percentage of space used on the hard drives
Server Status - This screen shows the following information:
• Whether a printer is connected to the unit
• The status of the UPNP server
• The status of the iTunes server
• The status of the FTP Server
Press the Next button once to alternate between the different Status
screens
Using the OLED

8D-Link DNS-343 Quick Install Guide

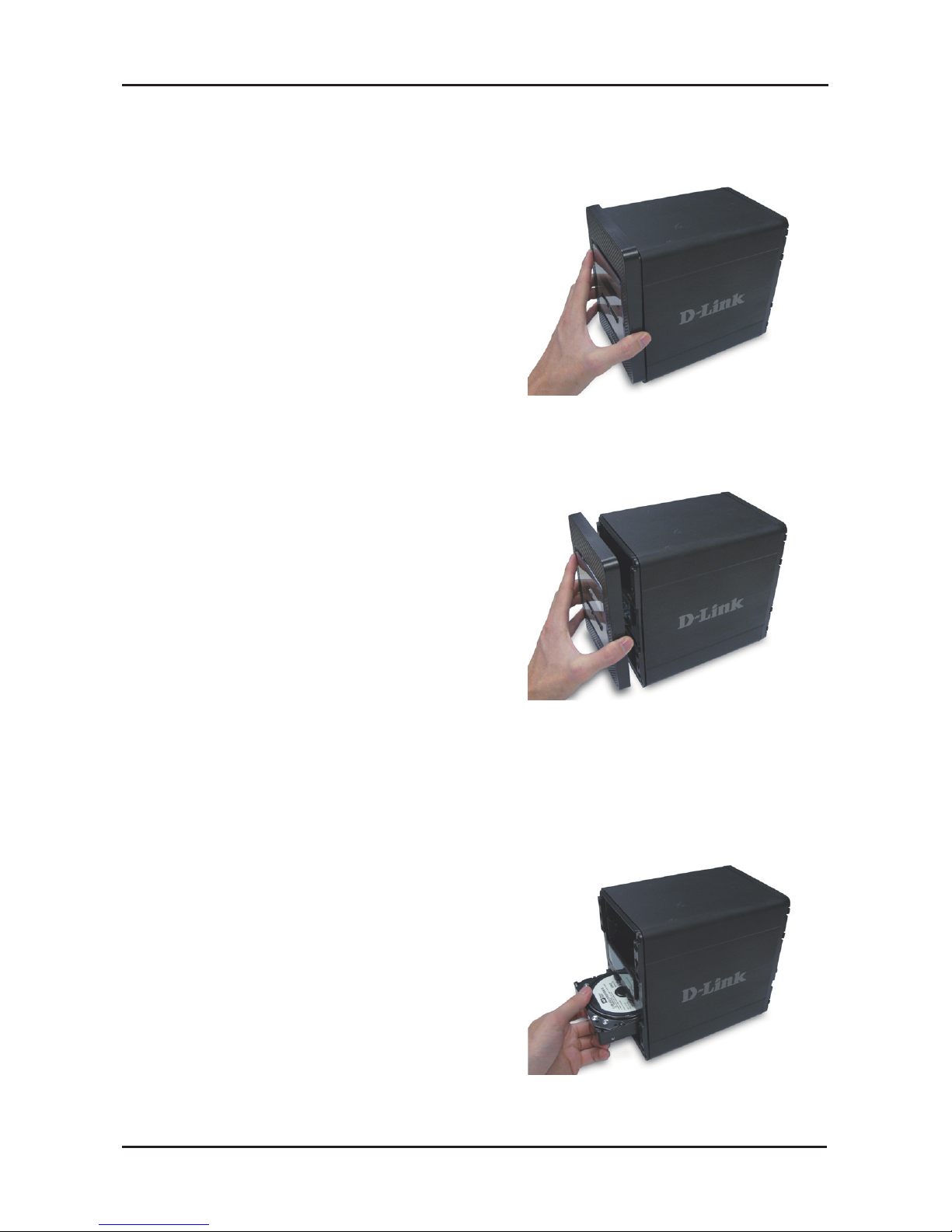

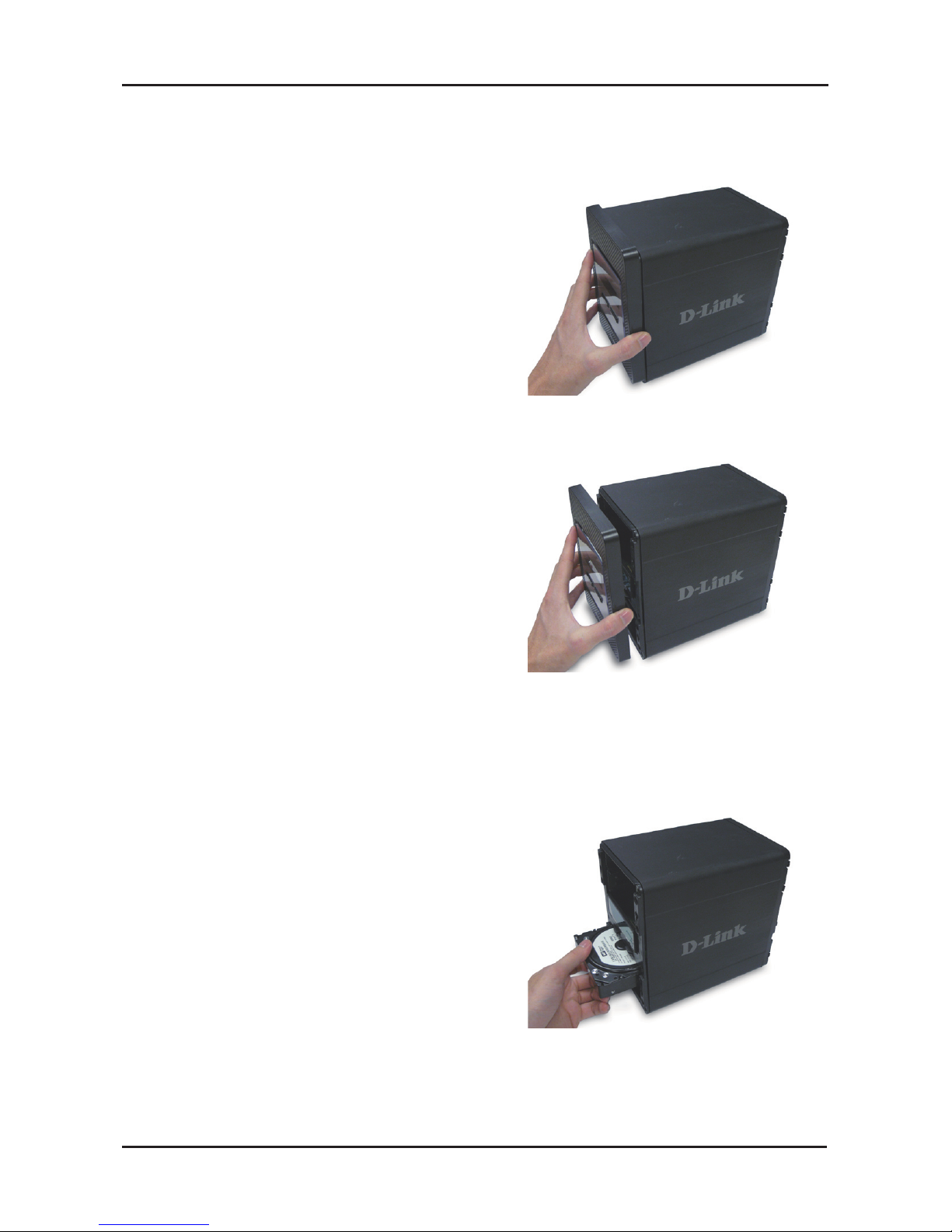

Hardware Installation
1. Access the drive bays by sliding the
faceplate up until it unlatches from
the device.
2. Once the faceplate is unlatched, pull
it off of the device, exposing the drive
bays.
3. Insert a 3.5” SATA hard drive into an
available drive bay. Make sure to align
the drive connector to the endpoint in
the DNS-343. Gently push the drive
in until it connects. Repeat for each
drive you are placing in the DNS-
343.

9 D-Link DNS-343 Quick Install Guide
4. Attach the faceplate to the front of
the device.
5. Connect an Ethernet cable into
the available Ethernet port.
This cable should connect the
DNS-343 to your local network
or directly to a computer for
conguration.
6. Finally, connect the supplied power
adapter to the power receptacle on
the back of the device.

10D-Link DNS-343 Quick Install Guide

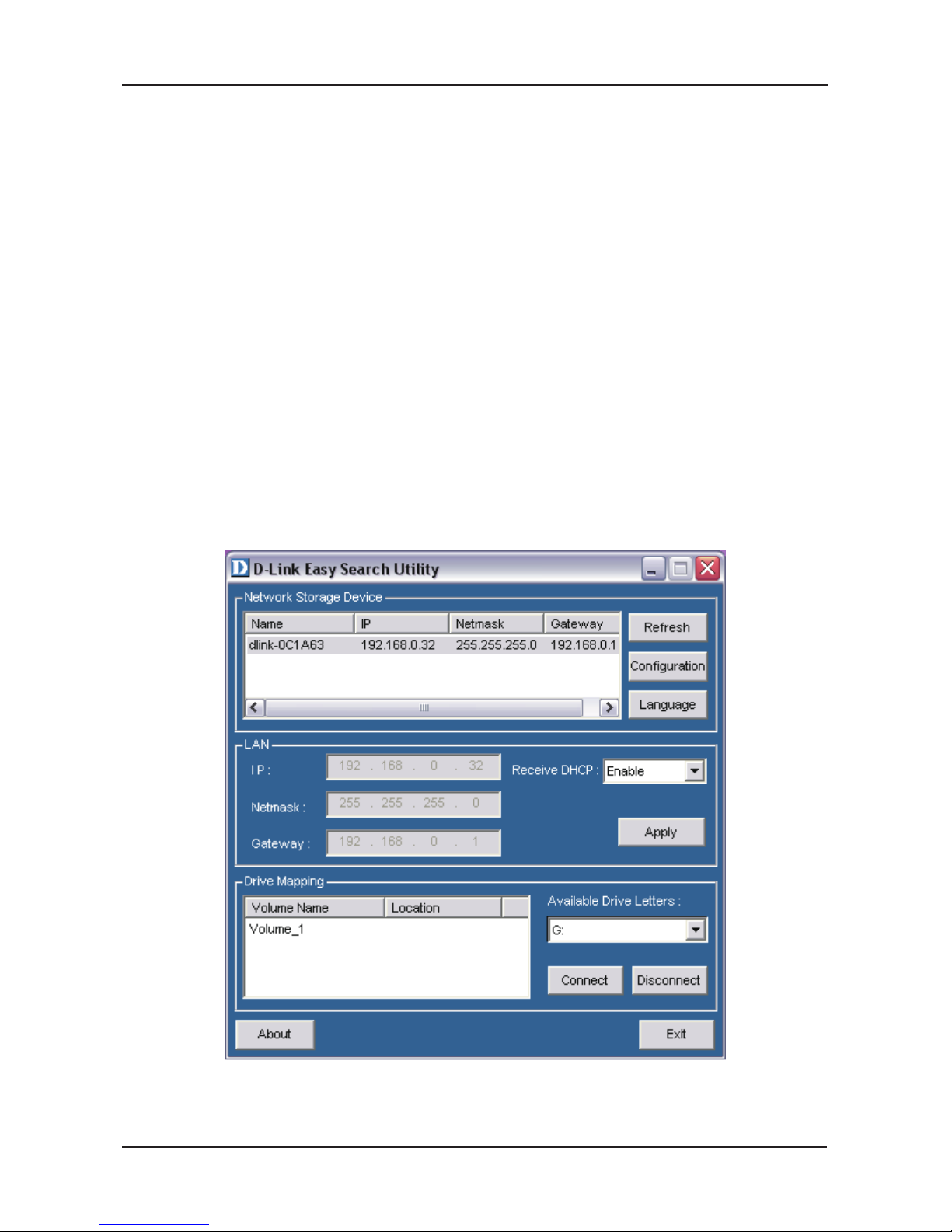

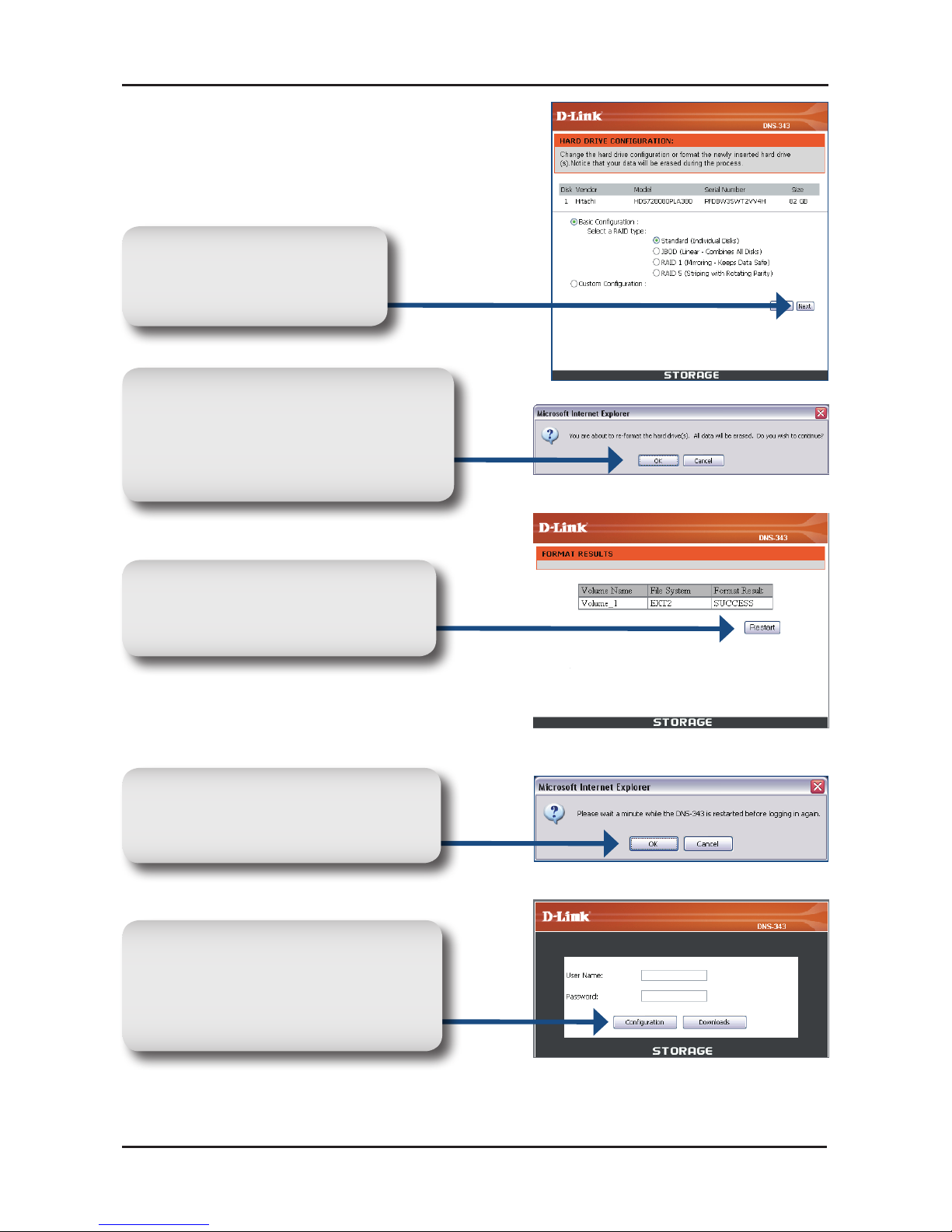

Easy Search Utility
When rst powered on, during the initial boot sequence, the
DNS-343 will wait to be assigned an IP address via DHCP. If it does not
receive a DHCP assigned IP address, by default it will boot up with a self-
assigned IP address of 192.168.0.32.

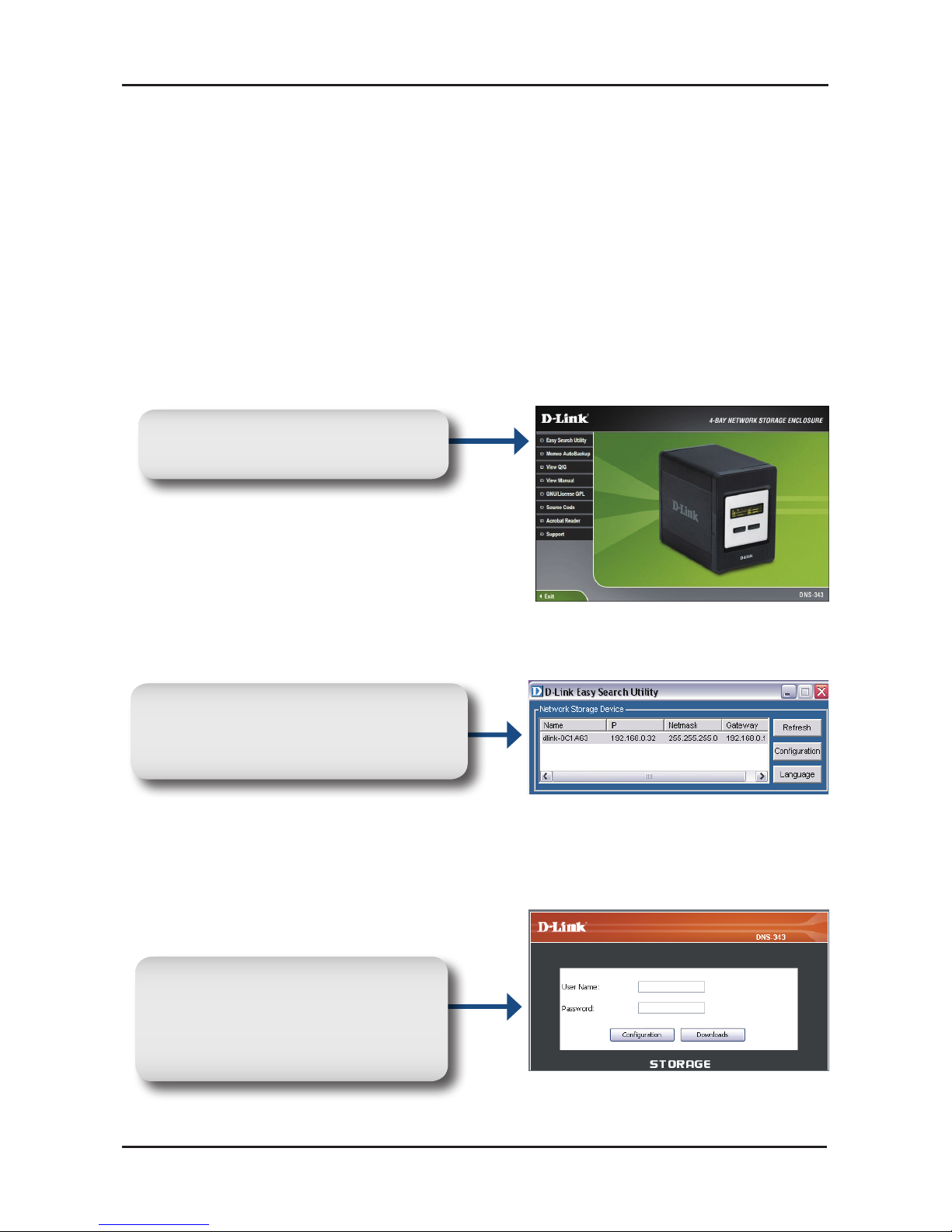

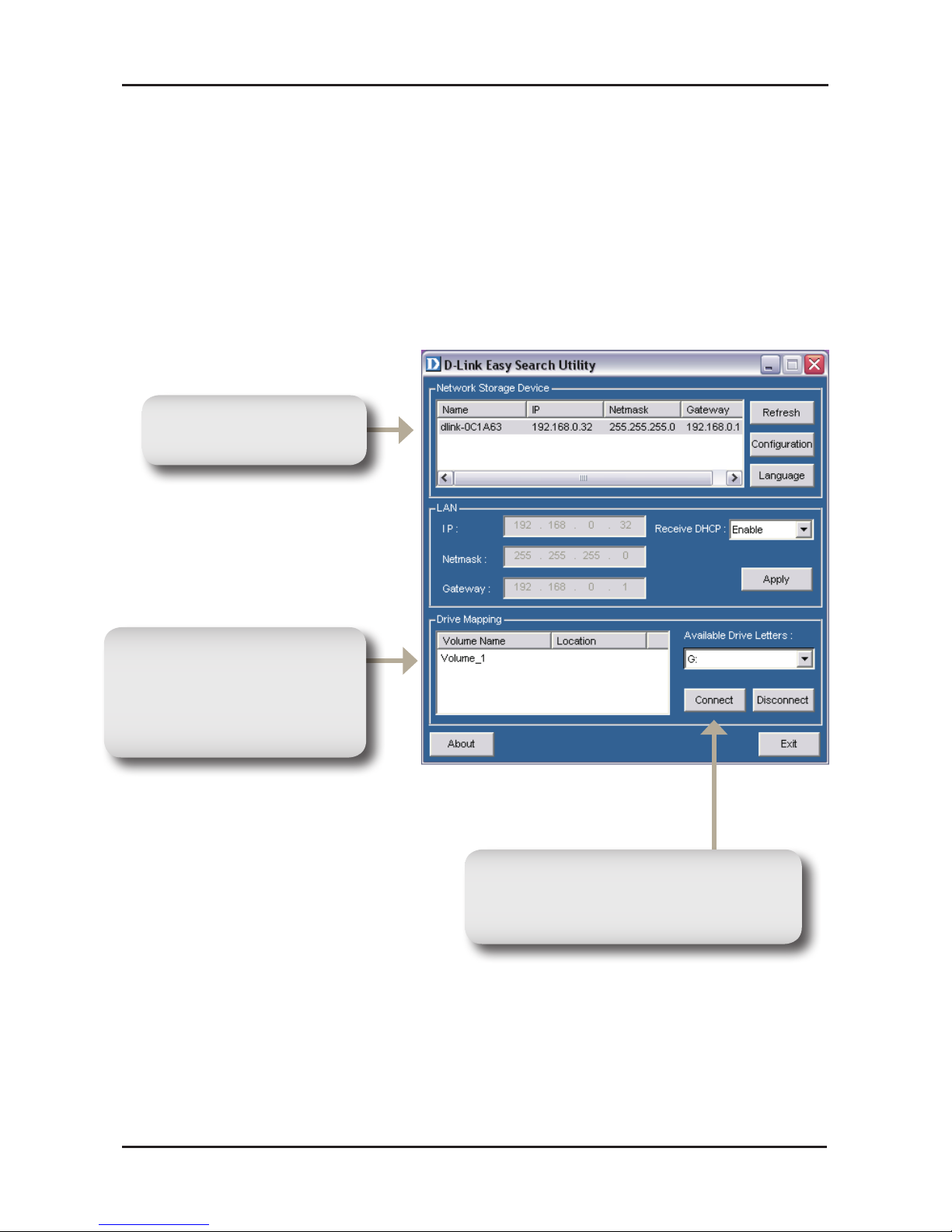

The Easy Search Utility provided on the DNS-343 CD-ROM makes it simple
to nd any DNS-343 devices on your network, and it is recommended to use
the Easy Search Utility when accessing and conguring the DNS-343 for
the rst time. Each DNS-343 will have a unique name of dlink-xxxxxx where
‘xxxxxx’ is the last six digits of its MAC address.
