D-Link 2Voice + 4SW VoIP Router DVG-1402S User manual

©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DVG-1402S VoIP
Router
•DVG-1402S VoIP Router
•Ethernet Cable
(CAT5 UTP Straight-Through)
•12V, 1.2A
Power Adapter
Before You Begin
1. If you purchased this Router to share your high-speed Internet connection with other
computers, you must have an established Internet account from an Internet Service
Provider (ISP).
2. It’s best to use the same computer that is connected to your router for configuring the
DVG-1402S VoIP Router. The DVG-1402S acts as a DHCP server and will assign all
the necessary IP address information on your network. See theQuick Installation Guide
or the Manual on the CD-ROM for setting each network adapter to automatically obtain an
IP address.
Check Your Package Contents
If any of the above items is missing, please contact your reseller.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3. DVG-1402S
V
oIP Route
r
Using a power adapter with
a different voltage rating will
damage and void the
warranty
f
or this product.
•CD-ROM
containing Manual and Warranty

2

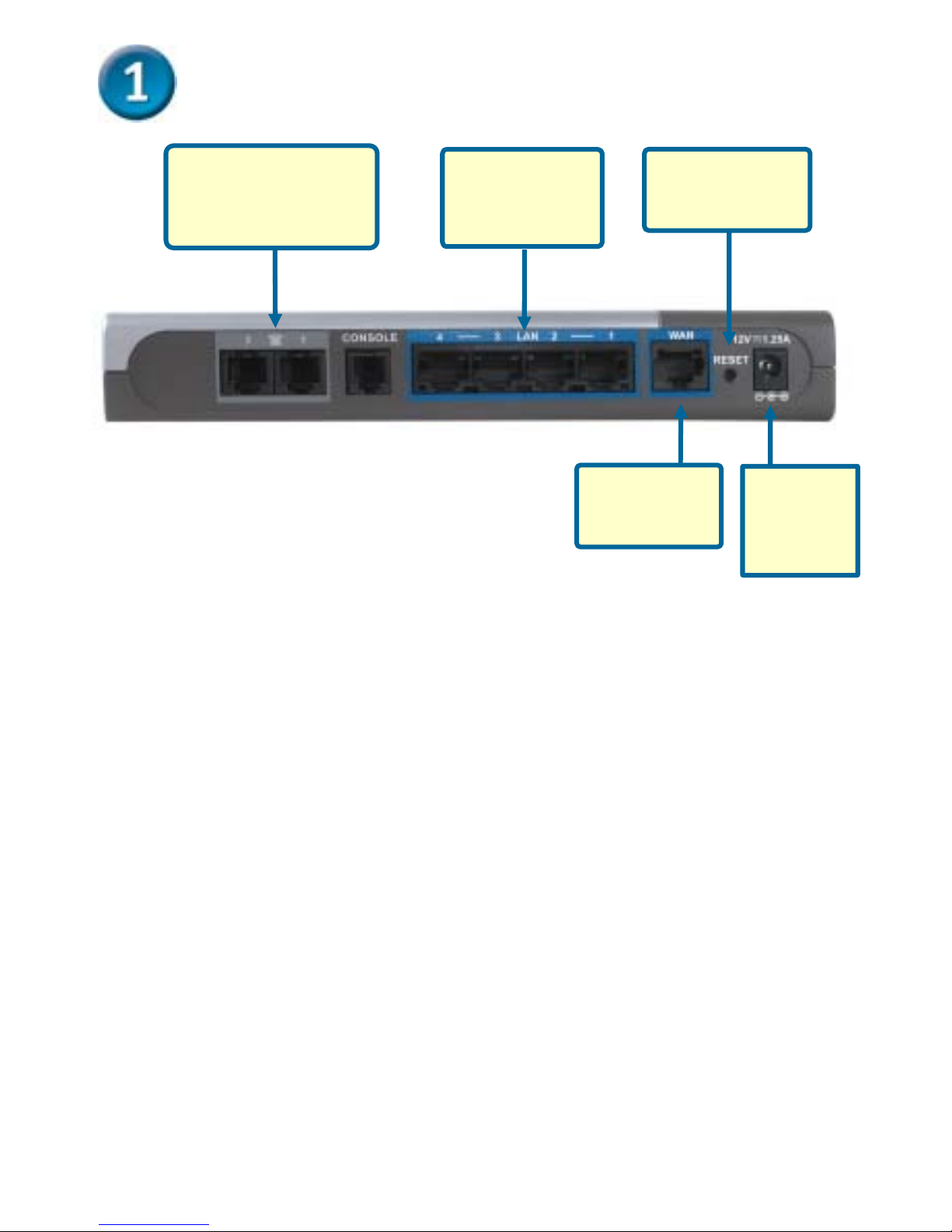

Connecting the Router to your Computer
A. First, connect the power adapter to the power input at the back
panel of the DVG-1402S and then plug the other end of the
power adapter to a wall outlet or power strip. On the front of the
device, the Power LED will turn ON to indicate proper operation.
B. Insert one end of the Ethernet cable into an Ethernet (LAN) port
on the back panel of the DVG-1402S and the other end of the
cable to an Ethernet Adapter or available Ethernet port on your
computer.
C. Insert the telephone cable included with the Router into the
ADSL port, then connect the cable to your telephone line.
D. Check the LED display on the front of the Router to confirm that
the connections have been made.
Power
Input
Connect to
AC Adapter
Reset
Push to return to
factory settings
LAN Ports
Connect to the
LAN and other
computers
Phone Connections
Connect to your phones
using standard phone
cabling
WAN Port
Connect to the
WAN (Internet)

3
Configure IP Settings
Use the following steps to configure a computer running Windows XP to
be a DHCP client.

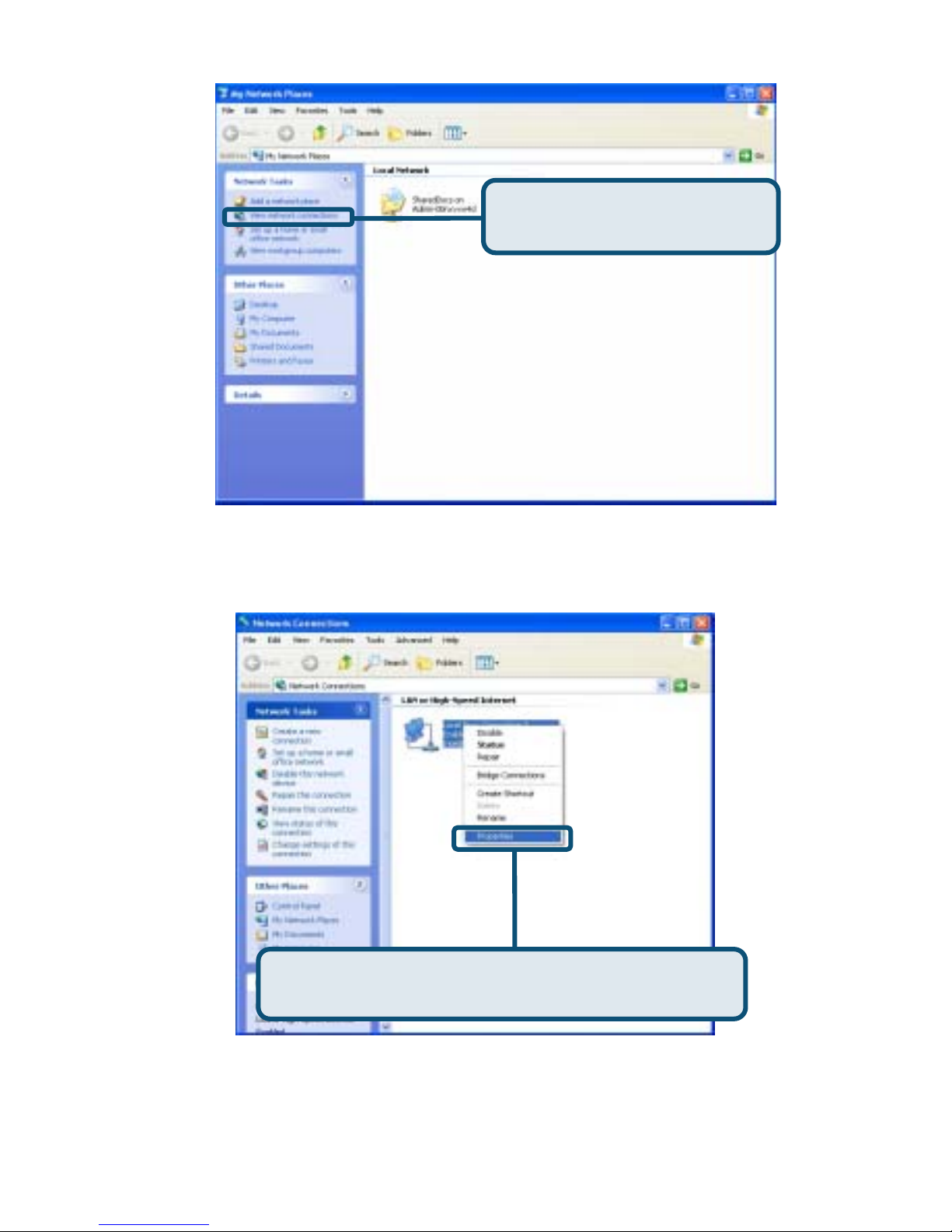

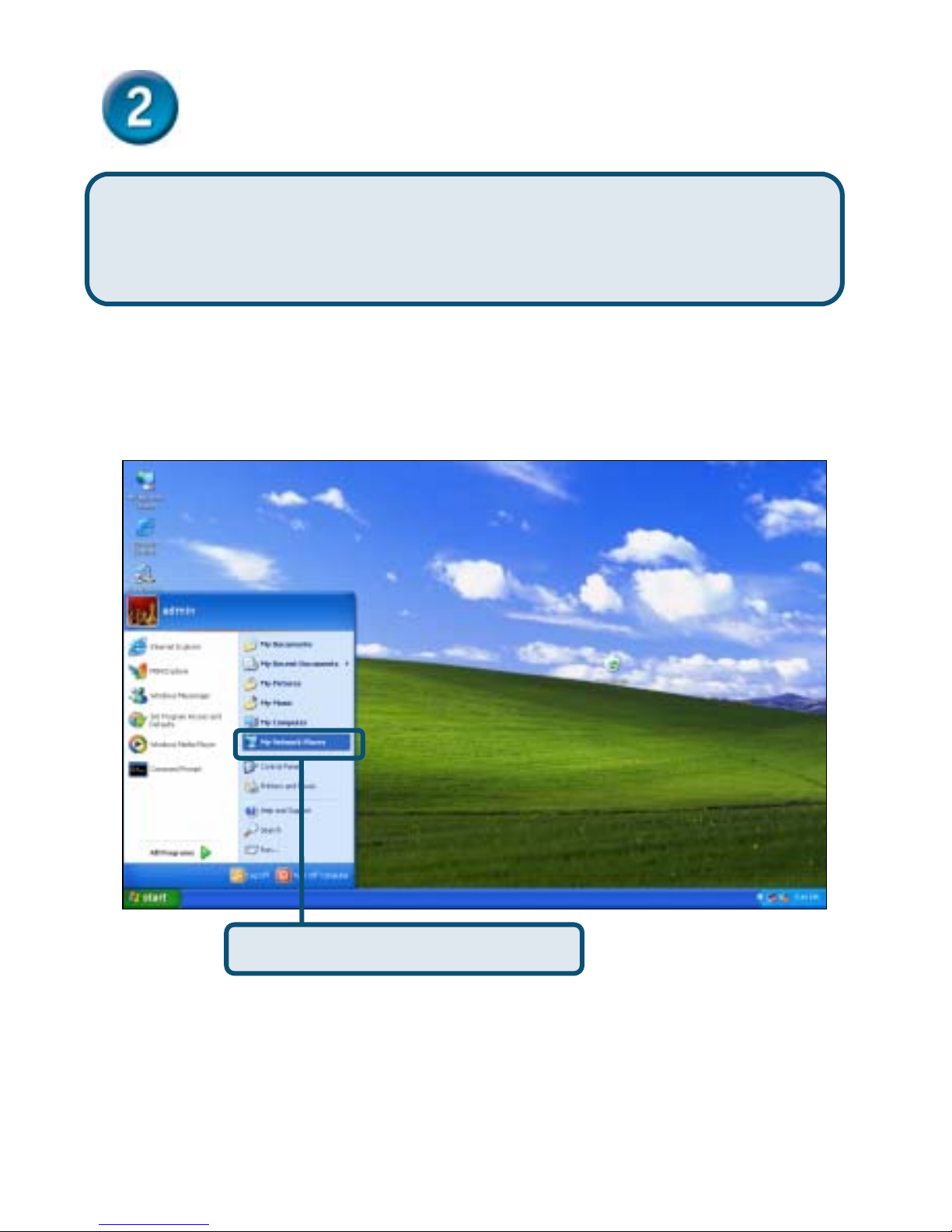

1. From the Start menu on your desktop, go to My Network Places.
2. Under Network Tasks, click View Network Connections.
To connect to the network, make sure the network adapter in
your computer is configured properly. Here’s how to configure
the network adapter to obtain an IP address automatically for
the DVG-1402S VoIP Router.
Click on My Network Places.

4

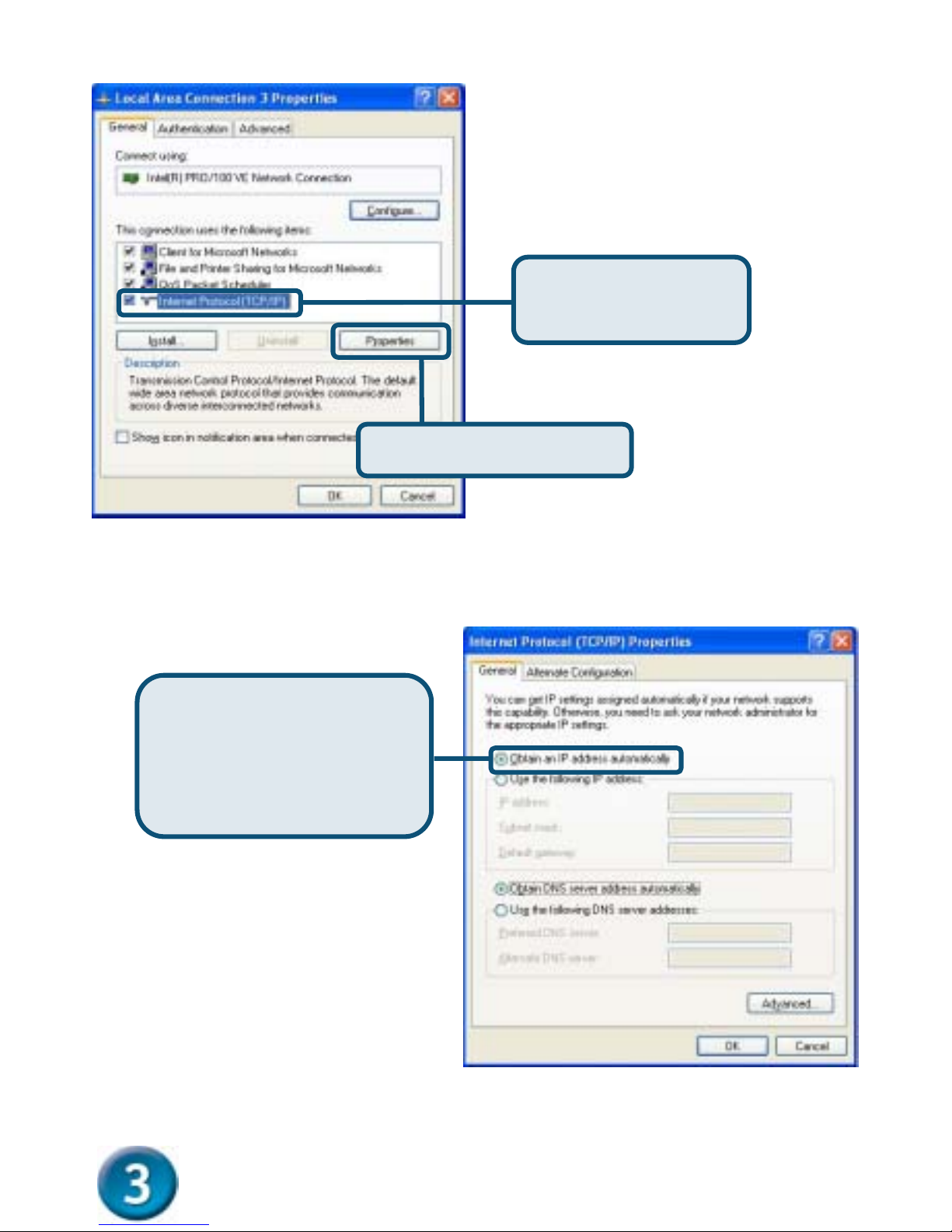

3. Right-click on the Local Area Connection icon and select
Properties from the pull-down menu.
4. In the General tab of the Local Area Connection Properties
menu, highlight Internet Protocol (TCP/IP) under “This
connection uses the following items:” by clicking on it once. Click
on the Properties button.
Select the Properties option from the pull-
down menu.
Click on View Network
Connections.

5
5. Select “Obtain an IP address automatically” by clicking once in
the circle. Click the OK button.
Your computer is now ready to use the Router’s DHCP server.
Connecting Additional Computers
to the DVG-1402S
V
oIP Router
Select Obtain an IP
address automatically
in the Internet Protocol
(TCP/IP) Properties
window.
Click on Internet
Protocol (TCP/IP).
Click on Properties.

6

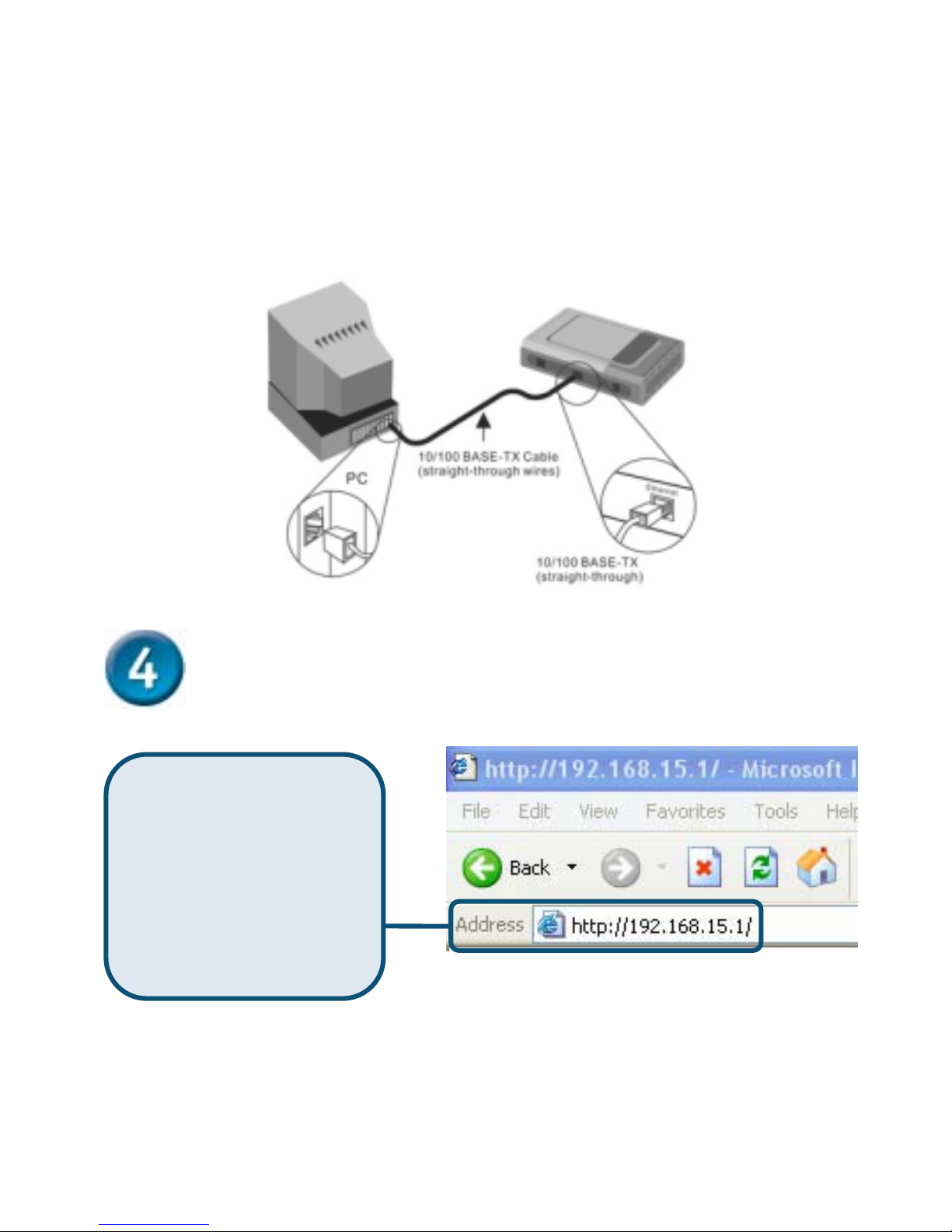

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-
equipped computers to the LAN ports on the back panel of the DVG-
1402S. When you have completed the steps in this Quick Installation
Guide,your connected network should look similar to this:
Initial Web Configuration

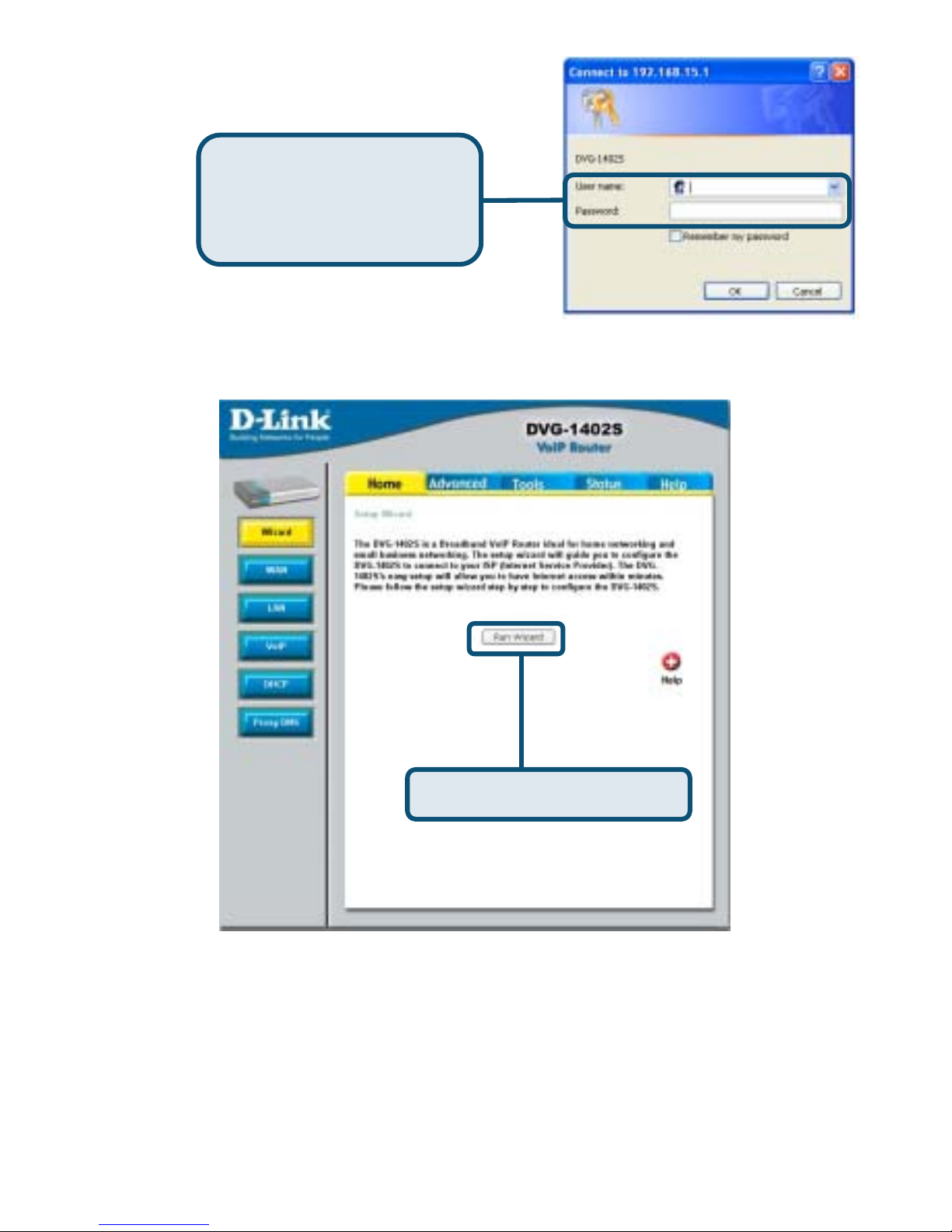

The Login dialog box appears:
Open your Web
browser and type
“http://192.168.15.1”
into the URL address
box. ThenpresstheEnter
orReturn key.
TheLogin page appears.

7
The Home window appears:
Click on Run Wizard.
Enter “admin” for the
User name and
Password and click
OK.

8
Configuring the WAN (Internet)
Connection

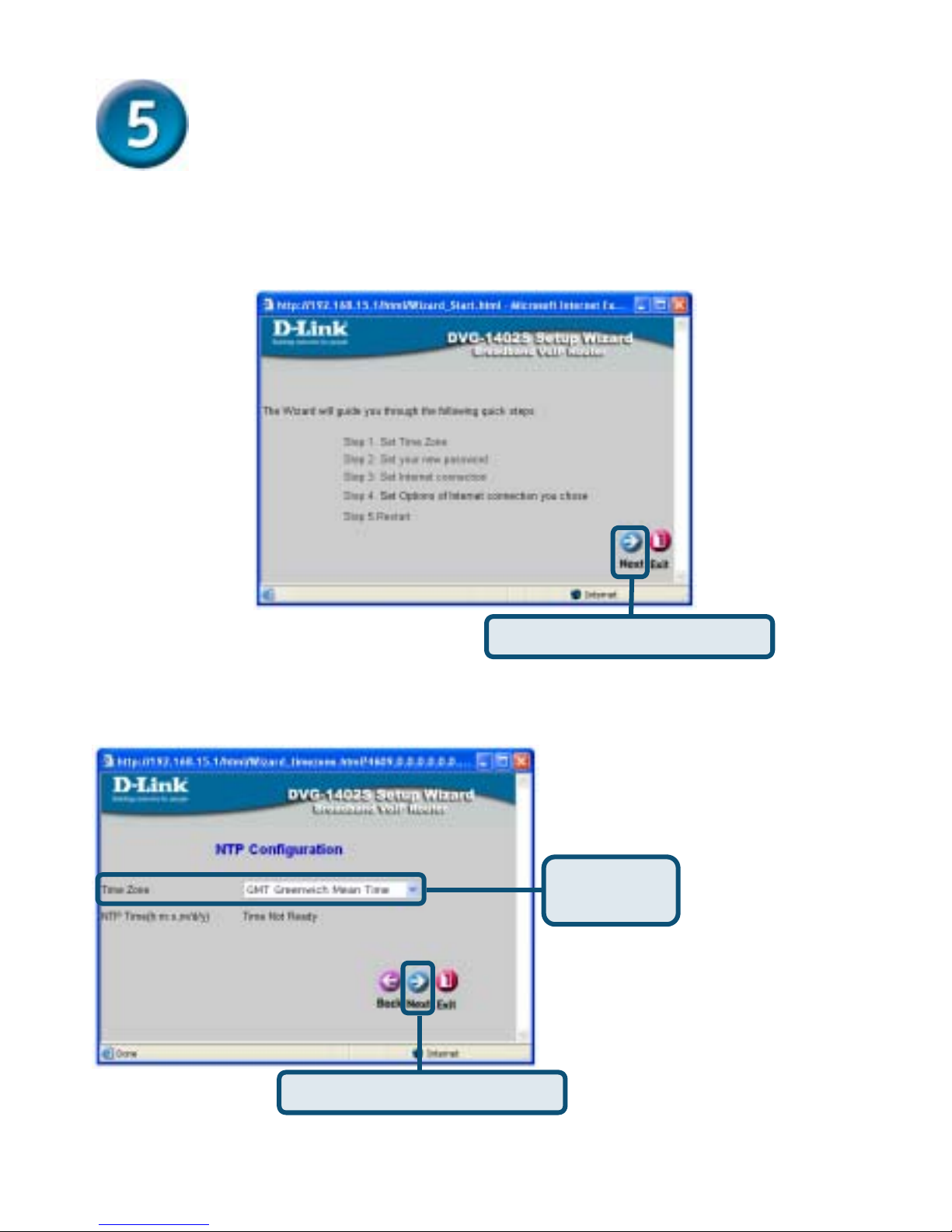

The Wizard will guide you through the 5 steps for setting up your
preferred Internet connection. Click the Next button to continue.
Step 1:
Select a time zone from the pull-down menu and click next.
Click the Next button.
Click the Next button.
Selecta
time zone.

9

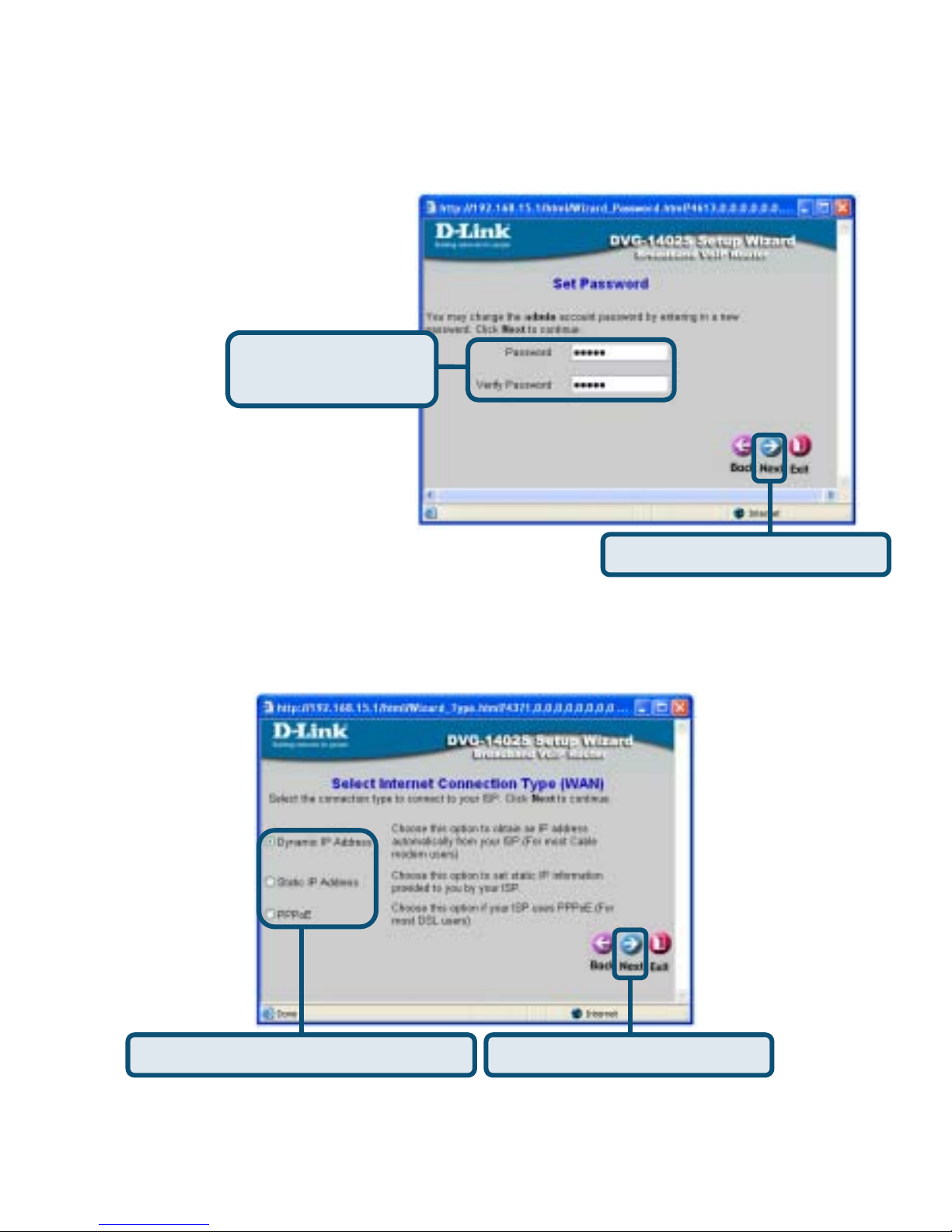

Step 2:
Enter a new password for the DVG-1402S in the Password field.
Confirm the new password by entering it again into the Verify Password
field. Click the Next button to continue.
Step 3:
Use the radio button to select your preferred Internet connection type.
Then click Next to continue.
Click the Next button.
Click the Next button.
Set thePassword
andthenverify it.
Select the Connection T
yp
e.

10
The following are three typical WAN connection examples for Dynamic
IP Address (DHCP), Static IP Address,and PPPoE connection types.

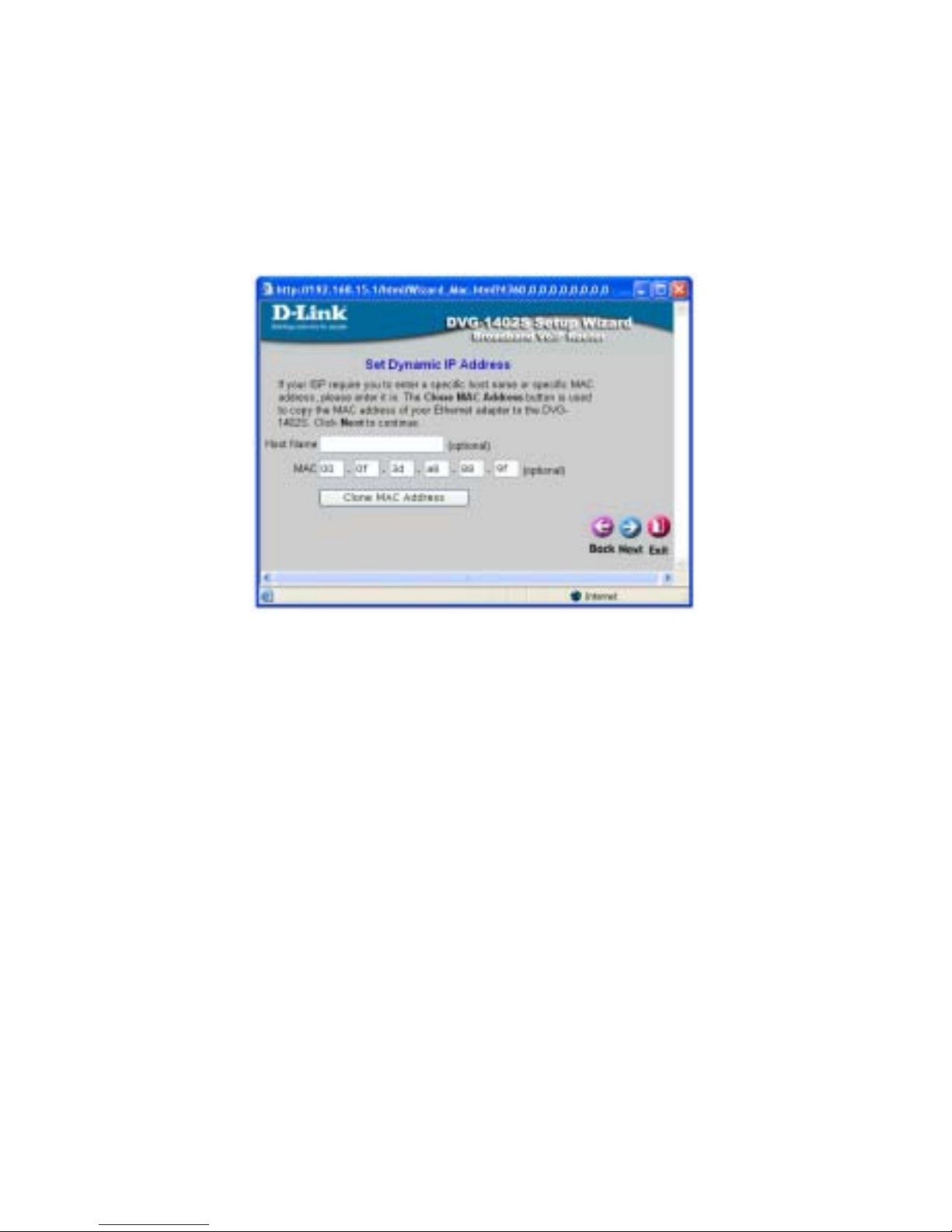

Step 4.1:
Select Dynamic IP Address if your ISP automatically assigns you an IP
address. This is the most common way of connecting the DVG-1402S to
another modem, such as a Cable modem.
Enter the host name, if required, in the Host Name field. If you are using
a Cable modem to make the connection to your ISP’s WAN (Internet),
click the Clone MAC Address button. This will copy the MAC address of
your PC’s network adapter to the DVG-G1402S. The Cable modem will
then recognize the DVG-G1402S and make a valid connection. Click the
Next button to continue.

11

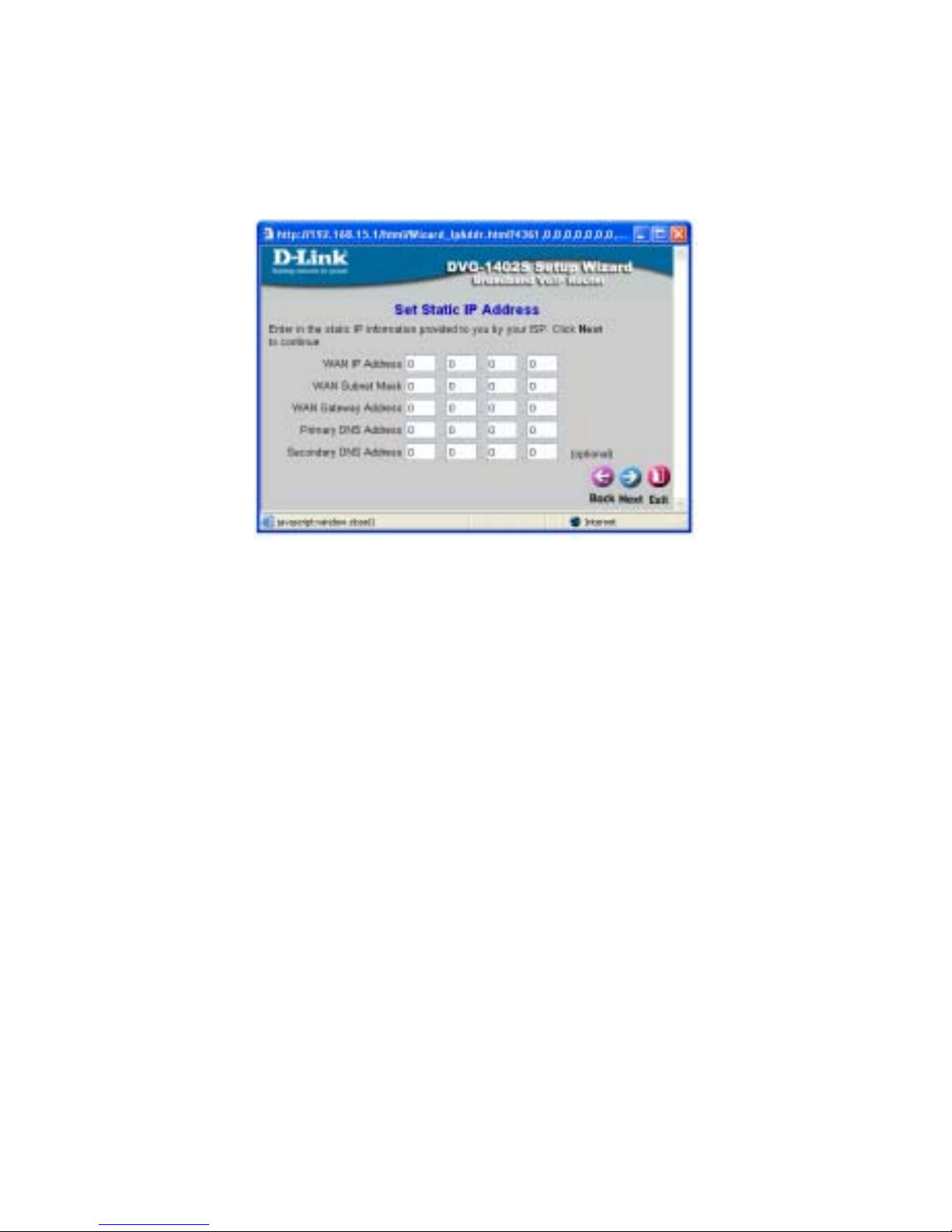

Step 4.2:
Select Static IP Address if your ISP provided you with IP address
information that will not change. You will need your ISP to provide you
with the IP address information about your Internet account, if your ISP
statically assigns an IP address to you.
Enter the provided IP address in the WAN IP Address field. Enter the
corresponding subnet mask in the WAN Subnet Mask field. Enter the IP
address of your ISP’s gateway in the WAN Gateway Address field.
Enter the IP address of a Domain Name Server (DNS) in the Primary
DNS Address field. Click the Next button to continue.

12

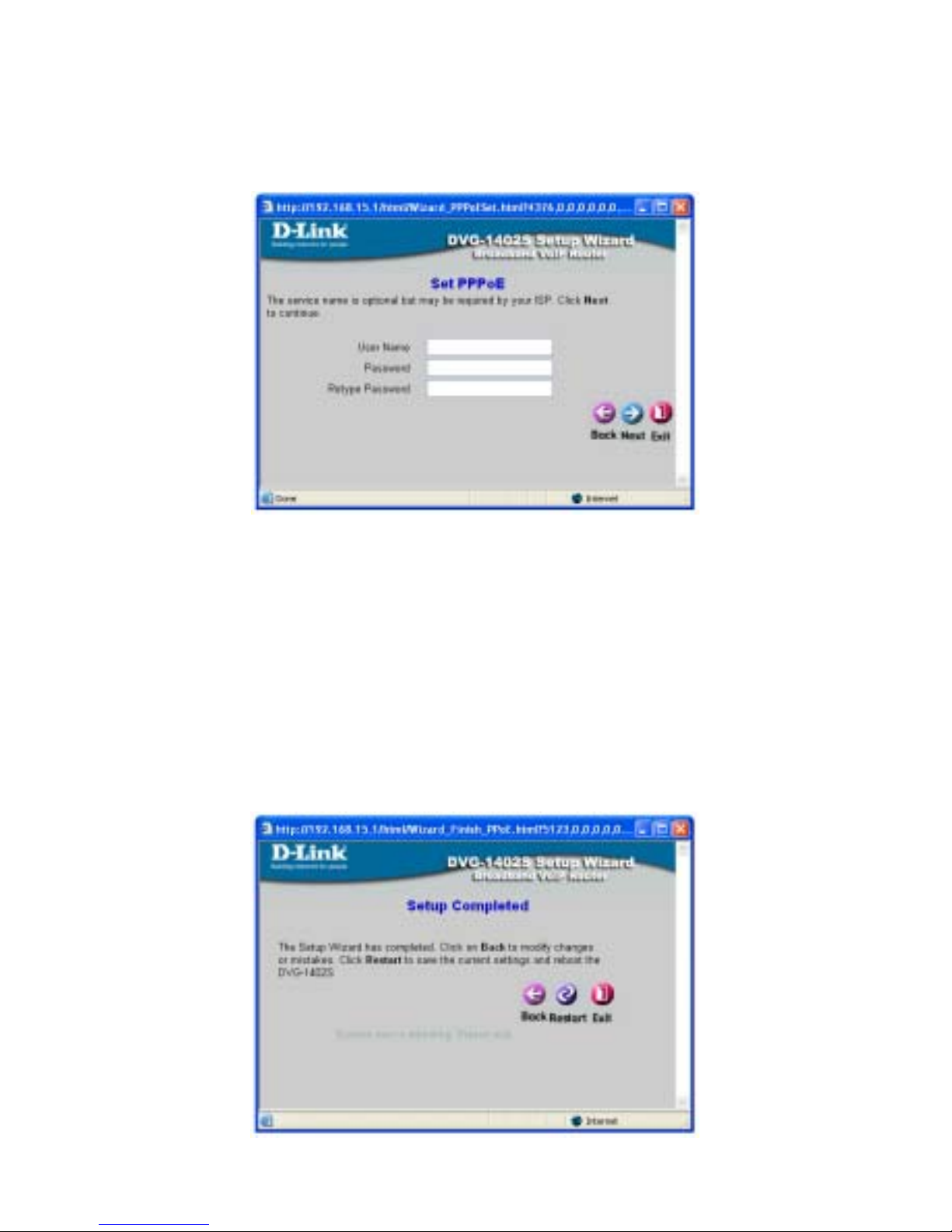

Step 4.3:
Select PPPoE if your ISP uses the Point-to-Point over Ethernet (PPPoE)
protocol to make the connection. This is the most common connection
type for DSL users.
Enter the User Name for your account in the User Name field. Enter the
Password for your account in the Password field. Confirm the Password
by entering it again in the Retype Password field. Click the Next button
to continue.
Step 5:
After selecting your internet connection type and making the necessary
configurations, click the Restart button to save the settings and restart
the router.

13
