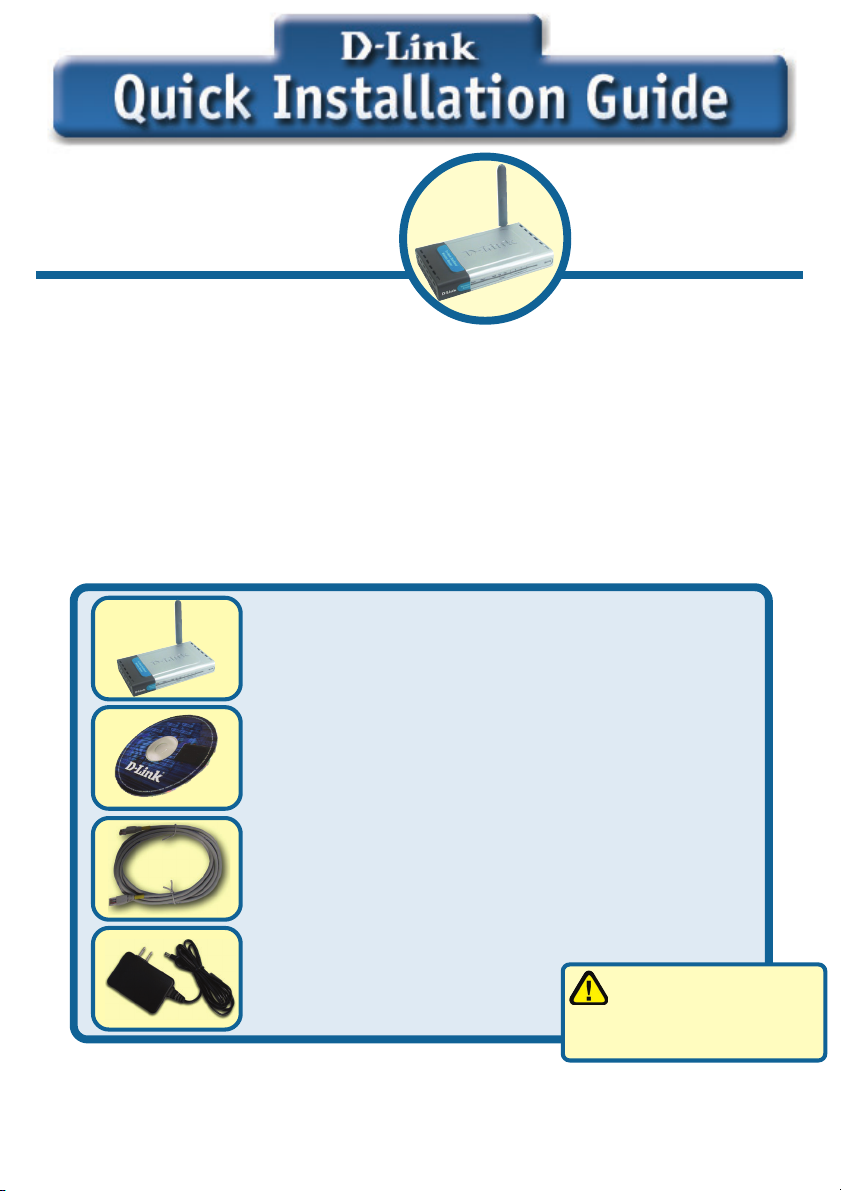

D-Link Air Xpert DI-774 User manual

1
DI-774
Tri-Mode Dualband
Wireless Router
5V 3A DC Power Adapter
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-774. 10242003
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring
the DI-774 Tri-Mode Dualband Wireless Router. The DI-774 acts as a DHCP server
and will assign all the necessary IP address information on your network. See
Appendix at the end of this Quick Installation Guide or the Manual on the CD-
ROM for setting each network adapter to automatically obtain an IP address.
Check Your Package Contents
DI-774 Tri-Mode Dualband Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (Straight-Through) Cable
If any of the above items are missing, please contact your reseller.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.
Using a power supply
with a different voltage
rating will damage this
product and void the warranty

2
Connecting The DI-774 Wireless Router To
Your Network

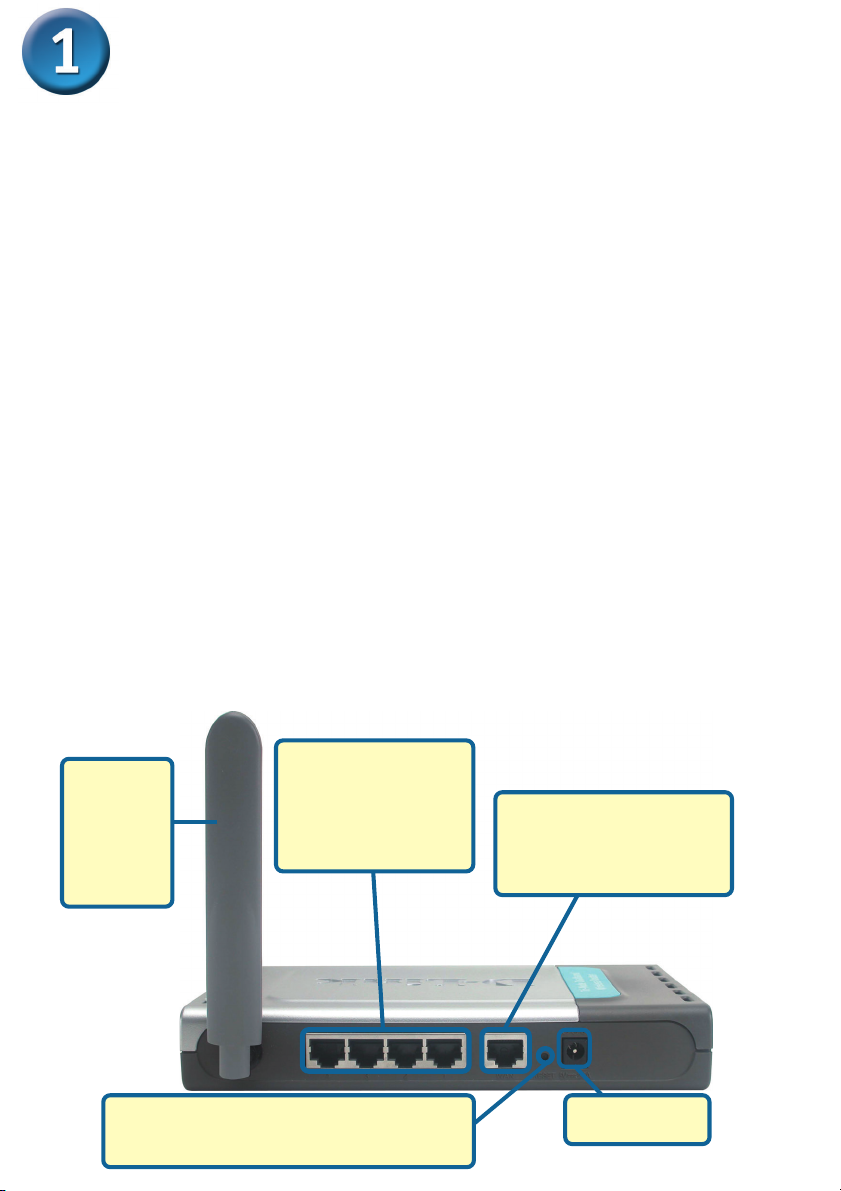

C. LAN PORTS These
are the connections
for Ethernet cables to
Ethernet enabled
computers.
Reset Button
Pressing this button restores the Router to
its original factory default settings.
B. WAN PORT
This is for the connection
of an Ethernet cable to the
Cable or DSL modem
D. Antenna
Used to
wirelessly
connect to
802.11a/b/g
adapters.
A. Receptor for
Power Adapter.
A. First, connect the power adapter to the receptor at the back panel of the
DI-774 and then plug the other end of the power adapter to a wall outlet or power
strip. The Power LED lights up indicating proper operation.
B. 1. Power off your Cable or DSL modem; the devices that do not have a on/off
switch and will require you to unplug the power adapter. Now, the DI-774 should be
powered on and the Cable / DSL modem should be turned off. Cable / DSL
modem (Power Off) – DI-774 (Power On)
2.Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL
modem. After the Ethernet cable is securely connected, power on the Cable / DSL
modem by turning on the unit or plugging in the power adapter. Cable / DSL
modem (Power On) – DI-774 (Power On)
3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel
of the DI-774. The WAN LED light will illuminate to indicate proper connection. If
the WAN LED is not illuminated, please go back to step B1 and repeat the steps.
C. Insert an Ethernet cable to LAN Port 1 on the back panel of the DI-774 and an
available Ethernet port on the network adapter in the computer you are using to
configure the DI-774. The LED light for LAN Port 1 illuminates to indicate proper
connection. (Note: The LAN Ports on the DI-774 are Auto-MDI/MDIX. Meaning
you can use a straight-through or crossover-Ethernet cable in the LAN Ports.)
D. Computers equipped with D-Link 802.11a/b/g wireless adapters will be able to
connect out of the box with the DI-774 using their default wireless settings.

3
Restart Your Computer
Connecting Additional Computers To
The DI-774
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped
computers to the remaining Ethernet LAN ports on the back panel of the DI-774.
WAN LED – a
solid light indicates
connection on the
WAN port. This
LED blinks during
data transmission.
LOCAL NETWORK
LEDs – a solid light
on the port indicates a
connection to an
Ethernet enabled
computer on ports 1-4.
This LED blinks during
data transmission.
11a and 11g LEDs – a
solid light indicates that
the wireless segment is
ready. This LED blinks
during wireless data
transmission.

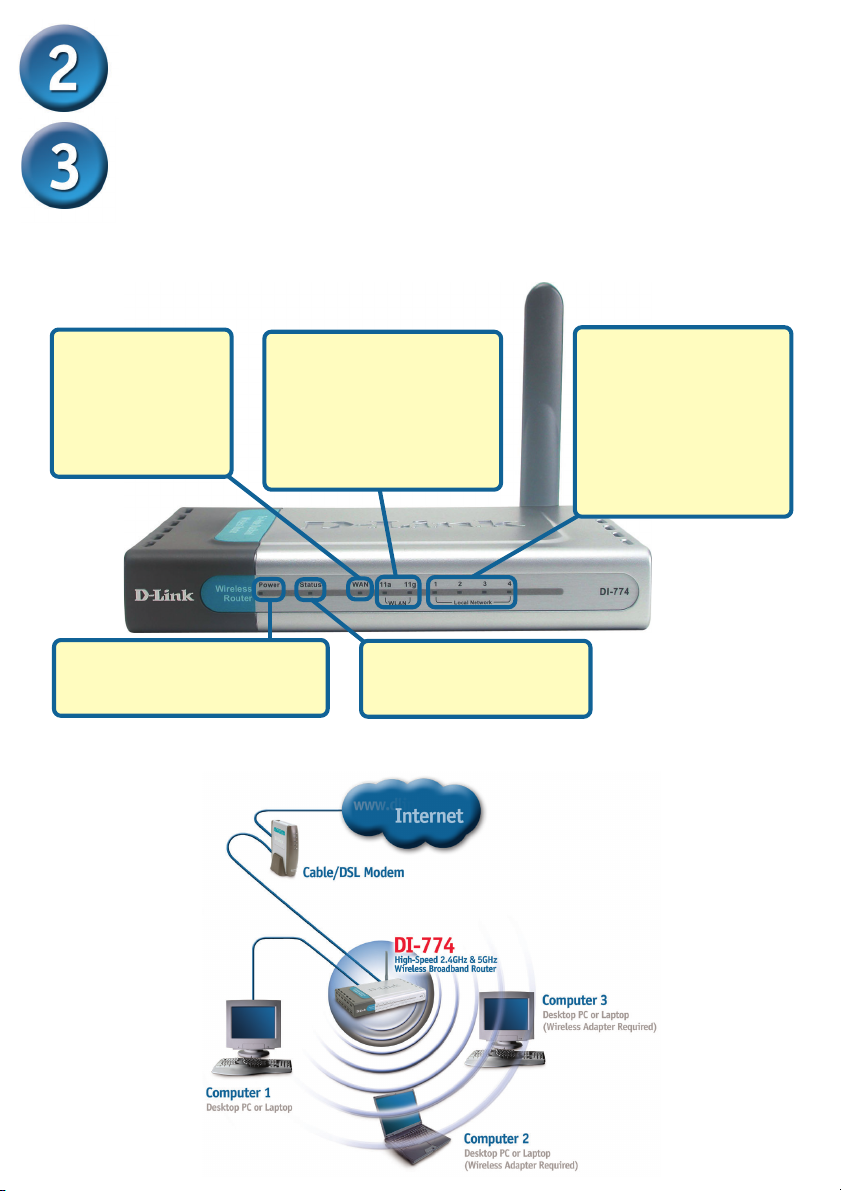

When you have completed the steps in this Quick Installation Guide, your connected
network should look similar to this:
Status – a blinking light
indicates that the DI-774
is functioning properly.
Power LED – a solid light
indicates a proper connection
to the power supply.

4

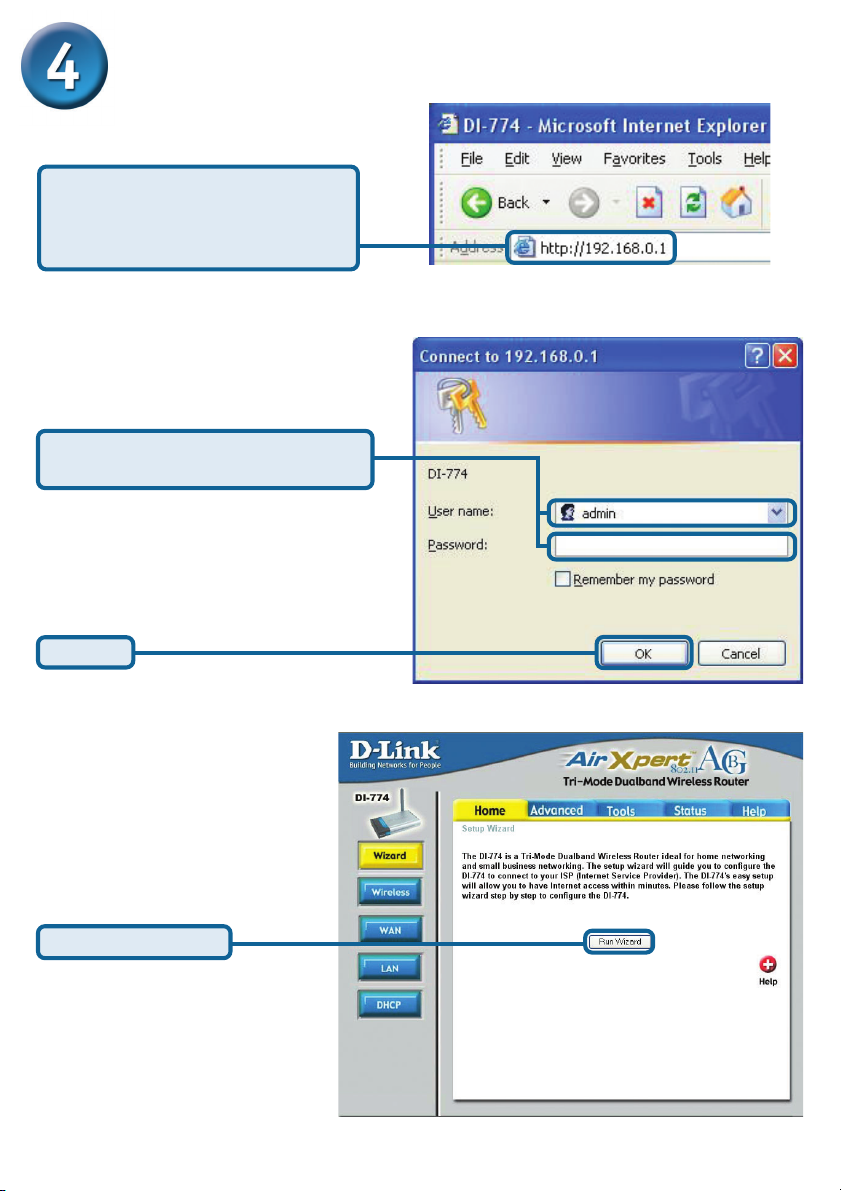

Once you have logged in, the
Home screen will appear.
Using The Setup Wizard
The logon pop-up screen will appear.
Open your Web browser and
type “http://192.168.0.1” into the
URL address box. Then press the
Enter or Return key.
Type “admin” for the username and
leave the password field blank.
Click OK
Click Run Wizard

5

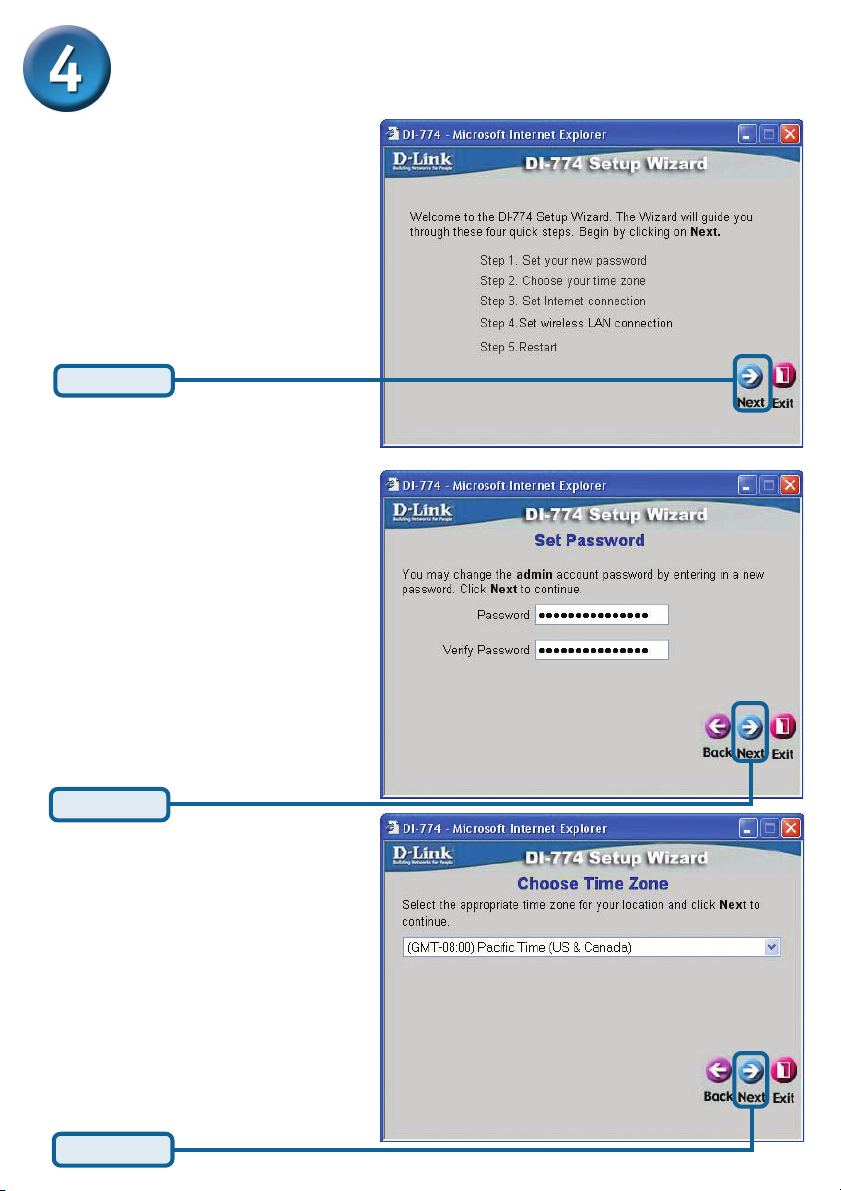

You will see the following screens
Set up your new password.
You have the option to
establish a password.
Click Next
Click Next
The Setup Wizard (continued)
Choose your time zone from the
drop down list.
Click Next

6

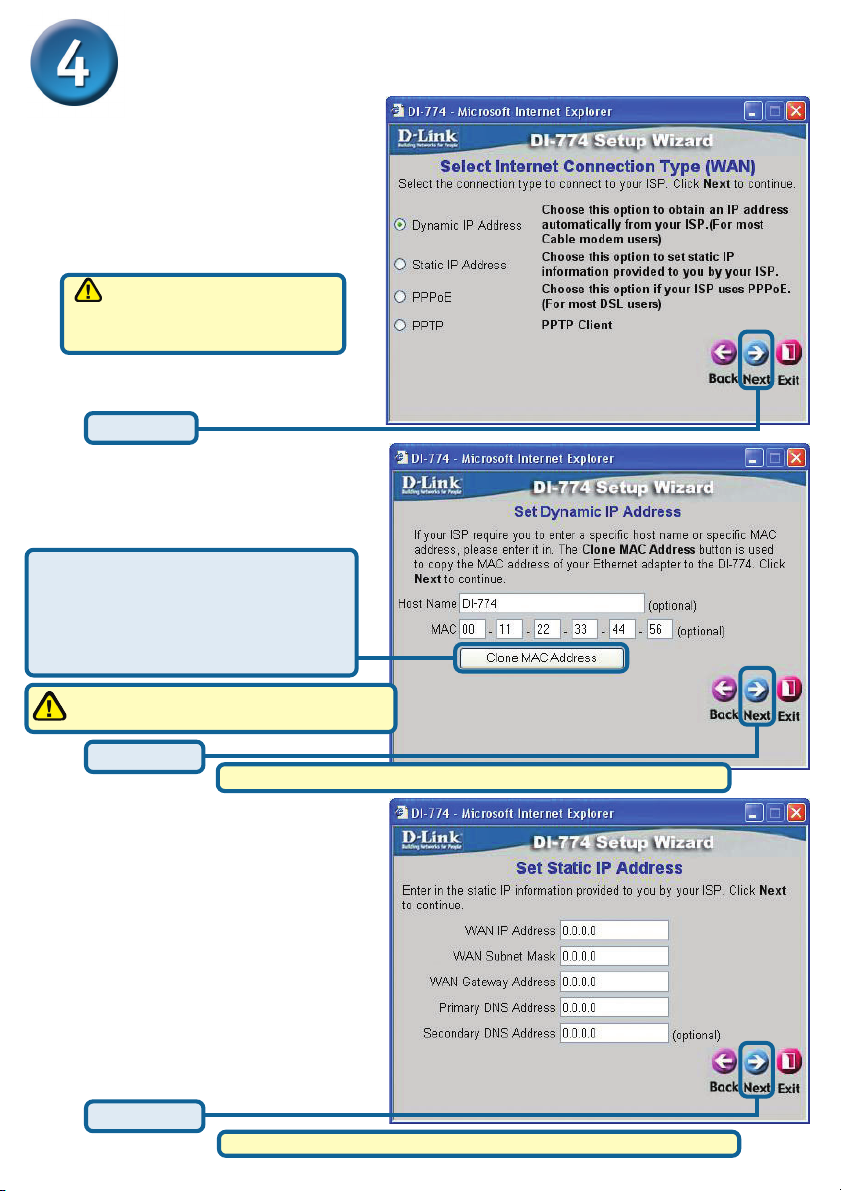

If your ISP requires a Static IP
Address, and this option is selected,
then this screen will appear:
Enter the IP address information
originally provided to you by your
ISP. You will need to complete all
the required fields.
Click Next
If you selected Dynamic IP Address,
this screen will appear: (Used mainly
for Cable Internet service.)
Click the “Clone MAC Address”
button to automatically copy the
MAC address of the network adapter
in your computer. You can also
manually type in the MAC address.
Click Next
The Setup Wizard (continued)
Select your Internet Connection.
You will be prompted to select the
type of Internet connection for your
router.
Click Next
If you are unsure of which
setting to select, please contact
your Internet Service Provider.
This setup should be done on the computer
that is registered on the ISP’s network.
Please continue to the last part of step 4, 802.11g Wireless Setup.
Please continue to the last part of step 4, 802.11g Wireless Setup.

7
The Setup Wizard (continued)

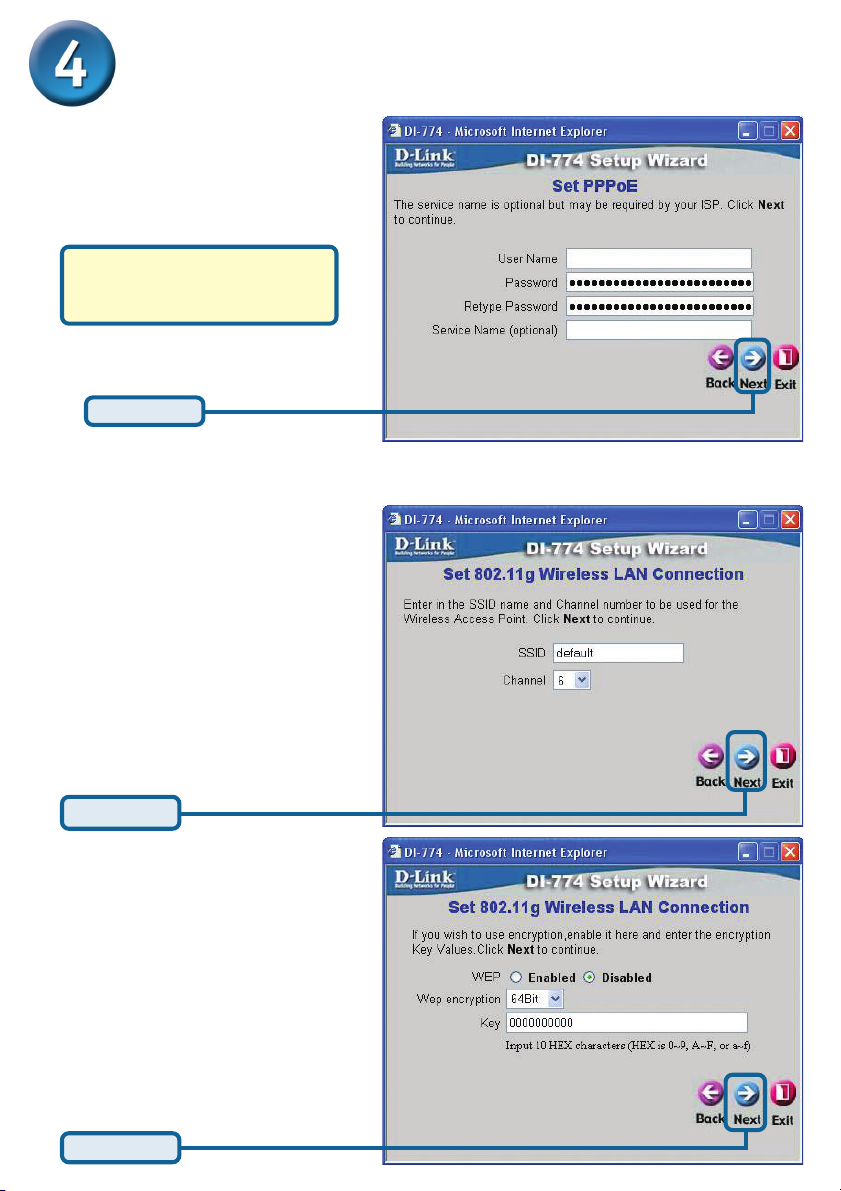

If your ISP uses PPPoE (Point-to-
Point Protocol over Ethernet), and
this option is selected, then this
screen will appear: (Used mainly for
DSL Internet service.)
Please be sure to remove any
existing PPPoE client software
installed on your computers.
Enter in the username and password
provided to you by your ISP.
Click Next
The default wireless settings
for your 802.11g wireless
network are:
SSID = default
Channel = 6
You can change these settings
to match an existing wireless
network.
Click Next
802.11g Wireless Setup
If you wish to use encryption for
your 802.11g network, the DI-774 is
capable of three levels of wireless
encryption: 64-bit, 128-bit, and 152-
bit. By default the encryption is
disabled. You can change the
encryption settings for more secure
wireless communication.
Click Next

8
The Setup Wizard (continued)
Click Next

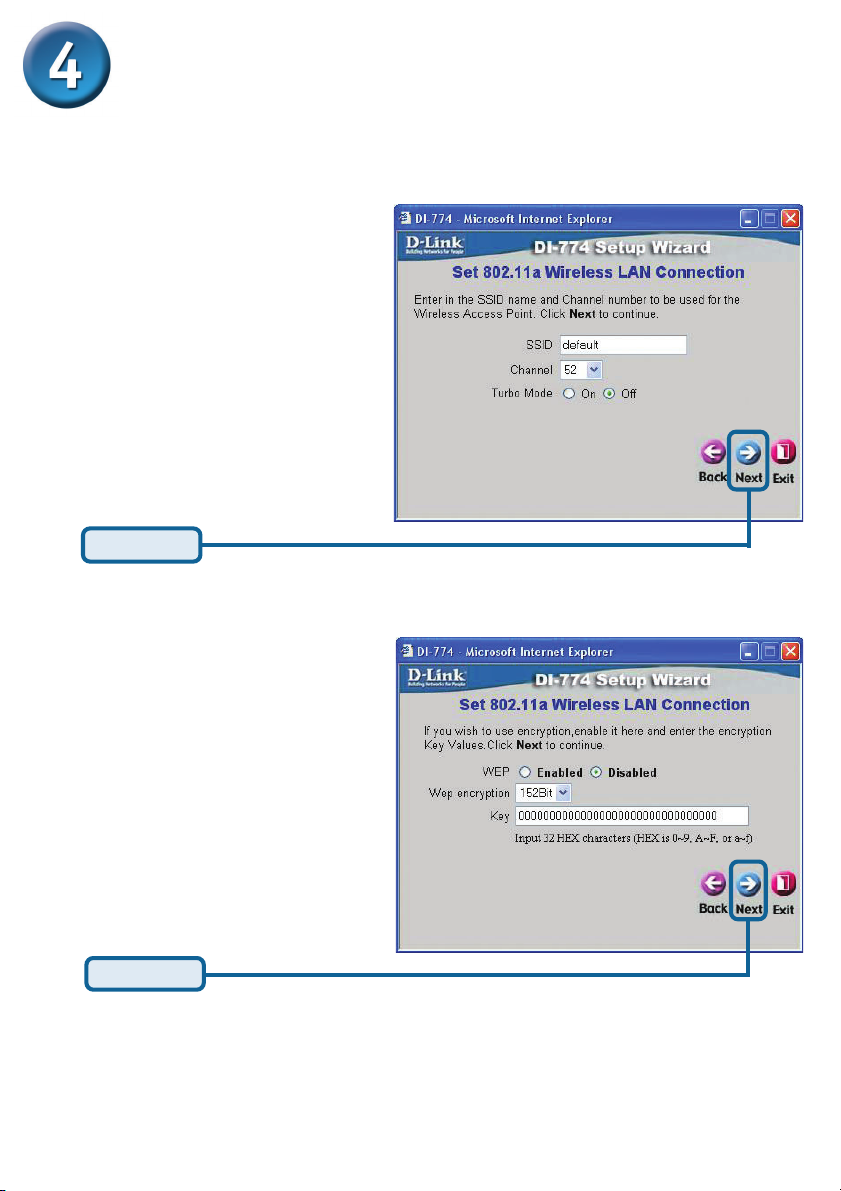

The default wireless settings for
your 802.11a wireless network
are:
SSID = default
Channel = 52
You can change these settings to
match an existing wireless
network.
802.11a Wireless Setup
Click Next
If you wish to use encryption for
your 802.11a network, the DI-774 is
capable of three levels of wireless
encryption: 64-bit, 128-bit, and 152-
bit. By default the encryption is
disabled. You can change the
encryption settings for more secure
wireless communication.

9

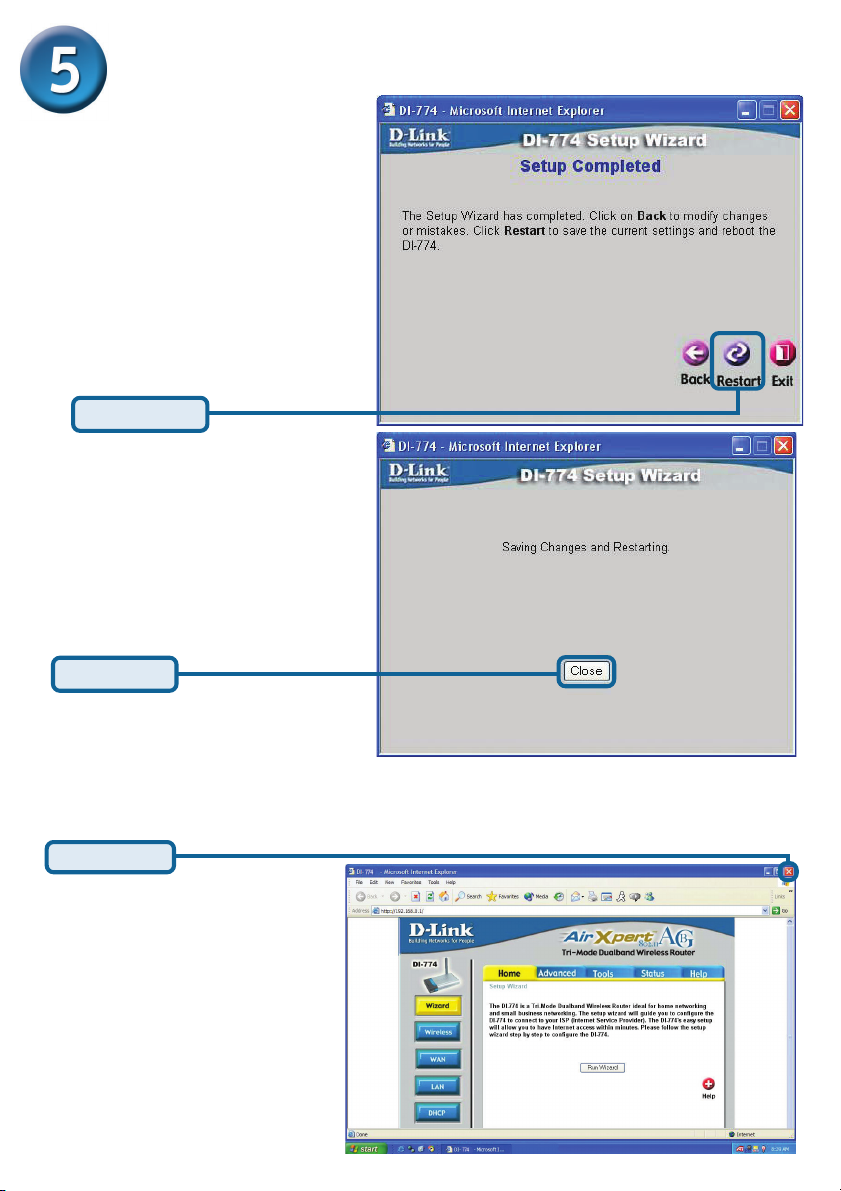

Test Internet Connection.
You will be returned to the Home tab.
For additional settings or informa-
tion, refer to the Advanced, Tools,
or Status tabs on the web-manage-
ment interface; or to the Manual
located on the CD.
Then relaunch your Web browser
(i.e., Internet Explorer or Netscape
Navigator), to link to your favorite
Web site to test your Internet
connection.
Click to Exit
Your Setup is Complete!
Click Restart
Click Close

10
To connect to the network, make sure
the network adapter in your computer
is configured properly. Here’s how to
configure the network adapter to obtain
an IP address automatically for the
DI-774 Broadband Router.
APPENDIX

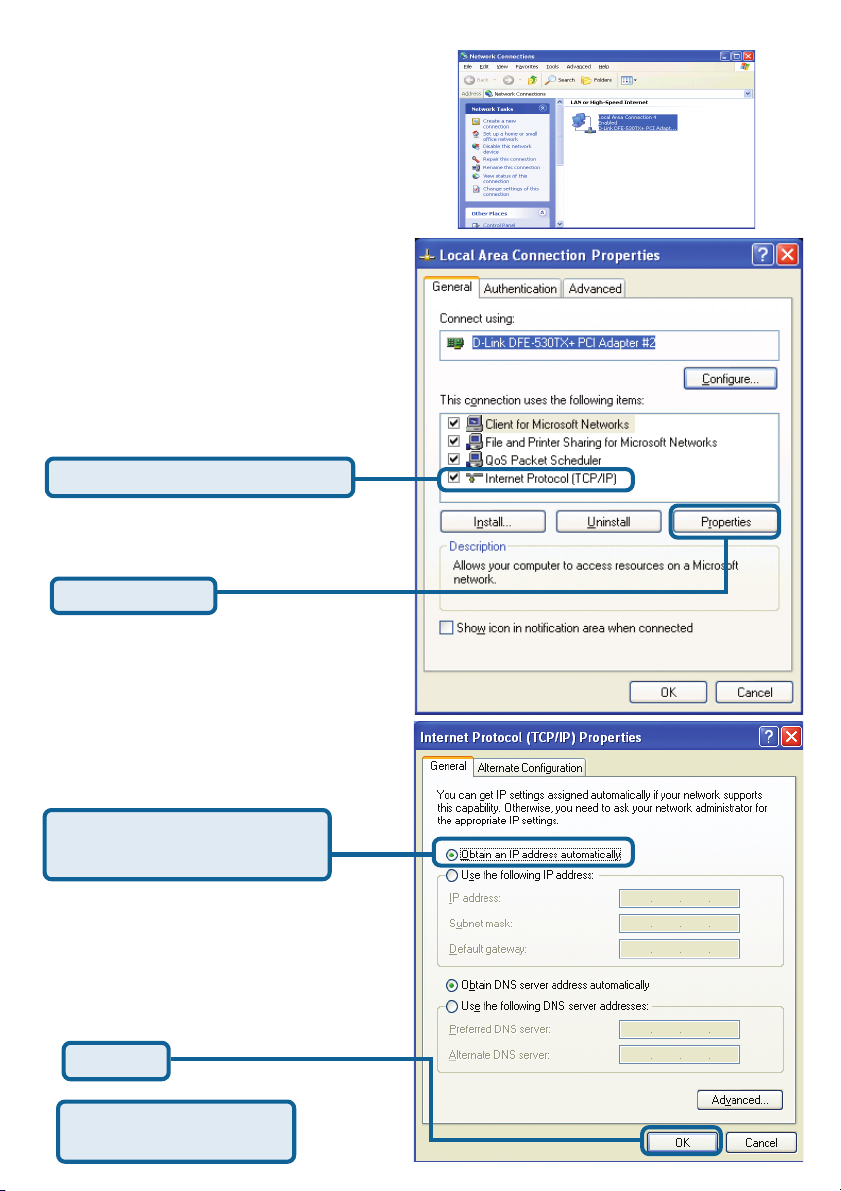

Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically
Restart your computer
if necessary
Click OK

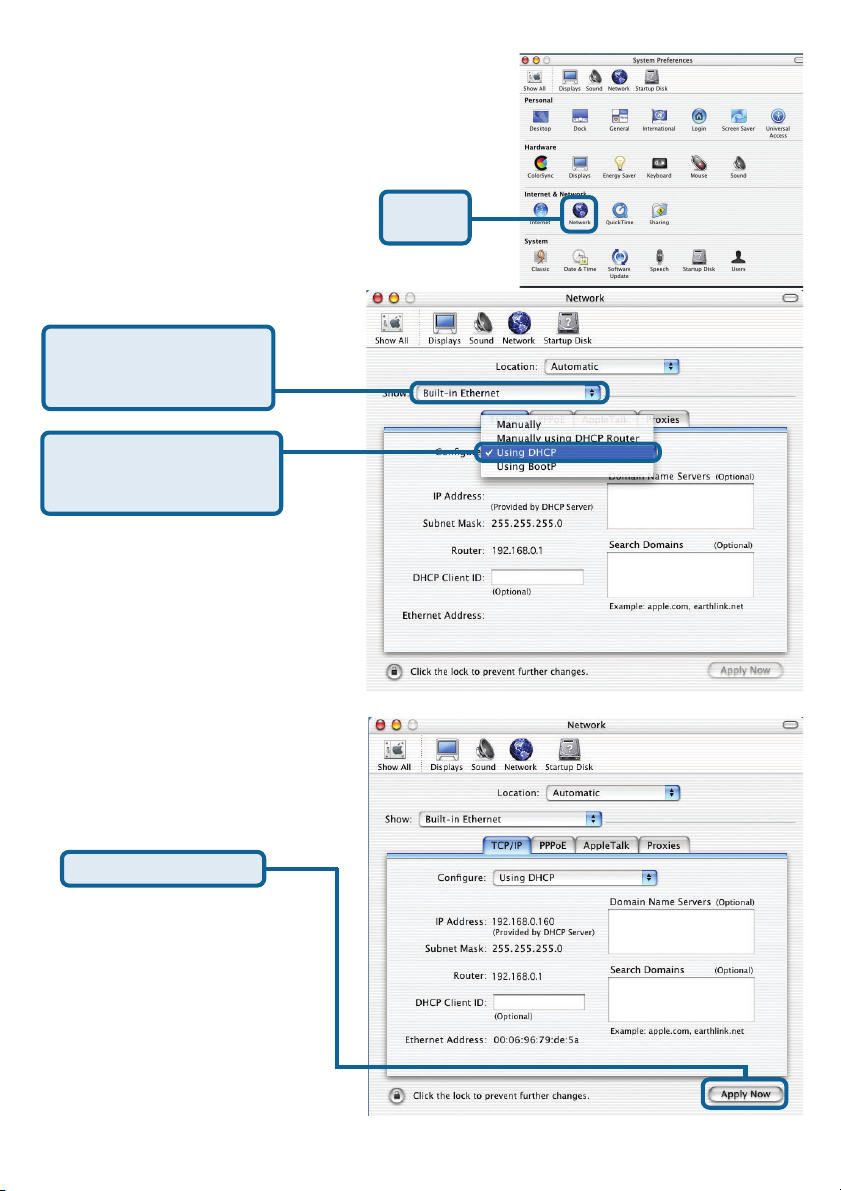

For Microsoft Windows XP: Go to Start >
right-click on My Network Places >
select Properties > right-click on the
Network Connection associated with the
Ethernet adapter and select Properties
(i.e., D-Link DFE-530TX+).
