D-Link AirPlus DWL-810+ User manual

1
©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DWL-810+ 04162003
If any of the above items are missing, please contact your reseller.
CD-ROM (Manual and Warranty)
Before You Begin
DWL-810+ Ethernet-to-Wireless Bridge
Check Your Package Contents
DWL-810+
D-Link AirPlus™
Ethernet-to-Wireless Bridge
You must have at least the following:
• An Ethernet-enabled device, such as a game console, laptop or desktop computer,
network printer or set-top box that will connect to the DWL-810+
Ethernet (CAT5 UTP) Cable
5V DC 2.5A Power Adapter
Using a power
supply with a
different voltage rating
will damage this
product and void its
warranty.
This product can be set up using
any current web browser, i.e.,
Internet Explorer 6 or Netscape
Navigator 6.2.3.

2
Connecting the DWL-810+ to your
Ethernet-enabled device
A.First, connect the power adapter to the receptor at the back panel of the
DWL-810+ and then plug the other end of the power adapter to a wall outlet or
power strip. The Power LED will turn ON to indicate proper operation.
B.Insert one end of an Ethernet cable (included) to the Ethernet port on the back
panel of the DWL-810+ and connect the other end to the Ethernet port located
on the device (e.g., a Set Top Box, Gaming Console, laptop or desktop com-
puter, or network printer.) The LED light will blink when there is data tranfer
through the wireless connection. (Note: The Ethernet port on the DWL-810+
is Auto-MDI/MDIX. Meaning you can use a straight-through or crossover-
cable to the Ethernet Port.)
C.The antenna is used by the DWL-810+ to connect to other 802.11b wireless
devices.

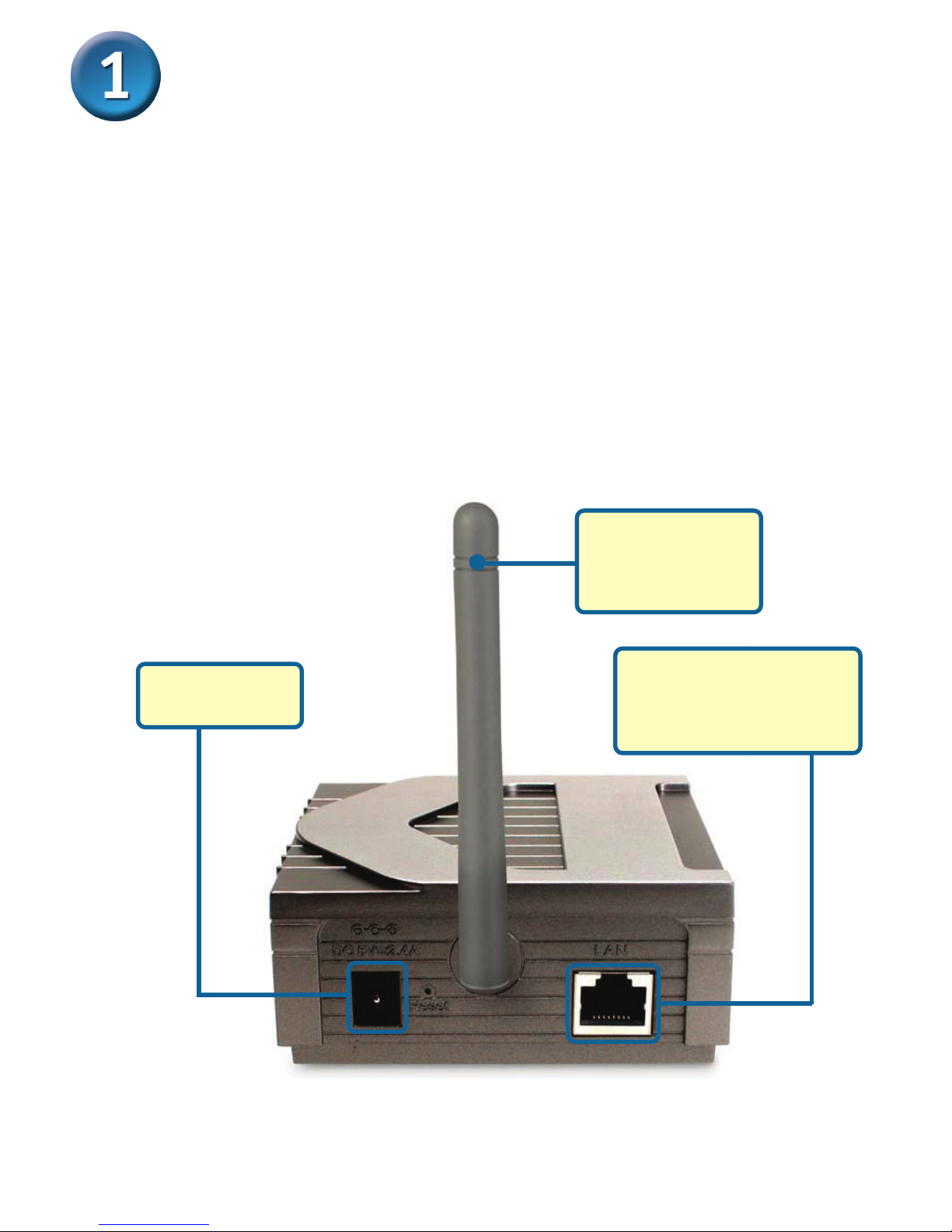

A.Receptor for
Power Adapter
C.Antenna
Used to wirelessly
connect to 802.11b
networks.
B.LAN Port
This is the connection for
Ethernet cables to your
Ethernet-enabled device.

3
Connecting the DWL-810+ in
Infrastructure Mode
Setup #1
Connect an Ethernet cable from the DWL-810+ to your Ethernet enabled:
Desktop PC, Laptop PC, Set-Top-Box, or Gaming Console.

4

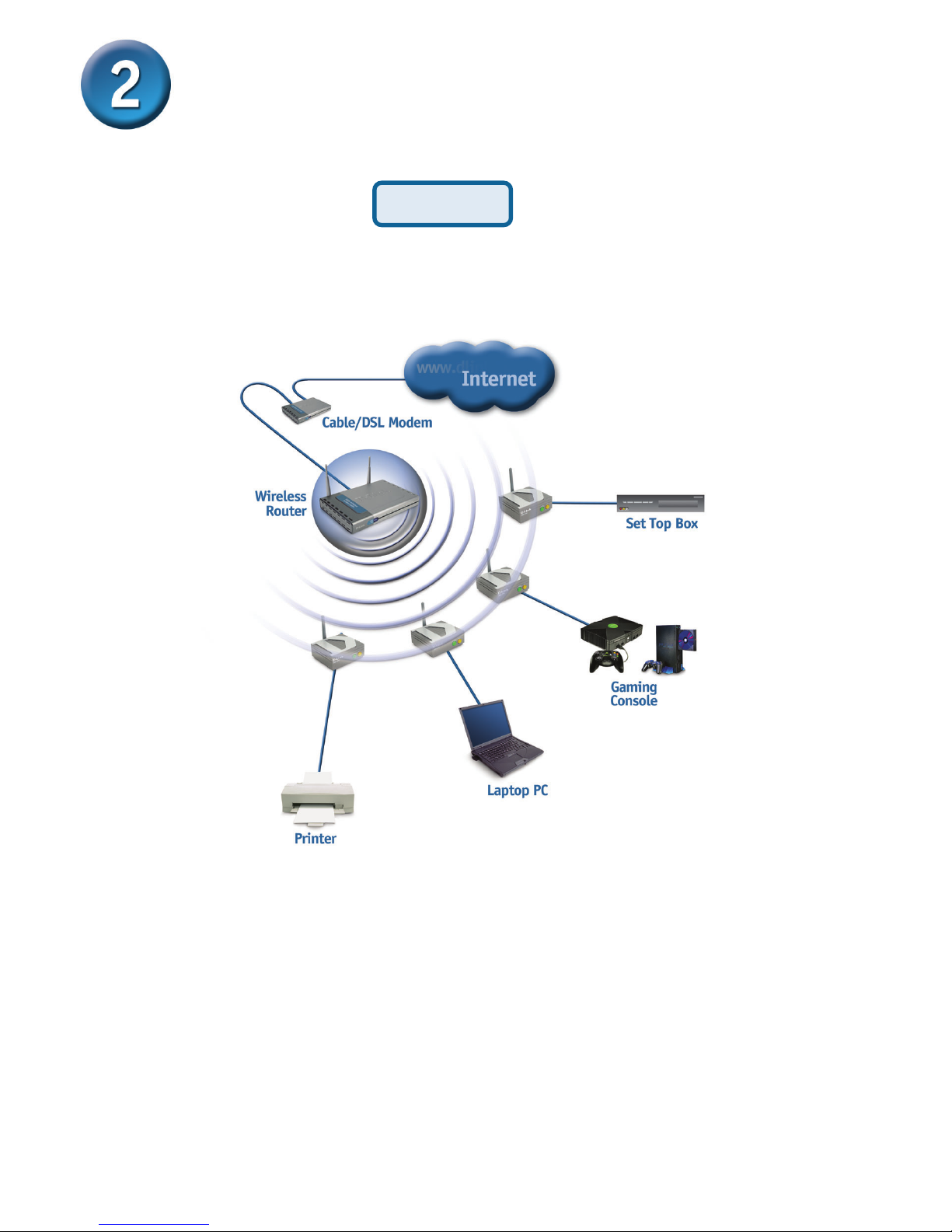

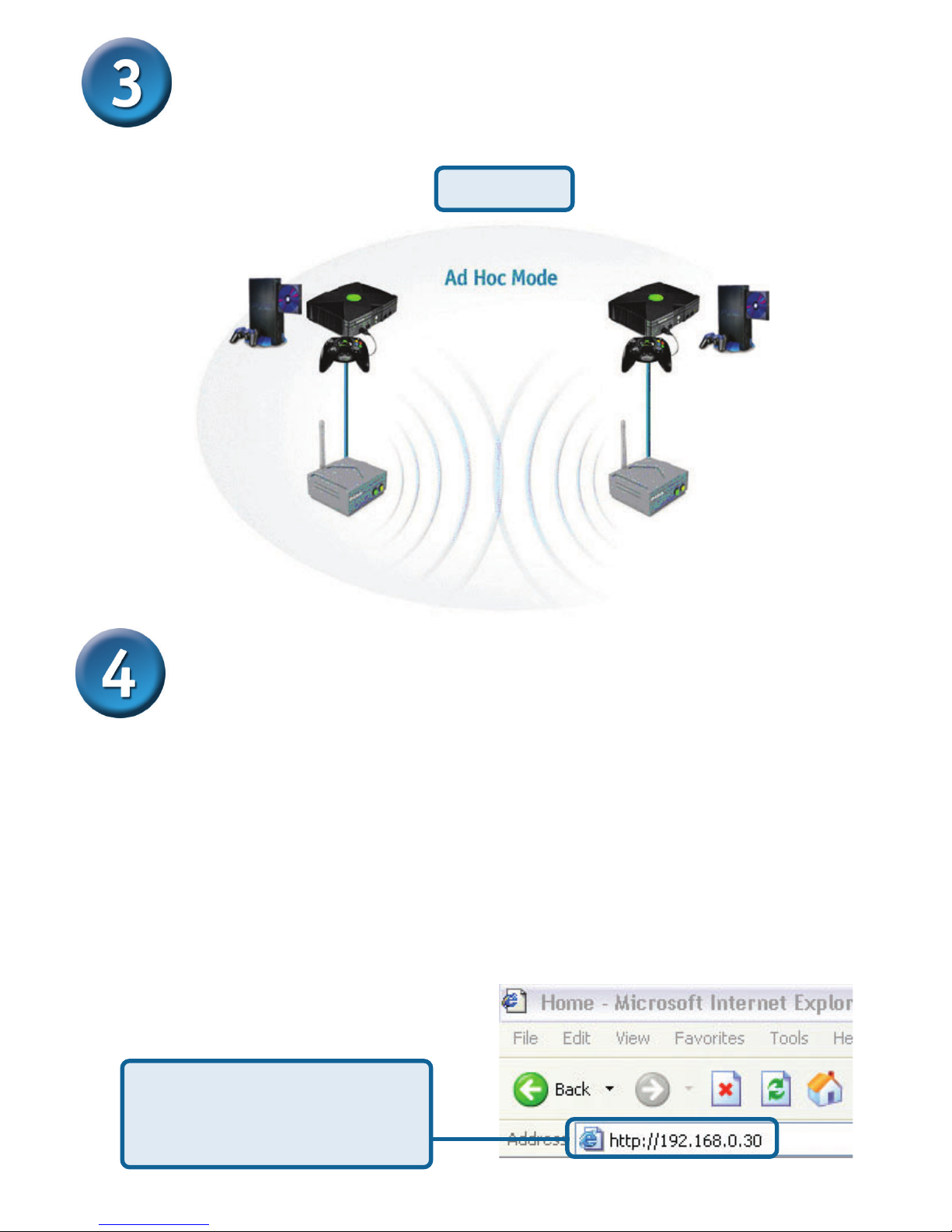

Connecting the DWL-810+ in Ad-Hoc
Mode
Setup #2
Web-based Configuration
Before You Begin the Configuration
• It’s best to use a computer (with an Ethernet adapter) that is connected to a switch for
configuring the DWL-810+. (Note: You also have the option of connecting the DWL-
810+ directly to the computer that will be used for configuration). The default IP
address for the DWL-810+ is 192.168.0.30 with a Subnet Mask of 255.255.255.0. You
will need to assign your computer a Static IP address within the same range as the
DWL-810+’s IP address for the purpose of configuring the DWL-810+. See the Manual
on the CD-ROM if you need assistance in assigning a Static IP address for your network
adapter.
Open your Web browser and
type “http://192.168.0.30” into
the URL address box. Then
press the Enter or Return key.
or or

5
Continued...

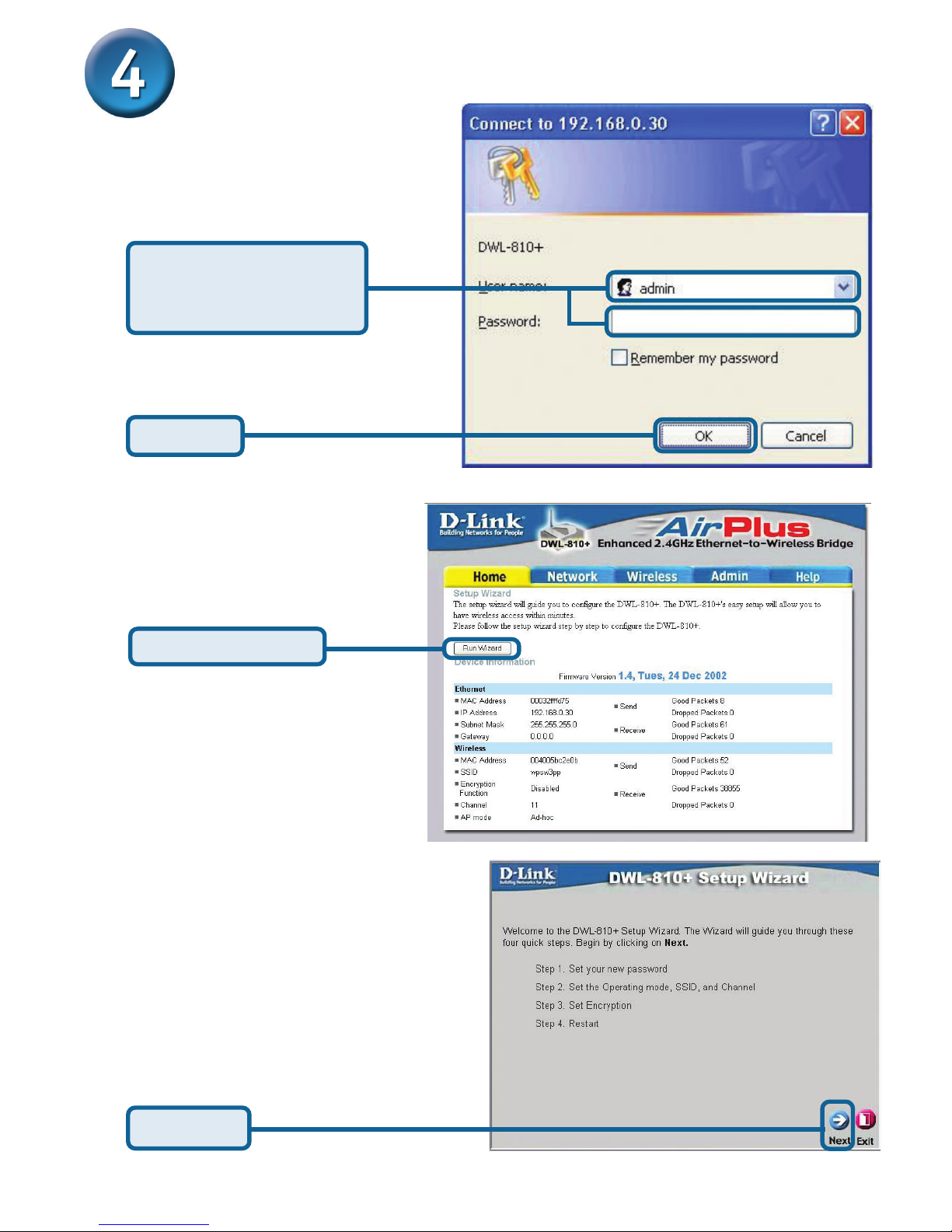

The logon pop-up
screen will appear.
Type “admin” for the
username and leave the
password field blank.
Click OK
Once you have logged in,
the Home screen will
appear.
Click Run Wizard
You will see the
following screens.
Click Next

6
Continued...

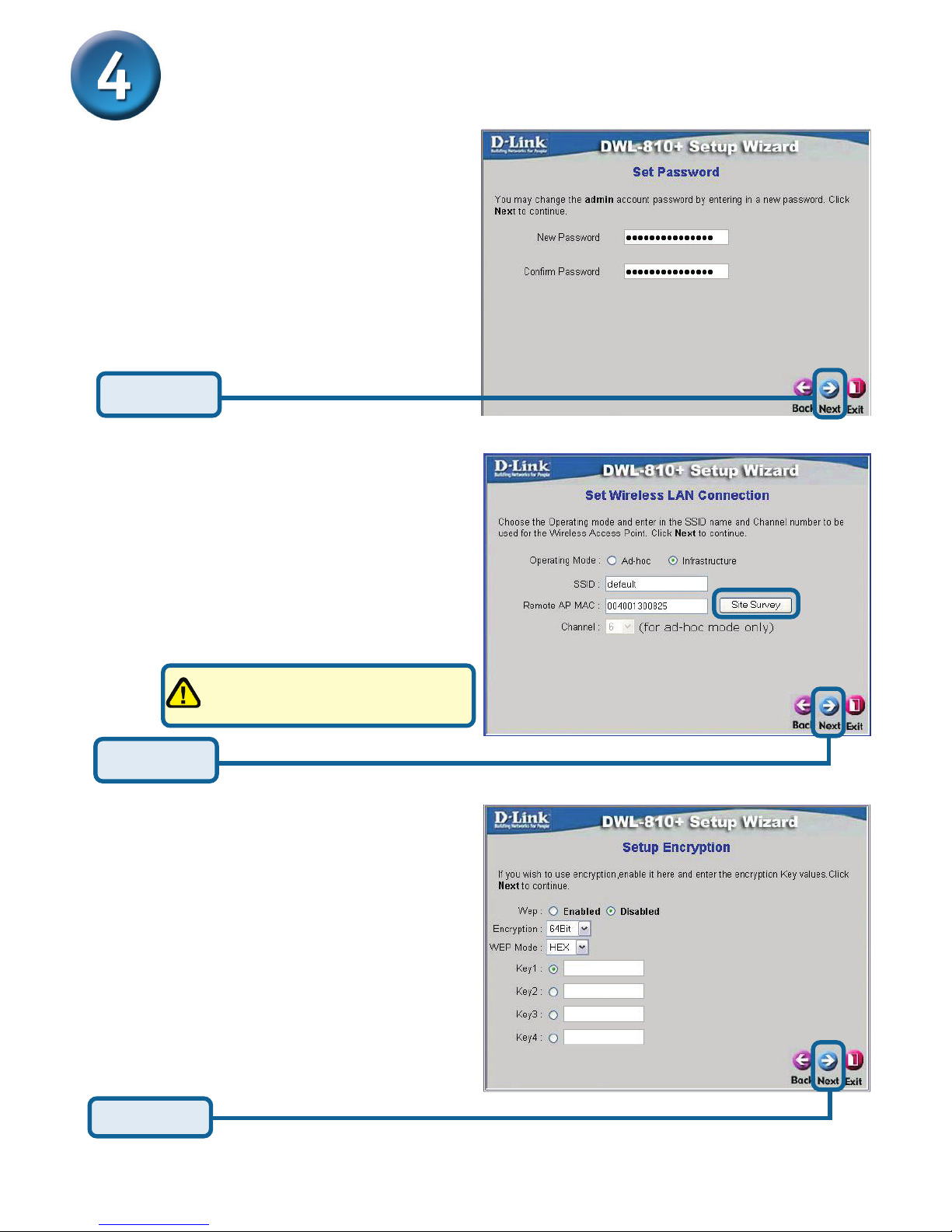

Step 1 - Set up your new
password. You have the option
to establish a password.
Step 2 - Wireless Setup
The default wireless settings are:
SSID = default
Channel = 6
Operating Mode = Infrastructure
Click Site Survey to select a wireless
network or you can change the settings
manually to match an existing wireless
network.
Step 3 - Encryption
The DWL-810+ is capable of three
levels of wireless encryption - 64-bit,
128-bit, and 256-bit. By default the
encryption is disabled. You can
change the encryption settings for more
secure wireless communication.
Click Next
Click Next
Click Next
For Set Up #2 select Ad-hoc
as the operating mode.

7

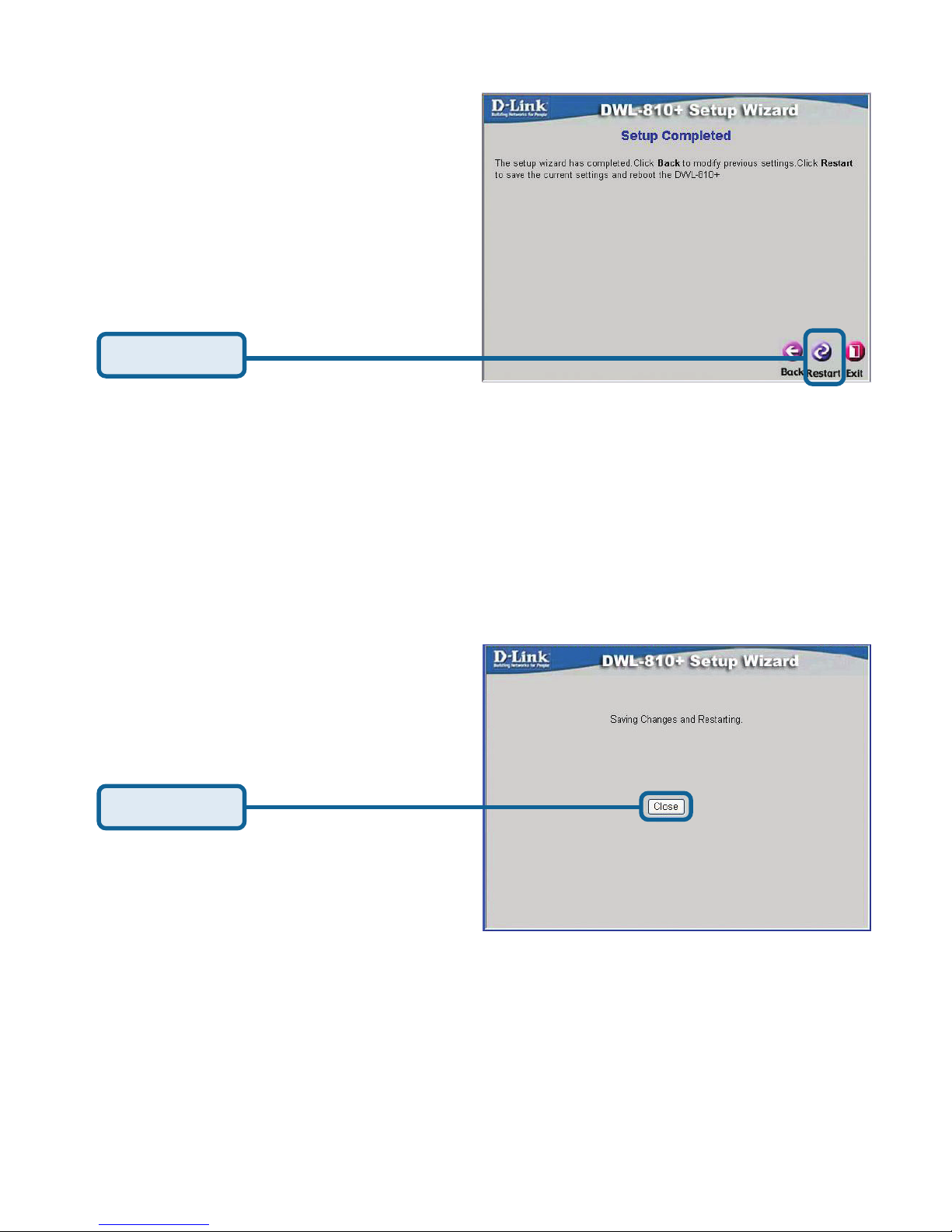

You have completed the Configuration of the DWL-810+!
Click Close
Click Restart

8
Appendix

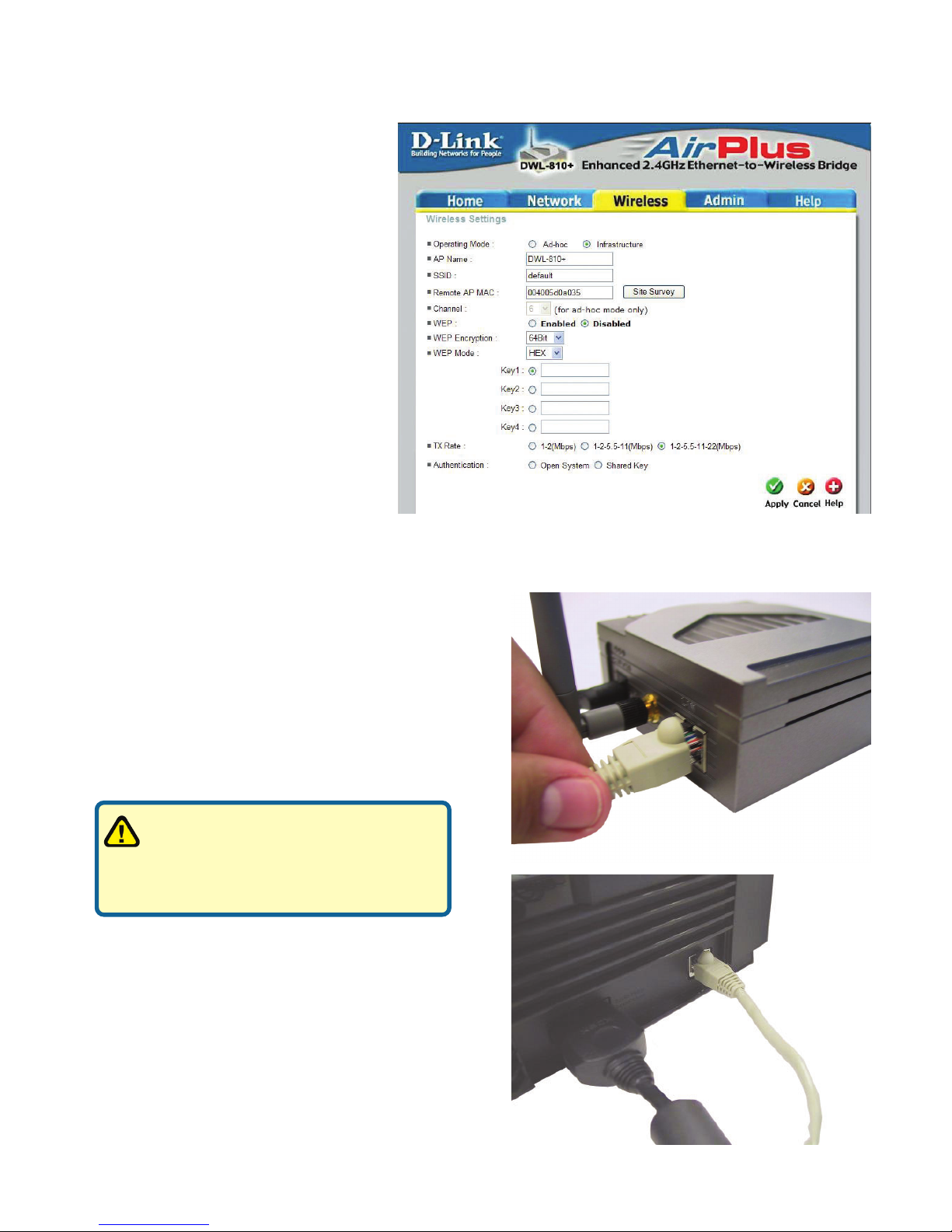

Xbox Setup
Step 2 - Connect an Ethernet cable
from the DWL-810+ to the Ethernet
port on the back of your Xbox.
Step 1 - Please refer to Step 4
for configuring and modifying the
wireless settings of the DWL-
810+
In order to connect to the XBox
Live service, you will need to
have the proper XBox Live equipment
and account.

9
Appendix

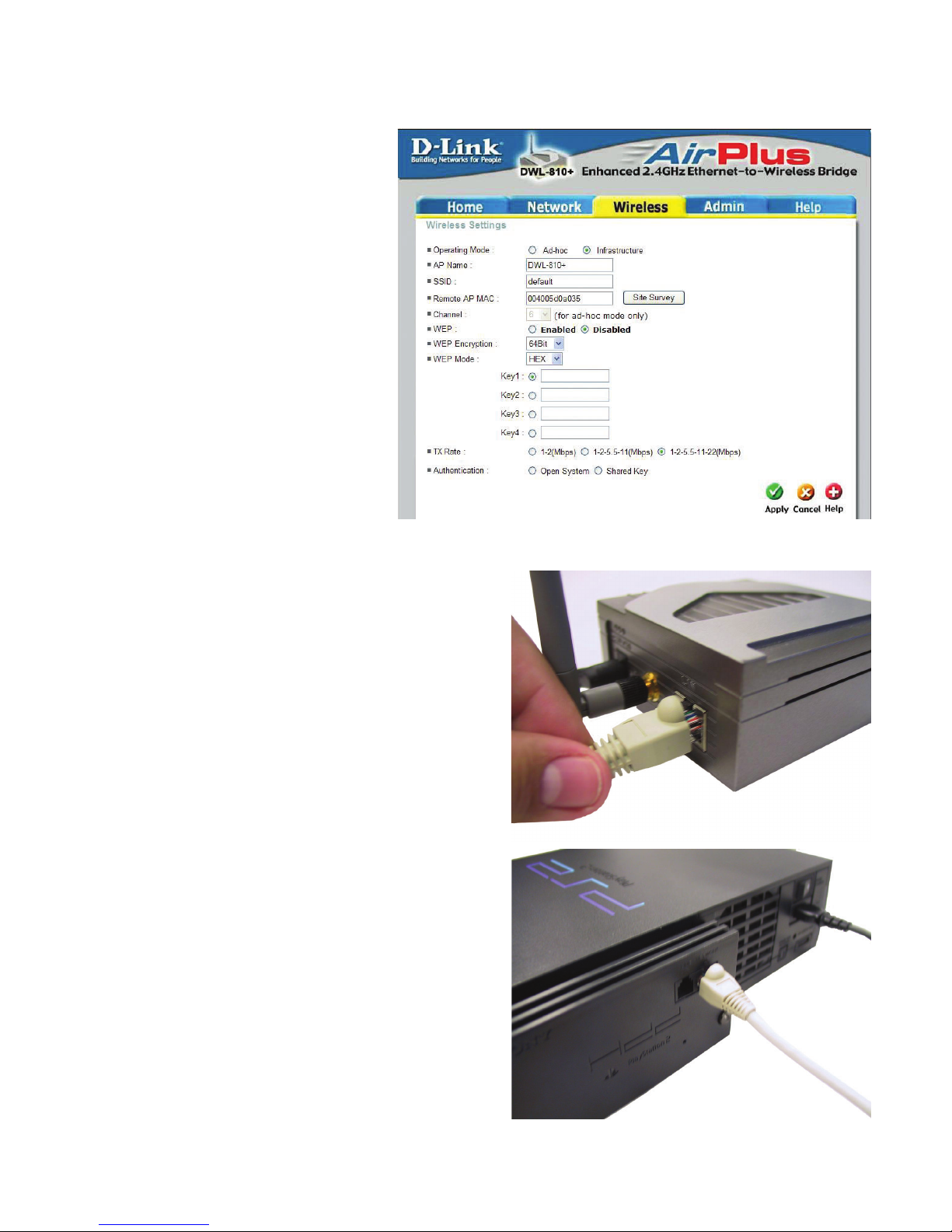

PlayStation 2 Setup
Step 1 - Please refer to Step 4 for
configuring and modifying the
wireless settings of the DWL-
810+
Step 2 - Connect an Ethernet cable
from the DWL-810+ to the Ethernet port
on the back of your PlayStation 2.

10
Appendix

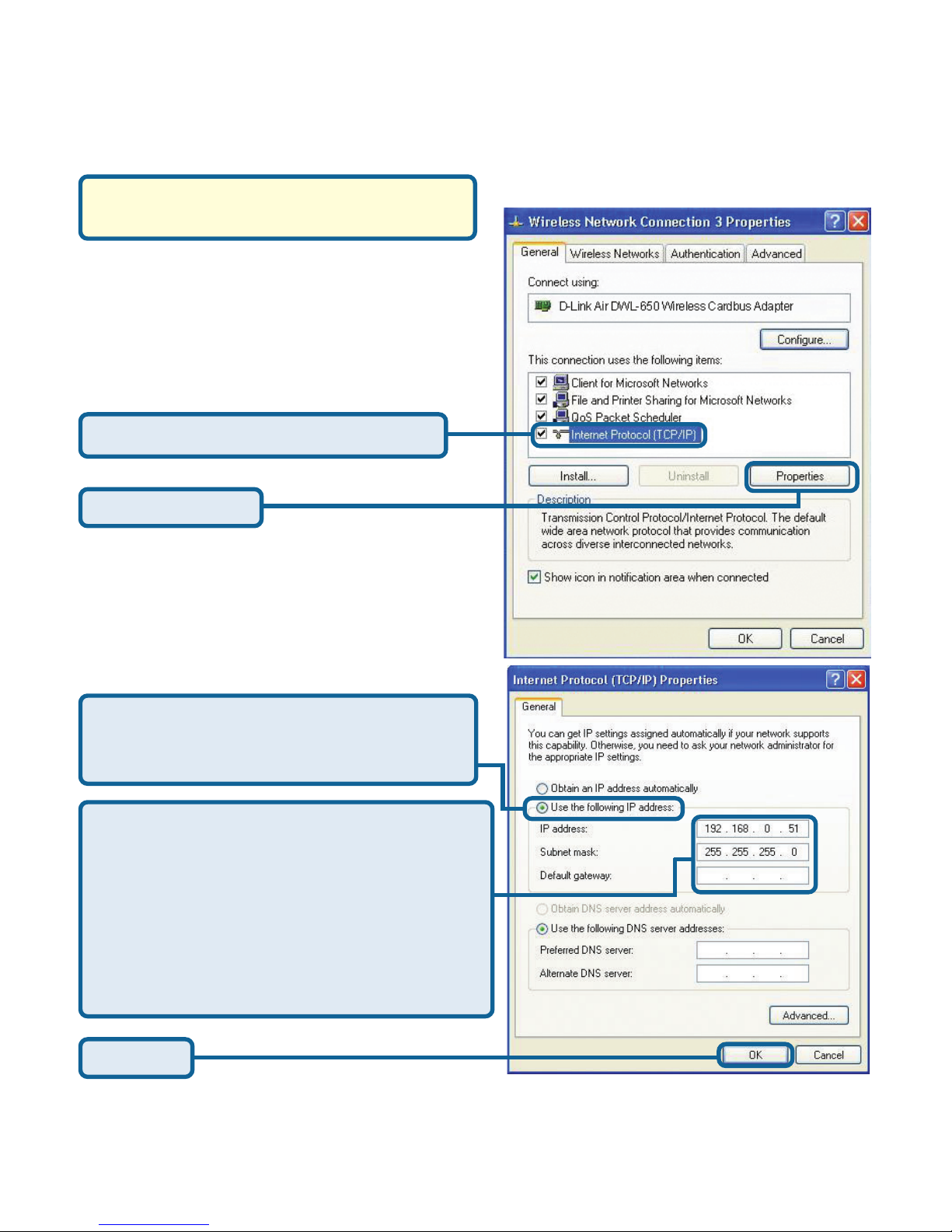

To assign a Static IP Address to the laptop or computer that you are using to configure
the DWL-810+, please do the following:
Assigning a Static IP Address in Windows
Go to Start > Double- click on Control
Panel > Double-click on Network
Connections > Right-click on Local
Area Connections > Click Properties
Select Use the following IP address in
the Internet Protocol (TCP/IP) Properties
window
Click OK
Note: The following screens are taken using
Windows XP. Your screens may look similar.
Input your IP address and subnet mask.
(The IP Address must be within the same
range as the DWL-810+. The IPAddress of
the DWL-810+ is 192.168.0.30. You can
assign 192.168.0.51 for your computer. No
two computers can have the same IP
Address. Assign a subnet mask of
255.255.255.0.)
Highlight Internet Protocol (TCP/IP)
Click Properties

11

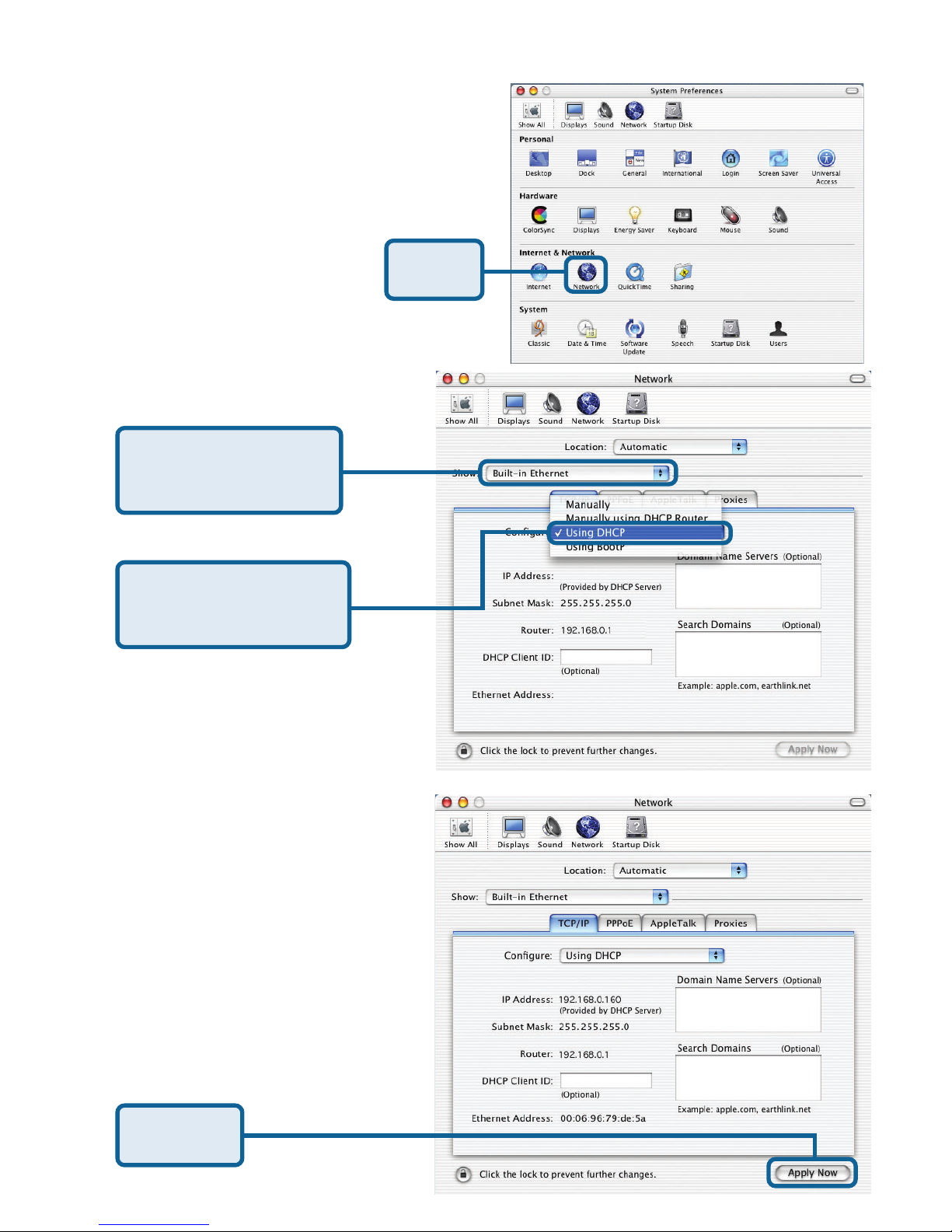

For Apple Macintosh OS X:
Go to the Apple Menu Click
on Network and Select
System Preferences
The IP address information,
the Subnet Mask, the Router’s
IP address and the Ethernet
adapter address will appear
Click on
Network
Select Built in
Ethernet in the Show
pull-down menu
Select Using DHCP in
the Configuration pull-
down menu
Click on
Apply Now

12
Technical Support
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and
within Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link technical support through our
website, or by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone:
[phone]
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
email:[email protected]
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone:
[phone]
Monday to Friday 8:30am to 9:00pm EST
D-Link Technical Support over the Internet:
http://support.dlink.ca
email:[email protected]
