D-Link DSL-224 User manual

Quick Installation Guide
DSL-224

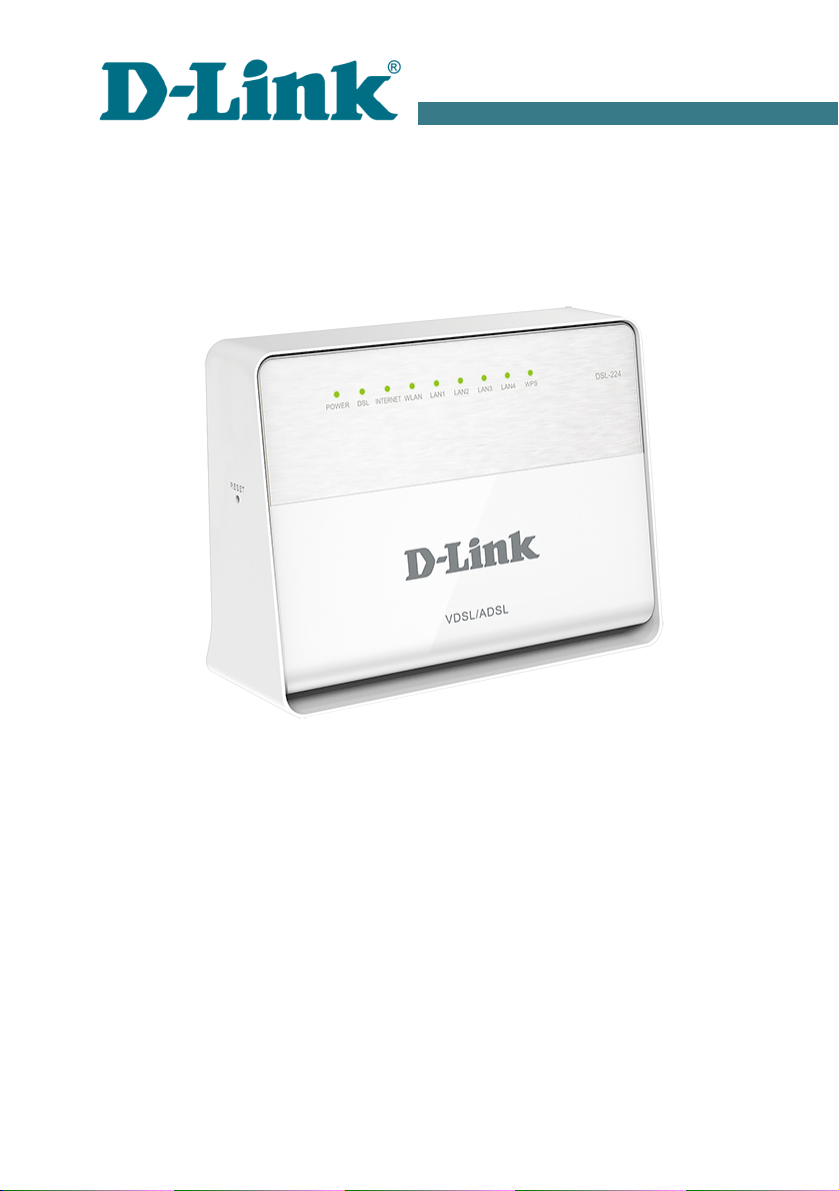

Wireless VDSL2 Router with ASDL2+ Support

DSL-224 Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
•Router DSL-224
•Power adapter DC 12V/1A
•RJ-11 telephone cable
•Ethernet cable
•Splitter
•Quick Installation Guide” (brochure).
If any of the items are missing, please contact your reseller.
The User Manual” and Quick Installation Guide” documents are available
on D-Link website (see www.dlink.ru).
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
2

DSL-224 Quick Installation Guide
Default Settings
IP add ess of wi eless oute 192.168.1.1
Use name (login) admin
Passwo d admin
Name of wi eless netwo k (SSID) DSL-224
Netwo k key (PSK)
see WPS PIN on the
barcode label on the
bottom panel of the
device
3

DSL-224 Quick Installation Guide
System Requirements and Equipment
•A computer with any operating system that supports a web browser.
•A web browser to access the web-based interface of the router:
◦Apple Safari 8 and later
◦Google Chrome 48 and later
◦Microsoft Internet Explorer 10 and later
◦Microsoft Edge 20.10240 and later
◦Mozilla Firefox 44 and later
◦Opera 35 and later.
•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.
•An 802.11b, g, or n Wi-Fi adapter to create a wireless network.
4

DSL-224 Quick Installation Guide
CONNECTING TO PC
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect a phone cable between the DSL port of the router and the
MODEM port of the splitter. Connect your phone to the PHONE port of
the splitter. Then connect another phone cable between a phone jack and
the L NE port of the splitter.
3. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
4. Turn on the router by pressing the ON/OFF button on its back panel.
5. Connect the router to your PC.
6. Connect an Ethernet cable between an available Ethernet port of the
router and the Ethernet port of your PC.
7. Turn on your PC and wait until your operating system is completely
loaded.
Now you should configure your PC to obtain an IP address automatically (as
DHCP client).
5

DSL-224 Quick Installation Guide
Obtaining P Address Automatically
in OS Windows XP

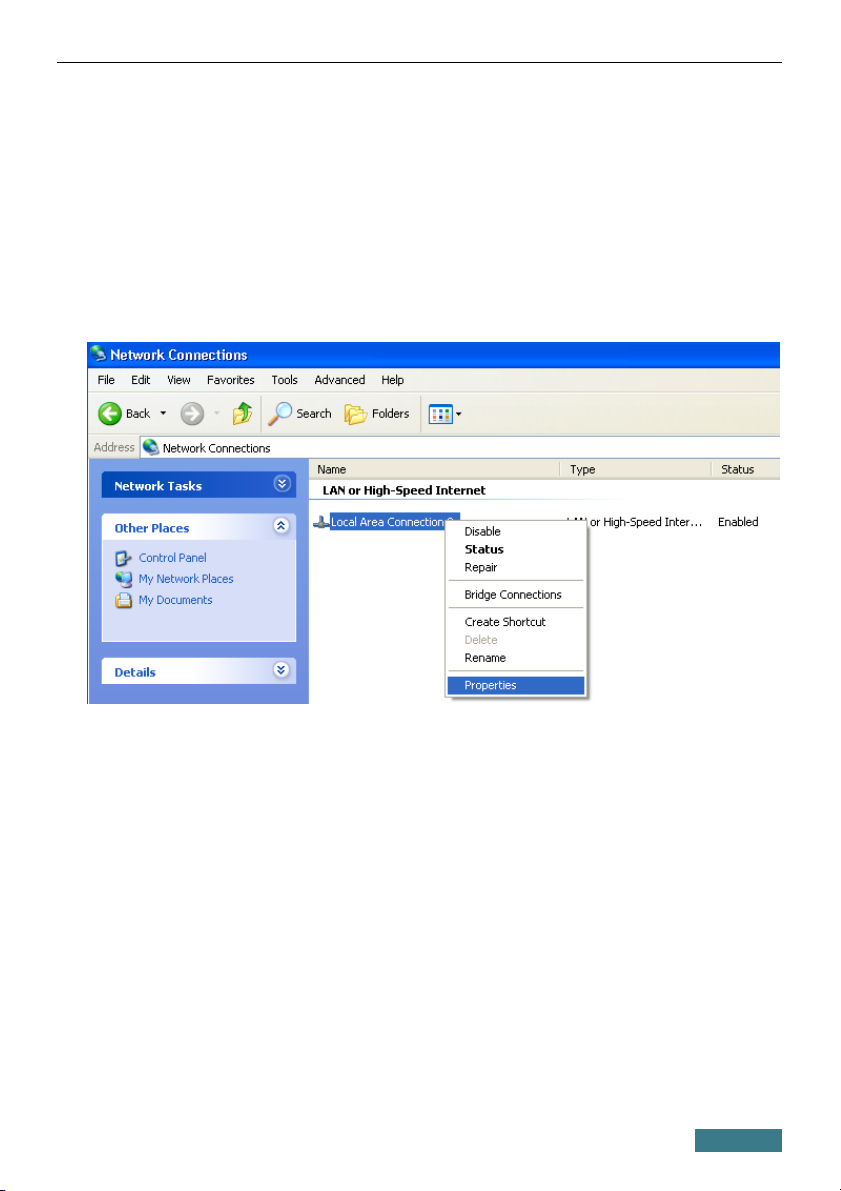

1. Click the Sta t button and proceed to the Cont ol Panel > Netwo k
and Inte net Connections > Netwo k Connections window.
2. In the Netwo k Connections window, right-click the relevant Local
A ea Connection icon and select the P ope ties line in the menu
displayed.
3. In the Local A ea Connection P ope ties window, on the Gene al
tab, select the Inte net P otocol (TCP/IP) line. Click the P ope ties
button.
6

DSL-224 Quick Installation Guide

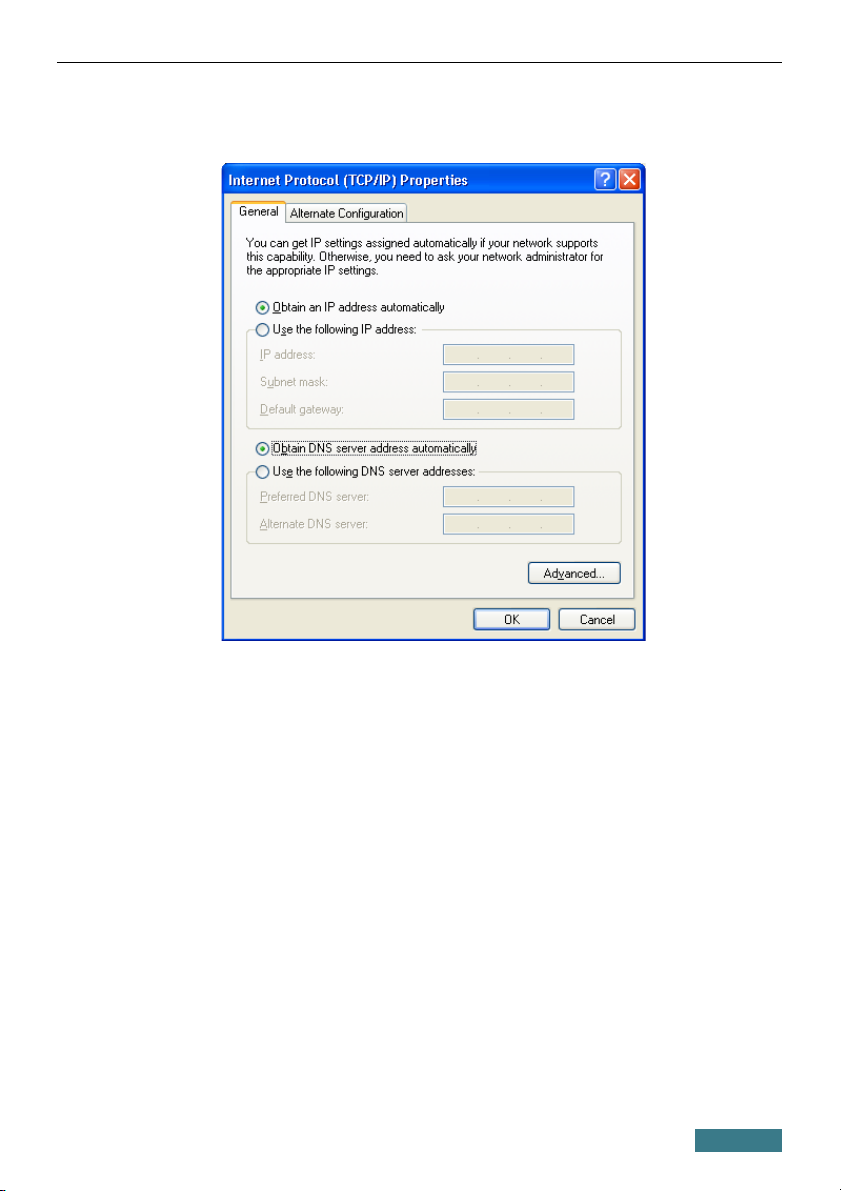

4. Select the Obtain an IP add ess automatically and Obtain DNS
se ve add ess automatically radio buttons. Click the OK button.
5. Click the ОК button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
7

DSL-224 Quick Installation Guide
Obtaining P Address Automatically
in OS Windows 7
1. Click the Sta t button and proceed to the Cont ol Panel window.
2. Select the Netwo k and Sha ing Cente section. (If the Control Panel
has the category view (the Catego y value is selected from the View by
drop-down list in the top right corner of the window), choose the View
netwo k status and tasks line under the Netwo k and Inte net
section.)
3. In the menu located on the left part of the window, select the Change
adapte settings line.

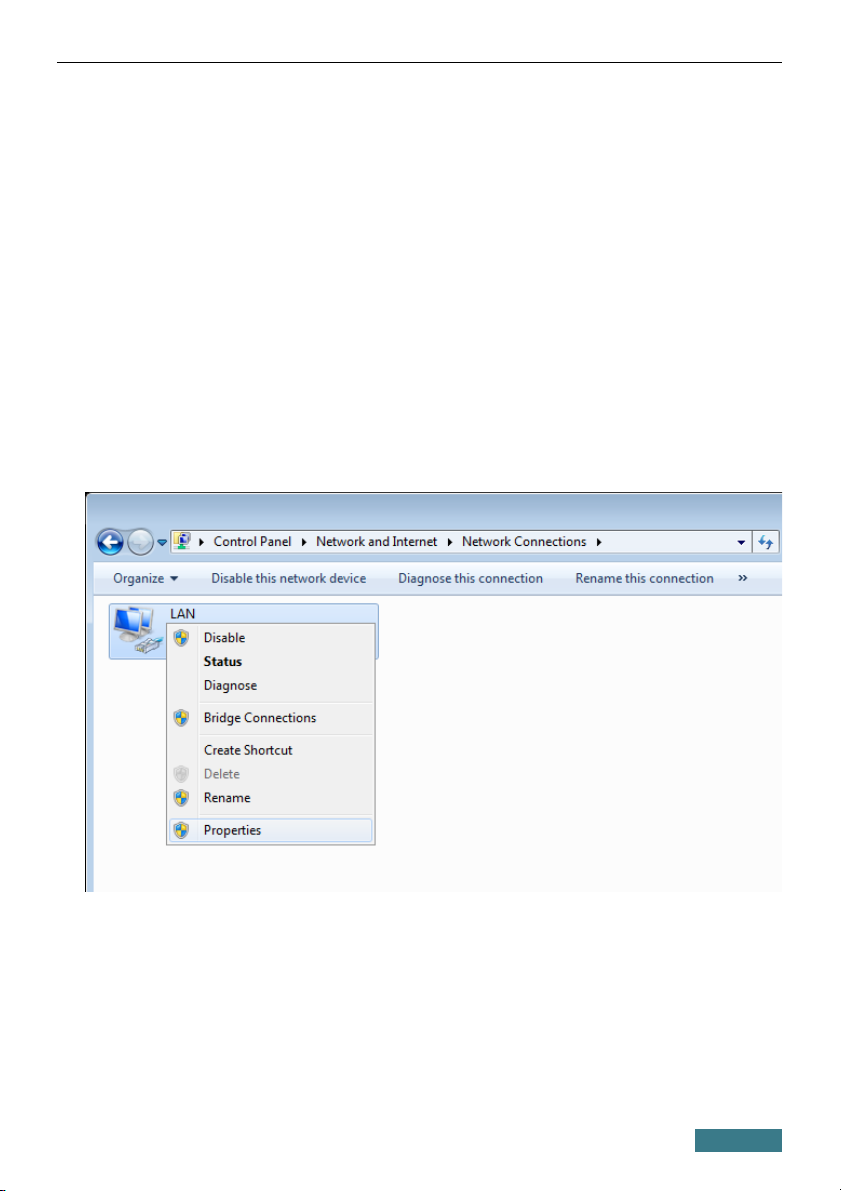

4. In the opened window, right-click the relevant Local A ea Connection
icon and select the P ope ties line in the menu displayed.
5. In the Local A ea Connection P ope ties window, on the
Netwo king tab, select the Inte net P otocol Ve sion 4 (TCP/IPv4)
line. Click the P ope ties button.
8

DSL-224 Quick Installation Guide

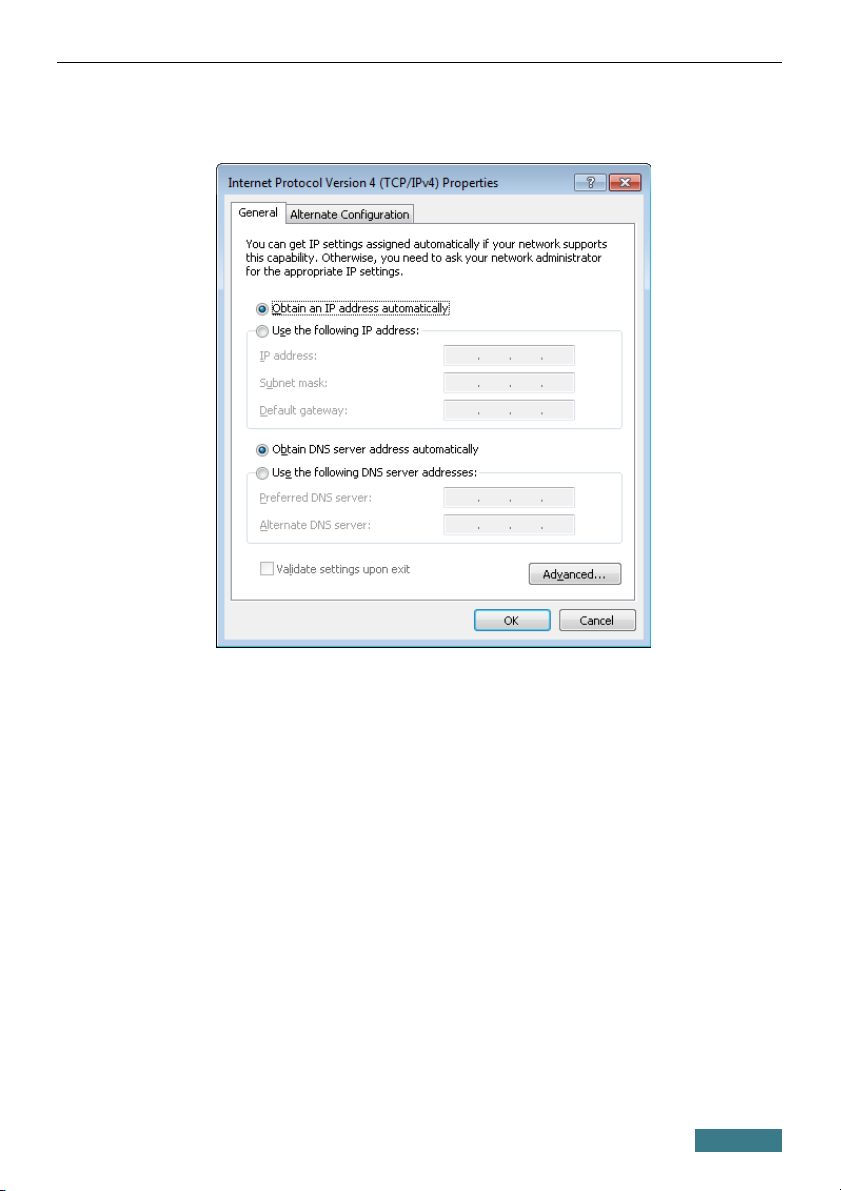

6. Select the Obtain an IP add ess automatically and Obtain DNS
se ve add ess automatically radio buttons. Click the OK button.
7. Click the OK button in the connection properties window.
Now your computer is configured to obtain an IP address automatically.
9

DSL-224 Quick Installation Guide
PC with Wi-Fi Adapter
1. Connect a phone cable between the DSL port of the router and the
MODEM port of the splitter. Connect your phone to the PHONE port of
the splitter. Then connect another phone cable between a phone jack and
the L NE port of the splitter.
2. Connect the power cord to the power connector port on the back panel of
the router, then plug the power adapter into an electrical outlet or power
strip.
3. Turn on the router by pressing the ON/OFF button on its back panel.
4. Connect the router to your PC.
5. Turn on your PC and wait until your operating system is completely
loaded.
6. Turn on your Wi-Fi adapter. As a rule, modern notebooks with built-in
wireless NICs are equipped with a button or switch that turns on/off the
wireless adapter (refer to your PC documents). If your PC is equipped
with a pluggable wireless NIC, install the software provided with your
Wi-Fi adapter.
Now you should configure your Wi-Fi adapter.
10

DSL-224 Quick Installation Guide
Configuring Wi-Fi Adapter in OS Windows XP
1. Click the Sta t button and proceed to the Cont ol Panel > Netwo k
and Inte net Connections > Netwo k Connections window.

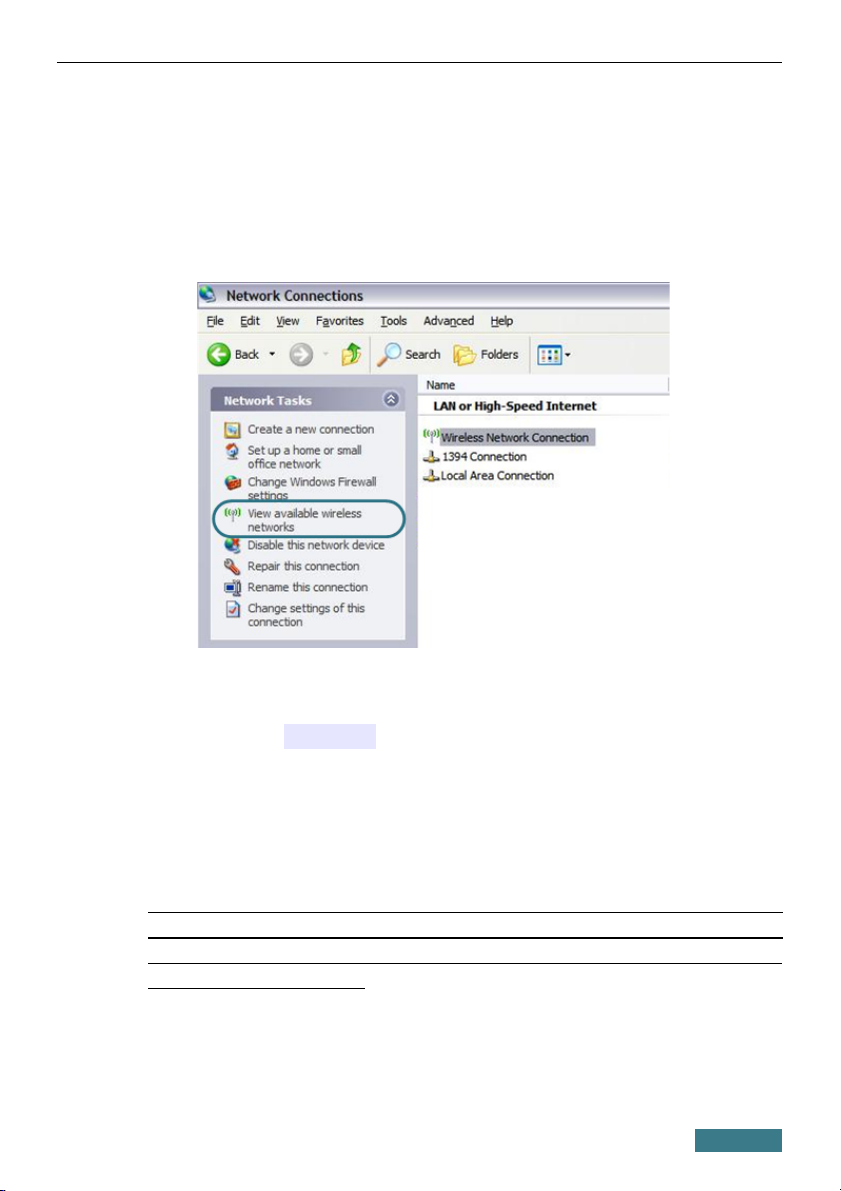

2. Select the icon of the wireless network connection and make sure that
your Wi-Fi adapter is on.
3. Search for available wireless networks.
4. In the opened Wi eless Netwo k Connection window, select the
wireless network DSL-224 and click the Connect button.
5. In the opened window, enter the network key (see WPS PIN on the
barcode label on the bottom panel of the device) in the Netwo k key and
Confi m netwo k key fields and click the Connect button.
After that the Wi eless Netwo k Connection Status window appears.
!
If you perform initial configuration of the router via Wi-Fi connection,
note that immediately after changing the wireless default settings of the
router you will need to reconfigure the wireless connection using the
newly specified settings.
11

DSL-224 Quick Installation Guide
Configuring Wi-Fi Adapter in OS Windows 7
1. Click the Sta t button and proceed to the Cont ol Panel window.
2. Select the Netwo k and Sha ing Cente section. (If the Control Panel
has the category view (the Catego y value is selected from the View by
drop-down list in the top right corner of the window), choose the View
netwo k status and tasks line under the Netwo k and Inte net
section.)
3. In the menu located on the left part of the window, select the Change
adapte settings line.
4. In the opened window, select the icon of the wireless network connection
and make sure that your Wi-Fi adapter is on.
5. To open the list of available wireless networks, select the icon of the
wireless network connection and click the Connect To button or left-
click the network icon in the notification area located on the right side of
the taskbar.
12

DSL-224 Quick Installation Guide

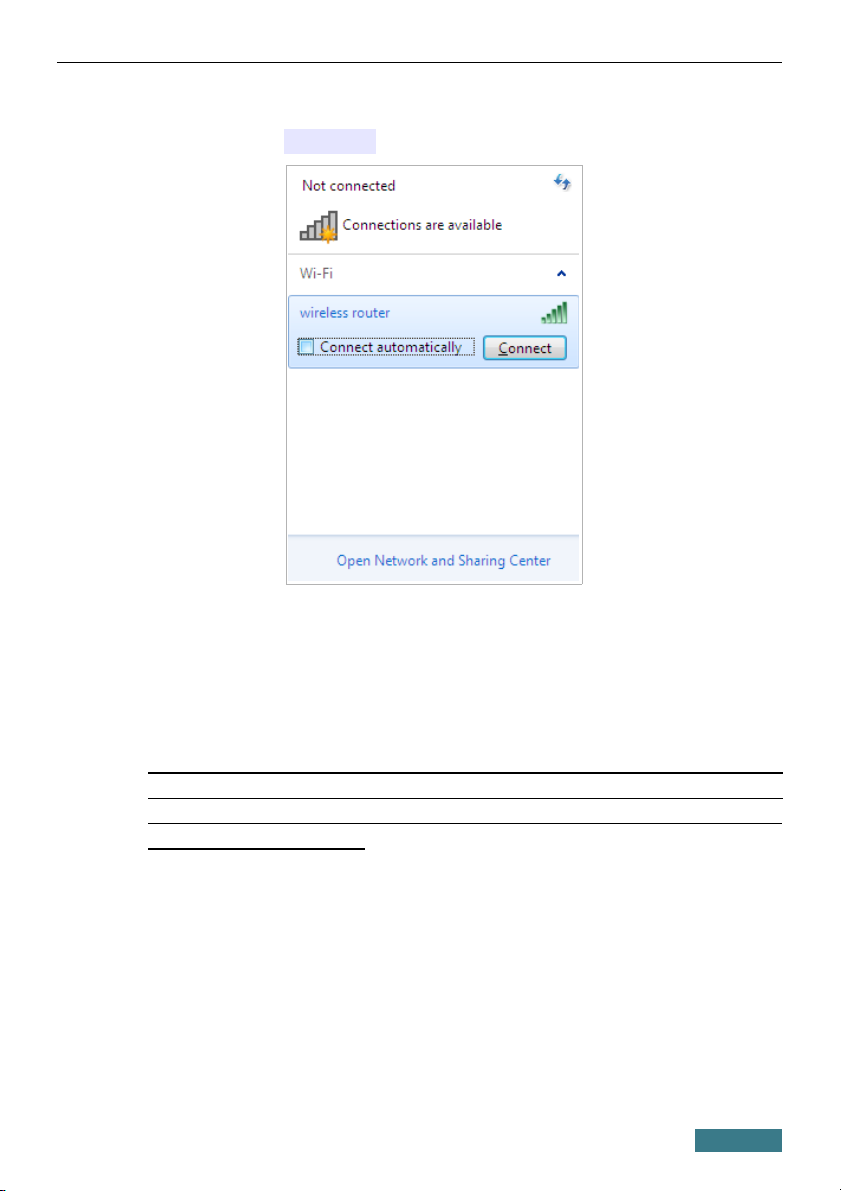

6. In the opened window, in the list of available wireless networks, select the
wireless network DSL-224 and click the Connect button.
7. In the opened window, enter the network key (see WPS PIN on the
barcode label on the bottom panel of the device) in the Secu ity key
field and click the OK button.

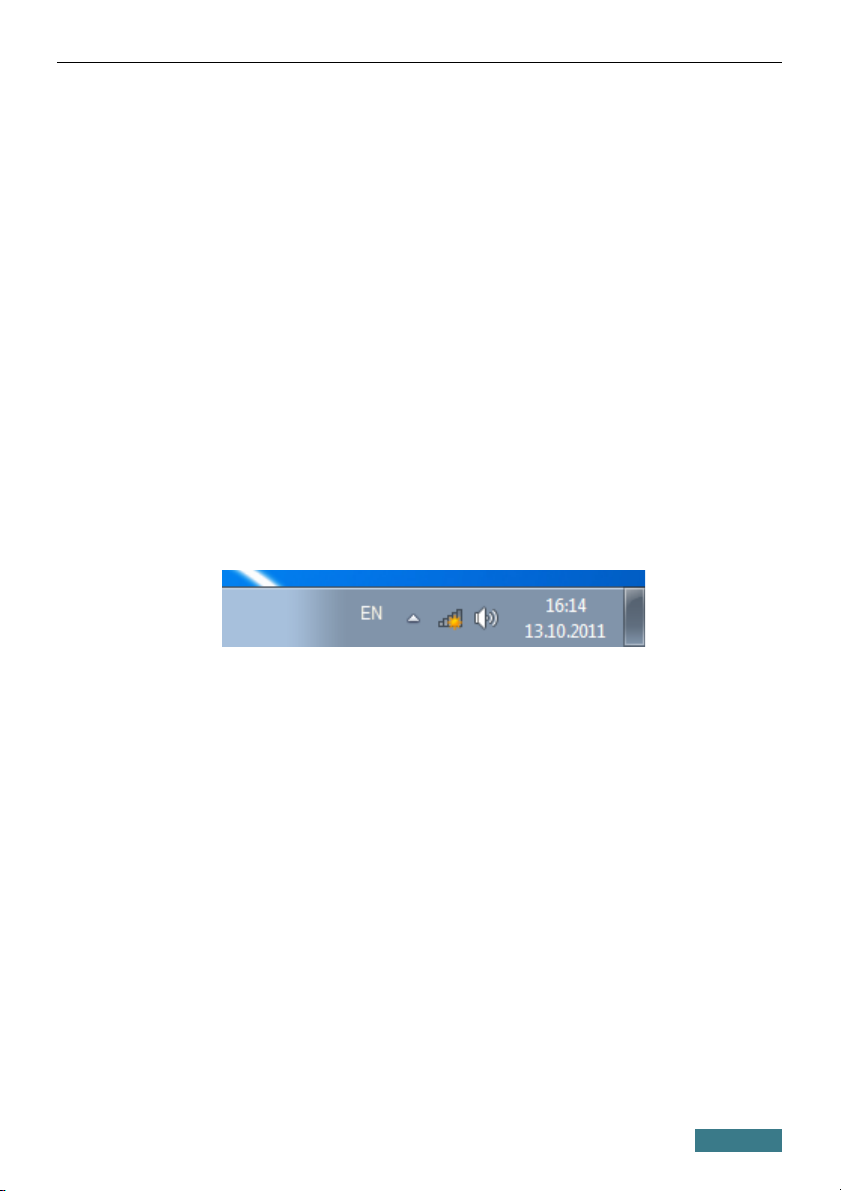

8. Wait for about 20-30 seconds. After the connection is established, the
network icon will be displayed as the signal level scale.
!
If you perform initial configuration of the router via Wi-Fi connection,
note that immediately after changing the wireless default settings of the
router you will need to reconfigure the wireless connection using the
newly specified settings.
13

DSL-224 Quick Installation Guide
CONFIGURING ROUTER
Connecting to Web-based nterface
Start a web browser. In the address bar of the web browser, enter the IP
address of the router (by default, the following IP address is specified:
192.168.1.1). Press the Enter key.
!
If the error The page cannot be displayed ” (or Unable to display the
page ”/ Could not connect to remote server ”) occurs upon connecting to
the web-based interface of the router, make sure that you have properly
connected the router to your computer.

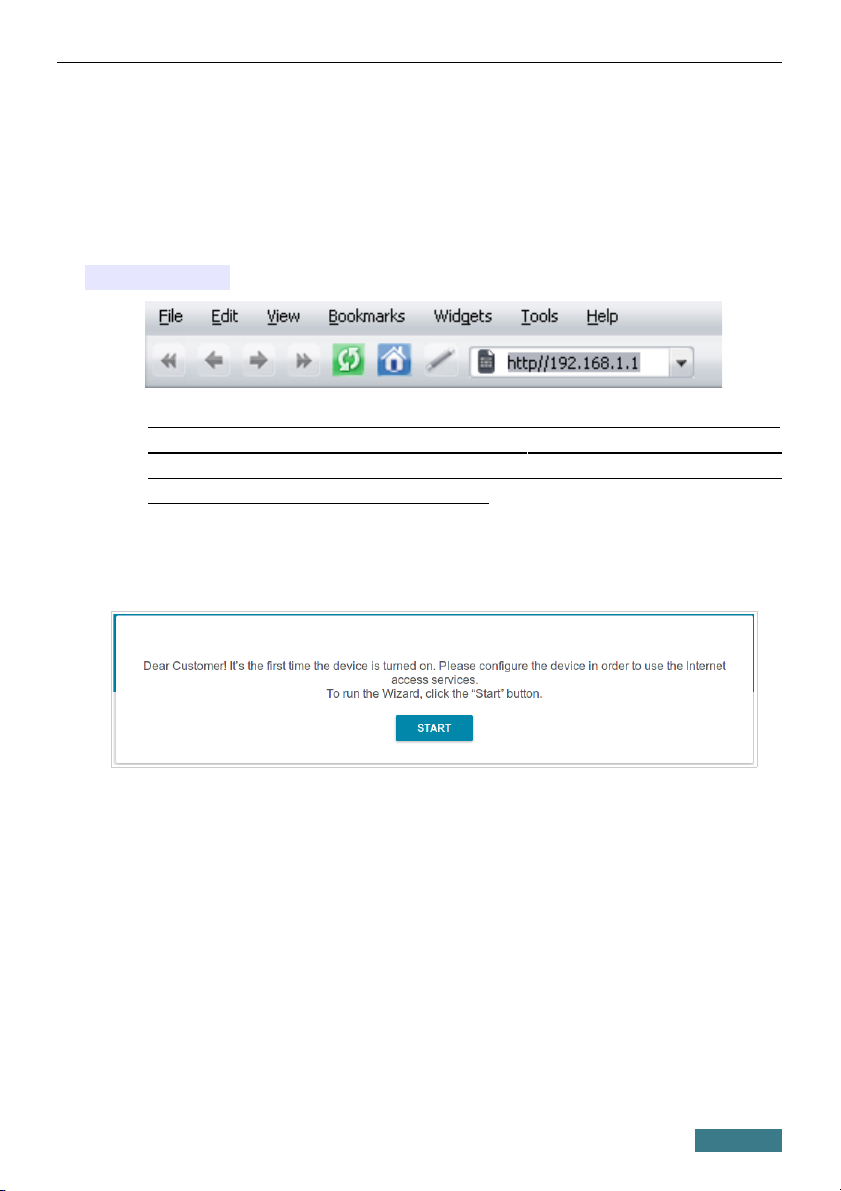

If the device has not been configured previously or the default settings have
been restored, after access to the web-based interface the Initial Configuration
Wizard opens (see the Initial Configuration Wizard section, page 18).
14

DSL-224 Quick Installation Guide

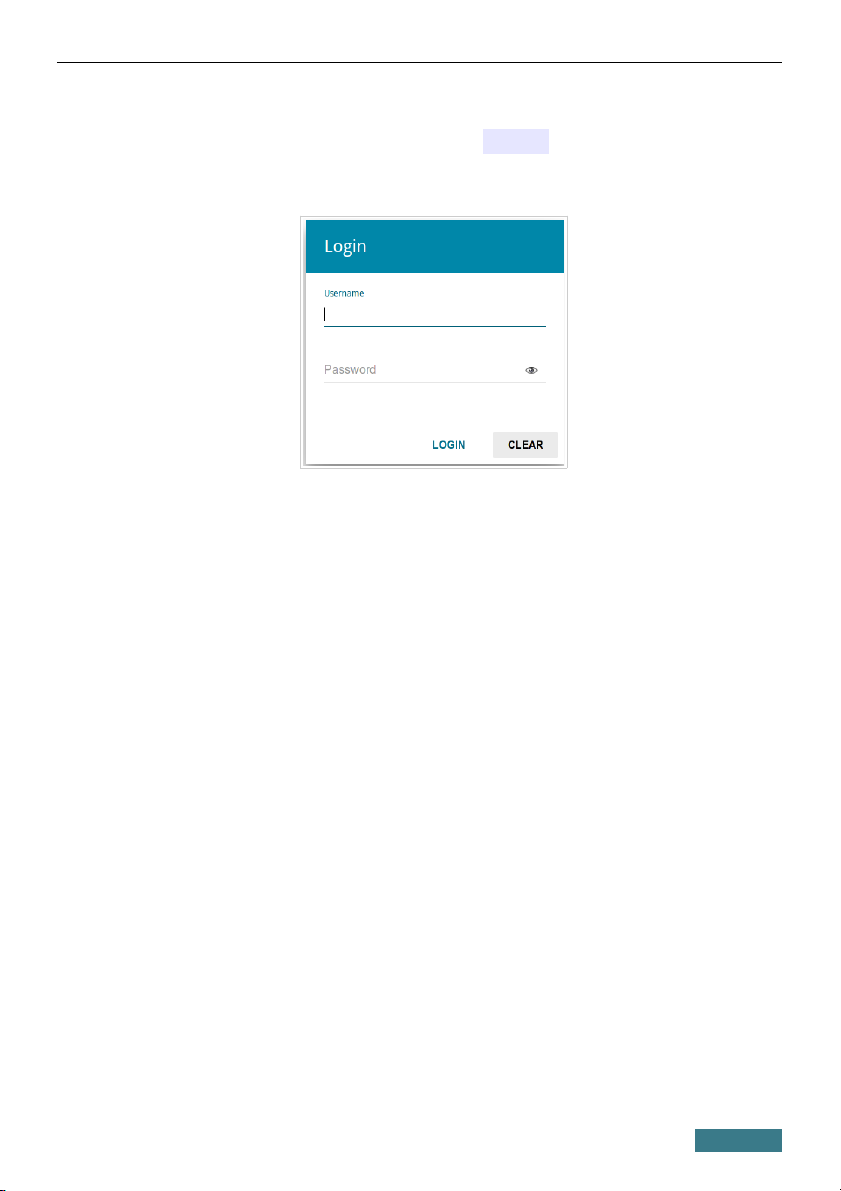

If you configured the device previously, after access to the web-based interface
the login page opens. Enter the username (admin) in the Use name field
and the password you specified in the Passwo d field, then click the LOGIN
button.
The web-based interface of the router is bilingual (English/Russian). You can
select the needed language upon the initial configuration of the web-based
interface of the router or in the System / Configu ation section of the
menu.
15

DSL-224 Quick Installation Guide

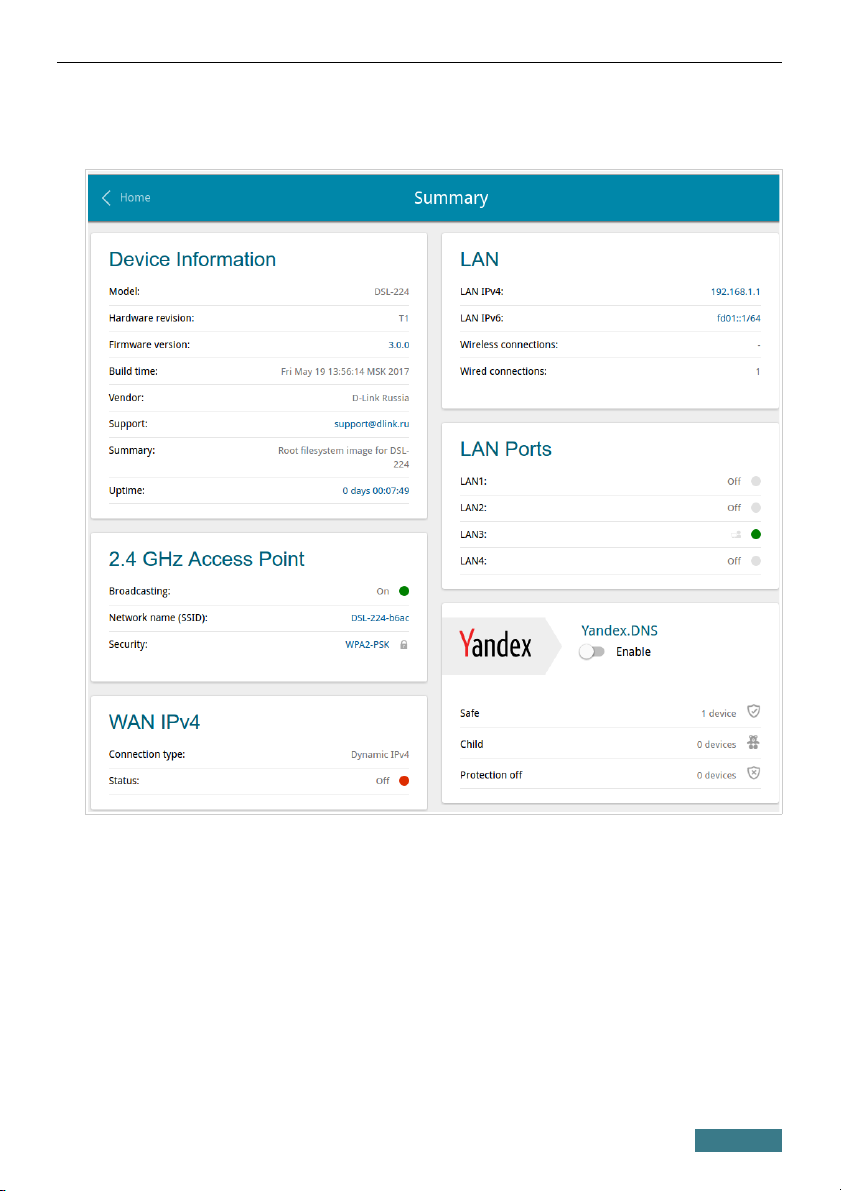

The Summa y page displays general information on the router and its
software.
16

DSL-224 Quick Installation Guide

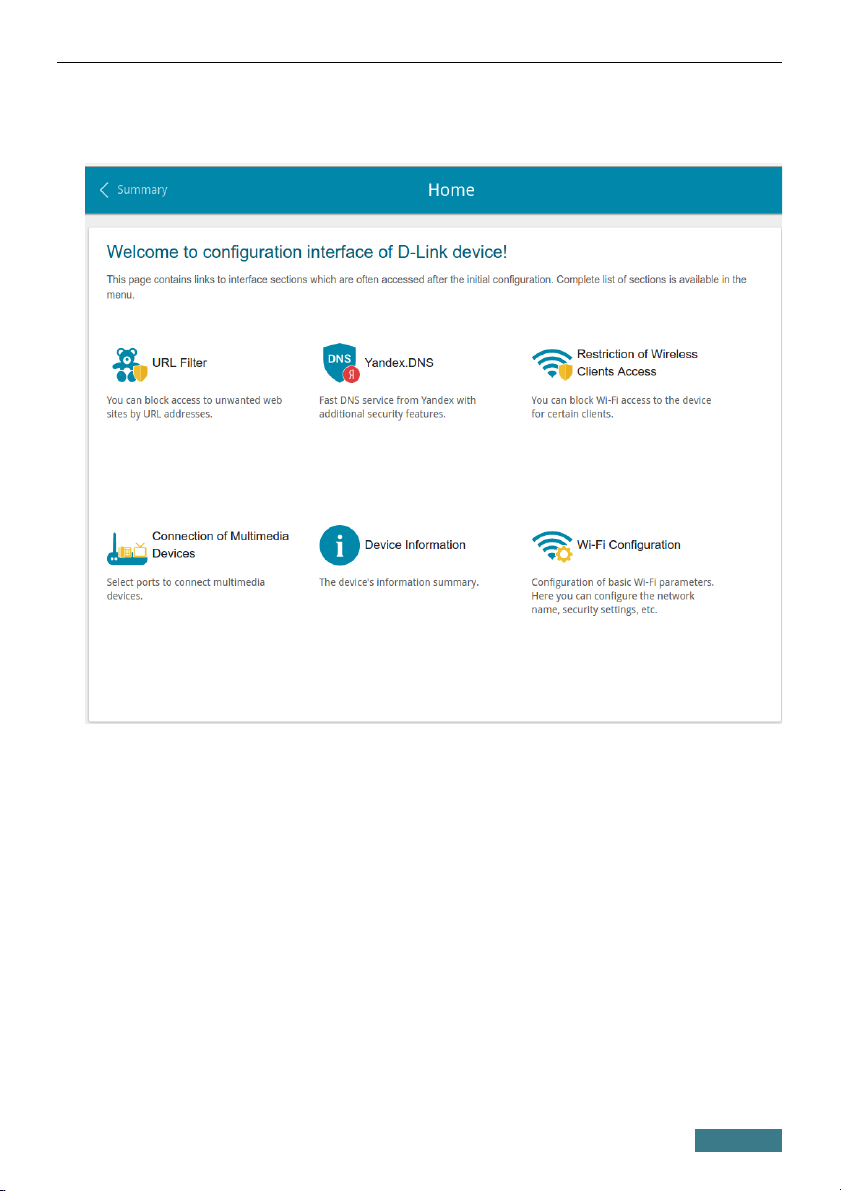

The Home page displays links to the most frequently used pages with device's
settings.
Other settings of the router are available in the menu in the left part of the
page. Go to the relevant section and select the needed page or run the wizard
in the Initial Configu ation section.
17

DSL-224 Quick Installation Guide
nitial Configuration Wizard

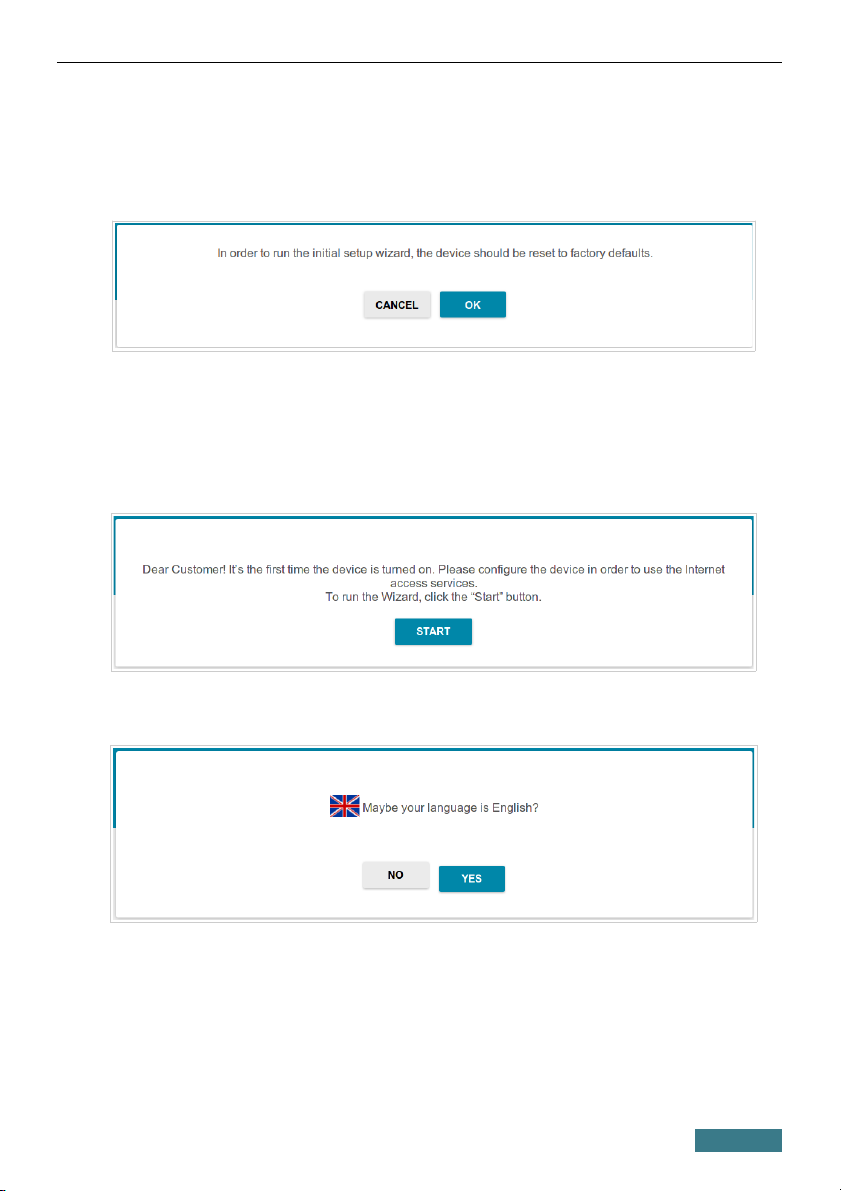

In order to start the Initial Configuration Wizard manually, go to the Initial
Configu ation section.
Click the OK button and wait until the factory default settings are restored.
Then click the START button.
If the device has not been configured previously or the default settings have
been restored, the Initial Configuration Wizard starts automatically upon
access to the web-based interface or upon opening a web site on the Internet.
1. Click YES in order to leave the current language of the web-based
interface or click NO to select the other language.
2. On the next page, click the CONTINUE button.
18

DSL-224 Quick Installation Guide
Selecting Operation Mode

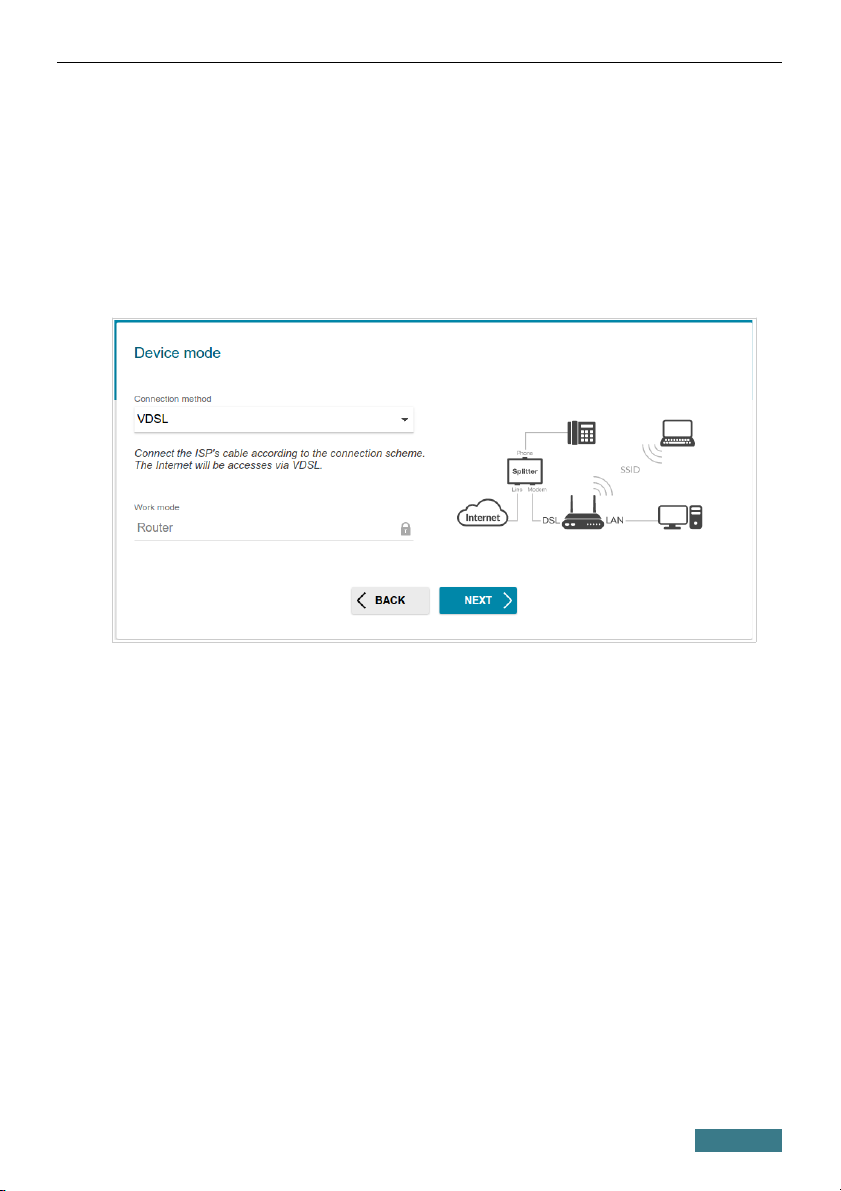

In order to connect your device to a VDSL or ADSL line, on the Device
mode page, from the Connection method list, select the VDSL o ADSL
value correspondingly. In this mode you can configure a WAN connection, set
your own settings for the wireless network, configure LAN ports to connect an
STB or VoIP phone, and set your own password for access to the web-based
interface of the device.
When the operation mode is selected, click the NEXT button.
19

DSL-224 Quick Installation Guide
Conguring VDSL WAN Connection
!
You should configure your WAN connection in accordance with data
provided by your Internet service provider (ISP). Make sure that you have
obtained all necessary information prior to configuring your connection.
Otherwise contact your ISP.
1. On the Inte net connection type page, from the Connection type
list, select the connection type used by your ISP and fill in the fields
displayed on the page.

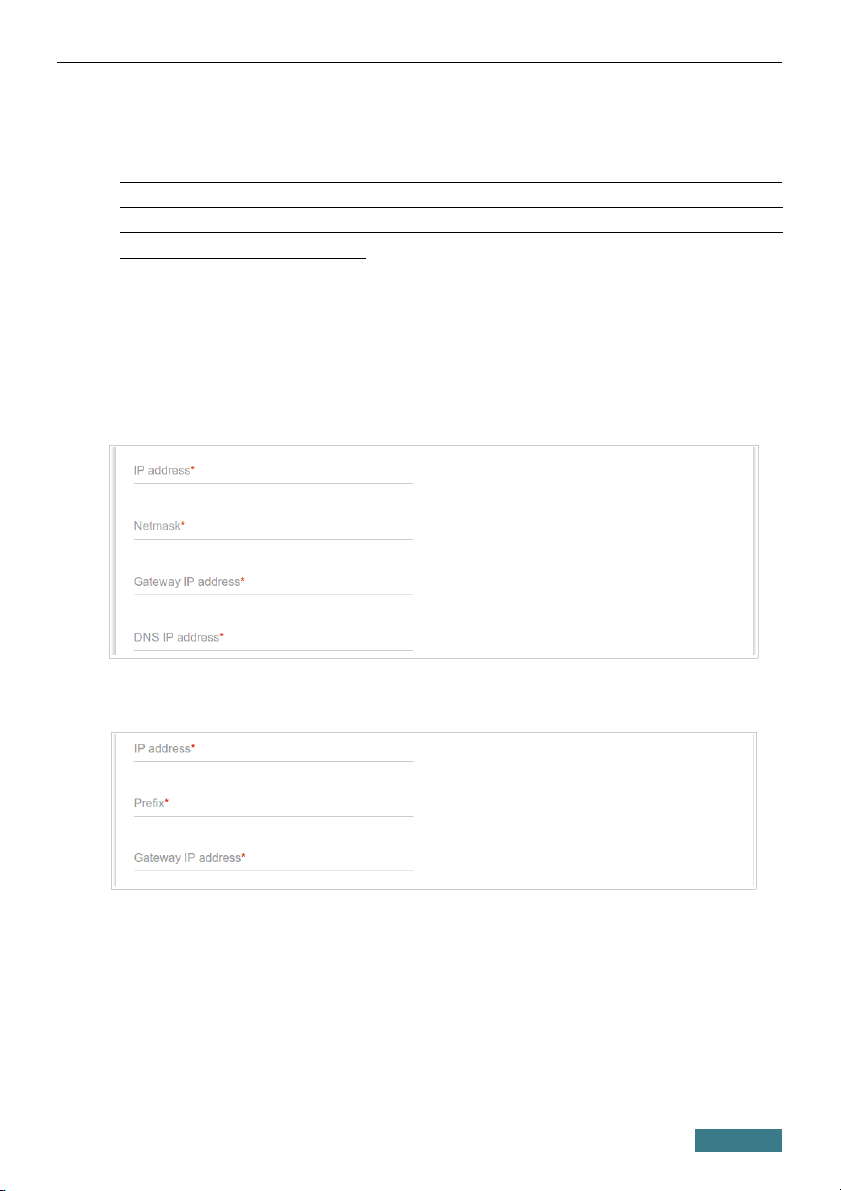

Static IPv4: Fill in the following fields: IP add ess, Netmask, Gateway IP
add ess, and DNS IP add ess.
Static IPv6: Fill in the following fields: IP add ess, P efix, and Gateway
IP add ess.
20
