D-Link DSL-2544N User manual




QUICK
INSTALLATION
GUIDE


2
ENGLISH

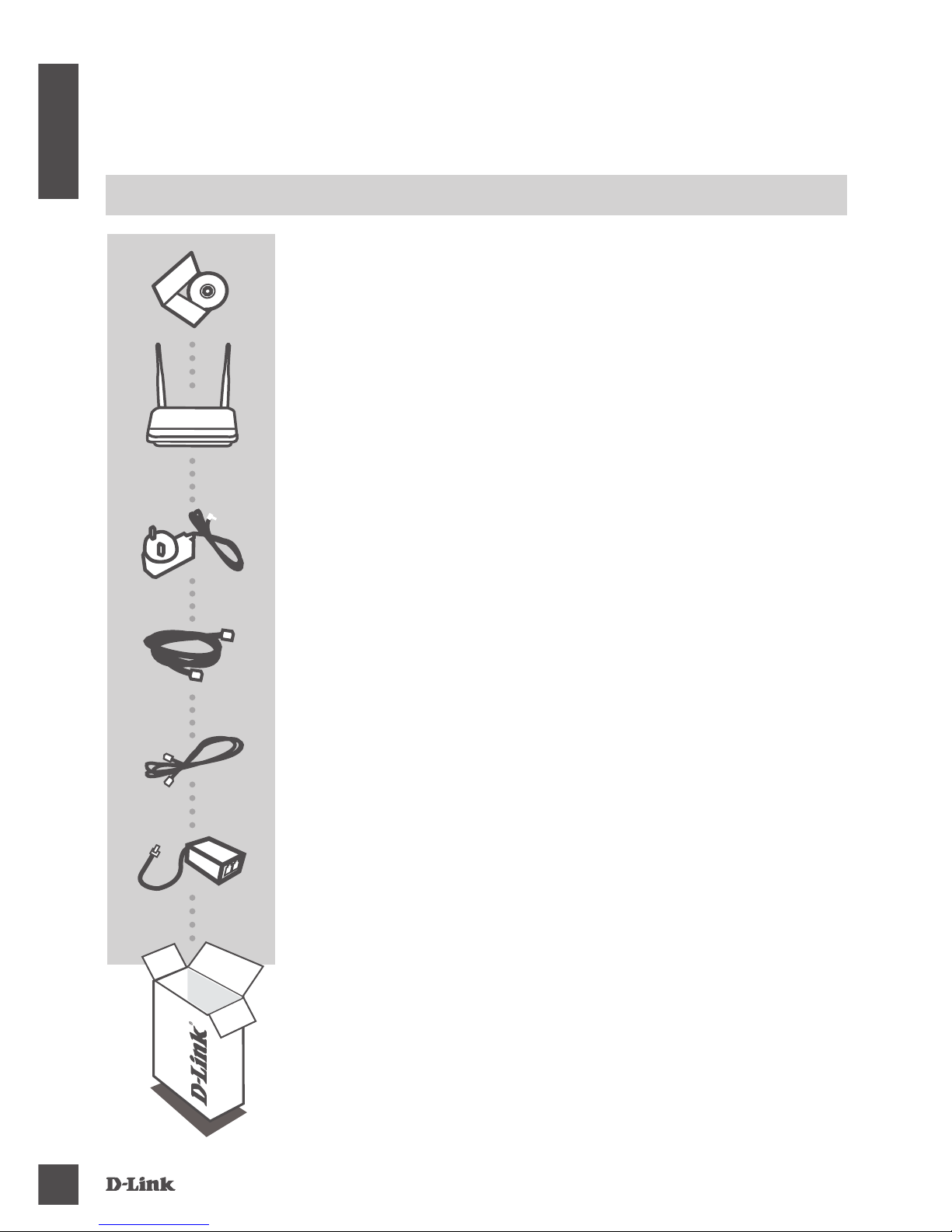

CONTENTS OF
PACKAGING

INSTALLATION CD
INCLUDES SET-UP WIZARD & TECHNICAL MANUALS
POWER ADAPTER
ADAPTER
ETHERNET CABLE (CAT5 UTP)
CONNECT THE ROUTER TO YOUR PC DURING SET-UP
If any of these items are missing from your packaging contact
your reseller
DUAL BAND WIRELESS N600 GIGABIT ADSL2+ MODEM ROUTER
DSL-2544N
RJ-11 PHONE CABLE
ADSL SPLITTER

 3
ENGLISH

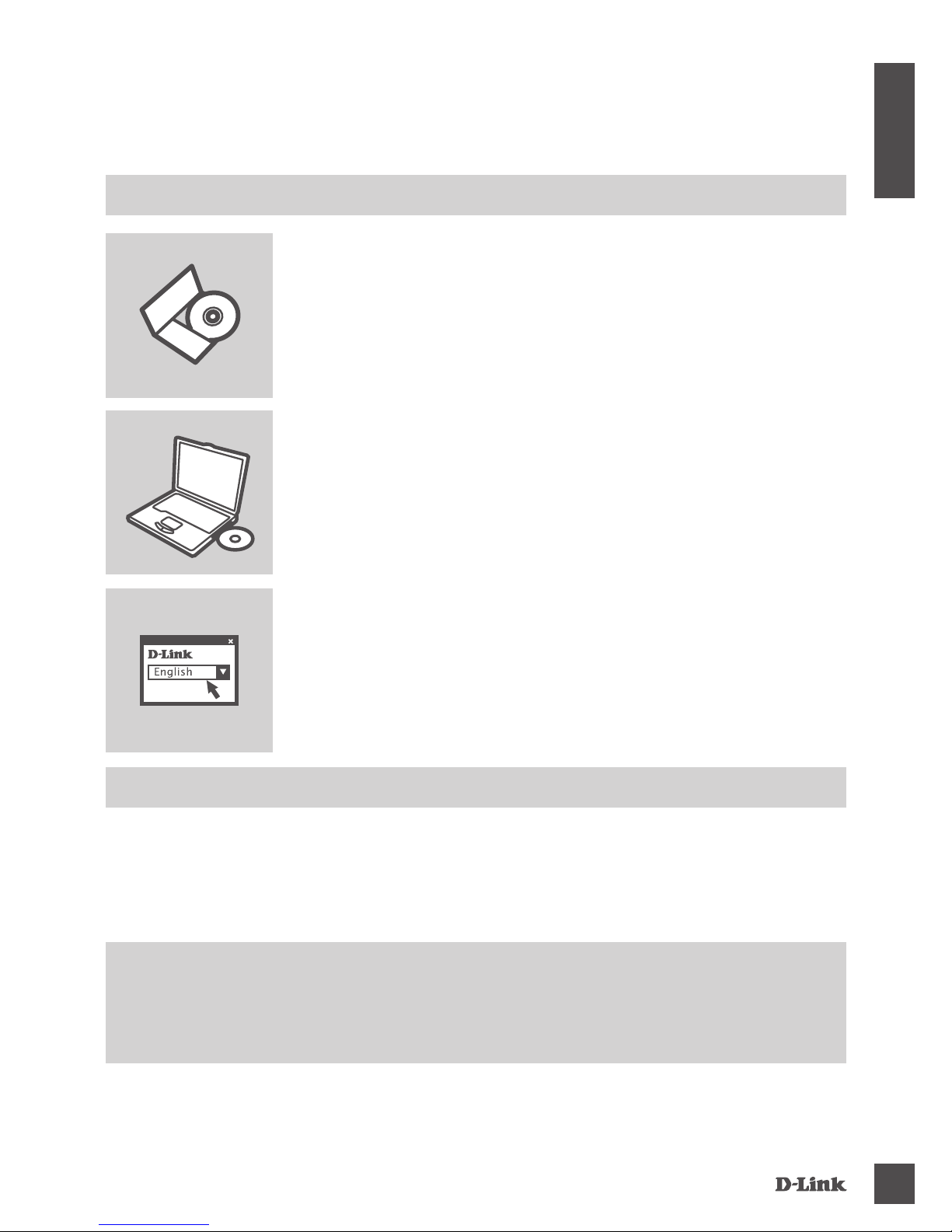

PRODUCT
SETUP

SET-UP WIZARD CD
The CD contains all of the instructions required to set-up DSL-2544N
INSERT CD
Insert the CD into the CD drive of your computer. The set-up
wizard should start automatically. Make sure that your internet
connection is active. (Do not plug in DSL-2544N yet)
SET-UP WIZARD
Select your language from the list of options and follow the
steps within the wizard to complete the set-up of DSL-2544N

To congure DSL-2544N manually (without the set-up CD) connect your computer to the DSL-2544N
using the ethernet cable provided. Then connect the power cable on the DSL-2544N. The power
light will display as solid green.
Then simply open a browser window and enter the IP address in the browser address eld:
IP ADDRESS: http://192.168.1.1
USERNAME: admin
PASSWORD: admin


4
ENGLISH
TROUBLESHOOTING

1. HOW DO I CONFIGURE MY DSL-2544N ROUTER WITHOUT THE CD, OR CHECK MY
WIRELESS NETWORK NAME (SSID) AND WIRELESS ENCRYPTION KEY?
- Connect your PC to the router using an Ethernet cable.
- Open a web browser and enter the address http://192.168.1.1
- The default username is ‘admin’. The default password is 'admin'.
- If you have changed the password and can not remember it, you will need to reset the router to
set the password back to 'admin'.
2. HOW DO I RESET MY DSL-2544N ROUTER TO FACTORY DEFAULT SETTINGS?
- Ensure the router is powered on.
- Press and hold the WPS/Reset button on the side of the device for 10 seconds.
Note: Resetting the router to factory default will erase the current conguration settings. To re-
congure your settings, log into the router as outlined in question 1, then run the Setup Wizard.
3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY
WIRELESS NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY?
- Every PC that needs to connect to the router wirelessly, you will need to ensure you use the
correct Wireless Network Name (SSID) and encryption key.
- Use the web based user interface (as described in question 1 above) to check or choose your
wireless settings.
- Make sure you write down these settings so that you can enter them into each wirelessly
connected PC. You will nd a dedicated area on the back of this document to record this
important information for future use.
4. WHY CAN I NOT GET AN INTERNET CONNECTION?
- Please contact your ISP to make sure the service has been enabled/connected by your ISP and
that your ISP username and password is correct.
