D-Link DSS-16+ User manual

D-Link DSS-16+
16-port 10/100 Ethernet Switch
Manual
Rev. 072104
Building Networks for People
Ver.1.00

i
TABLE OF CONTENTS
ABOUT THIS GUIDE ................................................................1
PURPOSE.............................................................................1
TERMS/USAGE....................................................................1
OVERVIEW OF THIS USER’S GUIDE ....................................1
INTRODUCTION .......................................................................2
FAST ETHERNET TECHNOLOGY..........................................2
SWITCHING TECHNOLOGY .................................................3
FEATURES...........................................................................4
UNPACKING AND SETUP.......................................................5
UNPACKING........................................................................5
SETUP .................................................................................5
DESKTOP INSTALLATION....................................................6
RACK MOUNTING...............................................................6
IDENTIFYING EXTERNAL COMPONENTS........................8
TECHNICAL SPECIFICATION ............................................10
WARRANTY..............................................................................12

1
ABOUT THIS GUIDE
Congratulations on your purchase of the DSS-16+ 16-port
10/100Mbps Auto-negotiation Fast Ethernet Switch. This device
integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network
capabilities in a highly flexible package.
Purpose
This guide discusses how to install your DSS-16+.
Terms/Usage
In this guide, the term “Switch” (first letter upper case) refers to DSS-16+
16-port 10/100Mbps Fast Ethernet Switch, and “switch” (first letter lower
case) refers to other Ethernet switches.
Overview of this User’s Guide
Introduction. Describes the Switch and its features.
Unpacking and Installation.Helps you get started with the basic installation
of the Switch.
Identifying External Components. Describes the front panel, rear panel and
LED indicators of the Switch.
Technical Specifications. Lists the technical (general, physical and
environmental, and performance) specifications of the Switch.

2
INTRODUCTION
This chapter describes the features of the DSS-16+ and some background
information about Ethernet/Fast Ethernet switching technology.
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of desktop
computing applications are fueling the need for high performance networks.
A number of high-speed LAN technologies have been proposed to provide
greater bandwidth and improve client/server response times. Among them,
100BASE-T (Fast Ethernet) provides a non-disruptive, smooth evolution
from the current 10BASE-T technology. The non-disruptive and smooth
evolution nature, and the dominating potential market base, virtually
guarantee cost-effective and high-performance Fast Ethernet solutions in the
years to come.
100Mbps Fast Ethernet is a new standard specified by the IEEE 802.3 LAN
committee. It is an extension of the 10Mbps Ethernet standard with the
ability to transmit and receive data at 100Mbps, while maintaining the
CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible
with all other 10Mbps Ethernet environments, it provides a straightforward
upgrade and takes advantage of the existing investment in hardware,
software, and personnel training.

3
Switching Technology
Another approach to pushing beyond the limits of Ethernet technology is the
development of switching technology. A switch bridges Ethernet packets at
the MAC address level of the Ethernet protocol, transmitting among
connected Ethernet or Fast Ethernet LAN segments.
Switching is a cost-effective way of increasing the total network capacity
available to users on a local area network. A switch increases capacity and
decreases network loading by dividing a local area network into different
segments, which don’t compete with each other for network transmission
capacity.
The switch acts as a high-speed selective bridge between the individual
segments. The switch, without interfering with any other segments,
automatically forwards traffic that needs to go from one segment to another.
By doing this the total network capacity is multiplied, while still maintaining
the same network cabling and adapter cards.
For Fast Ethernet networks, a switch is an effective way of eliminating
problems of chaining hubs beyond the “two-repeater limit.” A switch can be
used to split parts of the network into different collision domains, making it
possible to expand your Fast Ethernet network beyond the 205-meter network
diameter limit for 100BASE-TX networks. Switches supporting both
traditional 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for
bridging between the existing 10Mbps networks and the new 100Mbps
networks.
Switching LAN technology is a marked improvement over the previous
generation of network bridges, which were characterized by higher latencies.
Routers have also been used to segment local area networks, but the cost of a
router, the setup and maintenance required make routers relatively
impractical. Today switches are an ideal solution to most kinds of local area

4
network congestion problems.
Features
The DSS-16+ is designed for easy installation and high performance in an
environment where traffic on the network and the number of users increase
continuously.
 16-port 10/100BASE Ethernet Switch with RJ-45 connectors
 Supports Auto-negotiation of speed and duplex modes for each port
 Supports Auto-MDI/MDI-X for each port
 Wire speed reception and transmission
 Store-and-Forward switching method
 Integrated address Look-Up Engine, supports 8K absolute MAC
addresses
 Supports 4MBits RAM for data buffering
 Front-panel diagnostic LEDs
 Broadcast storm protection
 IEEE 802.3x flow control for full-duplex
 Back pressure flow control for half-duplex

5
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the DSS-16+.
Unpacking
Open the shipping carton for the Switch and carefully unpack its contents.
The carton should contain the following items:
 One DSS-16+ 16-port 10/100Mbps Fast Ethernet Switch
 One AC power cord, suitable for your area’s electrical power
connections
 Four rubber feet to be used for shock cushioning
 Screws and two mounting brackets
 This User’s Guide
If any item is found missing or damaged, please contact your local reseller
for replacement.
Setup
Please consider the following when setting up the Switch:
1. The surface must support at least 5 kg.
2. The power outlet should be within 1.42 meters (6 feet) of the device.
3. Visually inspect the power cord and see that it is secured fully to the AC
power connector.
4. Make sure that there is proper heat dissipation from and adequate

6
ventilation around the Switch. Do not place heavy objects on the Switch.
Desktop Installation
When installing the Switch on a desktop, the rubber feet
included with the device must be attached first. Attach these
cushioning feet on the bottom at each corner of the device.
Allow enough ventilation space between the device and the
objects around it.

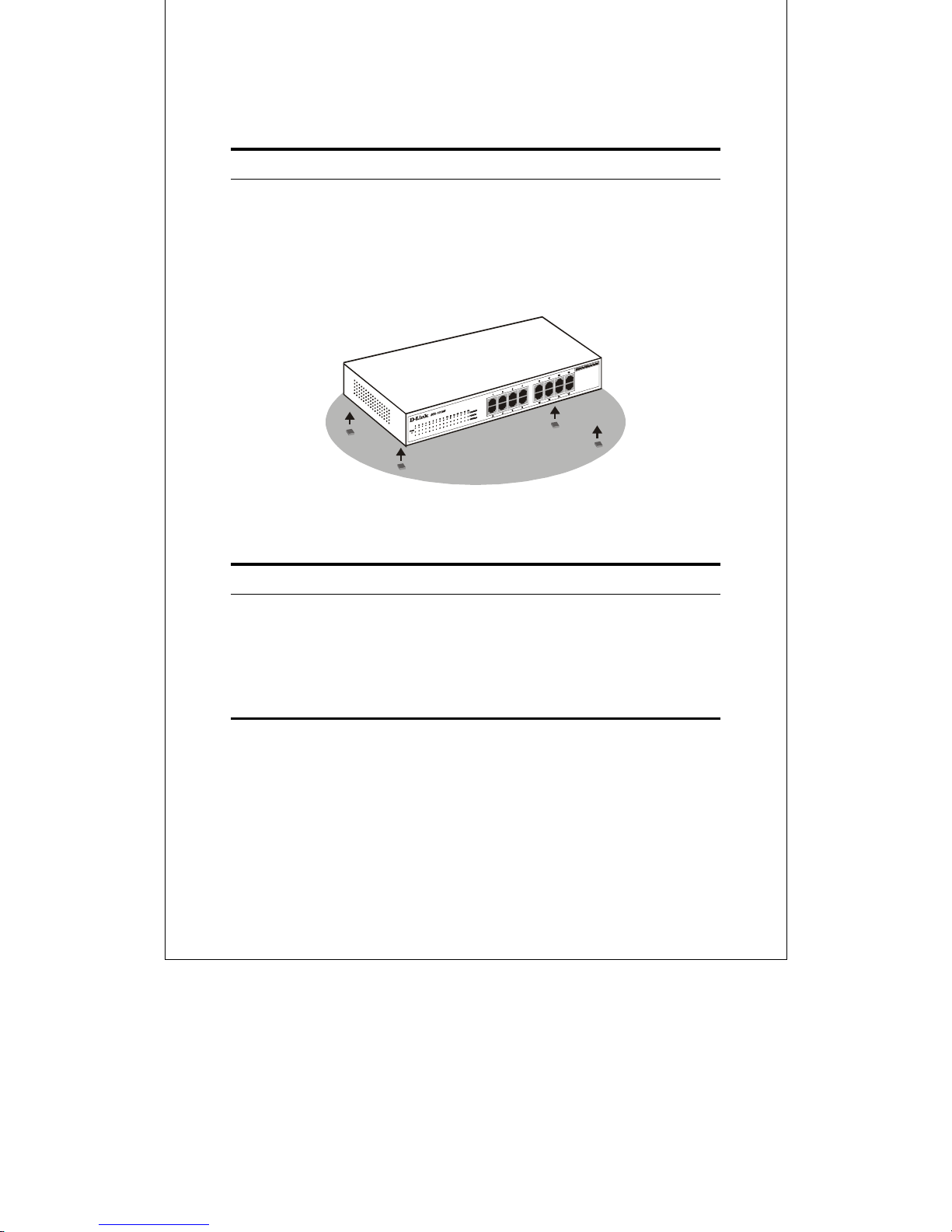

Fast Ethernet Switch installed on a Desktop or Shelf
Rack Mounting
The DSS-16+ can be mounted in an EIA standard-size, 19-inch rack, which
can be placed in a wiring closet with other equipment. Attach the mounting
brackets at the switch’s front panel (one on each side), and secure them with
the provided screws.

7

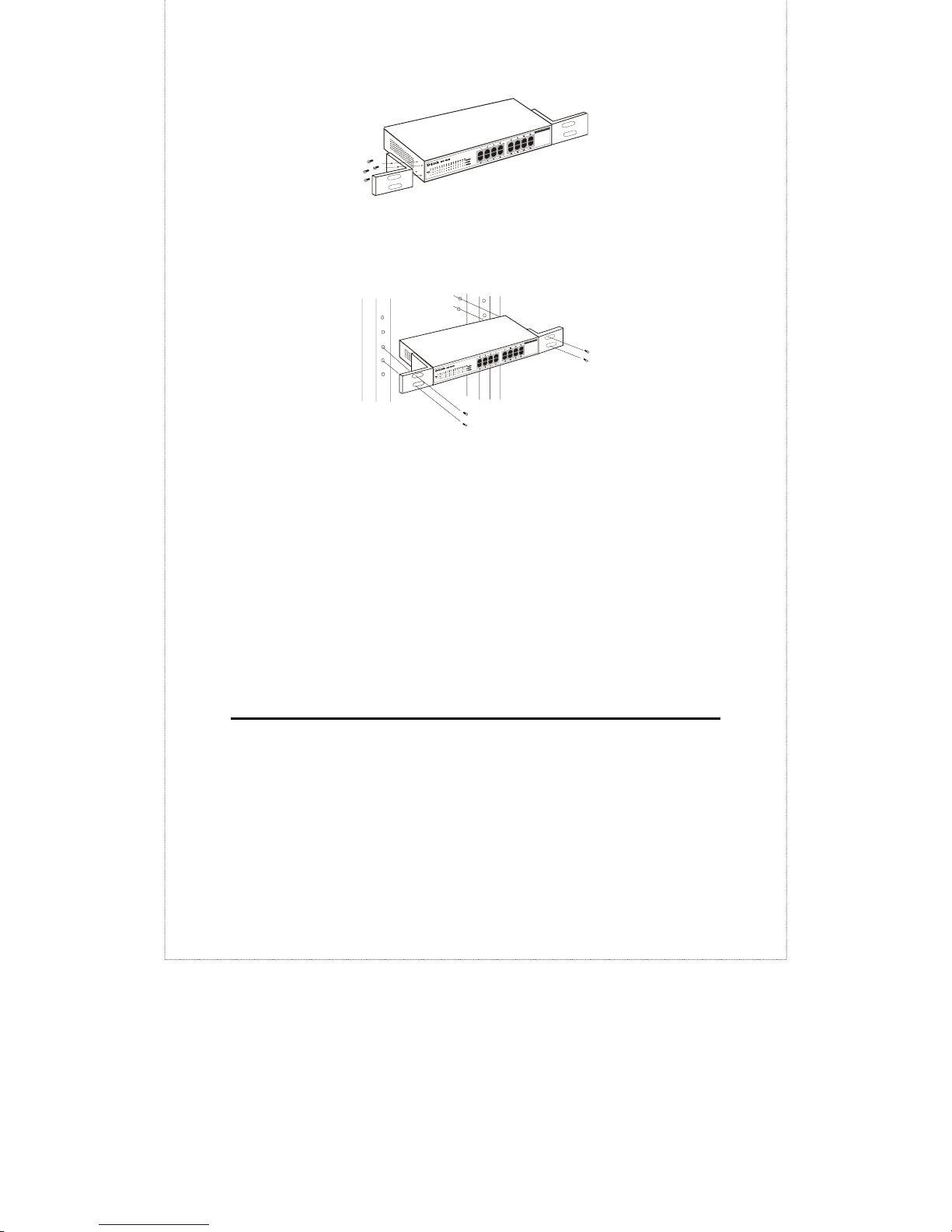

Attaching the mounting brackets to the Switch
Then, use screws provided with the equipment rack to mount each switch in
the rack.
Installing the Switch in an equipment rack

8
IDENTIFYING EXTERNAL COMPONENTS
This section identifies all the major external components of the DSS-16+.

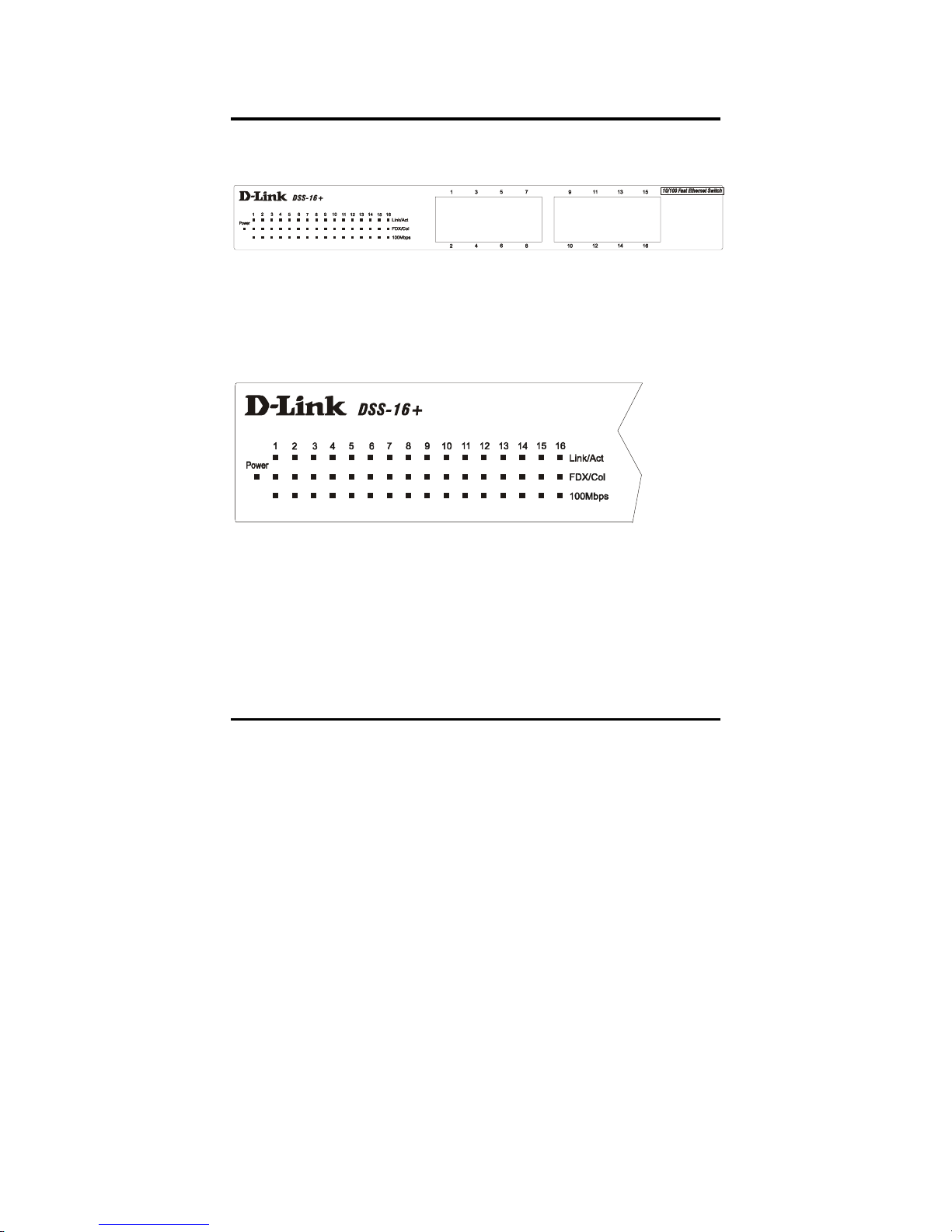

The figure below shows the front panels of the DSS-16+.
16-port 10/100Mbps Fast Ethernet Switch
1. LED Indicator Panel
Refer to the detailed information about each of the DSS-16+’s LED
indicators.
 Power
This indicator lights green when the switch is receiving power; otherwise, it
is off.
 Link / Act (Link/Activity)
This indicator lights on when the port is connected to a Fast Ethernet or
Ethernet device; if the light is blinking, it indicates that data is being
transmitted or received.
