D-Link DSL-G804V Owner's manual

This product works with the following
operating system software: Windows
98, Windows NT, Windows 2000,
Windows Me and Windows XP. DSL-G804V
Wireless ADSL Route
r
Check Your Package Contents
These are the items included with your purchase:
If any of the below items are missing, please contact your reseller.
©2005 D-Link System, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective
holders. Software and specifications subject to change without notice.
5. 12V, 1A
Power Adapter
4. ADSL Cable
(standard telephone cable)
3. Etherent Cable
(CAT5 UTP Straight-Through)
2. CD-ROM(containing Drivers, Installation
Guide, Manual, Applicaion Software and
Warranty)
1. D
S
L-
G
804V
Wireless ADSL Router
Using a power adapter
with different voltage
rating will damage and
void the warranty for this
product.

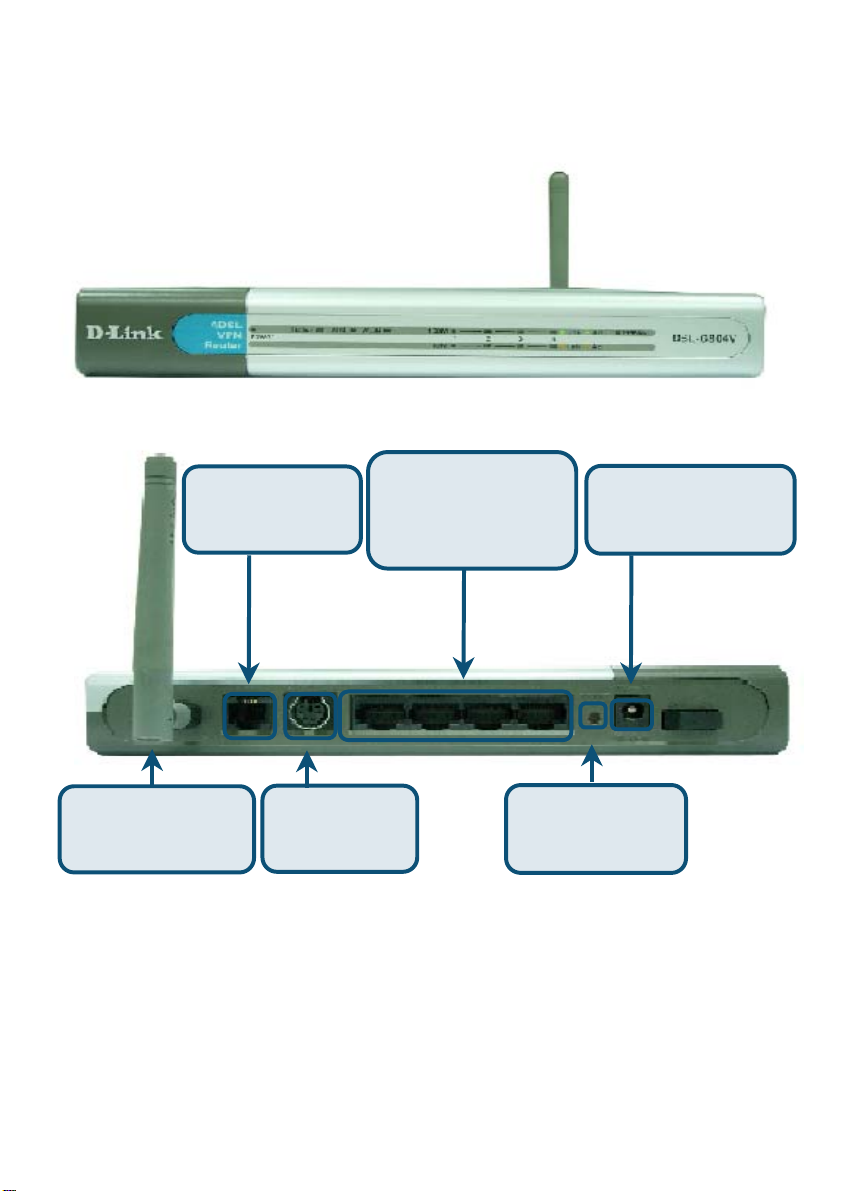

Connecting the Router to your
Computer
Antenna
Ensure good
wireless reception
ADSL Port
Connect to your
ADSL provider
Console Port
Connect to
PS2/RS-232
LAN Ports
Connect to the LAN
and other
computers
Reset
Push to return to
factory setting
Power Input
Connect to DC
Adapter
2
A. First, connect the power adapter to the power input at the back panel of the
DSL-G804V and then plug the other end of the power adapter to a wall outlet o
r
power strip.On the front of the device, the power LED will turrn ON to indicate
proper operation.
B. Insert one end of the Ethernet cable into an Ethernet(LAN) port on the back
panel of the DSL-G804V and the other end of the cable to an Ethernet Adapter
or available Ethernet port on your computer.
C. Insert the telephone cable included with theRouter into the ADSL port, then
connect the cable to your telephone line.
D. Check the LED display on the front of the Router to confirm that the
connections have been made.

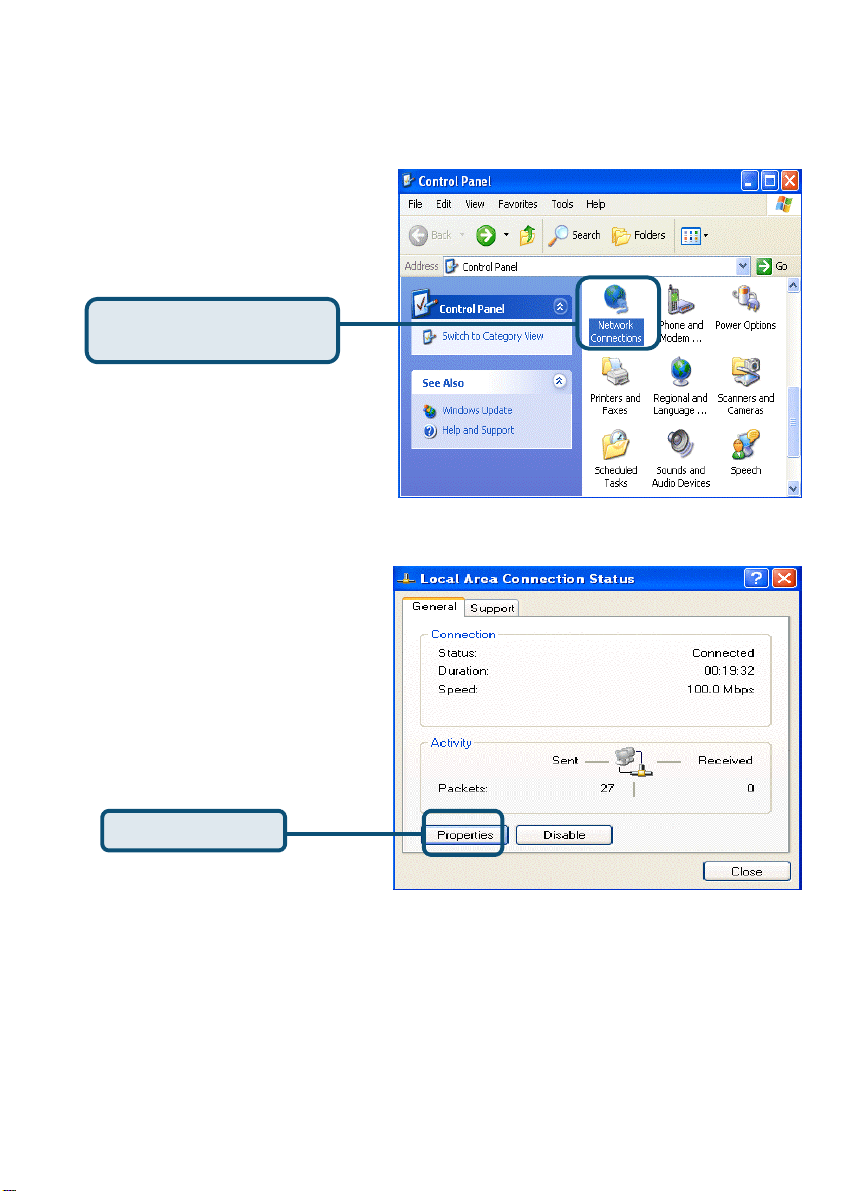

Configuring PC in Windows XP
Go to Start / Control Panel (in
Classic View). In the Control
Panel, double-click on
Network Connections.
Double-click Local Area
Connection
In the Local Area Connection
Status window, click
Pro
p
erties.
Click Properties
3

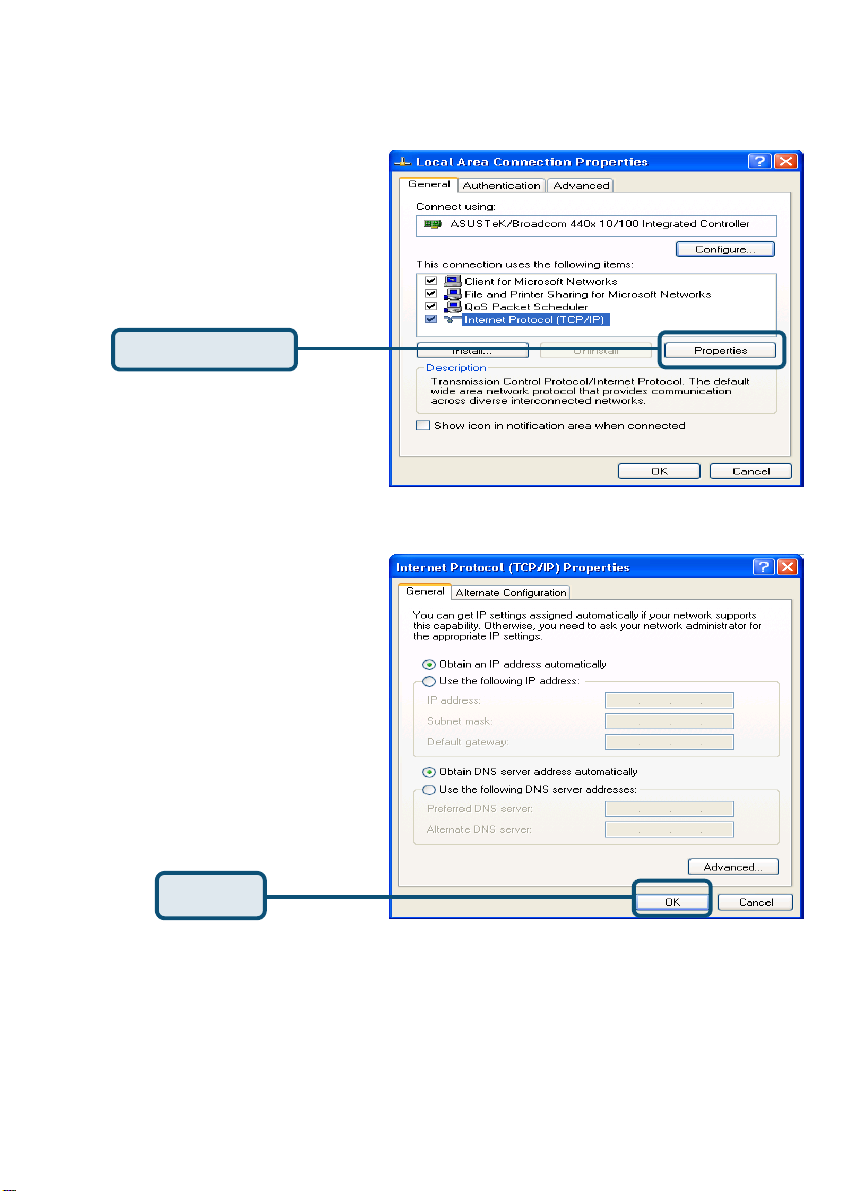

Configuring PC in Windows XP
(Continued)
Select Internet Protocol
(TCP/IP).
4
Click Properties
Select the Obtain an IP
address automatically and
the Obtain DNS server
address automatically radio
buttons.
Click OK to finish the
configuration.
Click OK

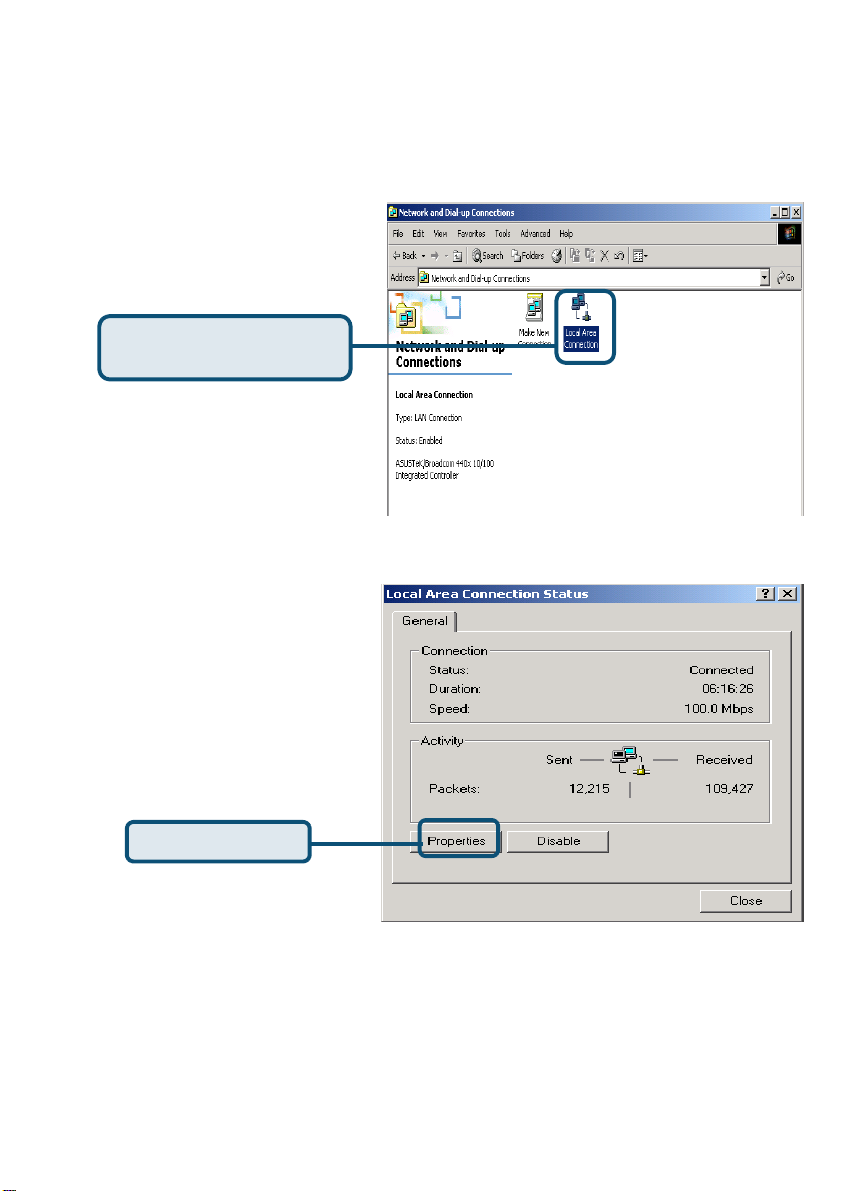

Configuring PC in Windows 2000
5
Click Properties
In the Local Area Connection
Status window, click
Pro
p
erties.
Go to Start / Control Panel (in
Classic View). In the Control
Panel, double-click on
Network Connections.
Double-click Local Area
Connection

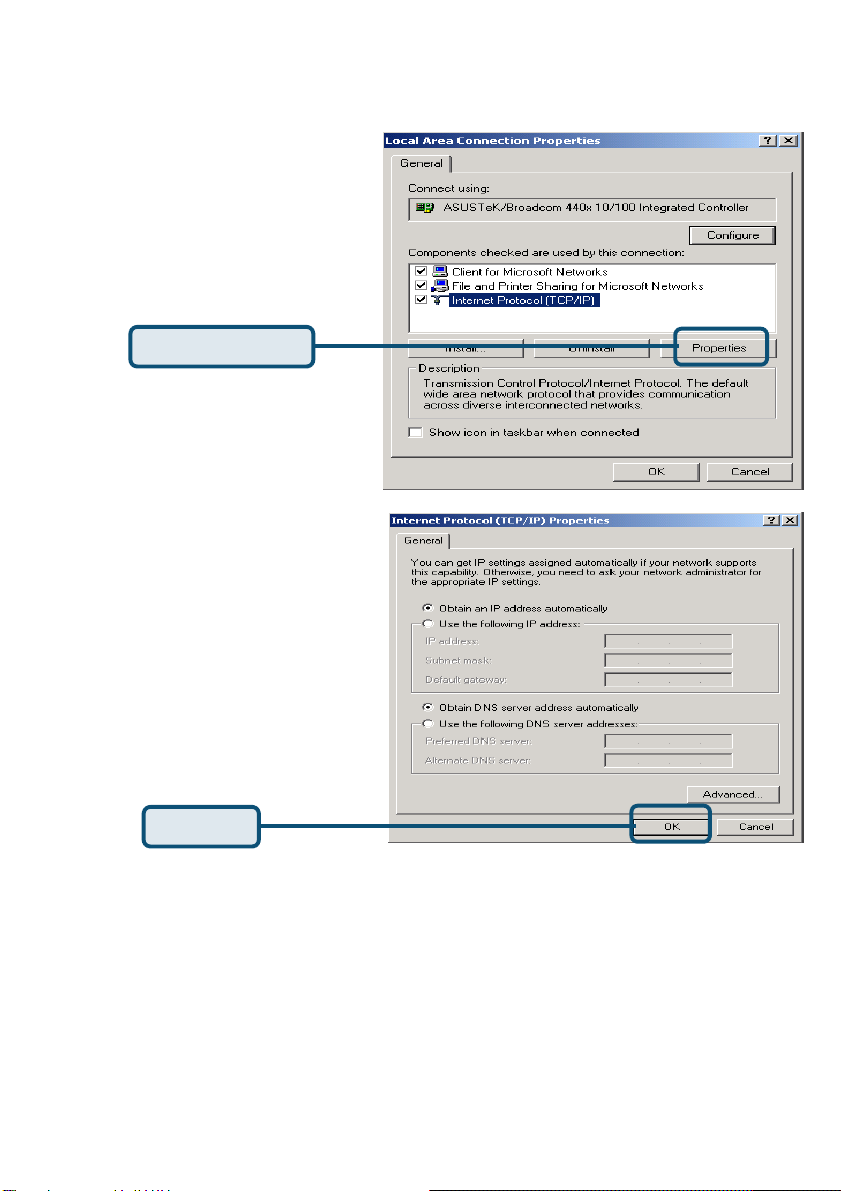

Configuring PC in Windows 2000
(Continued)
Select Internet Protocol
(TCP/IP).
Click Properties
Select the Obtain an IP
address automatically and
the Obtain DNS server
address automatically radio
buttons.
Click OK to finish the
configuration.
Click OK
6

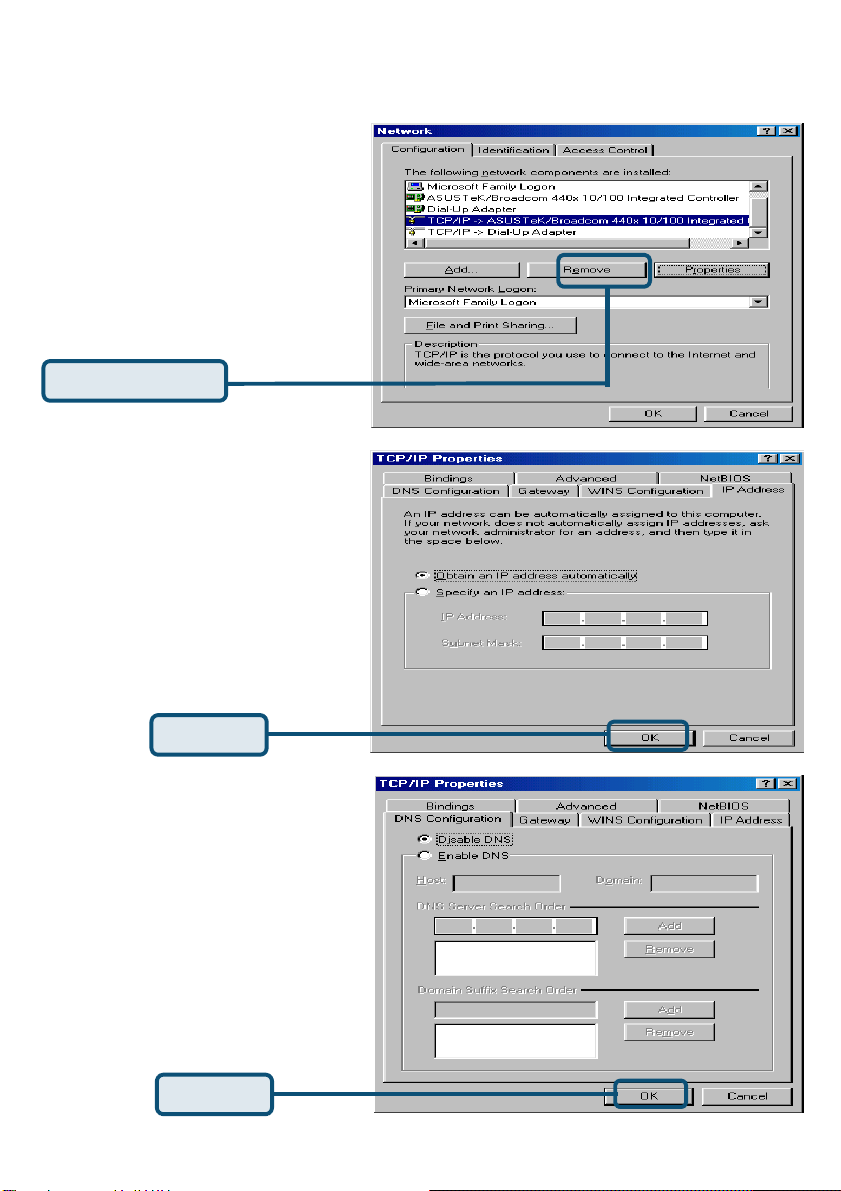

Configuring PC in Windows 98/Me
Go to Start / Settings /
Control Panel. In the Control
Panel, double-click on
Network and choose the
Configuration tab.
Select TCP/IP -> NE2000
Compatible, or the name of
your Network Interface Card
(NIC) in your PC.
Click Properties
Select the Obtain an IP
address automatically radio
butto
n.
Click OK
Then select the DNS
Configuration tab.
Select the Disable DNS radio
button and click OK to finish
the configuration.
Click OK
7

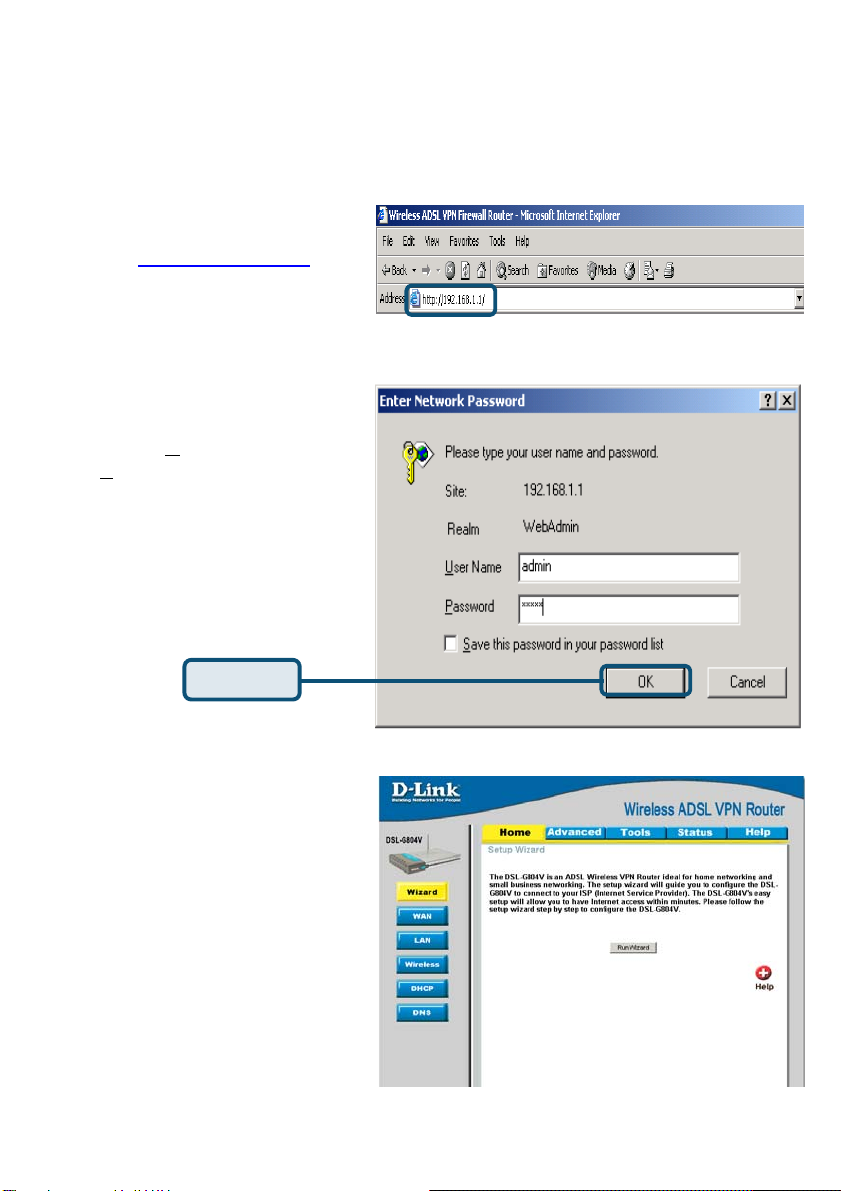

Configuring Your ADSL VPN Firewall
Router
Open the web browser and
type http://192.168.1.1 in
the browser’s address box.
This number is the default IP
address for this router.
Press Enter.
A user name and password
window will appear. The
default User Name and
Password are “admin” and”
admin”. Press OK to logon
to the router.
Click OK
The Home screen a
pp
ears.
8

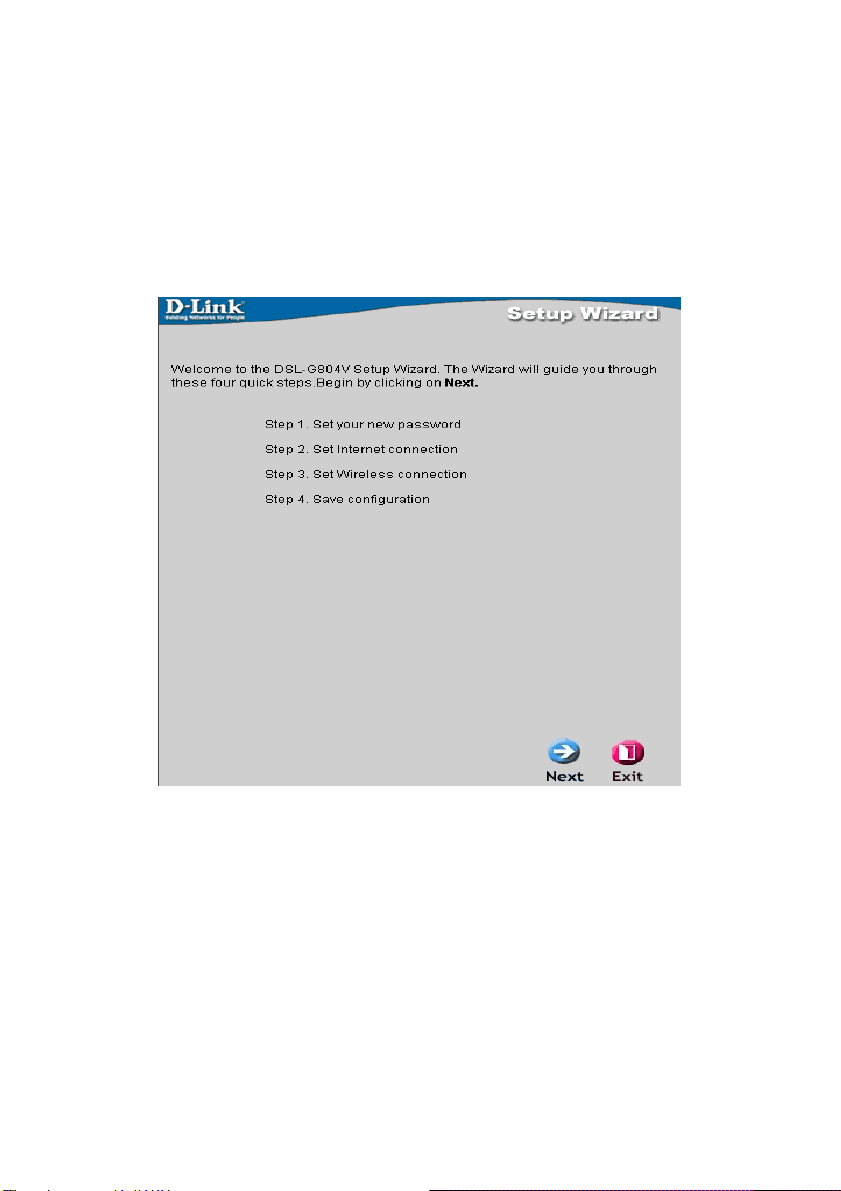

Setup Wizard
When the Router is used to provide Internet access it actually must first access your service
provider’s network, that is, it must communicate with computers and other routers owned by
your service provider. These computers and routers then provide access to the Internet. The
Router must be configured to communicate with the systems that give it access to the larger
network. Click the Run Wizard tab; the Setup Wizard window will appear.
9

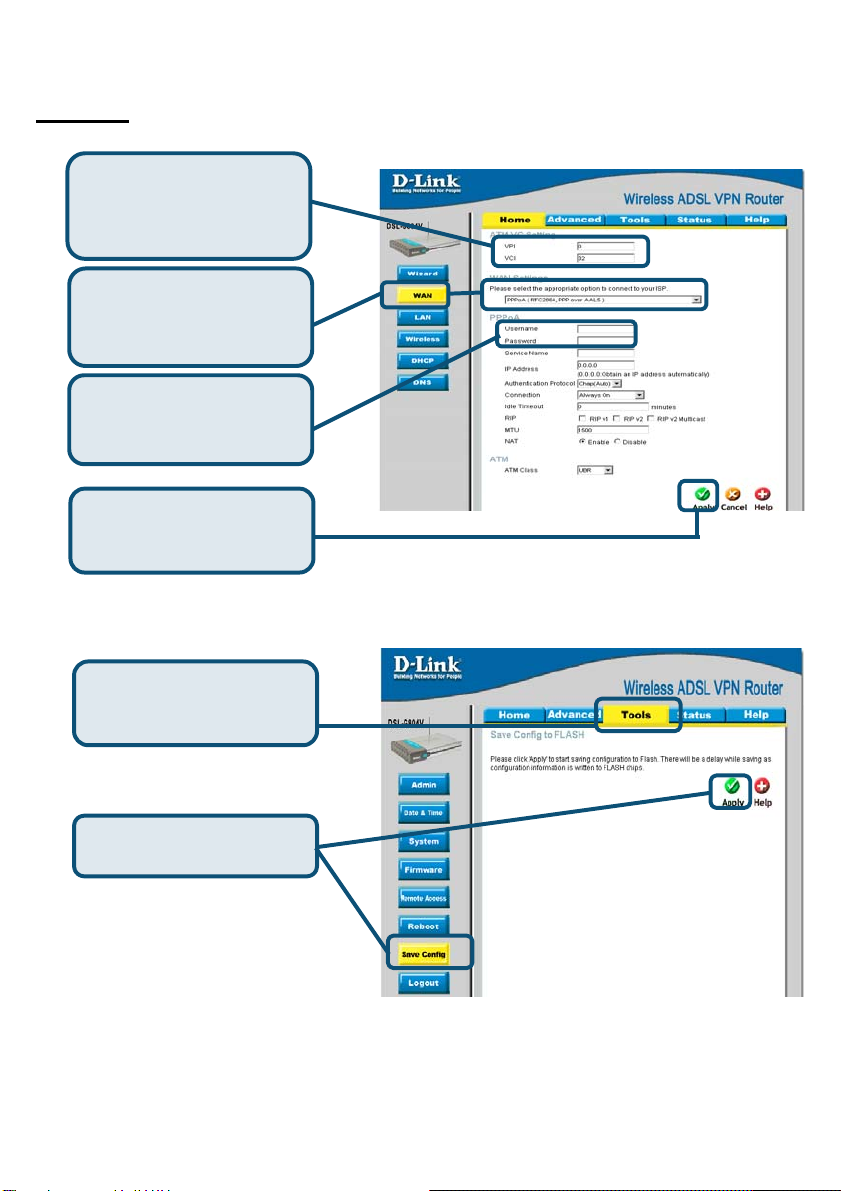

Configuring the WAN Connection

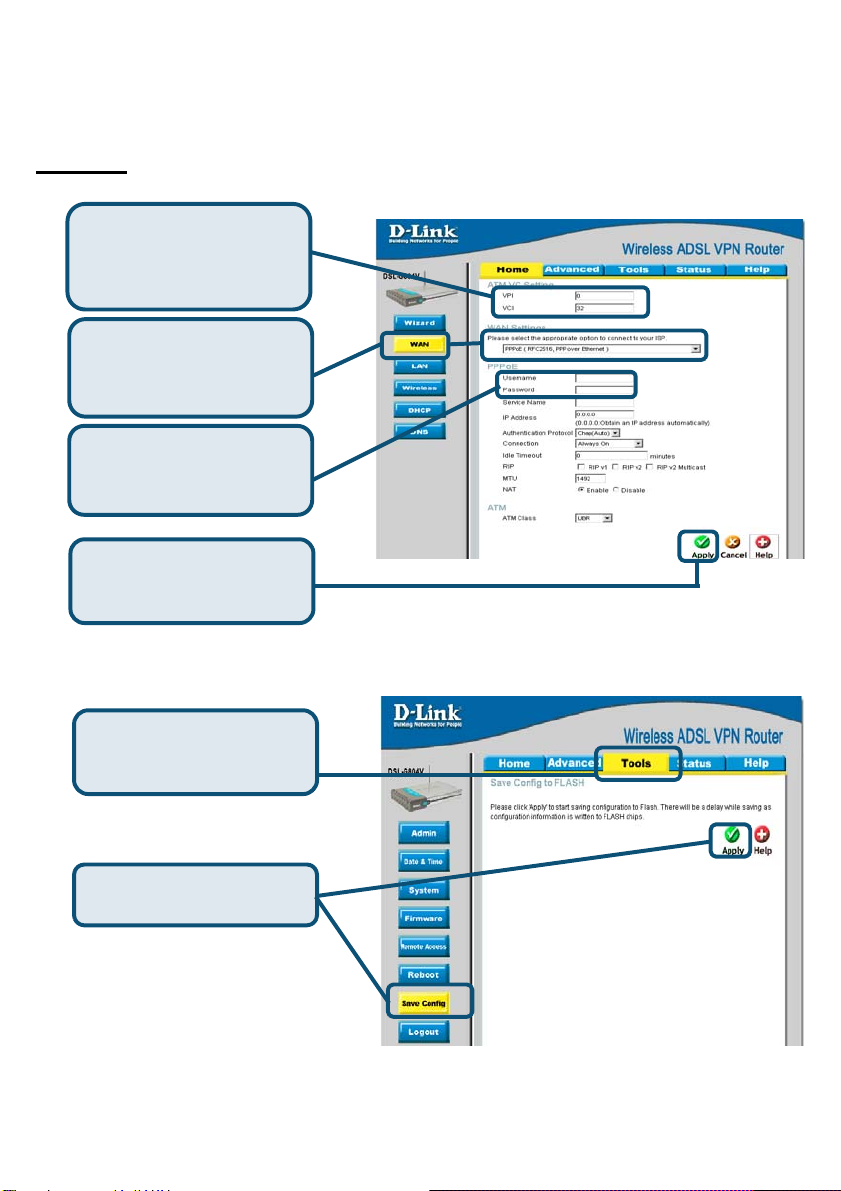

PPPoE
Type VPI and VCI, if
these values are not
correct, check with your
ISP for information.
Click WAN button and
select PPPoE setup
form WAN setting.
Type the Username
and Password used for
your account.
Click Apply button after
you have entered the
account information.
Click Tools when you
have applied the new
settings.
Click Save Config and
Apply to save changes.
10

PPPoA
Type VPI and VCI, if
these values are not
correct, check with your
ISP for information.
Click WAN button and
select PPPoA setup
form WAN setting.
Type the Username
and Password used for
your account.
Click Apply button after
you have entered the
account information.
Click Tools when you
have applied the new
settings.
Click Save Config and
Apply to save changes.
11

MPoA
12
Click WAN button and
select MPoA setup form
WAN setting.
Type VPI and VCI, if
these values are not
correct, check with your
ISP for information.
Select the Encapsulation
format, this is provided
by your ISP.
Click Obtain an IP address
automatically via DHCP client or
Specify an IP address to enable
or disable the DHCP client
function. The setting of this item
is specified by your ISP.
Click Apply button after
you have entered the
account information.
Click Tools when you
have applied the new
settings.
Click Save Config and
Apply to save changes.

IPoA
13
Click WAN button and
select IPoA setup form
WAN setting.
Type VPI and VCI, if
these values are not
correct, check with your
ISP for information.
Select the IP Assigment
format, this is provided
by your ISP.
Click Obtain an IP address
automatically via DHCP client or
Specify an IP address to enable
or disable the DHCP client
function. The setting of this item
is specified by your ISP.
Click Apply button after
you have entered the
account information.
Click Tools when you
have applied the new
settings.
Click Save Config and
Apply to save changes.

Pure Bridge
Click WAN button and
select IPoA setup form
WAN setting.
Type VPI and VCI, if
these values are not
correct, check with your
ISP for information.
Select the Encapsulation
format, this is provided
by your ISP.
Click Apply button after
you have entered the
account information.
Click Tools when you
have applied the new
settings.
Click Save Config and
Apply to save changes.
14
