D-Link DWL-3150 User manual

Wireless G USB 2.0 Adapter
Wireless Internet Camera
with 3G Mobile Video

2D-Link DWL-3150 Install Guide
• CD-ROM Drive.
• Computers with Windows®, Macintosh®, or Linux-based operating
systems.
• Installed Ethernet Adapter Internet Explorer version 6.0 or Netscape
Navigator™version 7.0 and above.
Minimum System Requirements

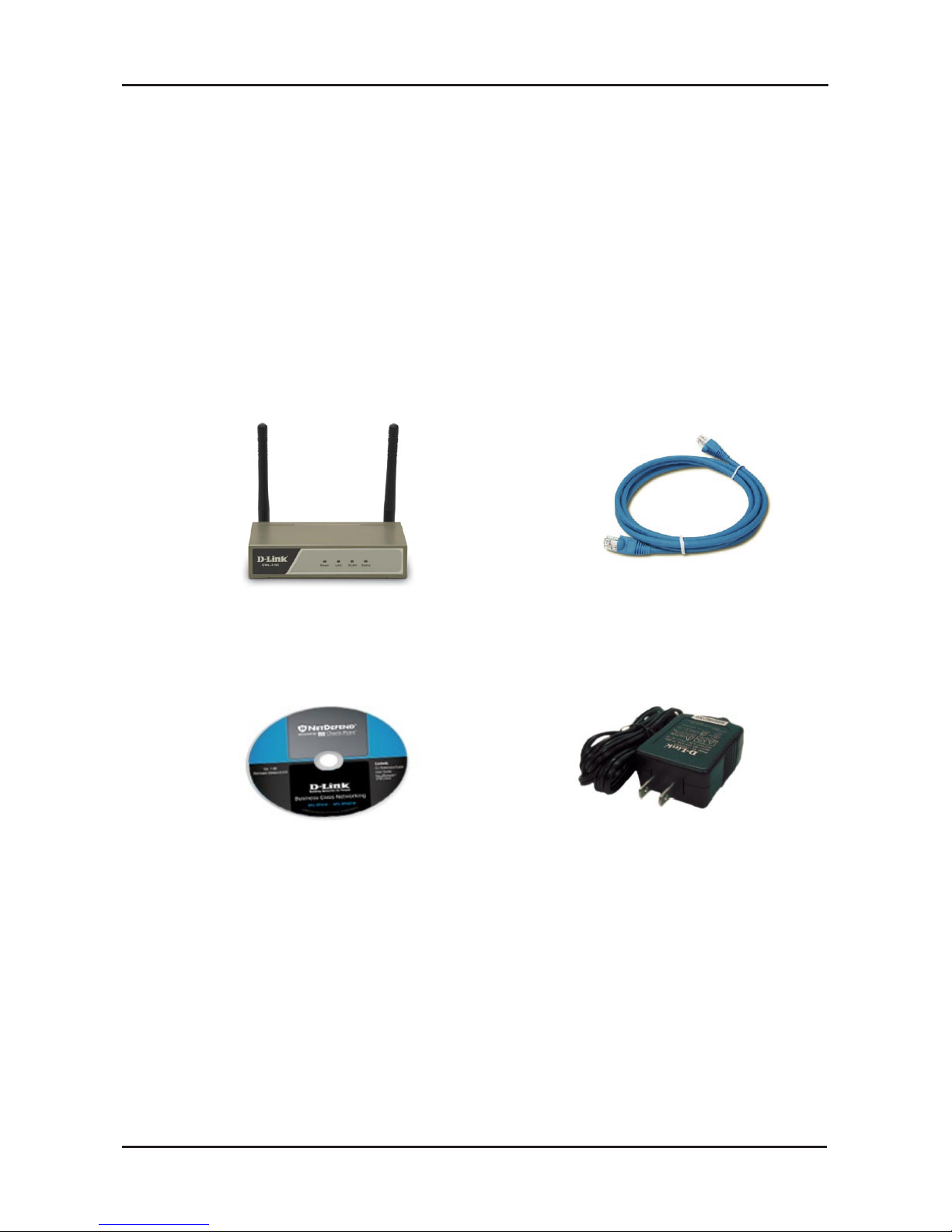

Package Contents
If any of the above items are missing, please contact your reseller.
Manual, Install Guide,
software, and warranty
on CD
CAT5 Ethernet Cable
D-Link DWL-3150
802.11g Wireless Bridge
5VDC 2A Power Adapter
Using a power adapter with a different
voltage rating will damage and void
the warranty of this product.

3 D-Link DWL-3150 Install Guide
Installation Considerations
D-Link wireless devices allow you access your network using a wireless connection
from virtually anywhere within the operating range of your wireless network. Keep
in mind, however, that the number, thickness and location of walls, ceilings, or
other objects that the wireless signals must pass through, may limit the range.
Typical ranges vary depending on the types of materials and background RF (radio
frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point
and other network devices to a minimum - each wall or ceiling can reduce
your adapter’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5
feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!
Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum
studs may have a negative effect on range. Try to position access points,
wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls
with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete
will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as
ceiling fans, lights, and home security systems), your wireless connection
may degrade dramatically or drop completely. Make sure your 2.4GHz
phone base is as far away from your wireless devices as possible. The
base transmits a signal even if the phone in not in use.

4D-Link DWL-3150 Install Guide
Connect Power SupplyConnect Ethernet Cable

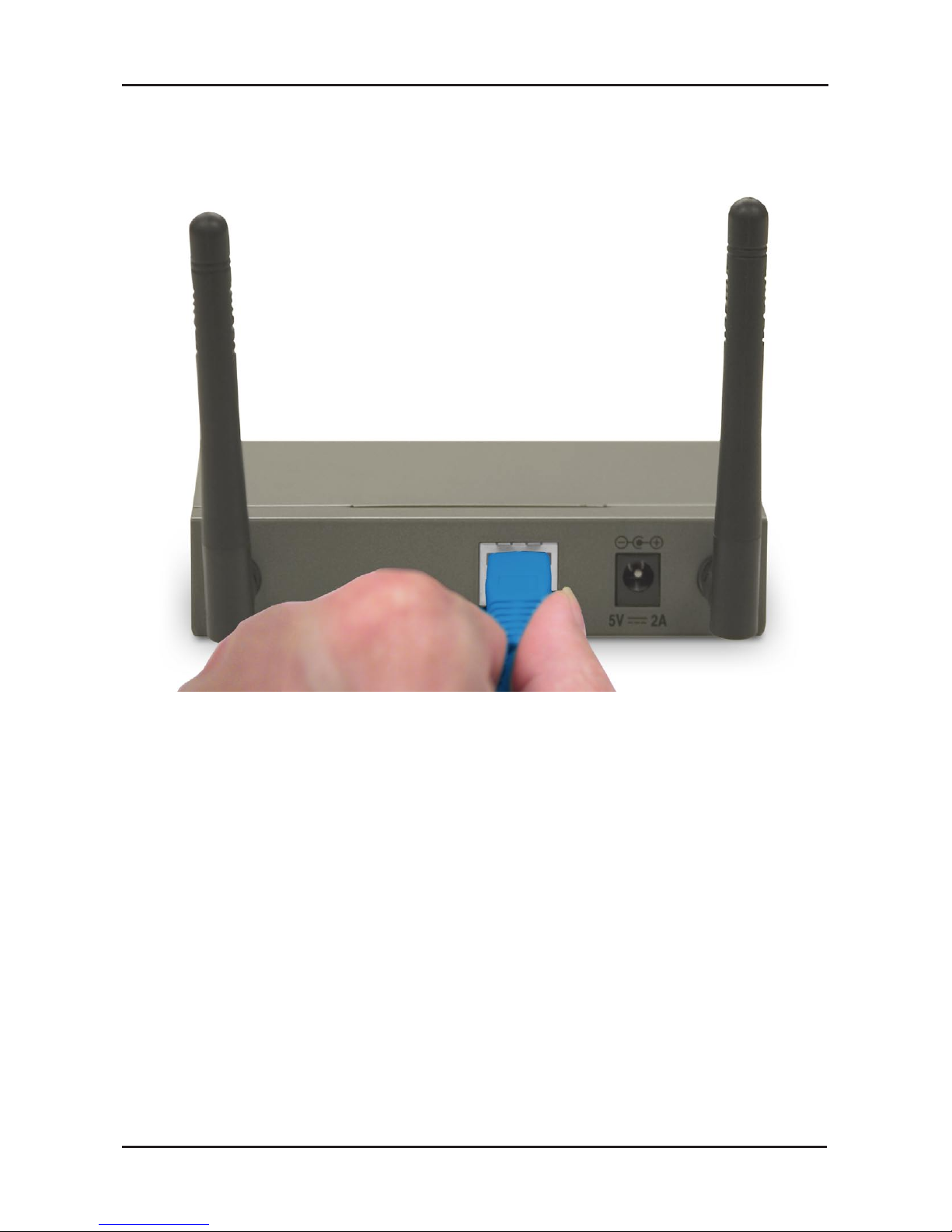

Insert the supplied Ethernet cable to the DWL-3150 and connect the
other end to your computer or network.

5 D-Link DWL-3150 Install Guide
Connect Power Supply

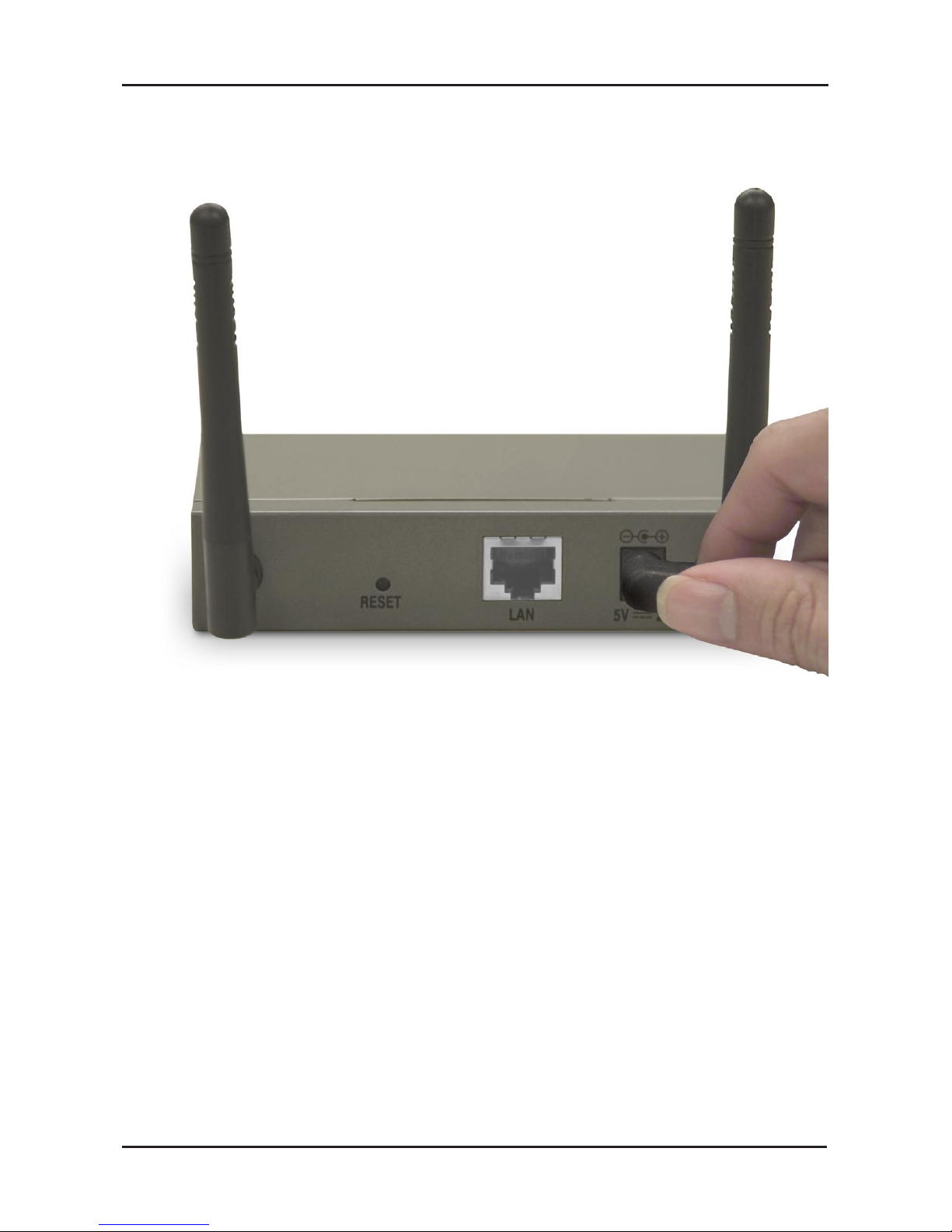

Insert the supplied power supply to the DWL-3150 and plug the other
end into an outlet or power strip. The unit will power on.

6D-Link DWL-3150 Install Guide
Connect a standard Ethernet cable from the DWL-3150 to an Ethernet
port on the computer that will be used to configure the DWL-3150.
You must assign your computer a static IP address within the same
range as the IP address of the DWL-3150. The DWL-3150’s default
IP address is 192.168.0.30 with a Subnet Mask of 255.255.255.0.
If your network is using another network (I.E. 192.168.1.xxx), then
configure only 1 computer using the steps below.
Step 1
Windows®XP - Click on Start > Control Panel > Network
Connections.
Windows®2000 - From the desktop, right-click My Network Places
> Properties.
Step 2
Right-click on the Local Area Connection which represents your
D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address of
192.168.0.10 and a subnet mask of 255.255.255.0. Do not enter a
gateway or DNS server address.
Step 5
Click OK twice to save your settings.
You will now be able to connect to the DWL-3150 to configure it. Once
configured, you may change your computer’s IP settings back.
Using the Setup Wizard

7 D-Link DWL-3150 Install Guide
Using the Setup Wizard

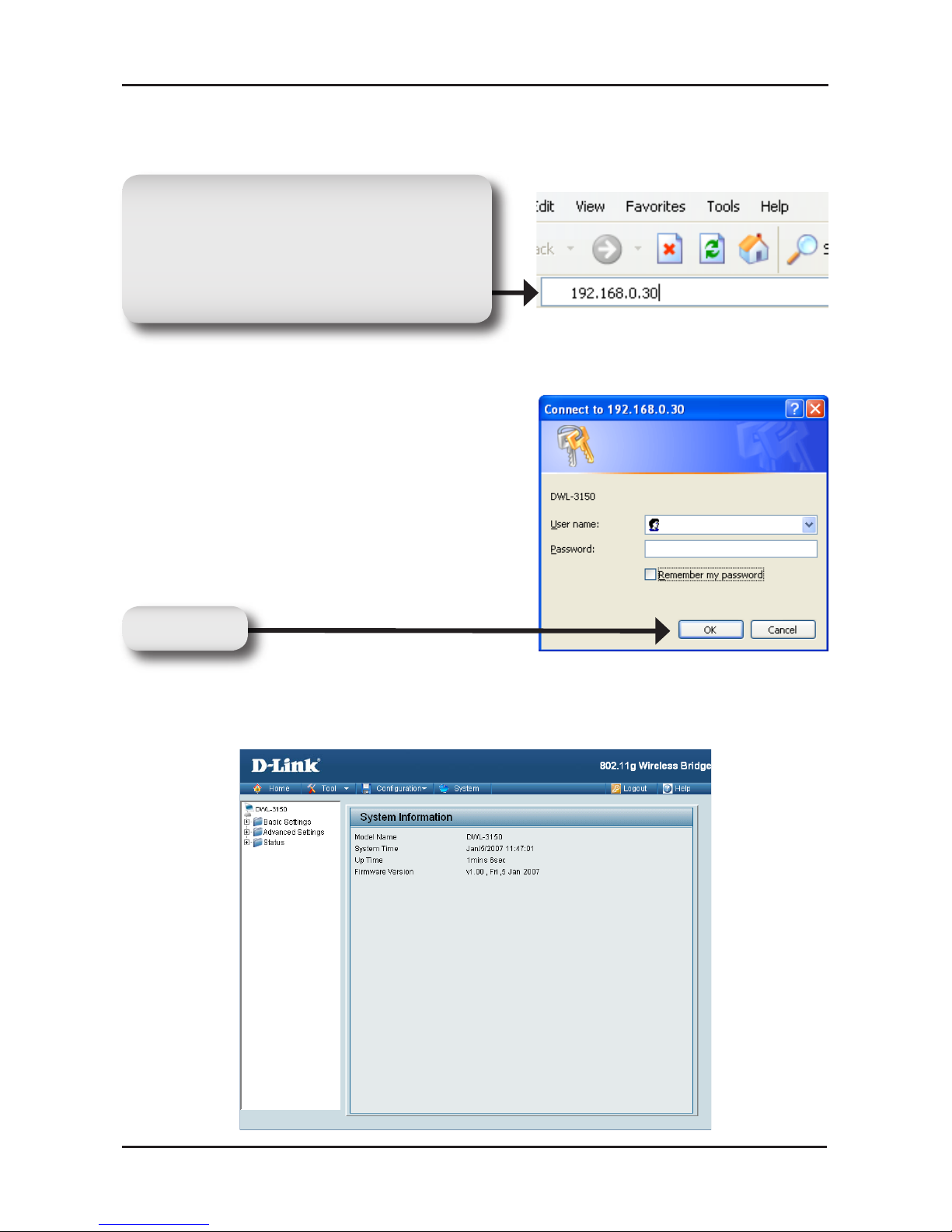

Open your Web browser
and type http://192.168.0.30 into
the URL address box.Then press
the Enter or Return key.
Click OK.
The logon pop-up screen will appear.
Type admin for the username and
leave the password field blank.
Once you have logged in, the main page will appear.

8D-Link DWL-3150 Install Guide
Technical Support
D-Link’s website contains the latest user documentation and
software updates for D-Link products.
U.S. and Canadian customers can contact D-Link Technical
Support through our website or by phone.
United States
Telephone
[phone]
World Wide Web
http://support.dlink.com
Canada
Telephone
[phone]
World Wide Web
http://support.dlink.com
Version 1.0
March 1, 2007
