FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP
Technical Support Setup Procedure
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as
Static IP
Release date : 5/01/2012
Model Support : DWR-112
H/W:A1
S/W:1.00

-2-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP
Technical Support Setup Procedure
Wi-Fi Static IP
 DWR-112 
1: DWR-112 WI-FI 

-3-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

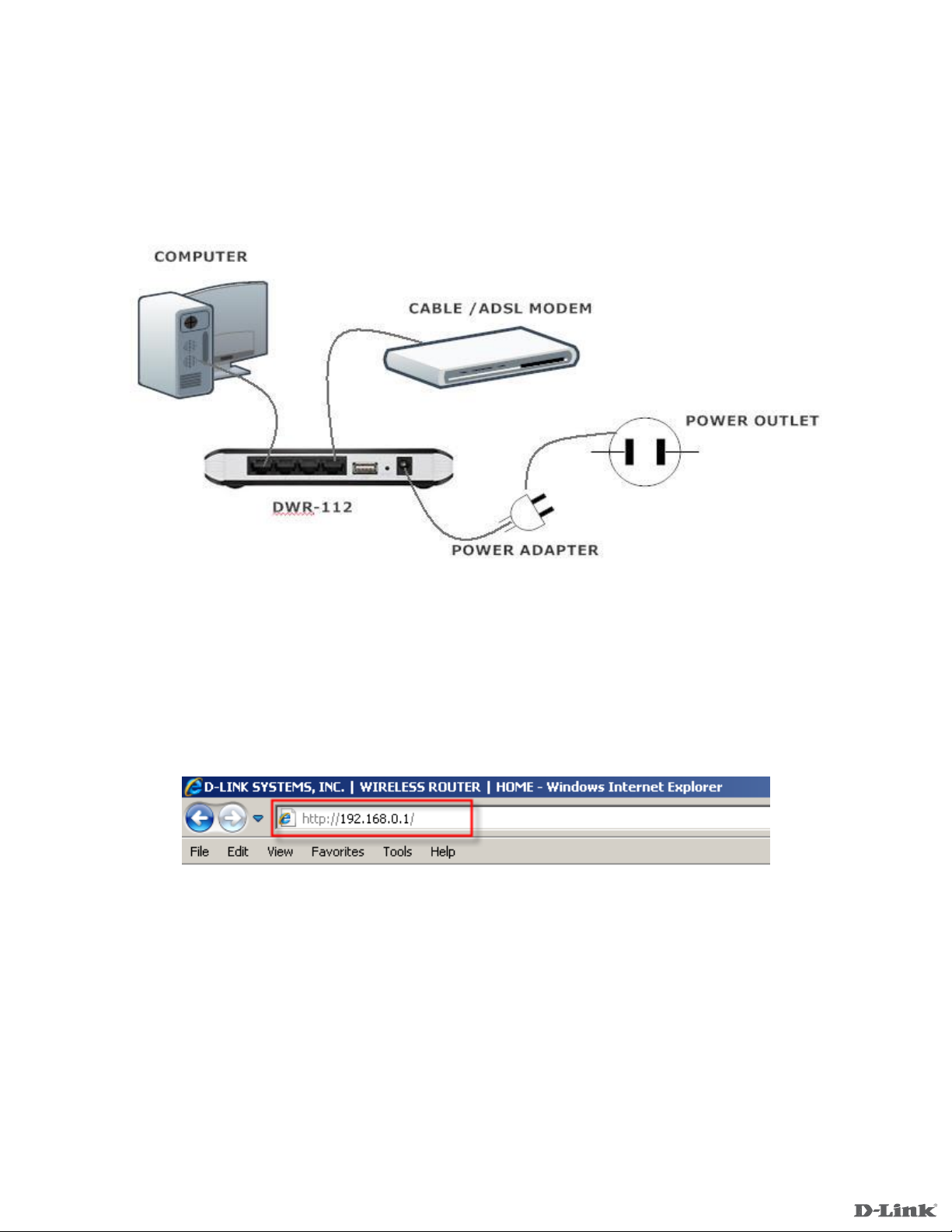

2: 2 , 3 4 DWR-112 Cable/ADS
1 DWR-112 
DWR-112 
3: Internet Explorer, Mozilla Firefox Safari
address http://192.168.0.1 
Enter 

-4-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

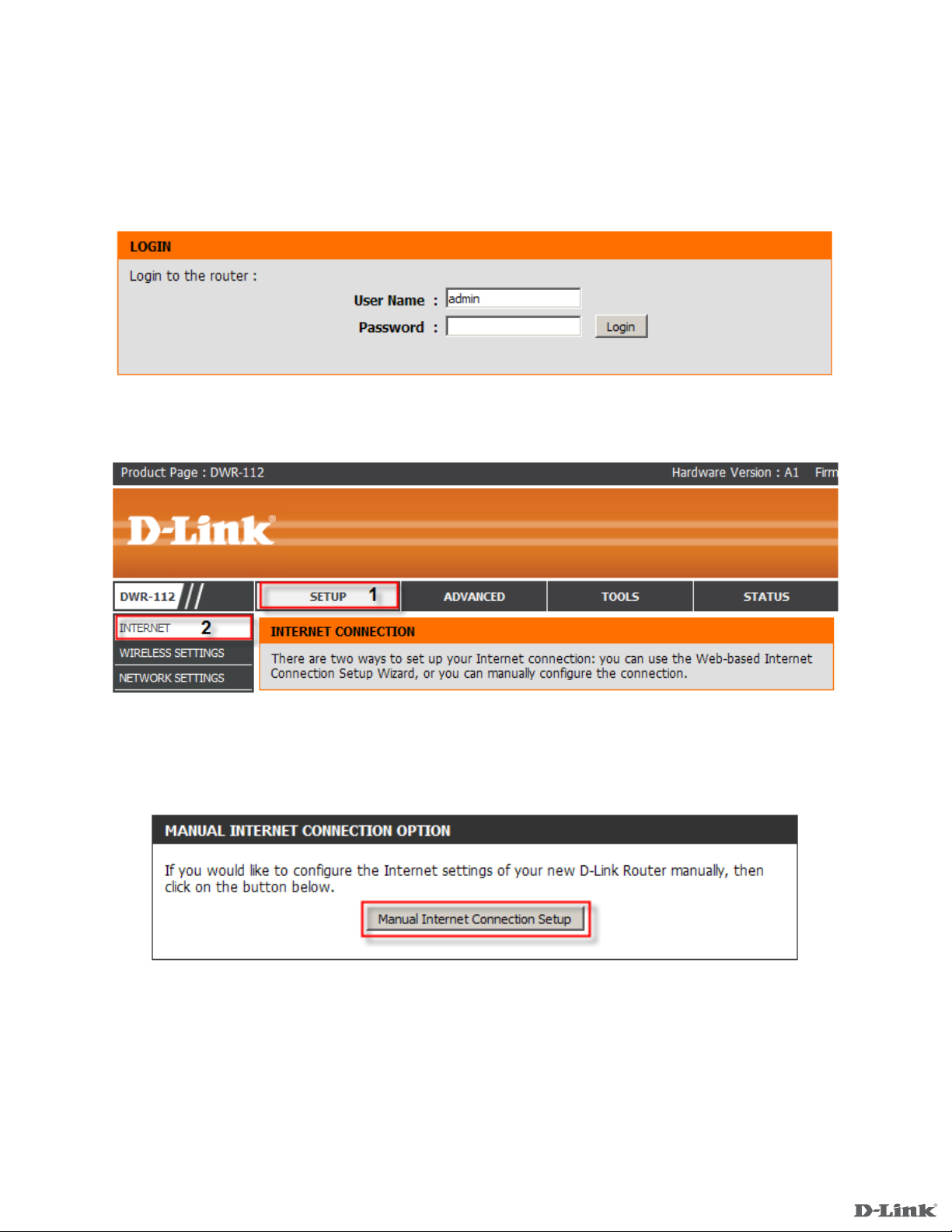

4:(username) 
“admin” “password” 
Login
5: SETUP  INTERNET 
6: MANUAL INTERNET CONNECTION OPTION 
MANUAL INTERNET CONNECTION SETUP

-5-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

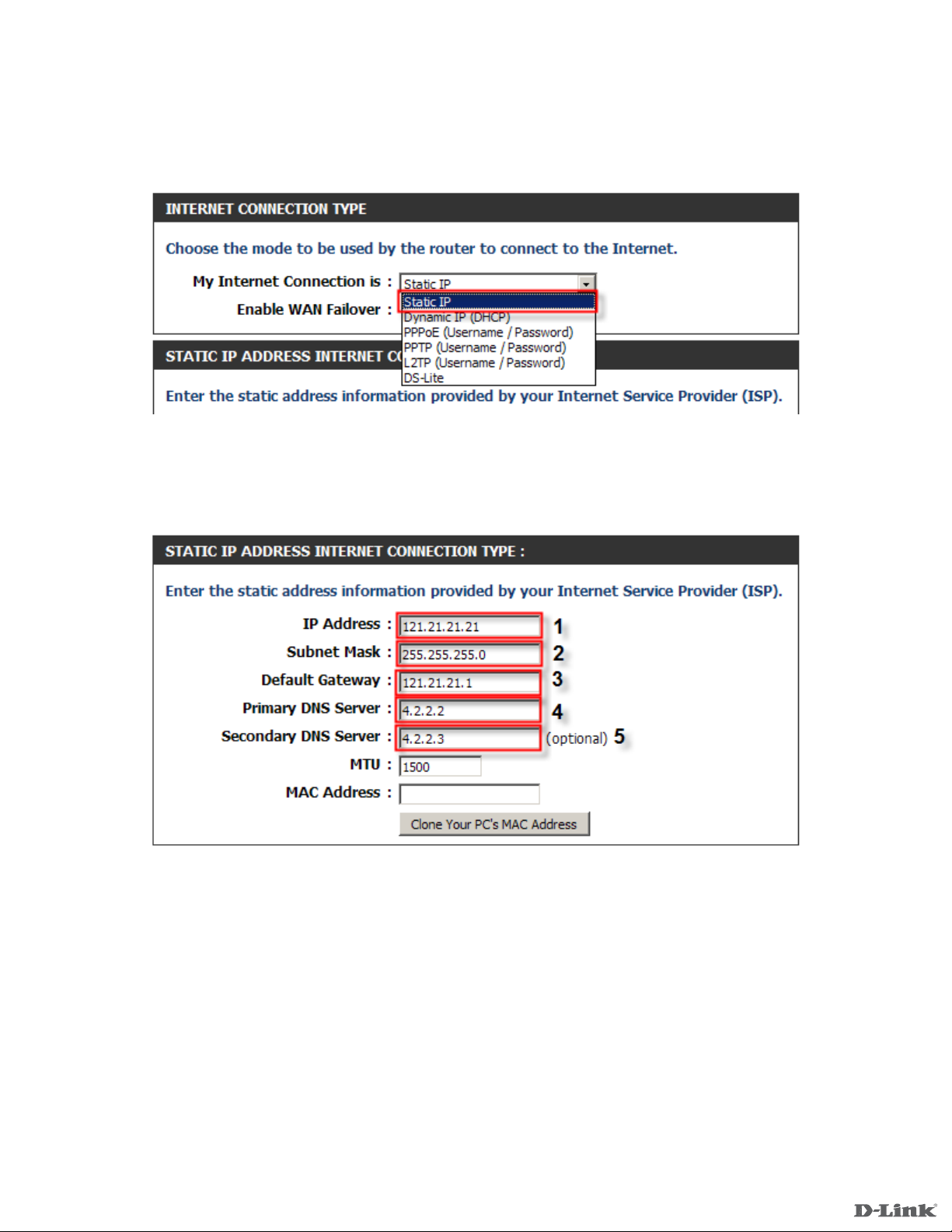

7: INTERNET CONNECTION TYPE My
Internet ConnectionStatic IP
8:  STATIC IP ADDRESS INTERNET CONNECTION Type


-6-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

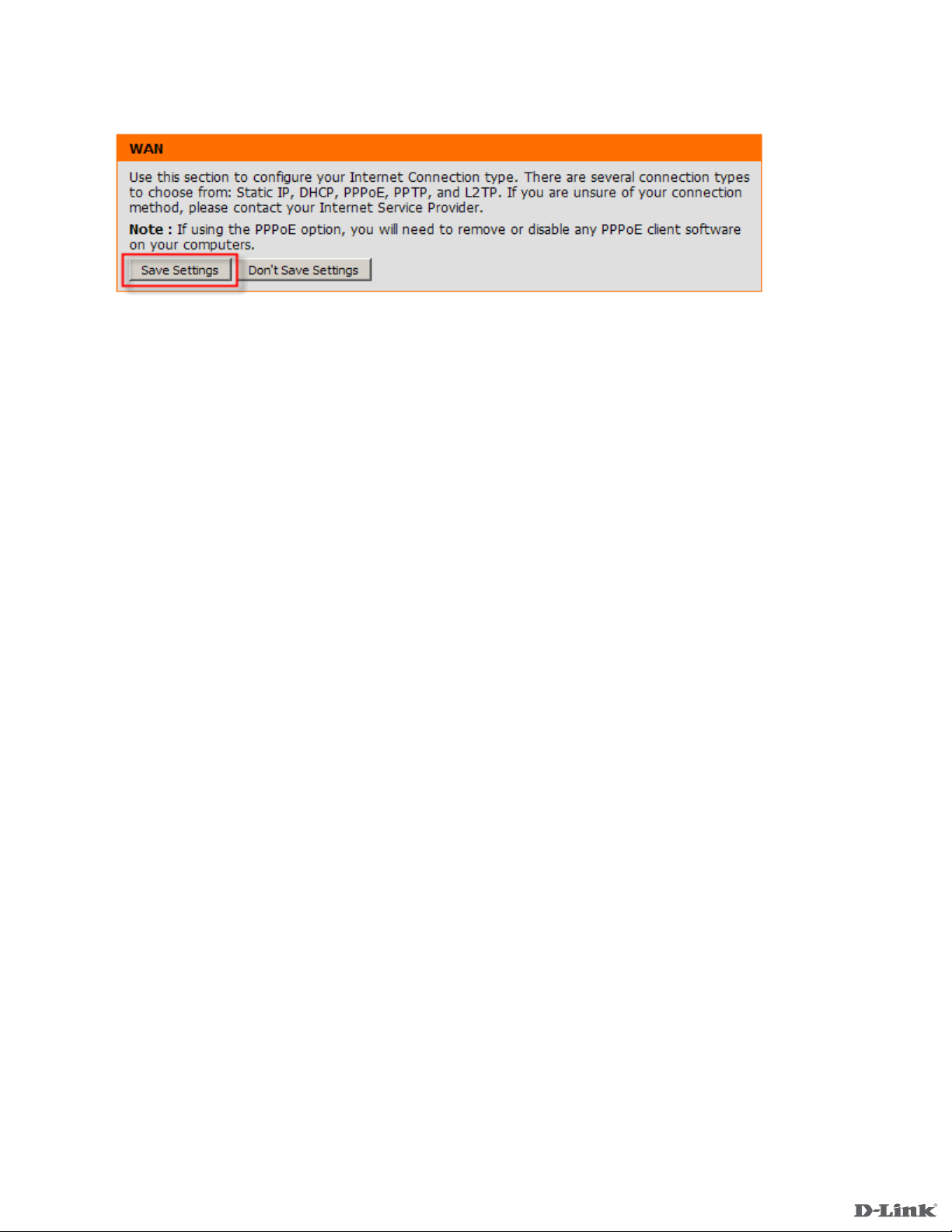

9: Save Settings

-7-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP
Technical Support Setup Procedure
How to Configure the Wi-Fi Mode on DWR-112 as Static IP

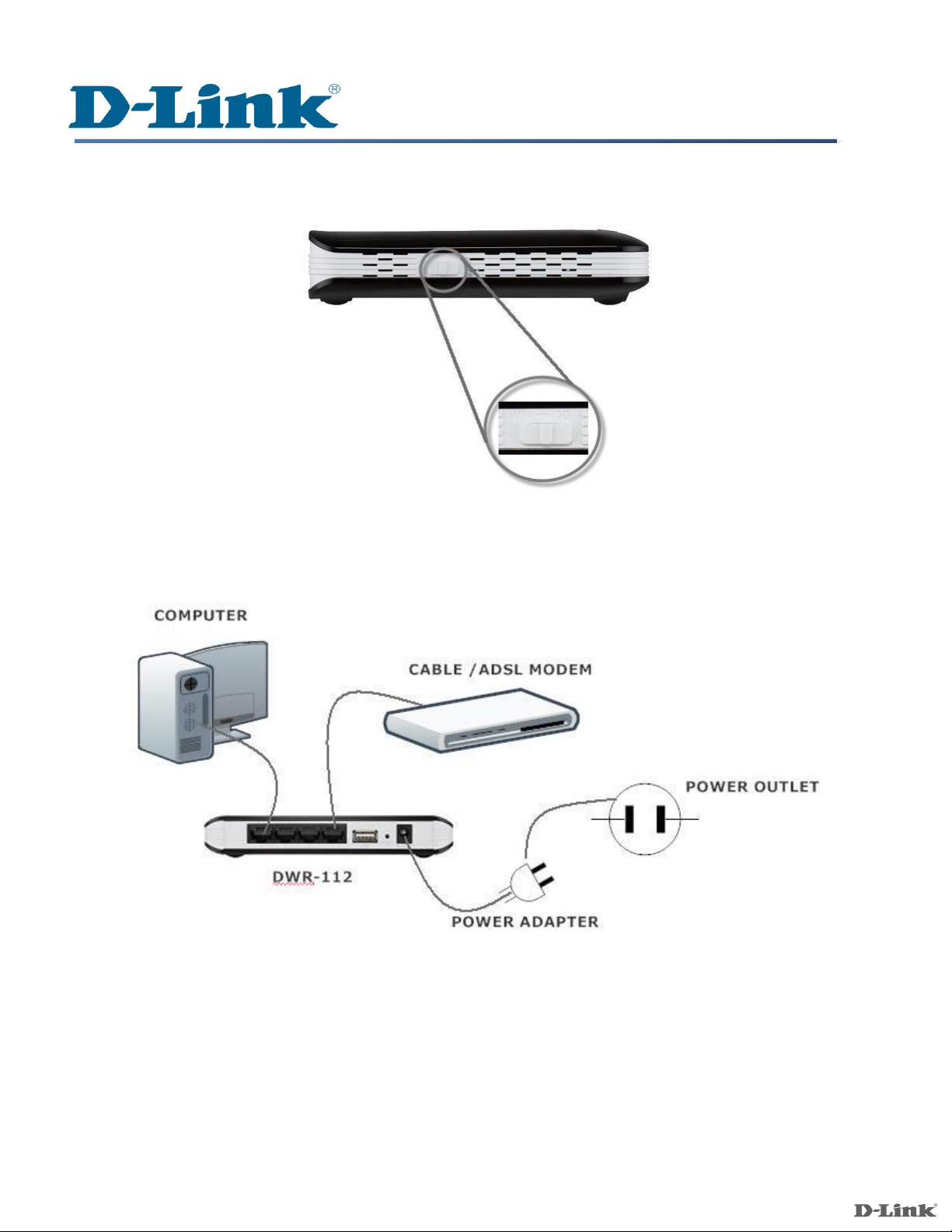

Step 1: Slide the toggle switch to Wi-Fi beside the DWR-112 router.
Step 2: Connect the computer to either port 2, 3 or 4 of the DWR-112, Connect the Cable/ADSL
modem to port 1 of the DWR-112. Plug-in the power adapter to the power receptacle of the DWR-
112 and to the power outlet.

-8-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

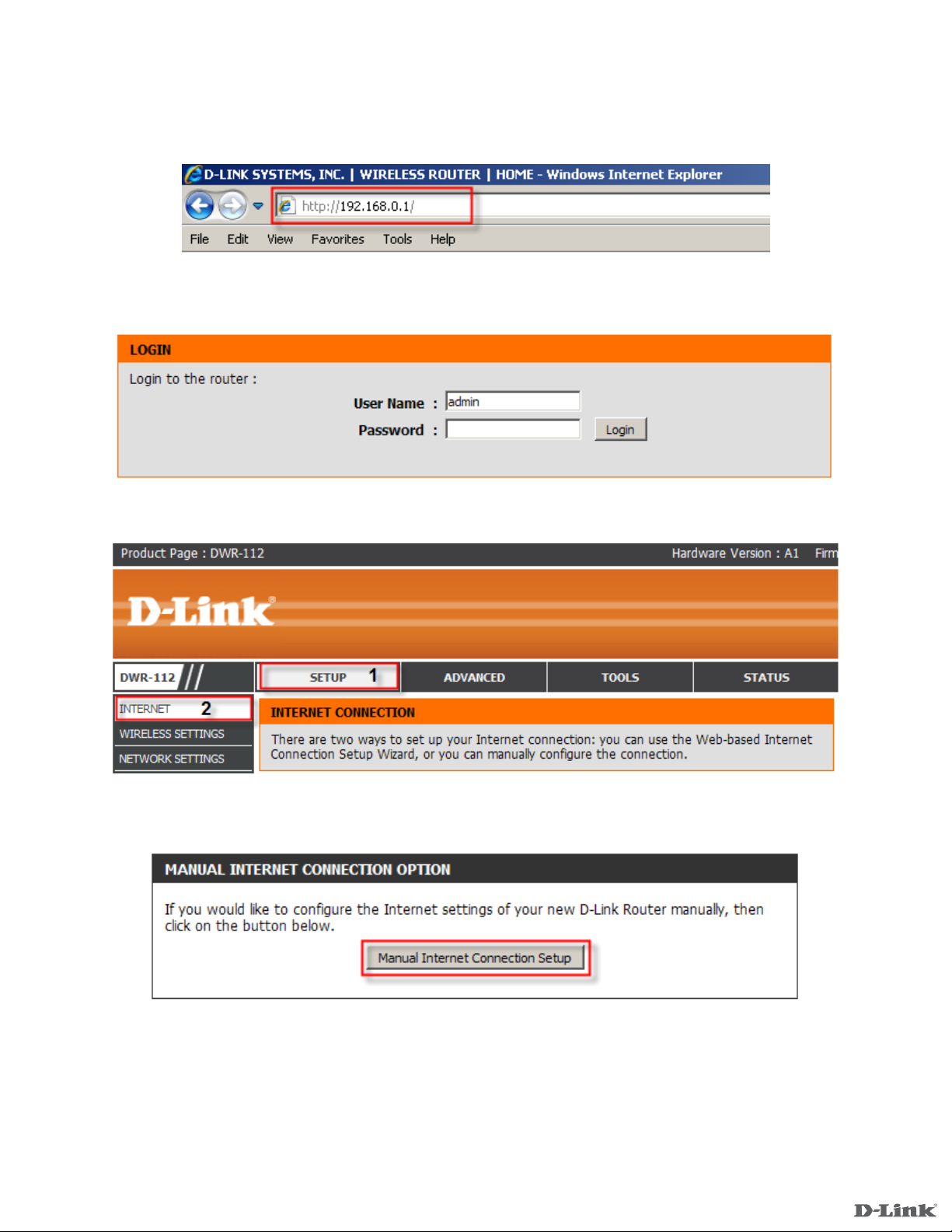

Step 3: Open a web browser such as Internet Explorer, Mozilla Firefox, Safari and etc. On the Address
bar type in the LAN IP Address of the DWR-112 which is 192.168.0.1 and then press on the Enter
key on your keyboard.
Step 4: A login screen will appear, type in the User Name as “admin” and leave the password field
blank and then click on the Login button.
Step 5: Click on the SETUP tab and then select on INTERNET button on the left hand side.
Step 6: Under the MANUAL INTERNET CONNECTION OPTION section, click on the button,
Manual Internet Connection Setup.

-9-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

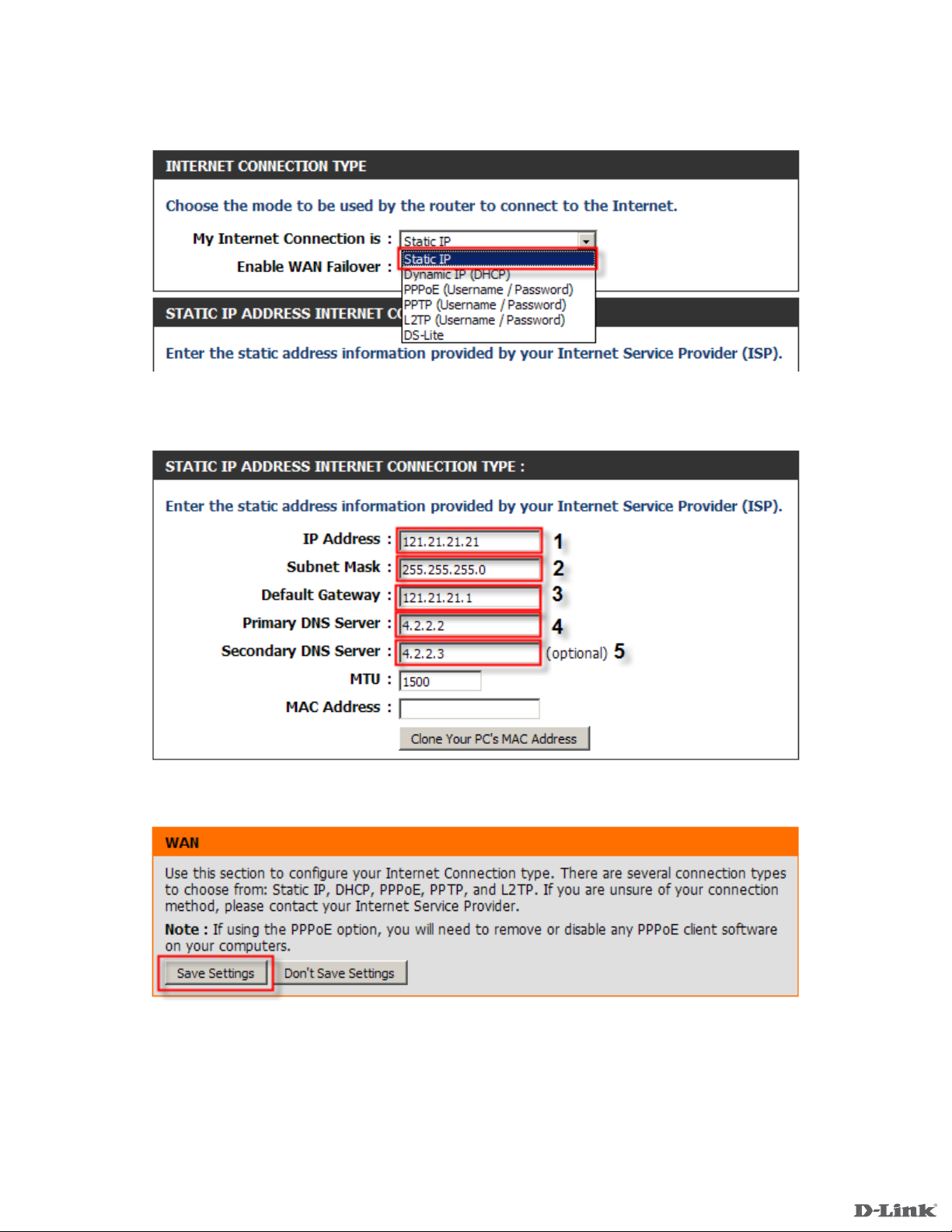

Step 7: Under the INTERNET CONNECTION TYPE section, On the drop down menu for My
Internet Connection is, select on Static IP.
Step 8: Under the SATIC IP ADDRESS INTERNET CONNECTION TYPE section, enter the sets of
IP Addresses provided by your Internet Service Provider (ISP).
Step 9: Click on the Save Settings button.

-10-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP
 
Call Center  02-6617997
: 9.00 –18.00 
Thai: Mon –Fri : Time 9.00 –18.00.
: 18.00 
English : Sat –Sun , Public Holiday and after 18.00 weekday.
Website : www.dlink.co.th
email: [e-mail]
Facebook : http://www.facebook.com/DLinkThailandFans

-11-
FAQ : How to Configure the Wi-Fi Mode on DWR-112 as Static IP

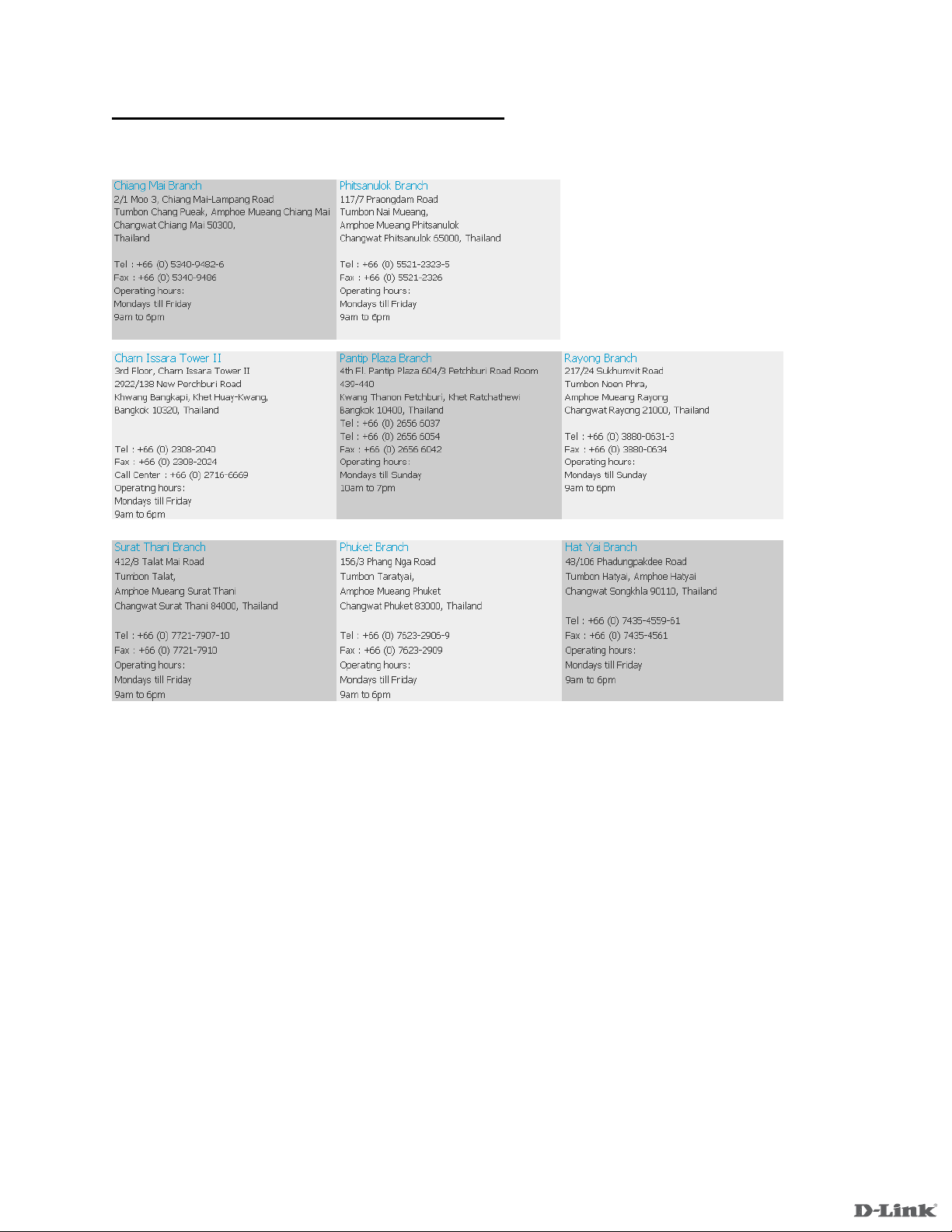

Nationwide D-Link Service Centres :
