Introduction
The Alpha Networks WMP-G04 Wireless Mini PCI Card is an enhanced 802.11g
high-performance, wireless adapter that supports high-speed wireless networking at home,
at work or in public places.
Unlike most network cards, the WMP-G04 provides speeds of up to 54 Mbps (compared
to the standard 11 Mbps) This means that you do not need to change your entire network
to maintain connectivity. You may sacrifice some of 802.11g’s speed when you mix
802.11b and 802.11g devices, but you will not lose the ability to communicate when you
incorporate the 802.11g standard into your 802.11b network. You may choose to slowly
change your network by replacing the 802.11b devices with 802.11g devices gradually.
In addition to offering faster data transfer speeds when used with other 802.11g products,
the WMP-G04 has the newest, strongest, most advanced security features available
today.
For home users that will not incorporate a radius server in their network, the security for
the WMP-G04, used in conjunction with other 802.11g products, will be much stronger
than ever before. No longer will you have to manually input a new WEP key frequently to
ensure security, with the WMP-G04, you will automatically receive a new key every
time you connect, vastly increasing the safety of your communications.

4
The WMP-G04is compatible with existing 802.11b devices such as the AirPlus,
AirPlusXtremeG and AirPremier family of products including the DWL-520, DWL-520+
and the DWL-AG530 Wireless PCI Adapter, the DI-624 Wireless Router/Access Point
and the DWL-120 Wireless USB Adapter. (When used with 802.11b devices,
the WMP-G04 will reach speeds at up to 11Mbps.)
It is an ideal way to connect one laptop computer to a Wireless Local Area Network
(WLAN.) After completing the steps outlined in the Quick Installation Guide
(included in the package) you will have the ability to share information and resources,
such as files and printers, and take full advantage of a “connected” environment for
work or play!
The WMP-G04 includes software drivers for the most popular Microsoft Windows
operating systems (Windows XP, Windows 2000, Windows Me, Windows 98(SE)) and
can be integrated into a larger network, running, in either
Peer-to-Peer
mode (without an
Access Point) or mode (with an Access Point.)
Please take a look at
our Getting Started section in this manual to see examples of typical network setups
using the WMP-G04 in both Access Point and Peer-to-Peer modes.
This manual provides a quick introduction to wireless technology and its application
as it relates to networking. Take a moment to read through this manual and get
acquainted with wireless technology.
Access Point

5
Alpha wireless products are based on industry standards to provide easy-to-
useandcompatiblehigh-speedwirelessconnectivitywithinyourhome,business
or public access wireless networks. Strictly adhering to the IEEE standard, the
Alpha wireless family of products will allow you to securely access the data
you want, when and where you want it. You will be able to enjoy the freedom
that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that
transmits and receives data with radio signals instead of wires. Wireless LANs
are used increasingly in both home and office environments, and public areas
suchasairports,coffeeshopsanduniversities.InnovativewaystoutilizeWLAN
technology are helping people to work and communicate more efficiently.
Increased mobility and the absence of cabling and other fixed infrastructure
have proven to be beneficial for many users.
Wireless Basics
Wireless users can use the same applications they use on a wired network.
Wirelessadaptercardsusedonlaptopanddesktopsystemssupportthesame
protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to
linktoaconventionalEthernetLANinordertouseservers,printersoranInternet
connection supplied through the wired LAN. A Wireless Router is a device
used to provide this link.

6
Wireless Basics (continued)
People use wireless LAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any
locationwithintheoperatingrangeoftheWLAN. Managementdecisionsbased
on real-time information can significantly improve worker efficiency.
Low Implementation Costs–WLANs(WirelessLocalAreaNetworks)are
easytosetup,manage,changeandrelocate.Networksthatfrequentlychange,
both physically and logically, can benefit from WLANs ease of implementation.
WLANscanoperateinlocationswhereinstallationofwiringmaybeimpractical.
Installation Speed and Simplicity - Installing a wireless LAN system can
be fast and easy and can eliminate the need to pull cable through walls and
ceilings.
Network Expansion - Wireless technology allows the network to go
where wires cannot.
Scalability – Wireless Local Area Networks (WLANs) can be configured in a
variety of topologies to meet the needs of specific applications or existing
infrastructures. Configurations are easily changed and range from peer-to-
peer networks suitable for a small number of users to larger infrastructure
networks to accommodate hundreds or thousands of users, depending on the
number of wireless devices deployed.

7
Standards-Based Technology
The WMPL-G04 Wireless Mini PCI Card increases the data rate up to 54
Mbps within the 2.4GHz band, utilizing OFDM technology.
Thismeansthatinmostenvironments,withinthespecifiedrangeofthisdevice,
you will be able to transfer large files quickly or even watch a movie in MPEG
format over your network without noticeable delays. This technology works by
transmittinghigh-speeddigitaldataoveraradiowaveutilizingOFDM (Orthogonal
Frequency DivisionMultiplexing) technology.OFDM worksbysplittingtheradio
signalintomultiplesmallersub-signalsthatarethentransmittedsimultaneously
atdifferentfrequenciestothereceiver. OFDM reduces the amount ofcrosstalk
(interference)insignaltransmissions.TheD-LinkWMP-G01willautomatically
sense the best possible connection speed to ensure the greatest speed and
range possible.
The WMP-G04 is backwards compatible with 802.11b devices. This means
that if you have an existing 802.11b network, the devices in that network will be
compatible with 802.11g devices at speeds up to 11Mbps in the 2.4GHz range.
Also based on the IEEE 802.11b standard,the WMP-G04 isinteroperable with
existing compatible 2.4GHz wireless technology with data transfer speeds of
up to 11Mbps.
Wireless Basics (continued)

8
Wireless Basics (continued)
Installation Considerations
The D-Link WMP-G04 lets you access your network, using a wireless
connection, from virtually anywhere. Keep in mind, however, that the number
, thickness and location of walls, ceilings, or other objects that the wireless
signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency)
noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the WMP-G04 and other
network devices to a minimum - each wall or ceiling can reduce your
Alpha Wireless product’s range from 3-90 feet (1-30 meters.)
Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is
1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3
feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Try to make sure that devices are positioned so that the signal will
travel straight through a wall or ceiling for better reception.
3. Building Materials make a difference - a solid metal door or aluminum
studs may have a negative effect on range. Try to position wireless
devices and computers with wireless adapters so that the signal passes
through drywall or open doorways and not other materials.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that generate RF noise.

9
Getting Started
Access Point – using an Access Point, such as the
DWL-900AP.
Peer-to-Peer – directly connecting to another computer, for
peer-to-peer communication, using wireless network adapters
on each computer, such as two or more WMP-G04 wireless
network Mini PCI card.

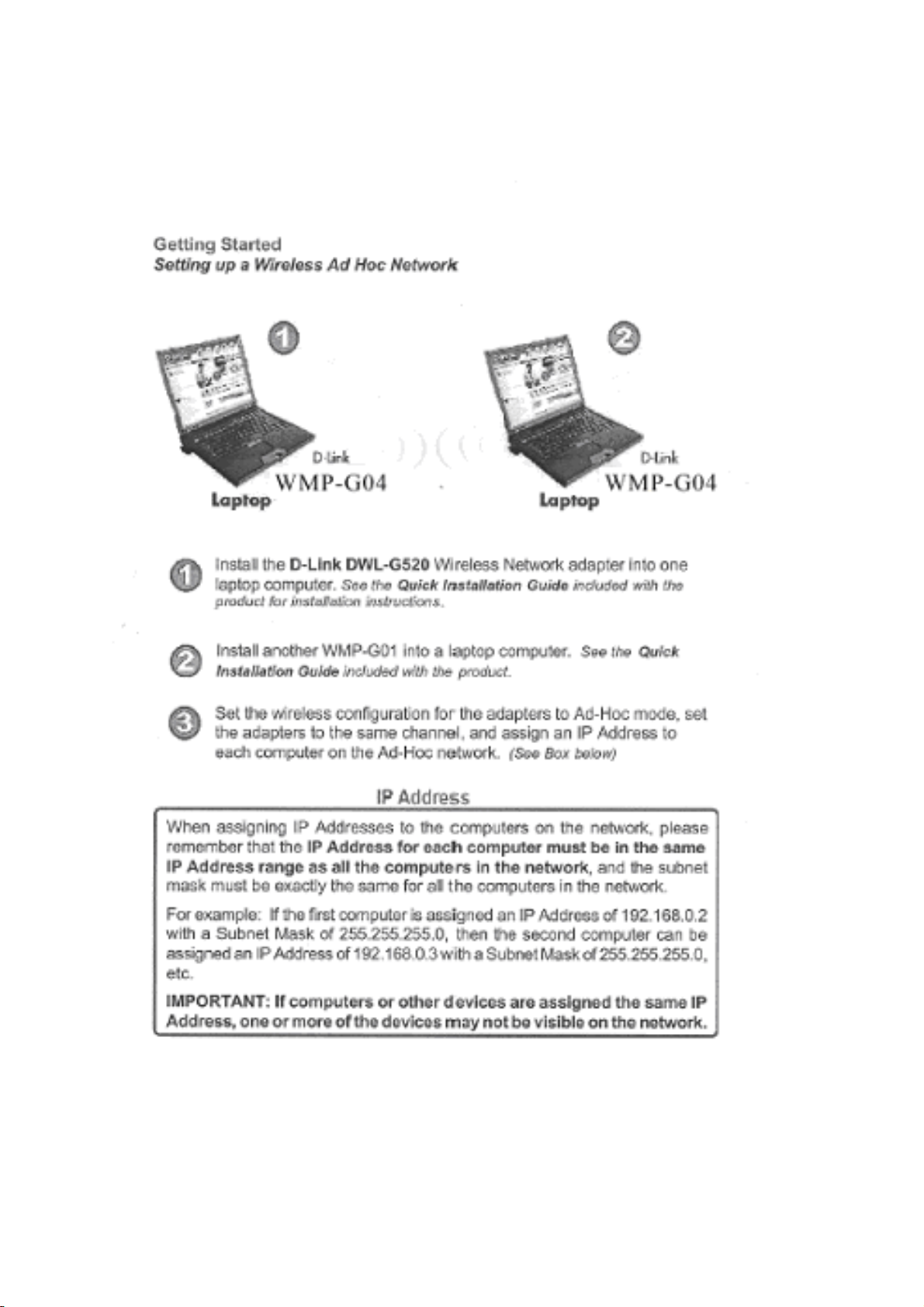

On the following pages we will show you an example of an Infrastructure
Network and an Ad HocNetwork.

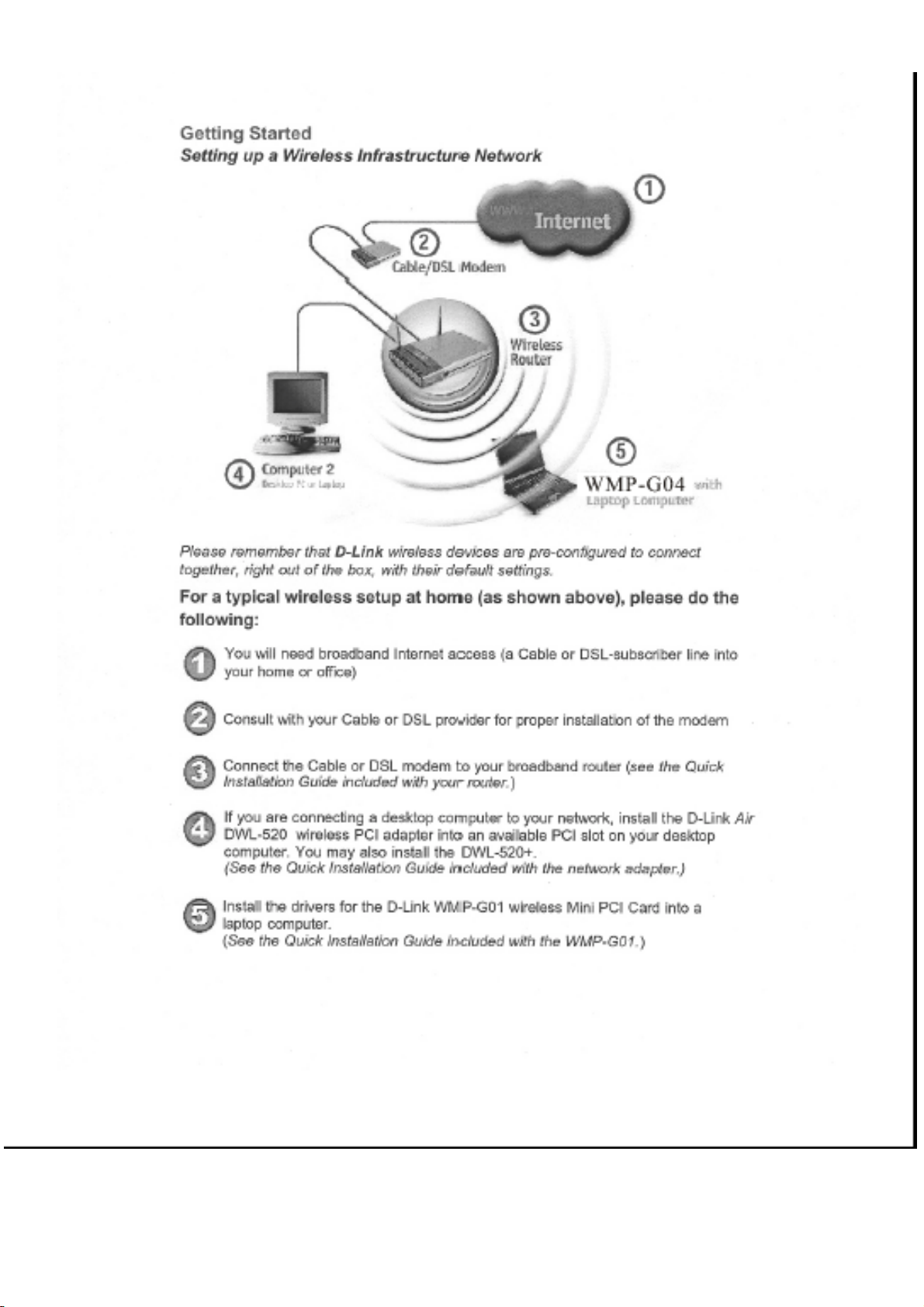

An Infrastructure network contains an Access Point or Router. To utilize the
full features of the WMP-G04 you will need to include a radius server in your
network. The Infrastructure Network example shown on the following page
contains the following D-Link network devices (your existing network may be
comprised of other devices):
A wireless Access Point - D-Link AirPlus 900AP
A laptop computer with a wireless adapter -
D-Link AirPlusXtremeGDWL-G650
A desktop computer with a wireless adapter -
D-Link AirPlus DWL-520
(802.11b devices have speeds up to 11Mbps)
A Cable modem - D-Link DCM-200
There are basically two modes of networking:
n
n
n
n
n
n

10

11

12
Using the Configuration Utility
Before you use the configuration utility for the WMP-G04, you must install the
drivers and the configuration utility fromtheCD-ROMthat came withthe WMP-
G04. (Please see the Quick Installation Guide that came with the product.)
After you have completed this installation and restarted your computer, you can
accesstheConfigurationUtilityatanytimebyclickingontheiconinyourtaskbar
at the bottom right corner, on the desktop.
If you wish to change the default settings or optimize the performance of the
WMP-G04, D-Link has included a configuration utility for this purpose. How-
ever, in Windows XP, you will instead use zero configuration utility.
After double-clicking on the icon in the taskbar (shown at right),
the Link Info window shown on the next page will appear:

13

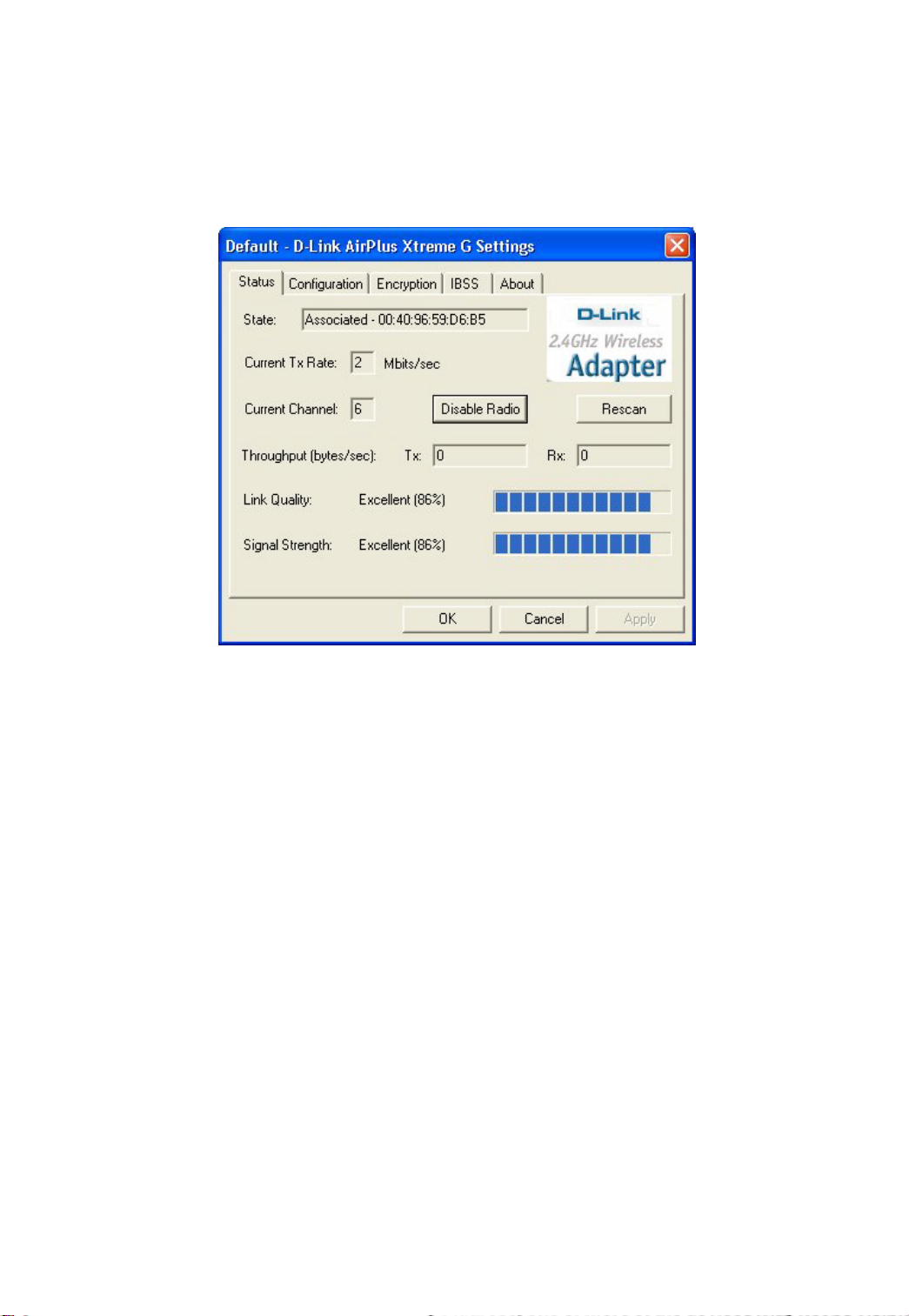

State:Displays the MAC Address of the Access Point that is associated with
the WMP-G04.
CurrentTxRate:
TxRate: The
Current Channel: Displays the channel information. Shows the channel
on which the connection is made . In Access Point mode, this number
changes as the radio scans the available channels.
Throughput: Displays the statistics of data transmitted and received.
Link Quality / Signal Strength: Displays the Link Quality for the WMP-G04
wireless connection to the access point. The Signal Strength represents the
wireless signal between the access point and the WMP-G04. The
percentage coincides with the graphical bar.
Configuration Utility
Link Info
default setting is 2. meaning displays the current transmit
The factory setting is set to 11 Mbps; however,Current
rate of the current association.

14
To communicate on the network all devices must have the
same settings for the following properties:
Profiles Name
You can manage the profiles that you have
at home, at the office and in public places.
the profile that you wish to configure. You can add a profile.
Network Name – Network Name is a name that identifies a wireless network.
Access Points and wireless clients attempting to connect to a specific WLAN
(Wireless Local Area Network) must use the same Network Name. The default
setting is Clefault.
Network Type – Click on the pull-down menu; select from the following options:
Access Point - connecting the WLAN using an Access Point. (The default
setting.)
Peer-to-Peer – wireless mode used when connecting directly to a computer
equipped with a wireless adapter in a peer-to-peer environment.
Configuration Utility
Configuration
This configuration
screen displays the
default settings for
the WMP-G04
created for the wireless network
Scroll up and down and highlight

15
Configuration Utility
Encryption

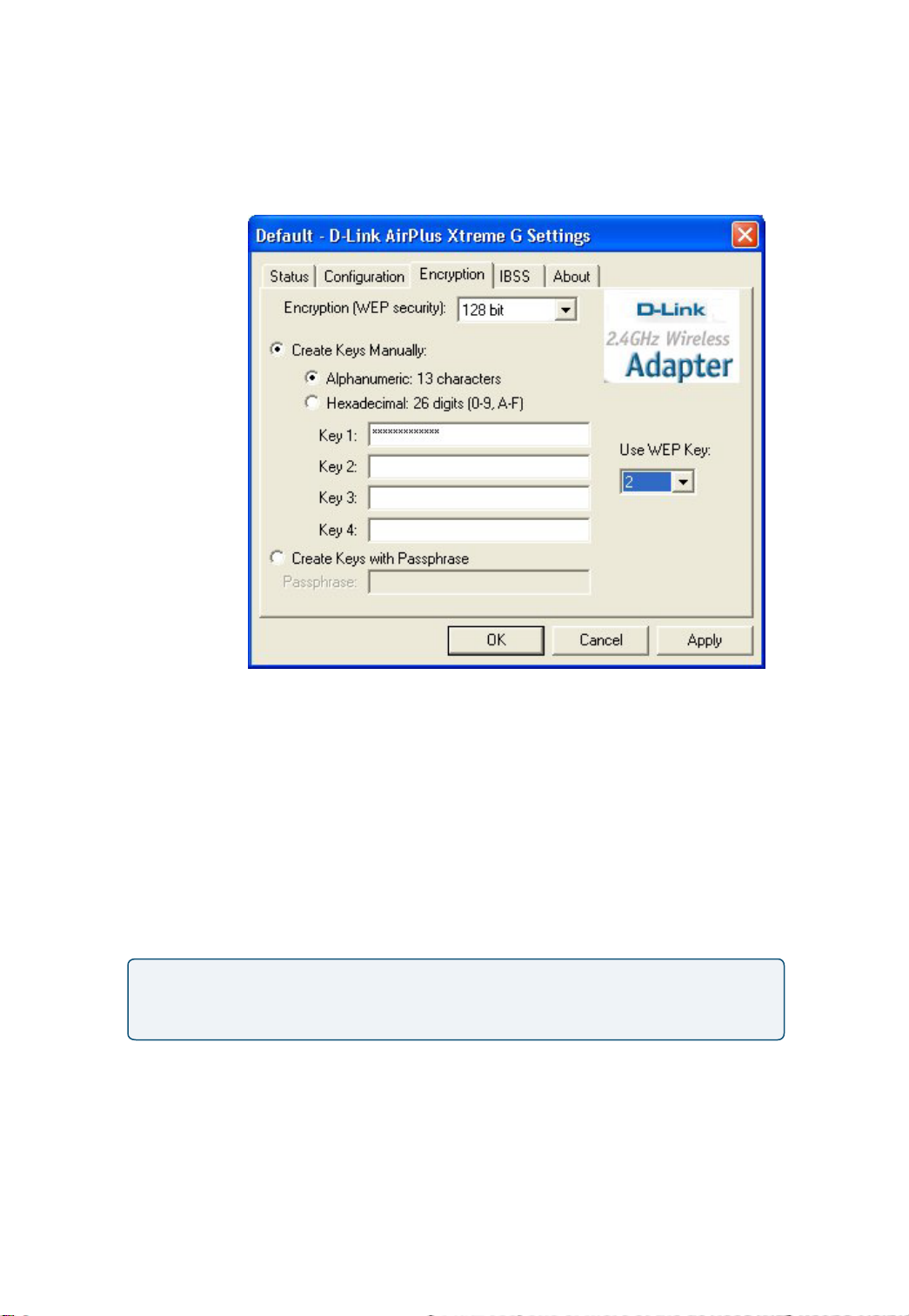

Encryption – enable Encryption by pulling down the field . Encryption is
disabled as the default setting.
Create Keys Manually – enter a key in either ASCII (e.g., a word) or
hexadecimal format
Key Format – ASCII or Hexadecimal
Key type – select the key length, either 64, or 128 bits, or 256 bits
WEP Key – You can create up to 4 different security keys
Click Apply to save the changes.
Hexadecimal digits consist of the numbers 0-9 and the letters A-F
ASCII (American Standard Code for Information Interchange) is a code for
representing English letters as numbers from 0-127

16

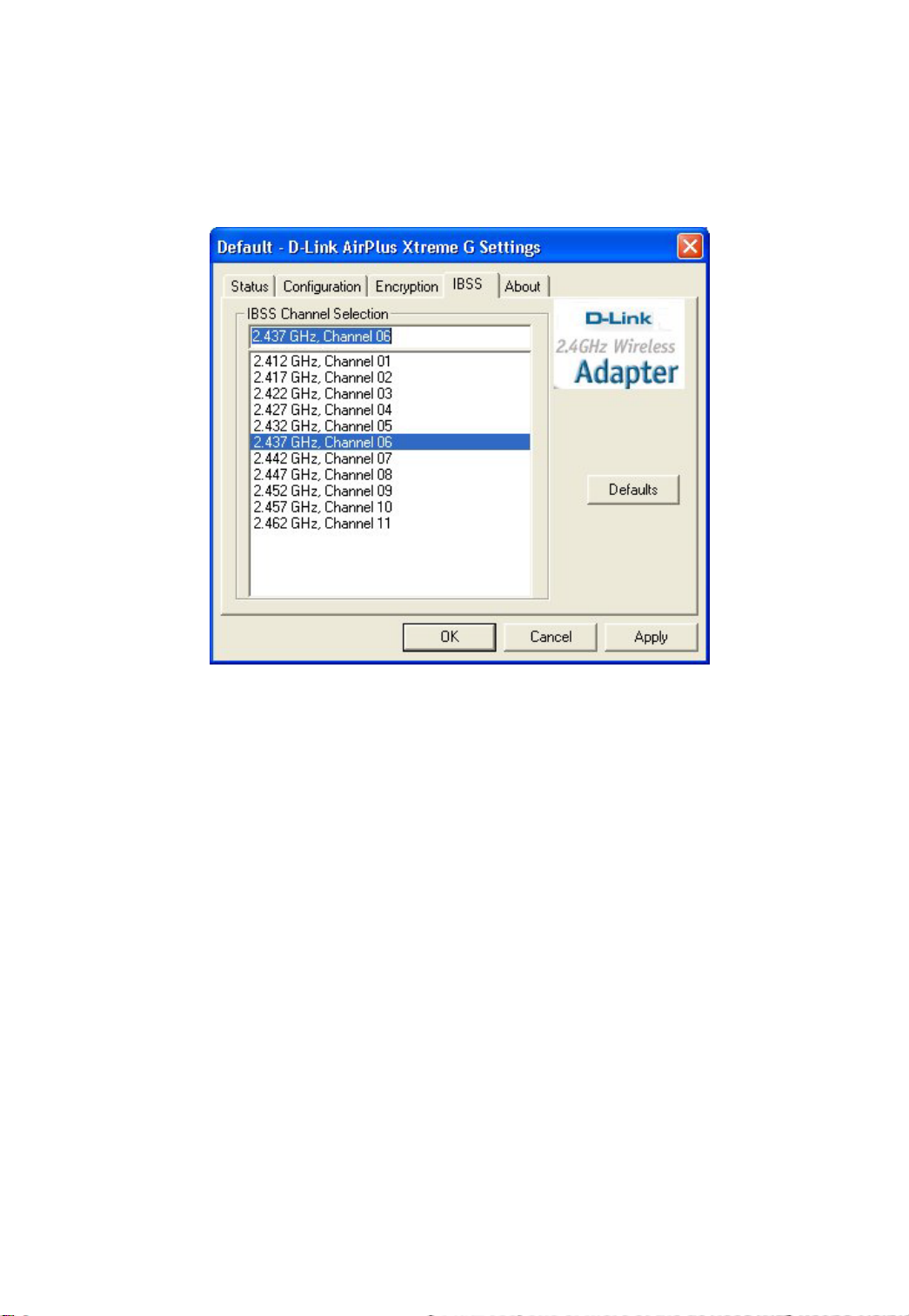

IBSS Channel Selection However, the
channel to match the channel setting for the
mode, the channel must be manually set to the same channel for each wireless
Configuration Utility
IBSS
WMP-G04will automatically select the
selected Access Point. In Ad Hoc
adapter.

17

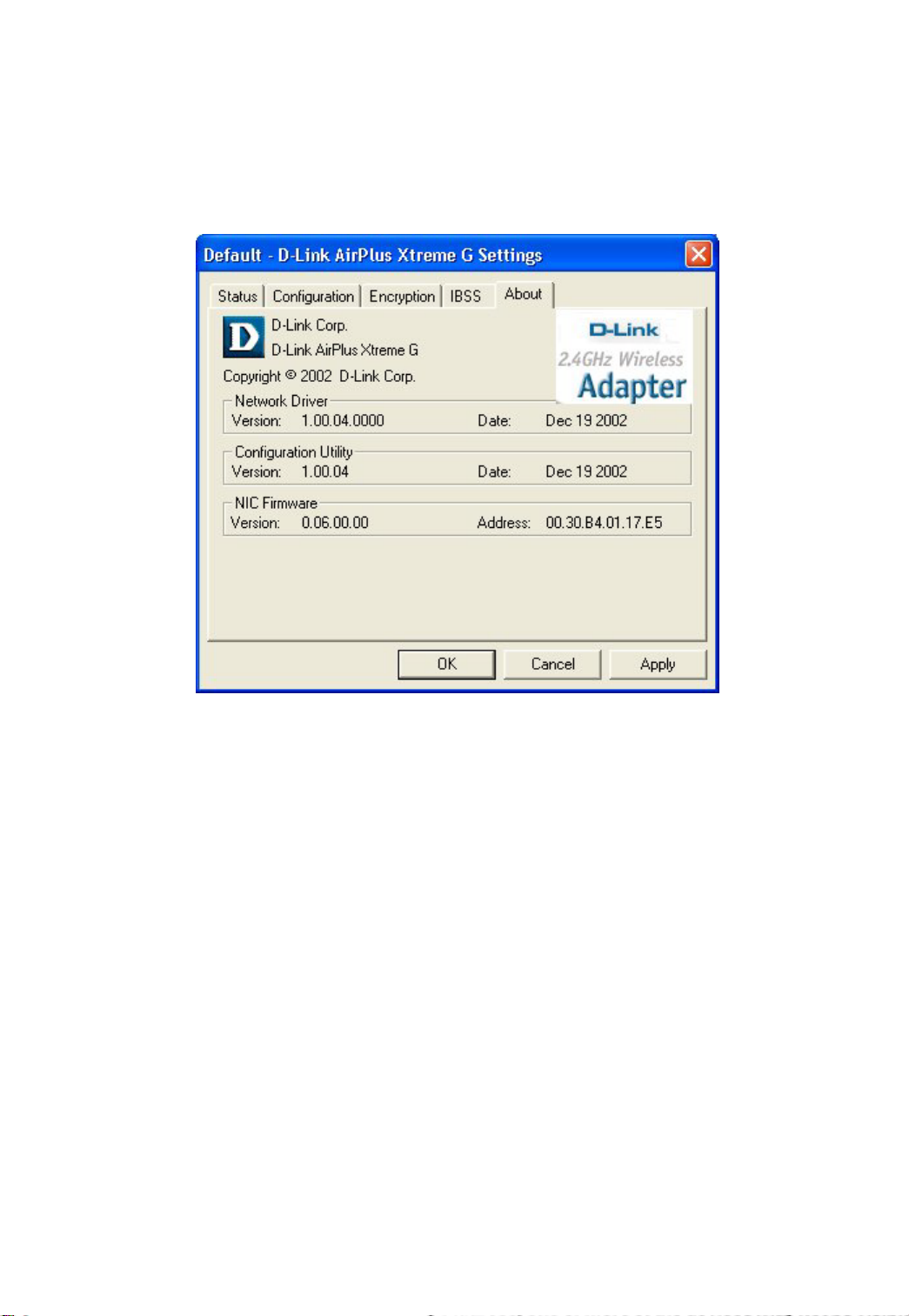

The ABOUT screen gives you information about the Firmware and Utility
Versions of the WMP-G04.
Configuration Utility
About

18
Using the Network Setup Wizard in Windows XP
In this section you will learn how to establish a network at home or work,
using Microsoft Windows XP.
Note: Please refer to websites such as http://www.homenethelp.com
and http://www.microsoft.com/windows2000 for information about networking
computers using Windows 2000, ME or 98SE.

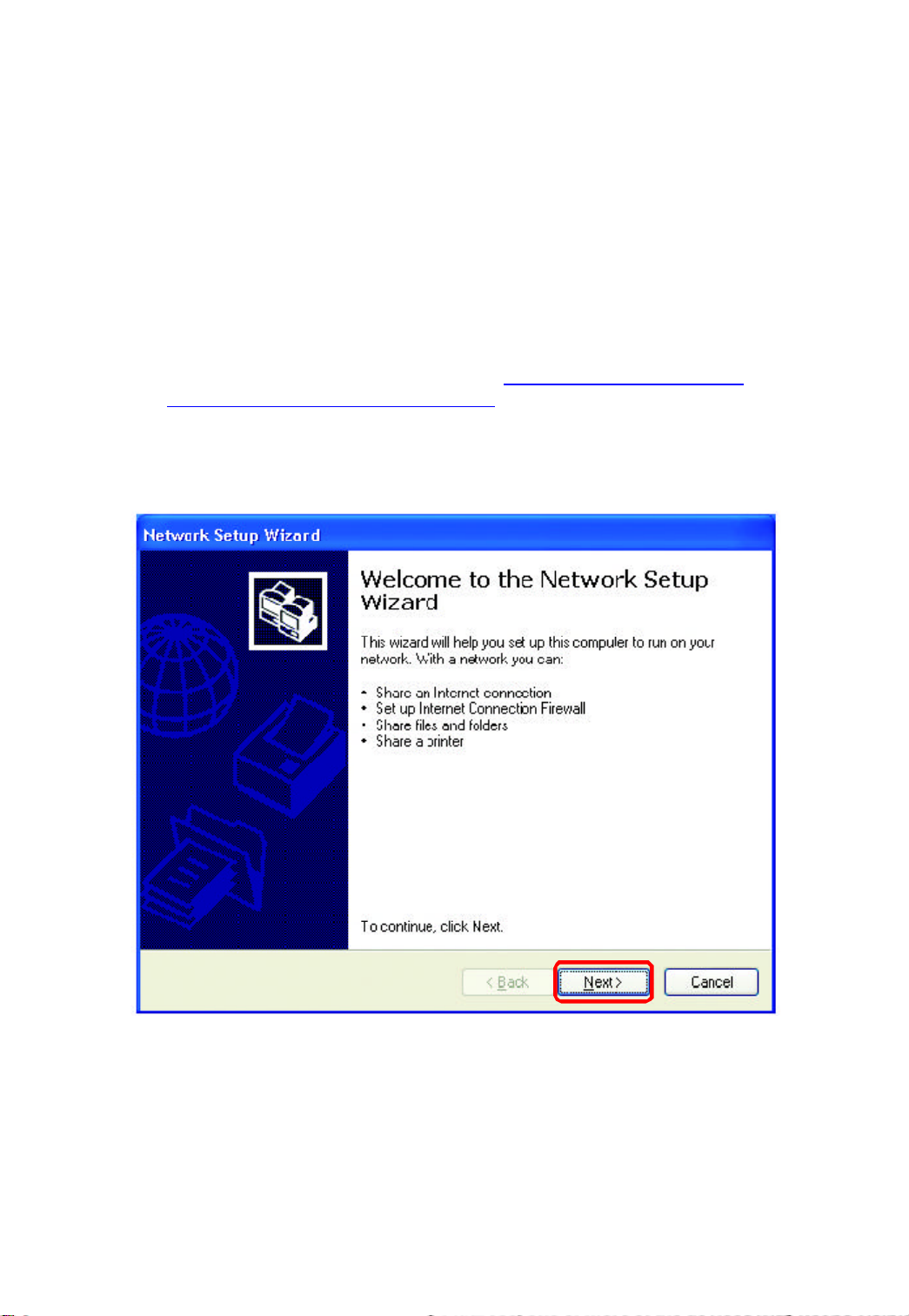

Go to Start>Control Panel>Network Connections
Select Set up a home or small office network
Networking Basics
When this screen appears, clickNext.

19

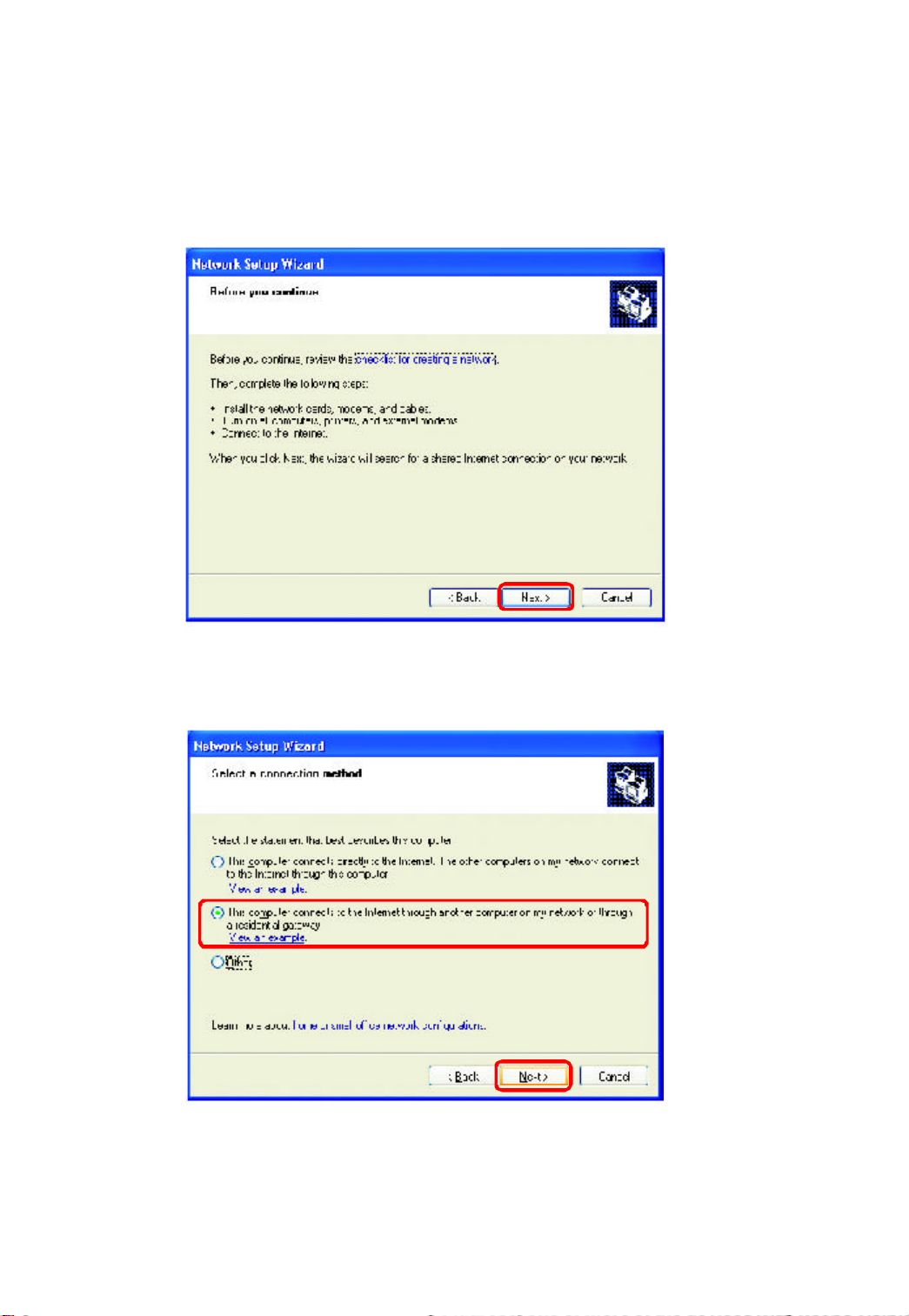

Please follow all the instructions in this window:
Networking Basics
ClickNext
In the following window, select the best description of your computer. If your
computer connects to the internet through a gateway/router, select the
second option as shown.
ClickNext

20

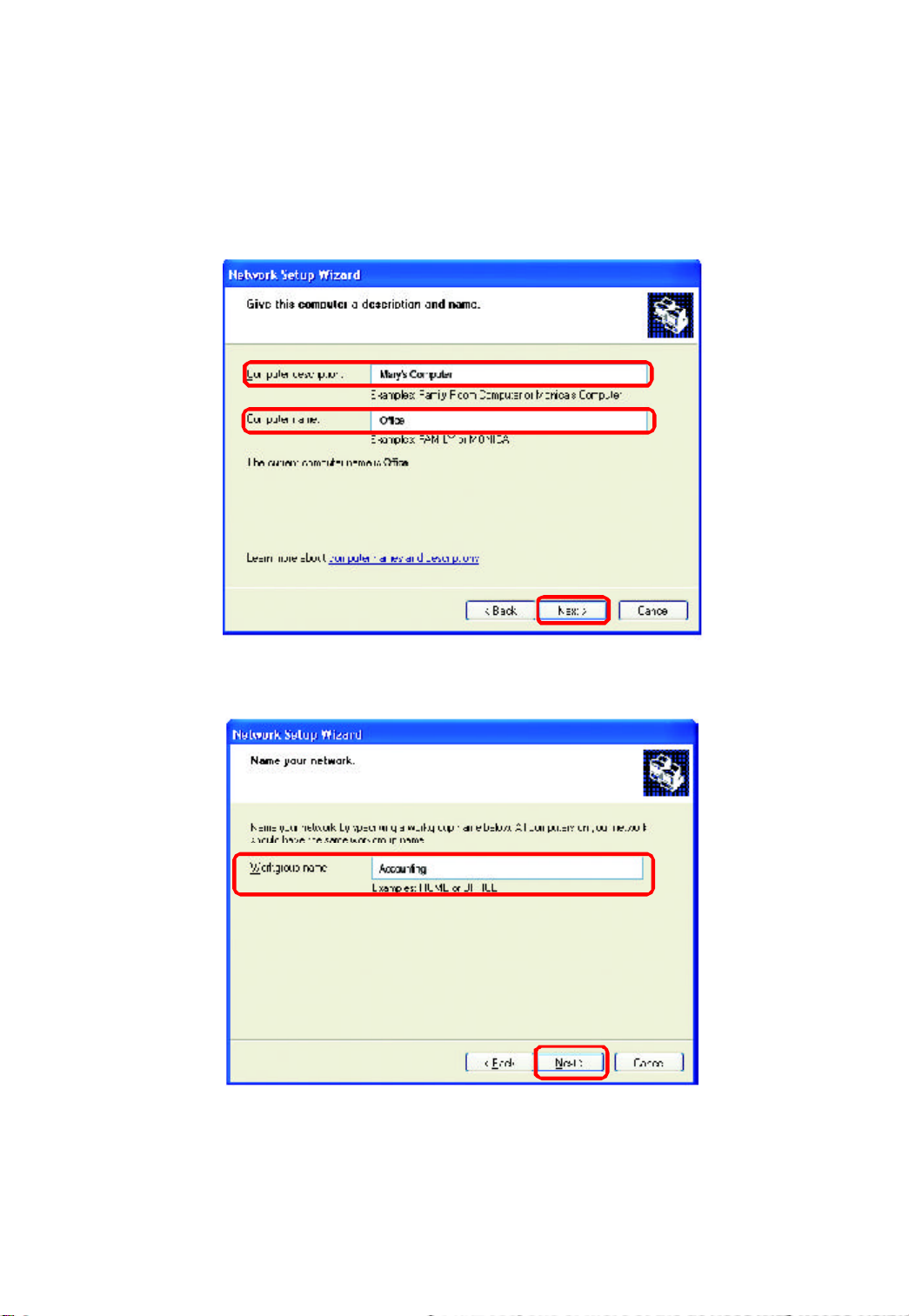

Enter a Computer description and a Computer name (optional.)
Networking Basics
ClickNext
Enter a Workgroup name. All computers on your network should have the
sameWorkgroup name.
ClickNext
