D-Link DCS-3110 - SECURICAM Fixed Network Camera User manual

2D-Link DCS-3110 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Introduction .............................................................. 5
Features .................................................................. 6
Hardware Overview ................................................. 8
Connections....................................................... 8
ICR and Built-in Microphone.............................. 9
Compact Flash Card Slot................................... 9
Hardware Installation ............................................. 10
Software Installation ................................................. 12
............................................................. 15

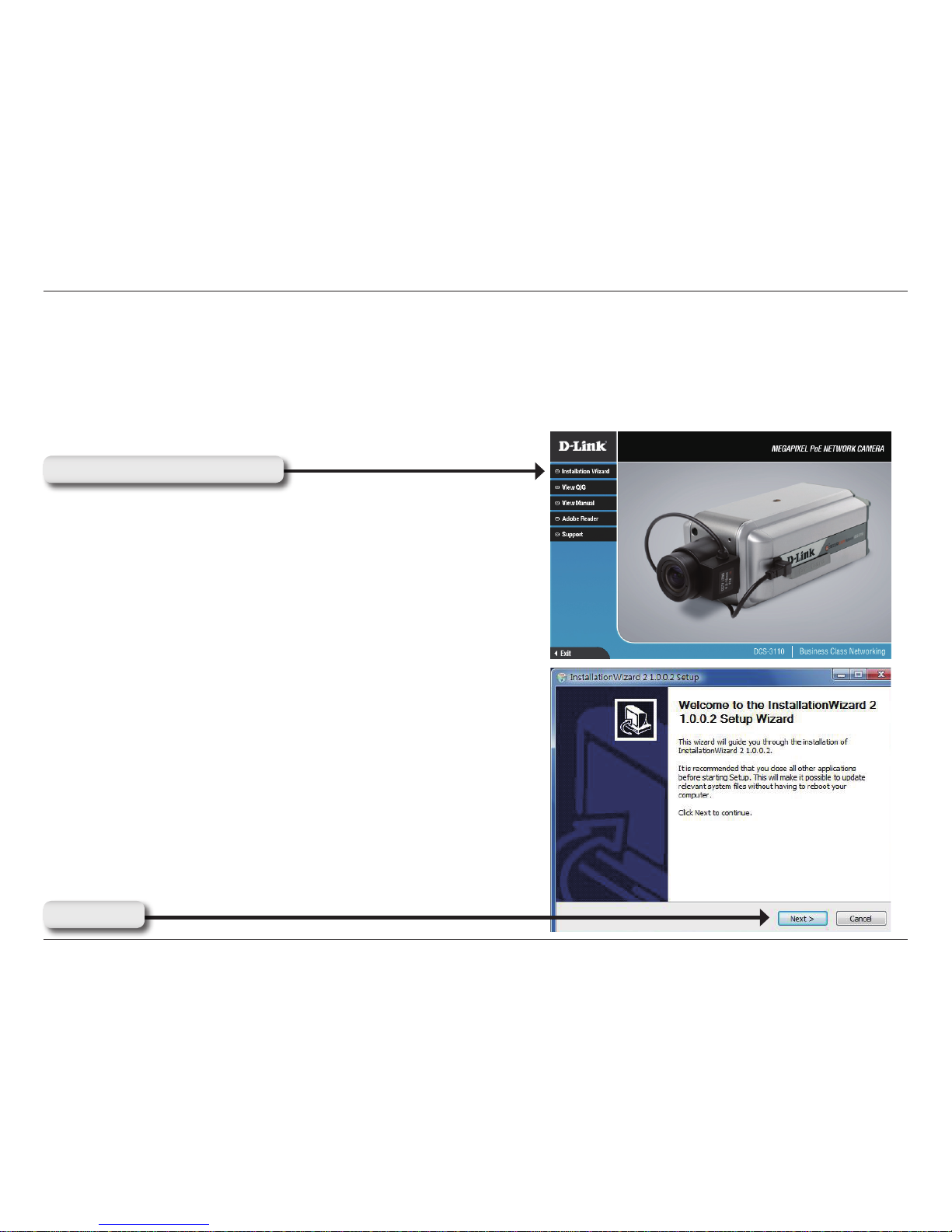

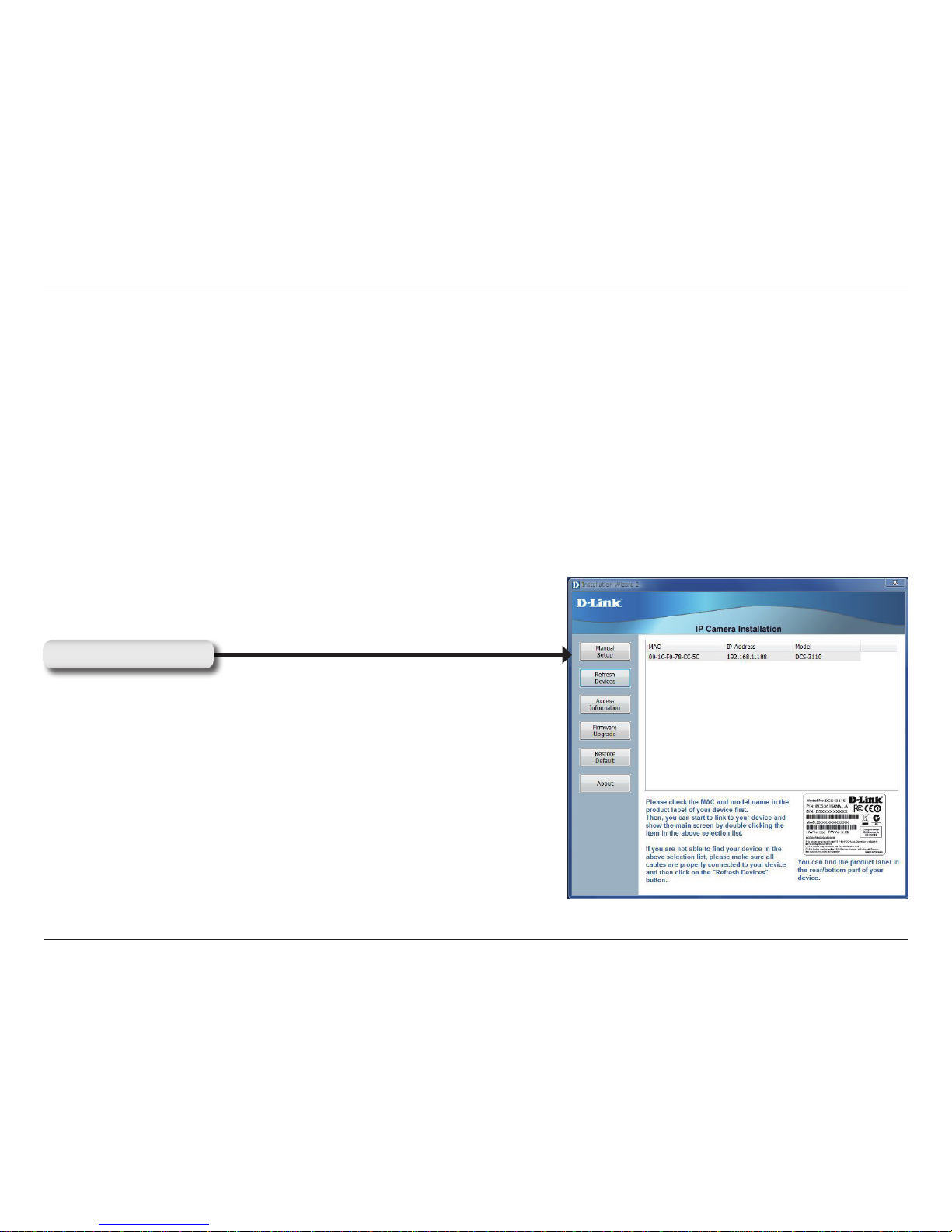

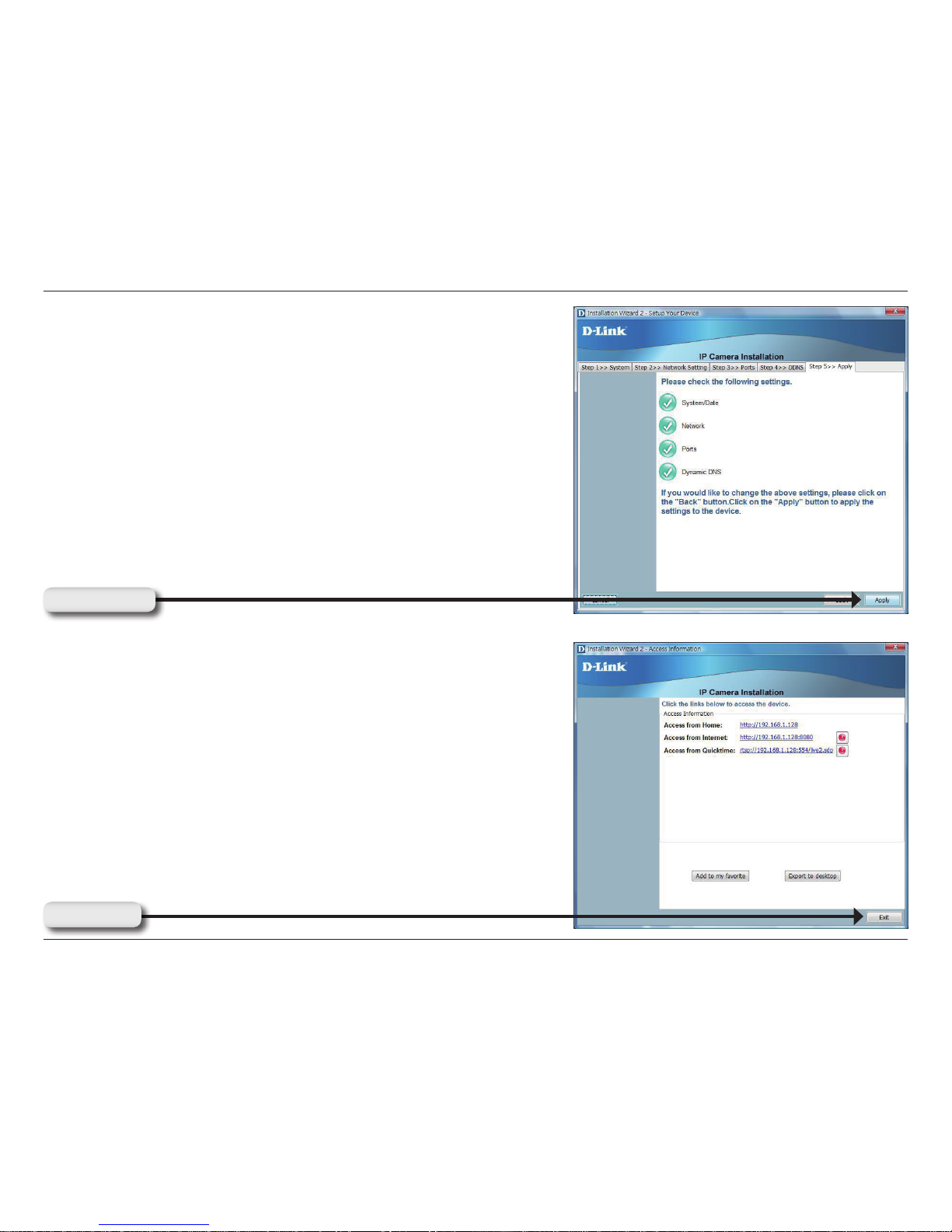

Installation Wizard ................................................. 15

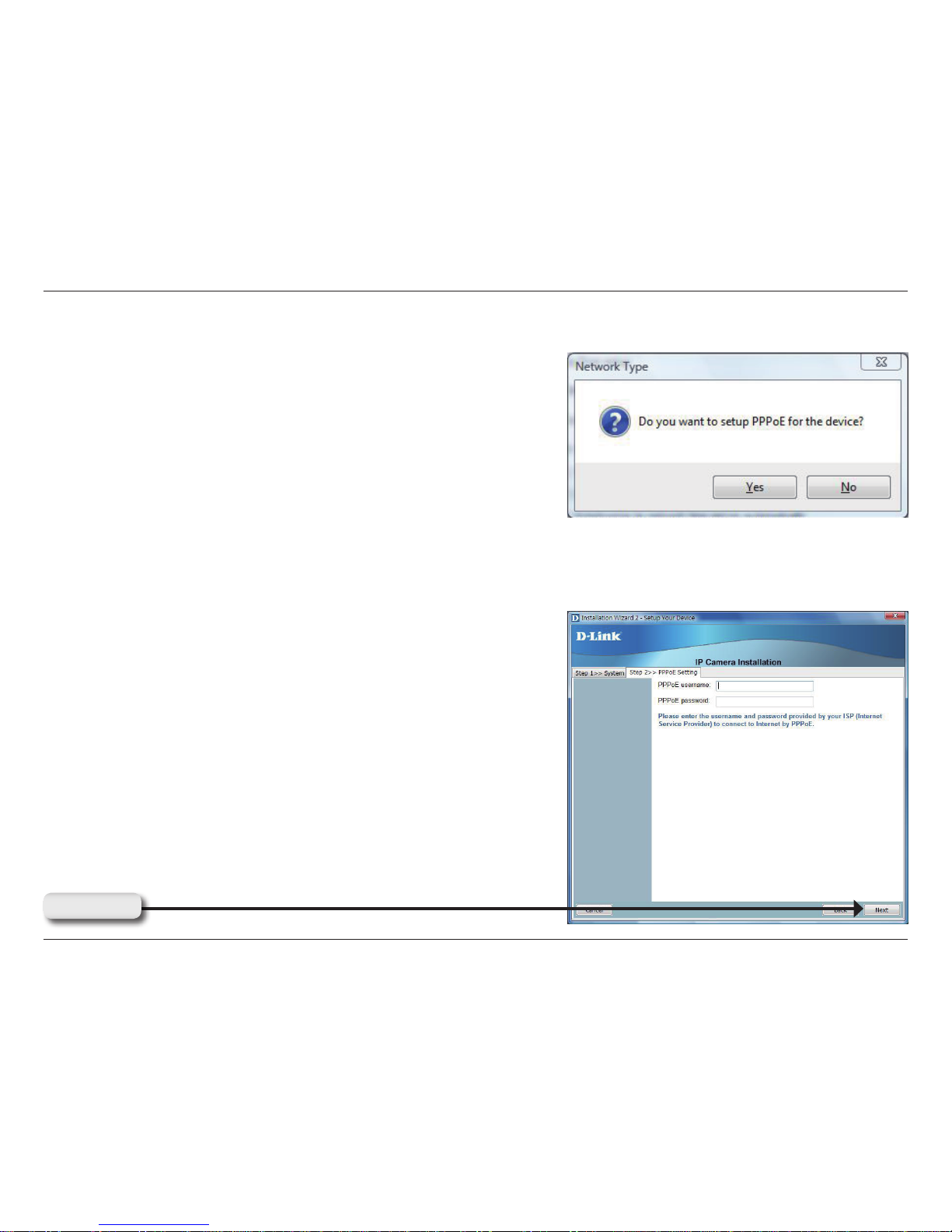

PPPoE Setup................................................... 17
Web-based Conguration Utility ............................ 23
Live Video ........................................................ 24
Using RTSP Players ........................................ 25
Using 3GPP Mobile Phones ............................ 26
Camera ............................................................ 27
Snapshot.......................................................... 29
Client Setup ..................................................... 30
Setup ..................................................................... 31
Wizard.............................................................. 31
Internet Connection Setup Wizard ...............31
Motion Detection Setup Wizard....................36
Network Setup ................................................. 39

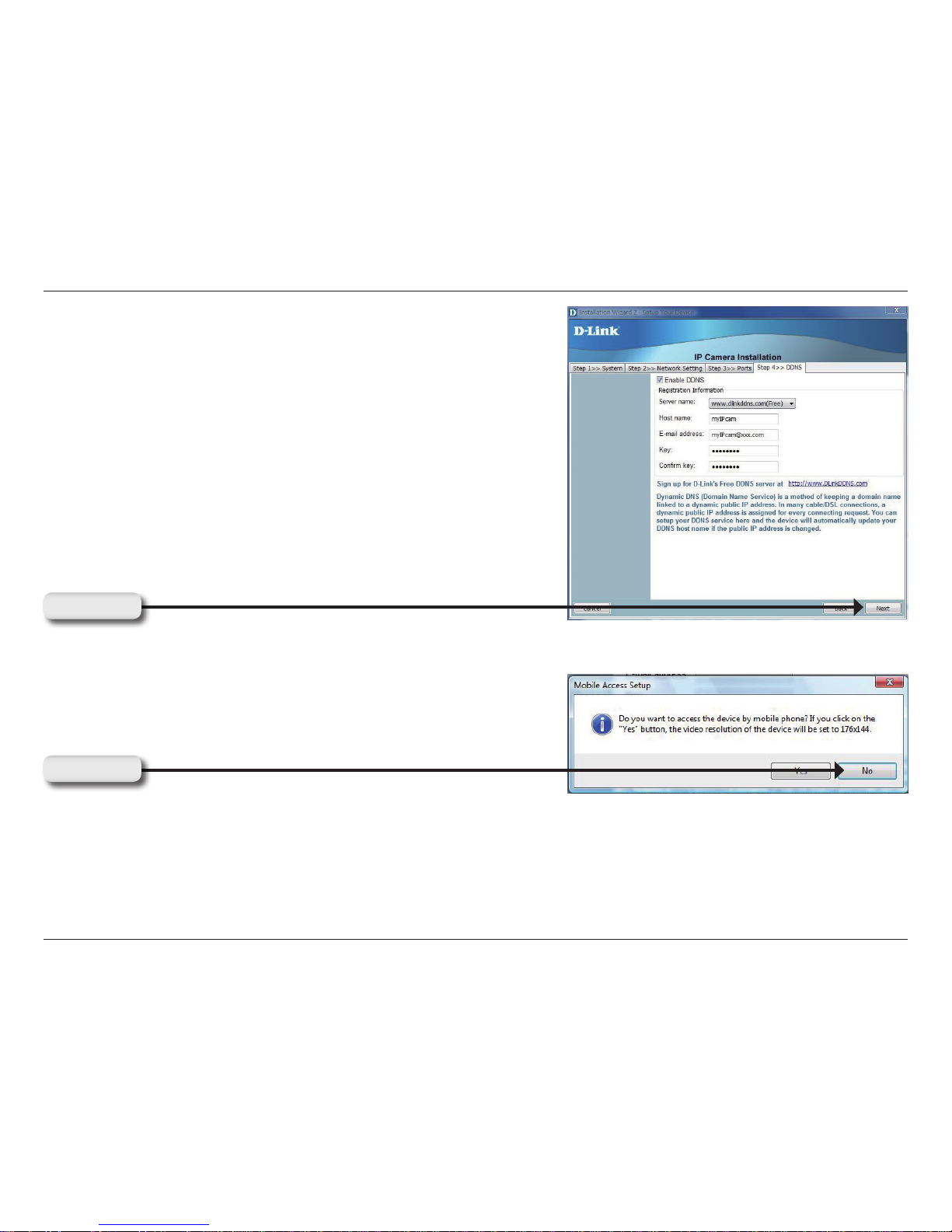

Dynamic DNS .................................................. 45
Image Setup .................................................... 46
Audio and Video .............................................. 47
Motion Detection.............................................. 49
Time and Date ................................................. 52
Event Setup ..................................................... 53
Add Server ................................................... 55
Add Media .................................................... 56
Add Event..................................................... 59
Add Recording ............................................. 60
Advanced......................................................... 61
DI and DO........................................................ 61
RS485 .......................................................... 62
ICR .............................................................. 64
Access List....................................................... 65
Maintenance .......................................................... 66
Device Management........................................ 66
Backup and Restore ........................................67
Firmware Update ............................................. 68
Status .................................................................... 69
Device Info....................................................... 69
Logs ................................................................. 70
Help ....................................................................... 71
.............. 72
Table of Contents

3D-Link DCS-3110 User Manual
Table of Contents
.......... 73
 .................................................... 75
Check your IP address .......................................... 75
Statically Assign an IP address ............................. 76
Reset and Restore..................................................... 77
 ........................................................ 78
........................................... 79
 ................................. 81
Warranty..................................................................... 82
................................................................88

4D-Link DCS-3110 User Manual
Section 1 - Product Overview
• D-Link DCS-3110 Megapixel PoE Network Camera
• CAT5 Ethernet Cable
• Power Adapter
• Screws
• Manual and Software on CD
• Quick Install Guide
Note: Using a power supply with a different voltage than the one included with
your product will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Windows®XP or Windows Vista®
• At least 256MB of memory (512MB recommended)
• Internet Explorer 6.x or higher
• VGA card resolution: 800 x 600 or above
• CPU: 1.7GHz or above (2.8GHz plus processor with 512MB memory and a 32MB video card is required
for multiple camera viewing and recording in IP surveillance program)
• An available Ethernet connection
Product Overview
Package Contents

5D-Link DCS-3110 User Manual
Section 1 - Product Overview
Introduction
DCS-3110 is an ideal network camera for professional surveillance and security applications. This camera adopts a
1.3 mega-pixel progressive scan CMOS sensor and the motion JPEG stream covers three times larger scene which
is also at least three times higher than analog CCTV cameras. This is also a very important consideration in video
surveillance applications, where a high resolution image helps to identify a criminal.
Two video streams with different congurations can be activated simultaneously to address different requirements
for live viewing and recording. Multicast video/audio stream helps to reduce the network transmission load. When a
multicast-enabled router is used, the network camera can serve multiple clients at the same time.
The DCS-3110 has a built-in removable IR-cut lter and is designed for both indoor/outdoor (with enclosure) day/
night applications. The camera is equipped with one digital input and one digital output. An RS-485 port is designed
for external pan/tilt/zoom devices. An 802.3af compliant power over Ethernet (PoE) module is built-in to ease the
installation process.
With the free-bundled 32-channel recording software (D-ViewCam), this network camera provides a total solution for
high quality live viewing and reliable recording.

6D-Link DCS-3110 User Manual
Section 1 - Product Overview
  - The DCS-3110 is designed to target the high-end surveillance market. As mentioned
earlier, a 1.3 mega-pixel progressive scan CMOS sensor covers three times larger view. The DCS-3110
is a powerful network camera for both day and night applications. It effectively reduces motion blur and
distortion as well as jagged edges of recorded images. With a removable IR-cut lter, the Network Camera
always provides high-quality images in both daytime and nighttime. An RS-485 port is designed for external
pan/tilt/zoom devices. It supports DC12V output for external devices like IR light.
    - DCS-3110 provides high quality real-time videos in MPEG-4 and JPEG
compression with VGA/QVGA/QQVGA resolution. It is also suitable for narrow space surveillance, like an
elevator.
  - The live video feed of the Network Camera can be pulled from
the 3G cellular network by using a compatible cell phone or PDA with a 3G video player. Users are offered
a exible and convenient way to remotely monitor a home or ofce in real time, anywhere within the 3GPP
service area.
  - For effective surveillance in or around a building, this camera comes with a built-in
802.3af compliant Power Over Ethernet (PoE) module, which eases the installation process and also gives
you the freedom to place the camera where it’s needed. In addition, the 10/100BASE-TX Ethernet port
provides convenient connection to an Ethernet network or to broadband Internet via a router.
  - The software allows you to view up to 32 cameras on a single computer screen
at one central location. Users can set up automated e-mail alerts to be instantly informed of unusual
activities. In addition, this network camera supports the universal plug-n-play (UPnP™) feature, which allows
computers running on Windows®XP/Vista to automatically recognize the camera and adds it to the network.
Sign up with one of the free Dynamic DNS services available on the web to assign a domain name to the
camera (e.g.mycamera.dlinkddns.com). This allows users to remotely access the camera without having
to remember the IP address.
Features

7D-Link DCS-3110 User Manual
Section 1 - Product Overview
  - DCS-3110 supports a wide variety of protocols such as RTSP, FTP, SMTP, NTP
and HTTP. In addition, the camera supports UPnP and DDNS.
  - Using a Web browser, administrators can congure and manage the network camera
directly from its own web page via your network or the Internet. Up to 20 user accounts can be created with
privilege settings controlled by the administrator.
   - Supporting auxiliary Input/Output connectors, you can connect the
Network Camera to a variety of external devices such as IR-sensors, switches and alarm relays. Combined
with programmable alarm equipment, you can develop a variety of security applications that are triggered
on alarm-based events. The Network Camera provides an industry standard in/out external connector for
connectivity.
 – Unicast video is delivered through point-to-point transmission. On
the other hand, with a multicast stream, the server streams to a multicast IP address on the network, and
clients receive the stream by subscribing to the IP address. Because there is only one stream from the server
regardless of the number of clients receiving the stream, a multicast stream requires the same amount of
bandwidth as a single unicast stream containing the same content. Using a multicast stream preserves
network bandwidth.
  – DCS-3110 has a built-in Samba client for NAS, and hence does not require a
direct connection to a PC or any other hardware or software to capture and transfer images.
Note: Use of audio or video equipment for recording the image or voice of a person without their knowledge and consent is prohibited in
certain states or jurisdictions. Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable
for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use
of the D-Link product, which fails to comply with applicable state, local, or federal laws.

8D-Link DCS-3110 User Manual
Section 1 - Product Overview
Hardware Overview
Connections

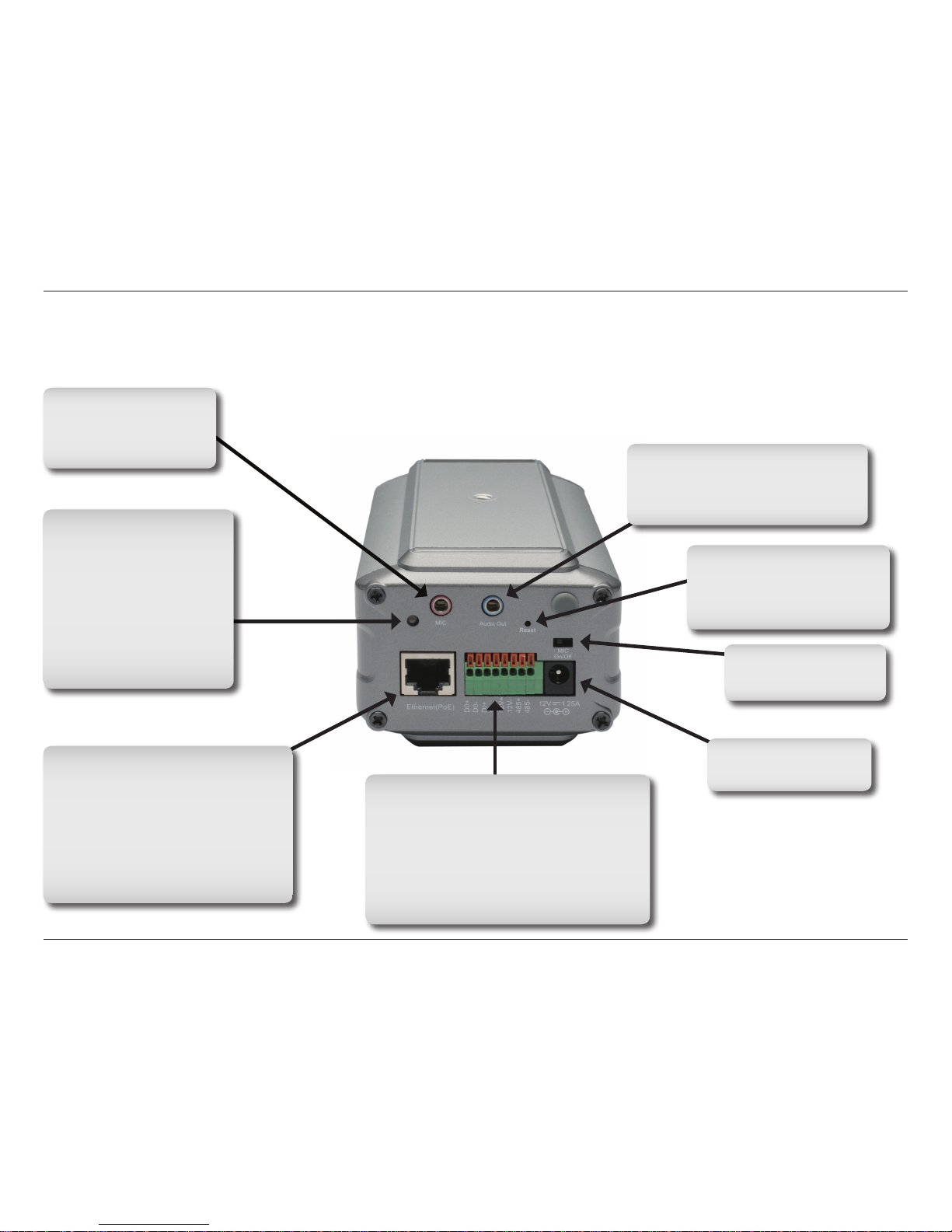

Rear View

The camera has an internal
built-in microphone. To use an
external microphone, plug it into
the microphone connector. 
Use the Audio Out connector for 2-way audio
connection. Speakers (not included) may be
connected to the camera for 2-way audio
communication.

The DCS-3110 provides a general I/O terminal block.
The I/O connectors provide the physical interface to
send and receive digital signals to and from a variety
of external devices.

Support for external device (like IR light)

Port is designed for external pan/tilt/zoom devices.

Connect the Network Camera to your network
using a CAT5 Ethernet cable. This port
supports the NWay protocol, allowing the
network camera to automatically detect or
negotiate the transmission speed of the
network.
The Ethernet port can also be used to power
the camera by using a PoE switch.

 indicates power is
being supplied to the camera.
  indicates that a
connection has been established
via Ethernet port.
 indicates trafc
movement in the camera.
If the Ethernet connection is not
established the Status LED will
not glow.

Select to turn the microphone
On or Off.

Reset is initiated when the reset
button is pressed once and held 30
seconds until the power LED ashes
through its cycle twice.

Receptor for the supplied
power adapter.

9D-Link DCS-3110 User Manual
Section 1 - Product Overview

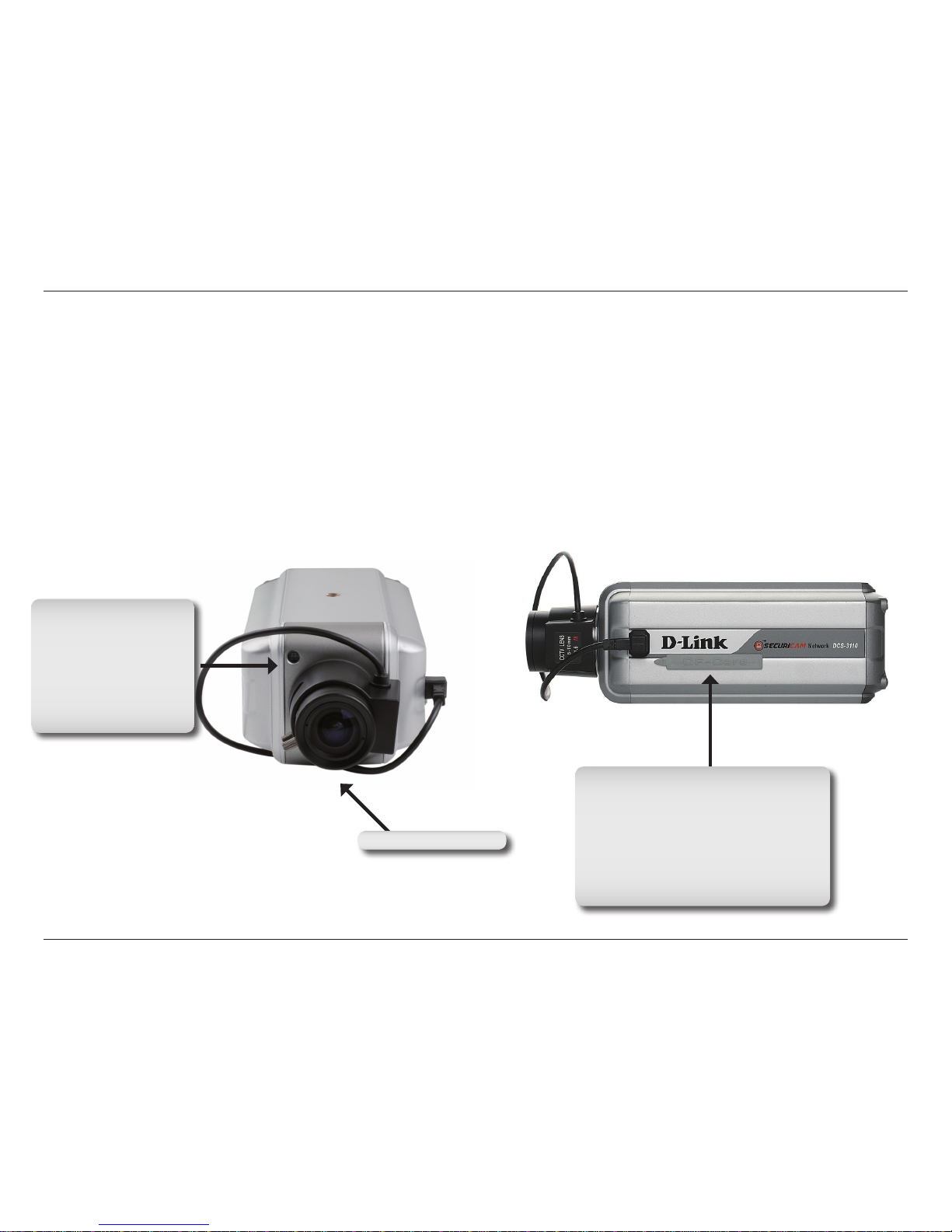

Interfaces
Front View
ICR and Built-in Microphone Compact Flash Card Slot
Built-in Microphone
 

The IR-Cut removable
sensor will judge the
light conditions and then
switches from color to
B/W accordingly.

CompactFlash (CF) is a mass storage
device format used in portable electronic
devices. The CF card slot can be seen
at the side of the network camera.
Note: Ensure to remove the rubber
strip before using it.

10D-Link DCS-3110 User Manual
Section 2 - Hardware Installation

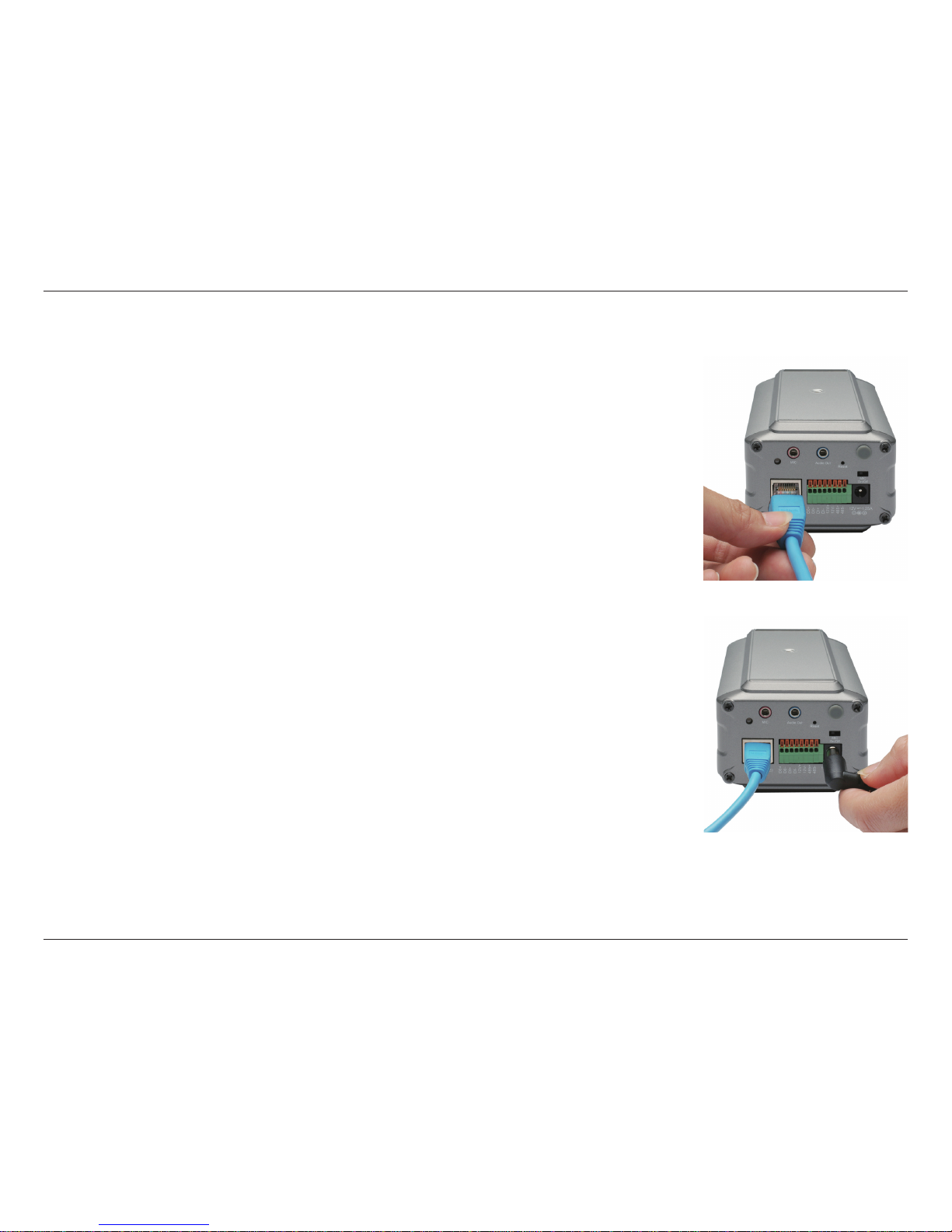

Hardware Installation

Connect an Ethernet cable to the Ethernet port located on the Network Camera’s back
panel and attach it to the network.

Attach the supplied power adapter to the DC power input connector located on the
Network Camera’s back panel (labeled DC 12V) and connect the other end to an AC
power outlet.
Note: The LED on the network camera will turn green, when you have a proper connection. The light might go on and off and your
computer may show an intermittent loss of connectivity, this is normal until you have configured your Network Camera.

Once you connect an Ethernet cable to your PoE switch or adapter, the Power LED on
the DCS-3110 will turn green to indicate a proper connection.

11D-Link DCS-3110 User Manual
Section 2 - Hardware Installation

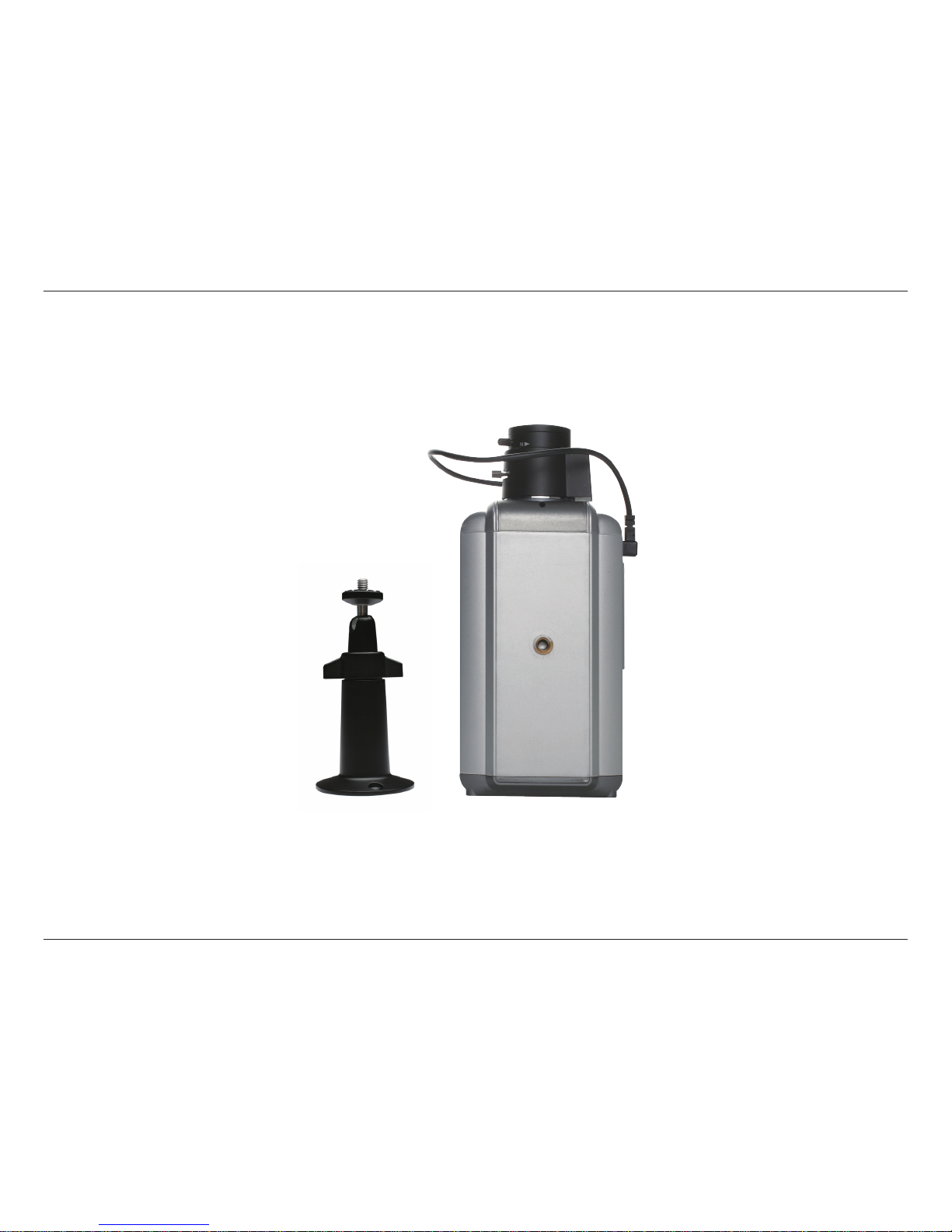

The package comes with a camera stand with a swivel ball screw head that can be attached to the Network Camera
bottom socket cavity. Attach the camera stand to the Network Camera and station it for your application. There are holes
located in the base of the camera stand allowing the camera to be mounted to the ceiling, or any wall securely.

12D-Link DCS-3110 User Manual
Section 3- Software Installation
. The following step-by-step
instructions displayed are shown when using Windows Vista® operating system. The steps and screens are similar
when using other Windows®operating systems.
Software Installation
Click on Installation Wizard
The Installation Setup Wizard window will pop up. Click  to
continue.
Click 

13D-Link DCS-3110 User Manual
Section 3- Software Installation

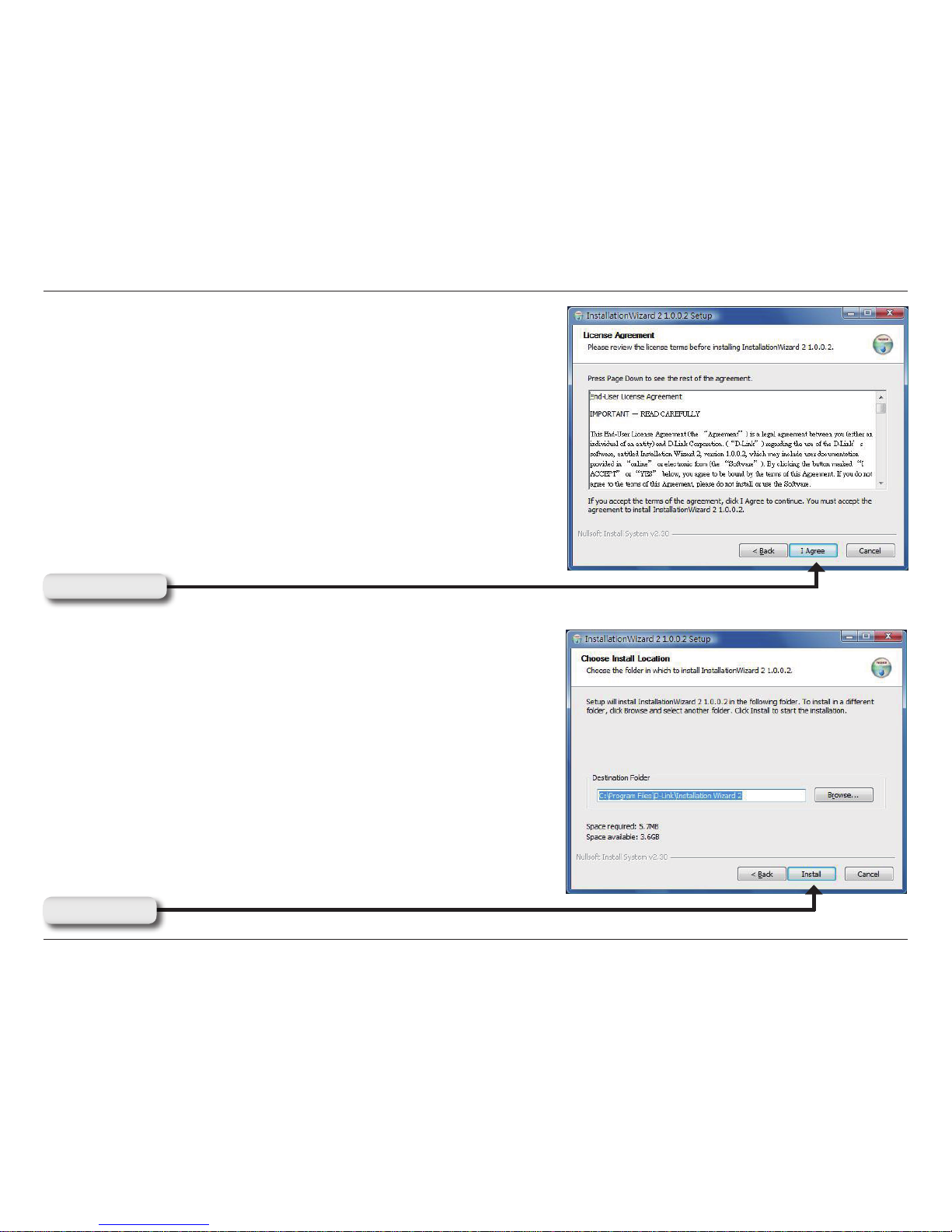

Click  to accept the License Agreement.
Click 
Click the  button if you would like to change the destination of
installation, otherwise click Install to continue.
Note: Installation may take several minutes to complete.
Click Install

14D-Link DCS-3110 User Manual
Section 3- Software Installation
Click 

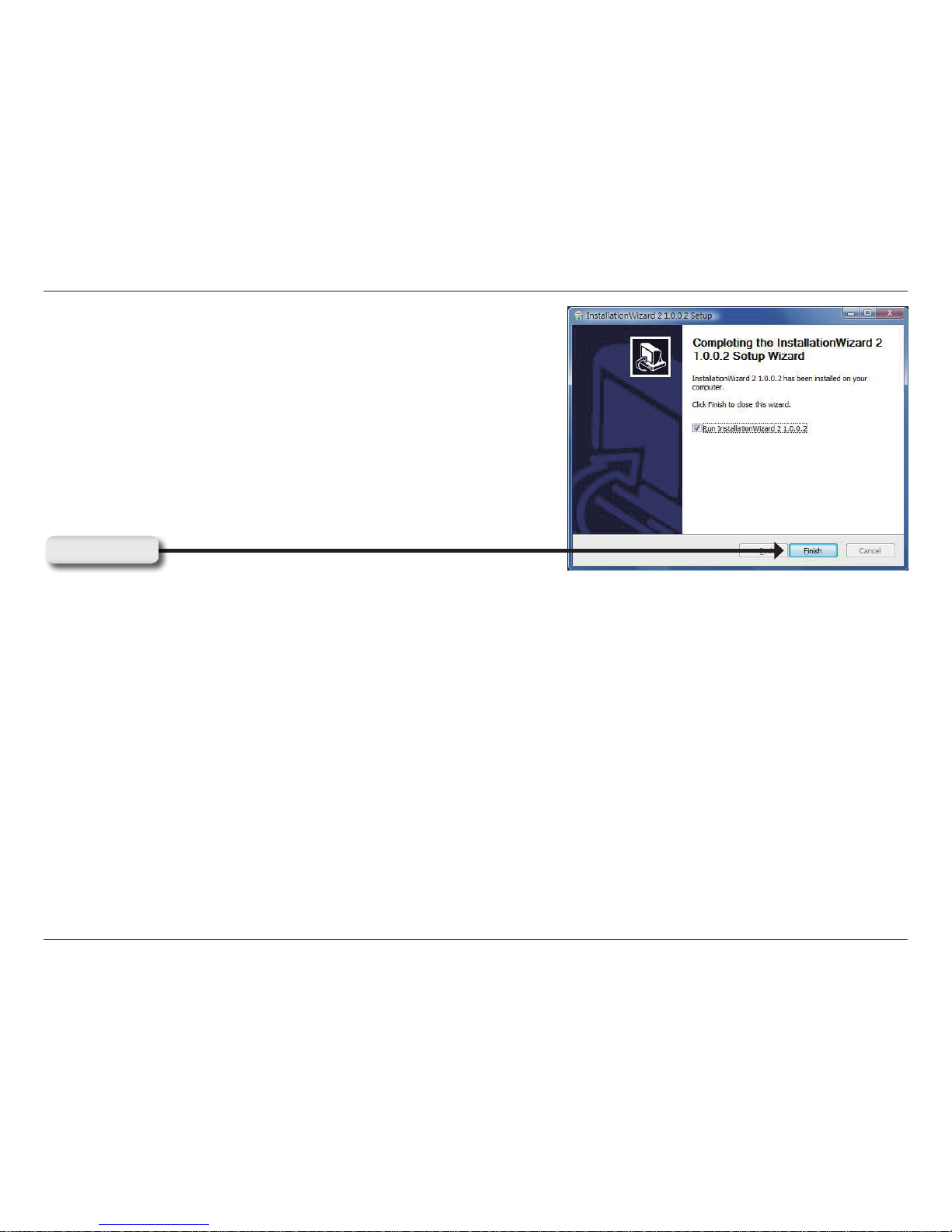

Click  to complete installation and the D-Link Installation
Wizard window will pop up for camera conguration.

15D-Link DCS-3110 User Manual
Section 4 - Configuration
Click 
Installation Wizard
If the  window does not pop up after completion of software installation, click on the icon
that was created in your Windows Start Menu.
The Installation Wizard will appear and show the MAC address and IP address of the DCS-3110, which may appear
to be different from the actual address depending on what your device is connected to. If you have a DHCP server
on your network, there will be a valid IP address displayed here.
To begin setup, select the DCS-3110 located in the camera list and click
 located on the left of the Installation Wizard.
Configuration

16D-Link DCS-3110 User Manual
Section 4 - Configuration
Click 
Enter a password, and conrm the password for the admin ID
and click .
Note: The default administrator username is set to admin and the password
may be left blank. The password can be changed after installation.

17D-Link DCS-3110 User Manual
Section 4 - Configuration
If you have selected Yes, enter the username and password provided
by your ISP to connect to the Internet by PPPoE.
Click  and skip to the setup screen as seen in page 19.
The  prompt will pop up to ask if you want to setup a
PPPoE for the device. Click  for quick setup and skip to the next
page.
PPPoE Setup
Note: By using PPPoE, users can virtually dial from one machine to another over
an Ethernet network, establish a point to point connection between them and then
securely transport data packets over the connection.
Click 

18D-Link DCS-3110 User Manual
Section 4 - Configuration
Check the  box to obtain
a new IP address every time the camera starts up. Click to
continue.
Select  if your router supports this function.
If not, choose Manual to manually enter your port numbers. Click
 to continue.
Click 
Click 

19D-Link DCS-3110 User Manual
Section 4 - Configuration
Click 
A window will pop up asking you if you want to access the
DCS-3110 via mobile phone. Clicking Yes will set the video
resolution to 176x144. Click  to continue.
Select  if you have subscribed to a Dynamic DNS
account and would like your camera to update its IP address
automatically. Enter all the relevant account information.
Click to continue.
Click 

20D-Link DCS-3110 User Manual
Section 4 - Configuration
Clickto save and activate the settings listed in the window
to the device. Application may take a few minutes to process.
Click 
A window will pop up to conrm the installation was successful.
Click OK to continue.
A new window will pop up displaying the lists to access your
device, click to save the address and then
click  to complete installation.
Click 
