D-Link SECURICAM DCS-6511 User manual

This document will guide you through the
basic installation process for your new D-Link
Network Camera.
DCS-6511
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
HD Day & Night Vandal-Proof Fixed Dome Network Camera

D-Link DCS-6511 Quick Install Guide 1
ENGLISH
DCS-6511 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-6511 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD included in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. SD Card Installation
4. Hardware Installation
5. Conguration with Wizard
6. Adjusting the lens 3-axis angel
1. Package Contents
DCS-6511 Network Camera
Manual and Software on CD-ROM
Quick Install Guide
Power Adapter
AV & Power Cables
Security Wrench
CAT-5 Ethernet Cable
Extension Adapter
Cable Cover
Mounting Bracket and Screws
Rubber Plug
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

D-Link DCS-6511 Quick Install Guide
2
ENGLISH

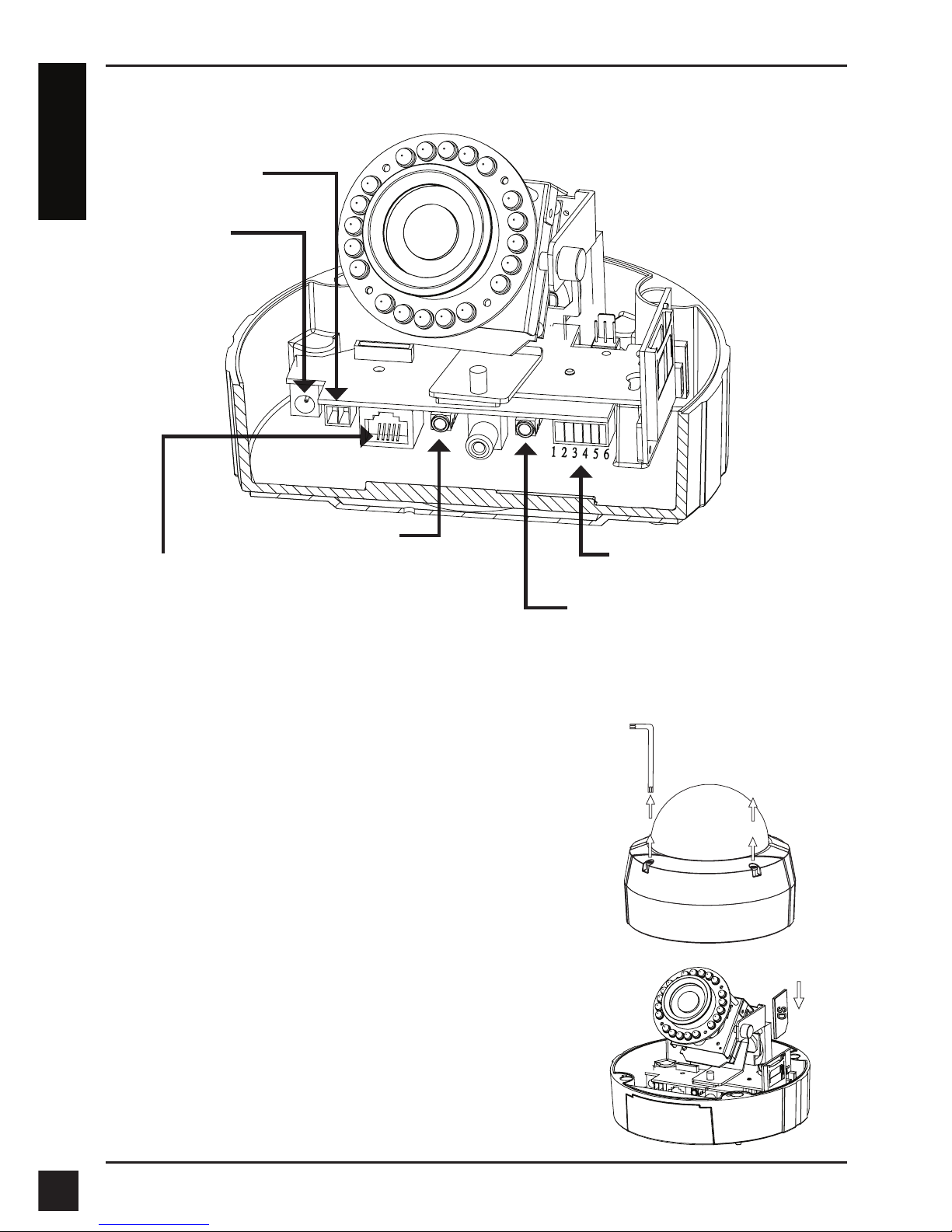

2. Hardware Overview
Power Connector
Connects to 12 V DC power
24 V Power Connector
Connects to 24 V AC power
Ethernet Jack
RJ-45 connector for Ethernet which
can also be used to power the camera
using Power over Ethernet (PoE)
Audio In
Connects to a microphone DI/DO Wiring, 12V DC output
I/O connectors for external devices
Install the SD Card
Push the SD card into the camera with the
gold contacts oriented towards the base of
the camera. To eject the SD card, push the
SD card into the slot.
3. SD Card Installation
Disassemble the Camera
Open the camera enclosure by loosen the
4 screws. Lift the dome off the base of the
camera.
Audio Out
Connects to speakers

D-Link DCS-6511 Quick Install Guide 3
ENGLISH
4. Standard Mounting Instructions
Mounting Installation
Please see the User Manual for detailed instructions regarding installation and mounting
of the camera using a mounting bracket.

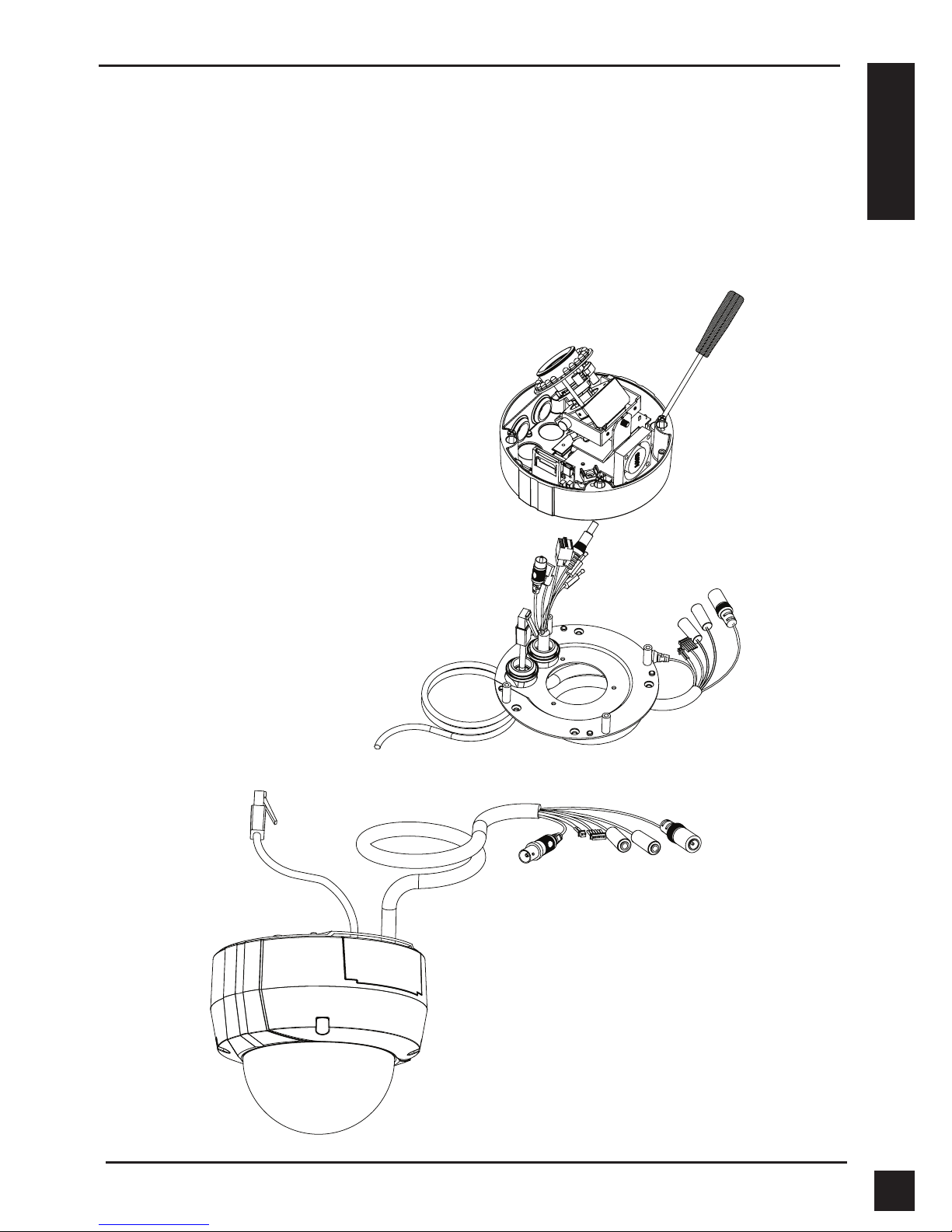

Style 1 - Concealed Cable Installation
Height: 23 mm (0.9 inches)
Diameter: 183 mm (7.2 inches)
Weight: 400 g (0.9 lbs)
Figure 2.1
Figure 2.2

D-Link DCS-6511 Quick Install Guide
4
ENGLISH

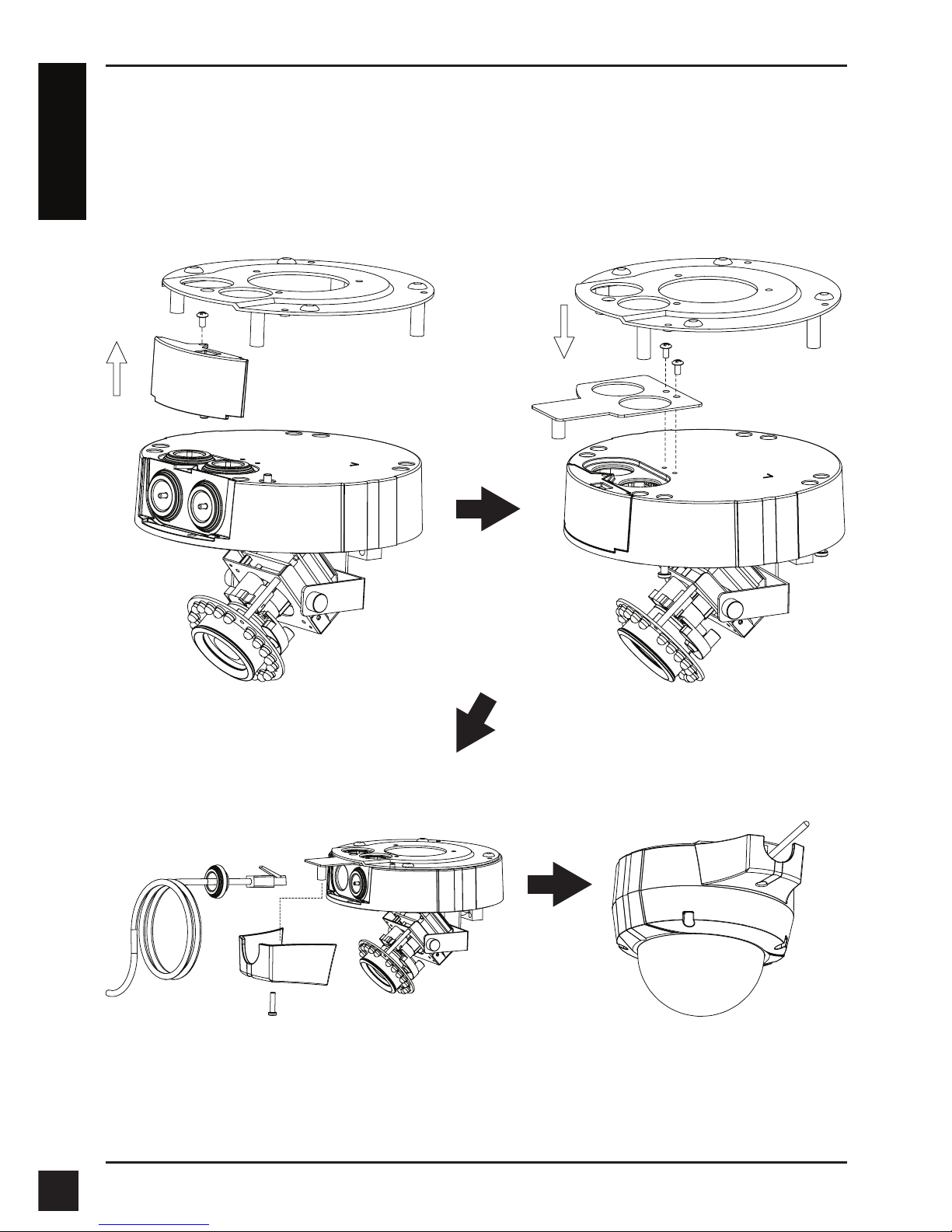

Style 2 - Exposed Cable Installation
Height: 23 mm (0.9 inches)
Diameter: 183 mm (7.2 inches)
Weight: 400 g (0.9 lbs)
Figure 2.3 Figure 2.4
Figure 2.5 Figure 2.6

D-Link DCS-6511 Quick Install Guide 5
ENGLISH
Pendant Mount (DCS-34-2)
Height: 201 mm (7.9 inches)
Diameter: 150 mm (5.9 inches)
Weight: 665 g (1.45 lbs)
Figure 3.4
Pendant
Bracket
Bracket
Cap
Rubber
Seal
Figure 3.2
Figure 3.3
Figure 3.1
Bracket
Cap
Mounting
Plate

D-Link DCS-6511 Quick Install Guide
6
ENGLISH

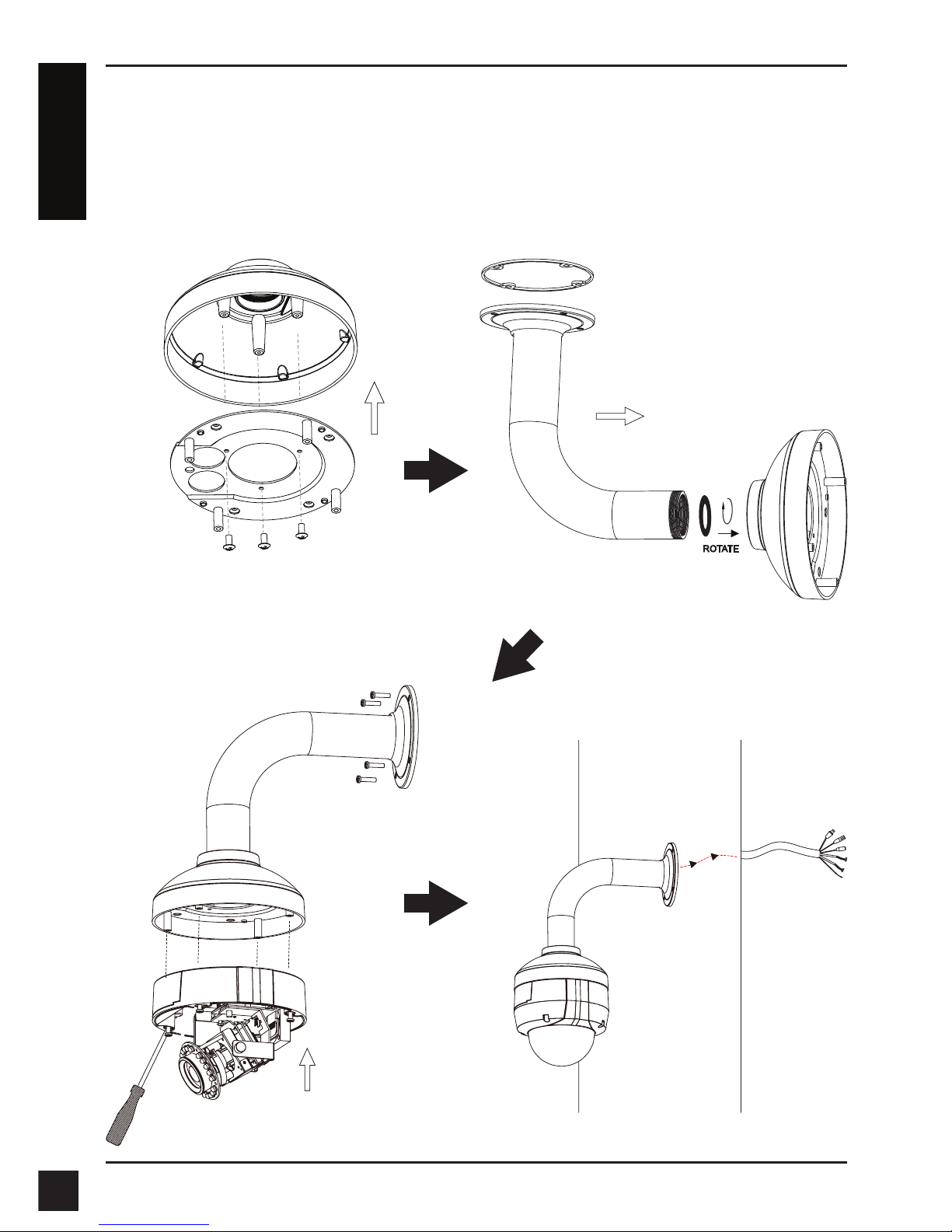

Bent Mount (DCS-34-3)
Height: 253 mm (9.96 inches)
Diameter: 150 mm (5.9 inches)
Weight: 770 g (1.7 lbs)
Bracket Cap
Bent
Bracket
Figure 4.2
Figure 4.4
Dome
Camera
Bent
Bracket
Figure 4.3
Figure 4.1
Bracket
Cap
Mounting
Plate

D-Link DCS-6511 Quick Install Guide 7
ENGLISH

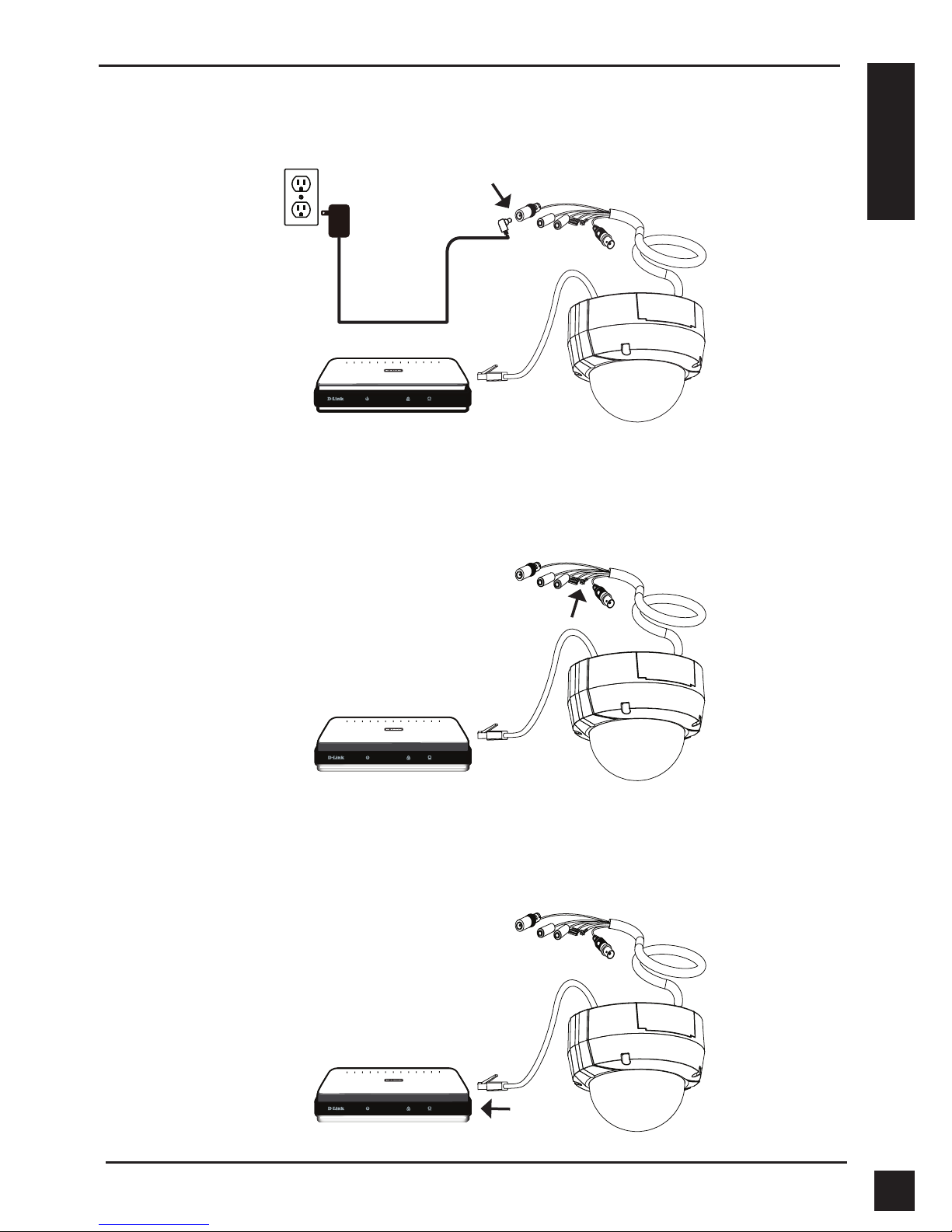

Connection with a PoE Hub
If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,
which will provide transmission of both power and data over a single cable.
General Connection Using 24 V AC Power Wiring
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power source such as your
building's emergency power.
General Connection Using 12 V DC Power Adapter
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6511 Quick Install Guide
8
ENGLISH

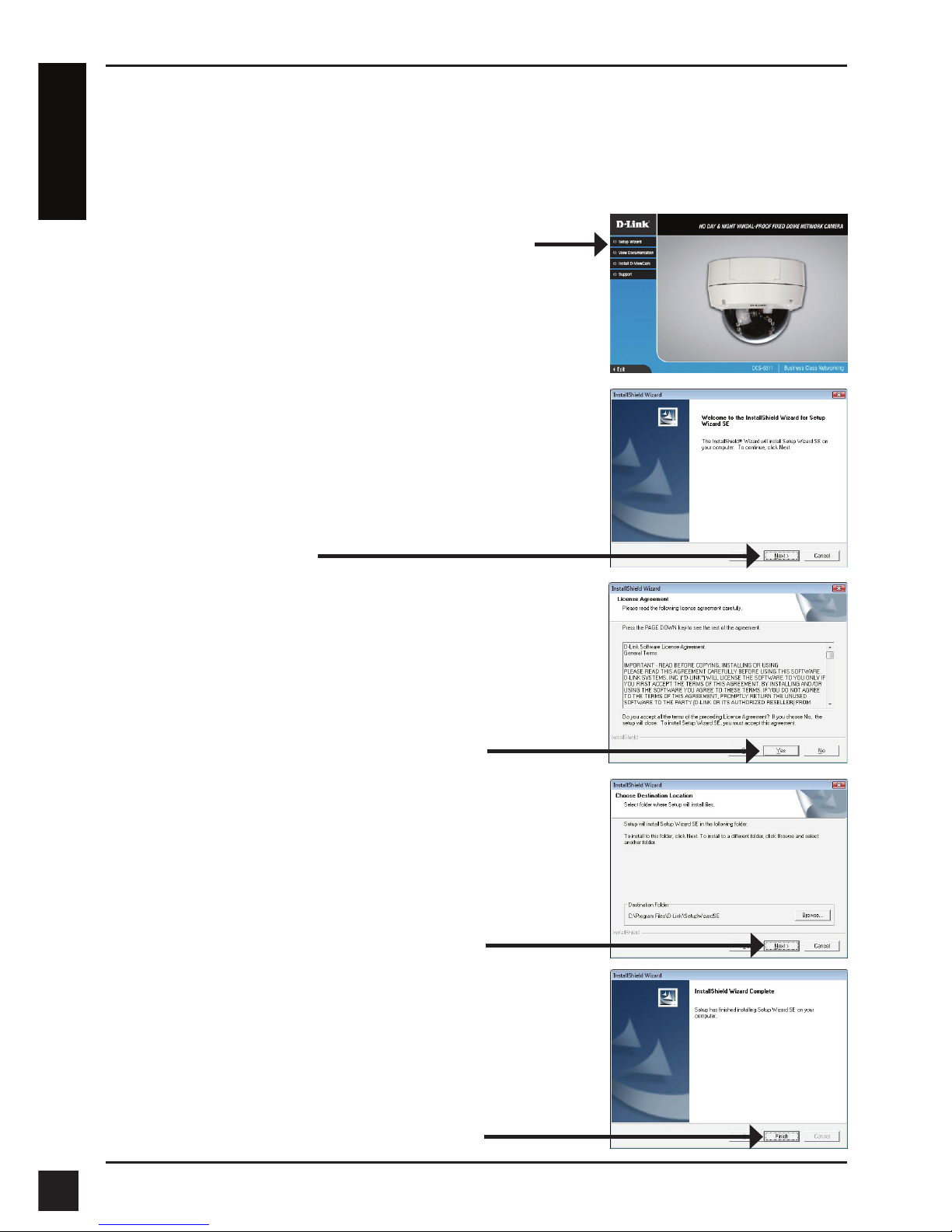

5. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-6511 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setuop Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-6511 Quick Install Guide 9
ENGLISH

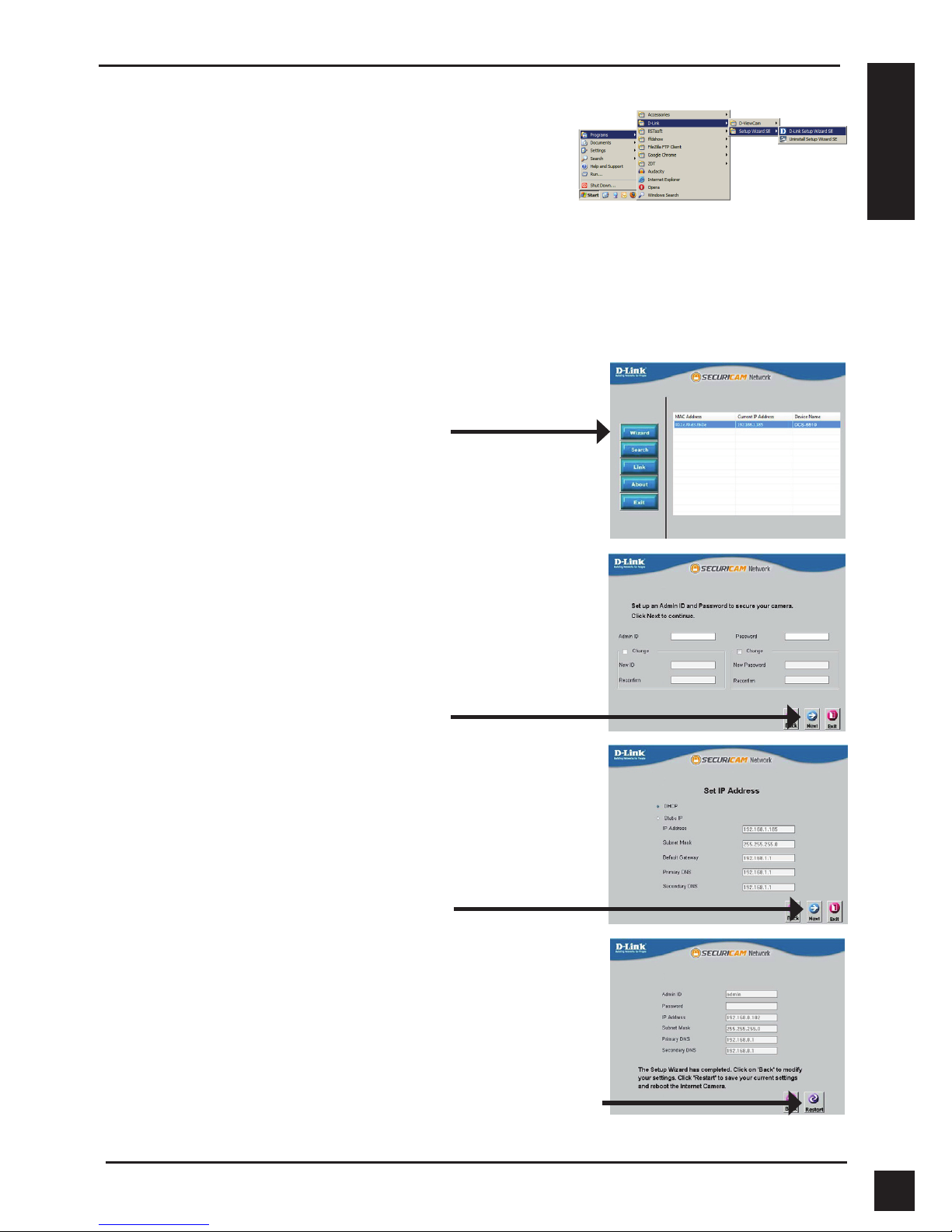

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-6511 Quick Install Guide
10
ENGLISH
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.

D-Link DCS-6511 Quick Install Guide 11
ENGLISH

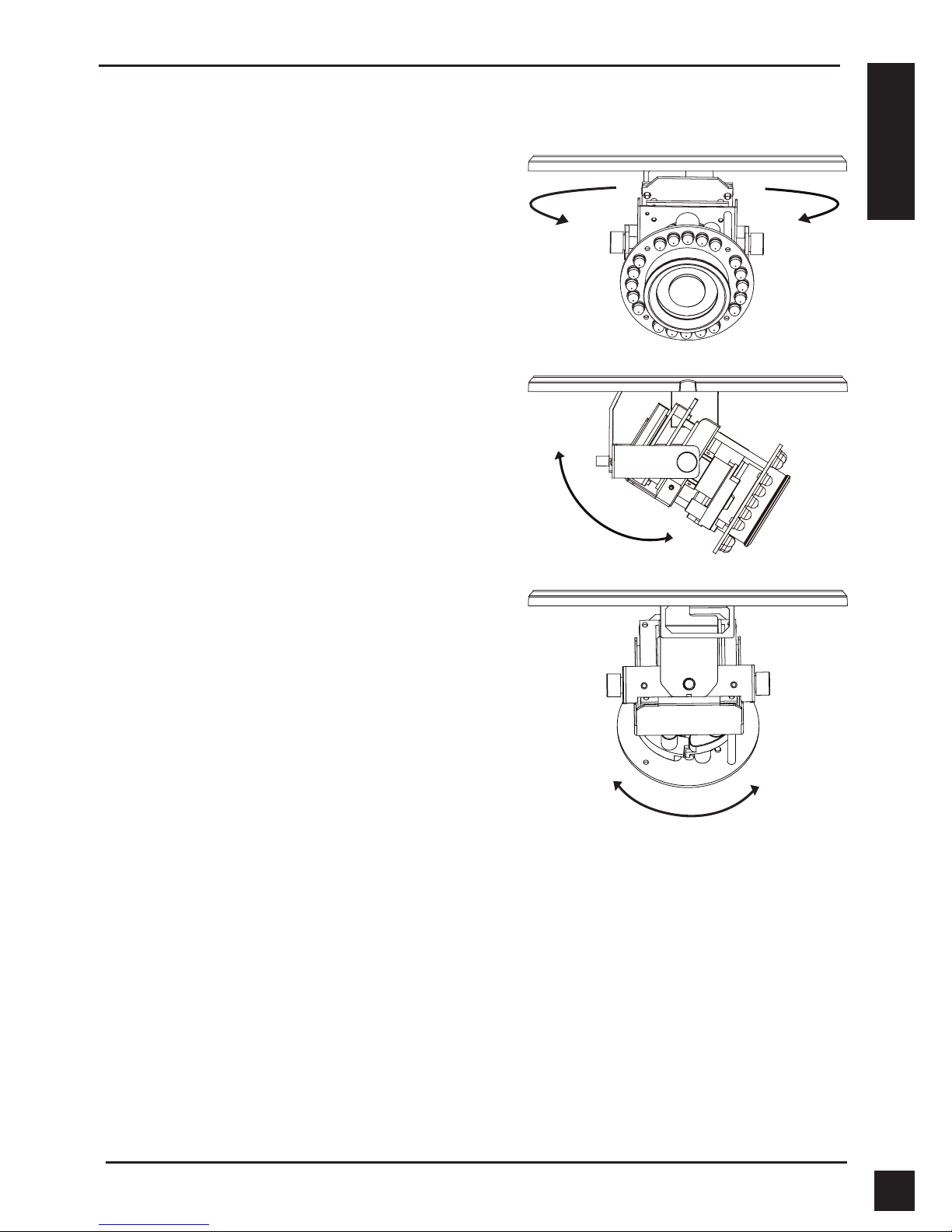

Adjus the Viewing Angle of the 3-axis
Mechanism
Turn the lens module left and right until the
desired position is achieved; tighten the pan
screw once completed.
Loosen the tilt screws on both sides of the
camera, and turn the lens module up and down
until the desired position is achieved; tighten
the tilt screws once completed.
Turn the lens to adjust the IP camera’s image
until the desired orientation is achieved, tighten
the image adjustment screw once completed.
6. Adjusting the lens 3-axis angel
