D-Link SecuriCam DCS-6510 User manual

2D-Link DCS-6510 User Manual

 
Package Contents ...................................................4

Hardware Overview .................................................5
Camera Enclosure Disassembly and SD Card
Installation ...............................................................6
Hardware Reset .......................................................7
Preparing for Installation ..........................................8
Adjusting the Zoom/Focus .....................................10
Flush Mount (DCS-33-1) .......................................11
Surface Mount (DCS-33-2) ....................................13
Pendant Mount (DCS-33-3) ...................................15
Bent Mount (DCS-33-4) .........................................17
Network and Power Connections .......................... 19
 
Conguration with Wizard ...................................... 21
Web-based Conguration Utility ............................26
Live Video ..............................................................28
Setup .....................................................................29
Wizard ..............................................................29
Internet Connection Setup Wizard ...................29
Motion Detection Setup Wizard .......................32
Network Setup .................................................34
Dynamic DNS ..................................................36
Image Setup .................................................... 37
Audio and Video .............................................. 38
Motion Detection ..............................................39
Time and Date .................................................40
Event Setup .....................................................41
Application .......................................................42
Add Server .......................................................43
Add Media ........................................................44
SD Card ...........................................................49
Advanced ...............................................................50
Digital Input/Output ..........................................50
ICR and IR .......................................................51
HTTPS .............................................................52
Access List .......................................................53
Maintenance ..........................................................54
Device Management ........................................54
Backup and Restore ........................................55
Firmware Upgrade ...........................................56
Status ....................................................................57
Device Info .......................................................57
Logs .................................................................58
Help .................................................................59
 
DI/DO Schematics .................................................60
Technical Specications ........................................61

3D-Link DCS-6510 User Manual
D-Link reserves the right to revise this publication and to make changes in the contents hereof without obligation to notify any person or
organization of such revisions or changes.


D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or
other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective
companies.
Copyright © 2010 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link
Systems, Inc.
  
1.0 July 1, 2010 DCS-6510 Revision A1 with rmware version 1.00


4D-Link DCS-6510 User Manual

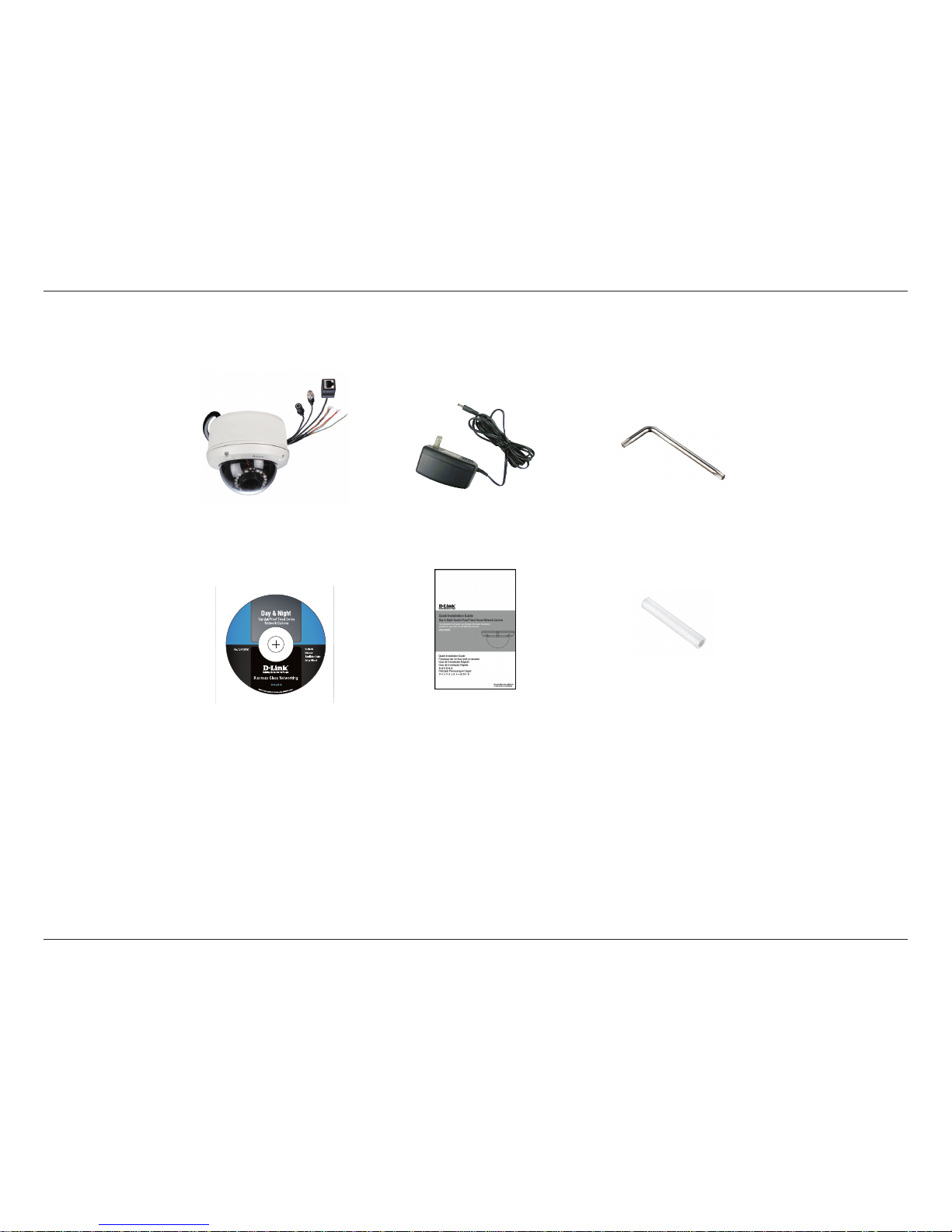

Product OverviewProduct Overview
If any of the above items are missing, please contact your reseller.











5D-Link DCS-6510 User Manual

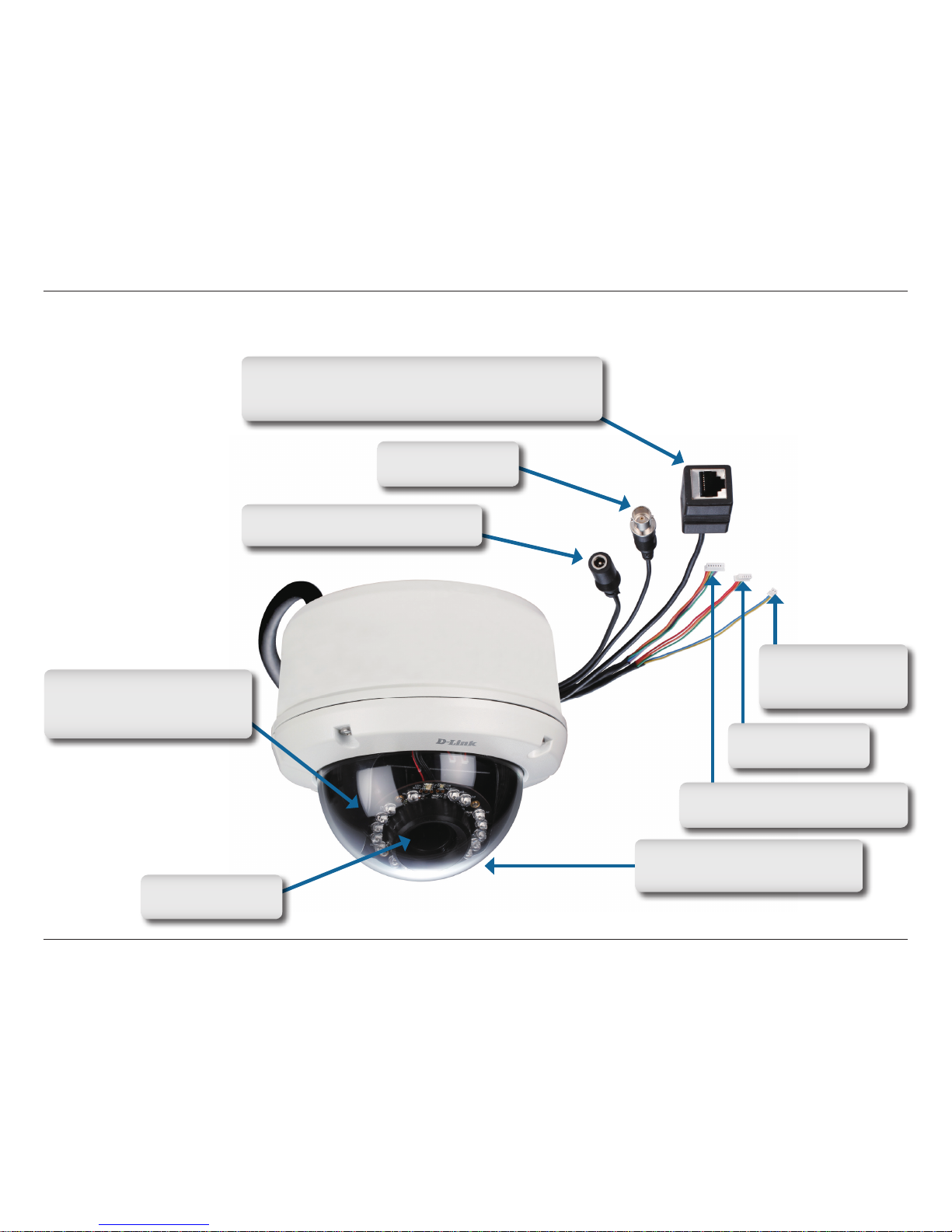

Installation

Installation

Used to illuminate the camera's
eld of view at night

Protects the camera from damage

Connects to 12 V DC Power adapter

Analog video output

RJ-45 connector for Ethernet which can also be used to
power the camera using Power over Ethernet (PoE)

I/O connectors for external devices

Audio Input / Output

Connects to 24 V AC
power

DC iris varifocal lens

6D-Link DCS-6510 User Manual
Installation

Push the SD card into the camera with the gold contacts oriented towards the base of
the camera. To eject the SD card, push the SD card into the slot.


Open the camera enclosure by removing the 3 standard screws using a screwdriver.
Remove the 4th screw using the provided security wrench.
Lift the dome off of the base of the camera.

7D-Link DCS-6510 User Manual
Installation



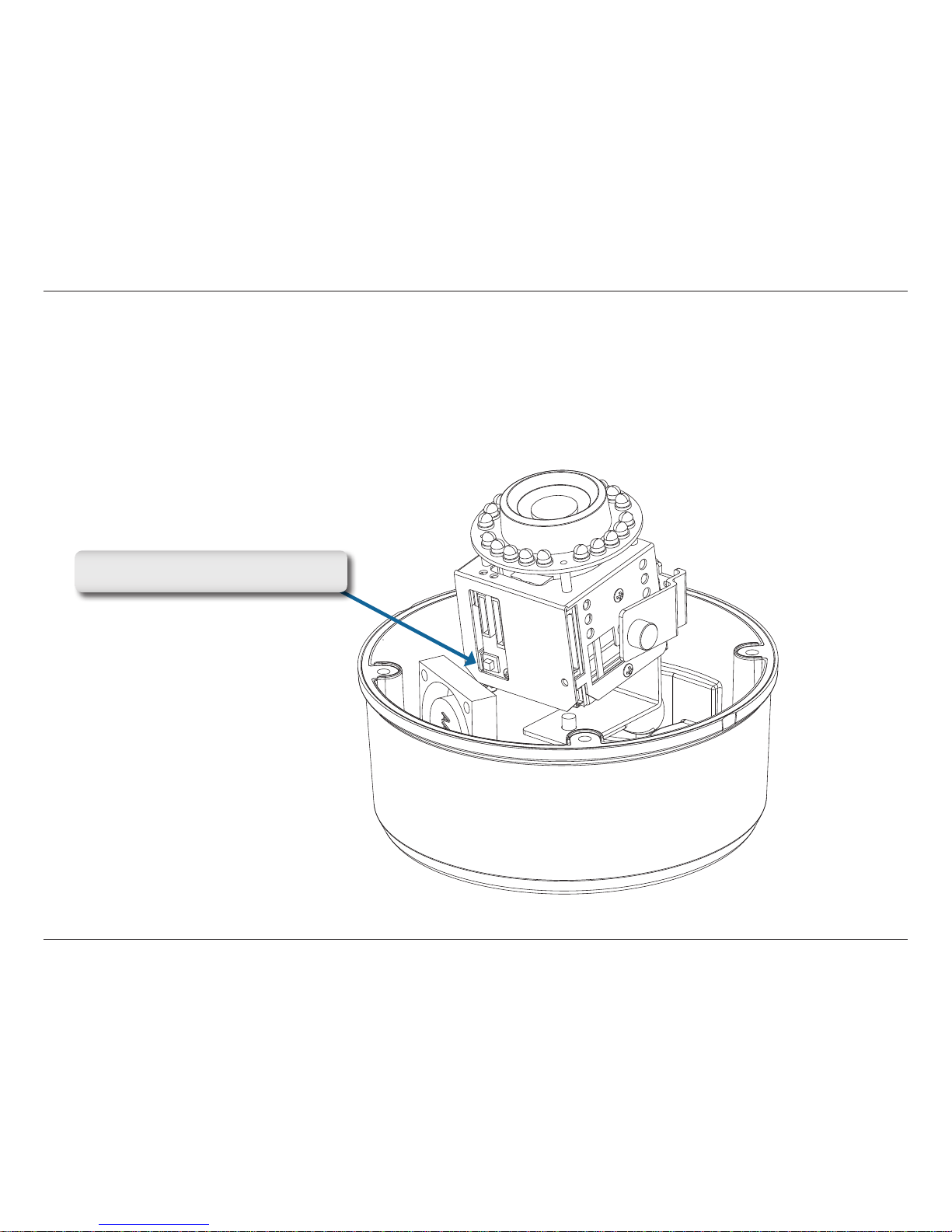

If the camera is malfunctioning, you may use the hardware reset button located on the
underside of the camera apparatus to reset the camera to factory default settings. Press
and hold the reset button for approximately 10 seconds to reset the camera.
6510

Resets camera to factory default settings

8D-Link DCS-6510 User Manual
Installation
A. Depending on how you choose to mount the camera,
you may need to change the orientation of the cable. For
instance, when using the Surface Mounting Bracket, the
cables may need to exit through the side of the camera
base rather than the top.


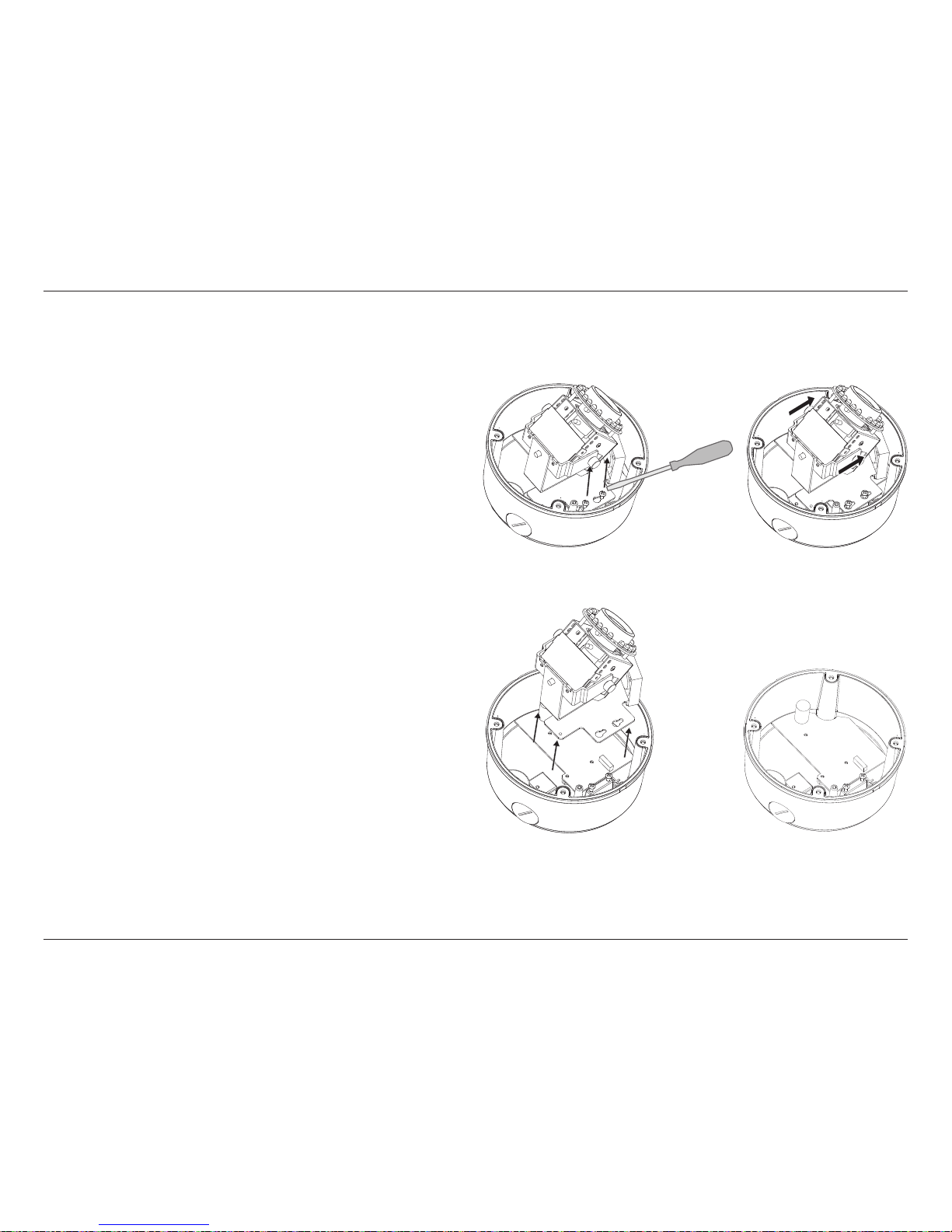

1. Disassemble the camera enclosure. (See Figure A.
on page 6.)
2. Loosen, but do not remove, the two screws that
secure the camera bracket to the base of the
enclosure using a screwdriver. (Figure 1.)
3. Slide the camera bracket towards the front of the
camera base. (Figure 2.)
4. Lift the camera bracket off of the base and out of the
way. (Figure 3.)
5. Disconnect the cables from the circuit board at the
base of the camera. (Figure 4.)

 
 

9D-Link DCS-6510 User Manual
Installation
6. Cut the zip-tie at the base of the cables if needed.
7. Use a metric size 21 wrench to loosen the chrome
nut where the cable exits the base of the camera.
8. Remove the cable with the nut attached.
9. Loosen and remove the chrome plug from the base
of the camera using a coin or screwdriver.
10. Place the cable into the new hole and reconnect the
cable connectors to the circuit board.
11. Replace the chrome plug and tighten it into place.
12. Replace the chrome nut and tighten it into place
B. Replace the dome enclosure over the IP camera and
tighten the 4 screws.
C. Insert and tighten the 3 mountings bolts in the holes on
the back panel of the camera, as shown here.

Installation and servicing should be done by certied
technicians so as to conform to all local codes and prevent
voiding your warranty.






10D-Link DCS-6510 User Manual
Installation


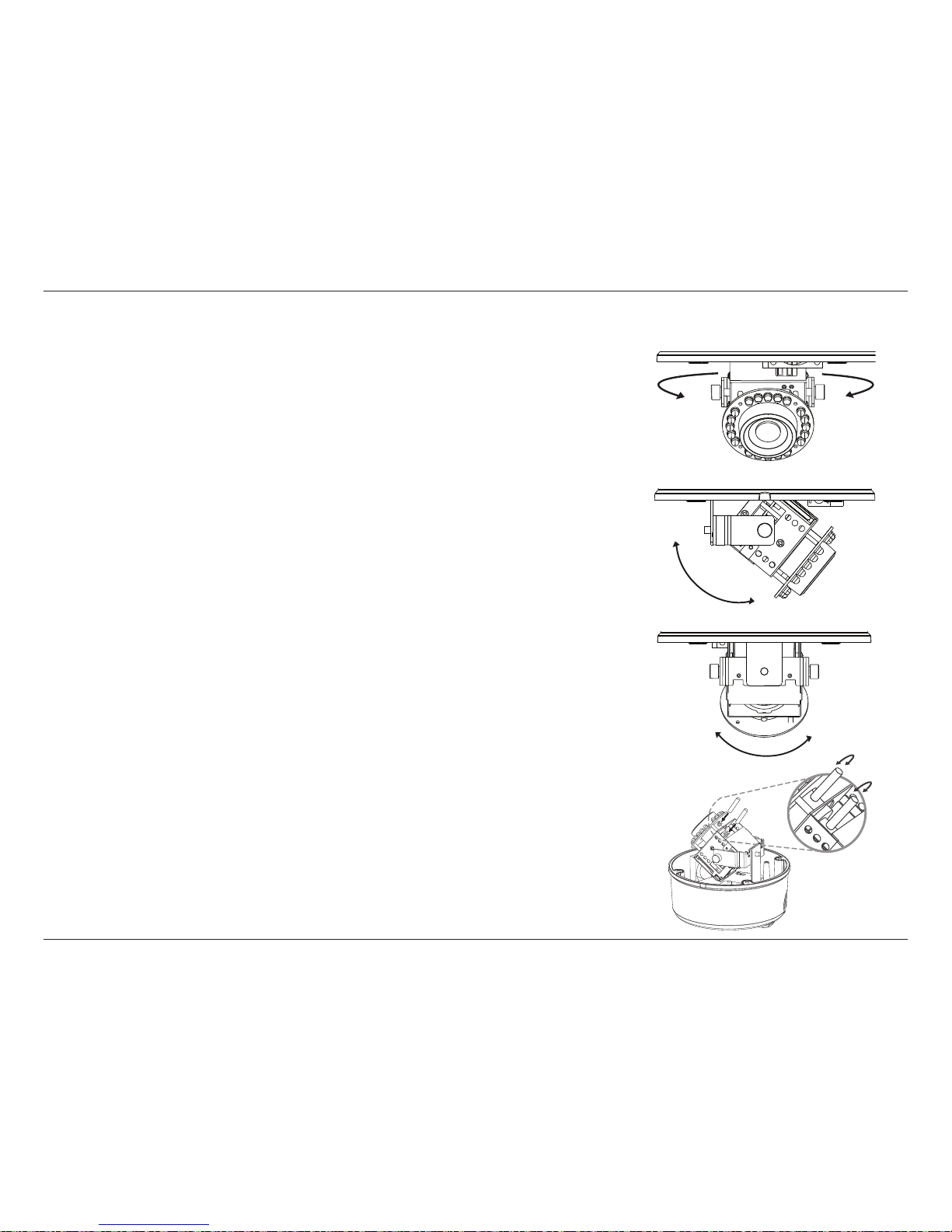

Turn the lens module left and right until the desired position is achieved; tighten the pan
screw once completed.
Loosen the tilt screws on both sides of the camera, and turn the lens module up and
down until the desired position is achieved; tighten the tilt screws once completed.
Turn the lens to adjust the IP camera’s image until the desired orientation is achieved,
tighten the image adjustment screw once completed.

Please use the included plastic lens tool to make these adjustments.
Adjust the zoom factor by moving the controller left and right until the desired range is
achieved. Tighten the zoom controller once completed.
Adjust the focus range by moving the controller left and right until the image is clear.
Tighten the focus controller once completed.


11D-Link DCS-6510 User Manual
Installation

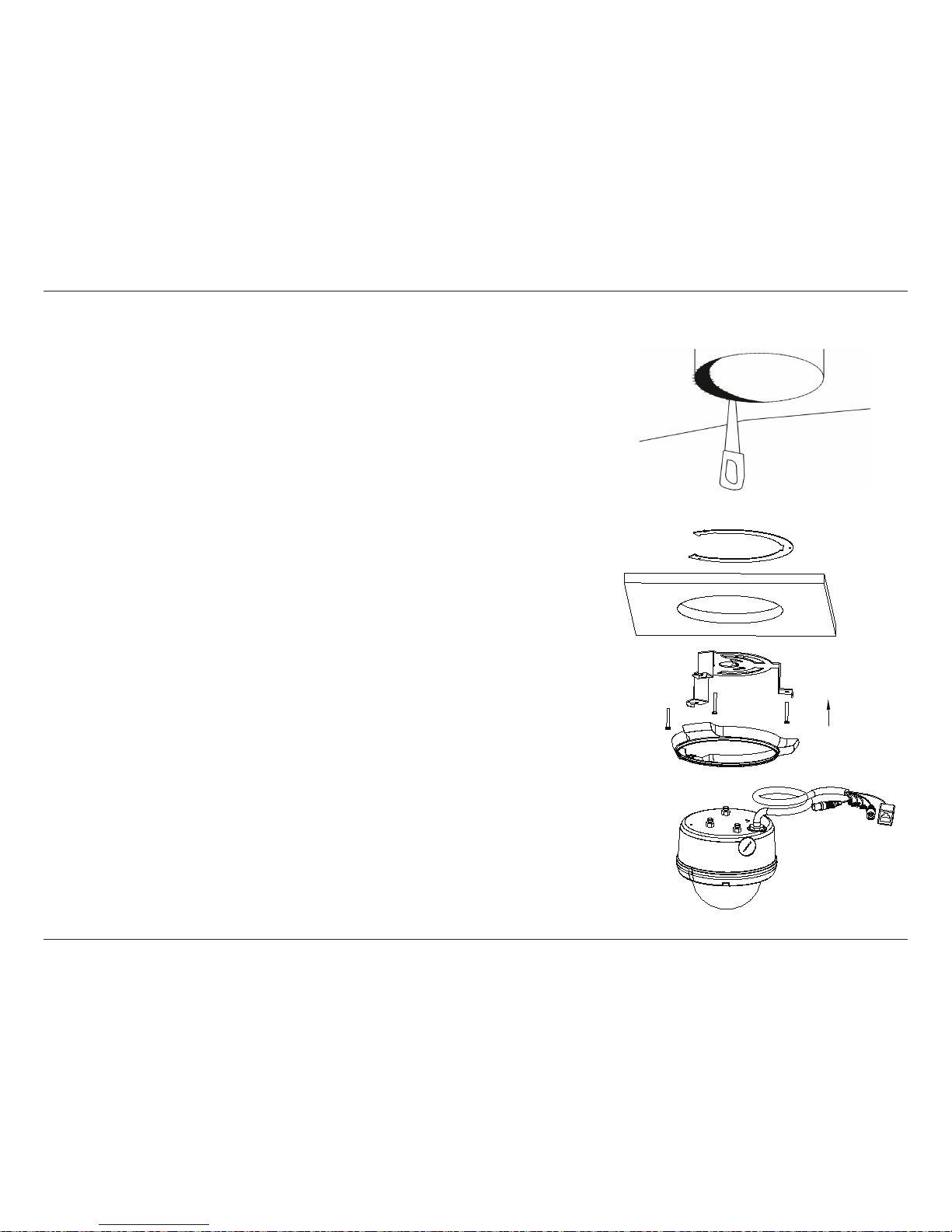

1. Locate a suitable position on the ceiling for a 158 mm (+2 / –0 mm) hole to be cut.
A template is included to aid in marking the mounting hole. Ensure that this hole will
have sufcient access to power, network, and A/V cables.
2. Cut the hole in the ceiling according to the template.
3. Drill 3 separate 6 mm holes corresponding to the holes in the mounting template and
insert the plastic anchors into these holes.
4. Insert the inner mounting ring into the ceiling cavity with the screw guides pointing
towards the oor.
5. Attach the inner mounting ring to the recessed bracket using the three screws
provided.
6. Slip the cosmetic plastic ring over the bracket and turn it counter-clockwise to lock it
into place.
Inner Mounting Ring
Ceiling
Recessed
Bracket
Plastic
Ring
Dome
Camera
Ceiling


12D-Link DCS-6510 User Manual
Installation
Tether

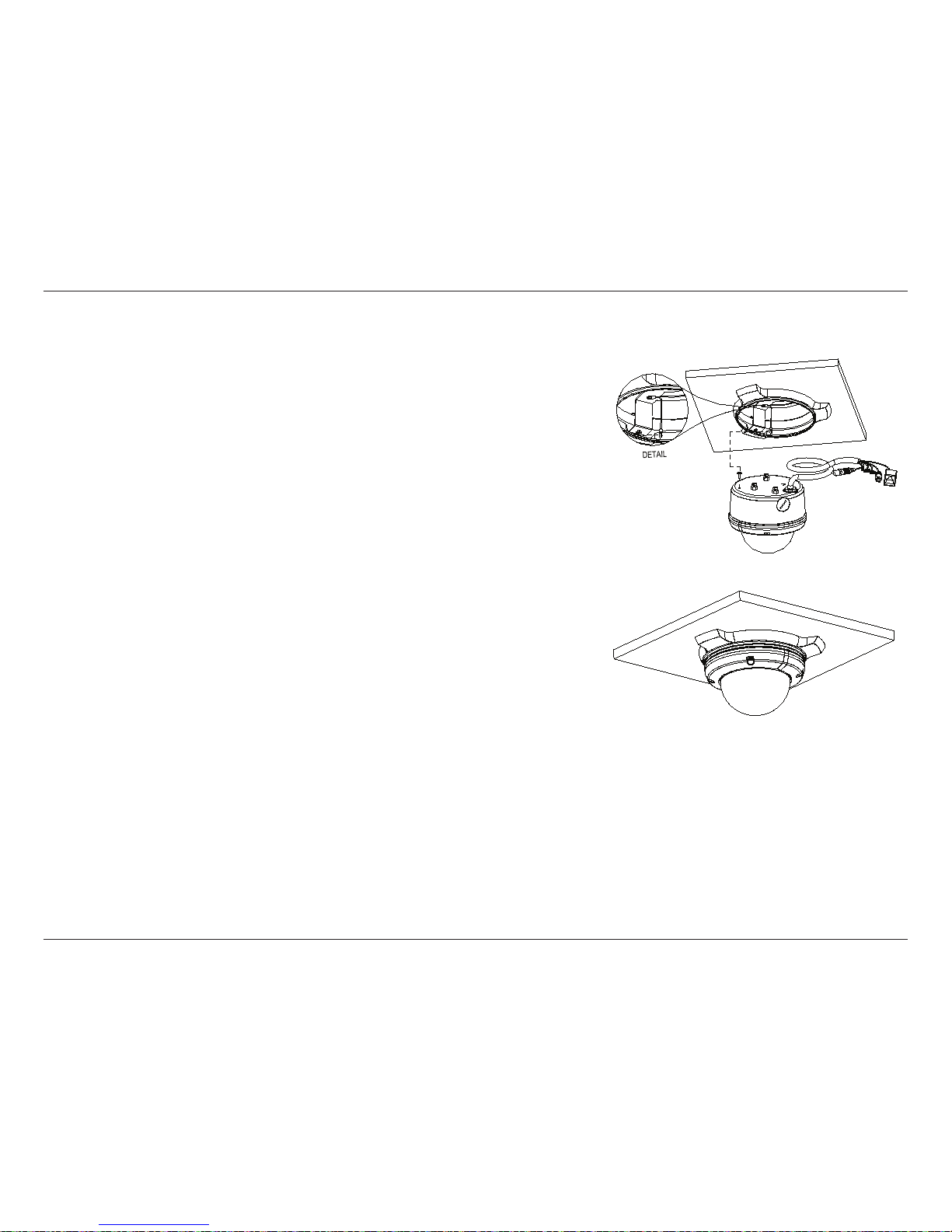

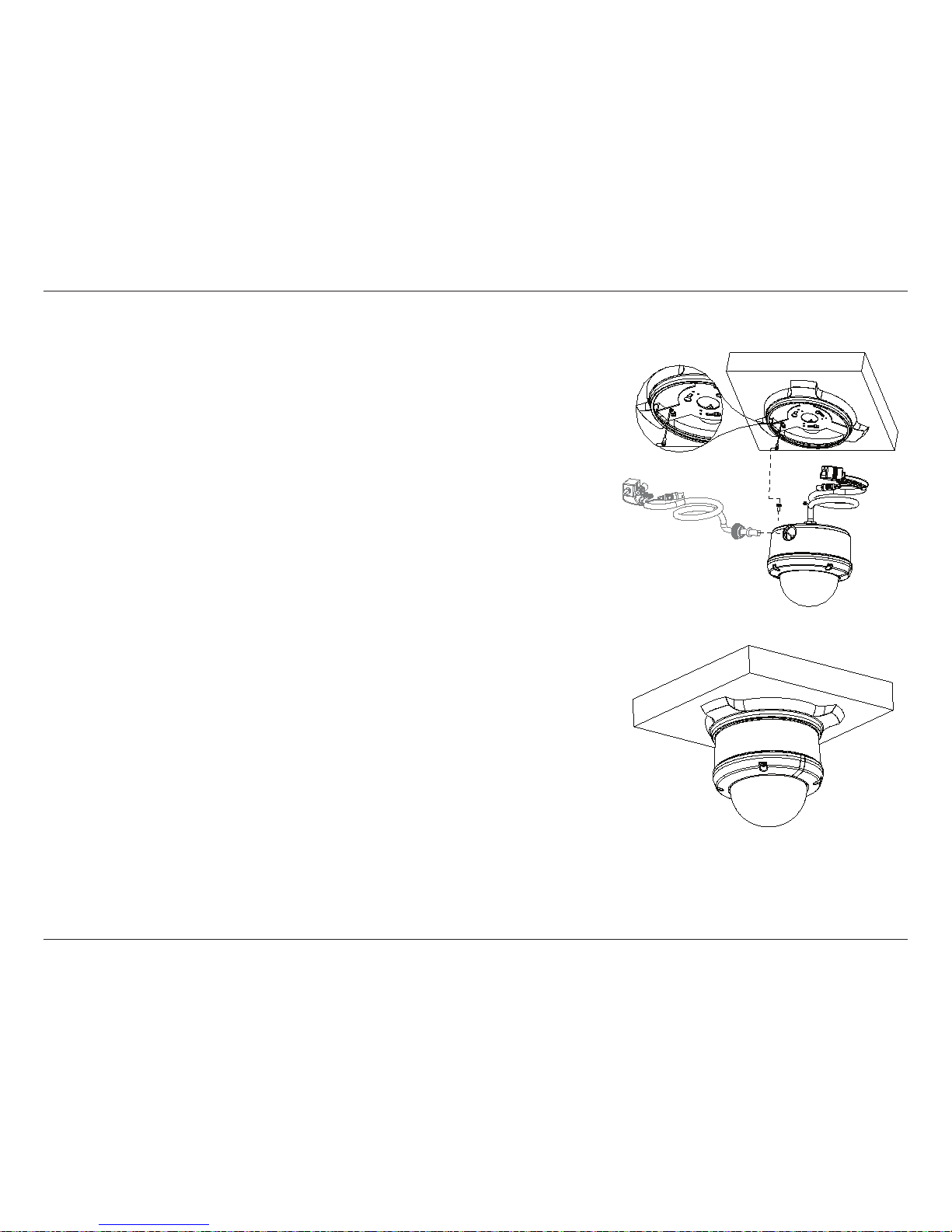

7. Attach one side of the safety tether cable to the inner mounting ring using the small
screw. Attach the opposite side of the tether to the base of the camera using the other
small screw.
8. Connect the Ethernet cable and the power cable, threading them through the hole in
the ceiling.
9. Push the dome body up into the installed bracket taking care to align the mounting
bolts on the camera base with the bracket’s slots. Rotate the camera clockwise to lock
the camera into the bracket.

13D-Link DCS-6510 User Manual
Installation

1. Locate a suitable position on the ceiling for a 45 mm (+2 / –0 mm) hole to be cut
(optional). A template is included to aid in marking the mounting hole.
 If you will not drill a hole for the cable, please see page 8 for information
regarding how to change the orientation of the cable.
2. Cut the hole in the ceiling according to the template
3. Drill 3 separate 6 mm holes corresponding to the holes in the mounting template and
insert the plastic anchors into these holes.
4. Attach the surface bracket to the ceiling using the screws provided.
5. Slip the cosmetic plastic ring over the bracket and turn it clockwise to lock it into place.
Plastic
Ring
Surface
Bracket
Ceiling
Dome
Camera

14D-Link DCS-6510 User Manual
Installation
Tether
6. Attach one side of the safety tether cable to the surface bracket using the small screw.
Attach the opposite side of the tether to the base of the camera using the other small
screw.
7. Connect the Ethernet cable and the power cable, threading them through the hole in
the ceiling. If you did not drill a hole to
8. Push the dome body up into the installed bracket taking care to align the mounting
bolts on the camera base with the bracket’s slots. Rotate the camera clockwise to lock
the camera into the bracket.

15D-Link DCS-6510 User Manual
Installation

1. Locate a suitable position on the ceiling for a 34 mm (+2 / –0 mm) hole to be cut. A
template is included to aid in marking the mounting hole.
2. Cut the hole in the ceiling according to the template
3. Drill 4 separate 6 mm holes corresponding to the holes in the mounting template and
insert the plastic anchors into these holes.

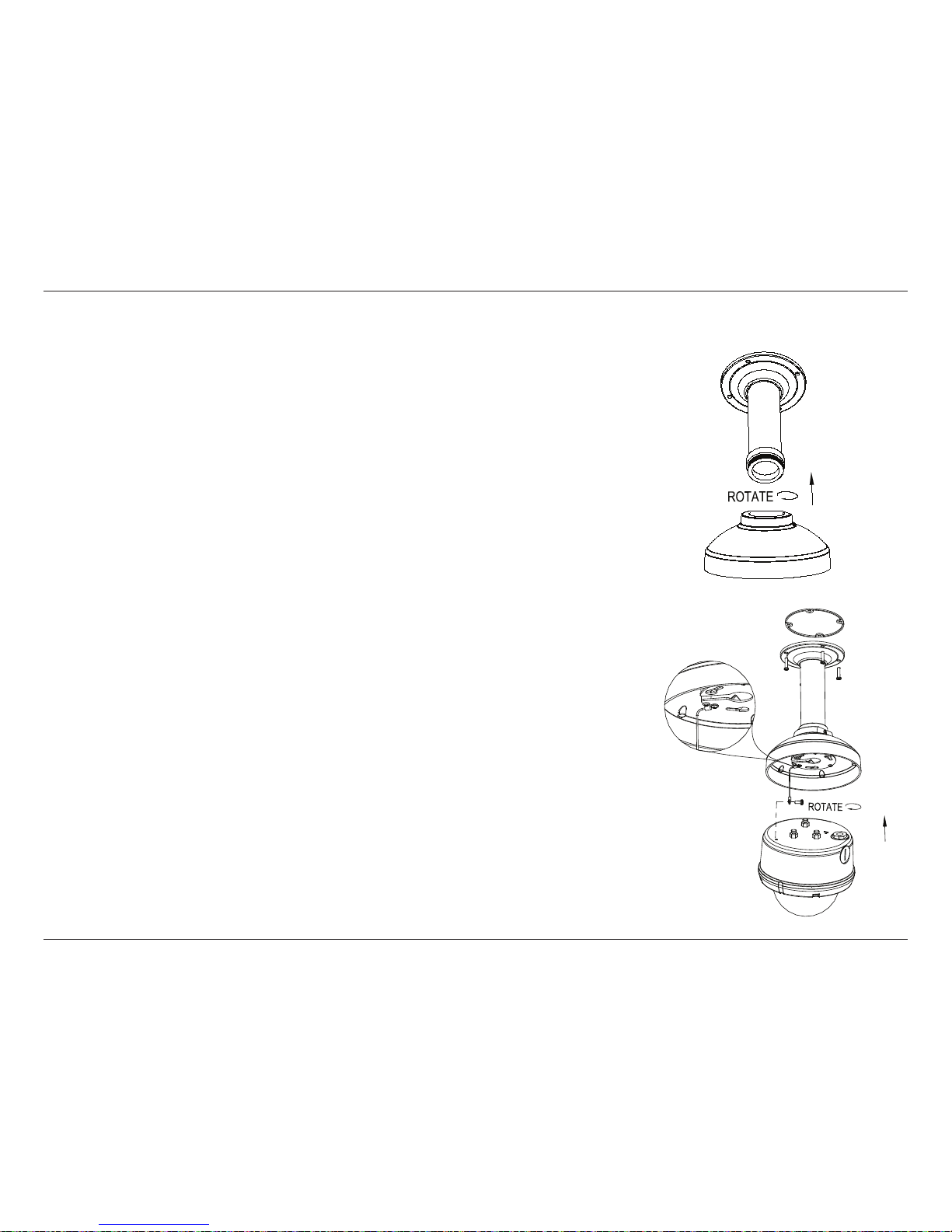

4. Place the rubber seal between the pendant bracket and the ceiling to ensure a
waterproof seal between the ceiling and the bracket.
5. Attach the pendant bracket to the ceiling using the screws provided.
6. Attach the bracket cap to the bottom of the pendant bracket, rotating the cap
counter-clockwise to tighten it into place.
7. Insert the screw into the base of the pendant bracket at the top of the bracket cap to
secure the bracket cap into place.
8. Attach one side of the safety tether cable to the bracket cap using the small screw.
Attach the opposite side of the tether to the base of the camera using the other small
screw.
Pendant
Bracket
Bracket
Cap
Tether
Dome
Camera

16D-Link DCS-6510 User Manual
Installation

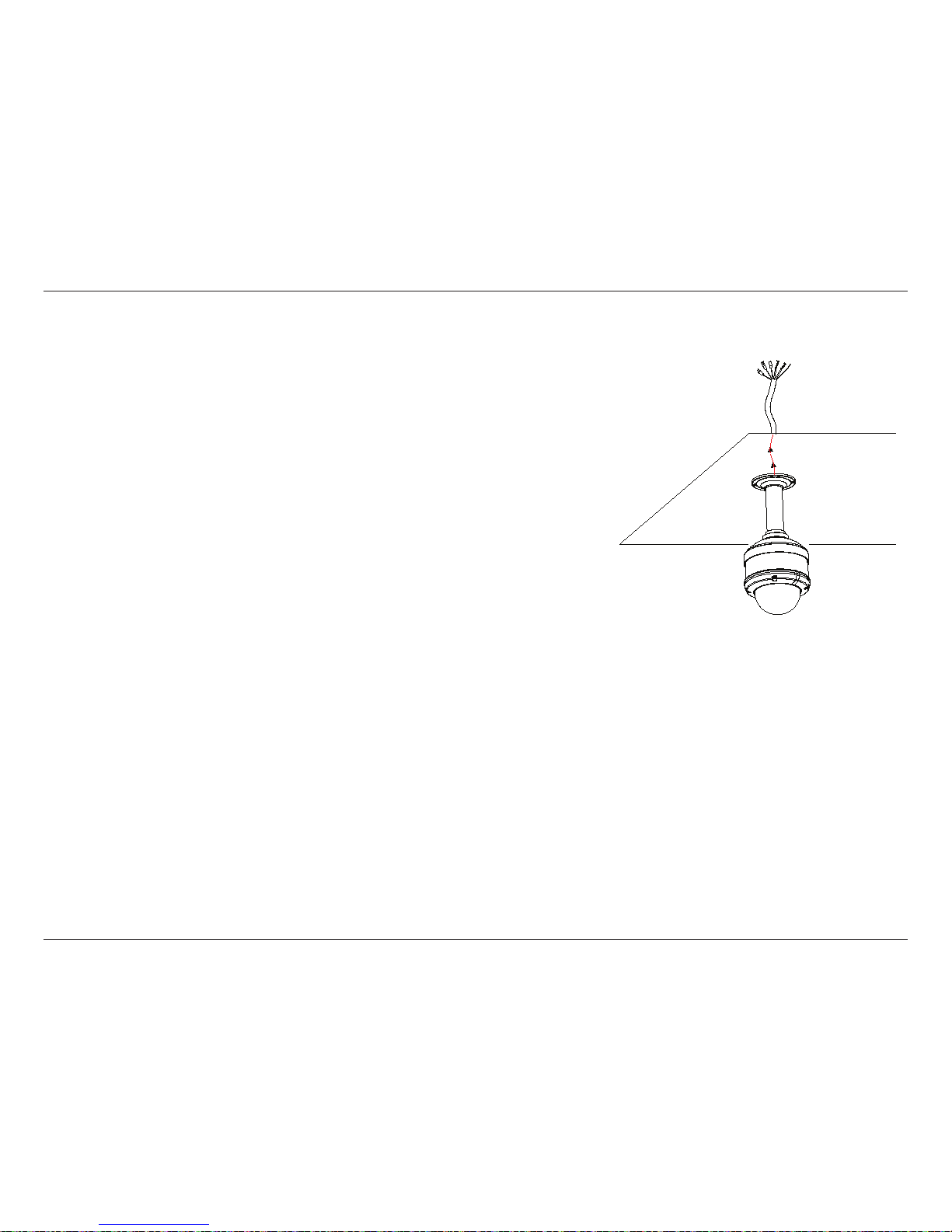

9. Connect the Ethernet cable and the power cable and thread them through the
pendant bracket.
10. Push the dome body up into the installed bracket taking care to align the mounting
bolts on the camera base with the bracket’s slots. Rotate the camera clockwise to
lock the camera into the bracket.

17D-Link DCS-6510 User Manual
Installation


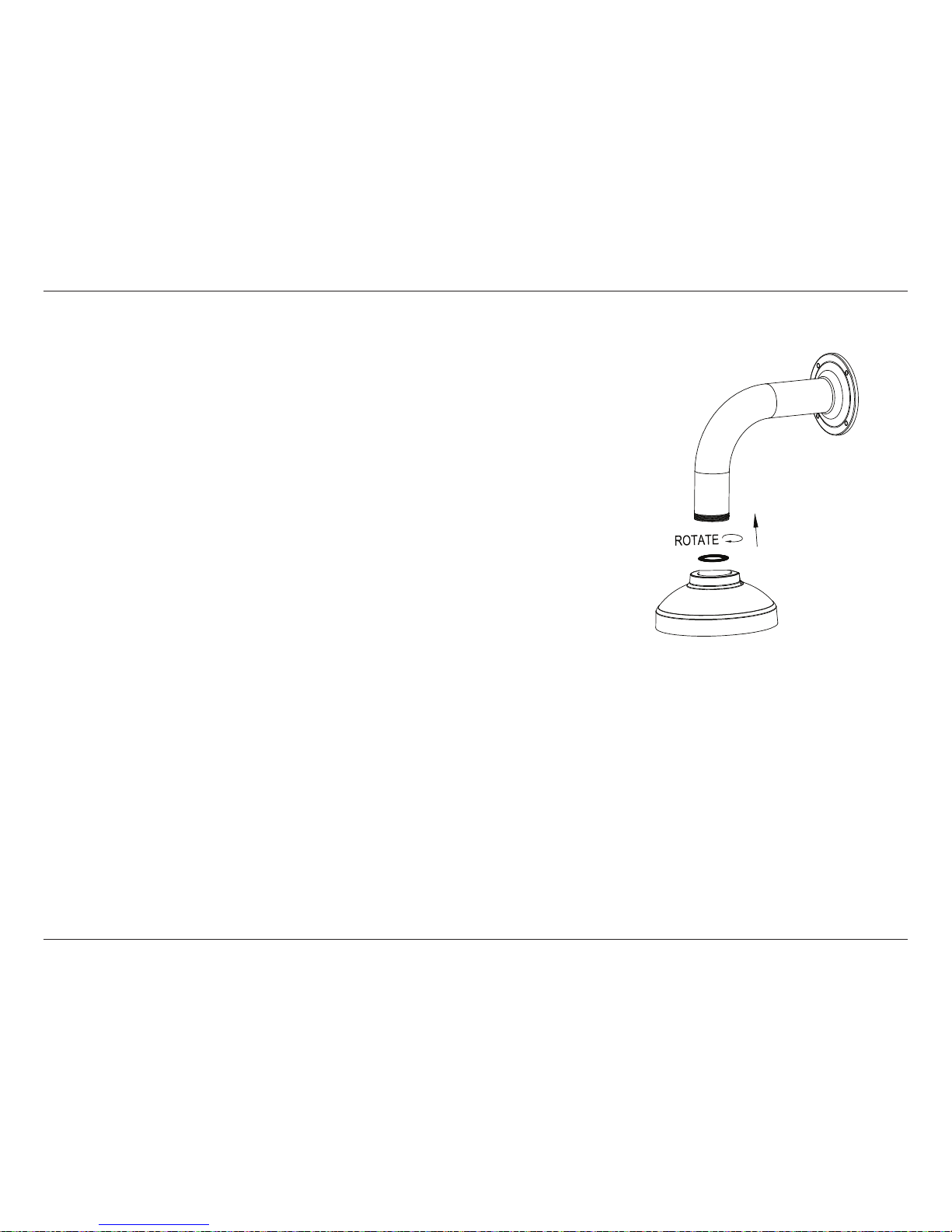

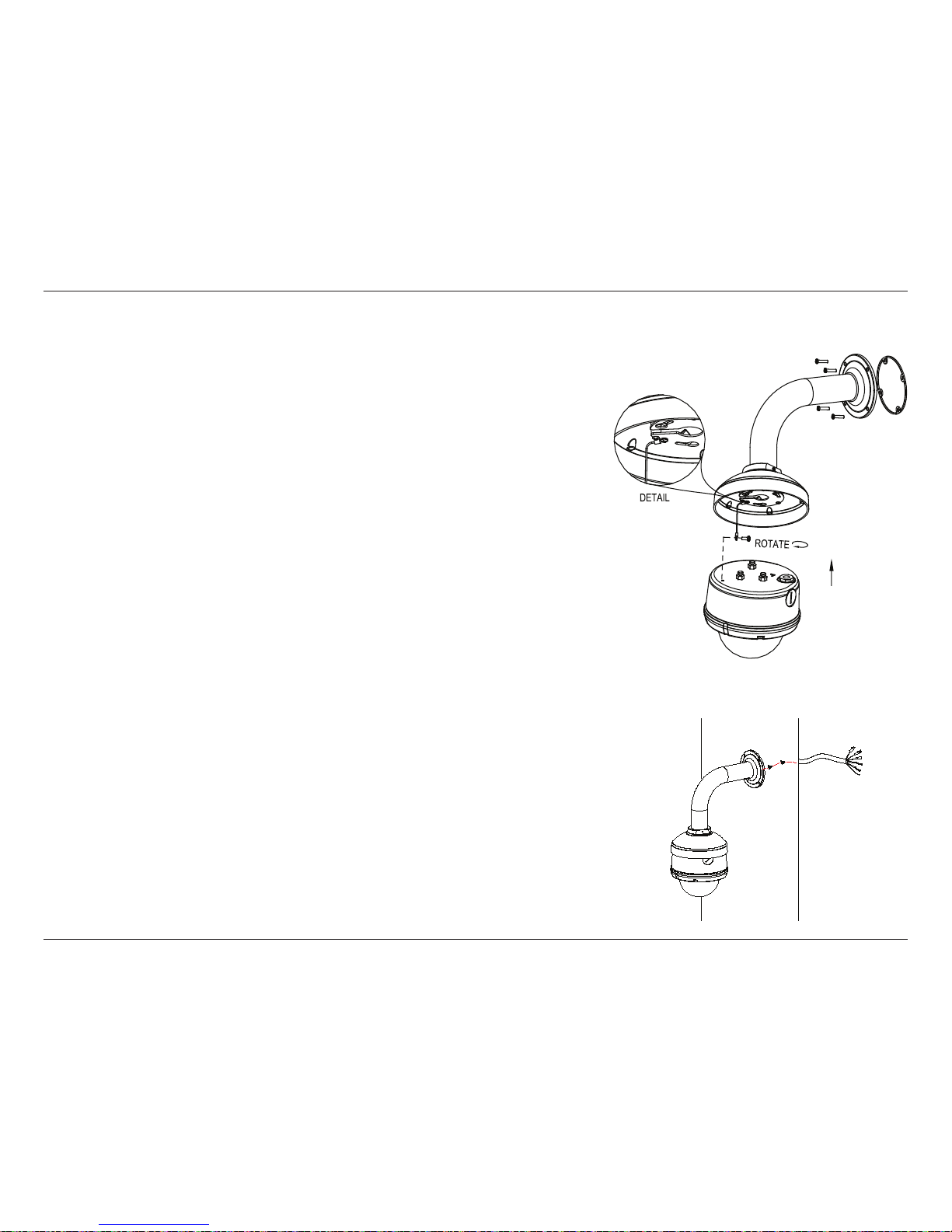

1. Locate a suitable position on the wall for a 34 mm (+2 / –0 mm) hole to be cut. A
template is included to aid in marking the mounting hole.
2. Cut the hole in the wall according to the template
3. Drill 4 separate 6 mm holes corresponding to the holes in the mounting template and
insert the plastic anchors into these holes.
4. Place the rubber seal between the bent bracket and the wall to ensure a waterproof
seal between the wall and the bracket.
5. Attach the bent bracket to the wall using the screws provided.
6. Place the rubber washer into the hole at the top of the bracket cap to ensure a
waterproof seal between the cap and the bracket.
7. Attach the bracket cap to the bottom of the bent bracket, rotating the cap counter-
clockwise to tighten it into place.
8. Insert the screw into the base of the bent bracket at the top of the bracket cap to
secure the bracket cap into place.
Bracket
Cap
Bent
Bracket

18D-Link DCS-6510 User Manual
Installation
9. Attach one side of the safety tether cable to the bracket cap using the small screw.
Attach the opposite side of the tether to the base of the camera using the other small
screw.
10. Connect the Ethernet cable and the power cable and thread them through the bent
bracket.
11. Push the dome body up into the installed bracket taking care to align the mounting
bolts on the camera base with the bracket’s slots. Rotate the camera clockwise to
lock the camera into the bracket. Tether
Dome
Camera
Bent
Bracket

19D-Link DCS-6510 User Manual
Installation


1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.

1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power source
such as your building's emergency power.

20D-Link DCS-6510 User Manual
Installation

If you are using a PoE hub, connect the IP camera to the hub via an
Ethernet cable, which will provide transmission of both power and data
over a single cable.
