D-Link DCS-2802KT-EU User manual

DCS-2802KT-EU
User Manual
Wire-Free Camera Kit
Hardware: A1
Manual Version: 1.00
September 21, 2018

iD-Link DCS-2802KT-EU User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Overview
Revision Date Description
1.00 September 4, 2018 Initial release
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2018 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
Manual Revisions

iiD-Link DCS-2802KT-EU User Manual
Table of Contents
Table of Contents
Product Overview..............................................................1
Package Contents......................................................................... 1
Introduction ................................................................................... 2
System Requirements.................................................................2
Hardware Overview..................................................................... 3
Camera .....................................................................................3
Camera LED Behavior..........................................................4
Hardware Overview..................................................................... 5
Hub ............................................................................................5
Hub LED Behavior................................................................. 6
Safety ................................................................................................7
Before you Begin...........................................................................7
Wireless Installation Considerations...................................... 8
Camera Placement Precautions .............................................. 9
Getting Started................................................................10
Mounting the Camera.......................................................10
Snap Mount .....................................................................10
Mounting the Camera.......................................................12
Threaded Mount ............................................................12
Setting Up the Cameras With the mydlink™ App ..........14
Using the mydlink App....................................................16
Controlling Your Cameras........................................................16
Camera Options ..........................................................................17
Device .....................................................................................18
Controlling Your Hub.................................................................21
Device .....................................................................................22
Troubleshooting..............................................................24
Technical Specications..................................................25
Camera (DCS-2800LH-EU) .......................................................25
Technical Specications..................................................27
Hub (DCS-H100)..........................................................................27
Regulatory Information ..................................................29
DCS-2800LH-EU ..........................................................................29
Regulatory Information ..................................................46
DCS-H100 ......................................................................................46

1D-Link DCS-2802KT-EU User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with your product will cause damage and void the warranty.
If any of the above items are missing, please contact your reseller.

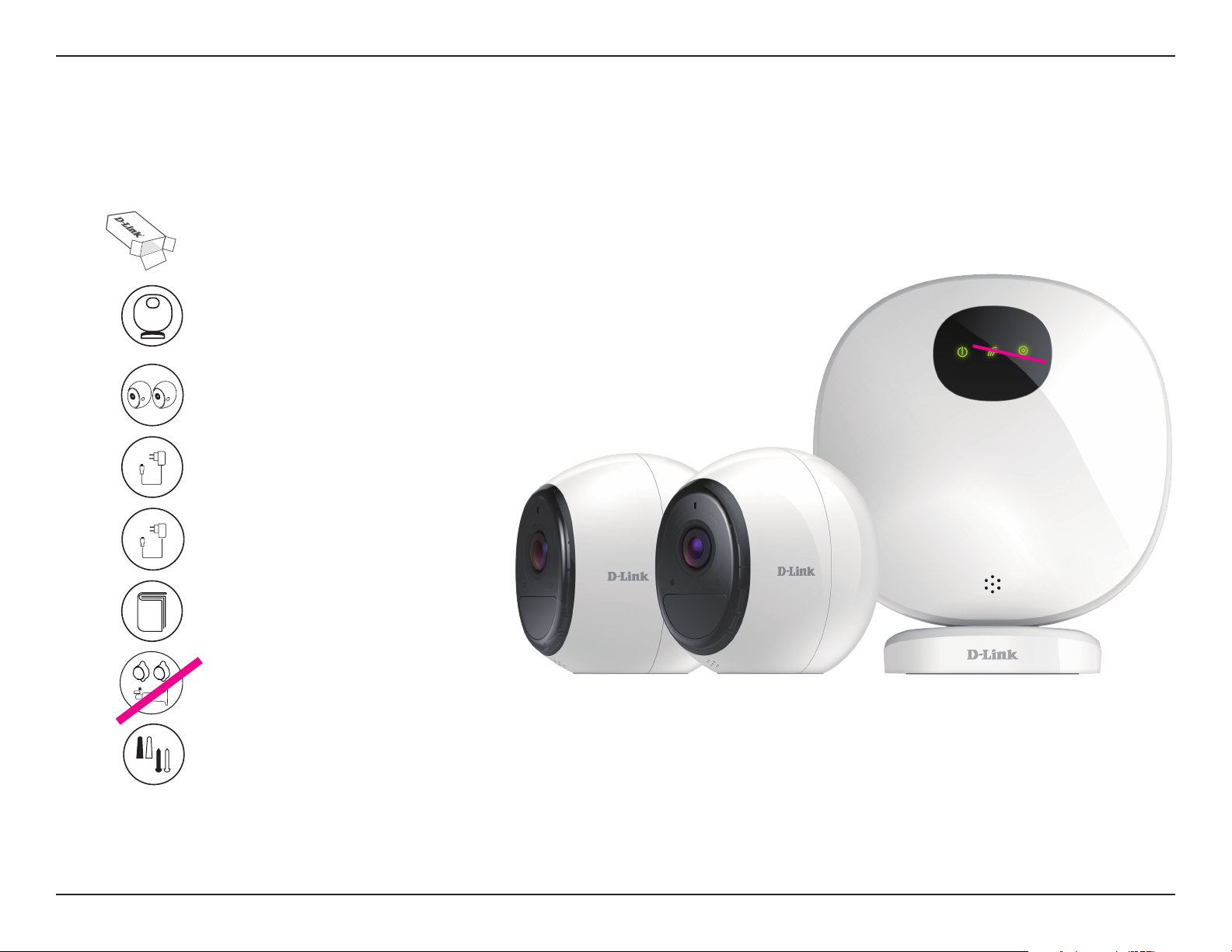

DCH-H100
Hub
Quick Installation Guide
Screws and plastic anchors
2 x DCS-2800LH-EU
Cameras
DCH-H100 hub power
adapter
DCS-2800LH-EU micro-USB
camera power adapter
2 x Snap Mounts

2D-Link DCS-2802KT-EU User Manual
Section 1 - Product Overview
Introduction
The mydlink™ Pro DCS-2802KT-EU is a bundle consisting of two DCS-2800LH-EU Wire-Free Cameras and a DCS-H100 Hub which are ideal for Small
Oce/Home Oce (SOHO) surveillance applications.The DCS-2800LH-EU is a compact, wireless network battery camera suitable for day-time and
night-time outdoor environments. It features built-in night vision, motion detection, and a free mobile app — so you can feel at ease when you’re
away from home.
System Requirements
Network Requirements • Broadband Internet connection
• A router connected to your broadband modem
mydlink App Requirements
• iPhone, iPad, or Android smartphone or tablet (please refer to the
mobileapp’s storepage tocheck whetheryour deviceiscompatible)
with Bluetooth 4.0 and above
• Email account (for mydlink service registration)
Optional Requirements • A microSD memory card (required for recording to onboard storage
slot in the hub). SDHC class 6 or above is recommended

3D-Link DCS-2802KT-EU User Manual
Section 1 - Product Overview
Hardware Overview
Camera

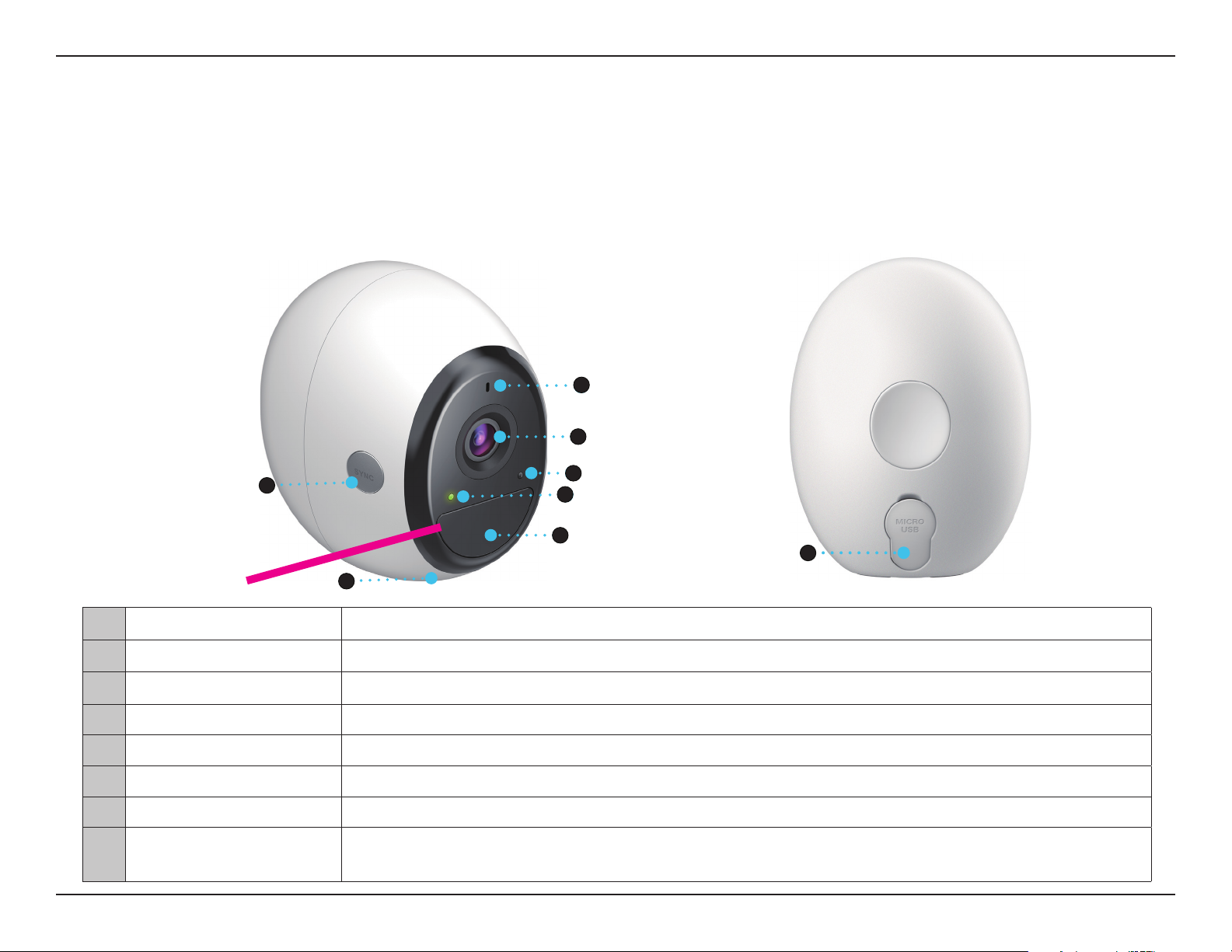

1Sync Button Press to start syncing the camera to the hub. Press to power on the camera from factory o state.
2Speaker Speaker for the two-way audio feature.
3 Built-in Microphone Listens to the environment.
4 1080p Lens Records 1080p video.
5 Light Sensor Senses light to determine if night mode should be enabled.
6 Status LED See Camera LED Behavior on page 4.
7PIR Detector Window The PIR motion detector is behind this window. Senses motion to trigger recordings.
8 Micro-USB Port Peel back the water-resistant cover and plug the supplied power connector here to charge the camera's
battery. Note: Please only plug in the camera in a dry location.
Front Back
Light Sensor
Built-in Microphone
1080p Lens
Sync Button Status LED
Micro-USB Port
1
3
4
8
5
6
PIR Detector Window
7
Speaker 2

4D-Link DCS-2802KT-EU User Manual
Section 1 - Product Overview
Camera LED Behavior

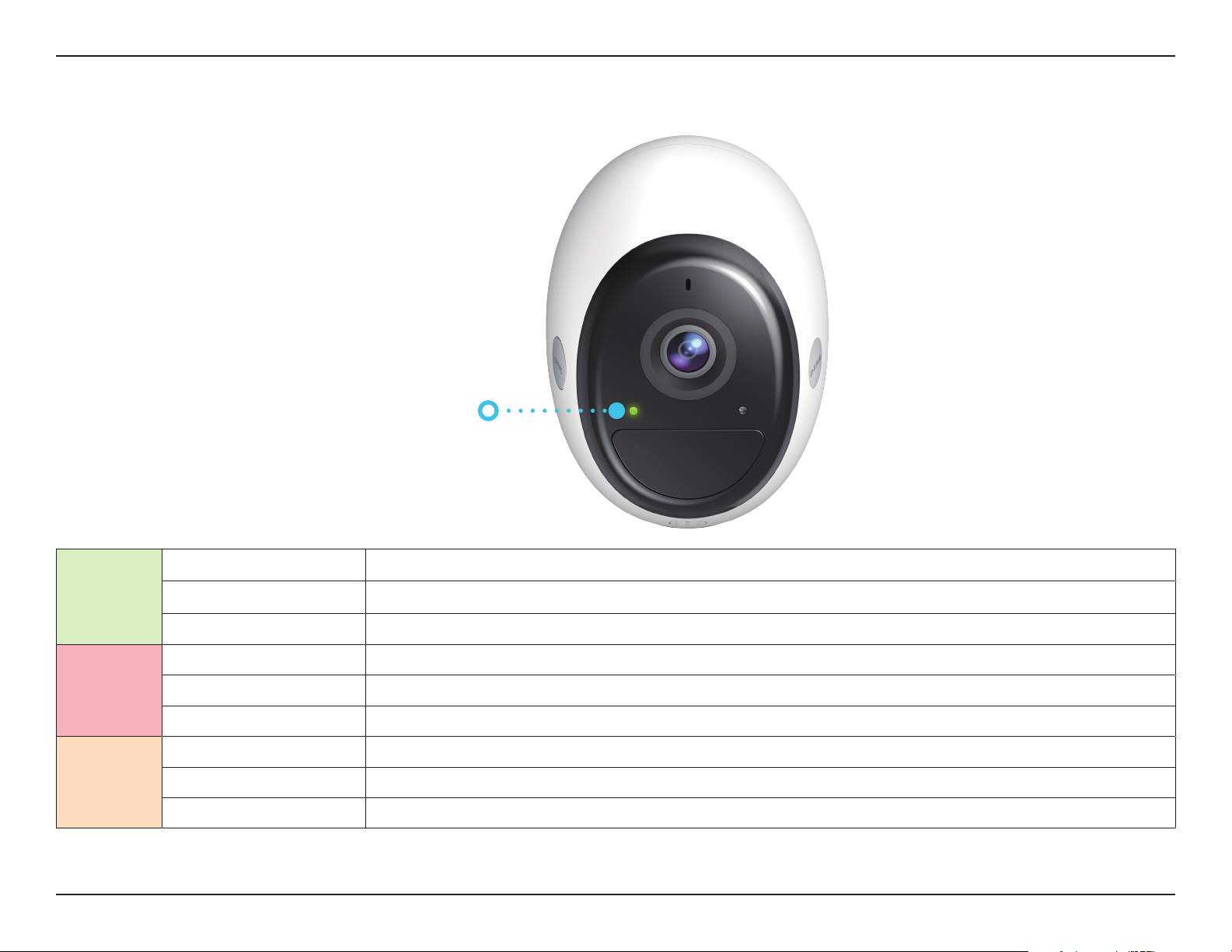

Green
Solid (for 10 sec.) Paired successfully.
Solid Battery is fully charged while power connector is still plugged in.
Blinking (every 1 sec.) Currently pairing. Maximum duration is 120 seconds.
Red
Solid (for 10 sec.) Pairing failed, unpaired.
Blinking (every 30 sec.) Lost connection with the hub.
Blinking (every 1 sec.) Currently upgrading rmware.
Orange
Blinking (every 10 sec.) Currently charging battery.
Blinking (every 30 sec.) Low battery. Less than 15% remaining.
Blinks (1 time) PIR motion sensor triggered.
Status LED

5D-Link DCS-2802KT-EU User Manual
Section 1 - Product Overview
Hardware Overview
Hub

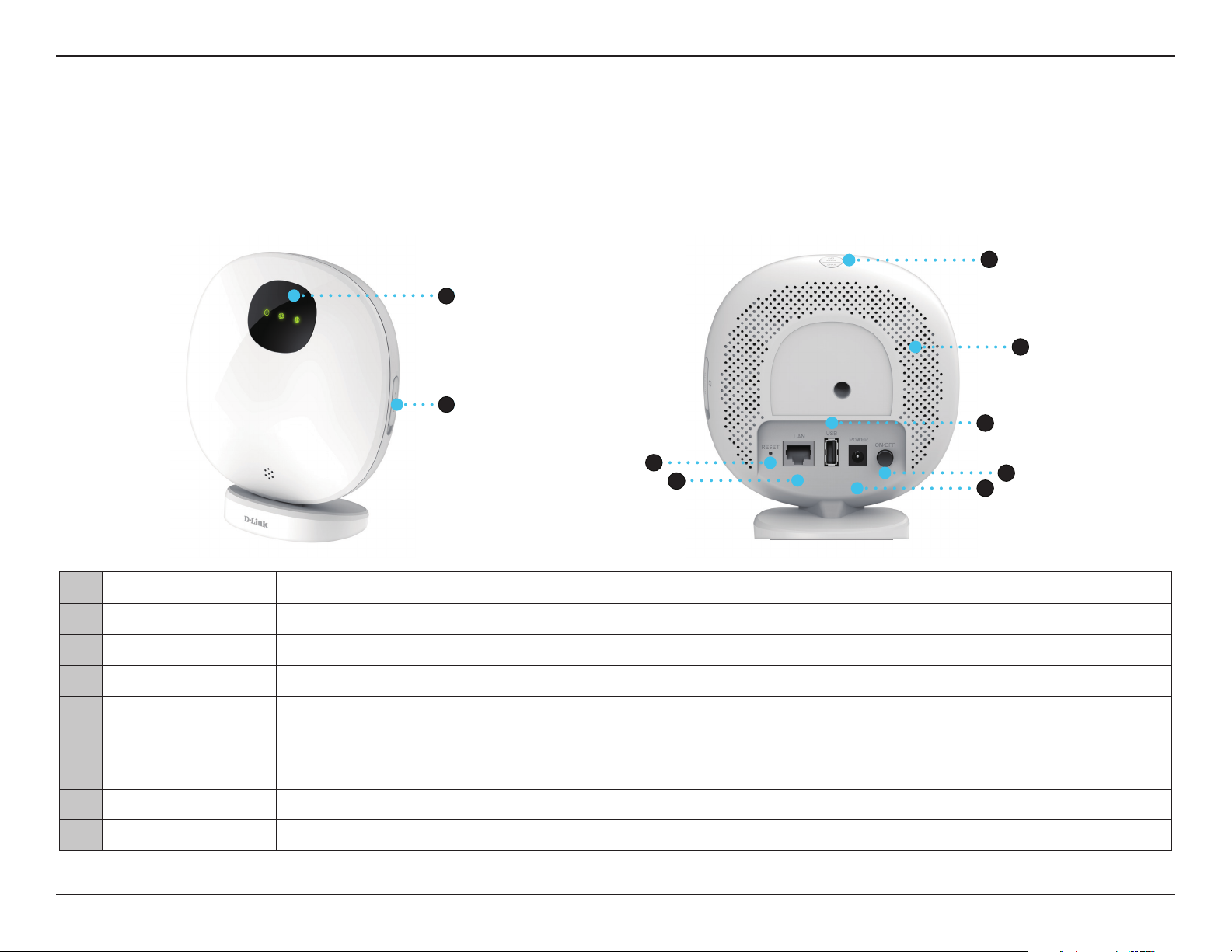

1LED Panel See Hub LED Behavior on page 6.
2microSD Slot microSD/SDHC/SDXC card slot. Supports up to v3.01 cards up to 128GB.
3Reset Button Press and hold for 10 seconds while the hub is on to reset to factory default settings.
4LAN Port 10/100 Ethernet port. Connect this to a router to enable internet access.
5Sync Button Press to start the camera pairing process. Maximum duration 120 seconds. Also can be pressed to stop the siren.
6Speaker Speaker for the siren feature. Single 100dB tone.
7USB 2.0 Port USB port for external hard drive. Does not support USB ash drives.
8Power Button Press to turn power o/on. Down position is on, up position is o.
9Power Input Plug the included power adapter here. 12V / 1.5A.
USB 2.0 Port
Power Button
Power Input
Front Back
microSD Slot
2
LED Panel
1
Sync Button
5
7
8
9
LAN Port 4
Reset Button 3
Speaker
6

6D-Link DCS-2802KT-EU User Manual
Section 1 - Product Overview
Hub LED Behavior

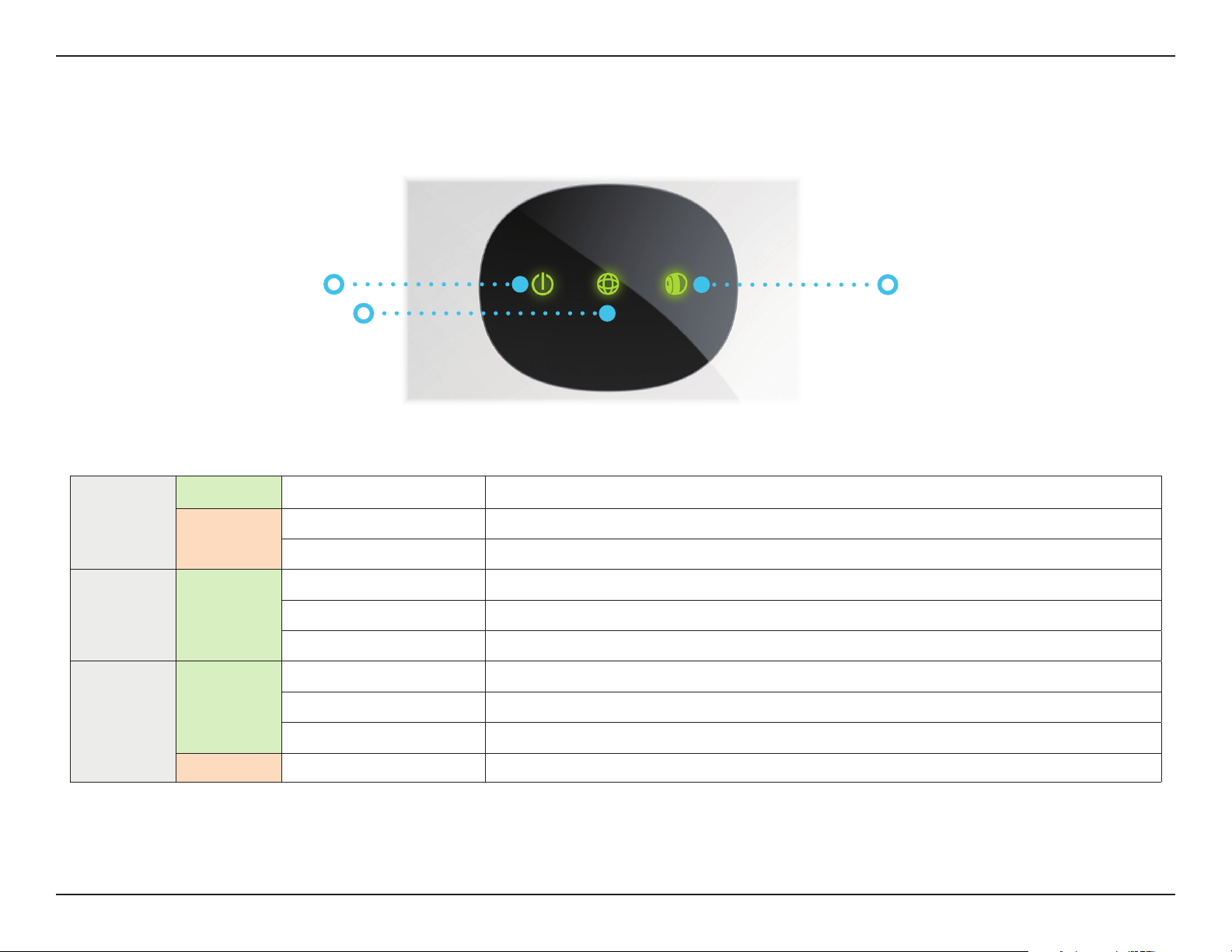

Power
Green Solid Powered on and functioning normally.
Orange Solid System is abnormal.
Blinking Currently upgrading rmware.
Internet Green
Solid Network link connected.
Blinking Currently transmitting network trac.
O No network connection.
Camera Green
Solid Camera connected and synced.
Blinking Currently pairing to a camera. Maximum duration 120 seconds.
O No cameras connected/synced.
Orange Solid No camera is bound to a mydlink account.
Power LED
Internet LED
Camera LED

7D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Safety
Please read all of the safety and operating instructions before using your device:
1. Do not open the device or attempt to repair or service it.
2. When the micro-USB power connector cover is opened, only operate the device in a dry location.
3. Do not submerge the devices in liquid or attempt to clean them with liquids or solvents. To clean the devices, disconnect
from the power outlet and use a damp towel.
Before you Begin
Plan the location of your cameras:
1. Fully charge the cameras before mounting. Do not charge the cameras outdoors.
2. Make sure the cameras are placed in a location that have a consistent and adequate wireless signal to the hub.

8D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Wireless Installation Considerations
The mydlink Wire-Free Camera Kit lets you monitor locations from virtually anywhere. Keep in mind that the number, thickness and location
of surrounding buildings, foliage, or other nearby objects that the wireless signals must pass through may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business area. The key to maximizing wireless
range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the camera and the hub to a minimum.
2. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. If placing a
camera indoors, try to position it so that the signal passes through drywall or open doorways. Materials and objects such as glass,
steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
3. Keep your product at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.

9D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Camera Placement Precautions
Caution:
Please make sure that the camera is not directly
facing the sun or a source of heat.
Proper Placement:

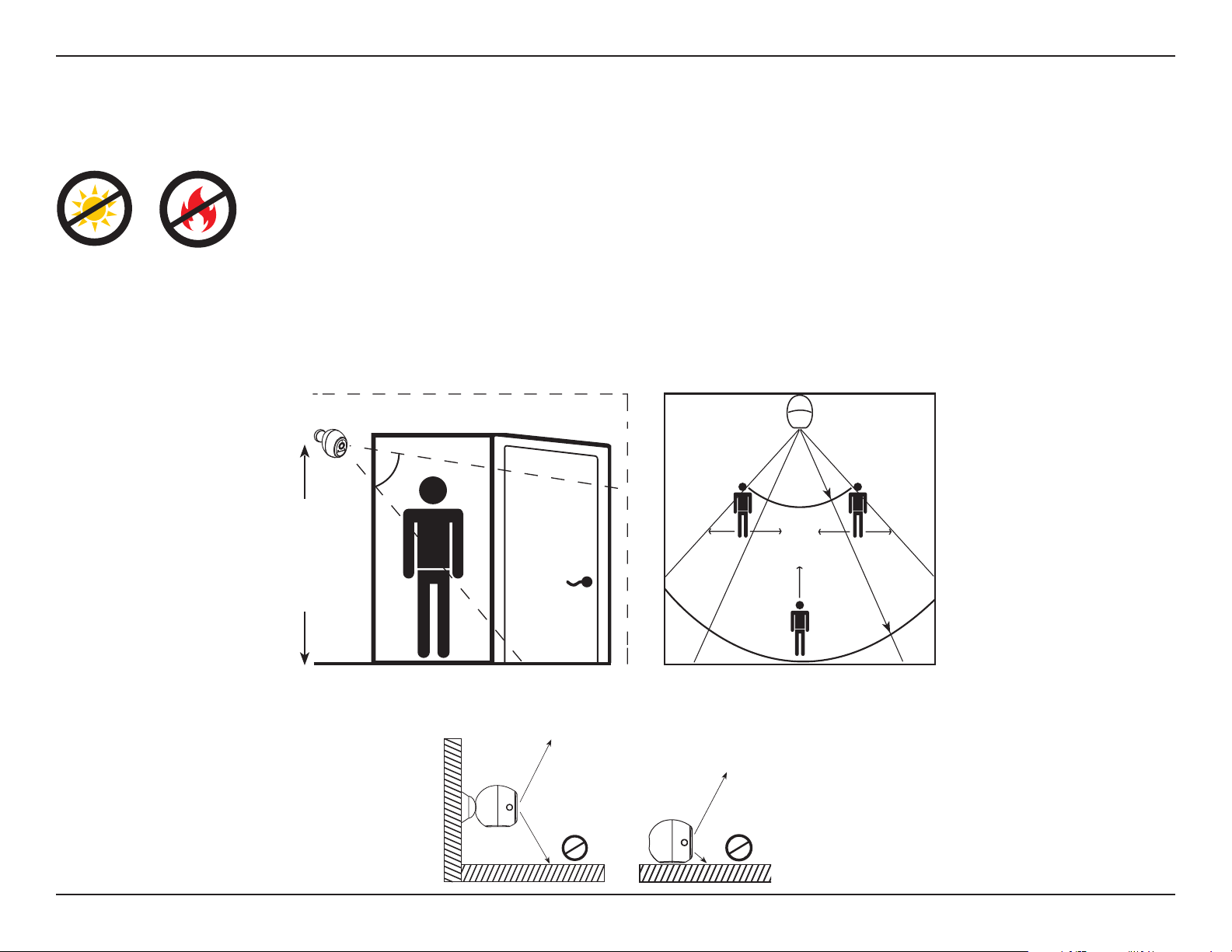

Place the camera at least 2.2 m (7 ft) or higher from the ground. The minimum recommended viewing
distance for the motion detection is 60 cm (24 in), and the maximum is 7.5 m (25 ft).
Note: The camera can be placed on a ceiling. See Ceiling Mode setting on page 18.
Improper Placement:

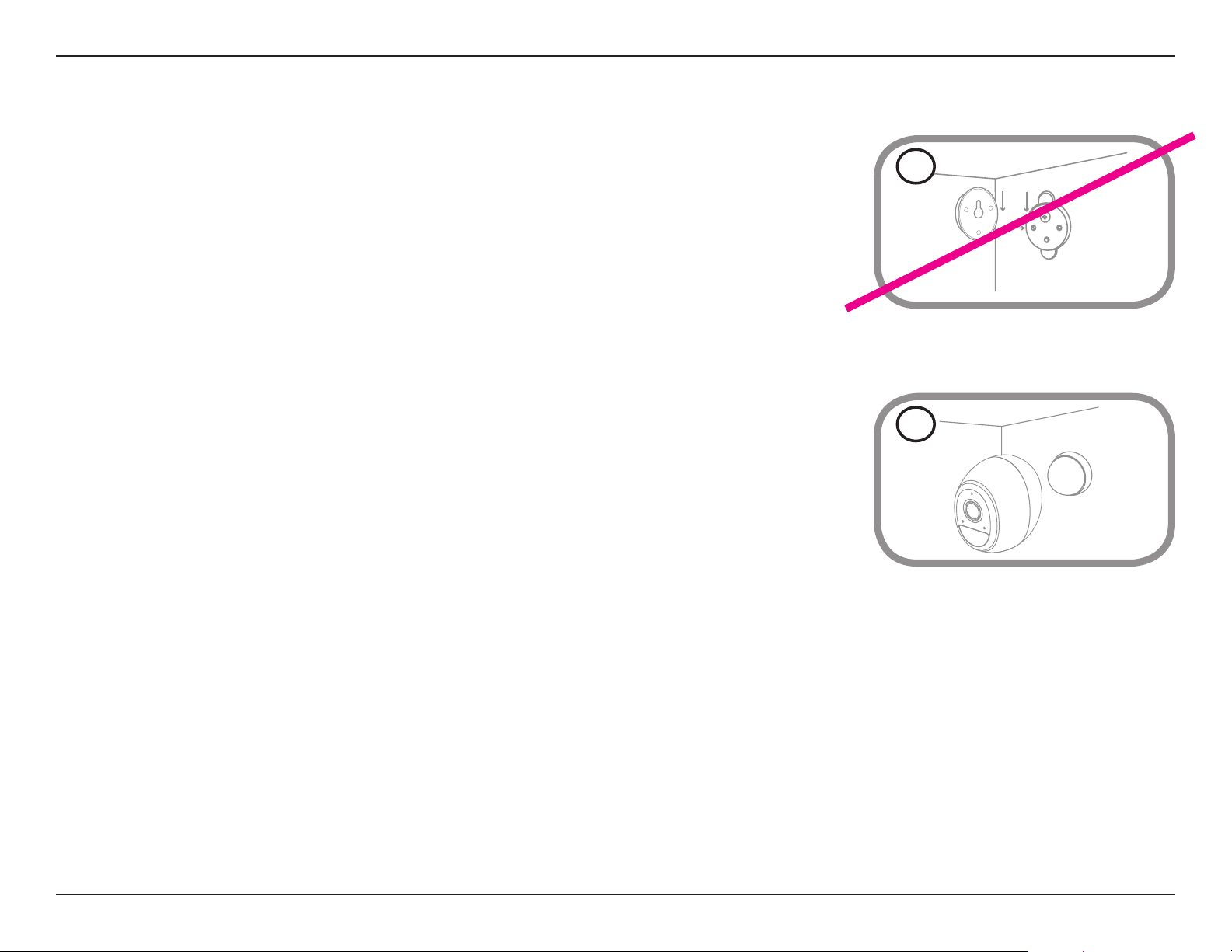

Do not place the camera directly on top of a surface or in a spot where there is something directly below it as this will
obstruct its view.
2.2 m
(7 ft)
64° 60 cm
(24 in)
min
115°
7.5 m
(25 ft)
max

10D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Getting Started
To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.

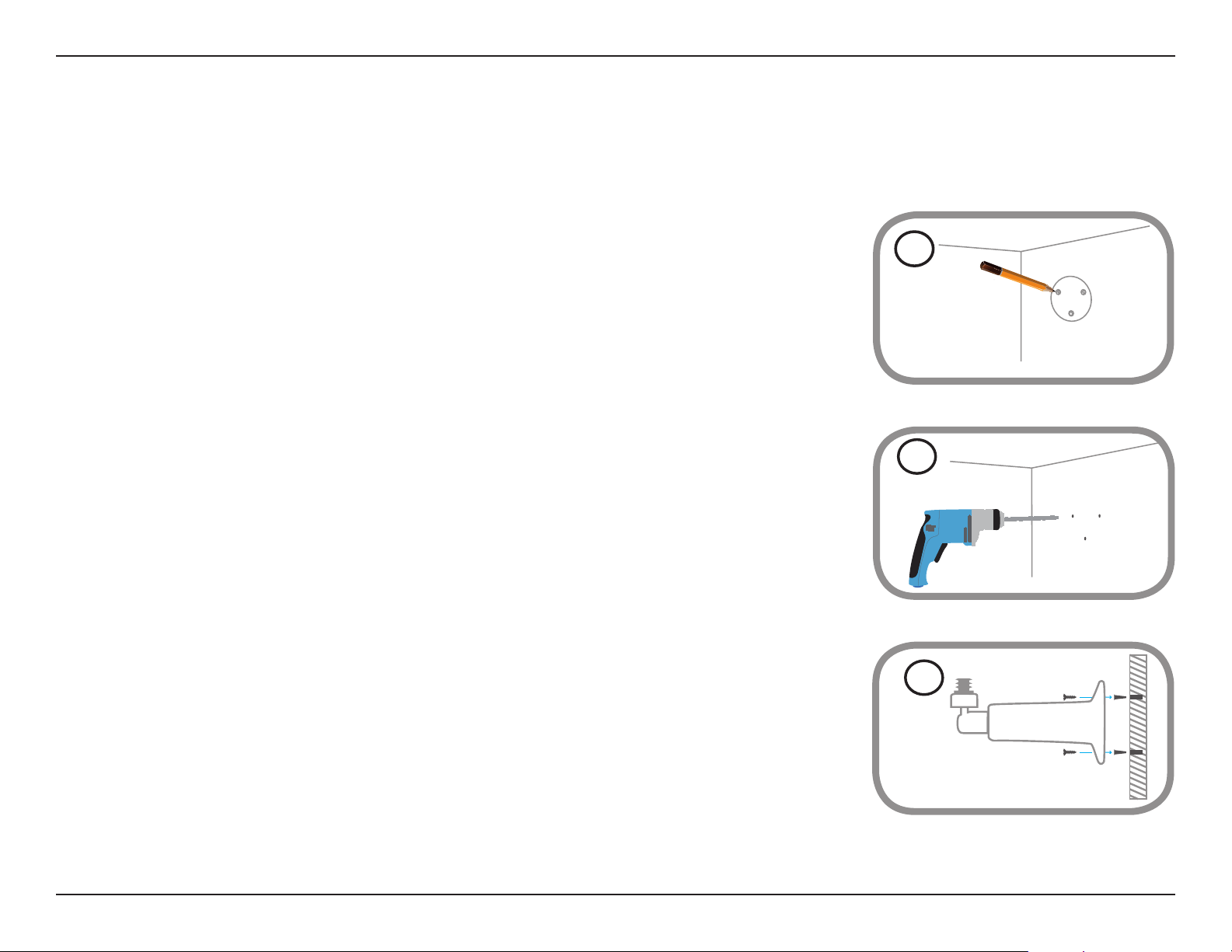

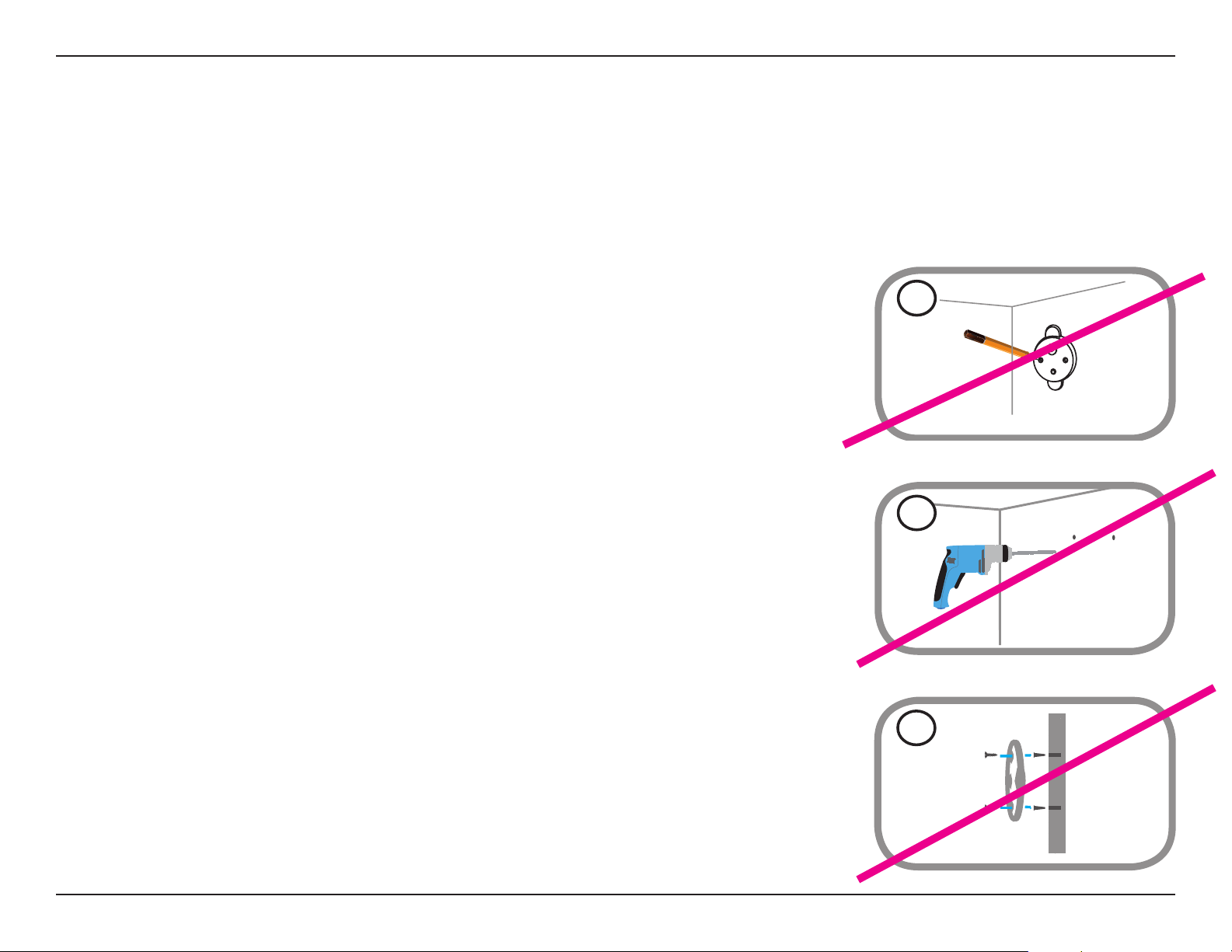

Step 1
Identify and mark the location where you want to install the bracket, ensuring that it is at least
20 cm from the ceiling.
Step 2
Using a 6 mm drill bit, drill a 25 mm deep hole over the mark. For a plaster, drywall, or concrete
wall, insert the plastic anchor to support the screw rst.
Step 3
Twist the supplied screw into the wall or anchor, making sure to leave enough clearance between
the screw head and the wall.
1
2
3
Mounting the Camera
Snap Mount

11D-Link DCS-2802KT-EU User Manual
Section 2 - Installation

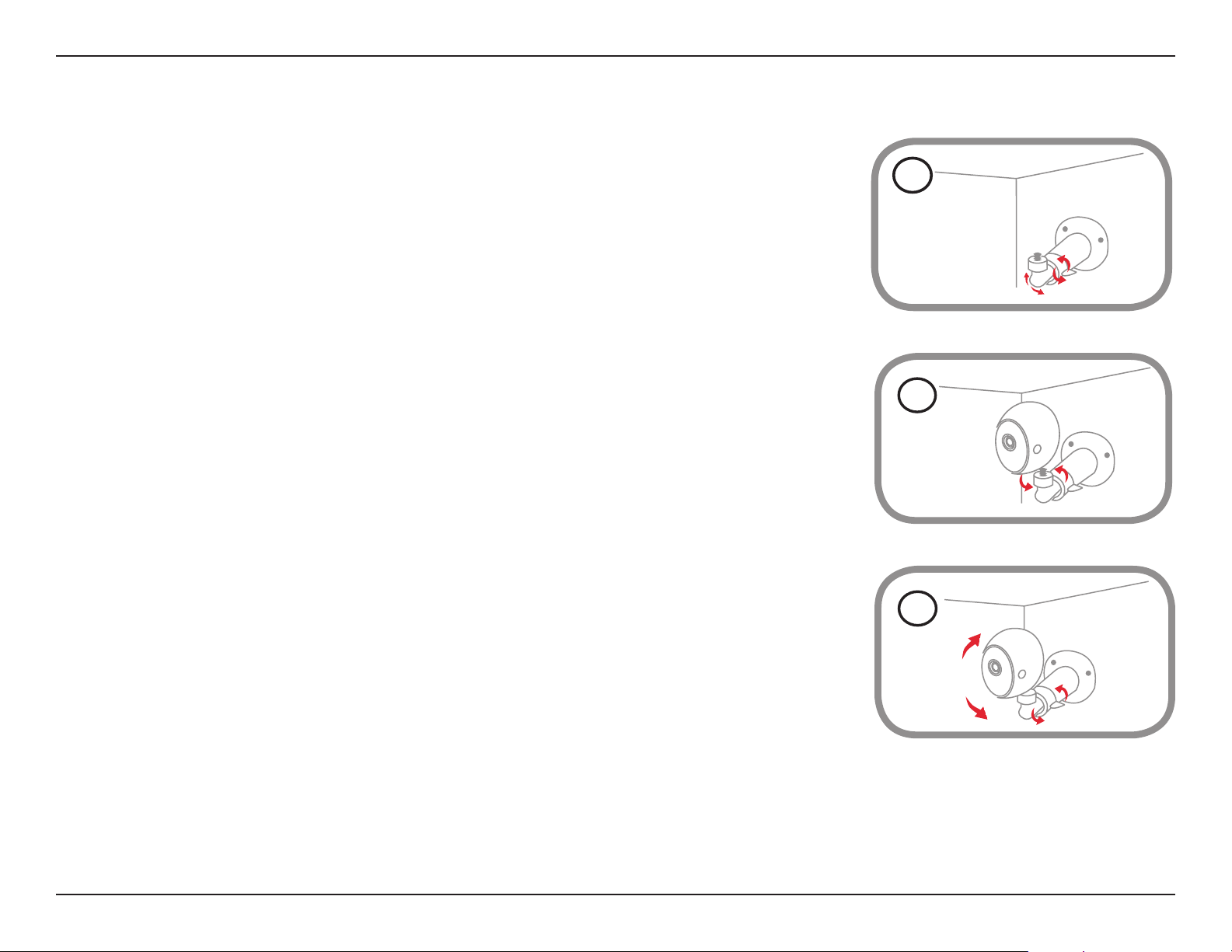

Step 5
Attach the back of the camera to the mount. Adjust the angle as desired.
Step 4
Align the screw with the largest hole on the snap mount. Slide the mount down to lock it into place. 4
5

12D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Step 2
Using a 6.35 mm drill bit, drill three 25 mm deep holes over the pencil marks. For a plaster, drywall,
or concrete wall, insert the plastic anchors to support the screws rst.
Step 3
Place the baseplate over the holes. Use the supplied screws to attach the baseplate to the wall.
2
3
1
Step 1
Place the mount at the desired location. Use a pencil to mark the holes.
Mounting the Camera
Threaded Mount

13D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Step 5
Screw the camera onto the mounting screw by tightening the plastic nger nut.
Step 6
Adjust the angle of the arm on the mounting bracket as required.Tighten the wing nut to lock the
camera's position into place.
4
5
6
Step 4
Rotate the wing nut counterclockwise with your ngers to slightly loosen it.Then move the bracket
to the approximate desired position.

14D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Please follow the instructions below to set up your Wire-Free Camera Kit.

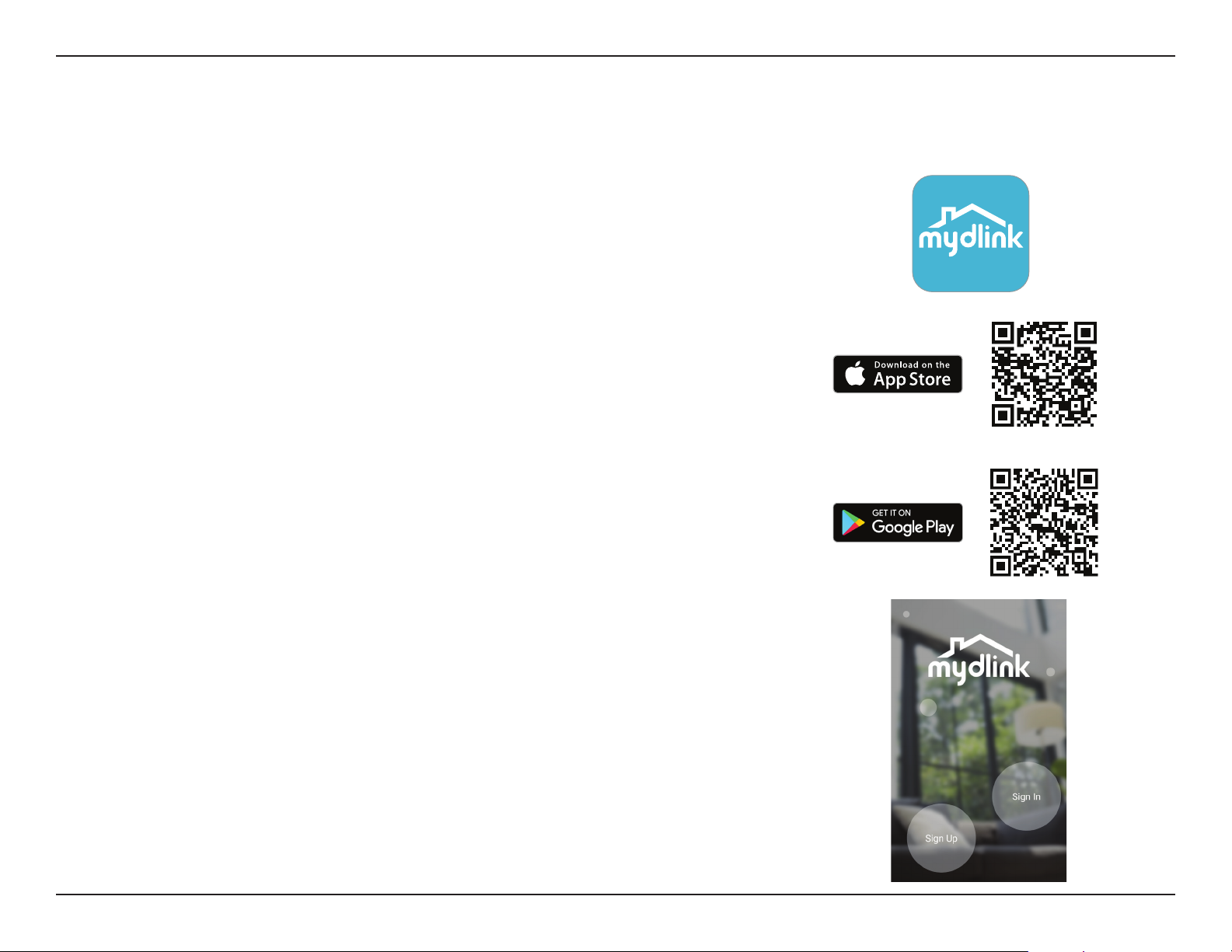

Step 1:
Download the mydlink app from the App Store (iPhone or iPad) or Google Play
(Android).
Note: Please ensure that your device is connected to the internet.
Step 2:
Launch the mydlink app and create a new account or sign in to your existing
account.
Note: If you are asked about allowing the app to access your location, select Allow.
Make sure location services are turned on in your phone’s settings.
Setting Up the Cameras With the mydlink™ App

15D-Link DCS-2802KT-EU User Manual
Section 2 - Installation
Step 3:

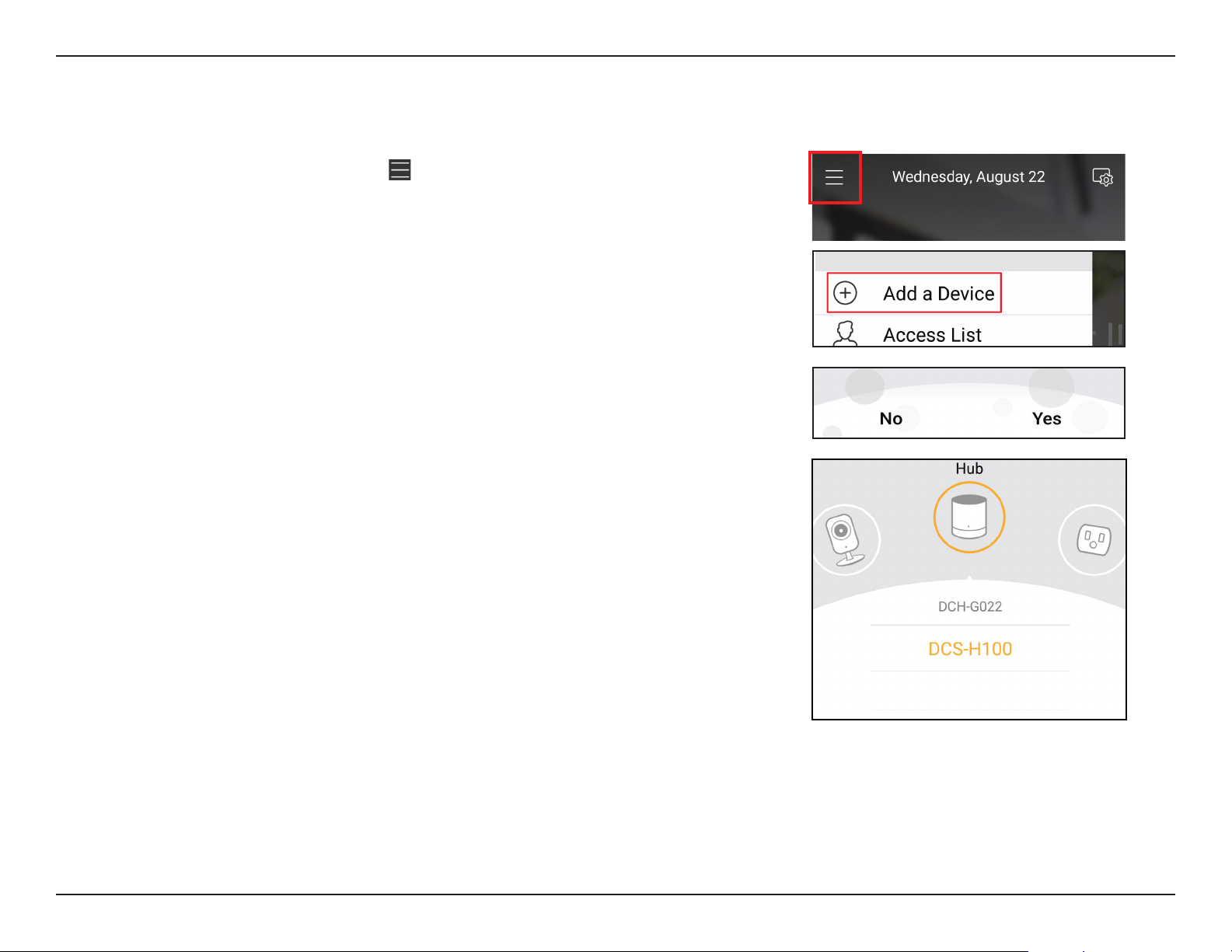

After logging in, tap the Menu icon in the top-left corner, select Add New
Device and follow the on-screen instructions to connect to your camera.
Bluetooth needs to be enabled on your phone.
Step 4:
When you are asked to scan a QR code, select Yes or No.
If you selected Yes:
Scan the QR code on the back of the the hub, then press Next.
If you selected No:
Select the DCS-H100 hub from the list, then press Next.
Select Next and continue to follow the onscreen instructions.
Final Step:
Congratulations, your Wire-Free Camera Kit is now ready to use!
Be sure to check the www.mydlink.com website periodically for the latest
rmware updates to keep your product secure and up to date with the latest
features.
Note: If you experience issues registering this camera with your mydlink account, or if you
purchased an open box or resold unit, perform a hard reset by pressing and holding the
recessed reset button on the hub for 10 seconds while the device is powered on, making sure
that you see the LEDs turn o.

16D-Link DCS-2802KT-EU User Manual
Section 3 - mydlink
Using the mydlink App
Controlling Your Cameras
After setting up your cameras with a mydlink account in the mydlink app, you will be able to
remotely access your camera feeds through the app. After signing in to your mydlink account,
you will see a screen similar to the following.
If you have previously enabled "Add to shortcut" option while installing a camera, you will see
a quick link to your camera directly on the home screen.
Note: Screenshots are representative only. The mydlink app is constantly improving and so
may appear dierent.
Click on the shortcut link to your camera on the home screen and by default you will see a live
video feed of your camera on the top half of the app.
Or, you can access your DCS-2802KT-EU by tapping the Menu icon in the top-left corner,
select Devices, and select Camera. In the selected device group page, you can select the
specic camera in the carousel by tapping its icon.

17D-Link DCS-2802KT-EU User Manual
Section 3 - mydlink

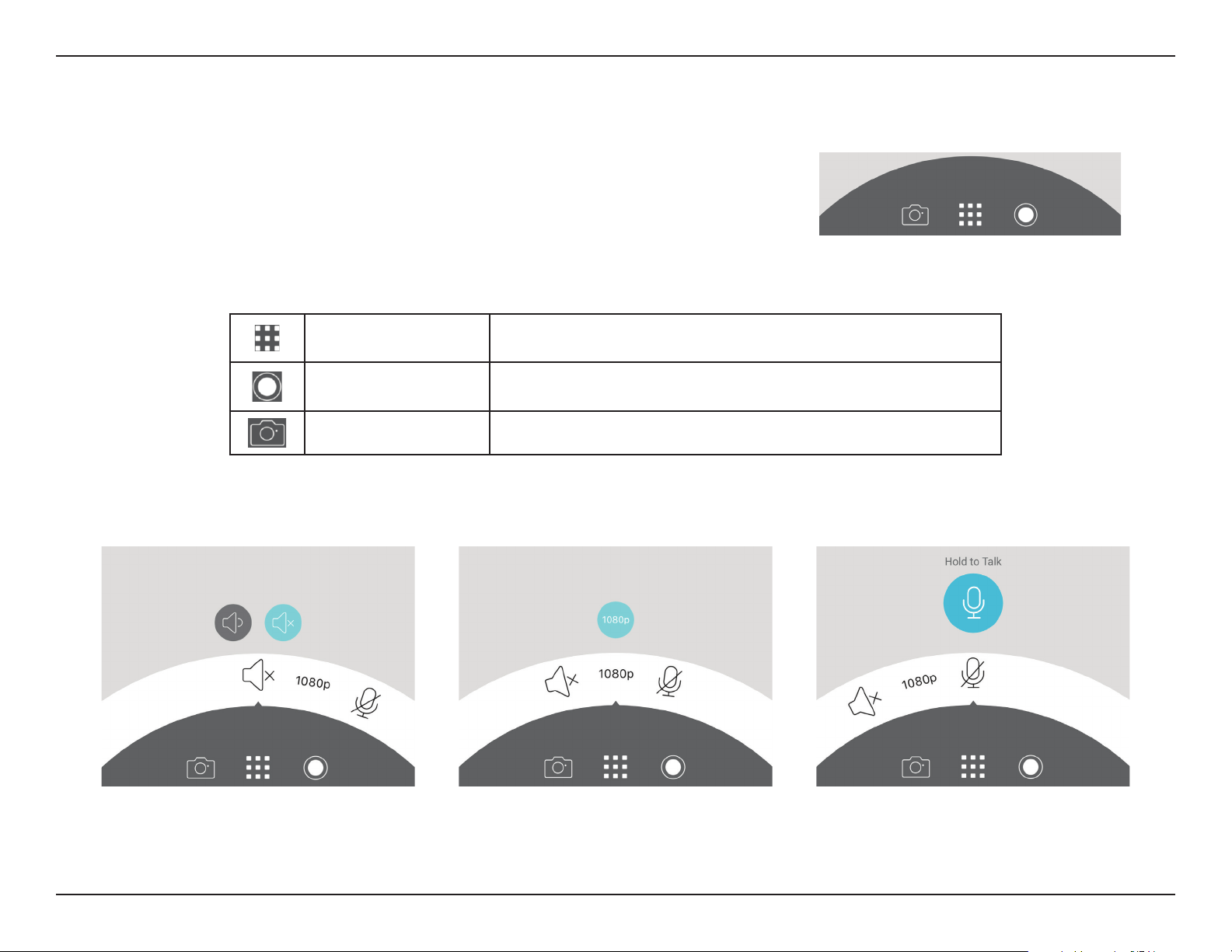

Options Toggle Click on this icon to review various live video options such as
speaker on/o, microphone, and video quality
Recording Click on this button to enable recording of the video stream.
Snapshot Click on this button to take a snapshot from the video stream.
On the bottom half of the app you will see control options for your camera.
Camera Options
