D-Link DCS-7513 User manual

This document will guide you through the
basic installation process for your new
D-Link Network Camera.
DCS-7513
Documentation also available
on CD and via the D-Link
Website
Quick Installation Guide
Full HD WDR Day & Night Outdoor Network Camera

D-Link DCS-7513 Quick Install Guide
2
ENGLISH
Quick Install Guide
This installation guide provides basic instructions for installing the Network Camera on
your network. For additional information about how to use the camera, please see the
User’s Manual which is available on the CD included in this package or from the D-Link
support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. SD Card Installation
4. Hardware Installation
5. Conguration with Wizard
1. Package Contents
DCS-7513 Network Camera
Manual and Software on CD-ROM
Quick Install Guide
Power Adapter
AV & Power Cables
CAT-5 Ethernet Cable
Extension Adapter
Mounting Bracket and Screws
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

D-Link DCS-7513 Quick Install Guide
3
ENGLISH

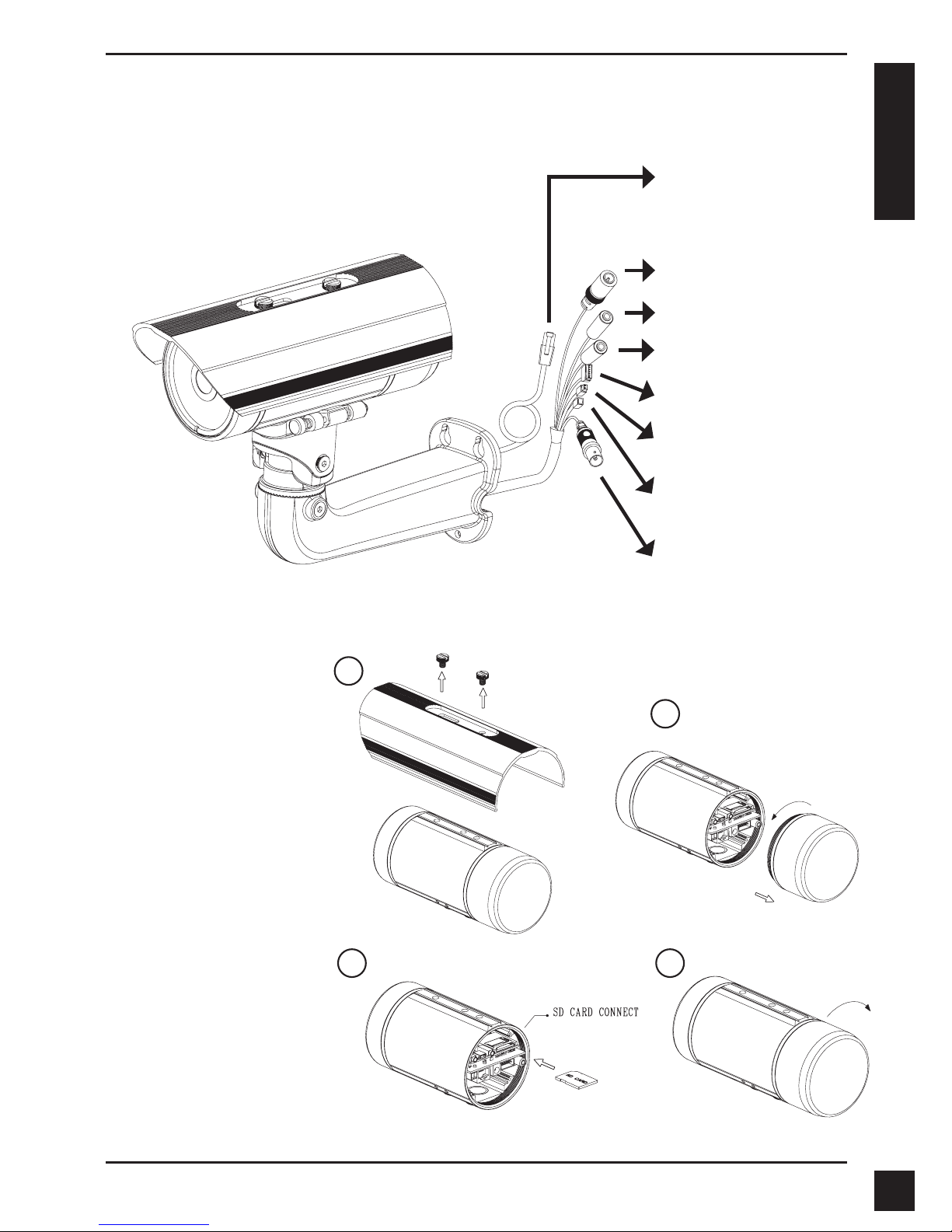

2. Hardware Overview
Power Connector
Connects to 12 V DC power
24 V Power Connector
Connects to 24 V AC power
Reset Button
Resets camera to factory
default settings
BNC
Analog video output
Ethernet Jack
RJ-45 connector for Ethernet
which can also be used to power
the camera using Power over
Ethernet (PoE)
Audio In
Connects to a microphone
DI/DO Wiring, 12V DC output
I/O connectors for external devices
Install the SD Card
Push the SD card into
the camera with the gold
contacts oriented towards
the base of the camera. To
eject the SD card, push the
SD card into the slot.
3. SD Card Installation
Disassemble the Camera
Open the camera by loosen
the 2 screws.
Audio Out
Connects to speakers
3
1
4
2

D-Link DCS-7513 Quick Install Guide
4
ENGLISH
4. Mounting Instructions
Mounting Installation
Please see the User Manual for detailed instructions regarding installation and mounting
of the camera using a mounting bracket.
Figure 2.1
Figure 2.3
Figure 2.2
Figure 2.4

D-Link DCS-7513 Quick Install Guide 5
ENGLISH

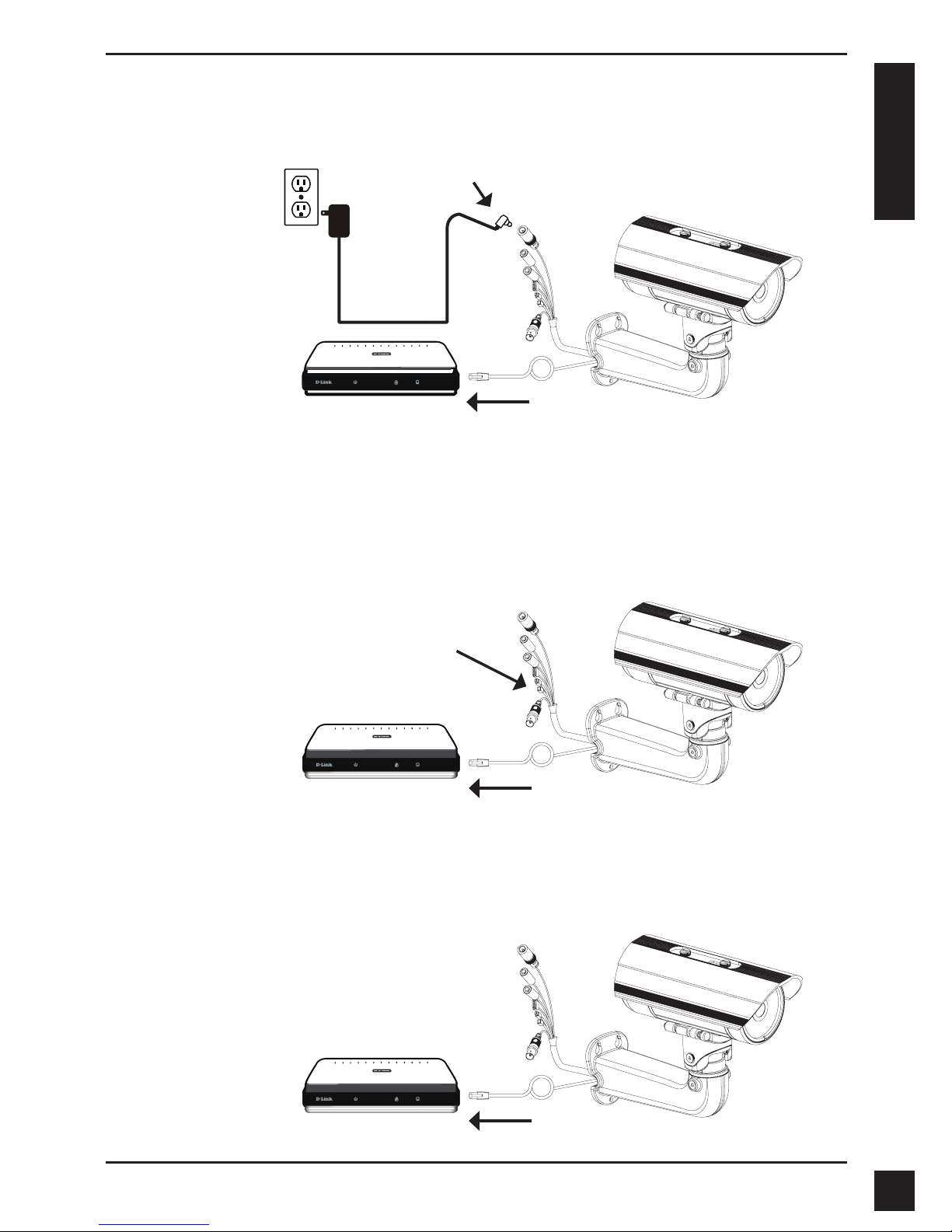

Connection with a PoE Hub
If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,
which will provide transmission of both power and data over a single cable.
General Connection Using 24 V AC Power Wiring
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power source such as your
building's emergency power.
General Connection Using 12 V DC Power Adapter
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-7513 Quick Install Guide
6
ENGLISH

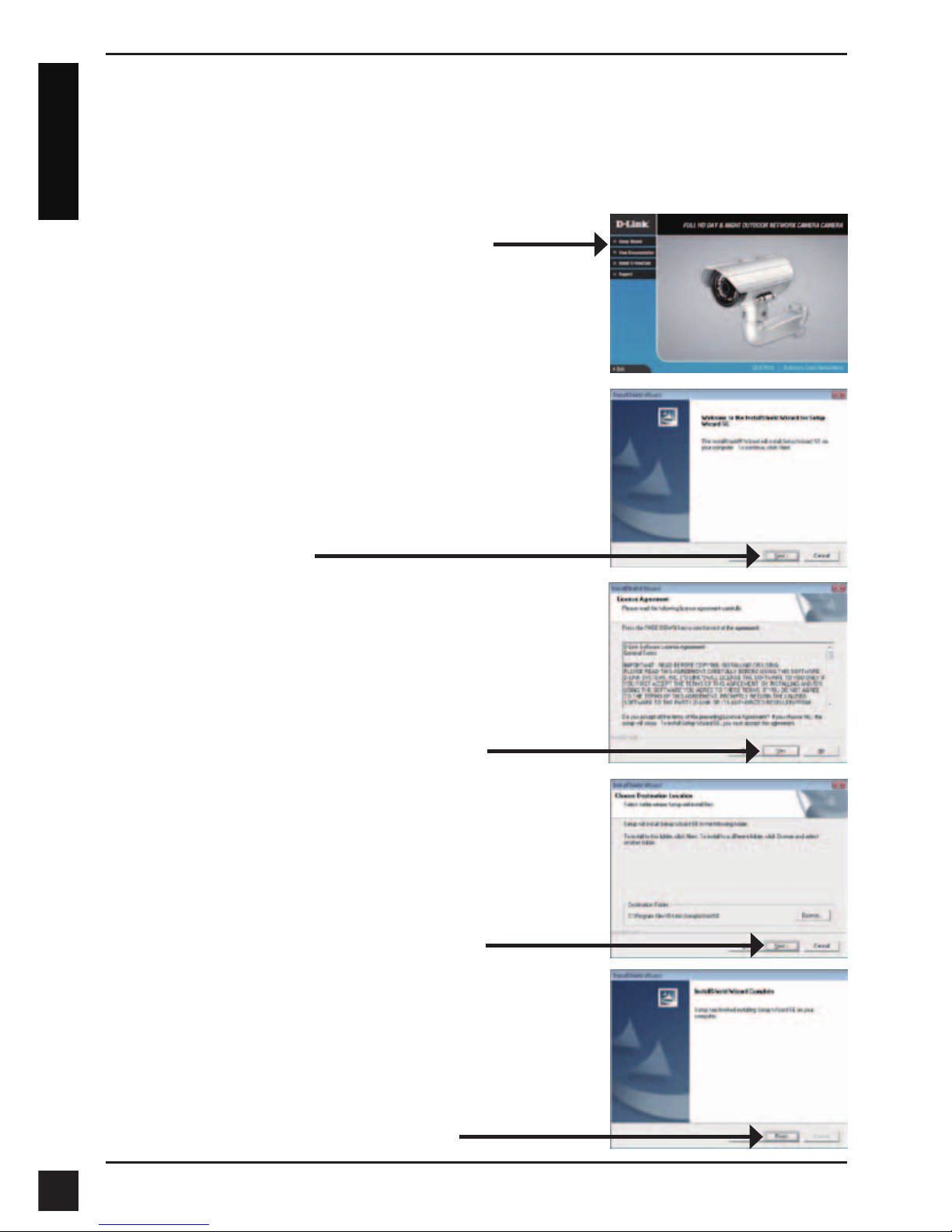

5. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-7513 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setup Wizard, the following window will open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-7513 Quick Install Guide 7
ENGLISH

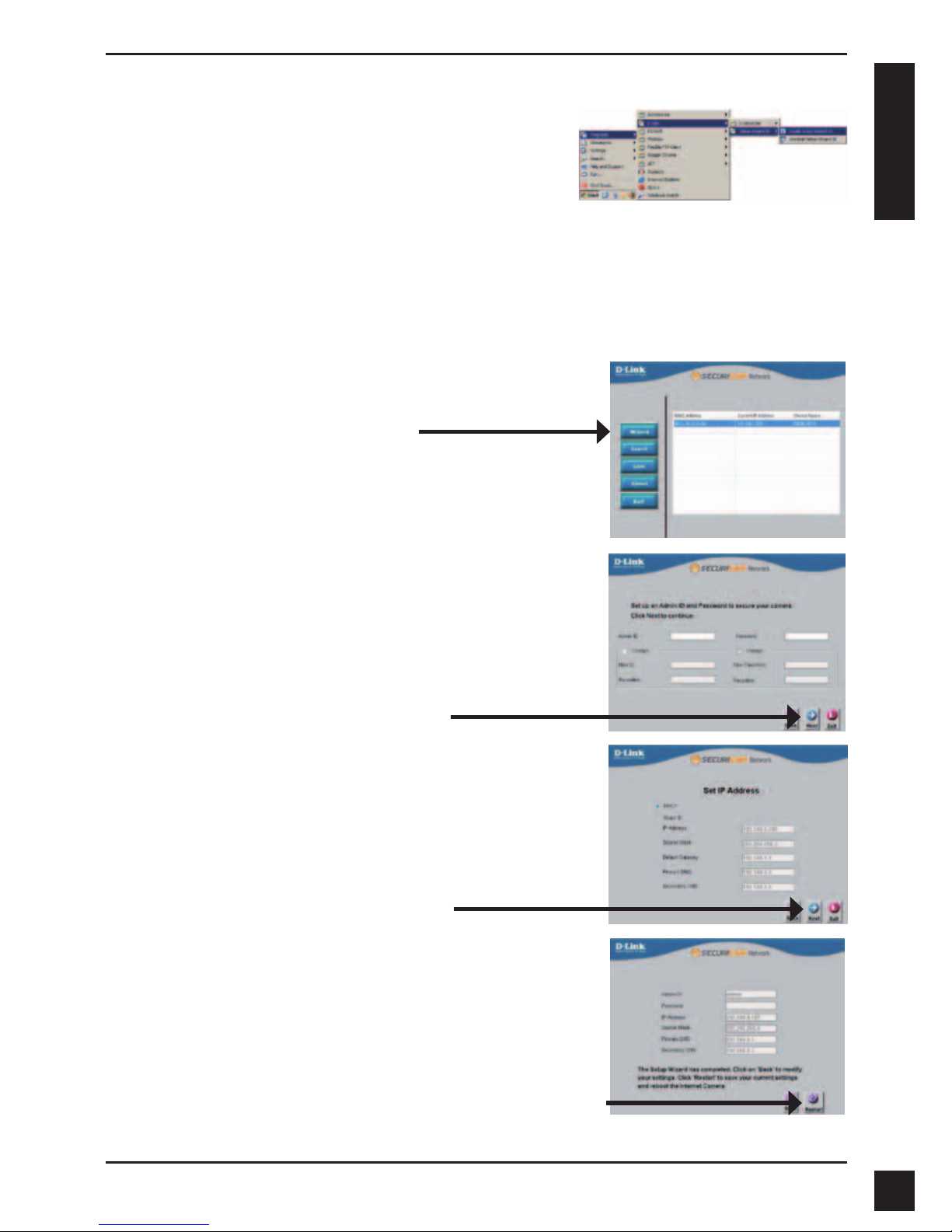

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-7513 Quick Install Guide
8
ENGLISH
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE

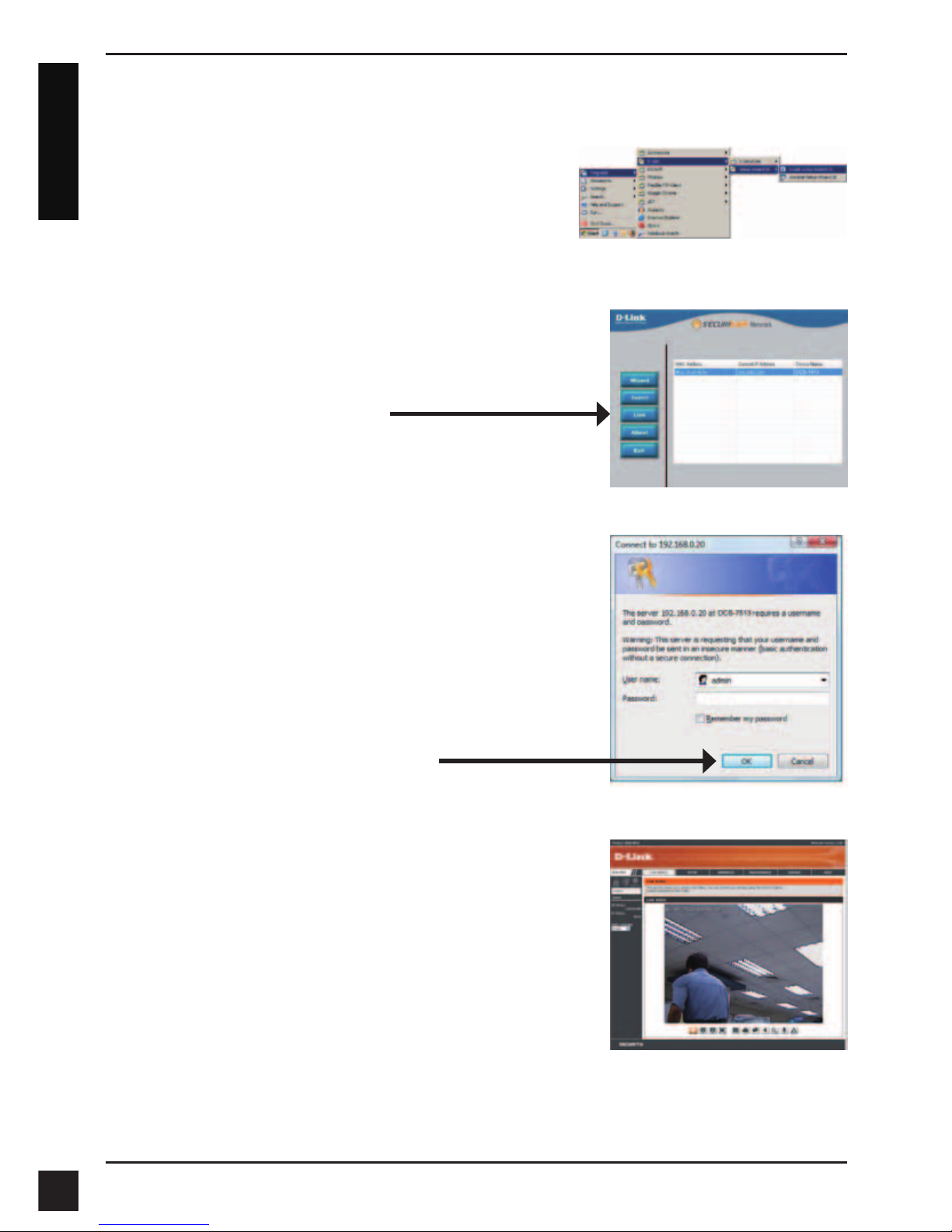

Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
