Quick Install Guide
Fixed Dome Network Camera

D-Link DCS-6112/DCS-6113 Quick Install Guide
2
DCS-6112/DCS-6113 Quick Install Guide
This Quick Install Guide provides basic instructions for installing the DCS-6112/DCS-6113
Network Camera on your network. For additional information about how to use the camera,
please see the User Manual which is available on the CD included in this package or from the
D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with the Wizard
5. Adjust the Viewing Angle
6. Attaching the Enclosure
1. Package Contents
• DCS-6112/DCS-6113 Network Camera
• Manual and Software on CD-ROM
• Ethernet Cable
• AV / Power cable
• Power Adapter
• Security Screwdriver
• Mounting Screws
• Alignment Sticker
• Quick Install Guide
• Cable Tie
If any of the above items are missing, please contact your reseller.

D-Link DCS-6112/DCS-6113 Quick Install Guide 3

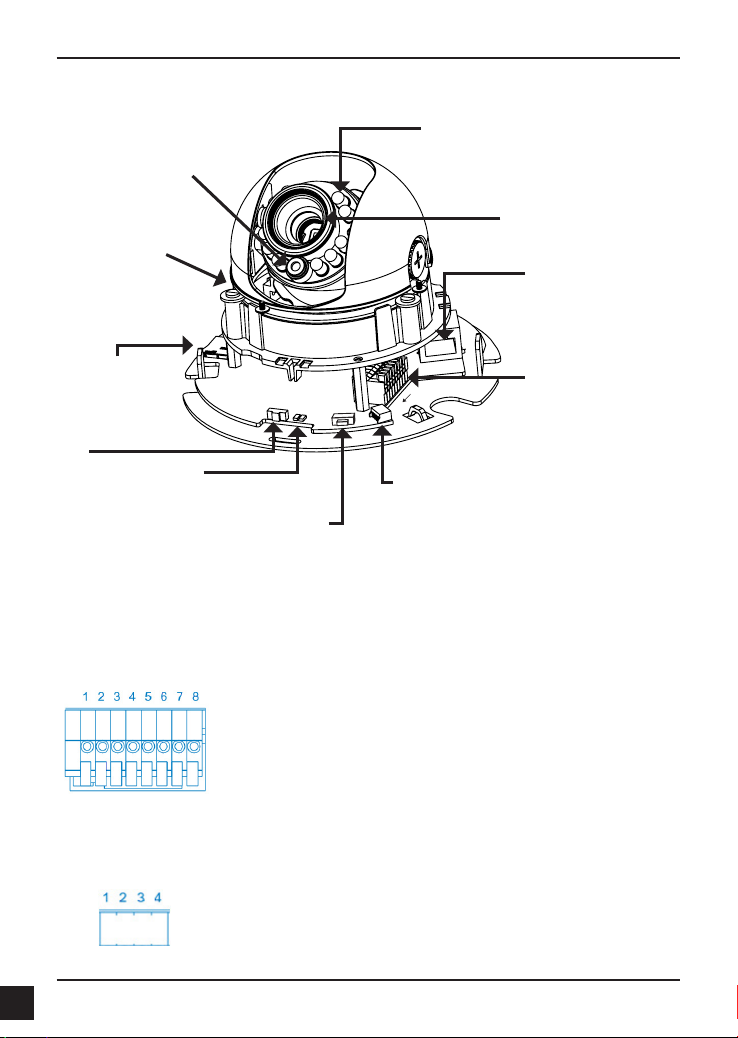

2. Hardware Overview

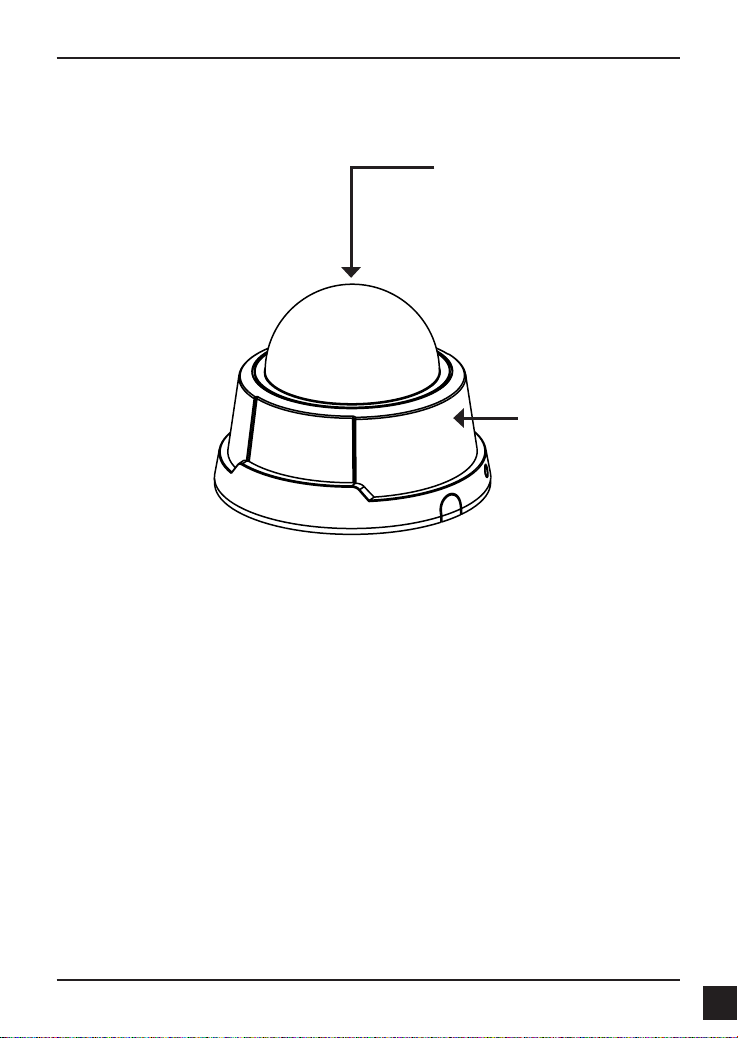

Dome Cover
Camera Housing

D-Link DCS-6112/DCS-6113 Quick Install Guide
4
Light Sensor
Judges lighting conditions and
switches between day mode and night
mode accordingly (Controls IR-LED and
ICR on/o) (DCS-6113 only).
NTSC/PAL Switch
Switch for NTSC/PAL
video format.
Infrared LEDs
Used to illuminate the camera's eld of view
at night (DCS-6113 only).
LED
Power and network
indicator.
Ethernet (PoE) Port
RJ-45 connector for an Ethernet
cable, which can also be used to
power the camera using PoE.
microSD Card Slot
Local MicroSD card for
storing recorded images
and video.
DC Input
Connects to the 12V DC
power adapter to power
the camera.
Video Output
Video output connector
for TV/Monitor.
Lens
Fixed focus lens.
3-Axis Mechanism
Adjust the camera’s
image to achieve the
desired orientation.
Audio I/O and DI/DO
1: Audio GND
2: Audio out
3: Audio GND
4: Audio input
5: GND
6: Digital input
7: Digital output
8: 12V DC
DC input / Video Output
1: Ground of Video out
2: Video output
3: Ground of DC input
4: DC 12V input
Audio Input / Output
Audio input/output connector for
an external speaker.
Digital Input (DI) /Output (DO)
DI/DO connectors provide a
physical interface to send and
receive digital signals to and from
a variety of external devices.
Reset
Press and hold
this button for 10
seconds to reset the
camera.
8 1

D-Link DCS-6112/DCS-6113 Quick Install Guide 5
3. Hardware Installation
Mounting to a Ceiling or a Wall

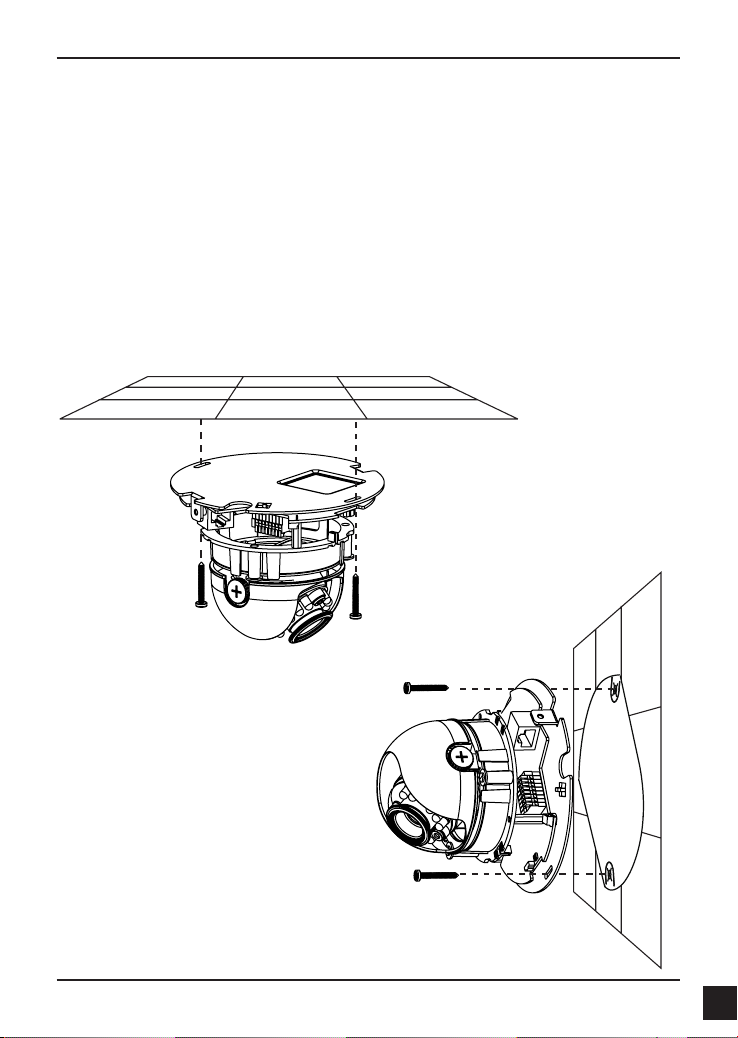

1. Locate an area on the ceiling or wall which is capable of supporting the weight of the camera.
2. Attach the alignment sticker to the ceiling or wall.
3. Drill two pilot holes where the holes of the alignment sticker are located.
4. Insert the supplied plastic anchors into the drilled holes, and align the holes at the base of
the camera with the plastic anchors.
5. The camera can be mounted with the cable routed through the ceiling, wall or from the side.
6. Insert the provided screws through the holes. Use a screwdriver to tighten the screws and
secure the camera.

D-Link DCS-6112/DCS-6113 Quick Install Guide
6

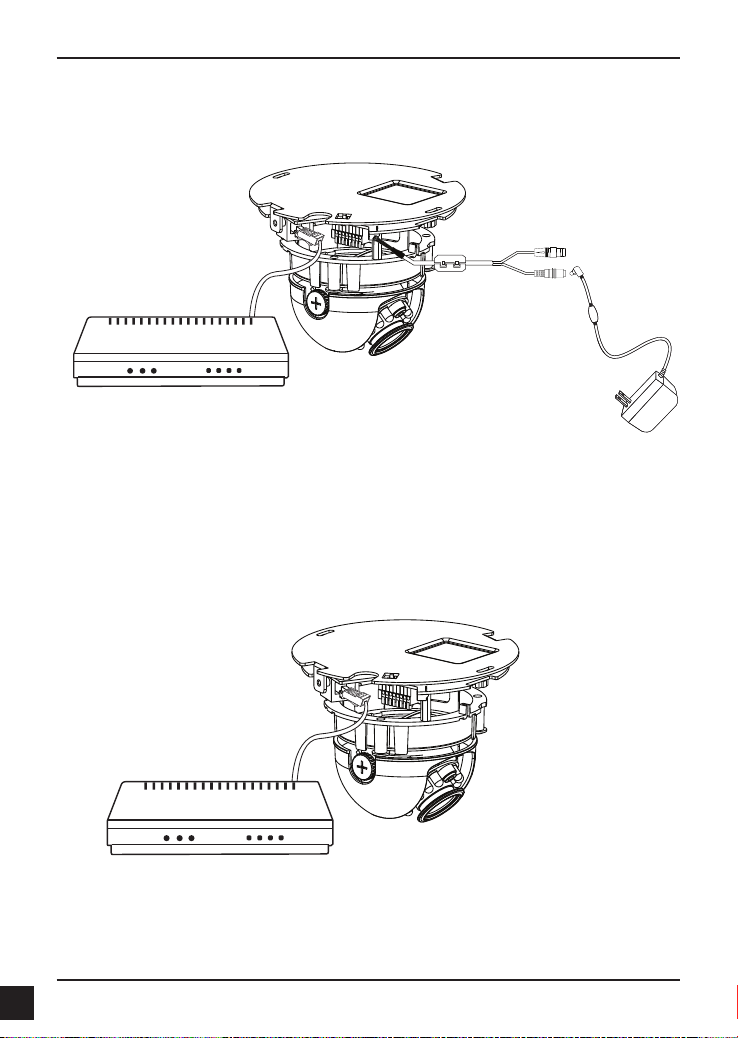

General Connection (without PoE)
Connect the network camera to a switch or router with an Ethernet cable. Then connect the
supplied power cable from the camera to a power outlet.
Connection with a PoE Switch
If using a PoE switch, connect the network camera to the switch with an Ethernet cable, which
will provide both power and data transmission over a single cable.

D-Link DCS-6112/DCS-6113 Quick Install Guide 7
4. Conguration with the Wizard
Click Setup Wizard to begin.

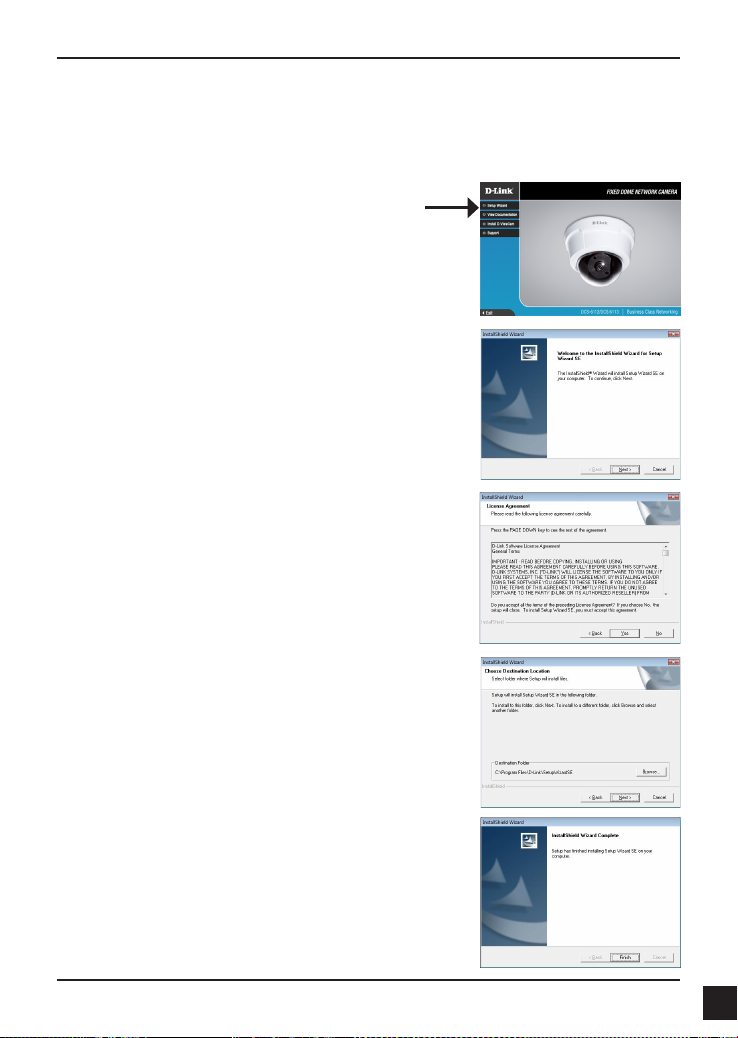

Insert the DCS-6112/DCS-6113 CD into your computer's CD-ROM drive to begin the installation.
If the autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of
your CD-ROM drive.
The InstallShield window will open. Click Next to proceed
with installation of the Setup Wizard.
Click Yes to accept the terms of the License Agreement.
You will see this screen when the Setup Wizard has nished
installing. Click Finish to complete the process.
This screen will display the path to the destination folder
for the installation les. Click Browse to select a dierent
location, or click Next to proceed with installation.
Note: The installation may take several minutes to nish.

D-Link DCS-6112/DCS-6113 Quick Install Guide
8

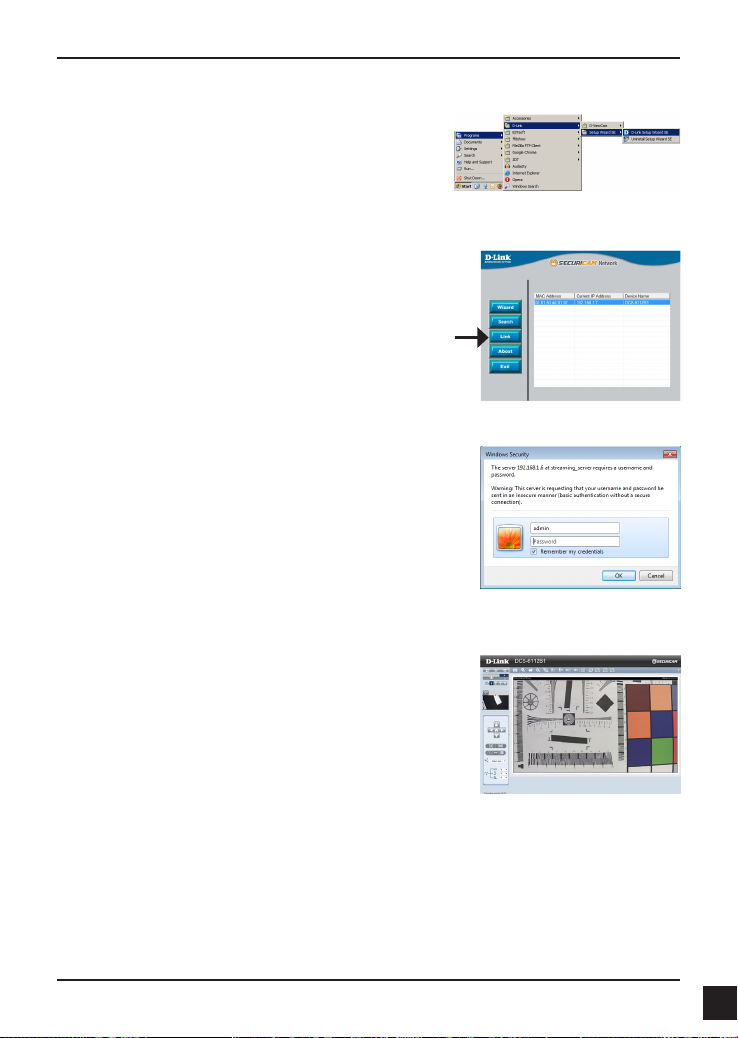

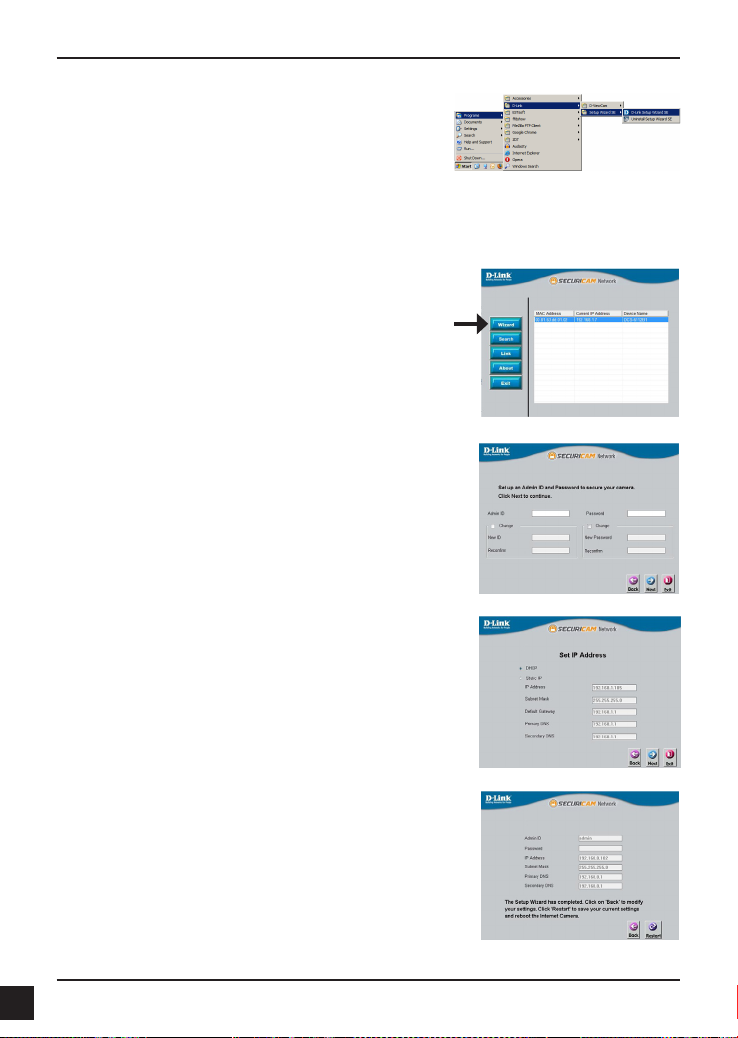

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > Programs > D-Link > Setup Wizard SE
The Setup Wizard is nished. Take a moment to conrm your
settings are correct. Click Restart to save your settings and
reboot the DCS-6112/DCS-6113.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select Static IP if the
camera will use the same IP address each time it is
started.
Click Next to proceed to the next page.
Enter the Admin ID and Password. When logging in for the
rst time, the default Admin ID is admin and the Password
should be left blank.
Click Next to proceed to the next page.
The Setup Wizard will display the MAC Address and Current IP
Address of your camera(s). If you have a DHCP server on your
network, a valid IP Address will be displayed. If your network
does not use a DHCP server, the network camera's default
static IP 192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-6112/DCS-6113 Quick Install Guide 9
Click on the D-Link Setup Wizard SE icon that was created
in your Windows Start menu.
Start > Programs >D-Link > Setup Wizard SE
Viewing Live Video Using a Web Browser
This screen shows your camera’s live video. You can select
your video prole and view or operate the camera. For
additional information about web conguration, refer to
the user manual included on the CD-ROM, or go to the
D-Link website.
Enter the Admin ID and Password. The default user name
is admin, and you can leave the password blank. Click OK
to continue.
Select your DCS-6112 or DCS-6113 and click Link to access
the web conguration.
The Setup Wizard will automatically open your web browser
to the IP address of the camera.

D-Link DCS-6112/DCS-6113 Quick Install Guide
10
5. Adjust the Viewing Angle
Use the included security screwdriver to remove the two screws used to attach the camera
housing. Slide the camera housing o, and remove the inner dome cover so you can adjust the
viewing angle as described below:

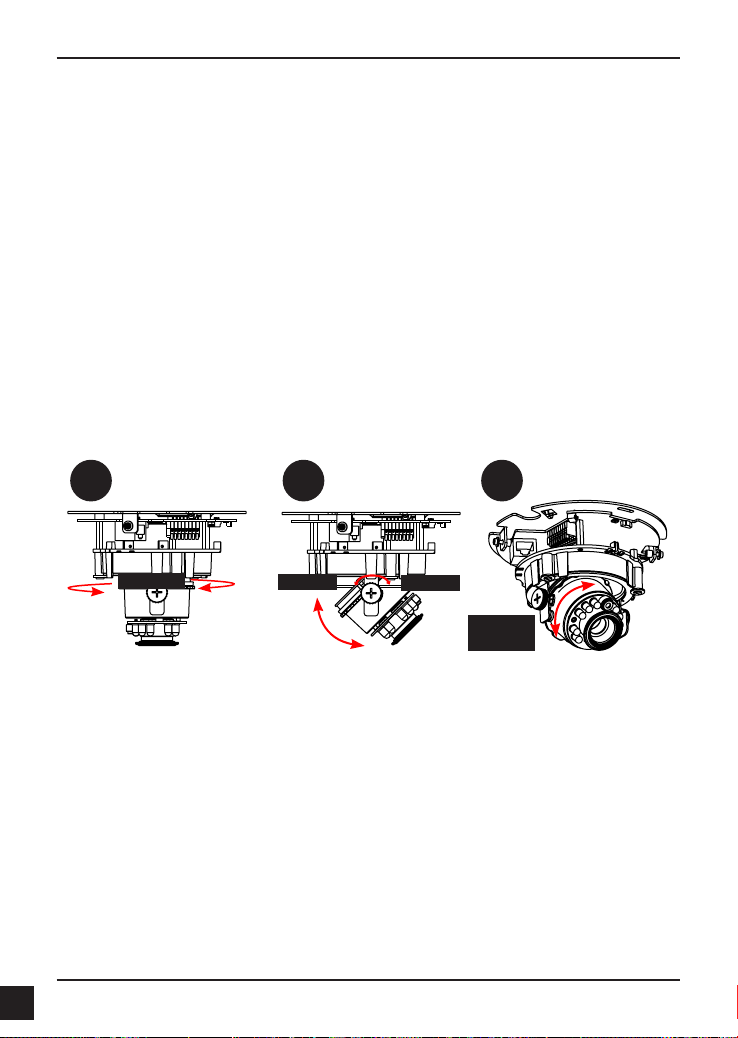

1. Use a standard Phillips screwdriver to loosen the three pan screws, and turn the lens module
left or right until the desired position is achieved. Tighten the pan screws once the camera is
in the correct position.
2. Loosen the tilt screws on both sides of the camera and then turn the lens module up or down
until the desired position is achieved. Tighten the tilt screws once the camera is in the correct
position.
3. Use a small Phillips screwdriver to loosen the two screws behind the lens collar. Rotate the
lens to adjust the network camera’s image until the desired orientation is achieved. Tighten
the screws once adjustment is completed.
Loosen Tighten
Tilt 85°
Pan 350°
Rotate
350°
21 3

D-Link DCS-6112/DCS-6113 Quick Install Guide 11
6. Attaching the Enclosure

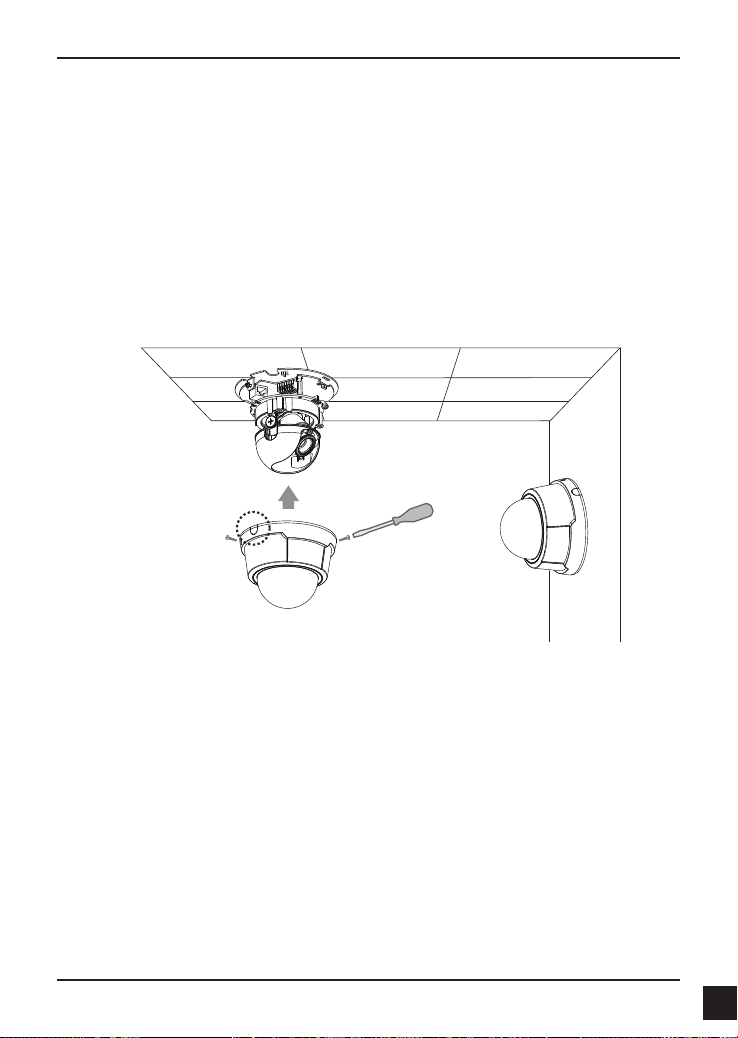

1. When you slide the camera housing over the camera, align the two plastic tabs on the inside
of the cover with the notches on the camera.
2. If you choose to feed the cable through the ceiling or wall, arrange the cable neatly through
the cable hole. If you choose to feed the cable from the side, remove plate A.
3. Attach the dome cover to the camera as shown below. The dome cover cannot be attached
if the angle is not correct.
4. Finally, make sure all parts of the camera are installed securely.
Plate A

Version 2.0 (US)_130 x 183
June 26, 2014
