D-Link DCS-6616 User manual

This document will guide you through the
basic installation process for your new D-Link
Network Camera.
DCS-6616
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
12X Speed Dome Network Camera
Quick Installation Guide
Installationsanleitung
Guide d’installation
Guía de instalación
Guida di Installazione

D-Link DCS-6616 Quick Install Guide 1
ENGLISH
DCS-6616 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-6616 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD included in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
DCS-6616 Network Camera
Manual and Software on CD-ROM
Quick Install Guide
Power Adapter
AV & Power Cables
Mounting Bracket and Screws
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.

D-Link DCS-6616 Quick Install Guide
2
ENGLISH

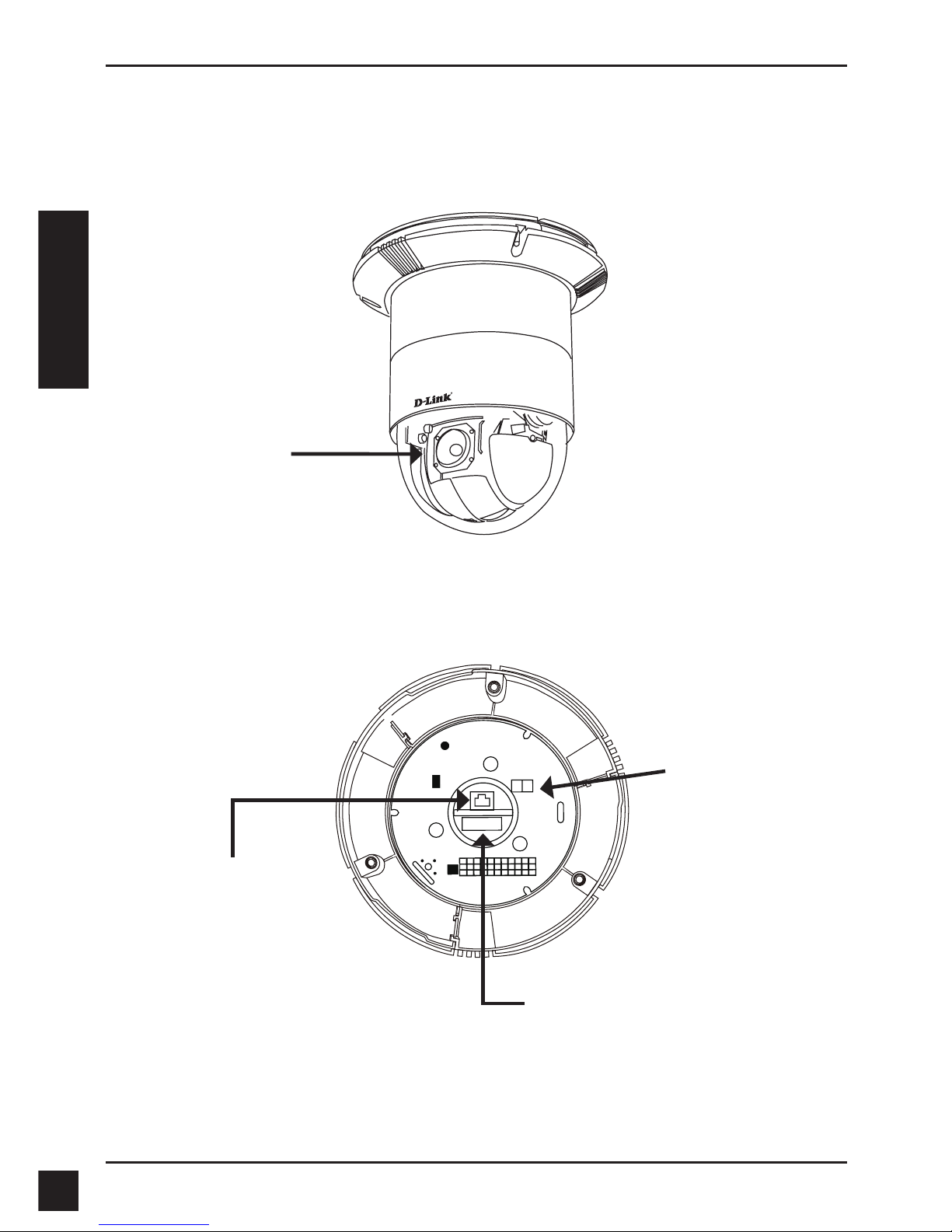

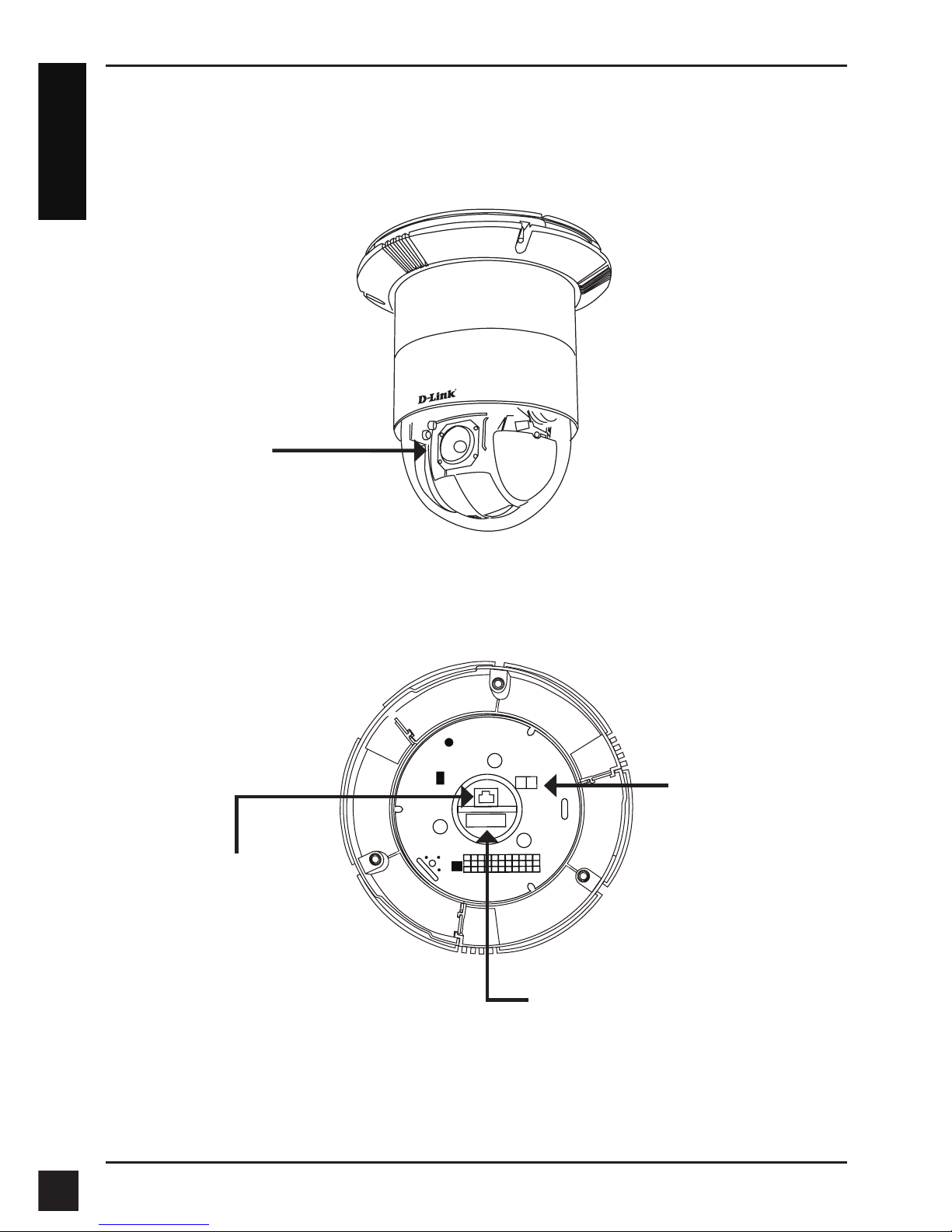

2. Hardware Overview
Camera Lens
Motorized varifocal
autofocus lens
Ethernet 10/100
RJ45 Socket
Reset Button
Press and hold the
reset button for
approximately 10
seconds to reset to
factory default settings
Cable Connector Socket

D-Link DCS-6616 Quick Install Guide 3
ENGLISH

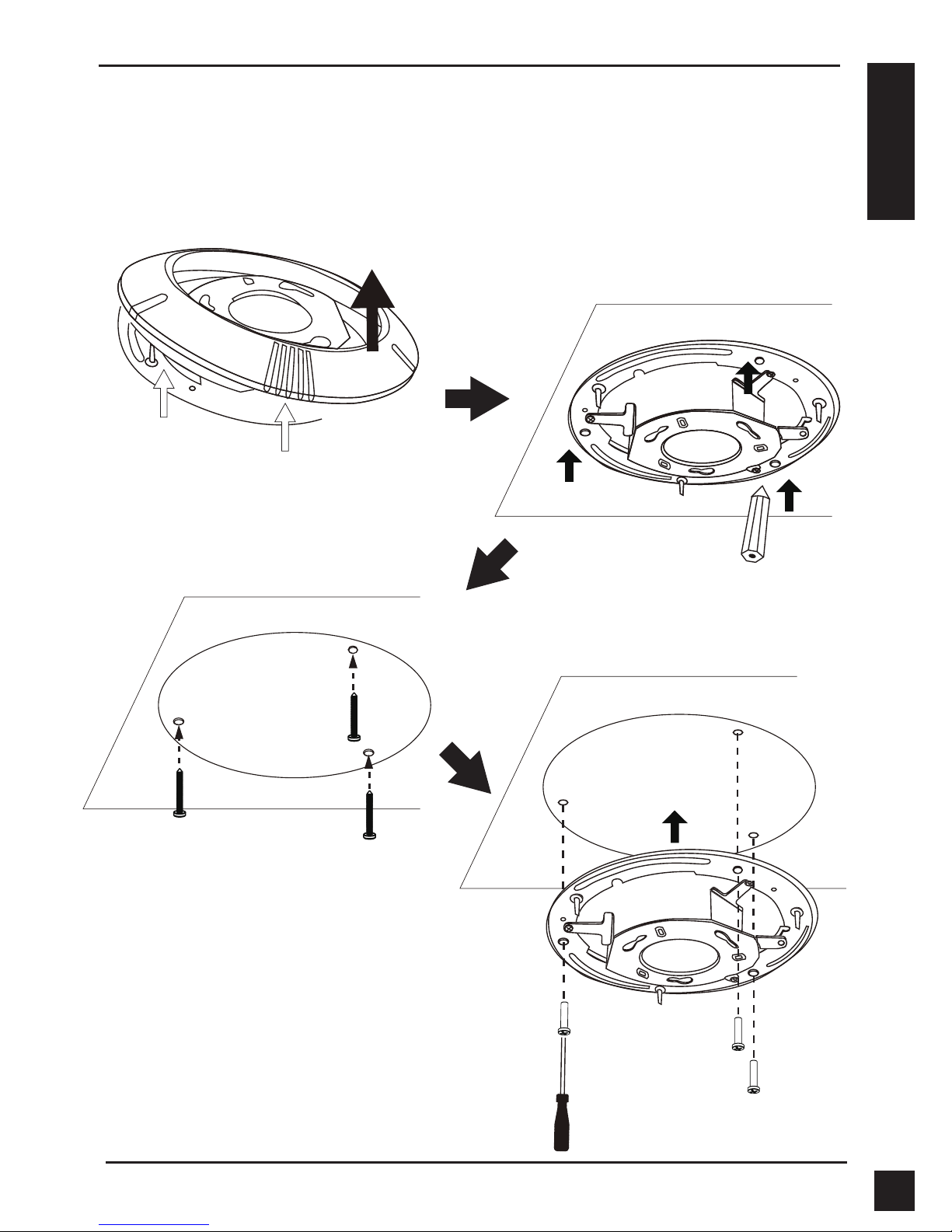

3. Mounting Instructions
Detach the Decoration Ring from
the Hard Ceiling Mount Bracket.
Align the three holes on the
Mount Bracket, mark the screws
locations on the ceiling
Drill three pilot holes into the
ceilling and hammer the plastic
anchors into the holes
Fix the Mount Bracket with three screws

D-Link DCS-6616 Quick Install Guide
4
ENGLISH

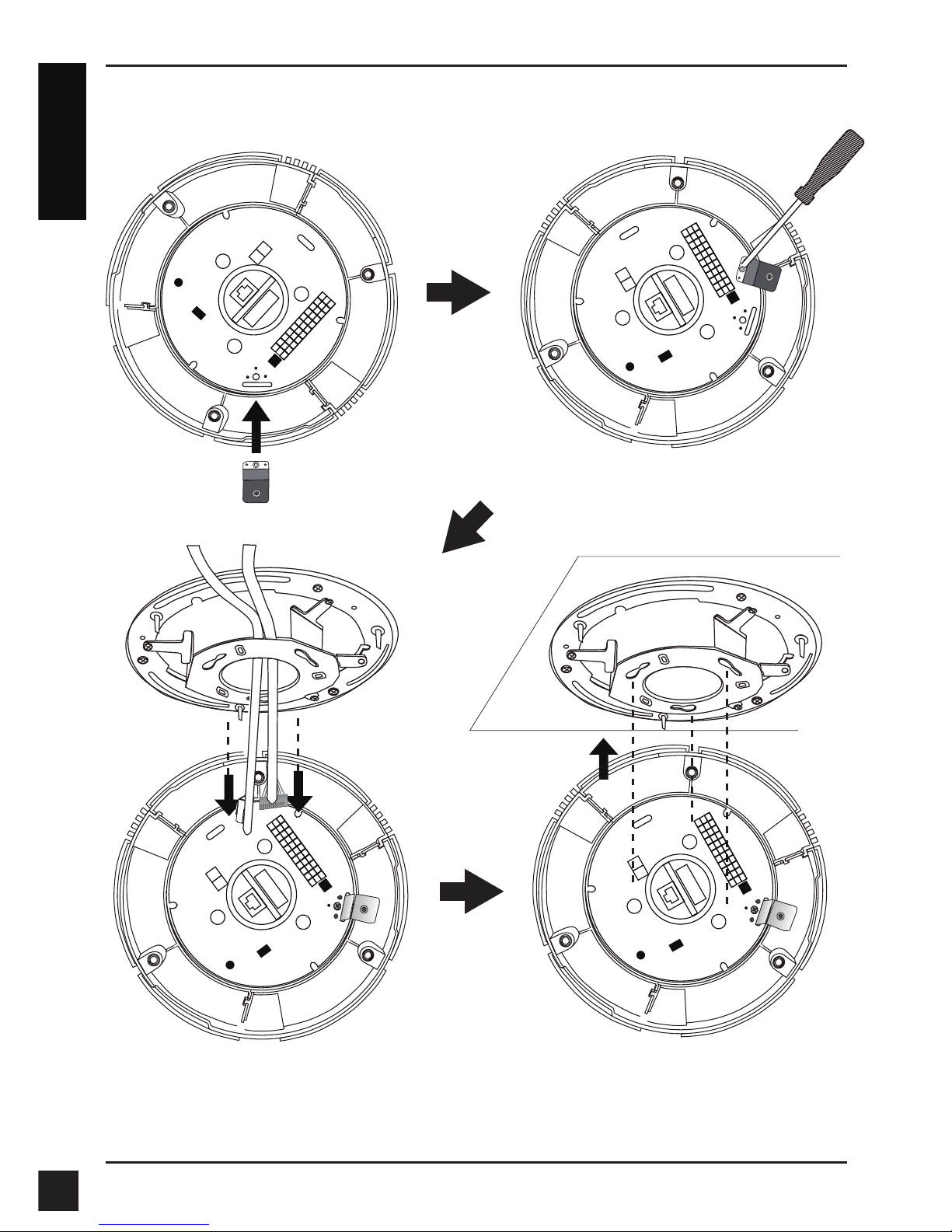

Insert the xing plate into the
groove as shown below
Align the three holes to screw
the xing plate to the dome bas

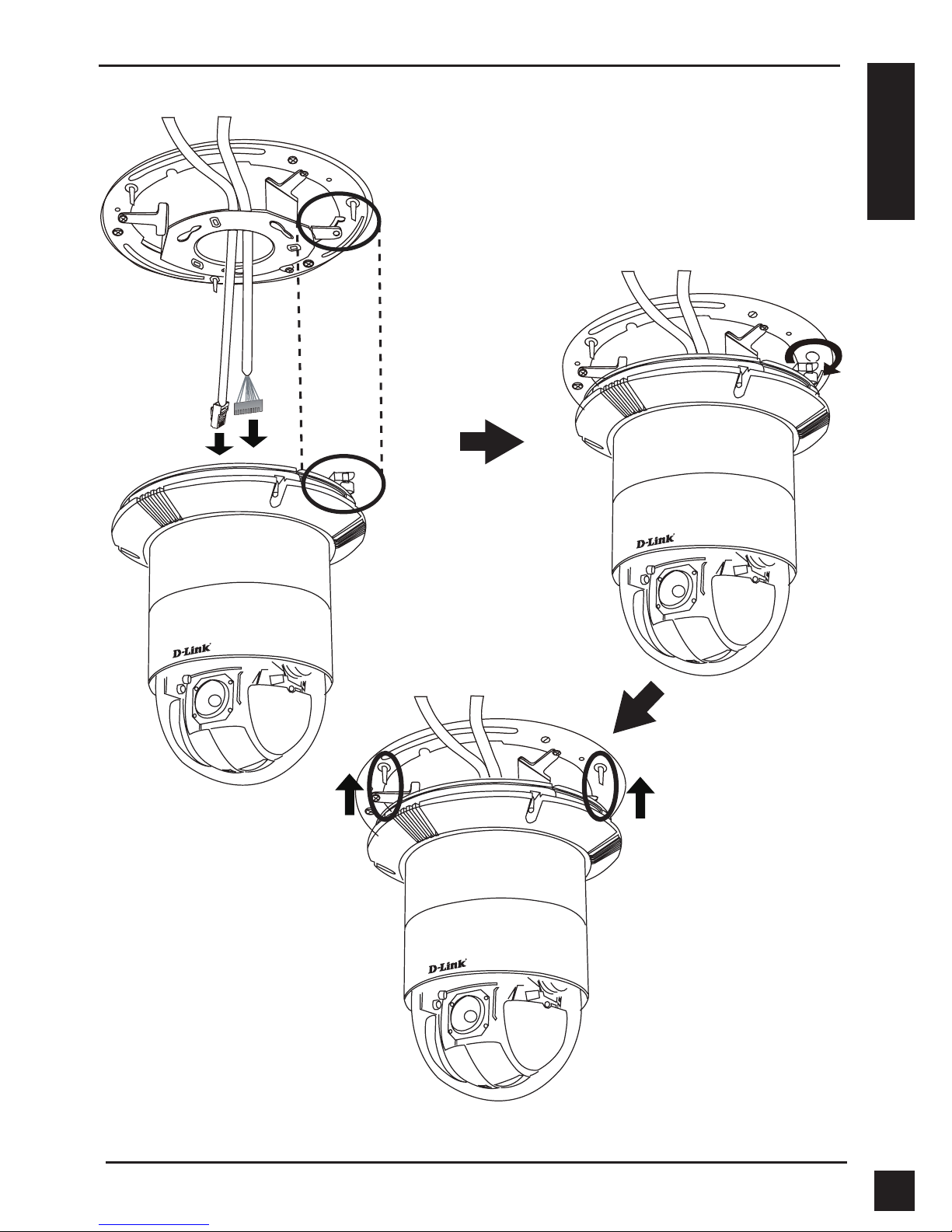

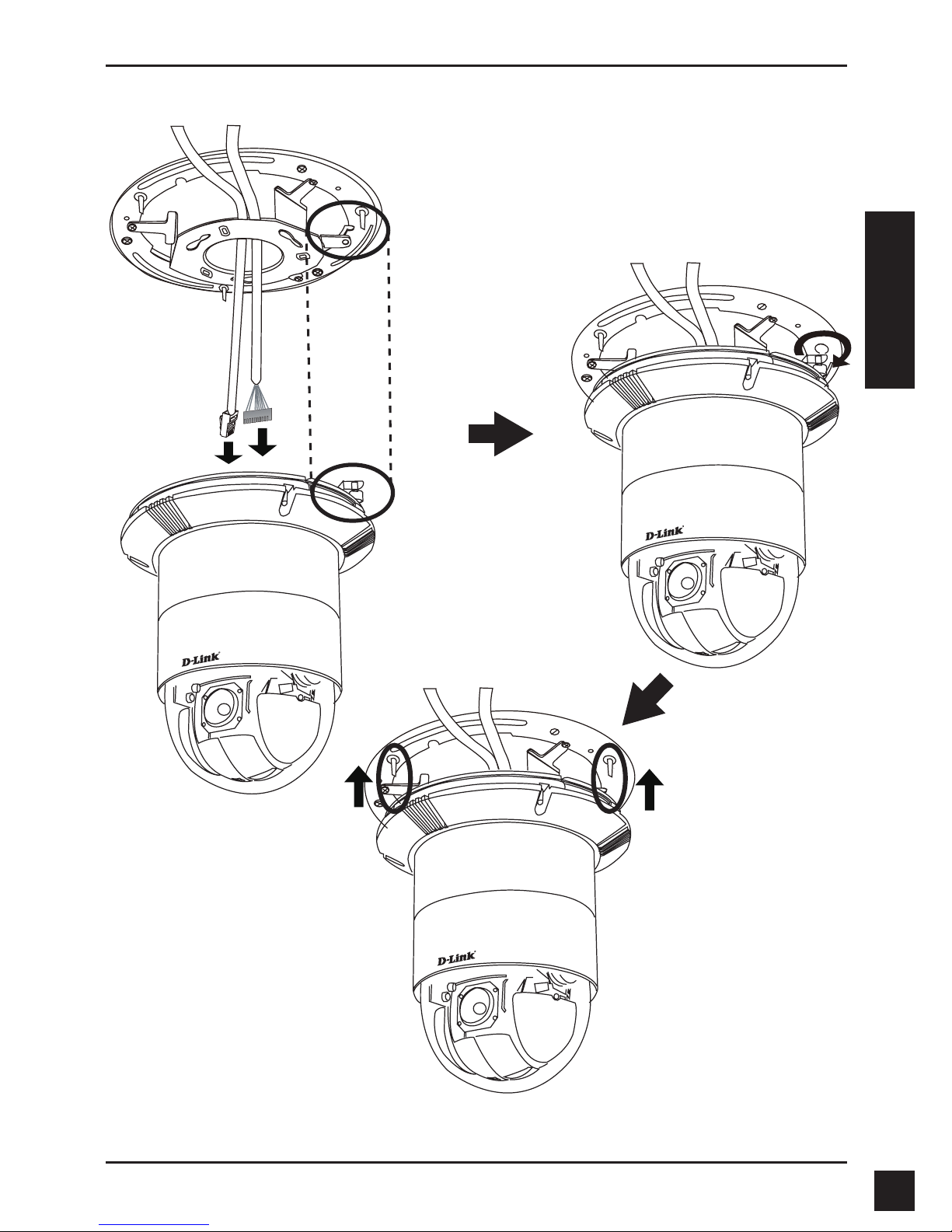

Connect the cable connector and
Ethernet cable to the dome base
Align plate A and plate B, then
use those three hole to hook the
Network Camera on the ceiling
mount bracket
A
B

D-Link DCS-6616 Quick Install Guide 5
ENGLISH
Tighten the screw on the xing plat
Align the three holes to mount the decoration ring.

D-Link DCS-6616 Quick Install Guide
6
ENGLISH

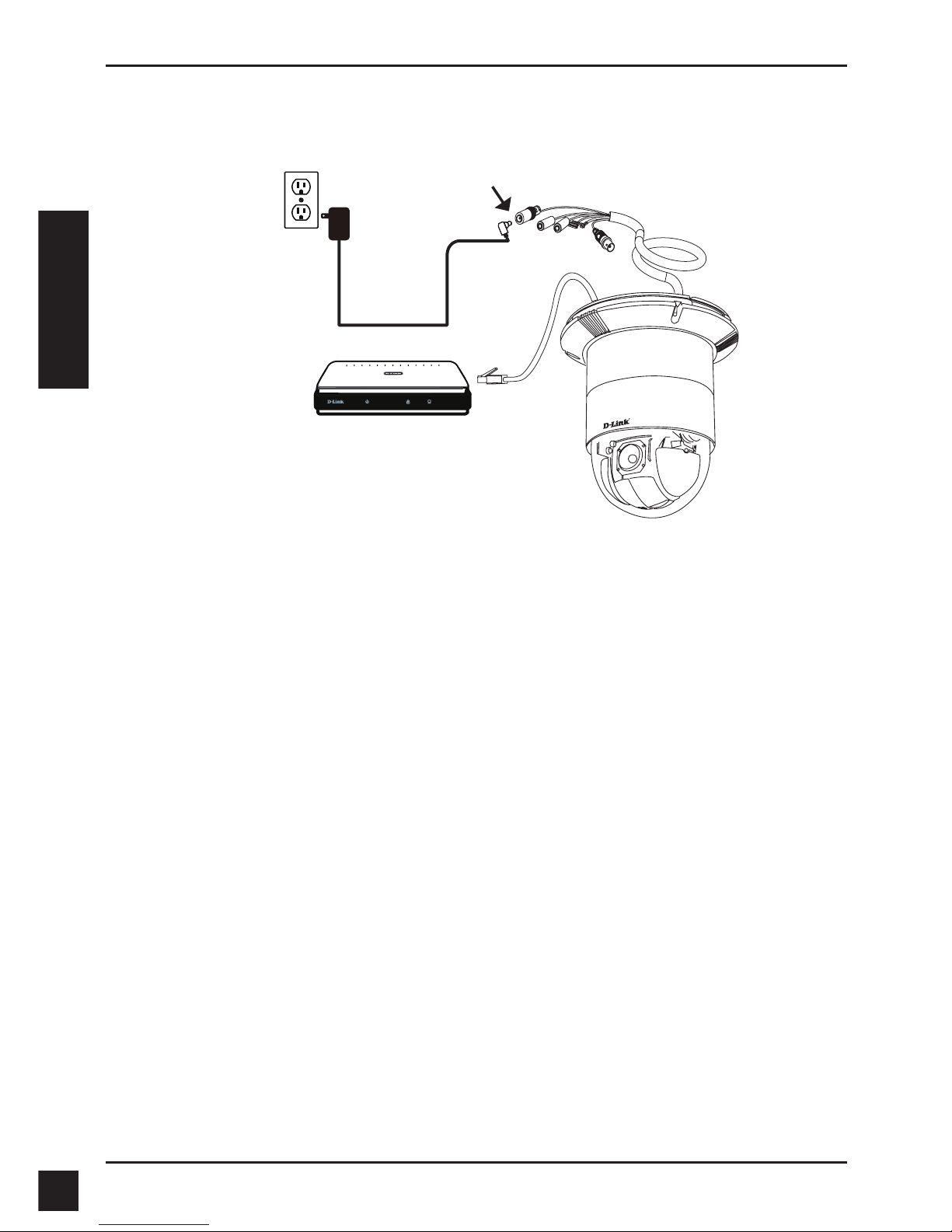

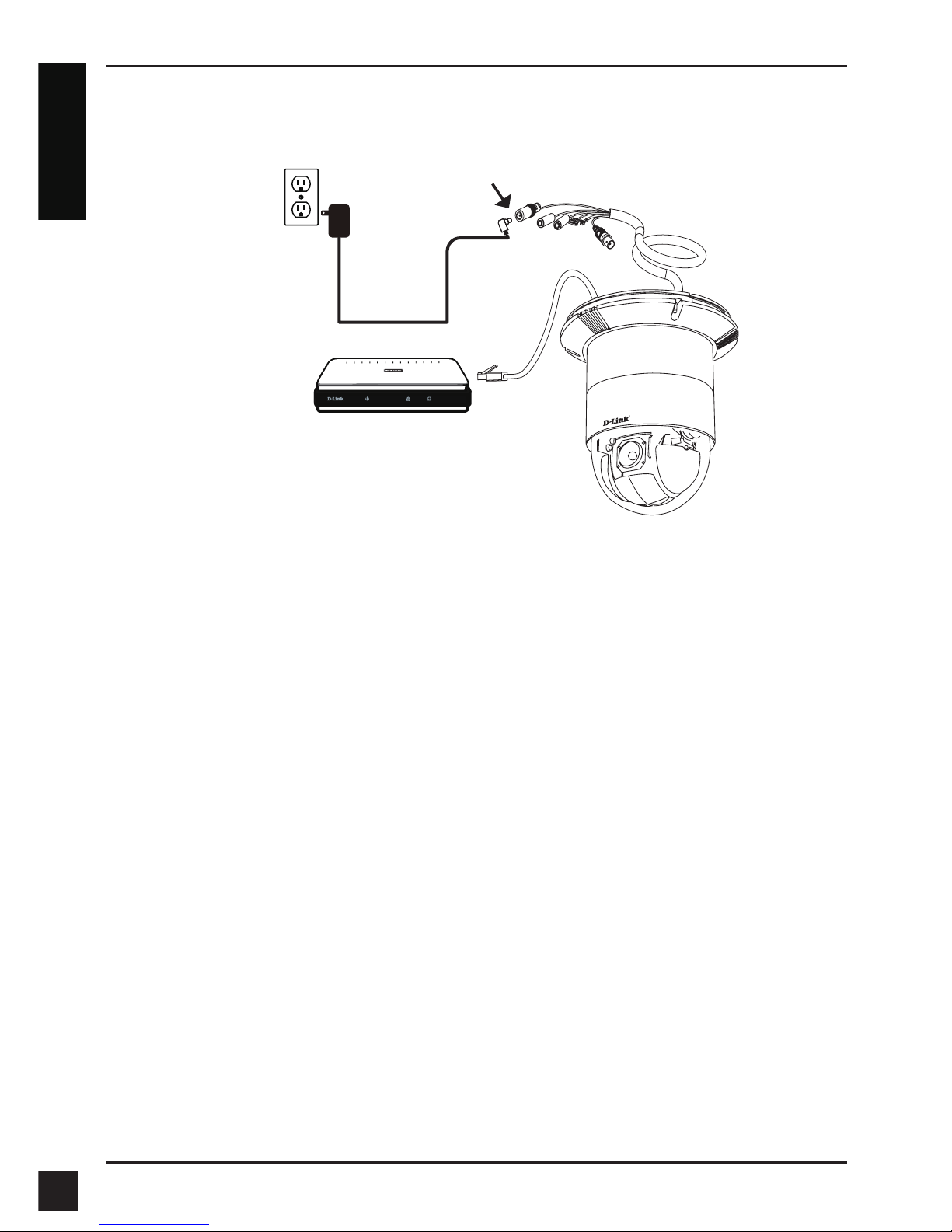

General Connection Using 12 V DC Power Adapter
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6616 Quick Install Guide 7
ENGLISH
4. Conguration with Wizard

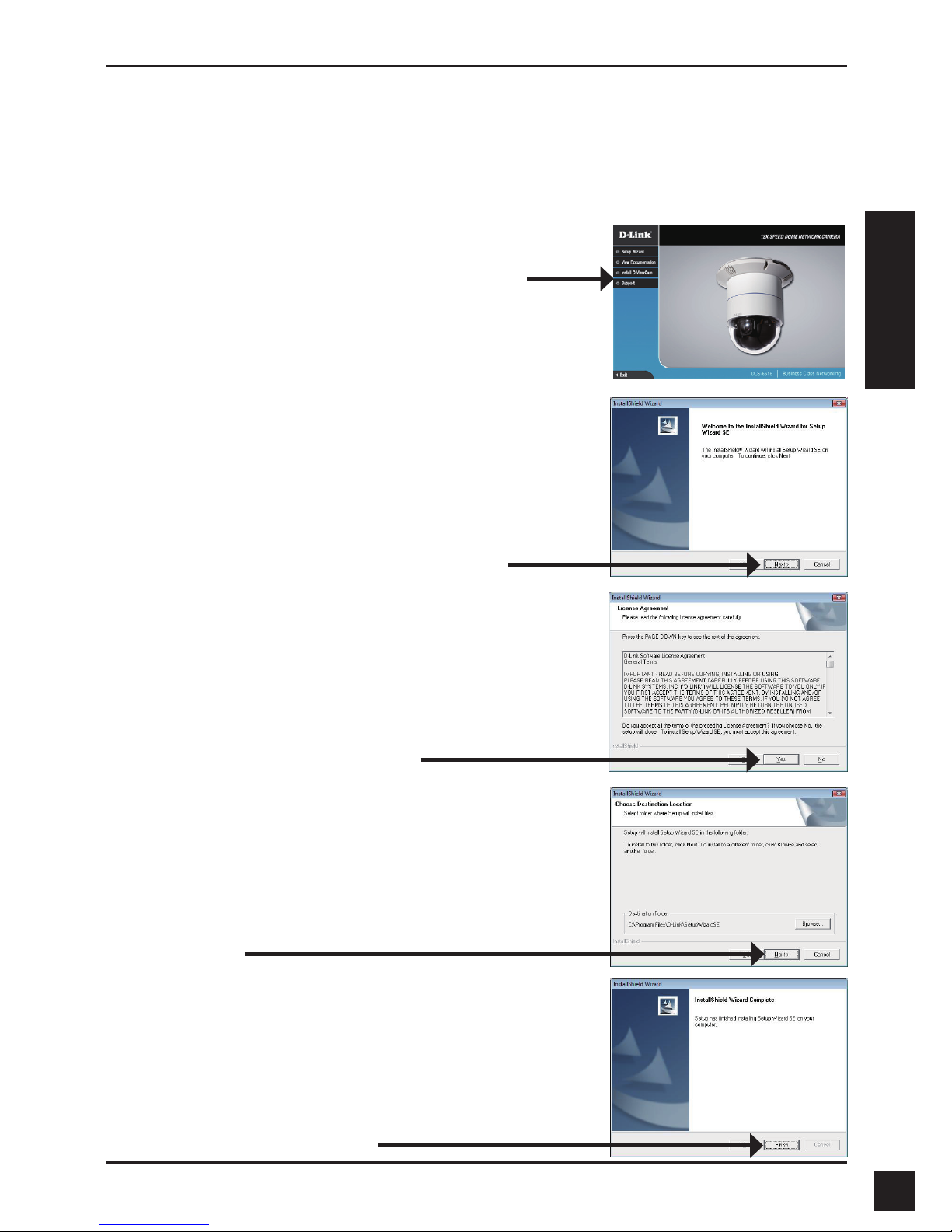

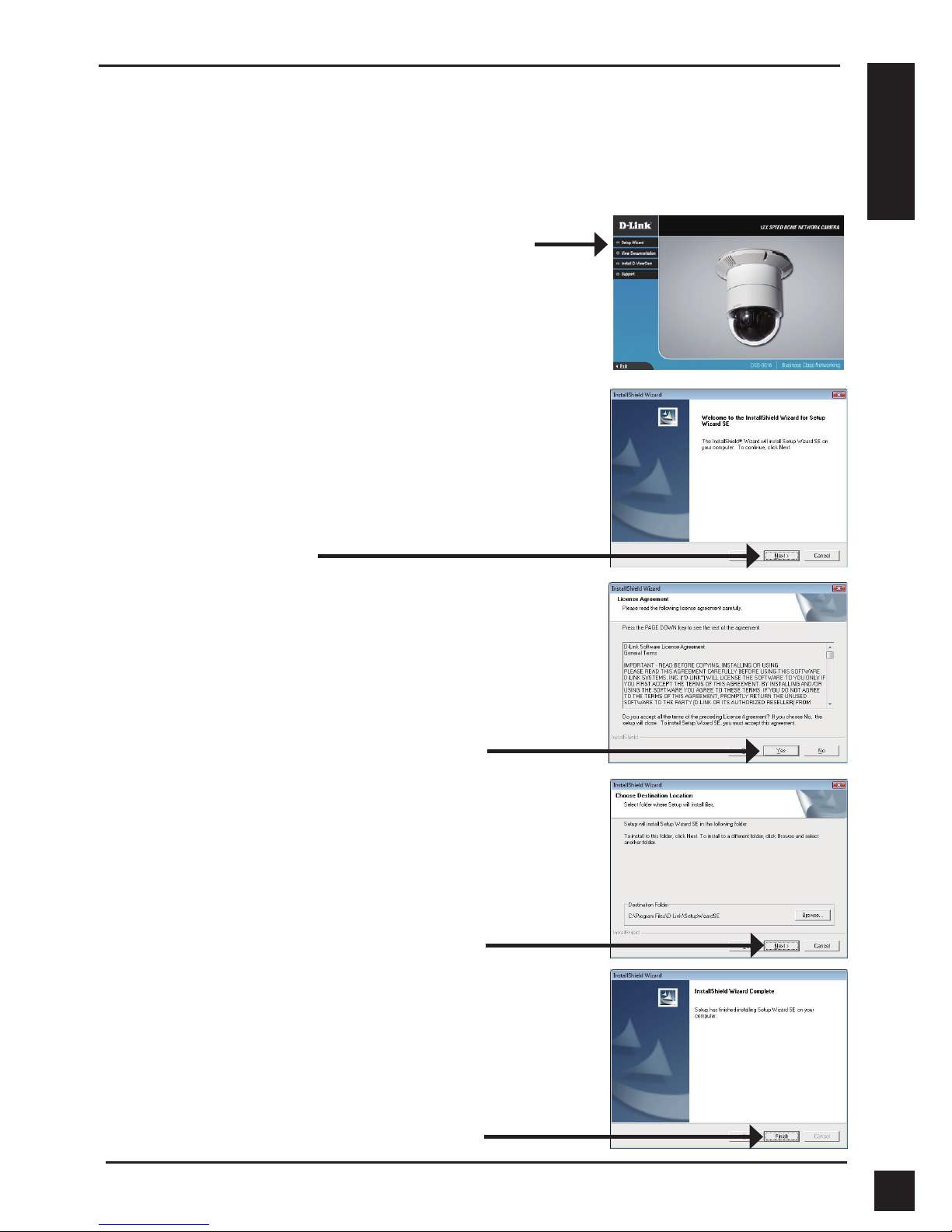

Click Setup Wizard to begin the installation.
Insert the DCS-6616 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setuop Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-6616 Quick Install Guide
8
ENGLISH

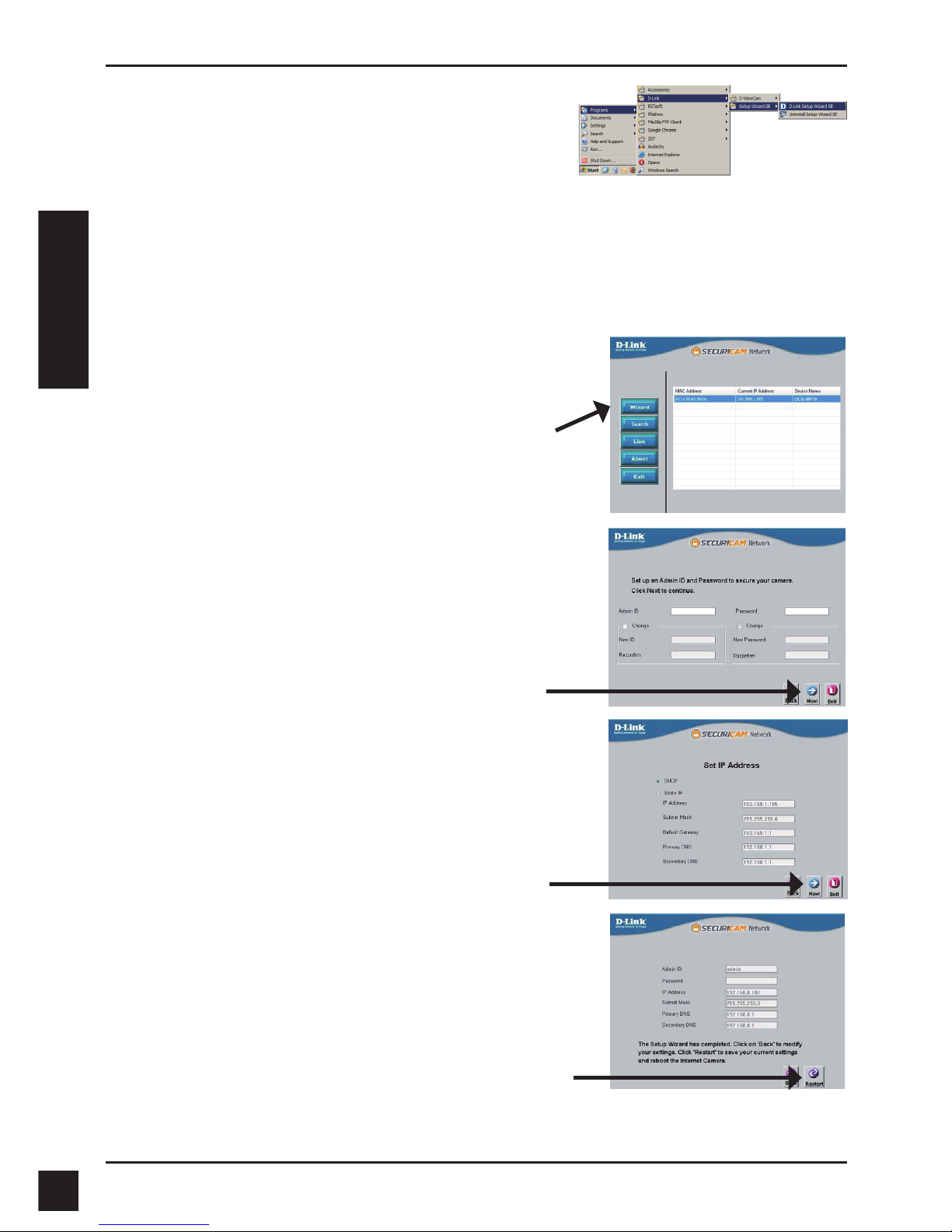

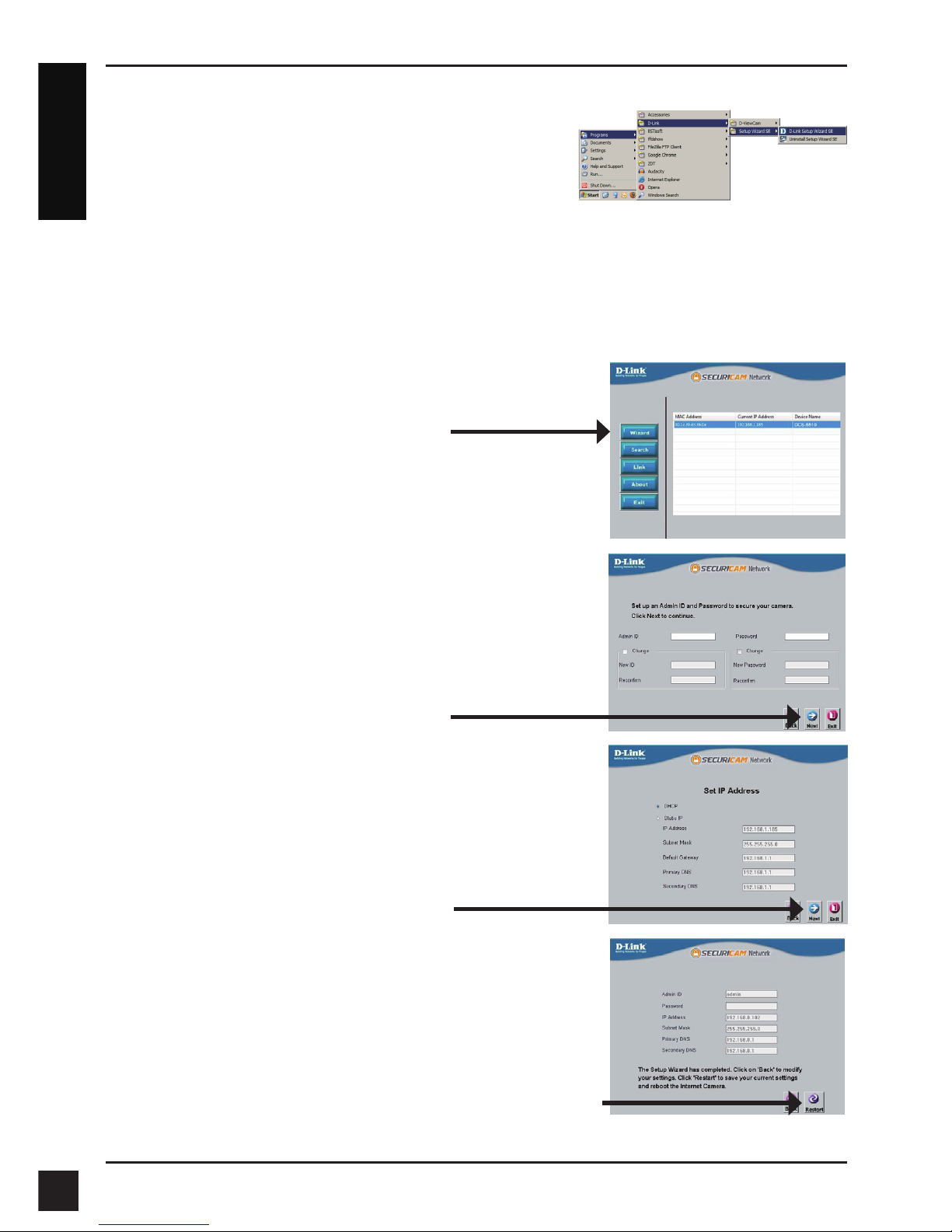

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.

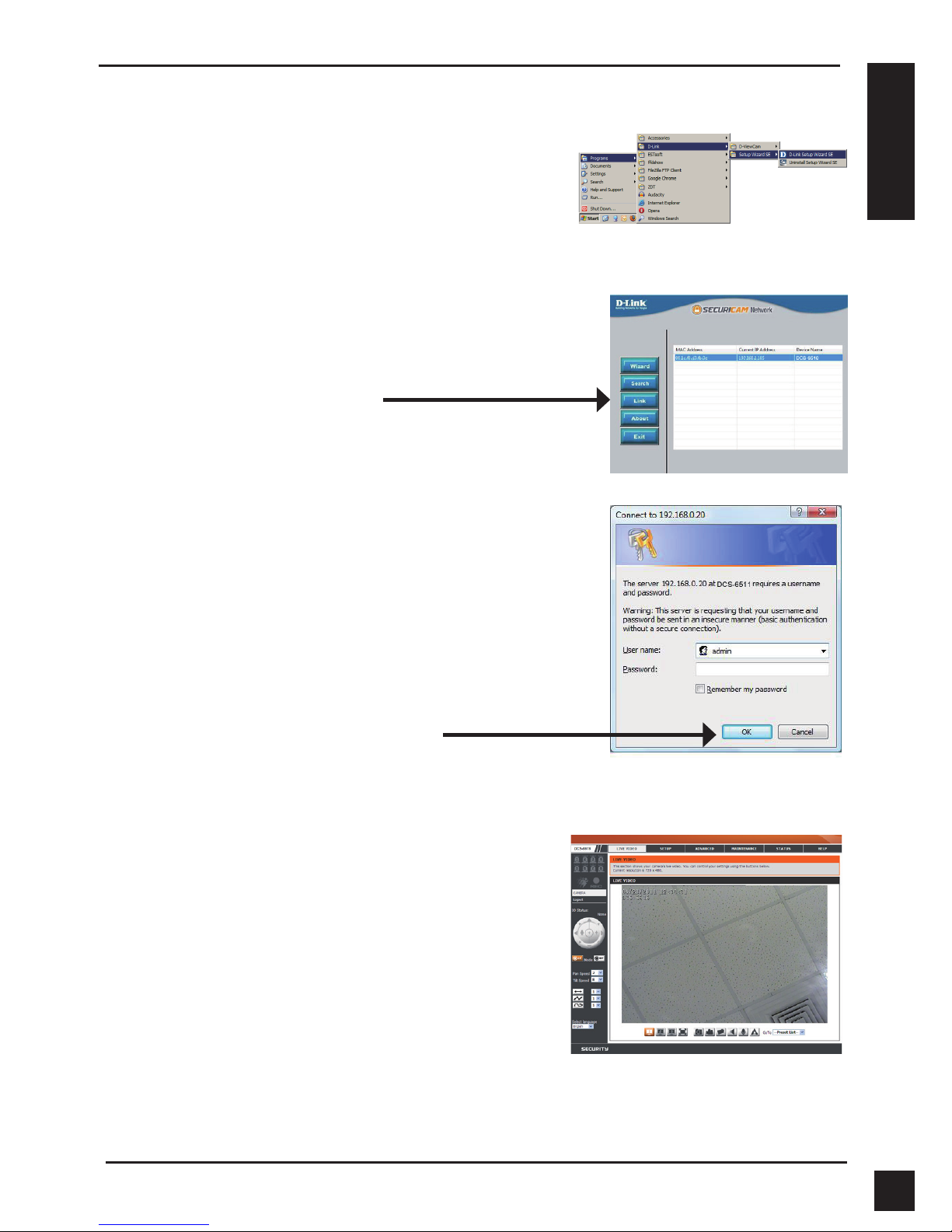

The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.
