2D-Link DCS-6815/6817/6818 User Manual
Table of Contents
Product Overview ........................................................ 3
Package Contents ...................................................3
System Requirements ............................................. 3
Introduction ..............................................................4
Features .................................................................. 4
Warnings .................................................................5
Hardware Installation .................................................. 6
Basic Hardware Setup .............................................6
Resetting the Camera ............................................ 12
Standard or Mini Pendant Mount ...........................13
Ceiling Mounting - Straight Tube ...........................14
Conguration ............................................................. 15
Installation Wizard .................................................15
Access the DCS-6815/6817/6818 with an Internet
Browser .................................................................16
Live Video ..............................................................17

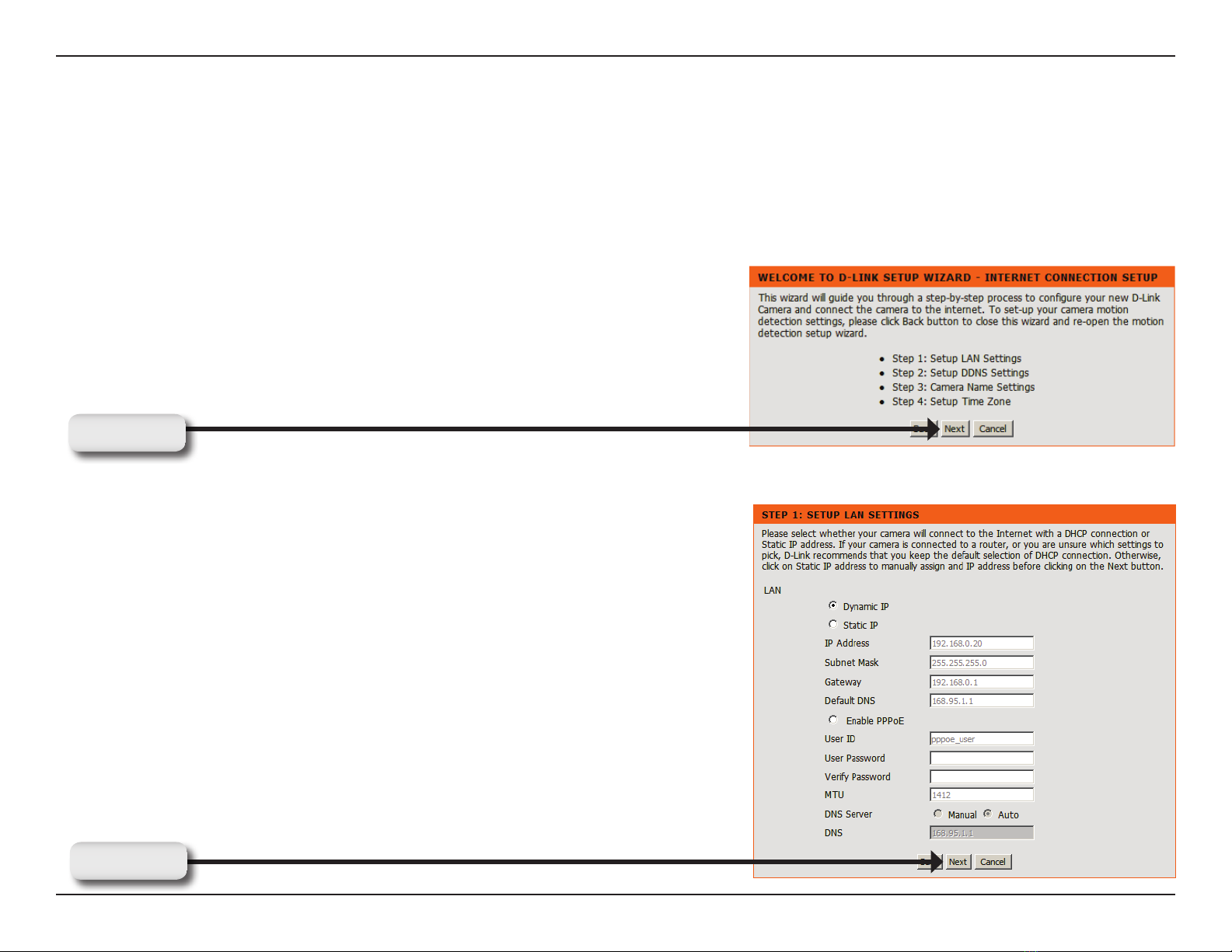

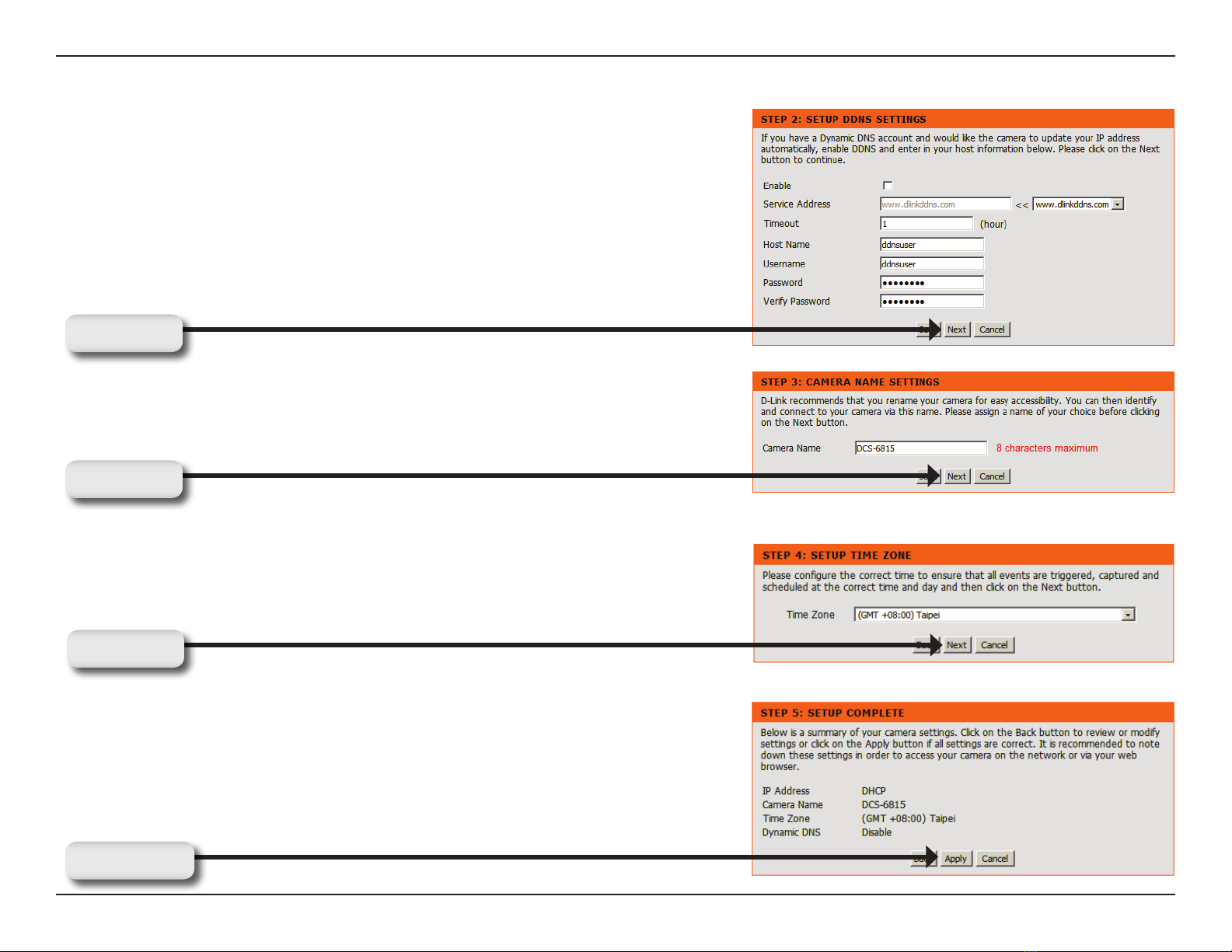

Internet Connection Setup Wizard ......................... 19
Motion Detection Setup Wizard .............................21
Dynamic DNS ........................................................22
Color Setting ..........................................................23
Image Setup ..........................................................24
Motion Detection .................................................... 25
Time and Date .......................................................26
D/I Setup (Digtal Input) ..........................................27
PTZ Setup .............................................................28
General ............................................................ 28
PTZ Sequence ................................................. 30
PTZ Auto Pan ..................................................31
PTZ Cruise .......................................................32
PTZ Privacy Mask ............................................33
Recording ..............................................................34
Snapshot ...............................................................35
Digital Output ......................................................... 36
PTZ Preset ............................................................37
Device Management .................................................. 38
Backup and Restore ..............................................39
Firmware Upgrade ................................................. 40
Device Info ................................................................. 41
DI/DO Pin Block Specications ................................ 42
Digital Input Diagram .............................................43
Digital Output Diagram .......................................... 44
Troubleshooting ........................................................ 45
Networking Basics .................................................... 47
Check your IP Address .......................................... 47
Statically Assign an IP Address ............................. 48
Technical Specications........................................... 49
Table of Contents

3D-Link DCS-6815/6817/6818 User Manual
Section 1 - Product Overview
If any of the above items are missing, please contact your reseller.
Product Overview
Package Contents
• DCS-6815/6817/6818 High Speed Dome Network Camera
• Data Cable for Video, Alarm, and Power (AC 24V)
• Power Adapter
• Power Cable
• Waterproof Collar
• Optical Cover
• Manual and Software on CD
• Quick Installation Guide
• Screws
• Lubricant
System Requirements
• CPU: Pentium 4 1.4GHz or above
• Hard Disk: 40GB or above
• Memory: 256MB or above
• Browser: Internet Explorer 6.0 or above
• Video Resolution: SVGA or XGA (1024x768 or above)

4D-Link DCS-6815/6817/6818 User Manual
Section 1 - Product Overview
Introduction
The DCS-6815/6817/6818 High Speed High Speed Dome Network Camera is a professional IP surveillance solution
which connect to your network to provide high-quality live video over the Internet. The camera apparatus supports
precise high-speed pan/tilt/zoom functionality for extensive monitoring, and object tracking. The inconspicuous dome
enclosure can be mounted in a variety of positions based on your needs.
Real-time MPEG-4 / MJPEG Compression (Selectable)
The IP speed Dome Camera supports two selectable compression formats (MPEG-4/MJPEG), but only one setting
can be used at a time.
Up to 30fps at D1 Resolution
The IP speed Dome Camera supports up to 30fps (NTSC) or 25fps (PAL) at D1 resolution.
Motion Detection
Users can specify detection areas from a 3x3 grid and adjust the sensitivity to t the operating environment.
Supports Multiple Connections
The IP speed Dome Camera allows multiple users to log in via the IE browser. Maximum 10 accounts can be set for
one camera.
Upgrade from Internet
Users can upgrade to the latest software version via the Internet.
Features

5D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation
Warnings
Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, or otherwise disturbing the enclosure. Improper handling or storage
may damage the camera.
Install electrical wiring carefully.
Consult a qualied electrician regarding camera installation. Please note that the camera’s electrical input tolerance is AC
24V ± 10%. Ensure that the AC adapter’s power cable is grounded appropriately to protect against power surges.
Do not disassemble the camera.
To prevent electric shock, do not remove screws or covers. Consult D-Link regarding service if necessary.
Do not block the cooling holes on the bracket.
This camera has a cooling fan inside. Blocking the cooling holes will lead to overheating and may cause damage.
Do not operate the camera beyond the specied temperature, humidity or power source ratings.
Use the camera under conditions where the temperature is between -40°C ~ 50°C (-40°F ~ 122°F), and relative humidity
is below 80%.
Do not use strong or abrasive detergents when cleaning the camera body.
Use a dry cloth to clean the camera when it is dirty. A mild detergent can be used if necessary.
Never aim the camera towards the sun.
Never aim the camera at the sun or other extremely bright light sources, even when the camera is not in use. Doing
so may cause damage to the camera’s sensors.

6D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

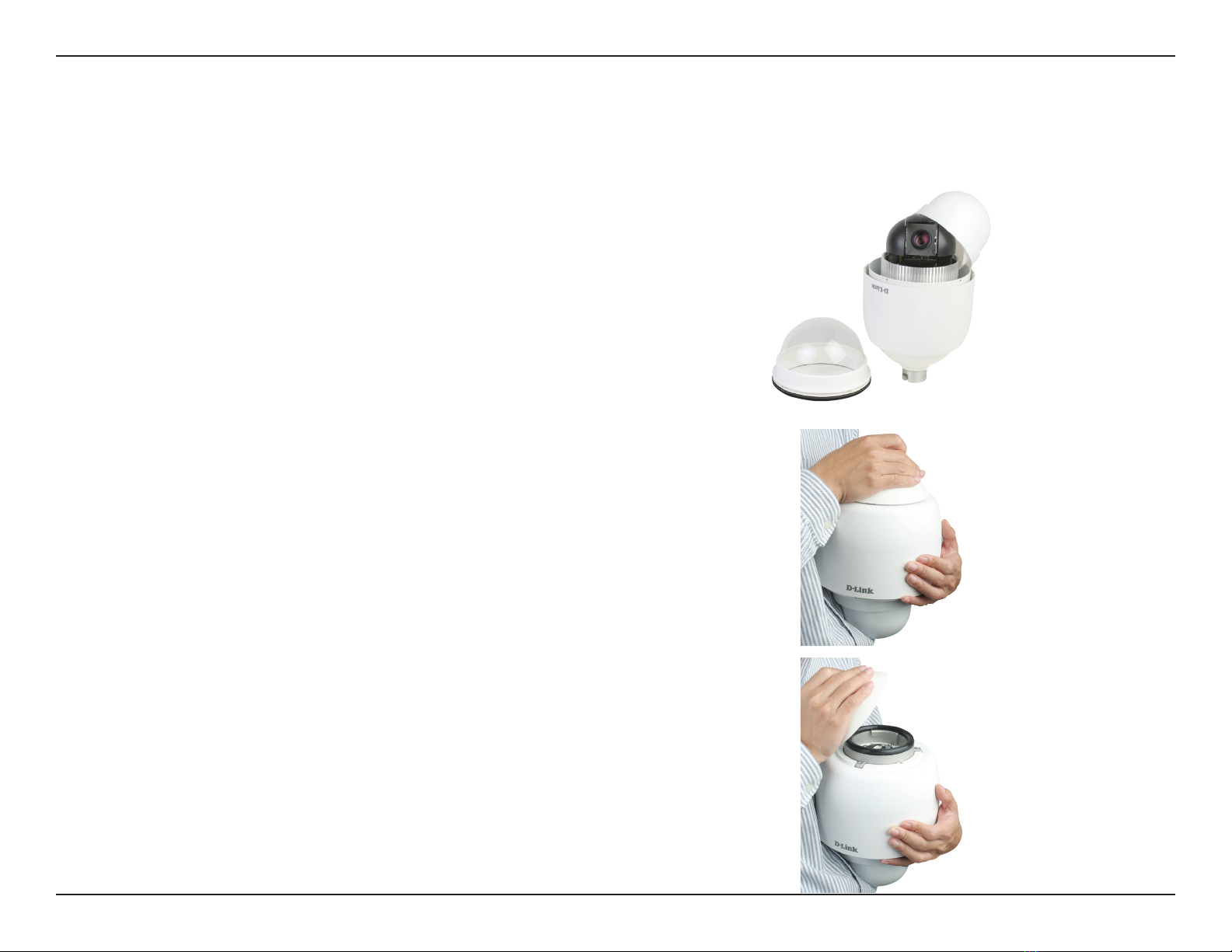

STEP 1
Unpack the DCS-6815/6817/6818 and remove the dome
camera unit.
STEP 2
Rotate the cap and remove it from the camera body.
Basic Hardware Setup
Hardware Installation

7D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

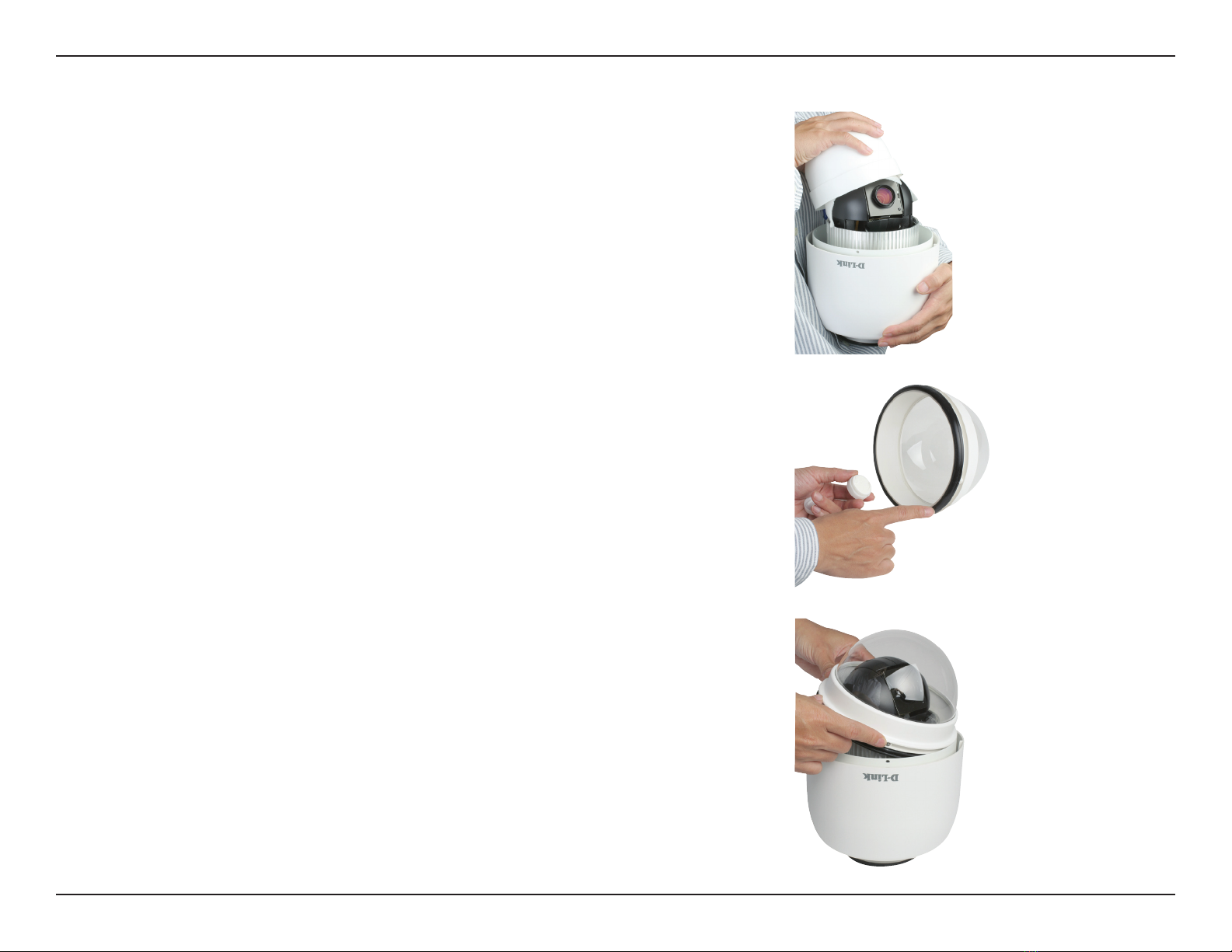

STEP 3
Remove the protective cover and PE sheet.
STEP 4
Apply some lubricant on the cover’s waterproof seal to make
the installation process smoother. Attach the optical cover
to the camera body.
The small protrusions on the cover must align with the four
holes on the camera body.

8D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

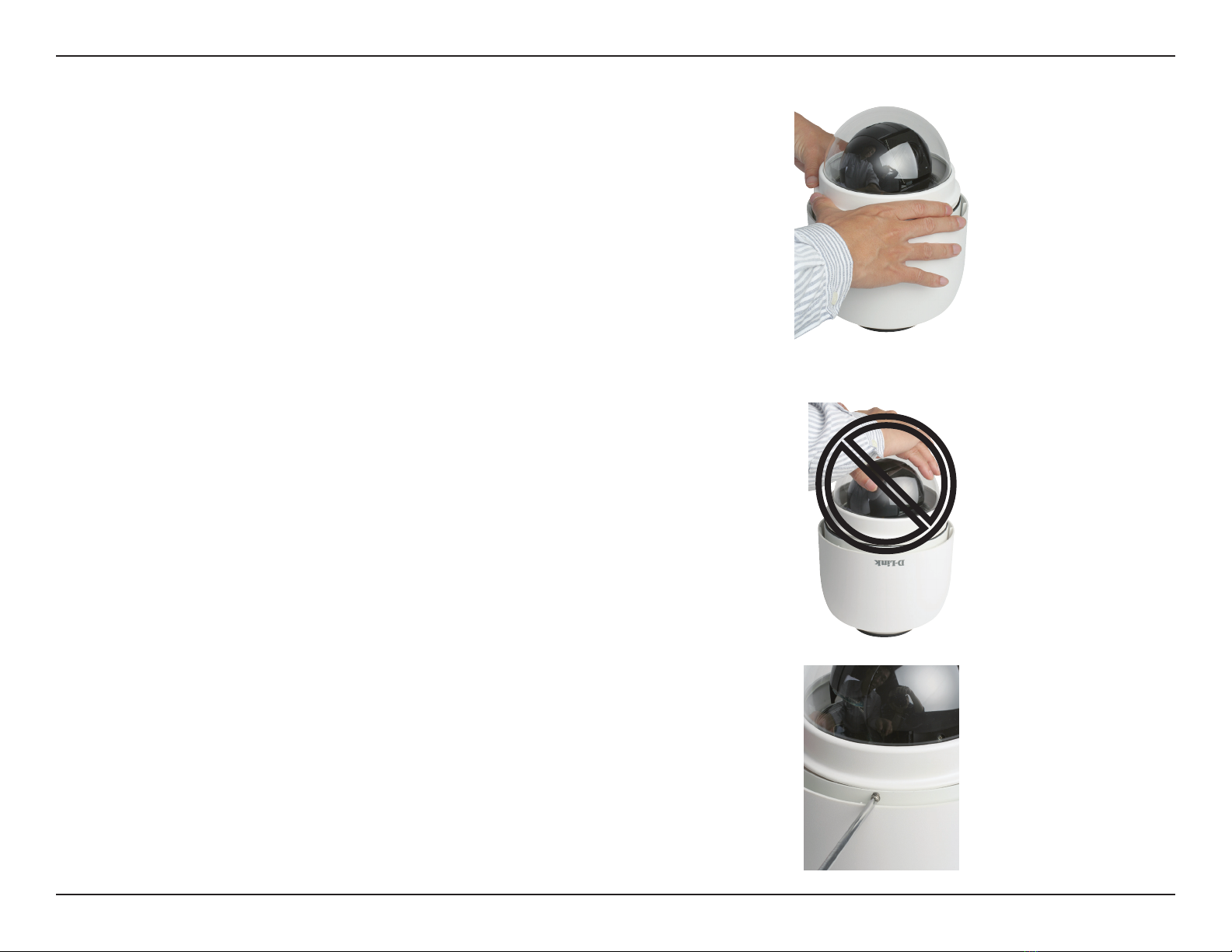

STEP 5
Gently press down the dome cover with two hands on the
side of it.
Warning: DO NOT press down on the cover, as shown in
the gure; this might cause damage to the camera.
STEP 6
Screw the dome cover and body together.


9D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

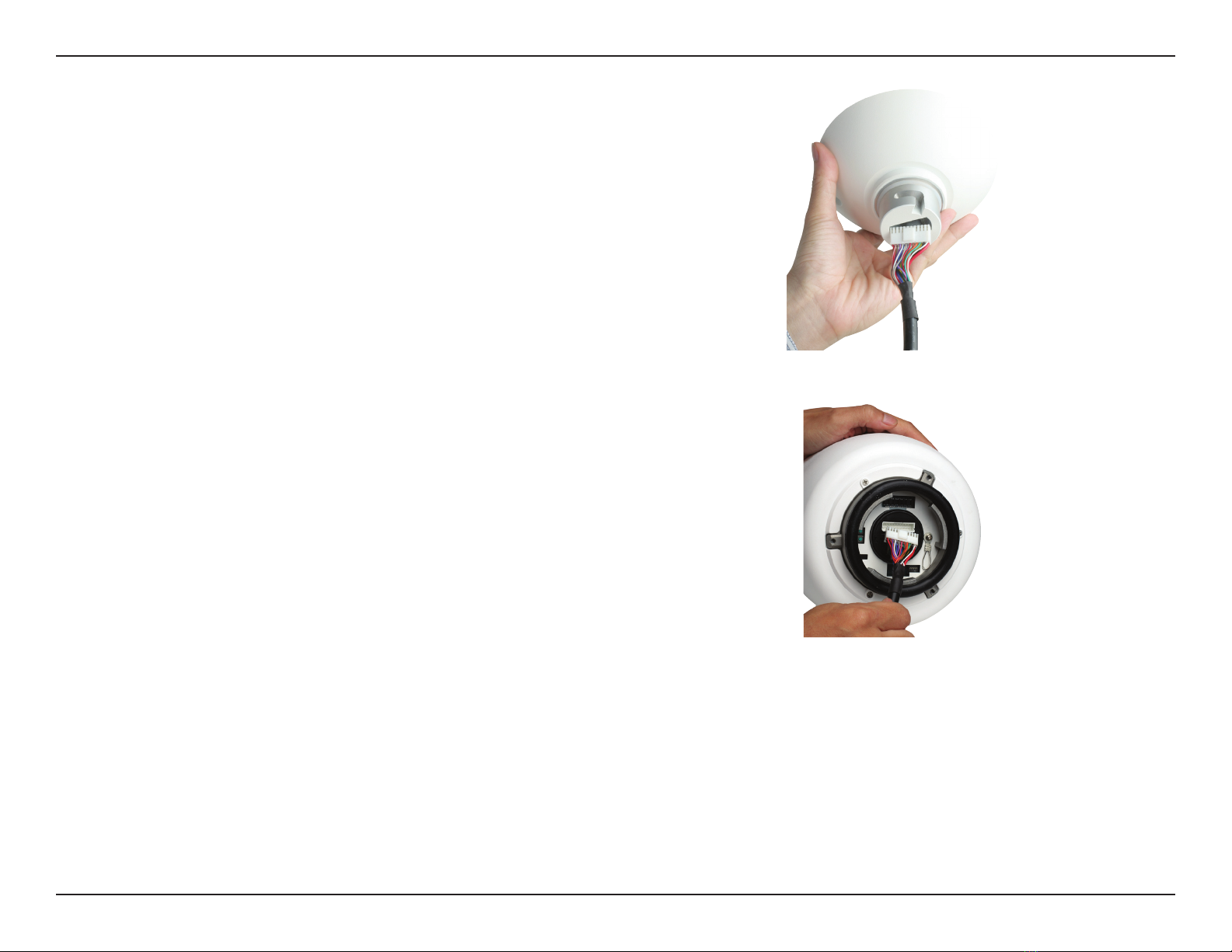

STEP 7
Insert the data cable into the opening on the cap.
STEP 8
Connect the 22-pin connector to the slot on the camera
enclosure. The connector will lock into place.

10D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

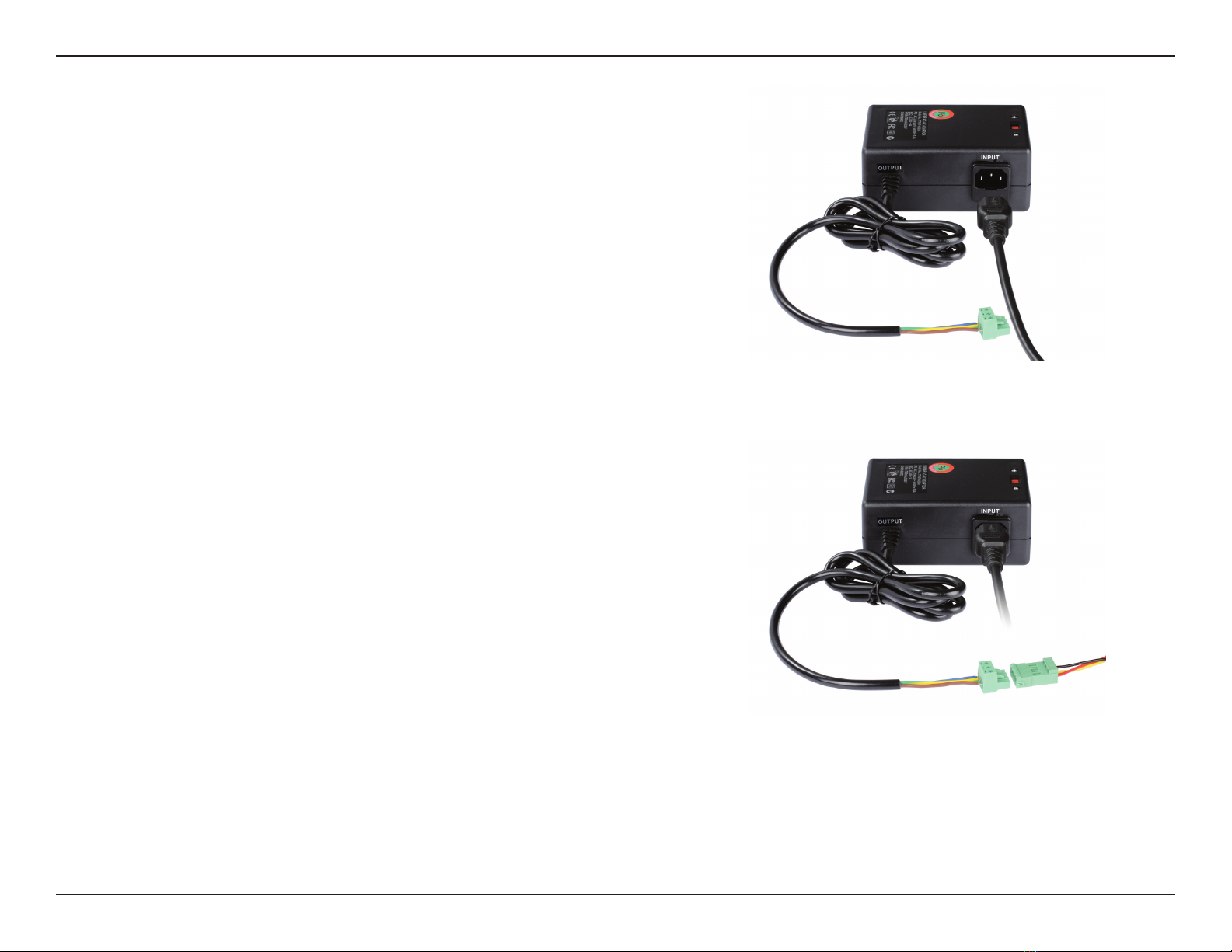

STEP 9
Connect the power cable to the power adapter.
STEP 10
Connect the power adapter's 3-pin connector to the camera's
3-pin power connector.

11D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

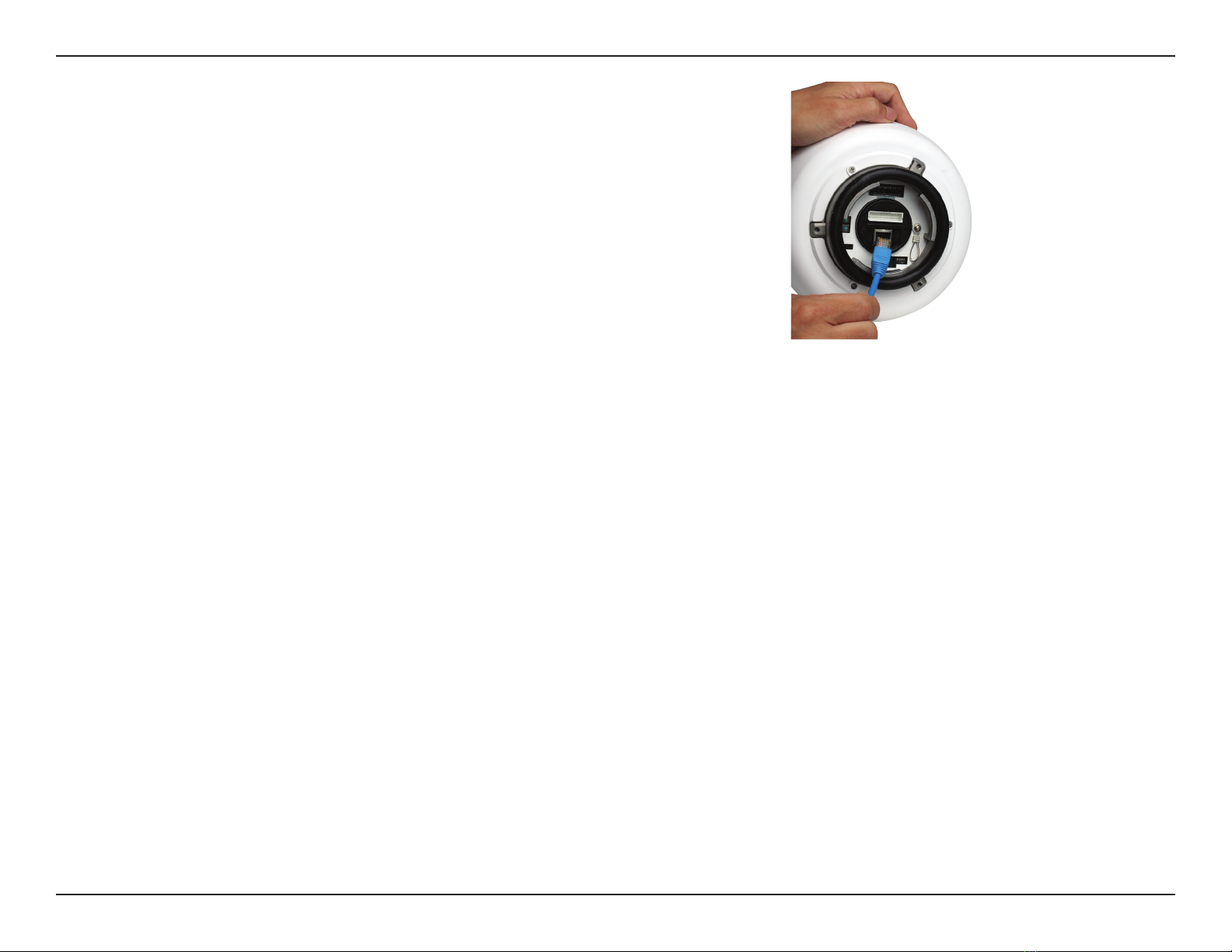

STEP 11
Connect one end of the CAT 5 Ethernet cable to the RJ-45
connector of the camera enclosure, and the other end of the
cable to your network.
STEP 12
Plug the power cable into a wall outlet.
Important Notice:
The DCS-6815/6817/6818 can operate at temperatures
between -40° and 50° C. However, the power adapter is only
designed to operate between 0° and 40° C. For locations
which will experience temperatures outside of this range, the
camera may need to draw power from a difference source,
such as a building's emergency/backup power system.

12D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

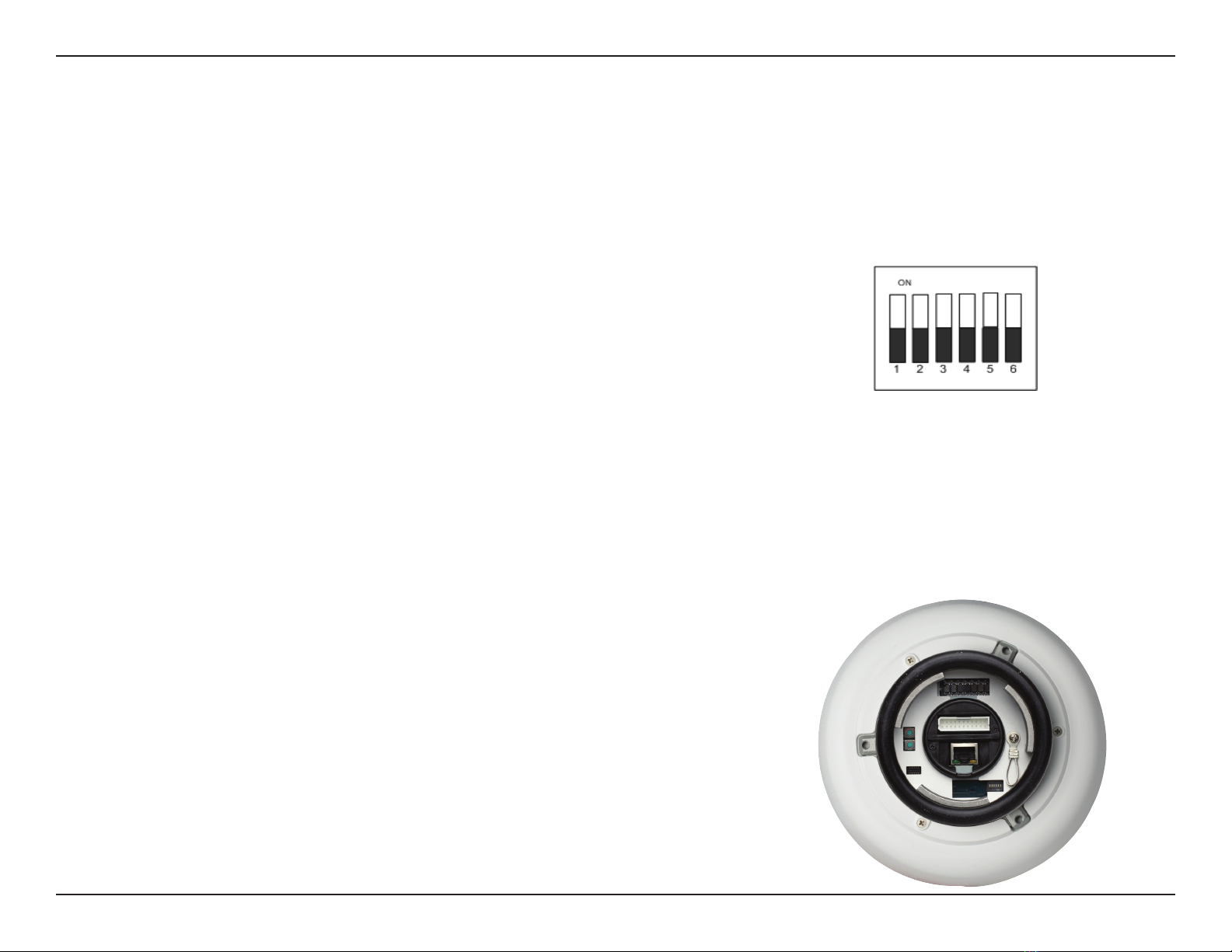

Mechanical Reset
If the mechanical PTZ controls ever stop responding or seem to be
locked up, you may reset the mechanical portion of the camera using the
communication pin array at the base of the device.
1. Use a small tool to move switch 5 to the “off” position.
2. Plug the camera in for one minute and allow the device to initialize.
3. Return the pin back to its original “on” position.
4. Plug in the camera, and the device should successfully initialize.
Digital Reset
If the camera’s web user interface ever becomes unresponsive, or if the
administrator password is forgotten, it may become necessary to reset
the device rmware to its original factory settings.
1. Press and hold the green button on the base of the camera for 10
seconds.
2. Allow a few minutes for the camera to re-initialize factory default
settings.
Resetting the Camera


The DCS-6815/6817/6818 contains both digital and mechanical components. Thus, if any problems are experienced
with the camera, there are two different reset options depending on the type of problem.

13D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

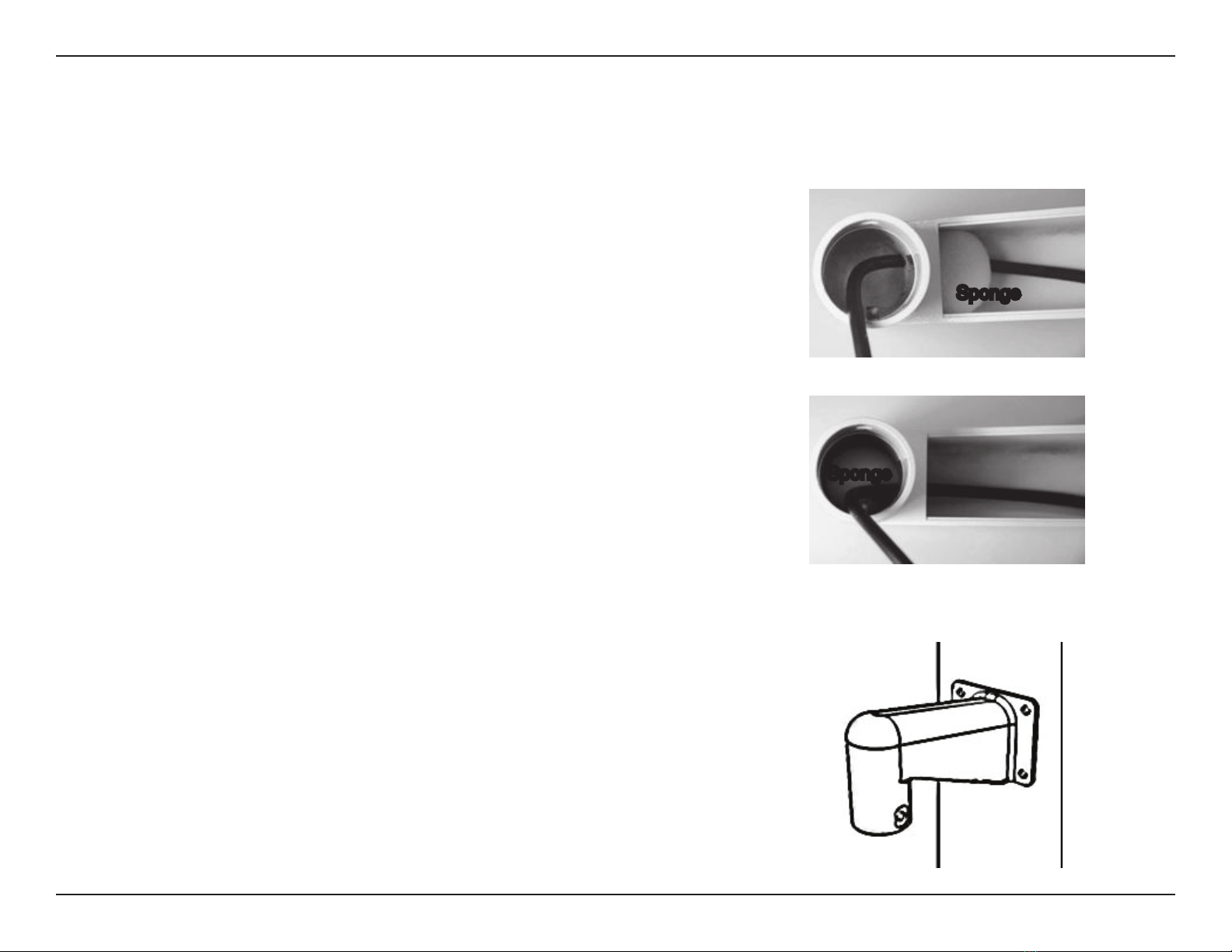

Standard or Mini Pendant Mount
Follow the steps below to mount the camera enclosure with the
pendant mount.
1. Make a cable entry hole on the wall to recess the cables.
Alternatively, cables can be threaded through the cable entry hole
on the mounting plate.
2. To prevent insects from entering the pendant mount, you may
block the cable entry hole with the supplied sponge in two different
ways. (See gures 1 and 2.)
3. Thread the cables through the pendant mount and afx the pendant
mount on the wall with screws and screw anchors (not supplied).
4. Attach the waterproof collar to the pendant mount.
5. Thread the cables through the cap and afx it to the pendant mount
with the supplied screws and washers.
6. Connect the cables to the camera enclosure. Attach the camera
enclosure to the mount and afx it with the supplied bolt.
Note: After threading the cables, please block the cable entry hole with
the supplied sponges to prevent insects from entering the tube.
Figure 2
Figure 1
Sponge
Sponge

14D-Link DCS-6815/6817/6818 User Manual
Section 2 - Installation

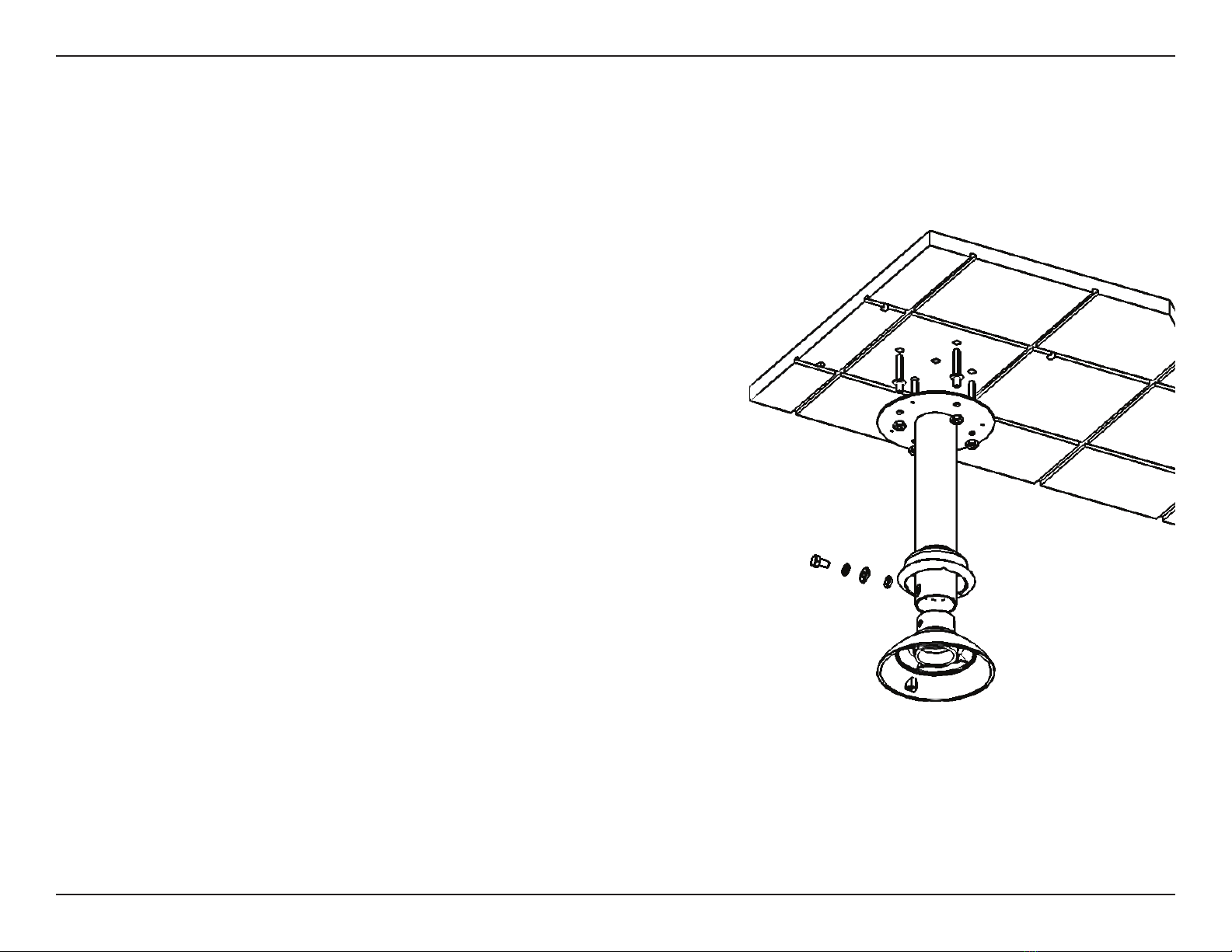

Ceiling Mounting - Straight Tube
Follow the steps below to mount the camera enclosure with the
straight tube.
1. Ensure that the ceiling can support the weight of the camera
enclosure and straight tube.
2. Make a cable entry hole on the ceiling.
3. Afx the straight tube to the ceiling with screws and screw anchors
(not supplied).
4. Attach the waterproof collar to the straight tube.
5. Thread the cables through the straight tube and the cap.
6. Afx the cap to the straight tube with the supplied screws and
washers. Attach the waterproof collar around the junction of the
straight tube and cap.
7. Connect the cables to the camera enclosure. Attach the camera
enclosure to the cap and afx it with the supplied bolt.
Note: After threading the cables, please block the cable entry hole with
the supplied sponges to prevent insects from entering the tube.

15D-Link DCS-6815/6817/6818 User Manual
Section 3 - Configuration

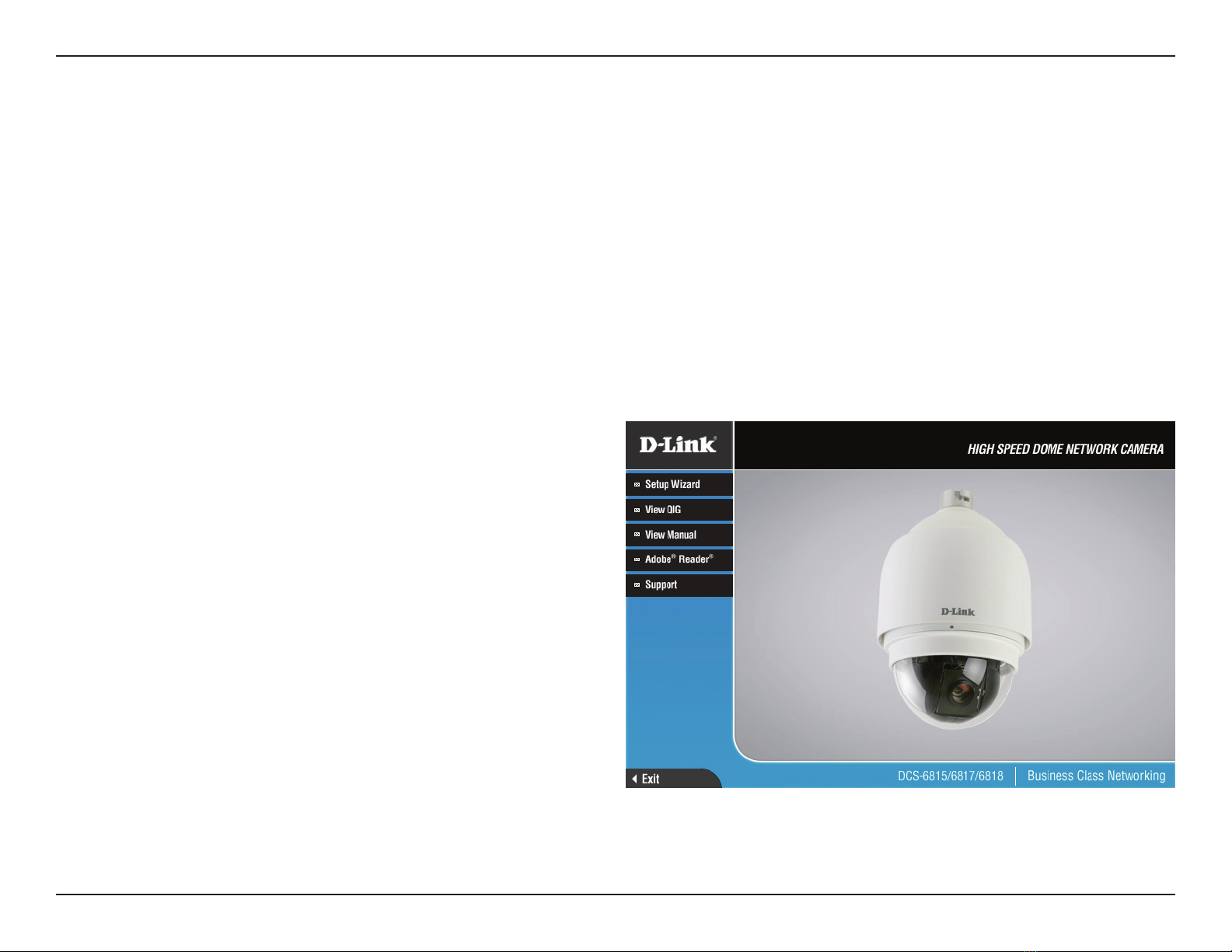

Installation Wizard
Configuration
Turn on the computer and Insert the D-Link DCS-6815/6817/6818 Driver CD in the CD-ROM drive. The step-by-step
instructions will help you to search and setup your IP camera smoothly and quickly.
If the CD Autorun function does not automatically start on your computer, click Windows® Start > Run. In the Run
command box type “D:\DCS861#.exe”, where # is the last number of your model and D: represents the drive letter of
your CD-ROM. If it does start, proceed to the next screen.

16D-Link DCS-6815/6817/6818 User Manual
Section 3 - Configuration
Open your Internet Explorer Web browser and enter the IP address for your Internet Camera (http://192.168.0.20).
In the example, this address is 192.168.0.20. Your address may differ depending on your network setup.
If a window appears asking to install a Verisign certicate for authentication click Yes. This allows the proprietary
MPEG4 video stream to be recognized by Internet Explorer.
Access the DCS-6815/6817/6818 with an Internet Browser

17D-Link DCS-6815/6817/6818 User Manual
Section 3 - Configuration
This page displays live video and allows you to adjust and save camera images.
Live Video
The date, time, and camera name are displayed at the top
left corner of the live video display.
This indicator blinks when motion is detected.
This indicator blinks when the camera is recording.
These indicators blink when digital input is received.
The navigation pad is used to carry out pan, tilt, and zoom
functions. The camera can be aimed and the image adjusted
using this pad.
Note: The Home position of the dome camera is the 256th
preset point. This position is not congured by default. Please
see the next page for information about how to congure
preset points.
There are 8 speeds for PTZ control - 1 is the slowest and 8
is the fastest.
Starts a pre-dened AutoPan movement.
Starts a pre-dened sequence movement.
OSD:
(On screen Display)
Motion Trigger
Indicator:
Recording Indicator:
Digital Input
Indicator:
Navigation Pad:
(Up/Down/Left/
Right/Home
Zoom In/Zoom Out)
PTZ Speed:
AutoPan:
Sequence:
Note: You may need to enable pop-ups on this page to use
certain functions such as AutoPan, Sequence, and Presets.

18D-Link DCS-6815/6817/6818 User Manual
Section 3 - Configuration

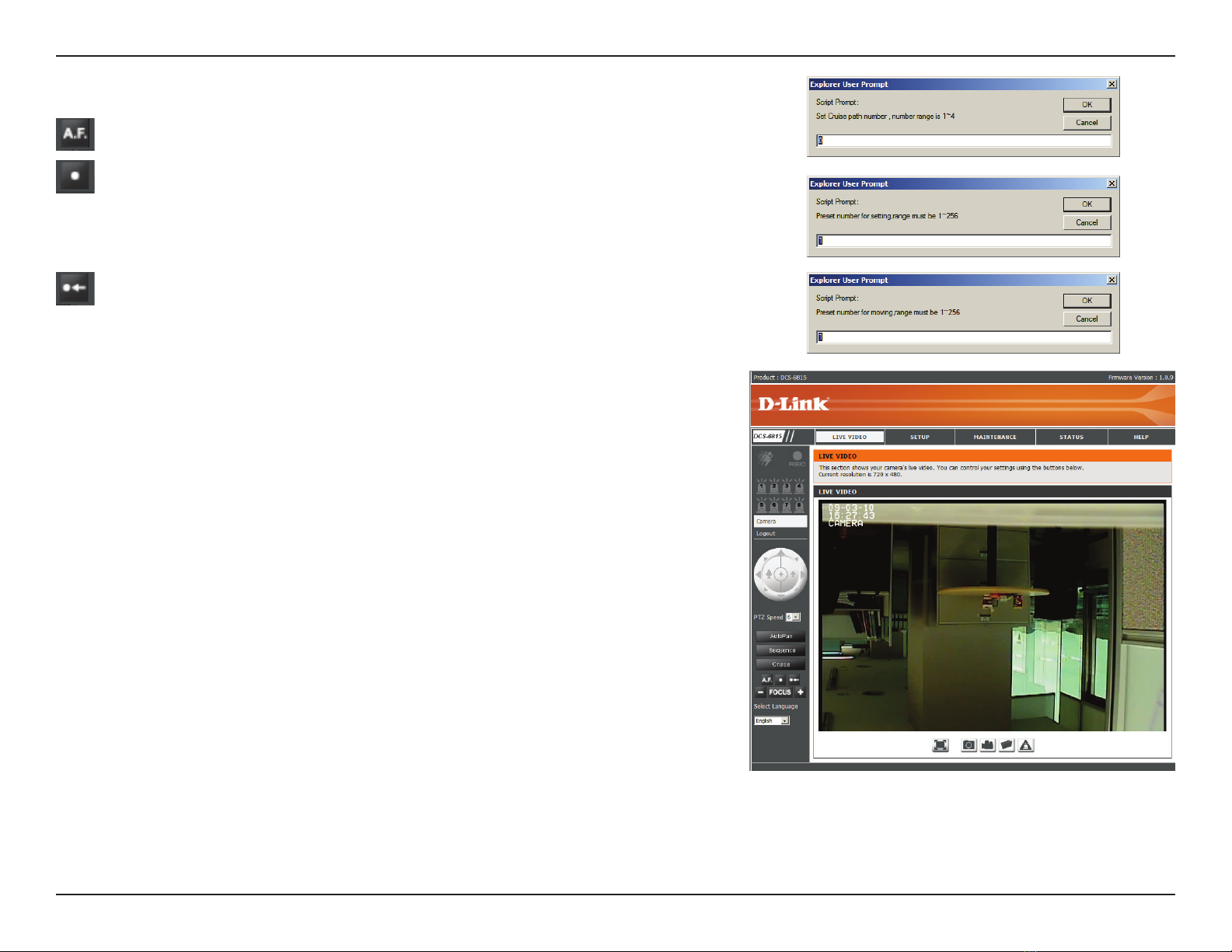

Starts a pre-dened cruise movement.
Click this button to enable automatic focus.
Move the camera to the desired view using the P/T/Z controls
and click this button to create a preset point. Designate the
preset with a number between 1 and 256. The 256th preset
point corresponds to the Home position.
Returns the camera to a specied preset point.
Manually focuses the camera image.
You may select English or Traditional Chinese.
Loads the live camera image in fullscreen.
Saves a snapshot of the image to the specied location.
Begins recording to the specied location. Pressing this button
a second time will stop the recording.
Designates a folder where snapshots and video will be
saved.
Sends a signal to the attached digital device.
Cruise:
Autofocus:
Set Preset:
Run Preset:
Focus (-/+):
Language:
Fullscreen:
Snapshot:
Start/Stop
Recording:
Set Storage
Folder:
Start/Stop Digital
Output:

19D-Link DCS-6815/6817/6818 User Manual
Section 3 - Configuration
Internet Connection Setup Wizard
You may choose to congure your network by using the Internet Connection
Setup Wizard which includes step-by-step instructions. Otherwise, you may
manually congure your connection using the Manual Internet Connection
Setup.
This wizard will guide you through a step-by-step process to congure your new
DCS-6815/6817/6818 and connect it to the Internet.
Click Next to proceed.
You may congure your camera using:
DHCP Connection (by default), where your DHCP server will automatically
assign dynamic IP to your device.
Static IP Address, where an IP address is assigned manually.
PPPoE connection, where your camera is directly connected to the Internet
through a DSL modem.
Input the DNS information if you have chosen and assigned a Static IP Address
for your camera.
Click Next to proceed.
Click Next
Click Next

20D-Link DCS-6815/6817/6818 User Manual
Section 3 - Configuration
Enter a name for your camera.
Then, click Next to proceed.
Congure the correct time to ensure that all events are triggered, captured and
scheduled at the right time.
Then, click Next to proceed.
This page displays your congured settings.
Click Apply to save and activate the setting, or Back to change your settings.
Click Next
Click Next
Click Next
Click Apply
If you have a Dynamic DNS account and would like the camera to update your
IP address automatically, enable DDNS and enter your host information.
Click Next to proceed.
