D-Link MyDlink DCS-8515LH User manual

1

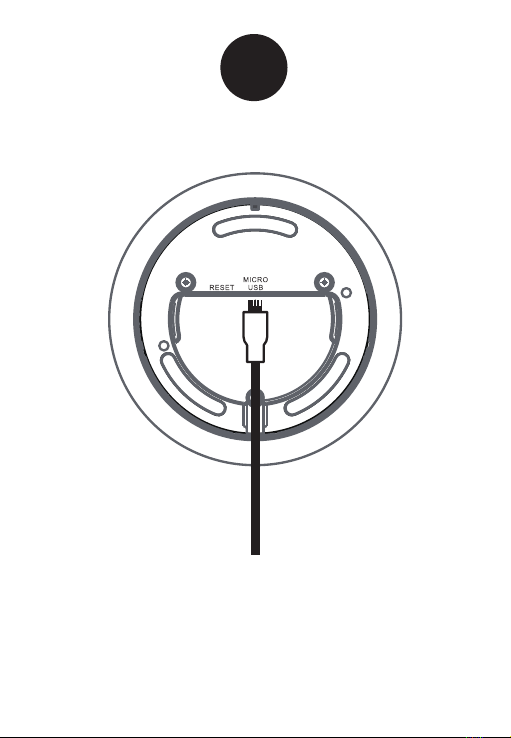

Plug the included USB power adapter into the power port on the
bottom of the camera, making sure to route the cable appropriately.

2

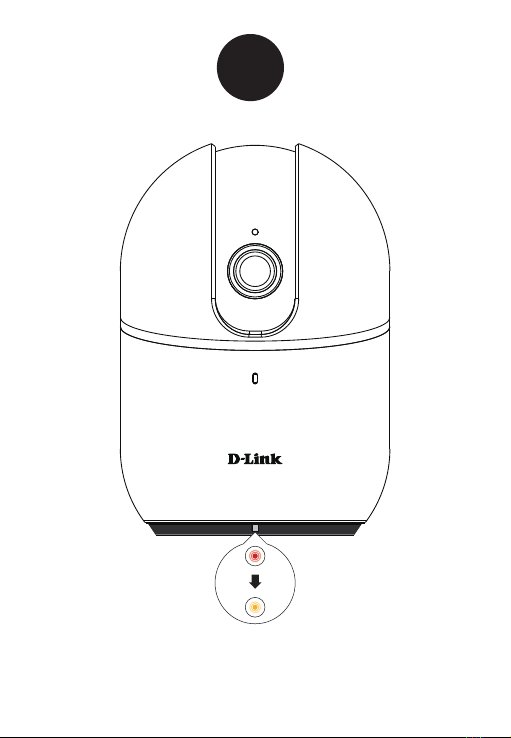

Once the camera has powered up, it will rotate left and right , up and
down to calibrate itself. Wait until the LED at the front changes from
red to blinking orange.

3

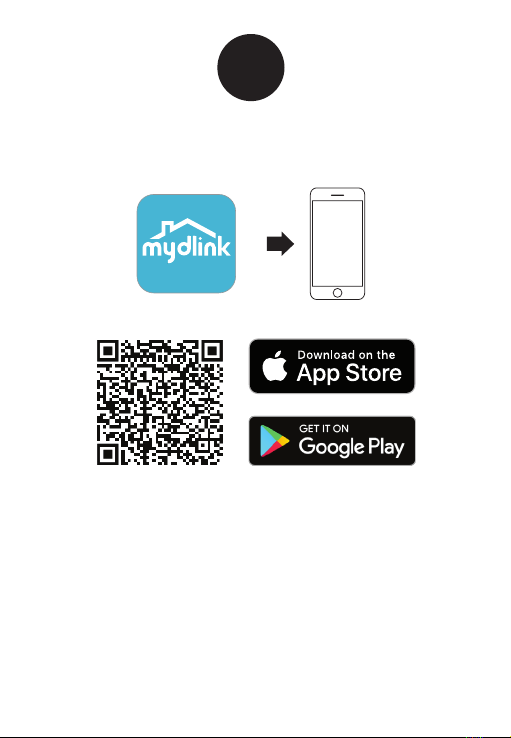

To download and install the mydlink app on your mobile device,
scan the QR code above for your Android or iOS device.
Note: This product is NOT COMPATIBLE with
mydlink Lite or mydlink+ apps.
If you are an existing mydlink Lite user, sign in to the
new app with the same username and password and
your existing cameras will appear in the new app.

4

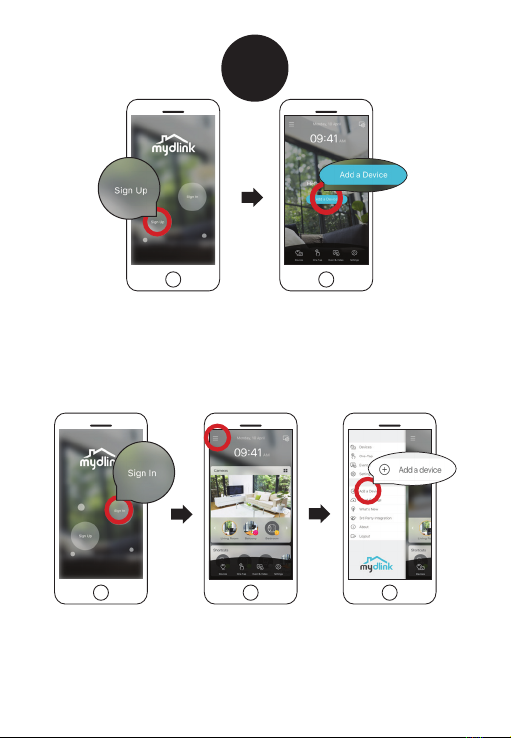

Existing Users:
Sign in using your mydlink account and tap the icon at the
top-left, then tap Add a Device to start the setup wizard.
Continue to follow the onscreen instructions.
OR
New Users:
Tap Sign Up to register for a mydlink account, then tap
Add a Device to install your camera. Continue to follow the
onscreen inscructions.

5

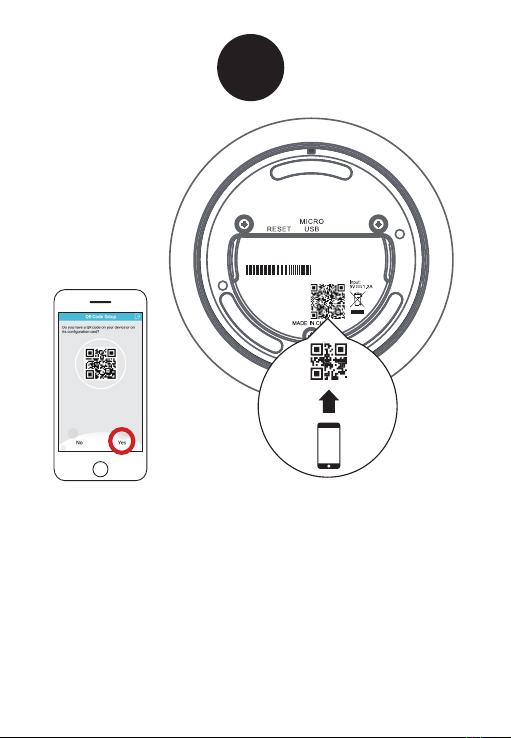

When prompted, select "Yes" to scan the QR code on the bottom
of the camera, then continue to follow the onscreen instructions to
complete the setup process.
DCS-8515LH
Product name: Full HD Outdoor Wi-Fi Camera
P/N:BCS8515LHLNANA1
S/N:QXN71YMXXXXXX
MAC ID:XXXXXXXXXXXX
mydlink No.:XXXXXXXX
Endpoint:
DCS-8515LH-XXXX
PIN Code:XXXXXX
H/W Ver.:A1
F/W Ver.:XXXX

6

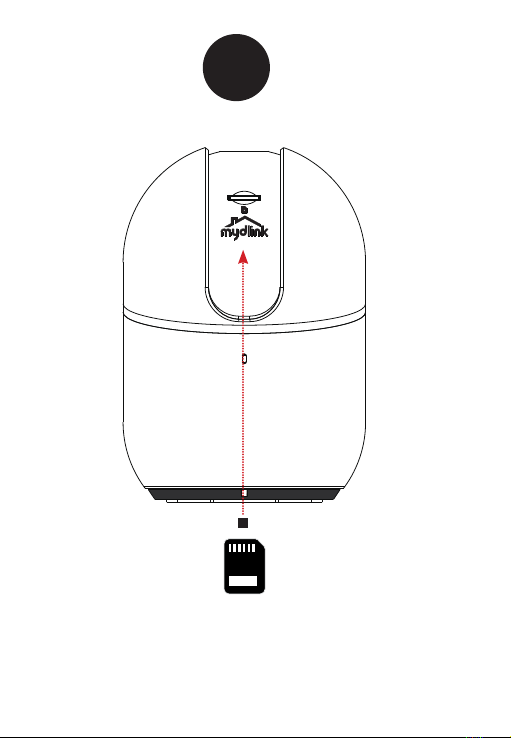

Where a microSD card can be inserted in order to save video recordings.
Note: Please use the mydlink app to tilt the camera up to reveal the slot.

Minimum Requirements
To install this product, you will need:
• An 802.11 g/n wireless router
• An Internet connection
• The latest version of the mydlink app from the App Store or Google Play.
Please refer to the app's store page to check whether your device is
compatible.
• An e-mail account (required to register for mydlink service)

Camera Mounting Instructions
Step 1:
Place the mount at the desired location, assuring
that location of the power cord thread is also at the
desired location. Use a pencil to mark the holes.
Step 2:
Using a 6 mm drill bit, drill two 25 mm deep holes
over the pencil marks. For a plaster, drywall, or
concrete wall, insert the plastic anchors to support
the screws rst.
Step 4:
Align the bottom of the camera to the threads on the
mount. Assure that the camera is securely snapped
into place.
Step 3:
Place the mount over the holes that are in the wall.
Make sure to align the mount holes with the holes
in the wall. Use the supplied screws to attach the
mount to the surface of the wall.
1
2
3
4

Camera LED Information
DCS-8515LH
Status LED
System booting / Factory resetting
Data is being transferred
Bluetooth enabled
Wireless connected
Firmware updating
BLE pairing / Ready for setup

Notice
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Version 1.01(CA_EN)_90x130
April 10 2019
Copyright ©2019 All rights reserved. D-Link and the D-Link logo are registered
trademarks of D-Link Corporation or its subsidiaries. Product specifications, size and
shape are subject to change without notice, and actual product appearance may
differ from that depicted on the packaging. Visit dlink.com for more details.
Support
For additional support resources and frequently asked
questions, visit:
support.dlink.com (USA) or support.dlink.ca (CAN)
For technical support, call:
1-877-453-5465 (USA) or 1-800-361-5265 (CAN)
Need help setting up?
Watch the video for step-by-step instructions:
dlinksetup.com

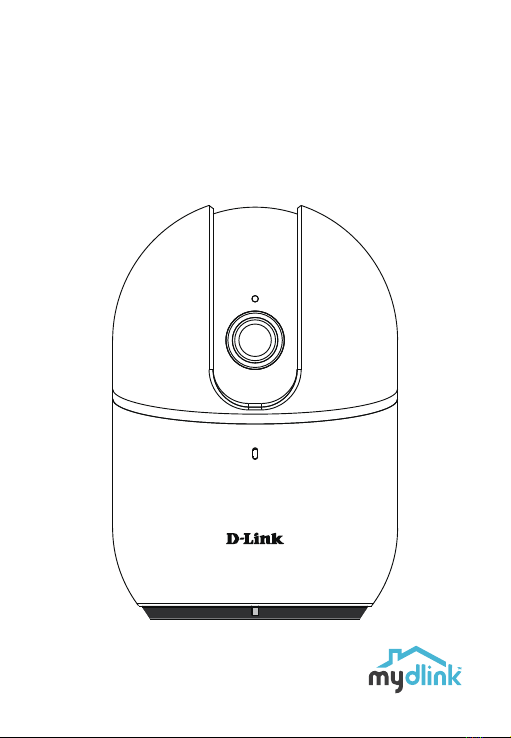

HD Pan & Tilt Wi-Fi Camera
Quick Start Guide
DCS-8515LH
