D-Link DCS-2130 User manual

2D-Link DCS-2130 User Manual
Table of Contents
Product Overview ........................................................ 4
Package Contents ................................................... 4
System Requirements ............................................. 4
Hardware Overview ..................................................... 5
Front .................................................................. 5
Rear ................................................................... 6
Side.................................................................... 7
Installation....................................................................8
Starting the Camera Installation Wizard ..................8
Connecting Wirelessly Using WPS.......................... 9
Conguration............................................................. 10
Using the Conguration Menu ............................... 10
Live Video .............................................................. 11
Setup ..................................................................... 13
Wizard.............................................................. 13
Internet Connection Setup Wizard................... 13
Motion Detection Setup Wizard .......................16
Network Setup ................................................. 18
Wireless Setup................................................. 21
Dynamic DNS .................................................. 23
Image Setup .................................................... 24
Audio and Video .............................................. 26
Preset .............................................................. 28
Motion Detection.............................................. 30
Time and Date .................................................31
Event Setup ..................................................... 32
Application .................................................... 33
Add Server .................................................... 34
Add Media..................................................... 35
Add Event ..................................................... 37
Add Recording .............................................. 39
SD Card ........................................................... 41
Advanced............................................................... 42
Digital Input/Output .......................................... 42
HTTPS ............................................................. 43
Access List....................................................... 44
Maintenance .......................................................... 45
Device Management........................................ 45
Backup and Restore ........................................46
Firmware Upgrade ........................................... 47
Status .................................................................... 48
Device Info....................................................... 48
Logs ................................................................. 49
Help ................................................................. 50
Appendix ....................................................................51
DI/DO Input Specications .................................... 51
Technical Specications ........................................ 52

3D-Link DCS-2130 User Manual
D-Link reserves the right to revise this publication and to make changes in the contents hereof without obligation to notify any person or
organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or
other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective
companies.
Copyright © 2011 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link
Systems, Inc.
Revision Date Description
1.0 June 14, 2011 DCS-2130 Revision A1 with rmware version 1.00
Preface

4D-Link DCS-2130 User Manual
Product OverviewProduct Overview
DCS-2130 Network Camera
CAT5 Ethernet cable
Power adapter
Camera stand
CD-ROM with User Manual and software
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Package Contents
Existing 10/100 Ethernet-based network or 802.11n/g wireless network
Computer with Windows 7/Vista/XP for Camera Setup Wizard
Internet Explorer, Firefox, Opera, or other web browser for web interface
(Internet Explorer recommended for full functionality)
If any of the above items are missing, please contact your reseller.
System Requirements

5D-Link DCS-2130 User Manual

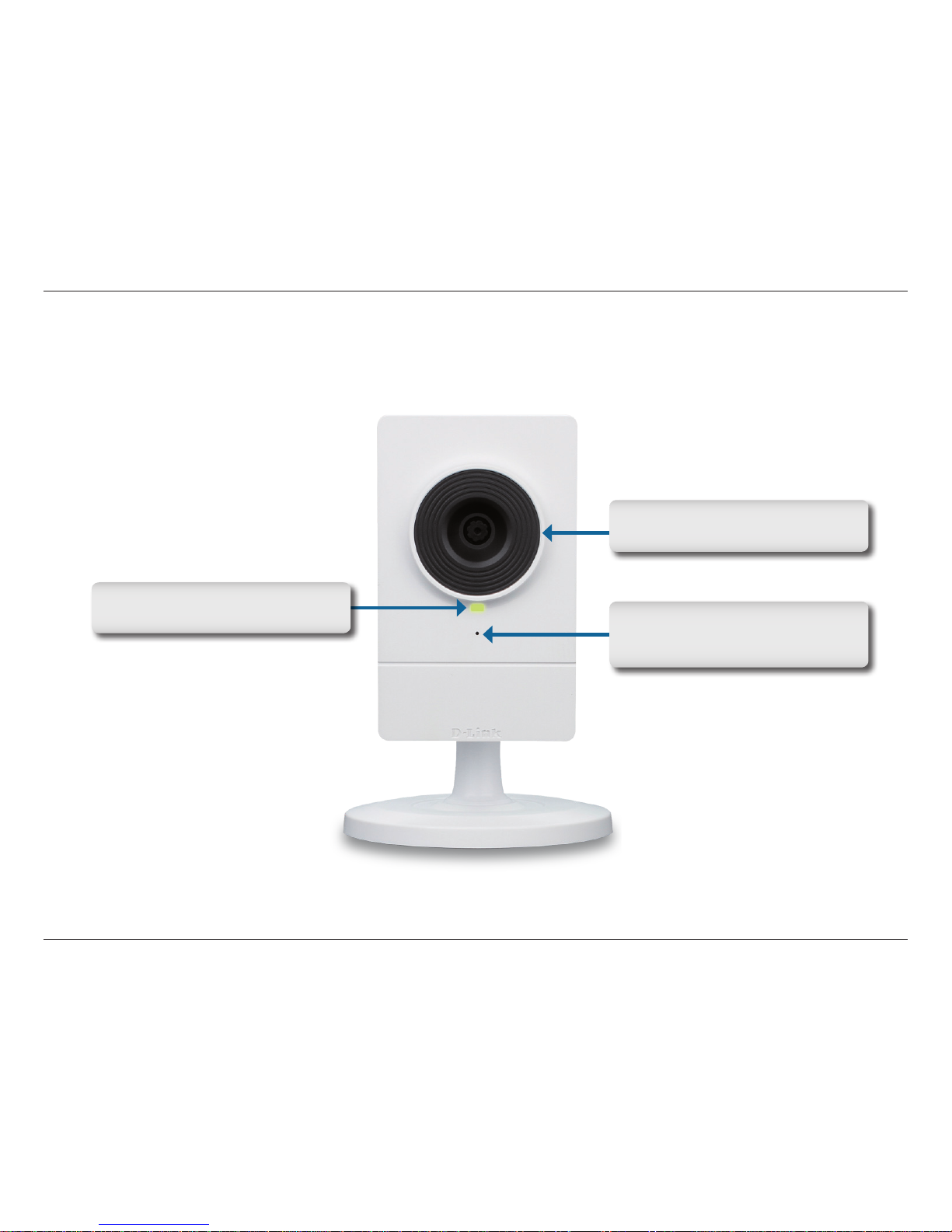

Hardware Overview
Microphone
Records audio from the surrounding
area
Camera Lens
Records video of the surrounding area
Front
Status LED
Indicates the camera's current status
Hardware Overview
Hardware Overview

6D-Link DCS-2130 User Manual
Hardware Overview

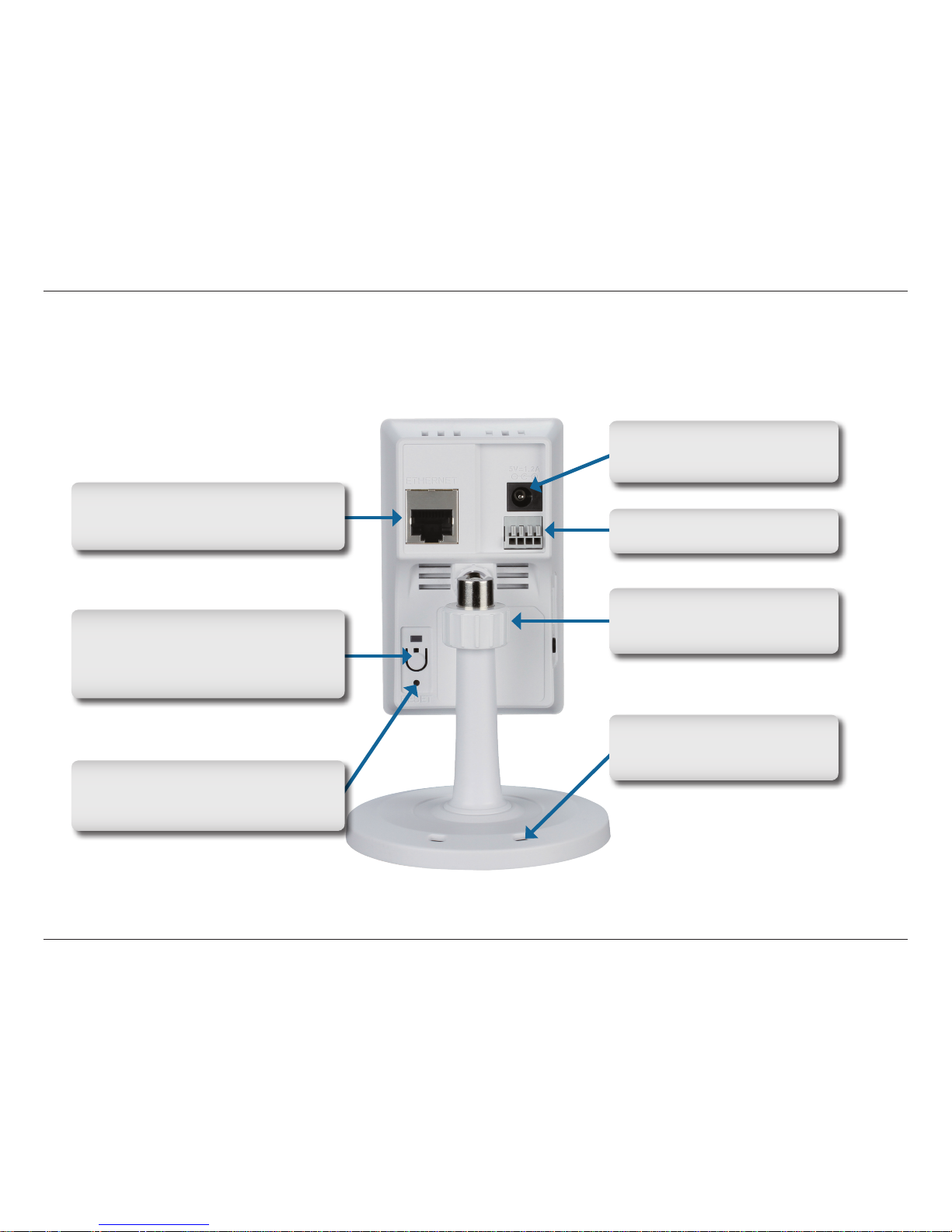

Rear
I/O Connector
I/O connectors for external devices
Reset
Press and hold this button for 10 seconds
to reset the camera
Ethernet
Connects to your network via an Ethernet
cable
Power Connector
Connects to the included DC 5 V
power adapter
Adjustment Ring
Tighten or loosen the adjustment
ring to adjust the camera's position
WPS Button and LED
Press this button, then press the WPS
button on your router to set up a wireless
connection automatically
Base Holes
Can be used with cable ties to
attach camera to a surface

7D-Link DCS-2130 User Manual
Hardware Overview

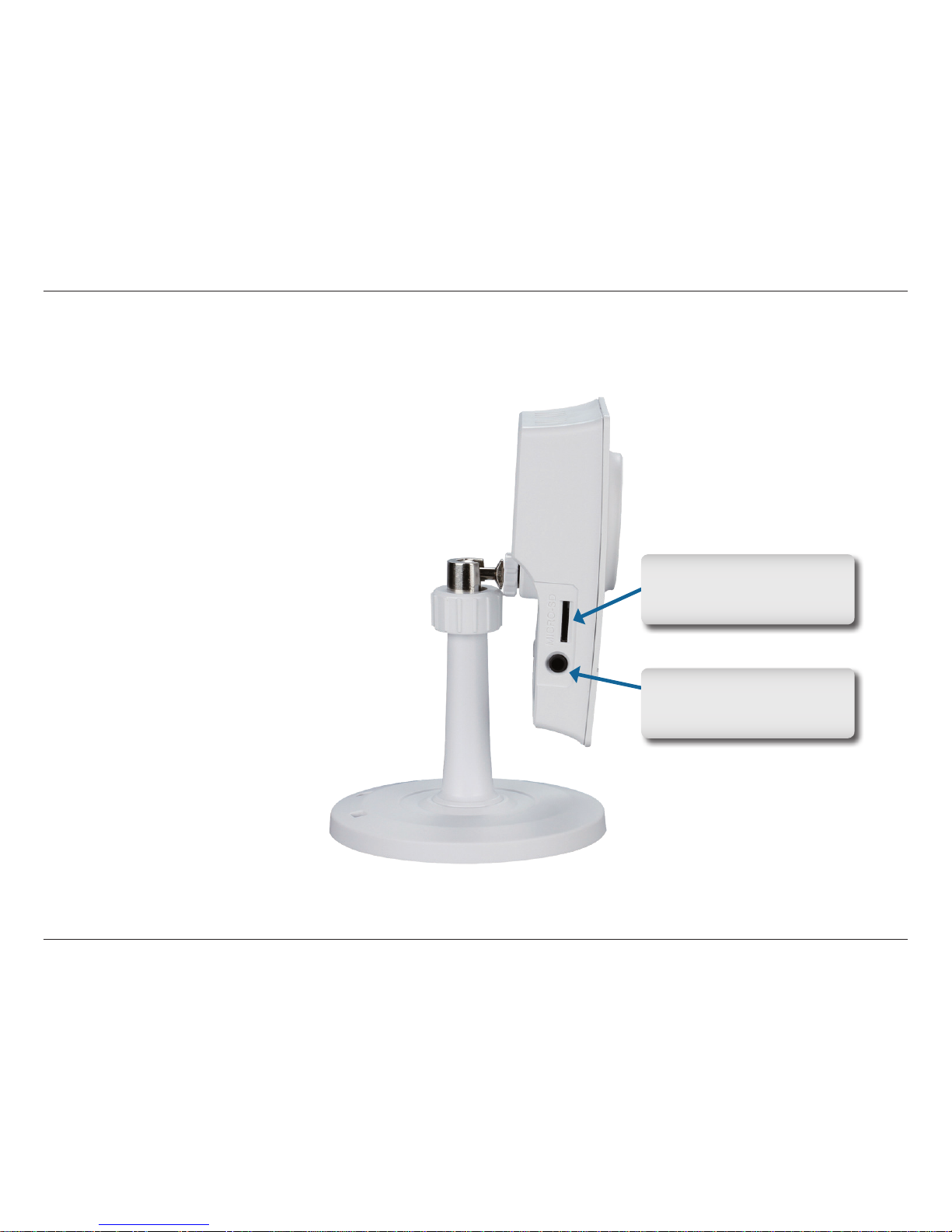

MicroSD Slot
Accepts MicroSD ash memory
cards for recording snapshots
Audio Out Port
Connects to an external speaker
(optional)
Side

8D-Link DCS-2130 User Manual
Installation

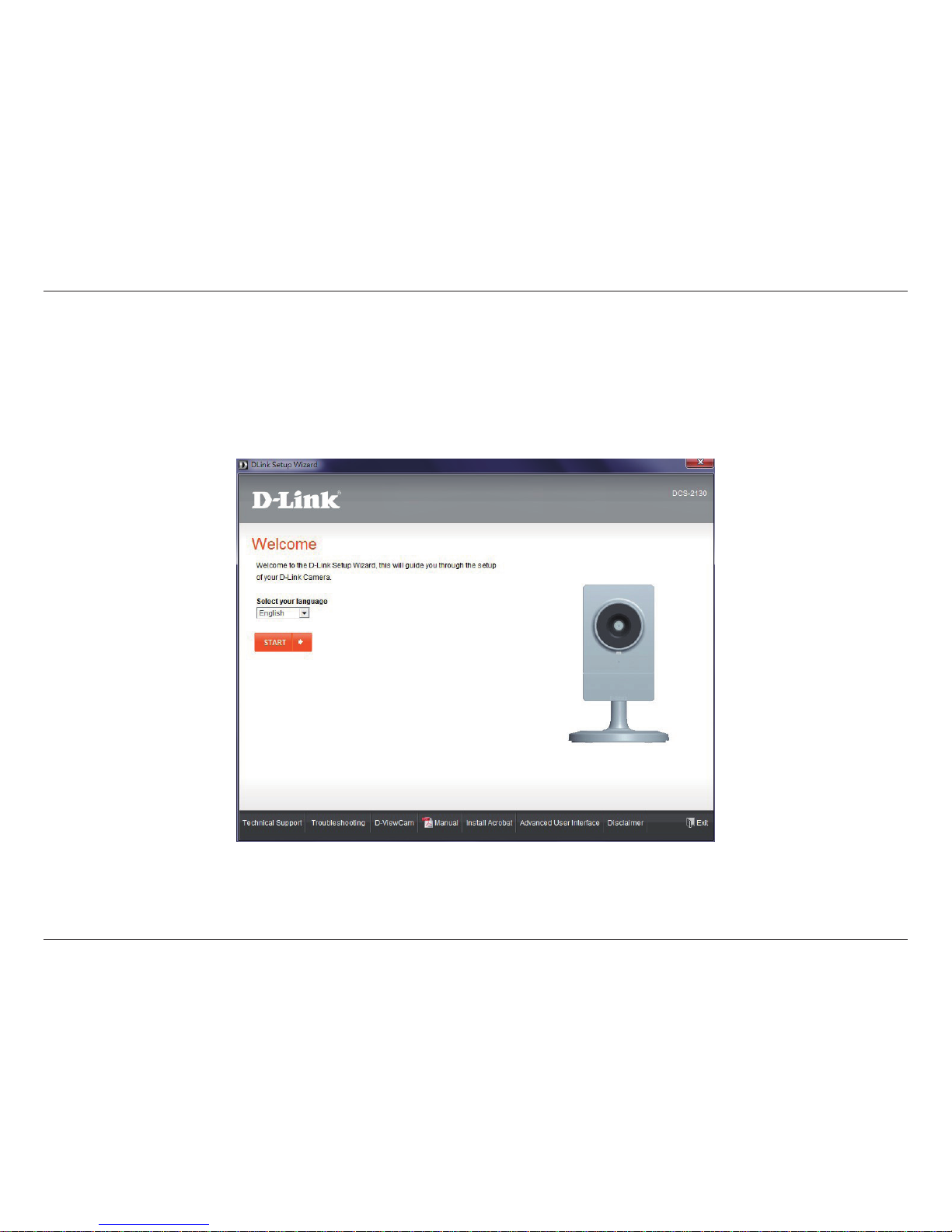

Starting the Camera Installation Wizard
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
The CD-ROM will open the Camera Setup Wizard. Simply click the Start button to go through the Setup Wizard, which will guide you
through the setup process from connecting your hardware to conguring your camera.
Installation

9D-Link DCS-2130 User Manual
Installation

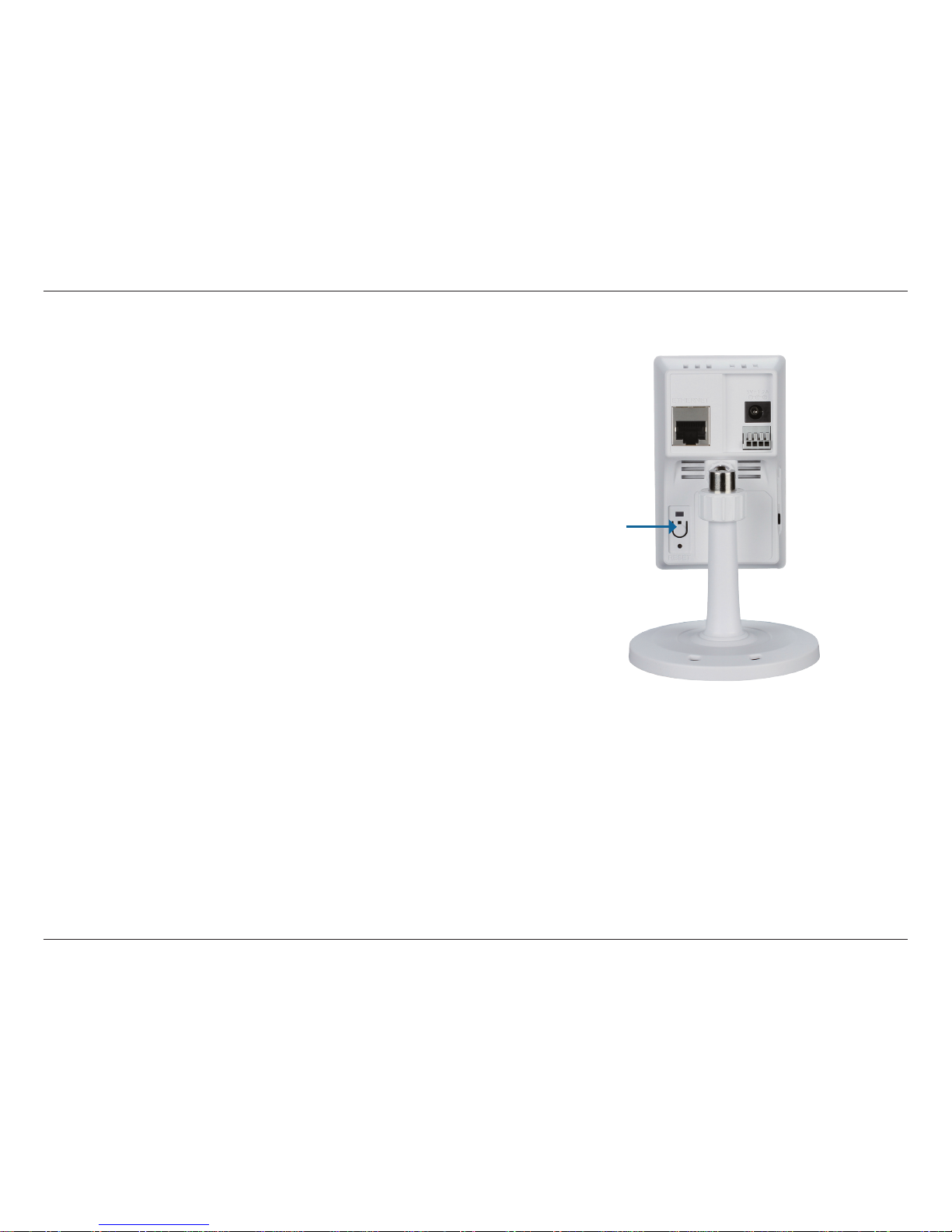

Connecting Wirelessly Using WPS
Alternatively, you may create a wireless connection by using the WPS Button on the
back of the camera.
To create a WPS connection:
Step 1
Press and hold the WPS button on the back of the camera for three seconds. The WPS
status LED above the button will blink.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is usually
on the front or side of your router. On some routers, you may need to log in to the web
interface and then click on an onscreen button to activate the WPS feature. If you are not
sure where the WPS button is on your router, please refer to your router’s User Manual.
The DCS-2130 will automatically create a wireless connection to your router. While
connecting, the green LED will ash and your camera will reboot.

10D-Link DCS-2130 User Manual
Conguration

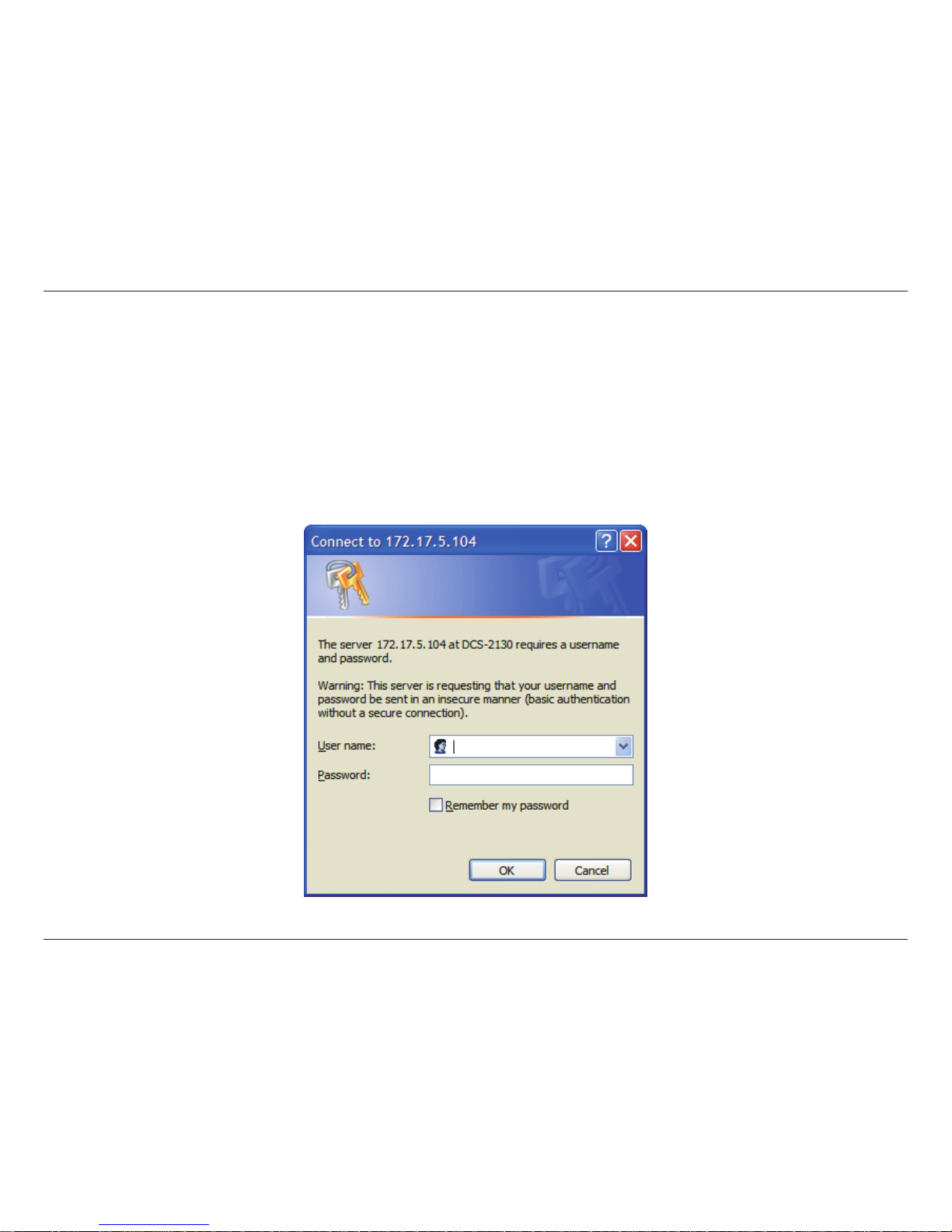

Using the Conguration Menu
Conguration
After completing the Camera Setup Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is
designed to allow you to easily access and congure your DCS-2130. At the end of the wizard, click the Go To Camera button, or enter
the IP address of your camera into a web browser, such as Internet Explorer. To log in, use the user name admin and the password
you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password,
click the OK button.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP is
192.168.0.20.

11D-Link DCS-2130 User Manual
Conguration

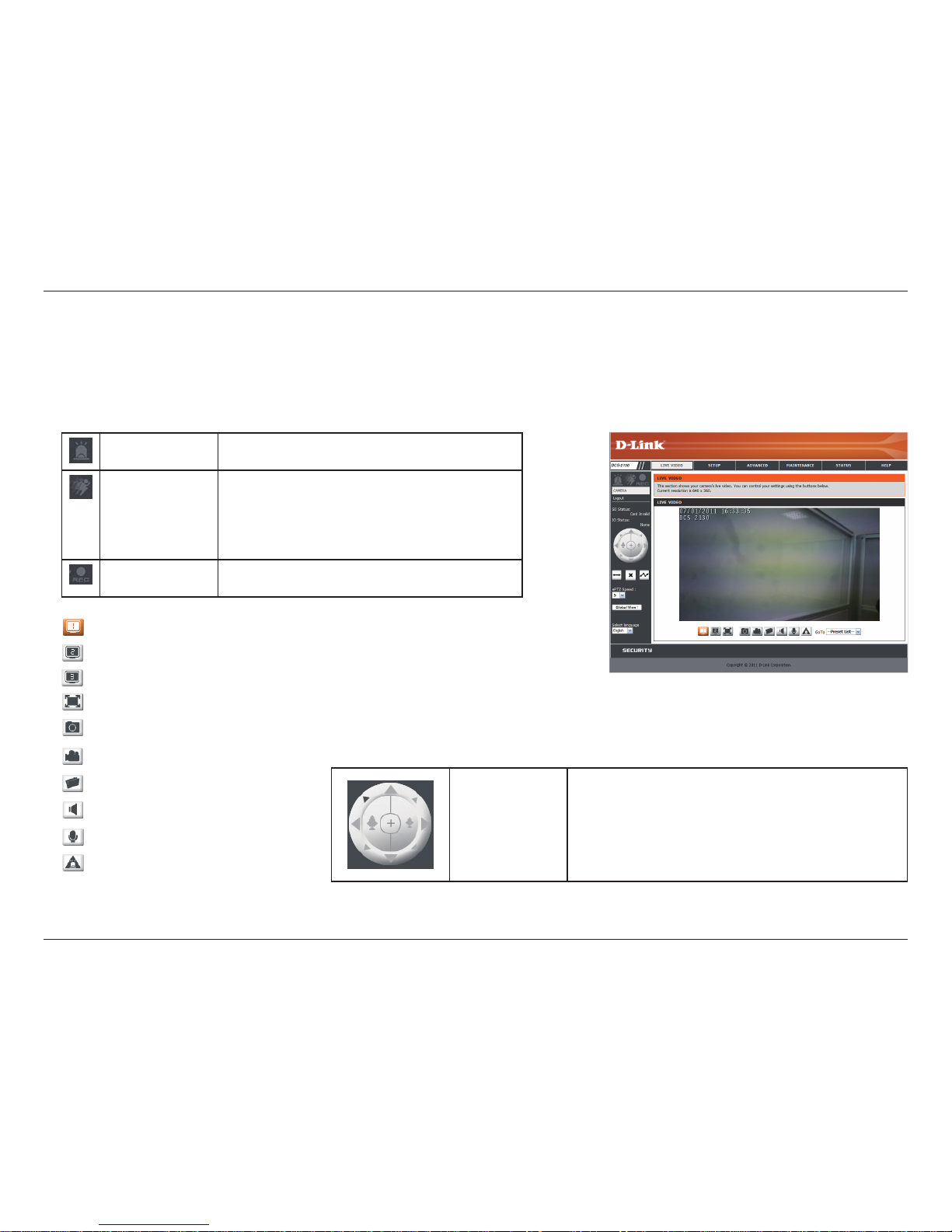

Live Video
This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may
also select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
Digital Input
Indicator
This indicator will change color when a digital
input signal is detected.
Motion Trigger
Indicator
This indicator will change color when a trigger
event occurs.
Note: The video motion feature for your
camera must be enabled.
Recording
Indicator
When a recording is in progress, this indicator
will change color.
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Recording a Video Clip
Set a Storage Folder
Listen/Stop Listening
Talk/Stop Talking
Start/Stop Digital Output
Control Pad
This control pad can be used to pan, tilt, and zoom
within the camera's predened view area, if one
has been dened.

12D-Link DCS-2130 User Manual
Conguration

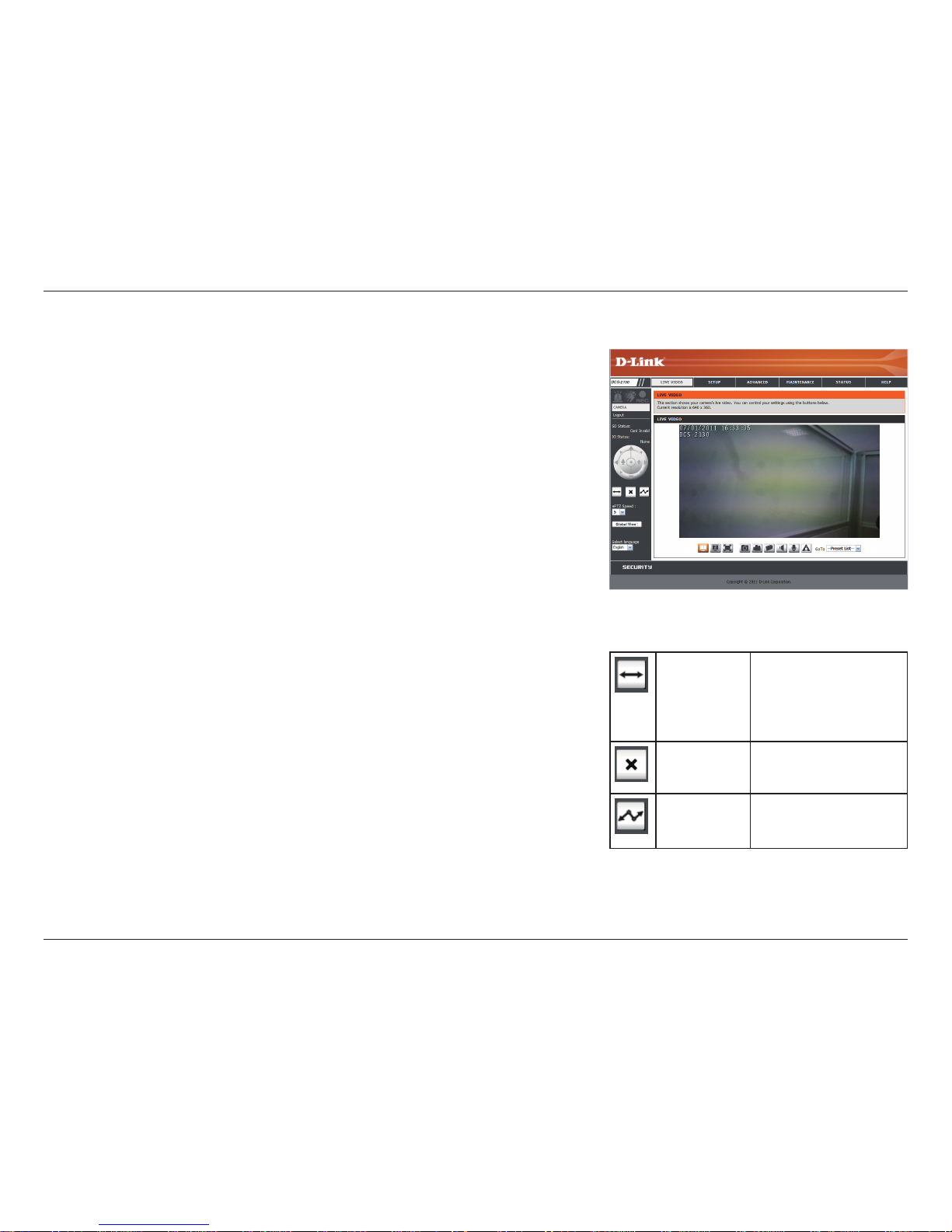

If any presets have been dened, selecting a preset from this list
will display it.
This option displays the status of the SD card. If no SD card has
been inserted, this screen will display the message "Card Invalid."
This option displays the status of your I/O device if a device has
been connected.
This camera uses electronic pan/tilt/zoom (ePTZ) to select and
view areas of interest in the eld of view. Please see page 26 for
information about setting the frame size and view window area.
You may select a value between 0 and 64. 0 is the slowest and 64
is the fastest.
This window indicates the total eld of view (FOV) of the camera.
The red box indicates the visible region of interest (ROI).
You may select the interface language using this menu.
Go To:
(Preset List)
SD Status:
IO Status:
PTZ Control:
ePTZ Speed:
Global View:
Language:
Auto Pan Starts the automatic
panning function. The
ROI will pan from back
and forth within the
FOV
Stop Stops the camera
ePTZ motion
Preset Path Starts the camera's
motion along the
predened path

13D-Link DCS-2130 User Manual
Conguration

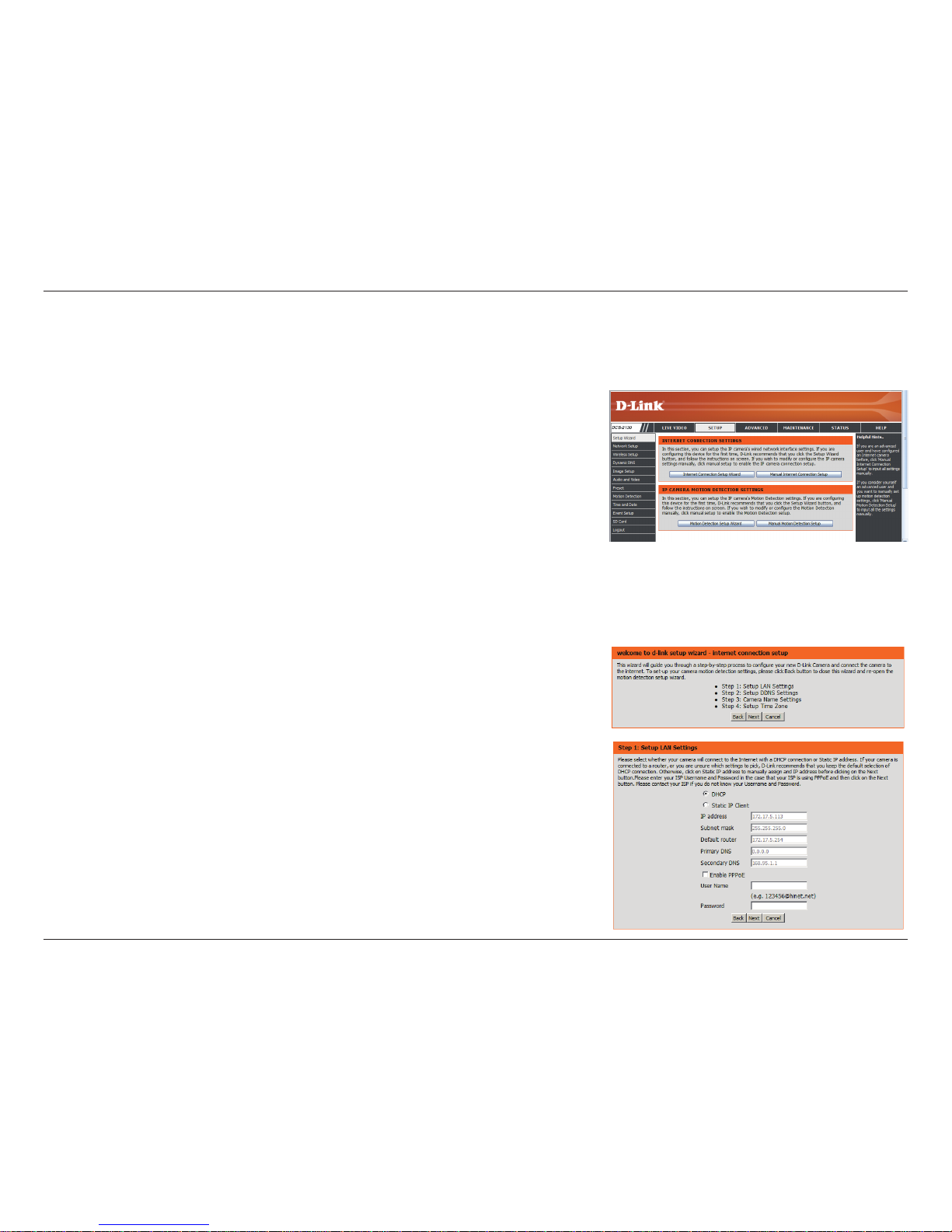

Setup
Wizard
To congure your Network Camera, click Internet Connection
Setup Wizard. Alternatively, you may click Manual Internet
Connection Setup to manually congure your Network Camera and
skip to page 22.
To quickly congure your Network Camera’s motion detection
settings, click Motion Detection Setup Wizard. If you want to
enter your settings without running the wizard, click Manual Motion
Detection Setup and skip to page 27.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to
congure your new D-Link Camera and connect the camera to the
internet. Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.

14D-Link DCS-2130 User Manual
Conguration

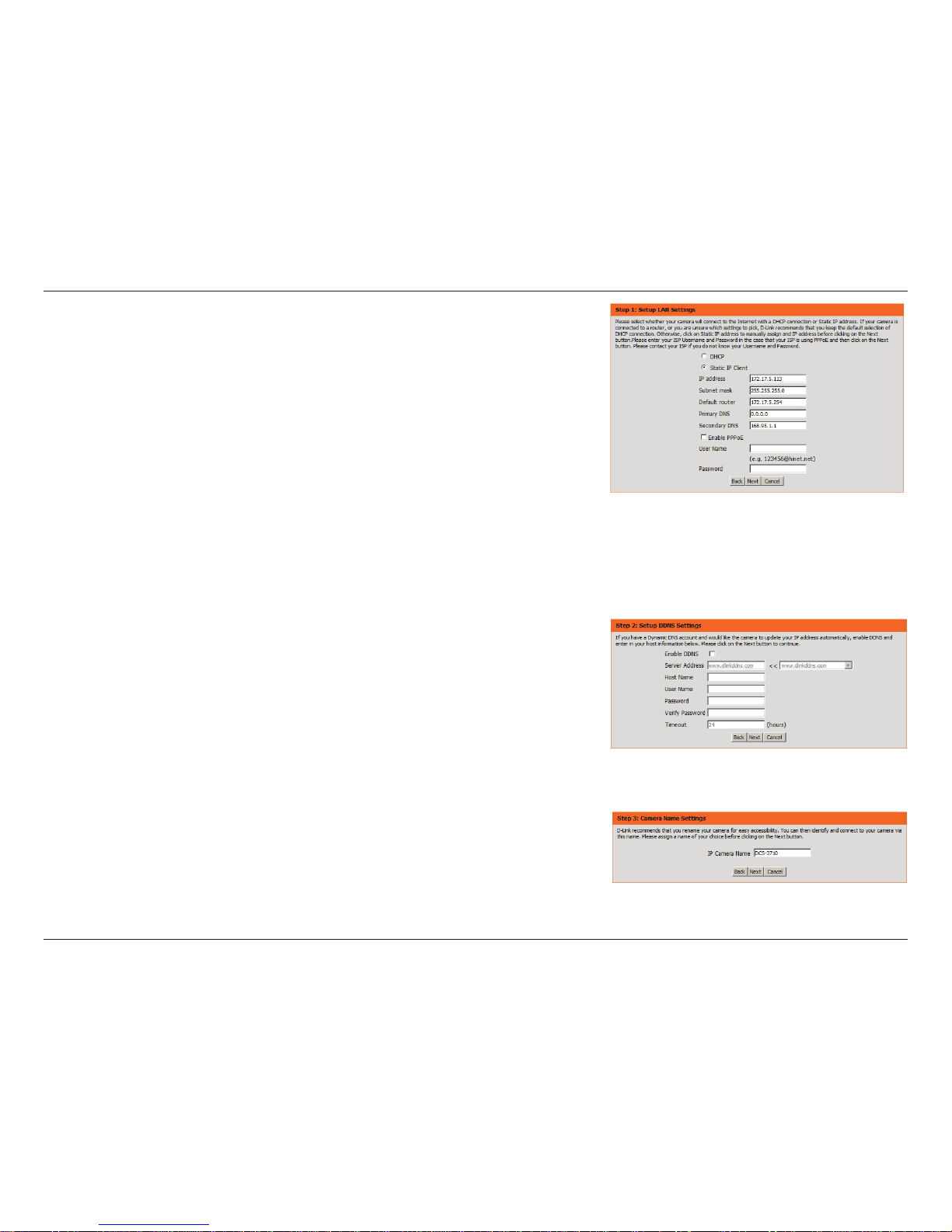

Select Static IP if your Internet Service Provider has provided you with
connection settings, or if you wish to set a static address within your
home network. Enter the correct conguration information and click Next
to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name
and password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to update
your IP address automatically, Select Enable DDNS and enter your host
information. Click Next to continue.
Enter a name for your camera and click Next to continue.

15D-Link DCS-2130 User Manual
Conguration

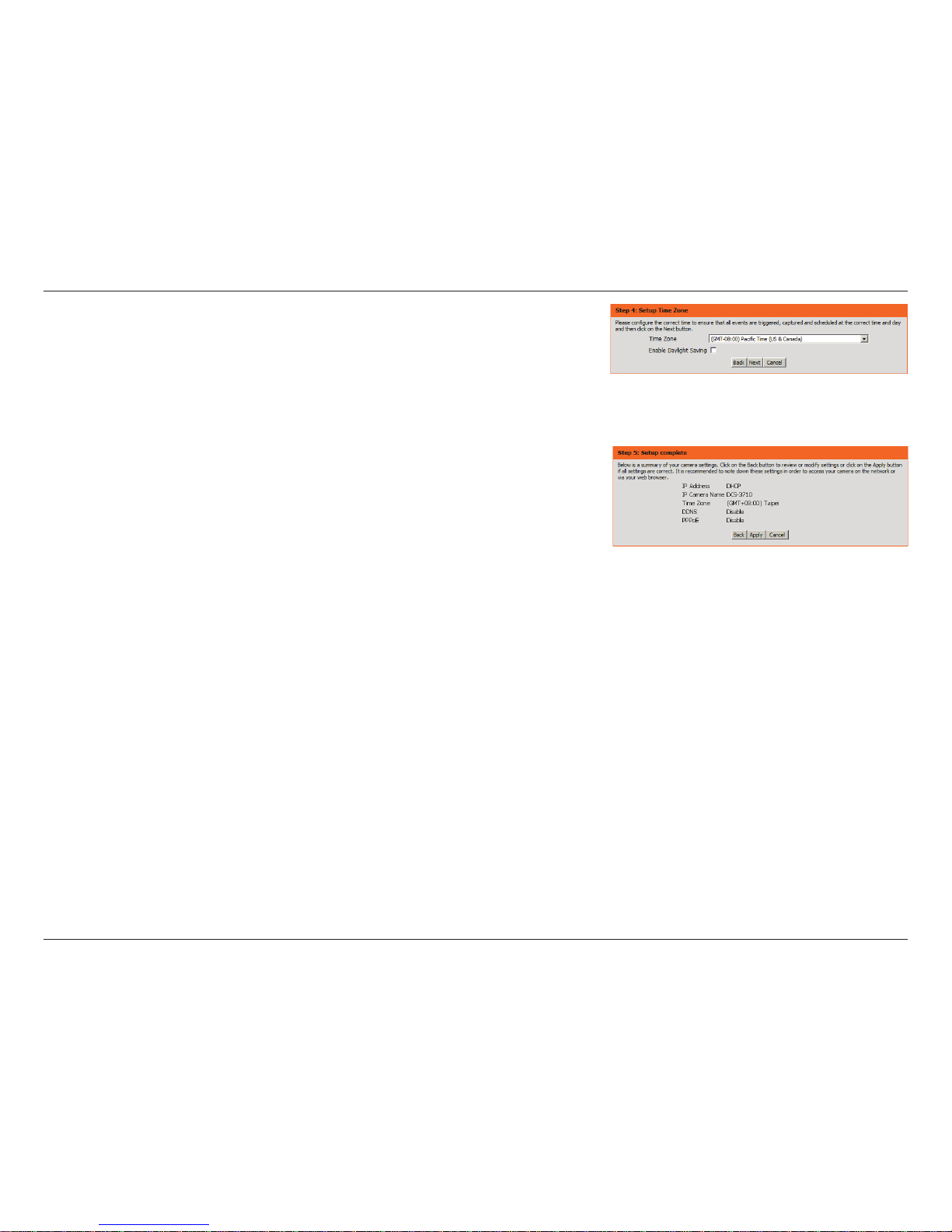

Congure the correct time to ensure that all events will be
triggered as scheduled. Click Next to continue.
If you have selected DHCP, you will see a summary of your
settings, including the camera's IP address. Please write down
all of this information as you will need it in order to access your
camera.
Click Apply to save your settings.

16D-Link DCS-2130 User Manual
Conguration

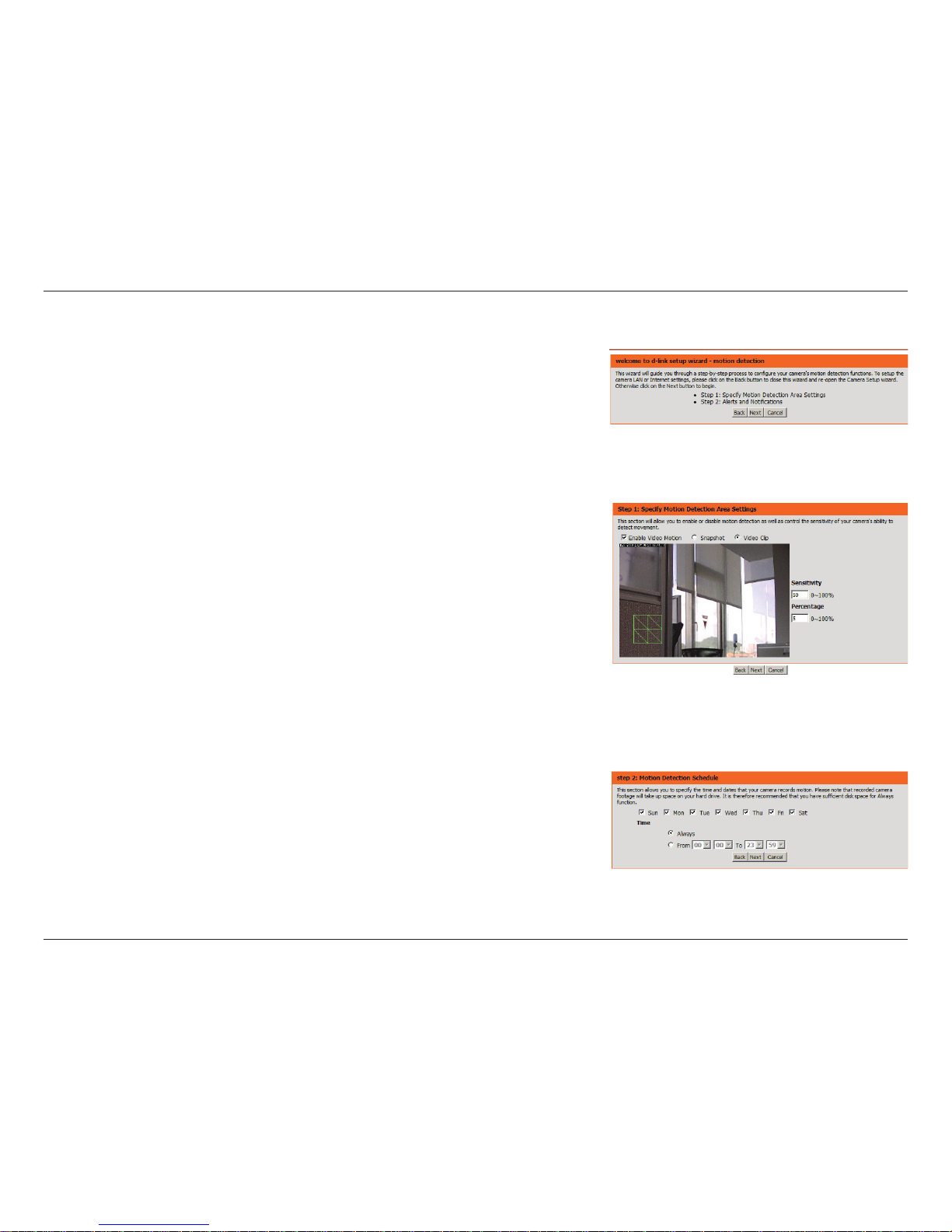

This wizard will guide you through a step-by-step process to congure your
camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the
detection sensitivity, and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video
clip when motion is detected.
Please see the Motion Detection section on page 27 for information about
how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized
schedule. Specify the day and hours. You may also choose to always
record motion.
Motion Detection Setup Wizard

17D-Link DCS-2130 User Manual
Conguration

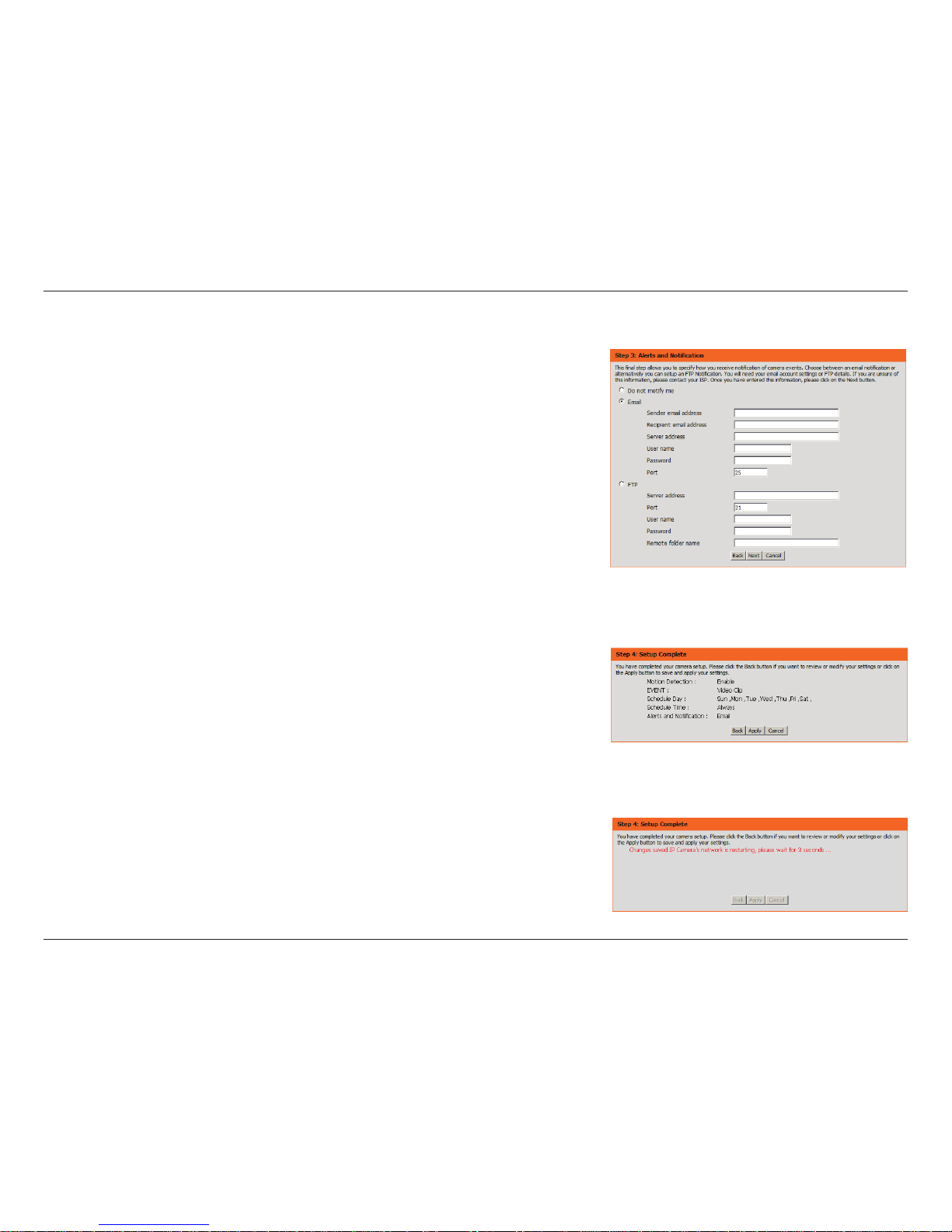

Step 3
This step allows you to specify how you will receive event notications
from your camera. You may choose not to receive notications, or to
receive notications via e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and
restarts.

18D-Link DCS-2130 User Manual
Conguration

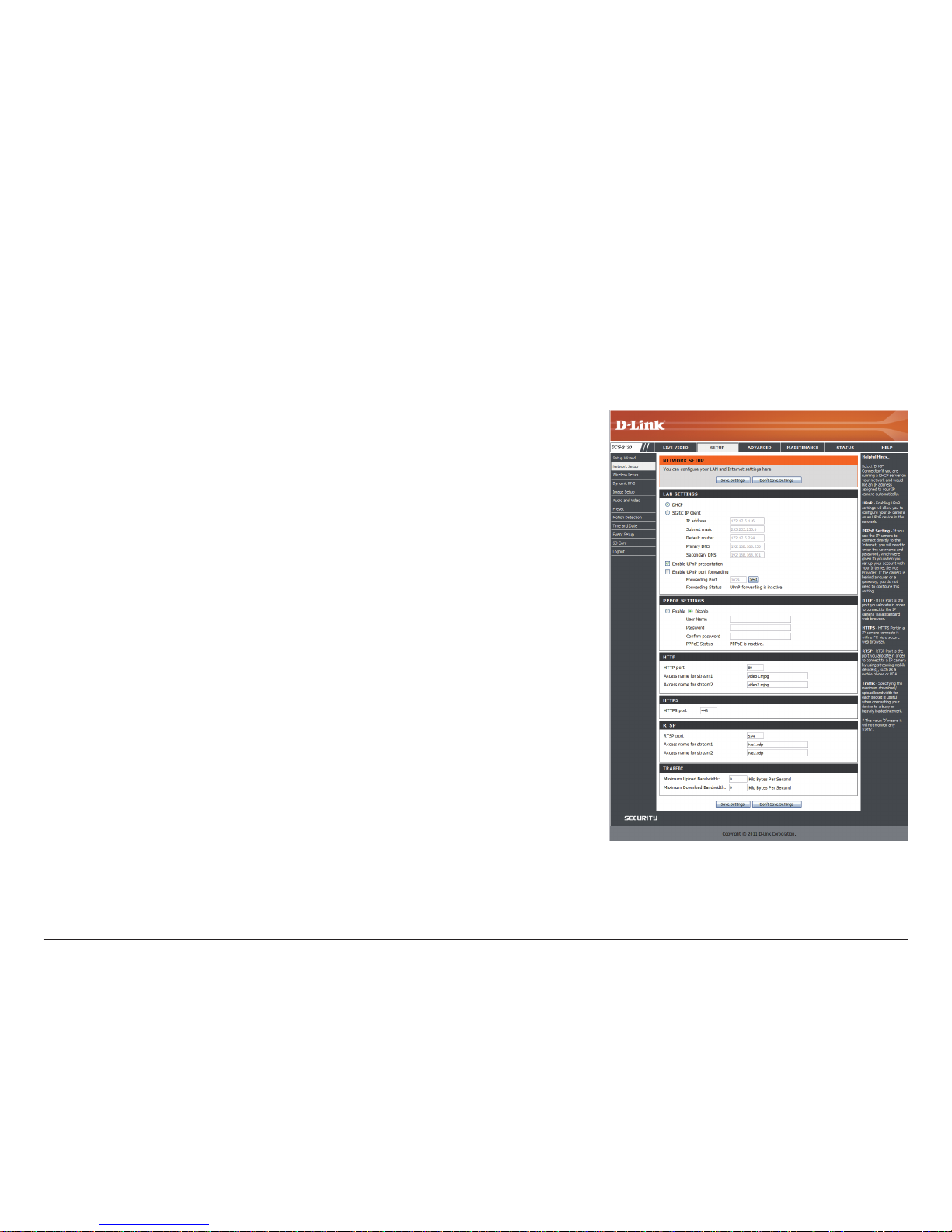

Network Setup
Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After
making any changes, click the Save Settings button to save your changes.
LAN Settings:
DHCP:
Static IP Address:
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS:
Secondary DNS:
This section lets you congure settings for your local
area network.
Select this connection if you have a DHCP server
running on your network and would like your camera
to obtain an IP address automatically.
You may obtain a static or xed IP address and
other network information from your network
administrator for your camera. A static IP address
may simplify access to your camera in the future.
Enter the xed IP address in this eld.
This number is used to determine if the destination
is in the same subnet. The default value is
255.255.255.0.
The gateway used to forward frames to destinations
in a different subnet. Invalid gateway settings may
cause the failure of transmissions to a different
subnet.
The primary domain name server translates names
to IP addresses.
The secondary DNS acts as a backup to the primary
DNS.

19D-Link DCS-2130 User Manual
Conguration

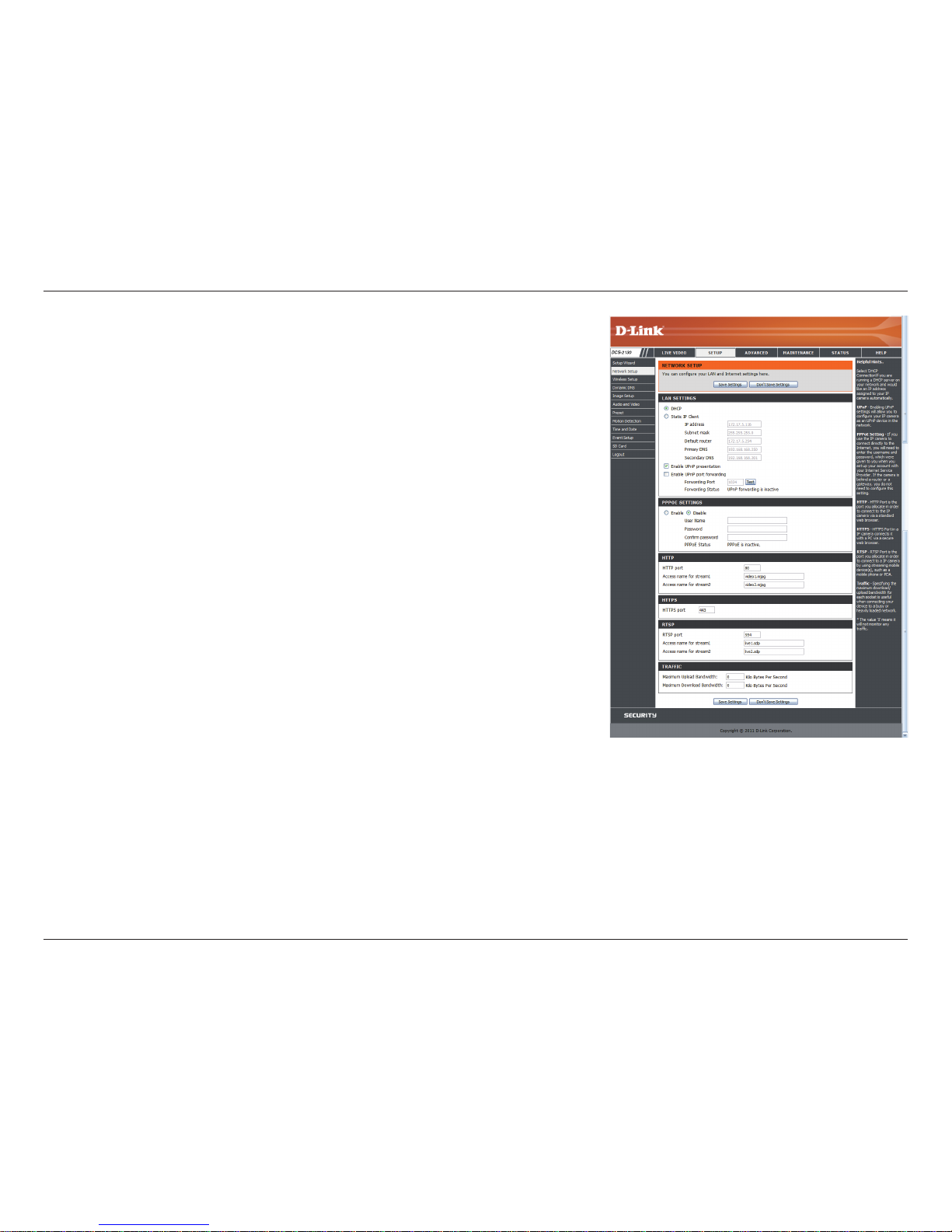

Enable UPnP:
Enable UPnP Port Forwarding:
Enable PPPoE:
User Name / Password:
HTTP Port:
Access Name for Stream 1~3:
HTTPS Port:
RTSP Port:
Enabling this setting allows your camera to be
congured as a UPnP device on your network.
Enabling this setting allows the camera to add port
forwarding entries into the router automatically on a
UPnP capable network.
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE
account. Re-enter your password in the Conrm
Password eld. You may obtain this information
from your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the
number of the stream.
You may use a PC with a secure browser to
connect to the HTTPS port of the camera. The
default port number is 443.
The port number that you use for RTSP streaming
to mobile devices, such as mobile phones or PDAs.
The default port number is 554. You may specify the
address of a particular stream. For instance, live1.
sdp can be accessed at rtsp://x.x.x.x/video1.sdp
where the x.x.x.x represents the ip address of your
camera.

20D-Link DCS-2130 User Manual
Conguration
Maximum Upload/Download
Bandwidth:
Specifying the maximum download/upload bandwidth
for each socket can be useful when connecting your
device to a busy or heavily loaded network. Entering
a value of '0' indicates that the camera should not
monitor bandwidth. Specifying other values will limit
the camera's transfer speed to the specied number
of kilobytes per second.
