D-Link DCS-3010 User manual

This document will guide you through the basic installation
process for your new D-Link Network Camera.
DCS-3010
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
HD PoE Network Camera
Quick Installation Guide
Installations-Anleitung
Guide d’installation
Guía de instalación
Guida di Installazione

D-Link DCS-3010 Quick Install Guide
2
ENGLISH
DCS-3010 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-3010 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD include in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. Hardware Installation
4. Conguration with Wizard
1. Package Contents
 DCS-3010 HD PoE Network Camera
 Camera Stand
 Manual and Software on CD-ROM
 CAT5 Ethernet Cable
 Power Adapter
 Quick Install Guide
 lens ring xture
 Allen wrench
If any of the above items are missing, please contact your reseller.

D-Link DCS-3010 Quick Install Guide 3
ENGLISH
2. Hardware Overview

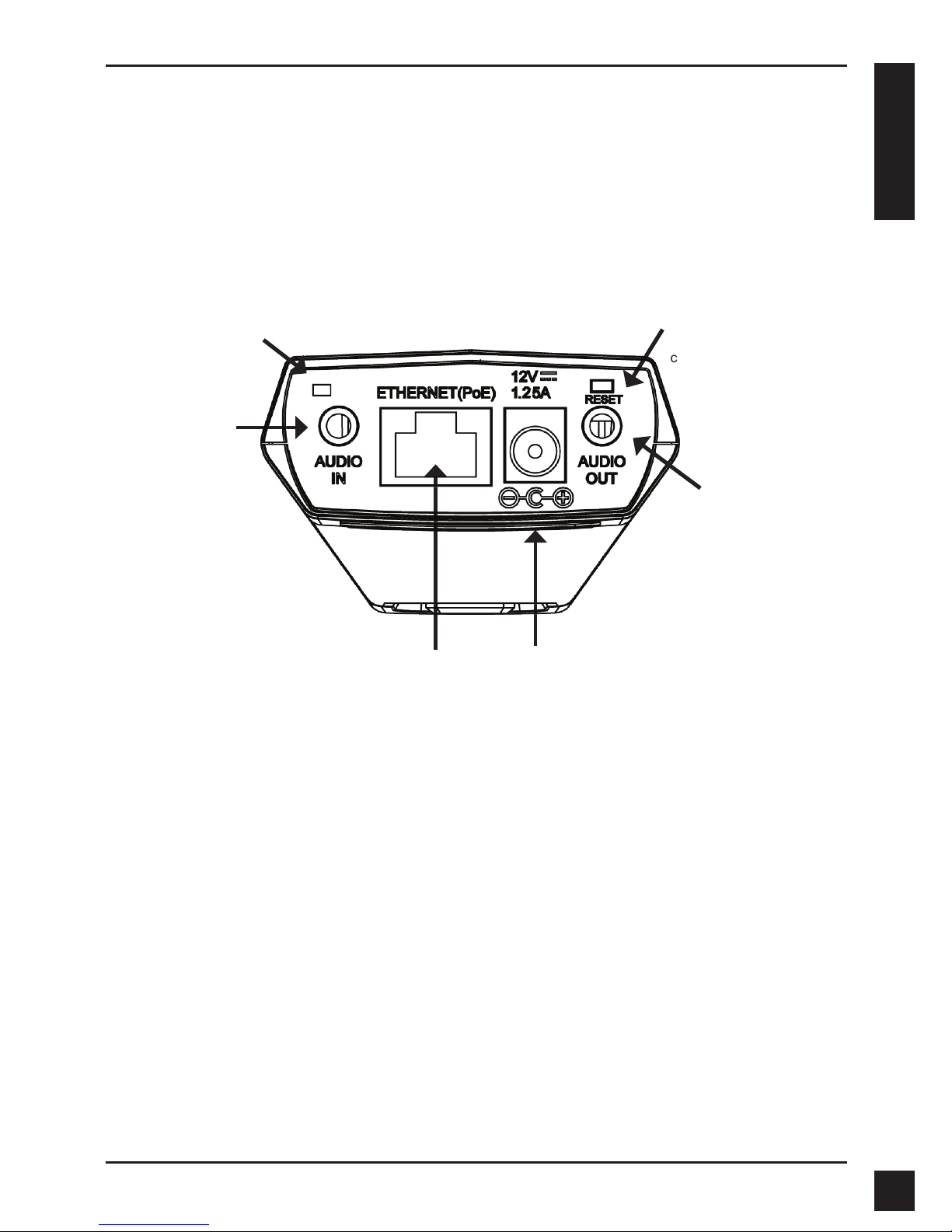

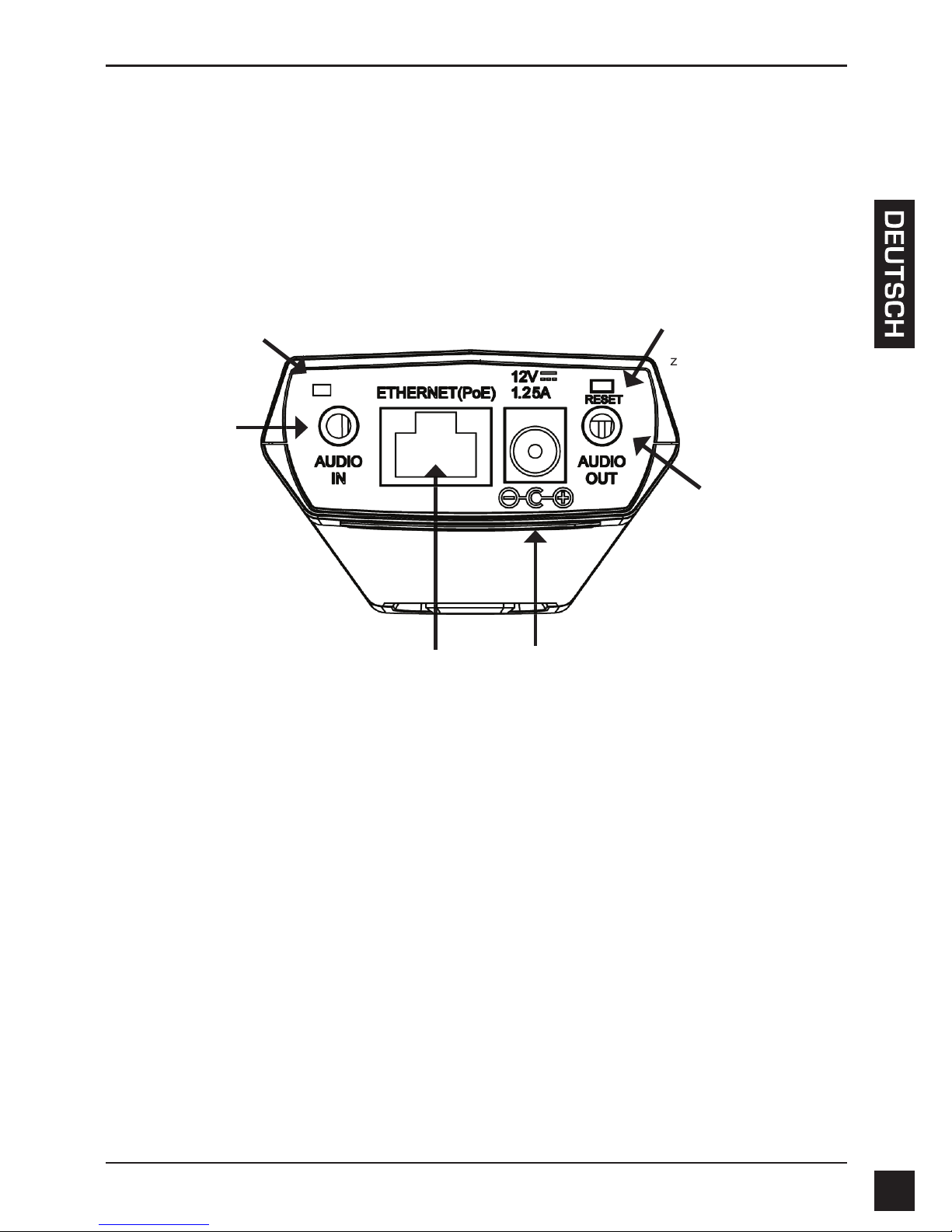

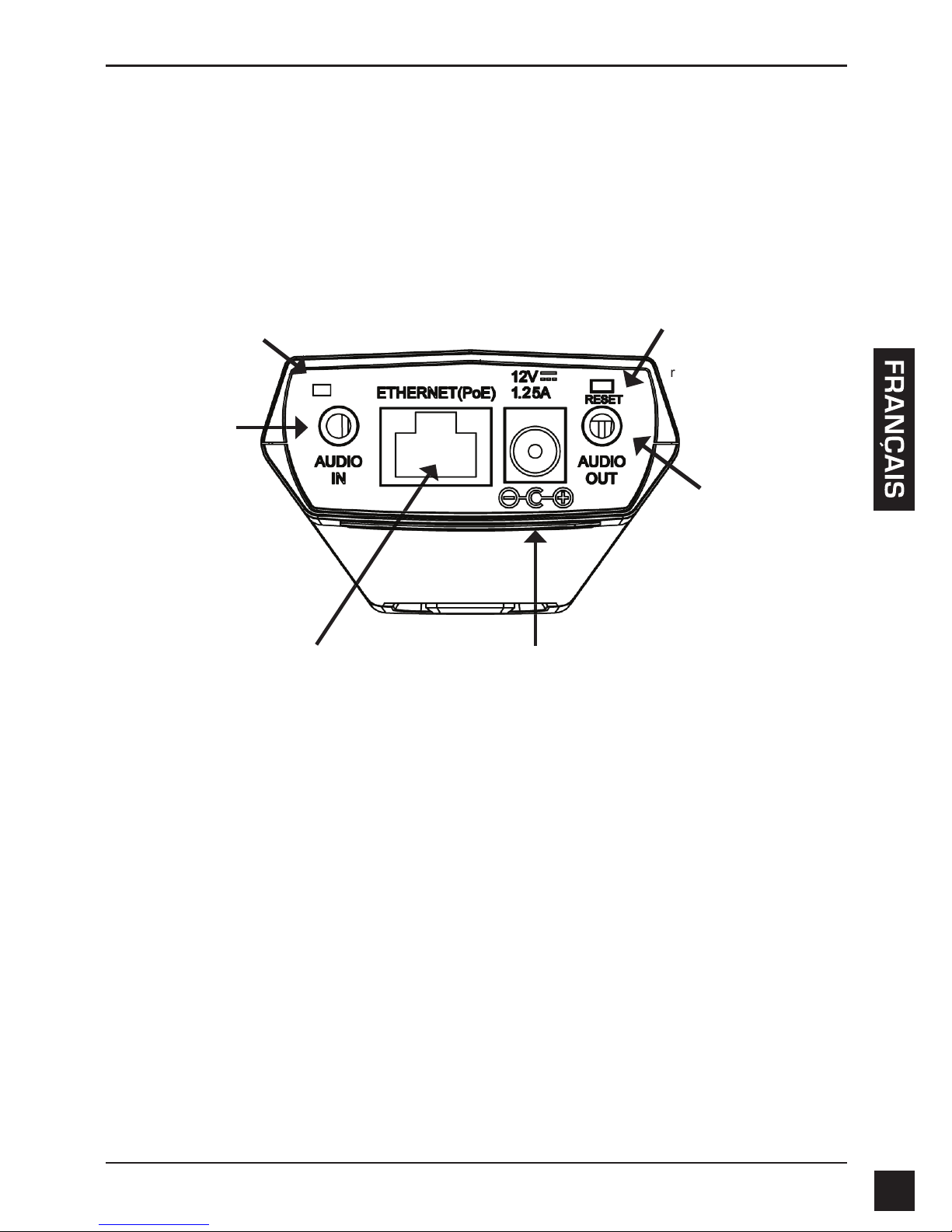

Rear Panel
Ethernet (PoE)
RJ-45 connector for Ethernet
which can also be used to power
the camera using PoE
Microphone Port
Use to Connect an
External microphone
Reset
Press and hold this button
for 10 seconds to reset the
camera
Speaker Port
Use to Connect an
External speaker
DC Power
12V DC
LED
Power and
network indicator

D-Link DCS-3010 Quick Install Guide
4
ENGLISH

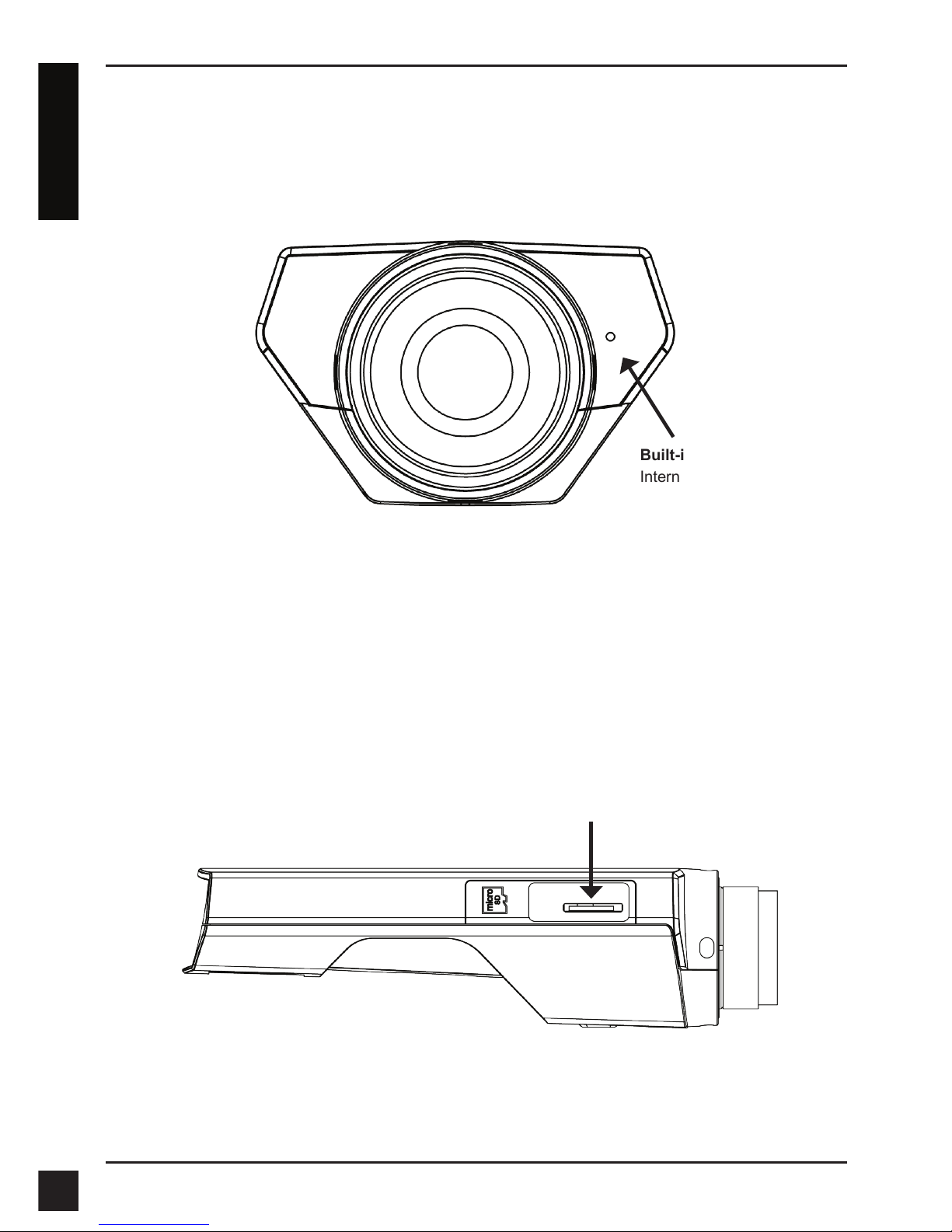

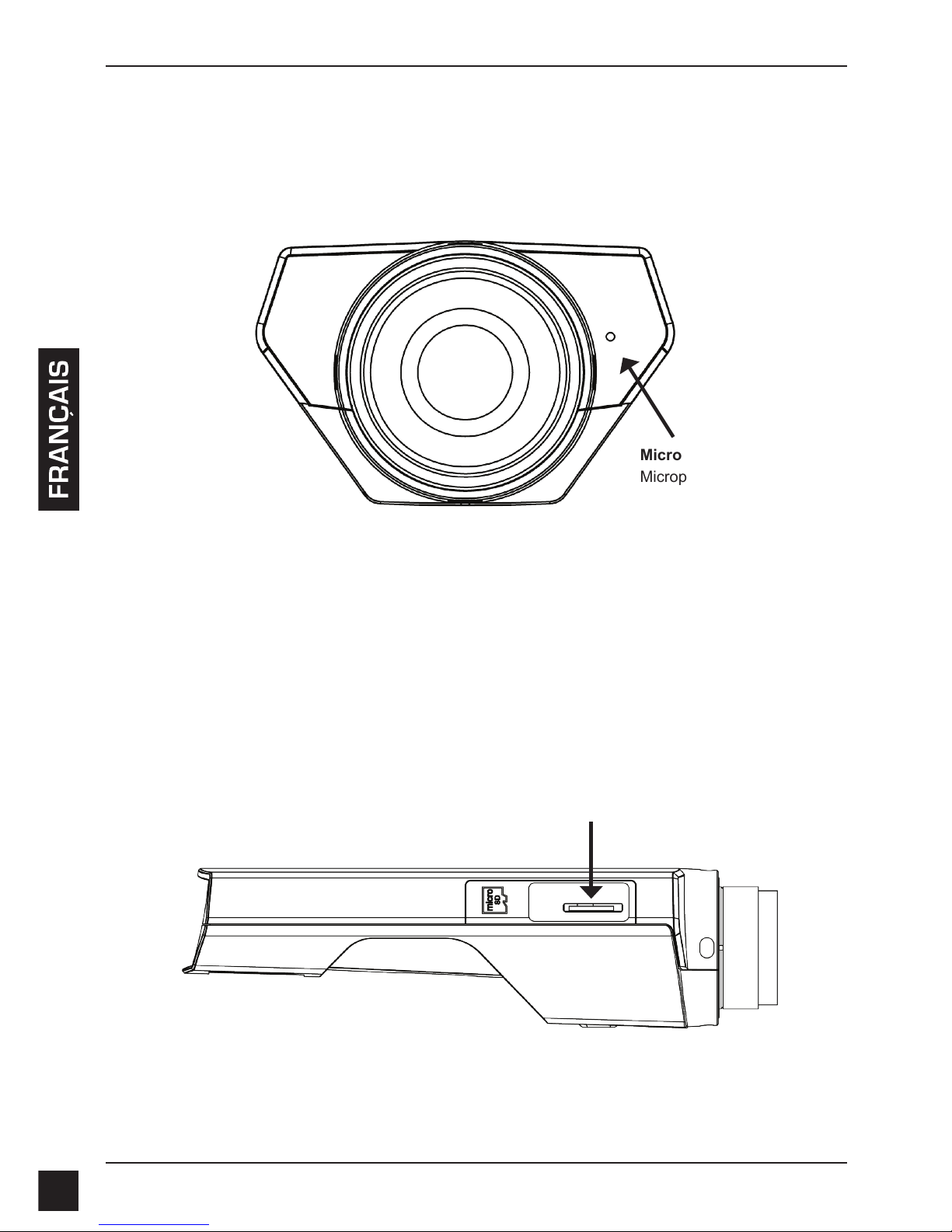

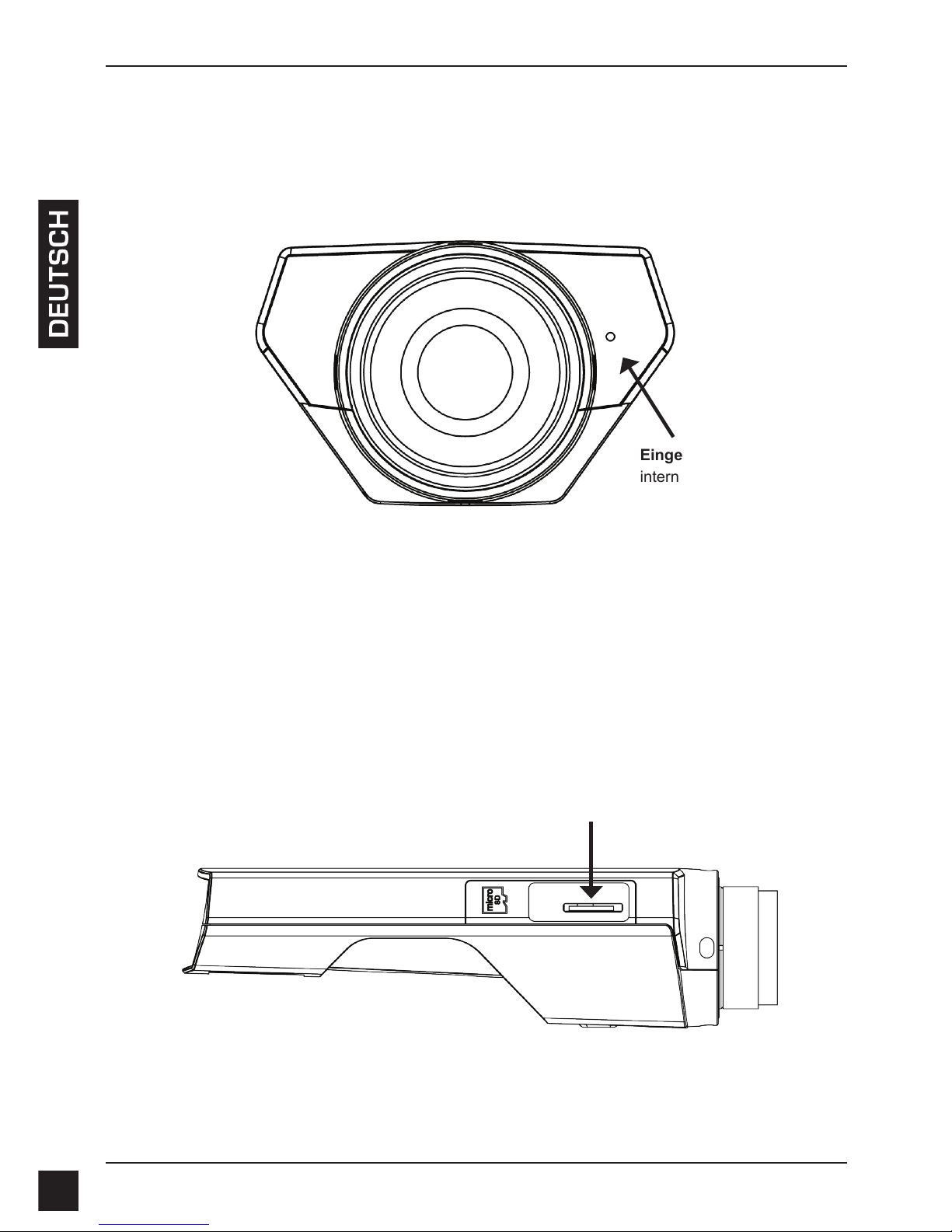

Micro SD Card Slot
Local Micro SD card for storing
recorded images and video

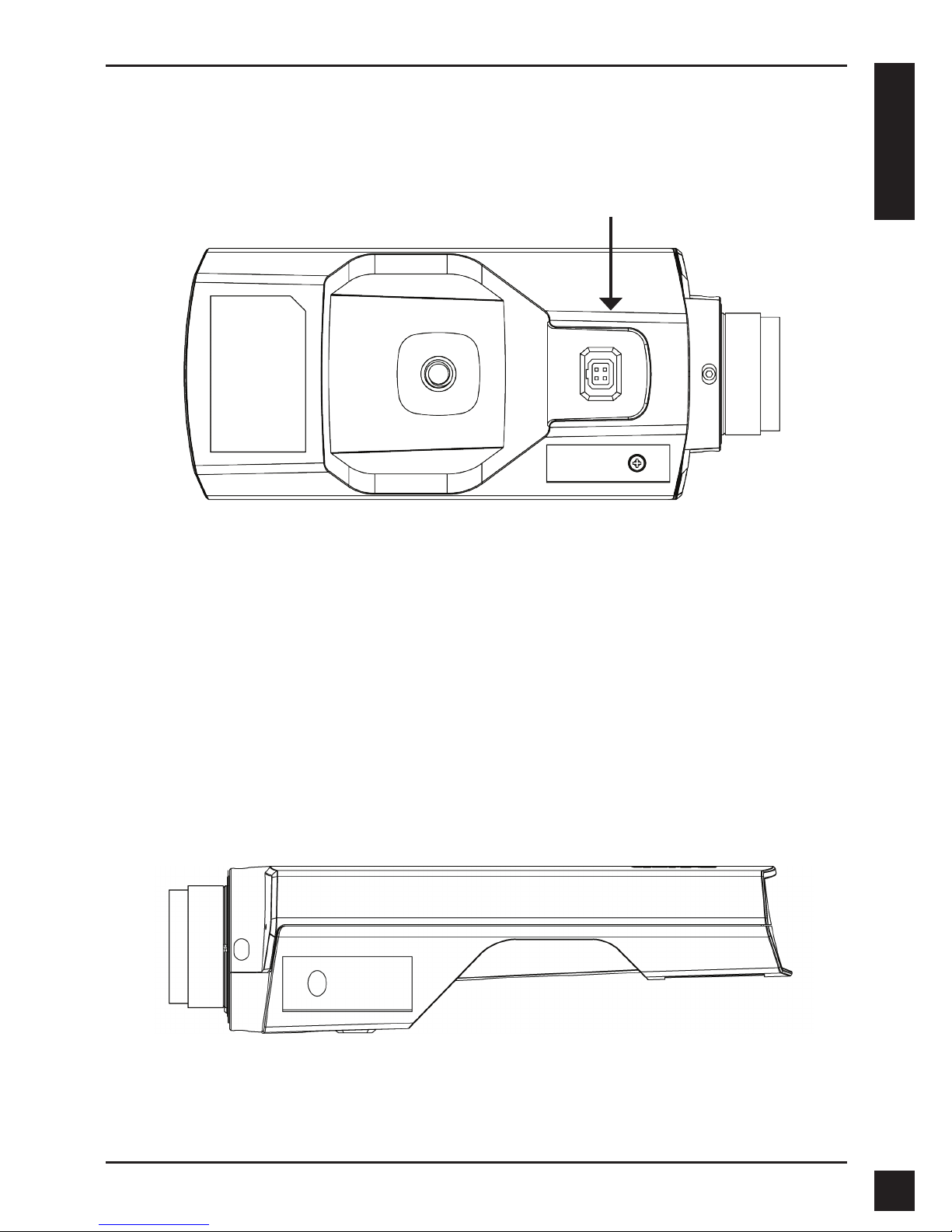

Side panel
Front Panel
Built-in MIC
Internal microphone

D-Link DCS-3010 Quick Install Guide 5
ENGLISH

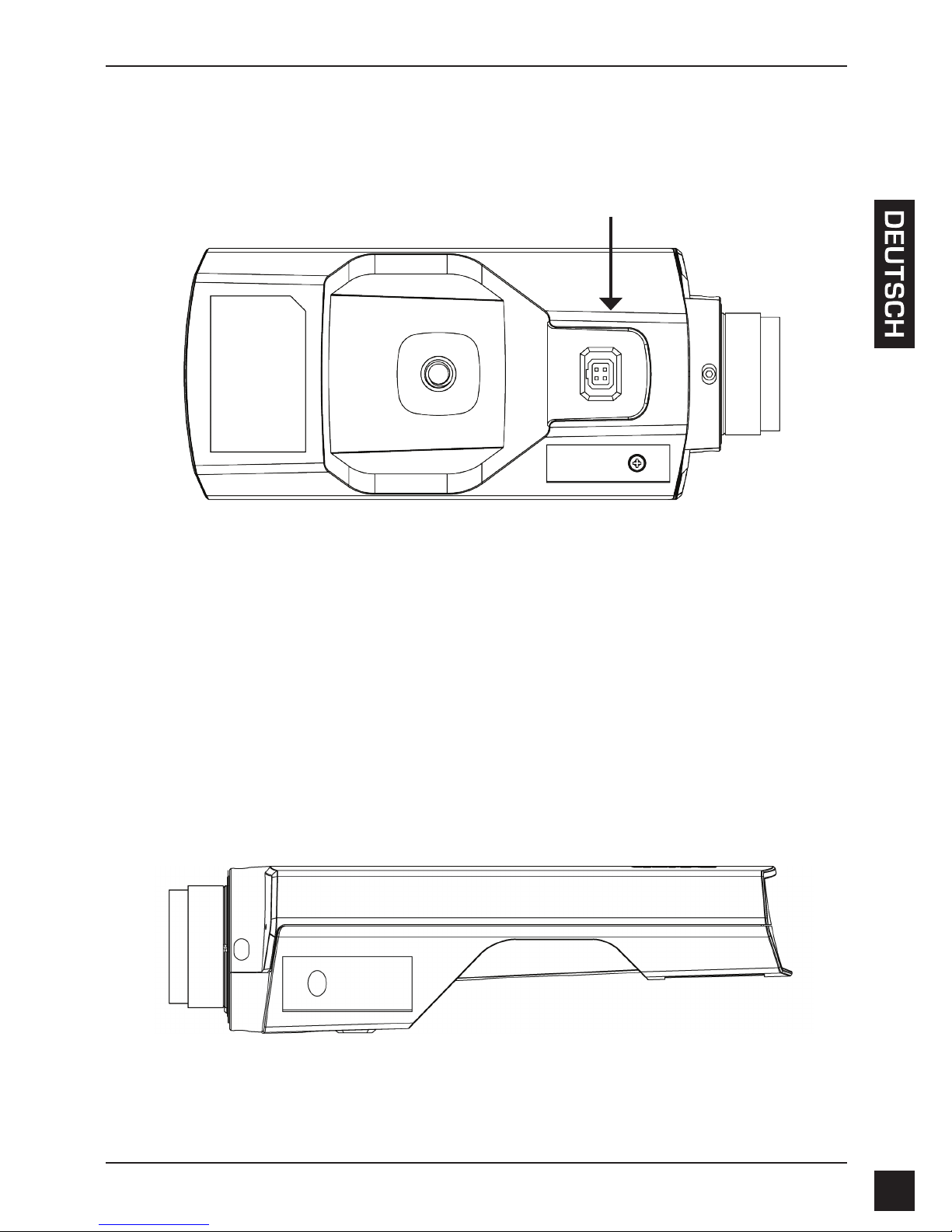

DC-Iris Connector
Connector for DC auto iris lens
Right Panel
Button panel

D-Link DCS-3010 Quick Install Guide
6
ENGLISH
3. Hardware Installation

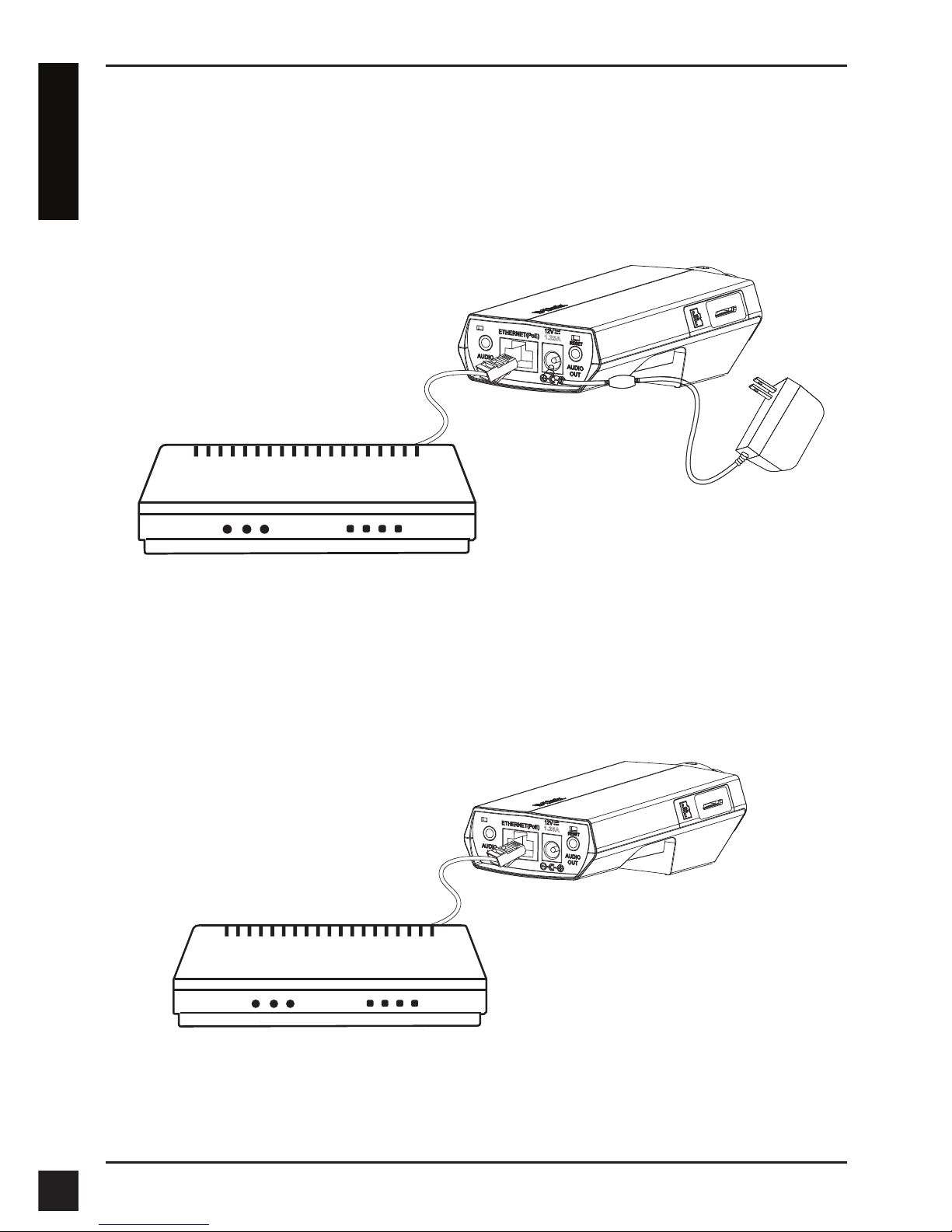

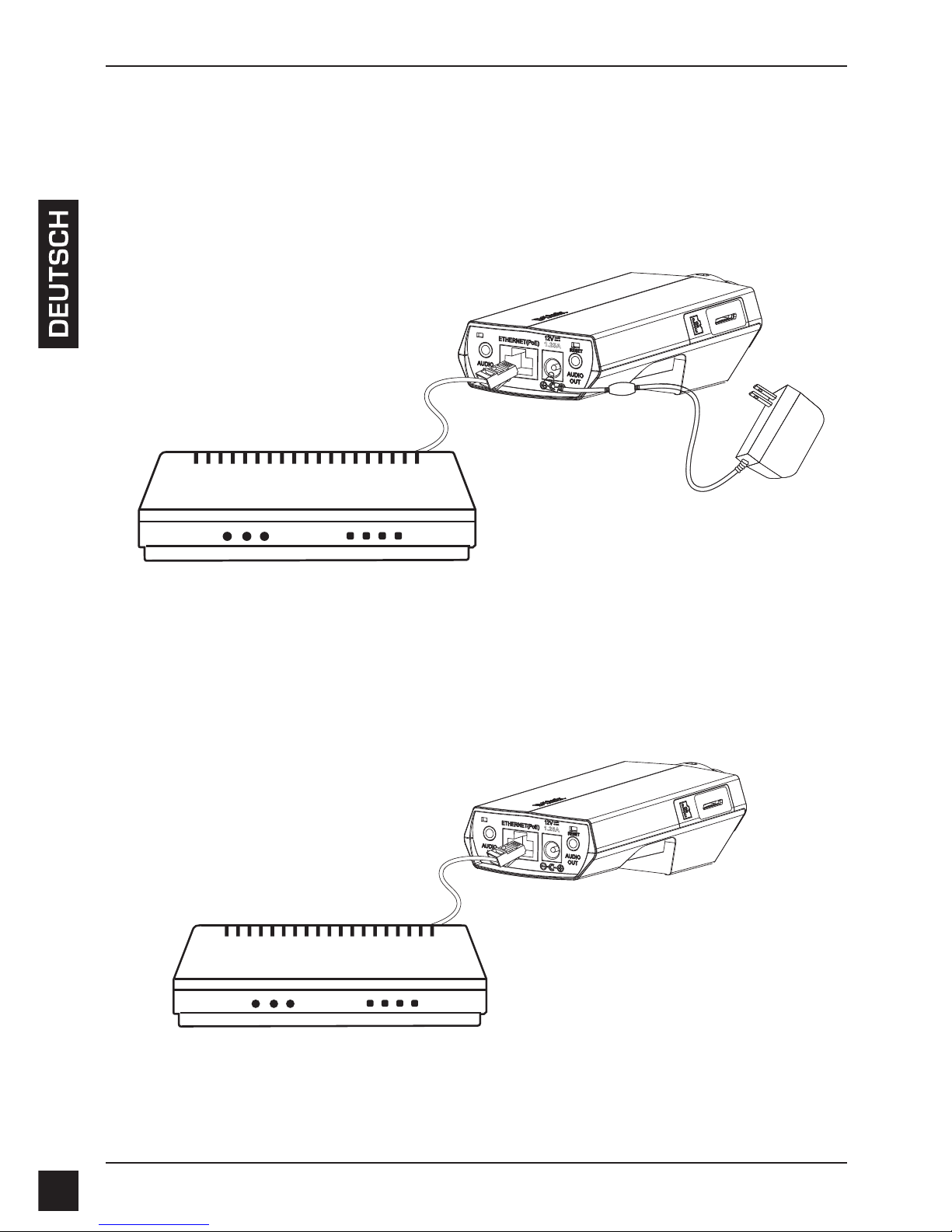

Basic Connection (without PoE)
Connect the camera to your switch or router via Ethernet cable.
Connect the supplied power cable from the camera to a power outlet.
Connection Using a PoE Switch
If using a PoE switch or router, connect the network camera via Ethernet cable.
PoE will transmit both power and data over a single cable.
Note: Once power has been established, the LED will turn red. When the device has
obtained an IP address and is accessible, the LED will turn green.
1.25A
1.25A

D-Link DCS-3010 Quick Install Guide 7
ENGLISH
4. Conguration with Wizard
Click Setup Wizard to begin the installation.
Insert the DCS-3010 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.

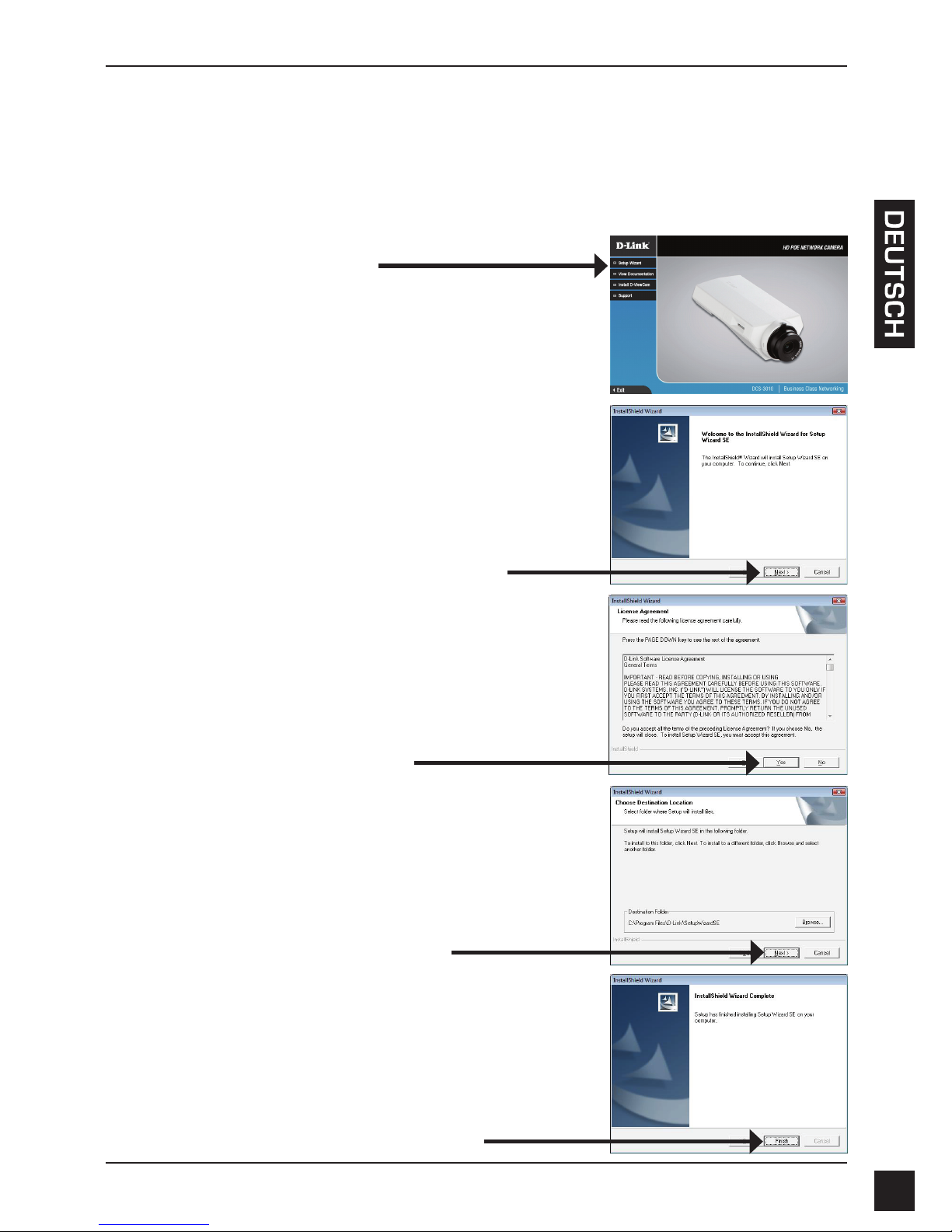

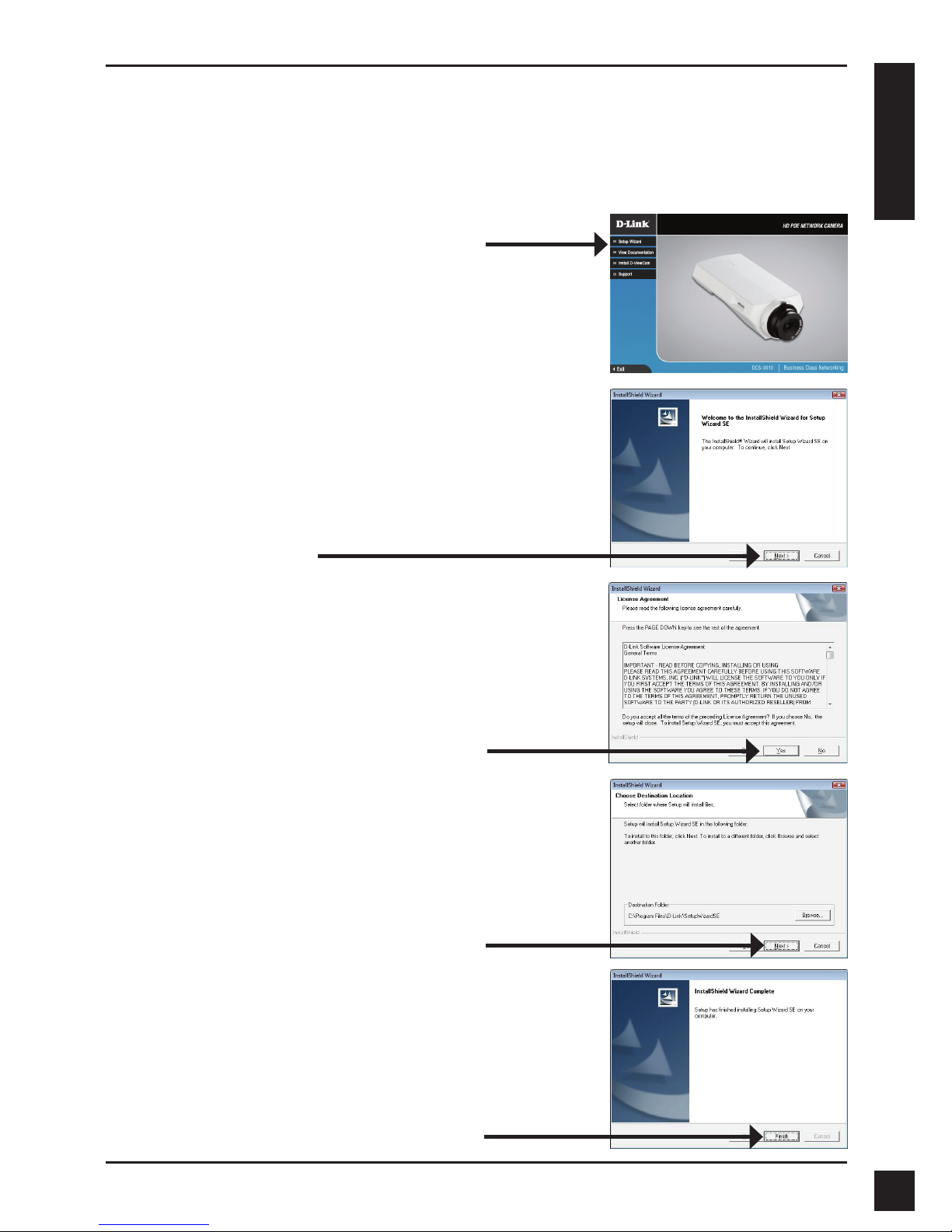

After clicking Setup Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.

D-Link DCS-3010 Quick Install Guide
8
ENGLISH

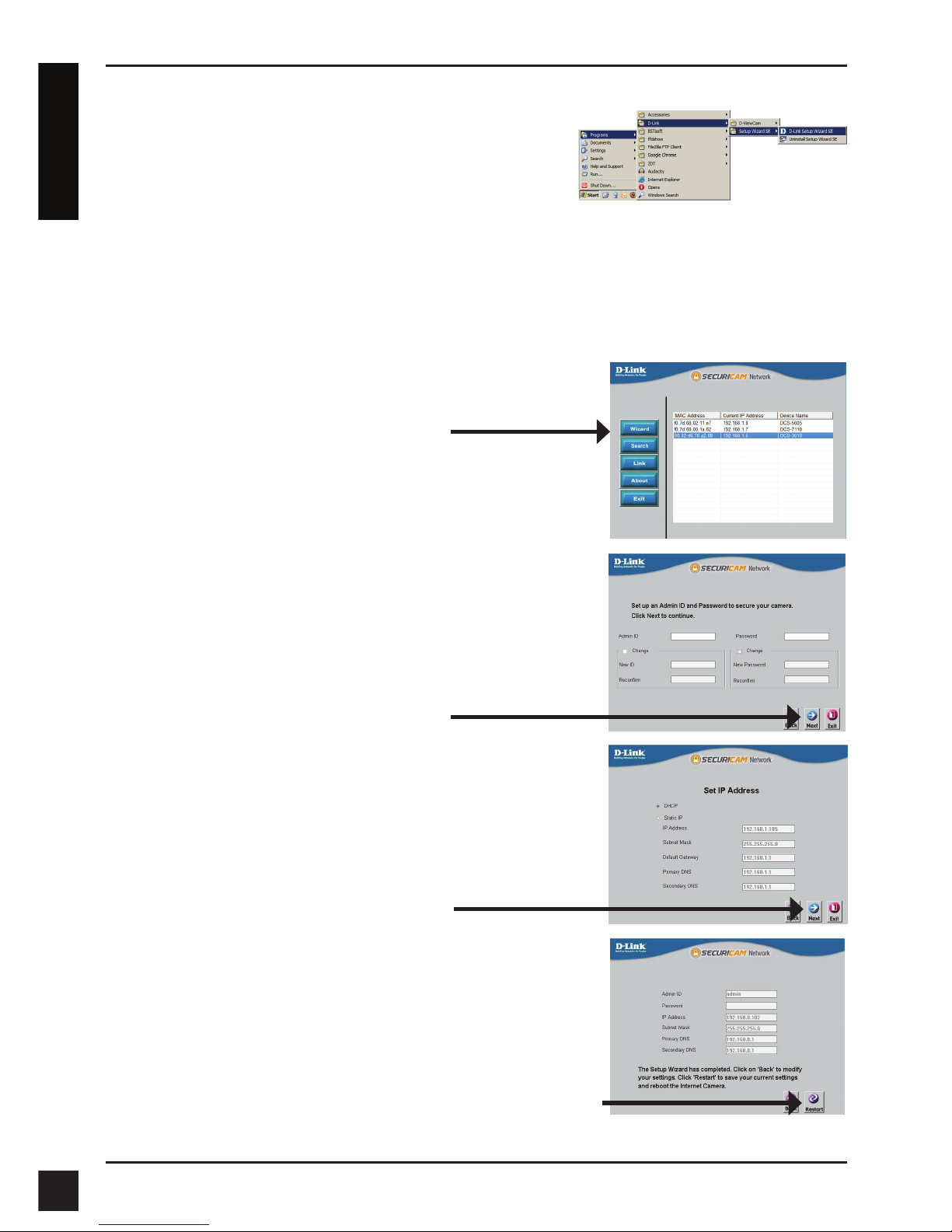

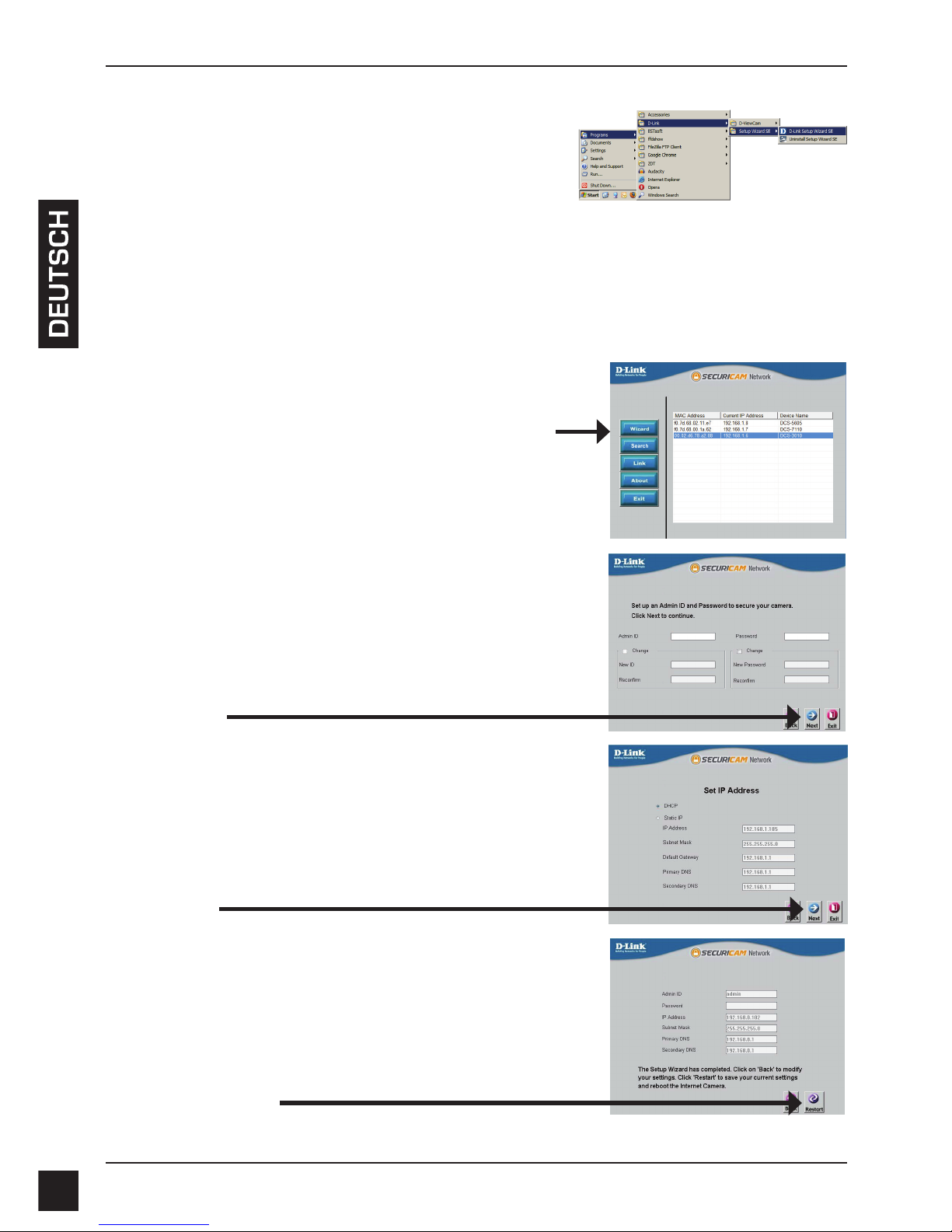

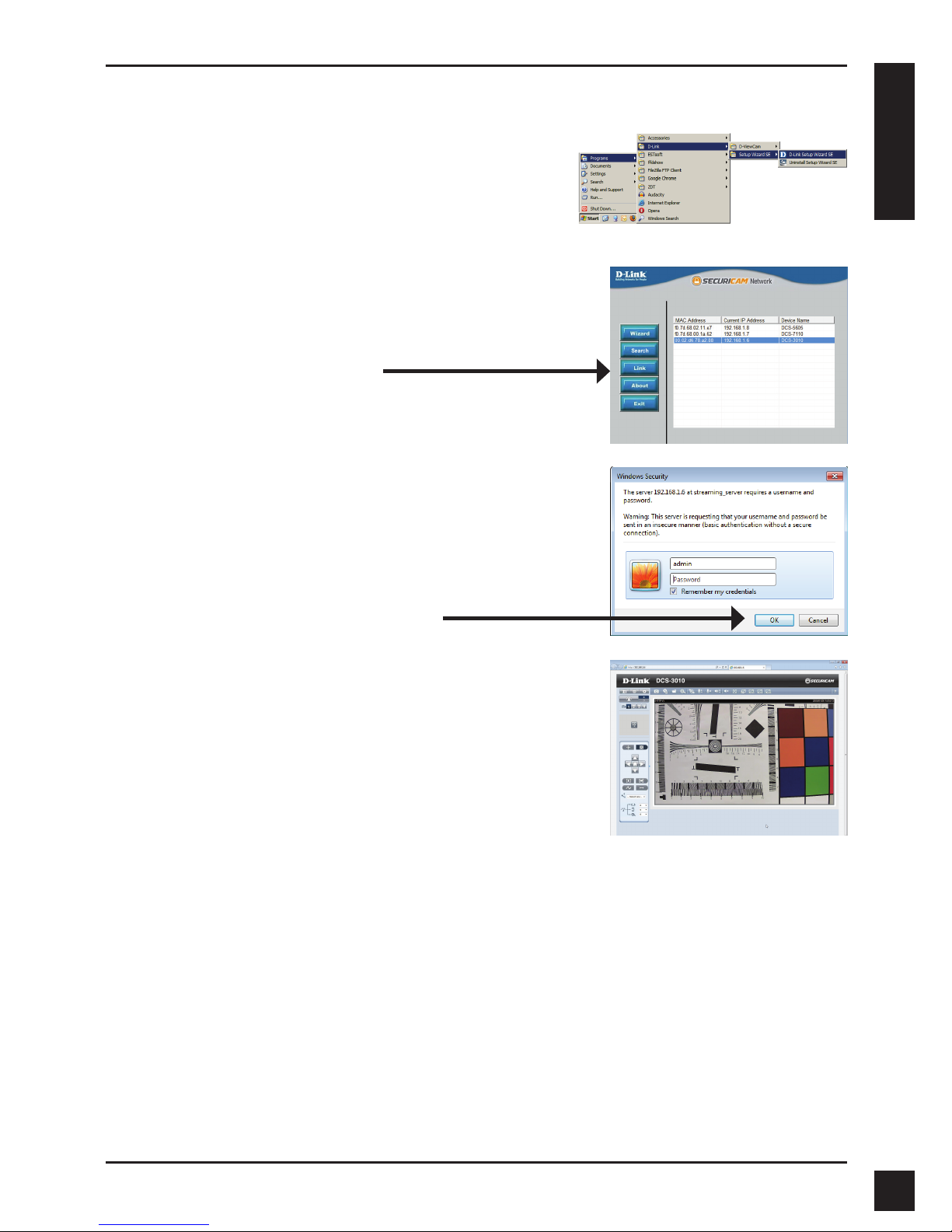

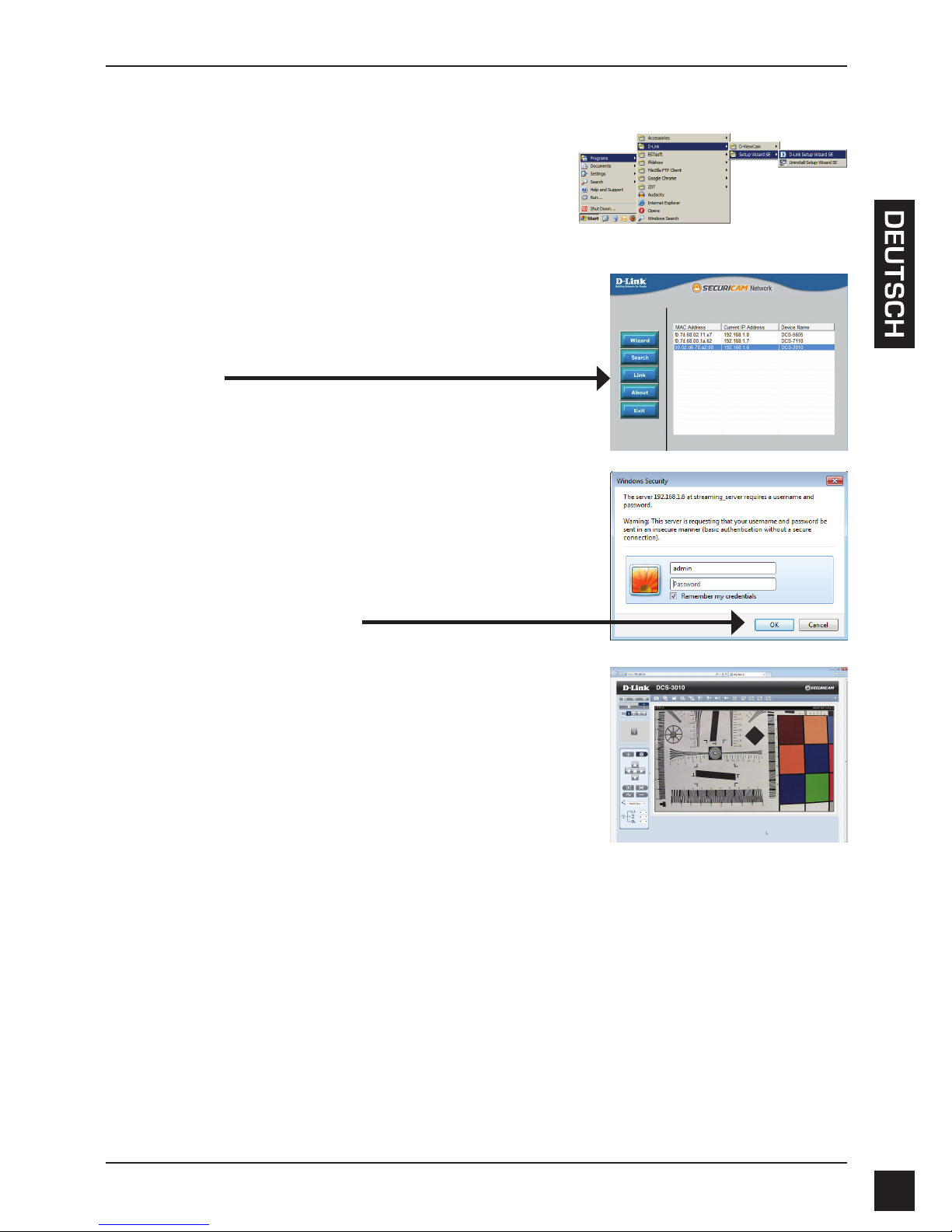

Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.

D-Link DCS-3010 Quick Install Guide 9
ENGLISH
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Viewing Camera via Web Browser
This section shows your camera’s live video. You
can select your video prole and view or operate
the camera. For additional information about web
conguration, please refer to the user manual included
on the CD-ROM or the D-Link website.
Enter admin as the default username and leave the
password blank. Click OK to continue.
Select the camera and click the button labeled "Link"
to access the web conguration.
The Setup Wizard will automatically open your web
browser to the IP address of the camera.
TECHNICAL SUPPORT
United Kingdom (Mon-Fri) website: http://dlink.com
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)
(BT 10ppm, other carriers may vary.)
Ireland (Mon-Fri)
All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
Phone rates: €0.05ppm peak, €0.045ppm off peak times

10 D-Link DCS-3010 Quick Install Guide
DCS-3010 Installationsanleitung
Diese Installationsanleitung bietet Ihnen grundlegende Anleitungen zur Installation
der DCS-3010 Netzwerkkamera in Ihrem Netzwerk. Zusätzliche Informationen zur
Verwendung der Kamera nden Sie im Benutzerhandbuch, das Ihnen auf der CD, die
diesem Paket beiliegt, oder über die D-Link Support-Website zur Verfügung steht.
Installationsschritte
1. Prüfen Sie den Packungsinhalt, ob er mit den auf der Liste unten aufgeführten
Artikeln übereinstimmt.
2. Hardware-Überblick
3. Hardware-Installation
4. Konguration mithilfe des Assistenten
1. Packungsinhalt
 DCS-3010 HD PoE Network Camera
 Kamerafuß
 CD-ROM mit Software und Handbuch
 Kat.5 Ethernetkabel
 Netzteil (Stromadapter)
 Installationsanleitung
 Objektivringaufsatz
 Inbussschlüssel
Sollte einer der oben aufgeführten Artikel fehlen, wenden Sie sich bitte an Ihren
Fachhändler.
