D-Link DGS-3710 Series Manual

Information in this document is subject to change without notice. Reproduction in any manner whatsoever, without the written permission of D-Link
Corporation, is strictly forbidden.
Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Corporation; Microsoft and Windows are registered trademarks
of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. D-
Link Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
© 2012 D-Link Corporation. All rights reserved.
December 2012 P/N 651GS3710.015G
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with this manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at their expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference in which case the
user may be required to take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse A. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem Fall
kann vom Benutzer verlangt werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase A. En un entorno doméstico, puede causar interferencias de radio, en cuyo case, puede
requerirse al usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe A. Dans un environnement domestique, ce produit pourrait causer des interférences
radio, auquel cas l`utilisateur devrait prendre les mesures adéquates.
Attenzione!
Il presente prodotto appartiene alla classe A. Se utilizzato in ambiente domestico il prodotto può causare interferenze
radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati.
BSMI Notice
此為甲類的資訊技術設備，在居住環境中使用時，可能會造成射頻擾動，在這種情況下，使用者會被要求採取某些適當
的對策。
產品須連接額定電流 20A 之斷路器,做為與直流電源之切斷裝置。

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
iii
Table of Contents
Intended Readers...........................................................................................................................................................v
Typographical Conventions............................................................................................................................................v
Notes, Notices, and Cautions.........................................................................................................................................v
Safety Instructions......................................................................................................................................................... vi
Safety Cautions........................................................................................................................................................... vi
General Precautions for Rack-Mountable Products......................................................................................................vii
Protecting Against Electrostatic Discharge ..................................................................................................................viii
Chapter 1 Introduction ................................................................................................................................................ 9
Switch Description..........................................................................................................................................................9
Features........................................................................................................................................................................10
Ports .............................................................................................................................................................................11
Front-Panel Components...........................................................................................................................................11
LED Indicators ...........................................................................................................................................................12
Rear Panel Description..............................................................................................................................................13
Side Panel Description...............................................................................................................................................13
Chapter 2 Installation ................................................................................................................................................ 14
Package Contents ........................................................................................................................................................14
Installation Guidelines ..................................................................................................................................................14
Installing the Switch without a Rack ..........................................................................................................................15
Attaching Brackets to a Switch for Rack Mounting....................................................................................................15
Mounting the Switch in a Standard 19" Rack ............................................................................................................16
Fan Modules – Installing and Removing......................................................................................................................16
Power On......................................................................................................................................................................17
Connect to DC Power Plug...........................................................................................................................................17
Power Failure.............................................................................................................................................................18
Alarm Connector (RJ45)...............................................................................................................................................18
Installing SFP Ports......................................................................................................................................................19
Connecting the Switch..................................................................................................................................................20
Switch to End Node......................................................................................................................................................20
Switch to Switch ...........................................................................................................................................................20
Connecting To Network Backbone or Server...............................................................................................................21
Chapter 3 Introduction to Switch Management ..................................................................................................... 22
Management Options ...................................................................................................................................................22
Connecting the Console Port........................................................................................................................................22
First Time Connecting to the Switch.............................................................................................................................23
Connecting to the Management Port............................................................................................................................24
Password Protection.....................................................................................................................................................25
IP Address Assignment ................................................................................................................................................25
SNMP Settings .............................................................................................................................................................25
Traps..........................................................................................................................................................................26
Management Information Base (MIB)........................................................................................................................26
Chapter 4 Web-based Switch Configuration .......................................................................................................... 27
Introduction...................................................................................................................................................................27
Logging onto the Web Manager...................................................................................................................................27
Web-based User Interface............................................................................................................................................27
Areas of the User Interface........................................................................................................................................27
Web Pages...................................................................................................................................................................28
Appendix Section .......................................................................................................................................................... 29

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
iv
Appendix A – Technical Specifications ........................................................................................................................29
General ......................................................................................................................................................................29
Physical and Environmental.......................................................................................................................................29
Performance...............................................................................................................................................................30
LED Indicators ...........................................................................................................................................................30
Port Functions............................................................................................................................................................31
Appendix B – Cables and Connectors .........................................................................................................................33
Ethernet Cable...........................................................................................................................................................33
Warranties & Technical Support ................................................................................................................................ 34

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
v
Intended Readers
Typographical Conventions
Notes, Notices, and Cautions
Safety Instructions
The DGS-3710 Series Hardware Installation Guide contains information about the hardware specifcations of the
Switch. This manual is intended for network managers familiar with network management concepts and terminology.
Typographical Conventions
Convention Description
[ ] In a command line, square brackets indicate an optional entry. For example: [copy
filename] means that optionally you can type copy followed by the name of the file. Do
not type the brackets.
Bold font Indicates a button, a toolbar icon, menu, or menu item. For example: Open the File
menu and choose Cancel. Used for emphasis. May also indicate system messages or
prompts appearing on screen. For example: You have mail. Bold font is also used to
represent filenames, program names and commands. For example: use the copy
command.
Boldface Typewriter
Font
Indicates commands and responses to prompts that must be typed exactly as printed in
the manual.
Initial capital letter Indicates a window name. Names of keys on the keyboard have initial capitals. For
example: Click Enter.
Italics Indicates a window name or a field. Also can indicate a variables or parameter that is
replaced with an appropriate word or string. For example: type filename means that the
actual filename should be typed instead of the word shown in italic.
Menu Name > Menu
Option Menu Name > Menu Option Indicates the menu structure. Device > Port > Port Properties means the Port Properties menu option under the Port menu option that is
located under the Device menu.
Table 1. Typographical Conventions
Notes, Notices, and Cautions
A NOTE indicates important information that helps make better use of the device.
A NOTICE indicates either potential damage to hardware or loss of data and tells how to avoid the
problem.
A CAUTION indicates a potential for property damage, personal injury, or death.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
vi
Safety Instructions
Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential
damage. Throughout this safety section, the caution icon ( ) is used to indicate cautions and precautions that need
to be reviewed and followed.
CAUTION:The installation and maintenance of this device should be done by qualified service
personnel only.
Safety Cautions
To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment observe the following
precautions:
•Observe and follow service markings.
oDo not service any product except as explained in the system documentation.
oOpening or removing covers that are marked with the triangular symbol with a lightning bolt may
expose the user to electrical shock.
oOnly a trained service technician should service components inside these compartments.
•If any of the following conditions occur, unplug the product from the electrical outlet and replace the part or
contact your trained service provider:
oDamage to the power cable, extension cable, or plug.
oAn object has fallen into the product.
oThe product has been exposed to water.
oThe product has been dropped or damaged.
oThe product does not operate correctly when the operating instructions are correctly followed.
•Keep your system away from radiators and heat sources. Also, do not block cooling vents.
•Do not spill food or liquids on system components, and never operate the product in a wet environment. If the
system gets wet, see the appropriate section in the troubleshooting guide or contact your trained service
provider.
•Do not push any objects into the openings of the system. Doing so can cause fire or electric shock by shorting
out interior components.
•Use the product only with approved equipment.
•Allow the product to cool before removing covers or touching internal components.
•Operate the product only from the type of external power source indicated on the electrical ratings label. If
unsure of the type of power source required, consult your service provider or local power company.
•To help avoid damaging the system, be sure the voltage selection switch (if provided) on the power supply is
set to match the power available at the Switch’s location:
o115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries such
as South Korea and Taiwan
o100 V/50 Hz in eastern Japan and 100 V/60 Hz in western Japan
o230 V/50 Hz in most of Europe, the Middle East, and the Far East
•Also, be sure that attached devices are electrically rated to operate with the power available in your location.
•Use only approved power cable(s). If you have not been provided with a power cable for your system or for any
AC-powered option intended for your system, purchase a power cable that is approved for use in your country.
The power cable must be rated for the product and for the voltage and current marked on the product's
electrical ratings label. The voltage and current rating of the cable should be greater than the ratings marked
on the product.
•To help prevent electric shock, plug the system and peripheral power cables into properly grounded electrical
outlets. These cables are equipped with three-prong plugs to help ensure proper grounding. Do not use
adapter plugs or remove the grounding prong from a cable. If using an extension cable is necessary, use a 3-
wire cable with properly grounded plugs.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
vii
•Observe extension cable and power strip ratings. Make sure that the total ampere rating of all products
plugged into the extension cable or power strip does not exceed 80 percent of the ampere ratings limit for the
extension cable or power strip.
•To help protect the system from sudden, transient increases and decreases in electrical power, use a surge
suppressor, line conditioner, or uninterruptible power supply (UPS).
•Position system cables and power cables carefully; route cables so that they cannot be stepped on or tripped
over. Be sure that nothing rests on any cables.
•Do not modify power cables or plugs. Consult a licensed electrician or your power company for site
modifications. Always follow your local/national wiring rules.
•When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system, observe
the following guidelines:
oInstall the power supply before connecting the power cable to the power supply.
oUnplug the power cable before removing the power supply.
oIf the system has multiple sources of power, disconnect power from the system by unplugging all
power cables from the power supplies.
•Move products with care; ensure that all casters and/or stabilizers are firmly connected to the system. Avoid
sudden stops and uneven surfaces.
General Precautions for Rack-Mountable Products
Observe the following precautions for rack stability and safety. Also, refer to the rack installation documentation
accompanying the system and the rack for specific caution statements and procedures.
•Systems are considered to be components in a rack. Thus, "component" refers to any system as well as to
various peripherals or supporting hardware.
CAUTION: Installing systems in a rack without the front and side stabilizers installed could cause the rack
to tip over, potentially resulting in bodily injury under certain circumstances. Therefore, always install the
stabilizers before installing components in the rack. After installing system/components in a rack, never
pull more than one component out of the rack on its slide assemblies at one time. The weight of more than
one extended component could cause the rack to tip over and may result in serious injury.
•Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and
that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front
stabilizers for joined multiple racks before working on the rack.
•Always load the rack from the bottom up, and load the heaviest item in the rack first.
•Make sure that the rack is level and stable before extending a component from the rack.
•Use caution when pressing the component rail release latches and sliding a component into or out of a rack;
the slide rails can pinch your fingers.
•After a component is inserted into the rack, carefully extend the rail into a locking position, and then slide the
component into the rack.
•Do not overload the AC supply branch circuit that provides power to the rack. The total rack load should not
exceed 80 percent of the branch circuit rating.
•Ensure that proper airflow is provided to components in the rack.
•Do not step on or stand on any component when servicing other components in a rack.
NOTE: A qualified electrician must perform all connections to DC power and to safety grounds. All
electrical wiring must comply with applicable local or national codes and practices.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
viii
CAUTION: Never defeat the ground conductor or operate the equipment in the absence of a suitably
installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if
uncertain that suitable grounding is available.
CAUTION: The system chassis must be positively grounded to the rack cabinet frame. Do not attempt to
connect power to the system until grounding cables are connected. Completed power and safety ground
wiring must be inspected by a qualified electrical inspector. An energy hazard will exist if the safety
ground cable is omitted or disconnected.
Protecting Against Electrostatic Discharge
Static electricity can harm delicate components inside the system. To prevent static damage, discharge static
electricity from your body before touching any of the electronic components, such as the microprocessor. This can be
done by periodically touching an unpainted metal surface on the chassis.
The following steps can also be taken prevent damage from electrostatic discharge (ESD):
1. When unpacking a static-sensitive component from its shipping carton, do not remove the component from
the antistatic packing material until ready to install the component in the system. Just before unwrapping the
antistatic packaging, be sure to discharge static electricity from your body.
2. When transporting a sensitive component, first place it in an antistatic container or packaging.
3. Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads, workbench pads
and an antistatic grounding strap.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
9
Chapter 1 Introduction
Switch Description
Features
Ports
Front-Panel Components
LED Indicators
Rear Panel Description
Side Panel Description
This manual describes the installation, maintenance, and configurations concerning the Switch.
Switch Description
D-Link's DGS-3710 Series switch is a high performance member of the D-Link switch family. Ranging from
10/100Mbps edge switches to core gigabit switches, the switch family has been future-proof designed to provide fault
tolerance, flexibility, port density, robust security and maximum throughput with a user-friendly management interface
for the networking professional
The Switch has a combination of 1000BASE-T ports and SFP ports that may be used in uplinking various network
devices to the Switch, including PCs, hubs and other switches to provide a gigabit Ethernet uplink in full-duplex mode.
The SFP (Small Form Factor Portable) combo ports are used with fiber-optical transceiver cabling in order to uplink
various other networking devices for a gigabit link that may span great distances. These SFP ports support full-duplex
transmissions and can be used with the following transceivers:
•DEM-310GT (1000BASE-LX, Single-mode, 10km)
•DEM-311GT (1000BASE-SX, Mutli-mode, 500m)
•DEM-312GT2 (1000BASE-SX, Multi-mode, 2km)
•DEM-314GT (1000BASE-LH, Single-mode, 50km)
•DEM-315GT (1000BASE-ZX, Single-mode, 80km)
•DEM-210 (100BASE-FX, Single-mode, 15km)
•DEM-211 (100BASE-FX, Multi-mode, 2km)
WDM transceivers supported include:
•DEM-330T (1000BASE-BX-D, Single-Mode, 10km, TX-1550/RX-1310nm)
•DEM-330R (1000BASE-BX-U, Single-Mode, 10km, TX-1310/RX-1550nm)
•DEM-331T (1000BASE-BX-D, Single-Mode, 40km, TX-1550/RX-1310nm)
•DEM-331R (1000BASE-BX-U, Single-Mode, 40km, TX-1310/RX-1550nm)
•DEM-220T (100BASE-BX-D, Single-Mode, 20km, TX-1550/RX-1310nm)
•DEM-220R (100BASE-BX-U, Single-Mode, 20km TX-1310/RX-1550nm)

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
10
Features
The list of features below highlights the significant features of the Switch.
•IEEE 802.3 compliant
•IEEE 802.3z compliant
•IEEE 802.3x Flow Control in full-duplex compliant
•IEEE 802.3u compliant
•IEEE 802.3ab compliant
•IEEE 802.1p Priority Queues
•IEEE 802.3ad Link Aggregation Control Protocol for up to 6 groups
•IEEE 802.1X Port-based and Host-based Access Control
•IEEE 802.1Q VLAN
•IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree and IEEE 802.1s Multiple Spanning Tree
support
•Support jumbo frame to 13K Bytes
•Access Control List (ACL) support
•ISM VLAN support
•DHCP local relay support
•Single IP Management support
•Access Authentication Control utilizing TACACS, XTACACS, TACACS+, and RADIUS protocols
•Supports Multiple Authentication
•Power saving mode support
•Broadcast Ping support
•Simple Network Time Protocol support
•System Log support
•Maximum packet forwarding rate 17.86Mpps.
•High performance switching engine performs forwarding and filtering at full wire speed up 24Gbps
•Full- and half-duplex for all ports. Full duplex allows the switch port to simultaneously transmit and receive
data. It only works with connections to full-duplex-capable end stations and switches. Connections to a hub
must take place at half-duplex.
•Support broadcast storm control
•Loopback Detection (LBD) version 4.0 Trap support
•Non-blocking store and forward switching scheme capability to support rate adaptation and protocol conversion
•Supports Egress/Ingress bandwidth control
•Efficient self-learning and address recognition mechanism enables forwarding rate at wire speed
•Address table: Supports up to 16 K
•Supports a packet buffer of up to 1MByte
•Port Trunking with flexible load distribution
•Authentication Server failover
•IGMP Snooping support
•MLD Snooping support (MLD v1 and v2)
•IP-MAC-Port Binding (IMPB) v3.61 support
•SNMP support
•Secure Sockets Layer (SSL) and Secure Shell (SSH) support
•System Severity control
•Port Mirroring support
•MIB support for:
oRFC 1213 MIB II
oRFC 1493 Bridge

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
11
oRFC 1907 SNMPv2
oRFC 2819 RMON
oRFC 2665 Ether-like MIB
oRFC 2863 IF MIB
oRFC 2618 RADIUS Authentication Client MIB
oRFC 2620 RADIUS Accounting Client MIB
oPrivate MIB
oRFC 4363
oIEEE 802.1X MIB
•Provides parallel LED display for port status such as link/act, speed, etc.
•Web-based GUI compatible with Internet Explorer 5.5 or later, Netscape 8.0 or later, and Firefox 2.0 or later
Ports
•Twelve 10/100/1000Mbps Copper/SFP Combo Ports.
•One female DCE RS-232 DB-9 console port.
•One Out-of-Band Management (10BASE-T/100BASE-TX/1000BASE-T) port used for out-of-band, remote IP
access to the Switch.
•One Alarm port (8 Pin standard RJ45 connector).
Front-Panel Components
The front panel of the Switch consists of LED indicators for Power, System, Alarm, FAN, Management, and a Link/Act
LED indicator for each Copper/SFP port on the Switch. A separate table below describes LED indicators in more
detail.

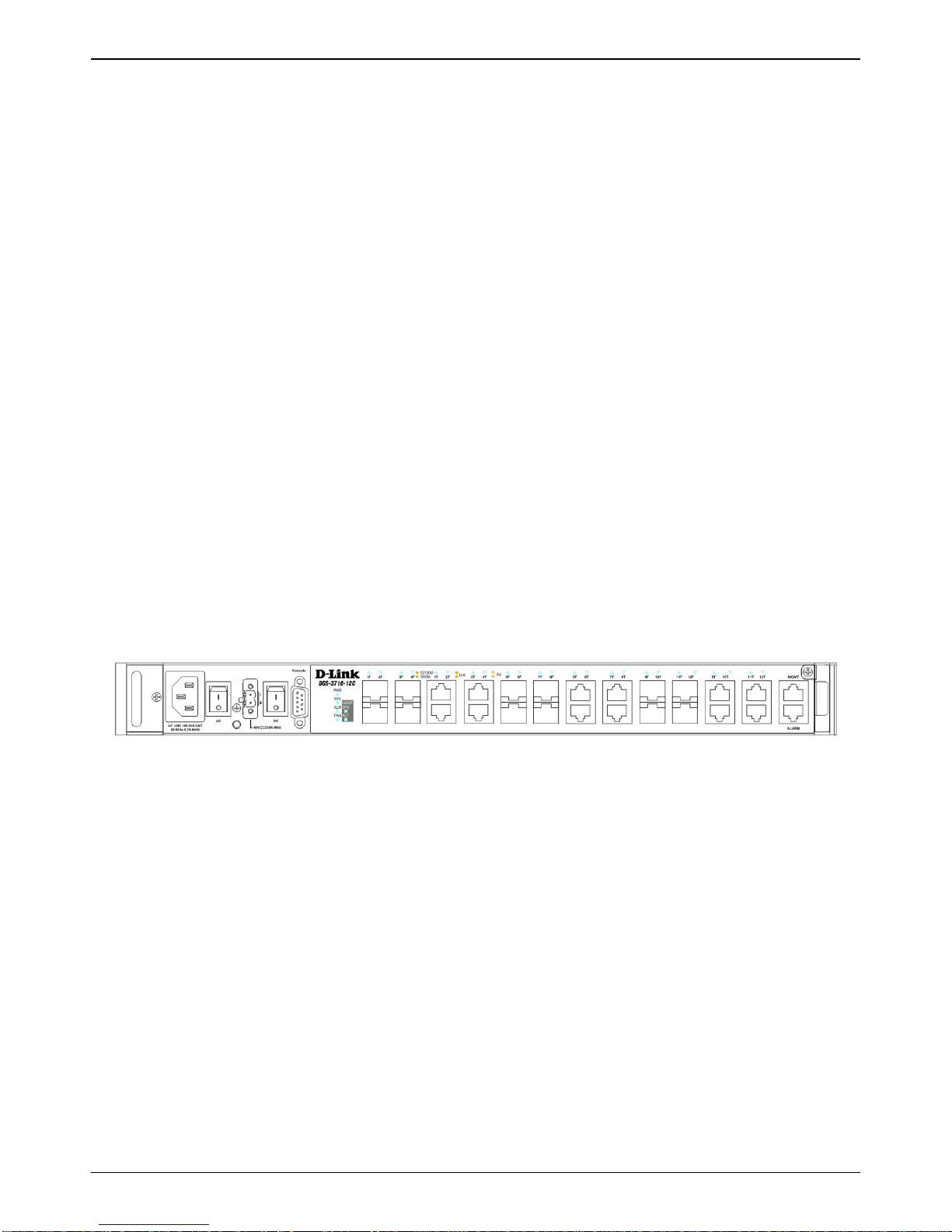

Figure 1–1 Front panel view of a DGS-3710-12C Switch
The front panel of the Switch contains an AC or a DC power connector. The AC power connector is a standard three-
pronged connector that supports the power cord. Plug-in the female connector of the provided power cord into this
socket, and the male side of the cord into a power outlet. The switch automatically adjusts the power setting to any
supply voltage in the range from 100 ~ 240 VAC at 50 ~ 60 Hz.
Also found on the front panel is a power switch to turn the switch on and off and a console port for the command line
interface management discussed later in this manual. Another port found on the front panel is the Alarm port. This port
is used to detect physical signals from external devices when an alarm event is triggered.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
12
LED Indicators
The DGS-3710 Series switch’s front panel presents LED indicators for Power (PWR), System (SYS), Alarm (ALM),
FAN, Management (MGMT), and Link/Act indicators for all ports including the Gigabit Ethernet ports.

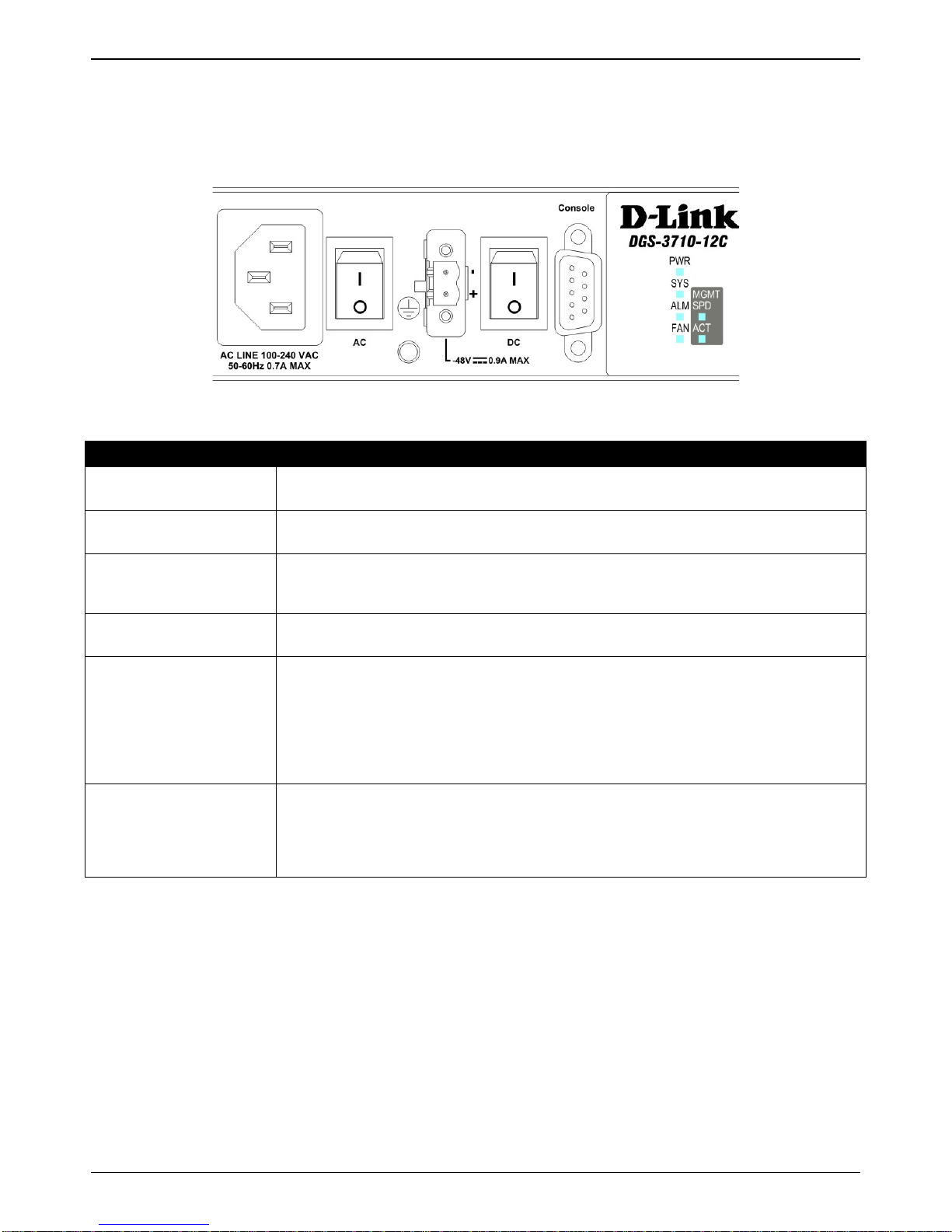

Figure 1–2 LED indicators for a DGS-3710-12C Switch
LED Description
Power (PWR) This LED will light green after powering the Switch on to indicate the ready state of the
device. The indicator is dark when the Switch is no longer receiving power.
System (SYS) This LED will blink green during the Power-On Self Test (POST). When the POST is
finished, this LED will be on and steady.
Alarm (ALM) When the alarm LED is solid red, it indicates that an alarm event has been detected or
that the temperature has exceeded to upper and lower threshold. The alarm LED will be
off when an alarm event was cleared or when the temperature is in the normal threshold.
Fan (FAN) When the fan LED is solid red, it indicates that the system fan failed and/or the fan
module was removed. When all the fans are functioning properly, this LED will be off.
Management Port
Link/Act LEDs (MGMT)
The Management Port on the front panel presents LED indicators for Link and Activity.
The SPD light will illuminate solid green when a secure, 1000Mbps, connection is made
to the MGMT port. The SPD light will illuminate solid amber when a secure, 100Mbps,
connection is made to the MGMT port. The SPD light will be off when a secure, 10Mbps,
connection is made to the MGMT port; or when the link is down. The ACT light will be on
solid when the port link is up and will flicker when data is being sent and received to and
from the MGMT port. The ACT light will be off when the link is down.
GE Port LED indicators for the Combo ports are located above the ports. A steady green light
denotes a valid 1000Mbps link on the port while a blinking green one indicates activity
on the port (at 1000Mbps). A steady amber light denotes a valid 10 or 100Mbps link on
the port while a blinking amber one indicates activity on the port (at 10 or 100Mbps).
These LEDs will remain dark if there is no link/activity on the port.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
13
Rear Panel Description
The rear panel of the Switch has no input, output, or display components.

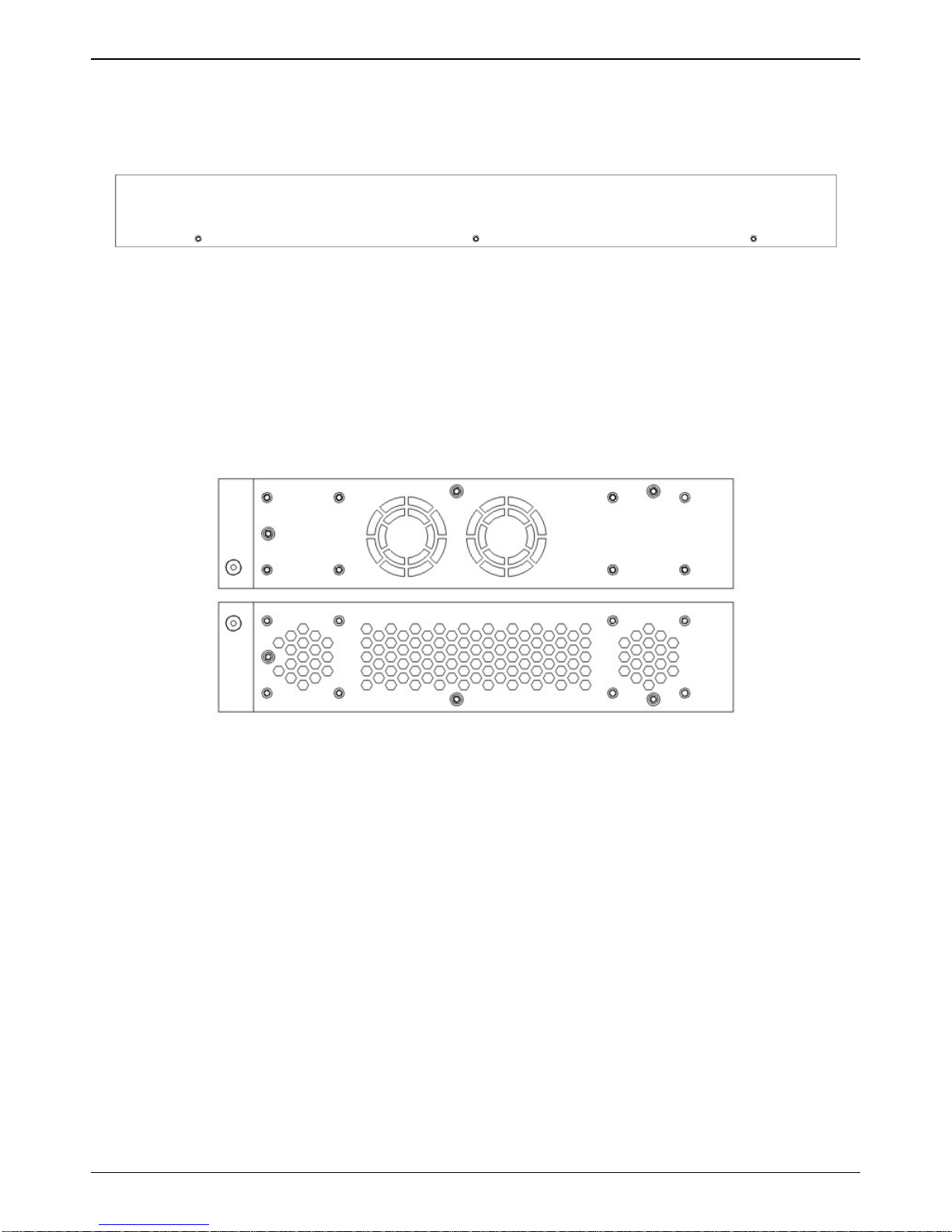

Figure 1–3 Rear panel view of a DGS-3710-12C Switch
Side Panel Description
The system heat vents located on each side dissipate heat. Do not block these openings. Leave at least 6 inches of
space at the rear and sides of the Switch for proper ventilation. Be reminded that without proper heat dissipation and
air circulation, system components might overheat, which could lead to system failure or even severely damage
components.
Figure 1–4 Side panels of a DGS-3710-12C Switch

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
14
Chapter 2 Installation
Package Contents
Installation Guidelines
Power On

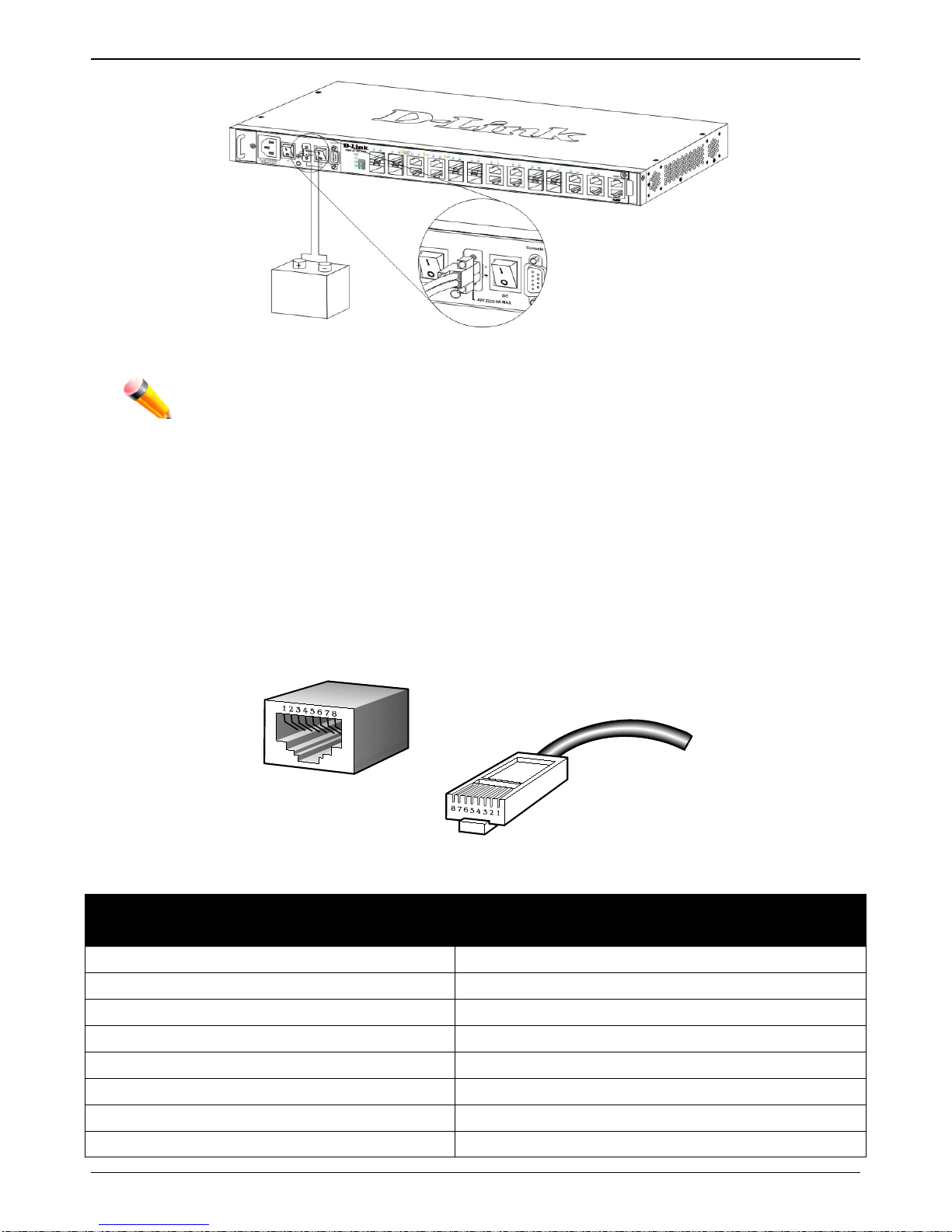

Alarm Connector (RJ45)
Installing SFP Ports

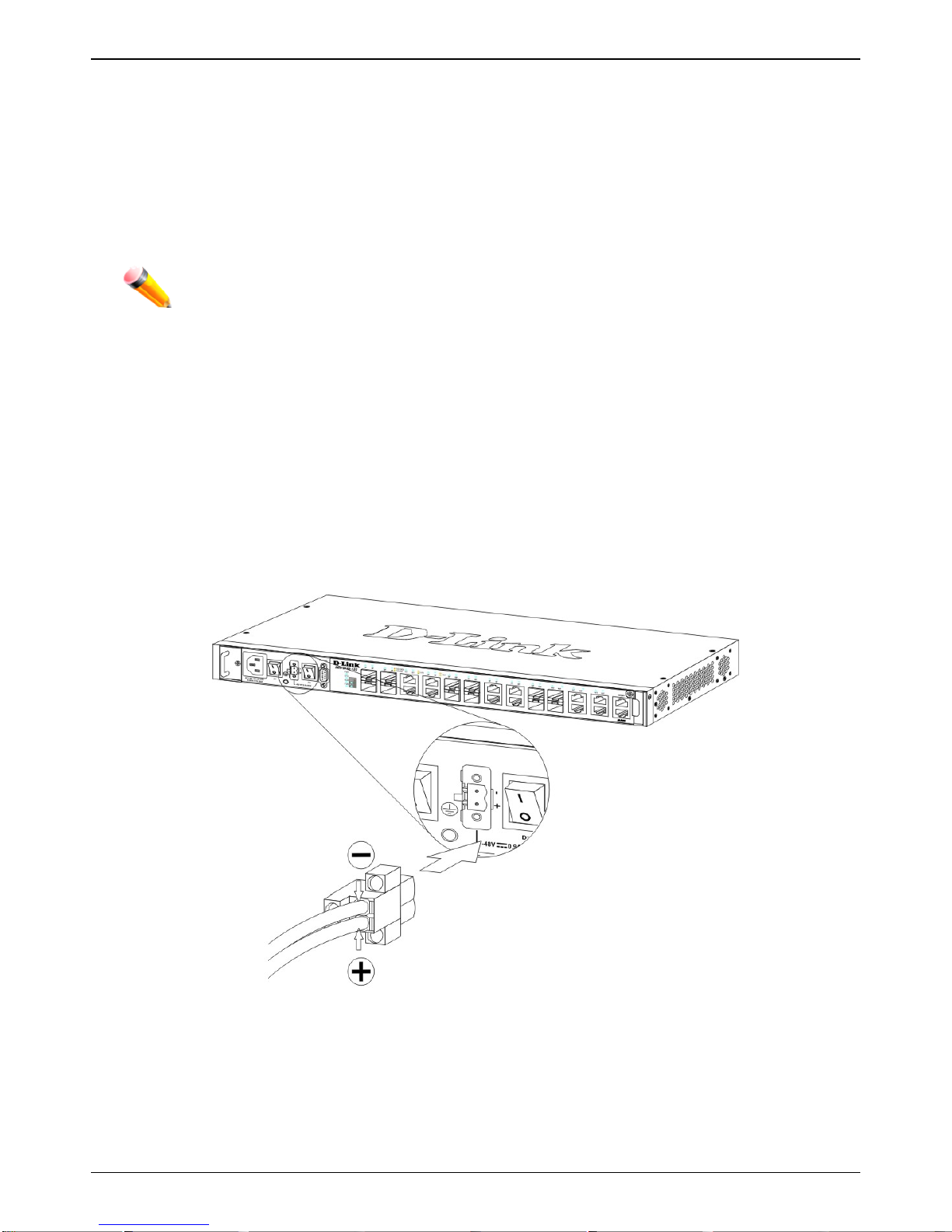

Connect to DC Power Plug
Package Contents
Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following
items:
•One DGS-3710 Series Switch
•One AC power cord
•One DCE RS-232 DB-9 console cable
•One mounting kit (two brackets and screws)

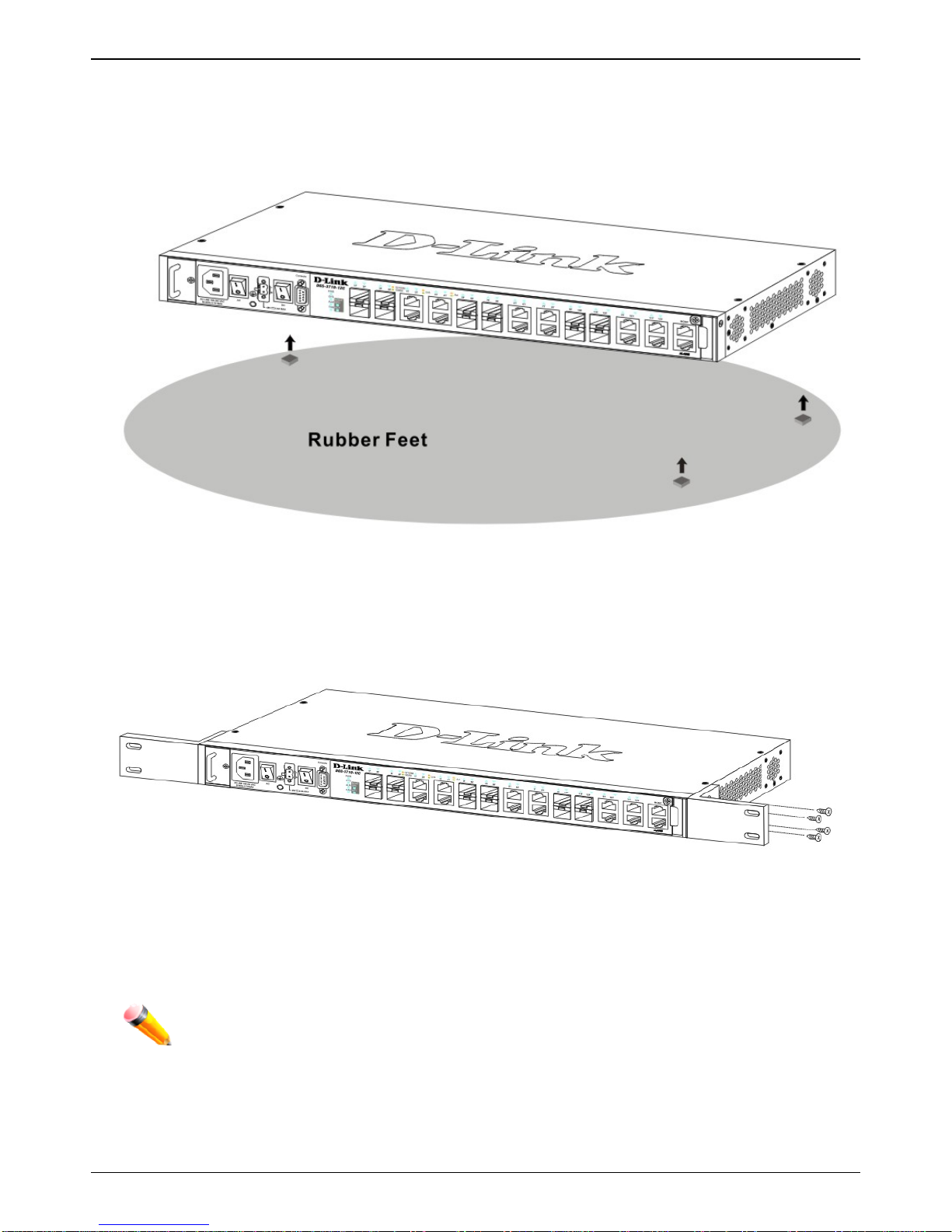

•Four rubber feet with adhesive backing
•One DC male connector, used for connecting to the DC female power input, which is located on the front
panel.
•One Alarm port cable.
If any item is missing or damaged, please contact your local D-Link Reseller for replacement.
Installation Guidelines
Please follow these guidelines for setting up the Switch:
•Install the Switch on a sturdy, level surface that can support at least 8.8 lb. (4 kg) of weight. Do not place heavy
objects on the Switch.
•The power outlet should be within 1.82 meters (6 feet) of the Switch.
•Visually inspect the power cord and see that it is fully secured to the AC power port.
•Make sure that there is proper heat dissipation from and adequate ventilation around the Switch. Leave at least
10 cm (4 inches) of space at the front and rear of the Switch for ventilation.
•Install the Switch in a fairly cool and dry place for the acceptable temperature and humidity operating ranges.
•Install the Switch in a site free from strong electromagnetic field generators (such as motors), vibration, dust,
and direct exposure to sunlight.
•When installing the Switch on a level surface, attach the rubber feet to the bottom of the device. The rubber
feet cushion the Switch, protect the casing from scratches and prevent it from scratching other surfaces.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
15
Installing the Switch without a Rack
First, attach the rubber feet included with the Switch if installing on a desktop or shelf. Attach these cushioning feet on
the bottom at each corner of the device. Allow enough ventilation space between the Switch and any other objects in
the vicinity.
Figure 2–1 Preparing a DGS-3710 Series Switch for installation on a desktop or shelf
Attaching Brackets to a Switch for Rack Mounting
The Switch can be mounted in a standard 19" rack using the provided mounting brackets. Use the following diagrams
as a guide.
Figure 2–2 Fasten mounting brackets on a DGS-3710 Series Switch
Fasten the mounting brackets to the Switch using the screws provided. With the brackets attached securely, the
Switch can be mounted in a standard rack, as shown below.
Note: Please review the Installation Guidelines above before installing the Switch in a rack. Make
sure there is adequate space around the Switch to allow for proper air flow, ventilation and cooling.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
16
Mounting the Switch in a Standard 19" Rack

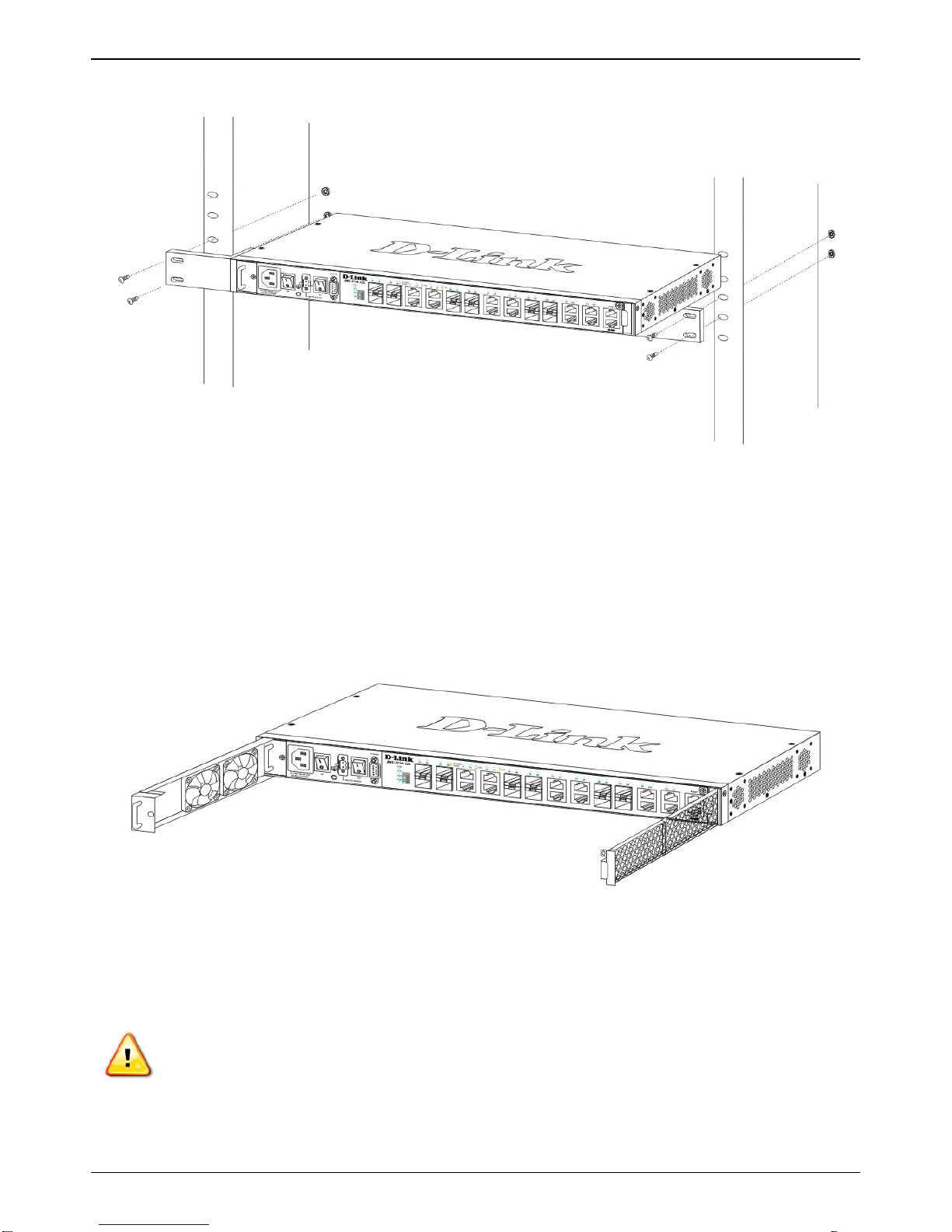

Figure 2–3 Installing a DGS-3710 Series Switch in a rack
Fan Modules – Installing and Removing
The Switch is equipt with two removable modules. On the one side we find a fan module and on the other side we find
a dust filter module. Fan and dust filter modules have handles for users to replace these modules easily. To install any
of the two modules, simply slide it into the available slot at the front of the Switch until it reaches the back. Carefully
push the module into the slot to secure it to the Switch. The module should fit snugly into the corresponding receptors.
Figure 2–4 Installing a DGS-3710 Series Switch Fan Module
After the modules are secured, tighten the screws at the adjacent ends of the modules into the available screw holes
on the Switch. The Switch is now ready for use.
CAUTION:The handles on the fan modules should only be used to replace the modules in the event of a
hardware failure. Do not use the power module handle to lift the Switch.

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
17
Power On
1. Connect the AC or DC power cord into the power connector of the Switch and the other end into the local
power source outlet.
2. Turn on the power switch, located on the front panel of the device, to power on the Switch.
3. After powering on the Switch, the LED indicators will momentarily blink green. This blinking of the LED
indicators represents a reset of the system.
NOTE: When the AC power and DC power are on at the same time, the AC power will take higher
priority than the DC power.
Connect to DC Power Plug
The DGS-3710 Series Switch supports a unique Dual Power Input feature. Next to the AC Power plug we find a DC
power plug. Here the user can connect a -48V DC power source that will be activated when the AC power is not
working.
Please make sure that connection polarity (positive and negative) is correct before using this feature to avoid any
damaged.
Connect the power source to the DC plug before plugging it into the Switch. This will protect Switch from a possible
shortage on the DC cable.
Figure 2–5 The DC Power Plug Enlarged

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
18
Figure 2–6 Connecting a Switch to the DC Power source
NOTE: Use a minimum 18 gauge (AWG) wire. All power connection wiring should conform to the
rules and regulations in the National Electrical Code (NEC), as well as any local codes. A branch
circuit over current protection must be rated below 20A.
Power Failure
The AC power and DC power of the device will backup each other immediately when one of the power sources fail. If
both power sources fail, unplug the Switch. When the power source has been restored, plug the Switch’s power back
in.
Alarm Connector (RJ45)
The Alarm (RJ45) port pin assignment is layed out in the figure below.
Figure 2–7 Alarm (RJ45) Connector
Alarm Connector Port
Contact Description
1 GND
2 Input (Channel 1)
3 GND
4 Input (Channel 2)
5 GND
6 Input (Channel 3)
7 GND
8 Input (Channel 4)

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
19
Installing SFP Ports
The Switch is equipped with SFP (Small Form Factor Portable) ports, which are to be used with fiber-optical
transceiver cabling in order to uplink various other networking devices for a gigabit link that may span great distances.
These SFP ports support full-duplex transmissions, have auto-negotiation and can be used with DEM-310GT
(1000BASE-LX), DEM-311GT (1000BASE-SX), DEM-312GT2 (1000BASE-SX), DEM-314GT (1000BASE-LX) and
DEM-315GT (1000BASE-LX) transceivers. See the figure below for installing the SFP ports in the Switch. In addition,
DEM-210T (100BASE-FX, Multi-mode) and DEM-211T (100BASE-FX, Single-mode) SFP transceivers are supported.
WDM transceivers supported include DEM-330T (TX-1550/RX-1310 nm), DEM-330R (TX-1310/RX-1550 nm), DEM-
331T (TX-1550/RX-1310 nm), and DEM-331R (TX1310/RX-1550 nm).

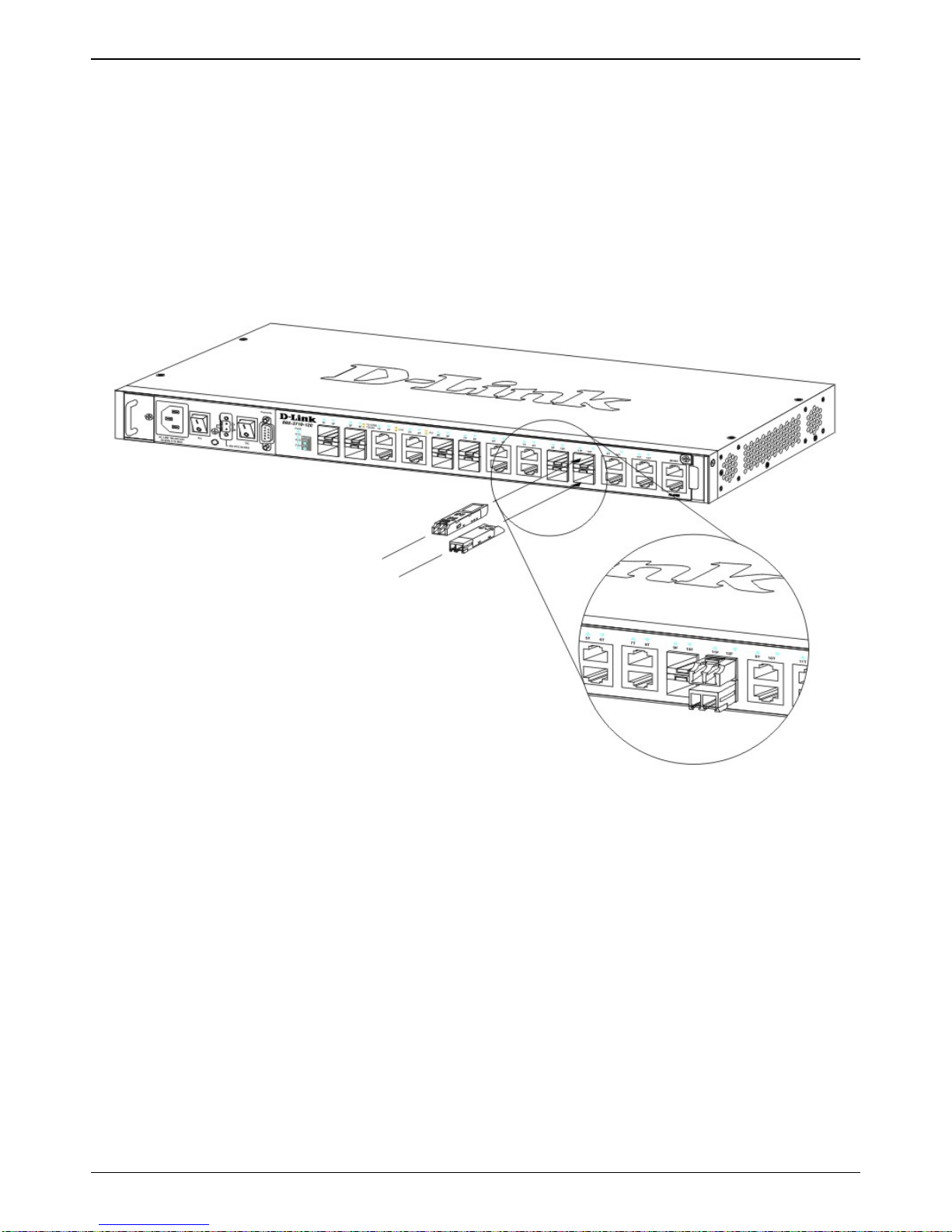

Figure 2–8 Inserting fiber-optic transceivers into a DGS-3710 Series Switch

DGS-3710 Series Layer 2 Managed Gigabit Switch Hardware Installation Guide
20
Connecting the Switch
Switch to End Node
Switch to Switch
Connecting To Network Backbone or Server
Note: All high-performance N-Way Ethernet ports can support both MDI-II and MDI-X connections.
Switch to End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ-45 Ethernet Network Interface Card (NIC) and
routers. An end node connects to the Switch via a twisted-pair UTP/STP cable. Connect the end node to any of the
1000BASE-T ports of the Switch. The Link/Act LEDs for each Ethernet port will light green or amber when the link is
valid. A blinking LED indicates packet activity on that port.

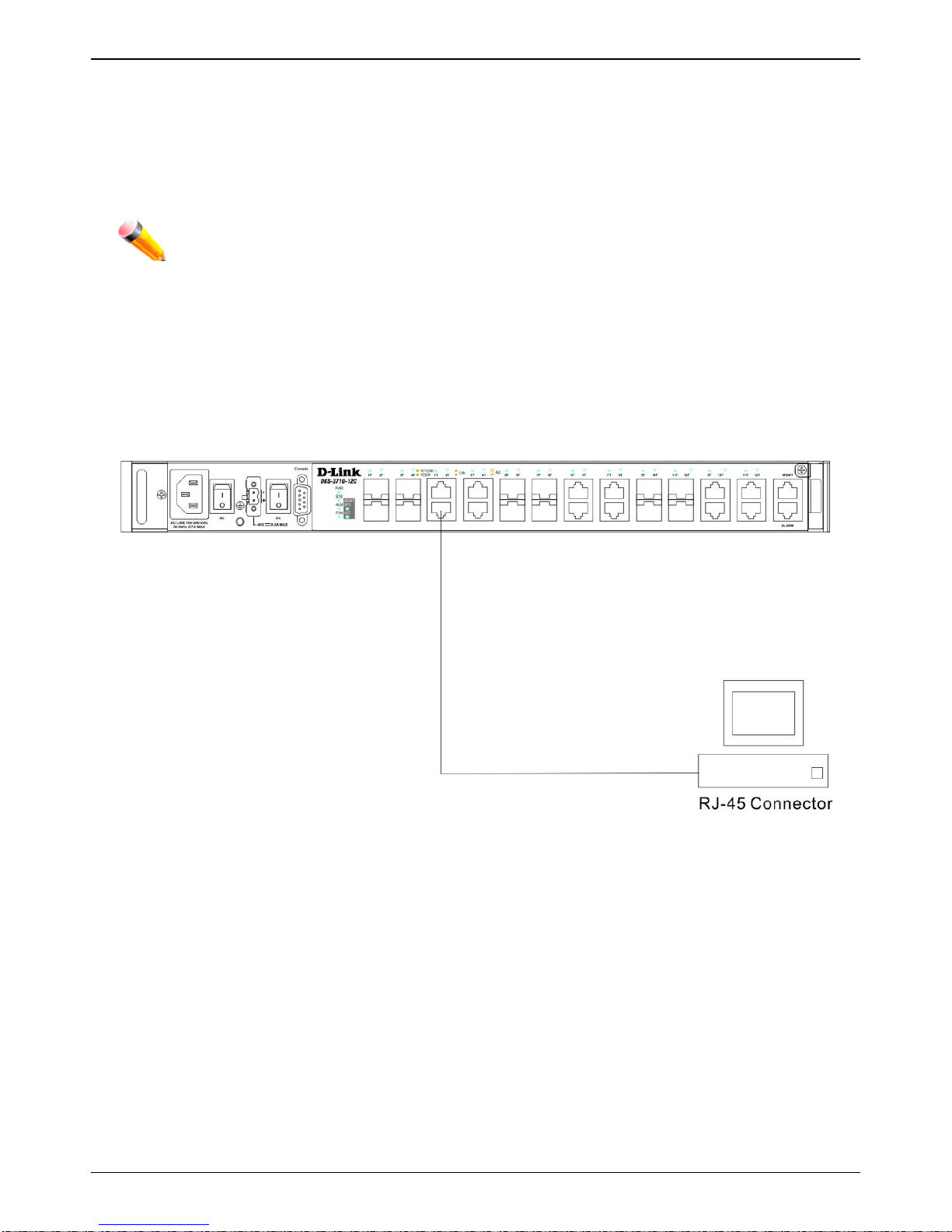

Figure 2–9 Connecting a DGS-3710 Series Switch to an end node
Switch to Switch
There is a great deal of flexibility on how connections are made using the appropriate cabling.
•Connect a 10BASE-T switch port to the Switch via a twisted-pair Category 3, 4 or 5 UTP/STP cable.
•Connect a 100BASE-TX switch port to the Switch via a twisted-pair Category 5 UTP/STP cable.
•Connect 1000BASE-T switch port to the Switch via a twisted pair Category 5e UTP/STP cable.
•Connect switch supporting a fiber-optic uplink to the Switch’s SFP ports via fiber-optic cabling. See cabling
guidelines in Appendix B for more information.
