D-Link DAS-3324 User manual

DAS-3 3 2 4 I P DSL AM
Q u i c k St a r t G u i d e
Version: 1.0
Date: 2006/07/10

D-Link Confidential 1
D
DA AS S- -3 33 32 24 4 I IP P D DS SL LA AM M Q Qu ui ic ck k S St ta ar rt t G Gu ui id de e
This quick start guide will guide you to finish the basic configuration for accessing Internet with
DAS-3324 IP DSLAM.

N
Ne et tw wo or rk k T To op po ol lo og gy y O Ov ve er rv vi ie ew w

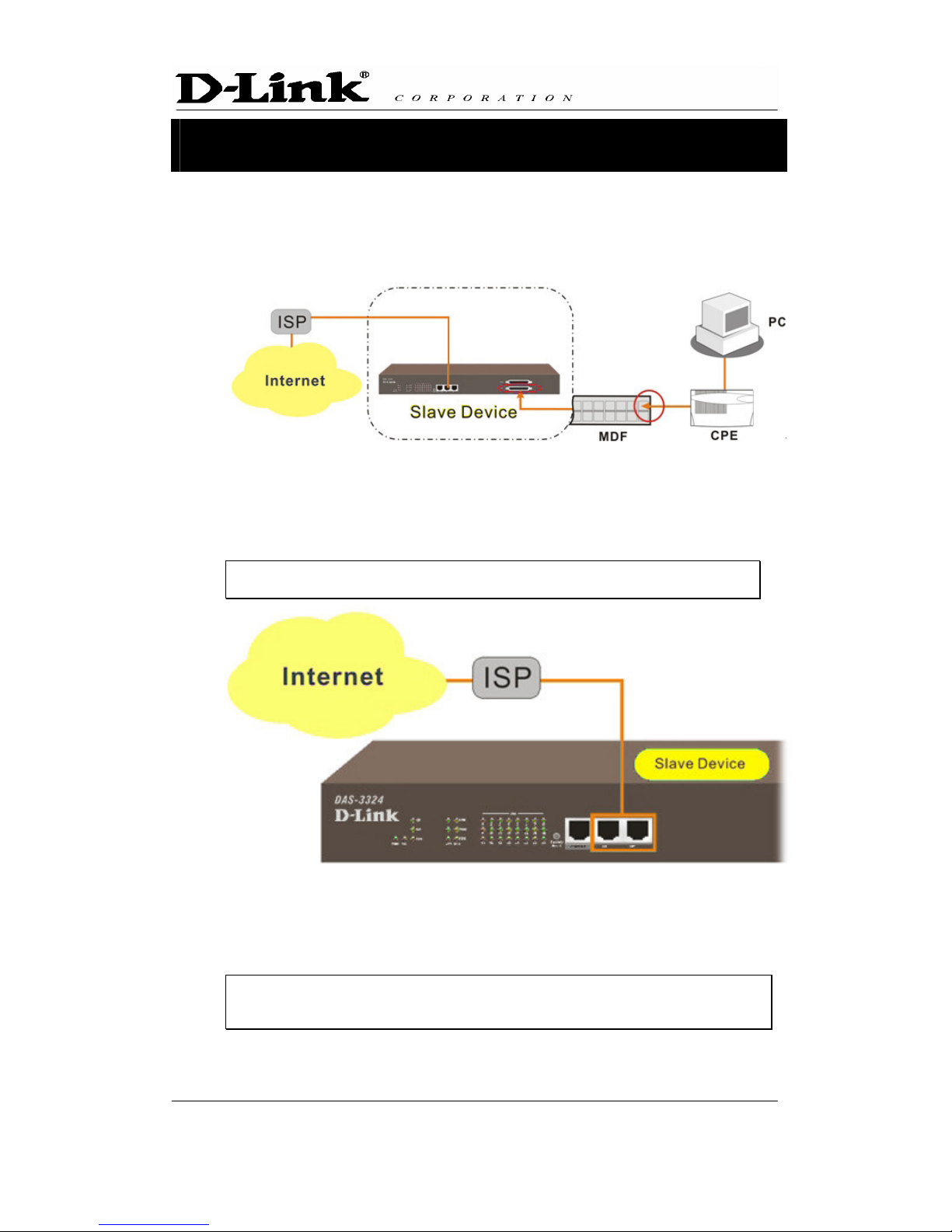

Above diagram shows the basic network topology (example) among DAS-3324 series device,
MDF, CPE (ATU-R) router and user’s computer. One thing is important – always set the
VPI/VCI value for the CPE the same as the ones configured in DAS-3324. The default
setting for VPI/VCI of IP DSLAM is 8/35. By the way, the values for these devices can be
changed (yet must match with CPE) if necessary. Please finish all the connections according
to the real situation of the environment for the devices.
Note: For DAS-3324 device, please use UP1or UP2 to access Internet with Ethernet
cable.

M
Ma an na ag ge em me en nt t f fo or r D DA AS S- -3 33 32 24 4
If users want to configure or monitor the devices, there are some methods provided here to
utilize. The UP/UP1/UP2 port on the DAS-3324 device allows you to make control remotely;
yet the Console port on the device only allows you to make control locally.
Note: If you are not used to configure the settings with terminal emulator software or
Telnet commands, you can use EMS (SNMP-based) software to manage these devices.
For the detailed information, please contact your dealer.
DAS-3324 can be managed via Console or Uplink Ports. It depends on your necessity.

D-Link Confidential 2

P
Po or rt t C Co on nn ne ec ct ti io on n f fo or r M Ma an na ag ge em me en nt t

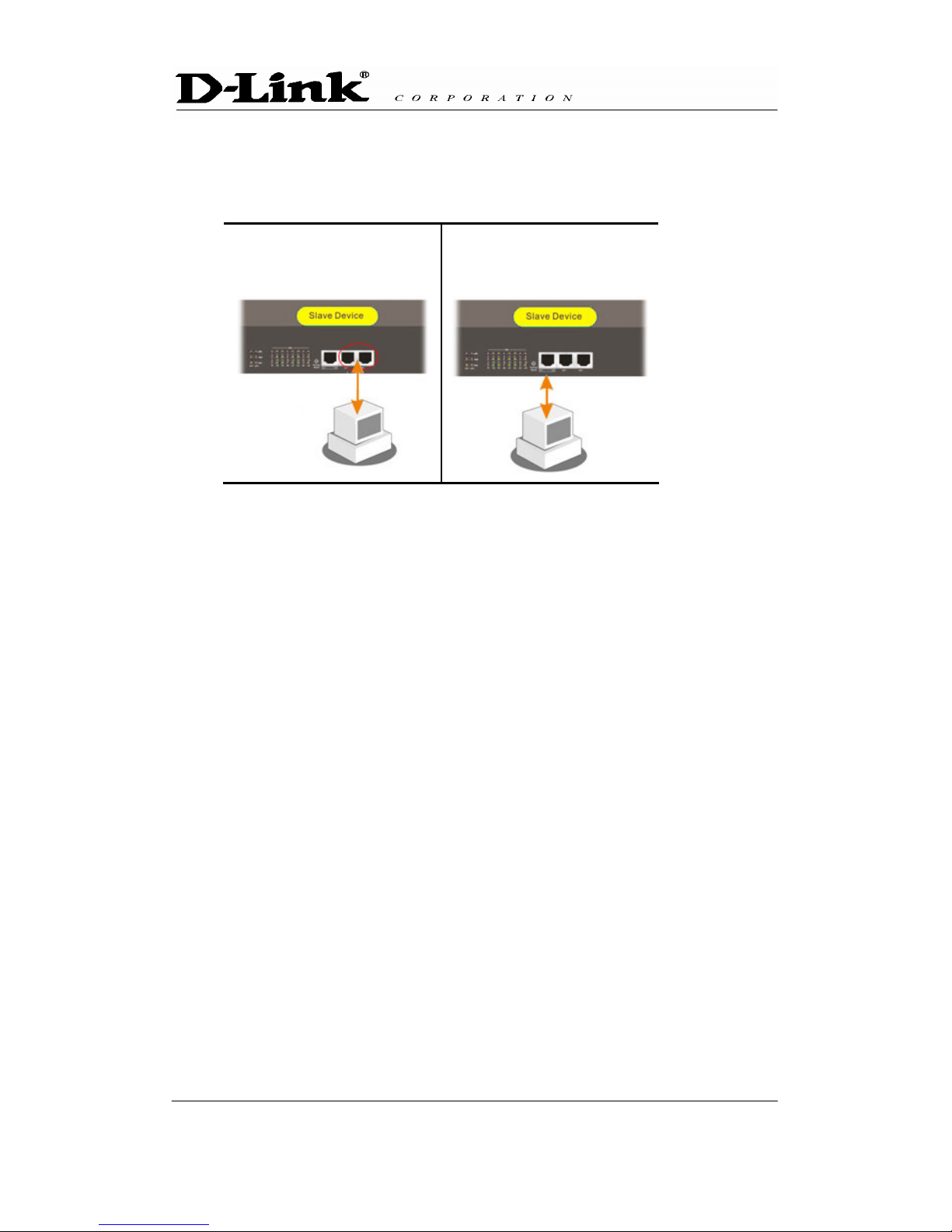

No matter what tool you would like to use for managing DAS-3324 device, the first thing
you have to do is making correct port connection.
Connect to a PC through UP port.
It is useful for controlling the
device remotely.
Connect to a PC through
CONSOLE port. It is useful for
controlling the device locally.

D-Link Confidential 3

C
Co on nf fi ig gu ur ra at ti io on n b by y U Us si in ng g T Te er rm mi in na al l E Em mu ul la at to or r S So of ft tw wa ar re e
How to Login with a Terminal Emulator Software
1.The default setting is “baud rate 9600, no parity, and 8
bit with 1 stop bit (N,8,1)”.
2.Use any terminal emulator software for executing
commands.
Username – admin;
Password - 1234

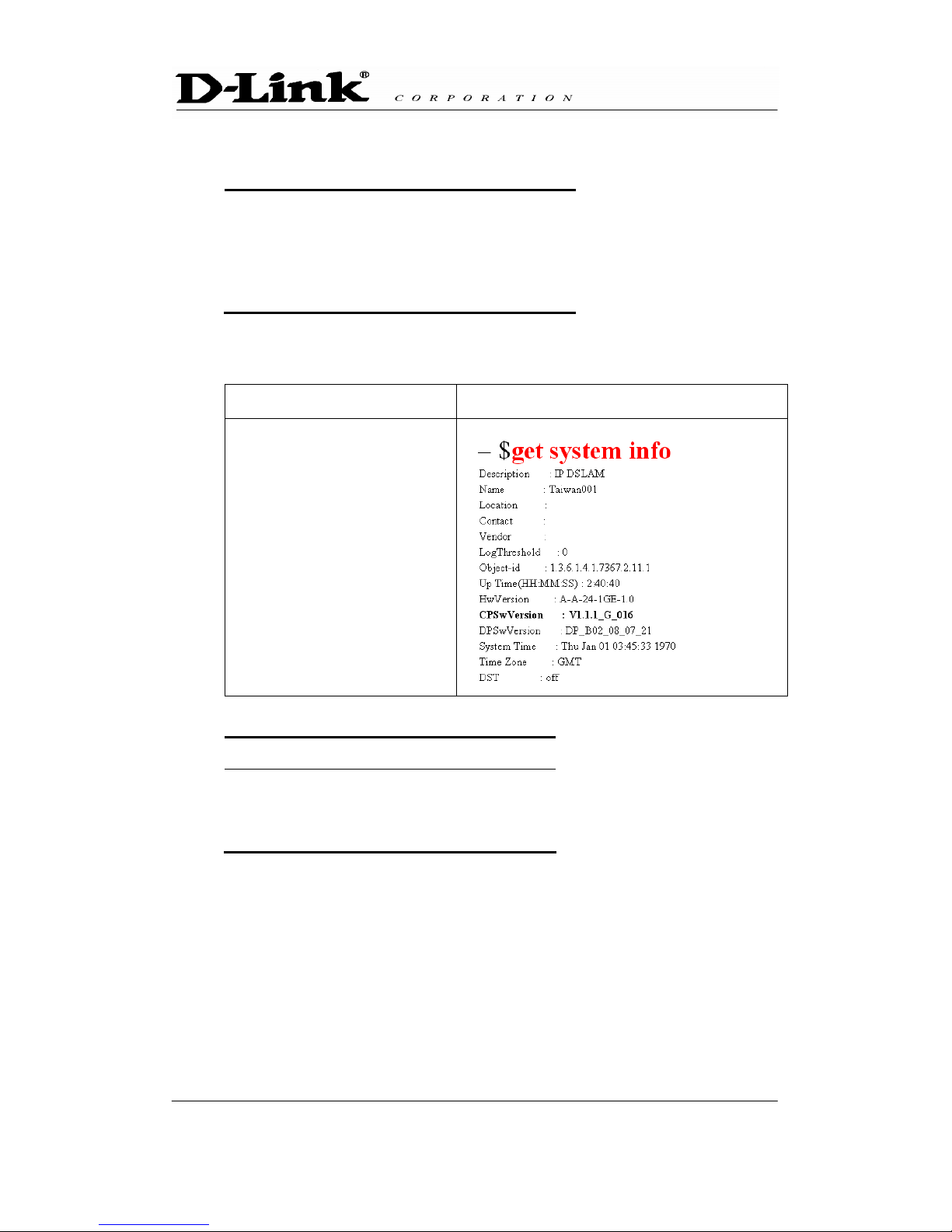

How to Check the Version Information
To display the DSL module
information inside the device
The results
1. Login the specified DSL
module.
2. Type the following command to
get the DSL module information
- $get system info
You will get the following results:
How to Save the Configuration
To save the configuration for the DSL module
Type the following command to save the
configuration. Next time, the saved configuration will
be invoked after powering on the device.
- $commit

D-Link Confidential 4

C
Co on nf fi ig gu ur ra at ti io on n b by y U Us si in ng g T Te el ln ne et t
To use Telnet for managing DAS-3324 device, refer to the following sections.
Default IP Settings for Slave Device
Proprietary DHCP is configured on UPLINK port in
the device by default. The IP address will be assigned
automatically when it connects to the DHCP server.
How to Configure IP Address for Slave-Standalone Device
There are two types of DAS-3324 device that user might have. One is the device with two fast-ethernet
interface version; the other is the device with one gigabit-ethernet interface version.
For two fast-ethernet interface version, please set as the following
- $aggr intf ifname aggr-0 ip <new-ip> mask <mask> usedhcp false
For one gigabit-ethernet interface version, please set as the following
- $ethernet intf ifname eth-0 ip <new-ip> mask <mask> usedhcp false
How to Login with Telnet
1.Make sure the device IP has been configured well.
2.Make sure the connection of UPLINK port is well
done.
3.Open Telnet command screen.
4.Username/Password
- admin/1234 (type ‘exit’ to return)
Now, please use Telnet commands to manage the DAS-3324 device for your necessity.

D-Link Confidential 5

R
Re ef fe er re en nc ce e – – C Co om mm mo on n U Us se e C Co om mm ma an nd ds s f fo or r C Co on nf fi ig gu ur ra at ti io on n
Here provides some general and common commands used in IP DSLAM for users to
configure the IP DSLAM DSL Module.
Note: Please refer to the Command Line Interface manual for getting more commands
that IP DSLAM supports. Contact your dealer for advanced information.
How to Monitor DSL Status
Users can use the following command to check the status for specified DSL port. The commands are listed as
below.
Command Description
$get adsl atuc physical ifname dsl-*
for downstream (*: 0 ~ 23)
$get adsl atur physical ifname dsl-*
for upstream (*: 0 ~ 23)
How to Enable/Disable a DSL Port
Users can use the following command to enable or disable DSL port for certain user. The commands are
listed as below.
Command Description
$modify adsl line intf ifname dsl-* enable
Enable (*: 0 ~ 23)
$modify adsl line intf ifname dsl-* disable
Disable (*: 0 ~ 23)
How to Read DSL Training Rate
Users can use the following command to read DSL Training Rate for specified DSL port. The commands are
listed as below.
Command Description
$get adsl atuc channel ifname dsli-*
for downstream/interleave channel (*: 0 ~ 23)
$get adsl atur channel ifname dslf-*
for upstream/fast channel (*: 0 ~ 23)
$get adsl atuc channel ifname dsli-*
for downstream/interleave channel (*: 0 ~ 23)
$get adsl atur channel ifname dslf-*
for upstream/fast channel (*: 0 ~ 23)








D-Link Confidential 6
How to Change ADSL Line Profile
Users can use the following command to change the ADSL Line Profile for specified DSL port. The
commands are listed as below.
Command Description
$modify adsl line intf ifname dsl-* disable
Disable (*: 0 ~ 23)
$modify adsl line profile ifname dsl-* ?
(*: 0 ~ 23, ?: means to get more information)
$modify adsl line intf ifname dsl-* enable
Enable (*: 0 ~ 23)
How to Change ADSL Line Rate
Users can use the following command to change the ADSL Line Rate for specified DSL port. The commands
are listed as below.
Command Description
$modify adsl line intf ifname dsl-* disable
Disable (*: 0 ~ 23)
$modify adsl line profile ifname dsl-*
atucintlmaxtxrate 0x7e0000
Necessary variables (*: 0 ~ 23)
$modify adsl line intf ifname dsl-* enable
Enable (*: 0 ~ 23)
How to Change ADSL to Fast Channel/Rate
Users can use the following command to change the ADSL to fast channel/rate for specified DSL port. The
commands are listed as below.
Command Description
$modify adsl line intf ifname dsl-* disable
Disable (*: 0 ~ 23)
$modify adsl line profile ifname dsl-
* type
fastOnly atucfastmaxtxrate 0x7e0000
Necessary variables (*: 0 ~ 23)
$modify adsl line intf ifname dsl-* enable
Enable (*: 0 ~ 23)










D-Link Confidential 7
How to Set ADSL Alarm Profile
Users can use the following command to change the ADSLAlarm profile for specified DSL port. The
commands are listed as below.
Command Description
$modify adsl line intf ifname dsl-* disable
Disable (*: 0 ~ 23)
$modify adsl alarm profile ifname dsl-* ?
(*: 0 ~ 23, ?: means to get more information)
$modify adsl line intf ifname dsl-* enable
Enable (*: 0 ~ 23)
How to Change VPI/VCI for Existing VCC
Users can use the following command to change VPI/VCI for existing VCC. The commands are listed as
below.
Command Description
$modify atm vc intf ifname aal5-* disable
Disable (*: Existing aal5 interface)
$modify atm vc intf ifname aal5-* vpi
<new-vpi> vci <new-vci>
(*: Existing aal5 interface)
$modify atm vc intf ifname aal5-* enable
Enable (*: Existing aal5 interface)
How to Change Management IP Address for Existing Ethernet
Port
Users can use the following command to change management IP address for existing Ethernet port. The
commands are listed as below.
Command Description
$modify aggr intf ifname aggr-0 ip <new-
ip>
mask <new-mask>
Aggregation Ethernet
$modify ethernet intf ifname eth-* ip
<new-ip> mask <new-mask>
Non-Aggregation Ethernet
(*: 0 or 1)
How to Create more VC/EOA/Bridge
Users can use the following command to create more VC/EOA/Bridge. The commands are listed as below.
Command Description
$create atm vc intf ifname aal5-
* vpi <vpi>
vci <vci> lowif atm-* [vcmux/llcmux]
[fast/interleaved]
(*:0 ~ 23 is used for atm; 0~191 is used for aal5)
$create eoa intf ifname eoa-* lowif aal5-*
(*:0~191 is used for aal5 and eoa)
$create bridge port intf portid
<bridge-port-id> ifname eoa-*
(*:0~191 is used for eoa,; 1~192 is used for
<bridge-port-id>)

D-Link Confidential 8

How to Setup SNMP Community/Host/Trap
Users can use the following command to setup SNMP community/host/trap. The commands are listed as
below.
Command Description
$create snmp comm community <community>
<RW|RO>
Create SNMP community
$create snmp host ip <host-
ip> community
<community>
Create a host to manage the device through SNMP
$create snmp traphost ip <host-ip>
community <community>
Create a host to capture the traps.
How to Create VLAN
Users can use the following command to create VLAN. The commands are listed as below.
Command Description
$create vlan static vlanname <vlan-
name>
valnid <vlan-id> [egressports <bridge
ports>]
Create VLAN

D-Link Confidential 9
How to Setup Port VLAN ID (PVID)
Users can use the following command to setup port VLAN ID. The commands are listed as below.
Command Description
$modify gvrp port info portid
<bridge-port-id> portvalnid
<default-pvid>
Setup port VLAN ID
How to Filter MAC Address by Port
Users can use the following command to filter MAC address by port. The commands are listed as below.
Command Description
$create acl port macentry portId
<bridge-port-id> macaddr
00:00:00:01:02:03
Allow source address 00:00:00:01:02:03 access from
bridge port; bridge-port-id means other source
addresses from bridge port <bridge-port-id> are
denied
$create acl port macentry portId
<bridge-port-id> macaddr
00:00:00:01:02:04
Allow source address 00:00:00:01:02:04 access from
bridge port; bridge-port-id means other source
addresses from bridge port <bridge-port-id> are
denied
How to Deny MAC Address Globally
Users can use the following command to deny MAC Address globally. The commands are listed as below.
Command Description
$create acl global macentry macaddr
00:00:00:01:02:03 deny enable
Mac source address 00:00:00:01:02:03,04 access
from any bridge ports is denied
How to Filter Net BIOS
Users can use the following command to filter Net BIOS. The commands are listed as below.
Command Description
$create filter rule entry ruleid <id>
action drop description NETBIOS-TCP
$create filter subrule tcp ruleid <id>
subruleid 1 srcportfrom 137 srcportto 139
srcportcmp inrange
$modify filter rule entry ruleid <id>
status enable
$create filter rule map ifname all
ruleid
<id> stageid 1
$create filter rule entry ruleid <id2>
action drop description NETBIOS-UDP
$create filter subrule udp ruleid <id2>
NETBIOS-NS: Name Service137 TCP/UDP
NETBIOS-DGM: Datagram Service 138 TCP/UDP
NETBIOS-SSN: Session Service 139 TCP/UDP

D-Link Confidential 10
subruleid 1 srcportfrom 137 sr
cportto 139
srcportcmp inrange
$modify filter rule entry ruleid <id2>
status enable
$create filter rule map ifname all ruleid
<id2> stageid 1
How to Enable Spanning Tree Protocol
Users can use the following command to enable spanning tree protocol. The commands are listed as below.
Command Description
$modify stp info enable
Enable STP globally
$modify stp port info portid
<bridge-port-id> enable
Bridge port id: 1~193
$get stp port info portid <bridge-port-id>
How to Enable IGMP Snooping
Users can use the following command to enable IGMP snooping. The commands are listed as below. Be
aware that IGMP Snooping is the Factory Default Setting.
Command Description
$create filter rule entry ruleid <id>
action sendtocontrol description IGMP
$create filter subrule ip ruleid <id>
subruleid 1
prototypefrom 2 prototypecmp
eq
$modify filter rule entry ruleid <id>
status enable
$create filter r
ule map ifname all ruleid
<id> stageid 1
$modify igmpsnoop cfg info status enable
$modify igmpsnoop port info portid
<bridge-port-id> status enable
leavemode
fastNormal
or
$modify igmpsnoop port info portid
<bridge-port-id> status enable
leavemode
Fast
The feature is enabled in default.
How to Upgrade Control Plane Code Remotely
Users can use the following command to remotely upgrade control plane code. Make sure you have prepared
TFTP server, vendor supplied CP.bin.gz , and put CP.bin.gz into root directory of TFTP server. The
commands are listed as below.
Command Description

D-Link Confidential 11
$firmware upgrade CP.bin.gz CP
<tftp-server-ip>
Upgrade the control plane code
How to Upgrade Full Image Remotely
Users can use the following command to remotely upgrade full image. Make sure you have prepared TFTP
server, vendor supplied TEImage.bin.gz, and put TEImage.bin.gz into root directory of TFTP server. The
commands are listed as below.
Command Description
$reboot config safe
Reboot from Safe mode
$create ethernet intf ifname eth-0 ip <ip_address> mask <mask>
$download src TEImage.bin.gz dest /nvram/TEImage.bin ip <server_ip>
(or $download src TEImage.bin.gz dest /nvram/image/ ip <server_ip> for version 2.10.x and
onwards)
Downloading the File.
...........................................................
Download file size is 1991180
Check if TEImage.bin shall uncompress
Uncompressing "TEImage.bin.gz" (11990111->4194304)......
TEImage.bin.gz is in proper format
Unlocking Flash........
Unlock successful
Erasing Flash ........................................
Erasing successful
Starting to Uncompress TEImage.bin.gz and Burn Flash
Uncompressing "TEImage.bin.gz" (1990111->4194304)......
#########################
Flash Programmed successfully
Done.
Download session Completed, Bytes received 1991180...
$
$reboot Reboot from Default mode
Wizard Commands
In addition to the primitive commands described as above. Several wizard commands are provided which is
used easily. Type wizard to see the command syntax.
Command Description

D-Link Confidential 12
$ wizard
<List of Wizard Commands>
---------------------------------------------------------------
dsl show [fast]
alarm show
pvc show
pvc create <dsl: 1~24> <vc: 1~8> <vpi> <vci> [<llcmux|vcmux>] [<interleaved|fast>]
pvc delete <dsl: 1~24> <vc: 1~8>
bridge delete <bridge id: 1~193>
tca show <acked>
critical show <acked>
firmware upgrade [-]<source file> <CP|DP|FD|DSL> <server ip>
fd show
port <disable|enable|restart> <dsl: 1~24>
config backup <filename> <server ip>
config restore <filename> <server ip>
---------------------------------------------------------
dsl show [fast]
Display all the 24 ports DSL status
firmware upgrade
Upgrade firmware without removing the existing one
in advance
config backup/restore
Backup or restore the current configuration
