D-Link DKVM-8 User manual

DKVM-8
Keyboard, Mouse & Monitor
Switch
User’s Manual

TABLE OF CONTENTS
CHAPTER 1INTRODUCTION 1
1.1 SPECIFICATION 2
1.2 PACKING CHECK LIST 3
CHAPTER 2INSTALLATION 4
2.1 PRODUCT DETAIL 4
2.2 SINGLE UNIT OR DAISY-CHAIN OPERATION 5
2.3 HARDWARE INSTALLATION 6
2.4 DAISY-CHAIN 10
CHAPTER 3OPERATION 12
CHAPTER 4TROUBLE SHOOTING 17

~ 1~
INTRODUCTION
The DKVM-8 gives you the ultimate in control of 8 PCs from one keyboard, mouse and
monitor. To expand control ability, the DB-25 Daisy-Chain allows sixteen DKVM-8 stack
up for control 128 PCs from one keyboard, mouse and monitor. OSD (On-Screen Display)
menu provides human friendly interface for naming each PCs and selecting one of them.
Feature
lAllows a user to control eight computers from one keyboard, mouse and monitor
lNo software required, each channel contains a microprocessor emulation to
intelligently manage the boot-up process for all your attached PCs boot-up
transparently and simultaneously.
lDB-25 Daisy-Chain ports allows control over as many as 128 computers through 16
banks of DKVM-8 units
lOn-Screen Display menu gives the user a visual interface to naming and selecting
computers
lOn-Screen Display, push button or keyboard “Hot Key” commands switching
lAutoScan mode for even more convenience
lAudible feedback when switching
lRecalls CAPS LOCK, NUM LOCK and SCROLL LOCK keys’ status for each
computer automatically
lSupports VGA, SVGA and MultiSync monitors
lUp to 1600 x 1200 resolution support
lIntegrated mouse conversion technology allows connection of AT type computers
that have serial mouse ports while using a PS/2 mouse only at console
lKeyboard and mouse emulation for error-free boot ups
lMicrosoft®IntellMouse®support and emulation
lSupports both AT and PS/2 type keyboards (AT requires AT -PS/2 adapter)
lUser inexpensive and commonly found standard cables
lStatus LEDs on front panel
CHAPTER 1.

INTRODUCTION
~ 2~
1.1 SPECIFICATION
qComputer Connections :8
qPort LEDs :8
qBank 7-segment LED :1
qPort 7-segmentLED :1
qKeyboard :6-pin Mini-DIN
qMouse :6-pin Mini-DIN
qMonitor :15-pin HD DB type
qCascade :25-pinD-Sub
qCascadePort :1
qOn Screen Display :Yes
q19” Rack Mount :Yes
qCascade(Level) :16
qMax. Access PCs :128
qManual Selection :Push Button
qHot Key :Yes
qSwitching Confirmation :Buzzer
qKeyboard state :SavedandRestored
qKeyboard :PS/2
qMouse :PS/2
qMonitor :VGA, SVGA, XGA, MultiSync
qDisplay Data Channel :DDC1, DDC2B, DDC2AB
qResolution :1600 x 1200
qBandwidth :180M Hz
qEnclosure :Metal
qStorage (Celsius) :0 ~ 70
qDimension (LxWxH cm) :44.1 x 18.45 x 7.25
qWeight (g) :2950
qPowerSupply :18W, Universal AC input

INTRODUCTION
~ 3~
1.2 PACKING CHECK LIST
Before you begin to install your DKVM-8, please make sure that you received the
following materials as listedbelow:
Item Qty Remark
DKVM-81 pcs. Keyboard, mouse & monitor switch
Mouse adapter cable 4 pcs. DB-9 to 6-pin Mini-DIN
Daisy-chain cable 1 pcs. DB-25 to DB-25
Power cord 1 pcs. AC inlet power cable
User’s Manual 1 pcs. This manual
Quicklnstallation Guide 1 pcs.
Rack mount bracket 2 pcs. For Rack Mounting
Screw 10 pcs. M3, fasten rack mount brackets
Rubber foot 4 pcs.
K/V/M 3 in 1 cable 2sets One set of Cable for Keyboard, Mouse, Monitor

~ 4~
INSTALLATION

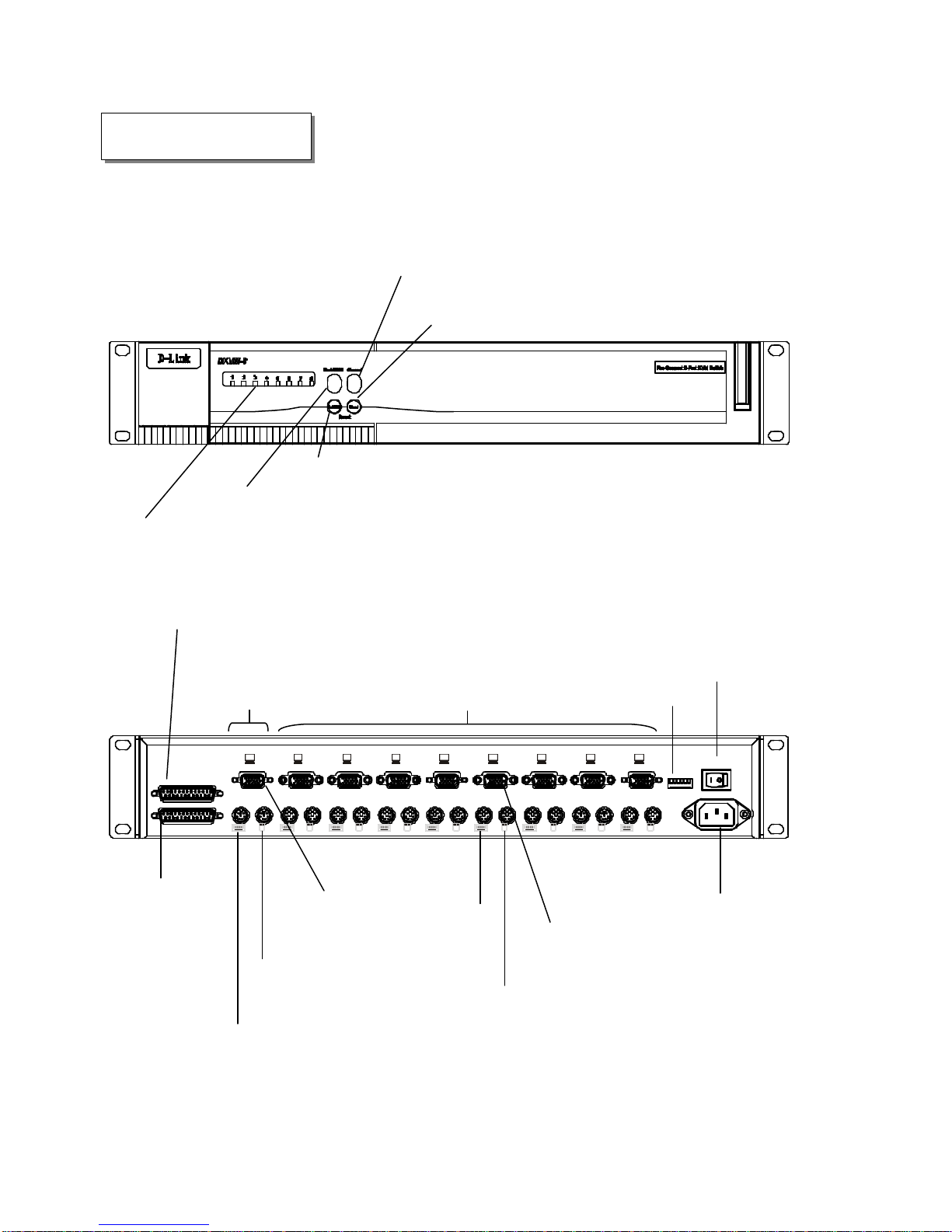

2.1 PRODUCT DETAIL
Front Panel
Rear Panel
Slave Input
Master Input
Slave Output
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
123456
CHAPTER 2.
Current Active Port Display
Current Active Bank Display
Bank Select / Scan Button
PortSelectButton
Current Active Port Displays
CONSOLE
connectors PC PORT
connectors
Slave input DB-25 Daisy-chain port
VGA monitor
connector
PS/2 mouse
connector
PS/2 keyboard
connector
Master input /
Slave output
DB-25
Daisy-chainport
DIP-switch
Power switch
Keyboard
output
PS/2 mouse
output
VGA signal
output
AC power jack

INSTALLATION
~ 5~

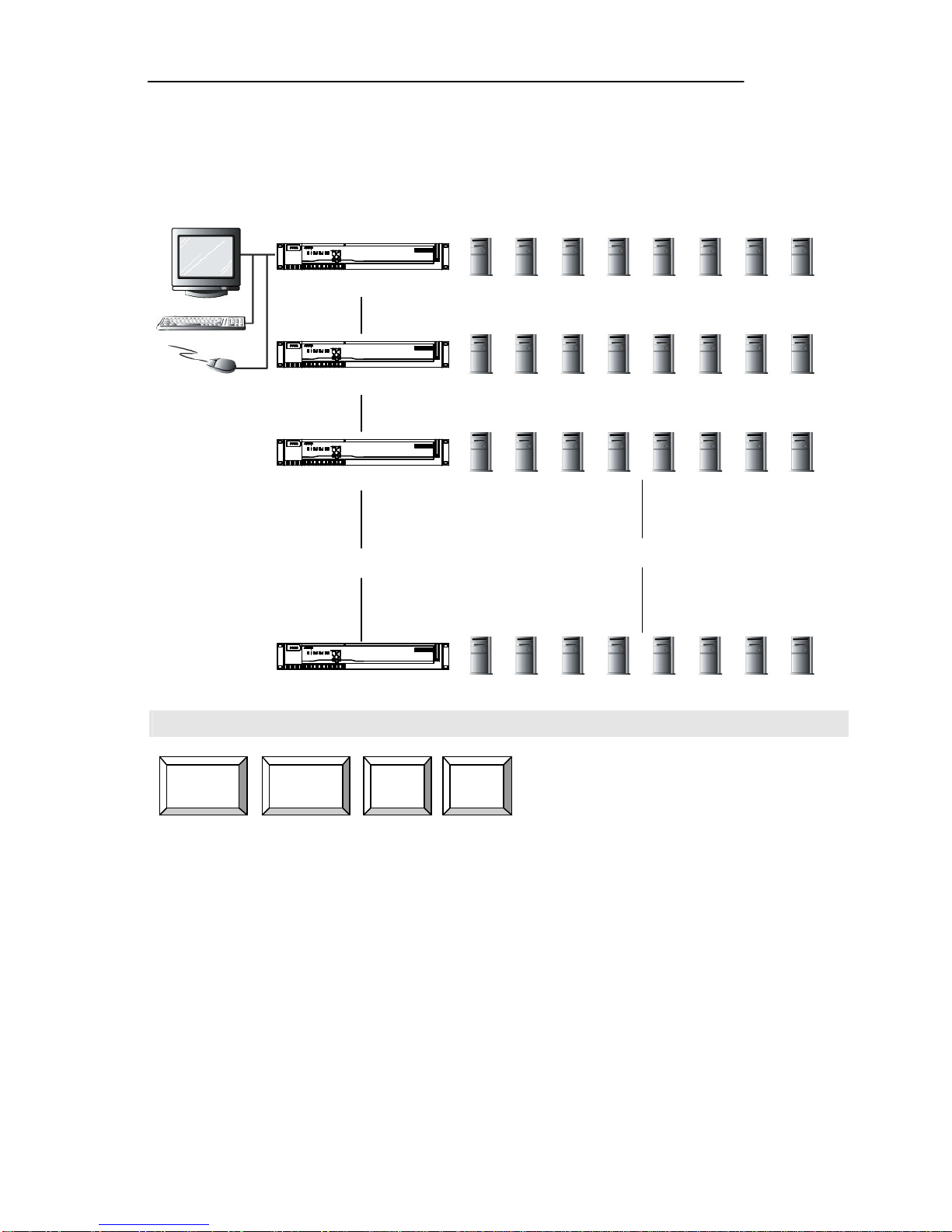

2.2 SINGLE UNIT OR DAISY-CHAIN OPERATION
DKVM-8 has the capability to be Daisy-Chained to 15 more units (for a total of 16), giving
the user control over a maximum of 128 computers.
Each DKVM-8 unit is defined as a “BANK”. See the following diagram for more
information. BANK numbers range from 0 to F (Hexadecimal), for a total of 16 banks.
BANK 0 is the MASTER bank while BANK 1 through F areSLAVE banks. The MASTER
bank is the unit that connects to the console keyboard, mouse and monitor.
The DIP-switch on the rear panel must be set correctly for proper identification and usage.
See the next section for the actual settings. If you are using DKVM-8 in a single unit
configuration, it must be set as the MASTER (BANK 0). If it is to be used as a
SLAVE unit, then it must be set to any unused unique bank number from 1 through
F.
13245678
Bank 0 (Master)
91110 12 13 14 15 16
Bank 1 (Slave)
17 1918 20 21 22 23 24
Bank 2 (Slave)
121 123122 124 125 126 127 128
Bank F (Slave)
etc… etc…
CONSOLE
Keyboard,
mouse and
monitor

INSTALLATION
~ 6~
2.3 HARDWARE INSTALLATION
Step 1
Set the DIP-switch for Auto-scan Interval and BANK Address. If you have only one
DKVM-8, use the MASTER bank setting. If the DKVM-8 you are using will be
Daisy-Chained off another unit, use a unique slave setting. Please refer to the previous
section for more information. (NOTE: DIP-Switch No. 1 and 2 are reserved, default
setting is “ON”.)
DIP-Switch NO.
345BANK Address
ON ON ON BANK 0 MASTER
OFF ON ON BANK 1 SLAVE
ON OFF ON BANK 2 SLAVE
OFF OFF ON BANK 3 SLAVE
ON ON ON BANK 4 SLAVE
OFF ON ON BANK 5 SLAVE
ON OFF ON BANK 6 SLAVE
OFF OFF ON BANK 7 SLAVE
ON ON OFFBANK 8 SLAVE
OFF ON OFF BANK 9 SLAVE
ON OFF OFF BANK A SLAVE
OFF OFF OFF BANK B SLAVE
ON ON OFF BANK C SLAVE
OFF ON OFF BANK D SLAVE
ON OFF OFF BANK E SLAVE
OFF OFF OFF BANK F SLAVE
NOTE: “ON” is down
WARNING!
Before attempting to connect anything to the
DKVM-
8 or the computers, make sure everything
is powered off. Otherwise, plugging
and
unplugging cables may cause irreversible damage
to your computers and the DKVM-8.

INSTALLATION
~ 7~

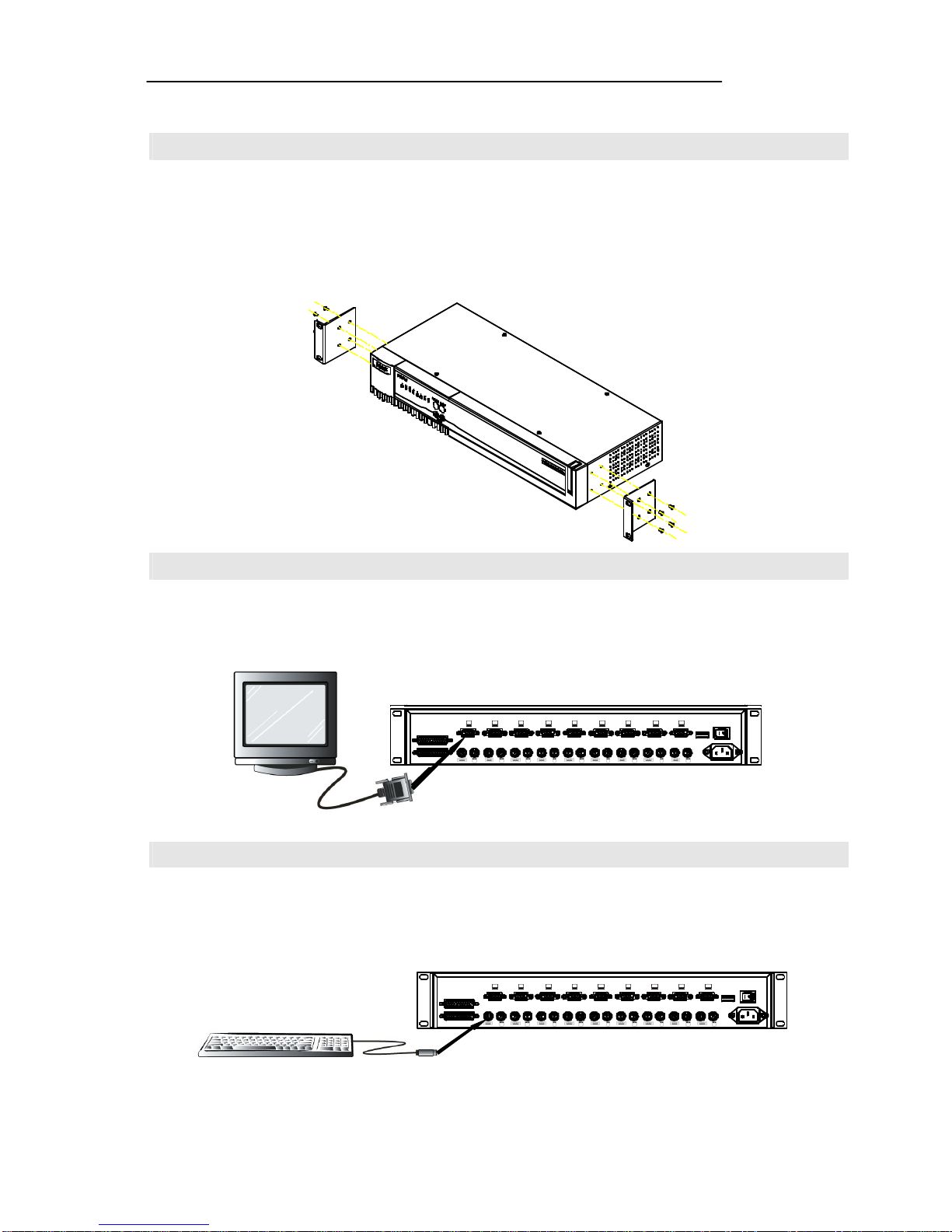

Step 2
Find a convenient place to put your DKVM-8. Its 19” rack mount form factor makes it
ideal mountable on 19” rack. When mounting to a rack, attach the included brackets to
the sides of the DKVM-8. Take note of the length of your cables so that your computers,
DKVM-8, keyboard, mouse and monitor are distanced properly.
Step 3
Connect the monitor to the DKVM-8. Using the attached cable, or the one included with
your monitor, connect it to the HD DB-15 female port on the back of the DKVM-8 labeled
with the monitor symbol at the CONSOLEconnector.
Step 4
Connect the keyboard and mouse to the DKVM-8. If you have an AT type keyboard, you
will need an AT to PS/2 adapter.
SlaveInput
Master Input
Slave Output
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
12 3 45 6
SlaveInput
Master Input
Slave Output
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
12 3 45 6
Slave Input
MasterInput
SlaveOutput
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON/OFF
ACLINE 90-240 VACSW
ON
1 23 4 56

INSTALLATION
~ 8~

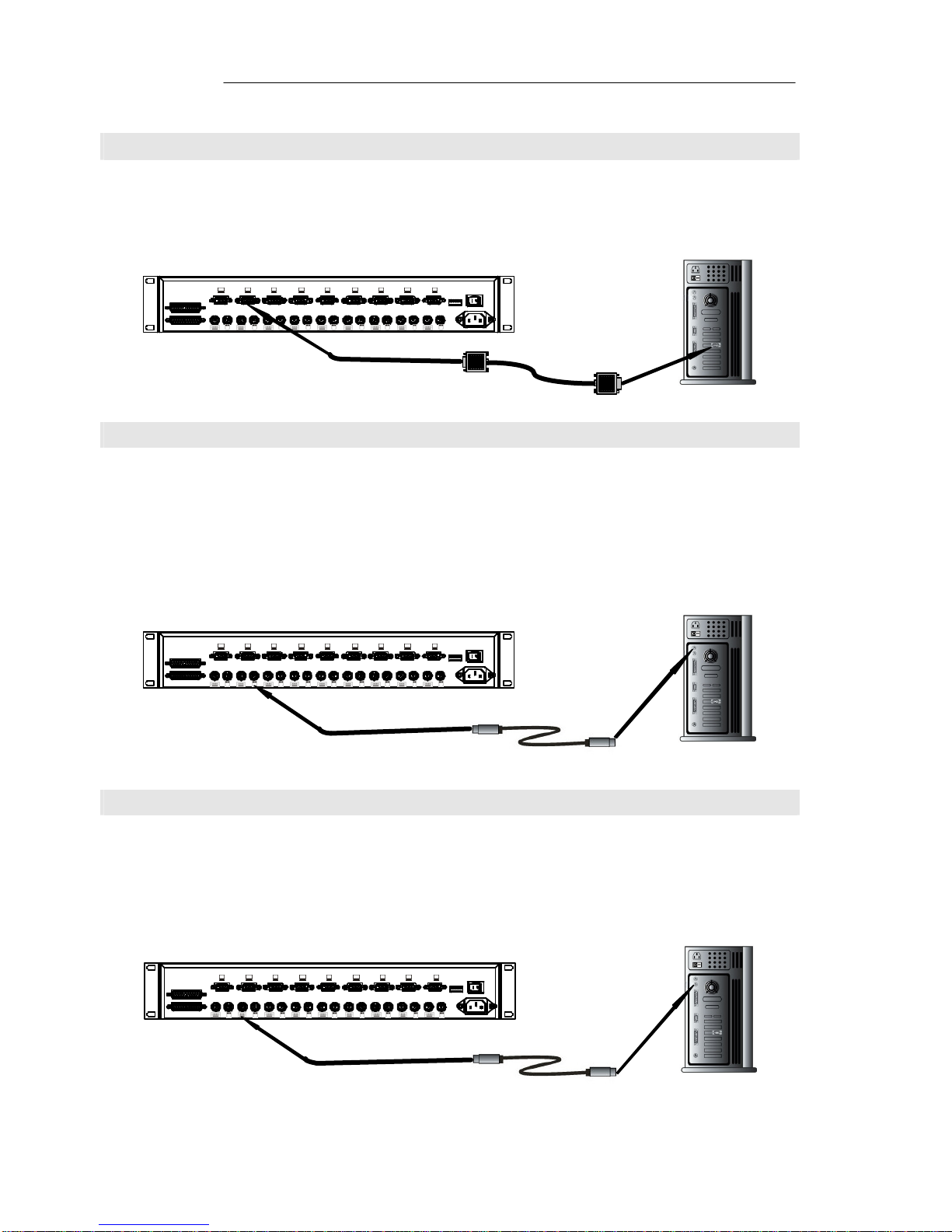

Step 5
Connect the first computer’s VGA cable to the DKVM-8. Using the VGA cable connect
the male end of the cable to the VGA port on the computer, and the female end on the
PC1 VGA port at the back of DKVM-8.
Step 6
Connect the first computer’s mouse cable to the DKVM-8. If using a PS/2 cable connect
one end to the PS/2 mouse port on the computer, and the other end to the PC1 PS/2
mouse port on the back of DKVM-8. If using a serial mouse cable connect one end to a
DB-9 serial port on the computer, and the other end to the PC1 DB-9 serial mouse port
on the back of the DKVM-8.
Step 7
Connect the first computer’s keyboard cable to the DKVM-8. Using another PS/2 cable
connect one end to PS/2 keyboard port on the computer, and the other end to the PC1
keyboard port on the back of DKVM-8. If your computer has an AT type keyboard port,
you will need a PS/2 to AT keyboard adapter.
SlaveInput
Master Input
Slave Output
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
12 3 45 6
Back of PC
SlaveInput
Master Input
Slave Output
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
12 3 45 6
Back of PC
SlaveInput
Master Input
Slave Output
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
12 3 45 6
Back of PC

INSTALLATION
~ 9~
Step 8
Double-check all of the connections. Make sure the keyboard and mouse cables go to
the correct ports.
Step 9
Repeat step 5 to 7 for the remainder of the computers.
Step 10
Attach the power supply to the power jack at the back of DKVM-8. Plug this into
available AC outlet. Flip the power switch on the front panel. You should see the LED
for channel 1 on the front panel blink, and hear a beep. Power up your monitor.
Step 11
You can now power up all your computer simultaneously. The first computer will show
up on the monitor. Check to see if the keyboard, mouse and monitor work. If this is
okay, press the “Channel” button and check the functionality of the other computers. If
you findany errors, double-check all of the cable connections.
Note: Avoid pressing any keys on the keyboard or moving the mouse as the
currently selected computer is in the process of booting up. This may cause
the computer to not detect or initialize the keyboard or mouse drivers
properly.

INSTALLATION
~ 10 ~

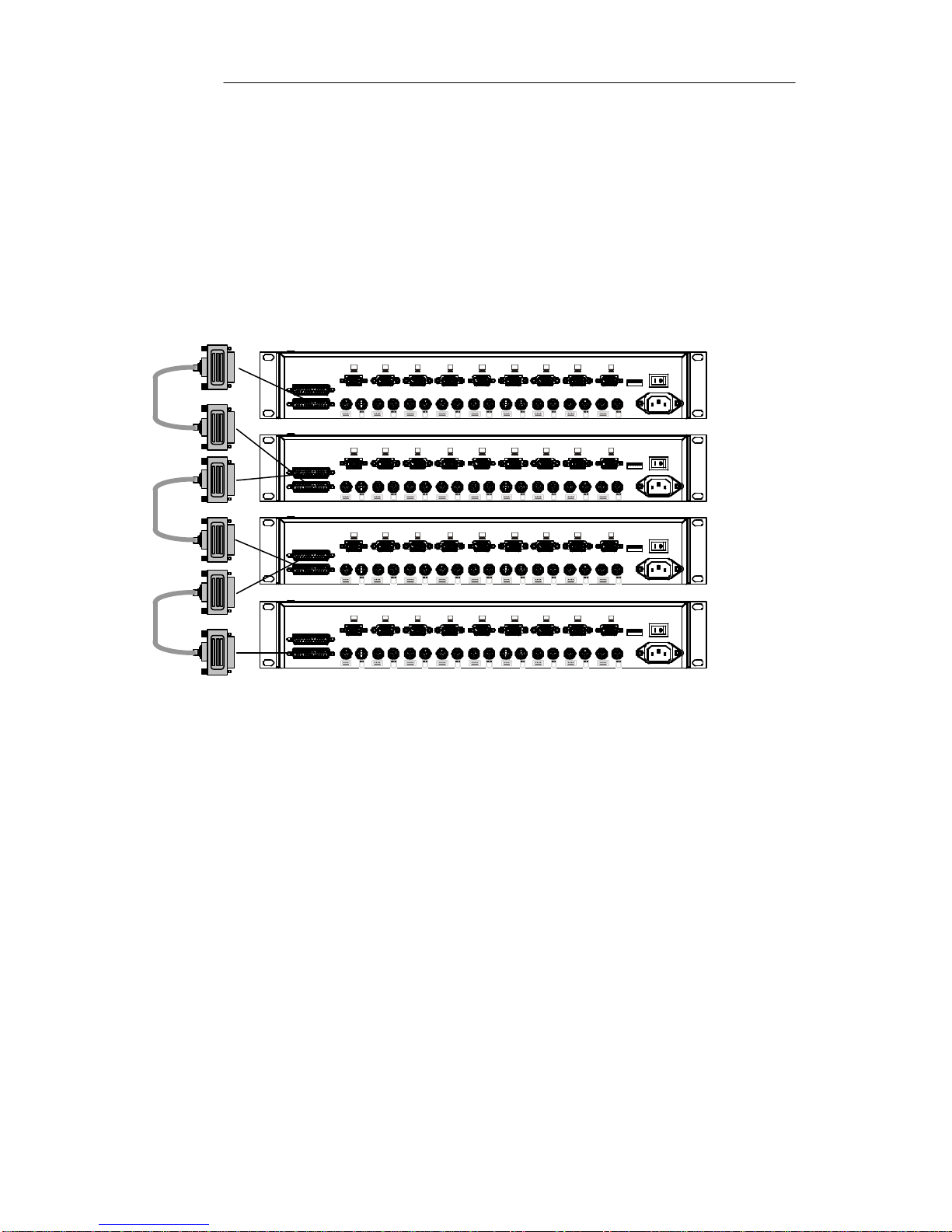

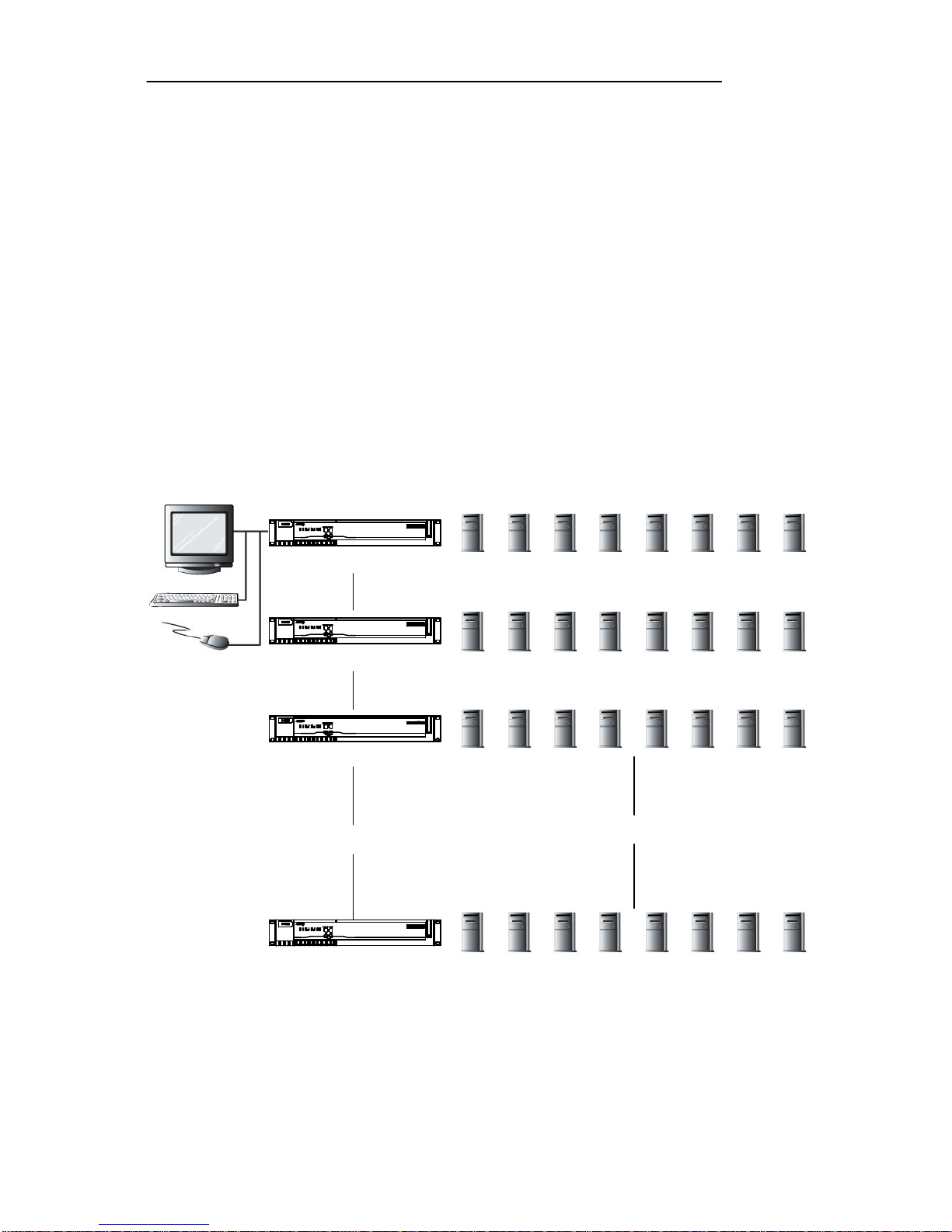

2.4 DAISY-CHAIN
The DKVM-8 can be daisy-chained with additional DKVM-8 units through the DB-25
daisy-chain ports. The daisy-chain cable is required (not included) for proper operation.
Please refer to the example below. Here, four DKVM-8 units are cascaded together for
control over 32 computers. Recall that a maximum of 16 DKVM-8 units can be cascaded
together for control over 128 computers. Recall that the DIP-switch on the MASTER unit
must be set to BANK 0, and the SLAVE units set to a unique BANK (any from 1 through
F). See the beginning of this section for more information on the DIP-switch settings.
lAfter setting the DIP-switch on the SLAVE unit, connect the computers using the same
procedure outlined in step 5 to 9 in the previous section. DO NOT POWER UP THE
COMPUTER YET.
lUsing the daisy-chain cable, connect one end to the “Master Input / Slave Output” port
of the unit. Refer to the diagram above.
nIf the previous unit is the MASTER, then the other end of the cable connects to the
“Master Input / Slave Output” port of the MASTER (such as cable 1 in the diagram
above)
nIf the previous unit is a slave, then the other end goes to the “Slave Input” port of
the previous slave unit (such as cable 2 and 3in the diagram above)
lUpon connecting the daisy-chain cable to the previous unit, it should automatically
power up if the previous unit is powered up. However, it is still recommended that the
power supply be used with the slave unit. You will see the LED display on the front
panel show the units bank address setting.
Slave Input
Master Input
SlaveOutput
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
123456 MASTER
(Bank 0)
Slave Input
Master Input
SlaveOutput
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
123456 SLAVE
(Bank 1)
Slave Input
Master Input
SlaveOutput
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
123456 SLAVE
(Bank 2)
Slave Input
Master Input
SlaveOutput
Console PC1 PC2 PC3 PC4 PC5 PC6 PC7 PC8
ON / OFF
AC LINE 90-240 VACSW
ON
123456 SLAVE
(Bank 3)
Cable 1
Cable 2
Cable 3

INSTALLATION
~ 11 ~

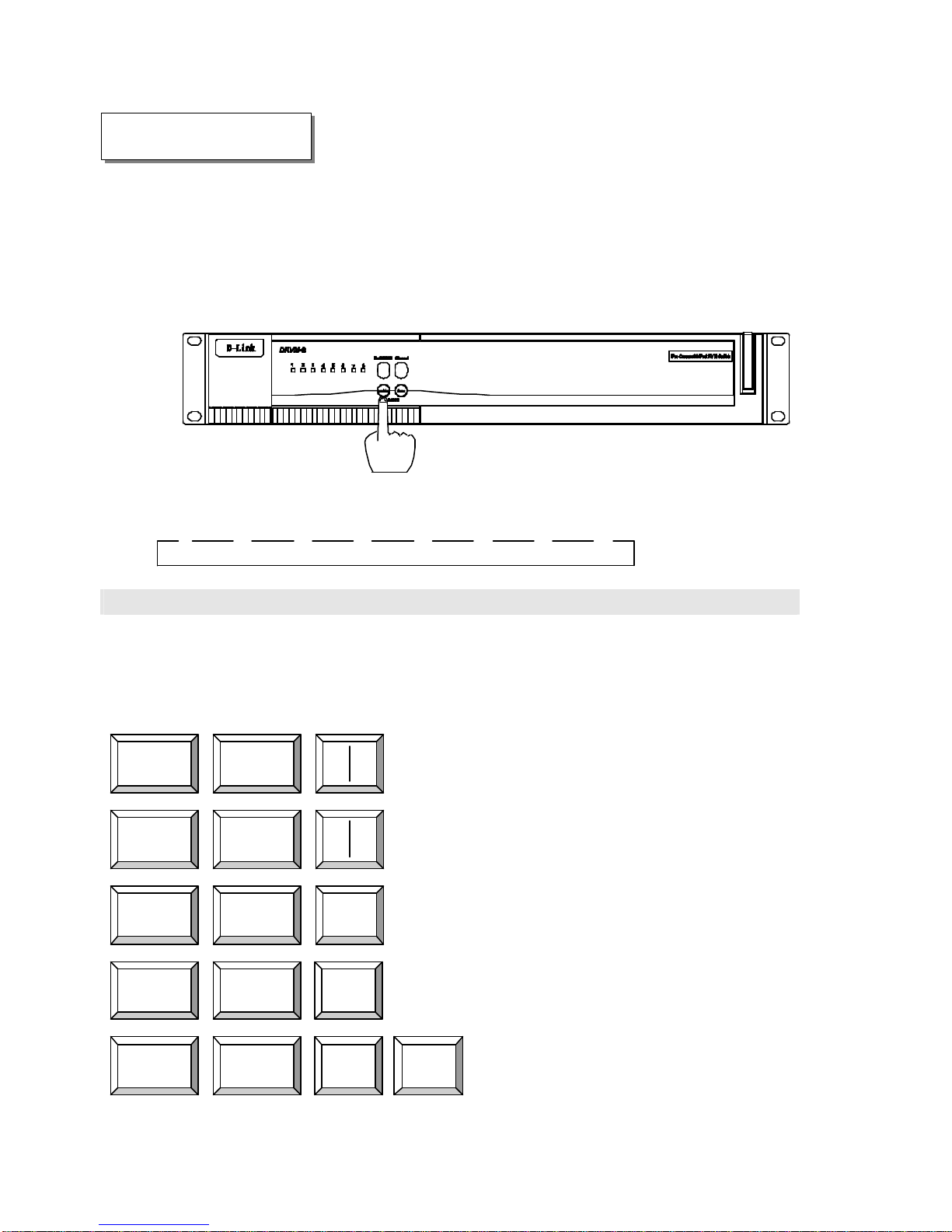

lRESET the MASTER unit by pressing the Bank/SCAN and Channel buttons
simultaneously. This is necessary for the MASTER unit to detect the newly added
slaveunit.
lVerify that the MASTER unit has detected the new slave by pressing the Bank/SCAN
button. If it detected the new slave properly, the LED display on the MASTER will
register the slave unit’s bank address. If you have many slave units, you may have to
press the Bank/SCAN button many times to cycle through all of the preexisting slave
units before reaching the newly added unit.
lNow you can power up the computers connected to the newly added salve unit. After
all the computers have booted up, you may need to RESET the MASTER unit again to
detect the presence of powered computers on the new slave unit.

~ 12 ~
OPERATION
Selecting which computer to operate can be done either by On-Screen Display, the select
button, or through keyboard “Hot Key” commands. You will notice that after the DKVM-8
switches to another computer, the mouse will be inoperative for about 1-2 seconds. This
is normal operation and ensures that proper mouse synchronization is established.
Pressing the “Channel” button cycles you through all the ports, including inactive ports.
Keyboard “Hot Key” Commands
You can also conveniently command the DKVM-8 to switch ports (channel) through
simple keyboard key sequences. To send commands to the DKVM-8, the SCROLL
LOCK key must be pressed twice within 2 seconds. You will hear a beep for
confirmation. Below are the different commands.
CHAPTER 3.
12345678
Switch to Previous Active port
(On the same BANK)
SCROLL
LOCK
SCROLL
LOCK
Switch to Next Active port
(On the same BANK)
SCROLL
LOCK
SCROLL
LOCK
Switch to Next BANK
(By default, selects first active port on that BANK)
SCROLL
LOCK
SCROLL
LOCK
Page
Down
Switch to Previous BANK
(By default, selects first active port on BANK)
SCROLL
LOCK
SCROLL
LOCK
Page
Up
Directly switches to port Y on BANK X
X=0 to F (Hexadecimal), Y=1 to 8
SCROLL
LOCK
SCROLL
LOCK
x
Y

OPERATION
~ 13 ~
You can switch directly to any channel by giving the DKVM-8 the BANK and Channel
numbers. For instance, if you press SCROLL LOCK, SCROLL LOCK, 2, 5, the computer
onchannel 5 of DKVM-8 set to BANK 2 will be selected. In the following diagram, that is
PC 21. Hence, if you only have one DKVM-8, the first key (X) must be “0”.
AutoScan Mode
In AutoScan mode, DKVM-8 remains on one channel for a number of seconds, before
switching to the next. This time interval is set in the On-Screen Display menu.
Note: There is no mouse or keyboard control in this mode. This is necessary to prevent
errors. Otherwise, if the user is moving the mouse or using the keyboard when
DKVM-8 switches to the next channel, data flow is interrupted and will cause erratic
mouse movement and / or the wrong characters to show up when using the
keyboard.
To get out of AutoScan mode, press the SPACE BAR.
Enable AutoScan mode
SCROLL
LOCK
SCROLL
LOCK
0
0
13245678
Bank 0 (Master)
91110 12 13 14 15 16
Bank 1 (Slave)
17 1918 20 21 22 23 24
Bank 2 (Slave)
121 123122 124 125 126 127 128
Bank F (Slave)
etc… etc…
CONSOLE
Keyboard,
mouse and
monitor

OPERATION
~ 14 ~
On-Screen Display Menu Control
To get into the On-Screen Display (OSD) menu, press SCROLL LOCK, SCROLL LOCK,
SPACE BAR. Immediately, the OSD overlay screen appears. This screen is generated
by the DKVM-8, and does not affect your computers or running software in anyway.
?You can navigate through the active ports by using the arrow keys. The OSD menu will
only allow you to move to active ports.
NOTE: If a computer is connected and is powered up, but the OSD menu does not
display a “®”, you will have to RESET the DKVM-8 to re-detected the powered
computers. This is done by simultaneously pressing the Bank/SCAN and
Channel buttons on the front panel.
Note: Pressing will reset the keyboard ports.
?Pressing the INSERT key allows you to rename the port. Press ENTER to complete.
NOTE: Inadvertently pressing the SCROLL LOCK, SCROLL LOCK, DELETE keys will
erase any given names on the OSD menu.
Enable On-Screen Display Menu
SCROLL
LOCK
SCROLL
LOCK
Space Bar
SCROLL
LOCK
SCROLL
LOCK
End
The main OSD screen menu
is shown on the right. It
shows the currently selected
BANK.
If you have only one
DKVM-
8, it will say “BANK
0”.
The current selected port is
shown in RED.
A “®
” indicates that the
computer connected to that
port is powered up.
D-Link DKVM-8
1. CHANNEL 1
2. CHANNEL 2
3. CHANNEL 3
4. CHANNEL 4
5. CHANNEL 5
6. CHANNEL 6
7. CHANNEL 7
8. CHANNEL 8
BANK 0
(TAB): FUNCTION/HELP
:PgUp :PgDn
®
®
®
®“®” indicates
PC is powered
Currently
selected
Port is in
Red
Currently
selected
Bank
Address

OPERATION
~ 15 ~
?Pressing the ESC key exits the current screen.
?To view a different BANK, pressing the PAGE UP keygoes to a previous BANK, while
the PAGE DOWN key brings you to the next BANK.
?Once you have selected a computer on the menu, press ENTER to switch to that port.
?Pressing the TAB key opens up the Function menu. In this menu, you can select the
SCANTIME and DISPLAY TIME.
NOTE: If there are slave units present, the SCAN TIME and DISPLAY TIME settings are
set on the MASTER unit only, and need not be set on the slave units.
The Bank/SCAN Button:
Pressing the Bank/SCAN button cycles you through all the active BANKs (if there are
slave units present) and then puts the unit in AutoScan mode. If the unit is a single
MASTER unit, pressing the button immediately invokes AutoScan mode. This is evident
by a long beep, followed by two short beeps.
SCAN TIME:
Amount of time the DKVM-
8 stays one port
before switching to the next port when in
Scan Mode
DISPLAY TIME:
Amount of time the OSD Menu or Port
Name remains displayed on-
screen after
making a port selection
SCAN TIME:
DISPLAY TIME:
7sec15sec 30sec 60sec
7sec 15sec 30sec 60sec
[ ]: SELECT
(INS): RENAME
(Enter): COMPLETE
(Esc): Exit

TROUBLE SHOOTING
~ 17 ~
TROUBLE SHOOTING
General Problems
Q : The OSD menu does not display a “®” on a channel where a computer is
connected and powered up. What do I do?
A : ?Reset the DKVM-8 by simultaneously pressing the Bank/SCAN and Channel buttons
on the front panel. Access the OSD menu again and it should have re-detected all
theactivechannels.
Q : When cascading, the MASTER unit does not see the slave unit(s).
A : ?Refer to the Installation section for information on how to properly connect the
daisy-chain cable.
?Make sure that the daisy-chain cable that you are using is right. Using any other
cable will not guarantee proper operation or video quality.
?Reset the MASTER DKVM-8
?Although a power supply is not necessary to make the slave unit work, try adding a
power supply.
Monitor / Video Problems
Q : I am getting ghosting shadowing or fuzzy images on my monitor. What do I
do?
A : ?Check the cables and make sure they are inserted properly.
?Your resolution and / or refresh rate is extremely high, or your cable is too long.
Replace your VGA cables with coaxial, double-shieldedcables.
?Check to make sure that the power adapter is plugged in and is working properly. It
must be 12V DC, 1000mA minimum. Make sure the power switch is on.
?Lower your refresh rate and/ or screen resolution settings.
Keyboard Problems
Q : The keyboard is not detected, or a keyboard error is reported during boot-up.
A : ?Check the cables and make sure they are inserted properly in the correct channels.
?Check to make sure that the power adapter is plugged in and is working properly. It
must be 12V DC, 1000MA minimum. Make sure the power switch is on.
?Reset the DKVM-8 by simultaneously pressing the Bank/SCAN and Channel buttons
on the front panel. Access the OSD menu again and it should have re-detected all
theactivechannels.
?Do not press any keys on the keyboard while the selected computer is booting up.
This is true for any PC, whether stand-alone or connected to a DKVM-8.
CHAPTER 4.

TROUBLE SHOOTING
~ 18 ~
Q : The computers boot up fine, but the keyboard doesnot work.
A : ?Check the cables and make sure they are inserted properly in the correct ports.
?Make sure the keyboard works when directly plugged into the computers.
?Try a different keyboard, but use only 101,102 or 104-key keyboards.
?Make sure that the keyboard driver is for 101, 102 or 104-key keyboards, and not old
XT keyboards.
?Check to make sure that the power adapter is plugged in and is working properly. It
must be 12V DC, 1000mA minimum. Make sure the power switch is on.
?Reset the DKVM-8 by simultaneously pressing the Bank/SCAN and Channel buttons
on the front panel. Access the OSD menu again and it should have re-detected all
the active ports.
PS/2 Mouse Problems at the console or computers
Q : The mouse is not detected during boot-up.
A : ?Check the cables and make sure they are inserted properly in the correct ports.
?Check your computer / motherboard documentation making sure that the PS/2
mouse port (or IRQ) is enabled.
?Make sure the mouse is directly plugged into the computer. Rebooting is necessary
when trying this. You should never remove or replace a PS/2 device without turning
the computer off. If the computer still does not detect the mouse, then your
computer’s PS/2 mouse port has a problem.
?Reset the DKVM-8 by simultaneously pressing the Back/SCAN and Channel buttons
on the front panel. Access the OSD menu again and it should have re-detected all
the active ports.
Q : The computer boots up fine, but the mouse does not work.
A : ?Check the cables and make sure they are inserted properly in the correct ports.
?Make sure the mouse works when plugged into the computer. Rebooting is
necessary when trying this. You should never remove or replace a PS/2 device
without turning the computer off. If the mouse pointer still does not move, then
either your PS/2 mouse port or the mouse itself has a problem.
?Try a different mouse.
?Make sure the mouse is a true PS/2 mouse. A combo mouse will work as long as it
is set for PS/2 mode with the correct adapter. A serial-only mouse with a combo
mouse adapter WILL NOT work.
?Check to make sure that the power adapter is plugged in and is working properly. It
must be 12V DC, 1000mA minimum. Make sure the power switch is on.
?Reset the DKVM-8 by simultaneously pressing the Bank/SCAN and Channel buttons

TROUBLE SHOOTING
~ 19 ~
on the front panel. Access the OSD menu again and it should have re-detected all
theactiveports.
Q : When I switch from one port to another, mouse movement is completely erratic.
What do I do?
A : ?Reset the DKVM-8 by simultaneously pressingthe Bank/SCAN and Channel buttons
on the front panel. Access the OSD menu again and it should have re-detected all
theactiveports.
?Make sure you do not have more than one mouse driver. Make sure that driver is
either for a Standard PS/2 or Microsoft®compatible PS/2 mouse. Try to obtain the
latest version from your hardware manufacturer.
?If you are using a specialized mouse such as a cordless mouse, scrolling mouse or
mice with more than 2 operational buttons, use generic PS/2 mouse drivers.
Non-standard mice often use non-PS/2 proprietary mouse protocol.
?Make sure you do not have any mouse drivers loaded in your config.sys or
autoexec.bat files.
?Avoid moving the mouse or pressing the mouse buttons when switching ports.
?Reset the mouse to resume proper mouse movement simply by unplugging the
mouse form the front of the DKVM-8 for about 2-3 seconds, and plugging it in again.
Problems with computers using the serial mouse output
Note: The DKVM-8 has integrated mouse conversion technology. This technology
converts the PS/2 mouse signals at the console to serial mouse signals. Windows®
9x Control Panel System applet may not display that it has detected a mouse, but
the Modem applet will show a serial mouse at a certain serial port.
Q : The computers boot up fine, but the mouse does not work
A : ?Check the cables and make sure they are inserted properly in the correct ports.
?Check the cables and make sure that it is a straight-through DB-9 male / female
cable.
?Check your computer / motherboard documentation to make sure that the serial ports
are enabled, and that there are no IRQ or base address conflicts with other serial
portsormodems.
?Plug in a serial mouse directly to your computer, and reboot. If the mouse pointer
still does not move, thenthere may be no serial mouse drivers installed, or the serial
port on your computer may have other conflicts or problems.
?Try a different PS/2 mouse at the console.
?Make sure the mouse (at the console) is a true PS/2 mouse. A combo mouse will
