TECHNICAL BULLETIN
How to update the DES-3225G firmware
The firmware consists of the PROM code and the runtime code. PROM code is
necessary for device boot up, self test. The runtime code takes over for normal
operations of the switch. You have to update the files one at a time. Normally, the
PROM code first followed by the runtime code.
Other things you would need:
•TFTP server
•Console cable – included with the DES-3225G
•PC running terminal software
Using the D-Link TFTP utility
The switch would need a TFTP server for the firmware upgrade process. To simplify things, this is just a PC
running a TFTP server utility where the switch can get the files from. If you have D-View software, there is a
TFTP server feature that you can use. Otherwise, you can obtain a TFTP server utility from your local D-Link
support office. You must be able to ping the switch from this PC before proceeding.

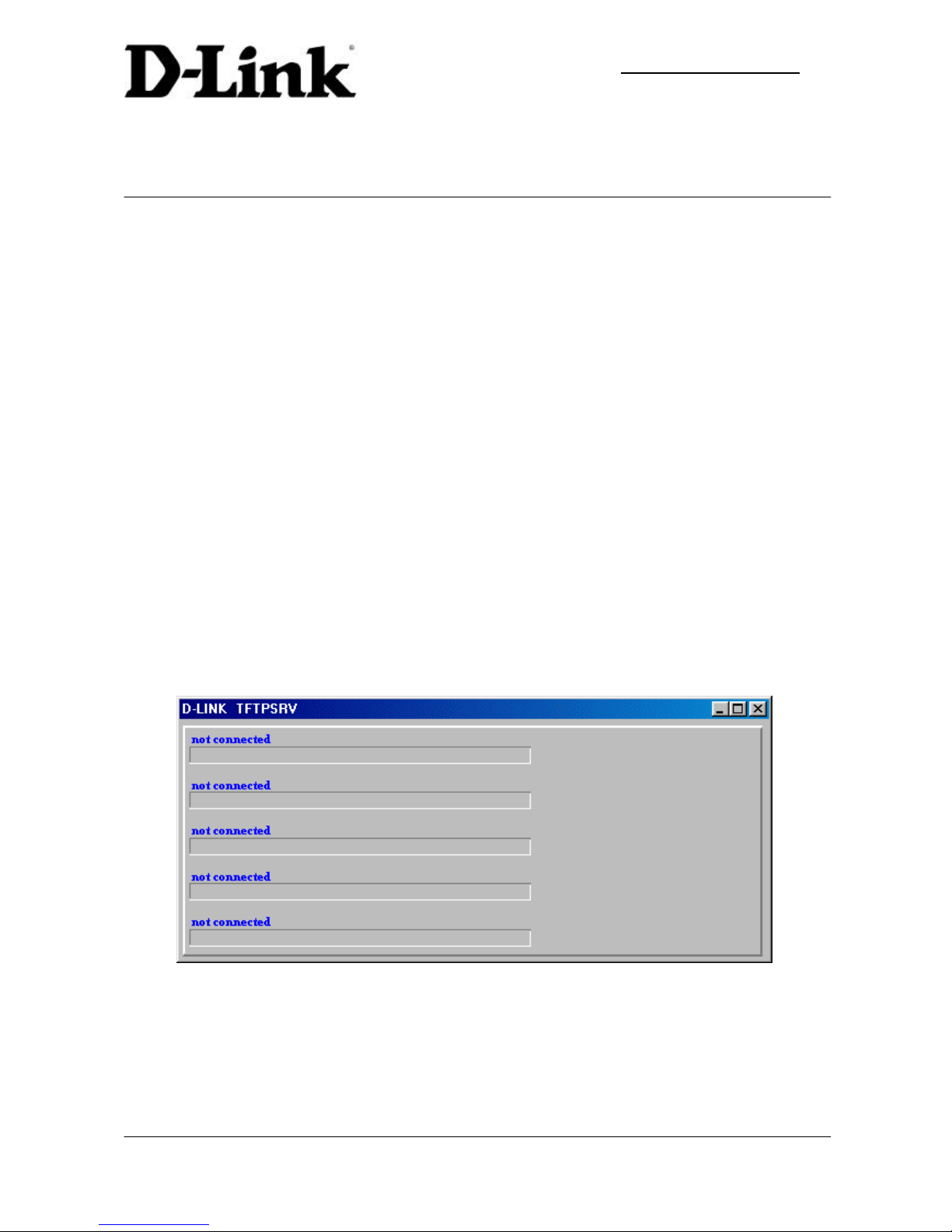

Just run the TFTPSRV.EXE program and the TFTP server window will come up as below. You don’t have to do
anything else. Just make sure that you can ping the switch from the PC running TFTP server and you have
nothing else to configure.
When the switch starts the upgrade process, you will see the file being transferred in one of the lines in the
TFTPSRV window.

D-Link(Europe) Ltd.
D-Link House
6 Garland Road
Stanmore
London HA7 1DP
U.K.
Web server: http://www.dlink.co.uk Tel: [phone]
FTP server: ftp://ftp.dlink.co.uk/pub Fax: [phone]
© Copyright D-Link Europe Customer Service
All trademarks acknowledged Page: 2
TECHNICAL BULLETIN
Updating the PROM code
•You would need a CFG file that specifies the physical location of the firmware files on the PC running TFTP
server. There is a provided sample CFG file. Modify the CFG file to match the actual locations of the
firmware files on your PC. You need to specify the complete directory path and image file name.
•The most important lines are highlighted in bold blue color above. You can also specify the TCPIP settings
of the switch after resetting it just to make sure you will be able to communicate with it using TCPIP. The
switch will retain the current IP settings after the upgrade.
•Enable your TFTP server following the instructions from the first page.

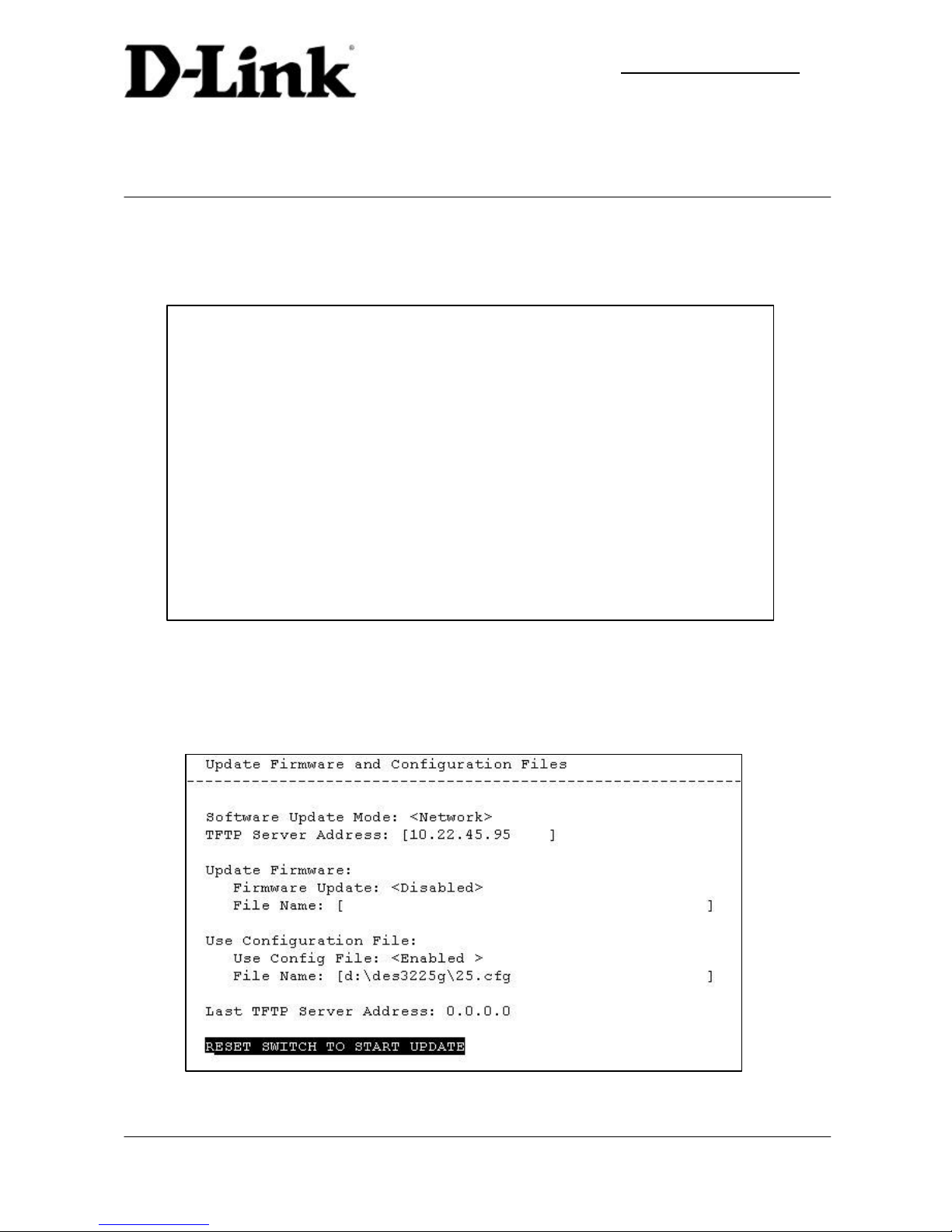

•Enter the console of menu of the switch (manual describes how). Select Update Firmware and
Configuration Filesfrom the main menu. Set the options as follows:
•Make sure you put in the correct TFTP server address and the location of the CFG file. Select the option
RESET SWITCH TO START UPDATE. Follow the instructions.
Code_type=PROM
Image_file="d:\des3225g\3225prom.219"
#Code_type=RUNTIME
#Image_file="d:\des3225g\3225_run.218"
#Code_type=CONFIG
#Image_file="g:\d-link\des-32~1\basic_25.bc"
#specify IP address
#Ip_addr = 10.9.68.25
# specify subnet mask
#Subnet_mask = 255.0.0.0
#specify default gateway
#Default_gateway = 10.254.254.254

D-Link(Europe) Ltd.
D-Link House
6 Garland Road
Stanmore
London HA7 1DP
U.K.
Web server: http://www.dlink.co.uk Tel: [phone]
FTP server: ftp://ftp.dlink.co.uk/pub Fax: [phone]
© Copyright D-Link Europe Customer Service
All trademarks acknowledged Page: 3
TECHNICAL BULLETIN
Updating the Runtime code
•Same as with updating the PROM code, you would need the CFG file again but this time make sure that
you put a # symbol to comment out the PROM lines and remove the # symbol from the RUNTIME lines as
shown below.
•Enable the TFTP server, exactly the same as the procedure for updating the PROM.
~ End of document ~
#Code_type=PROM
#Image_file="d:\des3225g\3225prom.219"
Code_type=RUNTIME
Image_file="d:\des3225g\3225_run.218"
#Code_type=CONFIG
#Image_file="g:\d-link\des-32~1\basic_25.bc"
#specify IP address
#Ip_addr = 10.9.68.25
# specify subnet mask
#Subnet_mask = 255.0.0.0
#specify default gateway
#Default_gateway = 10.254.254.254
