DCS-2132L
Cloud Camera 2200
HD Day/Night Network Camera
Product Highlights HD Day/Night Network Camera
The D-Link Cloud Camera 2200 (DCS-2132L) is an HD Day/Night Network Camera with
Cloud Services. Monitor and protect your home or business – anytime, anywhere – with
the condence of 720p HD clarity.
720p HD for Superior Image Quality
The Cloud Camera 2200 delivers the condence of 720p HD video clarity, ensuring rich
detail and crisp image quality for your surveillance recording. And with integrated night-
vision and PIR motion-sensing technology, the Cloud Camera 2200 remains vigilant 24
hours a day, whether you’re there or not.
Industry-Leading Remote Viewing with mydlink
With the free mydlink Lite app, you can monitor your home or business on your iPhone2,
iPad2or Android2device and experience the peace of mind that comes from having
round-the-clock surveillance at your ngertips. Check in on your home while you’re at
work, or monitor your business when you’re out of the oce – with mydlink, you can
keep an eye on what matters, whenever and wherever you want.
Wireless N for
exible placement
Day/Night : See up to
15-feet in the dark
Remote Viewing: View on iPhone®,
iPad® or Android® with mydlink™ app
Record Video: microSD/SDHC card
slot & video compression
Motion Detection: Trigger
recording and send email alerts
HD Image Quality and Detail
A high resolution megapixel sensor provides 720p
HD resolution to ensure that you capture the details
you need
All-Day Surveillance
A built-in ICR lter and IR illuminator let you monitor
an area 24 hours a day, even in complete darkness
mydlink-enabled Cloud Access
Easy remote viewing and management of your camera
on your mobile device or through the mydlink website

DCS-2132L Cloud Camera 2200
Package Contents
• CloudCamera2200(DCS-2132L)
• EthernetCable
• PowerAdapter
• QuickInstallGuide
Minimum System Requirements
Wired (10/100 Fast Ethernet) or Wireless (802.11g or
802.11n) Network (Wireless N network recommended
for optimum wireless performance)
Computer with:
• 1.3GHzProcessor
• 128MBMemory
• Windows®75,WindowsVista®5andWindows®XP
 SP2®5,orMacOSX(10.5andabove,IntelProcessor)
• InternetExplorer®v6,Mozilla®Firefox®v3.0,
 Google®Chromev2,orSafari®v4
For Internet Access:
• CableorDSLModem
• SubscriptionwithanInternetServiceProvider(ISP)
Features
• mydlink.comPortalforRemoteCameraManagement
• 1/4”MegapixelCMOSprogressivesensor
• Fixedlens:3.45mmF2.0
• Passiveinfrared(PIR)sensorforenhancedmotion
detection
• Built-ininfrared-cutremovable(ICR)lterforall
day surveillance
• Built-inIRLEDilluminatorforuseindarkareas
• Built-inmicrophoneandspeakerfor2-way
communication
• ONVIFcompliant
• 802.11nwirelessconnectivity8
• 10/100FastEthernetport
• MicroSD/SDHCCardslotforonboardstorage
• DI/DOportforconnectiontoexternaldevices
• HDresolution(1280x720)andupto1MP
(1280 x 800)
• H.264,MPEG-4andMotionJPEGcompression
• ePTZviewing
• Simultaneousmulti-streamsupport
• PrivacyMaskfeature
• Supportsmultipleaccesslists
• Built-inSambaclientforsavingtoaNAS
• 24/7BasicInstallationSupport3
• 1-YearLimitedWarranty4

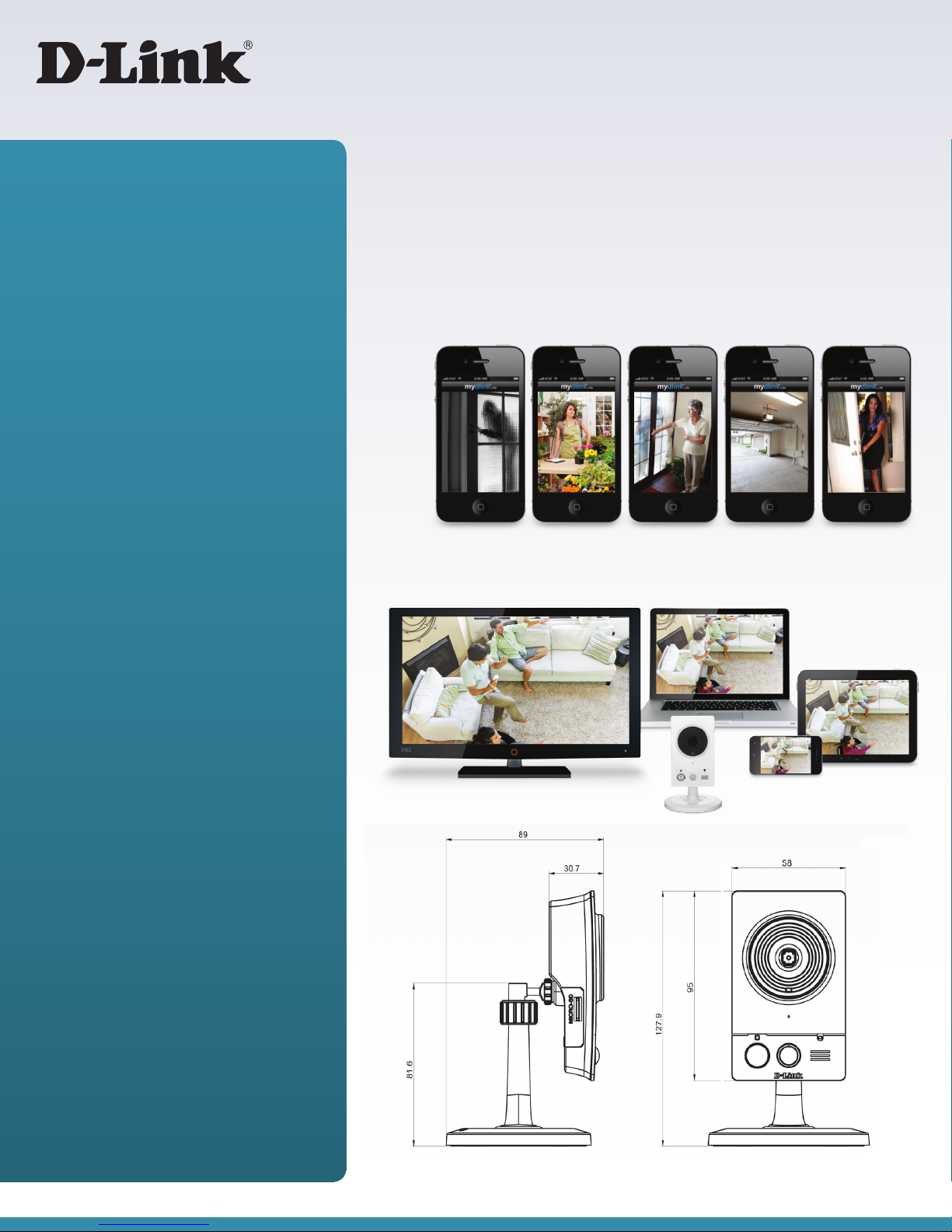

Make Easy Setup Even Easier – With Zero Conguration
Connecting your D-Link camera with any router is easy – make it even easier with your
D-LinkCloudRouter.ZeroCongurationautomaticallyconguresandintelligentlysyncs
your D-Link camera to your mydlink account – it’s as easy as connect and view!
Easy Installation, Professional Performance, Anywhere Access
Surveillance Small Business Loved Ones Garage Home

DCS-2132L Cloud Camera 2200
Technical Specications
Camera
Hardware Profile •1/4”MegapixelprogressiveCMOSsensor
•5meterIRilluminationdistance
•Minimumillumination:0luxwithIRLEDon
•Built-inInfrared-CutRemovable(ICR)Filtermodule
•Built-inPIRsensor(5meter)
•Built-inmicrophoneandspeaker
•10xdigitalzoom
•Focallength:3.45mm
•Aperture:F2.0
Field of View •(H)57.8°,(V)37.8°,(D)66°
Image Features •Configurableimagesize,quality,framerate,andbitrate
•Timestampandtextoverlays
•Configurablemotiondetectionwindows
•Configurableprivacymaskzones
•Configurableshutterspeed,brightness,saturation,
contrast, and sharpness
Video Compression •H.264/MPEG-4/MJPEGsimultaneous
format compression
•H.264/MPEG-4multicaststreaming
•JPEGforstillimages
Video Resolution •16:9-1280x800,1280x720,800x450,640x360,
 480x270,320x176,176x144upto30fpsrecording7
•4:3-1024x768,800x600,640x480,480x360,
 320x240,176x144upto30fpsrecording7
Audio Support •G.726 •G.711
External Device Interface •10/100BASE-TXFastEthernetport
•802.11nwireless8
•DI/DOport
•MicroSD/SDHCcardslot
Network
Network Protocols •IPv6
•IPv4
•TCP/IP
•UDP
•ICMP
•DHCPclient
•NTPclient(D-Link)
•DNSclient
•DDNSclient(D-Link)
•SMTPclient
•FTPclient
•HTTP/HTTPS
•Sambaclient
•PPPoE
•UPnPportforwarding
•RTP/RTSP/RTCP
•IPfiltering
•QoS
•CoS
•Multicast
•IGMP
•ONVIFcompliant
Security •Administratorandusergroupprotection
•Passwordauthentication
•HTTPandRTSPdigestencryption
System Management
System Requirements for Web Interface •Browser:InternetExplorer,MozillaFirefox,orGoogleChrome
Event Management •Motiondetection
•Eventnotificationanduploadsnapshots/videoclips
via email or FTP
•SupportsmultipleSMTPandFTPservers
•Multipleeventnotification
•Multiplerecordingmethodsforeasybackup
Remote Management •Configurationaccessibleviawebbrowser
•Takesnapshots/videoclipsandsavetolocalharddriveorNASviawebbrowser
Mobile Support •Windows7®/Vista®/XP®system,PocketPC,ormobilephonewith3GPPplaybacksupport
•mydlink™mobileappsforiOSandAndroidmobiledevices
D-ViewCam™SystemRequirements •OperatingSystem:MicrosoftWindows7/Vista/XP
•WebBrowser:InternetExplorer7orhigher
•Protocol:StandardTCP/IP
D-ViewCam™SoftwareFunctions •Remotemanagement/controlofupto32cameras
•Viewingofupto32camerasononescreen
• Supportsallmanagementfunctionsinwebinterface
• Scheduledmotiontriggeredormanualrecordingoptions

Building Networks for People
DCS-2132L Cloud Camera 2200
©2012 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo, D-Link Green, the D-Link Green logo, ShareCenter, and the D-Link RoHS logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries
in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.
Updated 8/7/12
U.S.A. | 17595 Mt. Herrmann Street | Fountain Valley, CA 92708 | 800.326.1688 | dlink.com Canada | 2525 Meadowvale Blvd | Mississauga, ON L5N 5S2 | 800.361.5265 | dlink.ca
For more information
1Useofaudioorvideoequipmentforrecordingtheimageofapersonwithouttheirknowledgeandconsentisprohibitedincertainstatesorjurisdictions.Theend-userassumesallliabilityforcompliancewithapplicablestate,localandfederal
laws. 2The inclusion of a specic product or manufacturer does not imply its endorsement of D-Link or the D-Link product. 324/7BasicInstallationSupportisavailableonlyintheUSAfortherst30daysfromdateoforiginalpurchase.41-Year
LimitedWarrantyavailableonlyintheUSAandCanada.5Computer must adhere to Microsoft’s recommended System Requirements. 6Requires mydlink-enabled Cloud Router. 7Frame rates when streaming video may vary depending on
network conditions and method used. 8 Maximum wireless signal rate derived from IEEE Standard 802.11 specications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trac,
building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely aect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements
basedonthewirelessrangeandspeedratesofastandardWirelessGproductfromD-Link.MaximumthroughputbasedonD-Link’s802.11ndevices.
Allreferencestospeedandrange,includingtheperformancechart,areforcomparisonpurposesonly.Productspecications,size,andshapearesubjecttochangewithoutnotice,andactualproductappearancemaydierfromthatdepicted
on the package. See inside package for warranty details.
GeneralSpecications
External Power Adapter •Input:100to240VAC,50/60Hz •Output:5VDC,1.2A
Max. Power Consumption •3.65watts
Operating Temperature •32to104°F(0°to40°C)
Storage Temperature •-4°to158°F(-20°to70°C)
Operating Humidity •20%to80%non-condensing
Storage Humidity •5%to95%non-condensing
Certifications •CE
•CELVD
•FCC
•C-Tick
Dimensions •2.28”x5.04”x3.5”(58mmx127.9mmx89mm)
Weight •0.26lb(116g)±5%
Warranty
Warranty •1-YearLimited4
Order Information
Part Number Description
DCS-2132L Cloud Camera 2200
