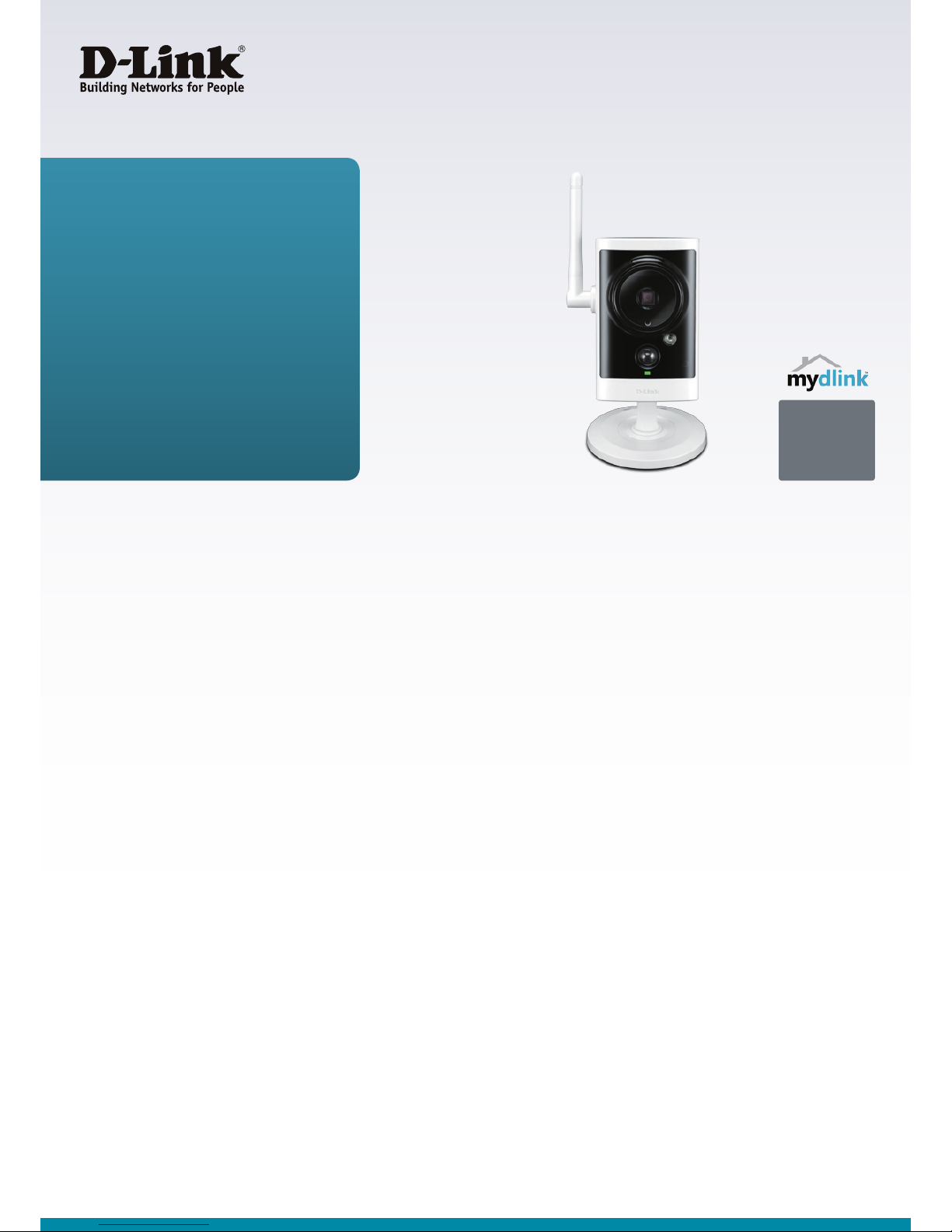

D-Link DCS-2330L User manual

HD Wireless N Day/Night Outdoor Cloud Camera
DCS-2330L
The DCS-2330L HD Wireless N Day/Night Outdoor Cloud Camera is the perfect solution for
monitoring an outdoor area 24 hours a day from anywhere. This mydlink™-enabled network
camera is built to last with rugged metal housing while the megapixel image sensor and infrared
night vision give you high-quality resolutions up to 720p HD even in complete darkness.
24/7 HD Surveillance
The DCS-2330L is built with a megapixel image sensor to give you high-quality snapshots and
video with resolutions up to 720p HD. This gives you sharp, high-resolution snapshots and
videos with rich detail, so you can capture important details often missed by lower resolution
cameras. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your
camera’s video so you can survey a large area easily.
An infrared cut removable (ICR) lter is also built into the DCS-2330L, which blocks infrared light
during the day for improved image quality. At night, it moves out of the way to use all available
light for low-light surveillance, and paired with the IR LED illuminator, this camera can monitor
an area even in complete darkness.
mydlink™: the easiest way to setup up your camera and monitor
your home
Connecting a camera on your network and accessing it has traditionally required complex
conguration. mydlink™ makes it easy to access your camera from wherever you are, whenever
it’s convenient for you. Using the free mydlink™ Lite app for iOS and Android smartphones and
tablets, you can connect and setup your mydlink™ camera without turning on a computer.
A step-by-step guide has your camera up and running in a matter of minutes. Through the
mydlink™ Lite app, you can set up a free mydlink™ account which allows you to view and
manage your camera from any Internet connected device. If you have more than one camera,
you can add it to your existing mydlink™ account and watch all your cameras from a single
location.
Features
Camera
• 1/4” Megapixel CMOS progressive sensor
• Fixed lens: 3.45 mm F2.0
• IP65 weatherproof housing
• Built-in microphone for audio monitoring
• Built-in infrared-cut removable (ICR) lter for all-
day surveillance
• Built-in IR LED illuminator for use in complete
darkness
• Built-in PIR sensor for enhanced motion
detection
• ONVIF-compliant
Connections
• 802.11n wireless
• 10/100 Fast Ethernet port
• MicroSD/SDHC card slot for onboard storage
• 16GB MicroSD card included, supporting motion
recording up to 7 days2
Image & Video
• HD resolution (1280 x 720)
• H.264 and Motion JPEG compression
• ePTZ viewing
• Simultaneous multi-stream support
• Privacy Mask feature
• Supports multiple access lists
HD Image Quality and Detail
A high-resolution megapixel sensor provides 720p
HD resolution images and video to ensure that you
capture the details you need
All-Day Outdoor Surveillance
Night vision with built-in infrared illuminator allows
you to monitor 24 hours a day, and the weatherproof
housing protects the camera from the elements
mydlink™-enabled Cloud Access
Easy setup, management and remote viewing your
camera through the free mydlink™ app on your
mobile device or via the secure mydlink™ website
portal
Product Highlights
16GB MicroSD
card included for
motion recording
up to 7 days2

DCS-2330L HD Wireless N Day/Night Outdoor Cloud Camera
Accessing your cameras on the go is easy too. Just download the free
mydlink™ Lite app for your iPhone or Android device and you can quickly
and easily view your camera feed from anywhere with a wireless or 3G/4G LTE
connection. You can even access videos recorded onto the included SD card.
Thanks to this app, you can monitor on-the-go even if you don’t have access
to a computer.
If you have a mydlink™-enabled Cloud Router, setting up and conguring
your DCS-2330L is a snap, thanks to Zero Conguration. Simply connect your
camera to its power adapter and then connect your camera to your Cloud
Router with an Ethernet cable - the camera will automatically be added to
your account.
Built for the Outdoors
Specially built for outdoor use, the DCS-2330L has an IP65 weatherproof housing
that protects it from the elements. Wireless N connectivity means you can put
it anywhere within range of your wireless network, giving you the freedom to
install it right where you need camera coverage. A passive infrared (PIR) motion
sensor provides enhanced motion detection to minimise false alarms.
A Complete, Expandable Surveillance Solution
This mydlink™ camera includes a MicroSD card slot and a pre-installed 16Gb
MicroSD card to record audio and video directly onto the camera, without the
need of a computer. You can setup the camera to record only when motion
is detected for up to 7 days2via the camera’s intuitive web interface. Once
the MicroSD card is at full capacity, older footage will be recorded over. The
camera can also send e-mail alerts whenever motion is detected. All these
features can be easily congured via the web-based conguration, which
makes this camera a truly comprehensive home monitoring system.
If you want to expand your surveillance options, D-Viewcam™ management
software is also included, giving you the ability to manage up to 32 cameras
with a robust set of features, including multi-camera views and automated
e-mail alerts to keep you informed of suspicious or unusual activities.
Technical Specications
Camera
Camera Hardware Profile • 1/4”Megapixel progressive CMOS sensor
• 5 metre IR illumination distance
• Minimum illumination: 0 lux with IR LED on
• Built-in Infrared-Cut Removable (ICR) Filter module
• Built-in PIR sensor (5 metre)
• Built-in microphone
• 10x digital zoom
• Focal length: 3.45 mm
• Aperture: F2.0
• Exposure time: 1/7.5 to 1/10,000 sec.
• Minimum object distance: 500 mm
• Angle of view:
• (H) 57.8°
• (V) 37.8°
• (D) 66°
Camera Housing • IP65 compliant weatherproof housing
Image Features • Configurable image size, quality, frame rate, and
bitrate
• Time stamp and text overlays
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation,
contrast, and sharpness
Video Compression • Simultaneous H.264/MJPEG format compression
• H.264 multicast streaming
• JPEG for still images
Video Resolution • 16:9 - 1280x720, 800x448,640x360, 480x272, 320x176
up to 30 fps recording
1
• 4:3 - 960x720, 800x592, 640x480, 480x352, 320x240 up
to 30 fps recording
1
Audio Support • AAC • G.711
External Device Interfaces • 10/100 BASE-TX Fast Ethernet port
• 802.11n/g/b wireless
• MicroSD/SDHC card slot (16GB included)
Network
Network Protocols • IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS
• CoS
• Multicast
• IGMP
• ONVIF compliant
Security • Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication

DCS-2330L HD Wireless N Day/Night Outdoor Cloud Camera
D-Link European Headquarters. D-Link (Europe) Ltd., D-Link House, Abbey Road, Park Royal, London, NW10 7BX.
Specications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
All other trademarks belong to their respective owners. ©2014 D-Link Corporation. All rights reserved. E&OE.
Updated March 2014
For more information: www.dlink.com
System Management
System Requirements for Web Interface • Browser: Internet Explorer, Firefox, Chrome
Event Management • Motion detection
• Event notification and uploading of snapshots/video
clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
Remote Management • Take snapshots/video clips and save to local hard drive • Configuration interface accessible via web browser
Mobile Support • Windows 8/7/Vista/XP, Pocket PC, tablet, or mobile
phone
• mydlink™ mobile app for iOS and Android mobile
devices
D-Viewcam™ System Requirements • Operating System: Microsoft Windows 8/7/Vista/XP
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP
D-Viewcam™ Software Functions • Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording
options
• Supports all management functions in web interface
• Remote management/control of up to 32 cameras
Physical
Weight • 134 g ± 5%
Power Adapter • Output: 5 V DC, 1.2 A • Input: 100 to 240 V AC, 50/60 Hz
Power Consumption • 5 watts max.
Temperature • Operating: -25 to 45 °C (-13 to 113 °F) • Storage: -20 to 70 °C (-4 to 158 °F)
Humidity • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing
Certifications • CE
• FCC class B
• C-Tick
• IC

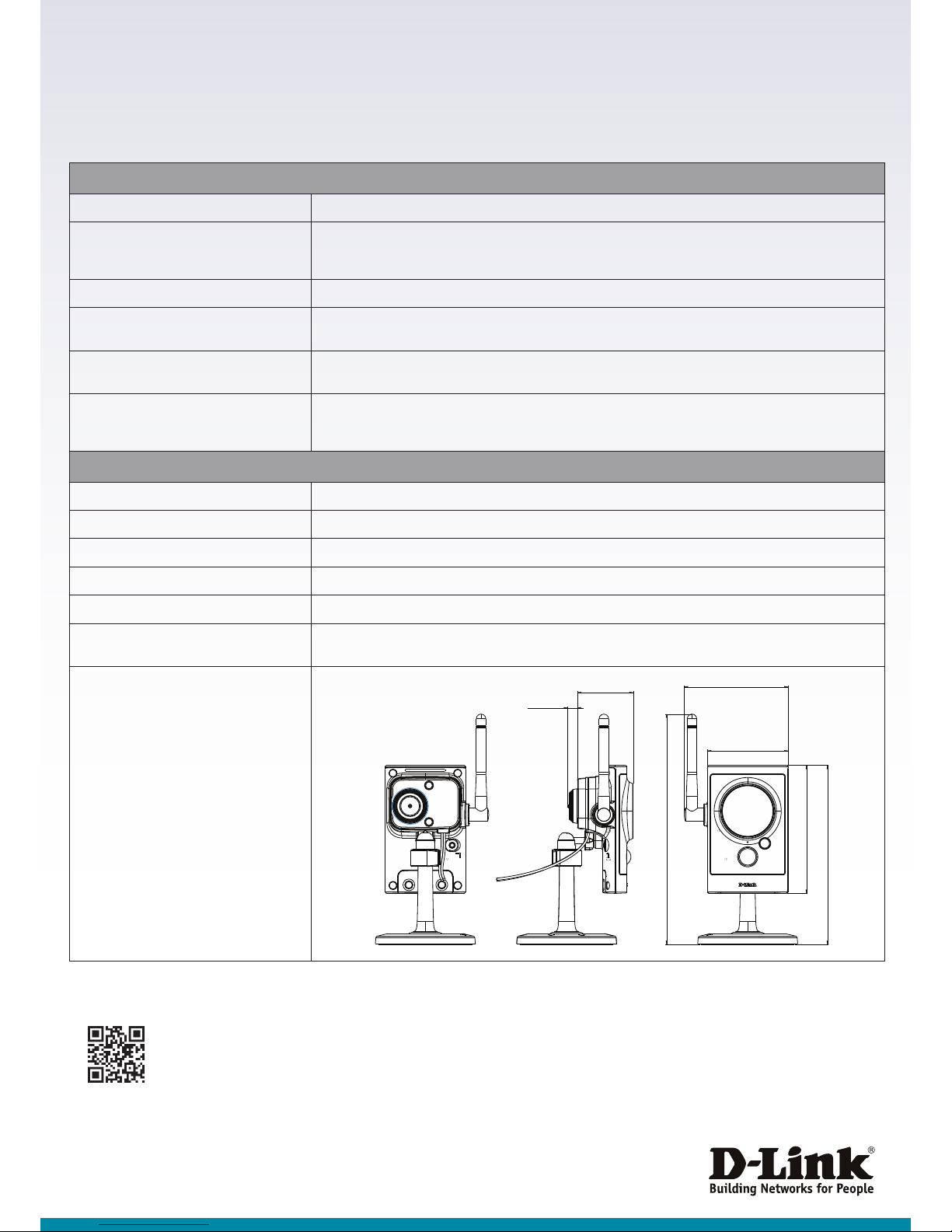

Dimensions
105
146.8
66
85
45.7
8.1
188.8
lc-8464(DCS-2330L)
1Frame rates when streaming video may vary depending on network conditions and method used.
2Based on 5 hours of motion detection per day at a constant bitrate of 1 Mbps.
