D-Link DCS-942L Instruction sheet

D-Link Technical Support – How to install the DCS-942L. Page 1of 16
How to install the DCS-942L
This document will detail how to install the DCS-942L into your existing network.
Ensuring the irmware remains up to date can assist with unctionality / improved
per ormances as well as adding additional eatures.

D-Link Technical Support – How to install the DCS-942L. Page 2of 16

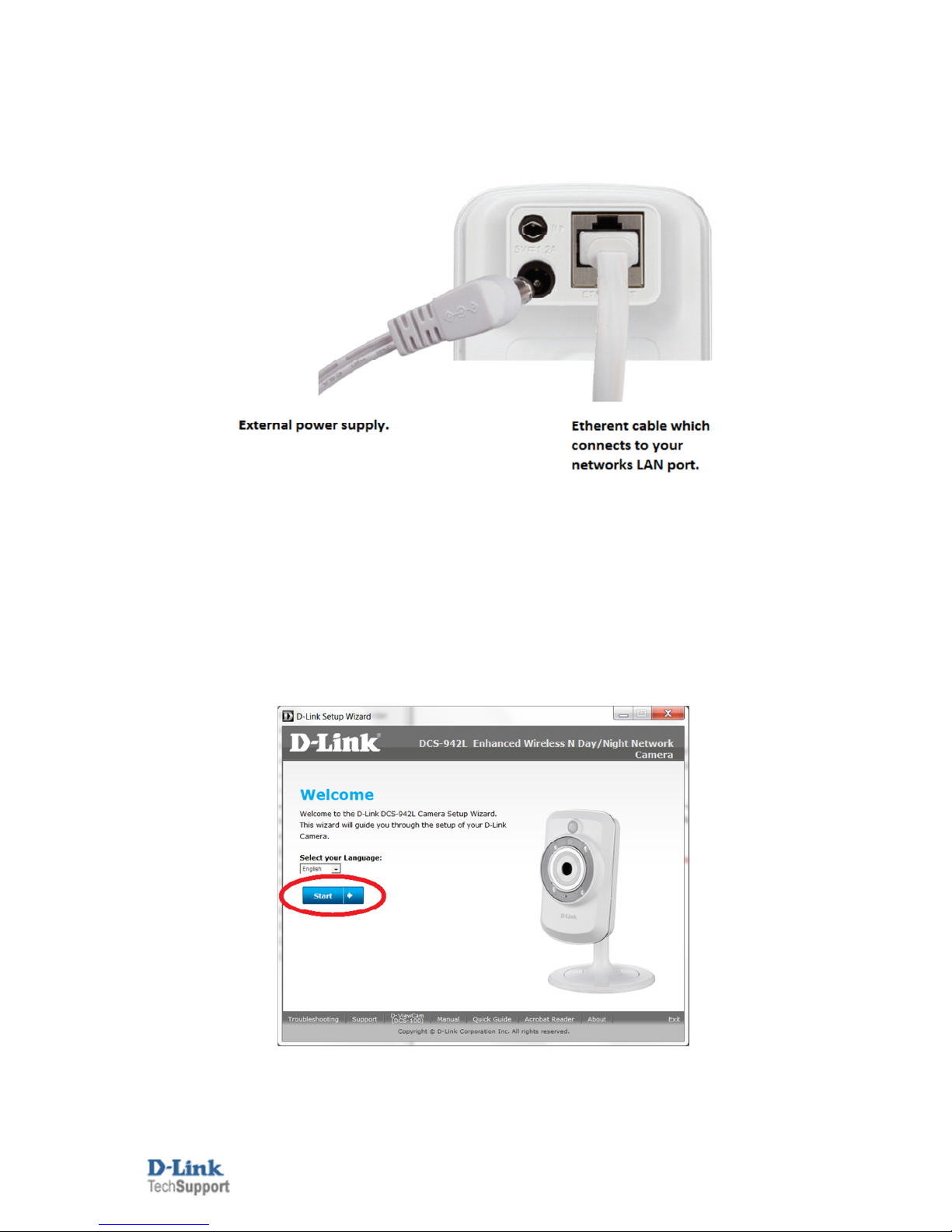

1. Connect the included Ethernet cable to the network cable connector located on the top panel at the rear
of the DCS-942L and attach the other end to your network, the network will u ually be a LAN port on your
Router.
En ure to attach the external power upply to the DCS-942L a well.
2. In ert the In tallation CD-ROM into your computer' optical drive and tart the autorun program. You can
al o brow e the content of your computer' optical drive and double click on the "autorun.exe" file a well.
If you have downloaded the Setup Utility from the D-Link Support Knowledge Ba e, and have extracted the
archive (*.zip file), you can al o double click on the "autorun.exe" file a well.
NOTE: For any prompts that require permission to run, it is best to 'Allow', 'OK' and or 'Accept' the files to
run and or be installed
3. Click the Start button to begin the etup:

D-Link Technical Support – How to install the DCS-942L. Page 3of 16

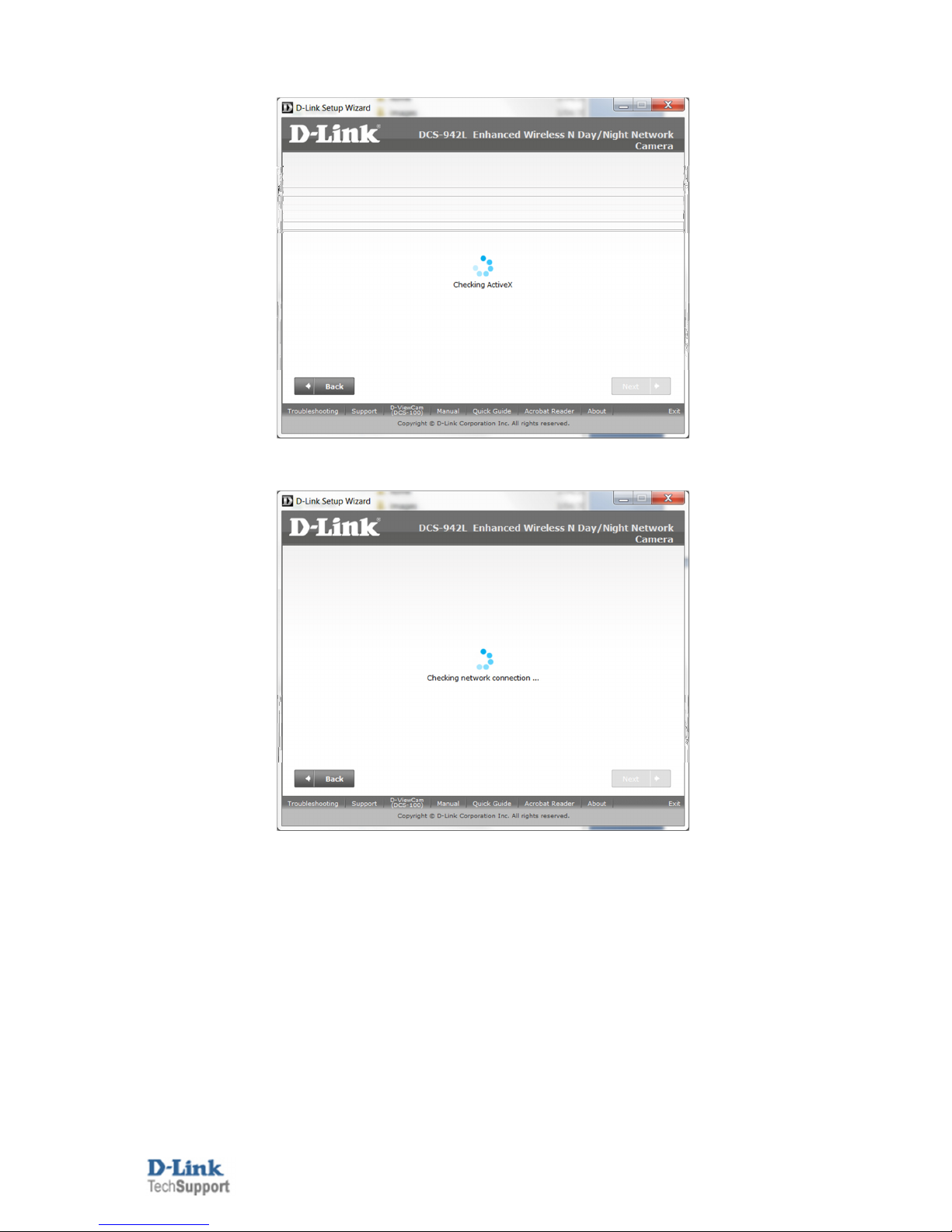

4. The ActiveX in tall routine will be checked and or in talled for the DCS-942L to run correctly:
5. The network connection pre ent on the DCS-942L will al o be checked to en ure on a ucce ful etup:

D-Link Technical Support – How to install the DCS-942L. Page 4of 16

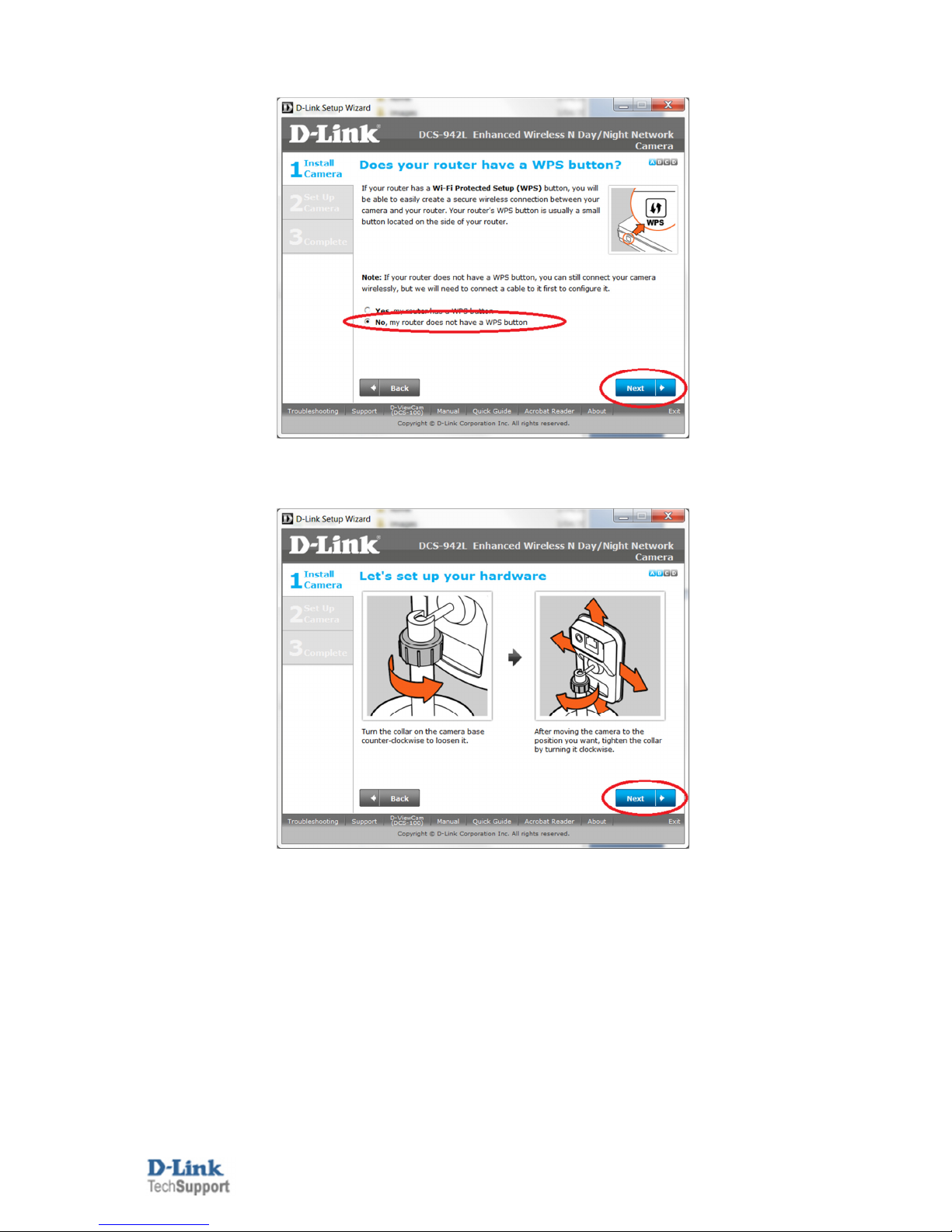

6. Under the WPS button creen leave the default option and click Next:
7. U ing the collar ( tand) po ition the DCS-942L for the viewing po ition that you require. Click the Next
button:

D-Link Technical Support – How to install the DCS-942L. Page 5of 16

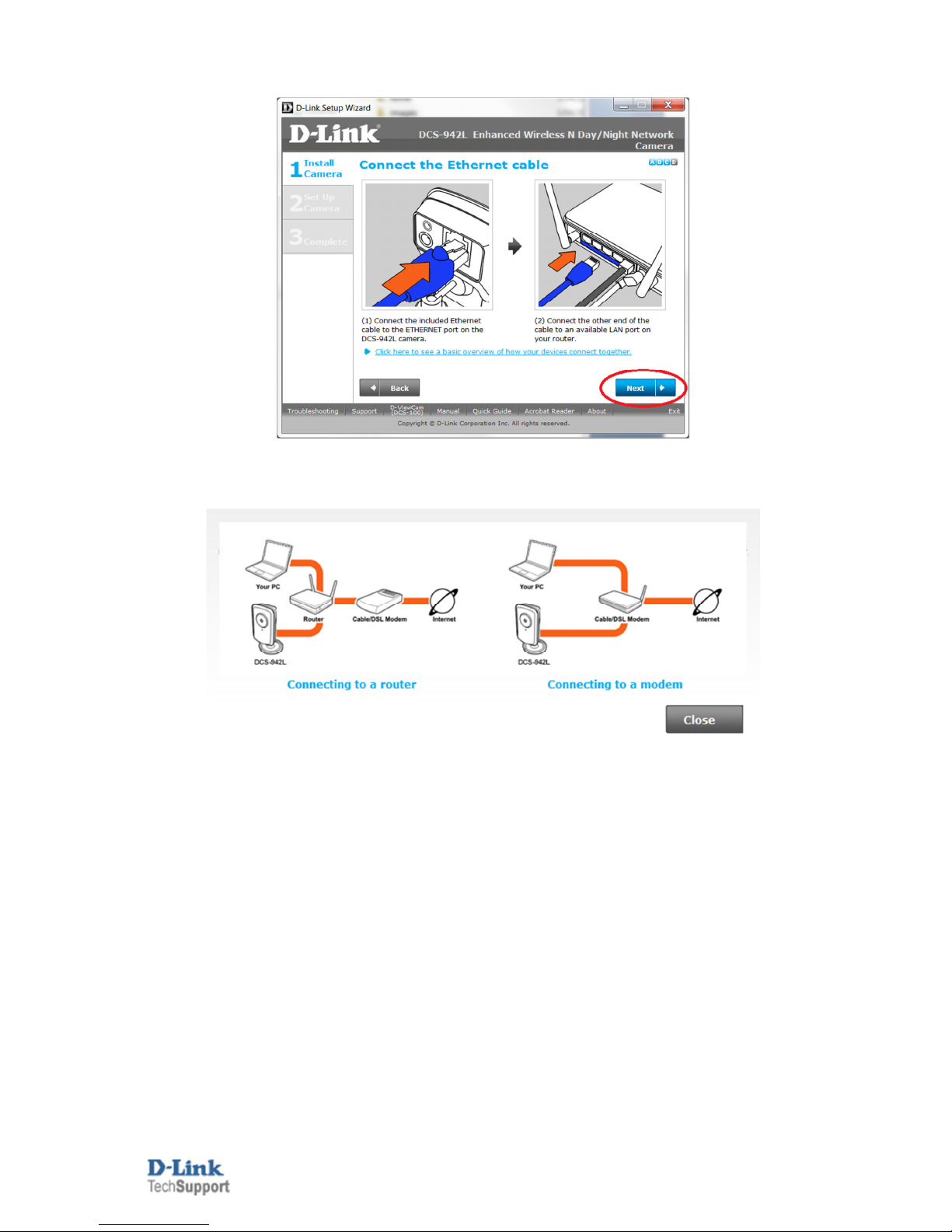

8. Thi tep hould already be completed, under Step 1. Click the Next button:
NOTE: You may click on the hyperlink to provide you with a ba ic overview of your device connected
together. Below i that illu tration:

D-Link Technical Support – How to install the DCS-942L. Page 6of 16

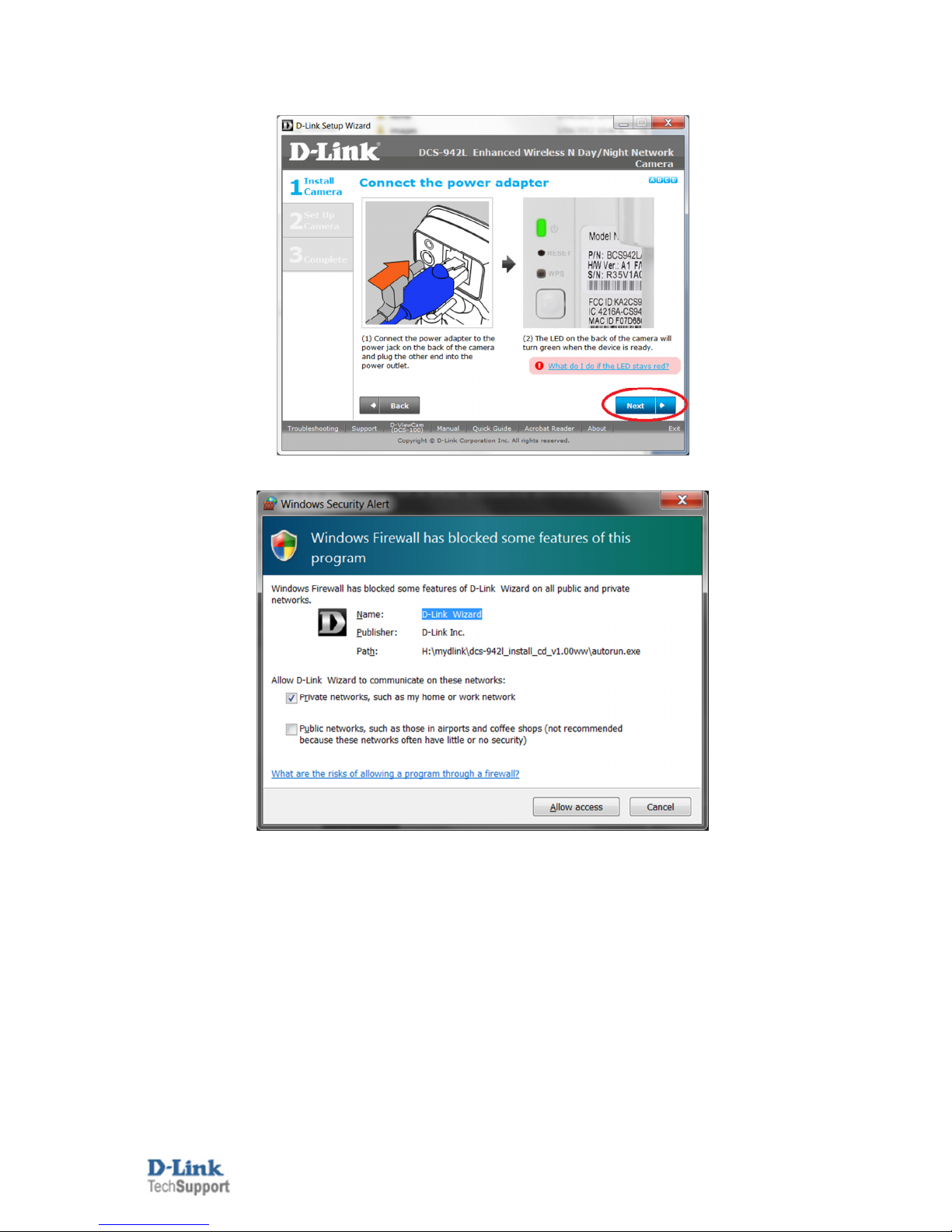

9. The power LED at the back of the DCS-942L hould be green, click the Next button (provided your power
LED i green a well):
10. You mu t click 'Allow acce ' to the following prompt:

D-Link Technical Support – How to install the DCS-942L. Page 7of 16
11. Click the Ye button to the below illu tration:
12. Plea e patiently wait for the Setup Utility to detect your DCS-942L:

D-Link Technical Support – How to install the DCS-942L. Page 8of 16

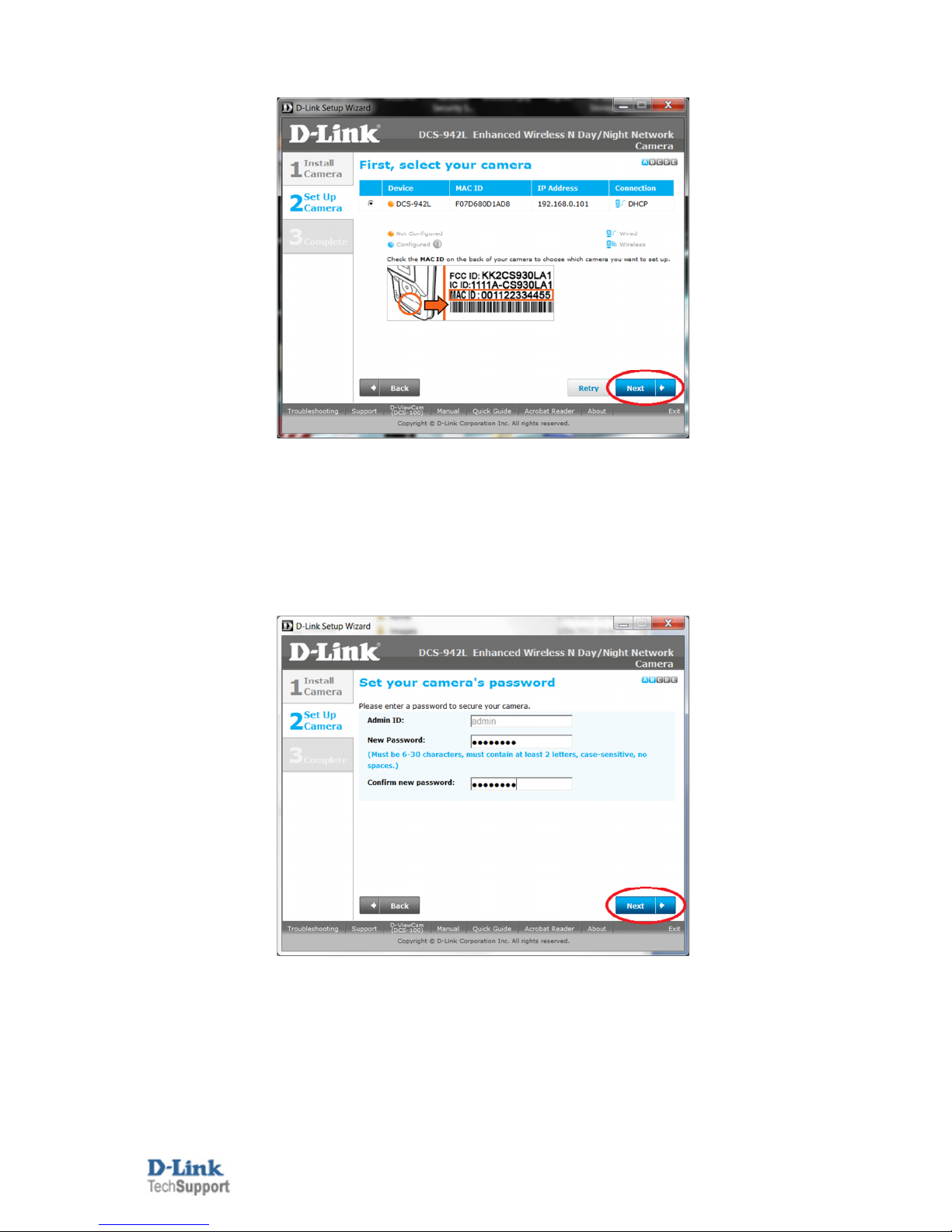

13. Once your DCS-942L ha been found, click the Next button:
NOTE: If your DCS-942L is unable to be found this can be the cause of an installed Firewall/Antivirus
application and or a custom configuration change to the Operating System Your computer/router must
allow UDP broadcast connection to search for the camera If this type of communication is blocked then
please disable/uninstall and or configure your Firewall/Antivirus and Computer to allow for UDP
broadcast connections
14. Type in a New Pa word and Confirm new pa word to ecure your DCS-942L Web Configuration, then
click Next:

D-Link Technical Support – How to install the DCS-942L. Page 9of 16

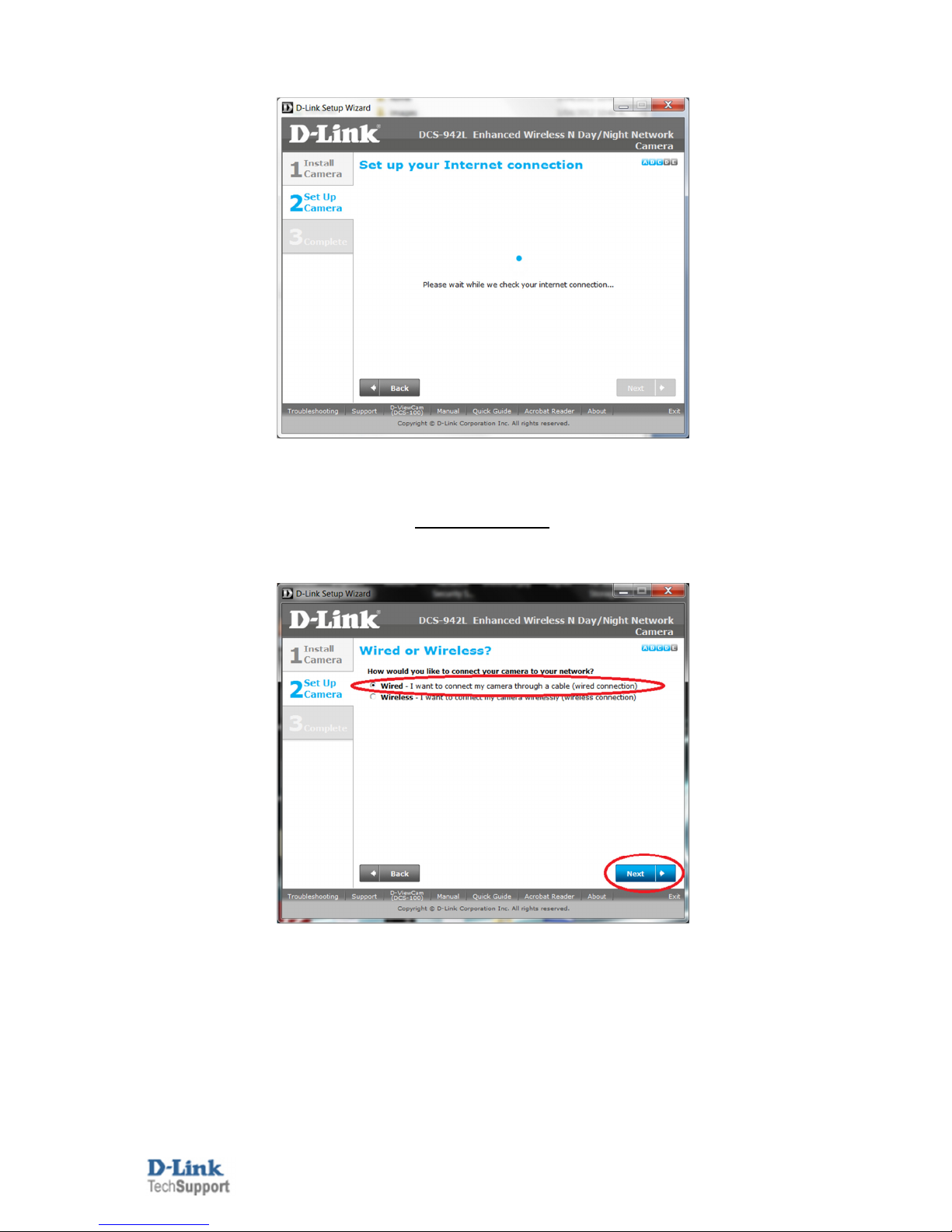

15. Patiently wait for the DCS-942L to update it configuration:
16. Under the Wired or Wirele creen you have the option to elect the Wired or Wirele option for the
connection of your DCS-942L. Select the heading which matche your in tallation option ( croll further down
for Wirele ).
Wired Connection:
16a. Leave it on the Wired option and click the Next button:
16b. Go traight to Step 20.

D-Link Technical Support – How to install the DCS-942L. Page 10 of 16
Wireless Connection:

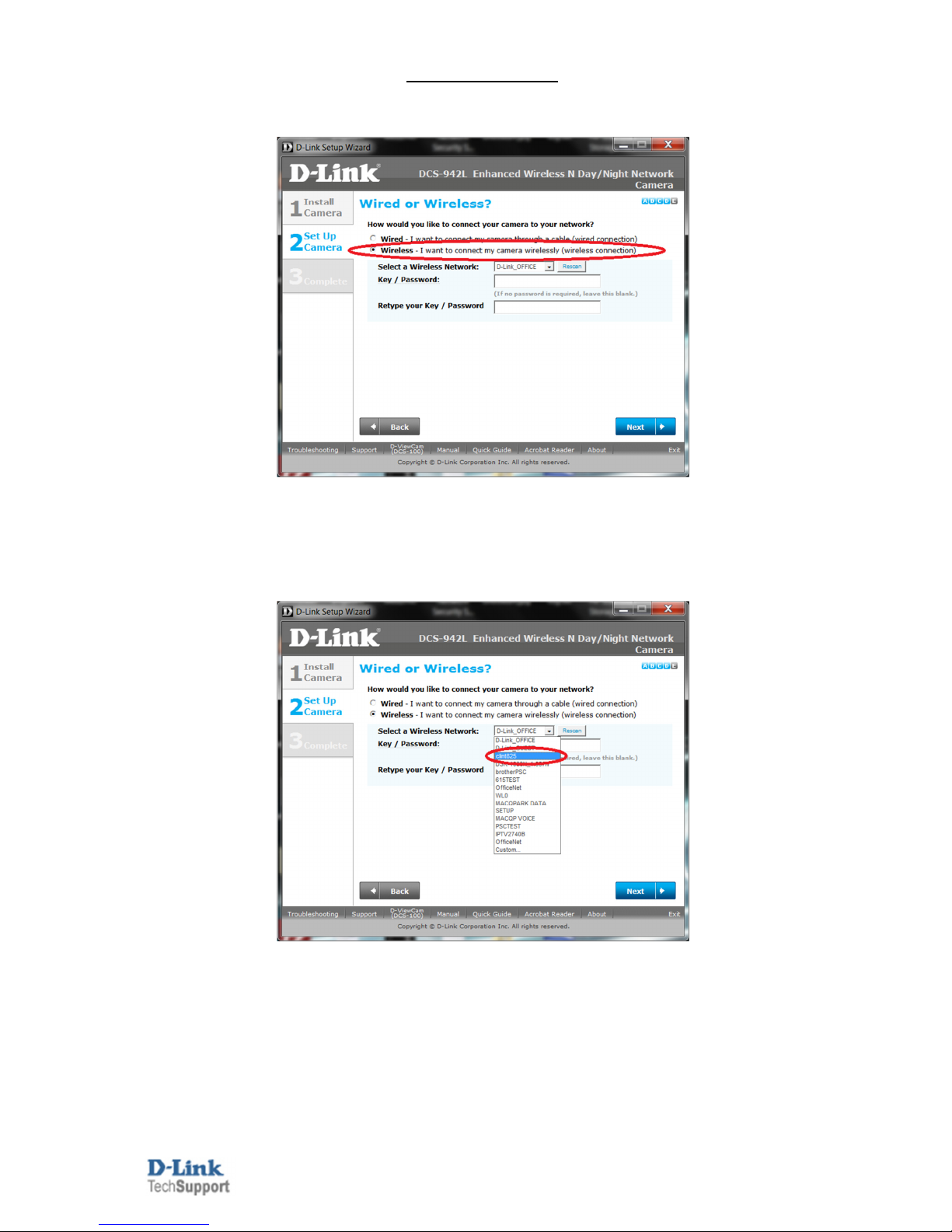

16c. Select the Wirele option:
NOTE: The Setup Utility will automatically earch for nearby Wirele SSID' , however you may al o click on
the 'Re can' button a well.
16d. U ing the dropdown arrow button for 'Select a Wirele Network', plea e elect the Wirele Name or
SSID of your Wirele Acce Point:

D-Link Technical Support – How to install the DCS-942L. Page 11 of 16

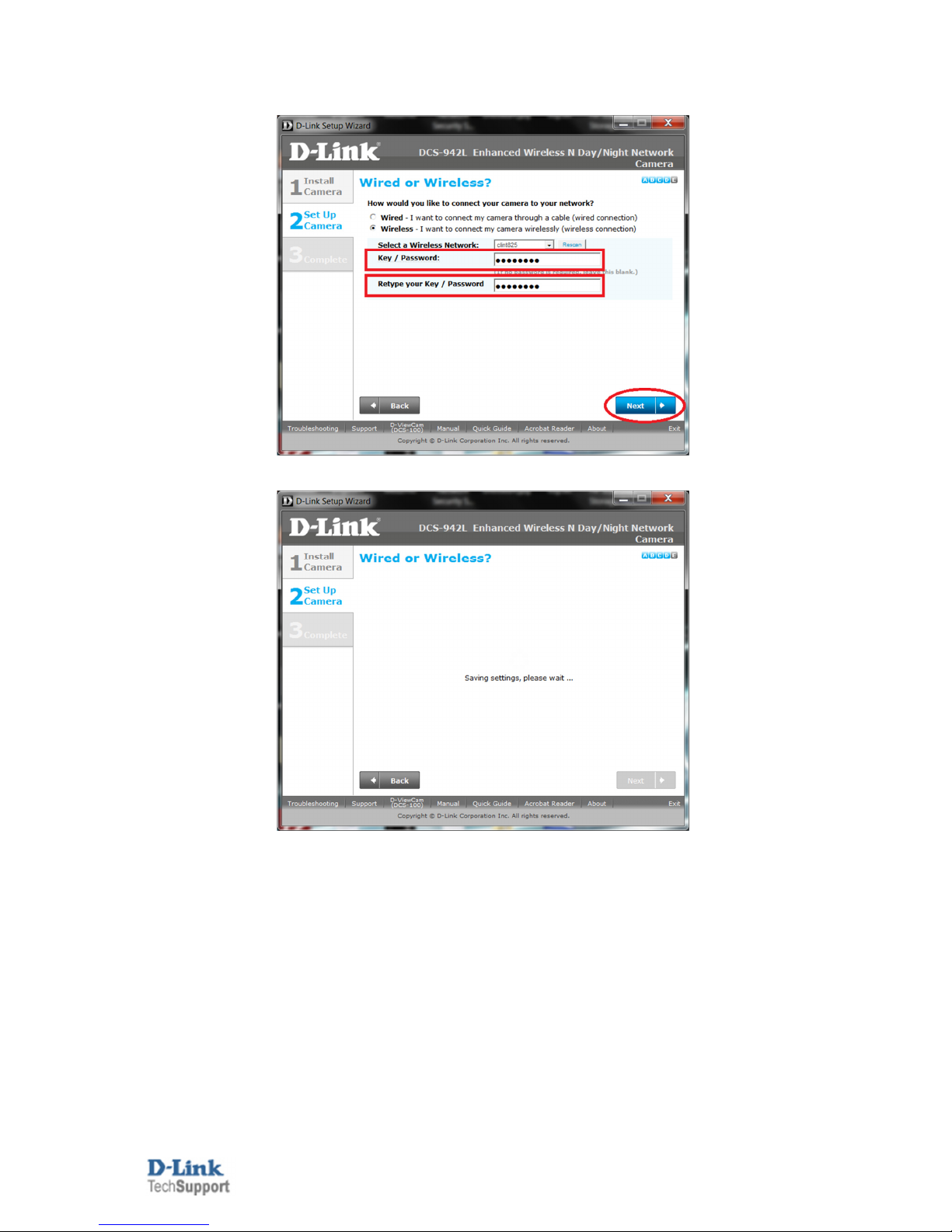

16e. Plea e type in your wirele pa word into the Key / Pa word field and al o into the Retype your Key /
Pa word field, then click Next:
17. Patiently wait for the change to be aved:

D-Link Technical Support – How to install the DCS-942L. Page 12 of 16

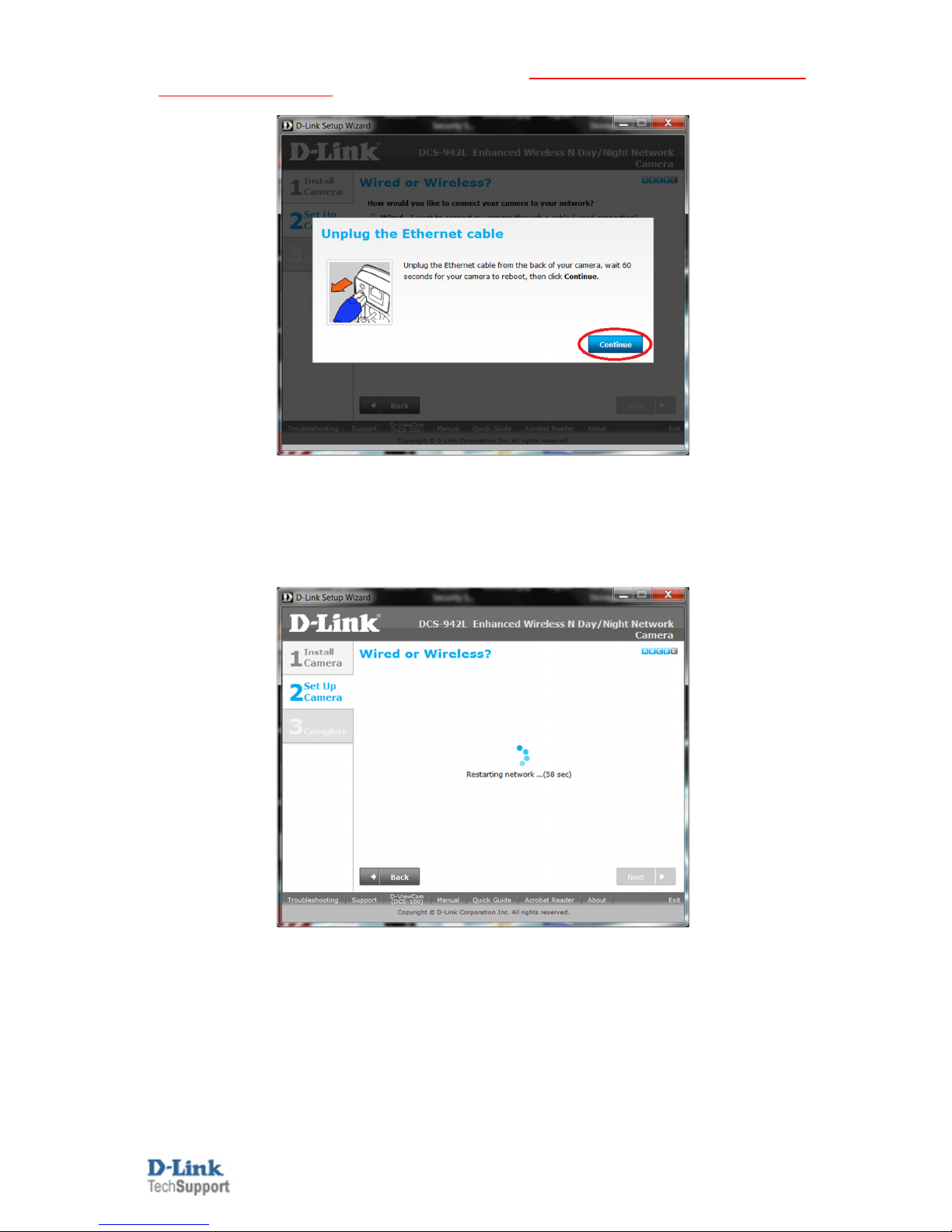

18. Unplug the Ethernet cable from the back of your camera. Patiently wait an additional 60 seconds, then
click on the Continue button:
NOTE: When di connecting the Ethernet cable, the power LED will turn Red to Reboot, once rebooted it
hould turn back to green. After 60 econd ha ba ed, now click on the Continue button.
19. Patiently wait for the DCS-942L to re tart and update it device information:

D-Link Technical Support – How to install the DCS-942L. Page 13 of 16

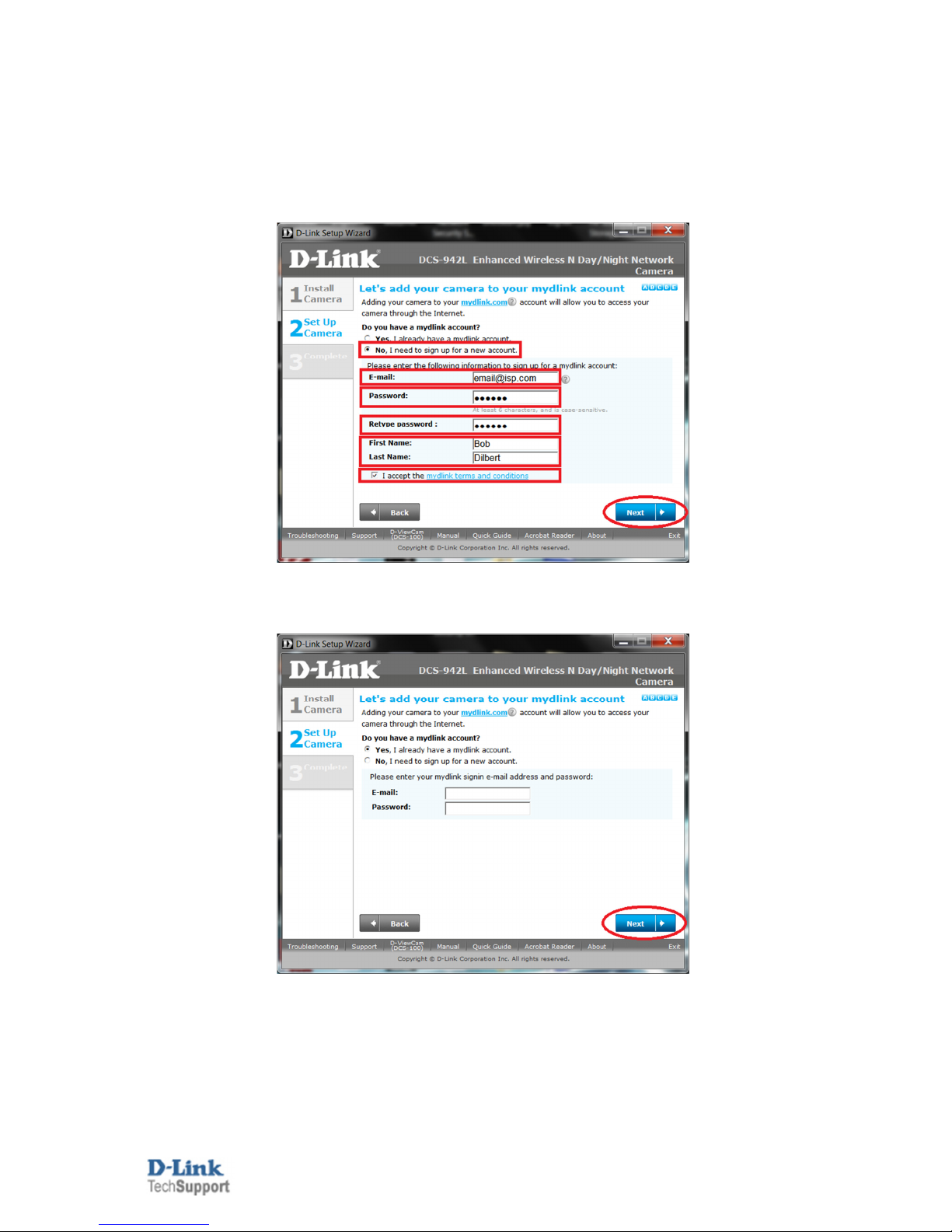

20. It i likely that you don't already have a mydlink account, o let' create one (if you already have a
mydlink account, refer to Step 20a):
You will need to fill in the below requirement , uch a your Email / the Pa word you want to a ign to your
mydlink account / Fir t name and la t name. You will al o need to agree to the mydlink term and
condition , then click on Next.
An example i below:
20a. If you already have a mydlink account, elect 'Ye , I already have a mydlink account' and fill out the
below requirement. Then click Next:
NOTE: Jump to Step 23 if ou selected "Yes, I alread have a m dlink account".

D-Link Technical Support – How to install the DCS-942L. Page 14 of 16

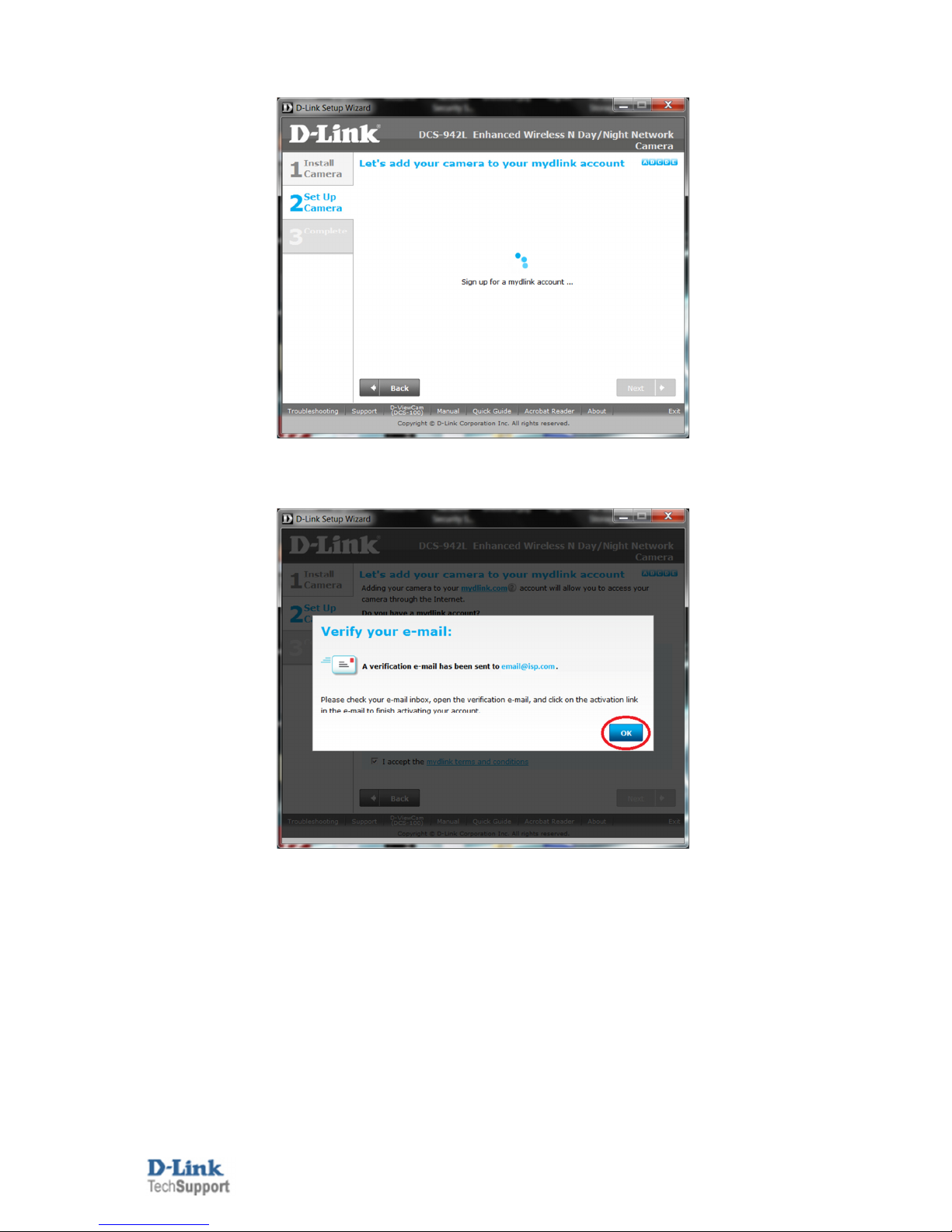

21. Your mydlink account will now be created:
22. An email will be ent to the email addre which you pecified. You will need to check your email inbox
and click on the activation link to fini h activating your mydlink account, then click on the OK button:

D-Link Technical Support – How to install the DCS-942L. Page 15 of 16

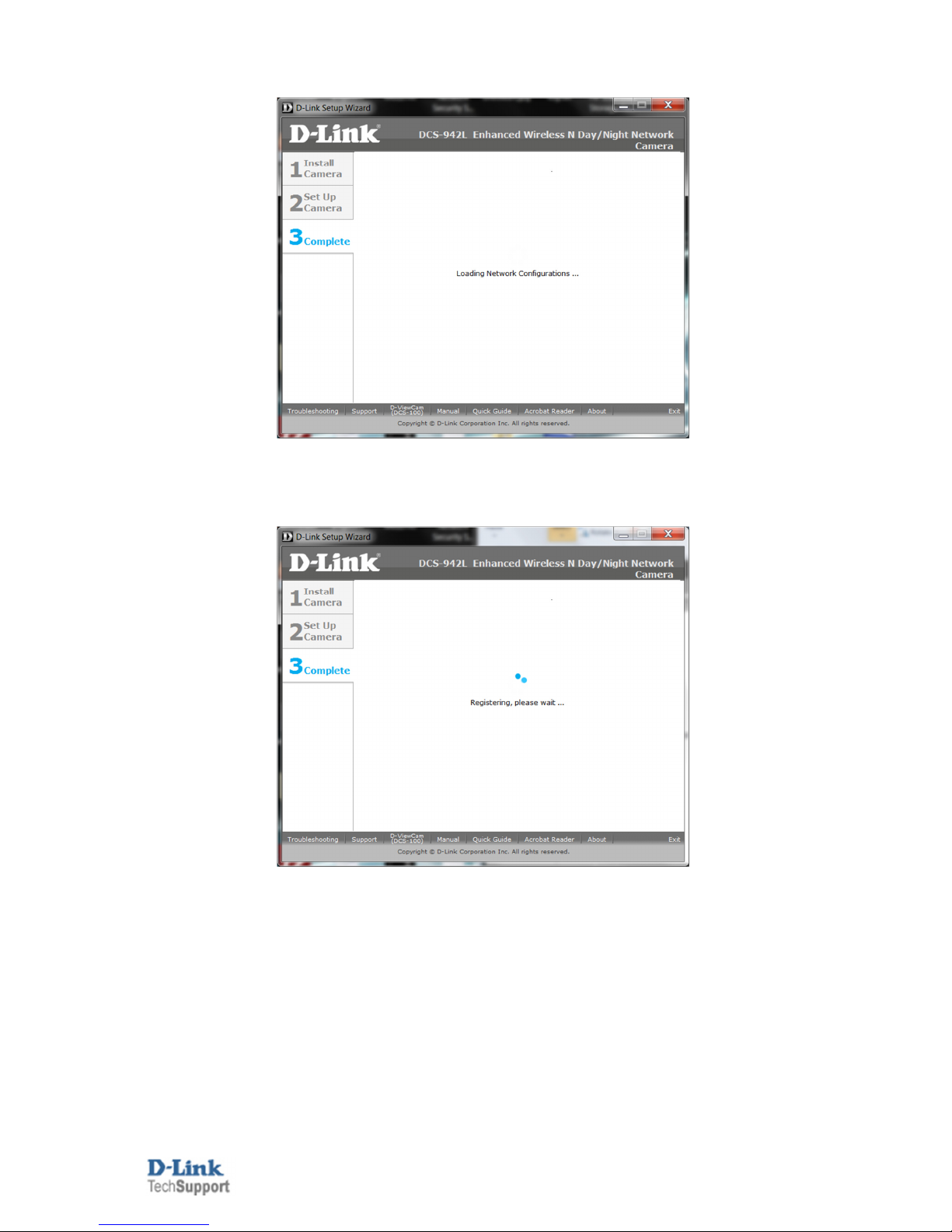

23. Patiently wait for the Network Configuration to complete:
24. The Setup Utility will now complete the regi tration proce and add your DCS-942L to your mydlink
account:
NOTE: Patientl wait for the process to complete. Up to 2 minutes.

D-Link Technical Support – How to install the DCS-942L. Page 16 of 16

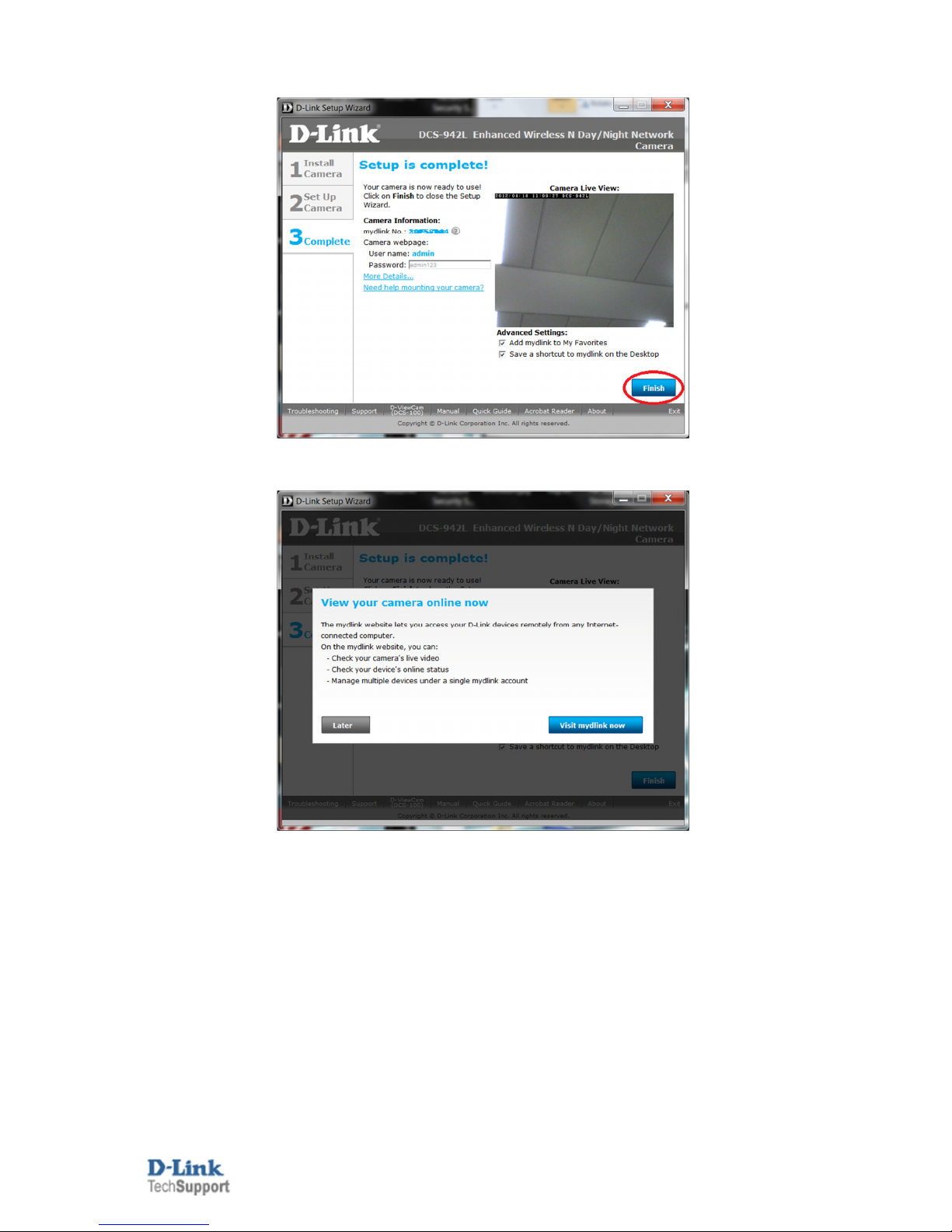

25. Your DCS-942L Setup i now complete. Click on the Fini h button.
26. You have the option to Vi it mydlink now and login to view your DCS-942L, or at a later time:
~ End of Document ~
