D-Link DCS-931L Cloud Camera 1050 User manual

DCS-931L
Quick Install Guide
Cloud Camera 1050
Wireless N Network Camera

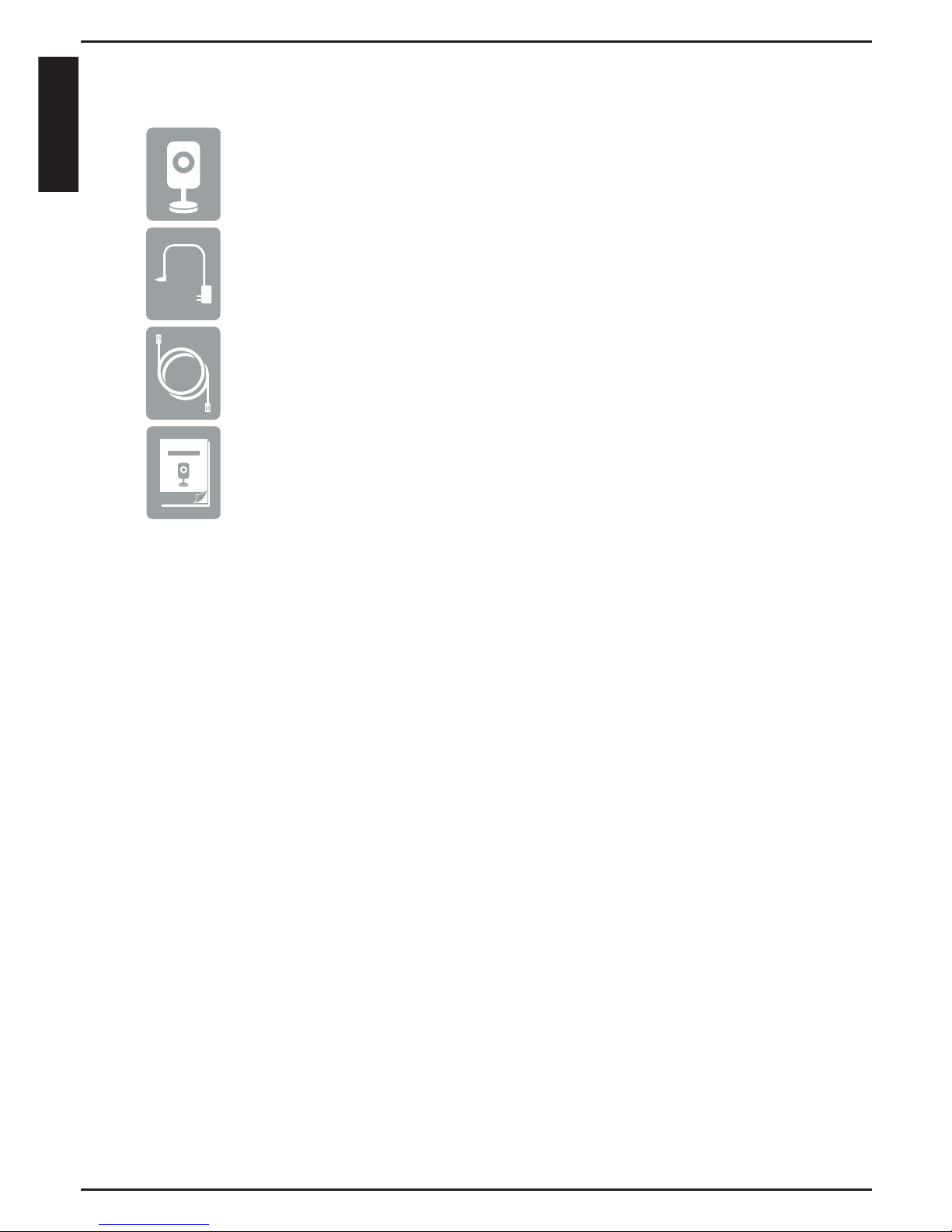

Package Contents
If any of the above items are missing, please contact your reseller.
Minimum Requirements
DCS-931L Cloud Camera 1050
Power Adapter
CAT5 Ethernet Cable
Quick Install Guide
Computer with:
Web Browser
• PC with 1.3GHz or above and at least 128MB RAM
• Windows® 8, Windows® 7, Vista® or XP (32-bit or 64-bit)
• Mac OS® X 10.6 or higher
• Internet Explorer® 7, Firefox, Safari 4, or Chrome
• Installed and enabled Java and ActiveX® controls
• A router (D-Link Cloud Router is recommended)
• An Internet connection
• An e-mail account (Required to register mydlink service)
Network Device and Service
2
ENGLISH

Cloud Router
mydlink cloud service
Cloud Camera
iPod
Smartphone
Tablet
Laptop
Laptop
Desktop
mydlink app
modem
1
What is the mydlink™ Service?
With a mydlink service enabled
camera, you can stay connected to
everything you love from anywhere,
anytime. The mydlink service can be
accessed by a web browser and also
provides an optional downloadable
mydlink app that allows users to
have a better experience on their
mobile devices. With the mydlink
app, you can quickly and easily view
your camera feed from anywhere
using a Wi-Fi, 3G or 4G connection.

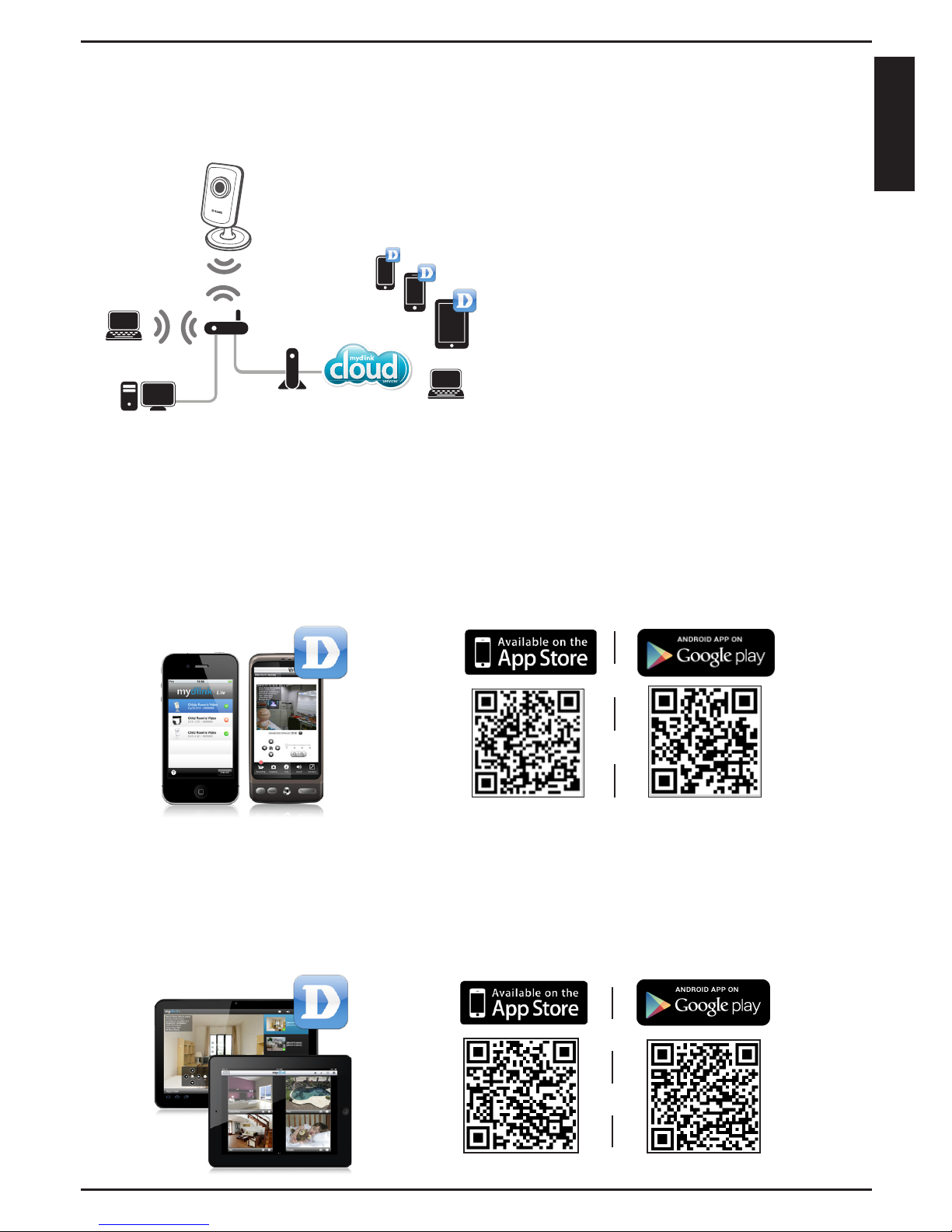

via Smartphone - mydlink Lite App (Free)
Search for the words“mydlink lite” to download and install the app on your
smartphone or tablet when connected to the Internet. You can also nd the
app by scanning the QR code below with a QR code scan app.
via Tablet - mydlink+ App (Paid)
Search for the word“mydlink+” to download and install the app on your
tablet when connected to the Internet. You can also nd the app by scanning
the QR code below with a QR code scan app.
System Requirements: iOS version 4.3 or above. Android version 2.1 or above.
System Requirements: iOS version 4.3 or above. Android version 2.1 or above.
3
ENGLISH

If you have a D-Link Cloud Router with an Internet connection, you can take
advantage of Zero Conguration. This feature automatically congures your
camera’s settings for you and adds it to your mydlink account automatically.
If you do not have a D-Link Cloud router, refer to the next page to install and
congure your camera.
If you wish to connect your camera to your router wirelessly,
you can simply disconnect the Ethernet cable and move the
camera to its intended location.
Zero Conguration Setup
Click on the device name
when the notice appear
to add the camera to
your account.
1
3Attach the power supply
Connect the Ethernet cable
2
From any computer, open a web
browser, go to http://www.mydlink.com
and log into your account.
4
ENGLISH

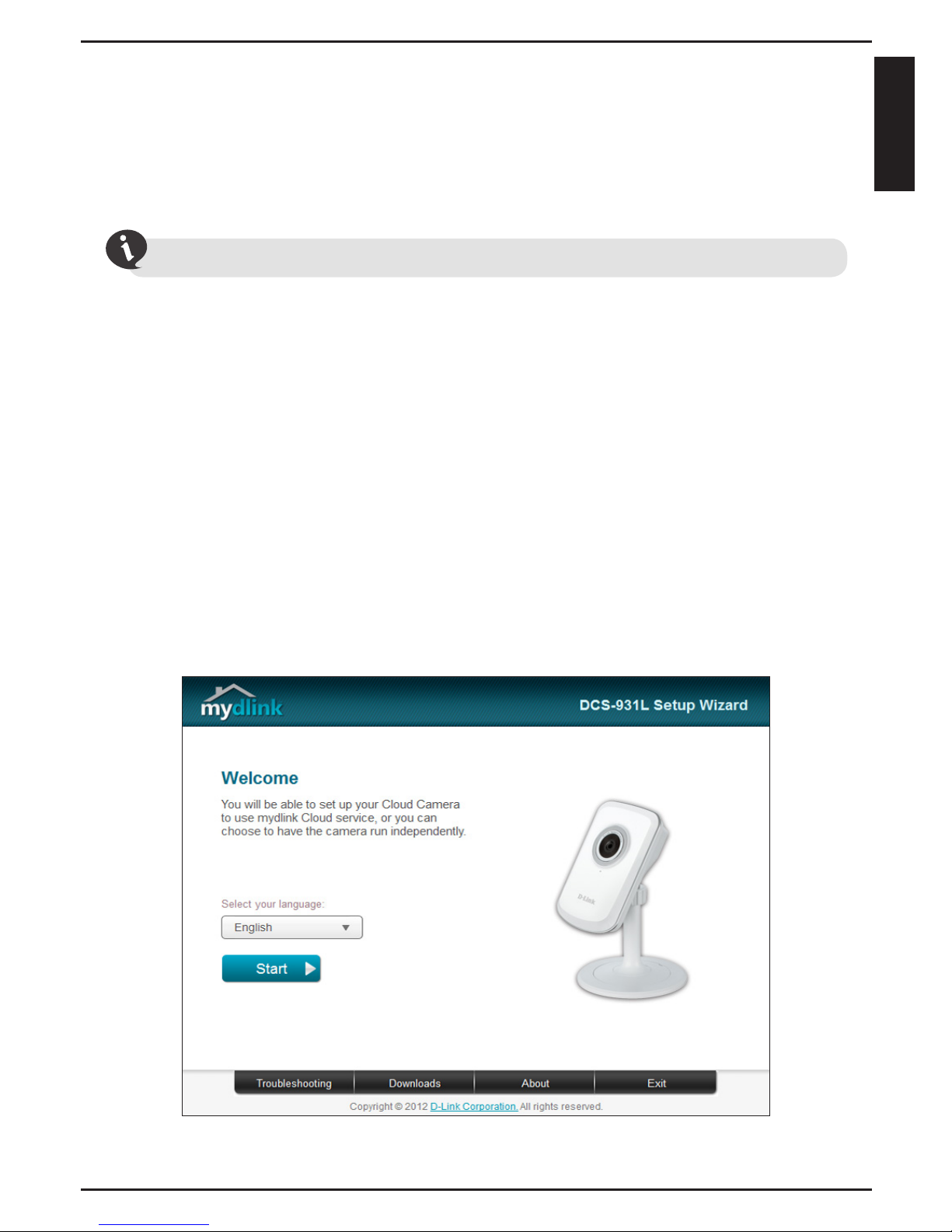

Please download the Setup Wizard from http://www.mydlink.com/support.
Setup Wizard
If you do not have a D-Link Cloud Router, you can use any Windows or Mac
computer to go through the Setup Wizard, which will guide you through the
installation process from connecting your hardware to conguring your camera.
Windows Users - Extract (“unzip”) the les to a folder on your computer and
then double-click the SETUP_WIZARD.exe le in the Advanced folder.
Mac Users - Download the Mac OS Setup Utility. Open the SetupWizard le
and launch the application.
After about 20-30 seconds, the Setup Wizard will open, which will guide you
step-by-step through the installation process from connecting your hardware
to conguring your camera and registering it with your mydlink account.
5
ENGLISH

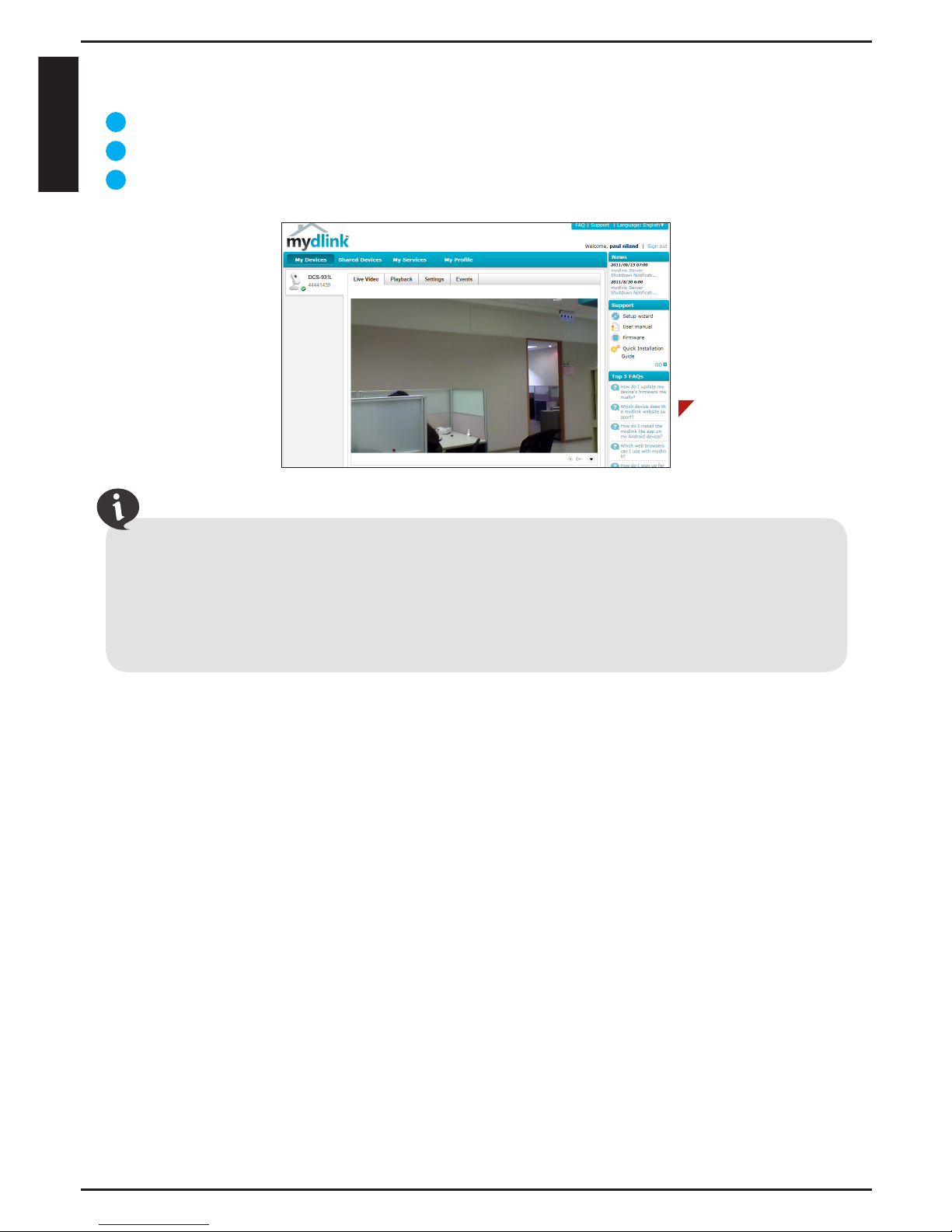

Start mydlink
Open a web browser on any computer connected to the Internet.
Enter http://www.mydlink.com in the address bar and press Enter.
Sign in with your mydlink account registered in the Setup Wizard.
1
2
3
• Windows does not have Java installed by default. Please download it from http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by default. Click the Finder > Applications > Utilities >
Java Preferences and check the Enable applet plug-in and Web Start applications option.
• The ActiveX® controls in IE will install automatically if needed. We suggest that you make sure that
you have enabled the related options in Tools > Internet Options > Security > Custom Level.
Browser Requirements:
Java
Active X
6
ENGLISH

1
2
3
4
5
6

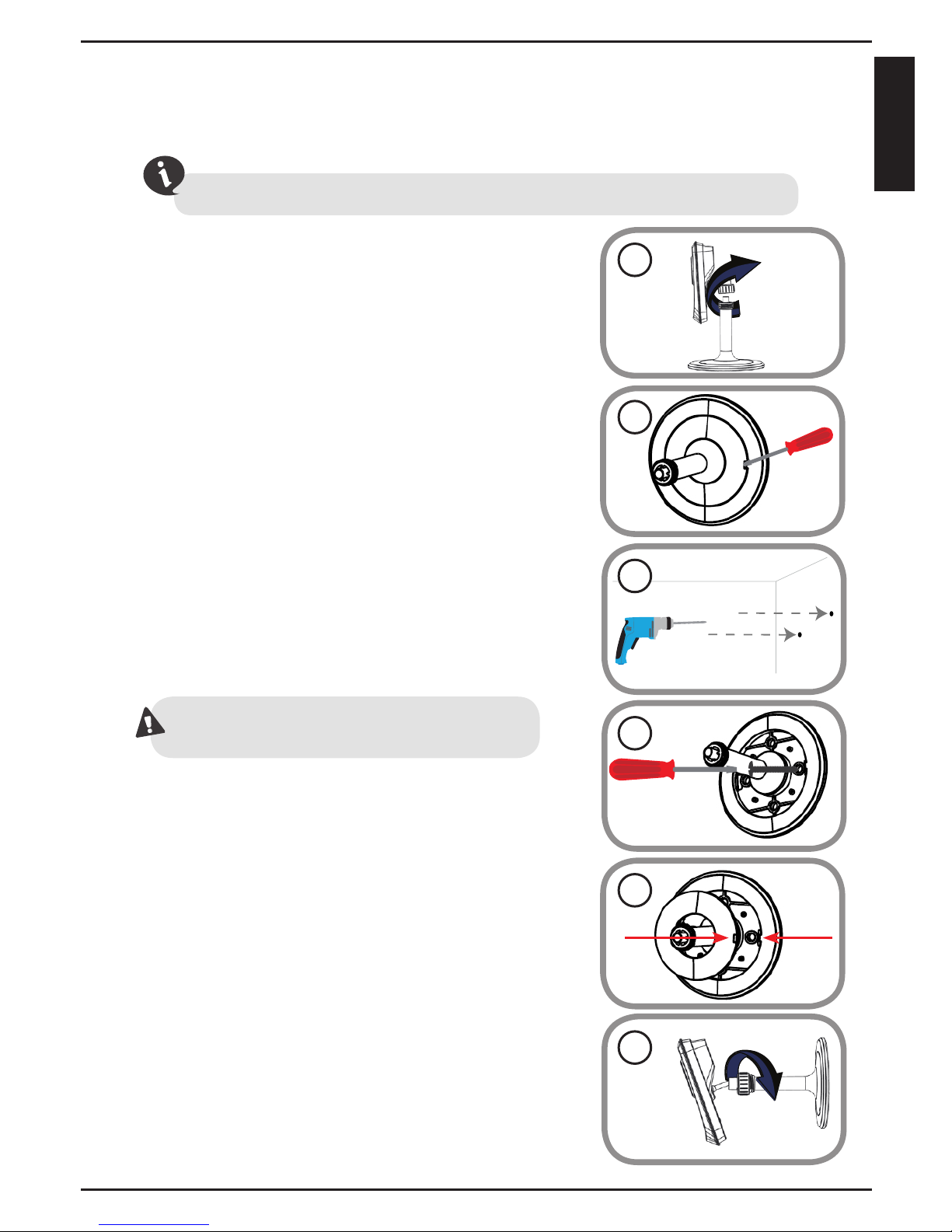

Mount the Camera
2. Use a athead screwdriver to remove the
base cover from the mounting base. Place the
mounting base where you want to position the
camera and use a pencil to mark the holes.
5. Place the base cover on the base. Make sure to
align the base cover notch, with the mounting
base for future removal. Afterwards, reattach
the camera head onto the mounting base.
6. Adjust the angle of the camera as desired, then
tighten the collar on the camera stem to lock it
in place.
3. Depending on the material of the wall or ceiling,
use proper tools to drill two holes or screws
where you marked. If the wall is made out of
concrete, drill the holes rst, then insert the
plastic anchors to support the screws.
4. Place the mounting base over the holes that
are in the wall or ceiling. Make sure to align the
mounting base holes with the holes in the wall
or ceiling. Use the supplied screws to attach the
mounting base to the surface of the wall.
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
Do not overtighten the screws as
this may crack the mount.
1. The camera needs to be removed to expose
the holes in the mounting base. Unscrew the
camera head from the mounting base by
turning counterclockwise.
7
ENGLISH

Camera Use Without mydlink Service
You might have some limitations without using the mydink service:
• Not be able to manage many devices with a single account.
• Need a static IP address or DDNS account to access the camera remotely.
• Need several steps to manually setup remote access to the camera
behind a router.
• Not be able to view the image and modify the settings at the same time
on mobile devices.
If you do not want to use the mydlink
service now, run the Setup Wizard and
choose the option “I don’t want to enable...”.
You can run the Setup Wizard again when
you want to enable the mydlink service
in the future. Check below if your camera
behind a router or rewall.
Log in the router’s setup page and add rules in the Virtual Server or Port
Forwarding sections by entering camera’s IP address and service ports.
Then you can use the router’s Internet (WAN) IP address and camera’s HTTP
port to access the camera remotely.

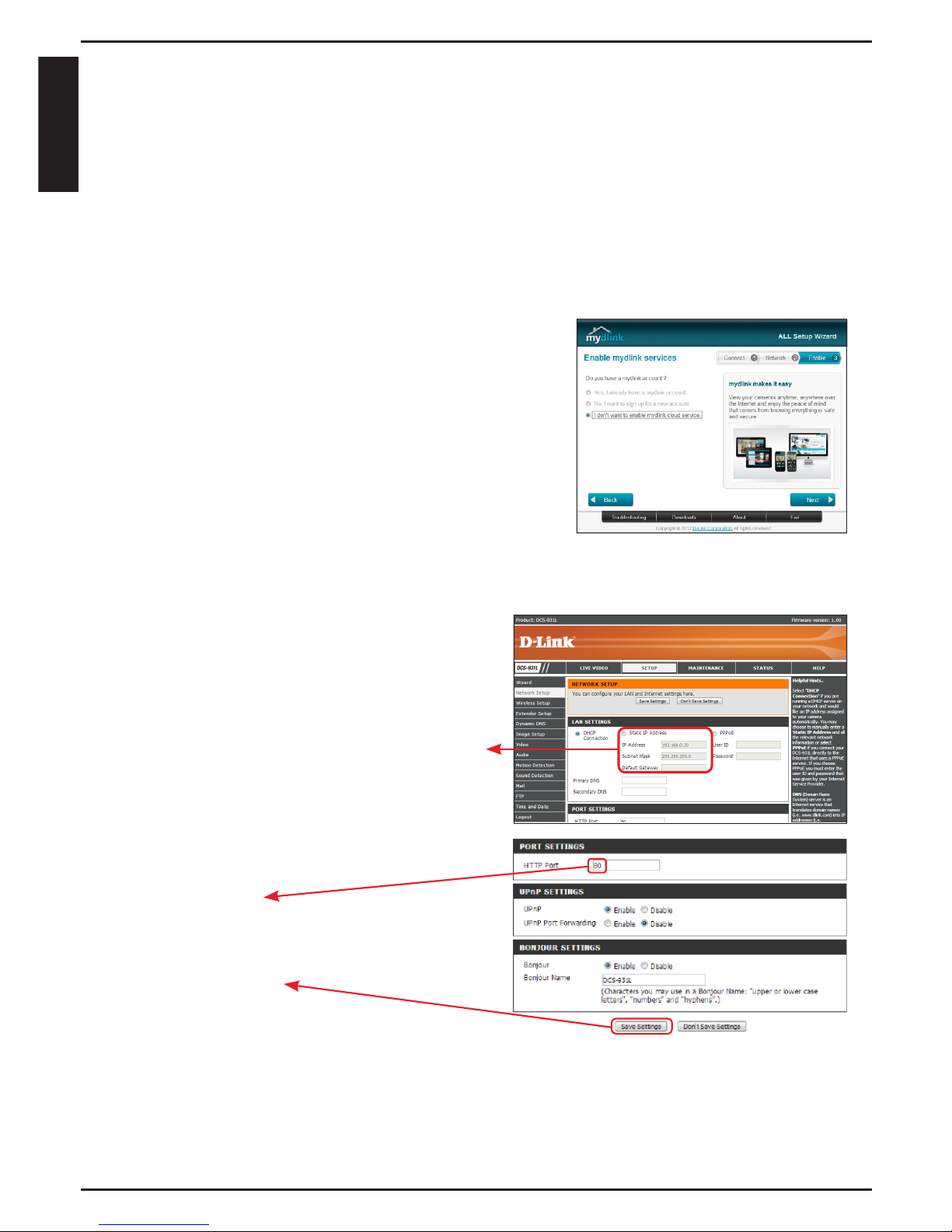

Conguring the camera behind a Router
To log in the camera’s setup page, go to SETUP >
Network Setup, select “Static IP Address”
and assign an IP address to the camera. The IP
address must be in the same subnet mask of
the router’s LAN IP.
The camera’s default IP address is 192.168.0.20.
Enter the HTTP (80 by default) service port on
this page. Leave the other settings to the default
and click “Save Settings”to nish.
8
ENGLISH

D-ViewCam enables centralized management of multiple network cameras,
supporting up to 32 network cameras and up to 64 users. With a dedicated
computer it oers digital monitoring and recording with a wide array of features,
including scheduled, motion and manual recording options for individual
needs. Download D-ViewCam at http://mydlink.com/support. Select your
camera and select“D-ViewCam”under Wizard.
D-Link provides a software (D-ViewCam) or a hardware (NVRs) solution for
advanced users to choose from to manage their cameras and record videos.
Depending on the users needs, one or the other solution can be used to
supplement their camera system.
NetworkVideo Recorders (NVRs) are standalone storage devices with a powerful
embedded system that can record video from up to 9 network cameras located
on local or remote sites into a dedicated HDD storage without turning on a PC.
Video and camera management can be done as needed using any computer
attached to the network.
D-ViewCam™ and Network Video Recorders
NVR
Cloud Camera
Router Modem
Internet
Mobile Device
Laptop
Cloud Camera
Router Modem
Internet
Mobile Device
Laptop
9
ENGLISH

Notes
10
ENGLISH

Notes
11
ENGLISH

Technical Support
This guide is only for the rst time conguration. Please refer to the user manual
to learn more or visit http://www.mydlink.com for more information. Also feel free
to contact us. U.S. and Canadian customers can contact D-Link Technical Support
through our website or by phone.
http://support.dlink.com
877-453-5465
USA
http://support.dlink.ca
800-361-5265
Canada
Version 1.0
January 14, 2013
