D-Link DCS-931L Cloud Camera 1050 User manual

Version 1.0 | 02/12/2013
User Manual
Cloud Camera 1050
DCS-931L

2D-Link DCS-931L User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes. Information in this document may become obsolete as our services and
websites develop and change. Please refer to the www.mydlink.com website for the most current information.
Manual Revision
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Corporation.
Revision Date Description
1.0 February 11, 2013 • Initial release
Manual Overview

3D-Link DCS-931L User Manual
Table of Contents
Product Overview.............................................................. 4
Package Contents......................................................................... 4
System Requirements................................................................. 4
Introduction ................................................................................... 5
Features............................................................................................ 6
Hardware Overview..................................................................... 7
Front View................................................................................ 7
Rear View ................................................................................. 8
Installation ......................................................................... 9
Zero Conguration Setup........................................................10
Camera Setup Wizard................................................................13
Windows Users ....................................................................13
Mac Users...............................................................................14
Manual Hardware Installation................................................15
Wireless Installation Considerations....................................16
WPS - Push Button Setup.........................................................17
mydlink...........................................................................................18
Conguration...................................................................19
Using the Web Conguration Interface..............................19
Live Video ......................................................................................20
Setup...............................................................................................21
Wizard.....................................................................................21
Internet Connection Setup Wizard........................22
Network Setup..............................................................24
Wireless Setup......................................................................25
Extender Setup....................................................................26
Dynamic DNS ......................................................................27
Image Setup .........................................................................28
Video .......................................................................................29
Audio.......................................................................................30
Motion Detection ...............................................................31
Sound Detection.................................................................32
Mail ..........................................................................................33
FTP............................................................................................35
Time and Date......................................................................37
Maintenance ................................................................................38
Admin .....................................................................................38
System ....................................................................................39
Firmware Upgrade..............................................................40
Status ..............................................................................................41
Device Info ............................................................................41
Active User ............................................................................42
Troubleshooting ..............................................................43
Technical Specications..................................................46
Contacting Technical Support ........................................48
Warranty...........................................................................49
Registration .....................................................................56
Table of Contents

4D-Link DCS-931L User Manual
Section 1 - Product Overview
• DCS-931L Cloud Camera 1050
• CAT5 Ethernet Cable
• Power Adapter
• Manual and Software on CD
• Quick Install Guide
Note: Using a power supply with a dierent voltage than the one included with your product
will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements
• Computer with Microsoft Windows® 8, 7, Vista®, XP, or Mac (OS X 10.6 or higher)
• PC with 1.3GHz or above and at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network or 802.11g/n wireless network
Product Overview
Package Contents

5D-Link DCS-931L User Manual
Section 1 - Product Overview
Introduction

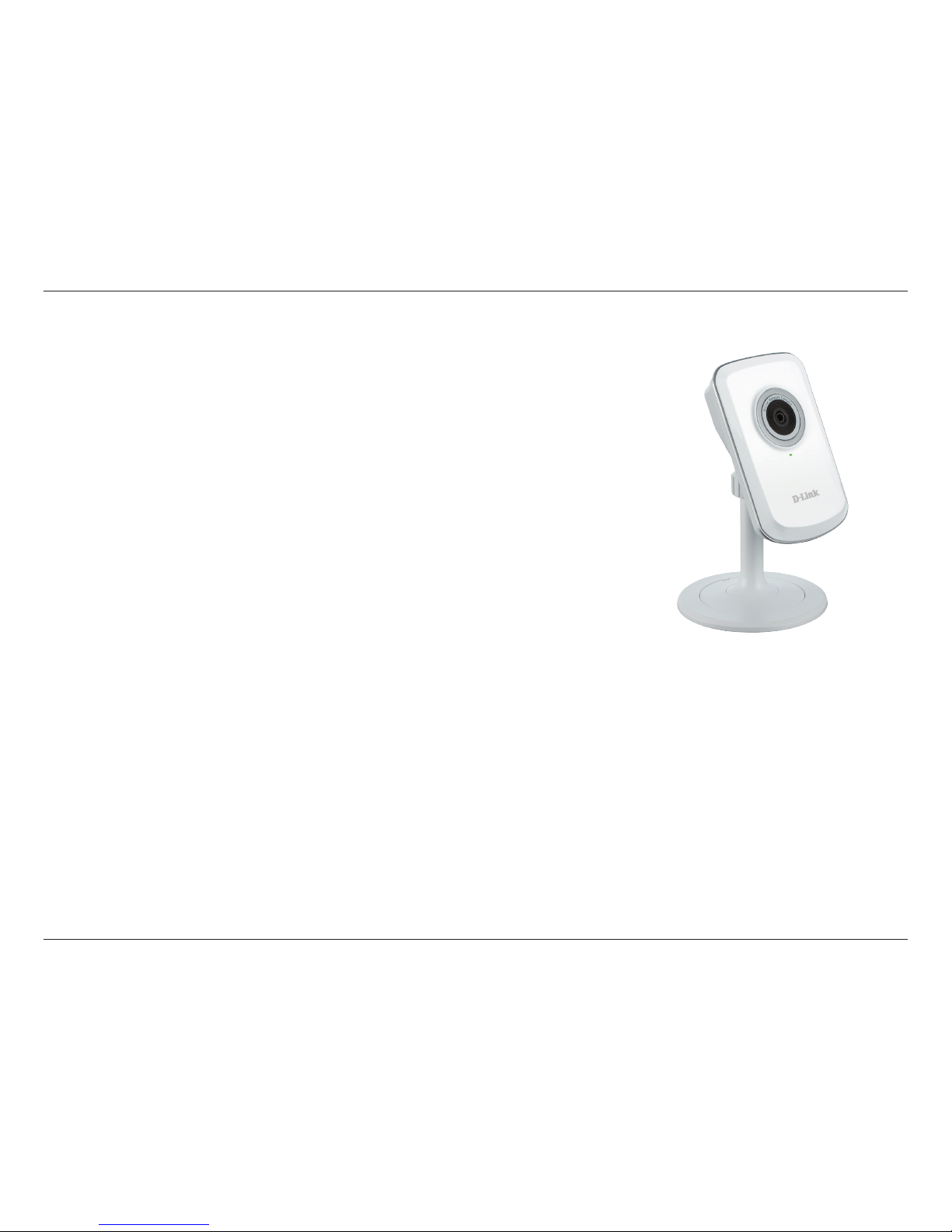

Congratulations on your purchase of the DCS-931L Cloud Camera 1050. The DCS-931L is a versatile and unique solution for
your small oce or home. Unlike a standard webcam, the DCS-931L is a complete system with a built-in CPU and web server
that transmits high quality video images for security and surveillance.
The DCS-931L can be accessed remotely, and controlled from any PC/Notebook over your local network or through the
Internet via a web browser. The simple installation and intuitive web-based interface oer easy integration with your Ethernet/
Fast Ethernet or 802.11 b/g/n wireless network, and its Extender Mode even allows you to increase your wireless network’s
coverage. The DCS-931L also comes with remote monitoring and motion detection features for a complete and cost-eective
home security solution.
Your DCS-931L is mydlink-enabled, which means that you can view and manage your camera from anywhere over the Internet
through the mydlink website or through the mydlink mobile app for iOS and Android. You can view your live video feed, take
snapshots, set a recording schedule, and more!

6D-Link DCS-931L User Manual
Section 1 - Product Overview
Easy to Use and mydlink-Enabled for Easy Access and Management
The DCS-931L is a standalone surveillance camera that requires no special hardware or software, and can run independently even without a PC.
This camera is also mydlink-enabled, which means you can view and manage your camera through the mydlink website, or through the mydlink
mobile app for iOS and Android.
H.264 Codec for Smooth, Space-Ecient Video
This camera supports use of the H.264 video codec, which gives you high-quality video with reduced bandwidth requirements. This means that
you can enjoy smoother, more reliable video streaming over the Internet, and less disk space is required to save recordings.
Motion and Sound Triggered Notications and Recordings
The DCS-931L can send e-mail notications with snapshots or video clips whenever motion or sound is detected. You can customize areas of the
video to monitor for motion to keep watch over entry ways, and you can set volume limits to detect when a loud sound is picked up by the camera.
Supports a Variety of Platforms
Supports TCP/IP networking, HTTP, and other Internet related protocols. The DCS-931L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
802.11b/g/n Wireless or Ethernet/Fast Ethernet Support
The DCS-931L oers wireless 802.11b/g/n and Ethernet/Fast Ethernet connectivity, making the DCS-931L easy to integrate into your existing
network environment. The DCS-931L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired
environments, and works with 802.11b/g/n routers or access points for added exibility. The Site Survey feature also allows you to view and connect
to any available wireless networks.
Extender Mode Increases the Range of Your Wireless Network
You can use the DCS-931L’s Extender Mode to extend the range of your wireless network, giving your home or oce better wireless coverage.
Remote Monitoring Utility
This camera also includes the D-ViewCam software, which adds enhanced features and functionality that helps you create a full surveillance system
for up to 32 cameras.With D-ViewCam, you can view multiple cameras at the same time, record video, and set up scheduled and triggered recordings.
Features

7D-Link DCS-931L User Manual
Section 1 - Product Overview
Hardware Overview

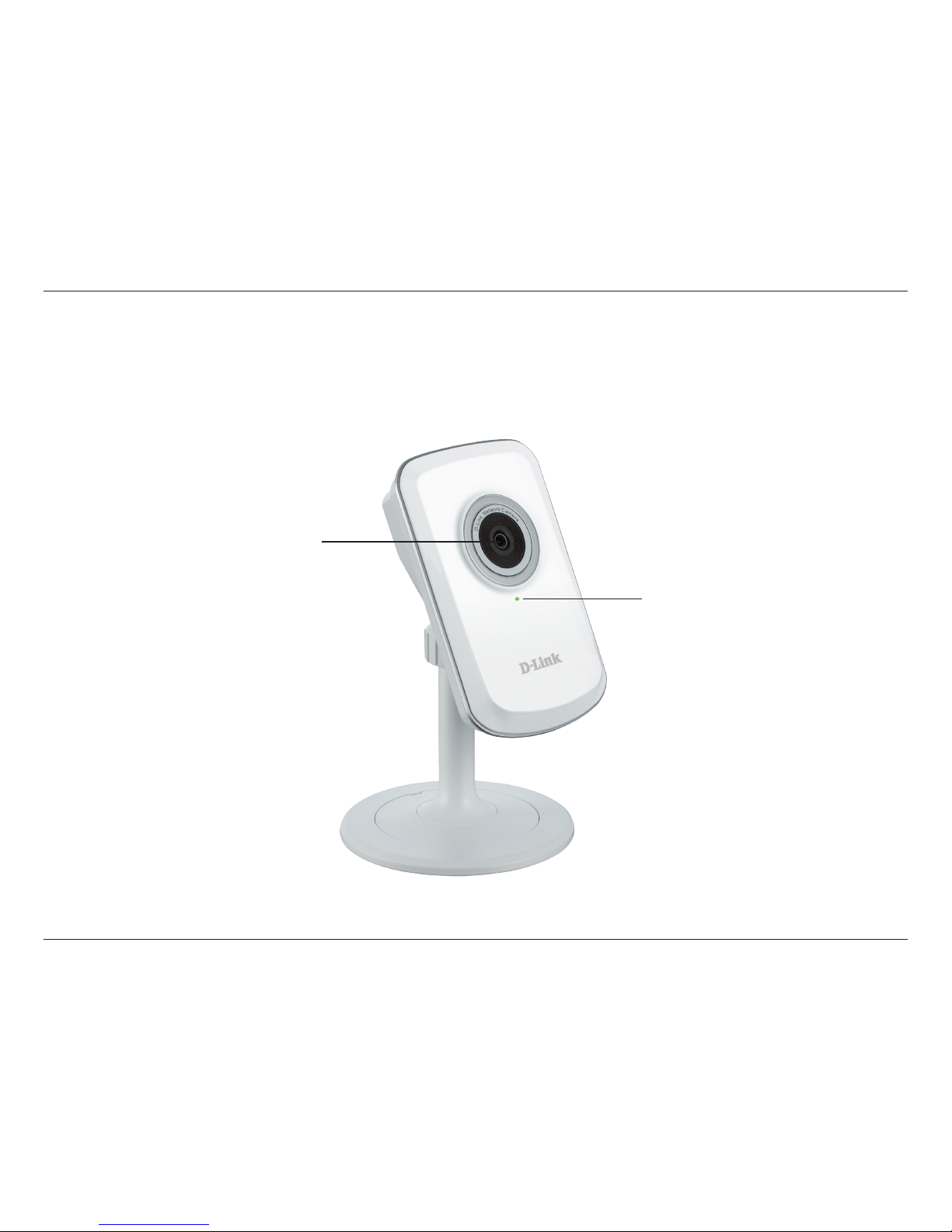

Front View
Camera Lens
Microphone

8D-Link DCS-931L User Manual
Section 1 - Product Overview

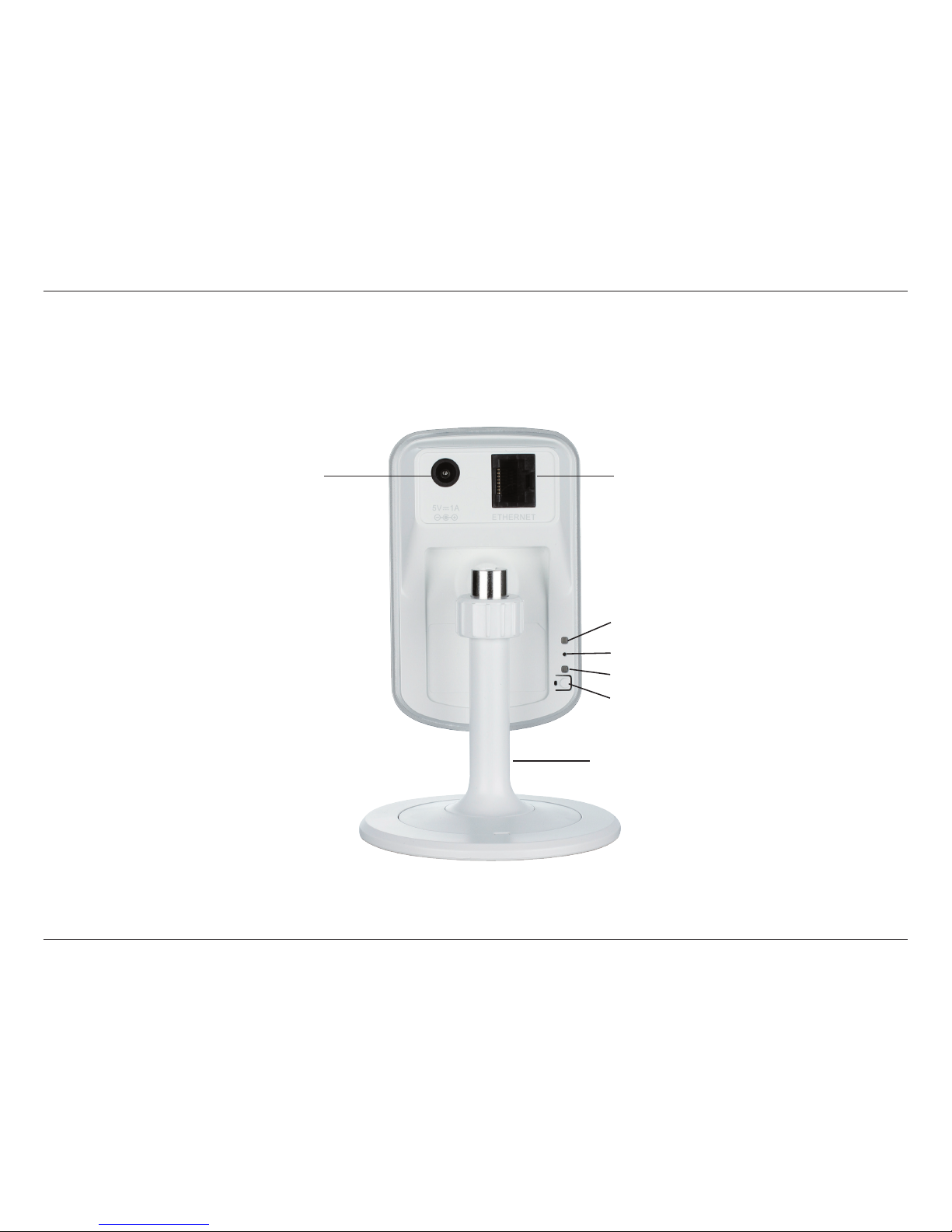

Rear View
Power Connector Ethernet Port
Reset Button
WPS LED
WPS Button
Camera Stand
Power and Link LED

9D-Link DCS-931L User Manual
Section 2 - Installation
There are three ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router, this is the easiest way to set up your camera. Refer
to page 10.
Camera SetupWizard: If you do not have a mydlink-enabled router, use the Camera Setup Wizard to guide you through
setup and initial conguration of your camera. Refer to page 13.
Manual Hardware Installation: This section shows you how to manually set up your camera, though in order to use
the mydlink features of your camera, you will still need to run the Camera Setup Wizard. Refer to page 15.
Installation

10D-Link DCS-931L User Manual
Section 2 - Installation
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically
congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to
set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-931L
and automatically add the camera to your mydlink account.With this quick and easy setup you can remotely access your camera
from the www.mydlink.com website to manage and monitor your DCS-931L.
Zero Conguration Setup

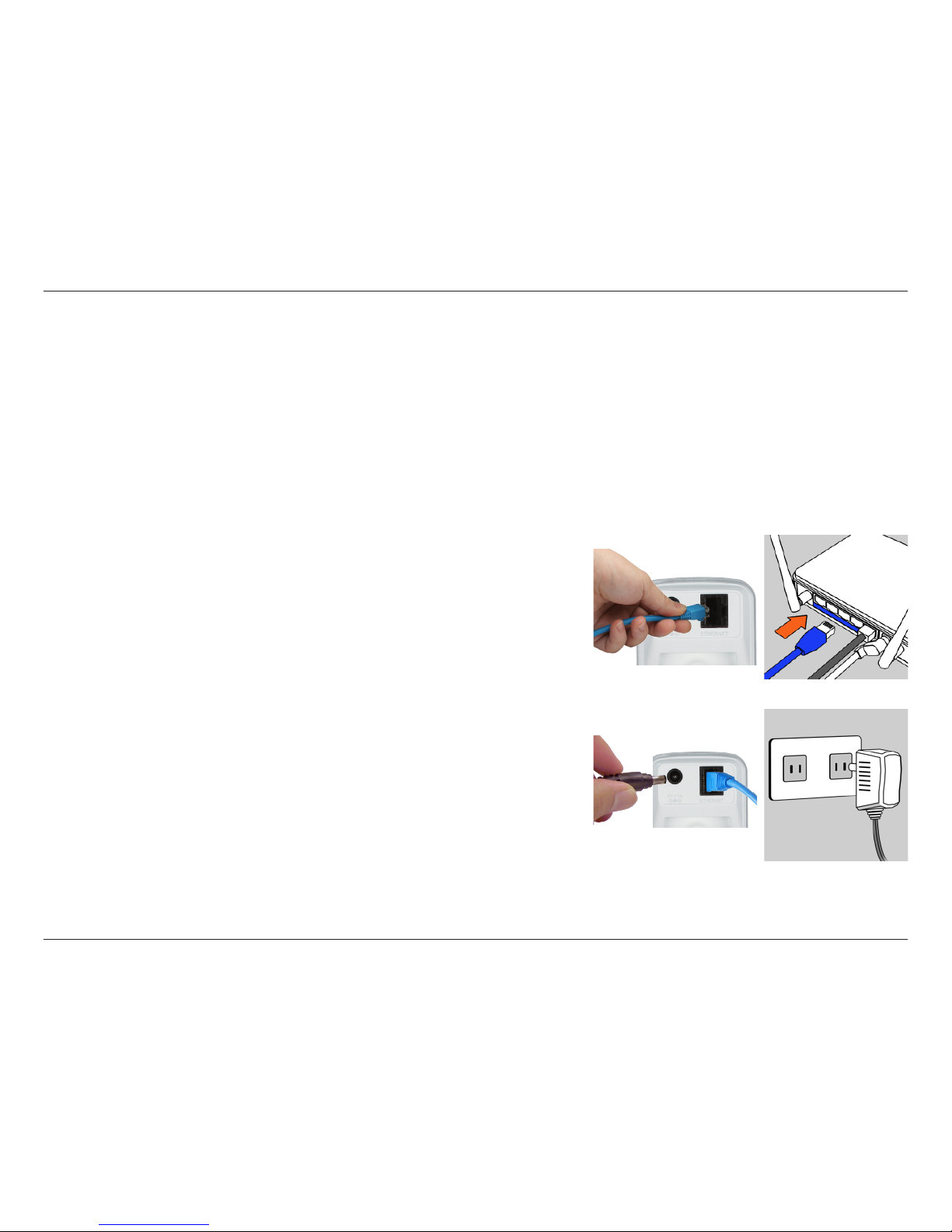

Connect the Ethernet Cable

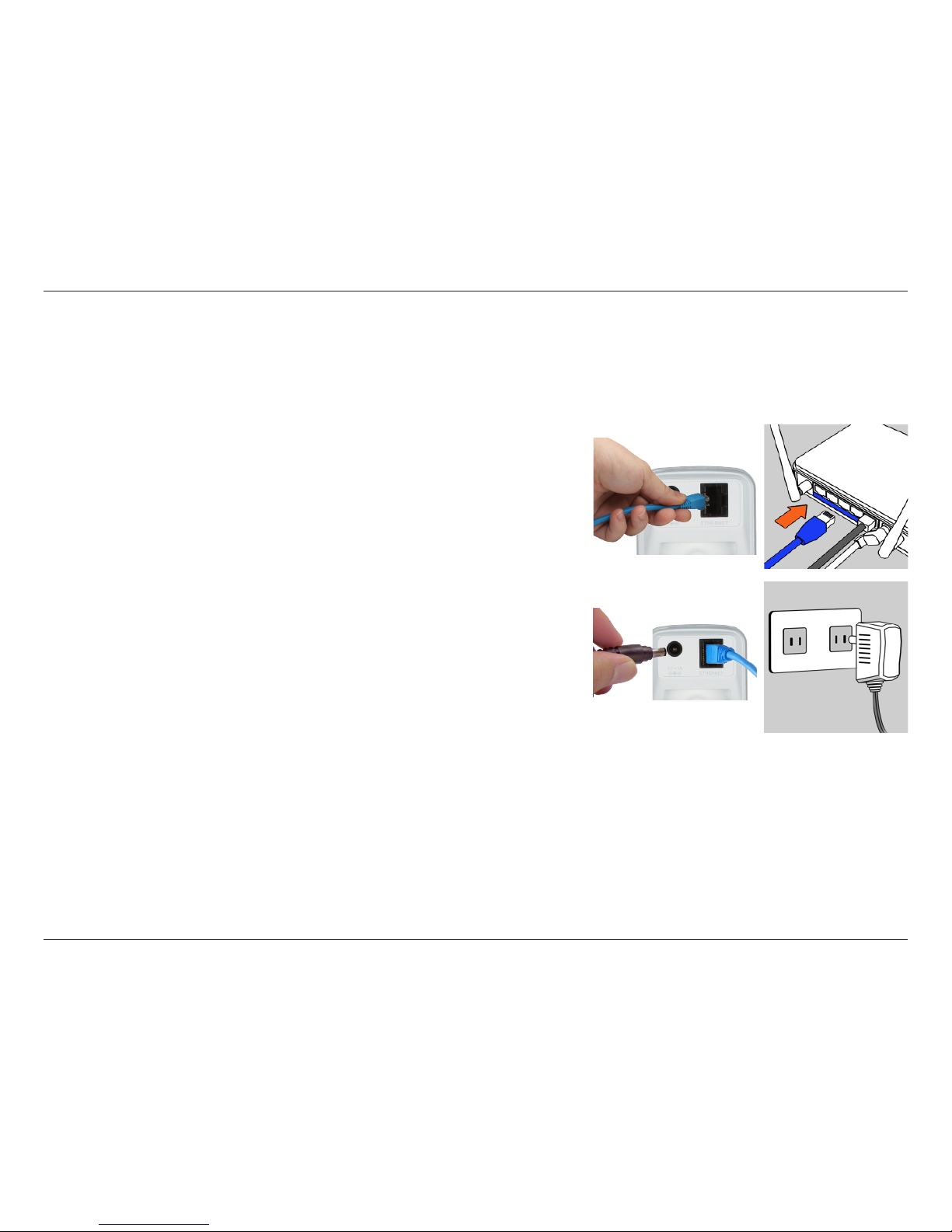

Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available port on your router. If you wish to use your camera
wirelessly, you will be able to remove the cable after Zero Conguration
Setup is complete.
Attach the External Power Adapter
Connect the power adapter to the power connector on your camera, then
plug the power adapter into a wall outlet.

11D-Link DCS-931L User Manual
Section 2 - Installation

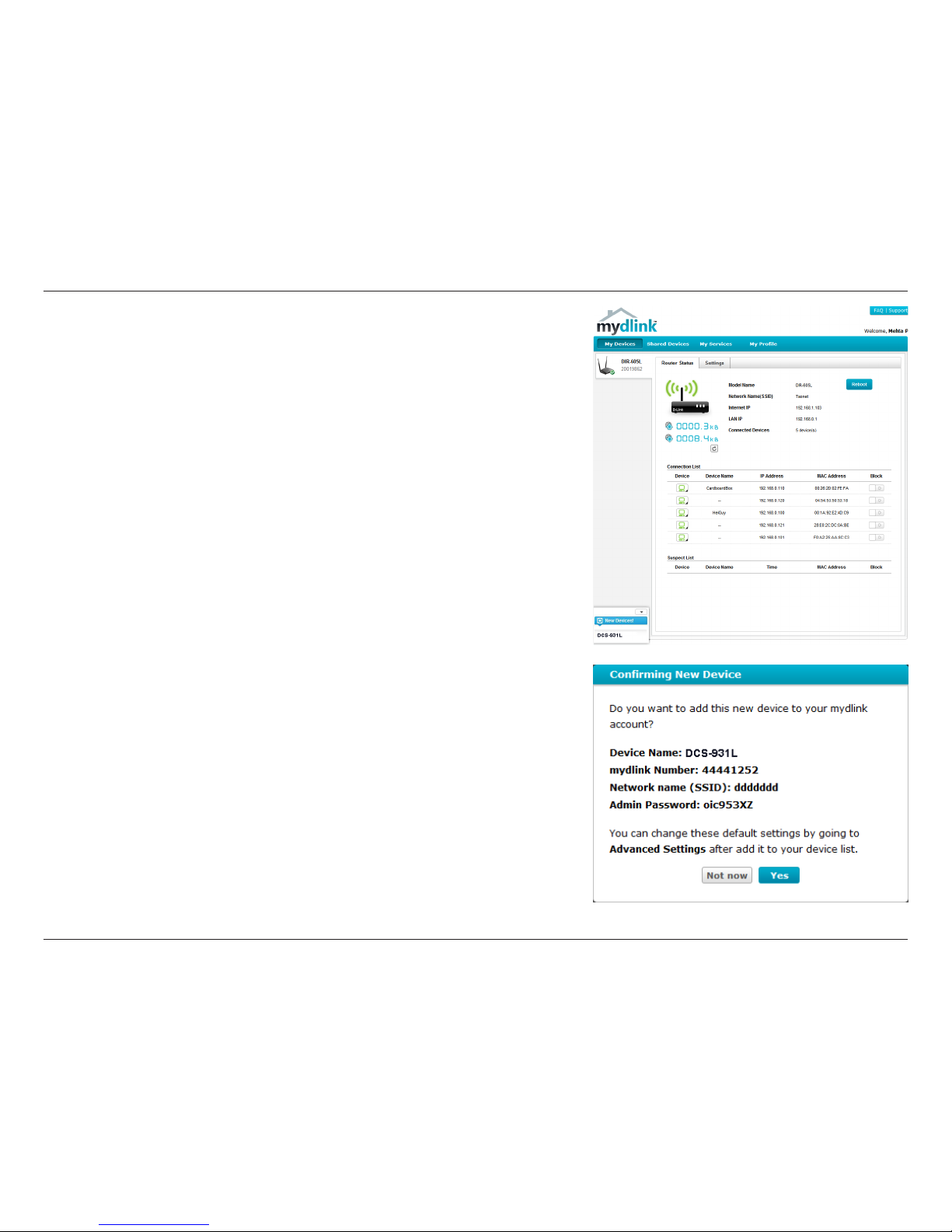

A summary and conrmation notication will appear with the automatically
congured details. Make a note of the details and click Yes to add the camera
to your account.
Check Your mydlink Account
Open a web browser and login to your mydlink account.The mydlink page will
check for new devices and display a New device Found! pop-up notication
in the bottom-left corner. Click the notication to continue.

12D-Link DCS-931L User Manual
Section 2 - Installation

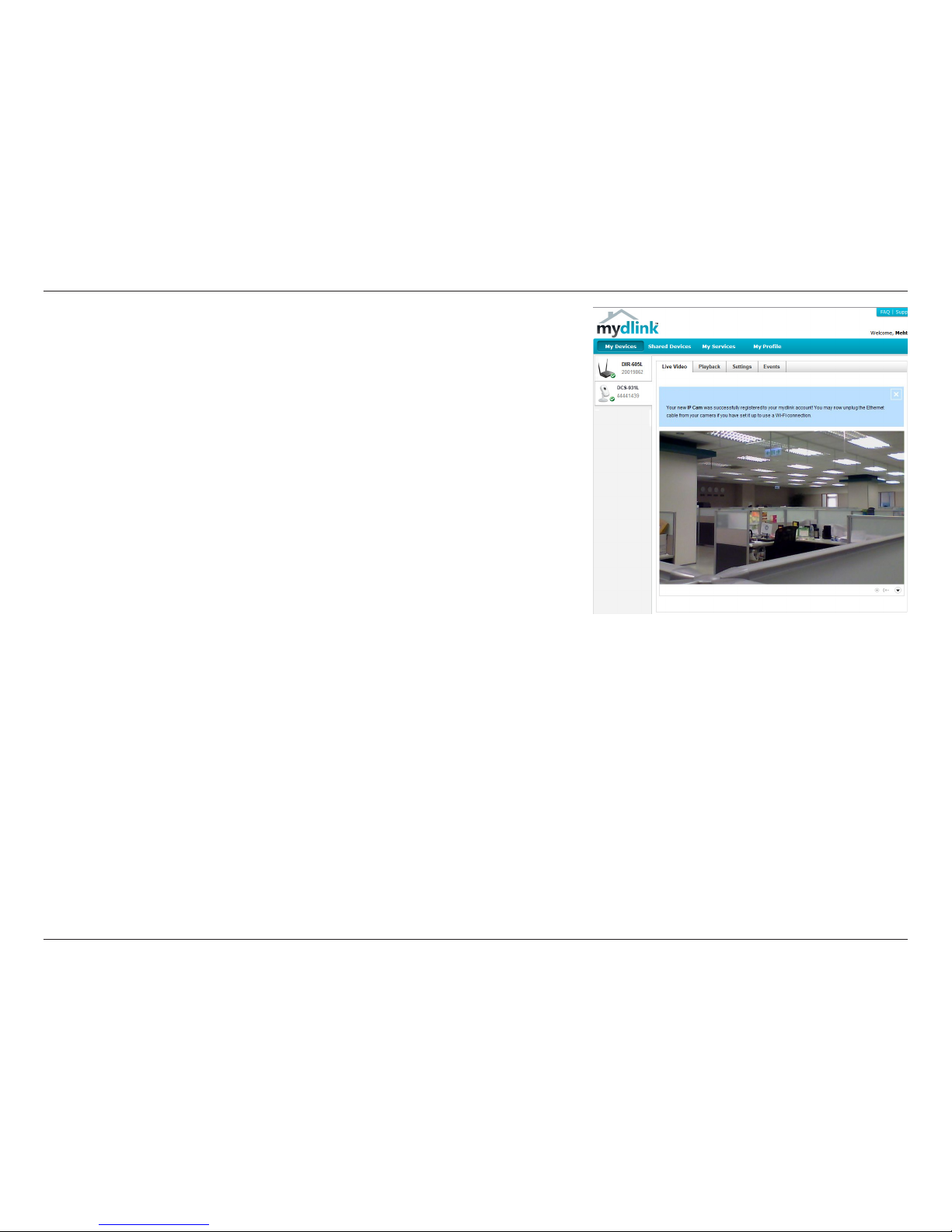

Zero Conguration will navigate to the mydlink Live View tab for your camera
where you will see a screen similar to the following.
If you wish to connect your camera to your router wirelessly, you can simply
disconnect the Ethernet cable and move the camera to its intended location; your
router's wireless settings have been automatically transferred to the camera, and
no further conguration is required.
Your camera is now set up. You can skip to the “mydlink” section on page 18
to learn more about the mydlink features of this camera. For “Conguration”
information go to page 19 for advanced conguration of your camera.

13D-Link DCS-931L User Manual
Section 2 - Installation
Camera Setup Wizard
Windows Users

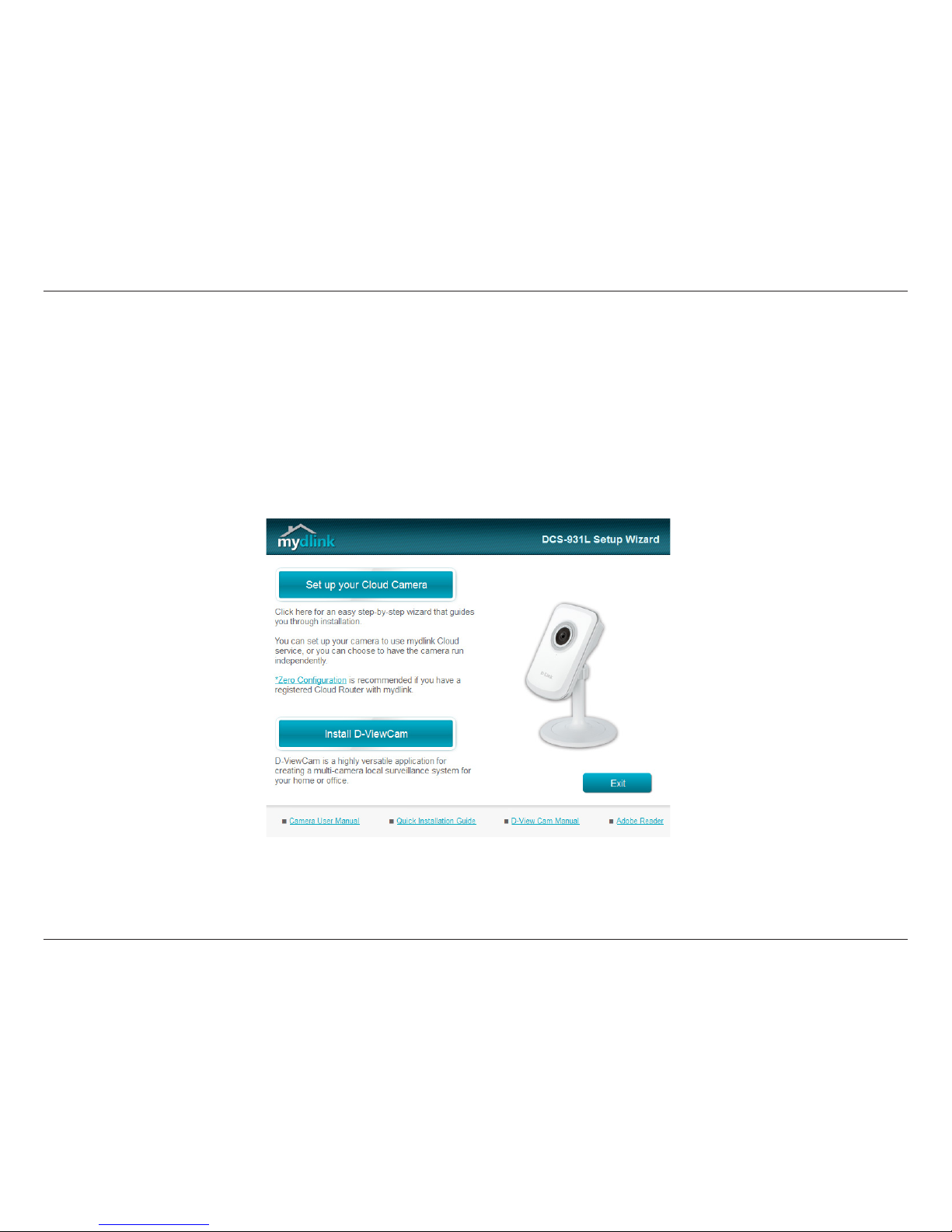

Then, click Set up your Cloud Camera to go through the Setup Wizard, which will guide you through the step-by-step
installation process.
Go to www.mydlink.com/support to select your camera and choose the Windows Setup Wizard. Once your computer
downloads the le, unzip the le and then double click on the autorun.exe located in the Advanced folder to run the wizard.

14D-Link DCS-931L User Manual
Section 2 - Installation
Mac Users

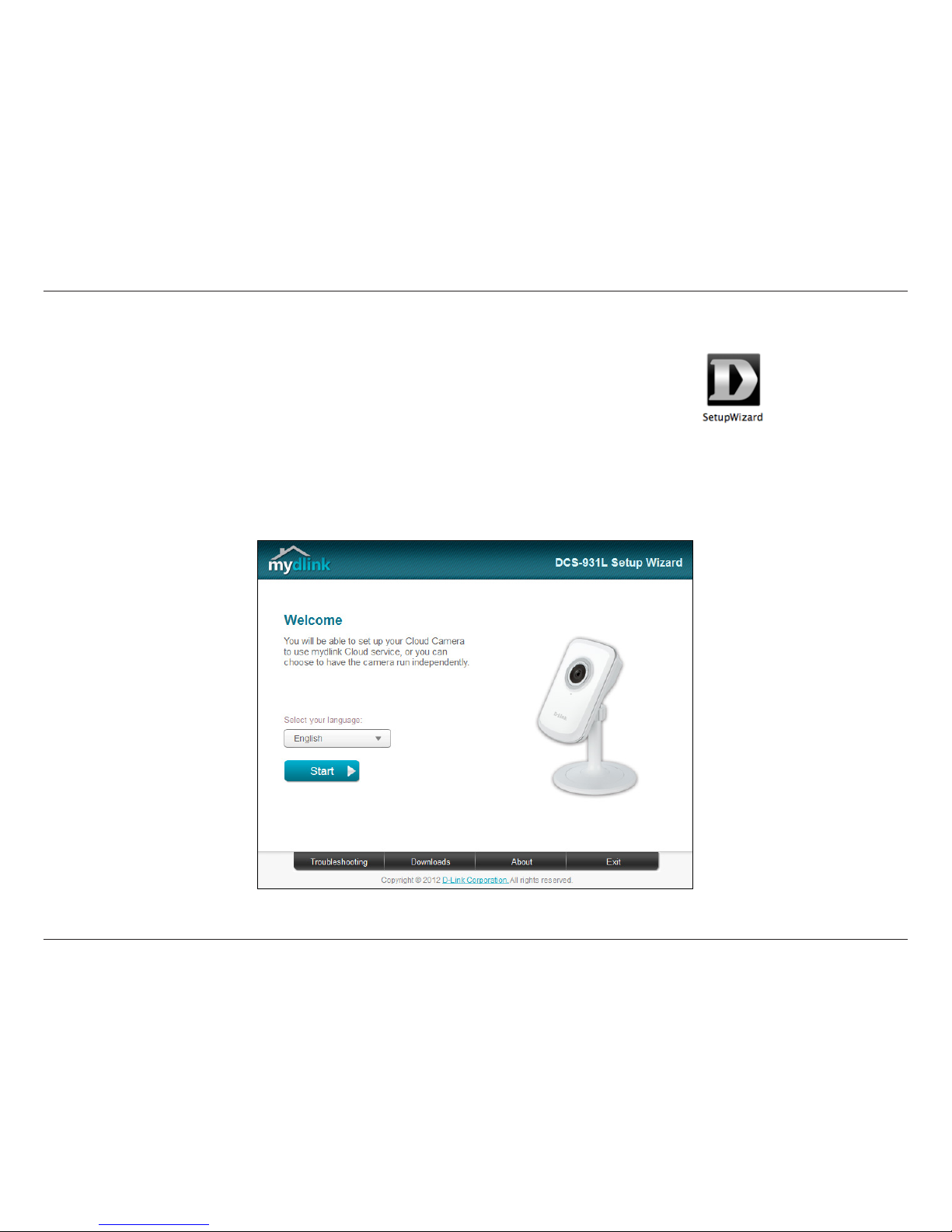

After about 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process
from connecting your hardware to conguring your camera and registering it with your mydlink account.
Go to www.mydlink.com/support to select your camera and choose the Mac OS Setup
Wizard. Once downloaded, open the Setup Wizard rle and launch the application.

15D-Link DCS-931L User Manual
Section 2 - Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero Conguration
Setup.
Optional: Use WPS to Connect Wirelessly
You can use WPS to connect your camera to your network wirelessly. For more
information, refer to “WPS - Push Button Setup” on page 17. If your router
does not support WPS, you will still be able to set up your camera’s wireless
settings in the camera’s web interface.
Connect the Ethernet Cable
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available port on your router.
Attach the External Power Adapter
Connect the power adapter to the power connector on your camera, then plug
the power adapter into a wall outlet.
Congure Your Camera
Refer to “Conguration” on page 19 for information on how to congure your
camera.

16D-Link DCS-931L User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link Wireless Network Camera lets you access your network using a wireless connection from anywhere within the
operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects
that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and
background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic
guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your
Network Camera) - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position
your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better
reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try
to position your access points, wireless routers, and other networking devices where the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh
tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your
wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far
away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

17D-Link DCS-931L User Manual
Section 2 - Installation
To create a WPS connection:
Step 1
Make sure the camera is powered on, then press and hold theWPS button for
three seconds. The blue WPS status LED will start blinking.
Step 2
Press the WPS button on your router within 60 seconds. The WPS button is
usually located on the front or side of your router. On some routers, you may
need to log in to the web interface and click on an on-screen button to activate
the WPS feature. If you are not sure where the WPS button is on your router,
please refer to your router’s User Manual.
The DCS-931L will automatically create a secure wireless connection to your
router. While connecting, the green LED will ash and your camera will reboot.
WPS - Push Button Setup
WPS Button

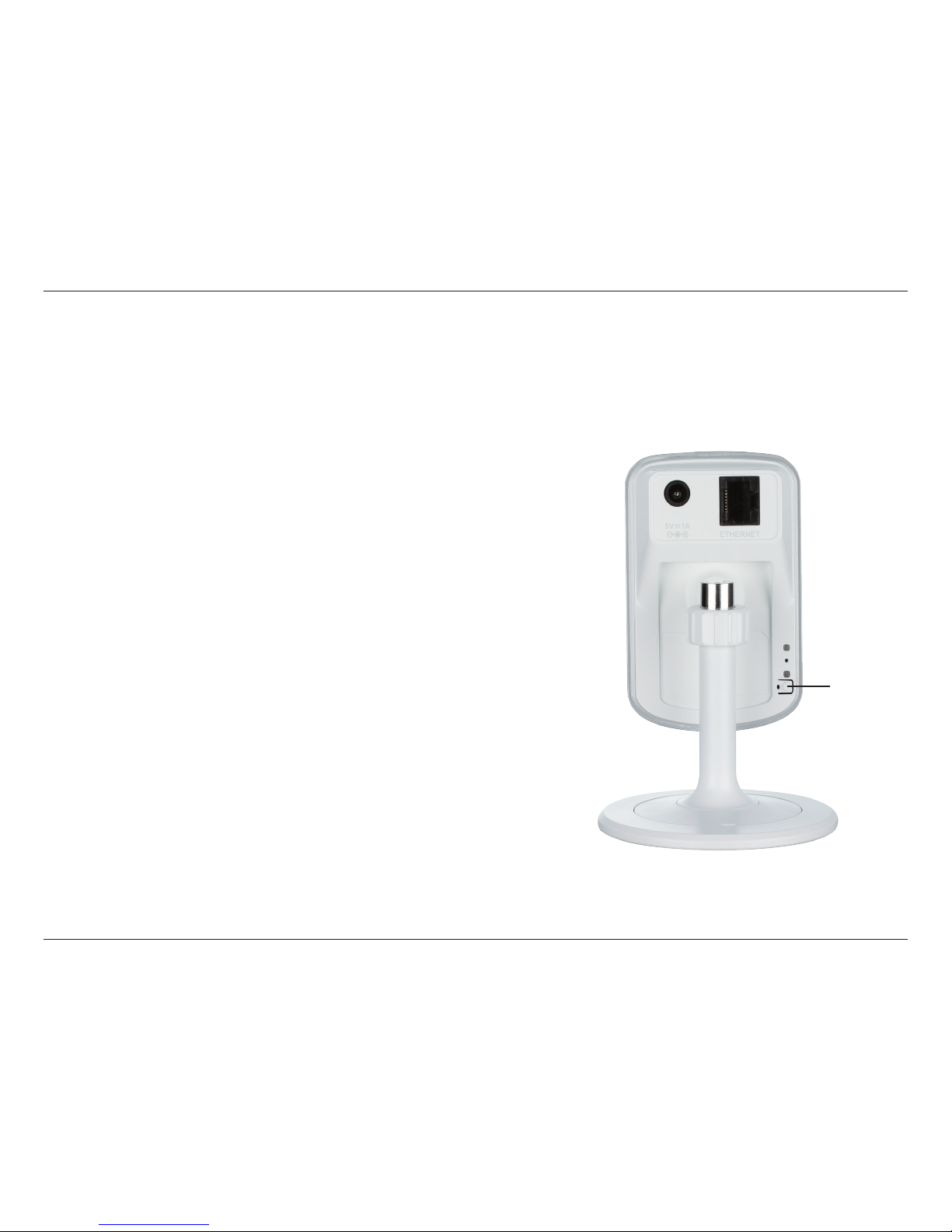

Alternatively, you may create a secure wireless connection using the WPS Button on the back of the camera.

18D-Link DCS-931L User Manual
Section 2 - Installation
mydlink
After registering your DCS-931L camera with a mydlink account in the Camera SetupWizard, you will be able to remotely access
your camera from the www.mydlink.com website. After signing on to your mydlink account, you will see a screen similar to
the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.

19D-Link DCS-931L User Manual 19
Section 3 - Conguration
Conguration
Using the Web Conguration Interface
After completing the Camera Setup Wizard, you are ready to use your camera. The camera’s built-in Web conguration interface is designed to

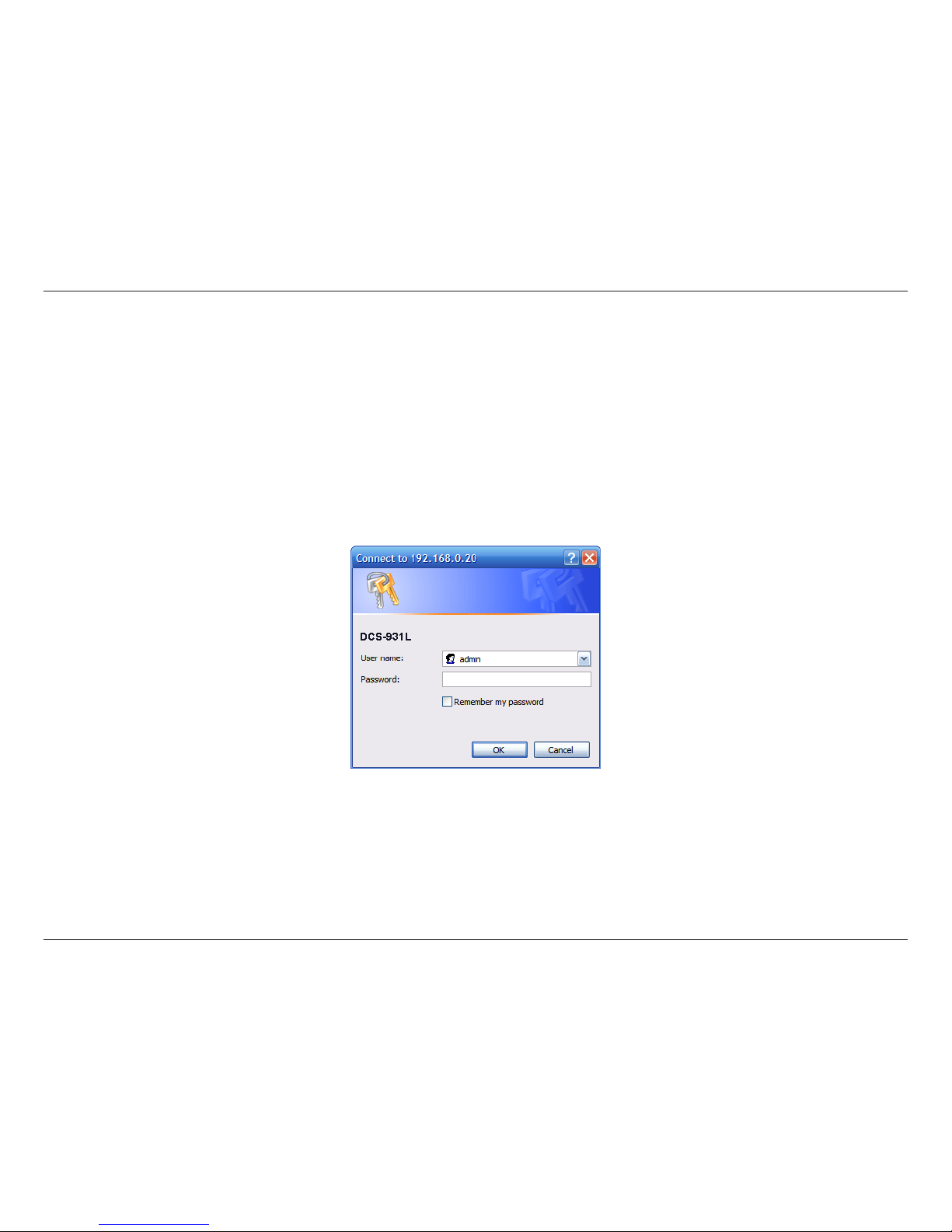

allow you to easily access and congure your DCS-931L. At the end of the wizard, enter the IP address of your camera into a web browser, such
as Internet Explorer®. To log in, use the User name admin and the password you created in the Setup Wizard. If you did not create a password, the
default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP is 192.168.0.20.

20D-Link DCS-931L User Manual 20
Section 3 - Conguration
Live Video
Video Compression
Format:
Zoom:
Audio:
Click the H.264 or MJPEG radio button to choose which
compression format used when viewing your camera.
Click on these buttons to zoom in and out of the video.
Click on the ON/OFF button to turn audio playback on and o.

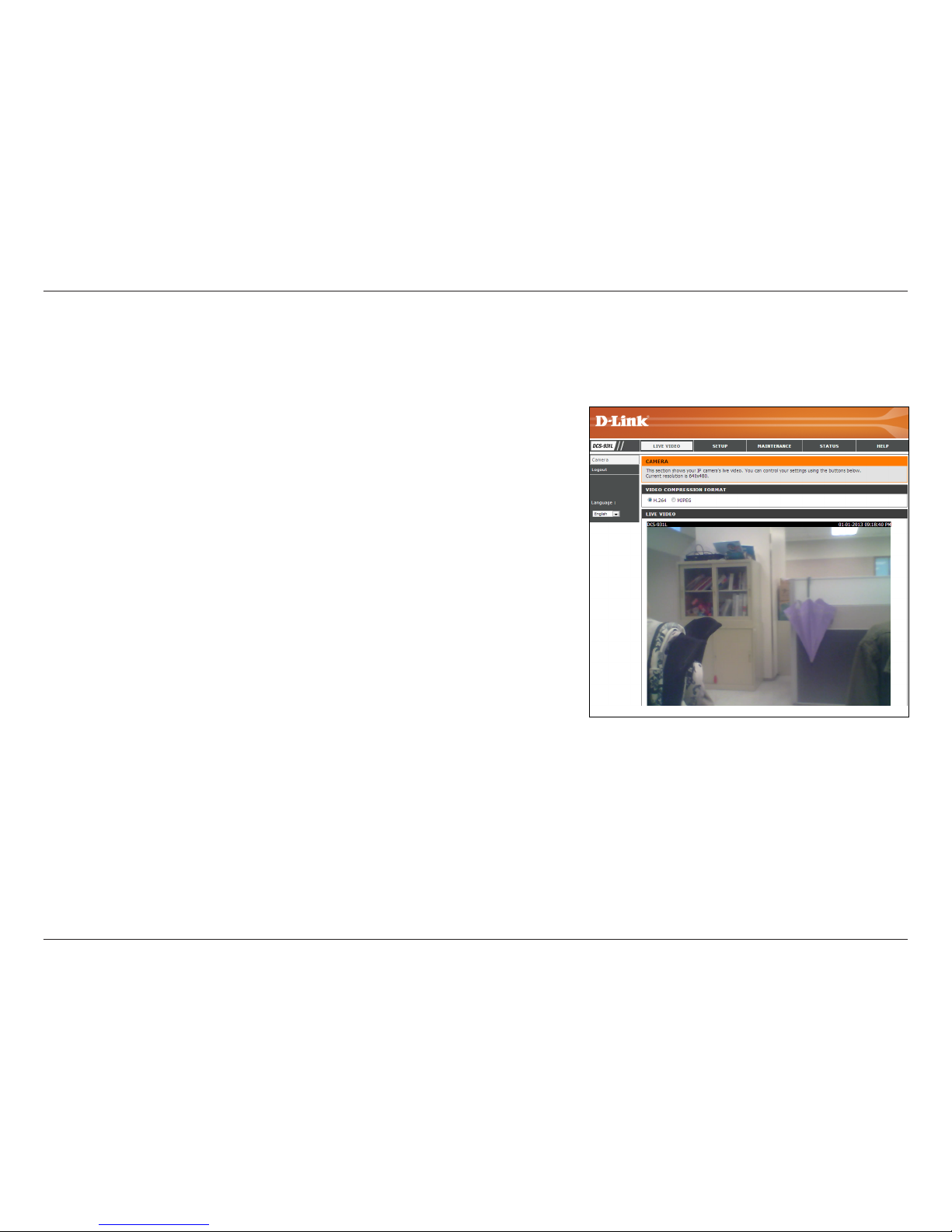

The LiveVideo screen shows you the live video feed from your camera. For information on how to congure your Live Video streams, refer to“Video”
on page 29.
