D-Link DSB-C320 User manual

1
D-Link VisualStream™
330K Pixel PC Camera
Manual
Ver. 2.00

2
C
Co on nt te en nt ts s
Package Contents--------------------------------------------------------------------------- 3
Introduction --------------------------------------------------------------------------------- 3
Getting To Know Your VisualStreamTM PC Camera ---------------------------------- 4
Features and Benefits------------------------------------------------------------------------ 4
How to Use Your D-Link VisualStreamTM Camera ------------------------------- 4
How to Install MSN Messenger ---------------------------------------------------- ----- 5
Using Your PC Camera with MSN Messenger------------------------------------------- 5
How to Install and use Arcsoft Software----------------------------------------------- 6

3
P
Pa ac ck ka ag ge e C Co on nt te en nt ts s
Contents of Package
zD-Link DSB-C320 330K Pixel PC Camera
zUSB 1.1 Cable
zCD-ROM (containing Drivers, Installation Guide, Manual, Application Software and
Warranty)
zD-Link Quick Installation Guide
If any of the above items are missing, please contact your reseller.
System Requirements
zPentium III 500 MHz, Celeron, AMD Athlon processor, or higher
z64MB RAM (or minimum OS requirement whichever is higher)
zMicrosoft Windows XP/2000/ME/98SE
zMicrosoft DirectX 8.1b or higher
zUpdate Service Pack
z200MB free hard drive space
zCD-ROM drive
zUSB Port (USB specification version 1.1)
z24Bit color display adapter
zWindows compatible sound card and speakers (full duplex sound card recommended)
Introduction
Thank you for purchasing the D-Link DSB-C320 PC Camera. The DSB-C320 is a complete
audiovisual solution for all of your e-communications. Talk to your family, friends, and colleagues
face-to-face over the Internet, create videos, digital photo albums, and more, all the software needed
to start creating digital content and enabling video communication is included. This manual will
guide you through the features of your new PC Camera and provides step by step instructions for
getting you started with the bundled Arcsoft Software.

4

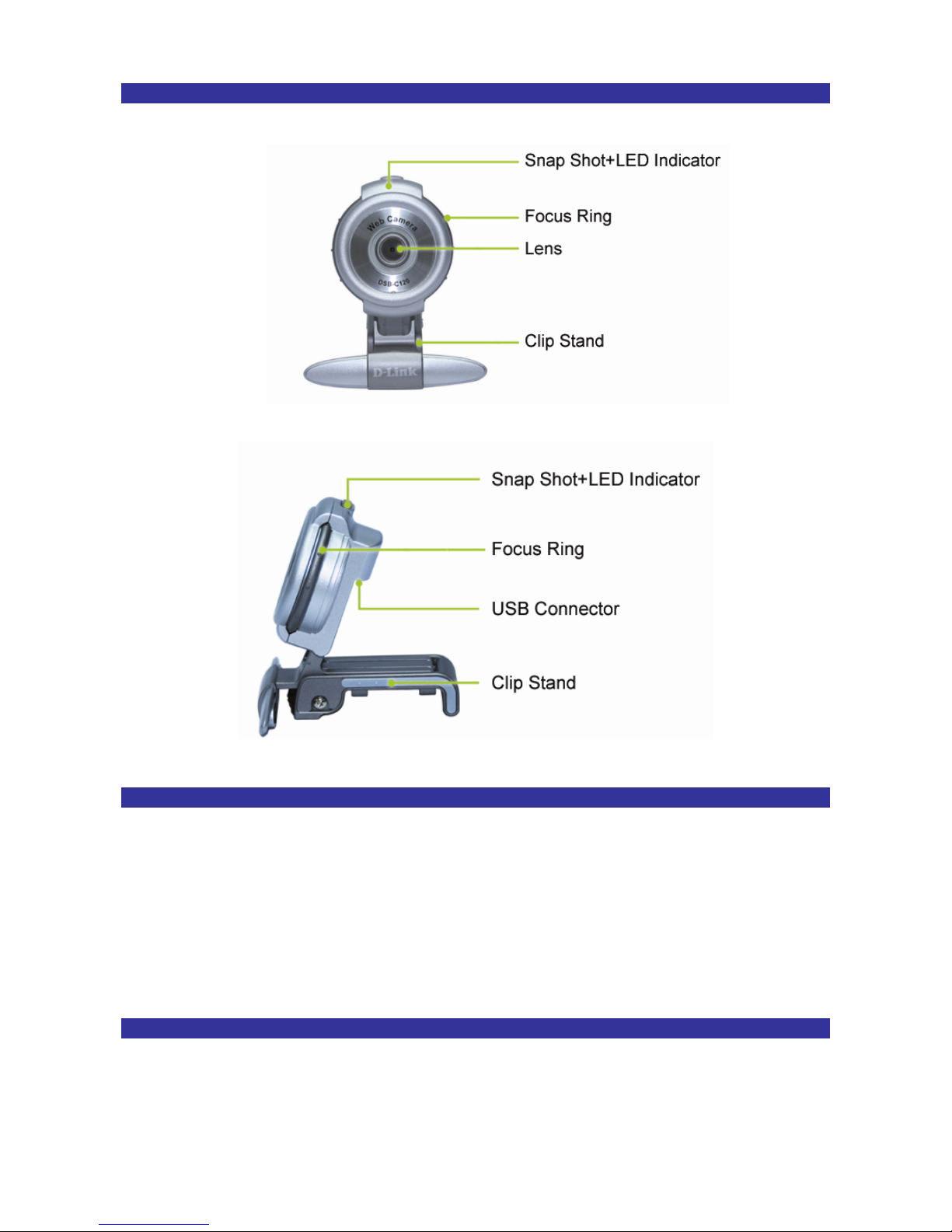

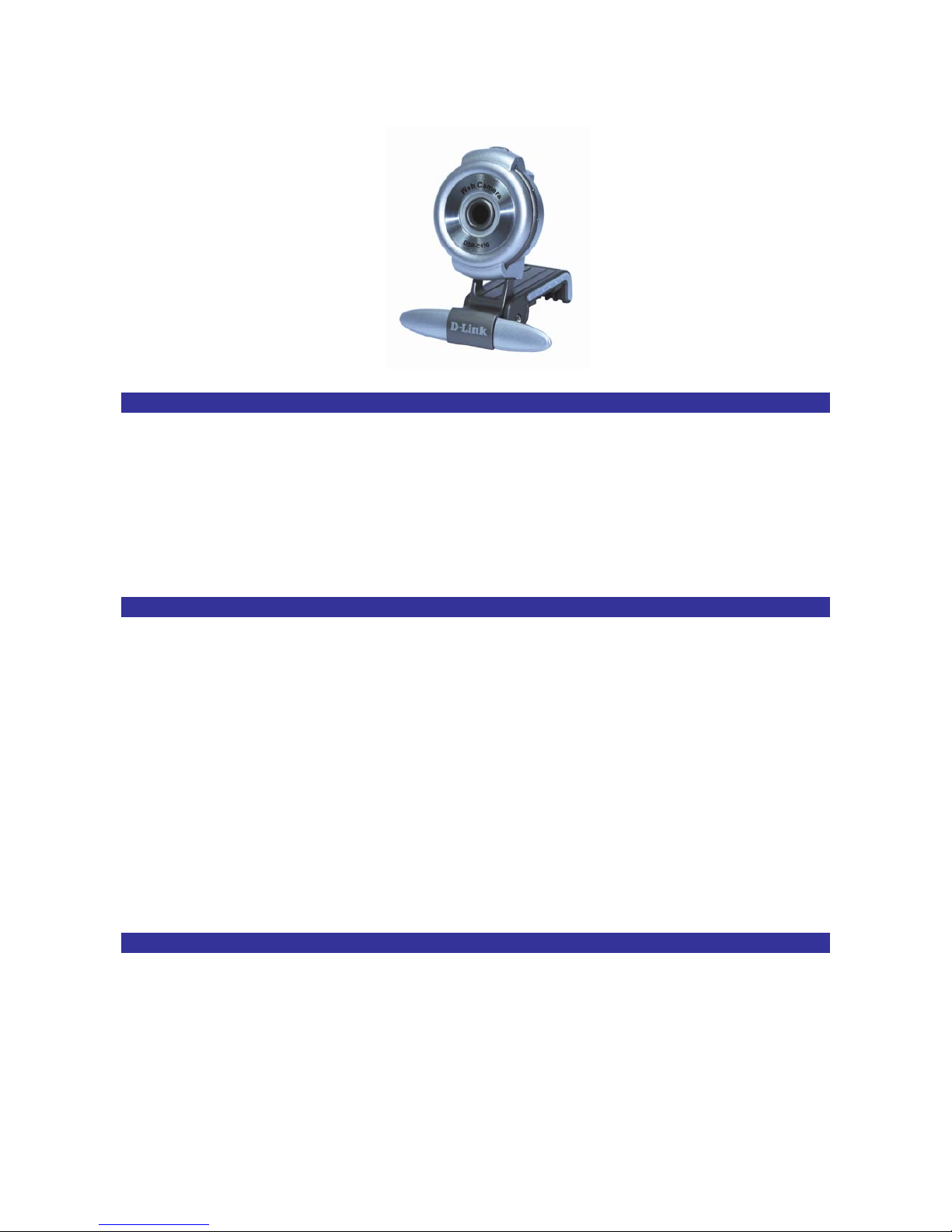

Getting To Know Your VisualStreamTM PC Camera
Features and Benefits
zResolution 648x480 Pixels
zSnapshot Button For Easy Still Image Capture
zVersatile Clip Base Design For Notebook and Desktop PC
zArcsoft Software Included
How to Use Your D-Link VisualStreamTM Camera
zChoose the mode of “50Hz” or “60Hz” according to your power source environment or video
output signal system to avoid the blurry image.

5
zTurn the manual focus ring to adjust the image.
zPress the snapshot button to capture a single frame.
How to Install MSN Messenger
Please log on to http://messenger.msn.com to download.
zFor Windows 98Second Edition/Me/2000 Users
After the installation package is downloaded to your computer, follow the instructions to
install MSN Messenger.
After the installation is completed, click Start, point to Programs, and click Windows
Messenger.
zFor Windows XP Users
Click Start, point to Programs, and click Windows Messenger.
After you run Messenger for the first time, you can add friends to your list and send
instant messages.
Using Your PC Camera with MSN Messenger
Plug the PC camera into your PC first.
zFor Windows 98Second Edition/Me/2000 Users
Click “Messenger” to go to the main screen. You are now ready to have a Video
Conversation with MSN Messenger.
zFor Windows XP Users
Click “Messenger” to go to the main screen, click Actions, click Start a
Video Conversation and you are ready to have a Video Conversation with Messenger.
If you need more information or instructions on how to use a specific feature or tool,
click the “Help” button in the upper right-hand corner of the screen.

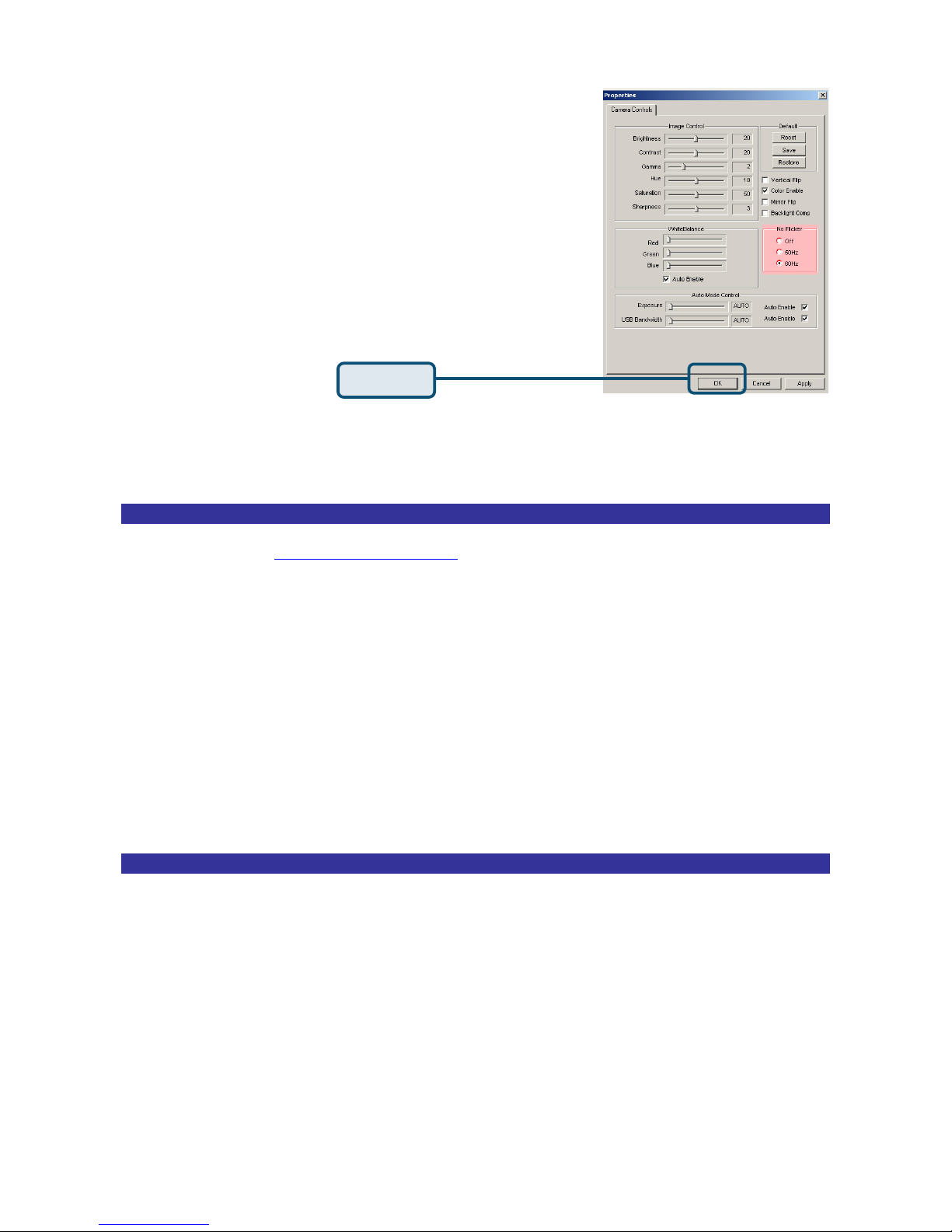

Click OK
Amcap ÆOption ÆVideo Capture Filter

6
How to Install Arcsoft Software
Simply put the provided software CD into your CD drive. The set-up software will automatically
start, prompting you through the steps to install the video and photo software. You may enter the
selection for the destination folder, the Start menu, Programs group and other set-up options. The
set-up process will copy the applications to the destination folder. Note if Windows auto-run
feature has been turned off on your computer, you will need to start the Setup.exe application on the
software CD.

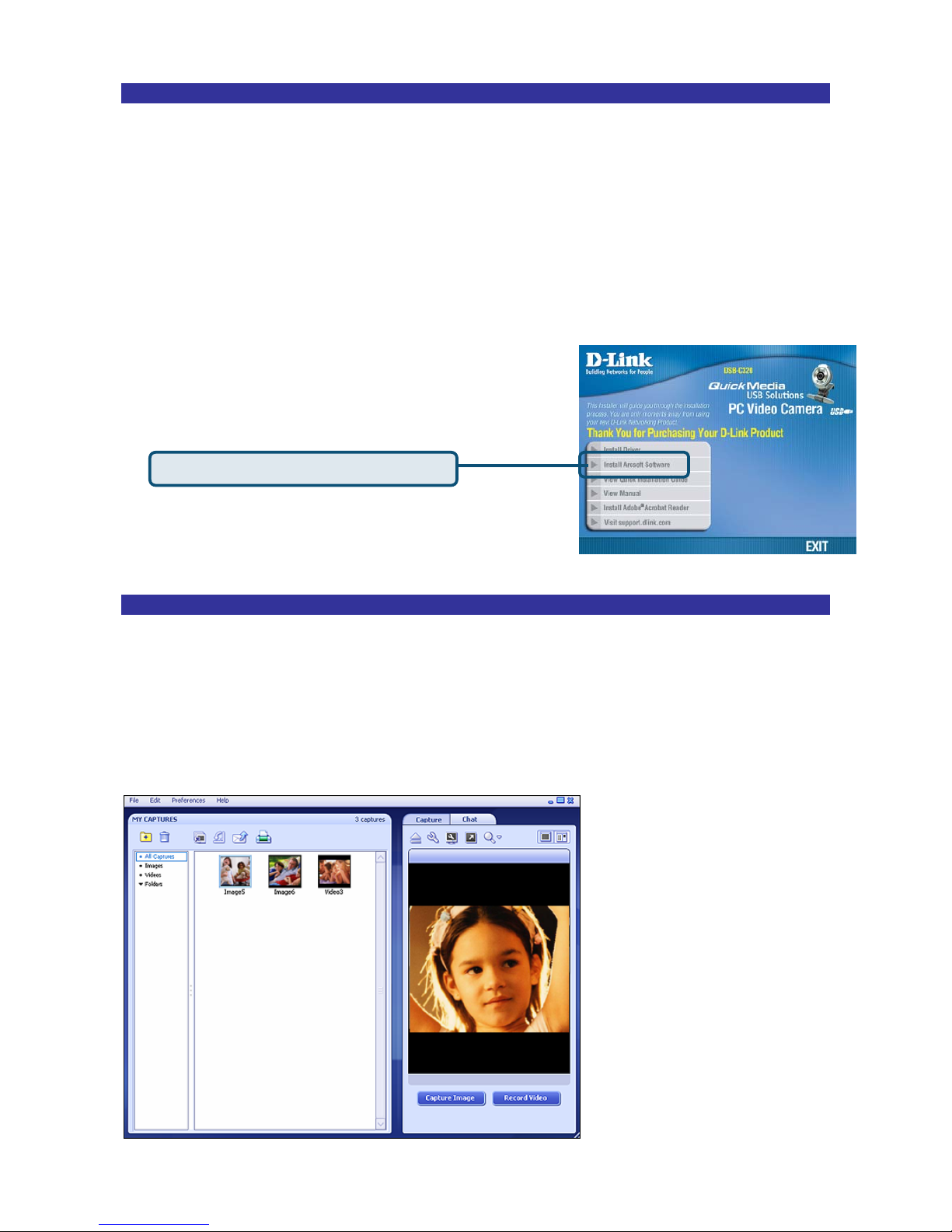

How to use Arcsoft Software
Getting Started
All applications can be started from the Application Panel. The Application Panel can be started
by clicking on the Web cam Companion icon.
Welcome. Click anywhere on the image below for details:
Click Install Arcsoft Software

7
The program is divided into two main sections: My Captures, and the camera preview area. You
can adjust which section is larger by simply clicking and dragging the area in between the two
sections.
Application Menu
FILE
Refresh Contents - Refreshes the screen to update any changes to your captured thumbnails.
Page Setup - View and modify your printer settings.
Print - Prints selected images.
Stop Web Camera - Turns off your cam.
Quit - Closes the application.
EDIT
Cut - Removes the selected files from their current location and stores them in memory for pasting
in another location.
Copy - Copies the selected files and stores them in memory for pasting in another location.
Paste - Places the contents of the clipboard memory into the current location.
Select All - Selects all thumbnails in the current location.
PREFERENCES
Web Camera Settings - View and modify the camera options (brightness, contrast, etc.; dependent
on the device).
Capture Settings - View and modify your capture settings (snapshot and video resolution).
Media Folder - Change the directory that stores newly captured files.
Upgrade Software - Search for updates to the program.
HELP
This menu contains links to various help resources, including this Help file.
.
Slide Show Button
Click this button to run a slide show of the selected images. A slide show dialog will appear.
Choose the amount of time that each slide will be displayed before changing to the next slide.
Check the "Loop Slide Show" button to have your presentation continually loop over and over.
Press ESC to exit your slide show at any time.

8

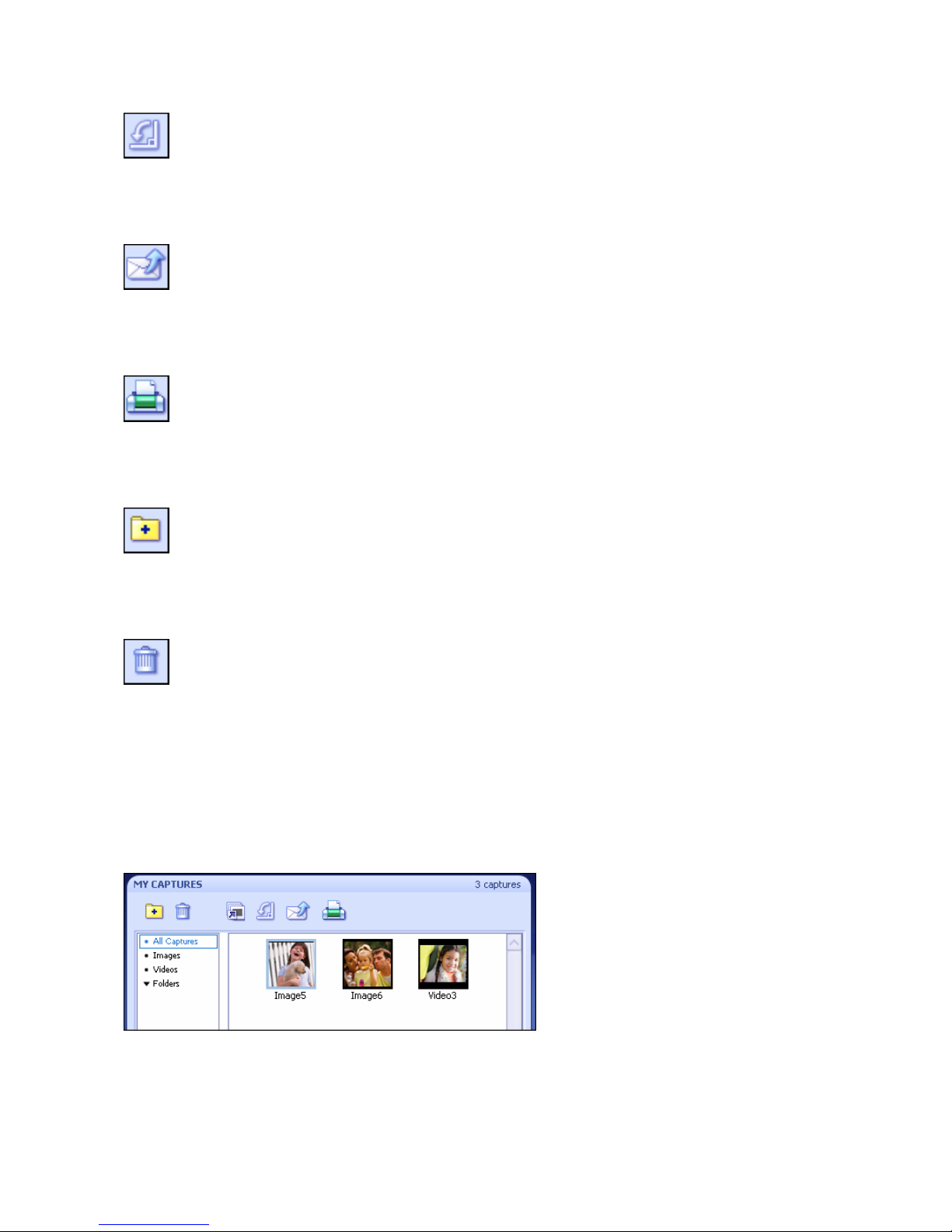

Rotate Button
Click this button to rotate the selected files 90 degrees.
Email Button
Click this button to attach the selected files to an email.
Print Button
Click this button to print the selected images. Each image will print on a separate page.
New Folder Button
Click this button to create a new folder in the "Folders" section of My Captures.
Delete Button
Click this button to delete the selected files or folder.
My Captures
This section sorts your captures so you can view them in a variety of ways. View all captures,
images only, videos only, or by folder. The contents of the section you select will be displayed in the
thumbnails area.
Double-click a thumbnail to view it. Arrows on either side let you browse the various files (no
arrow will appear on the left side when the first file is displayed; no arrow will appear on the right
side when the last file is displayed). Playback controls will appear beneath videos.

9

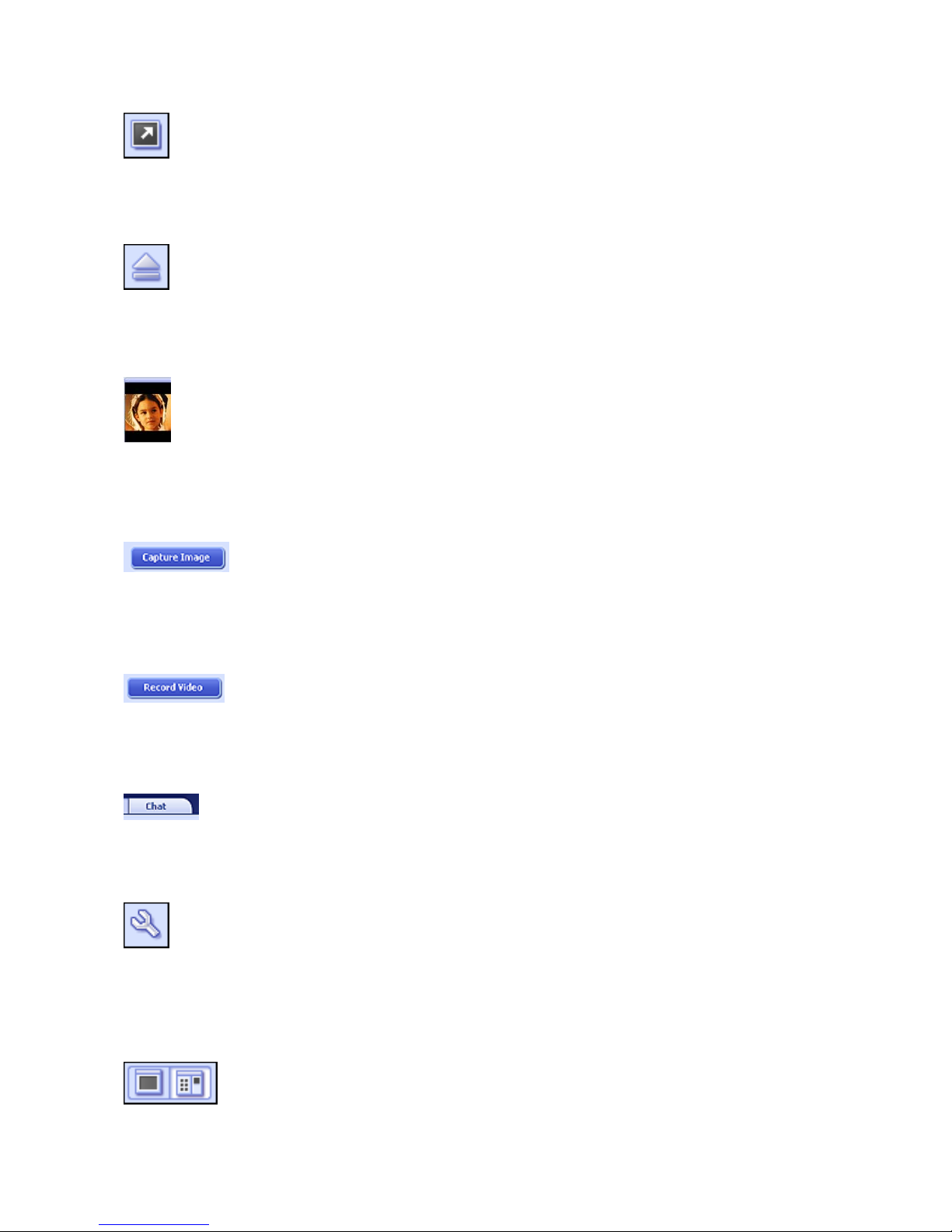

Full Screen Button
Click this button to display your camera over the entire screen. Press ESC to exit full screen mode.
Disconnect Button
Click this button to disconnect your camera.
Camera Preview
This area shows you a live stream from your camera
Capture Image
Click this button to capture a still image from your cam.
Capture Video
Click this button to begin capturing video from your cam. Click it again to stop.
Chat Tab
This tab offers shortcuts and/or links for a variety of video and instant messaging programs.
Web Camera Settings
Click this button to view and modify your camera settings/properties. The options here will vary
depending on your device.
Show/Hide My Captures
These buttons hide and display the My Captures section, respectively. Hide the My Captures

10
section if you'd like to focus more on your cam stream.
Capture Settings Button
Click here to adjust the resolution for both captured still images and video clips. Simply select the
resolution from the respective pull-down.
V
Vi id de eo o I Im mp pr re es ss si io on n
If you’re looking for an easy way to create and share home videos, VideoImpression is perfect for
you. By creating a VCD, your movie is burned onto a CD, ready for playback on most
commercial DVD players, right on your TV! Even if you’re new to computers and don’t know
much about “files” and “hard drives” and whatnot, you’ll scrape by just fine. In fact, this program
is designed specifically for general consumers like yourself.
If you’re the type that likes to dive right into things, by all means go for it! Playing around with
the various buttons and commands is one of the best ways to learn how programs work. However,
if you want to take it slow, take some time to go through this quick start guide. Also, don’t forget
to use the Help file that’s built into the program. It closely defines each command on every screen.
This guide is more of a practical tutorial.
VideoImpression lets you create two types of projects: video and slide show. We’ll walk through
the creation of both types.

11
- CREATING A VIDEO -
OVERVIEW
Videos are constructed by combining still images and/or existing movie clips. All components are
arranged onto what’s called the “Storyboard.” When you make your final video, all of the
components on the Storyboard are combined together and saved as a single video file. In addition
to still images and videos, you can also add transitions between each component as well as sound
clips on two separate audio tracks.

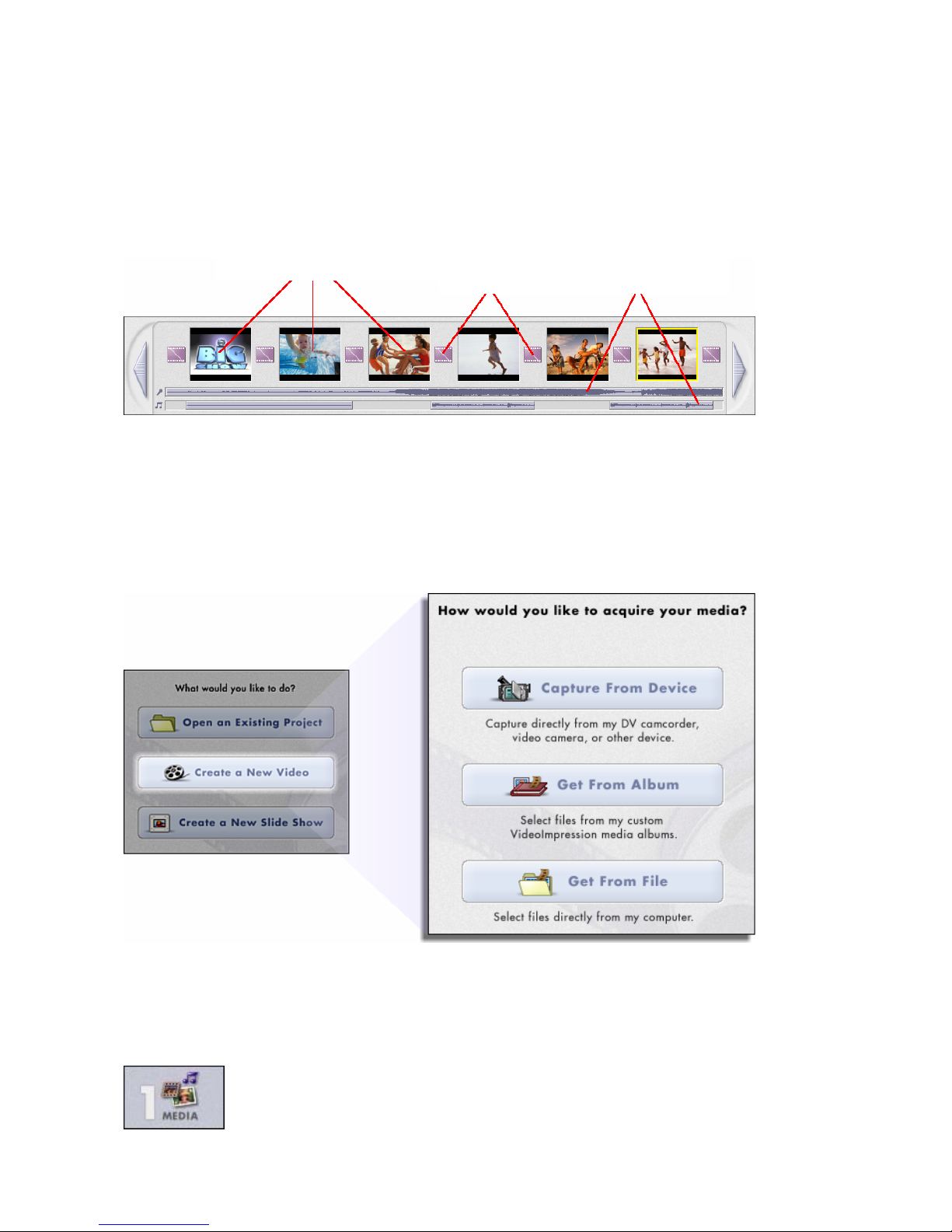

The Storyboard
Confused? Don’t worry. We’ll talk more about the Storyboard later. It’ll all come together.

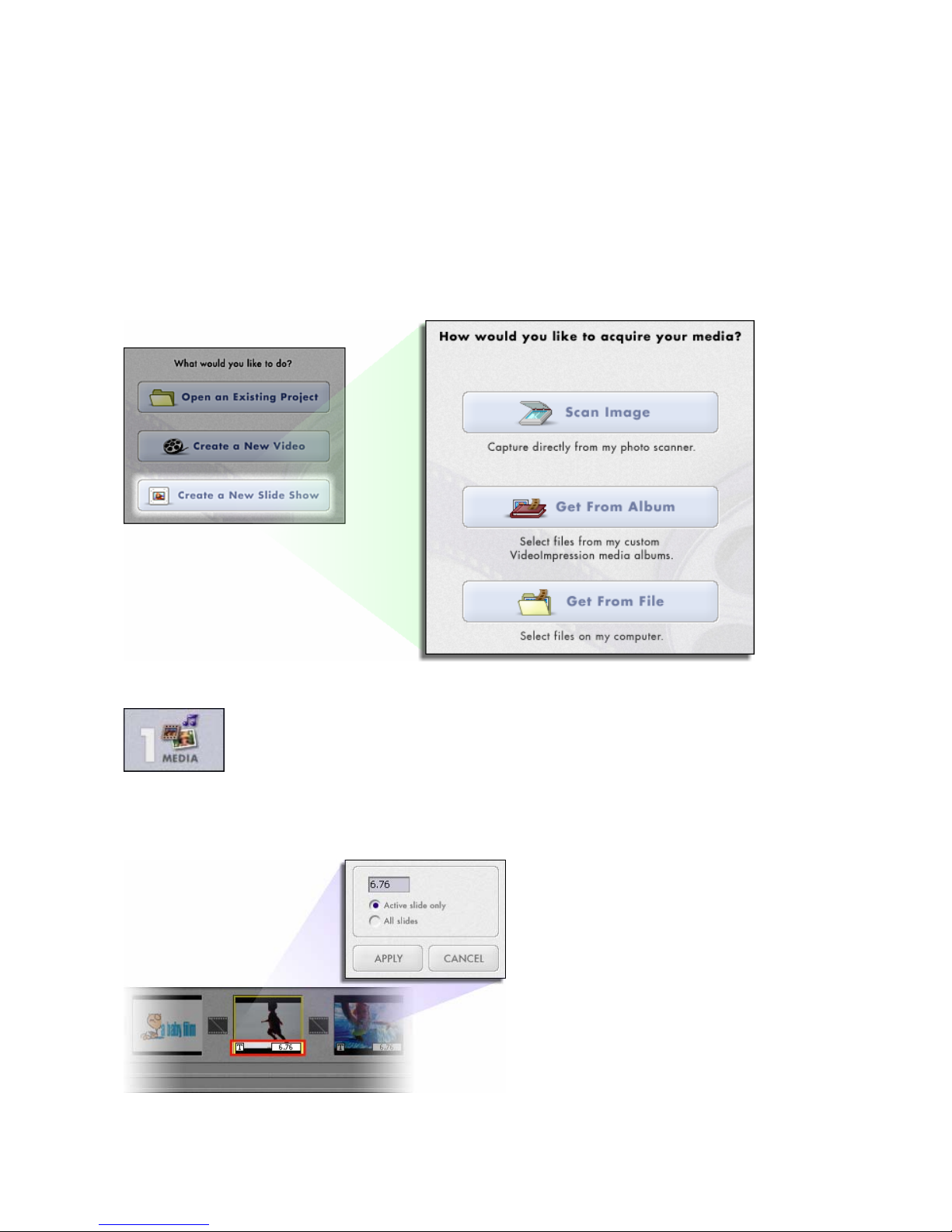

GETTING STARTED
When you first run the program, a window will appear that lets you choose the type of project you
want to make (you can also open previously saved projects). Choose “Create a New Video.” A
new window will appear. It will contain multiple options for gathering your video content.
For this walk-though, choose “Get From Album.” Even if you choose one of the other options,
you’ll end up at your albums soon or later. Albums contain shortcuts to files stored on your
system. You’ll grab most of your “media” for movie construction from your albums.
STEP 1 – MEDIA
Video Cli
p
s & Still Transitions

12
This first step is where you select the “media” (still images, videos, and sound clips) that you want
to use to create your movie. All you need to do is choose the components you want and add them
to the Storyboard. When you save—or “produce”—your movie, all the components on the
Storyboard will be combined together into a single video file.
Let’s look at the Storyboard again:
The Storyboard
The large squares are reserved for still images and video clips. The two horizontal bars beneath
are reserved for audio tracks. The smaller squares between the still image/video clip components
are for “transitions.” You’ll learn more about transitions later.
The top-left area of the program contains your albums. Use the pull-down to choose the one you
want. To create a new album, choose “<New Album>” from the pull-down. Click the Add
button ( ) to browse your system for files to add to it. You can create multiple albums to keep
track of different types of photos (i.e., keep all your vacation photos in one album, separate from
your miscellaneous family photos, etc.).
You can differentiate the types of files within an album by the way they look. Images simply
appear as thumbnails. Video files appear as filmstrips. Audio files have a default speaker icon.

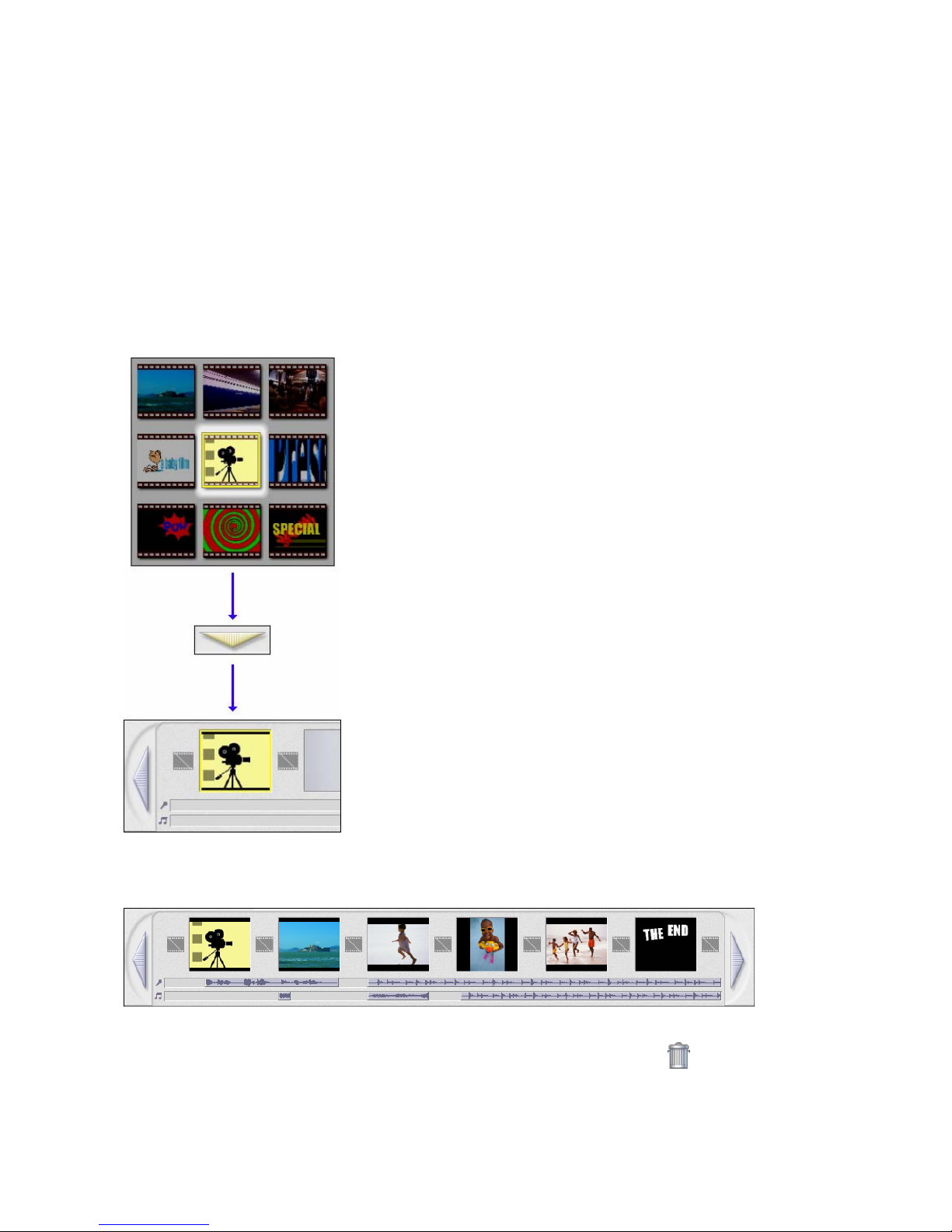

ADDING MEDIA TO THE STORYBOARD
To add media to the Storyboard:
1. Double-click the component within the album.
Video Cli
p
s & Still Transitions

13
Or:
1. Single-click the component within the album.
2. Click the Apply button (it’s the arrow beneath the album).
Don’t worry too much about adding your files in a particular order. You can click and drag them
on the Storyboard at any time to swap positions.
Don’t forget that you can add audio to two different audio tracks! You can overlap simultaneous
sound clips and adjust their volumes to create the perfect blend. If you need to record audio, you
can do so at a later step.

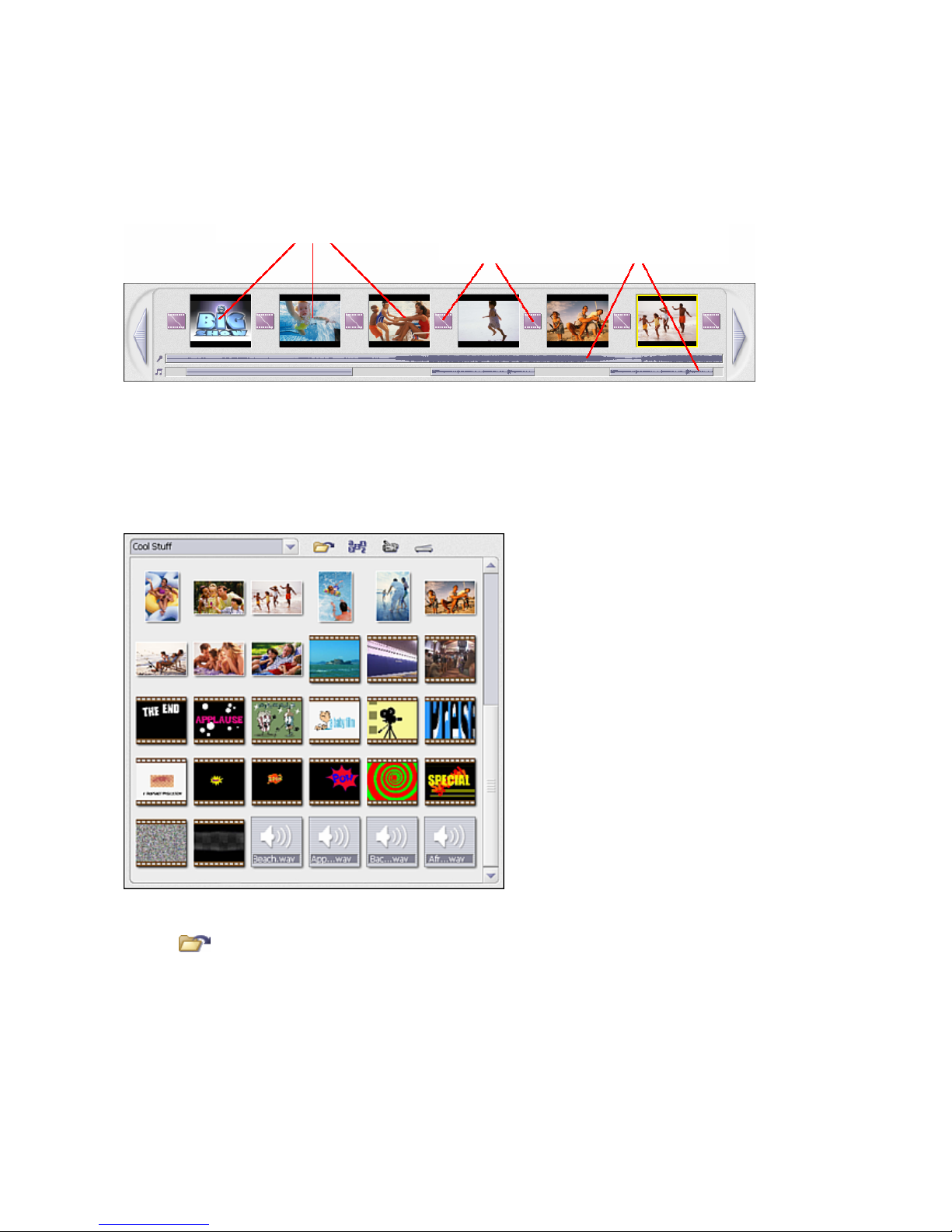

After adding your media, your Storyboard should look something like this:
REMOVING MEDIA FROM THE STORYBOARD
To remove a media component from the Storyboard, click the trash can icon ( ) after highlighting
(clicking) the component you want to remove.

14

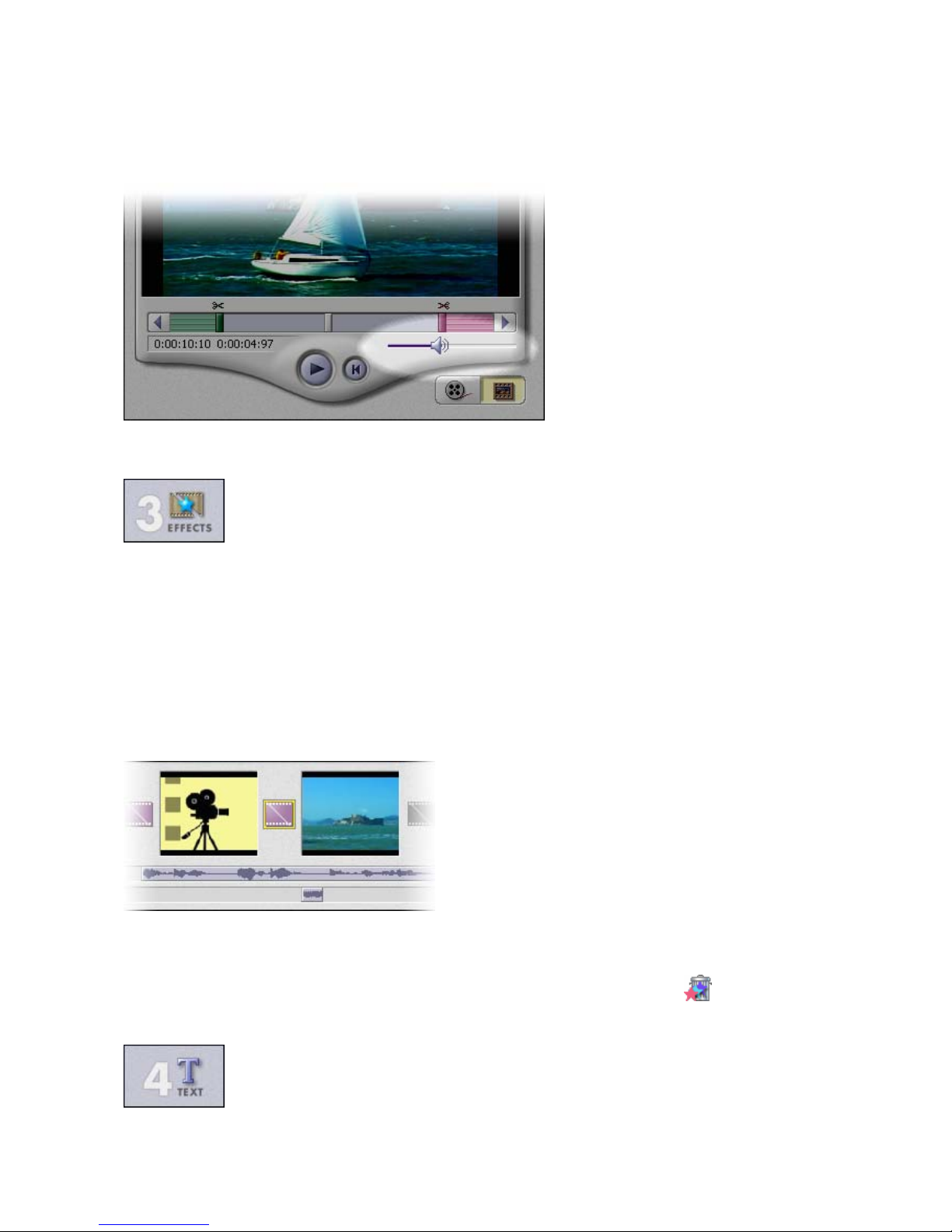

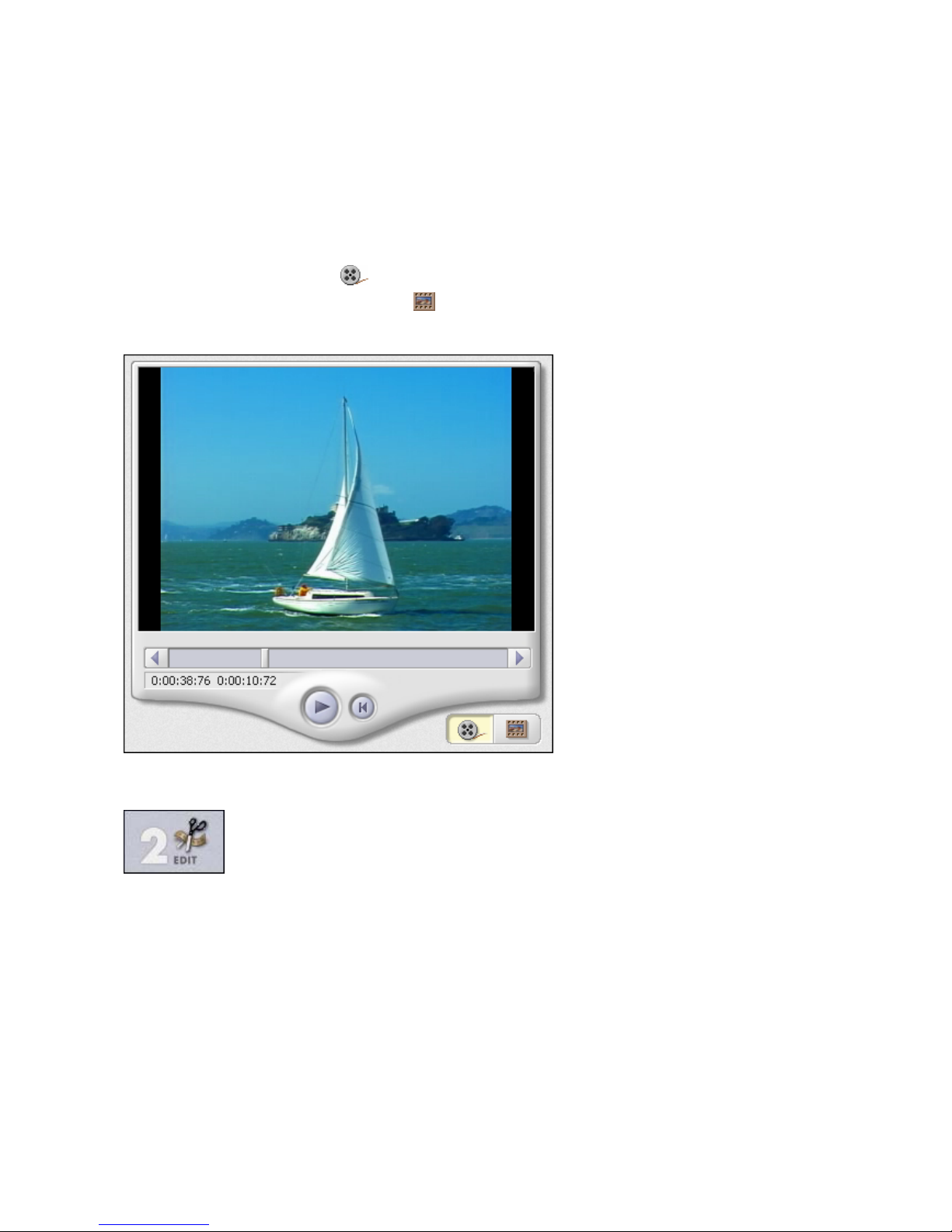

THE PLAYER
Now’s a good time to talk about the Player. The Player is the video screen on the right side of the
display. It lets you preview each component on the Storyboard, as well as your entire movie.
The Player has standard playback controls. The slider beneath the preview window shows you the
progress of the video. There are two times listed; the first lists the total time of the clip, while the
second lists the time at the current position.
If you want to preview your entire movie (all of the components on the Storyboard played together),
click the Entire Movie button ( ). If you want to preview only a specific component on the
Storyboard, click the Active Clip button ( ). If you choose the latter, single-click the component
you want to preview on the Storyboard, then press the Play button.
STEP 2 – EDIT
You’re now ready to touch up and modify your movie components. Different editing options are
available depending on the component type.

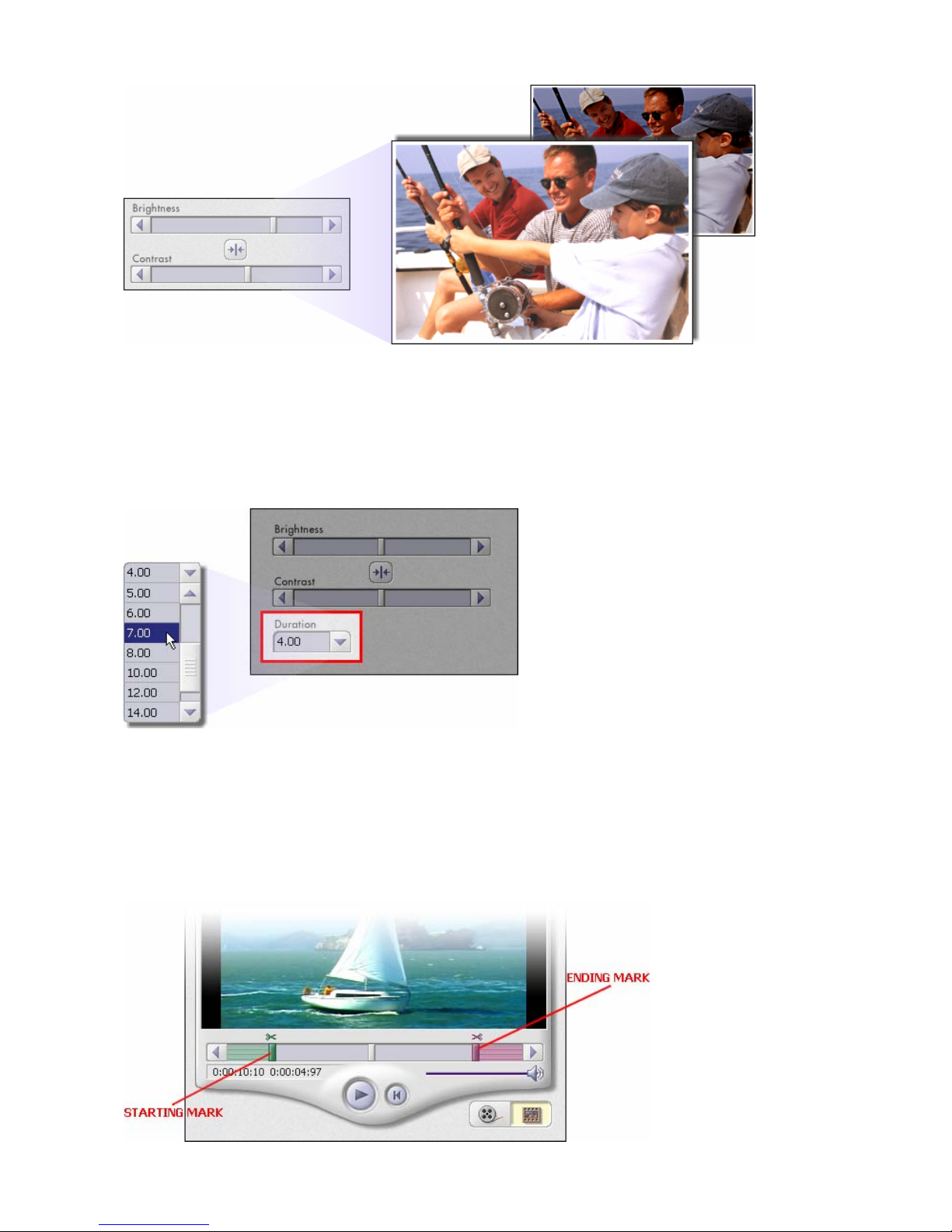

MODIFYING IMAGE AND VIDEO BRIGHTNESS/CONTRAST
1. Single-click the desired still image or video clip on the Storyboard.
2. Click and drag the sliders to your liking. You can preview the effect within the Player.

15
SETTING STILL IMAGE DISPLAY TIME
1. Single-click the desired image on the Storyboard.
2. Use the pull-down to select the duration (in seconds) of the selected still image.
During your final movie, the still image will display for the set amount of time before proceeding to
the next component.
TRIMMING VIDEOS AND AUDIO
1. Select the desired video or audio clip on the Storyboard.
2. Drag the Starting Mark to the spot where you would like the clip to begin playback.
3. Drag the Ending Mark to the spot where you would like the clip to end.

16
ADJUSTING AUDIO VOLUME
1. Select the desired video or audio clip on the Storyboard.
2. Drag the volume slider to the desired level.
STEP 3 – EFFECTS
The third step in the creation process lets you add cool scene transitions between each still image or
video component on the Storyboard. There are two tabs: Transitions and Themes.
TRANSITIONS
Transitions are effects that occur as one movie component changes to another. You can add/delete
transitions in the same way that you add/delete media components. Click the “Randomize” button
to automatically add a random transition to each spot. You can go back to Step 2 to modify the
display time for your transitions as well.
THEMES
“Themes” consist of transitions and effects that are applied over the entire Storyboard. They all
have a specific motif. Choose the theme you want, then click the Apply button. To remove a
theme (or all transitions on the Storyboard), click the Delete All Effects button ( ).

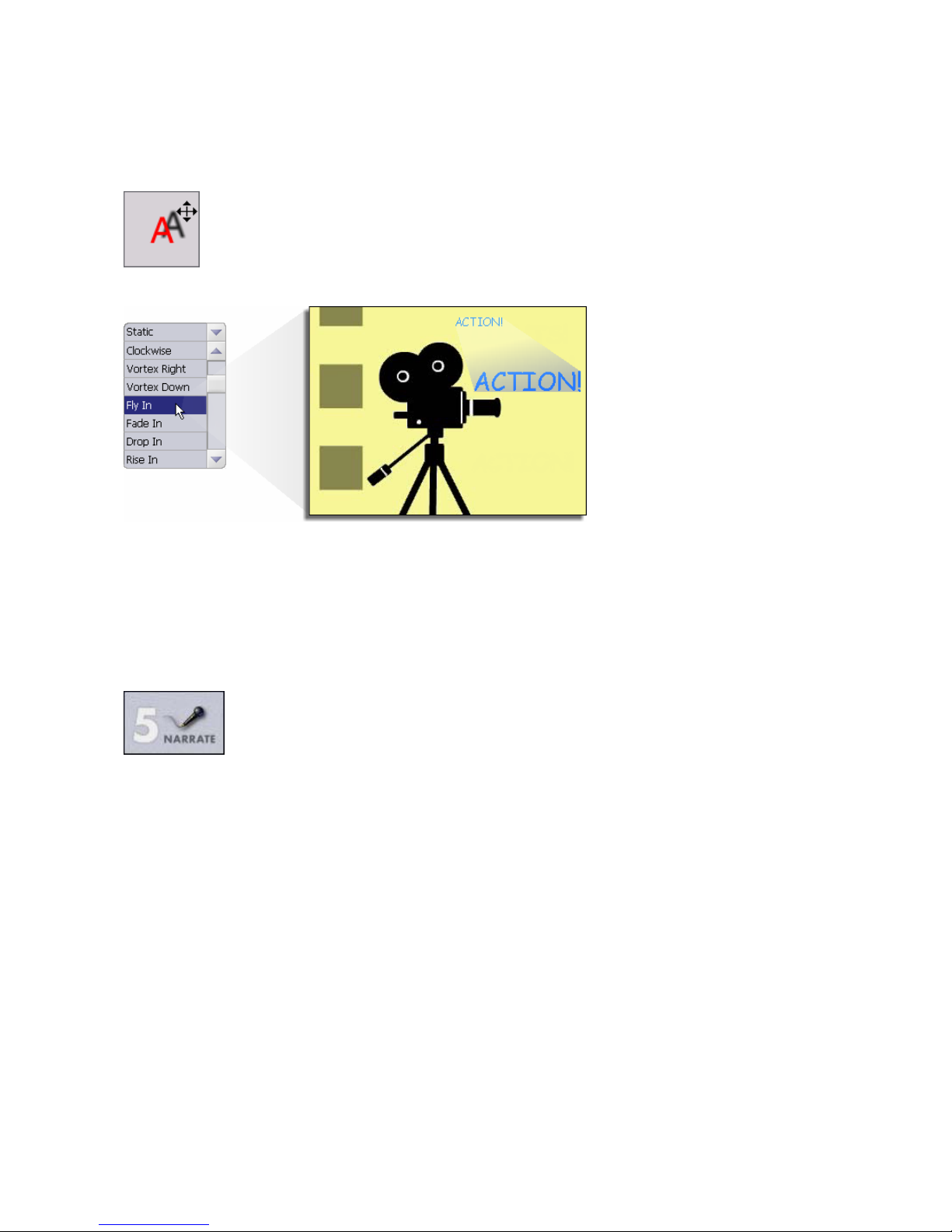

STEP 4 – TEXT
This step lets you add text over any still image or video component on the Storyboard. Click on
the component you want, then type in your text. You can modify all the standard parameters, such

17
as font, size, style, alignment, and color.
You can also add a shadow. To do this, check the Shadow box. Click and drag within the
preview to position the shadow behind the text. Use the sliders to adjust the shadow blur and
intensity.
Choose a text effect from the pull-down. These effects allow various types of motion, such as
scrolling or rotating text.
You can also control the exact display time for the text. In the Player, use the Starting and Ending
marks to set when the text will appear and disappear.

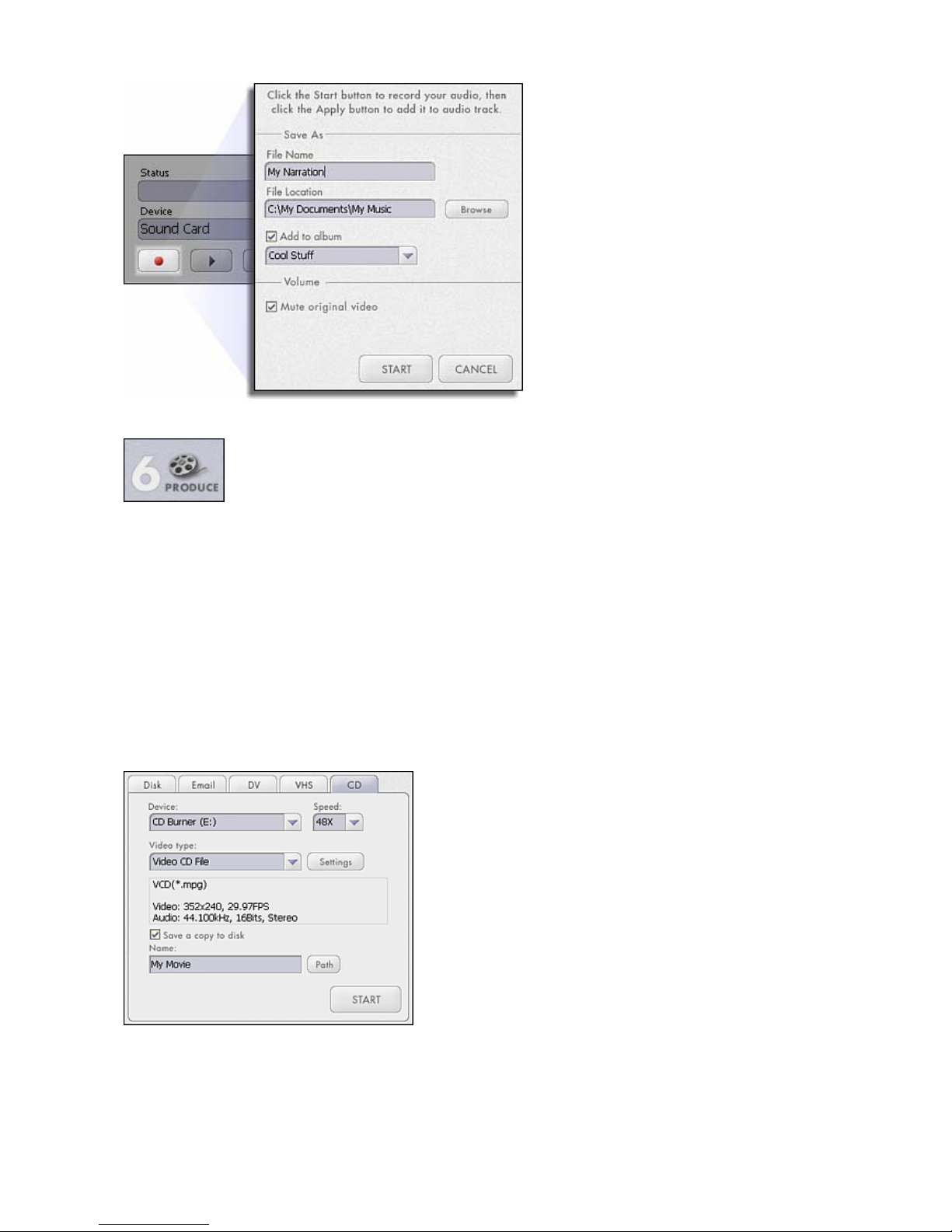

STEP 5 – NARRATE
In addition to being able to add audio files to the Storyboard, you can also record audio directly
within the program. To record audio:
1. Click the Audio Settings button and verify the audio configuration (in general, higher
settings will yield higher audio quality but larger file sizes).
Click the red Record button.
2. Set the file name and save location for the recorded file. If you want, you can have the file
automatically added to an album for easy access in another project.
3. Click the Start button and begin your narration. Press the Stop button to stop recording.
Click the Add button to add the recorded audio to the Storyboard.

18
STEP 6 – PRODUCE
The final step lets you save your movie in a variety of ways. Consult the Help file for details on
the specifics of each case. For this guide, we’ll save a movie as a VCD. When you do this, you
can pop the CD into most commercial DVD players to see your movie on your TV!
1. Click on the CD tab.
2. Select the device/drive to which the movie will be written or “burned.”
3. Choose the burn speed.
4. Choose the file type. (Remember, we’re creating a VCD, so choose “Video CD File.”)
Click Start when you’re ready!
Congratulations, you’re done! Pop your VCD into your DVD player and enjoy your movie!

19
-CREATING A SLIDE SHOW -
OVERVIEW
Creating a slide show is similar to creating a video, only there are fewer steps involved. Many of
the video creation concepts are applied here, so we won’t go into as much detail as a result. If you
have to, go back through the previous section again.
GETTING STARTED
The only difference here from starting a video project is the first option. Whereas you’re able to
capture video for a video project, you can instead acquire an image from a connected TWAIN
device for your slide show:
STEP 1 – MEDIA
This step is basically the same as the first step when creating a video. Choose the media that you
want to include in your slide show and add it to the Storyboard. The components on the
Storyboard will look nearly identical to the way they look for a video project.

20
The main difference that you’ll notice is the display time for each still image is noted on the
thumbnail. Change the display time by double-clicking it and entering a new time (in seconds).
You can apply the new display time exclusively to the image you’ve selected, or all of the images in
the slide show.

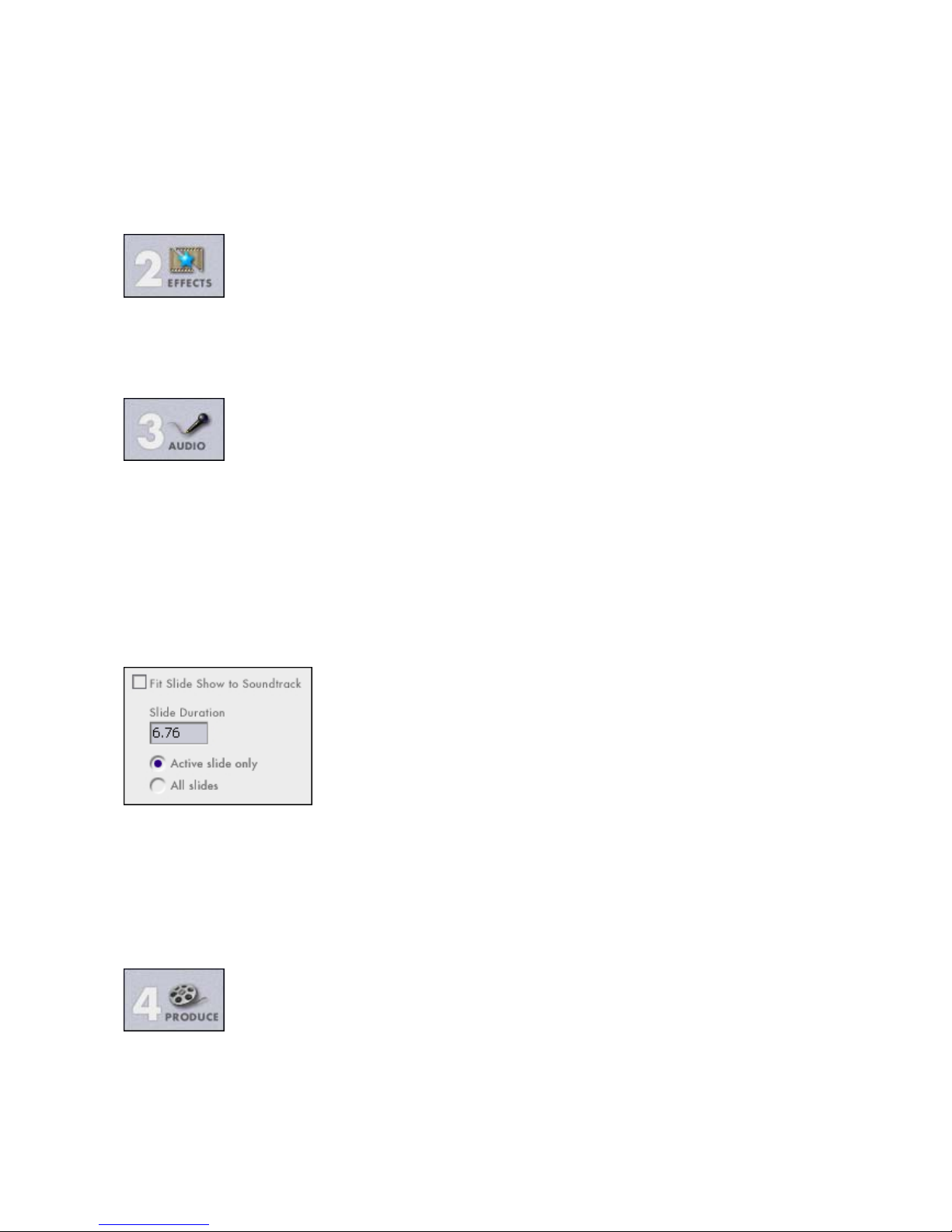

STEP 2 – EFFECTS
Effects (transitions) are added exactly the same as they are when creating a video. Double-click
the transition you want and it will automatically appear in the next available spot on the Storyboard.
Themes are not available for slide shows.
STEP 3 – AUDIO
Unlike the Narrate step (Step 5) when creating a video, the Audio step when creating a slide show
offers you two different tabs: Soundtrack and Narration.
The latter works exactly the same as the Narrate step. You can record new audio clips, save them
to an album, and apply them to the Storyboard.
The Soundtrack option is a bit different. It offers you the ability to fit your slide show to the time
of any added audio:
Check the “Fit Slide Show to Soundtrack” box if you would like the current audio tracks to
establish the length of your slide show. The display time for still images will automatically be set
so that the slide show will end at the same time as the audio tracks.
You can also set the display time for the current still image (or all still images) in this window.
STEP 4 – PRODUCE
Saving—or “producing”—your slide show works just the same as producing a video. The
exception here is that you only have two choices: saving to your hard drive and burning a CD.
Slide shows are saved in the EXE file format, and cannot playback on DVD players.
