D-Link DAP-1360U User manual

User Manual
DAP-1360U
Wireless N300 Access Point & Router
December 2018

DAP-1360U Wireless N300 Access Point & Router
User Manual
Contents
Chapter 1. Introduction..........................................4
Contents and Audience.......................................................4
Conventions.................................................................4
Document Structure..........................................................4
Chapter 2. Overview..............................................5
General Information.........................................................5
Specifications..............................................................
Product Appearance..........................................................9

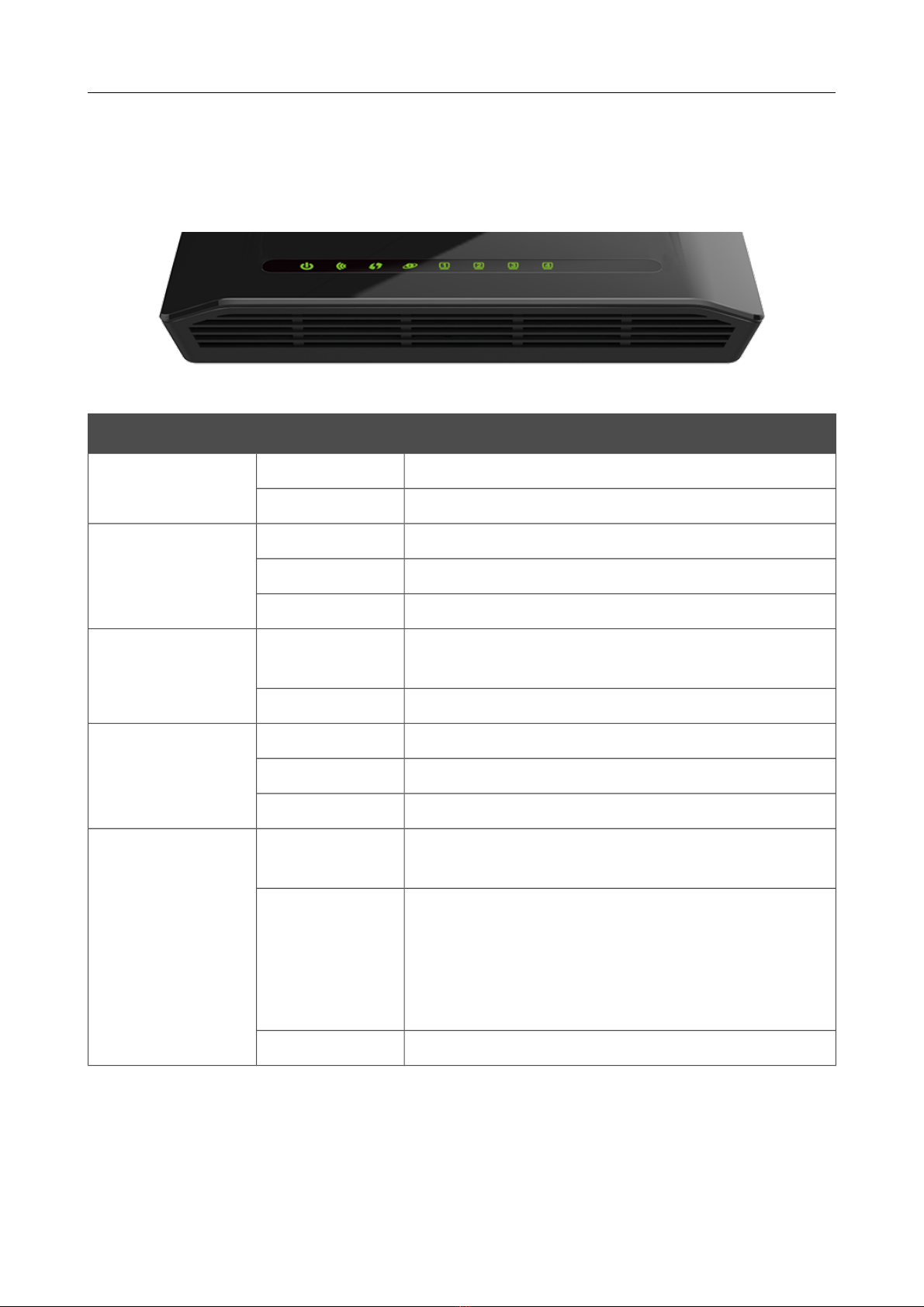

Top Panel.................................................................9

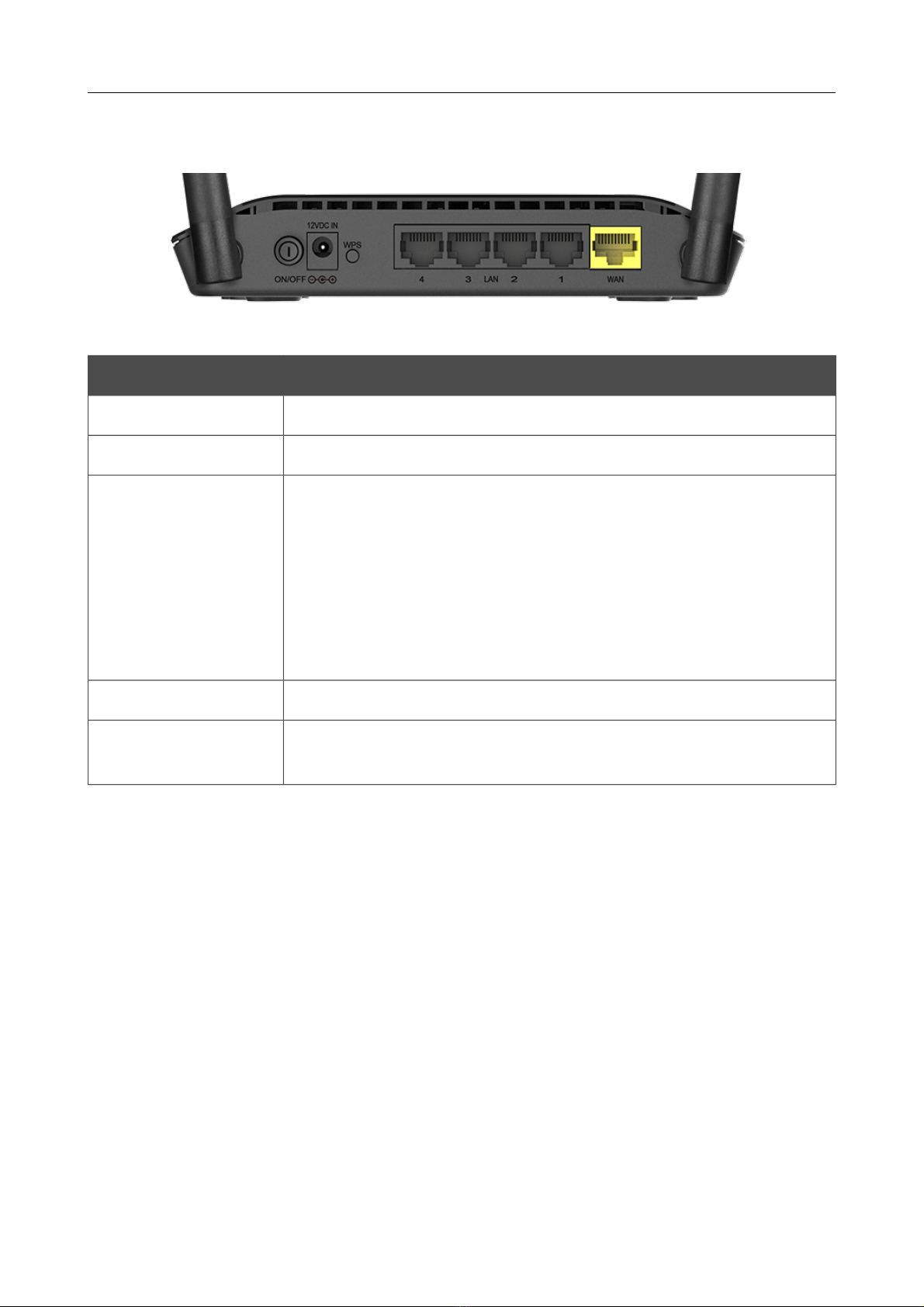

Back and Bottom Panels...................................................10
Delivery Package...........................................................11
Chapter 3. Installation and Connection..........................12
Before You Begin...........................................................12
Connecting to PC...........................................................13
PC with Ethernet Adapter.................................................13

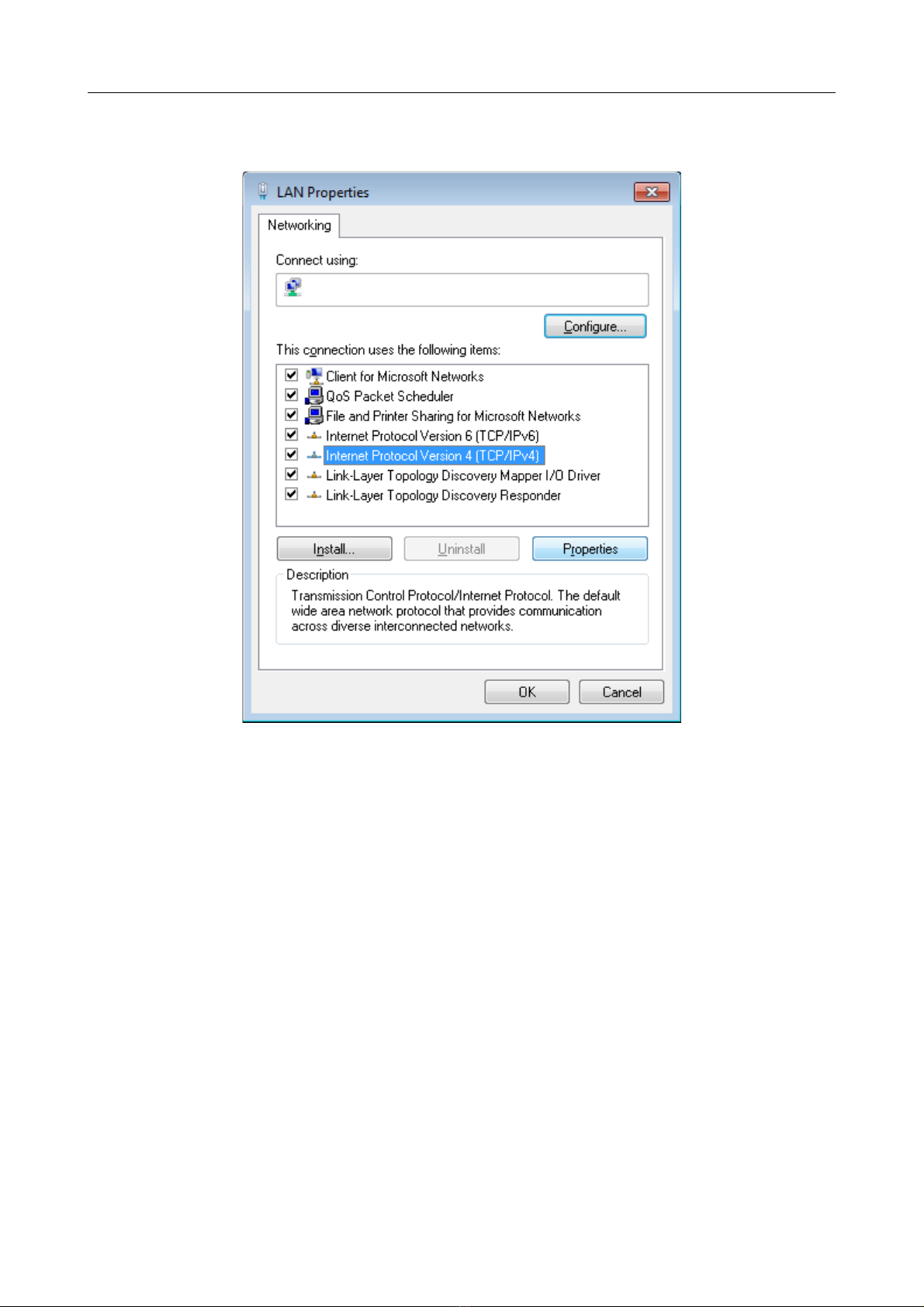

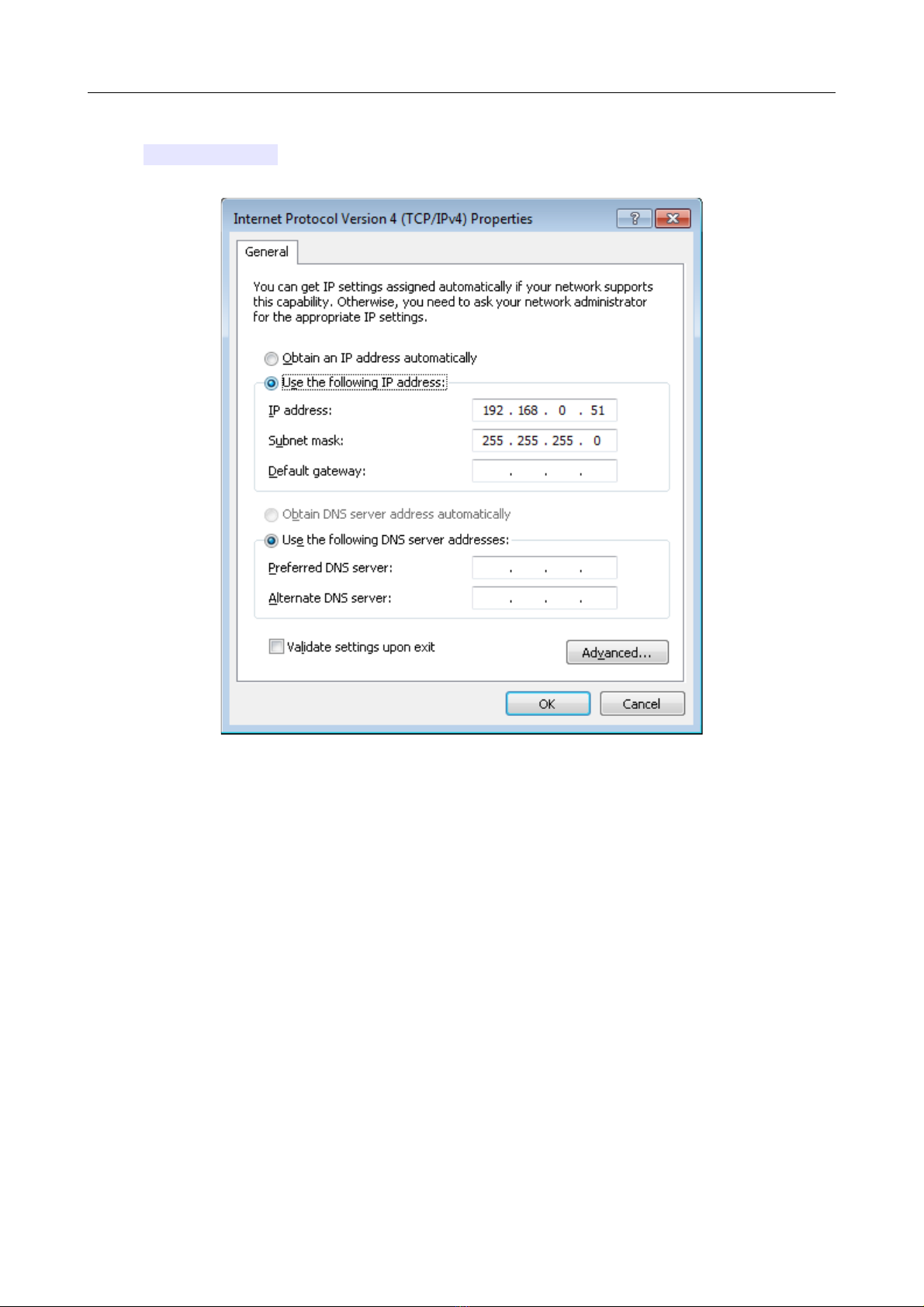

Configuring P Address in OS Windows 7...................................14
PC with Wi-Fi Adapter....................................................19
Configuring Wi-Fi Adapter in OS Windows 7................................20
Connecting to Web-based Interface..........................................23
Web-based Interface Structure..............................................25
Summary Page.............................................................25
Home Page................................................................27
Menu Sections............................................................28
Notifications............................................................29
Chapter 4. Configuring via Web-based Interface..................30
Initial Configuration Wizard...............................................30
Selecting Operation Mode.................................................32
Configuring WDS Function.................................................35
Changing LAN Pv4 Address................................................36
Wi-Fi Client.............................................................37
Configuring WAN Connection...............................................39
Static IPv4 Connection.................................................40
PPPoE or PPPoE + Dynamic IP (PPPoE Dual Access) Connections............41
PPPoE + Static IP (PPPoE Dual Access) Connection.......................42
PPTP + Dynamic IP or 2TP + Dynamic IP Connection......................43
PPTP + Static IP or 2TP + Static IP Connection........................44
Configuring Wireless Network.............................................45
Configuring LAN Ports for PTV/Vo P......................................47
Changing Web-based nterface Password....................................49
Connection of Multimedia Devices...........................................51
Statistics.................................................................54
Network Statistics.......................................................54
DHCP.....................................................................55
Routing Table............................................................56
Clients and Session......................................................57
Port Statistics..........................................................58
Multicast Groups.........................................................59
Page 2 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual
Connections Setup.......................................................... 0
WAN......................................................................60
Creating Dynamic IPv4 or Static IPv4 WAN Connection....................62
Creating PPPoE WAN Connection..........................................66
Creating PPTP or 2TP WAN Connection...................................71
LAN......................................................................75
Wi-Fi......................................................................79
Basic Settings...........................................................79
Client Management........................................................87
WPS......................................................................88
Using WPS Function via Web-based Interface.............................90
Using WPS Function without Web-based Interface.........................91
WDS......................................................................92
WMM......................................................................94
Client...................................................................97
Client Shaping..........................................................100
Additional..............................................................102
MAC Filter..............................................................105
Roaming.................................................................107
Advanced..................................................................109
VLAN....................................................................110
DNS.....................................................................112
DDNS....................................................................114
Ports Settings..........................................................116
Bandwidth Control.......................................................119
Routing.................................................................120
Remote Access...........................................................122
UPnP GD................................................................124
GMP....................................................................125
ALG/Passthrough.........................................................126
Firewall..................................................................128
P Filter...............................................................128
Virtual Servers.........................................................132
DMZ.....................................................................135
MAC Filter..............................................................136
URL Filter..............................................................138
System....................................................................140
Configuration...........................................................141
Firmware Update.........................................................143
ocal Update..........................................................144
Remote Update.........................................................145
Log.....................................................................146
Ping....................................................................148
Traceroute..............................................................150
Telnet..................................................................152
System Time.............................................................153
Chapter 5. Operation Guidelines................................155
Safety Rules and Conditions...............................................155
Wireless Installation Considerations......................................15
Chapter . Abbreviations and Acronyms..........................157
Page 3 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Introduction
CHAPT R 1. INTRODUCTION
Contents and Audience
This manual describes the access point DAP-1360U and explains how to configure and operate it
This manual is intended for users familiar with basic networking concepts, who create an in-home
local area network, and system administrators, who install and configure networks in offices
Conventions
xample Description
text The body text of the manual
Before You Begin A reference to a chapter or section of this manual
“Quick Installation
Guide” A reference to a document
Change A name of a menu, menu item, control (field, checkbox, drop-down
list, button, etc )
192.1 8.0.51 Data that you should enter in the specified field
!Information An important note
Document Structure
Chapter 1 describes the purpose and structure of the document
Chapter 2 gives an overview of the device's hardware and software features, describes its
appearance and the package contents
Chapter 3 explains how to install the access point DAP-1360U and configure a PC in order to
access its web-based interface
Chapter 4 describes all pages of the web-based interface in detail
Chapter 5 includes safety instructions and tips for networking
Chapter introduces abbreviations and acronyms used in this manual
Page 4 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
CHAPT R 2. OV RVI W
General Information
The DAP-1360U device is a wireless access point supporting the router mode It is an affordable
solution for creating wireless networks at home or in an office
You are able to connect the wireless access point DAP-1360U switched to the router mode to a
cable or DSL modem or to a private Ethernet line and use a high-speed Internet connection to
successfully fulfill a wide range of professional tasks
Using DAP-1360U, you are able to quickly create a wireless network and let your relatives or
employees connect to it virtually anywhere (within the operational range of your wireless network)
The access point can operate as a base station for connecting wireless devices of the standards
802 11b, 802 11g, and 802 11n (at the rate up to 300Mbps)
The device supports multiple functions for the wireless interface: several security standards (WEP,
WPA/WPA2), MAC address filtering, different operation modes (access point, router, client), WPS,
WDS, WMM
In addition, the device is equipped with a button for switching the Wi-Fi network off/on If needed,
for example, when you leave home, you can easily switch the access point’s WLAN by pressing the
button, and devices connected to the LAN ports of the access point will stay online
Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or
routers – when the smart adjustment function is configured on each of them, a client always
connects to the access point (router) with the highest signal level
Support of guest Wi-Fi network in the router mode allows you to create a separate wireless network
with individual security settings and maximum rate limitation Devices connected to the guest
network will be able to access the Internet, but will be isolated from the devices and resources of
the access point's LAN
In the router mode, the DAP-1360U device includes a built-in firewall The advanced security
functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and
block access to unwanted websites for users of your LAN
You can configure the settings of the DAP-1360U device via the user-friendly web-based interface
(the interface is available in two languages – in Russian and in English)
The configuration wizard allows you to connect DAP-1360U to a wired or wireless ISP (when
switched to the router mode) in several simple steps or quickly set needed parameters for operation
as an access point, repeater, or client (when switched to the access point mode)
Also DAP-1360U supports configuration and management via mobile application for Android and
iPhone smartphones
Now you can simply update the firmware: the access point itself finds approved firmware on D-
Link update server and notifies when ready to install it
Page 5 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
Specifications*
Hardware
Processor ·RTL8196 (620MHz)
RAM ·32MB, S RAM
Flash ·4MB, SPI
Interfaces ·10/100BASE-TX WAN port
·4 10/100BASE-TX LAN ports
L Ds ·POWER
·WLAN
·WPS
·INTERNET
·4 LAN LE S
Buttons ·ON/OFF button to power on/power off
·RESET button to restore factory default settings
·WPS button to set up wireless connection and enable/disable wireless network
Antenna ·Two detachable omnidirectional antennas (5dBi gain)
·RP-SMA connector
Power connector ·Power input connector ( C)
Software
WAN connection types ·PPPoE
·Static IPv4 / ynamic IPv4
·PPPoE + Static IP (PPPoE ual Access)
·PPPoE + ynamic IP (PPPoE ual Access)
·PPTP/L2TP
·PPTP/L2TP + Static IP
·PPTP/L2TP + ynamic IP
Network functions ·HCP server/relay
·Automatic obtainment of LAN IP address (for access point/repeater/client/W S
modes)
·NS relay
·ynamic NS
·Static IP routing
·IGMP Proxy
·RIP
·Support of UPnP IG
·Support of VLAN
·WAN ping respond
·Support of SIP ALG
·Support of RTSP
·Autonegotiation of speed, duplex mode, and flow control/Manual speed and
duplex mode setup for each Ethernet port
·Setup of maximum TX rate for each port of the access point
Firewall functions ·Network Address Translation (NAT)
·Stateful Packet Inspection (SPI)
·IP filter
·MAC filter
·URL filter
·MZ
·Prevention of ARP and oS attacks
·Virtual servers
VPN ·IPsec/PPTP/L2TP/PPPoE pass-through
* The device features are subject to change without notice For the latest versions of the firmware and relevant
documentation, visit www dlink ru
Page 6 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
Software
Management ·Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
·Bilingual web-based interface for configuration and management
(Russian/English)
·Support of -Link Assistant application for Android and iPhone smartphones
·Firmware update via web-based interface
·Automatic notification on new firmware version
·Saving/restoring configuration to/from file
·Support of logging to remote host
·Automatic synchronization of system time with NTP server and manual
time/date setup
·Ping utility
·Traceroute utility
Wireless Module Parameters
Standards ·IEEE 802.11b/g/n
Frequency range ·2400 ~ 2483.5MHz
Wireless connection security ·WEP
·WPA/WPA2 (Personal/Enterprise)
·МАС filter
·WPS (PBC/PIN)
Advanced functions ·Support of client mode
·WMM (Wi-Fi QoS)
·Information on connected Wi-Fi clients
·Advanced settings
·Smart adjustment of Wi-Fi clients
·Guest Wi-Fi / support of MBSSI
·Rate limitation for wireless network/separate MAC addresses
·Periodic scan of channels, automatic switch to least loaded channel
·W S
·Autonegotiation of channel bandwidth in accordance with environment
conditions (20/40 Coexistence)
Wireless connection rate ·IEEE 802.11b: 1, 2, 5.5, and 11Mbps
·IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
·IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
Transmitter output power
The maximum value of the transmitter
output power depends upon the radio
frequency regulations applied in your
country
·802.11b (typical at room temperature 25 °C)
15dBm (+/-1.5dB) at 1, 2, 5.5, 11Mbps
·802.11g (typical at room temperature 25 °C)
15dBm (+/-1.5dB) at 6, 9, 12, 18, 24, 36, 48, 54Mbps
·802.11n (typical at room temperature 25 °C)
HT20
15dBm (+/-1.5dB) at MCS0/1/2/3/4/5/6/8/9/10/11/12/13/14
14dBm (+/-1.5dB) at MCS7/15
HT40
15dBm (+/-1.5dB) at MCS0/1/2/3/4/5/6/8/9/10/11/12/13/14
14dBm (+/-1.5dB) at MCS7/15
Page 7 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
Wireless Module Parameters
Receiver sensitivity ·802.11b (typical at PER = 8% at room temperature 25 °C)
-82dBm at 1Mbps
-80dBm at 2Mbps
-78dBm at 5.5Mbps
-76dBm at 11Mbps
·802.11g (typical at PER = 10% at room temperature 25 °C)
-85dBm at 6Mbps
-84dBm at 9Mbps
-82dBm at 12Mbps
-80dBm at 18Mbps
-77dBm at 24Mbps
-73dBm at 36Mbps
-69dBm at 48Mbps
-68dBm at 54Mbps
·802.11n (typical at PER = 10% at room temperature 25 °C)
HT20
-82dBm at MCS0/8
-79dBm at MCS1/9
-77dBm at MCS2/10
-74dBm at MCS3/11
-70dBm at MCS4/12
-66dBm at MCS5/13
-65dBm at MCS6/14
-64dBm at MCS7/15
HT40
-79dBm at MCS0/8
-76dBm at MCS1/9
-74dBm at MCS2/10
-71dBm at MCS3/11
-67dBm at MCS4/12
-63dBm at MCS5/13
-62dBm at MCS6/14
-61dBm at MCS7/15
Modulation schemes ·802.11b: QPSK, BPSK, SSS, CCK
·802.11g: BPSK, QPSK, 16QAM, 64QAM with OF M
·802.11n: BPSK, QPSK, 16QAM, 64QAM with OF M
Physical Parameters
Dimensions ·174 x 115 x 30 mm (7 x 4.5 x 1.2 in)
Weight ·248 g (0.55 lb)
Operating nvironment
Power ·Output: 12V C, 0.5A
Temperature ·Operating: from 0 to 40 °C
·Storage: from -20 to 65 °C
Humidity ·Operating: from 10% to 90% (non-condensing)
·Storage: from 5% to 95% (non-condensing)
Page 8 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
Product Appearance
Top Panel
Figure 1. Top panel view.
L D Mode Description
POW R
Solid green The device is powered on
No light The device is powered off
WLAN
Solid green The device's WLAN is on
Blinking green Data transfer through the Wi-Fi network
No light The device's WLAN is off
WPS
Blinking green Attempting to add a wireless device via the WPS
function
No light The WPS function is not in use
INT RN T
Solid green The cable is connected to the port
Blinking green Data transfer through the WAN port
No light The cable is not connected
LAN 1-4
Solid green A device (computer) is connected to the relevant port,
the connection is on
Blinking green
Data transfer through the relevant LAN port
When the access point is being loaded, the LEDs are
blinking one at a time
When the firmware is being upgraded, the LEDs are
blinking two at a time
No light The cable is not connected to the relevant port
Page 9 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
Back and Bottom Panels
Figure . Back panel view.
Name Description
ON/OFF A button to turn the device on/off
12VDC IN Power connector
WPS
A button to set up a wireless connection (the WPS function) and
enable/disable the wireless network
To use the WPS function: with the device turned on, push the button,
hold it for 2 seconds, and release The WPS LED should start blinking
To disable the wireless network of the access point: with the device
turned on, press the button, hold for 7 seconds, and release The WLAN
LED should turn off
LAN 1-4 4 Ethernet ports to connect computers or network devices
WAN A port to connect to a cable or DSL modem or to a private Ethernet line
(it is recommended to use the cable included in the delivery package)
The RESET button located on the bottom panel of the access point is designed to restore the
factory default settings To restore the factory defaults, push the button (with the device turned on),
hold it for 10 seconds, and then release the button
The device is also equipped with two external Wi-Fi antennas
Page 10 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Overview
Delivery Package
The following should be included:
•Access point DAP-1360U
•Power adapter DC 12V/0 5A
•Ethernet cable
•Two detachable antennas
•“Quick Installation Guide” (brochure)
The “User Manual” and “Quick Installation Guide” documents are available on D-Link website
(see www dlink ru)
!Using a power supply with a different voltage rating than the one included will cause
damage and void the warranty for this product
Page 11 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
CHAPT R 3. INSTALLATION AND CONN CTION
Before You Begin
Please, read this manual prior to installing the device Make sure that you have all the necessary
information and equipment
Operating System
Configuration of the access point DAP-1360U supporting the router mode (hereinafter referred to as
“the access point”) is performed via the built-in web-based interface The web-based interface is
available from any operating system that supports a web browser
Web Browser
The following web browsers are recommended:
•Apple Safari 8 and later
•Google Chrome 48 and later
•Microsoft Internet Explorer 10 and later
•Microsoft Edge 20 10240 and later
•Mozilla Firefox 44 and later
•Opera 35 and later
For successful operation, JavaScript should be enabled on the web browser Make sure that
JavaScript has not been disabled by other software (such as virus protection or web user security
packages) running on your computer
Wired or Wireless NIC (Et ernet or Wi-Fi Adapter)
Any computer that uses the access point should be equipped with an Ethernet or Wi-Fi adapter
(NIC) If your computer is not equipped with such a device, install an Ethernet or Wi-Fi adapter
prior to using the access point
Wireless Connection
Wireless workstations from your network should be equipped with a wireless 802 11b, g or n NIC
(Wi-Fi adapter) In addition, you should specify the values of SSID, channel number and security
settings defined in the web-based interface of the access point for all these wireless workstations
Page 12 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
Connecting to PC
PC with Ethernet Adapter
1 Connect an Ethernet cable between any of LAN ports located on the back panel of the
access point and the Ethernet port of your PC
2 Connect the power cord to the power connector port on the back panel of the access point,
then plug the power adapter into an electrical outlet or power strip
3 Turn on the access point by pressing the ON/OFF button on its back panel
Now you need to configure an IP address for the Ethernet adapter of your PC
Page 13 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
Conguring IP Address in OS Windows 7
1 Click the Start button and proceed to the Control Panel window
2 Select the Network and Sharing Center section (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section )
Figure 3. The Control Panel window.
Page 14 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
3 In the menu located on the left part of the window, select the Change adapter settings
line

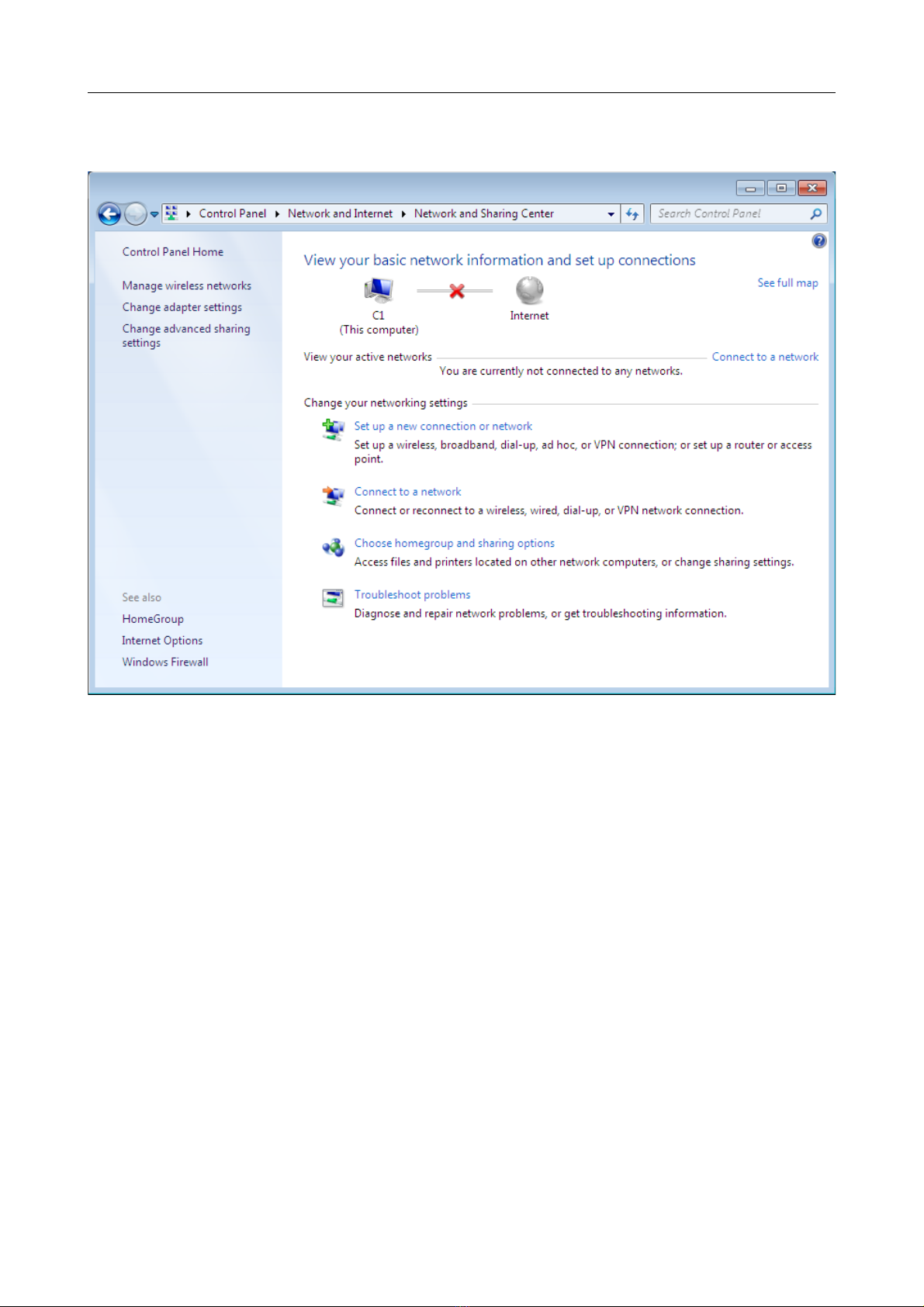

Figure 4. The Net ork and Sharing Center window.
Page 15 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
4 In the opened window, right-click the relevant Local Area Connection icon and select
the Properties line in the menu displayed

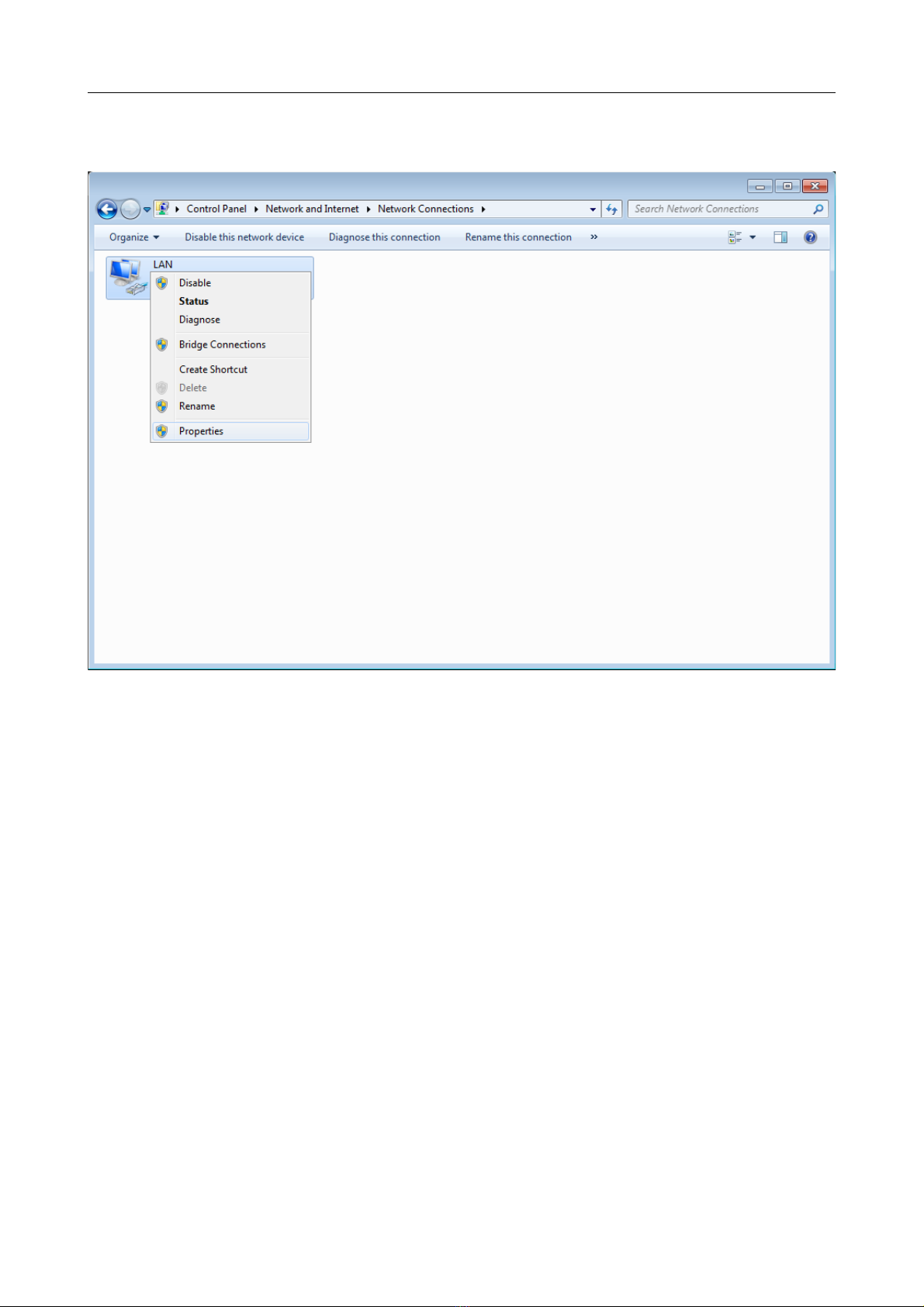

Figure 5. The Net ork Connections window.
Page 16 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
5 In the Local Area Connection Properties window, on the Networking tab, select the
Internet Protocol Version 4 (TCP/IPv4) line Click the Properties button
Figure 6. The Local Area Connection Properties window.
Page 17 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
6 Select the Use the following IP address radio button and enter the value
192.1 8.0.51 in the IP address field The Subnet mask field will be filled in
automatically Click the OK button
Figure 7. The Internet Protocol Version 4 (TCP/IPv4) Properties window.
7 Click the OK button in the connection properties window
Now you can connect to the web-based interface of DAP-1360U for configuring all needed
parameters To gain access to an external network (to the Internet), you also need to specify the
default gateway and the addresses of DNS servers
Page 18 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
PC with Wi Fi Adapter
1 Attach the antennas from the delivery package To do this, remove the antennas from their
wrapper, attach them to the relevant connectors on the back panel of the access point, and
then screw the antennas in a clockwise direction to the back panel Position the antennas
upward at their connecting joints This will ensure optimal operation of your wireless
network
2 Connect the power cord to the power connector port on the back panel of the access point,
then plug the power adapter into an electrical outlet or power strip
3 Turn on the access point by pressing the ON/OFF button on its back panel
4 Make sure that the Wi-Fi adapter of your PC is on As a rule, modern notebooks with built-
in wireless NICs are equipped with a button or switch that turns on/off the wireless adapter
(refer to your PC documents) If your PC is equipped with a pluggable wireless NIC, install
the software provided with your Wi-Fi adapter
Now you should configure your Wi-Fi adapter
Page 19 of 158

DAP-1360U Wireless N300 Access Point & Router
User Manual Installation and Connection
Conguring Wi Fi Adapter in OS Windows 7
1 Click the Start button and proceed to the Control Panel window
2 Select the Network and Sharing Center section (If the Control Panel has the category
view (the Category value is selected from the View by drop-down list in the top right
corner of the window), choose the View network status and tasks line under the
Network and Internet section )

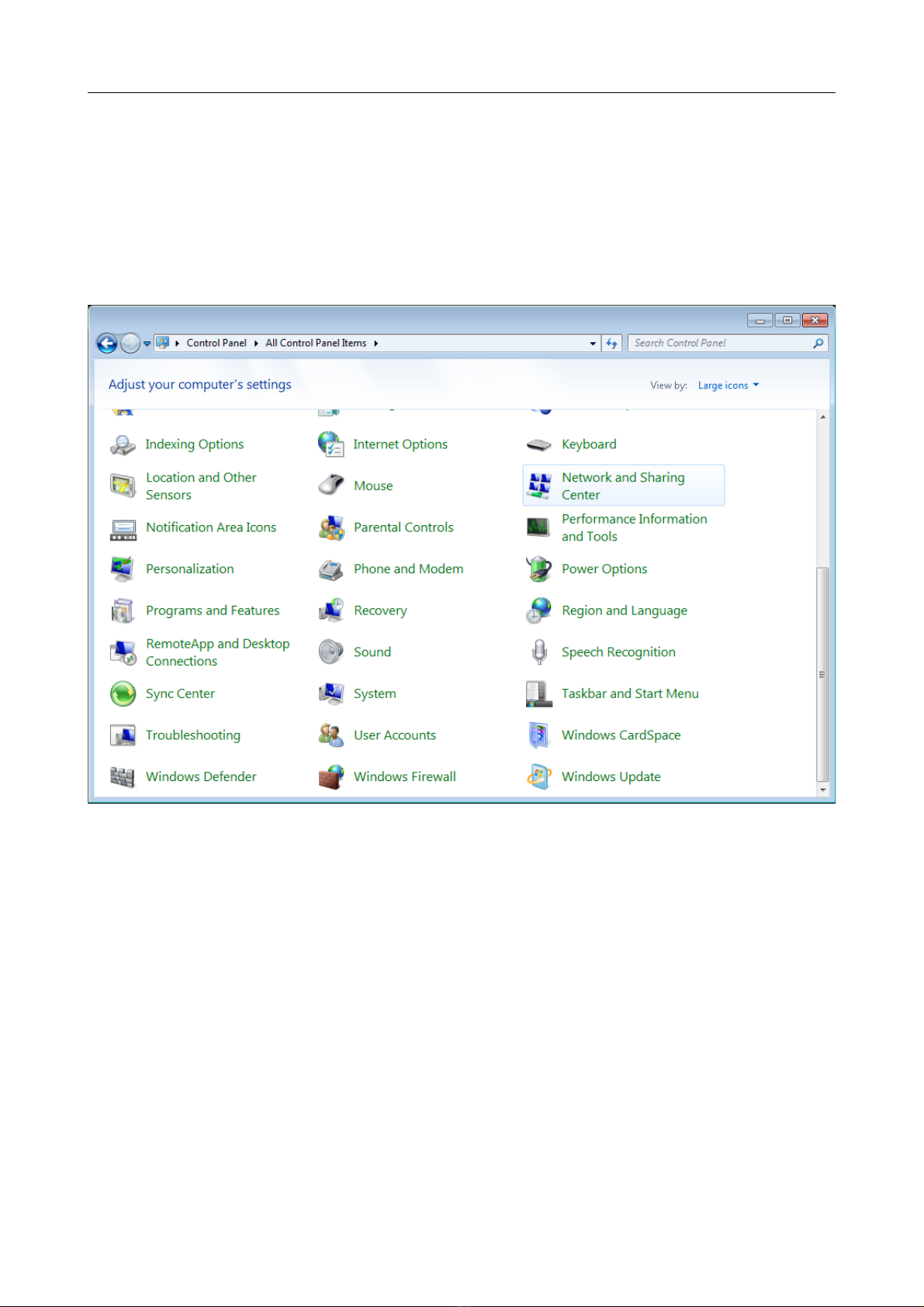

Figure 8. The Control Panel window.
3 In the menu located on the left part of the window, select the Change adapter settings
line
4 In the opened window, right-click the relevant Wireless Network Connection icon
Make sure that your Wi-Fi adapter is on, then select the Properties line in the menu
displayed
Page 20 of 158
