D-Link 0790069323058 User manual

Wireless N Open Source Access Point

2D-Link DAP-1360 User Manual
Table of Contents
Package Contents......................................................................... 4
System Requirements................................................................. 5
Introduction ................................................................................... 6
Features............................................................................................ 8
Hardware Overview..................................................................... 9
Connections ........................................................................... 9
LEDs.........................................................................................10
WPS LED/Button..................................................................11
Installation .......................................................................12
Operation Modes........................................................................12
Access Point Mode .............................................................13
Wireless Client Mode.........................................................14
Repeater Mode....................................................................15
Bridge Mode.........................................................................16
Bridge with AP Mode ........................................................17
WISP Client Router Mode.................................................18
WISP Repeater Mode.........................................................19
Wireless Installation Considerations....................................20
Conguration...................................................................21
Web-based Conguration Utility..........................................21
Wireless Setup Wizard...............................................................22
Access Point Mode .............................................................23
Repeater Mode....................................................................26
Wireless Client Mode.........................................................30
Manual Conguration...............................................................34
Wireless Settings.................................................................34
Access Point Mode ........................................................35
Repeater Mode ...............................................................37
Wireless Client Mode....................................................38
Bridge Mode ....................................................................39
Bridge with AP Mode....................................................40
WISP Client Router/WISP Repeater Modes...........41
WAN Settings .......................................................................42
Dynamic IP (DHCP)........................................................42
Static IP..............................................................................43
PPPoE .................................................................................44
PPTP....................................................................................45
LAN Settings.........................................................................46
Static IP..............................................................................47
Advanced ......................................................................................48
Advanced Wireless .............................................................48
MAC Address Filter.....................................................................49
Wi-Fi Protected Setup ...............................................................50
User Limits.....................................................................................51
Port Forwarding (WISP modes only) ...................................52
Port Filter (WISP modes only) ................................................53
DMZ (WISP modes only) ..........................................................54
Parental Control (WISP modes only)....................................55
Advanced Network (WISP modes only) .............................56
Maintenance ................................................................................57
Admin .....................................................................................57
System ....................................................................................58
Language Pack.....................................................................59
Table of Contents

3D-Link DAP-1360 User Manual
Table of Contents
Firmware ................................................................................59
Watchdog ..............................................................................60
Time.........................................................................................61
System Check.......................................................................62
Schedules ..............................................................................63
Status ..............................................................................................64
Device Info ............................................................................64
Logs .........................................................................................65
Statistics .................................................................................66
Wireless ..................................................................................67
IPv6 ..........................................................................................68
Help .................................................................................................69
Wireless Security .............................................................70
What is WPA?................................................................................71
Congure WPA/WPA2 Personal .............................................72
Congure WPA/WPA2 Enterprise..........................................73
Connect to a Wireless Network.......................................74
Using Windows®XP ....................................................................74
Congure WPA-PSK....................................................................75
Using Windows Vista®...............................................................77
Congure WPA-PSK....................................................................79
Using Windows®7.......................................................................80
Congure WPS.....................................................................83
Troubleshooting ..............................................................87
Wireless Basics .................................................................91
What is Wireless?.........................................................................92
Tips...................................................................................................94
Wireless Modes............................................................................95
Networking Basics...........................................................96
Check your IP address...............................................................96
Statically Assign an IP address...............................................97
Technical Specications ..................................................98

4D-Link DAP-1360 User Manual
Section 1 - Product Overview
Note: Using a power supply with a dierent voltage rating than the one included with the DAP-1360 will cause damage and void
the warranty for this product.
Package Contents
DAP-1360 Wireless N Open Source Access Point
Ethernet Cable
Two Detachable Antennas
CD-ROM with Manual
Power Adapter

5D-Link DAP-1360 User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• AnEthernet-basedNetwork
• IEEE802.11n/gwirelessclients(AP/RepeaterMode)
• IEEE802.11n/gwirelessnetwork(Client/Bridge/RepeaterMode)
• 10/100Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®,Macintosh,orLinux-basedoperatingsystem
• AninstalledEthernetadapter
Browser Requirements:
• InternetExplorer®6.0andhigher
• MozillaFirefox3.0andhigher
• Google™Chrome2.0andhigher
• AppleSafari3.0andhigher
Windows®Users: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.

6D-Link DAP-1360 User Manual
Section 1 - Product Overview
Introduction
D-Link,anindustryleaderinnetworking,introducesthenewD-LinkDAP-1360WirelessNOpenSourceAccessPoint.Withthe
abilitytotransferleswithamaximumwirelesssignalrateofupto300Mbps*,theDAP-1360givesyouhigh-speedwireless
network access for your home or oce.
TheDAP-1360isWi-FiIEEE802.11ncompliant,meaningthatitcanconnectandinteroperatewithother802.11ncompatible
wirelessclientdevices.TheDAP-1360isalsobackwardscompatiblewith802.11b/g.Itcanbeexiblyconguredtooperatein
7 dierent modes Access Point,Wireless Client,Bridge,Bridge with AP,Repeater,WISP Client Router or WISP Repeater.
WithitsSetupWizard,theDAP-1360ensuresthatyouwillbeupandrunningonawirelessnetworkinjustamatterofminutes.
The DAP-1360 features Wi-Fi Protected Access (WPA-PSK/WPA2-PSK) to provide an enhanced level of security for wireless
data communications. The DAP-1360 also includes additional security features to keep your wireless connection safe from
unauthorized access.
TheDAP-1360supportsWPSontheAP,repeaterandwirelessclientoperationmodes,witheachcapableofbeingconveniently
set up by using the PIN method or Push Button.
•Actual datathroughputwillvary.Network conditions andenvironmentalfactors,includingvolume of networktrac,buildingmaterials andconstruction, and network
overhead,loweractualdatathroughputrate.

7D-Link DAP-1360 User Manual
Section 1 - Product Overview
TOTAL PERFORMANCE
Combines award winning access point features and 802.11n wireless technology to provide the best wireless performance.
TOTAL SECURITY
The most complete set of security features including WPA/WPA2 encryption to protect your network against outside intruders.
TOTAL COVERAGE
Provides greater wireless signal rates even at farther distances for best-in-class Whole Home Coverage.
ULTIMATE PERFORMANCE
The D-Link Wireless N Open Source Access Point (DAP-1360) is an 802.11n compliant device that delivers real world performance of
up to 13X faster than an 802.11g wireless connection (also faster than a 100Mbps wired Ethernet connection). Create a secure wireless
networktosharephotos,les,music,video,printers,andnetworkstoragethroughoutyourhome.ConnecttheDAP-1360torouterand
shareyourhigh-speedInternetaccesswitheveryoneonthenetwork.Inaddition,thisRangeExtenderincludesaQualityofService
(QoS)enginethatkeepsdigitalphonecalls(VoIP)andonlinegamingsmoothandresponsive,providingabetterInternetexperience.
EXTENDED WHOLE HOME COVERAGE
This high performance Wireless Bridge provides superior Whole Home Coverage while reducing dead spots. The DAP-1360 is designed
for use in bigger homes and for users who demand higher performance networking.
TOTAL NETWORK SECURITY
TheDAP-1360supportsallofthelatestwirelesssecurityfeaturestopreventunauthorizedaccess,beitfromoverthewirelessnetwork
orfromtheInternet.SupportforWPAandWPA2standardsensurethatyou’llbeabletousethebestpossibleencryptionmethod,
regardless of your client devices.
*MaximumwirelesssignalratederivedfromIEEEStandard802.11gand802.11nspecications.Actualdatathroughputwillvary.Networkconditionsandenvironmentalfactors,
includingvolumeofnetworktrac,buildingmaterialsandconstruction,andnetworkoverhead,loweractualdatathroughputrate.Environmentalconditionswilladversely
aect wireless signal range.

8D-Link DAP-1360 User Manual
Section 1 - Product Overview
• FasterWirelessNetworking-TheDAP-1360providesupto300Mbps*wirelessconnectionwithother802.11nwireless
clients.Thiscapabilityallowsuserstoparticipateinreal-timeactivitiesonline,suchasvideostreaming,onlinegaming,
and real-time audio.
• CompatiblewithIEEE802.11gDevices-TheDAP-1360isstillfullycompatiblewiththe802.11gstandards,soitcan
connectwithexisting802.11gPCI,USB,andCardbusadapters.
• AdvancedFirewallFeatures-TheWeb-based user interface displays advanced network management features including
ContentFiltering,whichallowseasilyappliedcontentlteringbasedonMACAddress.
• WPSPBC-(Wi-Fi Protected Setup Push Button Conguration) Push Button Conguration is a button that can be pressed
toaddthedevicetoanexistingnetworkortocreateanewnetwork.Avirtualbuttoncanbeusedontheutilitywhile
a physical button is placed on the side of the device.
This easy setup method allows you to form a secured wireless link between the DAP-1360 and another WPS enabled
device. A PC is no longer needed to log into the Web-based interface.
• WPSPIN-(Wi-Fi Protected Setup Personal Identication Number ) A PIN is a unique number that can be used to add
theaccesspointtoanexistingnetworkortocreateanewnetwork.ThedefaultPINmaybeprintedonthebottomof
theaccesspoint.Forextrasecurity,anewPINcanbegenerated.YoucanrestorethedefaultPINatanytime.Onlythe
Administrator (“admin” account) can change or reset the PIN.
• User-friendlySetupWizard-Throughitseasy-to-useWeb-baseduserinterface,theDAP-1360letsyoucontrolwhat
informationisaccessibletothoseonthewirelessnetwork,whetherfromtheInternetorfromyourcompany’sserver.
Congure your access point to your specic settings within minutes.
Features

9D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview
Connections
1 LAN Port Connect10/100Ethernetdevicessuchascomputers,switches,andhubs.
2 Power Receptor Receptor for the supplied power adapter.
3 Reset Button Pressing the Reset Button restores the access point to its original factory default settings.
12 3

10D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
1
1 Power LED A solid green light indicates a proper connection to the power supply.
2 Wireless LED A solid green light indicates the wireless function is working. The light will be o during
device reboot or if the wireless radio is disabled.
3 Security LED Asolidgreenlightindicatesthatwirelesssecurity(WEP,WPA,WPA2)isenabled.
4 LAN LED A solid green light indicates the LAN port connection is OK.
2 3 4

11D-Link DAP-1360 User Manual
Section 1 - Product Overview
Hardware Overview
WPS LED/Button
1
1WPS LED/Button A solid light indicates a successful WPS connection. A blinking light indicates the
device is trying to establish a connection.

12D-Link DAP-1360 User Manual
Section 2 - Installation
Installation
PleaseconguretheDAP-1360withacomputerconnecteddirectlytotheAP.Thenextfewpageswillexplainthedierent
operational modes you can use.
Operation Modes
Depending on how you want to use your DAP-1360 will determine which mode you use. This section will help you gure out
which setting works with your setup.
• AccessPointmode-page13
• WirelessClientmode-page14
• Repeatermode-page15
• Bridgemode-page16
• BridgewithAPmode-page17
• WISPClientRoutermode-page18
• WISPRepeatermode-page19

13D-Link DAP-1360 User Manual
Section 2 - Installation
Access Point Mode
IntheAccessPointmode,theDAP-1360actsasacentralconnectionpointforanycomputer(client)thathasa802.11nor
backward-compatible 802.11g wireless network interface and is within range of the AP. Clients must use the same SSID (wireless
networkname)andchannelastheAPinordertoconnect.IfwirelesssecurityisenabledontheAP,theclientwillneedtoenter
apasswordtoconnecttotheAP.InAccessPointmode,multipleclientscanconnecttotheAPatthesametime.
Internet Modem Router DAP-1360
(in Access Point Mode)
Computer
Computer

14D-Link DAP-1360 User Manual
Section 2 - Installation
Wireless Client Mode
IntheWirelessClientmode,theDAP-1360actsasawirelessnetworkadapterforyourEthernet-enableddevice(suchasagame
consoleoraTVset-topbox).ConnectyourEthernet-enableddevicetotheAPusinganEthernetcable.TheAPClientmode
can support multiple wired clients.
IfyouaregoingtoconnectseveralEthernet-enableddevicestoyourDAP-1360,connecttheLANportoftheDAP-1360toan
Ethernetswitch,thenconnectyourdevicestothisswitch.
Example: Connect a gaming console using an ethernet cable to the DAP-1360. The unit is set to Wireless Client mode which
will wirelessly connect to a wireless router on your network.
Internet Modem Router DAP-1360
(in Wireless Client Mode)
Gaming Console

15D-Link DAP-1360 User Manual
Section 2 - Installation
Repeater Mode
InRepeatermode,theDAP-1360increasestherangeofyourwirelessnetworkbyextendingthewirelesscoverageofanother
APorwirelessrouter.TheAPsandwirelessrouter(ifused)mustbewithinrangeofeachother.Makesurethatallclients,APs,
andthewirelessrouterallusethesameSSID(wirelessnetworkname),channel,andsecuritysettings.
Computer
Internet Modem Router DAP-1360
(In Repeater Mode)
Computer
Computer

16D-Link DAP-1360 User Manual
Section 2 - Installation
Bridge Mode
IntheBridgemode,theDAP-1360wirelesslyconnectsseperatelocalareanetworks(LANs)thatcan’teasilybeconnected
togetherwithacable.Forexample,iftherearetwowiredLANsseparatedbyasmallcourtyard,itwouldbeexpensivetobury
cables to connect between the two sides together. A better solution is to use two DAP-1360 units to wirelessly connect the
twoLANs.IntheBridgemode,bothDAP-1360unitsdonotactasAPs.
Note: The Bridge mode is not specified in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360 units.
Communication with other APs (even other D-Link APs) is not guaranteed.

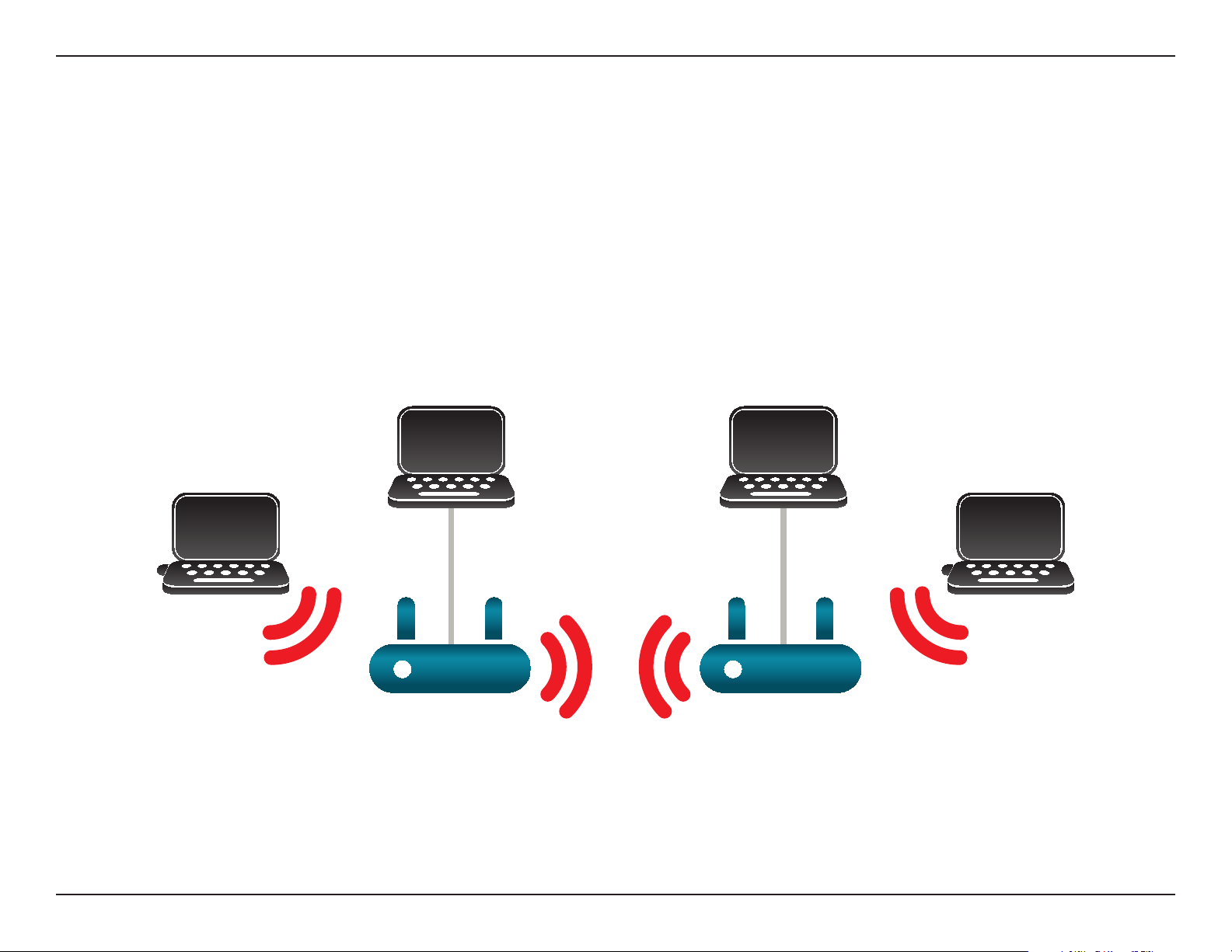

Connecting Two Separate LANs Together Through Two DAP-1360 Units

17D-Link DAP-1360 User Manual
Section 2 - Installation
Bridge with AP Mode
TheBridgewithAPmodeisthesameastheBridgemode,butinthiscase,theDAP-1360alsoactsasanAP.Clientswithwireless
interfaces can wirelessly connect to the DAP-1360 and then connect to the other LAN that the DAP-1360 bridges to.
Note: The Bridge with AP mode is not specied in the Wi-Fi or IEEE standards. This mode will only work using two DAP-1360 units.
Communication with other APs (even other D-Link APs) is not guaranteed.
ComputerComputer
Computer Computer
DAP-1360
(In Bridge Mode with AP Mode)
DAP-1360
(In Bridge Mode with AP Mode)

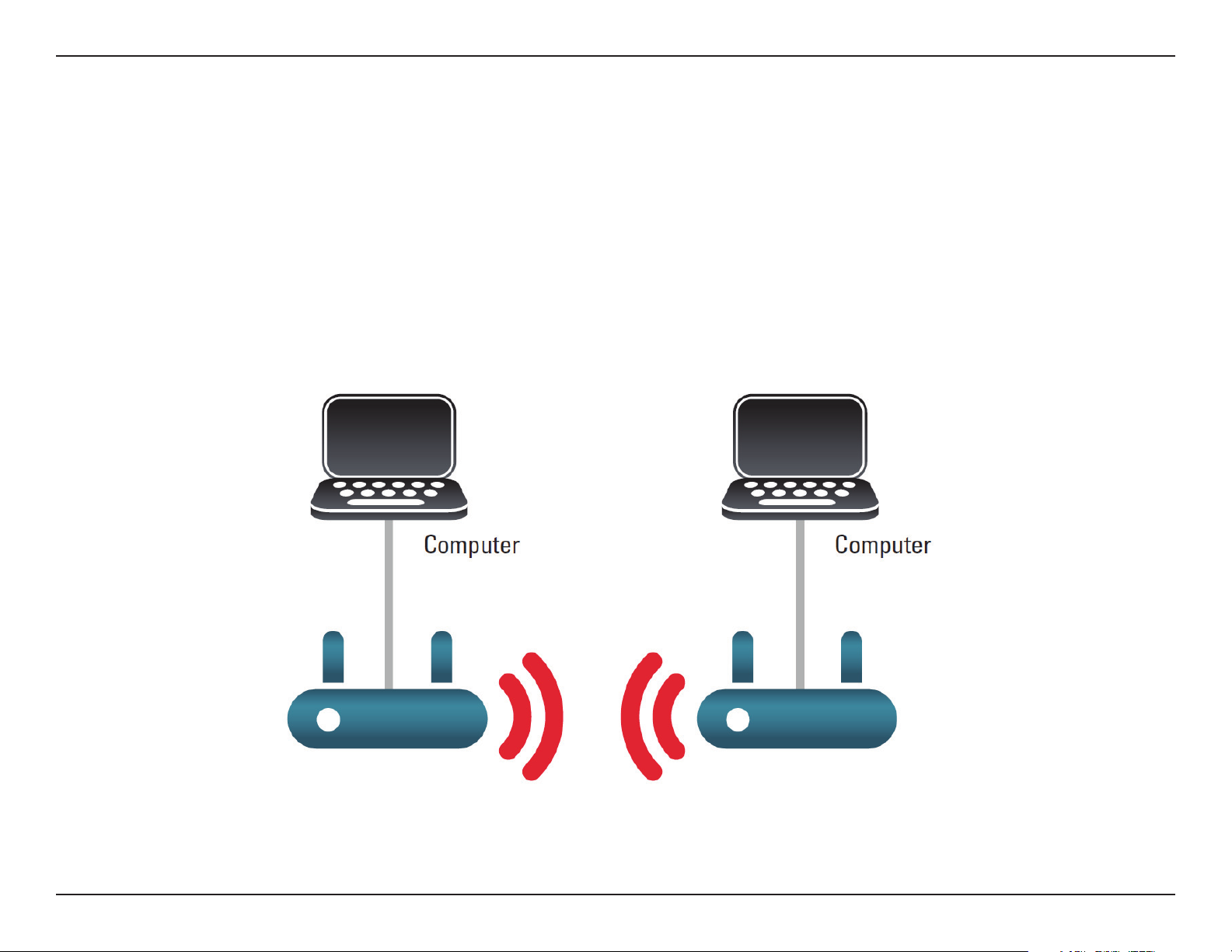

LAN 1 LAN 2
Connecting Two Separate LANs Together Through Two DAP-1360 Units
(Wireless PCs Can Access the DAP-1360 Units)

18D-Link DAP-1360 User Manual
Section 2 - Installation
WISP Client Router Mode
IntheWISPClientRoutermode,theDAP-1360wirelesslyconnectstoaWISP(WirelessInternetServiceProvider)AP.Inthis
mode,theDAP-1360alsoactsasarouterforwiredclientsonyourLANandprovidesNAT(NetworkAddressTranslation)and
a DHCP server to generate IP addresses for wired clients only. NAT and the DHCP server allow many computers to share the
same wireless Internet connection.
IfyouareaWISPsubscriberandwanttoaccessyourWISPaccountusingwiredcomputers,connectyourcomputerstothe
DAP-1360togetNAT,andthenconnectthemtotheWISPAP.
Internet
Computer
DAP-1360
(In WISP Client Mode)
WISP Outdoor AP
Connecting Wired PCs to the Internet Using the DAP-1360

19D-Link DAP-1360 User Manual
Section 2 - Installation
WISP Repeater Mode
IntheWISPRepeatermode,theDAP-1360wirelesslyconnectstoaWISP(WirelessInternetServiceProvider)AP.Inthismode,
the DAP-1360 also acts as a router for both wireless and wired clients on your LAN. The WISP Repeater mode provides NAT
(Network Address Translation) and a DHCP server to generate IP addresses for both wireless and wired clients. NAT and the
DHCP server allow many computers to share the same wireless Internet connection.
IfyouareaWISPsubscriberandwanttouseyourWISPaccountinyourhouse,butthesignalsfromtheoutdoorWISPAPare
notstrongenoughtoreachalloftheareasinthehouse,usetheDAP-1360tocanextendthesignalsfromtheoutdoorWISP
APandprovideaccesstowirelessclientsinyourhouse.Usingthismode,wirelessaswellaswiredclientscanconnecttothe
outdoor WISP AP through the DAP-1360.
Computer
Internet Modem Router DAP-1360
(In Repeater Mode)
Computer
Computer
Connecting Wired and Wireless PCs to the Internet Using the DAP-1360

20D-Link DAP-1360 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless access point lets you access your network using a wireless connection from virtually anywhere within the
operatingrangeofyourwirelessnetwork.Keepinmind,however,thatthenumber,thicknessandlocationofwalls,ceilings,
orotherobjectsthatthewirelesssignalsmustpassthrough,maylimittherange.Typicalrangesvarydependingonthetypes
ofmaterialsandbackgroundRF(radiofrequency)noiseinyourhomeorbusiness.Thekeytomaximizingwirelessrangeisto
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link access point and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2.Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for
better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on
range.Trytopositionaccesspoints,wirelessaccesspoints,andcomputerssothatthesignalpassesthrough
drywalloropendoorways.Materialsandobjectssuchasglass,steel,metal,wallswithinsulation,water(sh
tanks),mirrors,lecabinets,brick,andconcretewilldegradeyourwirelesssignal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5.Ifyouareusing2.4GHzcordlessphonesorX-10(wirelessproductssuchasceilingfans,lights,andhomesecurity
systems),yourwirelessconnectionmaydegradedramaticallyordropcompletely.Makesureyour2.4GHzphone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not
in use.
