Nuclias Connect
Nuclias Connect
Introduction
Nuclias Connect is D-Link’s centralized management solution for Small-to-Medium-Sized Business (SMB) networks. Nuclias Connect makes
it easier to analyze, automate, congure, optimize, scale, and secure your network — delivering the convenience of an Enterprise-wide
management solution, at an SMB price. Nuclias Connect gives you the nancial and technical exibility to expand from a small network to
a larger one of up to 1,000 Access Points APs, while retaining a robust and centralized management system. With its intuitive Graphical User
Interface (GUI), a wealth of enhanced AP features, and a setup wizard that supports 11 languages, Nuclias Connect minimizes the hassle of
deployment, conguration, and administration tasks.
Deployable on a Windows server (or Linux via Docker), PC, or Smartphone (via lite management app) the Nuclias Connect free-to-download
software is capable of managing up to 1,000 APs without licensing charges, coupled with an inexpensive optional
hardware controller (DNH-100 Nuclias Connect Hub) suitable for remote locations. Through software-based monitoring and remote
management of all wireless Access Points (APs) on your network, Nuclias Connect oers tremendous exibility compared to traditional
hardware-based unied
management systems. Conguration can be done remotely. Network trac analytics are available at a glance (in whole or in part). Load
Balancing, Airtime Fairness, and Localized Throttling are enabled.
Nuclias Connect supports multi-tenancy, so network administrators can grant localized management authority for local networks. In
addition, because APs can support 8 SSIDs per radio (16 SSIDs per dual band APs), administrators have the option of using one SSID to create
a guest network for visitors.
Nuclias Connect provides direct AP discovery and provisioning when it shares the same Layer-2/Layer-3 network with a given AP, allowing
users to nd APs and import proles with minimum eort, which can be applied as needed to groups or individual APs for even more
eective conguration.
Since Nuclias Connect’s software operates transparently on the network, an AP can be deployed anywhere in an NAT environment. Admins
can provide and manage a variety of distributed deployments, including setting and admin account conguration for each deployment.
Nuclias Connect allows for multiple user authentications while enabling specic access control congurations for each SSID, giving admins
the option of conguring separate internal networks for dierent subnets, while enabling more advanced Value-Added Services, such as
Captive Portal or Wi-Fi Hotspot.

5D-Link DAP-3666 User Manual
Nuclias Connect
Nuclias Connect Key Features
• Free-to-Download Management Software
• Searchable Event Log and Change Log
• License-Free Access Points
• Trac Reporting & Analytics
• Authentication via Customizable Captive Portal, 802.1x and RADIUS Server, POP3, LDAP, AD
• Backwards-Compatibility
• Remote Cong. & Batch Cong.
• Multilingual Support
• Intuitive Interface
• Multi-Tenant & Role-Based Administration
• Payment Gateway (Paypal) Integration and Front-Desk Ticket Management
For more information on how to use Nuclias Connect with DAP-3666, please refer to the Nuclias Connect User Guide.

6D-Link DAP-3666 User Manual
Setup
Package Contents
yDAP-3666 Nuclias Connect AC1200 Wave 2 Outdoor Access Point
yInstallation Guide
yMounting kit (Wall/Pole Mount)
yStainless steel mount base x 1
yStainless tie back straps x 2
yWall screw x 4
yWall plug x 4
yStainless mount screw (hexagonal hole)
yHexagon Socket Spanner (Security screw)
yTwo LAN Port Waterproof Enclosure
yGrounding Wire
Note: No PSU supplied. To power the units use a D-Link 802.3af PoE switch or the D-Link DPE-301GI,DPE-311GI PoE injector.
System Requirements
Network Requirements yIEEE 802.11n/g wireless clients (AP/bridge modes)
yIEEE 802.11n/g wireless router or access point (client mode)
Web-based Conguration Utility Requirements
Computer with the following:
yWindows®, Macintosh, or Linux-based operating system
Browser Requirements:
yInternet Explorer 11, Chrome 33, Safari 7, or Firefox 28 and above (for web-based conguration)
Setup

7D-Link DAP-3666 User Manual
Hardware Overview
Rear
No. Item Description
1Gore-Tex® Ventilation for heat and humidity dissipation.
2Grounding Point Attach a ground wire to the conductor to connect the access point to a grounding electrode.
3Wall/Pole Mount Location used to mount on a wall or a pole location.
Hardware Overview

8D-Link DAP-3666 User Manual
Hardware Overview
Connections
No. Item Description
1Mounting Lock Connector for the mount screw.
2Reset Button Press and hold for 10 seconds to factory reset the device.
3LAN Port Connect to a switch or router via an Ethernet cable.
4LAN (PoE) Port Connect to a Power over Ethernet (PoE) switch or router
via an Ethernet cable.
LEDs
No. Item LED Color Description
1Power/ Status
LED
Red (Solid) Indicates that the DAP-3666 has
malfunctioned.
Red (Flashing) Indicates the DAP-3666 is booting up
or malfunctioning.
Green (Solid) Indicates that the DAP-3666 is
working properly.

9D-Link DAP-3666 User Manual
Wireless Basics
Wireless Basics
D-Link wireless products are based on industry standards to provide high-speed wireless connectivity that is easy to use within your home,
business or public access wireless networks. D-Link wireless products provides you with access to the data you want, whenever and wherever
you want it. Enjoy the freedom that wireless networking can bring to you.
WLAN use is not only increasing in both home and oce environments, but in public areas as well, such as airports, coee shops and universities.
Innovative ways to utilize WLAN technology are allowing people to work and communicate more eciently. Increased mobility and the absence
of cabling and other types of xed infrastructure have proven to be benecial to many users.
Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards, allowing wireless users to use
the same applications as those used on a wired network.
People use WLAN technology for many dierent purposes:
yMobility - Productivity increases when people can have access to data in any location within the operating range of their WLAN. Management
decisions based on real-time information can signicantly improve the eciency of a worker.
yLow implementation costs - WLANs are easy to set up, manage, change and relocate. Networks that frequently change can benet from
WLAN’s ease of implementation. WLANs can operate in locations where installation of wiring may be impractical.
yInstallation and network expansion - By avoiding the complications of troublesome cables, a WLAN system can be fast and easy during
installation, especially since it can eliminate the need to pull cable through walls and ceilings. Wireless technology provides more versatility by
extending the network beyond the home or oce.
yInexpensive solution - Wireless network devices are as competitively priced as conventional Ethernet network devices. The DAP-3666 saves
money by providing users with multi-functionality congurable in four dierent modes.
yScalability - Congurations can be easily changed and range from Peer-to-Peer networks, suitable for a small number of users to larger
Infrastructure networks to accommodate hundreds or thousands of users, depending on the number of wireless devices deployed.
Four Operational Modes
Operation Mode (Only support 1 mode at a time) Function
Access Point (AP) Create a wireless LAN
WDS with AP Wirelessly connect multiple networks while still functioning as a wireless AP
WDS Wirelessly connect multiple networks
Wireless Client AP acts as wireless network adapter for your Ethernet enabled device

10D-Link DAP-3666 User Manual
Wireless Basics
Connect to your Network
To power the access point, you can use one of the following 3 methods:
yMethod 1 - Power on by PoE switch.
yMethod 2 - Power on by PoE kit.
Method 1 - Powered by PoE switch

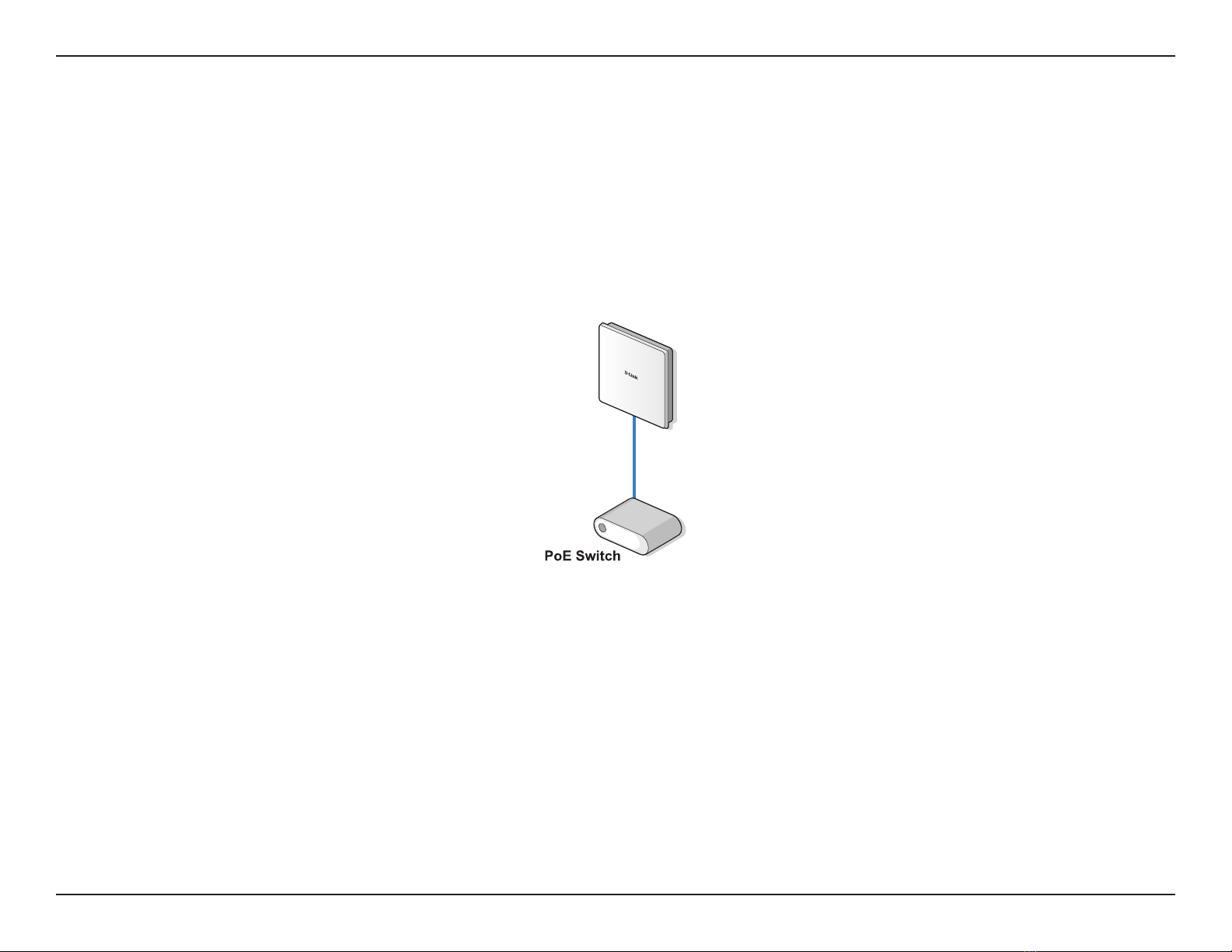

1. Connect one end of your Ethernet cable into the LAN1 (PoE) port on the DAP-3666 and then connect the other end to your PoE switch.

11D-Link DAP-3666 User Manual
Wireless Basics
Method 2 - Powered by PoE kit

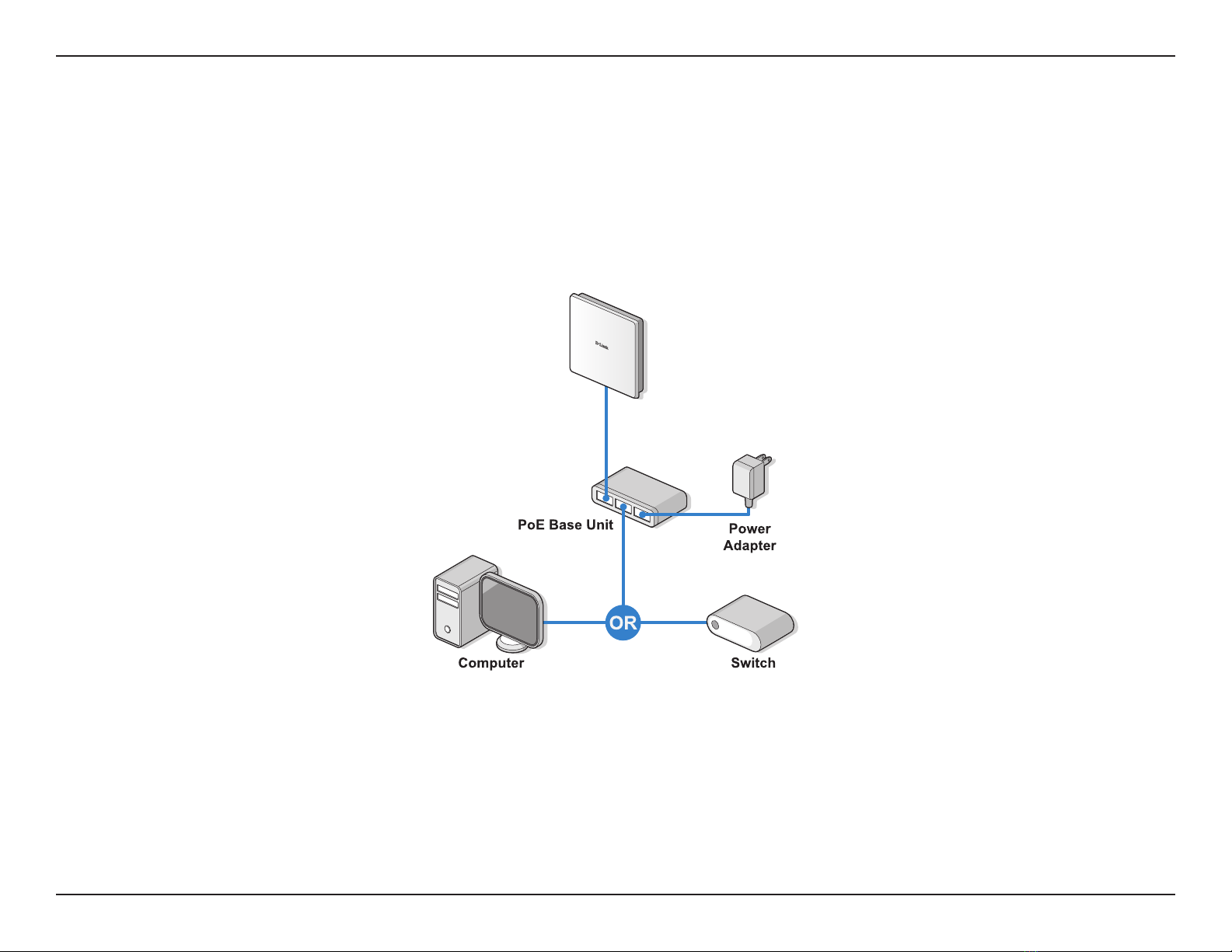

1. Connect one end of an Ethernet cable into the Data In port on the PoE injector and the other end into one port on your switch, router, or
computer.
2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and the other end into the LAN1 (PoE) port on the
DAP-3666 access point.
3. Use the supplied power adapter. Connect the power adapter to the Power In receptor on the PoE adapter.
4. Connect the power cable to the power adapter and then connect the other end into a power outlet.

12D-Link DAP-3666 User Manual
Installation
Installation
Installation Considerations
The D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the operating range of your
wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals
must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in
your home or business. The key to maximizing wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum - each wall or ceiling can reduce
your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1
meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or
ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try to position access points,
wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal,
walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless
connection may degrade dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as
possible. The base transmits a signal even if the phone in not in use.

13D-Link DAP-3666 User Manual
Setup Wizard
Setup Wizard
The following methods illustrate the setup options required for managing the DAP-3666:
1. Connect the access point and your computer to the same network switch. Manage the access point from the computer.
Enter dap3666.local in the address eld on your browser.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin
2. Connect the access point and your computer to the same PoE switch. Manage the access point from the computer.
Enter dap3666.local in the address eld of your browser.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin
3. Connect the access point and your computer via DPE-301GI PoE injector. Manage the access point from the computer.
Enter dap3666.local in the address eld of your browser.
Log in to the Administration Web pages. The default login information is:
Username: admin
Password: admin

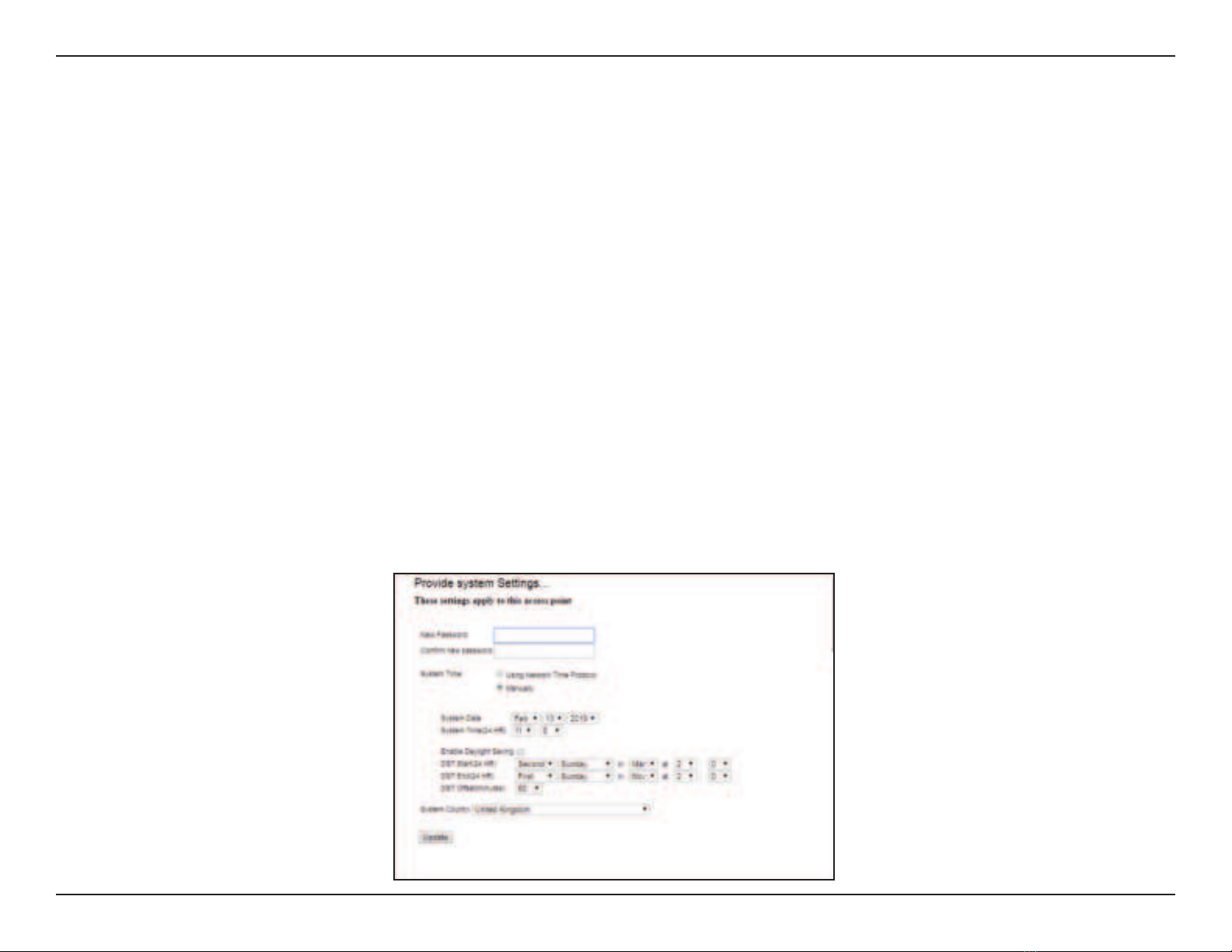

The rst login instance displays the System Settings window which requires a change in password. Additional settings include the System Time
and System Country functions.

14D-Link DAP-3666 User Manual
Web User Interface
Web User Interface

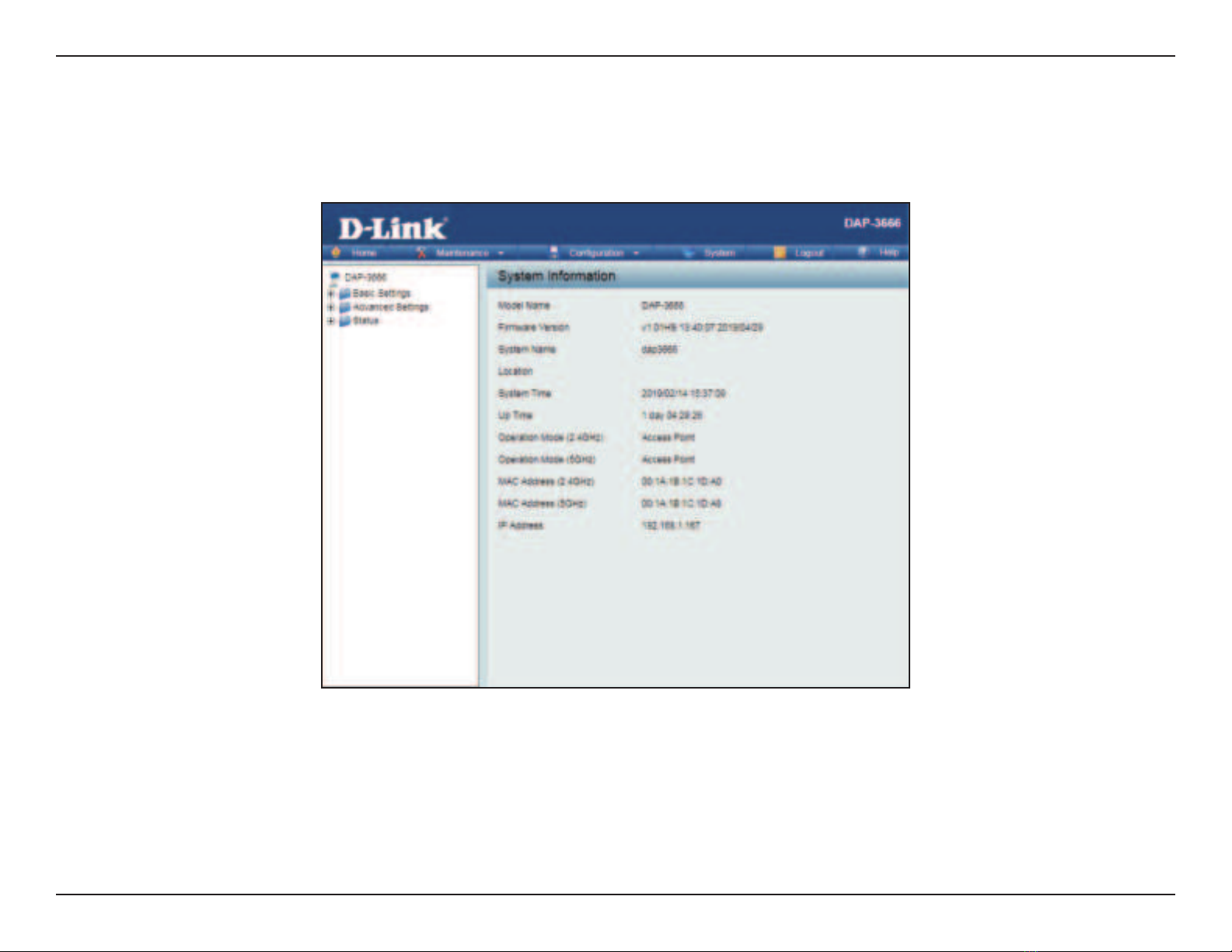

The DAP-3666 supports an elaborate web user interface where the user can congure and monitor the device. Launch a web browser, type
dap3666.local in the address eld and then press Enter to login. Most of the congurable settings are located in the left menu of the web GUI
which contains section called Basic Settings, Advanced Settings and Status.

15D-Link DAP-3666 User Manual
Web User Interface
Wireless Band Click the drop-down menu to select the wireless
band, 2.4GHz or 5GHz.
Operation Mode Click the drop-down menu to select Access
Point.
Network Name (SSID) Enter the name of Service Set Identier (SSID)
up to 32 characters and is case-sensitive.
SSID Visibility Click the drop-down menu to enable or disable
broadcast the SSID across the network.
Auto Channel Selection Click the drop-down menu to enable
automatically selects the channel that provides
the best wireless performance. The channel
selection process only occurs when the AP is
booting up.
Channel Click the drop-down menu to select the desired
channel. The function is only available when
Auto Channel Selection is Disable.
Note: The wireless adapters will automatically
scan and match the wireless settings.
Basic Settings
Wireless Settings
On the wireless settings page, you can setup the basic wireless conguration for the access point. The user can choose from 4 dierent wireless
modes:
yAccess Point - Used to create a wireless LAN
yWDS with AP - Used to connect multiple wireless networks while still functioning as a wireless access point
yWDS - Used to connect multiple wireless networks
yWireless Client - Used when the access point needs to act as a wireless network adapter for an Ethernet enabled device

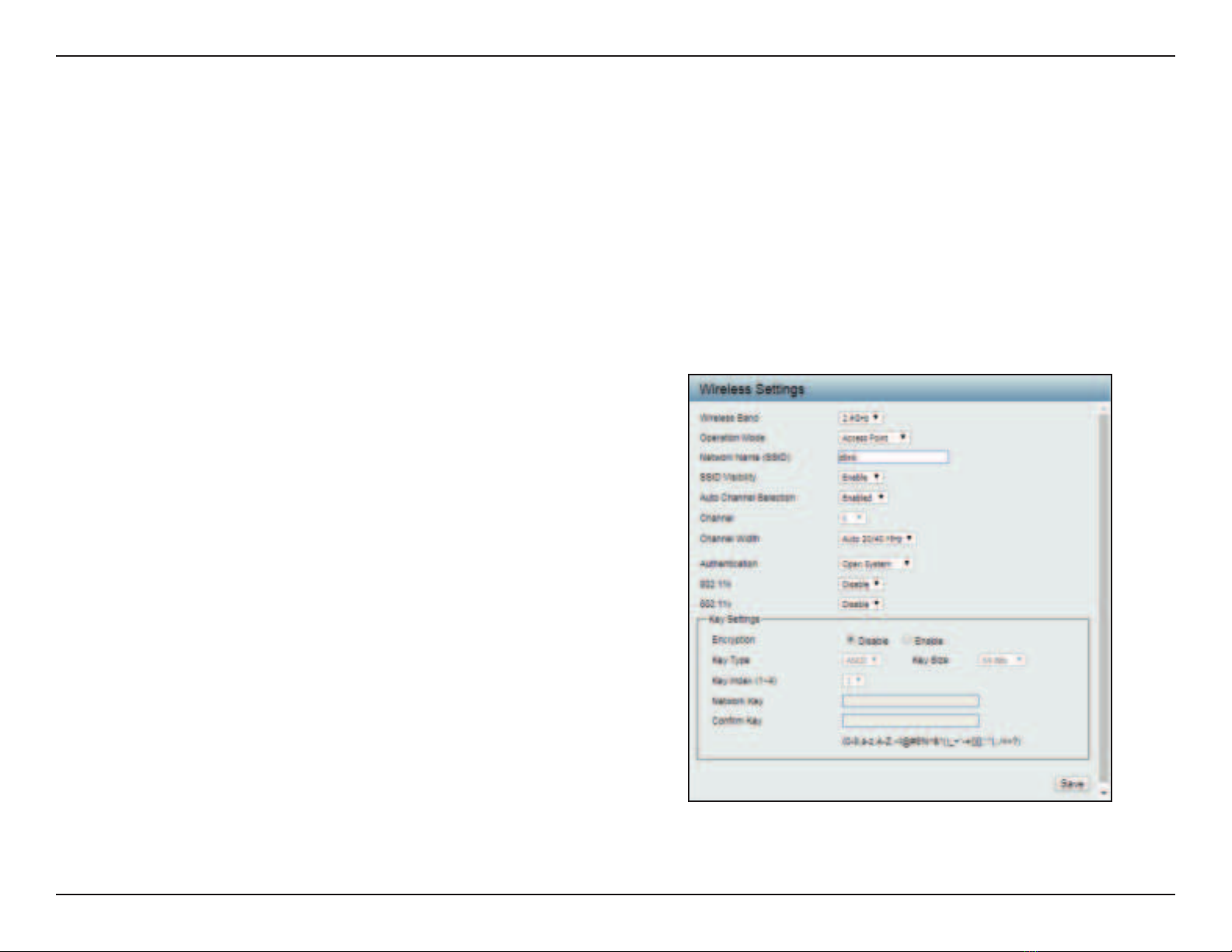

Access Point Mode

16D-Link DAP-3666 User Manual
Web User Interface
Channel Width Click the drop-down menu to select 20 MHz, Auto 20/40 MHz or Auto 20/40/80 MHz. Select 20 MHz if you are not using any
802.11n wireless clients. Auto 20/40 MHz allows you to connect to both 802.11n and 802.11b/g or 802.11a wireless devices on
your network.
Authentication Click the drop-down menu to select Open System, Shared Key, WPA-Personal, WPA-EAP, or 802.1X.
ySelect Open System to communicate the key across the network (WEP).
ySelect Shared Key to limit communication to only those devices that share the same WEP settings. If multi-SSID is enabled,
this option is not available.
ySelect WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
ySelect WPA-EAP to secure your network with the inclusion of a RADIUS server.
ySelect 802.1X if your network is using port-based Network Access Control.
802.11k/v/r Use the drop-down menu to choose to enable or disable 802.11k/v/r
Save Click to save the updated conguration. To make the updates permanent, click Conguration > Save and Activate.

17D-Link DAP-3666 User Manual
Web User Interface
Wireless Band Click the drop-down menu to select the wireless
band, 2.4GHz or 5GHz.
Operation Mode Click the drop-down menu to select WDS with
AP.
Network Name (SSID) Enter the name of Service Set Identier (SSID)
up to 32 characters and is case-sensitive.
Auto Channel Selection This option is unavailable in WDS with AP mode.
Channel Click the drop-down menu to select the desired
channel. The function is only available when
Auto Channel Selection is Disable.
Note: The wireless adapters will automatically
scan and match the wireless settings.
Channel Width Click the drop-down menu to select 20 MHz,
Auto 20/40 MHz or Auto 20/40/80 MHz.
Select 20 MHz if you are not using any 802.11n
wireless clients. Auto 20/40 MHz allows you
to connect to both 802.11n and 802.11b/g or
802.11a wireless devices on your network.
AP MAC Address Enter the MAC addresses of the APs on your
network that will serve as bridges to wirelessly
connect multiple networks.
Site Survey Click Scan to search for available wireless
networks, then click on the available network
that you want to connect with.
WDS with AP Mode

18D-Link DAP-3666 User Manual
Web User Interface
Authentication Click the drop-down menu to select Open System, or WPA-Personal.
ySelect Open System to communicate the key across the network.
ySelect WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Save Click to save the updated conguration. To make the updates permanent, click Conguration > Save and Activate.

19D-Link DAP-3666 User Manual
Web User Interface

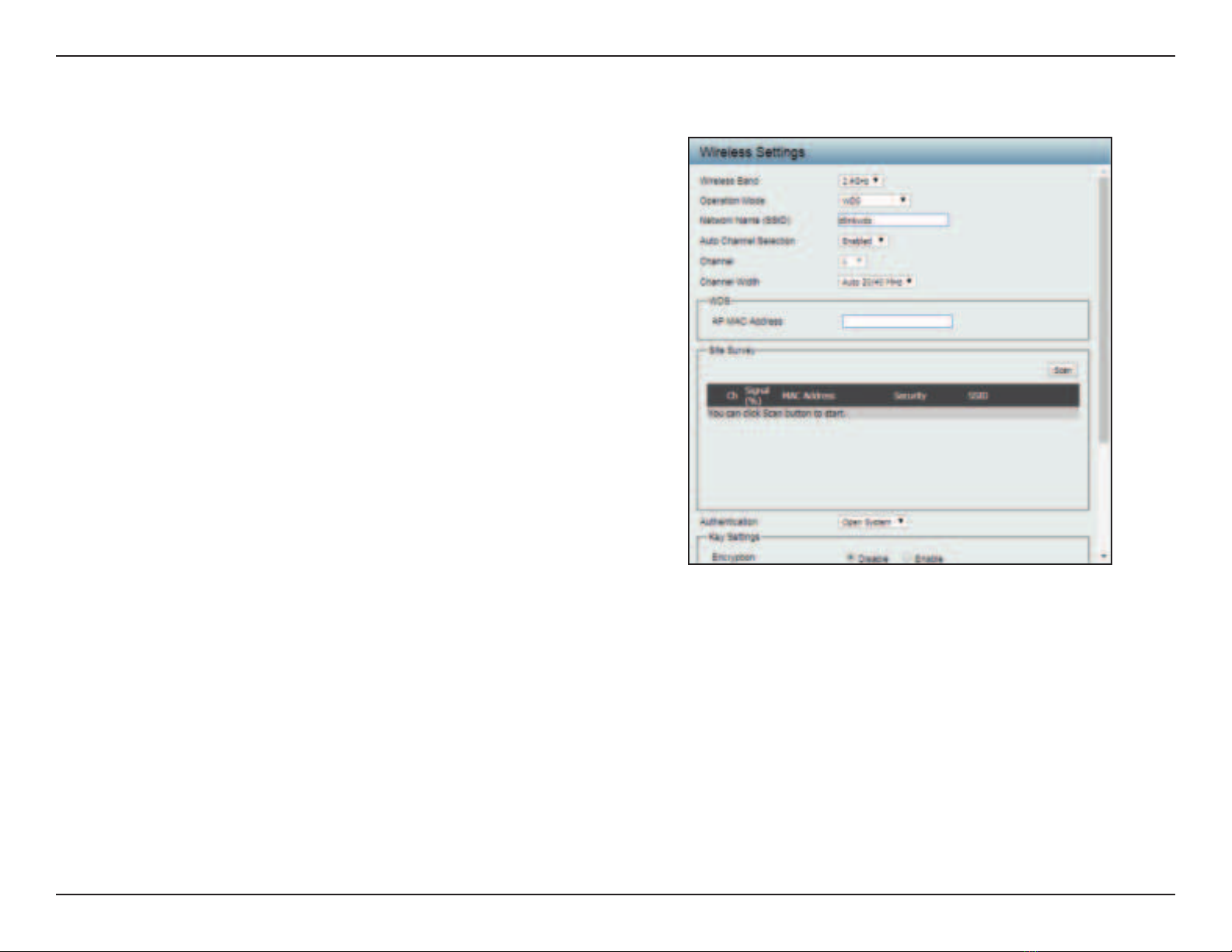

WDS Mode
Wireless Band Click the drop-down menu to select the wireless
band, 2.4GHz or 5GHz.
Operation Mode Click the drop-down menu to select WDS.
Network Name (SSID) Enter the name of Service Set Identier (SSID)
up to 32 characters and is case-sensitive.
Auto Channel Selection This option is unavailable in WDS mode.
Channel Click the drop-down menu to select the desired
channel. The function is only available when
Auto Channel Selection is Disable.
Note: The wireless adapters will automatically
scan and match the wireless settings.
Channel Width Click the drop-down menu to select 20 MHz,
Auto 20/40 MHz or Auto 20/40/80 MHz.
Select 20 MHz if you are not using any 802.11n
wireless clients. Auto 20/40 MHz allows you
to connect to both 802.11n and 802.11b/g or
802.11a wireless devices on your network.
AP MAC Address Enter the MAC addresses of the APs on your
network that will serve as bridges to wirelessly
connect multiple networks.
Site Survey Click Scan to search for available wireless
networks, then click on the available network
that you want to connect with.

20D-Link DAP-3666 User Manual
Web User Interface
Authentication Use the drop-down menu to choose Open System, or WPA-Personal.
ySelect Open System to communicate the key across the network.
ySelect WPA-Personal to secure your network using a password and dynamic key changes. No RADIUS server is required.
Save Click to save the updated conguration. To make the updates permanent, click Conguration > Save and Activate.
