DAP-1353
RangeBooster N 650 Access Point
Quick Installation Guide

2
Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
• Computers with Windows®, Macintosh®, or Linux-based operating systems
and an installed Ethernet Adapter
• Internet Explorer version 7.0 or Firefox 3.0 or higher (for conguration)

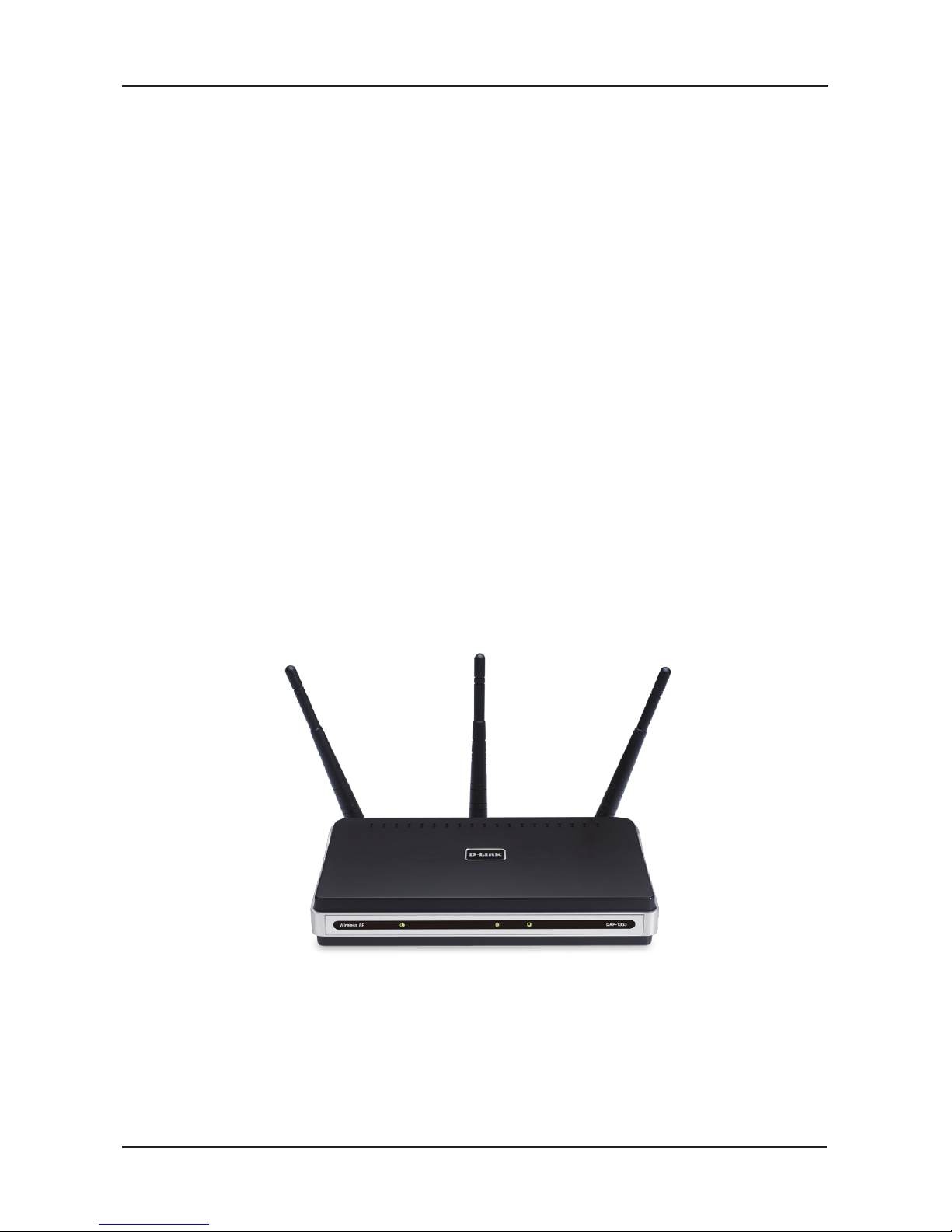

• D-Link DAP-1353 RangeBooster N 650 Access Point
• 3 Detachable Antennas
• Power Adapter
• CAT5 Ethernet Cable
• CD-ROM with Installation Guide, User Manual, and Special Offers
Note: Using a power supply with a different voltage than the one included with
the DAP-1353 may damage the unit and will void the warranty for this product.

3
Connecting the
DAP-1353 to your network
C. Antennas
Used to broadcast wireless network
and recieve connections from 802.11
b/g/draft n wireless clients.
B. LAN Port
Connects DAP-1353 to a switch
or PC.
A. Connect the power adapter to the receptor on the rear panel of the
DAP-1353 and then plug the other end of the power adapter to a wall
outlet or power strip. The power LED will turn ON to indicate proper
operation.
Using an Ethernet cable, insert one end of the cable to the LAN port
on the rear panel of the DAP-1353 and the other end of the cable to a
switch.
Note: You can also connect the DAP-1353 directly to the computer that
will be used for conguration. The LAN LED will illuminate to indicate a
proper Ethernet connection.
Computers with 802.11 b/g/draft n wireless adapters can connect to
the DAP-1353.
B.
A. Power Receptor
Receptor for Power Adapter.
C.
D. Reset
Reset the Access Point.

4

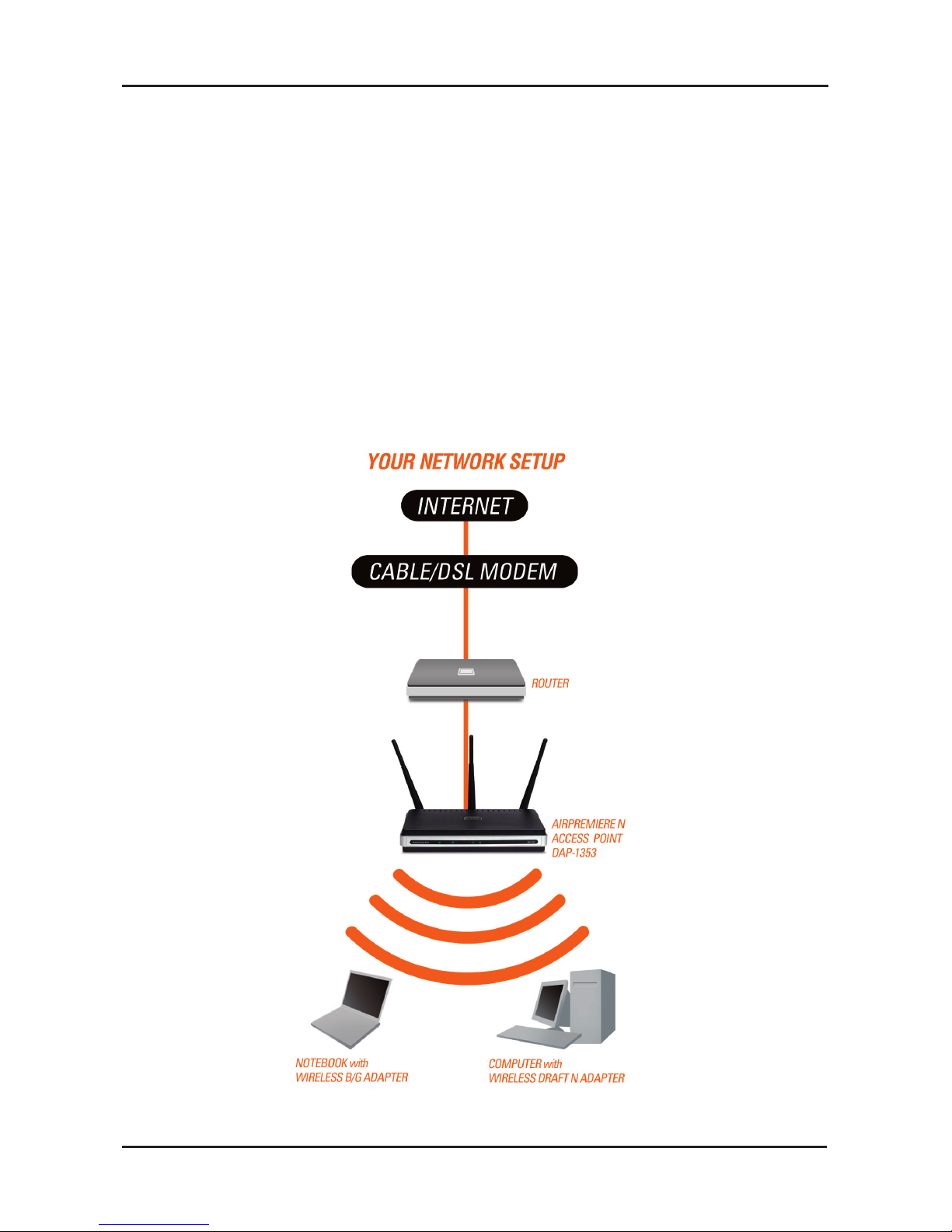

1. You will need broadband Internet access.
2. Consult with your cable or DSL provider for proper installation of the
modem.
3. Connect the Cable or DSL modem to a router.
4. If you are connecting a desktop computer to your network, install a wireless
PCI adapter into an available PCI slot on your desktop computer.
5. Install the drivers for your wireless CardBus adapter into a laptop
computer.
Getting Started

5
Using the Conguration Menu
First, disable the Access the Internet using a proxy server function. To
disable this function, go to Control Panel > Internet Options > Connections
> LAN Settings and uncheck the enable box.

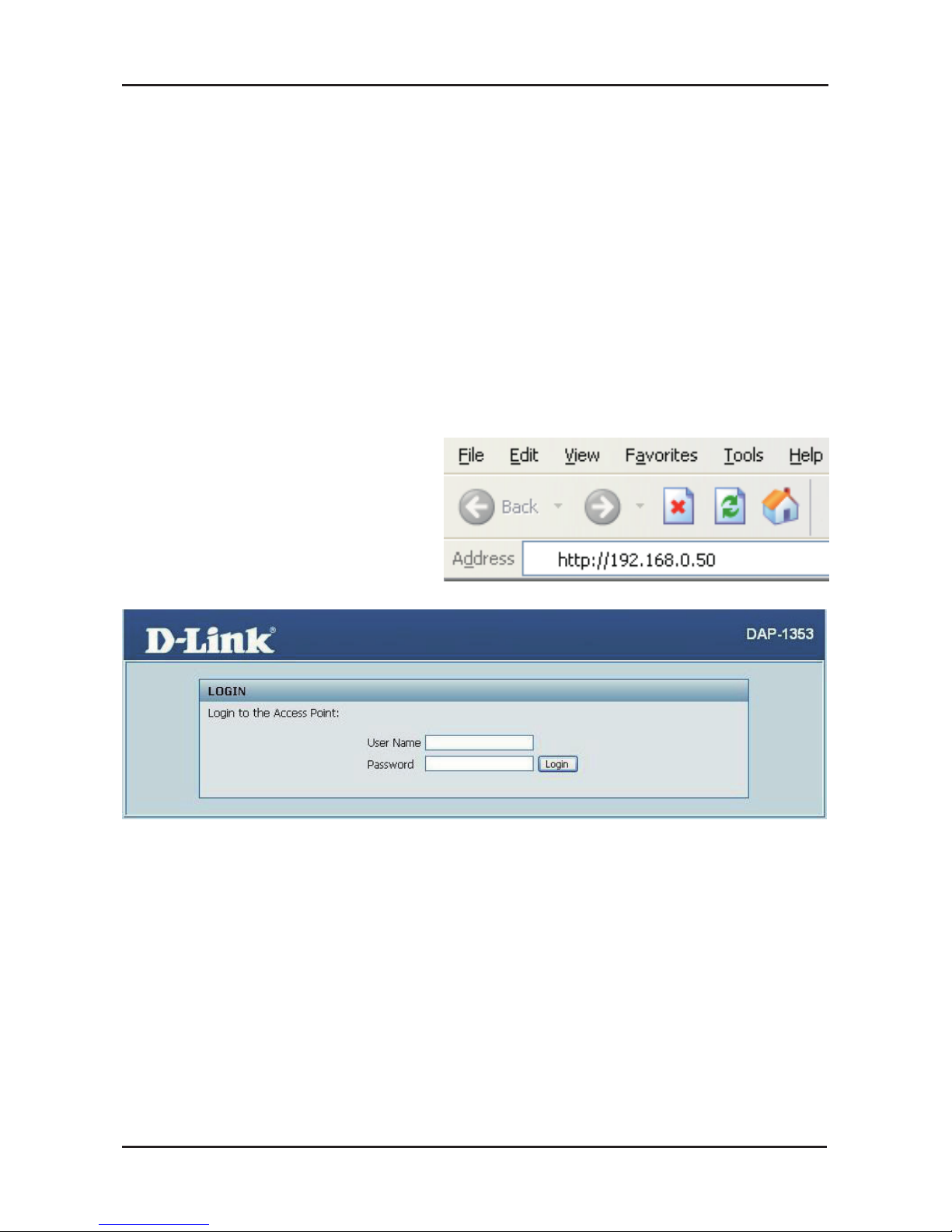

Start your web browser program (Internet Explorer, Mozilla Firefox).

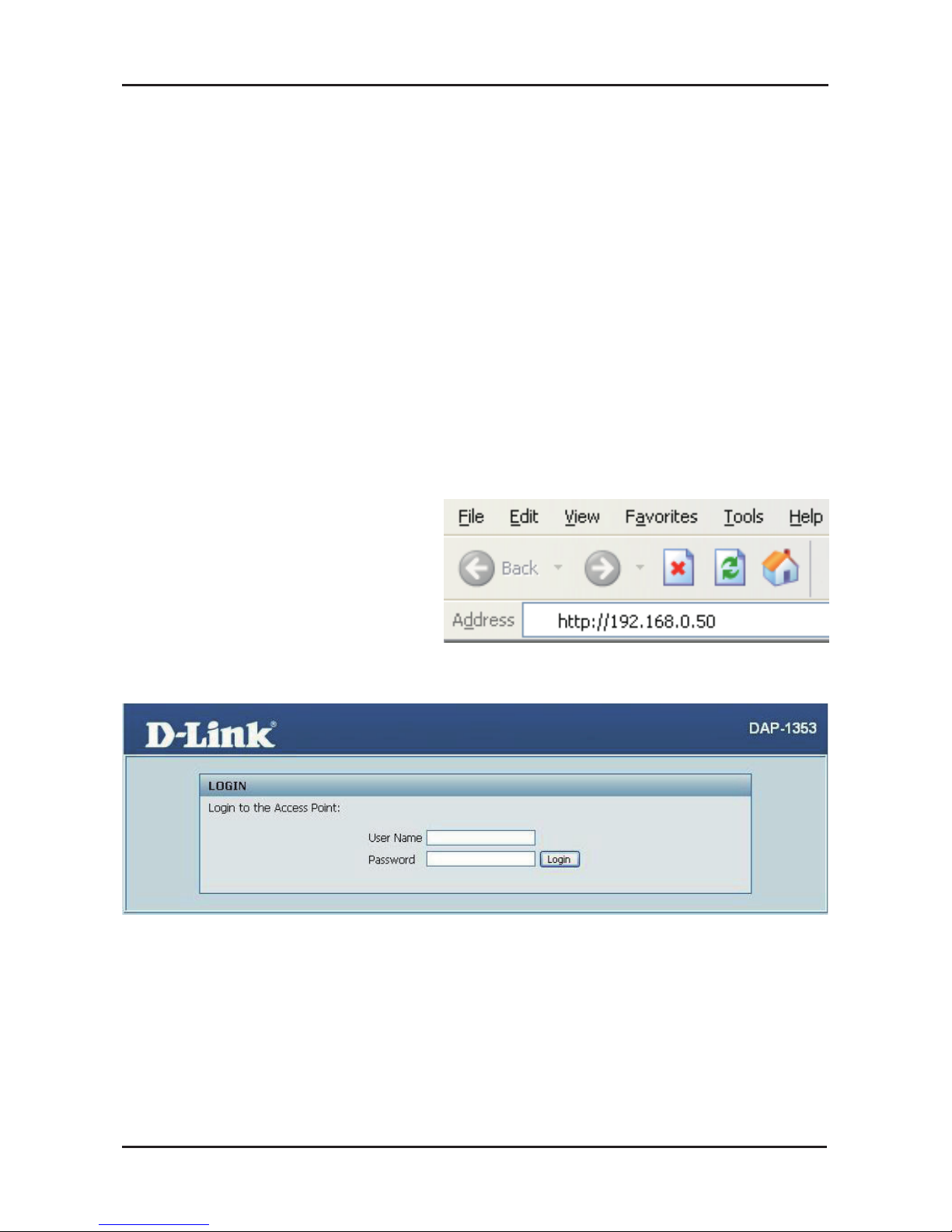

Please start your web browser program, type the IP address of the device
(http://192.168.0.50) and press Enter. Make sure that the IP addresses
of the device and the computer are in the same subnet. Then, refer to the
manual for conguration.
Note: If you have changed the
default IP address assigned to the
DAP-1353, make sure to enter the
correct IP address.
• Type admin in the User Name eld.
• Leave the Password eld blank.
• Click the Login button.
Note: If you have changed the password, make sure to enter the correct
password.
