DÖRR EcoGun AS AUTO Mini FS User manual

MSG00006EN, V04
N36210006V
www.durr.com
Operation manual
EcoGun AS AUTO Mini FS
Automatic Air Spray Gun

Information about the document
This document describes the correct han-
dling of the product.
nRead the document prior to every activity.
nPrepare the document for the application.
nPass on the product only together with
the complete documentation.
nAlways follow safety instructions, han-
dling instructions and specifications of
every kind.
nIllustrations can deviate from the tech-
nical construction.
Validity range of the document
This document describes the following
product:
N36210006V
EcoGun AS AUTO Mini FS
Hotline and Contact
If you have queries or would like technical
information, please contact your dealer or
sales partner.
06/2023
EcoGun AS AUTO Mini FS - MSG00006EN2/36

TABLE OF CONTENTS
1 Product overview.......................... 4
1.1 Overview................................ 4
1.2 Short description.................... 4
2 Safety............................................. 5
2.1 Presentation of Notes............. 5
2.2 Intended Use.......................... 5
2.3 Residual risks......................... 6
2.4 Staff qualification.................... 7
2.5 Personal protective equip-
ment....................................... 8
3 Transport, scope of supply and
storage........................................... 8
3.1 Scope of delivery.................... 8
3.2 Handling of
packaging material................. 8
3.3 Storage................................... 8
4 Assembly....................................... 9
4.1 Requirements for the
Installation point..................... 9
4.2 Assembly................................ 9
4.3 Setting the spray jet.............. 11
5 Commissioning........................... 11
6 Operation..................................... 12
6.1 Safety recommendations...... 12
6.2 Purging................................. 13
6.2.1 Safety recommendations... 13
6.2.2 General notes.................... 13
6.2.3 Purging.............................. 13
7 Cleaning and maintenance......... 13
7.1 Safety recommendations...... 13
7.2 Cleaning............................... 15
7.3 Maintenance......................... 17
7.3.1 Maintenance schedule...... 17
8 Faults............................................ 17
8.1 Defects table........................ 17
8.2 Troubleshooting.................... 19
8.2.1 Replace needle and
nozzle................................ 19
8.2.2 Replace needle seal.......... 21
8.2.3 Set delay time.................... 23
9 Disassembly and Disposal......... 24
9.1 Safety recommendations...... 24
9.2 Disassembly......................... 25
9.3 Disposal ............................... 25
10 Technical data............................. 26
10.1 Dimensions and weight...... 26
10.2 Connections....................... 26
10.3 Operating conditions.......... 26
10.4 Emissions........................... 26
10.5 Operating values................ 26
10.6 Type plate........................... 27
10.7 Operating and auxiliary
materials............................. 27
10.8 Materials used.................... 27
10.9 Material specification.......... 27
11 Spare parts, tools and accesso-
ries................................................ 28
11.1 Spare parts......................... 28
11.2 Tools................................... 31
11.3 Accessories........................ 32
11.4 Order.................................. 32
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 3/36

1 Product overview
1.1 Overview

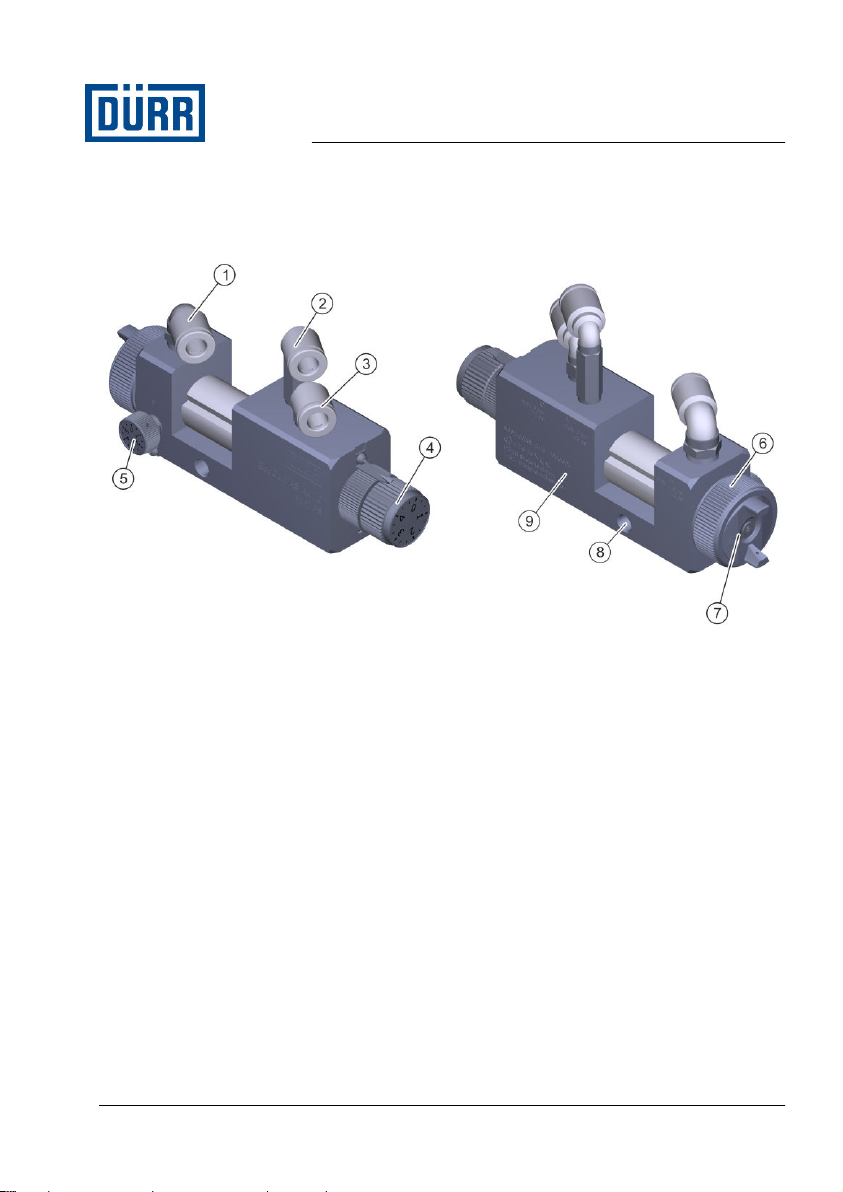

Fig. 1: Product overview
1 Material connection
2 Atomizer air connection
3 Control air connection
4 Material flow control
5 Horn air control / horn air connection (with
optional external jet control)
6 Cap nut
7 Air cap
8 Fastening bore
9 Housing
1.2 Short description
The spray gun is using compressed air to
coat surfaces. The coating material is fed
through lines.
The following factors influence the spray jet
and the result:
nAlignment of the air cap
The alignment of the air cap determines
the alignment of the spray pattern.
nAtomizer air pressure
The higher the atomizer air pressure, the
higher the atomizing and the finer the
spray jet
nHorn air pressure
The higher the horn air pressure, the
more oval is the spray jet.
nControl air pressure
Opens the needle and controls the mate-
rial flow.
nMaterial pressure
Product overview
06/2023EcoGun AS AUTO Mini FS - MSG00006EN4/36

The higher the material pressure, the
higher is the material flow.
Control air pressures and the atomizer air
pressure are controlled externally via valves.
You can set the horn air pressure on the
spray gun. If you attach a connection for
external jet control instead of the horn air
regulation Ä 11.3 “Accessories”, you can
control the horn air pressure via an external
valve.
You can also regulate the material flow via
the regulator on the spray gun, if it is not to
be controlled externally.
2 Safety
2.1 Presentation of Notes
The following notes can appear in this
instruction:
DANGER!
High risk situation that can lead to serious
injuries or death.
WARNING!
Medium risk situation that can lead to
serious injuries or death.
CAUTION!
Low risk situations that can lead to minor
injuries.
NOTICE!
Situations that can lead to material
damage.
ENVIRONMENT!
Situations that can lead to environmental
damage.
Additional information and recom-
mendations.
2.2 Intended Use
Use
The EcoGun AS AUTO Mini FS spray gun
is only intended for use in industry and craft-
manship.
The EcoGun AS AUTO Mini FS spray gun
is solely intended for automatic coating of
surfaces by one of the following operating
methods:
nas an independent, not manual device
nas part of a fully automated painting
system
nas part of a paint robot
The material feed can be effected optionally
via the pressure line or under gravitation
(flow beaker).
The use is only permitted within the specified
technical data Ä 10 “Technical data”.
The spray gun is approved for use in explo-
sive areas of Ex zones 1 and 2.
Misuse
If used incorrectly, it can cause serious inju-
ries or death.
Safety
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 5/36

Examples of wrong use are:
nAiming the spray gun at humans or ani-
mals.
nAtomization of fluid nitrogen
nUse of unapproved materials
nCombination of the spray gun with com-
ponents that are not approved by Dürr
Systems for operation.
nUnauthorized modifications
nUse in explosive areas Ex zone 0
Ex labeling
II 2G T6 X
II - Device group II: all areas except
mining
2G - Device category 2 for gas
T6 - Temperature class T6: Surface tem-
perature, max. 85°C
X - Specific conditions for safe operation
The following conditions must be observed
for safe operation:
nGround spray gun and work piece.
nOnly use conductive lines.
nEnsure that static electricity can be dis-
charged.
2.3 Residual risks
Explosion
Sparks, open flames and hot surfaces can
cause explosions in explosive atmospheres.
Serious injury and death could be the conse-
quence.
nBefore carrying out any work, make sure
that there is no explosive atmosphere.
nDo not use sources of ignition and open
light.
nDo not smoke.
nGround the spray gun.
nGround the work piece.
nOnly use conductive lines.
Flammable coating materials and their deter-
gents and cleaning agents can cause a fire
or an explosion.
nEnsure that the flashpoint of the cleaning
agent is at least 15K above the ambient
temperature or clean Spray gun at the
cleaning areas with active technical ven-
tilation, in painting booths, according to
EN 16985.
nNote explosion group of the fluid.
nFollow the safety data sheet.
nEnsure that forced ventilation and fire
protection equipment are in operation.
nDo not use sources of ignition and open
light.
nDo not smoke.
nGround the spray gun.
Safety
06/2023EcoGun AS AUTO Mini FS - MSG00006EN6/36

Danger from harmful or irritant sub-
stances
Serious injuries or death can result if you
come into contact with dangerous fluids or
steam.
nSpray gun Check regularly for leakage.
Observe local regulations and mainte-
nance schedule.
nEnsure that the forced ventilation is
operational.
nFollow the relevant safety data sheets.
nWear specified protective equipment.
Escaping material
Material escaping under pressure can cause
serious injuries.
Before working on the product:
nDisconnect the system, in which the
product is installed, from compressed air
and material supply.
nSecure system personalized from being
switched on again.
nDepressurize the lines.
Moving parts
There is a risk of death if system compo-
nents in the vicinity move unexpectedly.
nSwitch off and lock out all system
components personalized against being
switched on again before working on the
product.
Noise
The sound pressure level during operation
may cause severe hearing damage.
nWear ear protection.
nDo not spend more time then necessary
in the work area.
Hot surfaces
During operation, the surfaces of compo-
nents can get extremely hot. Contact with it
can cause burns.
nDo not touch hot surfaces.
nBefore carrying out any work:
– Let components cool down.
– Wear protective hand gloves.
2.4 Staff qualification
WARNING!
Inadequate qualification
Wrong estimation of dangers can cause
serious injury or death.
nOnly sufficiently qualified persons may
execute all work.
nSome work requires additional qualifi-
cation. Additional qualifications of spe-
cialized personnel are marked with a
“+”.
This document is intended for qualified per-
sonnel in industry and craftmanship.
The following describes the different qualifi-
cations required for the work in this docu-
ment. The required qualification is presented
prior to the individual tasks in the appropriate
chapters.
Operator
The operator is trained specifically for the
field of work in which he works.
Furthermore, the operator possesses the fol-
lowing knowledge:
nTechnical Measures for occupational
safety and health
The operator is responsible for the following
work:
nOperate and monitor the system/ product.
nIntroduce measures in the event of faults.
nClean system/ product.
Safety
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 7/36

+ additional qualification explosion pro-
tection
In addition to the knowledge of the various
specialist fields, the mechanic has knowl-
edge of regulations and safety measures
when working in potentially explosive areas.
Dürr Systems offers special product training
for Ä “Hotline and Contact”.
2.5 Personal protective equipment
Wear the required personal protective equip-
ment when working. Provide the following
personal protective equipment:
Eye protection
Protects eyes from dust, paint drops
and particles.
Protective gloves
Protect the hands from:
nmechanical forces
nThermal forces
nChemical effects
Protective workwear
Tight fitting workwear with low
tear strength, tight sleeves and no
hanging parts.
Respiratory protection device
The respiratory protection device
protects from hazardous gases,
vapors, dust and similar materials
and media. The version of the res-
piratory protection device must be
suitable for the media used as well
as their usage.
Use ear protection
Protects from auditory damage due
to noise.
3 Transport, scope of supply
and storage
3.1 Scope of delivery
The scope of supply includes the following
components:
nSpray gun
nTool kit Ä 11.2 “Tools”
Inspect delivery on receipt for completeness
and integrity.
Report defects immediately Ä “Hotline and
Contact”.
3.2 Handling of packaging material
ENVIRONMENT!
Incorrect disposal
Incorrectly disposed packaging material
can damage environment.
nDispose of material no longer required
in an environment-friendly manner.
nObserve local disposal specifications.
3.3 Storage
Storage provisions:
nDo not store outdoors.
nSpray gun only store when in a clean and
dry condition.
nStore in a dust-free place.
nDo not expose to aggressive media.
nProtect from solar radiation.
nAvoid mechanical vibrations.
nTemperature: 10°C to 40°C
nRelative humidity: 35% to 90%
Transport, scope of supply and storage
06/2023EcoGun AS AUTO Mini FS - MSG00006EN8/36

4 Assembly
4.1 Requirements for the
Installation point
nThe control air supply and the material
feed to the spray gun must be interrupted
and secured against reconnection.
nLines, seals and screw connections must
be designed to conform to the require-
ments of the spray gun Ä 10.5 “Operating
values”.
nA support bracket capable of securing the
spray gun is required.
nThe control air supply must be adjustable.
4.2 Assembly
Protective equipment:
nProtective workwear
nProtective gloves
Observe the following at assembly:
nThread of the fastening bore: M6
nNominal diameters:
–Control air and atomizer air: Ø6mm
push-in connector (M5 thread in the
pistol housing)
–Material connection: Ø6mm push-in
connector (G1/8" thread in the pistol
housing)
– Horn air with connection for external
jet control: Ø6mm push-in connector
(M5 thread in the pistol housing)
1. WARNING!
Sources of ignition may cause explo-
sions!
Ensure a non-explosive atmosphere.

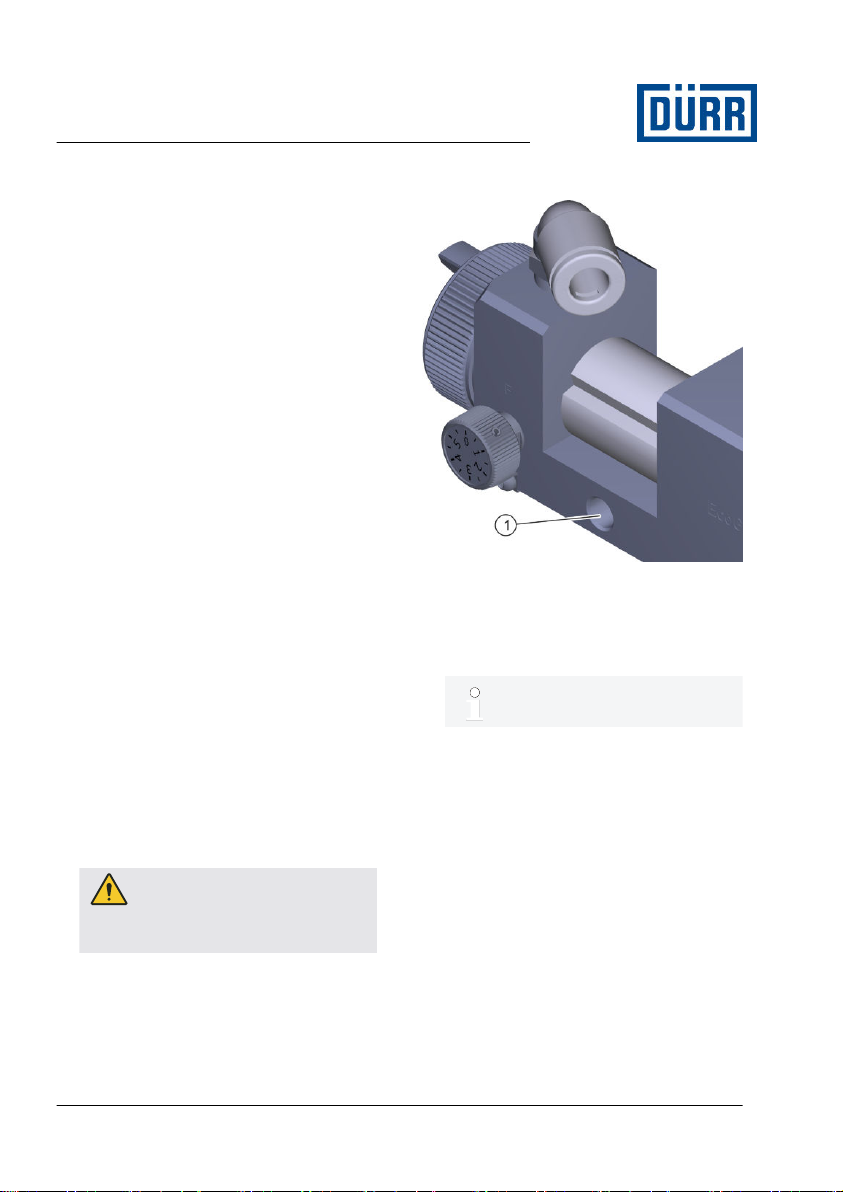

Fig. 2: Assembly
2. Fasten spray gun on the support bracket
(M6 threads) with the fastening bore (1)
and lock with nuts.
Alignment is not important.
Assembly
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 9/36

3. WARNING!
Statically charges components may
cause explosions during operation!
Ground the spray gun through the fas-
tening bore if the support bracket itself
is non-conductive and/or is not grounded.
Ensure housing contact.
nResistance between housing and
grounding terminal ≤ 1MΩ.
Fig. 3: Connect
4. With a wrong assignment of the
lines, the spray gun will not func-
tion.
Connect lines and check for the correct
assignment.
1- Material
2 - Atomizer air
3 - Control air
Connect the external jet control connec-
tion
Protective equipment:
nProtective workwear
nProtective gloves
Instead of the mechanical horn air control on
the spray gun, you can also control the horn
air via an external valve. For this purpose,
you will need to attach a connection for the
external jet control on the spray gun.
Fig. 4: Disassembly of horn air control
1. Loosen and remove screw (2) and the
catch (3).
2. Unscrew valve (1) using an SW 6 open-
end wrench.
3. Tighten the connection for jet control.
4. Connect horn air line to the connection of
the jet control.
Assembly
06/2023EcoGun AS AUTO Mini FS - MSG00006EN10/36

4.3 Setting the spray jet

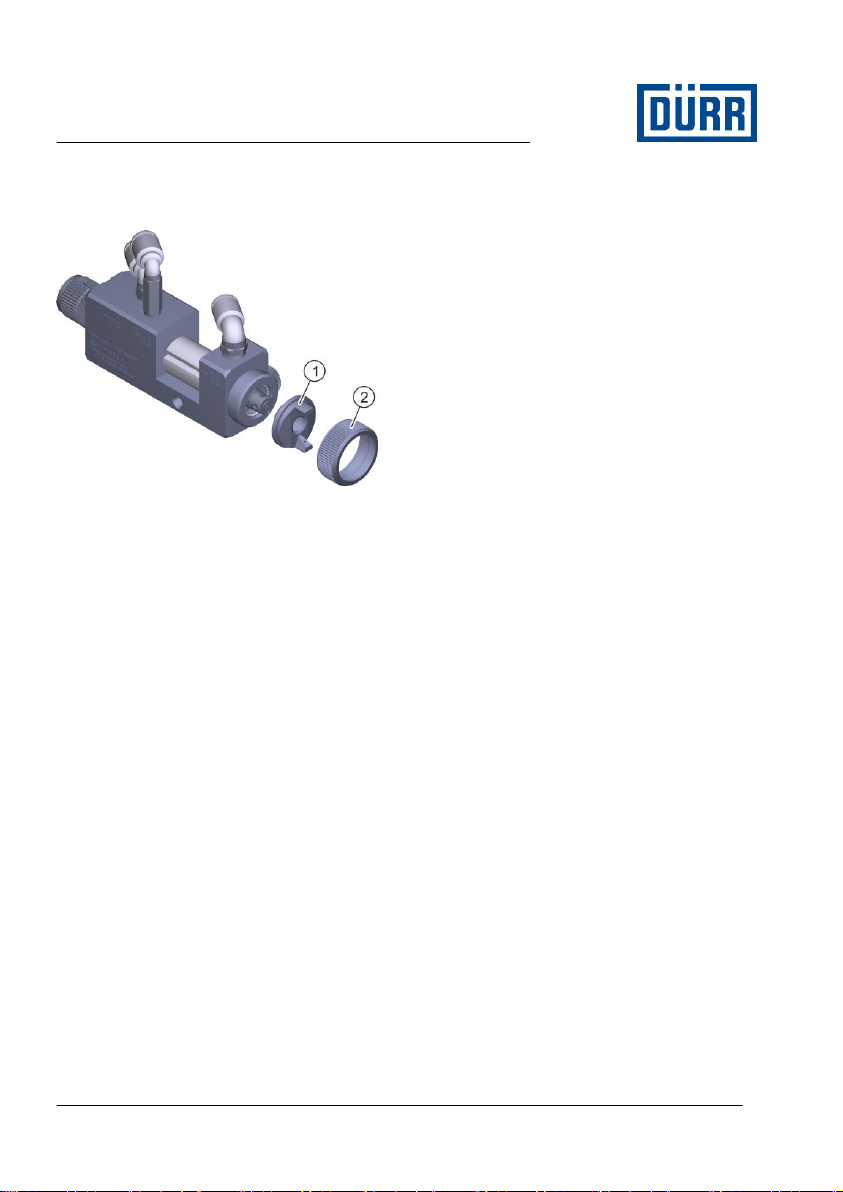

Fig. 5: Adjust spray jet
You can rotate the air cap (1) to any position
to change the alignment of the spray jet.
1. Slightly loosen the cap nut (2).
2. Rotate air cap (1) into the required posi-
tion.
3. Tighten cap nut (2) by hand.
5 Commissioning
Protective equipment:
nUse ear protection
nEye protection
nRespiratory protection device
nProtective workwear
nProtective gloves
Depending on the design of the application
system, two technicians must be present to
execute the commissioning:
nTechnician 1: Operates the controls.
nTechnician 2: Check on the spray gun.
1. Actuate the spray gun without material via
the control unit or the visualizer.
2. Check the switching behavior.
nDoes the needle open and close as
required?
nAre all types of air supply connected?
3. Purge spray gun Ä 6.2 “Purging”.
4. Connect material. Create a trial spray pat-
tern on a test work piece.
Setting the spray pattern
Protective equipment:
nUse ear protection
nEye protection
nRespiratory protection device
nProtective workwear
nProtective gloves
You can adjust the spray pattern continu-
ously between round and flat, by using horn
air.
Commissioning
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 11/36

You can vary the size of the jet
pattern by adjusting the distance
between the spray gun and the work
piece.
Fig. 6: Setting the spray pattern
1. Set the material quantity through valves
in the control cabinet or at the material
quantity control (2).
Open the material flow control
on the spray gun when control-
ling via the control and regulation
cabinet.
2. Use valves in control cabinet to set the
atomizer air.
Please note the following charac-
teristic curve.
3. Adjusting horn air:
non the horn air control (1)
nVia valves in the control cabinet when
using the connection for external jet
control
ðWhen the horn air is blocked, the
spray pattern is round.

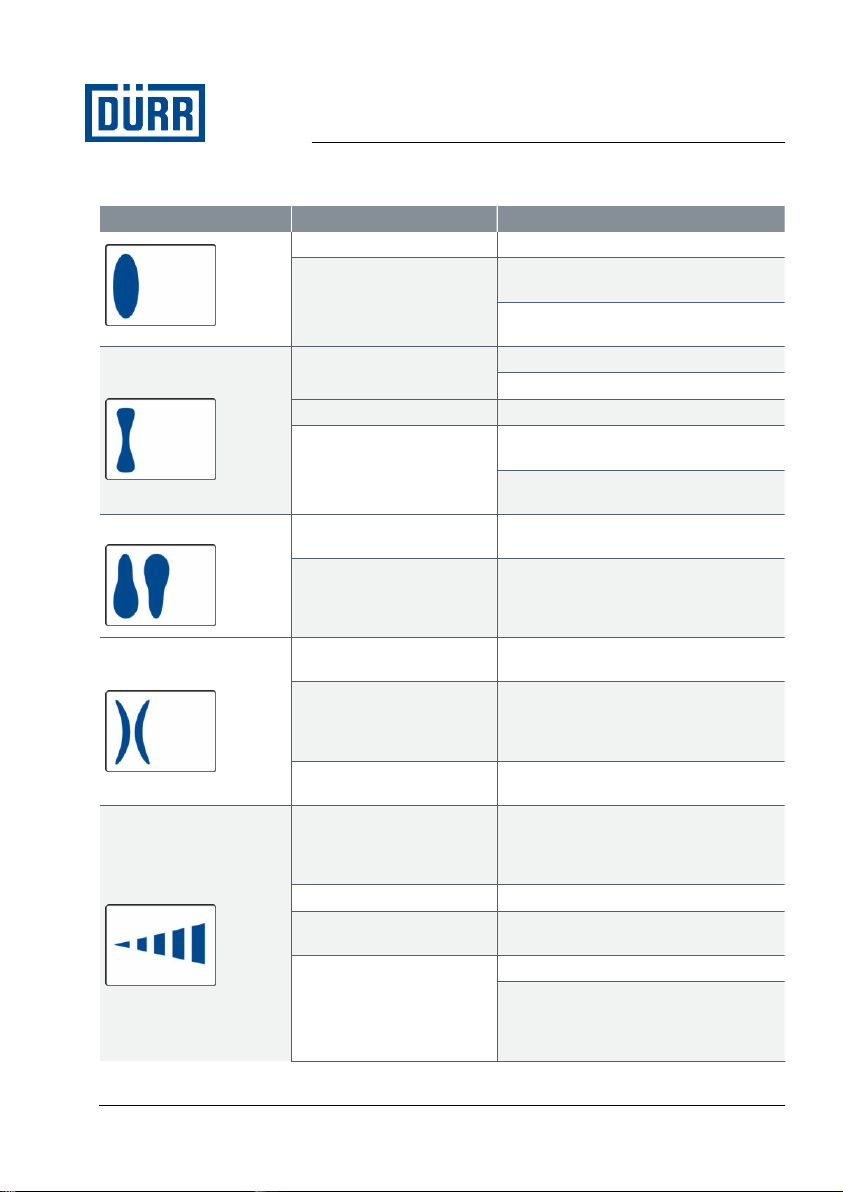

Characteristic curve
The characteristic curve shows the depend-
ence between the atomizer air pressure and
the air consumption for a flat (1) and a round
(2) jet pattern.
Fig. 7: Characteristic curve
6 Operation
6.1 Safety recommendations
WARNING!
Danger of explosion due to chemical
reactions
Material, halogenated hydrocarbon-based
rinsing agent or cleaning agent can chem-
ically react with aluminum components of
the product. Chemical reactions can cause
explosions. Serious injury and death could
be the consequence.
nOnly use purging agents and cleaning
agents that do not contain any halo-
genated hydrocarbons.
Operation
06/2023EcoGun AS AUTO Mini FS - MSG00006EN12/36

NOTICE!
Material damage due to dried material
residues
If material residues dry in the product, that
can harm components.
nPurge product immediately after each
use.
6.2 Purging
6.2.1 Safety recommendations
NOTICE!
Material damage due to unsuitable
rinsing agent
If the rinsing agent reacts chemically with
the components or the material, compo-
nents get damaged.
nUse only the rinsing agents that are
compatible with the components and
the material.
nRefer to safety data sheet of material
manufacturer.
6.2.2 General notes
When purging, use fluid to remove inner
soiling from components.
6.2.3 Purging
Personnel:
nOperator
n + additional qualification explosion pro-
tection
Protective equipment:
nUse ear protection
nEye protection
nRespiratory protection device
nProtective workwear
nProtective gloves
The spray gun must be purged:
nAfter end of work
nBefore every change of material
nPrior to cleaning
nPrior to dismantling
nBefore a long time of non-use
nBefore placing in storage
Additional purging intervals depend
on the material used.
1. Purge the spray gun with an appropriate
rinsing agent until the rinsing agent runs
clean without any material residue.
7 Cleaning and maintenance
7.1 Safety recommendations
WARNING!
Danger of fire and explosion
Flammable coating materials and their
detergents and cleaning agents can cause
a fire or an explosion.
nEnsure that the flashpoint of the
cleaning agent is at least 15K above
the ambient temperature or clean
product at the cleaning areas with
active technical ventilation, in painting
booths, according to EN 16985.
nNote explosion group of the fluid.
nObserve the security data sheets of the
media being used.
nEnsure that forced ventilation and fire
protection equipment are in operation.
nDo not use sources of ignition and
open light.
nDo not smoke.
nCheck grounding.
Cleaning and maintenance
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 13/36

WARNING!
Unsuitable spare parts in explosive
areas
Spare parts not compliant with the specifi-
cations of the ATEX directives can cause
explosions in an explosive atmosphere.
Serious injury and death could be the con-
sequence.
nUse exclusively original spare parts.
WARNING!
Danger from harmful or irritant sub-
stances
Serious injuries or death can result if you
come into contact with dangerous fluids or
steam.
nSpray gun Check regularly for leakage.
Observe local regulations and mainte-
nance schedule.
nEnsure that the forced ventilation is
operational.
nFollow the relevant safety data sheets.
nWear specified protective equipment.
nAvoid contact (e.g. with eyes, skin).
WARNING!
Escaping material and compressed air
Escaping material under pressure can
cause serious injuries.
Before carrying out any work:
nDisconnect the system, in which the
spray gun is installed, from com-
pressed air and material supply.
nSecure system personalized from
being switched on again.
nDepressurize the lines.
WARNING!
Danger of explosion due to chemical
reactions
Material, halogenated hydrocarbon-based
rinsing agent or cleaning agent can chem-
ically react with aluminum components of
the product. Chemical reactions can cause
explosions. Serious injury and death could
be the consequence.
nOnly use purging agents and cleaning
agents that do not contain any halo-
genated hydrocarbons.
NOTICE!
Unsuitable cleaning agents
Unsuitable cleaning agents can damage
the product.
nOnly use cleaning agents approved by
the material manufacturer.
nFollow safety data sheets.
nPlace heavily soiled components in a
cleaning bath.
– Only place those parts in the
cleaning bath, which are suitable for
the cleaning bath.
– Use only electrically conductive
containers.
– Ground the container.
– Do not use ultrasound baths.
nUse alcohols (isopropanol, butanol) for
non-flammable coating materials.
nRemove dried non-flammable coating
materials using a material manufacturer-
approved organic thinner.
Cleaning and maintenance
06/2023EcoGun AS AUTO Mini FS - MSG00006EN14/36

NOTICE!
Damage due to unsuitable cleaning
tools
Unsuitable cleaning tools can damage the
product.
nOnly use cloths, soft brushes and
paintbrushes.
nDo not use abrasive cleaning tools.
nDo not poke blocked nozzles with met-
allic objects.
nDo not use compressed air for
cleaning.
nDo not use any thinner spray guns.
nDo not use high pressure for cleaning
agents.
7.2 Cleaning
Clean spray gun
Protective equipment:
nUse ear protection
nEye protection
nRespiratory protection device
nProtective workwear
nProtective gloves
1. Purge spray gun Ä 6.2.3 “Purging”.
2. Use a cleaning agent to carefully clean
the spray gun. Dry with a soft cloth.
Cleaning the air cap und nozzle
Fig. 8: Clean spray gun
Cleaning and maintenance
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 15/36

For a thorough cleaning you can remove the air cap.
Disassembly
1. Unscrew the control knob (1).
2. Unscrew bolt (2).
3. Remove needle spring (3) and plunger spring (4).
4. Pull out distance bolt (5) including needle (7) and locknut (6).
5. Loosen cap nut (11).
6. Remove air cap (10).
7. Remove the manifold (9).
8. Unscrew and remove nozzle (8).
9. Clean air cap (10) using cleaning agent and cleaning brush Ä 11.2 “Tools”.
10. Blow out cleaned air cap (10) with compressed air.
11. Clean nozzle (8) in the cleaning bath.
Assembly
12. NOTICE!
Risk of damage to the nozzle
Insert nozzle (8) and tighten with 3 Nm.
13. Insert the manifold (9).
14. Insert and align air cap (10).
15. Tighten cap nut (11) by hand.
16. NOTICE!
Risk of damage to the needle
Moisten the needle shank with some lubricant ( Ä 10.7 “Operating and auxiliary materials”).
Carefully push in distance bolt (5) with needle (7) and locknut (6) into the housing.
17. Insert needle spring (3) and plunger spring (4).
18. Twist in bolt (2).
19. Twist in the control knob (1).
Cleaning and maintenance
06/2023EcoGun AS AUTO Mini FS - MSG00006EN16/36

7.3 Maintenance
7.3.1 Maintenance schedule
The maintenance intervals given below are based on experiential values. Adjust maintenance
intervals individually to increased requirements.
Interval Maintenance work
daily Check condition and tightness of the spray gun as well as
connections and lines.
Check fastening.
before every change of material Clean Ä 7.2 “Cleaning”.
semi-annually Remove and lubricate piston Ä 8.2.2 “Replace needle
seal”.
after each alteration Check grounding Ä 4.2 “Assembly”.
8 Faults
8.1 Defects table
Fault description Cause Correction
No material Line pinched or broken Check the line.
Needle does not open. Check Control air.
Material leaking when
needle is closed.
Needle does not close cor-
rectly.
Check operation of needle. Replace
needle, if defective, together with the
nozzle Ä 8.2.1 “Replace needle and
nozzle.”.
Nozzle soiled or defective
Clean and check the nozzle. If nozzle
is defective, replace it along with the
needle Ä 8.2.1 “Replace needle and
nozzle.”.
Twisted spray jet
Air cap is misaligned. Rotate air cap into the required posi-
tion Ä 4.3 “Setting the spray jet”.
Spray jet too strong in
center Too much material Reduce material feed.
Increase atomizer air pressure.
Faults
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 17/36

Fault description Cause Correction
Material too viscous Change material consistency.
Horn air pressure too low
Increase horn air pressure through the
horn air control.
Check external valve of the horn air
supply.
Split spray jet Not enough material Increase material feed.
Decrease atomizer air pressure.
Material too thin Change material consistency.
Horn air pressure too high
Lower the horn air pressure through
the horn air supply.
Check external valve of the horn air
supply.
Cone-shaped spray jet Bores in air cap are soiled Clean and check air cap. Replace air
cap if defective Ä 7.2 “Cleaning”.
Nozzle soiled or defective
Clean and check the nozzle. If nozzle
is defective, replace it along with the
needle Ä 8.2.1 “Replace needle and
nozzle.”.
Sickle-shaped spray jet
Bores in air cap are soiled Clean and check air cap. Replace air
cap if defective Ä 7.2 “Cleaning”.
Nozzle soiled or defective
Clean and check the nozzle. If nozzle
is defective, replace it along with the
needle Ä 8.2.1 “Replace needle and
nozzle.”.
Cap nut or nozzle is not
properly tightened
Tighten cap nut and nozzle Ä 7.2
“Cleaning”.
Uneven spray mist
Nozzle soiled or defective
Clean and check the nozzle. If nozzle
is defective, replace it along with the
needle Ä 8.2.1 “Replace needle and
nozzle.”.
Material pressure too low. Increase material pressure.
Infeed line pinched or
broken Check infeed line.
Needle does not fully
open.
Check Control air.
Check operation of needle. Replace
needle, if defective, together with the
nozzle Ä 8.2.1 “Replace needle and
nozzle.”.
Faults
06/2023EcoGun AS AUTO Mini FS - MSG00006EN18/36

Fault description Cause Correction
Nozzle is not properly
tightened Tighten nozzle Ä 7.2 “Cleaning”.
Needle seal worn out. Replace needle seal Ä 8.2.2 “Replace
needle seal”.
Formation of large drops Delay time for atomizer air
supply too short
Set delay time Ä 8.2.3 “Set delay
time”.
8.2 Troubleshooting
8.2.1 Replace needle and nozzle.

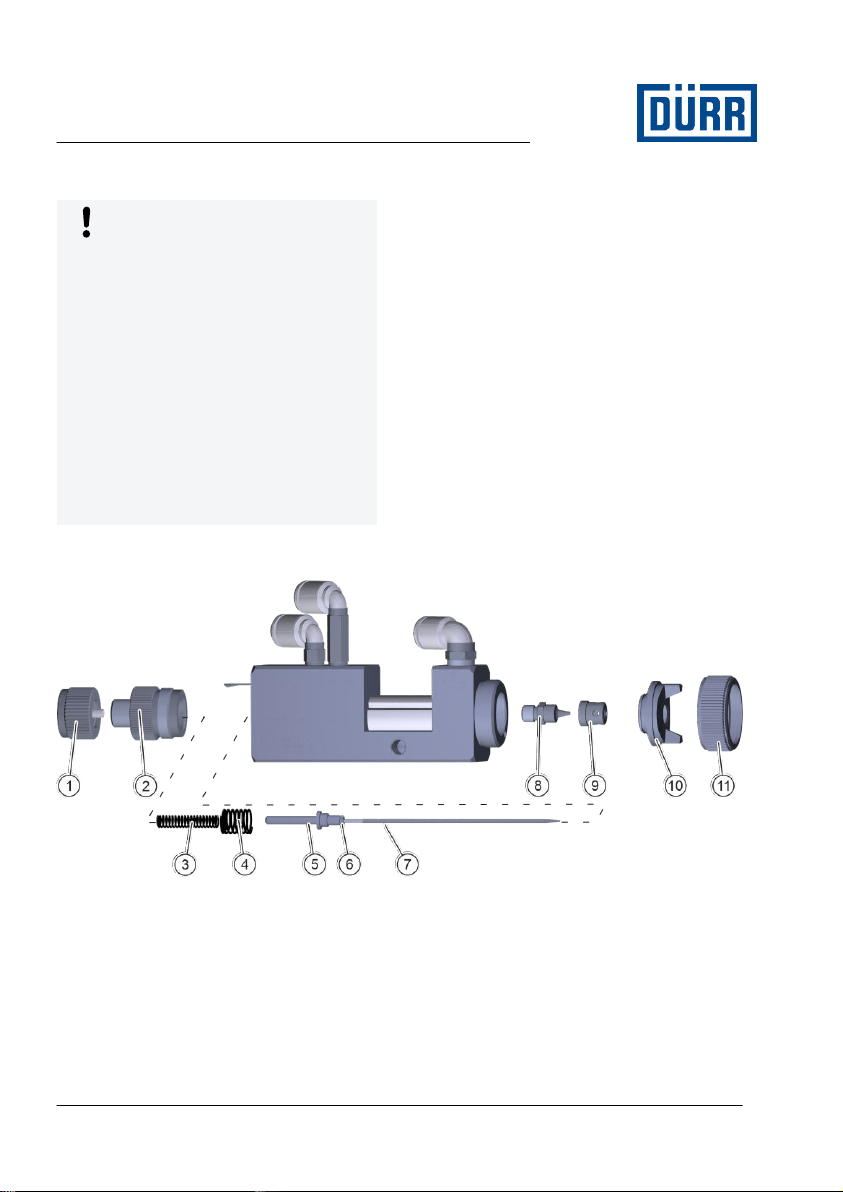

Fig. 9: Replace needle and nozzle
Protective equipment:
nProtective workwear
nProtective gloves
NOTICE!
Property damage due to improper
replacement of needle and nozzle
Replacing only the needle or only the
nozzle could damage spray gun compo-
nents. This can compromise the tightness
of the spray gun. The spray pattern deteri-
orates.
Faults
06/2023 EcoGun AS AUTO Mini FS - MSG00006EN 19/36

nObserve order of replacement steps
(needle – nozzle).
nObserve order of assembly steps
(nozzle – needle).
nAlways replace nozzle and needle at
the same time.
NOTICE!
Property damage due to improper han-
dling
Mechanical load can damage needle and
nozzle.
nHandle with care during installation and
dismantling.
nDo not subject the needle to any
mechanical pressure.
nAvoid collisions of components to be
assembled and disassembled with the
needle.
nDo not excessively tighten compo-
nents.
Disassembly
1. Unscrew the control knob (1).
2. Unscrew bolt (2).
3. Remove needle spring (3) and plunger
spring (4).
4. Pull out distance bolt (5) including needle
(7) and locknut (6).
5. Loosen cap nut (11).
6. Remove air cap (10).
7. Remove the manifold (9).
8. Unscrew and remove nozzle (8).
9. Loosen cap nut (6).
10. Unscrew distance bolt (5) from the
needle (7).
11. Replace worn out or defective compo-
nents.
Assembly
12. NOTICE!
Risk of damage to the nozzle
Insert nozzle (8) and tighten with 3 Nm.
Depending on the use case,
use a nozzle with a suitable
diameter.
13. Insert the manifold (9).
14. Insert and align air cap (10).
15. Tighten cap nut (11) by hand.
16. Twist in the distance bolt (5) and cap
nut (6) onto the needle (7).
17. Moisten the needle shank with some
lubricant ( Ä 10.7 “Operating and auxil-
iary materials”).
18. Set delay time Ä 8.2.3 “Set delay time”.
19. NOTICE!
Risk of damage to the needle
Carefully push in distance bolt (5) with
needle (7) and locknut (6) into the
housing.
20. Insert needle spring (3) and plunger
spring (4).
21. Twist in bolt (2).
22. Twist in the control knob (1).
Faults
06/2023EcoGun AS AUTO Mini FS - MSG00006EN20/36
