DÖRR EcoGun AL MAN 300 User manual

EcoGun AL MAN 300
Airless Spray Gun
MSG00016EN, V01
N36240002V
www.durr.com
Operation manual

Information about the document
This document describes the correct han-
dling of the product.
Read the document prior to every activity.
Prepare the document for the application.
Pass on the product only together with
the complete documentation.
Always follow safety instructions, han-
dling instructions and specifications of
every kind.
Illustrations can deviate from the tech-
nical construction.
Validity range of the document
This document describes the following
product:
N36240002V
EcoGun AL MAN 300
Hotline and Contact
If you have queries or would like technical
information, please contact your dealer or
sales partner.
05/2018EcoGun AL MAN 300 - MSG00016EN2/44

TABLE OF CONTENTS
1 Product overview.......................... 4
1.1 Overview................................ 4
1.2 Short description.................... 4
2 Safety............................................. 4
2.1 Presentation of Notes............ 4
2.2 Intended Use.......................... 5
2.3 Residual risks......................... 5
2.4 Staff qualification.................... 6
2.5 Personal protective equip-
ment....................................... 6
3 Transport, scope of supply and
storage........................................... 7
3.1 Scope of delivery................... 7
3.2 Handling of
packaging material................. 7
3.3 Storage.................................. 7
4 Assembly....................................... 7
4.1 Requirements for the
Installation point..................... 7
4.2 Connecting............................. 8
5 Commissioning............................. 8
6 Operation....................................... 9
6.1 Safety recommendations....... 9
6.2 Checks................................. 10
6.3 Lock and unlock spray gun.. 11
6.4 Painting................................ 12
6.5 Rinsing................................. 13
6.5.1 General notes................... 13
6.5.2 Rinsing.............................. 14
7 Cleaning and maintenance........ 14
7.1 Safety recommendations..... 14
7.2 Cleaning............................... 16
7.3 Maintenance........................ 17
7.3.1 Maintenance schedule...... 17
7.3.2 Lubricate needle............... 18
7.3.3 Lubricate trigger pin.......... 19
8 Faults........................................... 19
8.1 Safety recommendations .... 19
8.2 Defects table........................ 20
8.3 Troubleshooting................... 22
8.3.1 Remove nozzle blockage.. 22
8.3.2 Replace nozzle................. 23
8.3.3 Replace needle and seals. 24
8.3.4 Replace filter..................... 26
8.3.5 Replace trigger.................. 27
9 Disassembly and Disposal........ 27
9.1 Safety recommendations..... 27
9.2 Disassembly......................... 28
9.3 Disposal .............................. 28
10 Technical data............................. 28
10.1 Weight................................ 28
10.2 Connections....................... 28
10.3 Operating conditions.......... 28
10.4 Emissions........................... 28
10.5 Operating values................ 28
10.6 Materials used.................... 29
10.7 Operating and auxiliary
materials............................ 29
10.8 Material specification......... 29
11 Replacement parts, tools and
accessories................................. 30
11.1 Replacement parts............. 30
11.2 Tools.................................. 38
11.3 Accessories........................ 39
05/2018 EcoGun AL MAN 300 - MSG00016EN 3/44

1 Product overview
1.1 Overview
Fig. 1: Product overview
1 Spray jet screen
2 Reversible nozzle
3 Cap nut
4 Suspension hook
5 Housing
6 Retainer lever
7 Material connection
8 Paint tube
9 Trigger
1.2 Short description
The spray gun is intended for surface
coating without compressed air. It is suitable
for Airless Applications in the high pressure
area. The material to be atomized is fed
through high pressure lines and atomized
with a pressure of up to 300 bar. The spray
gun is hand-held.
Use a nozzle with a suitable diameter,
depending on the requirement. If there is a
blockage, you can rotate and flush the
nozzle through without disassembly.
The following factors influence the spray jet
and therefore the result
Material pressure
The higher the material pressure, the
higher the material flow and thus the finer
the atomization. The lower the material
pressure, the higher is the efficiency and
the smaller is the overspray generated.
Nozzle
The larger the nozzle, the more material
comes out. The greater the angle, the
wider is the spray pattern.
2 Safety
2.1 Presentation of Notes
The following notes can appear in this
instructions manual.
DANGER!
High risk situation that can lead to serious
injuries or death.
WARNING!
Medium risk situation that can lead to
serious injuries or death.
CAUTION!
Low risk situations that can lead to minor
injuries.
NOTICE!
Situations that can lead to material
damage.
Product overview
05/2018EcoGun AL MAN 300 - MSG00016EN4/44

ENVIRONMENT!
Situations that can lead to environmental
damage.
Contains additional information and
recommendations.
2.2 Intended Use
Use
The spray gun EcoGun AL MAN 300 is used
exclusively for hand guided coating of sur-
faces with non-flammable and flammable
paints. Compressed air is not used to apply
material by using high material pressure.
The spray gun EcoGun AL MAN 300 may
only be operated in the industrial area and
within the approved technical data Ä 10
“Technical data”.
The EcoGun AL MAN 300 spray gun is
approved for use in Ex zones 1 and 2.
Misuse
If used incorrectly, it can cause serious inju-
ries or death.
Misuses include, e. g.:
Aiming the spray gun at humans or ani-
mals.
Atomization of fluid nitrogen
Use of unapproved materials
Combination of the spray gun with com-
ponents that are not approved by Dürr
Systems for operation.
Unauthorized modifications
Use in explosive areas Ex zone 0
EX labeling
II 2G T 60 °C X
II - Device group II: all areas except
mining
2G - Device category 2 for gaseous
ex-atmosphere
T 60 °C - Surface temperature max. 60 °C
X - Specific operating conditions for
safe operation
The following conditions must be observed
for safe operation with inflammable mate-
rials:
Ground spray gun and work piece.
Only use conductive hoses.
Ensure that static electricity can be dis-
charged.
2.3 Residual risks
Explosion
Sparks, open flames and hot surfaces can
cause explosions in explosive atmospheres.
Serious injuries and death can be the conse-
quence.
Before carrying out any work, ensure a
non-explosive atmosphere.
Do not use sources of ignition and open
light.
Do not smoke.
Ground the product.
Ground the work piece.
Only use conductive lines.
Flammable coating materials and their deter-
gents and cleaning agents can cause a fire
or an explosion.
Ensure that the flashpoint of the fluid is at
least 15 K above the ambient tempera-
ture.
Note explosion group of the fluid.
Follow safety data sheets.
Ensure that forced ventilation and fire
protection equipment are in operation.
Do not use any sources of ignition and
open light.
Do not smoke.
Danger from harmful or irritant sub-
stances
Contact with hazardous liquids or vapors,
can result in serious injury or death.
Safety
05/2018 EcoGun AL MAN 300 - MSG00016EN 5/44

Ensure that the forced ventilation is
operational.
Follow safety data sheets.
Wear specified protective equipment.
Escaping material
Material escaping under pressure can cause
serious injuries.
Before working on the product:
Disconnect the system with the product
from compressed air and material supply.
Relieve the lines.
Secure the system against reconnection.
Noise
The noise during normal operation may
cause severe hearing damage.
Wear hearing protection.
Do not spend more time then necessary
in the work area.
Hot surfaces
During normal operation the surfaces of
components can get extremely hot. Contact
with it can cause burns.
Before carrying out any work:
Check the temperature.
Do not touch hot surfaces.
Let components cool down.
Wear protective gloves.
2.4 Staff qualification
WARNING!
Inadequate qualification
Wrong estimation of dangers can cause
serious injury or death.
– Only sufficiently qualified persons may
execute all work.
– Some work requires additional qualifi-
cation. Additional qualifications are
marked with a “+”.
This document is intended for qualified per-
sonnel in the industry.
Operator
The operator is trained specifically for the
field of work in which he works.
Furthermore, the operator possesses the fol-
lowing knowledge:
Technical Measures for occupational
safety and health
The operator is responsible for the following
work:
Operate and monitor the system/ product.
Introduce measures in the event of faults.
Clean system/ product.
+ Additional qualification high pressure
In addition, the mechanic has knowledge of
regulations and safety measures for high
pressure systems > 20 bar.
+ additional qualification explosion pro-
tection
In addition to the knowledge of the various
specialist fields, the mechanic has knowl-
edge of regulations and safety measures
when working in potentially explosive areas.
Dürr Systems offers special product training
for Ä “Hotline and Contact”.
2.5 Personal protective equipment
When working in explosive areas, the pro-
tective clothing, including gloves, must meet
the requirements of DIN EN 1149-5. Foot-
wear must meet the requirements of EN ISO
20344. The insulation resistor must not
exceed 100 MΩ.
Wear the specified personal protective
equipment when working. Provide the fol-
lowing personal protective equipment:
Safety
05/2018EcoGun AL MAN 300 - MSG00016EN6/44

3 Transport, scope of supply
and storage
3.1 Scope of delivery
The scope of supply includes the following
components:
Spray gun
Tool kit Ä 11.2 “Tools”
Inspect delivery on receipt for completeness
and integrity.
Report defects immediately Ä “Hotline and
Contact”.
3.2 Handling of packaging material
ENVIRONMENT!
Incorrect disposal
Incorrectly disposed packaging material
can damage environment.
– Dispose of material no longer required
in an environment-friendly manner.
– Observe local disposal specifications.
3.3 Storage
Requirements for the warehouse:
Do not store outdoors.
Store in a dry and dust-free place.
Do not expose to aggressive media.
Protect from solar radiation.
Avoid mechanical vibrations.
Temperature: 10°C to 40°C
Relative humidity: 35% to 90%
4 Assembly
4.1 Requirements for the
Installation point.
It must be possible to disconnect the
compressed air supply to the spray gun
and secure it against reconnection.
The compressed air supply must be
adjustable.
Lines, seals and screw connections must
be designed to conform to the spray gun
requirements Ä 10 “Technical data”.
The workplace must have technical venti-
lation.
A hook or a lug must be provided for
hanging the spray gun.
Working environment and grounding
Flooring of the working areas must be anti-
static, according to DIN EN
50050-1:2014-03, measurement according
to DIN EN 1081:1998-04.
Transport, scope of supply and storage
05/2018 EcoGun AL MAN 300 - MSG00016EN 7/44

4.2 Connecting
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Safety boots
Requirements:
The spray gun is locked Ä 6.3 “Lock and
unlock spray gun”.
1. WARNING!
Sources of ignition may cause explo-
sions!
Ensure a non-explosive atmosphere.

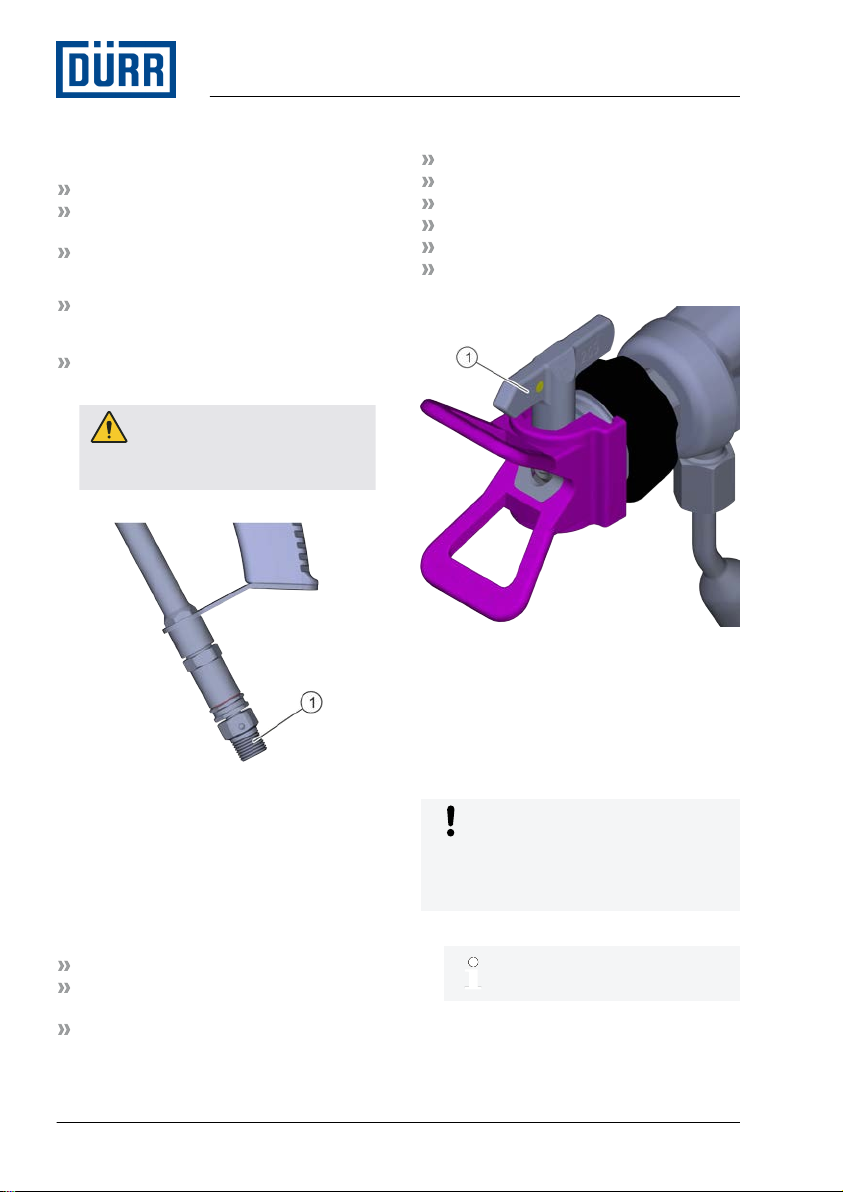

Fig. 2: Assembly
2. Screw material hose to the connection
(1).
5 Commissioning
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Protective workwear
Safety boots
Use ear protection
Protective gloves
Eye protection
Respiratory protection device
Fig. 3: Commissioning
1. Ensure that the nozzle with the tip of the
arrow of the adjustment lever (1) points to
the front.
2. Unlocking spray gun Ä 6.3 “Lock and
unlock spray gun”.
NOTICE!
Discoloration due to residual paint par-
ticles in the filter
Use filters only for one color.
3. Select filter for paint pipe Ä “Filter”.
The mesh width of the filter must
be smaller than the nozzle size.
4. Purge spray gun Ä 6.5 “Rinsing”.
Commissioning
05/2018EcoGun AL MAN 300 - MSG00016EN8/44

5. WARNING!
Statically charges components may
cause explosions during operation!
Ground spray guns and work pieces
through the cables and pump.
6. Connect material. Begin with low material
pressure.
7. Create a trial spray pattern on a test work
piece. Raise material pressure slowly,
until the desired spray pattern is ach-
ieved.
The spray pattern depends on the
nozzle size, material viscosity and
material pressure.
Filter
Filter color Filter size Nozzle size Examples of mate-
rials
Red 200 mesh < 0.33 mm/0.013" Paints, oils, stripper
Yellow 100 mesh 0.33 to 0.38 mm/
0.013 to 0.015" Filler, primers, disper- sion paints
White 50 mesh 0.38 to 0.73 mm/
0.015 to 0,029” Latex paints, enamel
Green 30 mesh > 0.78 mm/0.031" Corrosion protection
paints, spray spatula
6 Operation
6.1 Safety recommendations
WARNING!
Danger of explosion due to chemical
reactions
Material, halogenated hydrocarbon-based
rinsing agent or cleaning agent can chemi-
cally react with aluminum components of
the product. Chemical reactions can
cause explosions. Serious injuries and
death can be the consequence.
– Only use rinsing agents and cleaning
agents that do not contain any halo-
genated hydrocarbons.
Operation
05/2018 EcoGun AL MAN 300 - MSG00016EN 9/44

WARNING!
Danger of fire and explosion due to
explosive gas-air mixture
If you spray in a closed container during a
purging sequence, an explosive gas-air
mixture can form inside the container.
Serious injuries and death can be the con-
sequence.
– Do not spray into a closed container.
WARNING!
Danger of fire and explosion
Flammable coating materials and their
detergents and cleaning agents can cause
a fire or an explosion.
– Ensure that the flashpoint of the fluid is
at least 15 K above the ambient tem-
perature.
– Note explosion group of the fluid.
–Follow safety data sheets.
– Ensure that forced ventilation and fire
protection equipment are in operation.
– Do not use sources of ignition and
open light.
– Do not smoke.
WARNING!
Danger to health from harmful or irri-
tant substances
Contact with hazardous liquids or vapors,
can result in serious injury or death.
– Ensure that the forced ventilation is
operational.
– Follow safety data sheets.
–Wear specified protective clothing.
WARNING!
Material Escaping Under Pressure
If material escapes with high pressure, it
can penetrate the body. Even if the injury
looks like a harmless cut wound, the pen-
etrating material leads to amputation,
serious injuries can cause death.
– Use hoses that can withstand at least 4
times the operating pressure.
– Do not try to seal leakages using body
parts, gloves or towels.
–If there are injuries, seek medical
attention immediately.
Before working on the product:
– Disconnect the system, in which the
product is installed, from material
supply system.
– Secure the system against reconnec-
tion.
– Respect the maximum allowable oper-
ating pressure of the product.
– Relieve the lines.
NOTICE!
Material damage due to dried material
residues
If material residues dry in the product, that
can harm components.
– Rinse product immediately after each
use.
6.2 Checks
Material hose is in order.
Material connection is in order.
The spray gun is clean.
Operation
05/2018EcoGun AL MAN 300 - MSG00016EN10/44

6.3 Lock and unlock spray gun
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Safety boots
Locking
Fig. 4: Locking Spray Gun
1. Swivel safety lever (1) downwards.
ðThe spray gun is locked.
Unlocking
Fig. 5: Unlocking spray gun
2. Swivel safety lever (1) upwards.
ðThe spray gun is unlocked.
Operation
05/2018 EcoGun AL MAN 300 - MSG00016EN 11/44

6.4 Painting
NOTICE!
Paint damages due to wrong guiding of
the spray gun
If you guide the spray gun at an angle or
in an arc, the spray jet meets the surface
to be painted unevenly. Different dis-
tances arise in the spray jet between the
spray gun and surfaces to paint. This
results in uneven material coat thickness
and painting defects.
If the distance to the surface to be painted
is too short, too much material reaches
the surface. Drops and runs arise on the
surface.
If the distance to the surface to be painted
is too much, too little material reaches the
surface. Spray mist is produced. Dry
atomization gives rise to a raw and matter
material layer.
– Guide the spray gun in a straight line at
a 90° angle at a constant distance of
25 to max. 30 cm from the surface to
be painted.
– Guide spray gun with a constant
speed.
–Ensure that correct material pressure
according to the material consistency
is selected.
– Ensure that correct nozzle according to
the material consistency is selected.
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Protective workwear
Safety boots
Protective gloves
Eye protection
Use ear protection
Respiratory protection device
Requirements:
The spray gun is unlocked.
Fig. 6: Painting
1. Drive the trigger (1) completely.
ðThe material is pumped.
Operation
05/2018EcoGun AL MAN 300 - MSG00016EN12/44

Fig. 7: Guiding the spray gun
2. Guide the spray gun in a straight line at a
90° angle at a constant distance of 25 to
max. 30 cm from the surface to be
painted.
The material can be applied cross-
wise to increase the covering
capacity and coat thickness.
Switching between horizontal and
vertical spraying stripes (Fig. 8)
yields a uniform and closed spray
pattern.
Fig. 8: Apply material
3. Apply material horizontally alternately
from left to right.
4. Apply material alternately vertically from
top to bottom.
5. Release trigger (1, Fig. 6) after ending
the painting process.
6. Continue movement.
The movement must be longer
than the spraying strip.
7. Swivel safety lever (2, Fig. 6) downwards
after the painting process is over.
ðThe spray gun is locked.
6.5 Rinsing
6.5.1 General notes
When rinsing, use fluid to remove inner
soiling from components.
Operation
05/2018 EcoGun AL MAN 300 - MSG00016EN 13/44

6.5.2 Rinsing
NOTICE!
Material damage due to unsuitable
rinsing agent
If the rinsing agent reacts chemically with
the components or the material, compo-
nents get damaged.
– Use only the rinsing agents that are
compatible with the components and
the material.
–Refer to safety data sheet of material
manufacturer.
Guide the detergent via the material connec-
tion.
Rinse the spray gun in the following cases:
After end of operation
Before every change of material
Prior to cleaning
Prior to dismantling
Before a long time of non-use
Before placing in storage
Rinsing intervals depend on the
material used.
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Protective workwear
Safety boots
Protective gloves
Eye protection
Respiratory protection device
Requirements:
Material pressure is present.
1. Unscrew and remove spray jet screen.
2. Rinse the spray gun with an appropriate
rinsing agent until the rinsing agent runs
clean without any material residue.
3. Ensure proper disposal of the exiting
material and rinsing agent.
4. Fit spray jet screen. Tighten by hand.
5. Purge the spray gun again, until the
detergent comes out without any material
residue.
6. Shut off detergent supply.
7 Cleaning and maintenance
7.1 Safety recommendations
WARNING!
Danger of fire and explosion
Flammable coating materials and their
detergents and cleaning agents can cause
a fire or an explosion.
– Ensure that the flashpoint of the fluid is
at least 15 K above the ambient tem-
perature.
– Note explosion group of the fluid.
– Follow safety data sheets.
– Ensure that forced ventilation and fire
protection equipment are in operation.
– Do not use sources of ignition and
open light.
– Do not smoke.
Cleaning and maintenance
05/2018EcoGun AL MAN 300 - MSG00016EN14/44

WARNING!
Risk of injury from unsuitable replace-
ment parts in explosive areas.
Replacement parts not compliant with the
specifications of the ATEX guidelines can
cause explosions in an explosive atmos-
phere. Serious injuries and death can be
the consequence.
– Use exclusively original replacement
parts.
WARNING!
Danger to health from harmful or irri-
tant substances
Contact with hazardous liquids or vapors,
can result in serious injury or death.
– Ensure that the forced ventilation is
operational.
– Follow safety data sheets.
–Wear specified protective clothing.
WARNING!
Risk of injury due to escaping material
and compressed air
Escaping compressed material can cause
serious injury.
Before carrying out any work:
– Disconnect the system, in which the
spray gun is installed, from com-
pressed air and material supply.
–Secure the system against reconnec-
tion.
– Relieve the lines.
WARNING!
Danger of explosion due to chemical
reactions
Material, halogenated hydrocarbon-based
rinsing agent or cleaning agent can chemi-
cally react with aluminum components of
the product. Chemical reactions can
cause explosions. Serious injuries and
death can be the consequence.
– Only use rinsing agents and cleaning
agents that do not contain any halo-
genated hydrocarbons.
NOTICE!
Unsuitable cleaning agents
Unsuitable cleaning agents can damage
the product.
– Only use cleaning agents approved by
the material manufacturer.
– Follow safety data sheets.
–Place heavily soiled components in a
cleaning bath.
– Only place those parts in the
cleaning bath, which are suitable for
the cleaning bath.
– Use only electrically conductive
containers.
– Ground the container.
– Do not use ultrasound baths.
Use alcohols (isopropanol, butanol) for
non-flammable coating materials.
Remove dried non-flammable coating
materials using a material manufacturer-
approved organic thinner.
When cleaning with flammable detergent,
do not spray into a closed container. An
explosive gas-air mixture can form inside
closed containers.
Cleaning and maintenance
05/2018 EcoGun AL MAN 300 - MSG00016EN 15/44

NOTICE!
Damage due to unsuitable cleaning
tools
Unsuitable cleaning tools can damage the
product.
– Only use cloths, soft brushes and
paintbrushes.
–Do not use abrasive cleaning tools.
–Do not poke blocked nozzles with met-
allic objects.
– Do not use compressed air for
cleaning.
– Do not use any thinner spray guns.
– Do not use high pressure for cleaning
agents.
7.2 Cleaning
Clean the spray gun.
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Eye protection
Respiratory protection device
Protective workwear
Protective gloves
Safety boots
1. Purge spray gun Ä 6.5 “Rinsing”.
2. Separate material hose from the spray
gun.
3. If the soiling is heavy, dismantle the
nozzle seal seat and the nozzle and
clean them separately Ä “Cleaning the
nozzle seal seat and nozzle”.
4. Use a cleaning agent to carefully clean
the spray gun. Dry with a soft cloth.
Cleaning the nozzle seal seat and nozzle
Requirements:
For a thorough cleaning of the nozzle
seal seat and the nozzle, disassemble.
Disassembly
Fig. 9: Cleaning Nozzle Seal Seat
1. Unscrew and remove spray jet screen
(1).
2. Drive the trigger (3) completely. Keep it
pressed.
3. Unscrew the nozzle seal seat (2) using
installation wrench.
Cleaning and maintenance
05/2018EcoGun AL MAN 300 - MSG00016EN16/44

Fig. 10: Clean the nozzle
4. Rotate adjustment lever of the nozzle (4)
by 90°, such that the arrow tip points
sideways.
5. Pull out nozzle (4) upwards from the
spray jet screen (1).
6. Clean nozzle (4) and nozzle seal seat (2)
in the cleaning bath.
Assembly
7. Drive the trigger (3) completely. Keep it
pressed.
8. Insert nozzle seal seat (2) and tighten it.
Tightening torque: 20 Nm
9. Insert nozzle (4) in spray jet screen (1).
10. Turn adjustment lever of the nozzle (4),
such that the arrow tip points to the
front.
11. Fit spray jet screen (1). Tighten by
hand.
Cleaning filter
Clean the filter thoroughly as required to
avoid encrustation of the deposits.
Encrusted deposits make removal difficult.
1. Remove the filter Ä 8.3.4 “Replace filter”.
2. Clean the filter with a brush.
Do not use wire brushes.
If the filter is clogged up to 20 % after
cleaning, replace the filter.
3. Install filter Ä 8.3.4 “Replace filter”.
7.3 Maintenance
7.3.1 Maintenance schedule
The intervals of some maintenance work depend on the used materials. It can be
adapted to the operating conditions.
Cleaning and maintenance
05/2018 EcoGun AL MAN 300 - MSG00016EN 17/44

NOTICE!
Painting defects due to lubricant containing silicone
If residues containing silicone reach into the material channels of the spray gun, it can result
in imperfect painting results.
– Only use silicone-free oil or grease.
Interval Maintenance work
After each use Purge spray gun Ä 6.5 “Rinsing”.
Before every change of material Clean the nozzle Ä 7.2 “Cleaning”.
Clean the filter. Ä 7.2 “Cleaning”
Weekly and after every separation of
the system
Check grounding of connections and lines.
After every removal/ after every
cleaning
Lubricate trigger pin Ä 7.3.3 “Lubricate trigger pin.”.
Lubricate needle Ä 7.3.2 “Lubricate needle.”.
7.3.2 Lubricate needle.
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Safety boots
Fig. 11: Lubricate needle.
1. Wet needle (1) with a drop of silicone-free
lubricant.
Cleaning and maintenance
05/2018EcoGun AL MAN 300 - MSG00016EN18/44

7.3.3 Lubricate trigger pin.
Personnel:
Operator
+ additional qualification explosion pro-
tection
+ Additional qualification high pressure
Protective equipment:
Safety boots
Fig. 12: Lubricate trigger pin.
1. Wet trigger pin (1) from both sides with a
drop of silicone-free lubricant.
8 Faults
8.1 Safety recommendations
WARNING!
Risk of injury from unsuitable replace-
ment parts in explosive areas.
Replacement parts not compliant with the
specifications of the ATEX guidelines can
cause explosions in an explosive atmos-
phere. Serious injuries and death can be
the consequence.
– Use exclusively original replacement
parts.
CAUTION!
Risk of injury due to spring tension
The end cap of the spray gun is under
spring tension. If you remove the end cap,
the spring tension could cause the end
cap to jump out unexpectedly and cause
light injuries.
– Removing and installing end cap
NOTICE!
Property damage due to improper
replacement of needle and nozzle seal
seat
If you only replace the needle or only the
nozzle seal seat, it could damage spray
gun components. This can compromise
the tightness of the spray gun. The spray
pattern deteriorates.
– Always replace nozzle seal seat and
needle at the same time.
Faults
05/2018 EcoGun AL MAN 300 - MSG00016EN 19/44

NOTICE!
Property damage due to improper han-
dling
Mechanical load can damage needle and
nozzle.
– Handle with care during installation
and dismantling.
– Do not subject the needle to any
mechanical pressure.
– Avoid collisions of components to be
assembled and disassembled with the
needle.
–Do not excessively tighten compo-
nents.
8.2 Defects table
The position numbers of the components refer to the chapter Ä 11.1 “Replacement
parts”.
Fault description Cause Remedy
Spray jet falls off. Filter (28) is clogged. Clean the filter. Ä 7.2 “Cleaning”
Material viscosity is too high. Thin down the material. Use a wide
mesh filter or none at all.
Material pressure is too low. Raise the feed rate to the pump.
Not enough material. Filter (28) is blocked. Clean the filter. Replace filter, if
necessary. Ä 8.3.4 “Replace filter”
Nozzle (1) is too small. Use a larger nozzle.
Material pressure is too low. Raise the feed rate to the pump.
Colorations occur. Material particles in the filter
(28)
Clean the filter. Replace filter, if
necessary. Ä 8.3.4 “Replace filter”
Spray gun sprays on
closing.
Shut-off needle (4 or 6) or
nozzle seal seat (3 or 5) is
worn out.
Replace shut-off needle and nozzle
seal seat Ä 8.3.3 “Replace needle
and seals.”.
Material escapes at the
needle gland.
Shut-off needle (4 or 6) is
worn out.
Replace shut-off needle Ä 8.3.3
“Replace needle and seals.”.
Needle gland (8) is worn out. Replace needle gland Ä 8.3.3
“Replace needle and seals.”.
Retainer lever is difficult
to drive.
Trigger pin (18) is too dry. Lubricate trigger pin and bore in the
housing Ä 7.3.3 “Lubricate trigger
pin.”.
Faults
05/2018EcoGun AL MAN 300 - MSG00016EN20/44
