Instruction Book for
EXECUTIVE® ELECTROL®
The Da-Lite Difference.

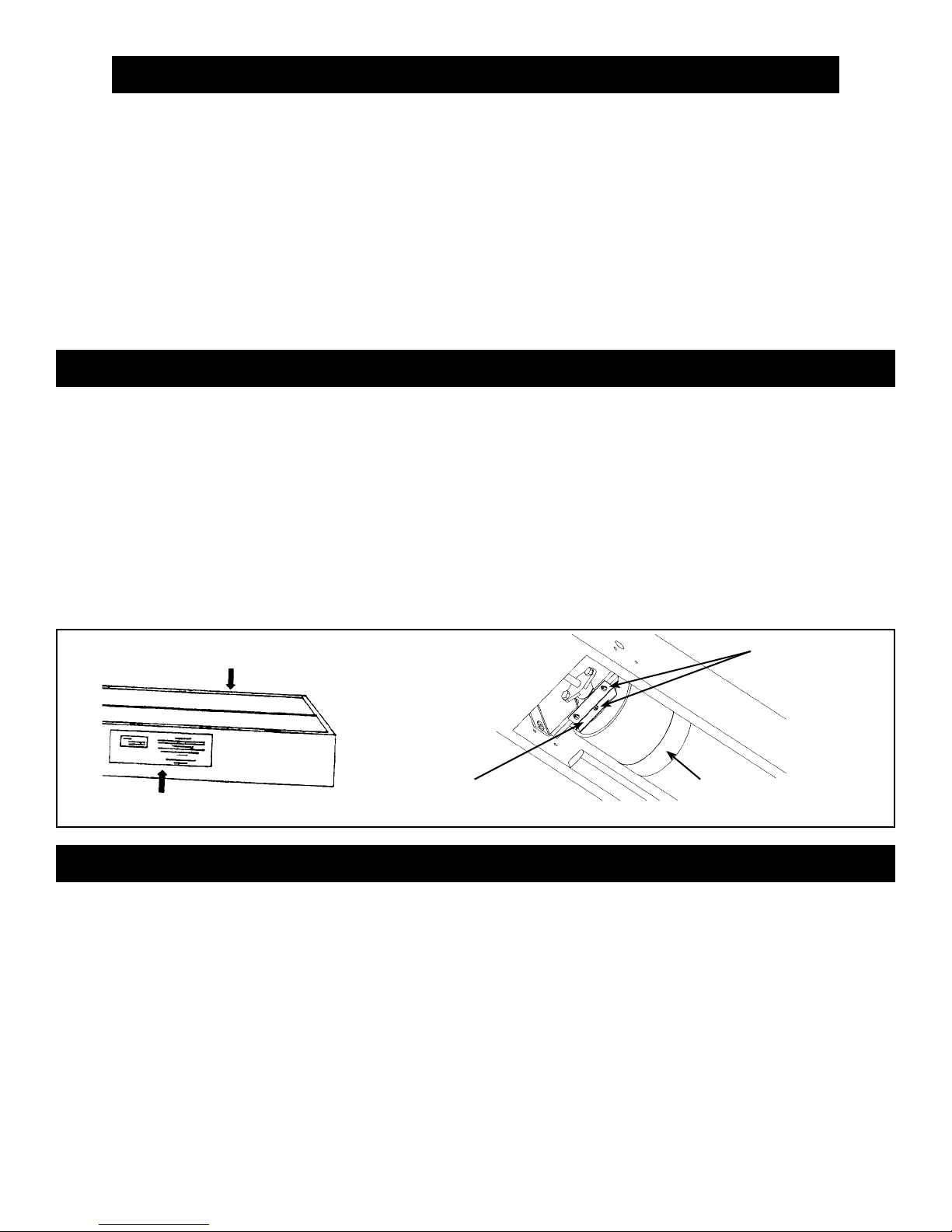

PRE-INSTALLATION
1
1. Carefully unpack screen and remove outer wrapping from case.
2. Remove fabric and cardboard strips from access door.
3. Remove access door by gently prying from middle section.
4. FOR TYPE 3 INSTALLATION ONLY, remove wood strips along bottom edge of screen case.
5. Remove instruction cover (Fig. 1). Remove, reverse, and remount Center Support Brackets.
6. Do not remove metal shipping brace (secures roller), wrapping paper or tape until screen is installed.
NOTE: Screen is not centered in box. Screen is set 22" from motor end.
7. Make sure to recheck measurement of screen location before installation.
INSTALLATION
1. Install screen by raising unit into position between joists at one end only. Install one lag screw in each mounting
bracket. Secure opposite end. Support center of the screw using the brackets.
2. Level unit lengthwise with a carpenter’s level and a plum level.
CAUTION! DO NOT SECURE ACCESS DOOR OR SEAL IN UNIT UNTIL SCREEN HAS BEEN SECURED IN POSITION AND
PROPERLY TESTED FOR SATISFACTORY OPERATION. DO NOT FIT UNIT SO TIGHTLY THAT THE SCREEN SURFACE DROP DOOR
BINDS. DOOR DROPS BY GRAVITY ONLY.
3. If you are going to cover screen door with paneling or other materials, allow access (suitable holes or a plug) to
screws when servicing.
4. Remove shipping brace by removing 3 hex head screws (Fig. 2).
CAUTION! DO NOT CUT WRAPPING PAPER OR TAPE WITH KNIFE OR ANY SHARP TOOL. REMOVE BY HAND.
5. Remove tape strips and release fabric (Fig. 2). Picture surface should hang freely (Fig. 3). Remove any tape left
hanging on back of fabric. Bottom edge should be positioned between bottom edge of case and center of roller.
s
!
s
!
CASE
INSTRUCTION COVER
FABRIC DOOR
ACCESS DOOR
FIG.1 FIG.2
SHIPPING BRACE
(NOT ON 3" ROLLER)
HEX HEAD
SCREWS
TAPE STRIP
IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be
used. Cords rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer
when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subse-
quently.
5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric
shock, or injury to persons.
SAVE THESE INSTRUCTIONS

SCREEN ADJUSTMENT
The picture surface drop, and the opening and closing of the fabric door, are controlled automatically by limit switches
which have been preset at Da-Lite. When the picture surface is moving upward, it is controlled by a limit switch that shuts
off when the door closes. To adjust for more or less picture drop (viewing area), proceed in the following manner:
SCREEN UNROLLED IN “DOWN” OR “BOTTOM” POSITION.
NOTE: Limit switch knob labeled DOWN controls point of picture surface in bottom position. Limit switch knob labeled DOOR con-
trols the synchronization of the door opening or closing. Do not adjust!
MORE SCREEN DROP
1. Place operating switch in “down” position.
2. When the screen stops, turn the “down” limit knob one turn at a time
clockwise, until the desired picture surface position is attained. Test
by raising picture surface approximately two feet, then lower again.
Repeat until desired picture surface position is attained.
CAUTION! WHEN PICTURE SURFACE IS IN “BOTTOM” POSITION, DO NOT
ADJUST FOR MORE THAN 3" OF ADDITIONAL DROP. DO NOT ALLOW ANY
PART OF THE ROLLER TO BECOME EXPOSED.
LESS SCREEN DROP
1. Raise picture surface approximately two feet above desired level.
2. Place operating switch in “off” position.
3. Turn the “down” limit knob one turn at a time counter-clockwise.
4. Place operating switch in “down” position. Repeat steps 2 and 3 until desired position is attained.
2
s
!
ACCESS DOOR INSTALLATION
1. Press switch “down” so that fabric door opens (Fig. 3).
2. Remove screws (2) located on each bumper bracket.
NOTE: The access door is slotted on one edge, permitting the grooved section to fit over the support clips on inside of case.
3. Place access panel so groove can be pushed over clips. Holes in access panel brackets should align with bumper
bracket holes.
4. Replace screws.
5. Make sure there is approximately 3⁄16" clearance around access door. Keep paint, plaster, tile or mastic out of hinge.
Fit access panel so it can be removed for maintenance.
6. Install electrical hook up that applies to your unit. Unit should be installed by a qualified electrician.
NOTE: Must be installed in accordance with the requirements of the Local Building Codes, the Canadian Electrical Code (CEC),
CAN/CSA C22.1 and the National Electric Code (NEC), NFPA 70.
7. Test installation by carefully running picture surface “up” and “down” several times. Be prepared to stop screen.
8. Make sure picture surface, when rolled down, has a full wrap around roller. No part of roller should be exposed.
Fabric door and picture surface will drop simultaneously when switch is pressed “down”. Door will close
simultaneously with picture surface as picture surface rolls into case.
FIG.3
NOTE: If picture surface is hanging out of case approxi-
mately 12”, a wrap of the picture surface has been lost
from around the roller; see, “Restoring Roller Wrap”.

3
1
⁄ 2 "
12
1
⁄ 16 "
9 1⁄2"
2
3
⁄ 16 "
4 1⁄2"
FALSE TOP
MOUNTING
BRACKETS
3⁄16" THICK
22"
LENGTH OF FABRIC WIDTH
+ 26 1⁄2", ALL SIZES
“L” BRACKET
ELECTRICAL
OUTLET
FABRIC
HEIGHT x WIDTH
AS ORDERED, UP
TO 16' x 16'
SUGGESTED METHODS OF INSTALLATION
TYPE 1 & 2
Offset mounting, recessed above ceiling,
for plaster, dry wall or paneling. Door painted
same finish as ceiling.
TYPE 1 & 2
Allow 1⁄8" min. clearance all around surface door.
Flush mounting, recessed above ceiling. For
use with 1/4" max. paneling or installation in exist-
ing ceiling using molding around door.
TYPE 3
Allow 1⁄4" min. clearance all around surface door.
Extended mounting, recessed above ceiling.
For use with acoustical or other ceiling tile 3⁄4"
thick laid over door.
NOTE: Paint the same as
doors and ceiling or
remove and replace
with ceiling tile.
INCLUDING MOUNTING BRACKETS
9 7⁄8"
9
1
⁄ 2 "
8"
3"
CEILING TILE
3
⁄ 4 "
3
⁄ 8 " APPROX.
12 1 ⁄ 16"
FILLER
BLOCK
3
⁄ 4"
FALSE TOP
1
⁄ 4"MAX.
4
3
⁄ 4 "
1
⁄ 8 "
2 1 ⁄ 2 "
1
⁄ 4 "
SURFACE
MOUNTING
BRACKETS
FALSE TOP
SURFACE DOOR
ACCESS DOOR
3
⁄ 4 "
11
5
⁄ 16"
1⁄4" x 1" SCREW
& NUT INSERT
DRYWALL SCREW
“L” BRACKET
EXECUTIVE ELECTROL INSTALLATION
3
12
1
⁄ 16 "
1⁄4" x 2"
LAG SCREW
FALSE TOP
SHIM
RESTORING ROLLER WRAP
CAUTION! DO NOT ATTEMPT TO RESTORE A LOST WRAP BY ADJUSTING LIMIT SWITCHES!
1. Run fabric all the way down.
2. Run fabric up and stop just before door closes.
3. Remove the access panel (2 screws, Fig. 3).
4. Two people with clean hands must carefully grasp the slat pocket at each end.
5. Gently lift fabric up and ease it over the top of the roller.
CAUTION! BE CAREFUL NOT TO CREASE OR DAMAGE FABRIC.
6. Additional wraps must be restored if screen surface continues to hang beyond bottom of case.
7. Test screen by running fabric up and down several times.
8. Replace access panel.
s
!
s
!

4
EXECUTIVE ELECTROL® INSTALLATION
BLACK
RED (UP)
BLUE
BLACK
WHITE
WHITE
RED
UP LIMIT SWITCH
(OPERATED BY DOOR)
CAPACITOR
BLACK
(DOWN)
DOWN LIMIT SWITCH
SOLENOID SWITCH
WHITE (COMMON)
MOTOR: 120V.60 CYCLES 1/10 HP INTERMITTENT
DUTY WITH AUTO-RESET THERMAL PROTECTOR
INTERNAL
WIRING
EXTERNAL WIRING
TO BE COMPLETED
BY INSTALLER
JUNCTION BOX MOUNTED IN
SCREEN CASE, IN WHICH INTERNAL
WIRING TERMINATES IN
WHITE, BLACK AND RED LEADS
WHITE
DOWN
ADJ.
BLACK (DOWN)
RED (UP)
IN MULTIPLE CONTROL INSTALLATIONS THIS SWITCH IS
REPLACED BY THE LOW VOLTAGE CONTROL, OPERATED
FROM PUSH-BUTTON STATIONS
BLACK WITH YELLOW
UP
DOWN
OFF AC HOT
AC COMMON
120V.AC 60HZ.
1 AMP. MAX
SIDE VIEW OF
SWITCH & BOX
GREEN
(GROUND)
BLACK
BLACK
BLUE
RED
OPERATING SWITCH,
SWITCH BOX, AND
PLATE FURNISHED
WITH SCREEN. (SPDT)
WITH CENTER OFF)
THIS SWITCH CANNOT BE USED WITH L.V.C.
SOLENOID
120V WIRING DIAGRAM
240 VOLT WIRING DIAGRAM
FOR STANDARD WALL SWITCH:
Da-Lite offers two styles of 240 volt wall
switches for standard operation. Please
see wiring diagram included in wall
switch box included with screen.

TROUBLESHOOTING
SYMPTOM
1. Screen will not operate or will not
go “down”.
Motor does not hum.
CAUSE
(a) Blown fuse.
(b) Tripped circuit breaker.
(c) Improper wiring to operating
switch.
(d) Improper wiring to junction box in
screen.
NOTE: Use low voltage control (LVC)
electrical checklist for 3-button control.
Defective wall switch.
Defective LVC unit.
(e) Thermal overload tripped (exces-
sive overheating).
(f) Burned out motor winding.
(g) Defective limit switch.
SOLUTION
(a) Replace fuse.
(b) Reset circuit breaker.
(c) Tighten all loose wire connec-
tions. Correct any improper con-
nections. Check for power.
“Down” Position
Check for power across black and
white leads.
“Up” Position
Check for power across red and
white leads.
(d) “Down” Position
Check for power at black and
white leads.
“Up” Position
Check for power at red and
white leads.
Shut power “off” at breaker. Remove
wall switch and check for broken or
loose connection. Replace if defective.
Check LVC electrical checklist.
(e) Let motor cool down for 15 min-
utes. Try again.
(f) Disconnect motor leads and
check for continuity between
black and white wires for “down”
position. Check for continuity be-
tween red and white wires for
“up” position. Replace gear motor
if either combination shows an
open circuit.
(g) Disconnect “down” limit switch
from circuit. Check for continuity.
Switches are normally closed and
open on contact. Replace if de-
fective.
5
Visit www.da -lite.com/products/tutorials.php to find installation and troubleshooting tutorials. You will also
find a link to Live Chat for interactive support and you can contact us by email at [email protected] or by phone
at [phone] or [phone] with any troubleshooting questions.

6
TROUBLESHOOTING
SYMPTOM
2. Motor hums.
CAUSE
(a) Temporary fabric binding.
(b) Shipping bracket not removed.
(c) Defective capacitor.
SOLUTION
(a) With power “off,” turn roller by
hand to free binding.
(b) Remove shipping bracket and
wooden wedge.
(c) Replace capacitor
3. Screen will not move “up.”
Motor does not hum.
Motor hums.
(a) No power between red and white
leads in junction box.
Check LVC. See above.
(b) Thermal overload tripped (acts as
a breaker).
(c) Burned out motor winding.
(d) Temporary fabric binding.
(e) Burned out capacitor.
(f) Broken wire or loose connection
in “up” position (red and white
leads).
(a) Check fuse. Reset circuit breaker.
Correct improper wiring.
(b) Let motor cool for 15 minutes. Try
again.
(c) Check for power between red
and white motor leads. Replace
motor if there is power.
(d) With power “off,” turn roller by
hand to free binding.
(e) Replace capacitor.
(f) Secure connection or replace
wire.
4. Screen starts upward and door
closes immediately shutting off
motor.
(a) Defective solenoid limit switch.
Solenoid pin not retracting.
(b) Defective solenoid.
(a) Manually retract pin a few times.
(b) Check for power to the solenoid
terminals. If there is power, re-
place solenoid.
Check blue wire between sole-
noid switch and solenoid. It is
either crimped or broken. Repair
or replace.
6. Clicking noise in each downward
revolution.
(a) Non-energized solenoid.
NOTE: There should be three clicks.
(a) Check for power to solenoid.
(b) Replace solenoid.
7. Loud buzzing noise. (a) Solenoid not fully retracting. (a) Check for foreign object caught in
solenoid. Remove object. Tighten
4 mounting screws.
Check for pin binding.
5. Fabric door does not fully open.
Screen runs.
NOTE: Remember, door must open by
gravity.
(a) Door binding. Plaster, paint or ad-
hesive can cause the hinge to
stick.
(b) Case may be put into a bind
during installation.
(c) Inadequate clearance around the
fabric door on new installations.
(a) Clean hinge and apply oil.
(b) Tighten or loosen lag screws
located on back of case.
(c) Provide adequate clearance.
8. Door closes on fabric, leaving 15"
to 20" left hanging out.
(a) Lost roller wrap. (a) See installation instructions.

TROUBLESHOOTING
SYMPTOM
9. Screen jammed. Will not operate,
motor hums, door open, closing
mechanism detached from door.
CAUSE
(a) Closing mechanism detached
from door, allowing it to jam into
box.
SOLUTION
(a) After securing fabric to roller,
loosen set screws on motor gear
and manually rotate solenoid
assembly back over top of roller
into position, then reattach door.
Match flats on motor drive shaft
to gear set screws and tighten.
7
Printed in U.S.A. 48707 Rev. 9/09
LIMITED ONE YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS
Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser
provided they are properly operated according to Da-Lite’s instructions and are not damaged due to improper
handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or
which has been tampered with or repaired by a person other than authorized Da-Lite personnel.
Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective
part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the
dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the
purchaser and Da-Lite is not responsible for damage in shipment. To protect yourself against damage or loss
in transit, insure the product and prepay all transportation expenses.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied warranties of fitness
for use, or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year
warranty period. This warranty gives you specific legal rights, and you may also have other rights, which vary
from state-to-state. NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM
INTERRUPTION IN OPERATION OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL
DAMAGES OF ANY NATURE.
In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales
Partners at PO Box 137, Warsaw, IN 46581-0137, [phone], [phone].
IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE BOUND BY
THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH DA-LITE’S WRITTEN
INSTRUCTIONS.
Keep your sales receipt to prove the date of purchase and your original ownership.
10. Scraping or grinding noise. (a) If metal shipping bracket is left at-
tached to screen, it may be rub-
bing on motor end of roller.
(a) Remove shipping brace.
12. Incorrect down limit switch
setting.
(a) Lost roller wrap.
(b) Limit switch out of adjustment.
(a) See installation instructions.
(b) See door closure and timing
instructions.
13. Door closes and screen contin-
ues to run upward.
(a) Door limit out of adjustment.
(b) Door limit switch is shorted.
(a) Loosen nut holding limit switch.
Rotate adjusting position, then
secure.
(b) Repair short or replace limit
switch.
11. Gear noise. (a) Gear may need light weight
grease.
(a) Apply light weight grease.
