Da-Lite EXECUTIVE ELECTROL User manual

DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: [phone]
800-622-3737
Fax: [phone]
http:// www.da-lite.com
e-mail: [email protected]
POWER
PRESENTATION PRODUCTS
The
In
Instruction Book for
EXECUTIVE®ELECTROL®

PRE-INSTALLATION
1
1. Carefully unpack screen and remove outer wrapping from case.
2. Remove fabric and cardboard strips from access door.
3. Remove access door by gently prying from middle section.
4. FOR TYPE 3 INSTALLATION ONLY, remove wood strips along bottom edge of screen case.
5. Remove instruction cover (Fig. 1). Remove, reverse, and remount Center Support Brackets.
6. Do not remove metal shipping brace (secures roller), wrapping paper or tape until screen is installed.
NOTE: Screen is not centered in box. Screen is set 22" from motor end.
7. Make sure to recheck measurement of screen location before installation.
INSTALLATION
1. Install screen by raising unit into position between joists at one end only. Install one lag screw in each mounting
bracket. Secure opposite end. Support center of the screw using the brackets.
2. Level unit lengthwise with a carpenter’s level and a plum level.
CAUTION! DO NOT SECURE ACCESS DOOR OR SEAL IN UNIT UNTIL SCREEN HAS BEEN SECURED IN POSITION AND PROP-
ERLY TESTED FOR SATISFACTORY OPERATION. DO NOT FIT UNIT SO TIGHTLY THAT THE SCREEN SURFACE DROP DOOR BINDS.
DOOR DROPS BY GRAVITY ONLY.
3. If you are going to cover screen door with paneling or other materials, allow access (suitable holes or a plug) to
screws when servicing.
4. Remove shipping brace by removing 3 hex head screws (Fig. 2).
CAUTION! DO NOT CUT WRAPPING PAPER OR TAPE WITH KNIFE OR ANY SHARP TOOL. REMOVE BY HAND.
5. Remove tape strips and release fabric (Fig. 2). Picture surface should hang freely (Fig. 3). Remove any tape left
hanging on back of fabric. Bottom edge should be positioned between bottom edge of case and center of roller.
▲
!
▲
!
CASE
INSTRUCTION COVER
FABRIC DOOR
ACCESS DOOR
FIG.1 FIG.2
SHIPPING BRACE
(NOT ON 3" ROLLER)
HEX HEAD
SCREWS
TAPE STRIP
IMPORTANT SAFETY INSTRUCTIONS
When using your video equipment, basic safety precautions should always be followed, including the following:
1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be
used. Cords rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer
when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subse-
quently.
5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric
shock, or injury to persons.
SAVE THESE INSTRUCTIONS

SCREEN ADJUSTMENT
The picture surface drop, and the opening and closing of the fabric door, are controlled automatically by limit switches
which have been preset at Da-Lite. When the picture surface is moving upward, it is controlled by a limit switch that
shuts off when the door closes. To adjust for more or less picture drop (viewing area), proceed in the following manner:
SCREEN UNROLLED IN “DOWN” OR “BOTTOM” POSITION.
NOTE: Limit switch knob labeled DOWN controls point of picture surface in bottom position. Limit switch knob labaeled DOOR con-
trols the synchronization of the door opening or closing. Do not adjust!
MORE SCREEN DROP
1. Place operating switch in “down” position.
2. When the screen stops, turn the “down” limit knob one turn at a time
clockwise, until the desired picture surface position is attained. Test
by raising picture surface approximately two feet, then lower again.
Repeat until desired picture surface position is attained.
CAUTION! WHEN PICTURE SURFACE IS IN “BOTTOM” POSITION, DO NOT
ADJUST FOR MORE THAN 3" OF ADDITIONAL DROP. DO NOT ALLOW ANY
PART OF THE ROLLER TO BECOME EXPOSED.
LESS SCREEN DROP
1. Raise picture surface approximately two feet above desired level.
2. Place operating switch in “off” position.
3. Turn the “down” limit knob one turn at a time counter-clockwise.
4. Place operating switch in “down” position. Repeat steps 2 and 3 until desired position is attained.
2
▲
!

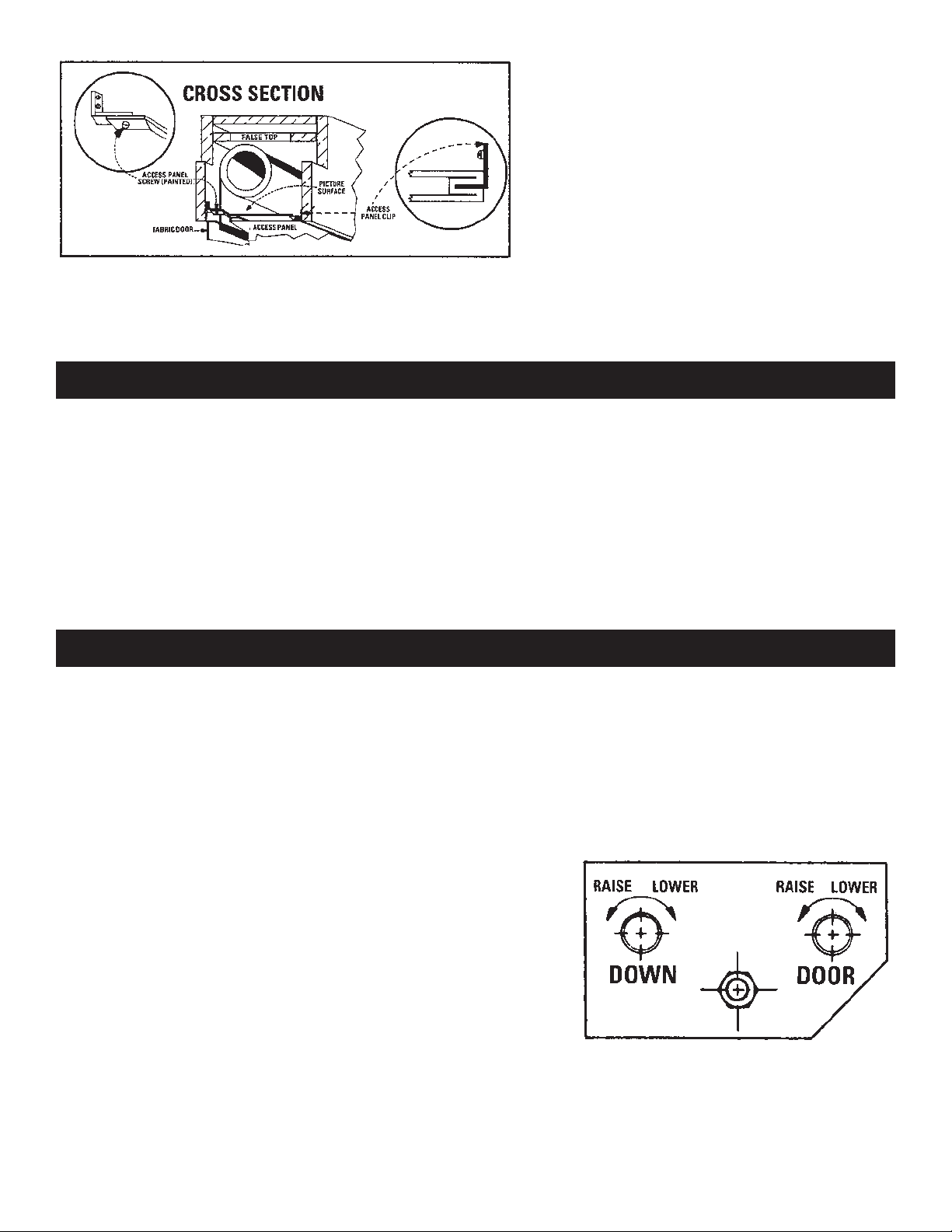

ACCESS DOOR INSTALLATION
1. Press switch “down” so that fabric door opens (Fig. 3).
2. Remove screws (2) located on each bumper bracket.
NOTE: The access door is slotted on one edge, permitting the grooved section to fit over the support clips on inside of case.
3. Place access panel so groove can be pushed over clips. Holes in access panel brackets should align with bumper
bracket holes.
4. Replace screws.
5. Make sure there is approximately 3⁄16" clearance around access door. Keep paint, plaster, tile or mastic out of hinge.
Fit access panel so it can be removed for maintenance.
NOTE: If picture surface is hanging out of case approxi-
mately 12”, a wrap of the picture surface has been lost
from around the roller; see, “Restoring Roller Wrap”.
.6.Install electrical hook up that applies to your unit.
7. Test installation by carefully running picture sur-
face “up” and “down” several times. Be prepared
to stop screen.
8. Make sure picture surface, when rolled down, has
a full wrap around roller. No part of roller should
be exposed. Fabric door and picture surface will
drop simultaneously when switch is pressed
“down”. Door will close simultaneously with pic-
ture surface as picture surface rolls into case.
FIG.3

3 1/2"
12 1/16"
9 1/2"
2 3/16"
4 1/2"
FALSE TOP
MOUNTING
BRACKETS
3/16" THICK
22"
LENGTH OF FABRIC WIDTH
+ 26 1/2", ALL SIZES
“L” BRACKET
ELECTRICAL
OUTLET
FABRIC
HEIGHT x WIDTH
AS ORDERED, UP
TO 16' x 16'
SUGGESTED METHODS OF INSTALLATION
TYPE 1 & 2
Offset mounting, recessed above ceiling,
for plaster, dry wall or paneling. Door painted
same finish as ceiling.
TYPE 1 & 2
Allow 1/8" min. clearance all around surface door.
Flush mounting, recessed above ceiling. For
use with 1/4" max. paneling or installation in exist-
ing ceiling using molding around door.
TYPE 3
Allow 1/4" min. clearance all around surface door.
Extended mounting, recessed above ceiling.
For use with acoustical or other ceiling tile 3/4"
thick laid over door.
NOTE: Paint the same as
doors and ceiling or
remove and replace
with ceiling tile.
INCLUDING MOUNTING BRACKETS
9 7/8"
9 1/2"
8"
3"
CEILING TILE
3/4"
3/8" APPROX.
12 1/16"
FILLER
BLOCK
3/4"
FALSE TOP
1/4" MAX.
4 3/4"
1/8"
2 1/2"
1/4"
SURFACE
MOUNTING
BRACKETS
FALSE TOP
SURFACE DOOR
ACCESS DOOR
3/4"
11 5/16"
1/4" x 1" SCREW
& NUT INSERT
DRYWALL SCREW
“L” BRACKET
EXECUTIVE ELECTROL INSTALLATION
3
12 1/16"
1/4" x 2"
LAG SCREW
FALSE TOP
SHIM
RESTORING ROLLER WRAP
CAUTION! DO NOT ATEMPT TO RESTORE A LOST WRAP BY ADJUST ING LIMIT SWTICHES!
1. Run fabric all the way down.
2. Run fabric up and stop just before door closes.
3. Remove the access panel (2 screws, Fig. 3).
4. Two people with clean hands must carefully grasp the slat pocket at each end.
5. Gently lift fabric up and ease it over the top of the roller.
CAUTION! BE CAREFUL NOT TO CREASE OR DAMAGE FABRIC.
6. Additional wraps must be restored if screen surface continues to hang beyond bottom of case.
7. Test screen by running fabric up and down several times.
8. Replace access panel.
▲
!
▲
!

4
EXECUTIVE ELECTROL INSTALLATION
BLACK
BLACK (UP)
BLACK
BLACK
BLUE
BLUE
BLUE
# Z97F9036
7.5 UF ± .06%
440 V.A.C.
50/60 HZ
UP LIMIT SWITCH
(OPERATED BY DOOR)
CAPACITOR
BROWN
(DOWN)
DOWN LIMIT SWITCH
SOLENOID SWITCH
COMMON
MOTOR: 220/240V.A.C. 50 HZ 1/10 HP INTERMITTENT
DUTY WITH AUTO-RESET THERMAL PROTECTOR
INTERNAL
WIRING
EXTERNAL WIRING
TO BE COMPLETED
BY INSTALLER
JUNCTION BOX MOUNTED IN
SCREEN CASE, IN WHICH INTERNAL
WIRING TERMINATES IN
BLACK, BROWN, & BLUE.
BLUE
WHITE
BROWN
DOWN
ADJ.
DOWN
UP
IN MULTIPLE CONTROL INSTALLATION
THIS SWITCH IS REPLACED BY
THE LOW VOLTAGE CONTROL.
BROWN/YELLOW
UP
DOWN
OFF BROWN AC HOT
BLUE AC COMMON
220/240V. AC 50HZ.
2 AMP. MAX
BLUE JUMPER WIRE
JUNCTION
BOX
REAR VIEW OF DPDT.
WITH CENTER OFF.
ROCKER
SWITCH
(GROUND) GREEN/YELLOW
BLACK
RED (UP)
BLUE
BLACK
WHITE
WHITE
RED
UP LIMIT SWITCH
(OPERATED BY DOOR)
CAPACITOR
BLACK
(DOWN)
DOWN LIMIT SWITCH
SOLENOID SWITCH
WHITE (COMMON)
MOTOR: 120V.60 CYCLES 1/10 HP INTERMITTENT
DUTY WITH AUTO-RESET THERMAL PROTECTOR
INTERNAL
WIRING
EXTERNAL WIRING
TO BE COMPLETED
BY INSTALLER
JUNCTION BOX MOUNTED IN
SCREEN CASE, IN WHICH INTERNAL
WIRING TERMINATES IN
WHITE, BLACK AND RED LEADS
WHITE
DOWN
ADJ.
BLACK (DOWN)
RED (UP)
IN MULTIPLE CONTROL INSTALLATIONS THIS SWITCH IS
REPLACED BY THE LOW VOLTAGE CONTROL, OPERATED
FROM PUSH-BUTTON STATIONS
BLACK WITH YELLOW
UP
DOWN
OFF AC HOT
AC COMMON
120V.AC 60HZ.
1 AMP. MAX
SIDE VIEW OF
SWITCH & BOX
GREEN
(GROUND)
BLACK
BLACK
BLUE
RED
OPERATING SWITCH,
SWITCH BOX, AND
PLATE FURNISHED
WITH SCREEN. (SPDT)
WITH CENTER OFF)
THIS SWITCH CANNOT BE USED WITH L.V.C.
SOLENOID

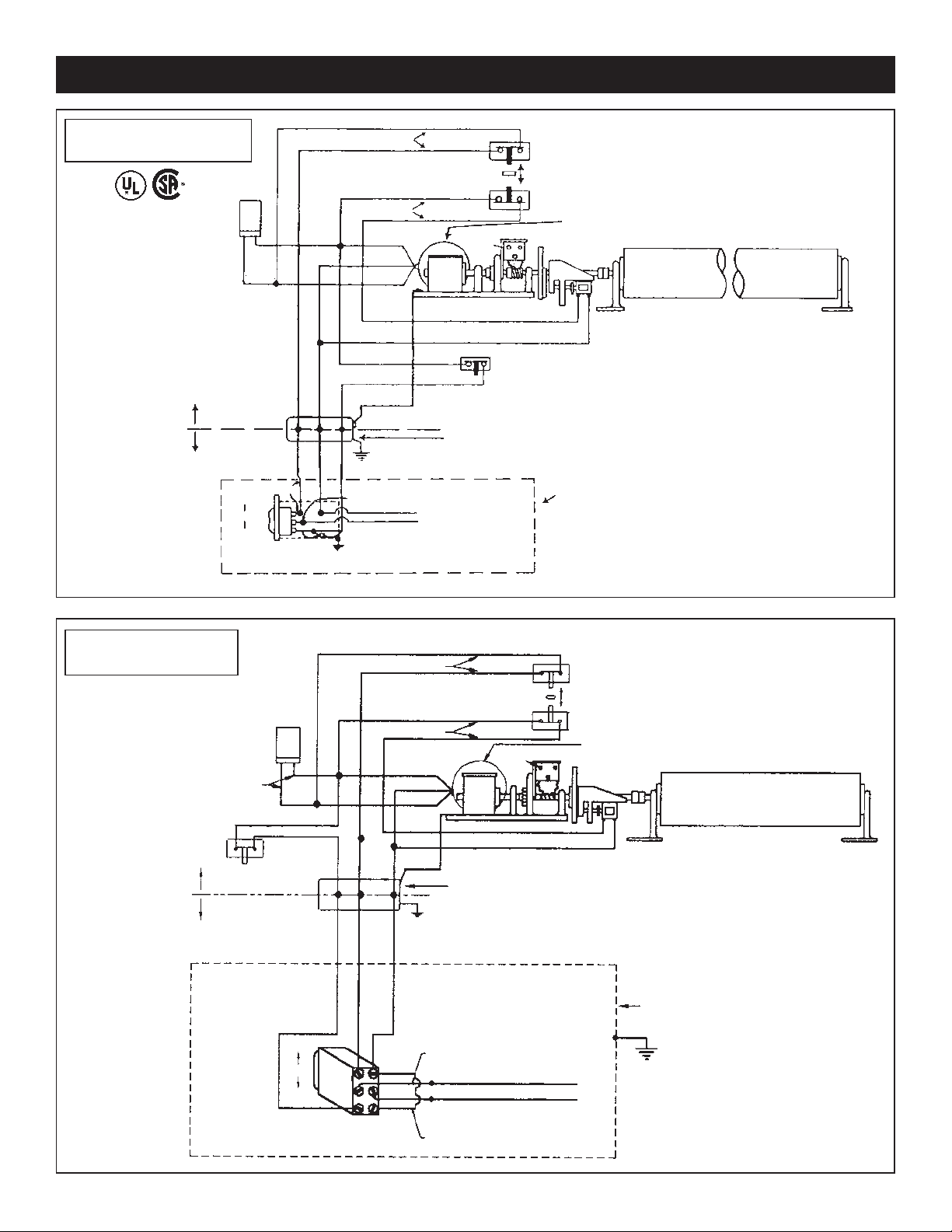

120V WIRING DIAGRAM
220 / 240V
WIRING DIAGRAM

TROUBLESHOOTING
SYMPTOM
1. Screen will not operate or will not
go “down”.
Motor does not hum.
2. Motor hums.
CAUSE
(a) Blown fuse.
(b) Tripped circuit breaker.
(c) Improper wiring to operating
switch.
(d) Improper wiring to junction box in
screen.
NOTE: Use low voltage control (LVC)
electrical checklist for 3-button control.
Defective wall switch.
Defective LVC unit.
(e) Thermal overload tripped (exces-
sive overheating).
(f) Burned out motor winding.
(g) Defective limit switch.
(a) Temporary fabric binding.
(b) Shipping bracket not removed.
(c) Defective capacitor.
SOLUTION
(a) Replace fuse.
(b) Reset circuit breaker.
(c) Tighten all loose wire connec-
tions. Correct any improper
connections. Check for power.
“Down” Position
Check for power across black
and white leads.
“Up” Position
Check for power across red and
white leads.
(d) “Down” Position
Check for power at black and
white leads.
“Up” Position
Check for power at red and
white leads.
Shut power “off” at breaker. Remove
wall switch and check for broken or
loose connection. Replace if defective.
Check LVC electrical checklist.
(e) Let motor cool down for 15 min-
utes. Try again.
(f) Disconnect motor leads and
check for continuity between
black and white wires for “down”
position. Check for continuity be-
tween red and white wires for
“up” position. Replace gear motor
if either combination shows an
open circuit.
(g) Disconnect “down” limit switch
from circuit. Check for continuity.
Switches are normally closed and
open on contact. Replace if de-
fective.
(a) With power “off,” turn roller by
hand to free binding.
(b) Remove shipping bracket and
wooden wedge.
(c) Replace capacitor
5

6
TROUBLESHOOTING
SYMPTOM
3. Screen will not move “up.”
Motor does not hum.
Motor hums.
CAUSE
(a) No power between red and
white leads in junction box.
Check LVC. See above.
(b) Thermal overload tripped (acts as
a breaker).
(c) Burned out motor winding.
(d) Temporary fabric binding.
(e) Burned out capacitor.
(f) Broken wire or loose connection
in “up” position (red and white
leads).
SOLUTION
(a) Check fuse. Reset circuit breaker.
Correct improper wiring.
(b) Let motor cool for 15 minutes.
Try again.
(c) Check for power between red
and white motor leads. Replace
motor if there is power.
(d) With power “off,” turn roller by
hand to free binding.
(e) Replace capacitor.
(f) Secure connection or replace
wire.
4. Screen starts upward and door
closes immediately shutting off
motor.
(a) Defective solenoid limit switch.
Solenoid pin not retracting.
(b) Defective solenoid.
(a) Manually retract pin a few times.
(b) Check for power to the solenoid
terminals. If there is power, re-
place solenoid.
Check blue wire between sole-
noid switch and solenoid. It is
either crimped or broken. Repair
or replace.
6. Clicking noise in each downward
revolution.
(a) Non-energized solenoid.
NOTE: There should be three clicks.
(a) Check for power to solenoid.
(b) Replace solenoid.
7. Loud buzzing noise. (a) Solenoid not fully retracting. (a) Check for foreign object caught
in solenoid. Remove object.
Tighten 4 mounting screws.
Check for pin binding.
8. Door closes on fabric, leaving 15"
to 20" left hanging out.
(a) Lost roller wrap. (a) See installation instructions.
5. Fabric door does not fully open.
Screen runs.
NOTE: Remember, door must open by
gravity.
(a) Door binding. Plaster, paint or ad-
hesive can cause the hinge to
stick.
(b) Case may be put into a bind
during installation.
(c) Inadequate clearance around the
fabric door on new installations.
(a) Clean hinge and apply oil.
(b) Tighten or loosen lag screws
located on back of case.
(c) Provide adequate clearance.

TROUBLESHOOTING
SYMPTOM
9. Screen jammed. Will not operate,
motor hums, door open, closing
mechanism detached from door.
CAUSE
(a) Closing mechanism detached
from door, allowing it to jam into
box.
SOLUTION
(a) After securing fabric to roller,
loosen set screws on motor gear
and manually rotate solenoid
assembly back over top of roller
into position, then reattach door.
Match flats on motor drive shaft
to gear set screws and tighten.
10. Scraping or grinding noise. (a) If metal shipping bracket is left
attached to screen, it may be rub-
bing on motor end of roller.
(a) Remove shipping brace.
12. Incorrect down limit switch
setting.
(a) Lost roller wrap.
(b) Limit switch out of adjustment.
(a) See installation instructions.
(b) See door closure and timing
instructions.
13. Door closes and screen contin-
ues to run upward.
(a) Door limit out of adjustment.
(b) Door limit switch is shorted.
(a) Loosen nut holding limit switch.
Rotate adjusting position, then
secure.
(b) Repair short or replace limit
switch.
11. Gear noise. (a) Gear may need light weight
grease.
(a) Apply light weight grease.
7
Printed in U.S.A. 48707 Rev. 1/04
