ENGLISH
17
INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
Installation and functioning must comply with the safety regulations in force in the
country in which the product is installed. The entire operation must be carried out in a
workmanlike manner.
Failure to comply with the safety regulations not only causes risk to personal safety and
damage to the equipment, but invalidates every right to assistance under guarantee.
APPLICATIONS
The FEKA VS-VX pump is a submersible centrifugal pump made of stainless steel with a vortex
back impeller, designed and built for use with dirty water from septic tanks and dirty water in
general containing solid bodies with maximum diameter 50 mm, but only for non-aggressive water.
Thanks to the radial delivery aperture (2" female) it may be easily fitted on lifting devices (type
DSD2).
The float, where fitted, allows fixed installation and guarantees automatic pumping operation.
The DRENAG 1000 - 1200 pump is of submersible centrifugal type, made completely of stainless
steel with a clearance impeller, designed and built to pump clear waste water, sandy, muddy and
sludgy waters, without fibre, containing solid bodies with maximum dimensions up to 10 mm in
diameter, but always non-aggressive waters. Suitable for domestic and building-site uses in fixed
applications, with manual or automatic operation, for draining cellars and garages prone to flooding,
for pumping drains, rainwater traps or infiltrations from gutters, excavations, etc. Thanks to their
compact shape and easy manoeuvrability and to the vertical delivery mouth with male thread, they are
also suitable for particular applications as portable pumps for emergency uses, such as for drawing
water from tanks or rivers, draining swimming pools or fountains, excavations or underpasses. Also
suitable for gardening and hobby uses in general.
The float, where fitted, allows fixed installation and guarantees automatic pumping operation.
These pumps cannot be used in swimming pools, ponds or tanks in which people
or present, or for pumping hydrocarbons (petrol, diesel fuel, fuel oils, solvents,
etc.) in accordance with the accident-prevention regulations in force.
N.B. The liquid inside the pump, to lubricate the seal device, is not toxic but it may alter the
characteristics of the water (if it is pure water) if there is a leak in the seal device.
TECHNICAL DATA AND LIMITS ON USE
Supply voltage: 1 X 220/240V 50Hz
3 X 400V 50Hz
3 X 230V 50Hz
1 X 220/230V 60Hz
3 X 230V 60Hz
3 X 380/400V 60Hz
Flow rate: see electric data plate
Hmax ( m ) - Head: pag. 135
Degree of motor protection: see electric data plate
Protection class: see electric data plate
Absorbed power: see electric data plate
Liquid temperature range:

from 0°C to +35°C for domestic use (safety
standards EN 60335-2-41)
from 0°C to +50°C for other uses
Maximum immersion: 10 metres
Storage temperature: -10°C to +40°C
Noise level: Falls within the limits envisaged by EC Directive
89/392/EEC and subsequent modifications.

ENGLISH
18
WARNINGS
1. Use is allowed only if the electric system is in possession of safety precautions in accordance with the
regulations in force.
The appliance is not intendend for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsable for their safety. Children should be
supervised to ensure that they do not play with the appliance.
2. The pump is provided with a carrying handle which may also be used to lower it into wells or deep holes
with a rope or cable.
The pumps must never be carried, lifted or made to operate hanging
from their power cable.
3. If the power cable is damaged in any way it must be replaced and not repaired (use cable type H07RN-F
diam. 9 – 9.5 mm. with minimum length 10 metres for the portable version, with a UNEL 47166-68 plug
for the SINGLE-PHASE version and with an EEC plug for the THREE-PHASE version).
This must be done by skilled personnel, in possession of the qualifications required by the regulations in
force.
4. Qualified personnel must also be employed for all electrical repairs which, if badly carried out, could
cause damage and accidents.
5. The pump must never be allowed to run dry.
6. The Manufacturer does not vouch for correct operation of the pump if it is tampered with or modified.
INSTALLATION
1. If the bottom of the well or borehole in which the pump is to operate is particularly dirty, it is
advisable to provide a support for the pump to sit on so as to avoid clogging of the intake grid.
(Fig. 1-Fig.3).
2. Before putting the pump in position, ensure that the strainer is not totally or partially blocked by
mud, sediment or similar substances.
3. It is advisable to use pipes with an internal diameter at least equal to that of the delivery mouth,
to avoid falls in pump performance and the possibility of clogging. In cases where the delivery
pipe has long horizontal stretches, it is advisable for this pipe to have a larger diameter than that
of the delivery mouth.
4.
Totally immerse the pump in the water.
INSTALLATION FEKA VS-VX
1. On the version provided with a float
switch, ensure that the float can move
freely (SEE THE PARAGRAPH ON
ADJUSTING THE FLOAT SWITCH).
Ensure that the minimum dimensions of
the borehole are as in Fig.1. The
dimensions of the borehole must also be
calculated with relation to the quantity of
water arriving and to the pump flow rate
so as not to subject the motor to excessive
starting operations.
2. When the pump is to be in a fixed
installation, with a float, a check valve
must always be fitted in the delivery pipe.
This is also advisable on pumps with
manual operation.
(Fig.1)
700x700
O
N
OFF

ENGLISH
19
3. Connect the delivery pipe or hose directly to the pump mouth. If the pump is used in fixed
installations it is advisable to connect it to the pipe with a coupling so as to facilitate
disassembly and reinstallation. If a hose is used, fit a threaded hosetail on the pump mouth.
Wrap the thread with suitable material to ensure an effective seal (teflon tape or similar).

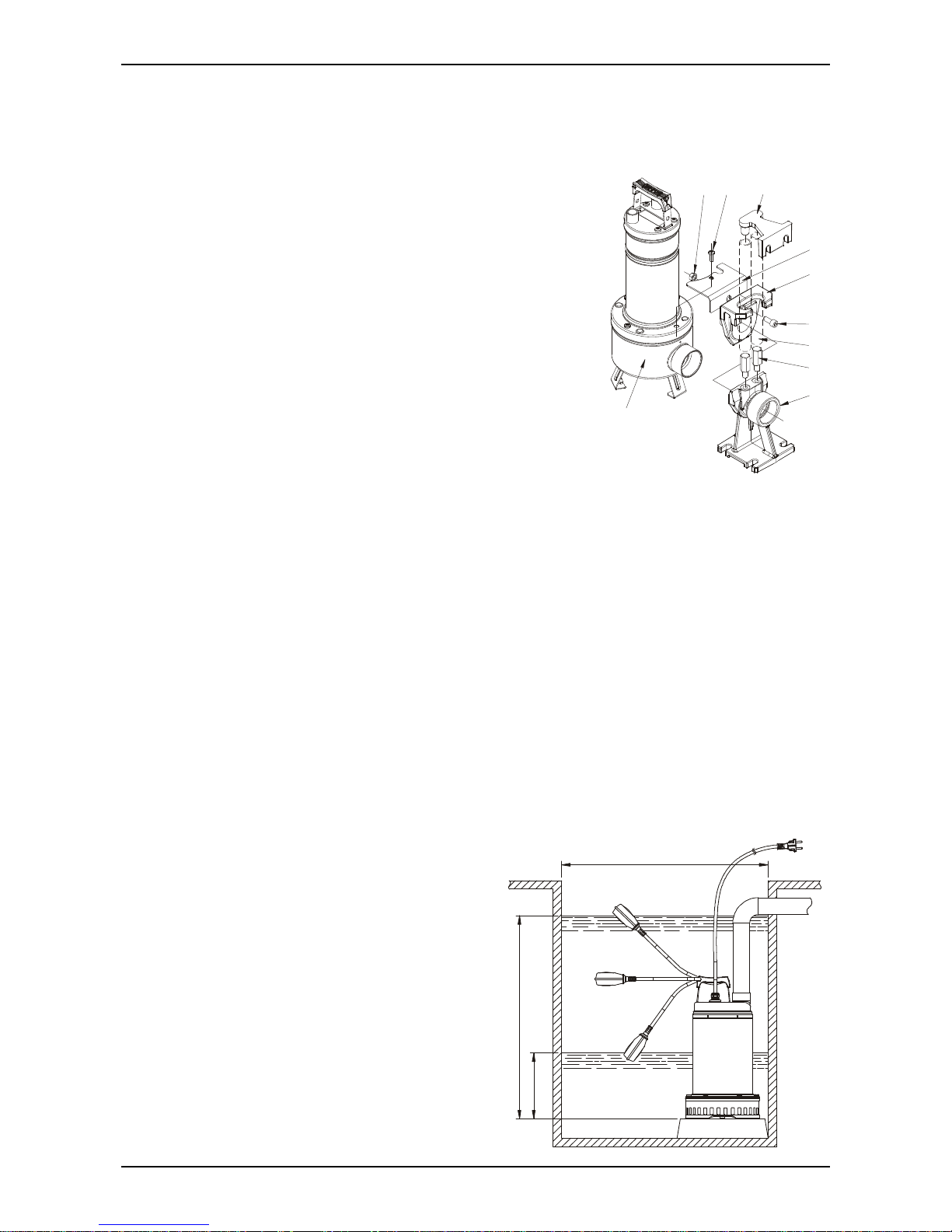

4. For fixed installations we advise the use of the lifting device
DSD2 (available on request - Fig.2) to facilitate pump
maintenance operations. When fitted between the pump
delivery aperture and the pipe, it avoids having to remove the
delivery pipe during maintenance jobs. The DSD2 device is
composed of 8 parts:
A. Pipe anchoring bracket
B. 3/4" pipes (not supplied)
C. Slide
D. Pipe guide columns
E. Foot
F. Screw TCEI M10X25
G. Base bracket
H. Nut M10
I. Pump flange screw
L. Pump
(Fig.2)
The foot is positioned on the bottom of the tank and fixed with expansion screws of suitable
dimensions. The pipe guide bracket must be positioned at the top of well or borehole and
inserted in the end of two 3/4” pipes (not supplied), which act as a slide. The two pipes connect
the bracket to the foot. Position the base bracket in contact with the pump suction strainer near
the delivery aperture, secure everything to the strainer cover with the screws provaided to lock
the strainer cover.
Remove the top screw from the flange on the delivery side ( I ).
Assemble the anti-rotation bracket ( G ).
Replace the screw ( I ).
Extract the slide from the coupling foot and connect it to the delivery port of the pump.
Using the screw F and the nut H, fix the slide to the pump as indicated in the figure.
Reposition the slide/pump assembly on the foot (Fig.2).
INSTALLATION DRENAG 1000-1200
1. Connect the delivery pipe or hose directly to
the pump mouth. If the pump is used in fixed
installations it is advisable to connect it to the
pipe with a coupling so as to facilitate
disassembly and reinstallation. If a hose is
used, fit a threaded hosetail on the pump
mouth. Wrap the thread with suitable material
to ensure an effective seal (teflon tape or
similar).
2. On the version provided with a float switch,
ensure that the float can move freely (SEE THE
PARAGRAPH ON ADJUSTING THE FLOAT
SWITCH). Ensure that the minimum
dimensions of the borehole are as in Fig.3.
The dimensions of the borehole must also be
calculated with relation to the quantity of water
arriving and to the pump flow rate so as not to
subject the motor to excessive starting
operations.
(Fig.3)
HI
A
G
C
F
B
D
E
L
600x600
O
N
OFF

ENGLISH
20
3. When the pump is to be in a fixed installation, with a float, a check valve must always be fitted in
the delivery pipe. This is also advisable on pumps with manual operation.
ELECTRIC CONNECTION
CAUTION! ALWAYS FOLLOW THE SAFETY REGULATIONS.
1. Ensure that the mains voltage is the same as the value shown on the motor plate and
that there is the possibility of MAKING A GOOD EARTH CONNECTION.
2. Pumping stations must always be provided with an automatic switch with an
intervention current of less than 30 mA.
3. Single-phase motors are provided with built-in thermal overload protection and may
be connected directly to the mains. N.B. If the motor is overloaded it stops
automatically. Once it has cooled down it starts again automatically without any
need for manual intervention.
4. Three-phase pumps must be protected with motor protectors suitably calibrated
according to the values on the data plate of the pump to be installed. The plug on the
pump must be connected to an EEC socket complete with isolating switch and fuses.
5. Do not damage or cut the power cable. If this should occur accidentally, have it
repaired or replaced by skilled and qualified personnel.
CHECKING THE DIRECTION OF ROTATION (for three-phase motors)
(Fig.4)
The direction of rotation must be checked each time a new
installation is made.
Proceed as follows (Fig.4):
1. Place the pump on a flat surface.
2. Start the pump and stop it immediately.
3. Carefully observe the kick-back on starting, looking at the
pump from the motor side. The direction of rotation is
correct, that is clockwise, if the protection cap moves as in
the drawing (anti-clockwise).
If it is not possible to check as described above because the pump is already installed, check as
follows:
1. Start the pump and observe the water flow rate.
2. Stop the pump, switch off the power and invert two phases on the supply line.
3. Restart the pump and check the water flow rate again.
4. Stop the pump.
The correct direction of rotation will be the one in which the flow rate
and electric absorption are LOWER!
STARTING UP
Models with a float switch start up automatically when the water level rises; models without a float
are started by means of a switch located upstream from the socket (not supplied).
ADJUSTING THE FLOAT SWITCH
Lengthening or shortening the cable between the float and the fixed point (slot provided in the
handle - Fig.5) adjusts the START or STOP level of the pump. Be sure that the float can move
freely.

ENGLISH
21
Ensure that the stop level does not uncover the strainer.
(Fig.5)
PRECAUTIONS
1. The intake strainer must always be in place during pump operation.
2. The pump should not be started more than 20 times in one hour so as not to subject the motor to
excessive thermal shock.
3. DANGER OF FROST: When the pump remains inactive for a long time at temperatures of less
than 0°C, it is necessary to ensure that there is no water residue which could freeze and cause
cracking of the pump components.
4. If the pump has been used with substances which tend to form a deposit, rinse it after use with a
powerful jet of water so as to avoid the formation of deposits or scale which would tend to
reduce the yield of the pump.
MAINTENANCE AND CLEANING
In normal operation, the pump does not require any specific maintenance, thanks to its
mechanical seal lubricated in an oil chamber and to its sealed-for-life bearings. The
electropump must not be dismantled unless by skilled personnel in possession of
the qualifications required by the regulations in force. In any case, all repairs and
maintenance jobs must be carried out only after having disconnected the pump from the
power mains.
During disassembly, pay attention to any sharp parts which could cause injury.

ENGLISH
22

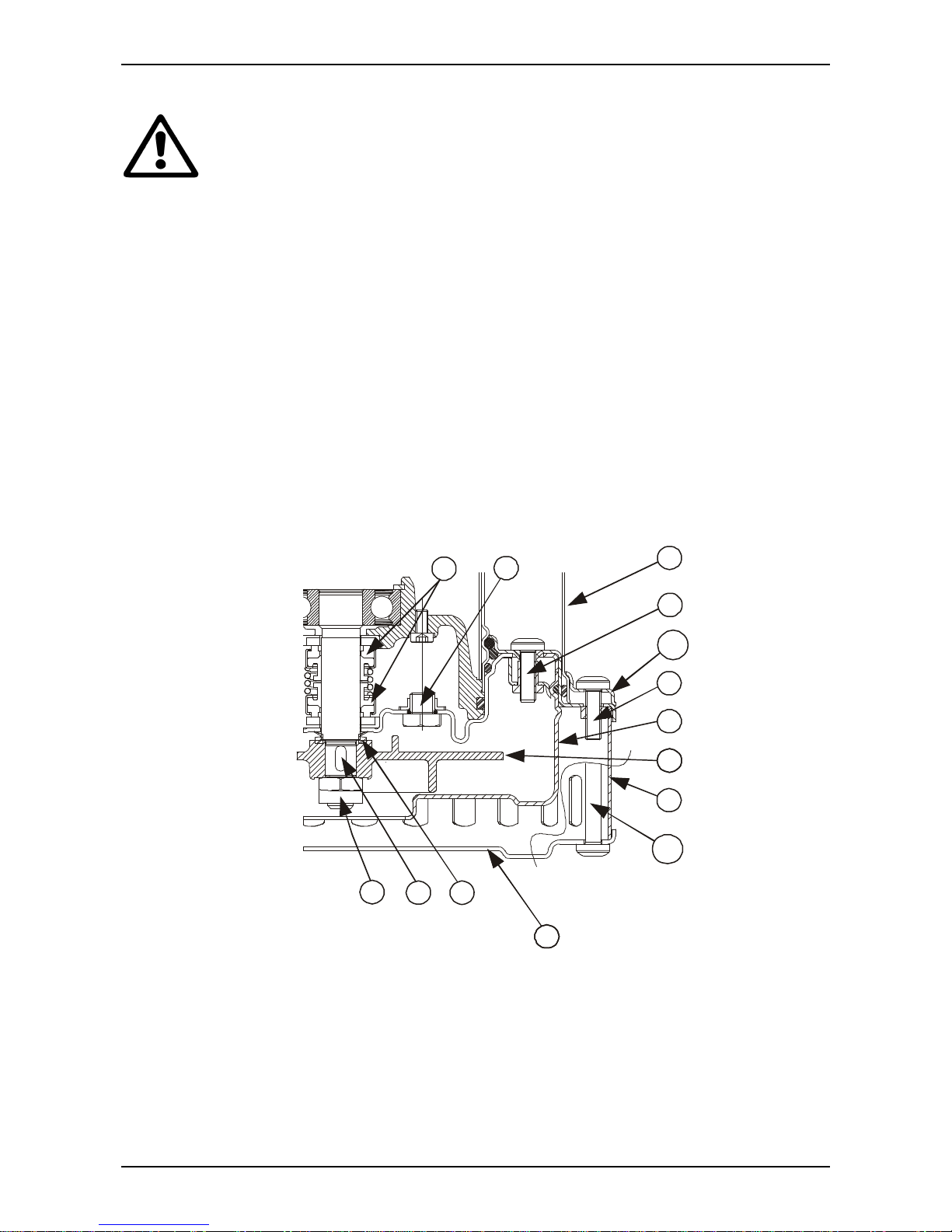

CHECKING AND CHANGING THE SEALING OIL FEKA VS-VX
To perform this operation, slacken the six screws (45) so as to be able to remove the
strainer cover , the strainer and the pump body (1). Retain the O-ring (28) and the nuts
(51). Using a suitable spanner, unscrew the impeller retaining nut (18), holding the
impeller (4) still with your hand. Retain the key (17) and the sand guard (15). Now
overturn the pump with the hydraulic part facing upwards, unscrew and remove the
drainage cap (64).
Tilt the pump so as to let the oil flow out of the drainage hole (64) and catch it in a
container. Analyse the oil: if you find any particles of water or abrasive materials (for
example, sand) it is advisable to check the condition of the mechanical seal (16) and to
have it changed if necessary (at a specialized centre). In this case change the oil too,
with about 170 gr of oil type MARCOL 152ESSO.
Top up the oil level inside the sealing oil chamber using a special funnel inserted in the
hole in the cap (64). Screw the drainage cap (64) back on and perform the disassembly
operations in inverse order to reassemble the pump after having spread a suitable
amount of teflon grease in the seat of the sand guard (15).
OLD OIL MUST BE DISPOSED OF AS REQUIRED BY THE REGULATIONS
IN FORCE.
(Fig.6)
18 17 15
1
4
45
64
16

ENGLISH
23
CHECKING AND CHANGING THE SEALING OIL DRENAG 1000-1200
To perform this operation you must unscrew the six screws of the flange (45) so as to
be able to remove the flange (105) and the outer jacket (77). Unscrew the three screws
of the filter cover (136) and remove the cover (92) and the filter (42). Unscrew the four
screws of the pump body (52) and remove the pump body (1). Using a suitable wrench,
unscrew the nut (18) that blocks the impeller, holding the impeller (4) still with your
hand. Remove the impeller (4), if necessary with the aid of levers. Recover the tab (17)
and the sand protection ring (15), unscrew and remove the cap (64). Tilt the pump so as
to drain the oil out of the hole of the cap (64) and pour it into a container.
Analyse the oil: if you find any particles of water or abrasive materials (for example,
sand) it is advisable to check the condition of the mechanical seal (16) and to have it
changed if necessary (at a specialized centre). In this case change the oil too, with
about 170 gr of oil type MARCOL 152 ESSO.
Top up the oil level inside the sealing oil chamber using a special funnel inserted in the
hole in the cap (64). Screw the drainage cap (64) back on and perform the disassembly
operations in inverse order to reassemble the pump after having spread a suitable
amount of teflon grease in the seat of the sand guard (15).
Attention! During assembly, fit all the O-rings correctly, without damaging them.
OLD OIL MUST BE DISPOSED OF AS REQUIRED BY THE REGULATIONS
IN FORCE.
(Fig.7)
18 17 15
92
136
42
4
1
45
52
77
6416
105

ENGLISH
24
MODIFICATIONS AND SPARE PARTS
Any modification not authorized beforehand relieves the manufacturer of all
responsibility. All the spare parts used in repairs must be original ones and the
accessories must be approved by the manufacturer so as to be able to guarantee
maximum safety of the machines and systems in which they may be fitted.
The manufacturer declines all responsibility for possible errors in this booklet, if due to misprints or
errors in copying. The company reserves the right to make any modifications to products that it
may consider necessary or useful, without affecting the essential characteristics.
TROUBLESHOOTING
FAULT CHECK
(possible cause)
REMEDY
1. The motor does not
start and makes no
noise.
A. Check that the motor is live.
B. Check the protection fuses.
C. The float switch does not allow starting.
B. If they are burnt-out, change them.
C. -Ensure that the float moves freely.
-Ensure that the float is efficient (contact
the supplier).
2. The pump does not
deliver.
A. The intake grid or the pipes are blocked.
B. The impeller is worn or blocked.
C. The check valve, if installed on the
delivery pipe, is blocked in closed
position.
D. The level of the liquid is too low. When
starting, the level of the liquid must be
higher than that of the strainer.
E. The required head is higher than the
pump characteristics.
A. Remove the blockage.
B. Change the impeller or remove the
blockage.
C. Check that the valve is operating
correctly and replace it if necessary.
D. Adjust the length of the float switch cable
(SEE THE PARAGRAPH ON
"ADJUSTING THE FLOAT SWITCH").
3. The pump does not
stop. A. The switch is not disactivated by the
float.
A. -Ensure that the float moves freely.
-Check float efficiency (the contacts
could be damaged - contact the supplier).
4. The flow is
insufficient.
A. Ensure that the intake grid is not partly
blocked.
B. Ensure that the impeller or the delivery
pipe are not partly blocked or encrusted.
C. Ensure that the impeller is not worn.
D. Ensure that the check valve (if fitted) is
not partly clogged.
E. On three-phase motors, check that the
direction of rotation is correct (See the
paragraph on "CHECKING THE
DIRECTION OF ROTATION").
A. Remove any blockage.
B. Remove any blockage.
C. Change the impeller.
D. Carefully clean the check valve.
E. Invert the connection of two supply
wires.
5. The thermal overload
protection stops the
pump.
A. Check that the liquid to be pumped is not
too dense as this could cause overheating
of the motor.
B. Check that the water temperature is not
too high.
C. The pump is partly blocked by impurities.
D. The pump is mechanically blocked.
C. Carefully clean the pump.
D. Check whether there is rubbing between
the moving and fixed parts; check the
wear of the bearings (contact the
supplier).

135
Modello / Modèle / Model
/Modell / Model /Modelo
Modell / Model / Модель
QY¥} / Malli / Model
Prevalenza / Hauteur d'élévation / Head up
Förderhöhe / Overwicht / Prevalencia
Maximal pumphöjd / Manometrik yükseklik /Напор
x¥tK{A / Nostokorkeus / Wysokość ciśnienia
Hmax (m) 2 poles 50 Hz Hmax (m) 2 poles 60 Hz
FEKA VS 550 7.4 7.4
FEKA VS 750 9.6 9.6
FEKA VS 1000 11.8 11.8
FEKA VS 1200 14 15.2
FEKA VX 550 7.4 7.4
FEKA VX 750 9.6 9.6
FEKA VX 1000 11.8 11.8
FEKA VX 1200 14 15.2
DRENAG 1000 15.3 15.3
DRENAG 1200 17 17

DAB PUMPS LTD.
Units 4 & 5, Stortford Hall Industrial Park,
Dunmow Road, Bishop’s Stortford, Herts
CM23 5GZ - UK
[email protected]
Tel.: [phone]
Fax: [phone]
DAB PUMPEN DEUTSCHLAND GmbH
Tackweg 11
D - 47918 Tönisvorst - Germany
[email protected]
Tel.: [phone]
Fax: [phone]
DAB UKRAINE Representative Office
Regus Horizon Park
4M. Hrinchenka St, suit 147
03680 Kiev. UKRAINE
Tel. [phone]
DAB PRODUCTION HUNGARY KFT.
H-8800
NAGYKANIZSA, Buda Ernóu.5
HUNGARY
Tel. [phone]
DAB PUMPS B.V.
Albert Einsteinweg, 4
5151 DL Drunen - Nederland
[email protected]
Tel.: [phone]
Fax: [phone]
DAB PUMPS B.V.
Brusselstraat 150
B-1702 Groot-Bijgaarden - Belgium
[email protected]
Tel.: [phone]
Fax: [phone]
DAB PUMPS IBERICA S.L.
Avenida de Castilla nr.1 Local 14
28830 - San Fernando De Henares - Madrid
Spain
[email protected]
Ph.: [phone]
Fax: [phone]
PUMPS AMERICA, INC. DAB PUMPS DIVISION
3226 Benchmark Drive
Ladson, SC 29456 USA
[email protected]
Ph. : 1-843-824-6332
Toll Free: 1-866-896-4DAB (4322)
Fax : [phone]
OOO DWT GROUP
100 bldg. 3 Dmitrovskoe highway,
127247 Moscow - Russia
[email protected]
Tel.: [phone]
Fax: [phone]
DAB PUMPS CHINA
No.40 Kaituo Road, Qingdao Economic &
Technological Development Zone
Qingdao City, Shandong Province, China
PC: 266500
[email protected]
Tel.: [phone]-6270
Fax: [phone]
DAB PUMPS S.p.A.
Via M. Polo, 14 - 35035 Mestrino (PD) - Italy
Tel. [phone] - Fax [phone]
www.dabpumps.com
DWT South Africa
Podium at Menlyn, 3rd Floor, Unit 3001b,
43 Ingersol Road, C/O Lois and Atterbury,
Menlyn, Pretoria, 0181 South-Africa
[email protected]
Tel [phone]
Fax [phone]
DAB POLAND - Representative Office
Mokotow Marynarska
Ul. Postepu 15c - 3rd Floor
02-676 Warsaw - POLAND
Tel. [phone]
06/14 cod.60110127
