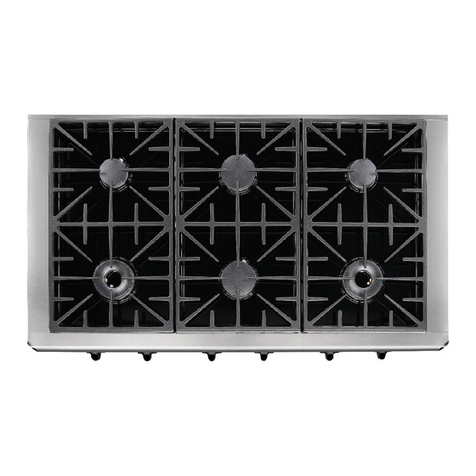

36 Inch and 48 Inch Wide
Epicure®Gas Cooktops
EG366, EG486
ELECTRIC CIRCUIT REQUIREMENTS
Circuit Required Total Connected Load
120 Vac 60Hz, 15 Amp. (3 wire) 0.25 Amp @ 120 Vac, 60 Hz
GAS SUPPLY PRESSURE REQUIREMENTS*
Gas Type Manifold Pressure Minimum Gas Supply
Pressure
Natural Gas 5” Water Column 6” Water Column
Propane (LP) 10” Water Column 11” Water Column
* Maximum gas supply pressure for all models is 1/2 p.s.i.
IMPORTANT: Installation of a non-combustible material* (up to the hood) or
a backsplash is always recommended, and mandatory if the distance to the
back wall from the cooktop is less than 2 1/2” (Figure 2). When installing a
backguard, use only Dacor model numbers AEB3609, AEB3612 (EG366),
AEB4809 or AEB4812 (EG486).
CABINET/COUNTERTOP SIDE VIEW WITHOUT BACKGUARD
CABINET/COUNTERTOP SIDE VIEW WITH BACKGUARD
PRODUCT DIMENSIONS - SIDE VIEW
PRODUCT DIMENSIONS - ISO VIEW
A - Width
EG366 35 7/8” (911 mm)
EG486 47 7/8” (1216 mm)
Product tolerances: ±1/16” (±1.6 mm) unless otherwise noted
WARNING
Observe all governing codes and ordinances during planning•
and installation. Contact your local building department for
further information.
This appliance must be installed in accordance with the•
accompanying installation instructions.
Document # PG04 - 001 Revised 09/09/09 Page 1/4
4” (102 mm) 5/8”
(16 mm)
7 3/4”
(197 mm)
Trim:
7/16”
(11 mm)
thick
26” (660 mm)
1 1/2” (38 mm) cooking surface
height (grate level) above
countertop
3/4” gas inlet, connects to regulator from
bottom or rear of unit, end is recessed
2” (51 mm) from chassis bottom
27” (686 mm)
28” (711 mm)
Power cord
32” long
Combustible
rear wall
Backguard mandatory if
gap from back of cooktop
to combustible wall is less
than 2 1/2”
Combustible
rear wall
2 1/2” (64 mm) Min. to
combustible rear wall

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specications are subject to change without notice.
See installation instructions for additional details. 4.6
See note 2
2See Cabinet/Countertop Dimensions - Top View
3Not applicable for cabinets more than a horizontal
distance of 10” (254mm) from the edge of the cooktop.
1Vertical to combustible surface from cooktop grate level;
if installing an overhead vent hood, also check the hood
specifications for minimum required clearances.
C
13” (330 mm)
max.3
Top of
finished
counter
18” (457 mm)
Min.1, 3
30” (762 mm)
Min.1Cutout for
utility access
Hood
Recommended
gas and electrical
service location,
consult local code
B
10” (254 mm) to
combustible side
wall Min. both sides 1/2” (13 mm)
overhang,
both sides
1 1/2” (38 mm)
typical countertop
thickness
7 3/4”
(197 mm)
36” (914 mm)
typical
Cooktop platform
1” (25 mm) Min.
thickness
Model No. B C
EG366 36” (914 mm) 36” (914 mm)*
42” (1067 mm)**
EG486 48” (1219mm) 48” (1219 mm)*
54” (1372 mm)**
* Minimum ** Recommended
Cabinet tolerances: +1/16”, -0 (+1.6 mm, -0) unless otherwise noted.
CABINET/COUNTERTOP DIMENSIONS - FRONT VIEW
CABINET/COUNTERTOP DIMENSIONS -
ISO VIEW
Continued on following pages...
36 Inch and 48 Inch Wide
Epicure®Gas Cooktops
EG366, EG486
Document # PG04 - 001 Revised 09/09/09 Page 2/4

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specications are subject to change without notice.
See installation instructions for additional details. 4.7
CABINET/COUNTERTOP CUTOUT DIMENSIONS WITHOUT RAISED VENT - TOP VIEW
Model No. B - Cutout Width D - Hole Offset
EG366 36” (914 mm) 16 5/8” (422 mm)
EG486 48” (1219 mm) 20 13/16” (529 mm)
Cutout tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated
36 Inch and 48 Inch Wide
Epicure®Gas Cooktops
EG366, EG486
Document # PG04 - 001 Revised 09/09/09 Page 3/4
Non-combustible
rear wall, rear of
mounting platform
10” (254 mm) min.
to combustible wall
above countertop,
both sides
Cabinet face
below countertop
overhang
Increase countertop and overhang
additional 2 1/2” (64 mm) Min. for
combustible rear wall above
countertop
3/8” (13 mm)
countertop overhang
Hole 1/2” dia. (13 mm),
2 places, through platform
for hold down bolts
Gas/electrical utility cut-out in right rear corner of
mounting platform 8” W X 6” D (203 mm X 152 mm),
if gas and electrical are routed through bottom
1/2” (13 mm)
countertop
overhang
1” thick mounting platform Min.
Countertop
Countertop
1/2” (13 mm)
countertop
overhang
2” (51 mm)
1” (25 mm)
11 7/16”
(291 mm)
24 5/8”
(625 mm)
C
L
D D
B
C
LC L
C
L
Gas connection and power cord may be
routed through bottom or back of chassis
Gas and electrical connections at
right rear section of chassis

PLANNING
GUIDE
www.Dacor.com
Phone: [phone]
Specications are subject to change without notice.
See installation instructions for additional details. 4.8
CABINET/COUNTERTOP CUTOUT DIMENSIONS WITH RAISED VENT - TOP VIEW
CABINET/COUNTERTOP CUTOUT DIMENSIONS
WITH RAISED VENT - SIDE VIEW
36 Inch and 48 Inch Wide
Epicure®Gas Cooktops
EG366, EG486
Document # PG04 - 001 Revised 09/09/09 Page 4/4
Model No. B - Cutout
Width
D - Hole
Offset
E - Raised Vent
Cutout
EG366 36”
(914 mm)
16 5/8”
(422 mm)
33 1/2”
(851 mm)
EG486 48”
(1219 mm)
20 13/16”
(529 mm)
43 1/2”
(1105 mm)
Model
No.
Approved Raised
Vent Models
EG366 ERV36, PRV36
EG486 ERV48, PRV48
Cutout tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated
Non combustible rear
wall recommended 10” (254 mm) Min. to
combustible wall
above countertop,
both sides
Cabinet face
below countertop
overhang
3/8” (10 mm) Min.
countertop overhang
2 5/8”
(67 mm)
Hole 1/2” dia. (13 mm),
2 places, through platform
for hold down bolts
1/2” (13 mm)
countertop
overhang
1” thick mounting platform Min.
Open to below to allow for raised
vent, gas and electrical connections
Countertop
Countertop
1/2” (13 mm)
countertop
overhang
2” (51 mm)
1” (25 mm)
11 7/16”
(291 mm)
15”
(381 mm)
24 5/8”
(625 mm)
C
L
DD
E
B
C
LC L
C
L
Stiffener
Cabinet face
Control panel
Countertop
Dacor approved
raised vent
IMPORTANT: See raised vent
installation instructions for
duct system layout/planning
EG366 or EG486 cooktop
3/8” Min. (10 mm)
space behind
raised vent
chassis to clear
stiffener
3/8” Min. (10 mm)
flat countertop overhang
required behind cutout
Minimum
countertop
height:
30 1/4"
(768 mm)
IMPORTANT: Use only the raised vents specified.
