Dacor Preference PGM304-1 Technical manual

PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: [phone]
Specifications are subject to change without notice.
See installation instructions for additional details. 4.7
30”, 36”, 46” Wide,

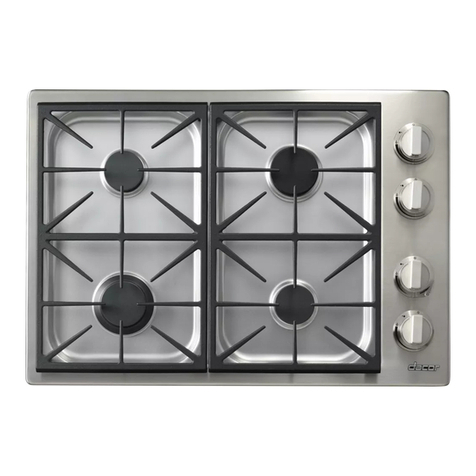

Preference™ Gas Cooktops
PGM304-1, PGM365-1
1/2
30"
(762mm)
21"
(533mm)
4" (102mm)
Chassis height
1/4" (6mm) Min.
to combustibles
below chassis
27 1/2"
(699mm)
19 7/8" (505mm)
3 1/8"
(79mm)
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
Vertical
combustible
surface
Rear
wall
2"
(51mm) Min.
25" (635mm)
Minimum
Cutout Dimensions for the PGM304-1
36"
(914mm)
21"
(533mm)
19 7/8"
(505mm)
33 3/4"
(857mm)
4" (102mm)
Chassis height
3 1/8"
(79mm)
1/4" (6mm) Min.
to combustibles
below chassis
7 1/2" (191mm) Min.
to combustible
side wall above
the cooktop
(both sides)
Vertical
combustible
surface
Rear
wall
2"
(51mm) Min.
25" (635mm)
Minimum
Cutout Dimensions for the PGM365-1
Axis2Axis2
Revised
06/24/08

PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: [phone]
Specifications are subject to change without notice.
See installation instructions for additional details. 4.8
30”, 36”, 46” Wide,
Preference™ Gas Cooktops
PGM304-1, PGM365-1
Model No.
Dedicated
Circuit
Required
Total
Connected
Load
Gas Supply
Requirements
Approximate
Shipping
Weight
PGM304-1 120 Vac,
60 Hz,
15 Amp
(Breaker)
0.03 kW
(0.25 Amp)
1/2” (13 mm)
Regulator -
Natural Gas
Standard
53 lbs.
PGM365-1
3/4” (19 mm)
Regulator -
Natural Gas
Standard
67 lbs.
NOTES:
1. Factory installed propane (LP) special ordered.
2. Cooktop is supplied with a 40” (1016 mm) power
cord, with a three-prong grounded plug.
3. Utilities connections are located on the bottm of
the chassis at the right rear corner of the cooktop.
4. See the Combination Installation (CI) section if
installing with a downdraft, wall oven, or warming
oven.
2/2
13" Max.
(330 mm)
A
3 1/8" Min.
(79 mm)
18" Min.
(457 mm)
30" Min.
(762 mm)
Clearances to Combustibles
Model
“A”
Minimum
“A”
Recommended
PGM304-1 30” (762 mm) 36” (914 mm)
PGM365-1 36” (914 mm) 42” (1067 mm)
Model
“B”
Minimum
PGM304-1 29” (737 mm)
PGM365-1 35 1/4” (895 mm)
1/4” (6 mm)
Mimimum clearance
to combustible
surfaces
B
Under Cabinet Clearances
(Front View)
Revised
06/24/08
All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.
